THANK YOU FOR CHOOSING OUR ICE MAKER
PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING
IC E MAKER
INSTRUCTION MANUAL
Model: ICM1216
1. Read all instructions before using.
2. Remove all packing material and carefully check your ice maker
to ensure it is in good condition and that there is no damage to
the ice maker or power cord and plug.
3. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
5. This appliance is intended to be used in household and similar
applications such as
–staff kitchen areas in shops, offices and other working
environments;
–farm houses and by clients in hotels, motels and other
residential type environments;
IMPORTANT NOTICES
When using an electrical appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/or
injury, including the following:
1
–bed and breakfast type environments;
6. –Warning: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
–WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
–WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
–WARNING: fill with potable water only.
7. Before using the Ice maker for the first time, please wait 2 hours
after positioning it, and keep the transparent lid open for at least
2hours
8. Pure water is not allowed to be used on this unit, spring water is
recommended.
9. Ensure the voltage is compliant with the voltage range stated on
the rating label, and ensure the earthing of the socket is in good
condition.
10. Do not upend this product or incline it over a 45℃ angle.
11. To protect against risk of electric shock, do not pour water on
cord, plug and ventilation, immerse the appliance in water or any
other liquid.
12. Unplug the appliance after using or before cleaning.
13. Keep the appliance 8cm from other objects to ensure the good
heat releasing.
14. Do not use the accessories which are not recommended by
Manufacturer.
15. Do not use the appliance close by flames, hot plates or stoves.
16. Do not switch on the power button frequently (ensure 5min.
interval at least) to avoid the damage of compressor.
17. Do not use outdoors.
2
18. Never clean with scouring powders or hard implements.
19. Please keep the instruction manual.
20. To avoid contamination of food, please respect the following
instructions:
–Opening the door for long periods can cause a significant
increase of the temperature in the compartments of the
appliance.
–Clean regularly surfaces that can come in contact with food
and accessible drainage systems.
–Clean water tanks if they have not been used for 48 h; flush the
water system connected to a water supply if water has not been
drawn for 5 days.
–If the refrigerating appliance is left empty for long periods,
switch off, defrost, clean, dry, and leave the door open to prevent
mould developing within the appliance.)
21. Regarding the information pertaining to the use of the appliance,
please refer to the paragraphs below.
3
SPECIFICATIONS
Model Number：ICM1216
Daily Ice Output：26Lbs.(12kg) / 24 hours
Ice Sizes：Small or Large
Ice Storage Capacity：600 g
Refrigerant：R600a
Water Reservoir Capacity：2.1 L
Voltage: AC 110-120V
Frequency: 60 Hz
Power Consumption: 120 W
Max overall dimensions(W×D×H)：248×372×315 mm
Packing Dimensions(L×W×H)：476×351×407 mm
N.W: 9 kg
G.W: 10.7 kg
4

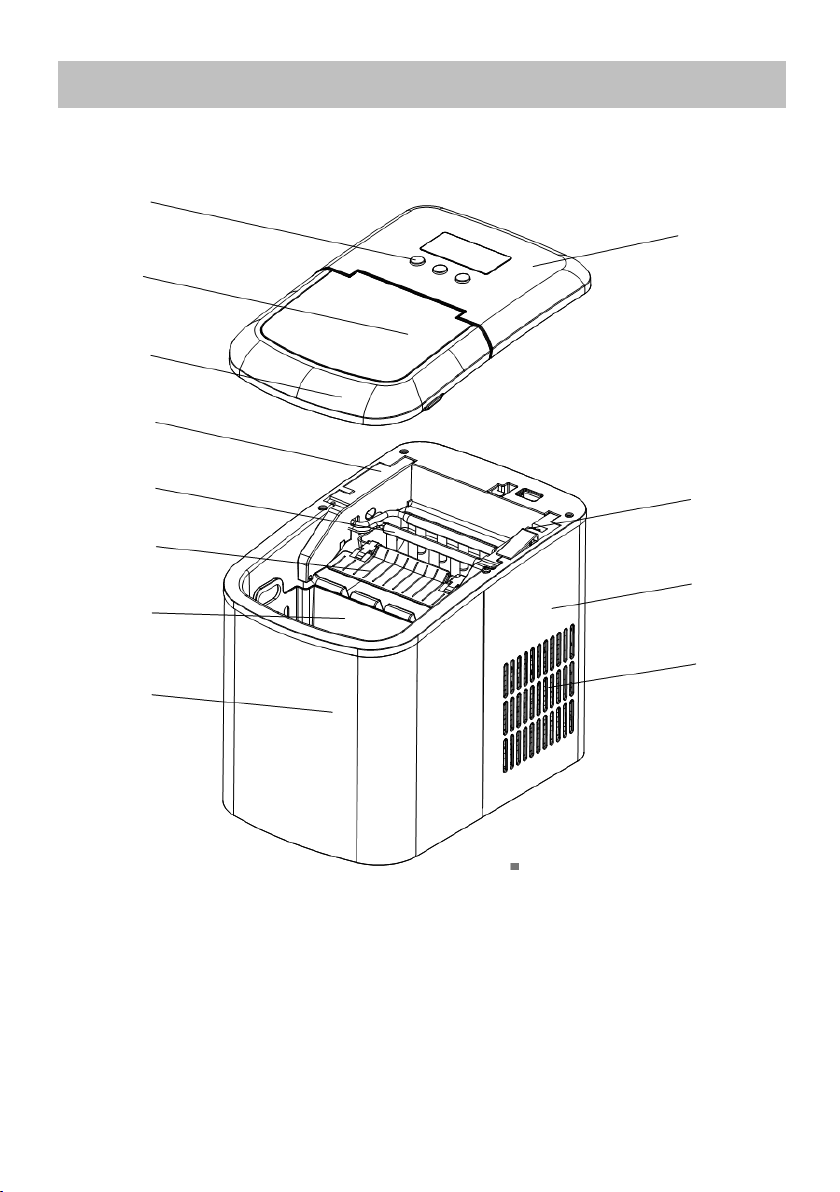

DESCRIPTION
1. Buttons
2. Transparent lid
3. Transparent cover trim
4. Micro switch support
5. Evaporator
6. Ice shovel board
7. Ice collecting tray
8. Front housing
9. Metal cover
10. Motor mount
11. Rear housing
12. Air vent
5
9
1
2
3
4
5
6
7
8
10
11
12
FEATURE
Quick ice making
Two different sizes of ice can be made
Prompt when the ice is full and water is insufficient
Bullet ice
9 pcs ice can be made at a time
Produce up to 12 kg of bullet ice per 24 hours
1. During transportation, do not tilt the machine more than 45
degrees, do not reverse the machine. This may damage the
compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and
make sure that the machine, power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient
ventilation, the distance of the back of ice maker to the wall should
be at least 150 mm, it should be away from the oven, radiator or
other heat source.
4. Before using the machine for the first time, place the machine and
leave the transparent cover open for at least two hours.
5. Make sure that the home voltage is consistent with the voltage
indicated by the machine.
6. Distilled water is not allowed. Mineral water is recommended.
6

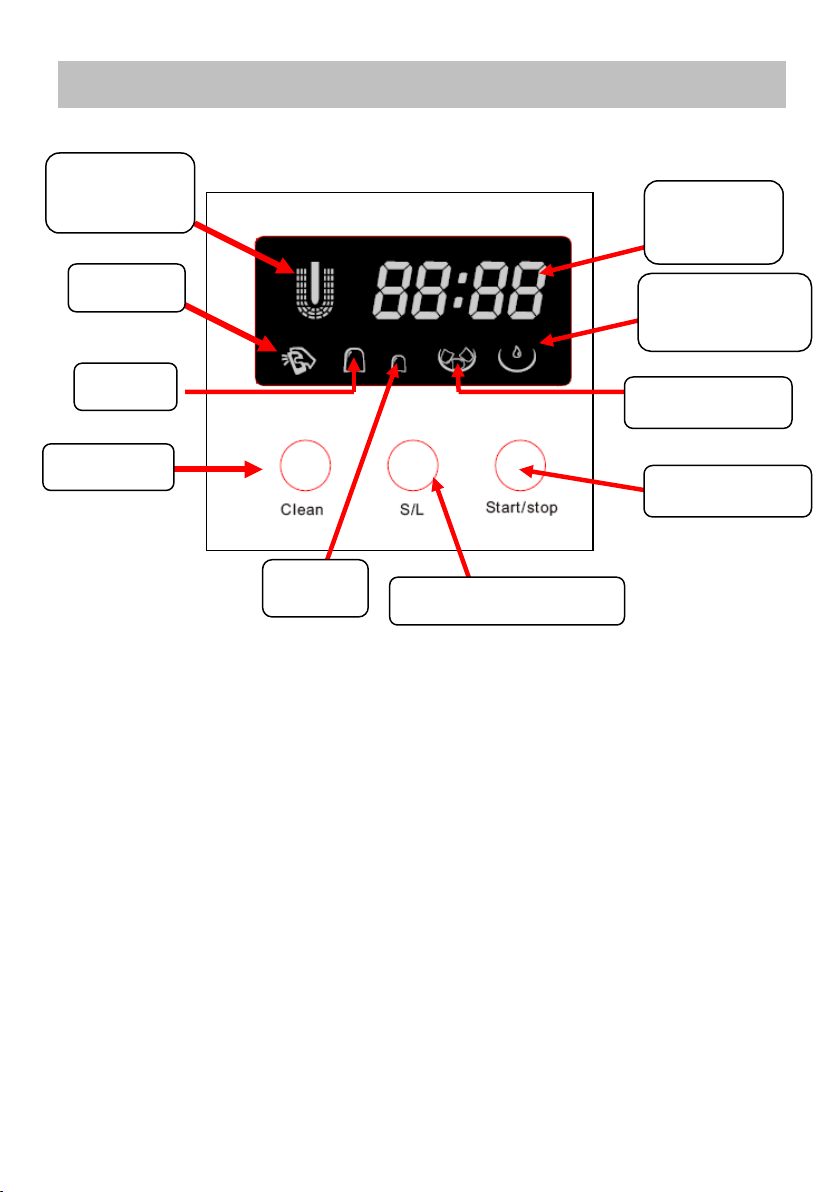

CONTROL PANEL OPERATION
1. Plug in the power, the display will be on, the machine will start the
de-icing function first, and the machine will automatically enter
the standby mode after no operation.
2. Clean button: cleaning function, press the Clean button, then
press the Start/Stop button, the machine will automatically enter
the cleaning function, the period is about 150 seconds, please do
not turn off the power during the cleaning, the machine
automatically enters the standby mode after cleaning .
3. S/L button: Select the ice size mode. The default is the big ice
production mode. The icon of the selected mode is displayed.
The production time of small ice is one minute less than that of
big ice.
ICE MAKING
STATUS
CLEAN
BIG ICE
SMALL ICE
FULL ICE ALARM
WATER STROAGE
ALARM
ICE MAKING
TIME
BIG/SMALL ICE OPTIONAL
Clean button
Start/Pause button
7
4.
5.
6.
7.
Start / stop button: After plugging in the power, press the Start /
stop button, the machine starts the ice making function, the
default is the big ice production mode.
Time display: After the machine starts to make ice, the time
starts to count, the calculation time starts in minutes, the machine
display time does not stop during the machine work, when the
display is 99:99, the time is reset from the new zero, and so on.
Water shortage alarm: If no water flow is detected during 5
seconds during pumping, the water shortage icon is displayed
and the machine stops working. At the same time, start the water
discharge solenoid valve to discharge the externally connected
water into the machine. If there is no external water connection,
the machine will shut down and enter the water shortage alarm
state 30 seconds later.
Ice full reminder: When the machine compressor is not working,
the infrared indicator light is blocked for more than 5 seconds,
then the ice full icon is displayed, and the machine stops working.
The ice full icon flashes in 1/4 second.
The infrared light continues to be detected, and the machine
continues to work when the detection is not blocked.
OPERATING INSTRUCTIONS
Step 1
Open the lid and take out the basket and add water to the reservoir.
8
Note: There is a maximum scale MAX in the reservoir. The water
should not exceed the MAX position. If the water exceeds the
maximum scale MAX, you need to open the bottom drain plug,
release the excess water, and cover with a transparent cover.
Step 2
Plug in the power and press the Start/stop button to start the
machine.
Step 3
Select the size of the ice you want to make, default big ice
1. When the indoor temperature is lower than 15 degrees, please
choose small ice. When the indoor temperature is higher than 30
degrees, it is recommended to choose big ice.
2. The three cycles used for the first time, the ice produced is small
and irregular.
3. When the ice basket is full, please take out the ice immediately, do
not let the ice overflow the ice basket
EXTERNAL WATER CONNECTION FUNCTION
This product has the function of external water connection. The
operation method is as follows:
1. Connect the water source with the standard 1 / 4 PE pipe and
9
1. Clean the inner liner, ice collecting tray, water box, ice shovel
and evaporator frequently. When cleaning, unplug the unit and
remove the ice cubes. Use a diluted solution of water and
vinegar to clean the inside and the outside surface of the Ice
maker. Do not spray Ice maker with chemicals or diluted agents
such as acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the
built-in structure, clear of obstruction. Do not use mechanical
devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3. Reuse the machine after being idled for a period of time, it may
not have enough water to pump for air retard, in this case,
repress “START/STOP” to restart the ice maker is okay.
insert the other end into the quick connector at the end of the ice
machine (one side of the power line). Pay attention to plugging
tightly to avoid water leakage.
2. Turn on the water source and start the ice maker normally.
Note: after the machine is started for a period of time, when no water
is detected in the water tank, the machine will first enter the water
shortage alarm state, then start the solenoid valve to discharge the
external water (1L) into the water tank and start to work. If there is no
water outside, the machine will enter the water shortage alarm state.
If the external water pressure is too small, the solenoid valve will also
stop working if it is not filled with 1L water in 3 minutes.
CLEANING & USE GUIDANCE
10
4. To ensure the cleanness of ice, please change water for water
reservoir at least once one day. If do not use for a long time,
please drain the water out and clean it up.
5. If the compressor takes a strike action for shortage water, fully
water or interruption of power supply, it will delay for 3mins to
start up after restarted.
6. Always use fresh water before starting ice production either at
initial installation or after a long shut-off period.
1. Please note, if a power failure occurs due to disconnection of the
power cord, or the power button has been pushed off during an ice
making cycle, small ice chips may formed and lodge in the
automatic shovel causing it to jam. If this occurs, the ice chips may
be removed by disconnecting the power cord and gently pushing
the shovel to the rear of the cabinet and removing the ice chips,
then restarting.
2. Please check if the water reservoir is flat when the ice shovel can
not remove the ice to ice basket. If not, please push the ice shovel
gently by finger, then press Start/stop button to restart.
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
The compressor works
abnormally with a
Buzzing
Noise
The voltage is lower than
recommended
Stop the Ice maker and do not restart
until the voltage is normal.
Water shortage
indicator
light is on
1.There is no water
2.The pump is full of air
1.Add to some water until it reaches
MAX position
2.Press POWER button to restart
TROUBLE SHOOTING
11
Indicator lights on
display are not on Blown fuse/ No power Replace fuse / Turn power on
The Ice made is too
large
and with pieces sticking
together.
1.water temperature is too
low
2.Ice of previous cycles left
in the water tray
1.Select small size
2.Take out the ice under the standby
state
The ice making process
was correct, but no ice
came out?
1. The compressor has
no refrigerant
2. Compressor damaged
3. Fan motor damaged
Call the service hotline
Machine stuck and not
working
1. The water box is blocked
by ice.
2. The motor is stuck
, or
the motor falls off, or the
motor is damaged
3. Micro switch damaged
1. Take out the ice under the ice
shovel, plug in the power again, and
press the start / stop button. After 3
minutes, the machine will restart
automatically.
2. Call the service hotline
The machine has been
working, but the water
has been warming
Solenoid broke down Replace the solenoid valve
When the ice is full, the
machine does not
display the ice full Icon
Ice full sensor damaged 1. Replace the ice full sensor
2. Call the service hotline
12
1. If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard.
2. Fill with potable water only.
3. It is normal for the compressor and condenser surface to reach
temperatures between 70°C and 90°C during operation and
surrounding areas may be very hot.
4. Due to fast freezing, ice cubes may opaque. This is air trapped in
the water and will not affect quality or taste of ice.
5. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
6. Children should be supervised to ensure that they do not play
with the appliance.
7. Do not immerse in water.
Correct Disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of
material resources. To return your used device, please
use the return and collection systems or contact the
retailer where the product was purchased. They can
take this product for environmental safe recycling.
13
WARRANTY
Limited two-year warranty
This warranty is available to consumers only. You are a
consumer if you own a kumio ice maker that was purchased at
retail for personal, family or household use. Except as
otherwise required under applicable law, this warranty is not
available to retailers or other commercial purchasers or owners.
We warrant that your kumio ice maker will be free of defects in
materials and workmanship under normal home use for 2 years
from the date of original purchase. If your kumio ice maker is
prove to be defective (Non Man-damaged)within the warranty
period, we will offer free replacement or reimburse.
Thank you for using our products. Please contact
kumio@kumio.net or Customer Service Online if you have any
questions.
14
