NEC EA271U-BK-SV 27" 4K UHD Business-Class Widescreen User Manual

Please ﬁnd your model name in the label on the rear side of the monitor.

Desktop Monitor

MultiSync EA271U

User’s Manual

MODEL: EA271U, EA271U-BK

The regulations for this monitor applied to one of model names listed above.

Index

WARNING ....................................................................................................................................English-1

CAUTION .....................................................................................................................................English-1

Registration Information ...............................................................................................................English-2

Recommended use ......................................................................................................................English-3

Safety Precautions and Maintenance ..................................................................................English-3

Ergonomics ..........................................................................................................................English-4

Cleaning the LCD Panel .......................................................................................................English-4

Cleaning the Cabinet ............................................................................................................English-4

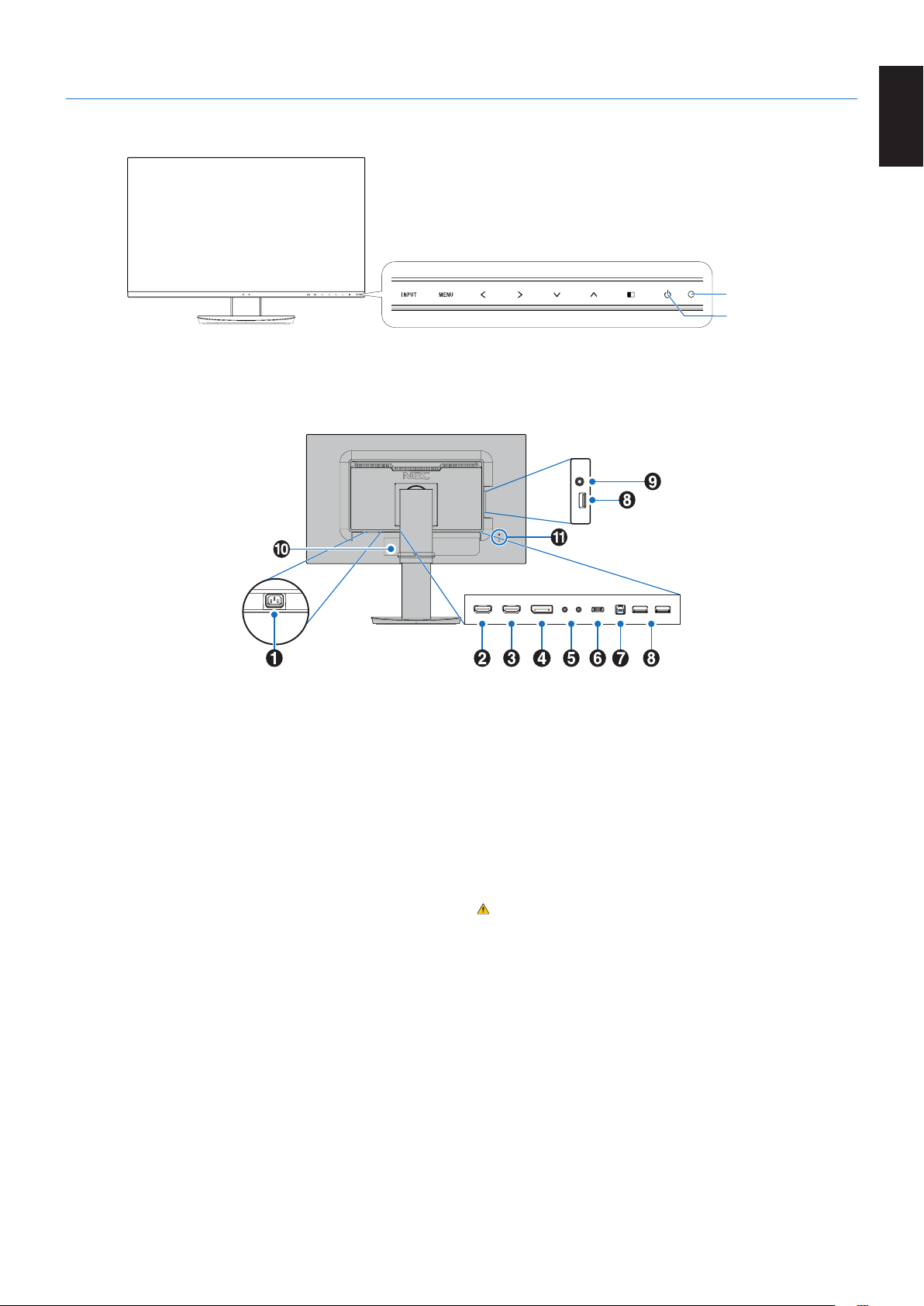

Parts Name and Functions ...........................................................................................................English-5

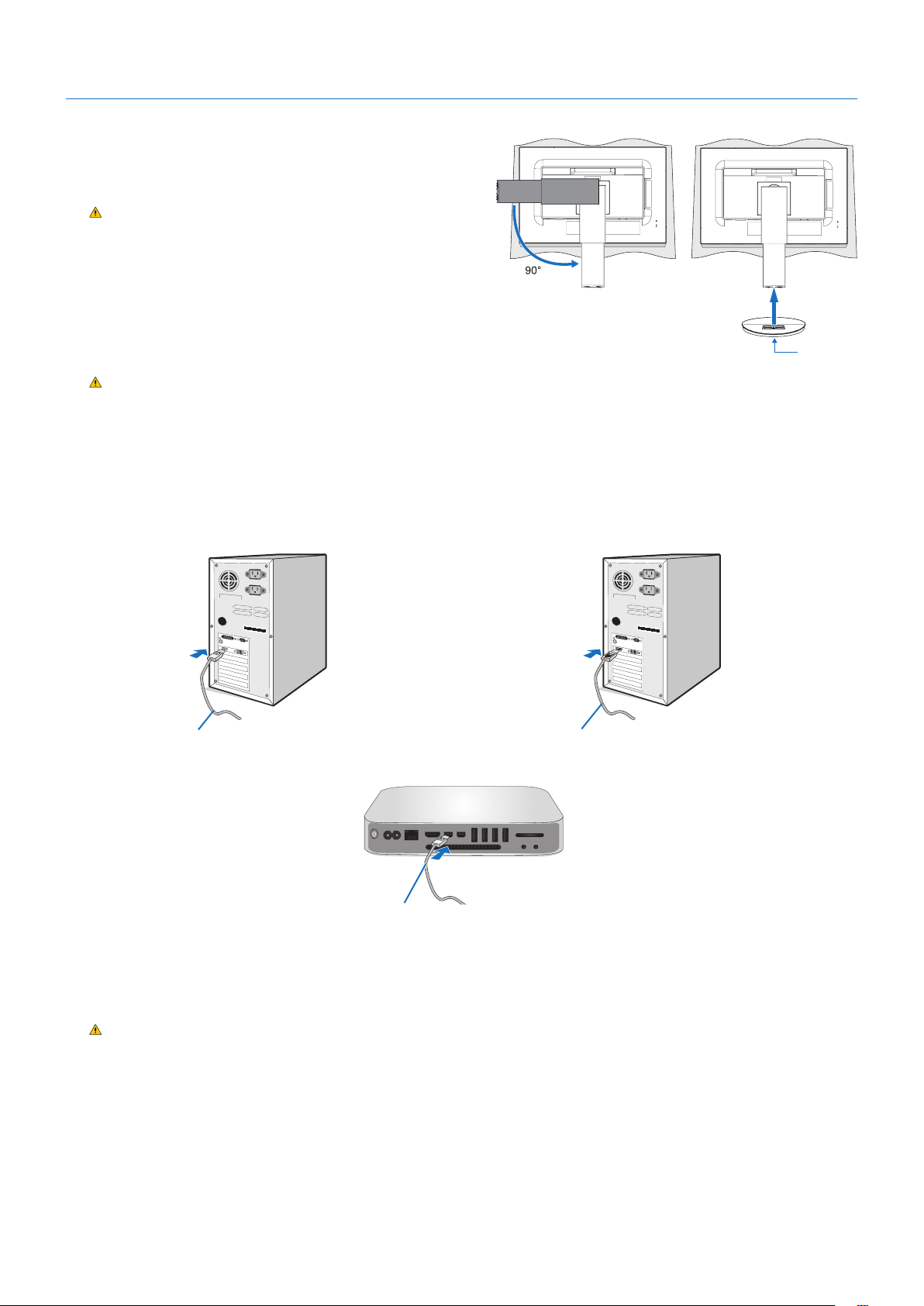

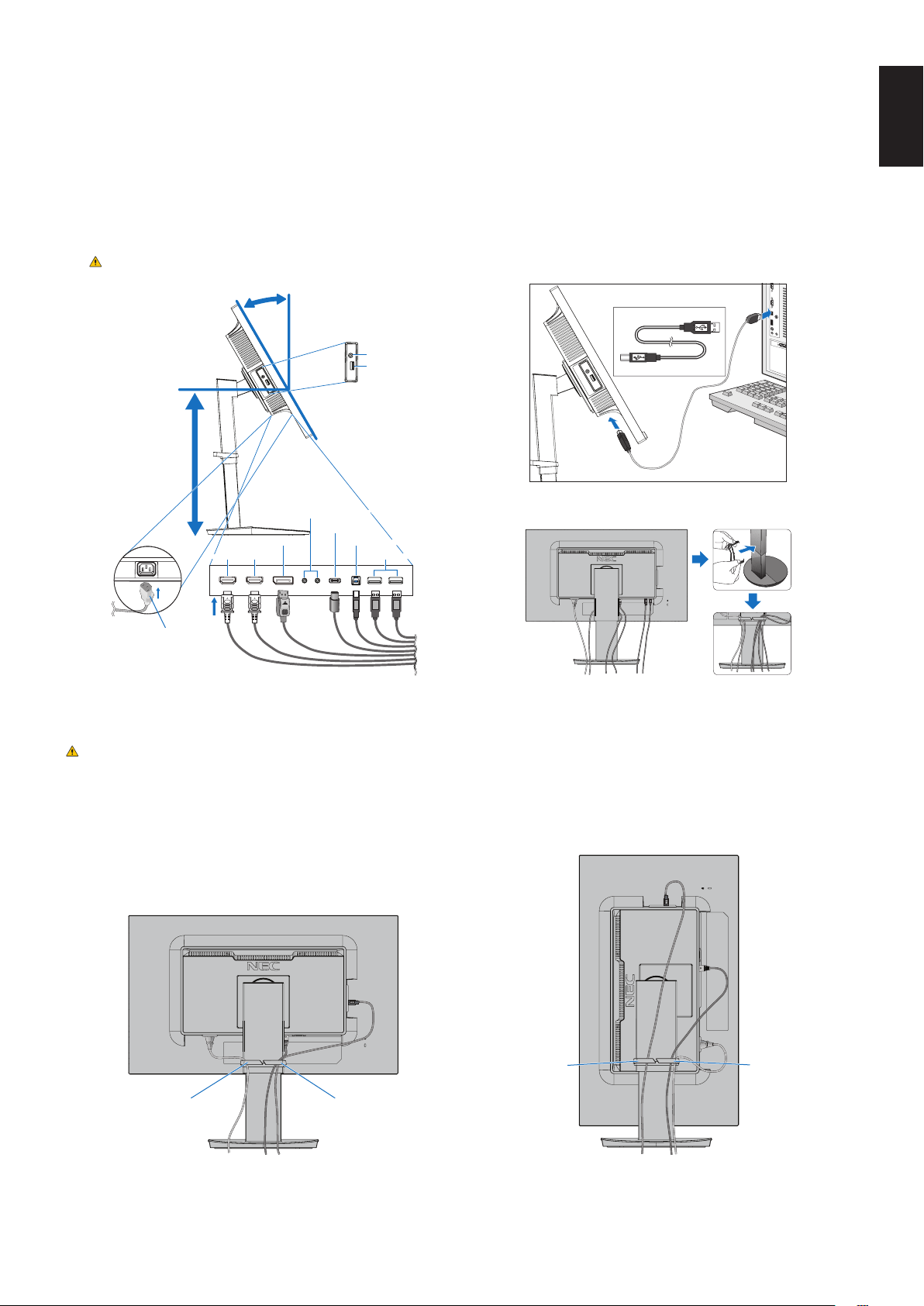

Quick Start ....................................................................................................................................English-6

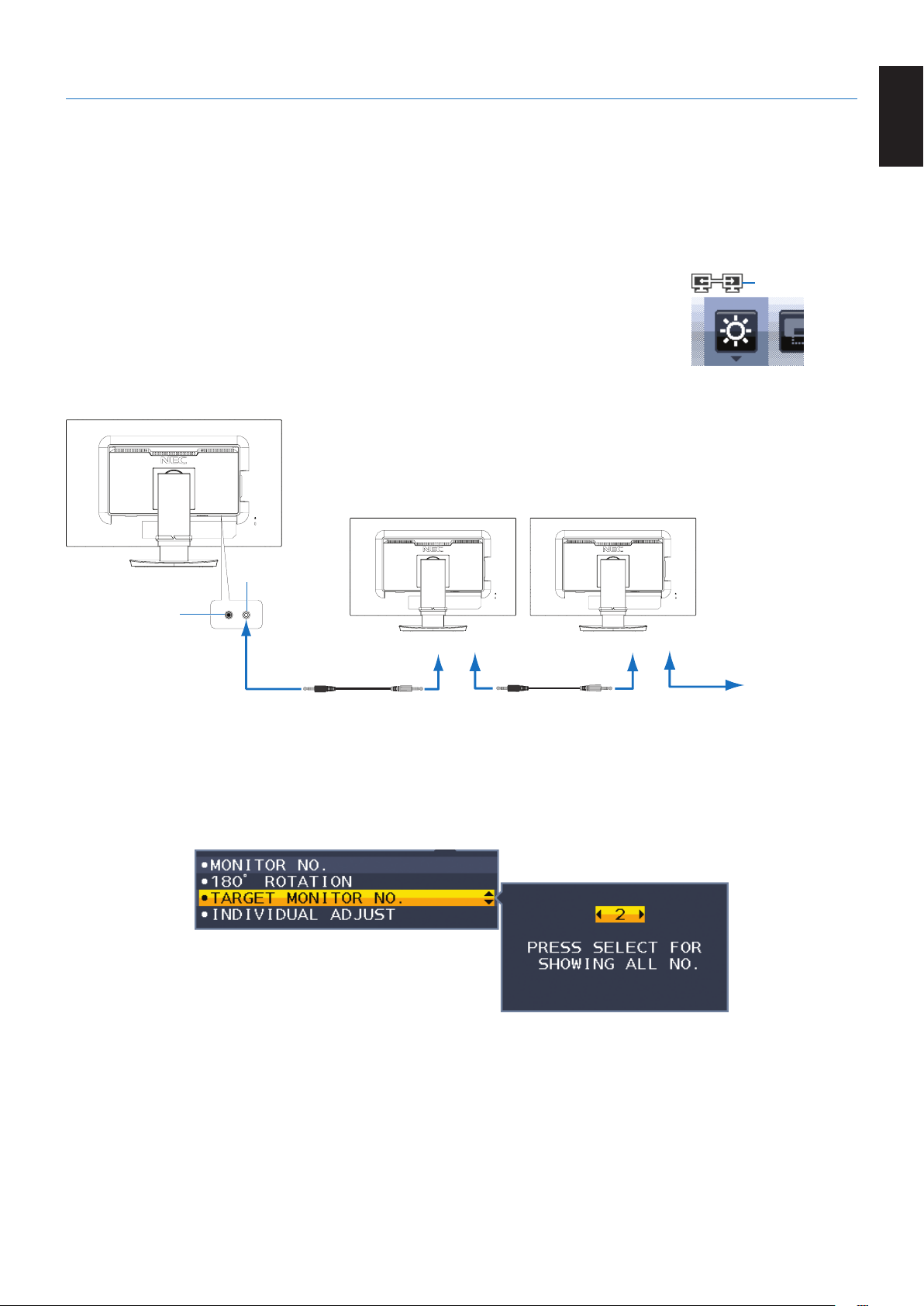

ControlSync ..................................................................................................................................English-11

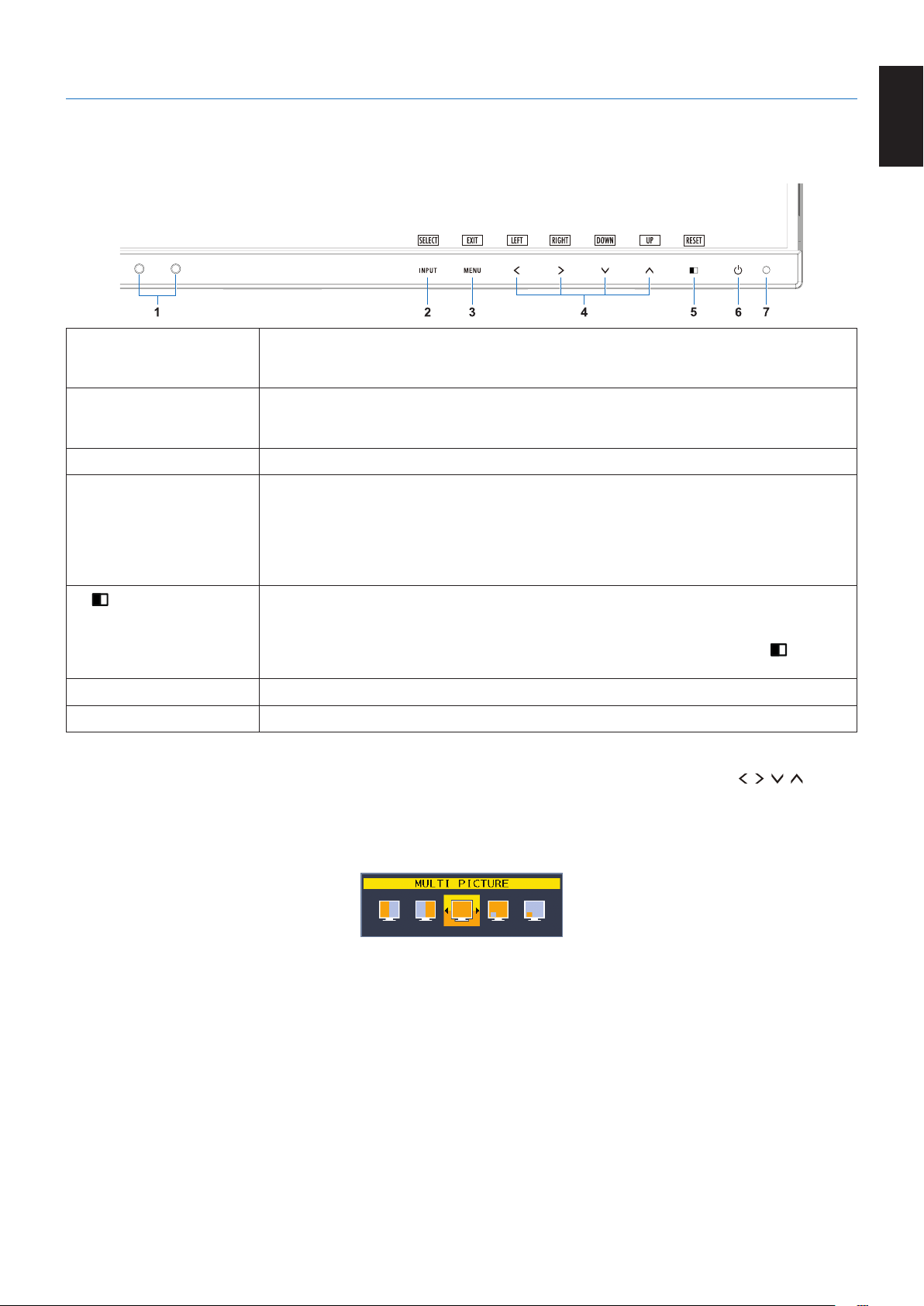

Controls ........................................................................................................................................English-13

Using the Picture Mode function ..................................................................................................English-22

Speciﬁcations ...............................................................................................................................English-23

Features .......................................................................................................................................English-25

Troubleshooting ............................................................................................................................English-26

Human sensing function ...............................................................................................................English-29

Using the Auto Brightness function ..............................................................................................English-30

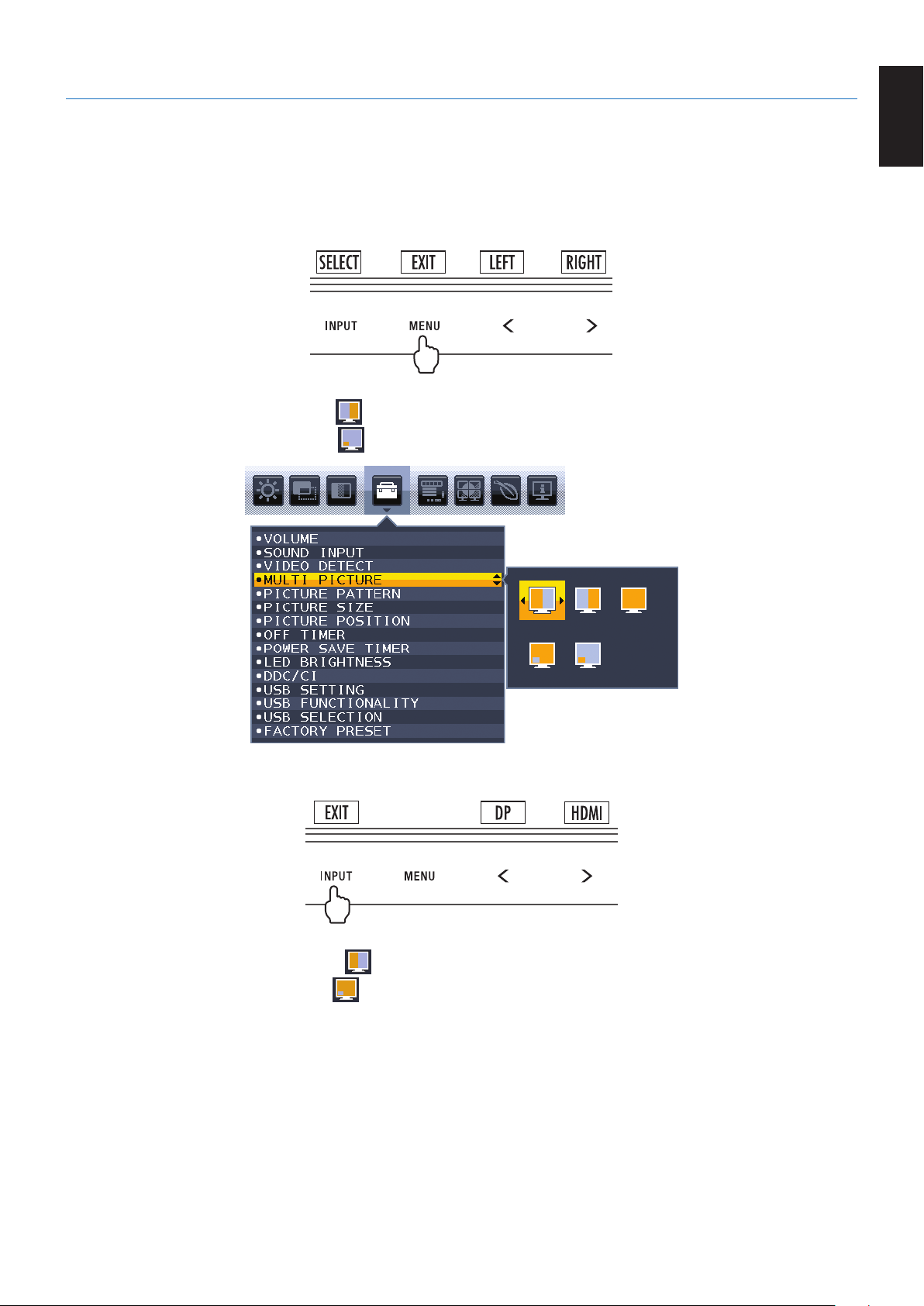

Using the MULTI PICTURE function ............................................................................................English-31

Using the Zoom function ..............................................................................................................English-32

DisplayPort, USB Type-C compatibility for 3840 x 2160 resolution ..............................................English-34

Manufacturer’s Recycling and Energy Information .......................................................................English-35

English-1

English

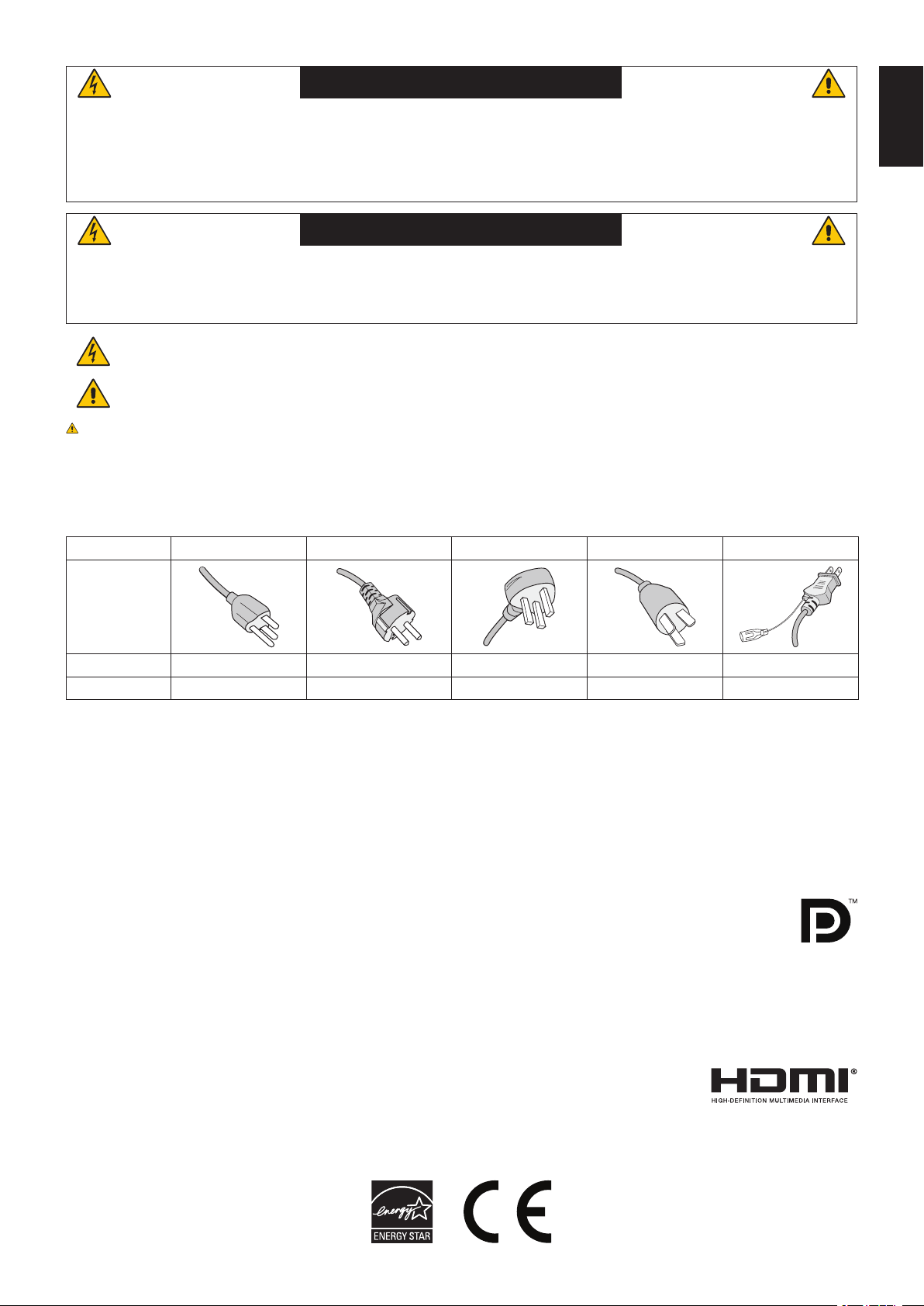

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT

USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE

PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO

FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET.

DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufﬁcient magnitude to cause electric

shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been

included. Therefore, it should be read carefully in order to avoid any problems.

CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is

not supplied with this equipment, please contact NEC. For all other cases, please use the power cord with the plug style that

matches the power socket where the monitor is located. The compatible power cord corresponds to the AC voltage of the power

outlet and has been approved by, and complies with, the safety standards in the country of purchase.

This equipment is designed to be used in the condition of the power cord connected to earth. If the power cord is not connected

to the earth, it may cause electric shock. Please make sure the power cord is earthed properly.

Plug Type North America European Continental U.K. Chinese Japanese

Plug Shape

Region

U.S.A./Canada EU U.K. China Japan

Voltage

120* 230 230 220 100

* When operating the monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply

voltage of the AC power outlet being used.

NOTE: This product can only be serviced in the country where it was purchased.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation.

ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France, Germany, Italy,

Norway, Spain, Sweden, U.K.

EnErgy Star is a U.S. registered trademark.

All other brands and product names are trademarks or registered trademarks of their respective owners.

As an EnErgy Star

Partner, NEC Display Solutions of America, Inc. has determined that this product

meets the EnErgy Star guidelines for energy efﬁciency. The EnErgy Star emblem does not represent EPA

endorsement of any product or service.

DisplayPort and DisplayPort Compliance Logo are trademarks owned by Video Electronics Standards

Association in the United States and other countries.

MultiSync is a trademark or registered trademark of NEC Display Solutions, Ltd. in Japan and other countries.

HDCP (High-bandwidth Digital Content Protection): HDCP is a system for preventing illegal copying of

video data sent over a digital signal. If you are unable to view material via the digital signal input, this does

not necessarily mean the display is not functioning properly. With the implementation of HDCP, there may be cases in which

certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital

Content Protection, LLC).

The terms HDMI and HDMI High-Deﬁnition Multimedia Interface, and the HDMI Logo are

trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States

and other countries.

•฀The฀intended฀primary฀use฀of฀this฀product฀is฀as฀an฀Information฀Technical฀Equipment฀in฀an฀ofce฀or฀domestic฀environment.

•฀The฀product฀is฀intended฀to฀be฀connected฀to฀a฀computer฀and฀is฀not฀intended฀for฀the฀display฀of฀television฀broadcast฀signals.

English-2

Registration Information

Cable information

CAUTION: Use the provided speciﬁed cables with this monitor so as not to interfere with radio and television reception.

For HDMI, DisplayPort, USB and USB-C, please use a shielded signal cable. Use of other cables and adapters

may cause interference with radio and television reception.

FCC Information

WARNING: The Federal Communications Commission does not allow any modiﬁcations or changes to the unit EXCEPT

those speciﬁed by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government

regulation could void your right to operate this equipment.

1. The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet

the following condition.

Power supply cord

Plug shape

Non shield type, 3-conductor

U.S.A

2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

฀•฀Reorient฀or฀relocate฀the฀receiving฀antenna.

฀•฀Increase฀the฀separation฀between฀the฀equipment฀and฀receiver.

฀•฀Connect฀the฀equipment฀into฀an฀outlet฀on฀a฀circuit฀different฀from฀that฀to฀which฀the฀receiver฀is฀connected.

฀฀•฀Consult฀the฀dealer฀or฀an฀experienced฀radio/TV฀technician฀for฀help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.

The user may ﬁnd the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify

and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Ofﬁce,

Washington, D.C., 20402, Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc.

Address: 3250 Lacey Rd, Ste 500

Downers Grove, IL 60515

Tel. No.: 630-467-3000

Type of Product: Display Monitor

Equipment Classiﬁcation: Class B Peripheral

Model: MultiSync EA271U (EA271U, EA271U-BK)

We hereby declare that the equipment speciﬁed above conforms

to the technical standards as speciﬁed in the FCC Rules.

To see a list of our TCO certiﬁed monitors and their TCO Certiﬁcation (in English only), visit our website at

https://www.nec-display.com/global/about/legal_regulation/TCO_mn/index.html

CAUTION: Please conﬁrm the distribution system in building installation shall provide the circuit breaker rated 120/240V,

20A (maximum).

English-3

English

Recommended use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND

USING THE LCD COLOR MONITOR:

•฀DO฀NOT฀OPEN฀THE฀MONITOR.฀There are no user serviceable parts inside and opening or removing covers may expose

you to dangerous shock hazards or other risks. Refer all servicing to qualiﬁed service personnel.

•฀Do฀not฀spill฀any฀liquids฀into฀the฀cabinet฀or฀use฀your฀monitor฀near฀water.

•฀Do฀not฀insert฀objects฀of฀any฀kind฀into฀the฀cabinet฀slots฀as฀they฀may฀touch฀dangerous฀voltage฀points,฀which฀can฀be฀harmful฀or฀

fatal, or may cause electric shock, ﬁre or equipment failure.

•฀Do฀not฀place฀any฀heavy฀objects฀on฀the฀power฀cord.฀Damage฀to฀the฀cord฀may฀cause฀shock฀or฀re.

•฀Do฀not฀place฀this฀product฀on฀a฀sloping฀or฀unstable฀cart,฀stand฀or฀table,฀as฀the฀monitor฀may฀fall,฀causing฀serious฀damage฀to฀

the monitor.

•฀The฀power฀supply฀cord฀you฀use฀must฀have฀been฀approved฀by฀and฀comply฀with฀the฀safety฀standards฀of฀your฀country.฀

(e.g. Type H05VV-F 3G 0.75 mm

should be used in Europe).

•฀In฀the฀UK฀use฀a฀BS-approved฀power฀cord฀with฀a฀molded฀plug฀having฀a฀black฀(5A)฀fuse฀installed฀for฀use฀with฀this฀monitor.

•฀Do฀not฀use฀the฀monitor฀outdoors.

•฀Do not bend, crimp or otherwise damage the power cord.

•฀Do฀not฀use฀the฀monitor฀in฀high฀temperature,฀humid,฀dusty,฀or฀oily฀areas.

•฀Do฀not฀cover฀the฀vent฀on฀the฀monitor.

•฀Vibration฀can฀damage฀the฀backlight.฀Do฀not฀install฀in฀areas฀where฀the฀monitor฀will฀be฀exposed฀to฀continual฀vibration.

•฀If฀monitor฀or฀glass฀is฀broken,฀do฀not฀come฀in฀contact฀with฀the฀liquid฀crystal฀and฀handle฀with฀care.

•฀To฀prevent฀damage฀to฀the฀LCD฀monitor฀caused฀by฀tipping฀over฀due฀to฀earthquakes฀or฀other฀shocks,฀make฀sure฀to฀install฀the฀

monitor in a stable location and take measures to prevent falling.

•฀Immediately฀turn฀off฀the฀power,฀unplug฀your฀monitor฀from฀the฀wall฀outlet฀and฀move฀to฀a฀safe฀location,฀then฀refer฀servicing฀to฀

qualiﬁed service personnel under the following conditions. If the monitor is used in this condition, the monitor may cause fall,

ﬁre and electric shock:

฀•฀If฀the฀monitor฀stand฀has฀been฀cracked฀or฀peeled.

฀•฀If฀you฀notice฀any฀structural฀damage฀such฀as฀cracks฀or฀unnatural฀wobbling.

฀•฀If฀the฀monitor฀has฀an฀unusual฀odor.

฀• If the power supply cord or plug is damaged.

฀•฀If฀liquid฀has฀spilled฀or฀objects฀have฀fallen฀into฀the฀monitor.

฀•฀If฀the฀monitor฀has฀been฀exposed฀to฀rain฀or฀water.

฀•฀If฀the฀monitor฀has฀been฀dropped฀or฀the฀cabinet฀has฀been฀damaged.

฀•฀If฀the฀monitor฀does฀not฀operate฀normally฀by฀following฀operating฀instructions.

•฀Allow฀adequate฀ventilation฀around฀the฀monitor฀so฀that฀heat฀can฀properly฀dissipate.฀Do฀not฀block฀ventilated฀openings฀or฀place฀

the monitor near a radiator or other heat sources.

•฀Do฀not฀put฀anything฀on฀top฀of฀the฀monitor.

•฀The฀power฀cable฀connector฀is฀the฀primary฀means฀of฀detaching฀the฀system฀from฀the฀power฀supply.฀

The monitor should be installed close to a power outlet which is easily accessible.

•฀Handle฀with฀care฀when฀transporting.฀Save฀packaging฀for฀transporting.

•฀Handle฀with฀care฀during฀installation฀and฀adjustment฀to฀prevent฀personal฀injury฀and฀damage฀to฀the฀monitor.

•฀Do฀not฀connect฀headphones฀to฀the฀monitor฀while฀you฀are฀wearing฀them.฀Depending฀on฀the฀volume฀level,฀it฀may฀damage฀your฀

ears and cause loss of hearing.

•฀Please฀tighten฀all฀screws.฀A฀loose฀screw฀may฀cause฀the฀monitor฀to฀fall฀off฀the฀arm฀or฀stand.

•฀Do฀not฀touch฀the฀LCD฀panel฀surface฀while฀transporting,฀mounting฀and฀setting.฀

Applying pressure on the LCD panel can cause serious damage.

Image Persistence: Image persistence occurs when a residual or “ghost” image of a previous image remains visible on the

screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but a still image being displayed for a long

period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image

was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular

intervals whenever the screen is idle, or turn off the monitor when not in use.

CAUTION

WARNING

English-4

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN

REDUCE EYE, SHOULDER, AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

Ergonomics

To realize the maximum ergonomics beneﬁts, we recommend the following:

•฀For optimum performance of the monitor, allow 20 minutes for warming up. Avoid

reproduction of still patterns on the monitor for long periods of time to avoid image

persistence (after image effects).

•฀Adjust฀the฀monitor฀height฀so฀that฀the฀top฀of฀the฀screen฀is฀at฀or฀slightly฀below฀eye฀level.฀

Your eyes should look slightly downward when viewing the middle of the screen.

•฀Position฀your฀monitor฀no฀closer฀than฀40฀cm฀(15.75฀inches)฀and฀no฀further฀away฀than฀

70 cm (27.56 inches) from your eyes. The optimal distance is 50 cm (19.69 inches).

•฀Rest your eyes periodically for 5 to 10 minutes for every 1 hour by focusing on an object

at least 20 feet away.

•฀Position฀the฀monitor฀at฀a฀90°฀angle฀to฀windows฀and฀other฀light฀sources฀to฀minimize฀glare฀

and reﬂections. Adjust the monitor tilt so that ceiling lights do not reﬂect on your screen.

•฀If฀reected฀light฀makes฀it฀hard฀for฀you฀to฀see฀your฀screen,฀use฀an฀anti-glare฀lter.

•฀Adjust฀the฀monitor’s฀brightness฀and฀contrast฀controls฀to฀enhance฀readability.

•฀Use฀a฀document฀holder฀placed฀close฀to฀the฀screen.

•฀Position฀whatever฀you฀are฀looking฀at฀most฀of฀the฀time฀(the฀screen฀or฀reference฀material)฀directly฀in฀front฀of฀you฀to฀minimize฀

turning your head while you are typing.

•฀Blink often. Eye exercise helps to reduce eye strain. Please contact your ophthalmologist. Get regular eye checkups.

•฀To฀avoid฀eye฀fatigue,฀adjust฀the฀brightness฀to฀a฀moderate฀setting.฀Place฀a฀sheet฀of฀white฀paper฀next฀to฀the฀LCD฀screen฀for฀

luminance reference.

•฀Do฀not฀position฀the฀Contrast฀control฀to฀its฀maximum฀setting.

•฀Use฀the฀preset฀Size฀and฀Position฀controls฀with฀standard฀signals.

•฀Use฀the฀preset฀Color฀Setting.

•฀Use฀non-interlaced฀signals.

•฀Do฀not฀use฀primary฀color฀blue฀on฀a฀dark฀background,฀as฀it฀is฀difcult฀to฀see฀and฀may฀produce฀eye฀fatigue฀due฀to฀insufcient฀

contrast.

•฀Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing reﬂections from the screen.

Cleaning the LCD Panel

•฀When฀the฀LCD฀is฀dusty,฀please฀gently฀wipe฀with฀a฀soft฀cloth.

•฀Clean฀the฀LCD฀monitor฀surface฀with฀a฀lint-free,฀non-abrasive฀cloth.฀Avoid฀using฀any฀cleaning฀solution฀or฀glass฀cleaner!

•฀Please฀do฀not฀rub฀the฀LCD฀panel฀with฀hard฀or฀coarse฀material.

•฀Please฀do฀not฀apply฀pressure฀to฀the฀LCD฀surface.

•฀Please฀do฀not฀use฀OA฀cleaner฀as฀it฀will฀cause฀deterioration฀or฀discoloration฀on฀the฀LCD฀panel฀surface.

Cleaning the Cabinet

•฀Unplug฀the฀power฀supply

•฀Gently฀wipe฀the฀cabinet฀with฀a฀soft฀cloth

•฀To฀clean฀the฀cabinet,฀dampen฀the฀cloth฀with฀a฀neutral฀detergent฀and฀water,฀wipe฀the฀cabinet฀and฀follow฀with฀a฀dry฀cloth.

NOTE: DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish

cleaner, soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period

of time. These types of ﬂuids and materials can cause the paint to deteriorate, crack or peel.

For more detailed information on setting up a healthy work environment, write to the American National Standard for Human

Factors Engineering of Computer Workstations - ANSI/HFES 100-2007 - The Human Factors Society, Inc. P.O. Box 1369,

Santa Monica, California 90406.

English-5

English

Parts Name and Functions

Control Panel

LED

Power Key

Control buttons

Refer to the Controls section. See page 13.

A AC IN Connector

Connects with the supplied power cord.

B฀HDMI฀2฀IN

HDMI signal input.

Supports 4K@30 Hz in HDMI 2.

C฀HDMI฀1฀IN

HDMI signal input.

Supports 4K@60 Hz in HDMI 1.

D DisplayPort IN

DisplayPort signals input.

E ControlSync IN/OUT

Connects with the supplied ControlSync cable. See page 11.

F USB-C Port

Connects with USB Type-C compliant external equipment

such as a computer. Charges a connected USB device

(USB Power Delivery). See Speciﬁcations page.

NOTE:฀•฀Supports฀DisplayPort฀signals฀input฀when฀a฀

connected USB-C device complies with USB

Power Delivery.

•฀Functions฀as฀a฀USB฀hub.

•฀Provides฀power฀delivery฀to฀a฀connected฀device฀

when the function is enabled in the OSD (USB

FUNCTIONALITY must be set to AUTO or ON).

•฀Default฀maximum฀data฀transfer฀speed฀is฀

equivalent to USB 2.0. The transfer speed can

be changed in the OSD menu “USB SETTING”.

G USB Upstream Port (Type-B)

Connects with external equipment such as a computer.

Please use this port to control the monitor from connected

external equipment.

H USB Downstream Port (Type-A)

Connects with USB devices.

Connects with external equipment such as a computer

compliant with USB.

I Headphone฀Jack

Connects with headphones.

CAUTION: Do not connect headphones to the monitor

while you are wearing them.

Depending on the volume level, it may

damage your ears and cause loss of hearing.

J Rating Label

K Security Slot

Security and theft protection lock slot compatible with

Kensington security cables/equipment.

For products visit Kensington’s website.

Terminal Panel

English-6

Quick Start

For box contents, please refer to the printed contents sheet provided in the box.

To attach the base to the LCD monitor stand:

1. Place the monitor face down on a non-abrasive surface (Figure 1).

2. Please rotate the stand 90 degrees as shown in Figure 1.

CAUTION: Handle with care when pulling the stand.

It may pinch your ﬁngers.

3. Attach the base to the stand, then tighten the screw at the base’s

bottom (Figure 2).

NOTE: Reverse this procedure if you need to re-pack the monitor.

To connect the LCD monitor to your system, follow these instructions:

NOTE: Make sure to read “Recommended Use” (page 3) before installation.

CAUTION: Please tighten all screws.

NOTE: The accessories included will depend on the location where the LCD monitor was shipped.

1. Turn off the power for your computer.

2. For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system

(Figure A.1).

For฀a฀PC฀with฀HDMI฀output:฀Connect the HDMI cable to the connector of the display card in your system (Figure A.2).

For a Mac or PC with Thunderbolt or Mini DisplayPort output: Connect a Mini DisplayPort to DisplayPort cable to the

video output connector on your system (Figure A.3).

Figure A.1 Figure A.2

DisplayPort cable

HDMI cable

Figure A.3

Mini DisplayPort to DisplayPort cable

NOTE:฀฀•฀When removing the DisplayPort cable, hold down the top button to release the lock.

•฀Please use a High Speed HDMI cable with the HDMI logo.

•฀Please use a certiﬁed DisplayPort cable.

CAUTION: Use the provided speciﬁed cables with this monitor so as not to interfere with radio and television reception.

For HDMI, DisplayPort, USB and USB-C, please use a shielded signal cable. Use of other cables and

adapters may cause interference with radio and television reception.

Figure 1

Figure 2

Screw

English-7

English

3. Place your hands on each side of the monitor to tilt the LCD panel to the maximum tilt angle and lift up to the highest

position.

4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector

to the USB upstream port on the rear side of the monitor and the A type connector to the downstream port on the computer

(Figure C.1a). If using the cord from a USB device, plug into the downstream port of the monitor.

NOTE: Incorrect cable connections may cause abnormal operation, damage display quality/components of the LCD

module and/or shorten the module’s life.

NOTE: Adjustment of the volume control as well as the equalizer to settings other than the center position may increase

the ear-/headphones output voltage and therefore the sound pressure level.

CAUTION: Do not bind the USB cable. It may trap heat and start a ﬁre.

A Type

B Type

A Type

B Type

Figure C.1a

Figure C.2Figure C.1

Power cord

Maximum Tilt

DisplayPort IN

Highest

Stand

Position

ControlSync IN/OUT*

USB Downstream (USB Type-A)

Headphone

USB Downstream (USB Type-A)

USB Upstream (USB Type-B)

USB-C

HDMI 2 HDMI 1

: See page 11.

CAUTION: Do not connect headphones to the monitor while you are wearing them.

Depending on the volume level, it may damage your ears and cause loss of hearing.

5. Place the cable holder onto the stand (Figure C.2).

Place the cables in the cable holder ﬁrmly and evenly (Figure C.3 and Figure C.4).

6. Please check that you can still raise and lower the monitor screen after you have installed the cables.

Figure C.3 Figure C.4

Power Cord USB Cable

DisplayPort Cable

USB Cable Power Cord

DisplayPort Cable

English-8

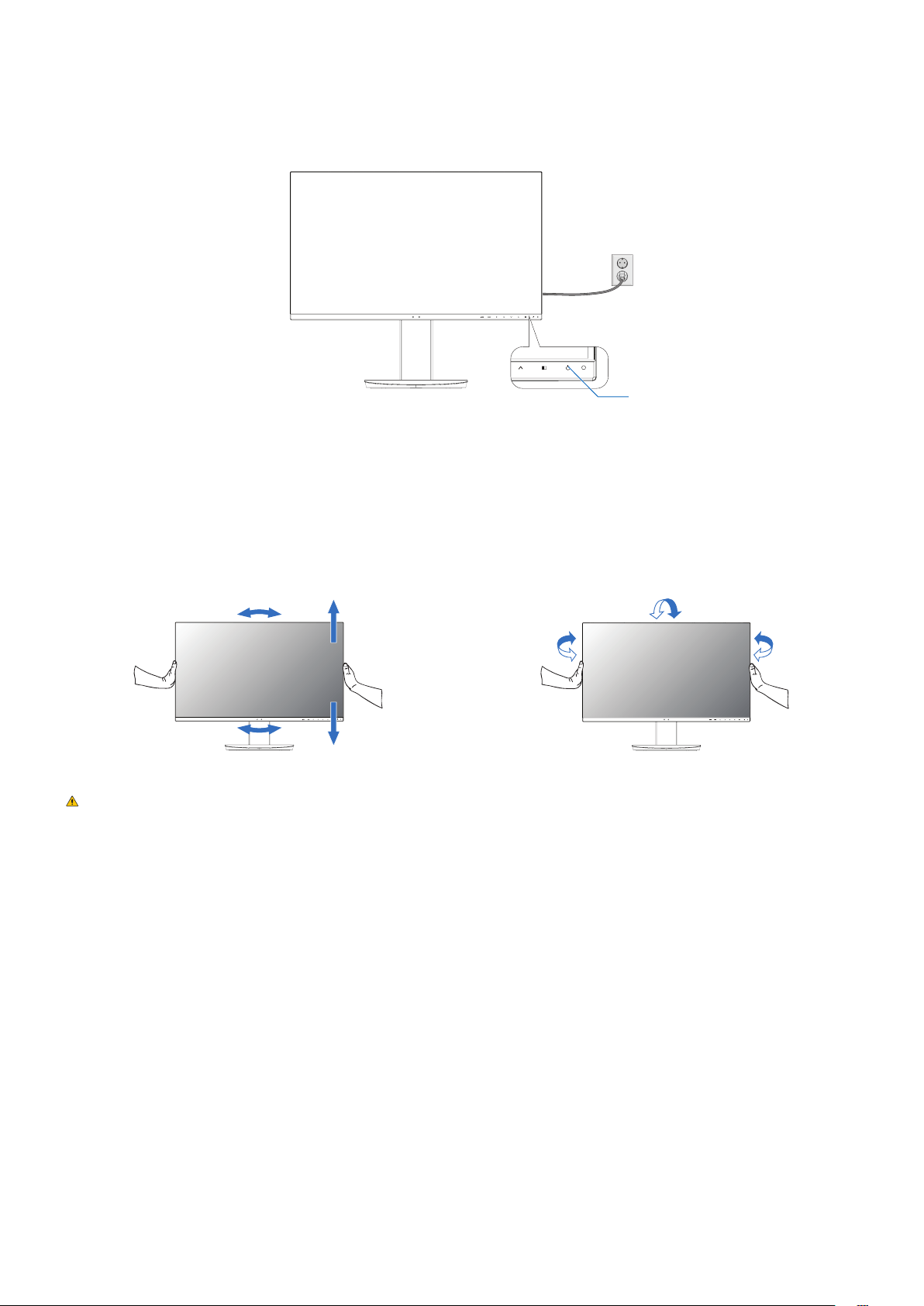

7. Connect the power cord to the power outlet.

NOTE: Please refer to the

CAUTION section of this manual for proper selection of the AC power cord.

8. Turn on the monitor by touching the power key on the front bezel and then turn on the computer (Figure E.1).

NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

Figure E.1

Power key

Adjustable stand with pivot capability

Raise and Lower: Hold the monitor on each side and lift or lower to the desired height.

Tilt and Swivel: Hold the top and bottom sides of the monitor screen with your hands and adjust the tilt and swivel as desired.

Screen Rotation (Pivot): Hold the monitor on each side and turn it from landscape to portrait.

You can adjust the OSD (On-Screen Display) menu rotation to match the screen rotation. Refer to the OSD ROTATION

instructions (see

page 19).

Tilt and SwivelRotation, Raise and Lower

CAUTION: Handle with care when adjusting the monitor screen. Do not apply pressure to the LCD when adjusting the

height and rotating the monitor screen.

Before rotating, disconnect the power cord and all cables from the display. The screen must be raised to the

highest level and tilt to avoid knocking the screen on the desk or pinching your ﬁngers.

English-9

English

Flexible Arm Installation

This LCD monitor is designed for use with a ﬂexible arm. Contact NEC for more information.

To prepare the monitor for alternate mounting purposes:

•฀Follow฀the฀instructions฀provided฀by฀the฀manufacturer฀of฀the฀display฀mount.

CAUTION: To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the

monitor. See the Speciﬁcations page for details. Remove the monitor stand before mounting.

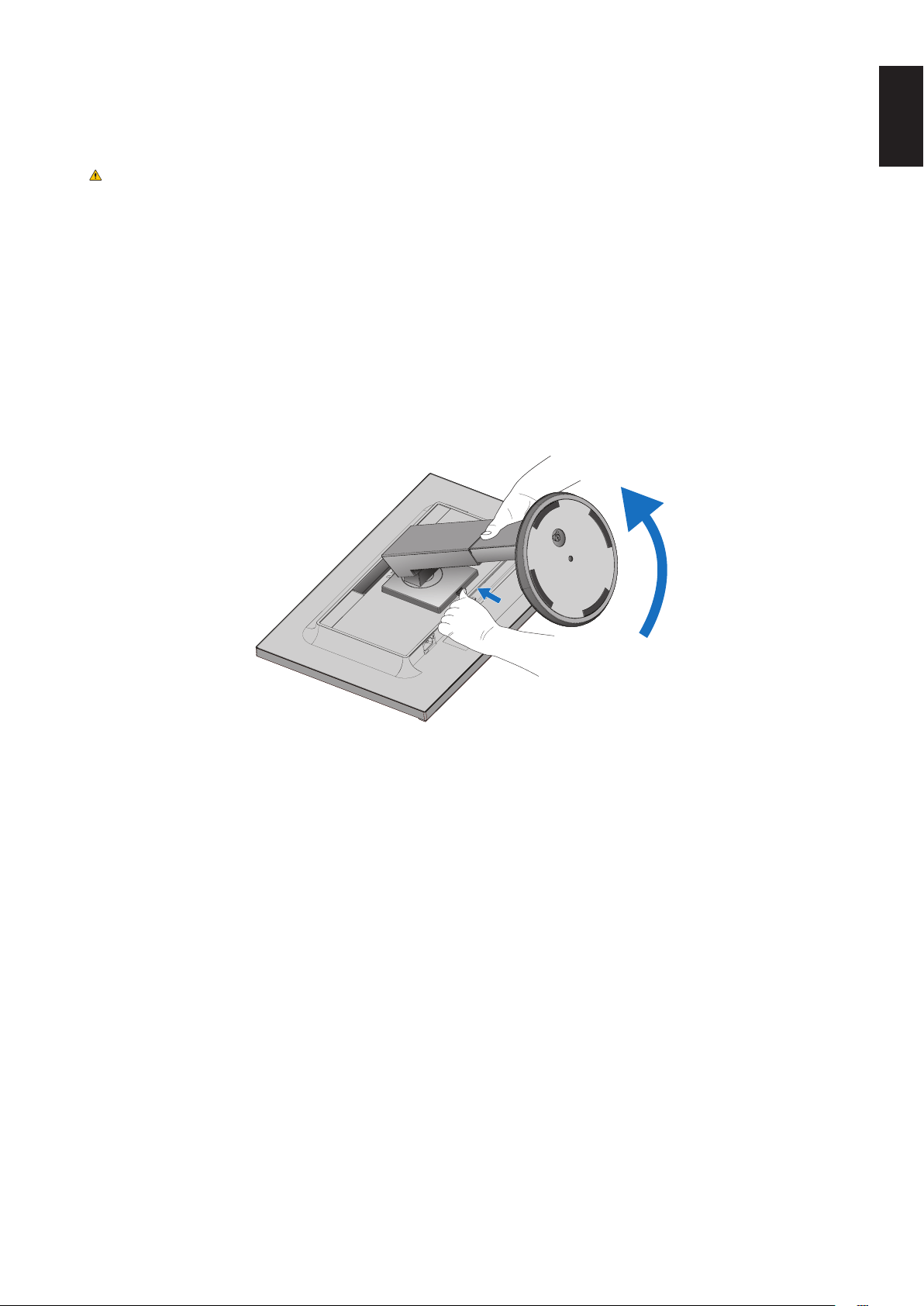

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place your hands on each side of the monitor screen and lift up to the highest position.

3. Place the monitor face down on a non-abrasive surface (Figure S.1).

4. Place one hand around the base and one hand on the Quick Release Lever.

Push and hold the Quick Release Lever in the direction indicated by the arrow (Figure S.1).

5. Lift up the stand to unhook it from the monitor (Figure S.1).

The monitor can now be mounted using an alternate method.

Reverse the process to reattach stand.

NOTE: Handle with care when removing the monitor stand.

Figure S.1

English-10

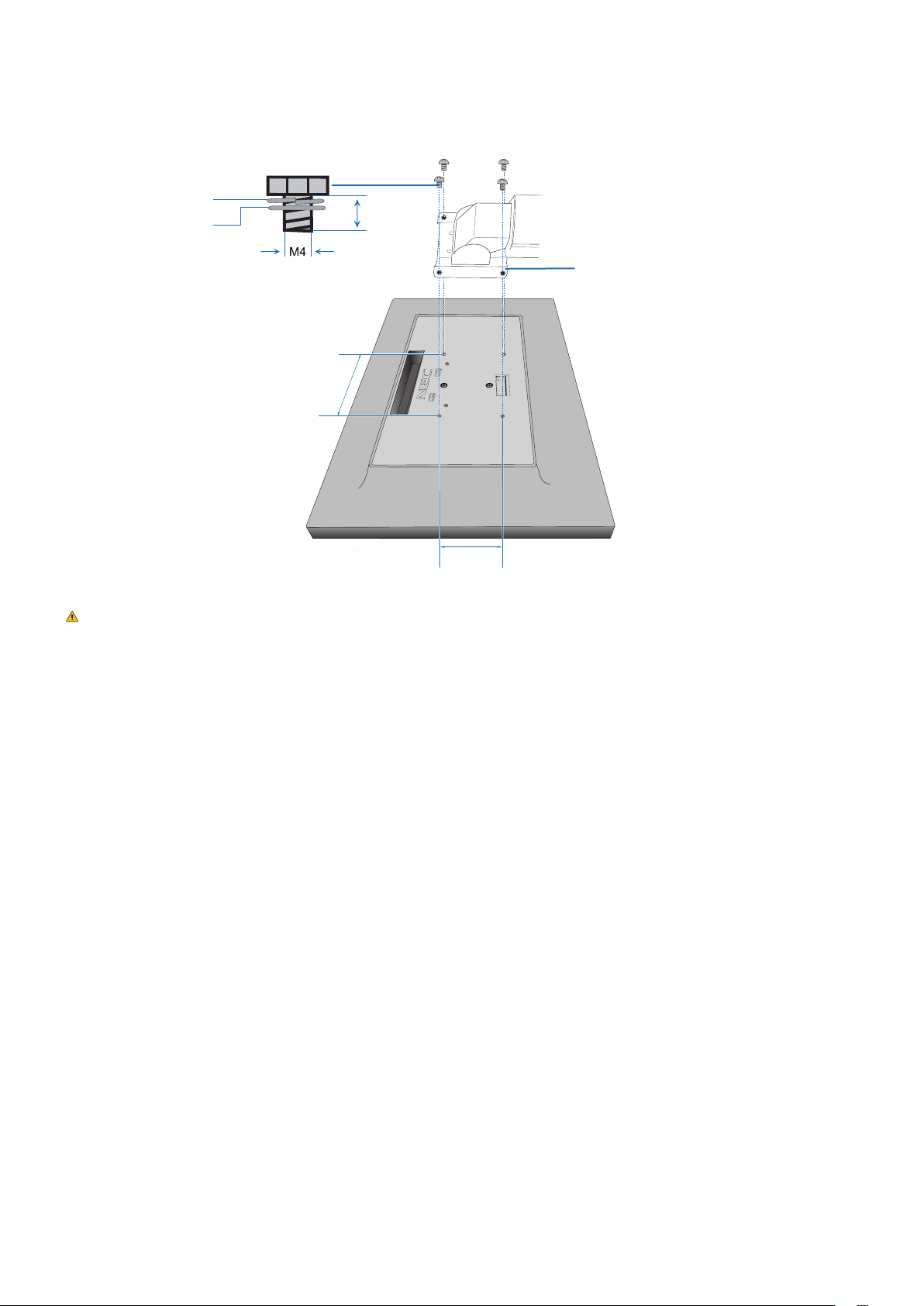

Mount Flexible Arm

This LCD monitor is designed for use with a ﬂexible arm.

1. Follow the instructions in how to

Remove Monitor Stand for Mounting.

2. Using 4 screws that meet the speciﬁcations listed below, attach the arm to the monitor (Figure F.1).

Figure F.1

100 mm

Thickness of Bracket (Arm)

2.0~3.2 mm

12 mm

Spring washer

Flat washer

CAUTION:฀฀•฀Only฀use฀4฀M4฀sized฀screws฀when฀mounting฀to฀avoid฀damage฀to฀the฀monitor฀and฀stand.฀

•฀To฀fulll฀the฀safety฀requirements,฀the฀monitor฀must฀be฀mounted฀to฀an฀arm,฀which฀guaranties฀the฀necessary฀

stability under consideration for the weight of the monitor. The LCD monitor should only be used with an

approved arm (e.g. TUEV GS mark).

•฀Tighten฀all฀screws฀(recommended฀Fasten฀Force:฀98฀-฀137N•cm).

A loose screw may cause the monitor to fall off the arm.

•฀Attaching฀the฀exible฀arm฀should฀be฀done฀by฀two฀or฀more฀people฀if฀the฀monitor฀cannot฀be฀placed฀face฀down฀on฀

a ﬂat surface for installation.

English-11

English

ControlSync

ControlSync simultaneously controls all sub-monitors connected to a master monitor. It can also individually control a single sub-

monitor using the INDIVIDUAL ADJUST function (see page 21).

Controlling all connected sub-monitors (Synchronized control):

•฀Connect฀a฀ControlSync฀cable฀(ø฀2.5)฀to฀the฀master฀monitor’s฀ControlSync฀OUT฀port฀and฀into฀a฀sub-monitor’s฀ControlSync฀IN฀

port. Up to 8 monitors can be daisy-chained together by connecting the monitors to each other via the ControlSync OUT to

IN ports on the monitors.

•฀Follow฀the฀steps฀for฀DATA฀COPY฀(see page 20). When a setting for the master monitor is adjusted, it will be copied and sent to

the connected sub-monitor(s) automatically.

NOTE: The ControlSync icon will appear on the upper left of the OSD menu in the sub-monitors.

Do not connect the ControlSync ports IN-to-IN or OUT-to-OUT. The monitors’

ControlSync ports must be connected OUT-to-IN.

Do not make a “loop” connection by connecting the last monitor in the chain back to the

master monitor.

Turn off the power and disconnect the power cables for all monitors. Connect the

ControlSync cables, then connect the power cables, and then turn on the power for each monitor.

IN (Gray)

Next monitor

OUT (Black)

IN OUT

ControlSync cable ControlSync cable

Up to 8 sub-monitors

(Gray)(Black) (Gray)(Black)

Sub-Monitor 1 Sub-Monitor 2

Master Monitor

IN OUT

Controlling a target monitor (Individual Adjust)

1. Touch the MENU/EXIT key to open the OSD menu on the master monitor.

2. Touch the DOWN/UP key to select TARGET MONITOR NO. When the cursor is on “TARGET MONITOR NO.”, a sub-monitor

number menu opens. Use the LEFT/RIGHT keys to select the sub-monitor number.

If you touch the INPUT/SELECT key, each sub-monitor displays its monitor number.

3. Touch the DOWN/UP key to select INDIVIDUAL ADJUST and then set it to ON.

Control the sub-monitor’s OSD using the master monitor’s control keys.

NOTE: To disable INDIVIDUAL ADJUST, touch the SELECT and EXIT keys simultaneously.

ControlSync icon

English-12

The following settings can be controlled by ControlSync:

Synchronized control Individual adjust

ECO TOOLS BRIGHTNESS* Yes Yes

CONTRAST No Yes

ECO MODE Yes Yes

AUTO BRIGHTNESS Yes Yes

BLACK LEVEL No Yes

OFF MODE SETTING Yes Yes

OFF MODE SENSOR SETTING Yes Yes

OFF MODE START TIME Yes Yes

HUMAN SENSING Yes Yes

HUMAN SENSOR SETTING Yes Yes

HUMAN SENSOR START TIME Yes Yes

DV MODE Yes Yes

SCREEN LEFT/RIGHT No Yes

DOWN/UP No Yes

H.RESOLUTION No Yes

V.RESOLUTION No Yes

VIDEO LEVEL No Yes

OVER SCAN No Yes

EXPANSION Yes Yes

RESPONSE IMPROVE No Yes

UNIFORMITY No Yes

SHARPNESS No Yes

UHD UPSCALING No Yes

COLOR Picture Mode No Yes

WHITE No Yes

ADJUST No Yes

TOOLS VOLUME Yes Yes

SOUND INPUT No Yes

VIDEO DETECT No Yes

MULTI PICTURE No Yes

PICTURE PATTERN No Yes

PICTURE SIZE No Yes

PICTURE POSITION No Yes

OFF TIMER Yes Yes

POWER SAVE TIMER No Yes

LED BRIGHTNESS Yes Yes

DDC/CI Yes Yes

USB SETTING No Yes

USB FUNCTIONALITY No Yes

USB SELECTION No Yes

FACTORY PRESET No Yes

MENU TOOLS LANGUAGE Yes Yes

OSD TURN OFF Yes Yes

OSD LOCK OUT Yes Yes

OSD ROTATION No Yes

HOT KEY Yes Yes

SIGNAL INFORMATION Yes Yes

SENSOR INFORMATION Yes Yes

KEY GUIDE Yes Yes

DATA COPY No No

CUSTOMIZE SETTING No No

MULTI DISPLAY MONITOR NO. No No

180°฀ROTATENo Yes

TARGET MONITOR NO. No No

INDIVIDUAL ADJUST No No

ECO INFORMATION CARBON SAVINGS No No

CARBON USAGE No No

COST SAVINGS No No

CARBON CONVERT SETTING Yes Yes

CURRENCY SETTING Yes Yes

CURRENCY CONVERT SETTING Yes Yes

Other settings:

Power Control (DC switch)

Ambient Light Sensor

Human Sensor Result

Audio Mute

NOTE: Only the master monitor’s human sensor and ambient light sensor are active. Please do not cover these sensors

(See

page 13).

After connecting all power cables and ControlSync cables, check that ControlSync operates correctly by turning the

master monitor’s power off then back on.

Do not use the ControlSync connectors for any purpose other than speciﬁed.

* This value is not a directly adjusted output value. This is adjusted relatively.

English-13

English

Controls

OSD (On-Screen Display) control keys on the front of the monitor function

as follows:

1 Ambient Light Sensor

Human Sensor

Detects the level of ambient lighting and the presence of a user, allowing the monitor to

make adjustments to various settings resulting in a more comfortable viewing experience.

Do not cover this sensor.

2 INPUT/SELECT Changes the input source when the OSD menu is closed. Enters a sub-menu when the OSD

menu is open. You can directly change to L/B (LOW BLUE LIGHT) mode by touching the

INPUT key for 3 seconds or more.

3 MENU/EXIT Opens the OSD menu. Closes the OSD sub-menus and main menu.

4 LEFT/RIGHT/

UP/DOWN*

Navigates through the OSD menu.

When the OSD menu is closed, touch one of the following keys to open the menu for the

function indicated:*

UP key: BRIGHTNESS

DOWN key: VOLUME

RIGHT key: USB SELECTION

/RESET When the OSD menu is open, this button works as a reset command for the OSD settings.

When the OSD menu is closed, this button works as a select function for the MULTI PICTURE

settings.*

You can swap pictures between a main screen and a sub-screen by touching the

/RESET

key for 3 seconds or more while Main or Sub is set in MULTI PICTURE.*

6 Power Turns the monitor on and off.

7 Power LED Indicates that the power is on or off.

When the Hot Key function is OFF, this function is disabled.

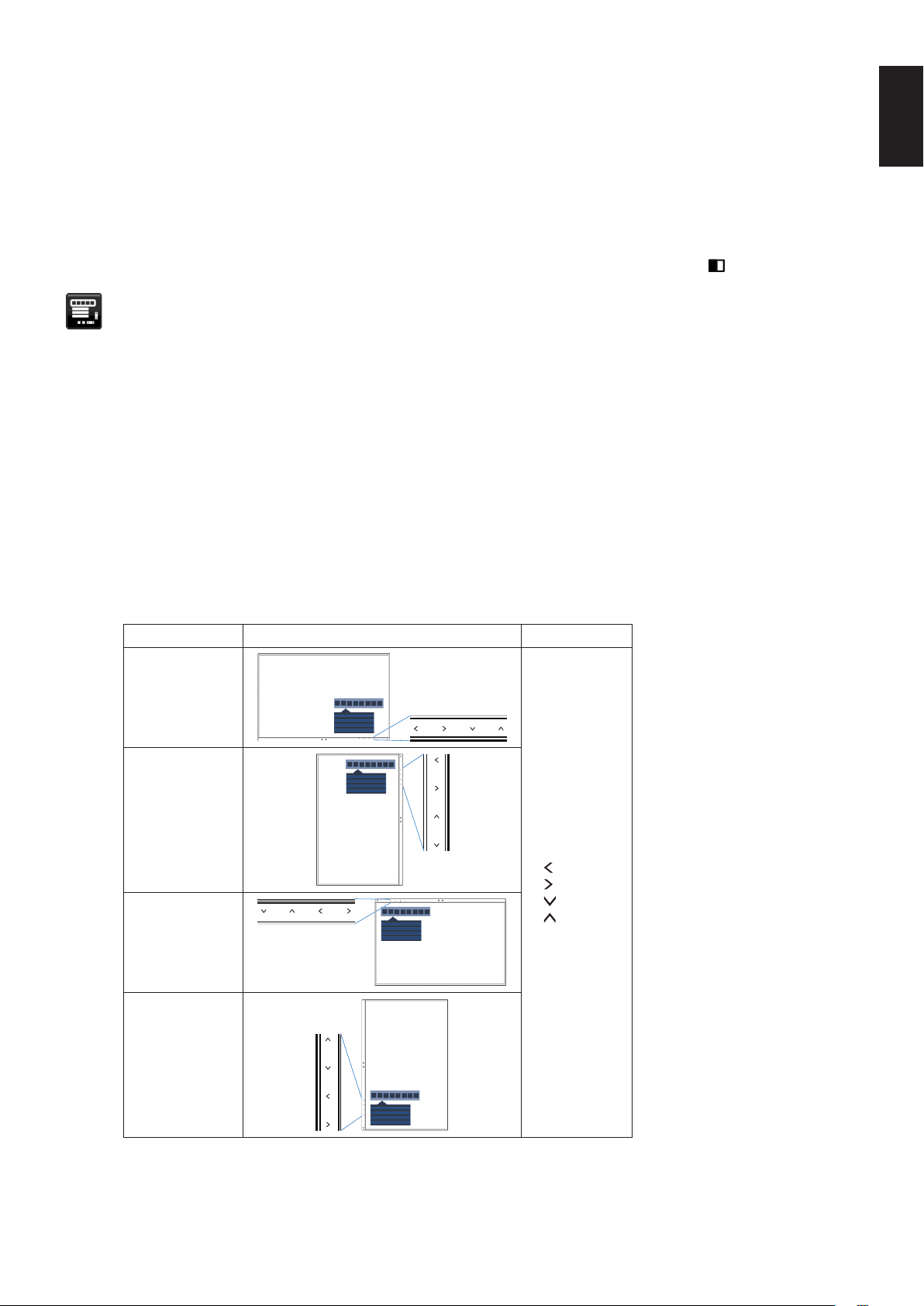

Depending on the OSD ROTATION setting, LEFT, RIGHT, UP and DOWN key guides are displayed at the

, , , keys

differently (See page 19).

MULTI PICTURE menu.

Touch the LEFT/RIGHT to select a priority (adjustable) screen. When MULTI PICTURE is OFF, a single screen will be

displayed.

Swapping of Picture-By-Picture is not supported. The sound keeps the value of SOUND INPUT setting.

The expansion keeps the values of EXPANSION setting of each input.

English-14

ECO TOOLS

BRIGHTNESS

Adjusts the overall image and background screen brightness.

If ECO MODE is set to 1 or 2, a bar for CARBON FOOTPRINT will appear.

CONTRAST

Adjusts the overall image and background screen brightness by input signal level.

NOTE: CONTRAST and DV MODE can be adjusted for all COLOR CONTROLS except L/B.

ECO MODE

Decreases the amount of power consumption by reducing the brightness level.

OFF: Does not function.

1: Sets the brightness variable range from 0% to 70%.

This setting can adjust brightness to a range in which power is reduced by 10% compared to the maximum brightness

setting.

2: Sets the brightness variable range from 0% to 30%.

This setting can adjust brightness to a range in which power is reduced by 30% compared to the maximum brightness

setting.

When this function is set to ON, a CARBON FOOTPRINT bar will appear alongside the brightness adjustment bar.

NOTE: This function is disabled when DV MODE is set to DYNAMIC.

This function is disabled when PRESET of the Picture Mode is set to DICOM SIM.

This function works only when MULTI PICTURE is off.

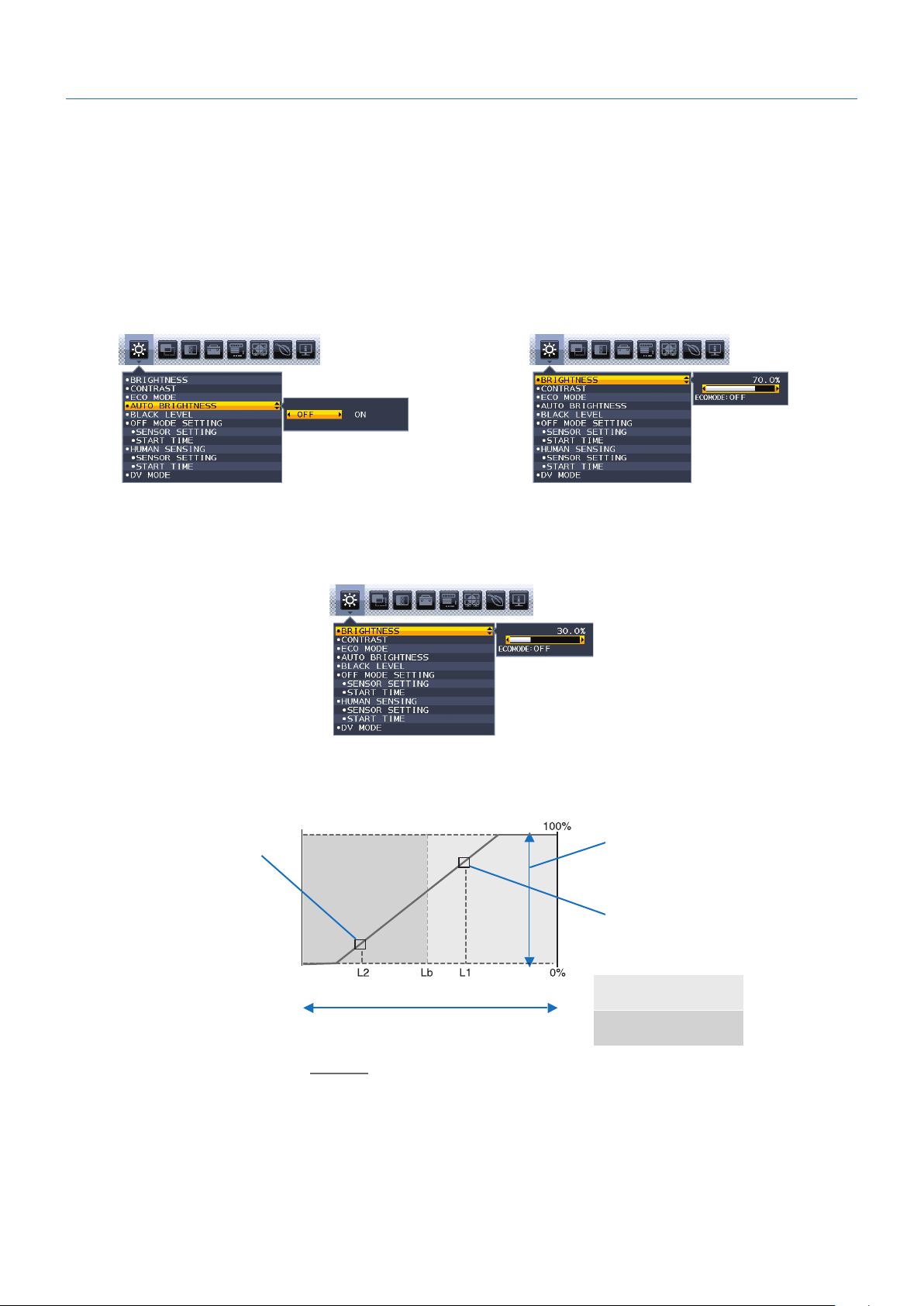

AUTO฀BRIGHTNESS

OFF: Does not function.

ON: Automatically adjusts the brightness to the optimal setting by detecting the brightness level of the environment*

*1: Please refer to

page 30 for full “Auto Brightness” information.

NOTE: This function is disabled when DV MODE is set to DYNAMIC.

This function is disabled when PRESET of the Picture Mode is set to DICOM SIM.

This function works only when MULTI PICTURE is off.

BLACK LEVEL

Adjusts the brightness level of black when displayed on screen.

OFF MODE SETTING

The Intelligent Power Manager allows the monitor to enter into power saving mode after a period of inactivity.

The OFF MODE has two settings:

OFF: The monitor enters into power saving mode automatically when the input signal is lost.

ON: The monitor enters into power saving mode automatically when the amount of surrounding light goes below the

level determined by you. The level can be adjusted in the OFF MODE sensor setting.

When in power saving mode, the LED on the front of the monitor becomes dark blue. When in power saving mode,

touch any of the front keys, except for POWER and INPUT/SELECT key, to return to normal mode.

When the amount of surrounding light returns to normal levels, the monitor will automatically return to normal mode.

SENSOR SETTING (OFF MODE SETTING)

Adjusts the threshold level for the ambient light sensor for detecting low light conditions and shows the current sensor

measurement result.

START TIME (OFF MODE SETTING)

Adjusts the wait time to enter into to a lower power consumption level when the ambient light sensor detects low light

conditions.

English-15

English

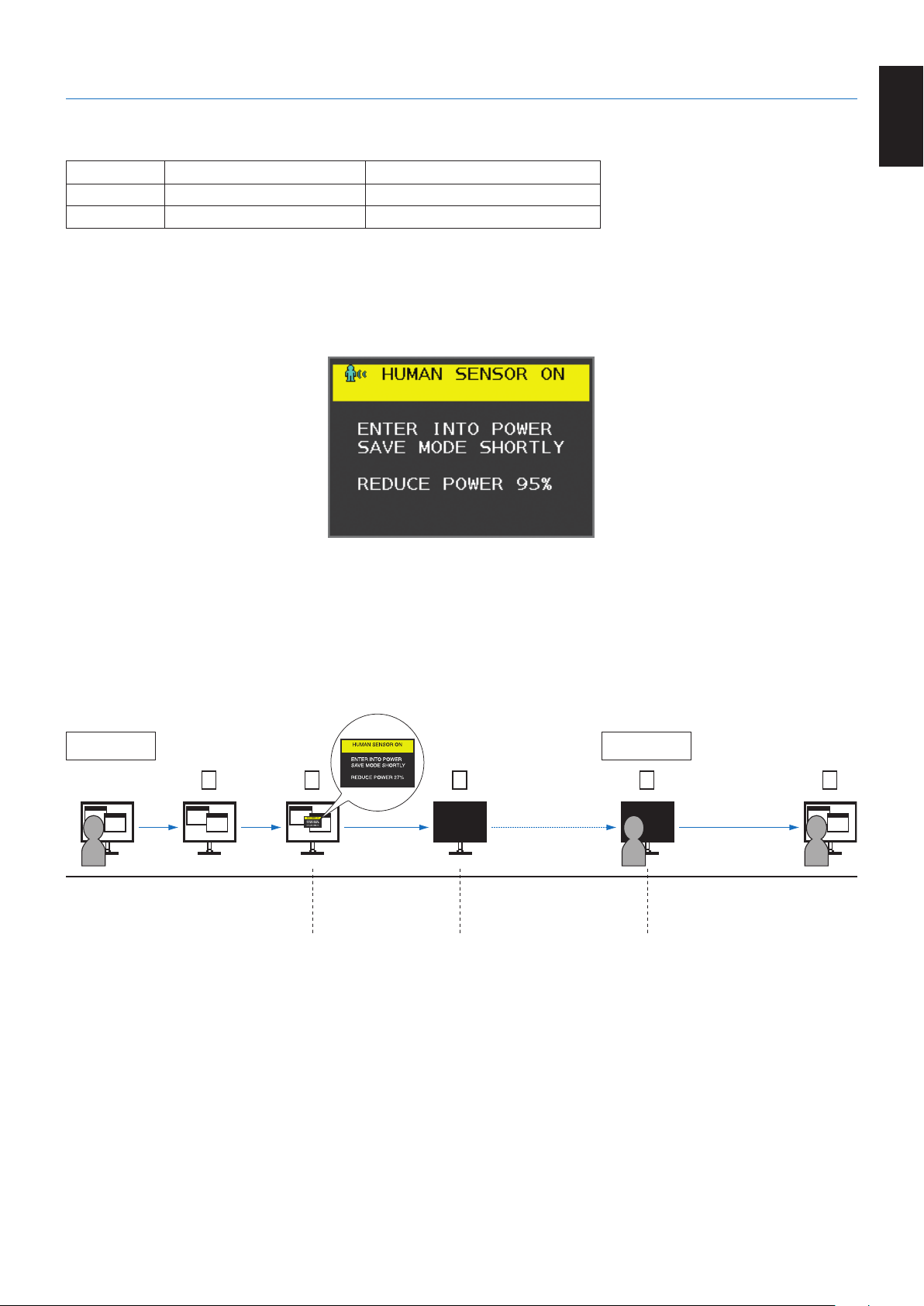

HUMAN฀SENSING

The sensor detects the movement of a person by using the HUMAN SENSING function. The HUMAN SENSING

function has three settings:

OFF: Does not function.

1฀(LIGHT):฀After it detects that there is no person after a period of time, the monitor shifts to low brightness mode

automatically to reduce the power consumption. When a person comes near the monitor again, the monitor will

automatically return to normal mode. START TIME adjusts the wait time before entering the low brightness mode.

2 (DEEP): After it detects that there is no person, the monitor shifts to power saving mode automatically to reduce the

power consumption. When a person comes near the monitor again, it resumes from the power saving mode.

NOTE: Detects a person within about 1.5 m from the monitor.

SENSOR฀SETTING฀(HUMAN฀SENSING)

Adjusts the threshold level of human sensing.

When the human icon is located on the right side of the white color bar or vermilion color wave, a person is not

detected.

NOTE: The human sensing function starts after the OSD menu is closed.

START฀TIME฀(HUMAN฀SENSING)

Adjusts the wait time before entering to low brightness mode or power saving mode when Human Sensor detects no

person.

DV MODE

Dynamic Visual Mode allows you to select from the following settings:

STANDARD: Standard setting.

TEXT: Setting that makes letters and lines crisp; best suited for basic word processing and spreadsheets.

MOVIE: Setting that boosts dark tones; best suited for movies.

GAMING: Setting that boosts whole tones; best suited for games that use vivid, colorful images.

PHOTO:฀Setting that optimizes contrast; best suited for still images.

DYNAMIC: Setting that adjusts the brightness by detecting the screen’s black areas and optimizes it.

NOTE: This function is disabled when PRESET of the Picture Mode is set to L/B, PROGRAMMABLE or DICOM SIM.

STANDARD is used for TCO Certiﬁcate compliance.

DYNAMIC works only when MULTI PICTURE is off.

SCREEN

LEFT฀/฀RIGHT

Controls horizontal image position within the display area of the LCD.

NOTE: If this function does not work correctly, reduce the H. RESOLUTION level.

DOWN / UP

Controls vertical image position within the display area of the LCD.

NOTE: If this function does not work correctly, reduce the V. RESOLUTION level.

H.RESOLUTION

Adjusts the horizontal size by increasing or decreasing the resolution.

Touch the “RIGHT” key to reduce the width of the image on the screen.

Touch the “LEFT” key to expand the width of the image on the screen.

V.RESOLUTION

Adjusts the vertical size by increasing or decreasing the resolution.

Touch the “RIGHT” key to reduce the height of the image on the screen.

Touch the “LEFT” key to expand the height of the image on the screen.

VIDEO฀LEVEL฀(HDMI฀input฀only)

NORMAL: Setting for use with a computer. Displays all input signals of 0-255 steps.

EXPAND: Setting for use with audio visual equipment. Expands input signals of 16-235 steps to 0-255 steps.

English-16

OVER฀SCAN฀(HDMI฀input฀only)

Some video formats may require different scanning modes in order to best display the image.

ON: Image size is larger than what can be displayed. The image edge will appear cropped. Approximately 95% of the

image will be shown on the screen.

OFF: Image size stays within the display area. The whole image is displayed on the screen.

EXPANSION

Sets the Zoom method.

FULL: The image is expanded to full screen regardless of the resolution.

ASPECT: The image is expanded without changing the aspect ratio.

OFF: The image is not expanded.

NOTE: FULL does not work when MULTI PICTURE is OFF.

RESPONSE IMPROVE

Turns the Response Improve function on or off. Response Improve may reduce blurring that occurs in some moving

images.

UNIFORMITY

This function electronically compensates for the slight variations in the white uniformity level as well as for deviations

in color that may occur throughout the display area of the screen. These variations are characteristic of LCD panel

technology. This function improves the color and evens out the luminance uniformity of the display.

NOTE: Using the UNIFORMITY feature does reduce the overall peak luminance of the display. If greater luminance is

desired over the uniform performance of the display, then UNIFORMITY should be turned off. “ON” produces

a better effect, but may also reduce the CONTRAST RATIO.

SHARPNESS

Adjusts the crispness of the image.

UHD฀UPSCALING

If “ON” is selected, low resolution image will be improved by complementing the missing pixels.

Color

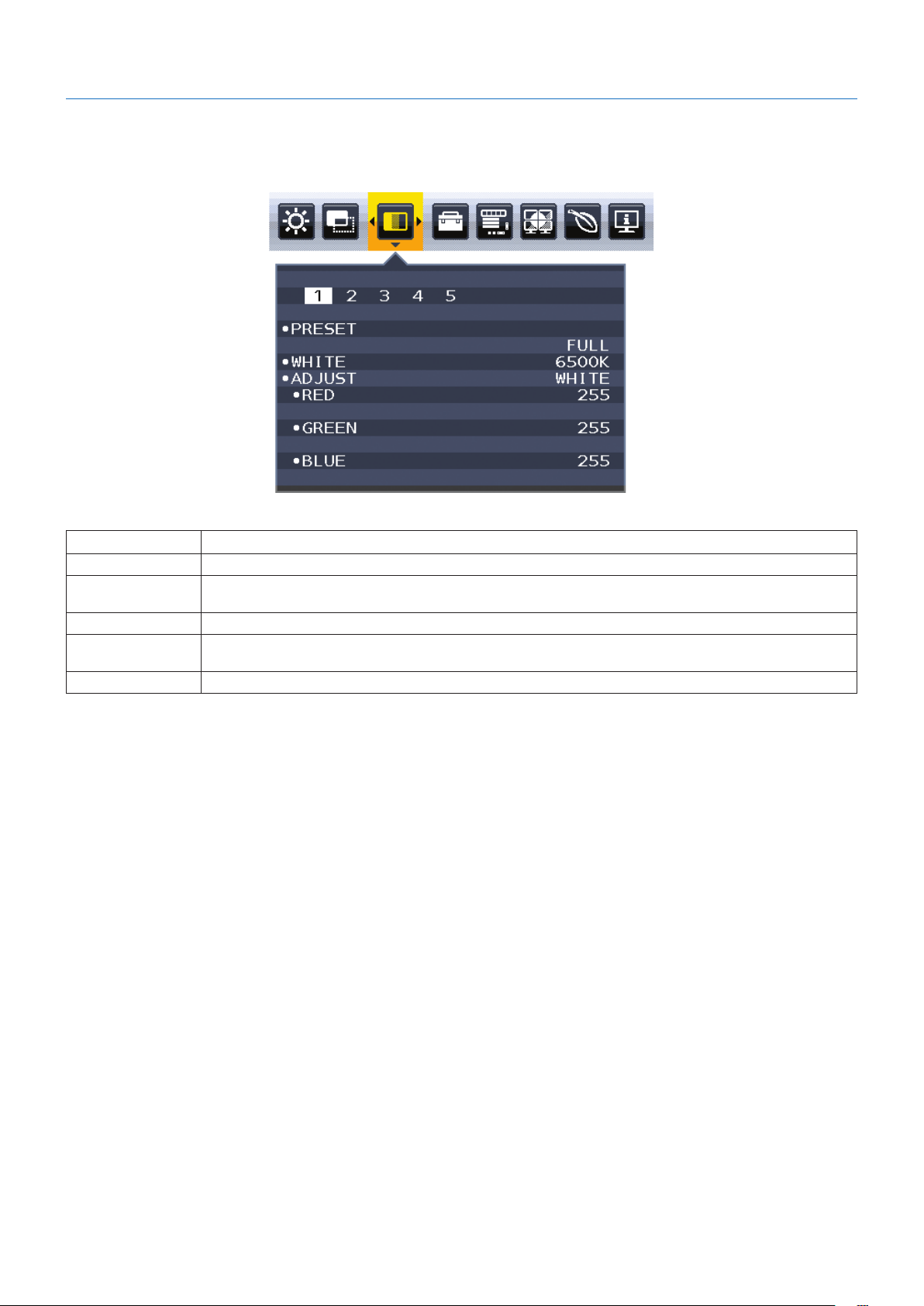

Picture Mode (1, 2, 3, 4, 5)

Select the picture mode that is most suitable for the type of content that is shown. You can change up to 5 types.

See “Using the Picture Mode function” (

page 22) for more information.

WHITE฀(Color฀Temperature)

Adjust the color temperature by NATIVE or increasing or decreasing this setting. A lower color temperature will make

the screen reddish and a higher color temperature will make the screen bluish. NATIVE is a default color temperature

of LCD panel. 6500K is recommended for general graphic design and 5000K is recommended for print matching.

NOTE: It is automatically set to NATIVE when decreasing WHITE level below 3000K.

ADJUST

WHITE฀(White฀Balance):฀If WHITE needs further adjustment, the individual R/G/B levels of the white point can be

adjusted. To adjust the R/G/B levels, CUSTOM must be showing as the color temperature selection.

HUE: Adjusts the hue of each color*

. The change in color will appear on screen and the menu color bars will show the

amount of adjustment.

OFFSET: Adjusts the color brightness of each color*

. Touch the “RIGHT” key to increase the color brightness.

SATURATION: Adjusts the color depth of each color*

. Touch the “RIGHT” key to increase the color vividness.

*1: RED, YELLOW, GREEN, CYAN, BLUE and MAGENTA.

English-17

English

Tools

VOLUME

Controls the volume of the speakers or headphones.

To mute the speaker output touch the “

/RESET” key.

SOUND INPUT

Selects audio source.

When MULTI PICTURE is OFF:

Outputs the audio signal of current picture.

When MULTI PICTURE is LEFT or RIGHT:

LEFT: Outputs the audio that is associated with the left video signal.

RIGHT: Outputs the audio that is associated with the right video signal.

When MULTI PICTURE is MAIN or SUB:

MAIN: Outputs the audio that is associated with the main video signal.

SUB: Outputs the audio that is associated with the sub-video signal.

NOTE: When using split screen, the SOUND INPUT setting can change which audio input signal is routed through

the built-in speakers.

VIDEO DETECT

Selects the method of video detection when more than one video input is connected.

FIRST: When the current video input signal is not present, the monitor searches for a video signal from the other video

input ports. If the video signal is present in another port, the monitor switches the video source input to the detected

video source automatically. The monitor will not look for other video signals while the current video source is present.

LAST: When the monitor is displaying a signal from the current source and a new secondary source is supplied to

the monitor, the monitor will automatically switch to the new video source. When the current video input signal is not

present, the monitor searches for a video signal from the other video input port(s). If the video signal is present in

another port, the monitor switches the video source input port to the detected video source automatically.

NONE: Video input signal detection is not enabled.

NOTE: When displaying HDMI1 and the setting is LAST, the signal cannot automatically change to USB-C.

When displaying USB-C and the setting is LAST, the signal cannot automatically change to HDMI1.

MULTI PICTURE

Activates the MULTI PICTURE function and selects the priority (adjustable) screen.

Icon Name

Off Multi Picture is Off.

Left 2 split screen (Picture-By-Picture). Left hand side screen is selected.

Right 2 split screen (Picture-By-Picture). Right hand side screen is selected.

Main Picture-In-Picture. Main screen is selected.

Sub Picture-In-Picture. Sub-screen is selected.

NOTE: When “Left”, “Right”, “Main” or “Sub” is selected, only the selected screen can be adjusted.

The available signals used for MULTI PICTURE are limited to the following combinations.

Right Picture or Main Picture

DP HDMI1 HDMI2 USB-C

Left Picture

Sub-Picture

DP Yes Yes Yes Yes

HDMI1 Yes Yes Yes No

HDMI2 Yes Yes Yes Yes

USB-C Yes No Yes Yes

English-18

PICTURE PATTERN

When “Left” or “Right” is selected in MUTI PICTURE, this selects the size of the picture.

AUTO: Shows 2 screens based on the INPUT RESOLUTION and EXPANSION settings for the priority (adjustable)

screen selected in MULTI PICTURE.

CENTER: Splits 2 screens divided evenly from the center.

When “Main” or “Sub” is selected in MUTI PICTURE, this selects the position of the sub-screen.

LEFT: The sub-screen’s start position is bottom-left side of the screen.

RIGHT: The sub-screen’s start position is bottom-right side of the screen.

PICTURE SIZE

Selects SMALL, MIDDLE or LARGE for the size of the sub-picture used in Picture-In-Picture mode.

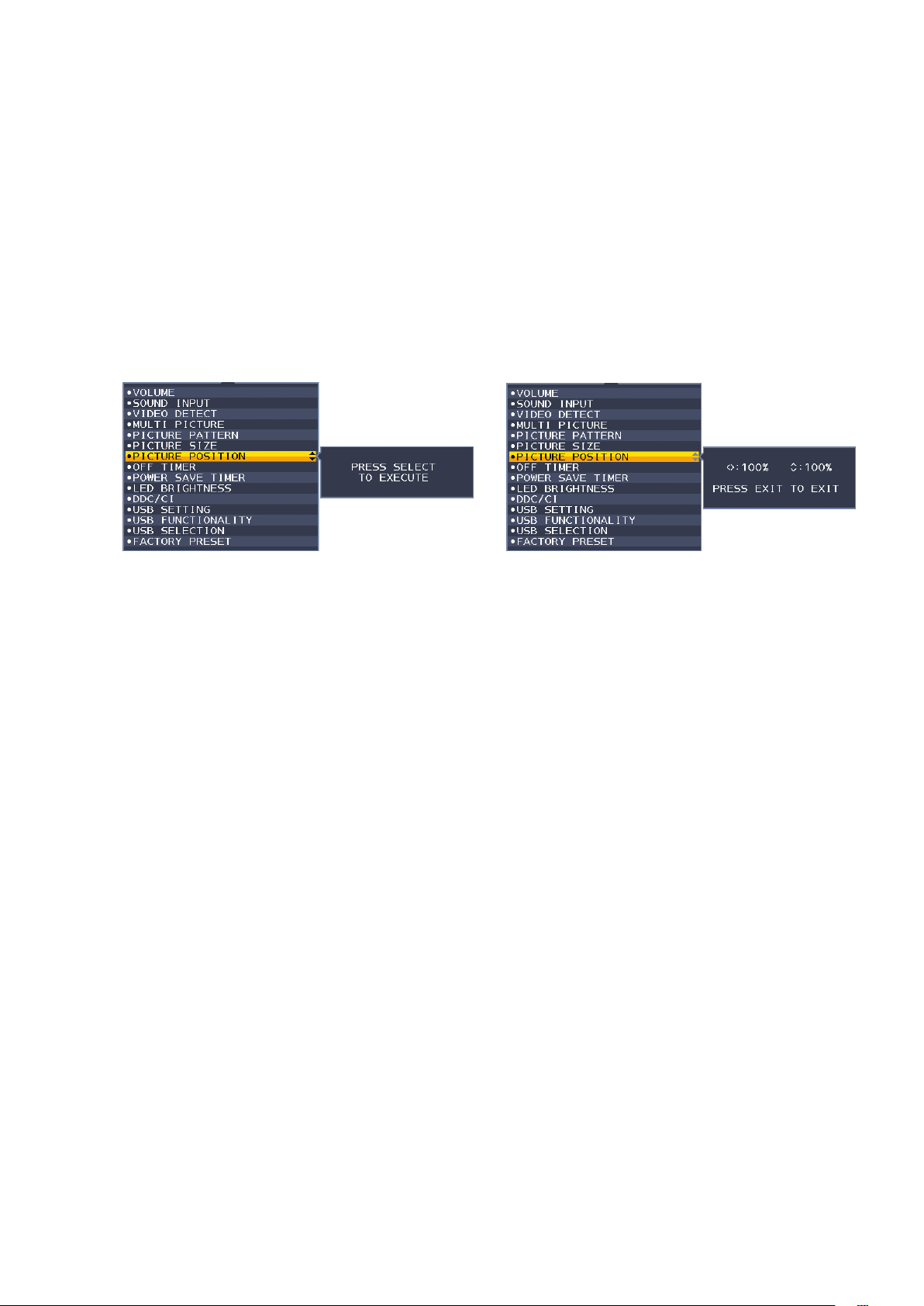

PICTURE POSITION

Determines where the sub-screen appears on the screen.

Touch the SELECT key to enter the PICTURE POSITION mode (Figure 1).

Using LEFT, RIGHT, UP and DOWN keys controls the horizontal and vertical position of the sub-screen within the

boundaries of the side where the sub-screen is located (Figure 2).

Figure 1

Figure 2

OFF TIMER

The monitor will automatically power off after a period of time has passed, which you can set.

Before powering off, a message will appear on the screen asking if you want to delay the turn off time by 60 minutes.

Touch any OSD key to delay the power-down time.

POWER SAVE TIMER

POWER SAVE TIMER allows the monitor to turn off automatically after 2 consecutive hours in power save mode.

LED฀BRIGHTNESS

Adjusts the blue LED brightness.

DDC/CI

This function turns the DDC/CI function ON or OFF.

USB SETTING

Selects a transfer speed of USB-C.

USB2.0: The maximum supported resolution is 3840 x 2160 (60 Hz). The maximum transfer speed is equivalent to

USB 2.0.

USB3.1: The maximum supported resolution is 3840 x 2160 (30 Hz). The maximum transfer speed is equivalent to

USB 3.1.

NOTE: To avoid data loss, before changing the setting, ensure that no USB storage devices are in use by the

operating system.

USB FUNCTIONALITY

Selects how power through the USB Type-A port and USB Type-C port, input signal from USB-C, and external

communication of USB are enabled in relation to the Monitor’s power status.

AUTO: Depending on the monitor’s power condition.

ON: Always working even when the monitor is in power save mode or power OFF.

OFF: All USB functions (include USB Type-C video signal) are disabled.

NOTE: Actual power consumption depends on the connected USB device even when the monitor’s power is off.

To avoid data loss, before changing the setting, ensure that no USB storage devices are in use by the

operating system.

English-19

English

USB SELECTION

Change the USB upstream input (USB or USB-C) associated with the current display input. When connecting a

computer to each of the upstream ports, the monitor's USB downstream ports can be used by selecting this setting for

the current input signal.

You can change the active display and upstream USB port combination by using the INPUT key (see page 13).

When using only one upstream port, the connected upstream port is used by default.

NOTE: To avoid data loss, before changing USB upstream ports, ensure that no USB storage devices are in use by

the operating system of the computer attached to the USB upstream port.

FACTORY PRESET

Selecting Factory Preset allows you to reset all OSD control settings back to the factory settings except Language,

OSD Lock Out and items in Multi Display tag. Individual settings can be reset by touching the “ /RESET” key.

MENU Tools

LANGUAGE

Selects the language used by the OSD.

OSD TURN OFF

The OSD menu will stay open as long as it is in use. You can select how long the monitor waits after the last key touch

to close the OSD menu. The preset choices are 10-120 seconds by 5-second increments.

OSD LOCK OUT

This control completely locks out access to all OSD control functions except for Brightness, Contrast and Volume.

To activate the OSD Lock Out function, open the OSD menu, select OSD LOCK OUT, then touch “SELECT” and

RIGHT simultaneously. To deactivate, touch “SELECT” and LEFT simultaneously.

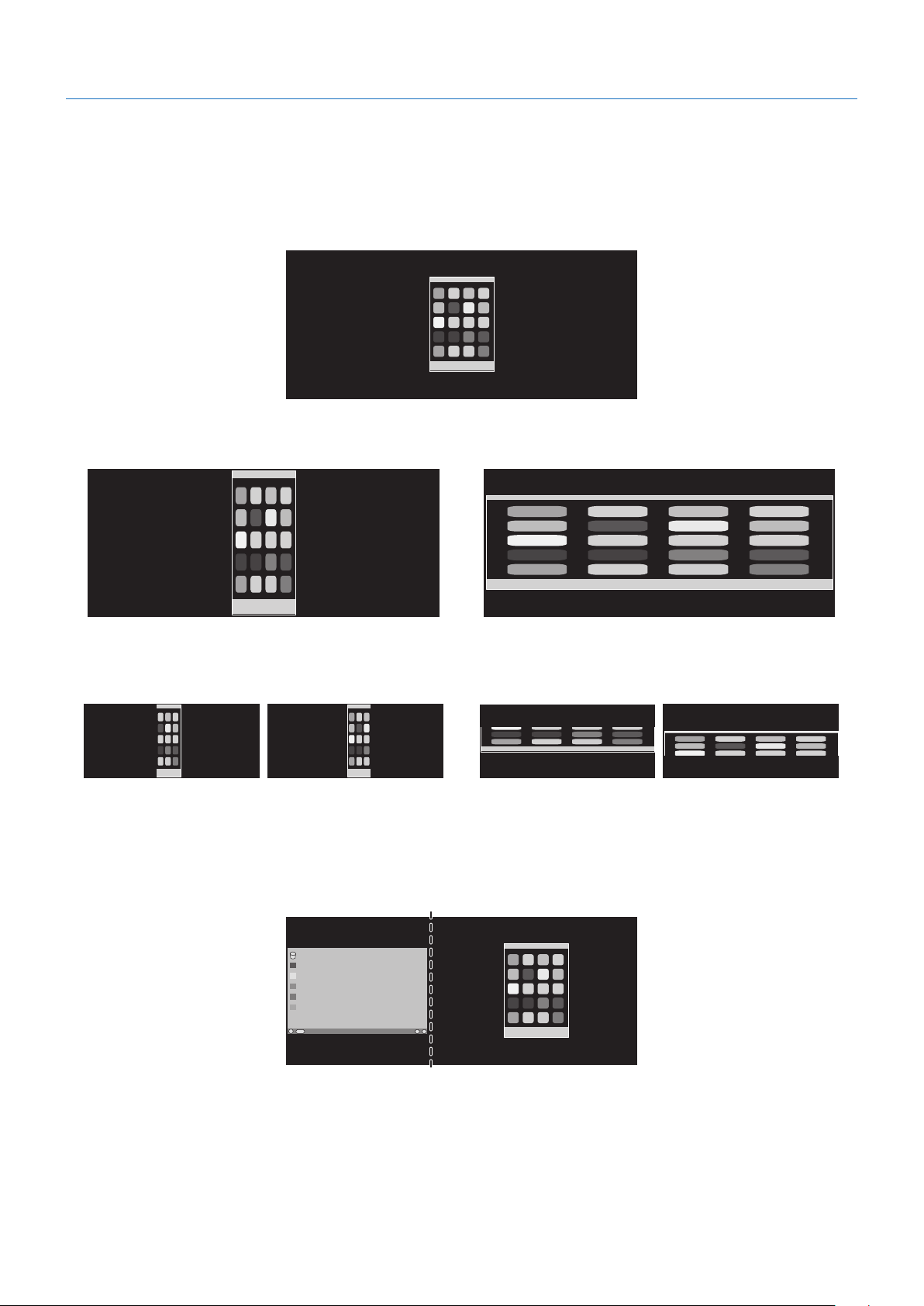

OSD ROTATION

This controls the OSD menu rotation.

Depending on the image angle (monitor rotation), select a suitable OSD rotation setting.

NOTE: Please set the KEY GUIDE to “ON” to display the key guide.

Setting (Angle) Image Key guide

: LEFT

: RIGHT

: DOWN

: UP

180

270

English-20

HOT฀KEY

When this function is ON, BRIGHTNESS, VOLUME, USB SELECTION and MULTI PICTURE settings can be changed

without opening the OSD menu.

ON:

BRIGHTNESS: Touch the UP key, then adjust the brightness level in the sub-menu that opens.

VOLUME: Touch the DOWN key, then adjust the volume level in the sub-menu that opens.

USB SELECTION: Touch the RIGHT key to open the USB SELECTION sub-menu.

MULTI PICTURE: Touch the

/RESET key to open the MULTI PICTURE sub-menu. You can swap pictures

between a main screen and a sub-screen by touching the /RESET key for 3 seconds or more while Main or Sub

is set in MULTI PICTURE

OFF: The HOT KEY function for the “ /RESET” key, “LEFT/RIGHT” key and “DOWN/UP” key functions are disabled.

SIGNAL INFORMATION

If you select “ON”, the monitor displays “VIDEO INPUT MENU” after changing the input.

If you select “OFF”, the monitor doesn’t display “VIDEO INPUT MENU” after changing the input.

SENSOR INFORMATION

If you select “ON”, the monitor displays a “HUMAN SENSOR ON” message. If you select “OFF”, the monitor doesn’t

display the “HUMAN SENSOR ON” message.

KEY GUIDE

If you select “ON”, the Key Guide appears on screen when the OSD menu is opened.

DATA COPY

To initiate data copy from the master monitor to the sub-monitor(s), select “DATA COPY” and touch “SELECT”.

A “PROCEEDING...” indicator will appear on the screen.

NOTE: This function is only intended for the master monitor in ControlSync.

All of the settings speciﬁed in the ControlSync chart (see page 12) will be copied from the master

monitor to the sub-monitor(s).

CUSTOMIZE SETTING

Store the current settings for easy recovery.

To store current settings: Touch “SELECT”. After a warning message appears, touch “RESET” and the current

settings are stored.

To restore settings: Hold “MENU” for 3 seconds or more when the OSD menu is closed.

MULTI DISPLAY

MONITOR NO.

This function is for INDIVIDUAL ADJUST.

Sets a monitor number for each monitor.

Control a sub-monitor from the master monitor by INDIVIDUAL ADJUST:

This function is for controlling a sub-monitor from the master monitor. It is useful if the sub-monitor is located at an

unreachable spot.

Please set the monitor number for each monitor. If you set a unique number to each of the monitors, you can control a

speciﬁc monitor. If you set duplicate numbers to some of the monitors, you can control the monitors that have the same

number simultaneously.

NOTE: A master monitor should be connected only with ControlSync OUT. Do not connect a master monitor

with ControlSync IN. For information about master and sub-monitors, see ControlSync (

page 11).

180° ROTATE

The image rotates 180 degrees.

NOTE: When installing monitors in two stages, upper monitors can be installed upside down.

The installation method can minimize bezel distance between upper monitors and bottom monitors.

[180° ROTATE: OFF]

Monitor 1

Monitor 2

[180° ROTATE: ON]

Monitor 1

Monitor 2

[180° ROTATE: OFF]

English-21

English

TARGET MONITOR NO.

Controls a sub-monitor’s OSD by using the master monitor’s control keys.

Sets the sub-monitor number that is set at MONITOR NO. By touching the INPUT (SELECT) key, each sub-monitor

displays its monitor number.

INDIVIDUAL ADJUST

ON: Controls an individual sub-monitor from the master monitor.

Once ON is set, operation at the master monitor reﬂects to the sub-monitor OSD.

To disable INDIVIDUAL ADJUST, please touch SELECT and EXIT keys simultaneously.

NOTE: Please connect monitors with the ControlSync cables.

ECO Information

CARBON SAVINGS: Displays the estimated carbon savings information in kg.

CARBON USAGE: Displays the estimated carbon usage information in kg. This is the arithmetic estimation, not actual

measurement value.

COST SAVINGS: Displays the electricity cost savings in balance.

CARBON CONVERT SETTING: Adjusts the carbon footprint factor in the carbon saving calculation. This initial setting

is based on the OECD (2008 Edition).

CURRENCY SETTING: Displays electricity pricing in 6 currency units.

CURRENCY CONVERT SETTING: Displays electricity savings in kW/hour (US Currency is default).

NOTE: This model’s initial setting is “Currency = US$” and its Currency Convert setting = $0.11.

This setting can be changed by using the ECO information menu.

If you want to use the French setting, please refer to the steps below:

1. Touch the Menu key and select the ECO information menu using the “LEFT” or “RIGHT” key.

2. Select the CURRENCY SETTING item by touching the “UP” or “DOWN” key.

3. The French currency unit is Euro (

). You can adjust currency setting to Euro icon ( ) from

US dollar ($) by touching the “LEFT” or “RIGHT” key in Current setting item.

4. Select CURRENCY CONVERT SETTING by touching the “UP” or “DOWN” key*.

5. Adjust CURRENCY CONVERT SETTING by touching the “LEFT” or “RIGHT” key.

* This initial Euro ( ) setting is based on the OECD data for Germany (2007 Edition).

Please check the receipt of electricity prices for France or OECD data for France.

The French value according to the OECD data (2007 Edition) was 0.12.

Information

Provides information about the current display resolution, USB-C status and technical data. Indicates the model and

serial numbers of your monitor.

OSD Warning

OSD warning menus disappear when EXIT is selected.

NO SIGNAL: This function gives a warning when there is no horizontal or vertical sync. After power is turned on or

when there is a change of input signal, the No Signal window will appear.

OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power

is turned on or there is a change of input signal or if the video signal doesn’t have proper timing, the Out Of Range

window will appear.

English-22

Using the Picture Mode function

Choose the Picture Mode that is most suitable for the type of content that is shown.

There are several Picture Mode types (FULL, sRGB, Low Blue Light, DICOM SIM., PROGRAMMABLE).

•฀Each฀Picture฀Mode฀includes฀WHITE฀(Color฀Temperature),฀WHITE฀(White฀Balance),฀HUE,฀OFFSET฀and฀SATURATION฀

settings.

The type of PRESET

PRESET PURPOSE

FULL

Native display color gamut. Suitable for use with color managed applications.

sRGB

Standard color space used for the Internet, Windows operating systems and digital cameras. Recommended setting

for general color management.

Low Blue Light

Reduces blue light emitted from the monitor.

DICOM SIM.

Medical settings for X-ray imaging view. Setting that conforms to the DICOM simulation for the Grayscale Standard

Display Function.

PROGRAMMABLE

For the Hardware Calibration settings by NEC Display Solutions software (some OSD settings are disabled).

English-23

English

Speciﬁcations

Monitor Speciﬁcations MultiSync EA271U Notes

LCD Module Diagonal:

Viewable Image Size:

Native Resolution (Pixel Count):

68.47 cm/27 inches

3840 x 2160

Active matrix; thin ﬁlm transistor (TFT) liquid crystal

display (LCD); 0.155 mm dot pitch; 350 cd/m

white

luminance; 1300:1 contrast ratio (typical), (9000:1

Contrast ratio, Dynamic).

Input Signal

DisplayPort: DisplayPort Connector:

USB-C Port:

Digital RGB

DisplayPort V1.2 (HDCP1.3)

HDMI: HDMI Connector: Digital YUV

Digital RGB

HDMI2 (HDCP1.4), HDMI1 (HDCP2.2)

Display Colors 1,064,332,261 (DisplayPort/HDMI 10 bit) Depends on display card used.

Synchronization Range Horizontal:

Vertical:

31.5 kHz to 135.0 kHz

30 Hz to 75 Hz

Automatically

Viewing Angle Left/Right:

Up/Down:

±89°฀(CR฀>฀10)

Response Time 5 ms (Gray to Gray Typ.)

Active Display Area Landscape: Horiz.:

Vert.:

Portrait: Horiz.:

Vert.:

596.7 mm/23.5 inches

335.7 mm/13.2 inches

596.7 mm/23.5 inches

USB Hub I/F:

Port:

Load Current:

USB Speciﬁcation Revision USB 3.1 Gen 1

Upstream 2 (incl. 1 x USB-C Port)

Downstream 3

Downstream Port: 5V/0.9 A (Max.)

USB-C Port: 60 W (Max.) 5/9/12/15/20 V

Upstream port applicable to USB monitor control.

AUDIO

Audio Input: DisplayPort Connector:

HDMI Connector:

Digital Audio

PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)

Headphone Output: STEREO Mini Jack: Headphone Impedance 32 Ohm

Speakers Practical Audio Output: 1.0 W + 1.0 W

ControlSync IN:

(available up to 8 sub-monitors) OUT:

Stereo Micro jack 2.5 φ

Power Supply AC 100-240 V, 50/60 Hz

Current Rating 1.60 - 0.75 A

Dimensions Landscape:

Portrait:

611.8 mm (W) x 378.0 - 528.0 mm (H) x 250.0 mm (D)

24.1 inches (W) x 14.9 - 20.8 inches (H) x 9.8 inches (D)

361.9 mm (W) x 628.6 - 652.1 mm (H) x 250.0 mm (D)

14.2 inches (W) x 24.7 - 25.7 inches (H) x 9.8 inches (D)

Stand adjustable range Height Adjustment:

Tilt / Pivot / Swivel:

150 mm/5.9 inches (Landscape orientation)

23.5 mm/0.9 inches (Portrait orientation)

Up฀35°฀Down฀5°฀/฀±฀90°฀/฀340°

Weight 9.5 kg (20.9 lbs)/Without stand: 6.1 kg (13.4 lbs)

Environmental Considerations

Operating Temperature:

Humidity:

Altitude:

Storage Temperature:

Humidity:

Altitude:

5°C฀to฀35°C/41°F฀to฀95°F

20% to 80%

0 to 16,404 Feet/0 to 5,000 m

-10°C฀to฀60°C/14°F฀to฀140°F

10% to 85%

0 to 40,000 Feet/0 to 12,192 m

NOTE: Technical speciﬁcations are subject to change without notice.

English-24

Major supported timings

Resolution

Vertical Frequency Notes

640 x 480 60/72/75 Hz

720 x 400 70 Hz

720 x 480 60 Hz

720 x 576 50 Hz

800 x 600 50/60/72/75 Hz

832 x 624 75 Hz

1024 x 768 60/70/75 Hz

1280 x 720 50/60 Hz

1280 x 960 60/75 Hz

1280 x 1024 60/75 Hz

1440 x 900 60 Hz

1600 x 1200 60 Hz

1680 x 1050 60 Hz

1920 x 1080 50/60 Hz

1920 x 1200 60 Hz

2560 x 1440 60 Hz

3840 x 2160 30 Hz HDMI2 Recommended

3840 x 2160 60 Hz Recommended

NOTE: When the selected monitor resolution is not a native panel resolution, the text contents appearance in the monitor

screen is expanded in a horizontal or vertical direction to show the non-native resolution to full screen. This expansion

is done by interpolated resolution technologies, which are normal and widely used in ﬂat panel devices.

English-25

English

Features

UHD/4K฀resolution: Provides more vivid and crisp images with 3860 x 2160 pixels.

USB Type-C With Power Delivery: Supports video & audio input, USB hub function and supplies power to connected devices

by a single cable, which provides ﬂexible connectivity in a tidy work environment.

3-side Narrow Bezel: Stylish appearance and less distance between adjacent multi-screens.

Fully Ergonomic Stand: Provides viewing ﬂexibility with 150mm height adjustment, -5 ~ 35-degree tilt, 170-degree swivel to

both right/left directions with cable management function and small footprint. Monitor head (display part) can touch the stand

base for lower position requirement.

ErgoDesign Features: Enhance human ergonomics to improve the working environment, protect the health of the user and

save money. In addition to the fully ergonomic stand, examples include OSD controls for quick and easy image adjustment and

lower emissions.

VESA Standard Mounting Interface: Connects the MultiSync monitor to any VESA standard third party mounting arm or

bracket.

OSD Rotation: Supports better intuitive OSD operation when the monitor is set in pivot (90/270 degrees) or inverted

(180 degrees).

Plug and Play: The Microsoft

solution with the Windows

operating system facilitates setup and installation by allowing

the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically

optimizing display performance.

USB฀Hub฀3.1฀Gen.1: The USB hub adds ﬂexibility to your computing by providing easy access to USB SuperSpeed data

transfer and charging via USB. For more details, please see page 7.

Picture-By-Picture/Picture-In-Picture: Two different input sources can simultaneously be viewed side by side (Picture-By-

Picture) or a small sub-screen on a large main screen (Picture-In-Picture), which increases job productivity.

Hardware฀Calibration: Adjusts brightness, colors and gamma curve for your preference with software and color sensor.

USB Monitor Control: Allows you to adjust each item through application software by connecting a USB cable.

6-Axis Color Control: In addition to RGB (Red/Green/Blue) colors, CMY (Cyan/Magenta/Yellow) colors can be adjusted for

better color reproduction such as matching print images.

Uniformity (UNIFORMITY): This feature compensates for slight variations in the white uniformity level that may occur on the

screen and improves the color and evens out the luminance uniformity of the display.

Human/Ambient฀Sensors: Controls screen brightness according to user presence and ambient light status for less power

consumption.

Response Improve (RESPONSE IMPROVE): Improves gray to gray response.

Intelligent Power Manager System: Provides innovative power-saving methods that allow the monitor to shift to a lower power

consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the

air conditioning costs of the workplace.

ControlSync: Provides control and synchronization of settings for up to eight MultiSync EA series displays from a single master

monitor (see page 11).

Individual Adjust (INDIVIDUAL ADJUST): A designated main monitor can adjust an individual sub-monitor(s) by the OSD. It is

good for multi-setting monitors which are positioned far from the user.

180-Degree Image Rotation: When multiple monitors are set in a vertical direction, for optimizing narrower bezel of the top

side, upper monitors can be inverted. This function can correct the screen rotation image without using an OS function, which

supports, for example, easier Tile Matrix setting.

Customize Setting (CUSTOMIZE SETTING): Allows to store the current settings and recover stored settings.

Low Blue Light: Low Blue Light function substantially reduces blue light and helps to alleviate eye-strain (see page 22).

Flicker Free: Special backlight system reduces ﬂicker for less eyestrain.

NaViSet Administrator 2 Software: Offers an expanded and intuitive graphical interface, allowing you to more easily adjust

OSD display settings from network PC.

Environmental Impact: Annual typical maximum operating carbon footprint of this monitor (world-wide average) is

approximately 136.4 kg (calculated by: rated wattage x 8 hours per day x 5 days a week x 45 weeks per year x Power-to-

Carbon conversion factor - conversion factor is based on OECD publication of global CO2 emissions 2008 Edition). This monitor

has a manufacturing carbon footprint of approximately 63.0 kg.

Note: The manufacturing and operating carbon footprints are calculated by a unique algorithm developed exclusively by NEC

for its monitors and are accurate at the time of printing. NEC reserves the right to publish updated carbon footprint values.

English-26

Troubleshooting

No picture

•฀Make sure the signal cable is fully connected to both the monitor and the computer.

•฀Make sure the computer’s display card is fully seated in its slot.

•฀Do not use a DisplayPort converter adapter. This device is not supported.

•฀Make sure both the computer and monitor power switches are in the ON position.

•฀The฀monitor฀will฀automatically฀turn฀off฀by฀the฀“POWER฀SAVE฀TIMER”฀function฀when฀the฀“POWER SAVE TIMER” setting

is “ON” and continues in power save mode for 2 hours. Please touch the power key.

•฀Make sure that a Major Supported Timings has been selected for the display card in the system being used.

(Please consult the manual for the system or display card for supported resolution and changing the settings).

•฀Check฀the฀monitor฀and฀your฀display฀card฀with฀respect฀to฀compatibility฀and฀recommended฀settings.

•฀Check฀the฀signal฀cable฀connector฀for฀bent฀or฀pushed-in฀pins.

•฀Make sure the connected device outputs a signal to the monitor.

•฀If฀the฀front฀LED฀is฀dark฀blue,฀check฀the฀status฀of฀the฀OFF฀MODE฀SETTING฀mode฀(see฀page 14) or HUMAN SENSING

(see page 15).

•฀If฀the฀image฀of฀3840฀x฀2160฀resolution฀is฀noisy,฀unstable฀or฀there฀is฀no฀video,฀please฀refer฀to฀“DisplayPort,฀USB฀Type-C฀

compatibility for 3840 x 2160 resolution” (see page 34).

Power Key does not respond

•฀Unplug the monitor power cable from the AC outlet to turn off and reset the monitor.

Image Persistence

•฀Image฀persistence฀is฀when฀a฀residual฀or฀“ghost”฀image฀of฀a฀previous฀image฀remains฀visible฀on฀the฀screen.฀Unlike฀CRT฀

monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period

of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was

displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should

be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at

regular intervals whenever the screen is idle or turning off the monitor when not in use.

Message “OUT OF RANGE” is displayed (screen is either blank or shows rough images only)

•฀OSD warning “OUT OF RANGE” is displayed on a rough image (pixels are missing): Either the signal clock or resolution

is too high. Change the settings to a supported mode.

•฀OSD warning “OUT OF RANGE” is displayed on a blank screen: The signal frequency is out of range. Change the

settings to a supported mode.

Image is unstable, unfocused or swimming is apparent

•฀Signal฀cable฀should฀be฀completely฀attached฀to฀the฀computer.

•฀Use฀the฀OSD฀Image฀Adjust฀controls฀to฀focus฀and฀adjust฀the฀display฀by฀increasing฀or฀decreasing฀the฀ne฀adjustment.฀

When the display mode is changed, the OSD Image Adjust settings may need to be readjusted.

•฀Check฀the฀monitor฀and฀your฀display฀card฀with฀respect฀to฀compatibility฀and฀recommended฀signal฀timings.

•฀If฀your฀text฀is฀garbled,฀change฀the฀video฀mode฀to฀non-interlace฀and฀use฀60Hz฀refresh฀rate.

•฀If฀the฀image฀of฀3840฀x฀2160฀resolution฀is฀noisy,฀unstable฀or฀there฀is฀no฀video,฀please฀refer฀to฀“DisplayPort,฀USB฀Type-C฀

compatibility for 3840 x 2160 resolution” (see page 34).

•฀Some HDMI cable may not display an image correctly.

If input resolution is 3840 x 2160, please use the HDMI cable that supports 4K resolution.

LED on monitor is not lit (no blue or amber color can be seen)

•฀Power฀Switch฀should฀be฀in฀the฀ON฀position฀and฀power฀cord฀should฀be฀connected.

•฀Increase฀LED฀BRIGHTNESS฀adjustment.

English-27

English

Picture is not bright

•฀Make฀sure฀ECO฀MODE฀and฀AUTO฀BRIGHTNESS฀are฀turned฀off.

•฀If฀the฀brightness฀uctuates,฀make฀sure฀AUTO฀BRIGHTNESS฀is฀turned฀off.

•฀Signal฀cable฀should฀be฀completely฀attached.

•฀LCD฀brightness฀degradation฀occurs฀due฀to฀long-term฀usage฀or฀extreme฀cold฀conditions.

•฀When฀using฀an฀HDMI฀input,฀please฀change฀“VIDEO฀LEVEL”.

•฀If the brightness ﬂuctuates, make sure DV MODE is set to STANDARD.

Display image is not sized properly

•฀Use฀the฀OSD฀Image฀Adjust฀controls฀to฀increase฀or฀decrease฀the฀Coarse฀adjustment.

•฀Make sure that a Major Supported Timings has been selected for the display card in the system being used.

(Please consult the manual for the system or display card for supported resolution and changing the settings).

•฀When฀using฀an฀HDMI฀input,฀please฀change฀“OVER฀SCAN”.

•฀Please฀check฀“180°฀ROTATE”฀settings.

No Video

•฀If฀no฀video฀is฀present฀on฀the฀screen,฀turn฀the฀Power฀key฀off฀and฀on฀again.

•฀Make฀sure฀the฀computer฀is฀not฀in฀a฀power-saving฀mode฀(touch฀the฀keyboard฀or฀mouse).

•฀When using DisplayPort, some display cards do not output video signal under low resolution modes when the monitor is

turned OFF/ON or disconnected/connected from the AC power cord.

•฀When฀using฀an฀HDMI฀input,฀please฀change฀“OVER฀SCAN”.

•฀Make฀sure฀VIDEO฀DETECT฀is฀set฀to฀NONE.

•฀If฀the฀image฀of฀3840฀x฀2160฀resolution฀is฀noisy,฀unstable฀or฀there฀is฀no฀video,฀please฀refer฀to฀“DisplayPort,฀USB฀Type-C฀

compatibility for 3840 x 2160 resolution” (see page 34).

•฀Make฀sure฀USB฀FUNCTIONALITY฀is฀set฀to฀ON฀or฀AUTO.

No Sound

•฀Make฀sure฀the฀speaker฀cable฀is฀properly฀connected.

•฀Check฀to฀see฀if฀mute฀is฀activated.

•฀Check฀the฀volume฀level฀in฀the฀OSD฀menu.

•฀If the input signal is DisplayPort or HDMI, make sure the SOUND INPUT in the OSD menu is set to DisplayPort or HDMI.

Brightness variations over time

•฀Change฀AUTO฀BRIGHTNESS฀to฀OFF฀and฀then฀adjust฀the฀brightness.

•฀Change DV MODE to STANDARD and then adjust the brightness.

NOTE: When AUTO BRIGHTNESS is set to ON, the monitor automatically adjusts brightness based on the environment.

When the brightness of surrounding environment changes, the monitor will also change.

When DV MODE is set to DYNAMIC, the monitor automatically adjusts the brightness.

USB฀Hub฀does฀not฀operate

•฀Make฀sure฀the฀USB฀cord฀is฀properly฀connected.฀Refer฀to฀your฀USB฀device฀User’s฀Manual.

•฀Check฀that฀USB฀FUNCTIONALITY฀is฀set฀to฀ON฀or฀AUTO,฀and฀the฀USB฀upstream฀port฀on฀the฀monitor฀is฀connected฀to฀the฀

USB downstream port on the computer. And make sure the computer is ON.

•฀Check฀the฀USB฀SELECTION฀settings.

Human฀sensor฀does฀not฀work

•฀Make฀sure฀there฀is฀no฀object฀in฀front฀of฀the฀Human฀sensor.

•฀Make฀sure฀there฀is฀no฀equipment฀that฀radiates฀infrared฀rays฀in฀front฀of฀the฀monitor.

ControlSync does not work

•฀Make฀sure฀the฀ControlSync฀cable฀is฀connected฀correctly.

•฀Make฀sure฀the฀ControlSync฀cable฀is฀not฀in฀“loop”฀connection.

•฀Master฀monitor฀should฀be฀connected฀with ControlSync OUT connector only.

•฀Please฀use฀the฀provided฀ControlSync฀cable.

•฀You฀can฀use฀up฀to฀8฀sub-monitors฀via฀ControlSync฀cables.

English-28

Displayed OSD menu is rotated

•฀Make sure of the OSD ROTATION setting.

USB Type-C device does not work

•฀Refer฀to฀the฀NEC฀Display฀Solutions฀website฀for฀the฀information฀of฀tested฀USB฀Type-C฀devices฀and฀cables.

“Warning: Remove USB-C cable” OSD was shown.

•฀The฀monitor฀detected฀abnormal฀voltage฀or฀current฀on฀USB-C฀port.฀Please฀remove฀USB-C฀cable฀immediately.

No picture

•฀Make฀sure฀USB฀FUNCTIONALITY฀is฀set฀to฀ON฀or฀AUTO.

•฀Check฀if฀the฀connected฀USB-C฀device฀complies฀with฀DisplayPort฀Alt฀Mode฀on฀USB฀Type-C.

•฀Check฀if฀the฀USB฀Type-C฀cable฀complies฀with฀USB฀3.1฀Gen.1฀or฀Gen.2.

Charging is not started or unstable.

•฀Make฀sure฀USB฀FUNCTIONALITY฀is฀set฀to฀ON฀or฀AUTO.

•฀Check฀if฀the฀connected฀USB-C฀device฀complies฀with฀USB฀Power฀Delivery.

•฀Check฀if฀the฀USB฀Type-C฀cable฀complies฀with฀USB฀Power฀Delivery.

•฀If฀you฀still฀have฀trouble,฀unplug฀the฀monitor’s฀power฀cord฀from฀the฀AC฀outlet฀and฀then฀remove฀the฀USB-C฀cable.฀

Reconnect the power cord and then the USB-C cable.

Transfer speed is slow

•฀Check฀USB฀SETTING฀and฀set฀to฀USB3.1.

MULTI PICTURE does not work

•฀Check฀to฀make฀sure฀the฀signal฀combination฀and฀set฀the฀optimized฀combination฀for฀split฀screen฀(see฀

page 17).

English-29

English

Human฀sensing฀function

The Human sensing function reduces power consumption by detecting the movement of a person.

The HUMAN SENSING has following two settings:

MODE HUMAN฀SENSING฀SETTINGNo person in front of the monitor

LIGHT 1 BRIGHTNESS 0%

DEEP 2 Power saving mode

Image of human sensing operation

A. When the sensor detects no person in front of the monitor, the monitor stays on for the period of time which is set at HUMAN

SENSING฀>฀START฀TIME฀(see฀

page 15).

B. The monitor displays a notiﬁcation on the screen after the period of time with no human detected has passed.

You can set the notiﬁcation screen at SENSOR INFORMATION (see page 20).

C. After displaying the notiﬁcation, if LIGHT is set at HUMAN SENSING, the monitor screen gets gradually darker until it gets to

0% brightness.

If DEEP is set at HUMAN SENSING, the monitor enters into power saving mode.

D. When the sensor detects a person coming back, the monitor is automatically returned from power saving mode to normal

mode.

NOTE: When LIGHT is set at HUMAN SENSING, the monitor screen gets gradually brighter as it returns to the original

brightness.

E. The monitor returns to normal mode.

A EB C D

A user leaves A user returns

Normal mode Normal mode +

notiﬁcation

Power save mode

HUMAN SENSING

(LIGHT/DEEP)

Back to Normal mode

English-30

Using the Auto Brightness function

The brightness of the LCD screen can be set to increase or decrease depending on the amount of ambient lighting within the

room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly.

The purpose of this function is to make the viewing experience more comfortable to the eye in a variety of lighting conditions.

SETUP

Use the following procedures to select the Brightness Range that the monitor will use when the Auto Brightness function is

activated.

1. Set the BRIGHTNESS level. This is the brightness level that the monitor will rise to when the ambient lighting level is

highest. Select this setting when the room is at its brightest.

Select ON in the AUTO BRIGHTNESS menu (Figure 1). Then use the front Keys to move the cursor up to the

BRIGHTNESS setting. Choose the desired brightness level (Figure 2).

Figure 1 Figure 2

2. Set the DARK level. This is the level of brightness that the monitor will lower to when the ambient lighting level is low.

Make sure the room is at its darkest when setting this level.

Then use the front Keys to move the cursor up to the BRIGHTNESS setting. Choose the desired brightness level (Figure 3).

Figure 3

When the “Auto Brightness” function is enabled the Brightness level of the screen changes automatically according to the

lighting conditions of the room (Figure 4).

BRIGHTNESS level set

for the monitor to use

when ambient lighting

level is low.

BRIGHTNESS level set for the

monitor to use when ambient

lighting level is high.

BRIGHTNESS range

Lb: Border between bright and dim lighting conditions; set at the factory

L1:฀BRIGHTNESS฀level฀set฀for฀the฀monitor฀to฀use฀when฀ambient฀lighting฀level฀is฀high฀(L1>Lb)

L2 : BRIGHTNESS level set for the monitor to use when ambient lighting level is low (L2<Lb)

L1 and L2 are the brightness levels set by the user to compensate for changes in ambient lighting.

Figure 4

dark bright

room bright condition

Screen Brightness value by Auto Brightness function

Bright condition area

Dark condition area

English-31

English

Using the MULTI PICTURE function

This monitor can display split screens from two sources by using any one of the input combinations shown on page 17.

NOTE: Please see MULTI PICTURE (page 17) and PICTURE PATTERN (page 18).

BRIGHTNESS and SOUND INPUT settings are set to be the same for both screens.

SETUP

1. Touch MENU to open the OSD menu.

2. Select MULTI PICTURE.

In a Picture-By-Picture case, select Left

as an adjustable screen.

In a Picture-In-Picture case, select Main

as an adjustable screen.

Close the OSD menu in order to change the signal input.

3. Touch INPUT, then select the input signal used by the selected screen.

4. Return to 1 to select the input for the other screen.

In a Picture-By-Picture case, select Right then setup input signal.

In a Picture-In-Picture case, select Sub

then setup input signal.

English-32

Using the Zoom function

Allows you to use the entire screen area, signiﬁcantly expanding the size.

Allows the picture displayed in the center to expand.

NOTE: When LEFT or RIGHT is set at MULTI PICTURE, the other picture is expanded or reduced automatically.

SETUP

1. Select FULL or ASPECT in EXPANSION to activate the Zoom function (see

page 16).

EXPANSION OFF

2. Set a resolution via H.RESOLUTION or V.RESOLUTION (see page 15).

Vertical expanding Horizontal฀expanding

3. The image position can be moved from the center to left or right by selecting LEFT/RIGHT and upward or downward by

selecting UP/DOWN (see page 15).

Move left or right Move upward or downward

NOTE: When showing 2 screens, the input resolution of the main (adjustable) image is prioritized.

A. The right image is set to be the main one.

In this case, the priority image is set to be on the right side with black area shown. The input resolution for the image on the

left side is decreased.

English-33

English

B. The left image is set to be the main one.

In this case, the priority image is set to be on the left side.

The size of the image on the right side with black area is reduced.

To enlarge the split images: use the following procedures to reduce the black area and enlarge the split images.

1. In case A, a priority image is set to be on the right side. The size of the black area can be reduced by adjusting the resolution

(see page 15).

2. Move the priority image to the left side.

English-34

DisplayPort, USB Type-C compatibility for 3840 x 2160

resolution

Image is Noisy

If the image of 3840 x 2160 resolution is noisy with a DisplayPort connection, please conﬁrm the following:

•฀Change the refresh rate to 30 Hz by using the computer graphic adapter’s setting.

Image is unstable or missing

If the image is unstable or no image is displayed with a DisplayPort connection, please conﬁrm the following:

1. Turn off the computer.

2. Touch the “MENU” key to open the No Signal OSD menu.

3. Touch the “

” key to open the VIDEO INPUT menu.

4. Touch the “ ” or “ ” key to set the DisplayPort switch menu.

Item Selection Description

DP VER.

1.1

Set to DisplayPort 1.1a.

* BIT RATE is set to HBR automatically.

1.2

Factory setting.

Set to DisplayPort 1.2.

BIT RATE*

HBR DisplayPort 1.2 setting with 3840 x 2160 (30 Hz) Maximum resolution.

HBR2

Factory setting.

DisplayPort 1.2 setting with 3840 x 2160 (60 Hz) Maximum resolution.

*: BIT RATE setting is available when DP VER is selected “1.2”.

5. Press MENU to close the OSD menu.

6. Turn on the computer.

3840฀x฀2160฀(60฀Hz)฀resolution฀with฀USB-C฀connection

If the image of 3840 x 2160 (60 Hz) is displayed with USB-C connection, please set USB2.0 in USB SETTING (see

page 18).

NEC has noted that some higher resolution DisplayPort signals, HDMI signals, or signals via USB-C, can occasionally become

unreliable. The typical symptom is that no image is displayed or the image is corrupted. The described OSD menu option offers

additional ﬁrmware processing for DisplayPort signals to optimize the native resolution support and therefore improve signal

reliability.

English-35

English

Manufacturer’s Recycling and Energy Information

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s

top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-

friendly products, and always strive to help deﬁne and comply with the latest independent standards from agencies such as

ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

Disposing of your old NEC product

The aim of recycling is to gain an environmental beneﬁt by means of re-use, upgrading, reconditioning or reclamation of

material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely

disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures

and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.

All required information concerning the disposal of the product and country-speciﬁc information on recycling facilities can be

found on our following websites:

http://www.nec-display-solutions.com/greencompany/ (in Europe),

https://www.nec-display.com (in Japan) or

http://www.necdisplay.com (in USA).

Energy Saving

This monitor features an advanced energy saving capability. When a Display Power Management signal is sent to the monitor,

the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

Mode Power consumption LED color

Maximum Operation 150 W Blue

Normal Operation 38 W Default setting, USB/Audio sleeping Blue

Energy Saving Mode 0.33 W* Amber

Off Mode 0.29 W Unlit

*: Factory settings.

For additional information visit:

http://www.necdisplay.com/ (in USA)

http://www.nec-display-solutions.com/ (in Europe)

https://www.nec-display.com/global/index.html (Global)

For Energy Saving information: [Default setting: USB FUNCTIONALITY Off]

For ErP requirement:

Setting: [Default setting: USB FUNCTIONALITY

Off]

Power consumption: 0.5 W or less.

Time for power management function: Approx. 1 min.

For ErP (Network standby) requirement:

Setting: [Default setting: USB FUNCTIONALITY

Off]

Power consumption: 0.5 W or less (with 1 port activating) / 3.0 W or less (with all ports activating).

Time for power management function: Approx. 1 min.

WEEE Mark (European Directive 2012/19/EU and amendments)

Disposing of your used product: In the European Union

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products

carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors

and electrical accessories, such as signal cables or power cords. When you dispose of such products, please

follow the guidance of your local authority or ask the shop where you purchased the product, or if applicable,

follow applicable legislation or agreement you may have. The mark on electrical and electronic products may

only apply to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority

and ask for the correct method of disposal.

NEC EA271U-BK-SV 27" 4K UHD Business-Class Widescreen Desktop Monitor w/USB-C Charging and SpectraViewII Color Calibration Solution

Product's Documents

User Manual

Specifications

NEC EA271U-BK-SV Questions and Answers
