NEC Display Solutions of America, Inc.
V554/P554 Installation Guide
55” LCD Display
Rev 1.0
www.necdisplay.com V554/P554 Page 1 of 10
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation Page 1

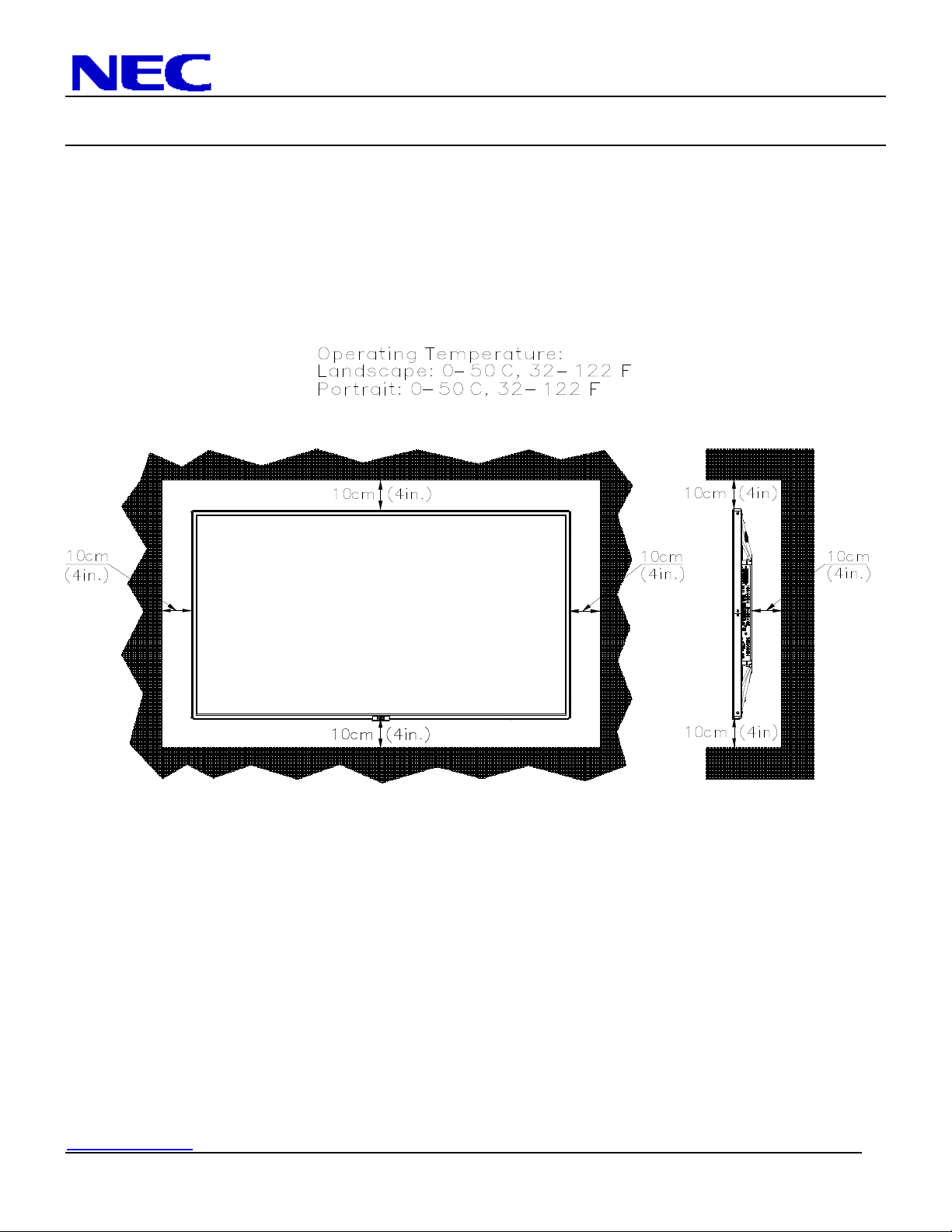

Ventilation Recommendations Page 2

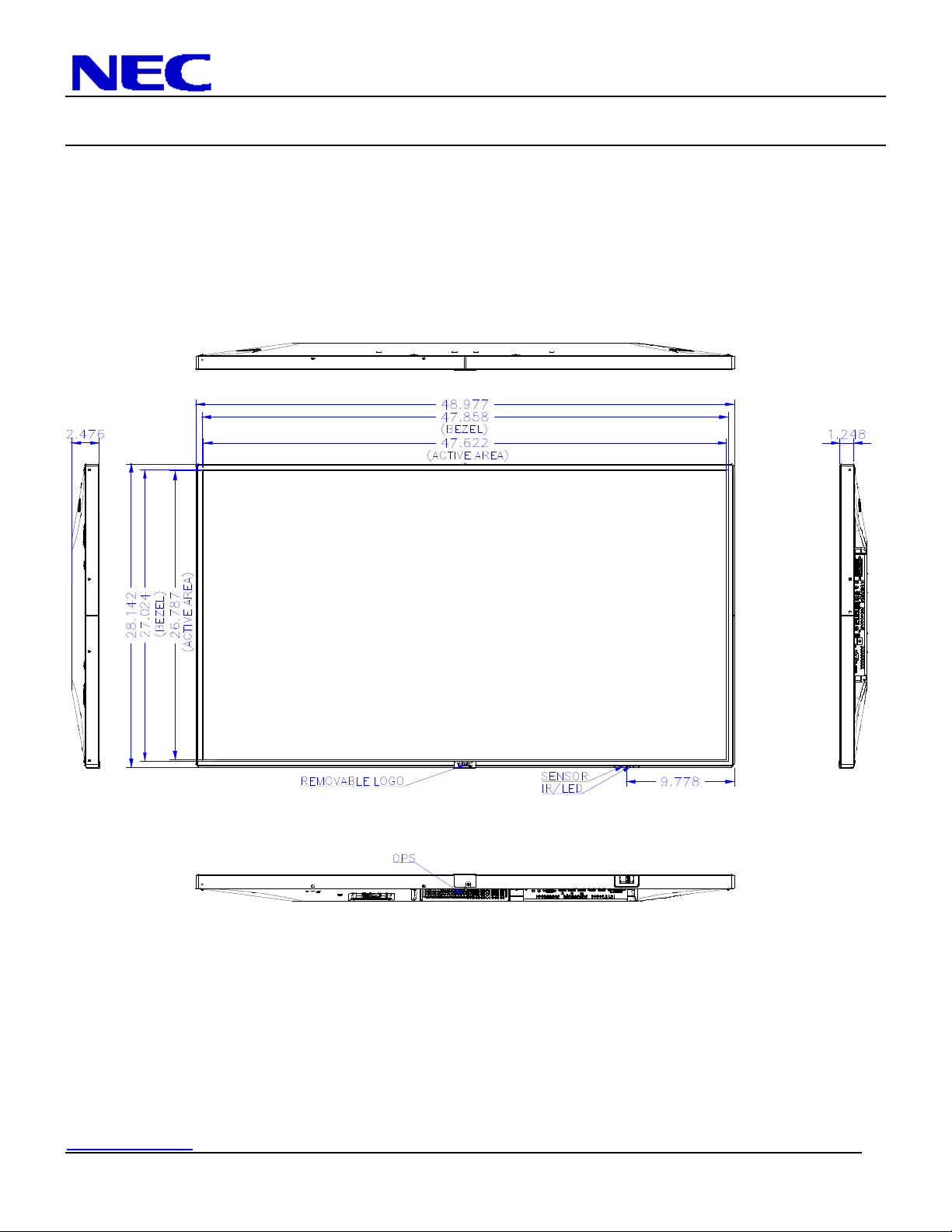

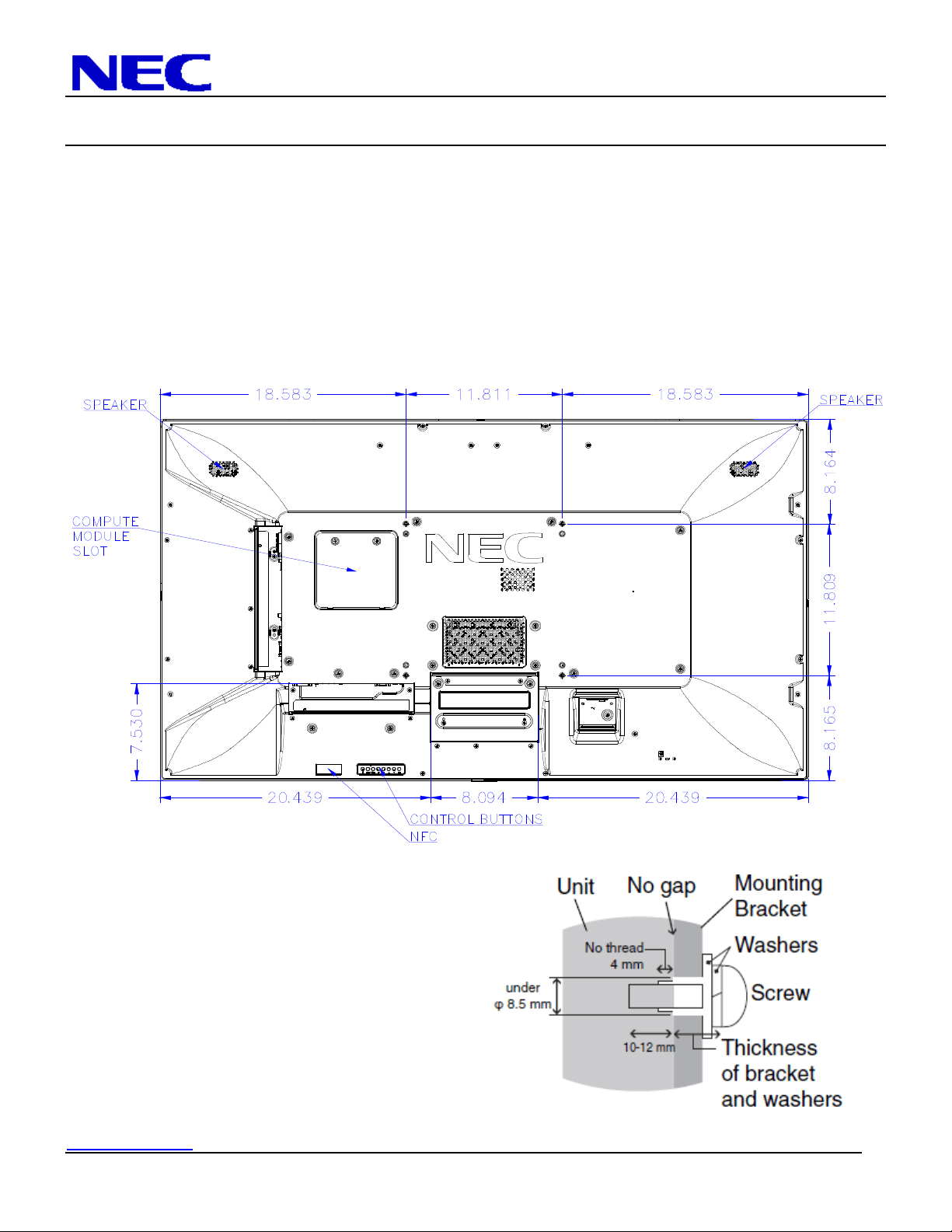

Display Dimensions Page 3-4

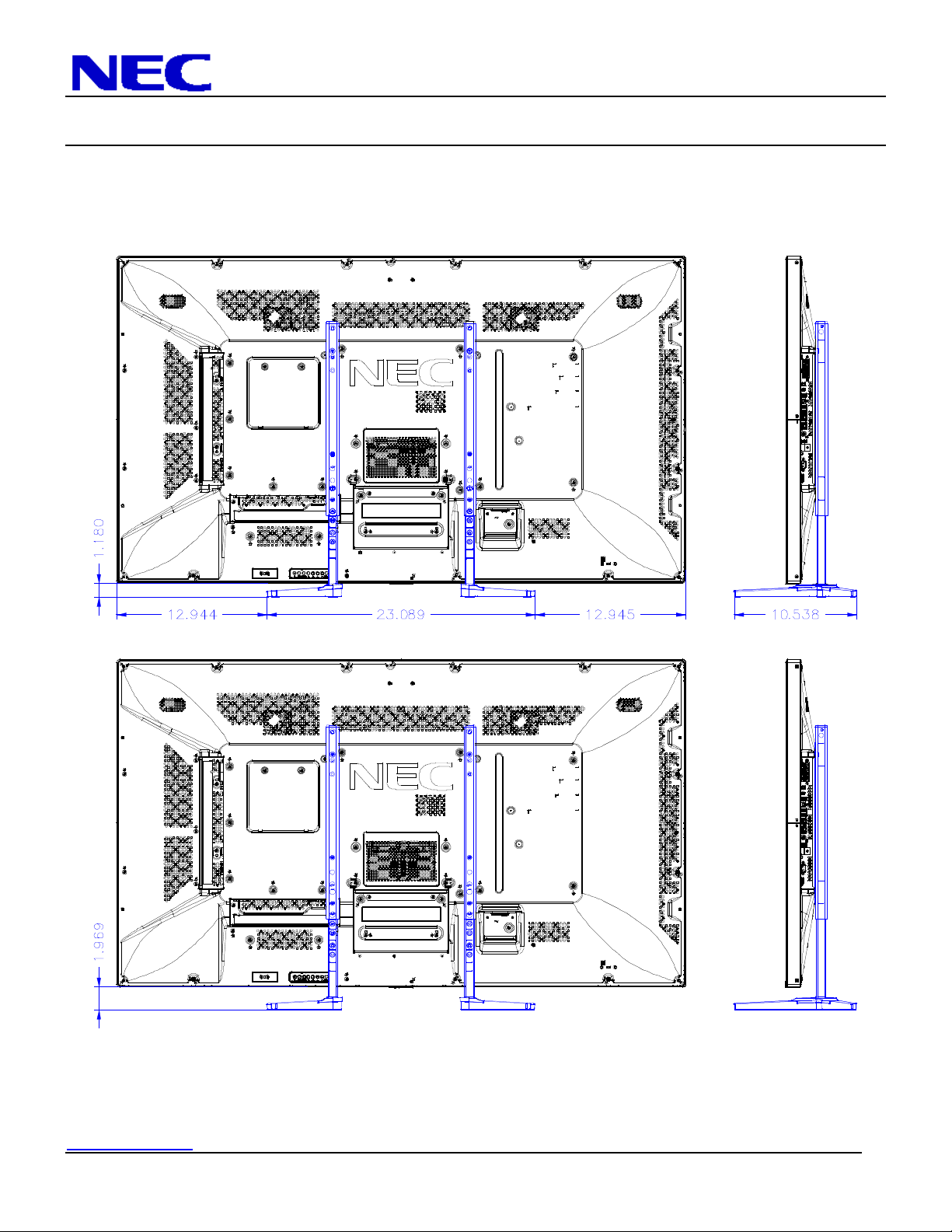

Display Dimensions with stand Page 5

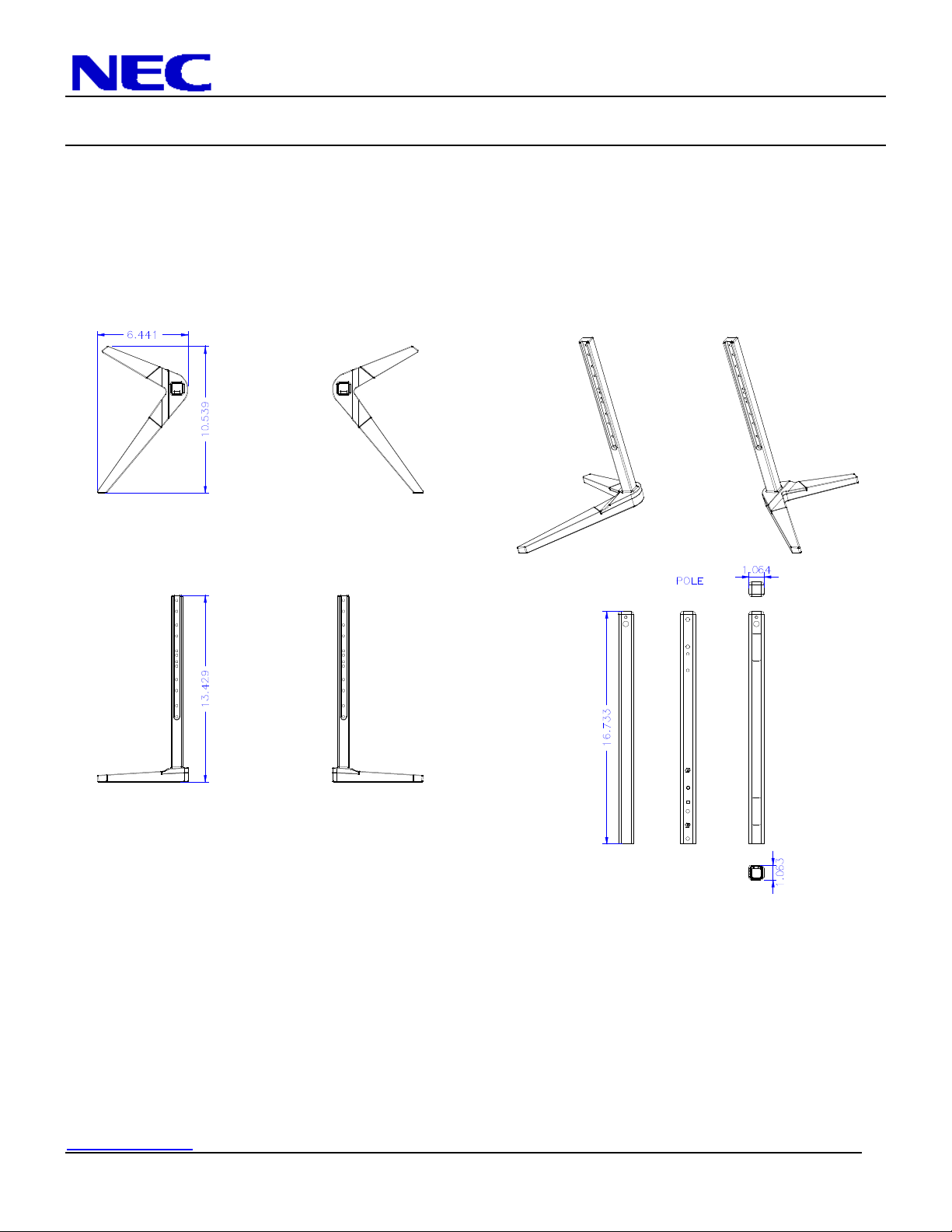

Optional Table Top Stand Dimensions Page 6

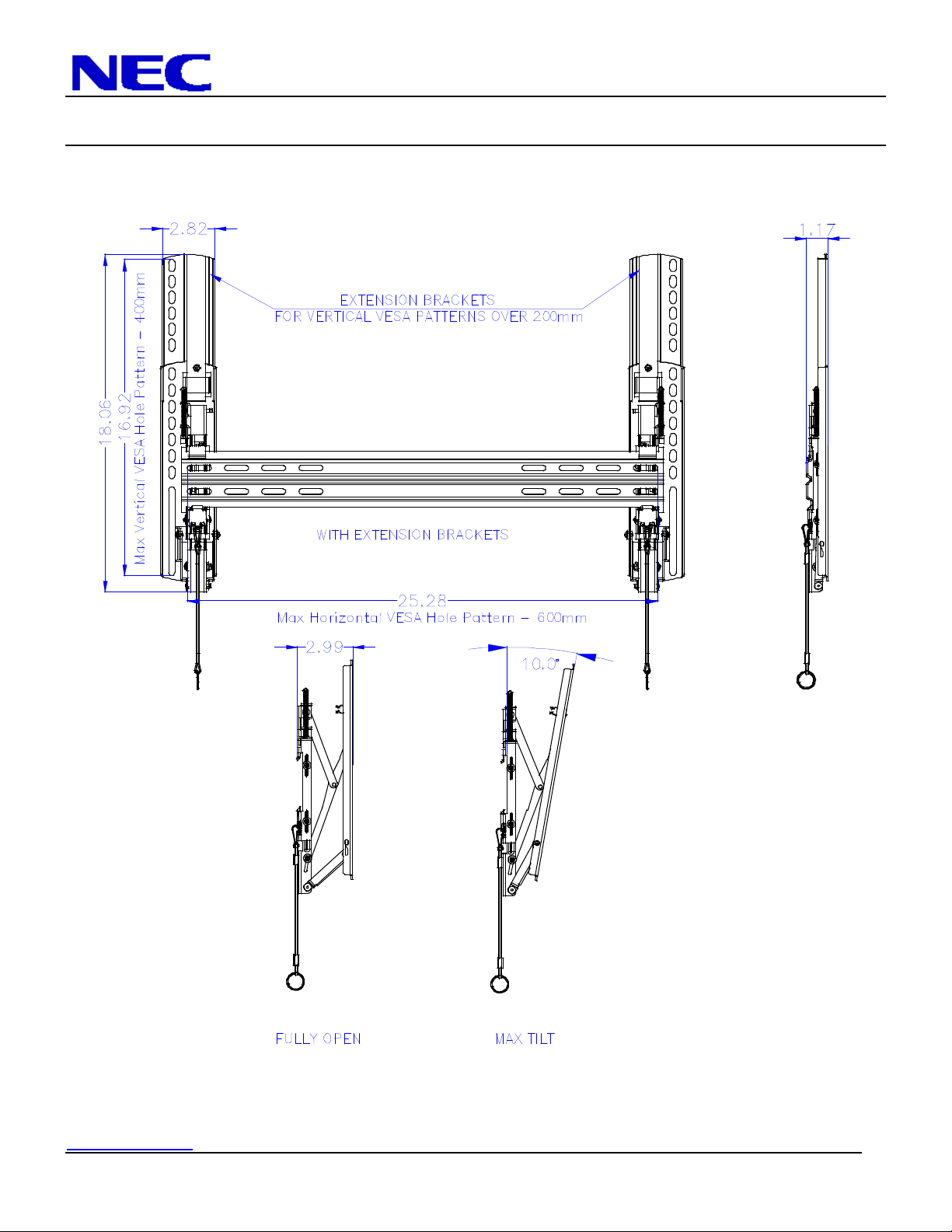

Dimensions of Optional Wall Mount (WMK-3255S) Page 7

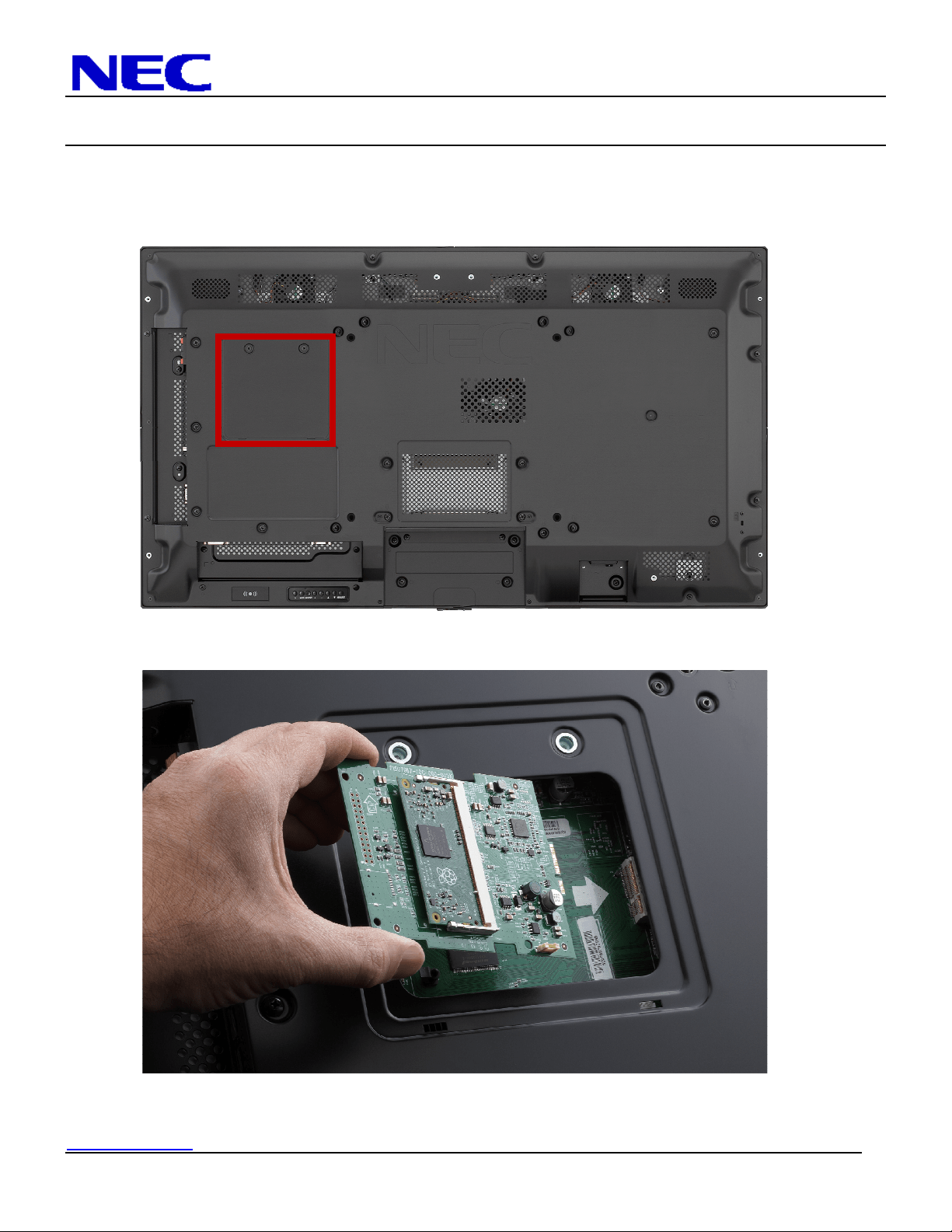

Compute Module Integration Page 8

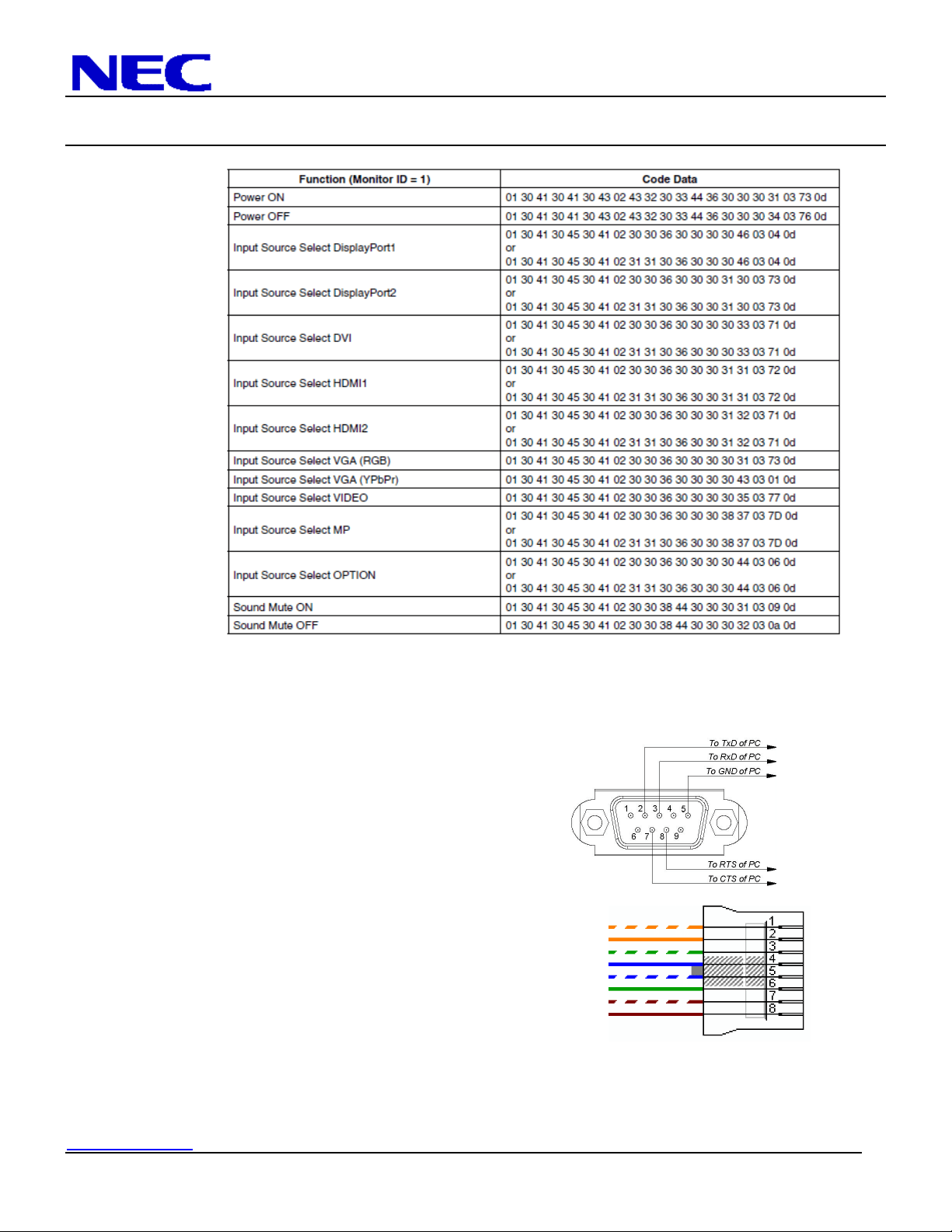

Control Codes Page 9

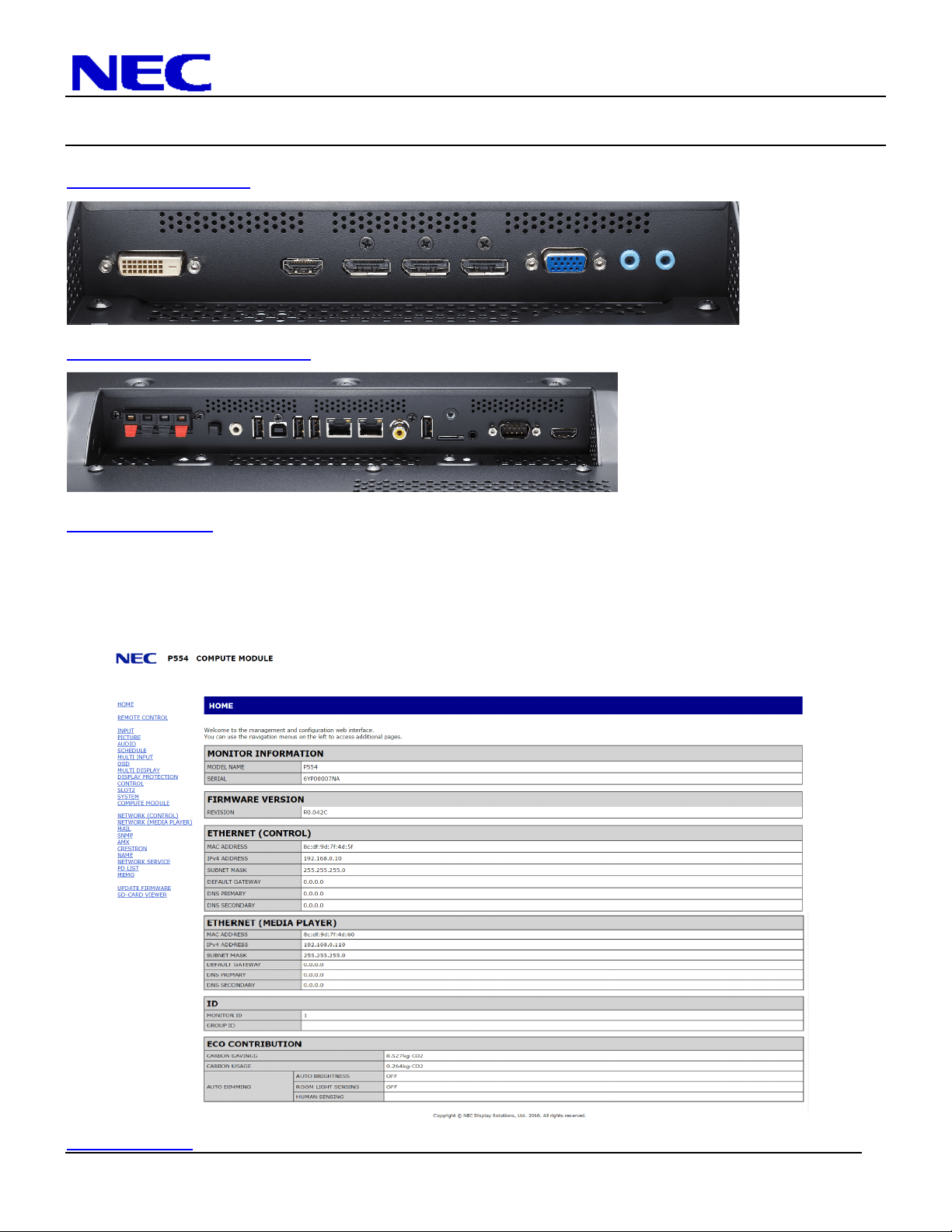

Input Terminals Page 10
Browser Control Page 10
Product Description
V554 P554
Display Resolution 1920 x 1080 at 60Hz
Maximum Supported Resolution 3840 x 2160 at 30Hz
Power Consumption (Typical) 110W 125W
Power Consumption (Max Brightness) 150W 175W
Power Consumption (Overall Max)* 300W 320W
BTU's (Typical) 375.33 BTU/hr 426.52 BTU/hr
BTU’s (Max Brightness) 511.82 BTU/hr 597.12 BTU/hr
BTU’s (Overall Max)* 1023.64 BTU/hr 1091.89 BTU/hr
Net Dimensions 49.0 x 28.1 x 2.5 in. / 1244.0 x 714.8 x 62.9mm
Net Weight 54.2lbs. / 24.6kg
*Overall Max refers to when the unit is at max brightness and the following features are also active: OPS Slot, External Speaker, Raspberry Pi
Compute Module Slot
NOTES:
• This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
• Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
• 4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see “Aspect Modes” in menus and user manual).
• Distances are in inches, for millimeters multiply by 25.4.
Tilt Angle and Rotation
Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. Rotate
only clockwise for portrait orientation.
