Please find your model name in the label on the rear side of the monitor.
MODEL: EA271F, EA271F-BK
The regulations for this monitor applied to one of model names listed above.
Desktop Monitor
MultiSync EA271F
User’s Manual
Index
WARNING ....................................................................................................................................English-1
CAUTION .....................................................................................................................................English-1
Registration Information ...............................................................................................................English-2
Recommended use ......................................................................................................................English-3
Safety Precautions and Maintenance ..................................................................................English-3
Ergonomics ..........................................................................................................................English-4
Cleaning the LCD Panel .......................................................................................................English-4
Cleaning the Cabinet ............................................................................................................English-4

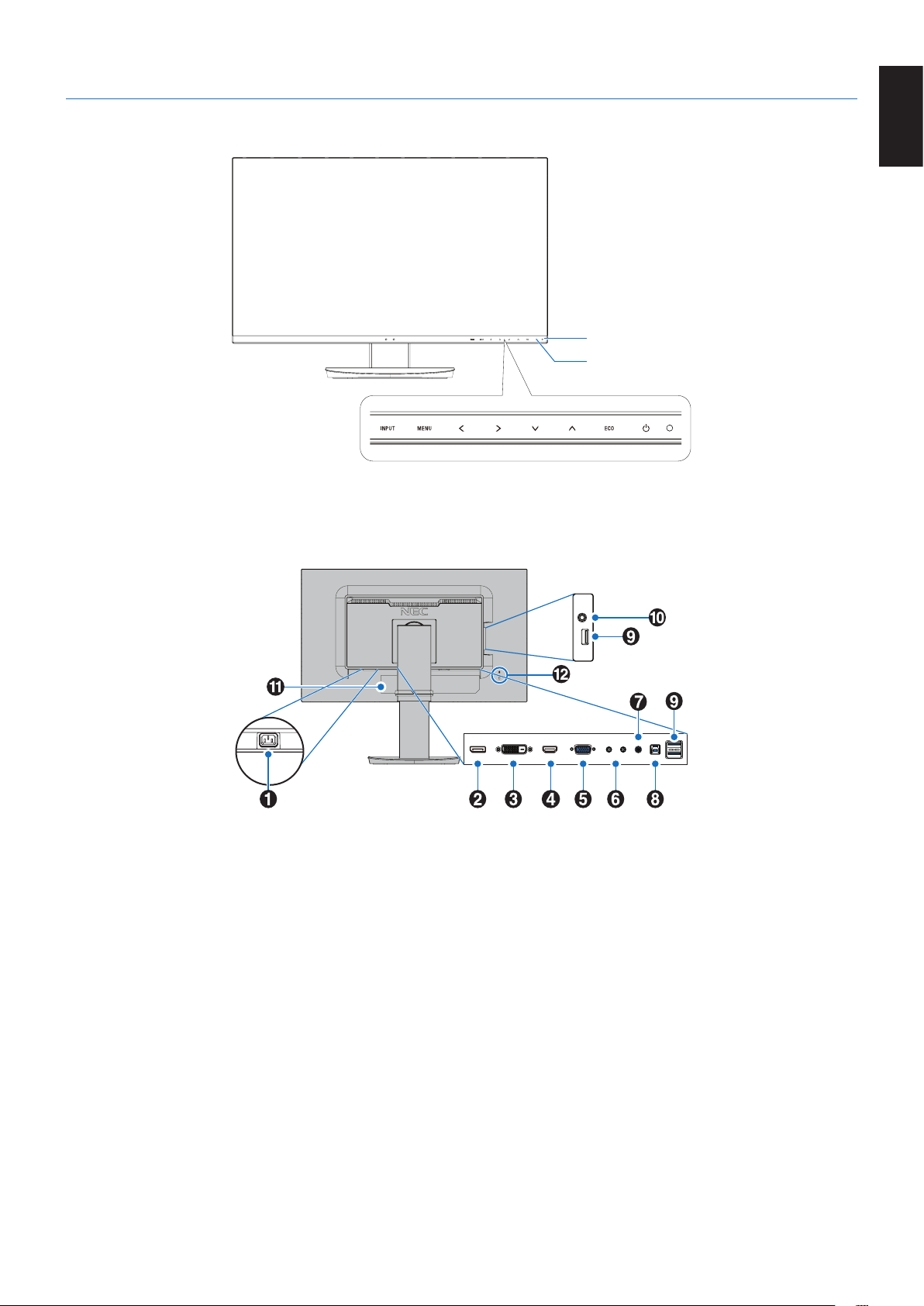

Parts Name and Functions ...........................................................................................................English-5

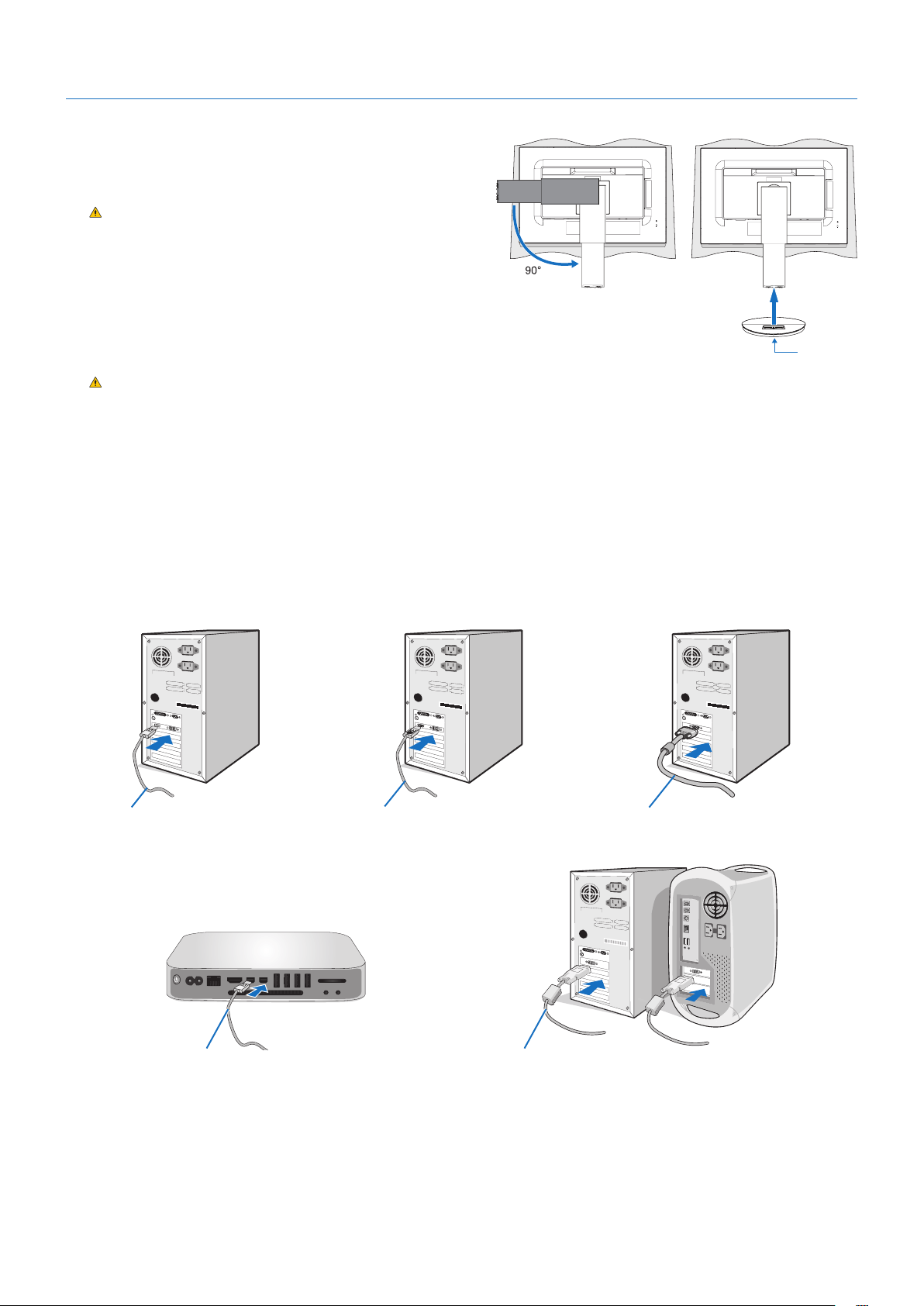

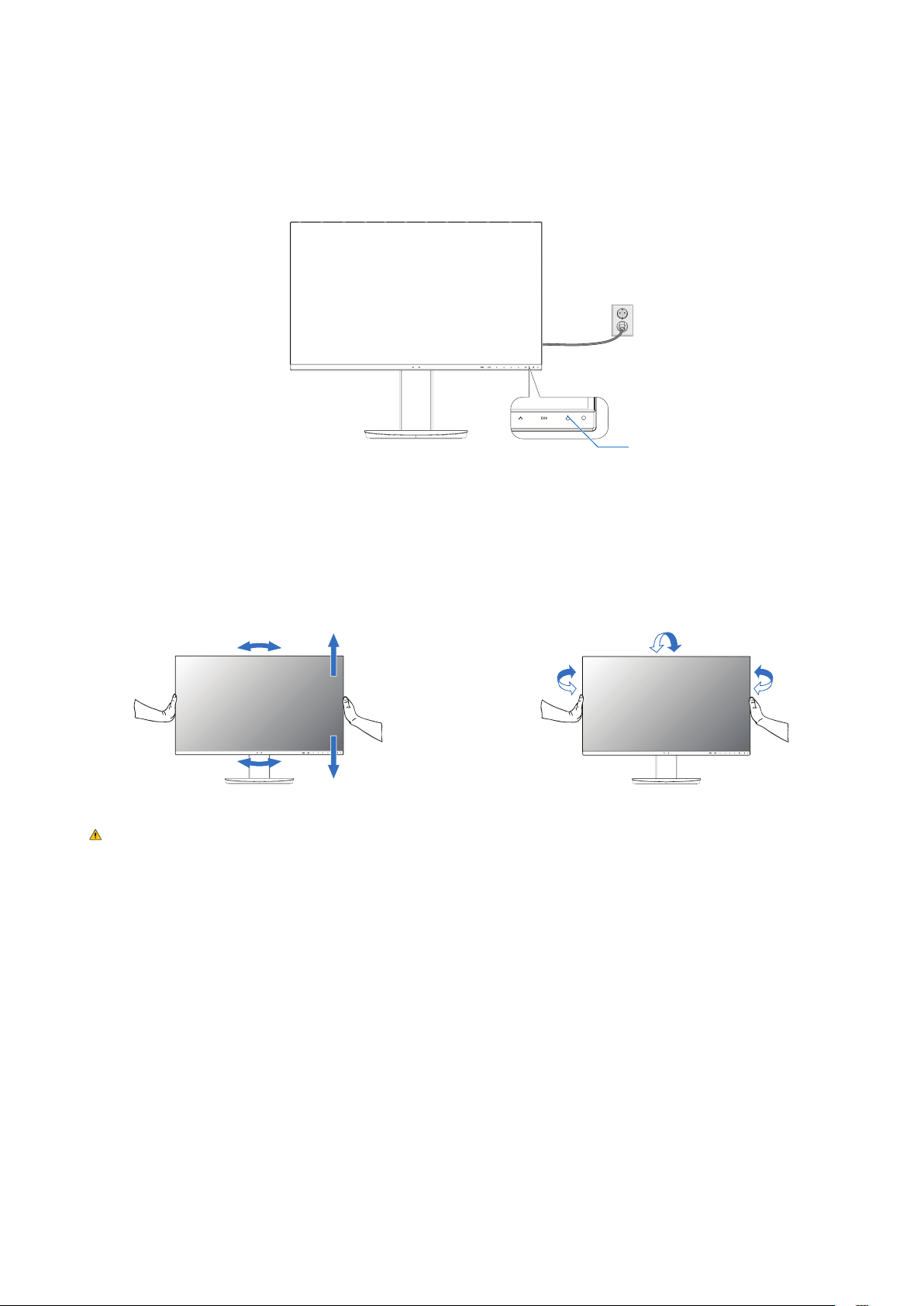

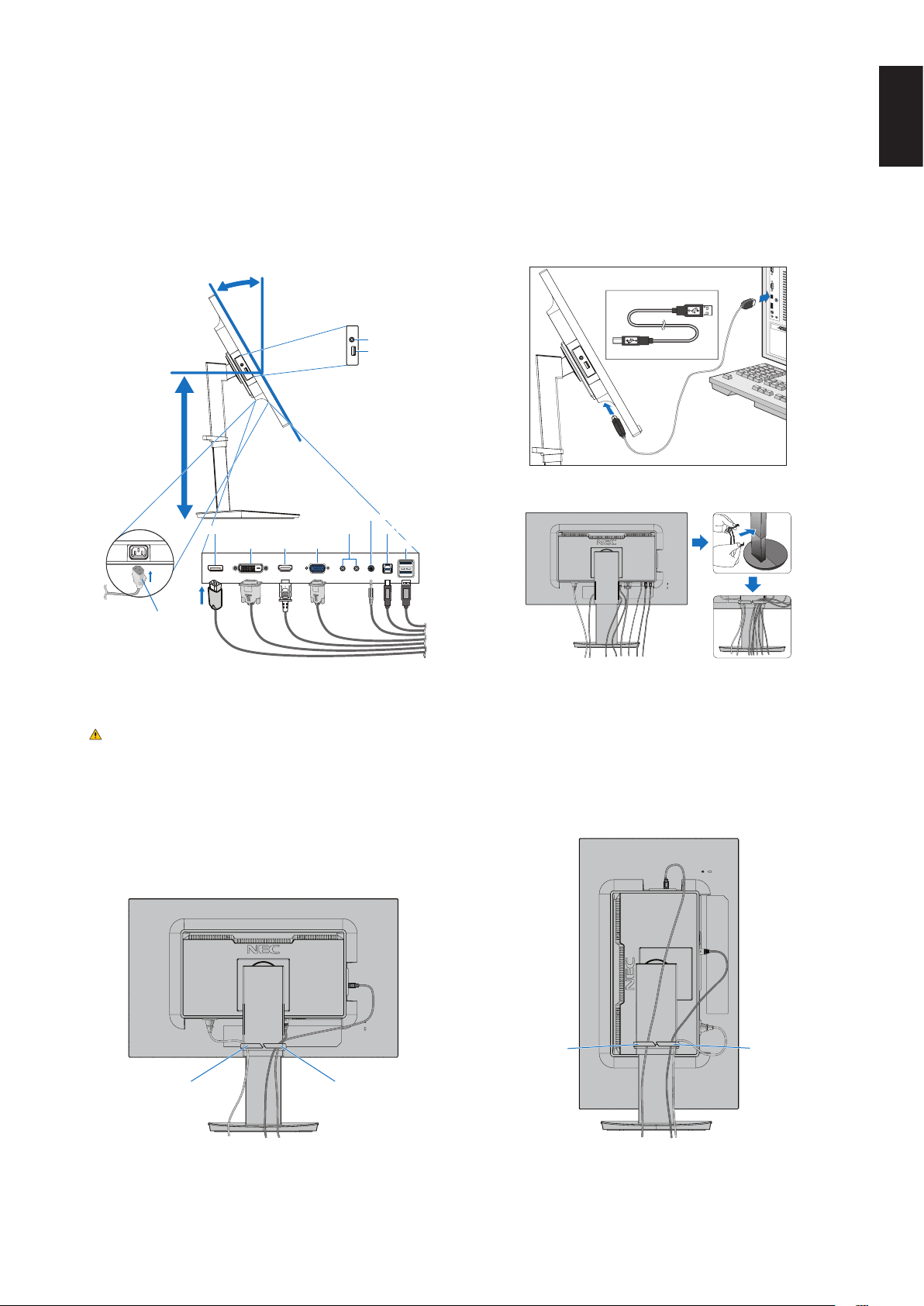

Quick Start ....................................................................................................................................English-6
ControlSync ..................................................................................................................................English-11
Controls ........................................................................................................................................English-13
Specifications ...............................................................................................................................English-21
Features .......................................................................................................................................English-23
Troubleshooting ............................................................................................................................English-24

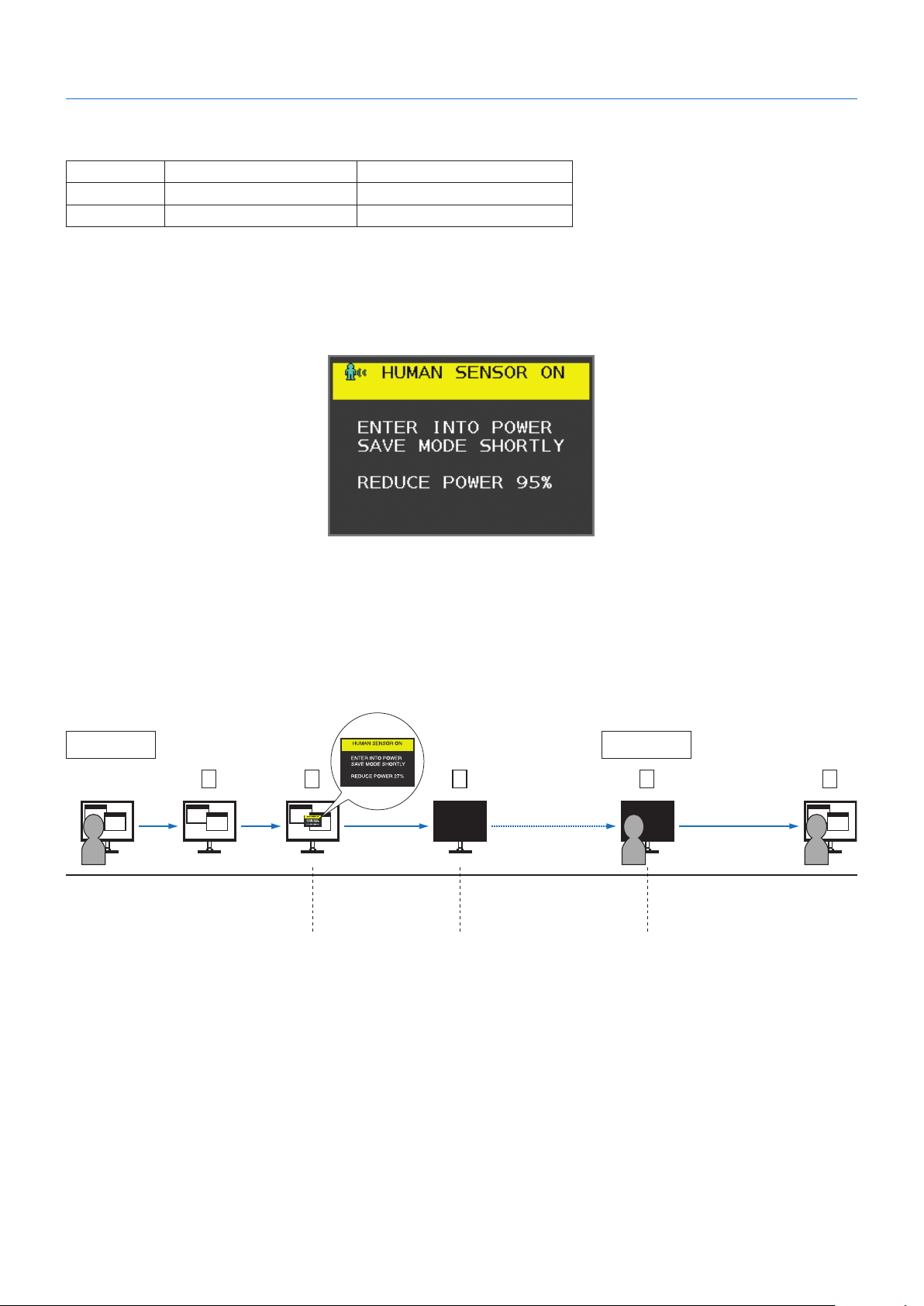

Human sensing function ...............................................................................................................English-26

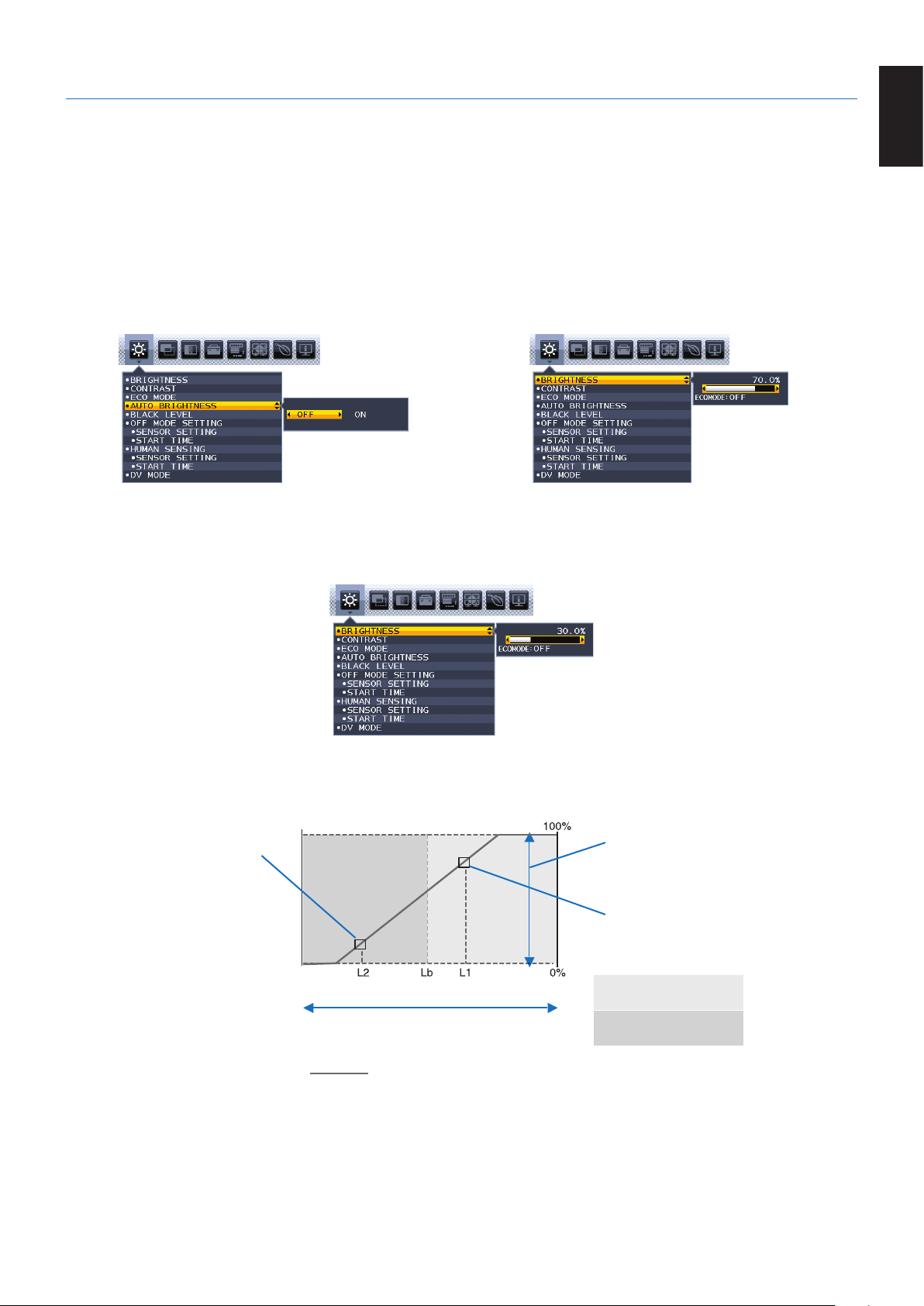

Using the Auto Brightness function ..............................................................................................English-27
Manufacturer’s Recycling and Energy Information .......................................................................English-28
English-1
English

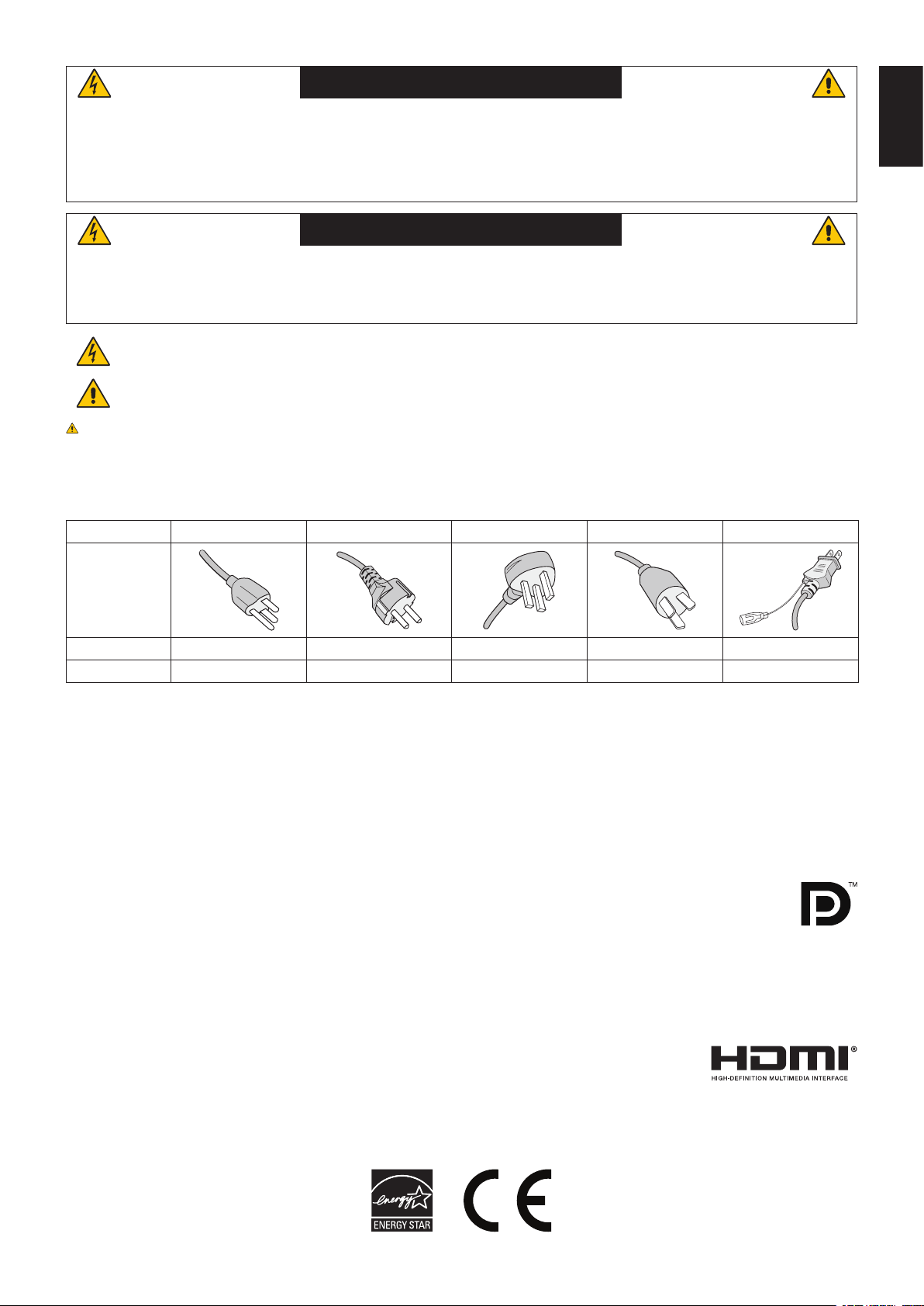

WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT
USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE
PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO
FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET.
DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric
shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been
included. Therefore, it should be read carefully in order to avoid any problems.
CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not
supplied with this equipment, please contact NEC. For all other cases, please use a power cord that matches the AC voltage of
the power outlet and has been approved by and complies with the safety standard of your particular country.
This equipment is designed to be used in the condition of the power cord connected to earth. If the power cord is not connected
to the earth, it may cause electric shock. Please make sure the power cord is earthed properly.
Plug Type North America European Continental U.K. Chinese Japanese
Plug Shape
Region
U.S.A./Canada EU (except U.K.) U.K. China Japan
Voltage
120* 230 230 220 100
* When operating the monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply
voltage of the AC power outlet being used.
NOTE: This product can only be serviced in the country where it was purchased.
Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation.
ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France, Germany, Italy,
Norway, Spain, Sweden, U.K.
EnErgy Star is a U.S. registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective owners.
As an EnErgy Star
®
Partner, NEC Display Solutions of America, Inc. has determined that this product
meets the EnErgy Star guidelines for energy efficiency. The EnErgy Star emblem does not represent
EPA endorsement of any product or service.
DisplayPort and DisplayPort Compliance Logo are trademarks owned by Video Electronics Standards
Association in the United States and other countries.
HDCP (High-bandwidth Digital Content Protection): HDCP is a system for preventing illegal copying of video data
sent over a digital signal. If you are unable to view material via the digital signal input, this does not necessarily
mean the display is not functioning properly. With the implementation of HDCP, there may be cases in which certain content
is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content
Protection, LLC).
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States
and other countries.
• TheintendedprimaryuseofthisproductisasanInformationTechnicalEquipmentinanofceordomesticenvironment.
• Theproductisintendedtobeconnectedtoacomputerandisnotintendedforthedisplayoftelevisionbroadcastsignals.
English-2
Registration Information
Cable information
CAUTION: Use the attached specified cables with this monitor so as not to interfere with radio and television reception.
For DVI and mini D-Sub 15-pin, please use a signal cable with ferrite core.
For HDMI, DisplayPort, USB and AUDIO, please use a shielded signal cable. Use of other cables and adapters
may cause interference with radio and television reception.
FCC Information
1. The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet
the following condition.
Power supply cord
Plug shape
Non shield type, 3-conductor
U.S.A
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
• Consultyourdealeroranexperiencedradio/TVtechnicianforhelp.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify
and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office,
Washington, D.C., 20402, Stock No. 004-000-00345-4.
Declaration of Conformity
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
U.S. Responsible Party: NEC Display Solutions of America, Inc.
Address: 500 Park Boulevard, Suite 1100
Itasca, Illinois 60143
Tel. No.: (630) 467-3000
Type of Product: Display Monitor
Equipment Classification: Class B Peripheral
Model: MultiSync EA271F (EA271F, EA271F-BK)
We hereby declare that the equipment specified above conforms
to the technical standards as specified in the FCC Rules.
To see a list of our TCO certified monitors and their TCO Certification (in English only), visit our website at
http://www.nec-display.com/global/about/legal_regulation/TCO_mn/index.html
CAUTION: Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V,
20A (maximum).
English-3
English
Recommended use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND
USING THE LCD COLOR MONITOR:
• DONOTOPENTHEMONITOR.There are no user serviceable parts inside and opening or removing covers may expose
you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
• Donotspillanyliquidsintothecabinetoruseyourmonitornearwater.
• Donotinsertobjectsofanykindintothecabinetslots,astheymaytouchdangerousvoltagepoints,whichcanbeharmfulor
fatal or may cause electric shock, fire or equipment failure.
• Donotplaceanyheavyobjectsonthepowercord.Damagetothecordmaycauseshockorre.
• Donotplacethisproductonaslopingorunstablecart,standortable,asthemonitormayfall,causingseriousdamageto
the monitor.
• Thepowersupplycordyouusemusthavebeenapprovedbyandcomplywiththesafetystandardsofyourcountry.
(e.g. Type H05VV-F 3G 0.75 mm
2
should be used in Europe).
• InUK,useaBS-approvedpowercordwithmoldedplughavingablack(5A)fuseinstalledforusewiththismonitor.
• Donotplaceanyobjectsontothemonitoranddonotusethemonitoroutdoors.
• Do not bend, crimp or otherwise damage the power cord.
• Donotusethemonitorinhightemperature,humid,dusty,oroilyareas.
• Donotcoverventonmonitor.
• Vibrationcandamagethebacklight.Donotinstallinareaswherethemonitorwillbeexposedtocontinualvibration.
• Ifmonitororglassisbroken,donotcomeincontactwiththeliquidcrystalandhandlewithcare.
• TopreventdamagetotheLCDmonitorcausedbytippingoverduetoearthquakesorothershocks,makesuretoinstallthe
monitor in a stable location and take measures to prevent falling.
• Immediatelyturnoffthepower,unplugyourmonitorfromthewalloutletandmovetoasafelocationthenreferservicingto
qualified service personnel under the following conditions. If the monitor is used in this condition, the monitor may cause fall,
fire and electric shock:
• Ifthemonitorstandhasbeencrackedorpeeled.
• Ifyounoticeanystructuraldamagesuchascracksorunnaturalwobbling.
• Ifthemonitorhasanunusualodor.
• If the power supply cord or plug is damaged.
• Ifliquidhasspilledorobjectshavefallenintothemonitor.
• Ifthemonitorhasbeenexposedtorainorwater.
• Ifthemonitorhasbeendroppedorthecabinethasbeendamaged.
• Ifthemonitordoesnotoperatenormallybyfollowingoperatinginstructions.
• Allowadequateventilationaroundthemonitorsothatheatcanproperlydissipate.Donotblockventilatedopeningsorplace
the monitor near a radiator or other heat sources.
• Donotputanythingontopofmonitor.
• Thepowercableconnectoristheprimarymeansofdetachingthesystemfromthepowersupply.
The monitor should be installed close to a power outlet, which is easily accessible.
• Handlewithcarewhentransporting.Savepackagingfortransporting.
• Handlewithcareduringinstallationandadjustmenttopreventpersonalinjuryanddamagetothemonitor.
• Donotconnectheadphonestothemonitorwhileyouarewearingthem.Dependingonthevolumelevel,itmaydamageyour
ears and cause loss of hearing.
• Pleasetightenallscrews.Aloosescrewmaycausethemonitortofalloffthearmorstand.
• DonottouchtheLCDpanelsurfacewhiletransporting,mountingandsetting.
Applying pressure on the LCD panel can cause serious damage.

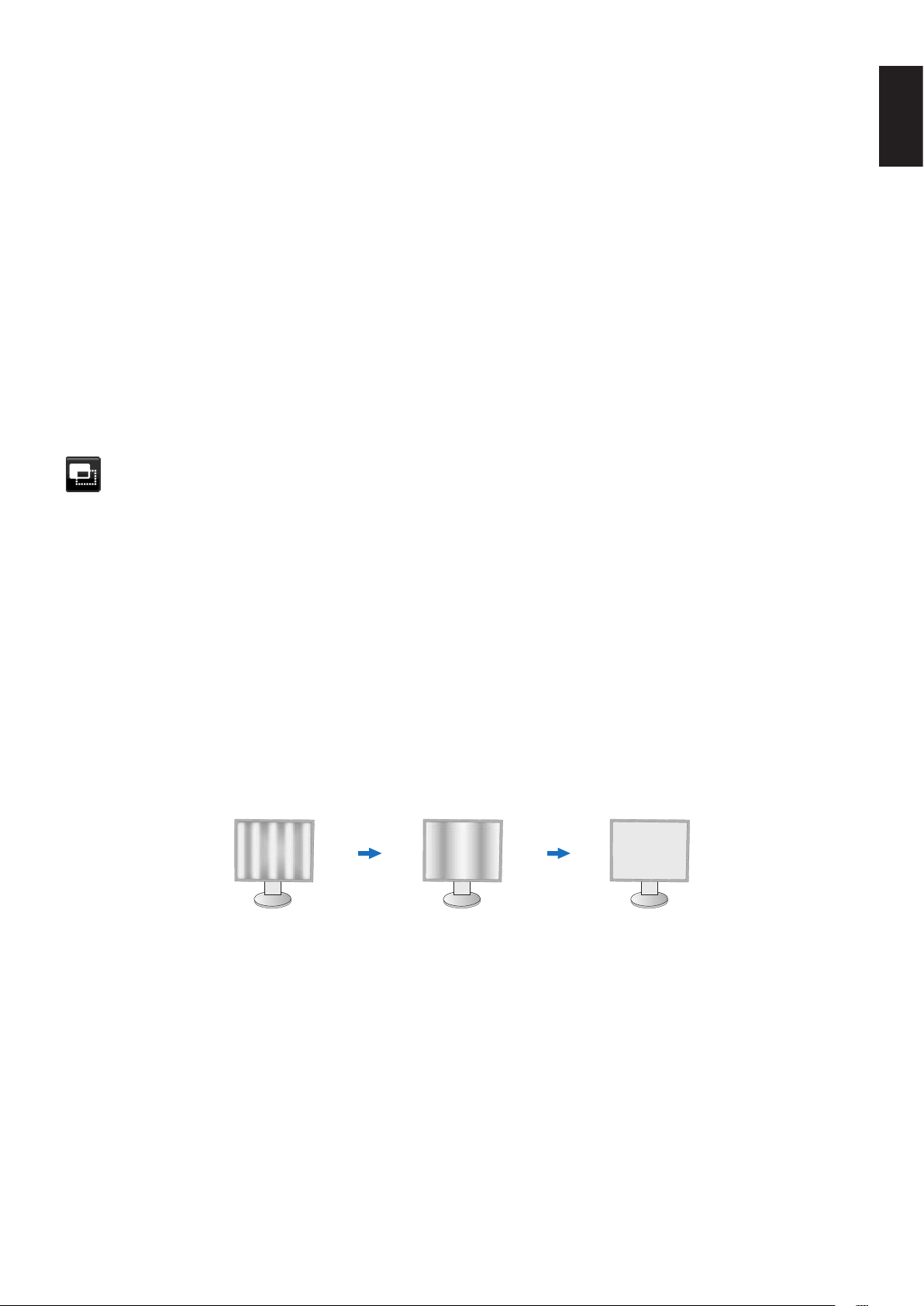

Image Persistence: Image persistence occurs when a residual or “ghost” image of a previous image remains visible on the
screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but a still image being displayed for a long
period of time should be avoided.
To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image
was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular
intervals whenever the screen is idle, or turn off the monitor when not in use.
CAUTION
WARNING
English-4
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN
REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance of the monitor, allow 20 minutes for warming up.
• Adjustthemonitorheightsothatthetopofthescreenisatorslightlybeloweyelevel.
Your eyes should look slightly downward when viewing the middle of the screen.
• Positionyourmonitornocloserthan40cm(15.75inches)andnofurtherawaythan
70 cm (27.56 inches) from your eyes. The optimal distance is 50 cm (19.69 inches).
• Rest your eyes periodically for 5 to 10 minutes for every 1 hour by focusing on an object
at least 20 feet away.
• Positionthemonitorata90°angletowindowsandotherlightsourcestominimizeglare
and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• Ifreectedlightmakesithardforyoutoseeyourscreen,useananti-glarelter.
• CleantheLCDmonitorsurfacewithalint-free,non-abrasivecloth.Avoidusingany
cleaning solution or glass cleaner!
• Adjustthemonitor’sbrightnessandcontrastcontrolstoenhancereadability.
• Useadocumentholderplacedclosetothescreen.
• Positionwhateveryouarelookingatmostofthetime(thescreenorreferencematerial)directlyinfrontofyoutominimize
turning your head while you are typing.
• Avoidreproduction of still patterns on the monitor for long periods of time to avoid image persistence (after image effects).
• Blink often. Eye exercise helps to reduce eye strain. Please contact your ophthalmologist. Get regular eye checkups.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
• Toavoideyefatigue,adjustthebrightnesstoamoderatesetting.PlaceasheetofwhitepapernexttotheLCDscreenfor
luminance reference.
• DonotpositiontheContrastcontroltoitsmaximumsetting.
• UsethepresetSizeandPositioncontrolswithstandardsignals.
• UsethepresetColorSetting.
• Usenon-interlacedsignals.
• Donotuseprimarycolorblueonadarkbackground,asitisdifculttoseeandmayproduceeyefatigueduetoinsufcient
contrast.
• Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing reflections from the screen.
Cleaning the LCD Panel
• WhentheLCDisdusty,pleasegentlywipewithasoftcloth.
• PleasedonotrubtheLCDpanelwithhardorcoarsematerial.
• PleasedonotapplypressuretotheLCDsurface.
• PleasedonotuseOAcleanerasitwillcausedeteriorationordiscolorationontheLCDpanelsurface.
Cleaning the Cabinet
• Unplugthepowersupply
• Gentlywipethecabinetwithasoftcloth
• Tocleanthecabinet,dampentheclothwithaneutraldetergentandwater,wipethecabinetandfollowwithadrycloth.
NOTE: DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish
cleaner, soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period
of time. These types of fluids and materials can cause the paint to deteriorate, crack or peel.
For more detailed information on setting up a healthy work environment, write to the American National Standard for Human
Factors Engineering of Computer Workstations - ANSI/HFES 100-2007 - The Human Factors Society, Inc. P.O. Box 1369,
Santa Monica, California 90406.
English-5
English
Parts Name and Functions
Control Panel
LED
Power Key
Control buttons
Refer to the Controls section. See page 13.
A AC IN Connector
Connects with the supplied power cord.
B DisplayPort IN
DisplayPort signals input.
C DVI IN
DVI signals input.
D HDMIIN
Digital HDMI signals input.
E VGA IN (mini D-Sub 15-pin)
Analog RGB signals input.
F ControlSync IN/OUT
Connects with the supplied ControlSync cable. See page 11.
G Audio IN
Audio signal input from external equipment such as a
computer or player.
H USB Upstream Port (Type-B)
Connects with external equipment such as a computer.
Please use this port to control the monitor from connected
external equipment.
I USB Downstream Port (Type-A)
Connects with USB devices.
Connects with external equipment such as a computer
compliant with USB.
J HeadphoneJack
Connects with a headphone.
K Rating Label
L Security Slot
Security and theft protection lock compatible with
Kensington security cables/equipment.
For products visit Kensington’s website,
http://www.kensington.com/
Terminal Panel
English-6
Quick Start
For box contents, please refer to the Setup Manual.
To attach the Base to the LCD stand:
1. Place monitor face down on a non-abrasive surface (Figure 1).
2. Please rotate the stand 90 degrees as shown in Figure 1.
CAUTION: Handle with care when pulling the stand.
It may pinch your fingers.
3. Attach the base to the stand and lock screw at the base’s bottom
(Figure 2).
NOTE: Reverse this procedure if you need to re-pack the monitor.
To connect the LCD monitor to your system, follow these instructions:
NOTE: Make sure to read “Recommended Use” (page 3) before installation.
CAUTION: Please tighten all screws.
NOTE: The accessories included will depend on the location where the LCD monitor was shipped.
1. Turn off the power for your computer.
2. For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system
(Figure A.1).
ForaPCwithHDMIoutput:Connect the HDMI cable to the connector of the display card in your system (Figure A.2).
For a PC with Analog output: Connect a mini D-Sub 15-pin signal cable to the connector of the display card in your system
(Figure A.3).
For a Mac or PC with Thunderbolt or Mini DisplayPort output: Connect a Mini DisplayPort to DisplayPort cable to the
video output connector on your system (Figure A.4).
For a PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system
(Figure A.5). Tighten all screws.
Figure A.1 Figure A.3Figure A.2
DisplayPort cable HDMI cable Mini D-Sub 15-pin signal cable
DVI cable
Figure A.4 Figure A.5
Mini DisplayPort to DisplayPort cable
NOTE: 1. When removing the DisplayPort cable, hold down the top button to release the lock.
2. Please use a High Speed HDMI cable with HDMI logo.
3. Please use a Certified DisplayPort cable.
Figure 1
Figure 2
Screw
English-7
English
3. Place hands on each side of the monitor to tilt the LCD panel to a maximum tilt angle and lift up to the highest position.
4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector
to the USB upstream port on the rear side of the monitor and the A type connector to the downstream port on the computer
(Figure C.1a). If using the cord from a USB device, plug into the downstream port of the monitor.
NOTE: Incorrect cable connections may cause abnormal operation, damage display quality/components of the LCD
module and/or shorten the module’s life.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor lowers the sound.
NOTE: Adjustment of the volume control as well as the equalizer to other settings than the center position may increase
the ear-/headphones output voltage and therefore the sound pressure level.
Figure C.1a
A Type
B Type
A Type
B Type
Figure C.2Figure C.1
Power cord
Maximum Tilt
DisplayPort IN
DVI-D HDMI
Highest
Stand
Position
Audio IN
ControlSync IN/OUT*
1
USB Downstream (USB Type-A)
D-Sub
Headphone
USB Downstream (USB Type-A)
USB Upstream (USB Type-B)
*
1
: See page 11.
CAUTION: Do not connect headphones to the monitor while you are wearing them.
Depending on the volume level, it may damage your ears and cause loss of hearing.
5. Place the cable holder onto the stand (Figure C.2).
Place the cables in the cable holder firmly and evenly (Figure C.3 and Figure C.4).
6. Please check that you can still rotate, raise and lower the monitor screen after you have installed the cables.
Figure C.3 Figure C.4
Power Cord USB Cable
DisplayPort Cable
Power Cord USB Cable
DisplayPort Cable
7. Connect one end of the power cord to the AC inlet on the rear side of the monitor and the other end to the power outlet.
NOTE: Please refer to the Caution section of this manual for proper selection of the AC power cord.
English-8
8. Turn on the computer and then the monitor by touching the power key on the front bezel (Figure E.1).
9. No Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup. For further adjustments, use
the following OSD controls:
• AUTO CONTRAST (Analog input only)
• AUTO ADJUST (Analog input only)
Refer to the Controls section of this User’s Manual for a full description of these OSD controls.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.
Figure E.1
Power key
Adjustable stand with pivot capability
Raise and Lower: Hold the monitor on each side and lift or lower to the desired height.
Tilt and Swivel: Hold the top and bottom sides of the monitor screen with your hands and adjust the tilt and swivel as desired.
Screen Rotation (Pivot): Hold the monitor on each side and turn it from landscape to portrait.
You can adjust the OSD menu rotation to match the screen rotation. Refer to the OSD ROTATION instructions (see page 18).
Tilt and SwivelRotation, Raise and Lower
CAUTION: Handle with care when adjusting the monitor screen. Do not apply pressure to the LCD when adjusting the
height and rotating the monitor screen.
Before rotating, disconnect power cord and all cables from the display, then the screen must be raised to the
highest level and tilt to avoid knocking the screen on the desk or pinching your fingers.
English-9
English
Flexible Arm Installation
This LCD monitor is designed for use with a flexible arm. Contact NEC for more information.
To prepare the monitor for alternate mounting purposes:
• Followtheinstructionsprovidedbythemanufacturerofthedisplaymount.
CAUTION: To meet the safety requirements, the mounting stand must be able to support the weight of the monitor and
be UL-certified.

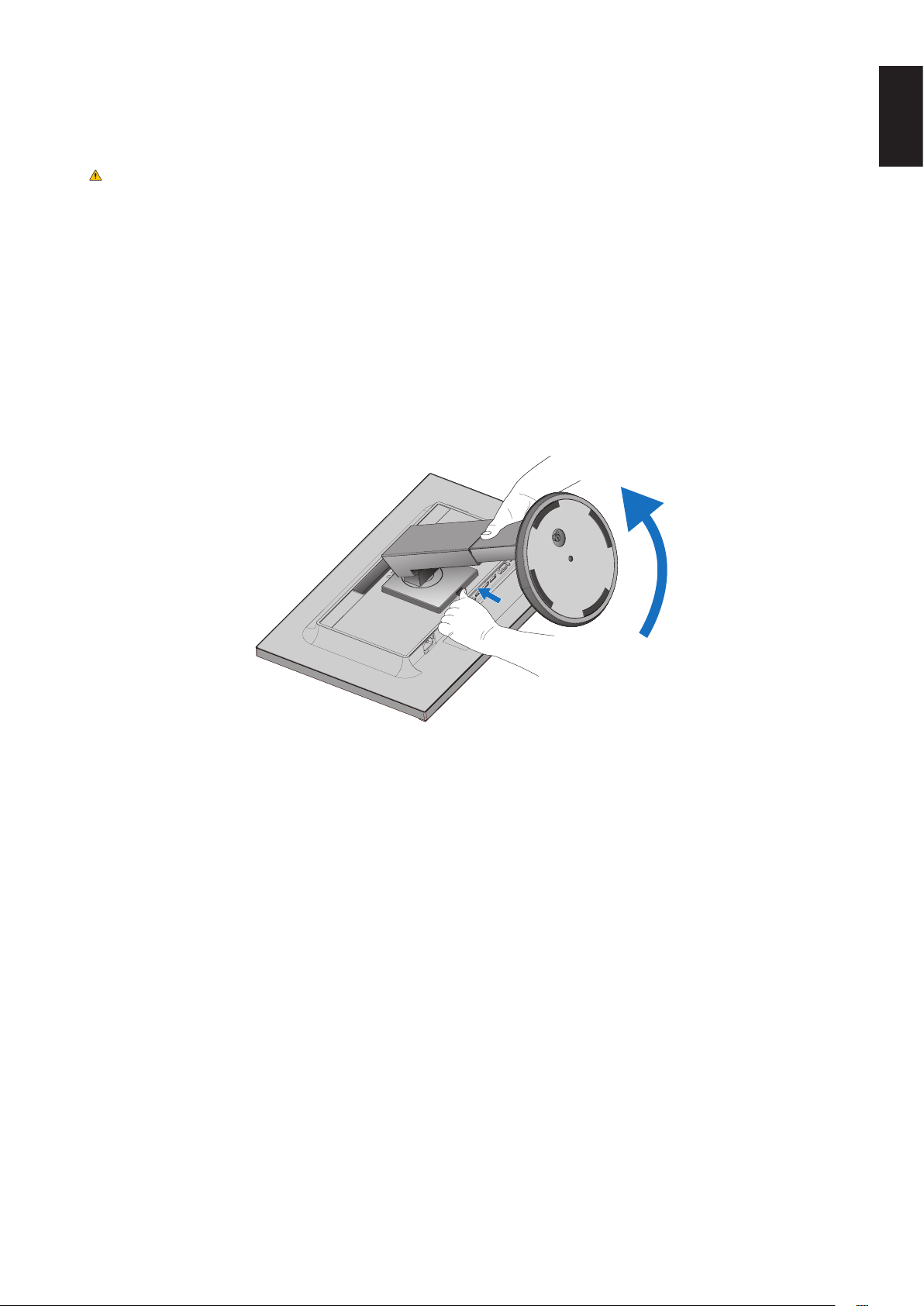

1. Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place the monitor face down on a non-abrasive surface (Figure S.1).
4. Place one hand around the base and one hand on the Quick Release Lever.
Push and hold the Quick Release Lever in the direction indicated by the arrow (Figure S.1).
5. Lift up the stand to unhook it from the monitor (Figure S.1).
The monitor can now be mounted using an alternate method.
Reverse the process to reattach stand.
NOTE: Handle with care when removing the monitor stand.
Figure S.1
English-10

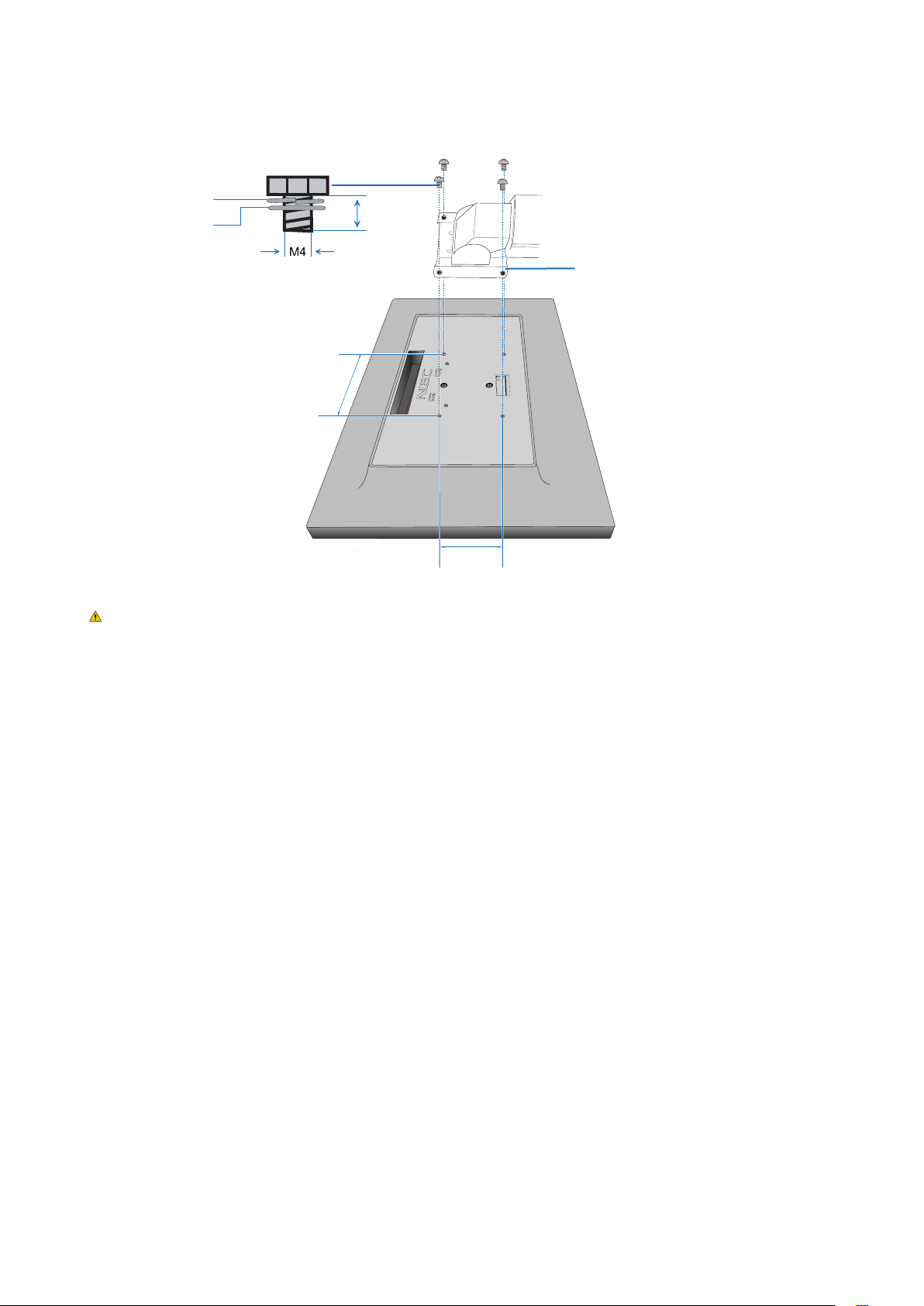

2. Mount Flexible Arm
This LCD monitor is designed for use with a flexible arm.
1. Follow the instructions on how to Remove the Monitor Stand for Mounting.
2. Using 4 screws that meet the specifications listed below, attach the arm to the monitor (Figure F.1).
Figure F.1
100 mm
100 mm
Thickness of Bracket (Arm)
2.0~3.2 mm
12 mm
Spring washer
Flat washer
CAUTION: • Onlyuse4M4sizedscrewswhenmountingtoavoiddamagetothemonitorandstand.
• Tofulllthesafetyrequirements,themonitormustbemountedtoanarm,whichguarantiesthenecessary
stability under consideration for the weight of the monitor. The LCD monitor should only be used with an
approved arm (e.g. TUEV GS mark).
• Tightenallscrews(recommendedFastenForce:98-137N•cm).
A loose screw may cause the monitor to fall off the arm.
English-11
English

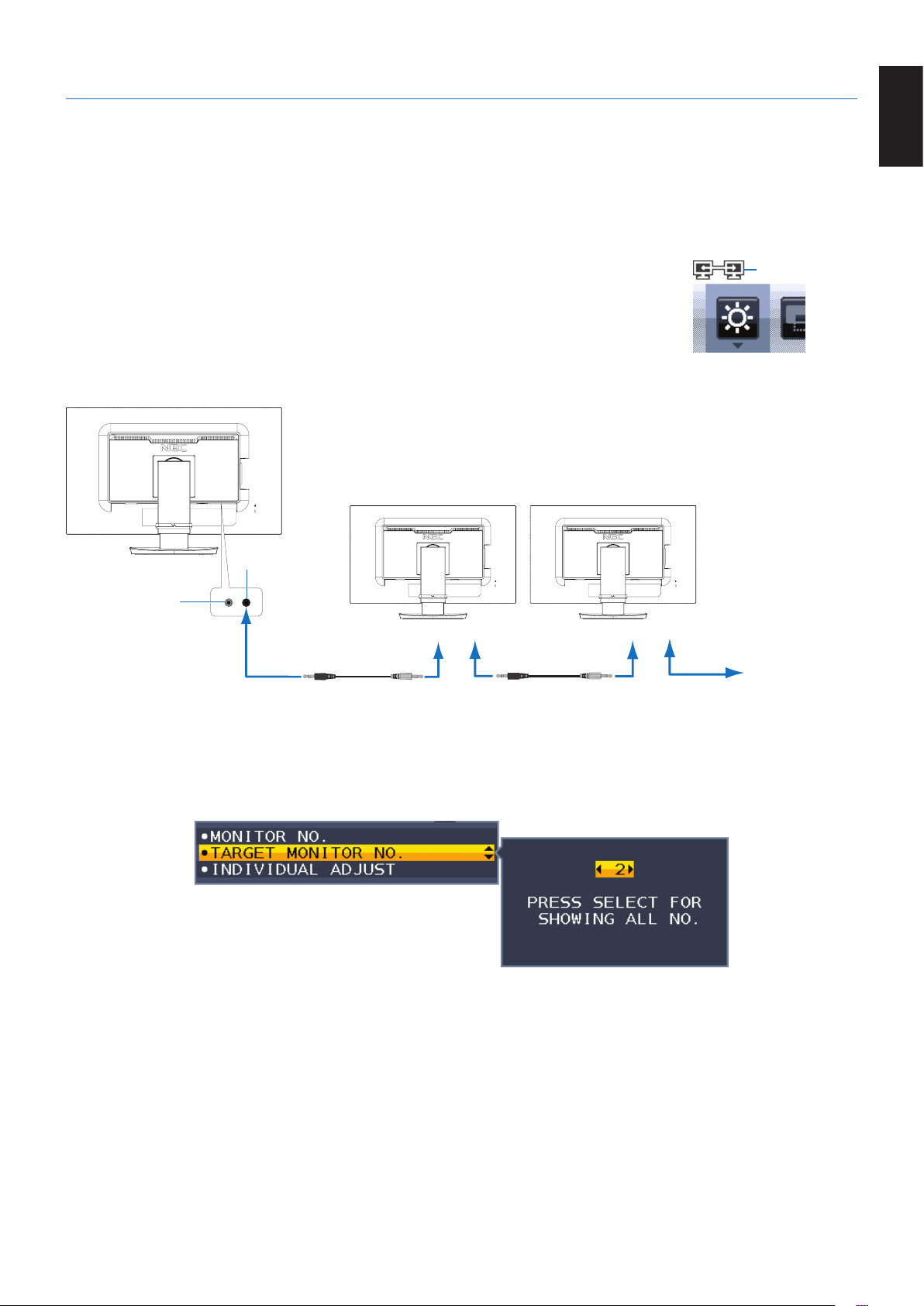

ControlSync
ControlSync works by controlling all connected sub monitors from the master monitor simultaneously, and also by controlling a
target monitor from the master monitor using the INDIVIDUAL ADJUST function (see page 19).
Controlling all connected sub monitors (Synchronized control):
1. Connect the master monitor to a sub monitor via a ControlSync cable (ø 2.5) into ControlSync IN/OUT.
2. Follow the steps for DATA COPY (see page 19). When a setting for the master monitor is adjusted, it will be copied and sent to
the connected sub monitor(s) automatically.
3. Up to 5 sub monitors can be daisy-chained via ControlSync.
NOTE: Connect the master monitor via ControlSync OUT connector.
The ControlSync icon will appear on the upper left of the OSD menu in the sub monitor.
Do not connect IN-IN or OUT-OUT.
Do not make a “loop” connection.
Once the monitors are connected, turn the master monitor’s power key off and on
to check that ControlSync operates correctly.
If the monitors are connected with DisplayPort cables, please connect the master monitor to the computer.
IN (Gray)
Next monitor
OUT (Black)
IN OUT
ControlSync cable ControlSync cable
Up to 5 sub monitors
(Gray)(Black) (Gray)(Black)
Sub Monitor 1 Sub Monitor 2
Master Monitor
IN OUT
Controlling a target monitor (Individual adjust)
1. Touch the MENU/EXIT key to show the OSD menu on the master monitor.
2. Move the DOWN/UP key down to select TARGET MONITOR NO. then set the sub monitor number.
If you touch the INPUT/SELECT key, each sub monitor displays its monitor number.
3. Touch the DOWN/UP key down to select INDIVIDUAL ADJUST and then set it to ON.
Control the sub monitor’s OSD using the master monitor’s control keys.
NOTE: To disable INDIVIDUAL ADJUST, touch the SELECT and EXIT keys simultaneously.
ControlSync icon
English-12
The following settings can be controlled by ControlSync:
Synchronized control Individual adjust
ECO TOOLS BRIGHTNESS* Yes Yes
CONTRAST No Yes
ECO MODE Yes Yes
AUTO BRIGHTNESS Yes Yes
BLACK LEVEL No Yes
OFF MODE SETTING Yes Yes
OFF MODE SENSOR SETTING Yes Yes
OFF MODE START TIME Yes Yes
HUMAN SENSING Yes Yes
HUMAN SENSOR SETTING Yes Yes
HUMAN SENSOR START TIME Yes Yes
DV MODE Yes Yes
SCREEN AUTO ADJUST No Yes
AUTO CONTRAST No Yes
LEFT/RIGHT No Yes
DOWN/UP No Yes
H.SIZE No Yes
FINE No Yes
INPUT RESOLUTION No Yes
VIDEO LEVEL No Yes
OVER SCAN No Yes
EXPANSION Yes Yes
COLOR Color Control System Yes Yes
R, G, B, color gain Yes Yes
TOOLS VOLUME Yes Yes
SOUND INPUT No Yes
VIDEO DETECT No Yes
RESPONSE IMPROVE No Yes
OFF TIMER Yes Yes
POWER SAVE TIMER No Yes
LED BRIGHTNESS Yes Yes
DDC/CI Yes Yes
USB POWER No Yes
FACTORY PRESET No Yes
MENU TOOLS LANGUAGE Yes Yes
OSD TURN OFF Yes Yes
OSD LOCK OUT Yes Yes
OSD ROTATION No Yes
HOT KEY Yes Yes
SIGNAL INFORMATION Yes Yes
SENSOR INFORMATION Yes Yes
KEY GUIDE Yes Yes
DATA COPY No No
CUSTOMIZE SETTING No Yes
MULTI DISPLAY MONITOR NO. No No
TARGET MONITOR NO. No No
INDIVIDUAL ADJUST No No
ECO INFORMATION CARBON SAVINGS No No
CARBON USAGE No No
COST SAVINGS No No
CARBON CONVERT SETTING Yes Yes
CURRENCY SETTING Yes Yes
CURRENCY CONVERT SETTING Yes Yes
Other settings:
Power Control (DC switch)
Ambient Light Sensor
Human Sensor Result
Audio Mute
NOTE: Only the master monitor’s human sensor and ambient light sensor are active. Please do not cover these sensors.
Turn the monitor’s power off before connecting/disconnecting the ControlSync cable.
Do not use the ControlSync connectors for any purpose other than specified.
* This value is not a directly adjusted output value. This is adjusted relatively.
English-13
English
Controls
OSD (On-Screen Display) control keys on the front of the monitor function
as follows:
To access the OSD menu, touch any of the control keys.
To change the signal input, touch the SELECT key.
NOTE: Exit the OSD in order to change signal input.
1 Ambient Light Sensor
Human Sensor
Detects the level of ambient lighting and the presence of a user, allowing the monitor to
make adjustments to various settings resulting in a more comfortable viewing experience.
Do not cover this sensor.
2 INPUT/SELECT Enters the OSD main menu and sub menus.
Changes the input source when not in the OSD menu. You can directly change to
L/B (LOW BLUE LIGHT) mode by touching the INPUT key for 3 seconds or more.
3 MENU/EXIT Opens the OSD menu. Exits the OSD sub menus and main menu.
4 LEFT/RIGHT/
UP/DOWN*
2
Navigates through the OSD menu.
When the OSD menu is off, you can access the BRIGHTNESS sub menu by touching the
UP key, and access the VOLUME sub menu by touching the DOWN key.
5 ECO/RESET When the OSD menu is displayed on the screen, this button resets the OSD settings.
When the OSD menu is not displayed on the screen, this button switches ECO status.
You can set a mode from OFF, 1 and 2.*
1
Activates the Auto Adjust function if held for 3 seconds while the OSD menu is off
(analog input only)*
1
.
6 Power Turns the monitor on and off.
7 Power LED Indicates that the power is on or off.
*
1
When the Hot Key function is OFF, this function is disabled.
*
2
Depending on the OSD ROTATION setting, LEFT, RIGHT, UP and DOWN key guides are displayed at the , , , keys
differently (See page 18).
ECO TOOLS
BRIGHTNESS
Adjusts the overall image and background screen brightness.
If ECO MODE is set to 1 or 2, a bar for CARBON FOOTPRINT will appear.
CONTRAST
Adjusts the overall image and background screen brightness by input signal level.
NOTE: When L/B is selected in COLOR control, CONTRAST is disabled.
English-14
ECO MODE
Decreases the amount of power consumption by reducing the brightness level.
OFF: No function.
1: Sets brightness variable range from 0% to 70%.
This setting can adjust brightness to a range in which power is reduced by 15% compared to the maximum brightness
setting.
2: Sets brightness variable range from 0% to 30%.
This setting can adjust brightness to a range in which power is reduced by 40% compared to the maximum brightness
setting.
When this function is set to ON, a CARBON FOOTPRINT bar will appear alongside the brightness adjustment bar.
NOTE: This function is disabled when DV MODE (See page 15) is set to DYNAMIC.
This function is disabled when Color Control System is set to DICOM SIM.
To enter the ECO MODE, touch ECO.
When you touch ECO, the setting cycles through [1] [2] [OFF] [1].
AUTOBRIGHTNESS
OFF: No function.
ON(AMBIENTLIGHT):Automatically adjusts the brightness to the optimal setting by detecting the brightness level of
the environment.*
1
*1: Please refer to page 27 for full “Auto Brightness” information.
NOTE: This function is disabled when DV MODE is set to DYNAMIC.
This function is disabled when Color Control System is set to DICOM SIM.
BLACK LEVEL
Adjusts the black level.
OFF MODE SETTING
The Intelligent Power Manager allows the monitor to enter into power saving mode after a period of inactivity.
The OFF MODE has two settings:
OFF: Monitor enters into power saving mode automatically when the input signal is lost.
ON: Monitor enters into power saving mode automatically when the amount of surrounding light goes below the level
determined by you. The level can be adjusted in OFF MODE sensor setting.
When in power saving mode, the LED on the front of the monitor becomes dark blue. When in power saving mode,
touch any of the front keys, except for POWER and INPUT, to return to normal.
When the amount of surrounding light returns to normal levels, the monitor will automatically return to normal mode.
SENSOR SETTING (OFF MODE SETTING)
Adjusts threshold level of ambient light sensor for detected dark condition and shows current sensor measurement
result.
START TIME (OFF MODE SETTING)
Adjusts wait time to enter into to a lower power consumption level when ambient light sensor detects dark condition.
HUMANSENSING
The sensor detects the movement of a person by using the HUMAN SENSING function. The HUMAN SENSING
function has three settings:
OFF: No human sensing.
1(LIGHT):After it is detected that there is no person after a period of time, the monitor shifts to low brightness mode
automatically to reduce the power consumption. When a person comes near the monitor again, the monitor will
automatically return to normal mode. START TIME adjusts the wait time to react.
2 (DEEP): After it is detected that there is no person, the monitor shifts to power saving mode automatically to reduce
the power consumption. When a person comes near the monitor again, it resumes from the power saving mode.
NOTE: Detects a person within about 1.5 m from the monitor.
English-15
English
SENSORSETTING(HUMANSENSING)
Adjusts the threshold level of human sensing.
When the human icon is located on the right side of the white color bar or vermilion color wave, a person is not
detected.
NOTE: The human sensing function starts after the OSD menu is closed.
STARTTIME(HUMANSENSING)
Adjusts the wait time of entering to low brightness mode or power saving mode when Human Sensor detects no
person.
DV MODE
Dynamic Visual Mode allows you to select from the following settings:
STANDARD: Standard setting.
TEXT: Setting that makes letters and lines crisp; best suited for basic word processing and spreadsheets.
MOVIE: Setting that boosts dark tones; best suited for movies.
GAMING: Setting that boosts whole tones; best suited for games that use vivid, colorful images.
PHOTO:Setting that optimizes contrast; best suited for still images.
DYNAMIC: Setting that adjusts the brightness by detecting the screen’s black areas and optimizes it.
NOTE: This function is disabled when Color Control System is set to L/B, PROGRAMMABLE or DICOM SIM.
STANDARD is used for TCO Certificate compliance.
SCREEN
AUTO ADJUST (Analog input only)
Automatically adjusts the image position, H. Size and Fine settings.
AUTO CONTRAST (Analog input only)
Adjusts the image displayed for non-standard video inputs.
LEFT/RIGHT(Analoginputonly)
Controls horizontal image position within the display area of the LCD.
DOWN / UP (Analog input only)
Controls vertical image position within the display area of the LCD.
H.SIZE(Analoginputonly)
Adjusts the horizontal size by increasing or decreasing this setting.
If the “AUTO Adjust” function does not give you a satisfactory picture setting, a further tuning can be performed by
using the “H.SIZE” function (dot clock). A Moiré test pattern can be used for this. This function may alter the width of
the picture. Use LEFT/RIGHT key to center the image on the screen. If the H.SIZE is incorrectly calibrated, the result
would look like the left drawing. The image should be homogeneous.
When H.SIZE value is
wrong.
When H.SIZE value is
improved.
When H.SIZE value is
correct.
English-16
FINE (Analog input only)
Improve focus, clarity and image stability by increasing or decreasing this setting.
If the “Auto Adjust” function and the “H.SIZE” function do not give you a satisfactory picture setting, fine tuning can be
performed by using the “FINE” function.
A Moiré test pattern can be used for this. If the Fine value is incorrectly calibrated, the result would look like the left
drawing. The image should be homogeneous.
When FINE value is
wrong.
When FINE value is
correct.
INPUT RESOLUTION (Analog input only)
Selects one of the following pair of resolutions as the input signal priority:
1360 x 768 or 1280 x 768 or 1024 x 768 (vertical resolution 768),
1600 x 900 or 1280 x 960 (horizontal frequency 60kHz),
1680 x 1050 or 1400 x 1050 (vertical resolution 1050).
VIDEOLEVEL(HDMIinputonly)
NORMAL: For computer setting. Displays all input signals of 0-255 steps.
EXPAND: For audio-visual equipment setting. Expands input signals of 16-235 steps to 0-255 steps.
OVERSCAN(HDMIinputonly)
Some video formats may require different scanning modes in order to best display the image.
ON: Image size is larger than what can be displayed. The image edge will appear cropped. Approximately 95% of the
image will be shown on the screen.
OFF: Image size stays within the display area. The whole image is displayed on the screen.
EXPANSION
Sets the Zoom method.
FULL: The image is expanded to full screen regardless of the resolution.
ASPECT: The image is expanded without changing the aspect ratio.
Color
Color Control System: Color presets are available for adjusting color settings. (sRGB and NATIVE color presets are
standard and cannot be changed).
1, 2, 3, sRGB, 5: Increases or decreases Red, Green or Blue color depending upon which is selected. The change
in color will appear on screen and the direction (increase or decrease) will be shown by the bars. sRGB mode
dramatically improves the color fidelity in the desktop environment by a single standard RGB color space. With this
color-supported environment, the operator could easily and confidently communicate color without further color
management overhead in most common situations.
NATIVE: LCD panel’s original colors that cannot be adjusted.
L/B (LOWBLUELIGHT): Reduces blue light emitted from monitor.
NOTE: You can directly change to L/B (LOW BLUE LIGHT) mode by touching the SELECT key for 3 seconds
or more. For changing to other settings from L/B mode, touch the INPUT key to show OSD menu and
enter COLOR control.
When L/B is selected in COLOR control, CONTRAST and DV MODE are disabled.
DICOM SIM.: The white point color temperature and the gamma curve are set to a DICOM simulation.
PROGRAMMABLE: The gamma curve is adjustable through application software.
NOTE: When MOVIE, GAMING, or PHOTO is selected as the DV MODE, NATIVE is selected automatically
and cannot be changed.
English-17
English
Tools
VOLUME
Controls the volume of the speakers or headphones.
To mute the speaker output touch the “ECO/RESET” key.
SOUNDINPUT(HDMI,DisplayPortinputsonly)
This function selects Audio Input, HDMI or DisplayPort.
VIDEO DETECT
Selects the method of video detection when more than one video input is connected.
FIRST: When current video input signal is not present, the monitor searches for a video signal from the other video
input ports. If the video signal is present in another port, the monitor switches the video source input port to the new
found video source automatically. The monitor will not look for other video signals while the current video source is
present.
NONE: Video input signal detection is not enabled.
RESPONSE IMPROVE
Turns the Response Improve function on or off. Response Improve may reduce blurring that occurs in some moving
images.
OFF TIMER
The monitor will automatically power off after a period of time has passed, which you can set.
Before powering off, a message will appear on the screen asking if you want to delay the turn off time by 60 minutes.
Touch any OSD key to delay the power-down time.
POWER SAVE TIMER
POWER SAVE TIMER allows the monitor to turn off automatically after 2 consecutive hours in power save mode.
LEDBRIGHTNESS
Adjusts the blue LED brightness.
DDC/CI
This function turns the DDC/CI function ON or OFF.
USB POWER
Selects how power through the USB port is enabled in relation to the Monitor’s power status.
AUTO: Power is supplied to the USB downstream port depending on the monitor’s power condition.
ON: Power is always supplied to the USB downstream port even when the monitor is in power save mode or
power OFF.
NOTE: Power consumption depends on the connected USB device even when a monitor’s power is off.
FACTORY PRESET
Selecting Factory Preset allows you to reset all OSD control settings back to the factory settings except Language and
OSD Lock Out. Individual settings can be reset by touching the “ECO/RESET” key.
MENU Tools
LANGUAGE
Selects the language used by the OSD.
OSD TURN OFF
The OSD menu will stay on as long as it is in use. You can select how long the monitor waits after the last key touch to
shut off the OSD menu. The preset choices are 10-120 seconds by 5-second increments.
English-18
OSD LOCK OUT
This control completely locks out access to all OSD control functions except for Brightness, Contrast and Volume.
To activate the OSD Lock Out function, enter the OSD menu, select OSD LOCK OUT, then touch “SELECT” and
RIGHT simultaneously. To deactivate, touch “SELECT” and LEFT simultaneously.

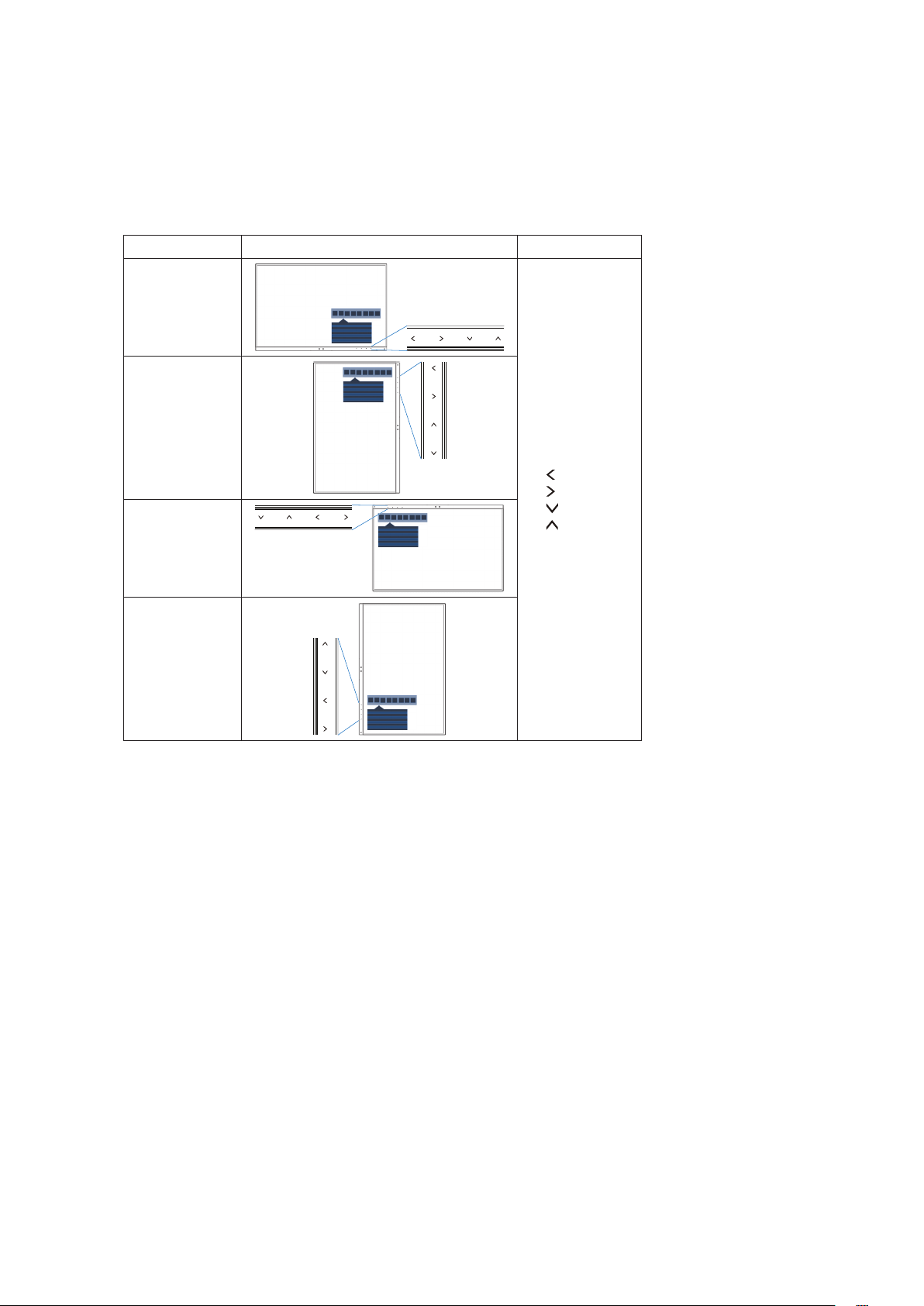

OSD ROTATION
This controls the OSD menu angle.
Depending on the image angle (monitor rotation), select a suitable OSD rotation setting.
NOTE: Please set the KEY GUIDE to “ON” to display the key guide.
Setting (Angle) Image Key guide
0
: LEFT
: RIGHT
: DOWN
: UP
90
180
270
HOTKEY
When this function is ON, BRIGHTNESS, VOLUME and ECO MODE can be changed without entering the OSD menu.
ON:
BRIGHTNESS: Touch the UP key, then adjust the brightness level in the sub menu that opens.
VOLUME: Touch the DOWN Key, then adjust the volume level in the sub menu that opens.
ECO MODE: Touch the ECO key, the ECO MODE sub menu opens with OFF status. You can toggle among
3 selections: OFF, 1 and 2.
OFF: The HOT KEY function for ECO key, UP key and DOWN key are disable.
SIGNAL INFORMATION
If you select “ON”, the monitor displays “VIDEO INPUT MENU” after changing the input.
If you select “OFF”, the monitor doesn’t display “VIDEO INPUT MENU” after changing the input.
SENSOR INFORMATION
If you select “ON”, the monitor displays a “HUMAN SENSOR ON” message. If you select “OFF”, the monitor doesn’t
display the “HUMAN SENSOR ON” message.
KEY GUIDE
If you select “ON”, the Key Guide appears on screen when the OSD menu is accessed.
English-19
English
DATA COPY
To initiate data copy from the master monitor to the sub monitor(s), select “DATA COPY” and touch “SELECT”.
A “PROCEEDING...” indicator will appear on the screen.
NOTE: This function is only intended for the master monitor in ControlSync.
All of the settings specified in the ControlSync chart (see page 12) will be copied from the master
monitor to the sub monitor(s).
CUSTOMIZESETTING
Store the current settings for easy recovery.
To store current settings: Touch “SELECT”. After a warning message appears, touch “RESET”, and the current
settings are stored.
To restore settings: Hold “MENU” for 3 seconds or more while the OSD menu is off.
MULTI DISPLAY
MONITOR NO.
This function is for INDIVIDUAL ADJUST.
Sets a monitor number for each monitor.
Control a sub monitor from the master monitor by INDIVIDUAL ADJUST:
This function is for controlling a sub monitor from the master monitor. It is useful if the sub monitor is located at an
unreachable spot.
Please set a monitor number for each monitor. If you set a unique number to each of the monitors, you can control a
specific monitor. If you set duplicate numbers to some of the monitors, you can control the monitors that have the same
number simultaneously.
NOTE: A master monitor should be connected only with ControlSync OUT. Do not connect a master monitor
with ControlSync IN. See ControlSync about master and sub monitors (page 11).
TARGET MONITOR NO.
Controls a sub monitor’s OSD by using the master monitor’s control keys.
Sets the sub monitor number that is set at MONITOR NO. By touching the INPUT (SELECT) key, each sub monitor
displays its monitor number.
INDIVIDUAL ADJUST
ON: Controls the sub monitor from the master monitor.
Once ON is set, operation at the master monitor reflects to the sub monitor OSD.
To disable INDIVIDUAL ADJUST, please touch SELECT and EXIT keys simultaneously.
NOTE: Please connect monitors with ControlSync cable.
ECO Information
CARBON SAVINGS: Displays the estimated carbon savings information in kg.
CARBON USAGE: Displays the estimated carbon usage information in kg. This is the arithmetic estimation, not actual
measurement value.
COST SAVINGS: Displays the electricity cost savings in balance.
CARBON CONVERT SETTING: Adjusts the carbon footprint factor in the carbon saving calculation. This initial setting
is based on the OECD (2008 Edition).
CURRENCY SETTING: Displays electricity pricing in 6 currency units.
CURRENCY CONVERT SETTING: Displays electricity savings in kW/hour (US Currency is default).
NOTE: This model’s initial setting is “Currency = US$” and its Currency Convert setting = $0.11.
This setting can be changed by using the ECO information menu.
If you want to use the French setting, please refer to steps below:
1. Touch the Menu key and select the ECO information menu using the “LEFT” or “RIGHT” key.
2. Select CURRENCY SETTING item by touching the “UP” or “DOWN” key.
3. The French currency unit is Euro ( ). You can adjust currency setting to Euro icon ( ) from
US dollar ($) by touching the “LEFT” or “RIGHT” key in Current setting item.
4. Select CURRENCY CONVERT SETTING by touching the “UP” or “DOWN” key*.
5. Adjust CURRENCY CONVERT SETTING by touching the “LEFT” or “RIGHT” key.
* This initial Euro ( ) setting is based on the OECD data for Germany (2007 Edition).
Please check the receipt of electricity prices for France or OECD data for France.
The French value according to the OECD data (2007 Edition) was 0.12.
English-20
Information
Provides information about the current resolution display and technical data including the preset timing being used and
the horizontal and vertical frequencies. Indicates the model and serial numbers of your monitor.
OSD Warning
OSD warning menus disappear when EXIT is selected.
NO SIGNAL: This function gives a warning when there is no horizontal or vertical sync. After power is turned on or
when there is a change of input signal, the No Signal window will appear.
OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power
is turned on or there is a change of input signal or if the video signal doesn’t have proper timing, the Out Of Range
menu will appear.
English-21
English
Specifications
Monitor Specifications MultiSync EA271F Notes
LCD Module Diagonal:
Viewable Image Size:
Native Resolution (Pixel Count):
68.60 cm/27 inches
68.60 cm/27 inches
1920 x 1080
Active matrix; thin film transistor (TFT) liquid crystal
display (LCD); 0.311 mm dot pitch; 250 cd/m
2
white
luminance; 1000:1 contrast ratio (typical), (5000:1
Contrast ratio, Dynamic).
Input Signal
DisplayPort: DisplayPort Connector: Digital RGB DisplayPort V1.1a (HDCP1.3)
DVI: DVI-D 24pin: Digital RGB DVI (HDCP1.4)
VGA: Mini D-Sub 15-pin: Analog RGB
Sync
0.7 Vp-p/75 ohm
Separate sync.TTL level Positive/Negative
Composite sync.TTL level Positive/Negative
Sync on Green
(Video 0.7 Vp-p and Sync Negative 0.3 Vp-p)
HDMI: HDMI Connector: Digital YUV
Digital RGB
HDMI (HDCP1.4)
Display Colors 16,777,216
Synchronization Range Horizontal:
Vertical:
31.5 kHz to 83.0 kHz
50 Hz to 75 Hz
Automatically
Automatically
Viewing Angle Left/Right:
Up/Down:
±89°(CR>10)
±89°(CR>10)
Image Formation Time 6 ms (Gray to gray Typ.)
Active Display Area Landscape: Horiz.:
Vert.:
Portrait: Horiz.:
Vert.:
597.89 mm/23.5 inches
336.31 mm/13.2 inches
336.31 mm/13.2 inches
597.89 mm/23.5 inches
USB Hub I/F:
Port:
Load Current:
USB Specification Revision USB 3.1 Gen 1
Upstream 1
Downstream 3
Maximum 0.9 A per port for USB 3.1 Gen 1
Upstream port applicable to USB monitor control.
AUDIO
Audio Input: STEREO Mini Jack:
DisplayPort Connector:
HDMI Connector:
Analog Audio
Digital Audio
Digital Audio
Stereo L/R 500mV rms 20 Kohm
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
Headphone Output: STEREO Mini Jack: Headphone Impedance 32 Ohm
Speakers Practical Audio Output: 1.0 W + 1.0 W
ControlSync IN:
(available up to 5 sub monitors) OUT:
Stereo Micro jack 2.5 φ
Stereo Micro jack 2.5 φ
Power Supply AC 100-240 V ~ 50/60 Hz
Current Rating 0.85 - 0.45 A
Dimensions Landscape:
Portrait:
610.2 mm (W) x 377.3 - 527.3 mm (H) x 250.0 mm (D)
24.0 inches (W) x 14.9 - 20.8 inches (H) x 9.8 inches (D)
359.8 mm (W) x 628.4 - 652.6 mm (H) x 250.0 mm (D)
14.2 inches (W) x 24.7 - 25.7 inches (H) x 9.8 inches (D)
Stand adjustable range Height Adjustment:
Tilt / Pivot / Swivel:
150 mm/5.9 inches (Landscape orientation)
24.2 mm/1.0 inches (Portrait orientation)
Up35°Down5°/±90°/340°
Weight 7.6 kg (16.8 lbs)/Without stand: 5.0 kg (11.0 lbs)
Environmental Considerations
Operating Temperature:
Humidity:
Altitude:
Storage Temperature:
Humidity:
Altitude:
5°Cto35°C/41°Fto95°F
20% to 80%
0 to 16,404 Feet/0 to 5,000 m
-10°Cto60°C/14°Fto140°F
10% to 85%
0 to 40,000 Feet/0 to 12,192 m
NOTE: Technical specifications are subject to change without notice.
English-22
Major supported timings
Resolution
Vertical Frequency Notes
H V
640 x 480 60/72/75 Hz
720 x 400 70 Hz
720 x 480 60 Hz
720 x 576 50 Hz
800 x 600 56/60/72/75 Hz
1024 x 768 60/70/75 Hz
1280 x 720 50/60 Hz
1280 x 960 60/75 Hz
1280 x 1024 60/75 Hz
1440 x 900 60 Hz
1680 x 1050 60 Hz
1920 x 1080 50/60 Hz 60 Hz: Recommend
NOTE: When the selected monitor resolution is not panel native resolution, the text contents appearance in the monitor
screen will be expanded in horizontal or vertical direction to show non-native resolution to full screen by the
interpolated resolution technologies which are normal and widely used in flat panel devices.
English-23
English
Features
3-side Narrow Bezel: Stylish appearance and less distance between adjacent multi-screens.
Fully Ergonomic Stand: Provides viewing flexibility with 150mm height adjustment, -5 ~ 35-degree tilt, 170-degree swivel to
both right/left directions with cable management function and small footprint. Monitor head (display part) can touch stand base
for lower position requirement.
ErgoDesign Features: Enhance human ergonomics to improve the working environment, protect the health of the user and
save money. In addition to the fully ergonomic stand, examples include OSD controls for quick and easy image adjustment and
lower emissions.
VESA Standard Mounting Interface: Allows users to connect your MultiSync monitor to any VESA standard third party
mounting arm or bracket.
Various Signal Interfaces: This model has various interfaces. Fore more detail, please see page 7.
Plug and Play: The Microsoft
®
solution with the Windows
®
operating system facilitates setup and installation by allowing
the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically
optimizing display performance.
USBHub3.1Gen.1: USB Hubs add excitement to your computing by high speed data transfer and power charge. Fore more
detail, please see page 7.
HardwareCalibration: Adjusts brightness, colors and gamma curve for your preference with software and color sensor.
USB Monitor Control: Allows you to adjust each item through application software by connecting a USB cable.
Color Control Systems: Allow you to adjust the colors on your screen and customize the color accuracy of your monitor to a
variety of standards.
Human/AmbientSensors: Control screen brightness according to user presence and ambient light status for less power
consumption.
RESPONSE IMPROVE: Improves gray to gray response.
Intelligent Power Manager System: Provides innovative power-saving methods that allow the monitor to shift to a lower power
consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the
air conditioning costs of the workplace.
ControlSync: Follow the steps of “DATA COPY” and copy the settings from the master monitor to the sub monitors
by connecting the ControlSync cable. When the setting of the master monitor is adjusted, it is sent to the sub monitors
automatically, providing easy setting controls in a multiple monitor environment.
INDIVIDUAL ADJUST: A designated main monitor can adjust sub monitor(s) by the OSD. It is good for multi-setting monitors
which are positioned far from the user.
CUSTOMIZESETTING: Allows to store the current settings and recover stored settings.
LOWBLUELIGHT: This monitor has a blue light reducing function. This means hazardous light from the monitor is substantially
reduced and it allows to free from eyestrain (see page 16).
Flicker Free: Special backlight system reduces flicker for less eyestrain.
NaViSet Administrator 2 Software: Offers an expanded and intuitive graphical interface, allowing you to more easily adjust
OSD display settings from network PC.
Environmental Impact: Annual typical maximum operating carbon footprint of this monitor (world-wide average) is
approximately 40.9 kg (calculated by: rated wattage x 8 hours per day x 5 days a week x 45 weeks per year x Power-to-Carbon
conversion factor - conversion factor is based on OECD publication of global CO2 emissions 2008 Edition). This monitor has a
manufacturing carbon footprint of approximately 44.7 kg.
Note: The manufacturing and operating carbon footprints are calculated by a unique algorithm developed exclusively by NEC
for its monitors.
English-24
Troubleshooting
No picture
• Make sure the signal cable is fully connected to both the monitor and the computer.
• Make sure the computer’s display card is fully seated in its slot.
• Do not use a DisplayPort converter adapter. This device is not supported.
• Make sure both the computer and monitor power switches are in the ON position.
• Themonitorwillautomaticallyturnoffby“POWERSAVETIMER”functionwhen“POWER SAVE TIMER” setting is “ON”
and continuing power save mode for 2 hours. Please touch the power key.
• Make sure that a Major Supported Timings has been selected for the display card in the system being used.
(Please consult the manual for the system or display card for supported resolution and changing the settings.)
• Checkthemonitorandyourdisplaycardwithrespecttocompatibilityandrecommendedsettings.
• Checkthesignalcableconnectorforbentorpushed-inpins.
• Make sure the connected device outputs a signal to the monitor.
• IfthefrontLEDisdarkblue,checkthestatusoftheOFFMODESETTINGmode(seepage 14) or HUMAN SENSING
(see page 14).
• WhenusinganHDMIinputpleasechangeto“OVERSCAN”.
Power Key does not respond
• Unplug the monitor power cable from the AC outlet to turn off and reset the monitor.
Image Persistence
• Imagepersistenceiswhenaresidualor“ghost”imageofapreviousimageremainsvisibleonthescreen.UnlikeCRT
monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period
of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was
displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should
be turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at
regular intervals whenever the screen is idle or turning off the monitor when not in use.
Message “OUT OF RANGE” is displayed (screen is either blank or shows rough images only)
• OSD warning “OUT OF RANGE” is displayed on a rough image (pixels are missing): Either the signal clock or resolution
is too high. Change the settings to a supported mode.
• OSD warning “OUT OF RANGE” is displayed on a blank screen: The signal frequency is out of range. Change the
settings to a supported mode.
Image is unstable, unfocused or swimming is apparent
• Signalcableshouldbecompletelyattachedtothecomputer.
• Disconnect the DP cable and touch the MENU key.
Select DP LONG CABLE then adjust the OSD value using the “ (LEFT)” key or “ (RIGHT)” key.
• UsetheOSDImageAdjustcontrolstofocusandadjustthedisplaybyincreasingordecreasingtheneadjustment.
When the display mode is changed, the OSD Image Adjust settings may need to be readjusted.
• Checkthemonitorandyourdisplaycardwithrespecttocompatibilityandrecommendedsignaltimings.
• Ifyourtextisgarbled,changethevideomodetonon-interlaceanduse60Hzrefreshrate.
LED on monitor is not lit (no blue or amber color can be seen)
• PowerSwitchshouldbeintheONpositionandpowercordshouldbeconnected.
• IncreaseLEDBRIGHTNESSadjustment.
Picture is not bright
• MakesureECOMODEandAUTOBRIGHTNESSareturnedoff.
• Ifthebrightnessuctuates,makesureAUTOBRIGHTNESSisturnedoff.
• Signalcableshouldbecompletelyattached.
• LCDbrightnessdegradationoccursduetolong-termusageorextremecoldconditions.
• WhenusinganHDMIinput,pleasechange“VIDEOLEVEL”.
• If the brightness fluctuates, make sure DV MODE is set to STANDARD.
Display image is not sized properly
• UsetheOSDImageAdjustcontrolstoincreaseordecreasetheCoarseadjustment.
• Make sure that a Major Supported Timings has been selected for the display card in the system being used.
(Please consult the manual for the system or display card for supported resolution and changing the settings.)
• WhenusinganHDMIinput,pleasechange“OVERSCAN”.
English-25
English
No Video
• Ifnovideoispresentonthescreen,turnthePowerkeyoffandonagain.
• Makesurethecomputerisnotinapower-savingmode(touchthekeyboardormouse).
• When using DisplayPort, some display cards do not output video signal under low resolution modes when the monitor is
turned OFF/ON or disconnected/connected from the AC power cord.
• WhenusinganHDMIinput,pleasechange“OVERSCAN”.
No Sound
• Makesurethespeakercableisproperlyconnected.
• Checktoseeifmuteisactivated.
• CheckthevolumelevelintheOSDmenu.
• If the input signal is DisplayPort or HDMI, make sure the SOUND INPUT in the OSD menu is set to DisplayPort or HDMI.
Brightness variations over time
• ChangeAUTOBRIGHTNESStoOFFandthenadjustthebrightness.
• Change DV MODE to STANDARD and then adjust the brightness.
NOTE: When AUTO BRIGHTNESS is set to ON, the monitor automatically adjusts brightness based on the environment.
When the brightness of surrounding environment changes, the monitor will also change.
When DV MODE is set to DYNAMIC, the monitor automatically adjusts the brightness.
USBHubdoesnotoperate
• MakesuretheUSBcordisproperlyconnected.RefertoyourUSBdeviceUser’sManual.
• CheckthattheUSBupstreamportonthemonitorisconnectedtotheUSBdownstreamportonthecomputer.Andmake
sure the computer is ON.
Humansensordoesnotwork
• MakesurethereisnoobjectinfrontoftheHumansensor.
• Makesurethereisnoequipmentthatradiatesinfraredraysinfrontofthemonitor.
ControlSync does not work
• MakesuretheControlSynccableisconnectedcorrectly.
• MakesuretheControlSynccableisnotin“loop”connection.
• Mastermonitorshouldbeconnectedwith ControlSync OUT connector only.
• PleaseusetheprovidedControlSynccable.
• Youcanuseupto5submonitorsviaControlSync.
Displayed OSD menu is rotated
• Make sure of the OSD ROTATION setting.
English-26
Humansensingfunction
Human sensing function reduces power consumption by detecting the movement of a person.
The HUMAN SENSING has following two settings:
MODE HUMANSENSINGSETTING No person in front of the monitor
LIGHT 1 BRIGHTNESS 0%
DEEP 2 Power saving mode
Image of human sensing operation
A. When the sensor detects no person in front of the monitor, the monitor stays on for the period of time which is set at HUMAN
SENSING>STARTTIME(seepage 15).
B. The monitor displays a notification on the screen after the period of time with no human detected has passed.
You can set the notification screen at SENSOR INFORMATION (see page 18).
C. After displaying the notification, if LIGHT is set at HUMAN SENSING, the monitor screen gets gradually darker until it gets to
0% brightness.
If DEEP is set at HUMAN SENSING, the monitor enters into power saving mode.
D. When the sensor detects a person coming back, the monitor is automatically returned from power saving mode to normal
mode.
NOTE: When LIGHT is set at HUMAN SENSING, the monitor screen gets gradually brighter as it returns to the original
brightness.
E. The monitor returns to normal mode.
A EB C D
A user leaves A user is back
Normal mode Normal mode +
notification
Power save mode
HUMAN SENSING
(LIGHT/DEEP)
Back to Normal mode
English-27
English
Using the Auto Brightness function
The brightness of the LCD screen can be set to increase or decrease depending on the amount of ambient lighting within the
room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly.
The purpose of this function is to make the viewing experience more comfortable to the eye in a variety of lighting conditions.
SETUP
Use the following procedures to select the Brightness Range that the monitor will use when the Auto Brightness function is
activated.
1. Set the BRIGHTNESS level. This is the brightness level that the monitor will go up to when the ambient lighting level is
highest. Select this setting when the room is at its brightest.
Select ON in the AUTO BRIGHTNESS menu (Figure 1). Then use the front Keys to move the cursor up to the
BRIGHTNESS setting. Choose the desired brightness level (Figure 2).
Figure 1 Figure 2
2. Set the DARK level. This is the level of brightness that the monitor will go down to when the ambient lighting level is low.
Make sure the room is at its darkest when setting this level.
Then use the front Keys to move the cursor up to the BRIGHTNESS setting. Choose the desired brightness level (Figure 3).
Figure 3
When the “Auto Brightness” function is enabled the Brightness level of the screen changes automatically according to the
lighting conditions of the room (Figure 4).
BRIGHTNESS level set
for the monitor to use
when ambient lighting
level is low.
BRIGHTNESS level set for the
monitor to use when ambient
lighting level is high.
BRIGHTNESS range
Lb: Border between bright and dim lighting conditions; set at factory
L1:BRIGHTNESSlevelsetforthemonitortousewhenambientlightinglevelishigh(L1>Lb)
L2 : BRIGHTNESS level set for the monitor to use when ambient lighting level is low (L2<Lb)
L1 and L2 are the brightness levels set by the user to compensate for changes in ambient lighting.
Figure 4
dark bright
room bright condition
Screen Brightness value by Auto Brightness function
Bright condition area
Dark condition area
English-28
NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s
top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-
friendly products, and always strive to help define and comply with the latest independent standards from agencies such as
ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
Disposing of your old NEC product
The aim of recycling is to gain an environmental benefit by means of re-use, upgrading, reconditioning or reclamation of
material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely
disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures
and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.
All required information concerning the disposal of the product and country-specific information on recycling facilities can be
found on our following websites:
http://www.nec-display-solutions.com/greencompany/ (in Europe),
http://www.nec-display.com (in Japan) or
http://www.necdisplay.com (in USA).
Energy Saving
This monitor features an advanced energy saving capability. When a Display Power Management signal is sent to the monitor,
the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.
Mode Power consumption LED color
Maximum Operation 45 W Blue
Normal Operation 17 W Default setting Blue
Energy Saving Mode 0.27 W* Amber
Off Mode 0.23 W Unlit
*: Factory settings.
For additional information visit:
http://www.necdisplay.com/ (in USA)
http://www.nec-display-solutions.com/ (in Europe)
http://www.nec-display.com/global/index.html (Global)
For Energy Saving information:
For ErP requirement:
Setting: None.
Power consumption: 0.5 W or less.
Time for power management function: Approx. 1 min.
For ErP (Network standby) requirement:
Setting: None.
Power consumption: 0.5 W or less (with 1 port activating) / 3.0 W or less (with all ports activating).
Time for power management function: Approx. 1 min.
WEEE Mark (European Directive 2012/19/EU and amendments)
Disposing of your used product: In the European Union
EU-wide legislation as implemented in each Member State requires that used electrical and electronic products
carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors
and electrical accessories, such as signal cables or power cords. When you dispose of such products, please
follow the guidance of your local authority or ask the shop where you purchased the product, or if applicable,
follow applicable legislation or agreement you may have. The mark on electrical and electronic products may
only apply to the current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority
and ask for the correct method of disposal.
Manufacturer’s Recycling and Energy Information
