CIC800 FITNESS BIKE
OWNER’S MANUAL
Spirit Fitness
3
www.spirittness.com
5 IMPORTANT SAFETY INSTRUCTIONS
6 IMPORTANT OPERATION INSTRUCTIONS
6 PRODUCT REGISTRATION
8 CIC800 ASSEMBLY INSTRUCTIONS
18 GENERAL MAINTENANCE
20 MANUFACTURER’S LIMITED WARRANTY
4
Spirit Fitness
Congratulations on your new Indoor Cycle and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality group indoor cycle from Spirit Fitness. Your new
indoor cycle was manufactured by one of the leading tness manufacturers in the world and
is backed by one of the most comprehensive warranties available. Through your dealer, Spirit
Fitness will do all we can to make your ownership experience as pleasant as possible for
many years to come. If not purchased direct from Spirit Fitness, the local dealership where
you purchased this indoor cycle is your administrator for all Spirit Fitness warranty and service
needs. Their responsibility is to provide you with the technical knowledge and service personnel
to make your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number,
and the date of purchase below to make any future, needed contact easy. We appreciate your
support and we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
5
www.spirittness.com
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
• Use this equipment only for its intended use as
described in this manual. Do not attempt to ride this
bike at high pedal speeds until you have ridden the
bike for some time and are comfortable riding at slower
pedal speeds.
• The bike is NOT equipped with a freewheel system
which means that when the ywheel is in motion, the
pedals will be in motion. Do not attempt to stop the unit
by applying backward pressure to pedals while they
are turning as knee injury may occur. Do not attempt to
remove your feet from pedals while they are moving.
• Wait for ywheel to coast to a stop before dismounting
the bike. If you want to stop the ywheel, push down on
the resistance/brake knob.
• Serious injury or death may occur from over-training.
Consult a medical doctor or qualied tness instructor
to determine an exercise program appropriate for your
level of tness.
• Do not attempt to turn the pedal cranks by hand. Do
not touch any driving mechanism while it is in motion as
possible injury could occur.
• In a home setting, keep children away from the bike
when it is not in use. Keep children and pets away
from the unit while it is in use.
• Do not attempt to perform dip movements on
handlebars.
• Never drop or insert any object into any opening of
the bike.
• Only use the bike on a stable, level oor.
• Follow instructions for safe use of the equipment
including proper seat position, handlebar position,
and use of foot positioning system of pedals. Do not
attempt to pull up handlebar post and seat post over
the ‘MAX.’ level
• For safe operation, allow for at least 1foot (30cm) of
free space to either side of the unit and 2 feet (60cm)
of free space to the rear of the unit.
• Regularly examine the bike for damage and
wear. Inoperable components should be replaced
immediately or the equipment should not be used until
it is repaired.
• This appliance is not intended for use by persons with
reduced physical, sensory or metal capabilities, or
lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
• Keep children under the age of 13 away from
this machine.
6
Spirit Fitness
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness
product in the space provided below.
Serial Number:
REGISTER YOUR
PURCHASE
The self-addressed product registration card must
be completed in full and returned to Spirit Fitness.
You can also go to www.spirittness.com/
warranty under the Support tab to register online.
• Failure to follow all guidelines may compromise the
effectiveness of the exercise experience, expose yourself
(and possibly others) to injury, and reduce the longevity
of the equipment.
• User Weight Limit: 350 lb
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT OPERATION
INSTRUCTIONS
NEVER expose the bike to rain or moisture. This
product is NOT designed for use outdoors, near
a pool or spa, or in any other high humidity
environment. Maximum environmental ratings are
40-120 degrees Fahrenheit, 95% humidity non-
condensing (no water droplets forming on surfaces).
WARNING
This product can expose you to chemicals including
Toluene and Acrylamide which are known to the State
of California to cause Cancer and birth defects or
other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
Serial Number Location
7
www.spirittness.com
SEAT
SEAT FORWARD/AFT ADJ.
SEAT HEIGHT ADJ.
MAIN FRAME
LEVELERS
REAR STABILIZER
TRANSPORT WHEELS
FLYWHEEL
PEDALS
FRONT STABILIZER
RESISTANCE ADJUSTMENT
HANDLEBAR ADJUSTMENT
HANDLEBAR FORWARD/AFT ADJ.
8
Spirit Fitness
PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box;
lift the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into six
steps. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are in
parenthesis (#) are the item number from the assembly drawing
for reference.
TOOLS INCLUDED:
4mm Allen Wrench
5mm Allen Wrench
13/17mm Combination Wrench
PARTS INCLUDED:
1 Main Frame
1 Front Stabilizer
1 Rear Stabilizer
1 Adjustment Handle
1Water Bottle Holder
1 Handlebar Post
1 Handlebar
2 Foot Pedals
1 Hardware Kit
9
www.spirittness.com

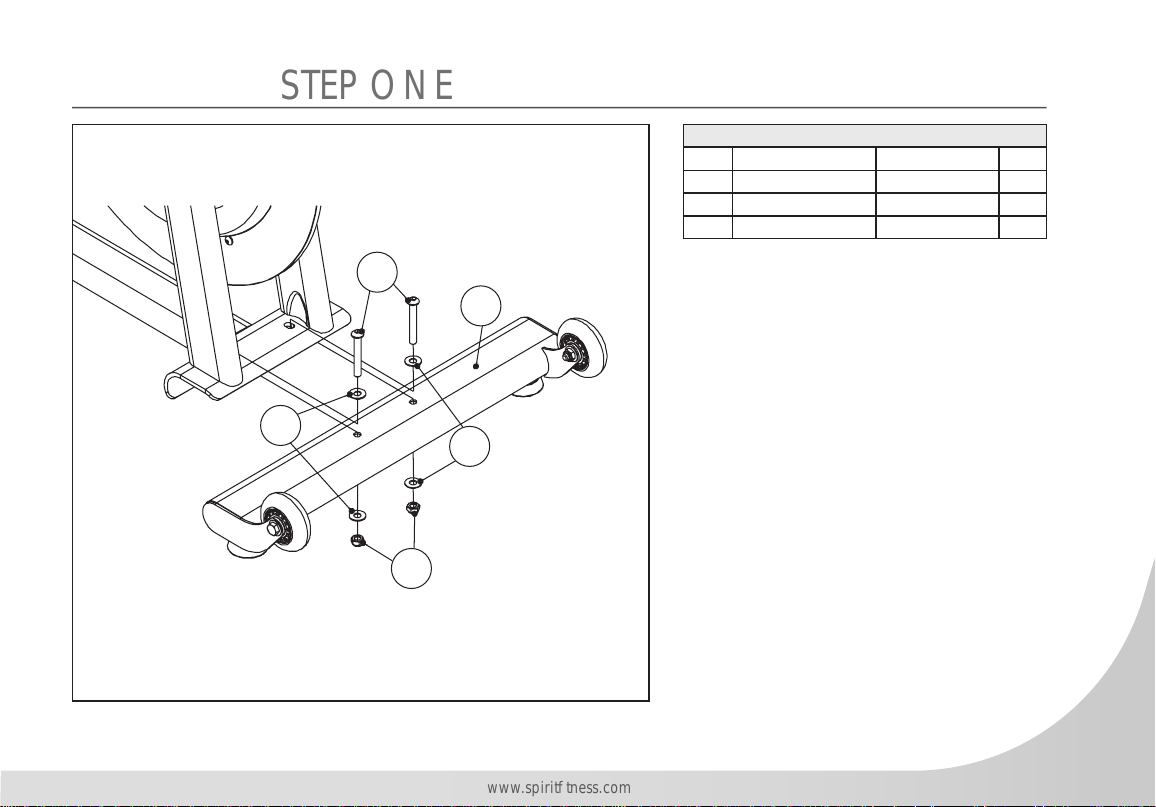

STEP ONE
1
3
4
5
4
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
3 SCREW
M5X1.25X55L
2
4 FLAT WASHER
M8
4
5 NYLON NUT
M8X1.25
2
1. Gather HARDWARE FOR STEP 1.
2. Position the FRONT STABILIZER (1) on
the FRAME BRACKET as showed in
the gure. Make sure the TRANSPORT
WHEELS are facing up and toward the
front of the bike.
3. Attach the STABILIZER with 2 HEX
SCREWS (3), 4 FLAT WASHERS (4)
and 2 NYLON NUTS (5). Do not
over tightened as the deformation of
stabilizer may occur.
4. Make sure the LEVELING FEET with nut
are fully screwed into the STABILIZER
10
Spirit Fitness

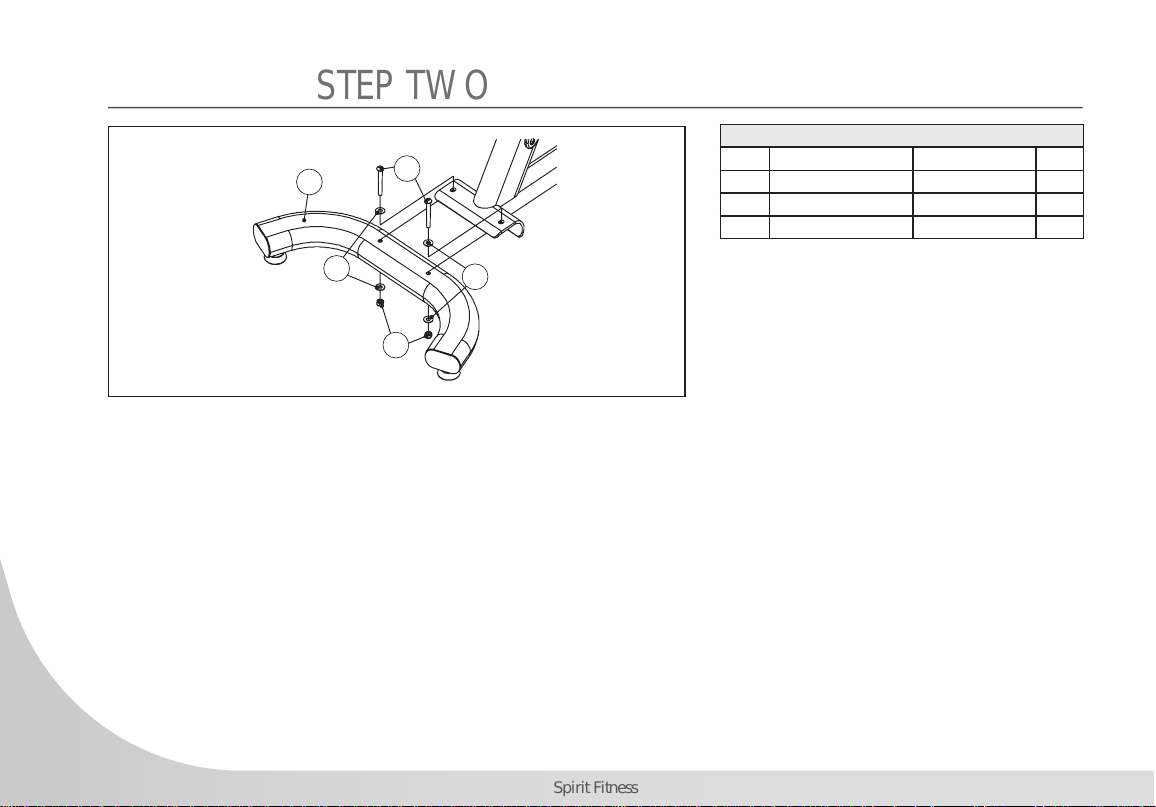

STEP TWO
2
3
4
4
5
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
3 SCREW
M8X1.25X55L
2
4 FLAT WASHER
M8
4
5 NYLON NUT
M8X1.25
2
1. Gather HARDWARE FOR STEP 2.
2. Position the REAR STABILIZER (2) on
the FRAME BRACKET as showed in the
gure.
3. Attach the STABILIZER with 2 HEX
SCREWS (3), 4 FLAT WASHERS (4)
and 2 NYLON NUTS (5). Do not
over tightened as the deformation of
stabilizer may occur.
4. Make sure the LEVELING FEET with nut
are fully screwed into the STABILIZER
11
www.spirittness.com

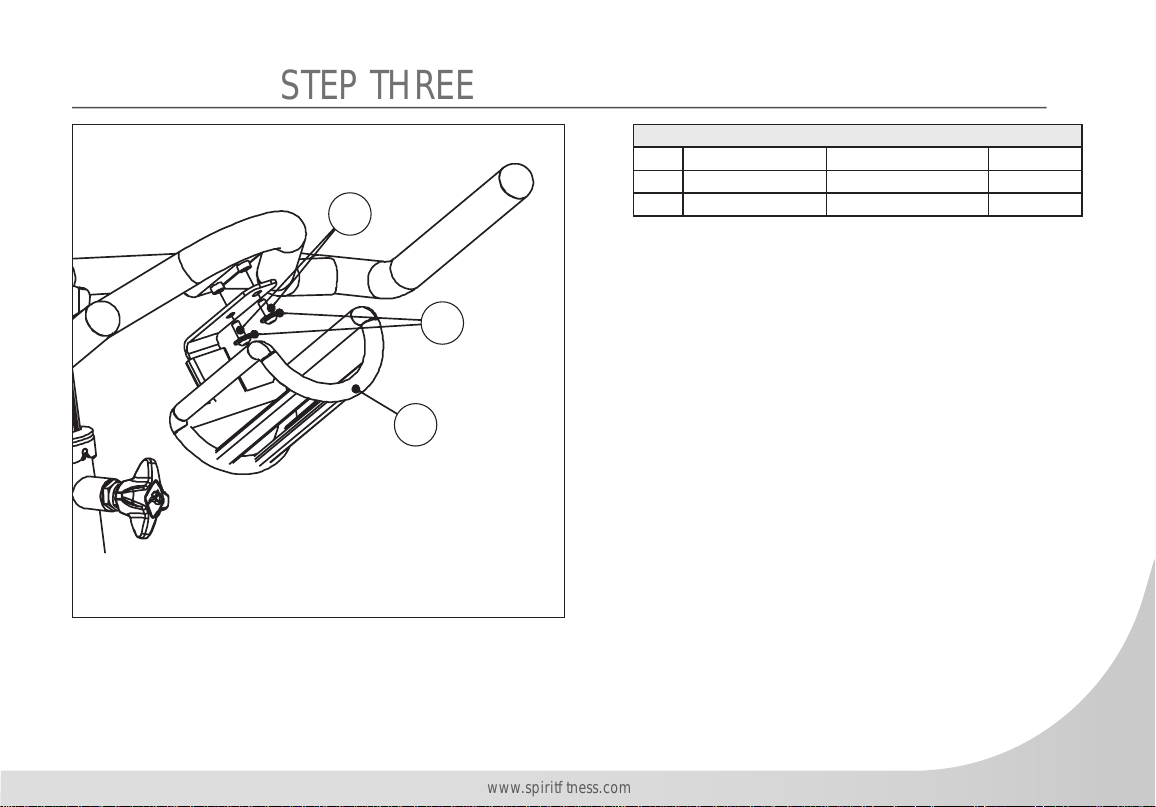

STEP THREE
11
13
12
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
11 SCREW
M6X1.0”x15L
2
13 FLAT WASHER
M6
2
1. Gather HARDWARE FOR STEP 3.
2. Assemble the BOTTLE HOLDER (12) with 2 SOCKET
HEX SCREWS (11) and 2 FLAT WASHER (13)
12
Spirit Fitness
1. Gather HARDWARE FOR STEP 4.
2. Pull out the SAFETY PIN (2) and slide the
HANDLEBAR onto the POST (11).
3. Insert the HANDLEBAR ASSEMBLY into the
FRAME TUBE and tighten rmly with Star-
POP PIN

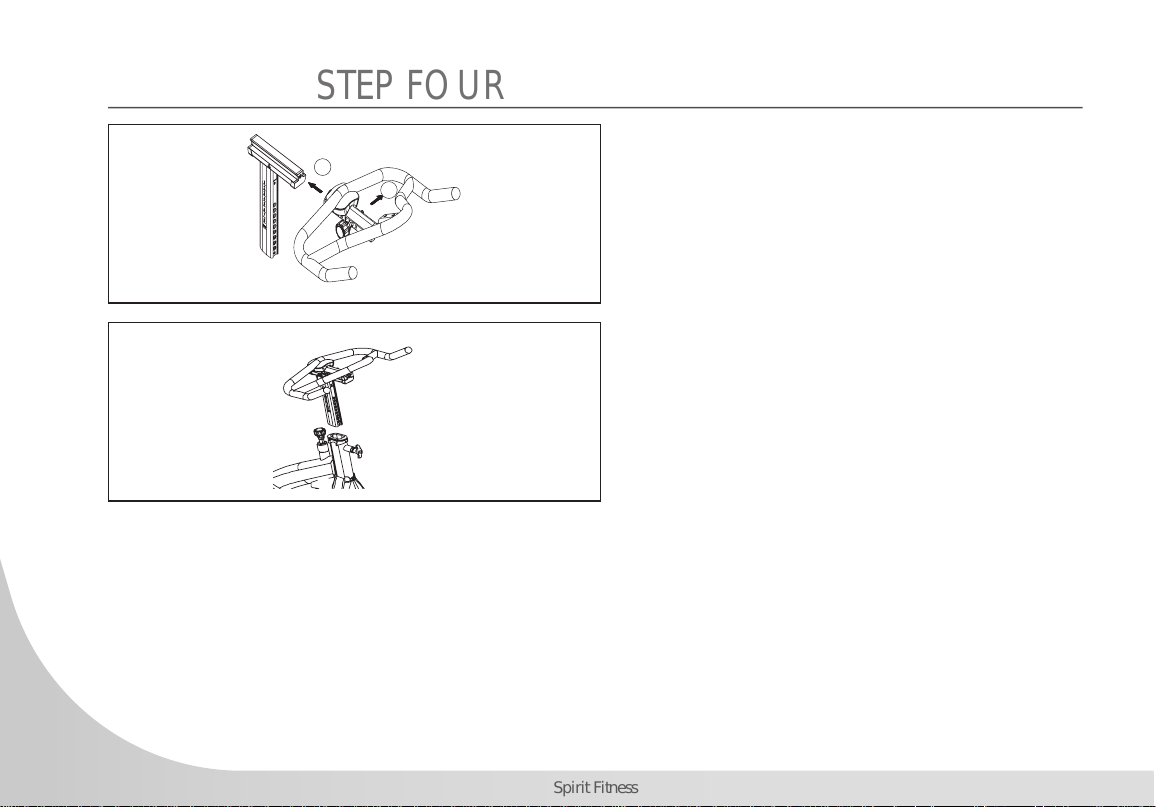

STEP FOUR
1
2
13
www.spirittness.com
STEP FIVE
6
6
NO HARDWARE FOR STEP 5

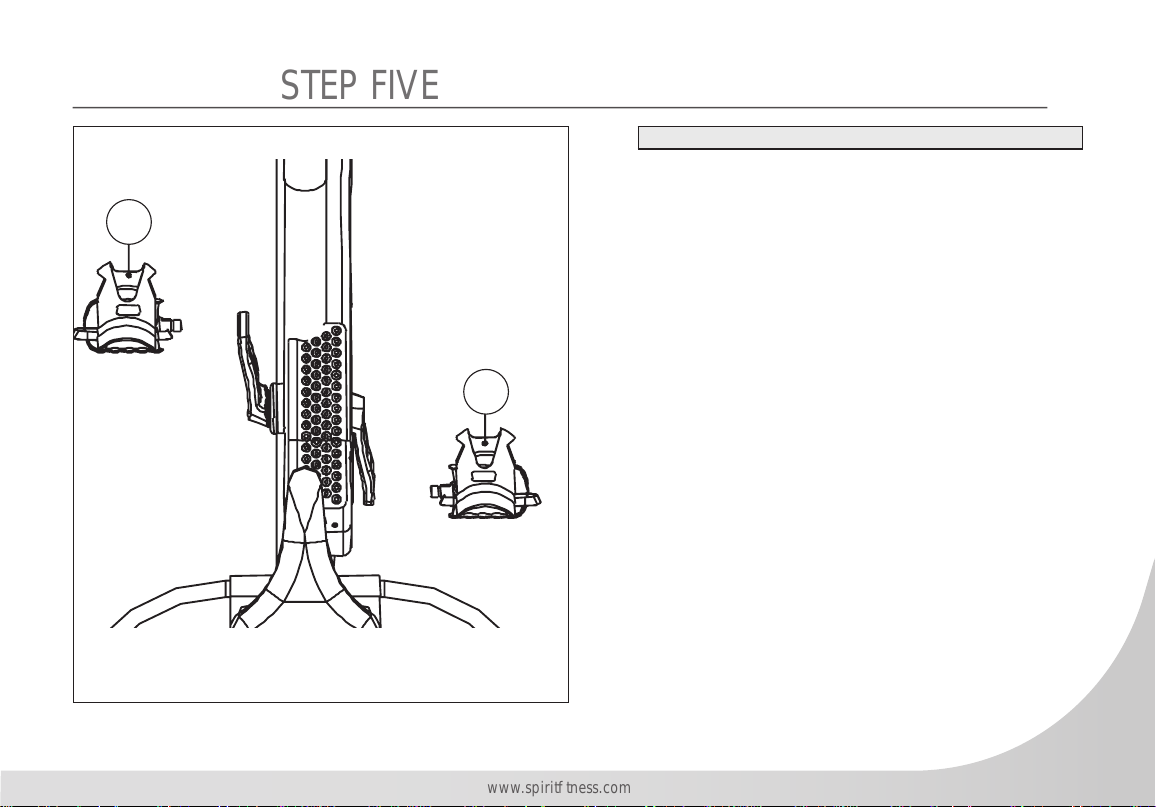

1. Remove pedals from the components box.
2. Look at the end of the pedal axle and notice each
pedal is marked with an R and L on the spindle. It is
indicated which side of bike the pedal is intended
to assemble.
3. Locate the pedal marked R on the spindle on the
right side of crank (Chain guard side). Turn clockwise
to tighten rmly. If possible, apply some grease to the
threads before engaging to the crank.
4. Locate the pedal marked L on the spindle on the Left
side of crank. Turn counter-clockwise to tighten rmly.
If possible, apply some grease to the threads before
engaging to the crank.
14
Spirit Fitness
INDOOR CYCLE SETUP
LEVELERS
Place the cycle on a level area, if at all possible. If the cycle needs leveling, turn the levelers clockwise or
counterclockwise until the base is stable and does not rock.
ADJUSTMENT KNOBS
All four adjustment levers function the same way. Turn the knob clockwise to tighten and counterclockwise
to loosen.
SEAT
The pitch of the saddle can be adjusted to accommodate all users. Loosen the horizontal bolt under the seat to
adjust the pitch, then retighten.
TRANSPORTATION
The indoor cycle is equipped with two transport wheels, which are engaged when the rear of the CIC800
indoor cycle is lifted.
15
www.spirittness.com
Take some time to learn how to properly adjust the bike to your body; it will make your workouts more pleasant
and a safer experience too. Riding the bike when it is incorrectly adjusted can result in discomfort and increase
your risk of injury.
ADJUSTMENT OF SEAT POSITION
SEAT HEIGHT ADJUSTMENT

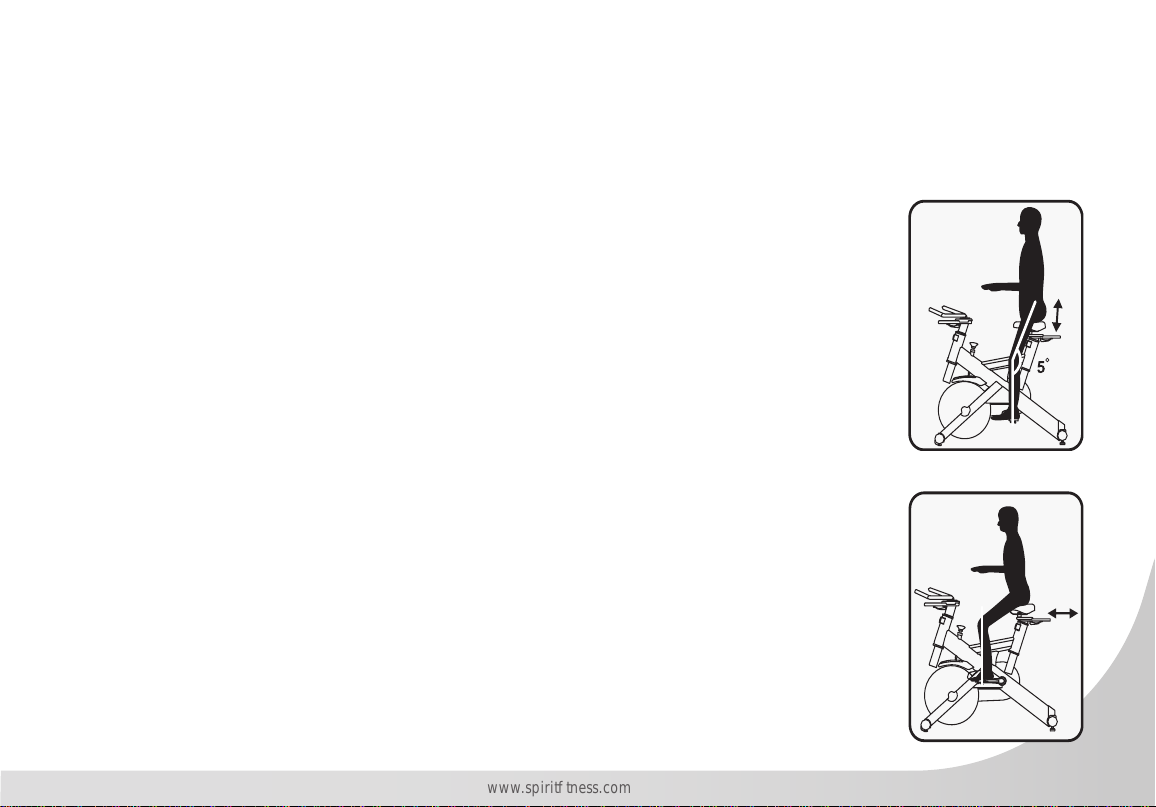

1. Standing next to the bike, adjust the seat until it is about hip height.
2. Rotate the crank arms until the pedals are in the vertical position: 12 and 6 o’clock.
3. Place your foot in the toe cage of the pedal closest to the oor and mount the bike. Ensure that
the ball of your foot is over the center of the pedal. Your leg should be slightly bent at the knee,
about 5 degrees.
4. If your leg is too straight or your foot cannot touch the pedal you will need to lower the seat
height. If your leg is bent too much, you will need to raise the seat height.
5. Dismount the bike. Then loosen the knob on the seat post and adjust up or down as necessary.
6. When the seat is in the desired position, tighten the knob to secure the seat post.
7. Note the nal position mark on the seat post for future reference.
SEAT FORWARD/AFT ADJUSTMENT
1. Sit on the bike with the crank arms in the 3 and 9 o’clock positions. A proper forward/aft
position (for road bike training) of the seat is achieved when the small bump at the top of your
shin is above the pedal axle.
2. Dismount the bike. Loosen the knob under the seat and slide the seat forward or backward as
desired; tighten the knob.
16
Spirit Fitness
HANDLE BAR ADJUSTMENT
HANDLEBAR HEIGHT ADJUSTMENT
1. The handlebar height is a matter of preference. Start with a handlebar height that is the same
as the seat’s height. Adjusting the handlebar higher will give the rider a more upright posi-
tion; lower will result in a more crouched position.
2. Raise or lower the handlebar by loosening the knob on the handlebar post and adjust by
sliding the handlebar mount up or down as desired. Then tighten the knob to secure the han-
dlebar post. Note the nal position mark on the handlebar post for future reference.
ADJUSTMENT OF HANDLEBAR’S FORWARD/AFT POSITION
1. Loosen the knob under the handlebar and slide the handlebar forward or backward as desired. A suitable forward/aft
position should allow the rider to comfortably grasp the handlebar with a slight bend at the elbow.
2. Tighten the knob to secure the handlebar assembly.
17
www.spirittness.com

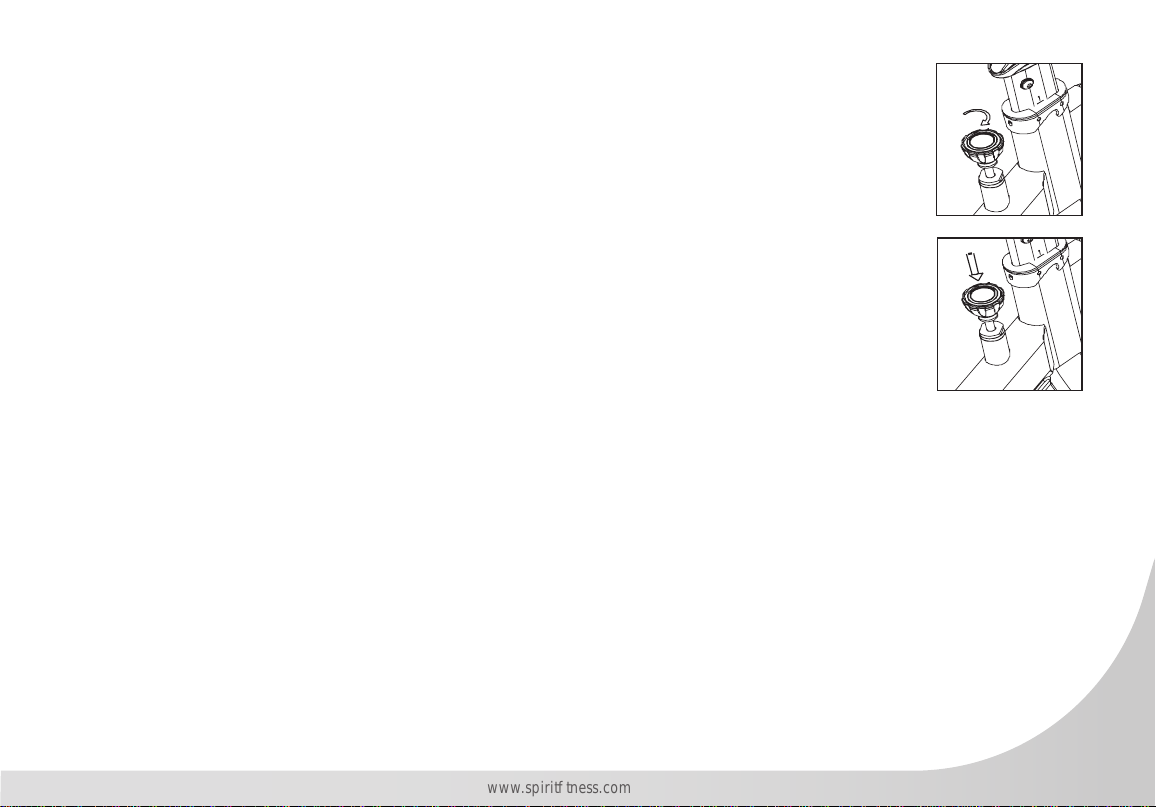

RESISTANCE ADJUSTMENT
Resistance can be adjusted easily at any time while riding to change the intensity of
workout. Turn the knob clockwise (+) to increase resistance. Turn the knob counterclockwise
(-) to decrease resistance.
EMERGENCY BRAKE
In case of emergency or before dismounting the indoor cycle, presses directly DOWN on
the resistance knob to stop the ywheel and pedal.
PEDAL STRAP ADJUSTMENT
Place the ball of you feet in the toe clip till the front of the shoe is snugly in the cage. Then
tighten the strap of toe clip around your shoe by pulling up on the strap until cage of toe
clip ts snugly around the shoe.
18
Spirit Fitness
BELT TENSION ADJUSTMENT
The belt tension had been set before shipping. It should not need to be adjusted when rst using. However,
you may need to make the minor tension adjustment over time.
NOTE: Make sure you adjust both side equally, either tighten or loosen the belt tension so that the ywheel
keep in alignment with the frame.
TIGHTEN THE BELT TENSION
Move the crank arms back and forth. If there is more than 1/4” (0.64cm) movement in the crank before
ywheel starts turning, you will need to adjust the belt.
1. Loosen the two-anged nut(A) on either side of ywheel.
2. Moving the ywheel forward by evenly tightening clockwise the 2 hex bolts(B), which go through the frame tube
until there is approximately 1/4” (0.64cm) of slack in the belt.
3. Re-tighten the two-anged nut on either side of ywheel and then put back the safety cover.
GENERAL MAINTENANCE
1. Wipe down all areas in the sweat path with a damp cloth after each workout.
2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons:
a. The hardware was not sufciently tightened during assembly. All bolts that were installed
during assembly need to be tightened as much as possible. It may be necessary to use a larger wrench than the one
provided if you cannot tighten the bolts sufciently. We cannot stress this point enough; 90% of calls to the service
department for noise issues can be traced to loose hardware.
b. The crank arm nut needs to be retightened.
c. If squeaks or other noises persist, check that the unit is properly leveled. There are 2 leveling pads on the bottom of the
rear stabilizer, use a 14mm wrench (or adjustable wrench) to adjust the levelers.
19
www.spirittness.com
MAINTENANCE SCHEDULE
1. Do not service internal parts of pedals. If they are found to be worn internally, we recommend replacing the pedal.
2. Use of lubricants or cleaning solutions other than those so specied will result in diminished performance and a
shorter life span for that part.
Part Recommended Action Frequency Cleaner
Pedals Ensure that pedals are tight in crank arms,
that all screws on pedals are tight, and that
the pedal straps are not frayed.
Before each Use N/A
Frame Wipe down using a clean, soft damp cloth Daily Water
Flywheel Wipe down using a clean, soft damp cloth Weekly Water
Brake Pad Check for wear Monthly N/A
SANITIZING YOUR SPIRIT FITNESS EQUIPMENT
• Unupholstered high-contact surfaces (hard plastics) can be sanitized using a 75% isopropyl alcohol solution and a
clean, dry cloth.Spray surfaces to be sanitized, and use the dry cloth to wipe clean. Allow surfaces to dry before
using.
• For upholstered or soft-plastic surfaces, use a conditioner after sanitizing.Be sure to follow the instructions provided
by the conditioner manufacturer to ensure proper use of the conditioner.
• Alternatively, you can make your own spray by mixing the proper ratio of isopropyl alcohol and distilled water to
reach a 75% solution.
• For more details on sanitization, or to learn how to make your own spray solution, please visit https://support.
spirittness.com/hc/en-us/articles/4406787148564 .
20
Spirit Fitness
INDOOR CYCLE WARRANTY – EFFECTIVE SEPTEMBER 24, 2021
Spirit Fitness warrants all its Indoor Cycle parts for a period of time listed below from the date of retail sale, as
determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory
shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’
option, and technical support to our independent dealers and servicing organizations. In the absence of a
dealer or service organization, these warranties will be administered by Spirit Fitness directly to a consumer.
The warranty period applies to the following components:
*Wear Items include items such as grips, end caps, and toe cage straps.
NORMAL RESPONSIBILITIES OF THE CONSUMER
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of
the original purchase, or completed online to validate the manufacturer’s limited warranty.
2. Proper use of the tness equipment in accordance with the instructions provided in this manual.
3. Expenses for making the tness equipment accessible for servicing, including any item that was not part of the
tness equipment at the time it was shipped from the factory.
4. Damages to the tness equipment nish during shipping, installation or following installation.
5. Routine maintenance of this unit as specied in this manual.
Warranty
Commercial
Commercial
Residential
Frame
10 Years
15 Years
Lifetime
Parts
3 Years
3 Years
3 Years
Labor
1 Year
1 Year
1 Year
Wear Items*
1 Year
1 Year
1 Year
(Health Clubs, YMCA, Community Centers, dues paying facilities)
(non-dues paying facilities)
*Prisons and correctional facilities are excluded from warranty coverage.
21
www.spirittness.com
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or
exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or
defects in workmanship or material, for units that are beyond the warranty period, for units that are beyond the service
call reimbursement period, for tness equipment not requiring component replacement, or tness equipment not in non-
dues paying facility or household use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of parts
other than original Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or plastic, alterations,
modications, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to request
proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product used in prisons and correctional facilities
9. Warranties outside of the United States may vary. Please contact your local dealer for details.
22
Spirit Fitness
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the
date of factory shipping as determined by the serial number establishes the labor warranty period should
service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written
warranty gives you specic legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product
through one of our authorized service centers. All repairs must be preauthorized by Spirit Fitness. If the product is
shipped to a service center freight charges to and from the service center will be the customer’s responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for shipping and
handling charges. For in-home service, the customer will be responsible for a trip charge. There will be an additional
trip charge if the customer is located over 100 miles from the nearest service center.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for
damages in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT
TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization
number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
SPIRIT FITNESS, INC.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc.
This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
23
www.spirittness.com

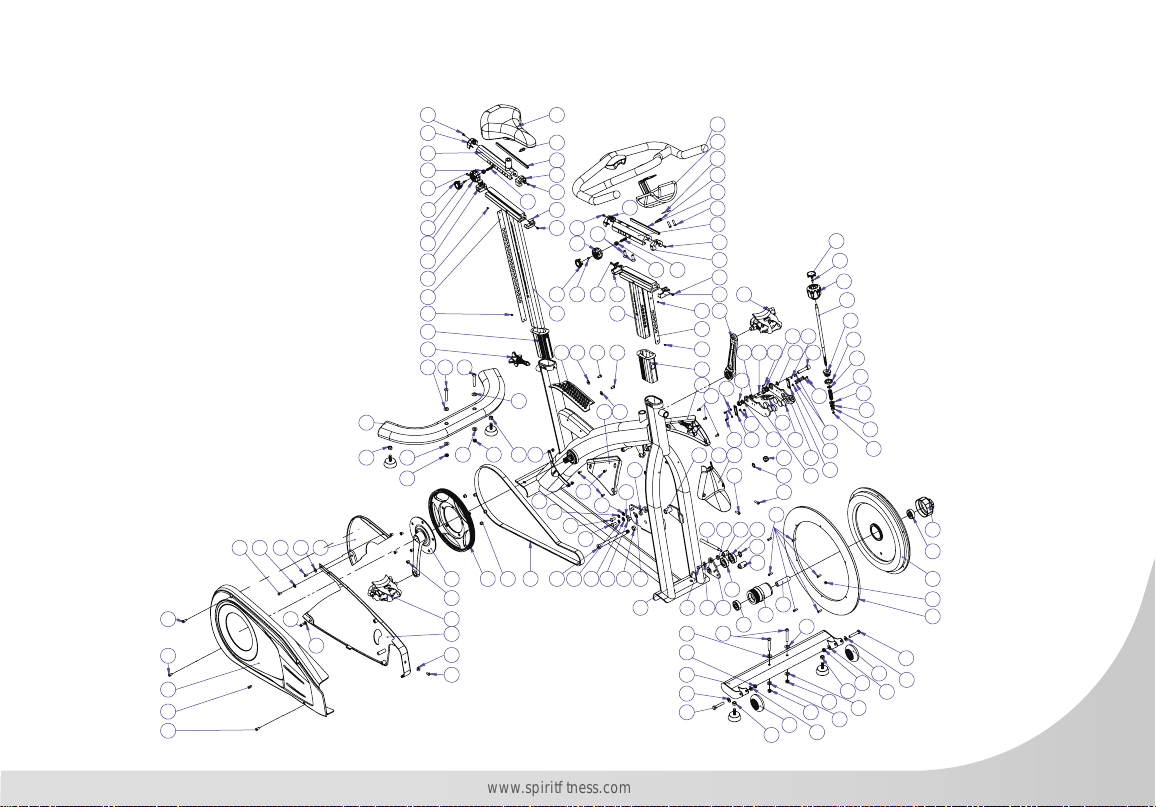

CIC800 Exploded Drawing
1
2
3
3
4
4
4
4
4
5
4
4
4
4
4
4
4
4
5
5
5
5
5
5
6
6
8
8
8
8
9
10
11
11
12
13 14 15
16
16
17
17
18
18
18
19
19
20
21
22
2425
26
27
28
29 30
31
32
33
34
34
35
36
37
38
39
40
41
42
43
43
43 43
43
43
44
44
44
44
44
44
44 44
45
45
46
46
47
47
48
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
64
64
64
64
64
64
64
65 65
66
66
67
67
68
68
68
69
69
70
71
71
71
71
72
73
73
74
74
75
76
77
78
79
8384
80
81
82
85
86
87
88
89
90
91
92
93
94
95
96 97
98
99
99
100
101
64
64
102
102
103
103
103
104
105
105
106
107
108
109
110
111
112
43
45
113
113 113
24
Spirit Fitness
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
QTY
1
1
2
14
4
2
4
4
1
1
2
1
1
1
1
2
2
3
2
1
No.
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
QTY
1
1
1
1
1
5
5
1
1
1
1
6
1
2
1
1
1
1
1
1

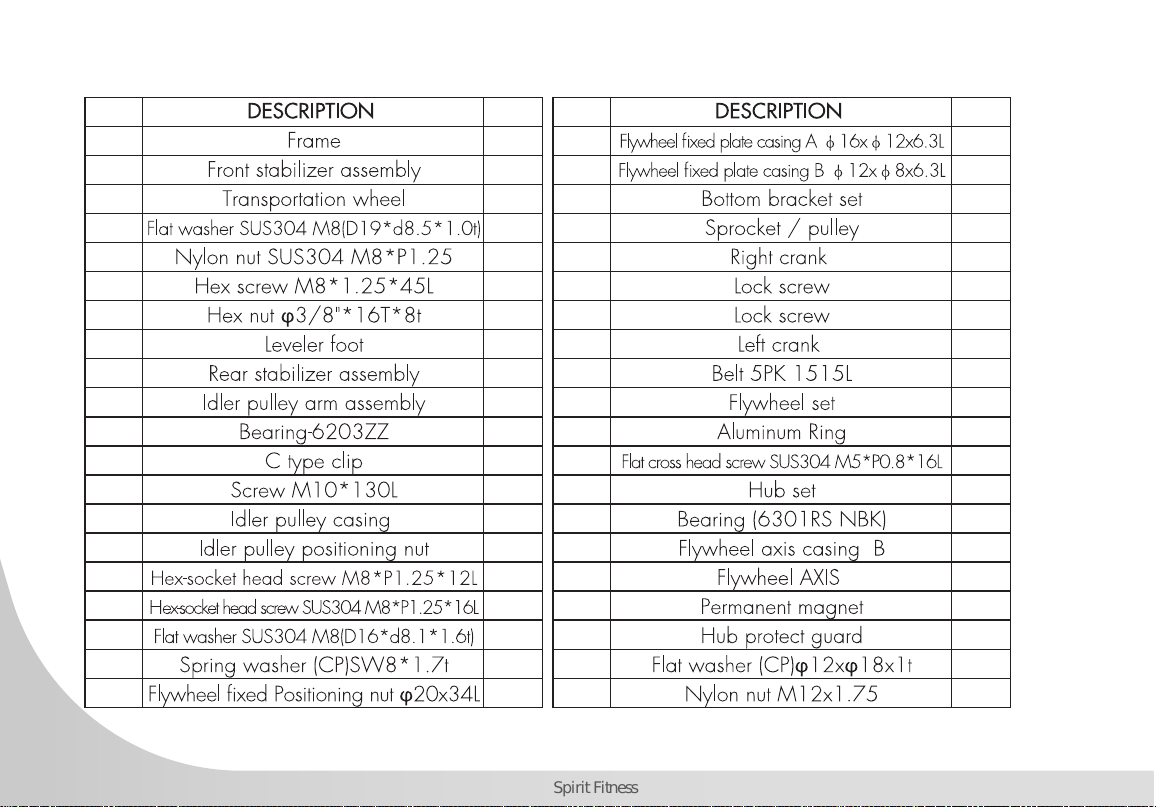

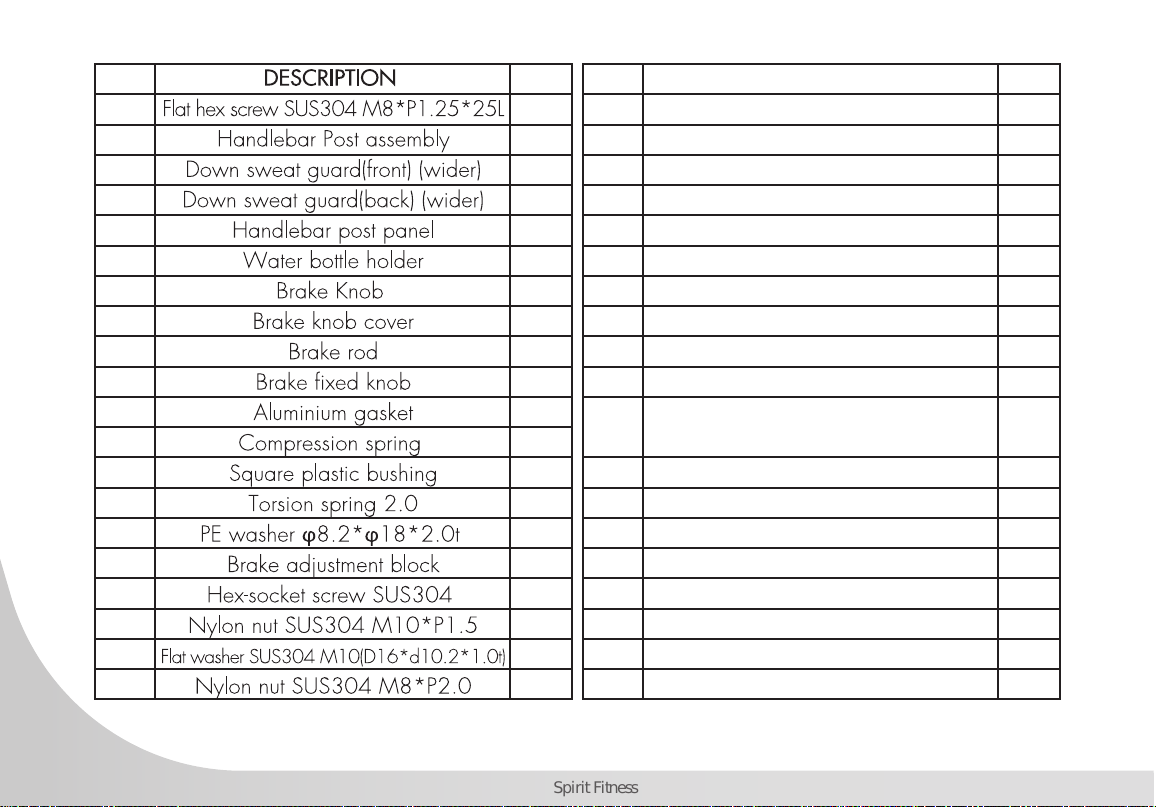

CIC800 PARTS LIST
25
www.spirittness.com
No.
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
QTY
1
1
8
8
4
2
2
6
1
1
1
1
1
1
1
1
1
1
1
1
DESCRIPTION
Flywheel axis casing A
Flywheel axis casing C
Flat washer SUS304 M6(φ16*φ6.5*1.0t)
Hex-socket head screw SUS304 M6*P1.0*12L
Hex-socket head screw SUS304 M6*P1.0*15L
Hex-socket head screw SUS304 M6*P1.0*20L
Cap nut SUS304 M6*P1.0
Hex-socket head screw SUS304 M5*P0.8*10L
Front sweat guard
Sweat guard (right)
Sweat guard (left)
Chain guard
Inner chain guard (front)
Inner chain guard (back)
Anti-slide board
Seat slider welding assembly
Seat post assembly
Seat adjustment taut block
Seat post panel
Up sweat guard(back)
No.
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
QTY
1
1
1
12
2
2
2
3
2
1
4
1
2
2
1
1
1
1
1
1
DESCRIPTION
Up sweat guard(front)
Down sweat guard(back)
Down sweat guard(front)
Flat cross head screw SUS304 M4*P0.7*8L
Adjustable knob
Konb screw (UCP)φ9*27.5L
Brake knob--cover
Flat cross head screw (UCP)M4*P0.7*10L
Knob bolt block
Pop pin knob( short)
Flat cross head screw SUS304 M3*P0.5*6L
Saddle
Bushing (seat post/handlebar)
Star-type pop pin knob
Handlebar
Adjustment handlebar block(up)
Handlebar adjustment taut block
Up sweat guard(front) (wider)
Up sweat guard(back) (wider)
Pop pin knob(long)
26
Spirit Fitness
No.
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
QTY
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
No.
101
102
103
104
105
106
107
108
109
110
111
/112
113
QTY
1
2
4
6
2
1
1
1
2
2
1
4
DESCRIPTION
Nylon nut SUS304 M5*P0.8
Brake block connection piece
Copper bushing
Permanent magnet
Bearing LF-1910ZZ
Brake block (right)
Brake block (left)
Brake gasket assembly
Flat cross head screw SUS304 M4*P0.7*40L
Nylon nut SUS304 M4*P0.7
Pedal
Hex-socket head screw SUS304 M8*P1.25*55L
27
www.spirittness.com
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
CIC800 Owners Manual
© 2021 All Rights Reserved
Revision: 11.08.2021
