EN, English
Operator's manual

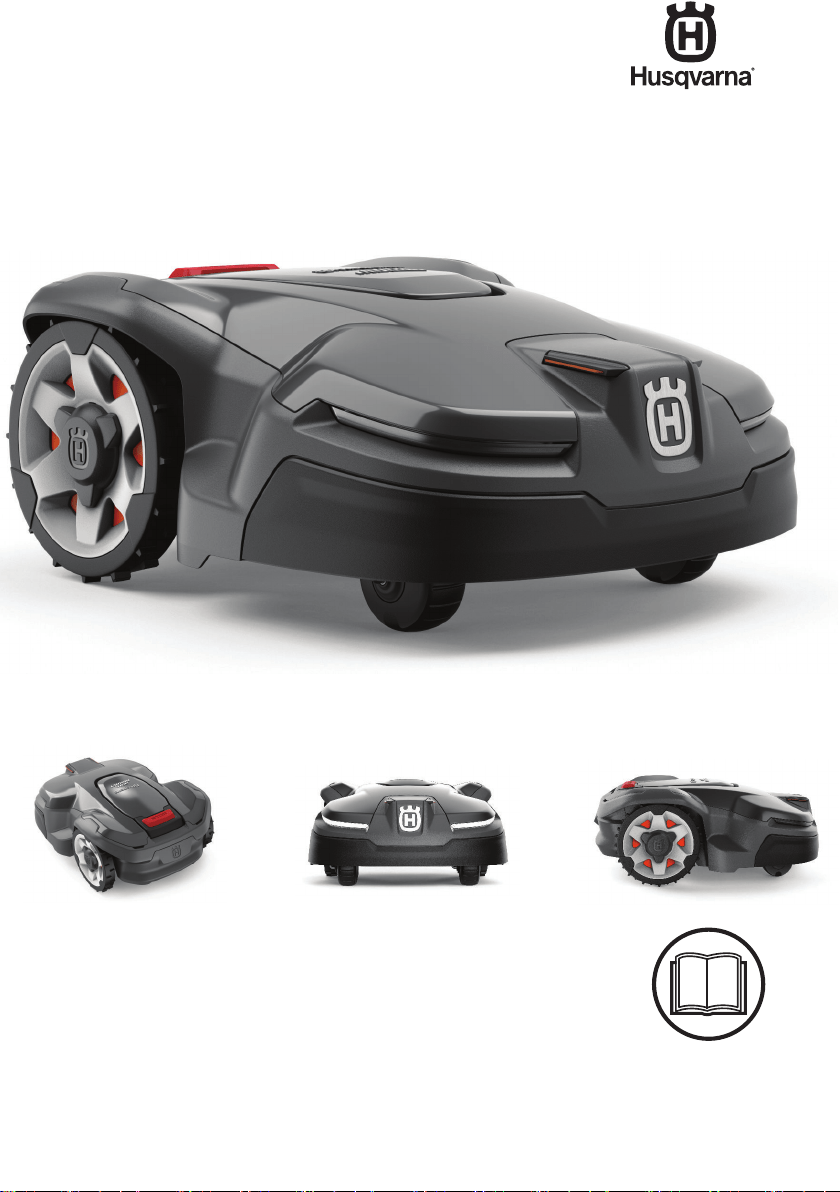

HUSQVARNA AUTOMOWER
®
405X/415X
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Contents
1 Safety
1.1 Safety definitions...................................................3
1.2 General safety instructions....................................3
1.3 Safety instructions for installation..........................4
1.4 Safety instructions for operation............................4
1.5 Safety instructions for maintenance...................... 4
1.6 Battery safety........................................................ 4
1.7 How to lift and move the product...........................5
2 Introduction
2.1 Introduction........................................................... 6
2.2 Product overview ..................................................7
2.3 Symbols on the product........................................ 8
2.4 Symbols on the display......................................... 8
2.5 Symbols on the battery......................................... 9
2.6 General manual instructions................................. 9
2.7 Menu structure overview - 1................................10
2.8 Menu structure overview - 2................................11
2.9 Display................................................................ 12
2.10 Keypad.............................................................. 12
3 Installation
3.1 Introduction - Installation..................................... 13
3.2 Main components for installation.........................13
3.3 To prepare for installation................................... 13
3.4 Before the installation of the wires...................... 13
3.5 Installation of the product.................................... 17
3.6 To put the wire into position with stakes............. 19
3.7 To bury the boundary wire or the guide wire.......19
3.8 To extend the boundary wire or the guide wire... 19
3.9 After the installation of the product......................20
4 Product settings
4.1 Automower
®
Connect app.................................. 21
4.2 Product settings with keypad and display........... 22
5 Operation
5.1 To use the ON/OFF button..................................31
5.2 To start the product............................................. 31
5.3 To park the product............................................. 31
5.4 To stop the product............................................. 32
5.5 To set the product to OFF................................... 32
5.6 To charge the battery.......................................... 32
6 Maintenance
6.1 Introduction - maintenance..................................33
6.2 Clean the product................................................33
6.3 Replacement of the blades................................. 34
6.4 Battery.................................................................35
6.5 Winter service..................................................... 35
7 Troubleshooting
7.1 Introduction - troubleshooting..............................36
7.2 Fault messages...................................................36
7.3 Information and warning messages.................... 41
7.4 Indicator lamp in the charging station................. 42
7.5 Symptoms........................................................... 43
7.6 Find breaks in the loop wire................................ 44
8 Transportation, storage and disposal
8.1 Transportation..................................................... 47
8.2 Storage................................................................47
8.3 Disposal.............................................................. 47
9 Technical data
9.1 Automower
®
405X/415X..................................... 48
9.2 Registered trademarks........................................50
10 Warranty
10.1 Warranty terms..................................................51
2 1650 - 006 - 20.02.2023
1 Safety
1.1 Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
1.2 General safety instructions
WARNING: Read the warning
instructions that follow before you use the
product.
• Read the Operator’s manual carefully and make
sure you understand the instructions before you
use the product. Keep for future reference.
• This appliance is not intended for use by children
or persons with reduced physical, sensory or
mental capabilities (that could affect a safe
handling of the product), or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
However, EU requirements allows this appliance
to be used by children aged from 8 years and
above and persons with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge, if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children without supervision.
• The product must only be used with the equipment
recommended by Husqvarna. All other types of
use are incorrect.
• Do not use the product when persons, especially
children, or animals are in the work area.
• Warning signs must be put around the work area
of the product if it operates in public areas. The
signs must have the text that follows: Warning!
Automatic lawn mower! Keep away from the
machine! Supervise children!
• Do not touch moving hazardous parts, such as the
blade disc, before it has come to a complete stop.
• Set the product to OFF before you clear a
blockage, do maintenance or examine the product,
and if the product starts to vibrate abnormally.
Examine the product for damage before you start
the product again. Do not use the product if it is
damaged.
• If an injury or accident occur, get medical aid.
• Do not put power supply cable and extension cable
in the work area. This can cause damage to the
cables.
• Do not connect a damaged cable or plug, or touch
a damaged cable, before it is disconnected from
the power outlet. Disconnect the plug from the
power outlet if the cable becomes damaged while
in operation. A worn or damaged cable increases
the risk of electrical shock. A damaged cable must
be replaced by service personnel.
• When you connect the power supply to the power
outlet, use a residual-current device (RCD) with a
tripping current of maximum 30 mA.
• Only charge the product in the included charging
station. For safe disposal of the battery, refer to
Disposal on page 47
. Incorrect use may result in
electric shock, overheating or leaking of corrosive
liquid from the battery. In the event of leakage of
electrolyte, flush with water/neutralizing agent. Get
medical aid if corrosive liquid comes in your eyes.
• Use only original batteries recommended by
Husqvarna. Product safety cannot be guaranteed
with other than original batteries. Do not use non-
rechargeable batteries.
• Follow the installation instructions that includes to
specify the work area, refer to
Installation on page
13
.
• Follow the instructions about to start and operate
the product, refer to
Operation on page 31
.
• If there is a risk of thunderstorm, Husqvarna
recommends that the power supply and all the
wires to the charging station are disconnected
to decrease the risk of damage to electrical
components. Connect the power supply and all
the wires again if there is no longer a risk of
thunderstorm. It is important that all wires are
connected correctly.
• Follow the maintenance instructions and if
necessary use Husqvarna original spare parts,
refer to
Maintenance on page 33
.
• For technical data such as weight, dimensions and
noise emission values, refer to
Technical data on
page 48
.
• The operator is responsible for accidents or
dangers that occurs to other persons or property.
1650 - 006 - 20.02.2023
Safety - 3
• The product must only be operated, maintained
and repaired by persons that are fully conversant
with its special characteristics and safety
regulations.
• It is not permitted to change the initial design of the
product.
• Obey national regulations about electrical safety.
• Husqvarna does not guarantee full compatibility
between the product and other types of
wireless systems such as remote controls, radio
transmitters or equivalent.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Operation and storage temperature range is 0-50
°C / 32-122 °F. Temperature range for charging is
0-45 °C / 32-113 °F. Too high temperatures can
cause damage to the product.
1.3 Safety instructions for installation
WARNING: Read the warning
instructions that follow before you use the
product.
• Do not install the charging station, including any
accessory, at a location that is below, or within 60
cm / 24 in. from, any combustible material. In case
of malfunction, heating of the charging station and
the power supply may occur and create a potential
risk of fire.
• Do not put the power supply at a height where
there is a risk it can be put in water. Do not put the
power supply on the ground.
• Do not encapsulate the power supply. Condensed
water can harm the power supply and increase the
risk of electrical shock.
• Applicable to USA/Canada. If power supply is
installed outdoors: Risk of Electric Shock. Install
only to a covered Class A GFCI receptacle (RCD)
that has an enclosure that is weatherproof with the
attachment plug cap inserted or removed.
• Do not install the charging station where there is a
risk of standing water.
1.4 Safety instructions for operation
WARNING:
Read the warning
instructions that follow before you use the
product.
• Keep your hands and feet away from the rotating
blades. Do not put your hands or feet near or
below the product when it is set to ON.
• Use the park mode or set the product to OFF when
persons, especially children or animals are in the
work area. Refer to
To set the product to OFF
on page 32
. Husqvarna recommends to set the
product to operate when the work area has no
activity. The product can cause injury to animals at
night in work area, for example hedgehogs. Refer
to
Schedule on page 22
.
• Make sure that there are no objects such as
stones, branches, tools or toys on the lawn. The
blades can be damaged if it hits an object.
• Do not lift the product or move it when it is set to
ON.
• Do not to let the product collide with persons or
animals. If a person or animal comes in the way of
the product, stop the product immediately. Refer to
To stop the product on page 32
.
• Do not put objects on top of the product or its
charging station.
• Do not use the product if the STOP button does
not work.
• Always set the product to OFF when it is not in
operation. The product can only start when you
enter the correct PIN code.
• Do not use the product at the same time as a
pop-up sprinkler. Use the
Schedule
function so the
product and pop-up sprinkler do not operate at the
same time. Refer to
To set the schedule on page
22
.
• Do not let the product operate when there is
standing water in the work area. For example when
heavy rain forms pools of water.
1.5 Safety instructions for maintenance
WARNING:
Read the warning
instructions that follow before you do
maintenance on the product.
• Set the product to OFF when you do maintenance
on the product.
• Do not use a high-pressure washer to clean the
product. Do not use solvents to clean the product.
• Disconnect the plug to the charging station before
you clean or do maintenance of the charging
station.
1.6 Battery safety
WARNING:
Read the warning
instructions that follow before you use the
product.
• Lithium-ion batteries can explode or cause fire if
disassembled, short-circuited, exposed to water,
fire, or high temperatures. Handle carefully, do
not dismantle, open the battery or use any type
of electrical/mechanical abuse. Avoid storage in
direct sunlight.
4
- Safety 1650 - 006 - 20.02.2023

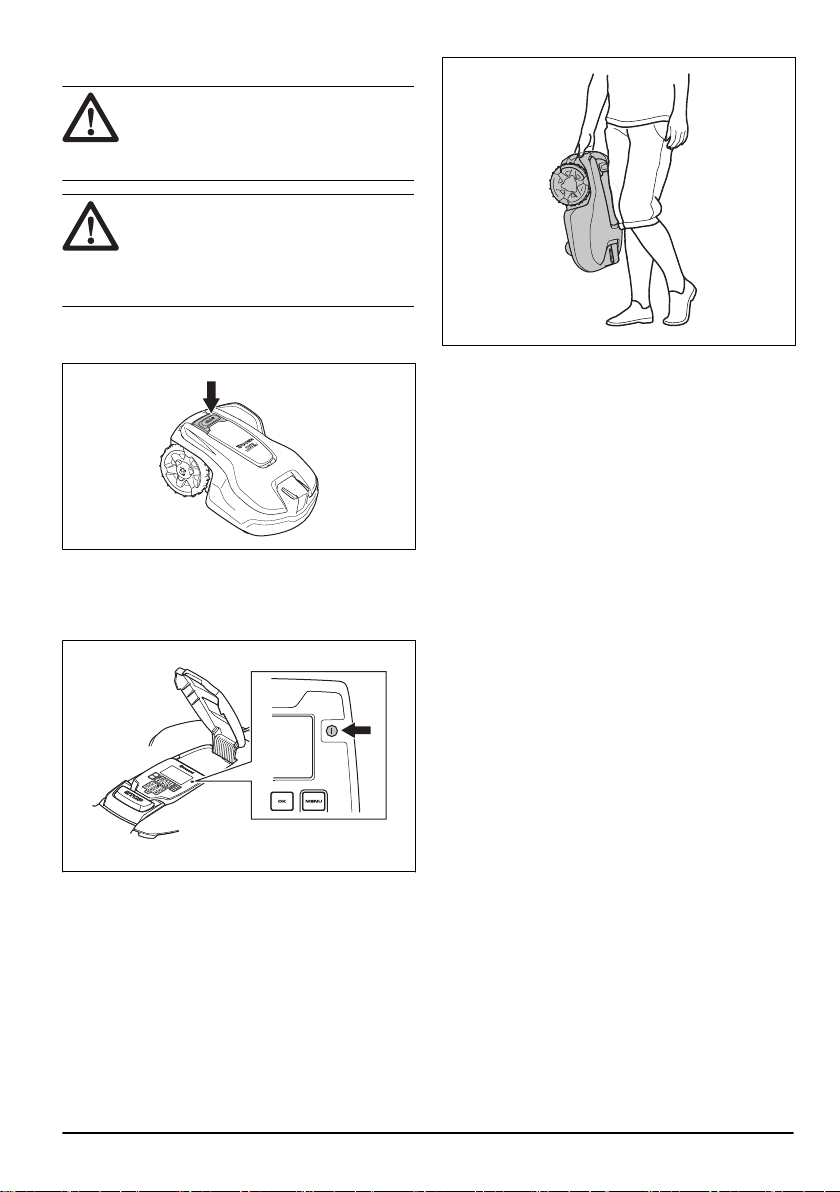

1.7 How to lift and move the product
WARNING: The product must be
switched off before lifting it. The product
is disabled when the indicator lamp on the
keypad is not lit.
CAUTION: Do not lift the product when
it is parked in the charging station. It can
damage the charging station and/or the
product. Push STOP and pull the product
out of the charging station before lifting it.
To safely move from or within the work area:
1. Push the STOP button to stop the product.
2. Push the ON/OFF button for 3 seconds and make
sure the product is switched off. Check that the
indicator lamp on the keypad is not lit. This means
that the product is disabled. Refer to
To use the
ON/OFF button on page 31
.
3. Carry the product by the handle with the blade disc
away from the body.
1650 - 006 - 20.02.2023
Safety - 5
2 Introduction
2.1 Introduction
Serial number:
Product number:
PIN code:
The serial number and the product number are on the product rating plate and on the product carton.
• Register your product on www.husqvarna.com. Enter the serial number of the product, the product number and
the date of purchase to register your product.
2.1.1 Support
For support about the product, speak to your Husqvarna
servicing dealer.
2.1.2 Product description
Note: Husqvarna regularly updates the appearance
and function of the products. Refer to
Support on page
6
.
The product is a robotic lawn mower. The product has a
battery power source and cuts the grass automatically. It
continuously alternates between mowing and charging.
The movement pattern is random, which means that the
lawn is mowed evenly and with less wear. The boundary
wire and the guide wire controls the movement of the
product within the work area. Sensors in the product
senses when it is approaching the boundary wire. The
front of the product always passes the boundary wire
by a specific distance before the product turns around.
When the product hits an obstacle or approaches the
boundary wire the product selects a new direction.
The operator selects the operation settings with the keys
on the keypad. The display shows the selected and
possible operation settings, and the operation mode of
the product.
2.1.2.1 Mowing technique
The frequent cutting technique improves the grass
quality and decreases the use of fertilizers. Collection
of grass is not necessary.
2.1.2.2 Find the charging station
The product operates until the battery state of charge
is low, then the product starts to go to the charging
station. The guide wire is put from the charging station
to a remote part of the work area or through a narrow
passage. The guide wire is connected with the boundary
wire to make it easier and faster for the product to find
the charging station.
2.1.2.3 Automower
®
Connect
Automower
®
Connect is a mobile application that makes
it possible to select the operation settings remotely.
You can also set the settings of the product. Refer to
Automower
®
Connect app on page 21
.
2.1.2.4 Automower
®
Intelligent Mapping (AIM)
Automower
®
Intelligent Mapping (AIM) is available in the
Automower
®
Connect app. Use Automower
®
Intelligent
Mapping (AIM) to make a virtual map of your lawn and
installation. In the map you can make virtual work areas
and stay-out zones. Refer to
Automower
®
Intelligent
Mapping (AIM) on page 21
.
6
- Introduction 1650 - 006 - 20.02.2023

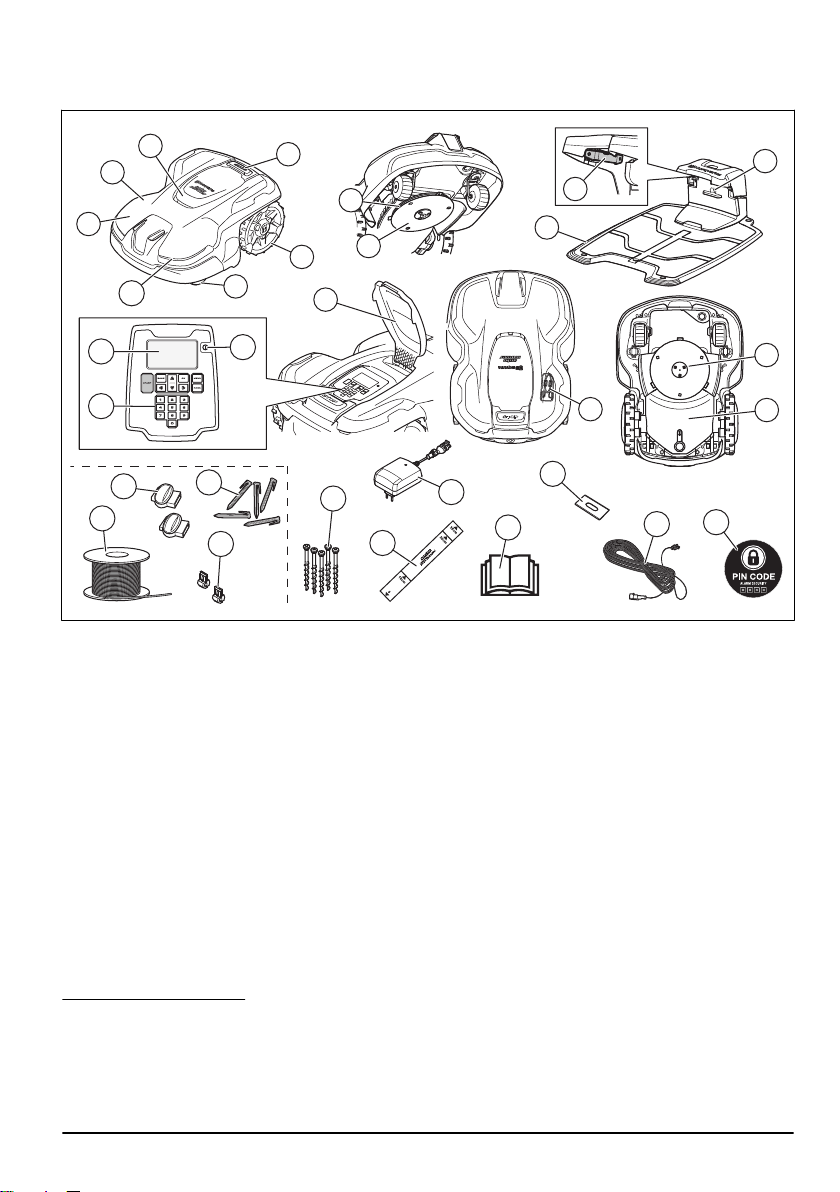

2.2 Product overview
6
8
9
11
16
19
17
18
15
13
7
14
24
26
25
27
28
29
30
10
20
23
22
21
12
4
3
2
5
1
1. Product body
2. Top cover
3. Hatch to display and keypad
4. STOP button
5. Rear wheels
6. Front wheels
7. Headlights
8. Blade disc
9. Skid plate
10. Contact plates
11. LED indicator for operation check of the charging
station, boundary wire and guide wire
12. Charging station
13. Display
14. Keypad
15. ON/OFF button
16. Rating plate with product identification code
17. Maintenance tool
1
18. Cutting system
19. Chassis box with electronics, battery and motors
20. Loop wire for boundary wire and guide wire
2
21. Connectors for the loop wire
3
22. Stakes
4
23. Couplers for the loop wire
5
24. Screws to attach the charging station
25. Power supply
6
26. Measurement gauge for the installation of the
boundary wire (remove the measurement gauge
from the carton of the product)
27. Operator's Manual and Quick Guide
28. Blade
29. Low-voltage cable
30. Alarm decal
1
Found below the top cover.
2
Is a part of the installation kit which is purchased separately.
3
Is a part of the installation kit which is purchased separately.
4
Is a part of the installation kit which is purchased separately.
5
Is a part of the installation kit which is purchased separately.
6
The appearance can be different for different markets.
1650 - 006 - 20.02.2023 Introduction - 7

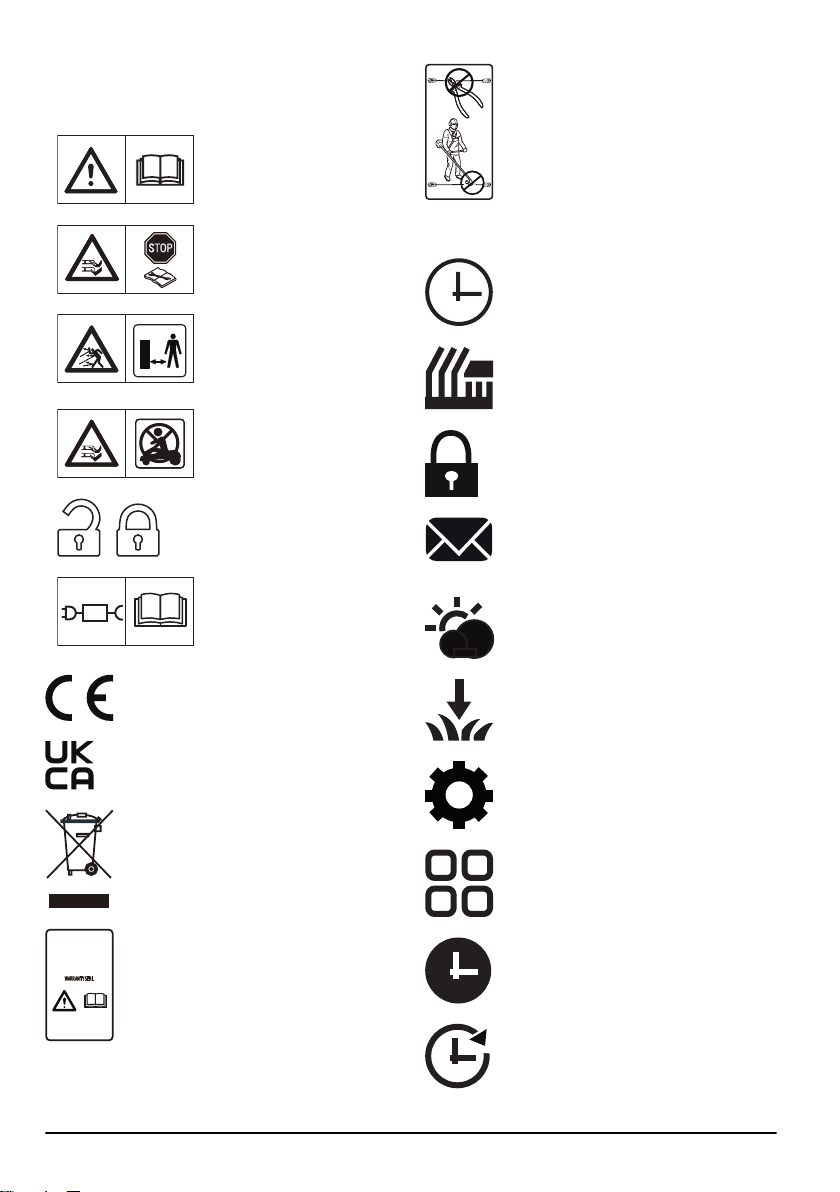

2.3 Symbols on the product
These symbols can be found on the product. Study them
carefully.
WARNING: Read the user
instructions before operating
the product.
WARNING: Disable the prod-
uct before working on or lift-
ing the product.
WARNING: Keep a safe dis-
tance from the product when
operating. Keep your hands
and feet away from the rotat-
ing blades.
WARNING: Do not ride on
the product. Do not put your
hands or feet close to or un-
der the product.
Lock function.
Use a detachable power sup-
ply as defined on the rating
label next to the symbol.
This product conforms to the applicable
EC Directives.
This product complies with the applicable
UK Directives.
It is not permitted to dispose this product
as normal household waste. Ensure that
the product is recycled in accordance with
local legal requirements.
The chassis contains components which
are sensitive to electrostatic discharge
(ESD). The chassis must also be resealed
in a professional manner. For these
reasons the chassis shall only be opened
by authorized service technicians. A
broken seal can result in the entire or
parts of the guarantee no longer being
valid.
The low-voltage cable must not be
shortened, extended or spliced.
Do not use a trimmer nearby the low-
voltage cable. Be careful when trimming
edges where the cables are placed.
2.4 Symbols on the display
In the schedule menu you can set when
the product will cut the lawn.
In the cutting height menu you can set the
cutting height of the product.
In the security menu you can select
between 3 security levels for the product.
In the messages menu you can find the
Fault messages
and
Info messages
of the
product.
The Weather timer function automatically
adapts the cutting intervals to the grass
growth.
In the installation menu you can set
manual settings for the installation of the
product.
In the settings menu you can set the
general settings of the product.
In the accessories menu you can set the
settings for the accessories of the product.
The schedule is set for the product to not
cut the grass.
The product overrides the schedule.
8 - Introduction 1650 - 006 - 20.02.2023
The battery indicator shows the charge
level of the battery. When the product
charges the symbol flashes.
The product is put in the charging station
and the battery is fully charged.
The product is set in ECO-mode.
Bluetooth
®
wireless communication with
Automower
®
Connect on your mobile
device.
The GPS-supported navigation is active.
Flashes as it collects GPS information.
The GPS-supported navigation is not
active.
The signal strength of the GPRS
reception.
Problem with the connection to the
Internet server.
Problem with the SIM card or the module.
2.5 Symbols on the battery
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited or handled roughly. Do not
expose to water, fire or high temperature.
Read the user instructions.
Do not discard the battery into fire and do
not expose the battery to a heat source.
Do not immerse the battery into water.
2.6 General manual instructions
The following system is used in the Operator’s Manual
to make it easier to use:
• Text written in
italics
is a text that is shown in the
display or is a reference to another section in the
Operator’s Manual.
• Text written in bold is one of the buttons on the
product.
1650 - 006 - 20.02.2023
Introduction - 9
2.7 Menu structure overview - 1
Security
Low Medium High
Duration
Duration
of alarm
Change
PIN code
New loop
signal
Security level
Fault
messages
Info
messages
Messages
Use weather timer
Low Medium High
Cutting time
Weather timer
Advanced
Schedule
Overview/Monday
Period 1 Period 2 Copy
Su Current
day
All weekSaFrThWeTuMoAll
days
Reset
Cutting height
TargetHeight
Cutting height
10 - Introduction 1650 - 006 - 20.02.2023
2.8 Menu structure overview - 2
Installation
Lawn
coverage
Area 1-3
Find charging station
Guide
Delay
time
Test
guide
Reset Test
left
Test
right
Reset
Disable
More
Disable
More
Boundary
Charger
Charging
station range
How?
How
often?
How
far?
Disable
Reset
Test
More
Corridor
width
Reversing
distance
Drive past
wire
Advanced
Information
Mower
house
Accessories
Settings
ECO mode
Time &
date
Set time Set date Time format
Date format
Language Country &
Timezone
Reset all
user setting
About
Low
Low-
High
High+
Mid
Intensity
Spiral cutting
General
Use
Use
Unit
Format
Delay
time
Frost Guard
GPS Auto
Passage
mowing
Use
Pairing
Geofence
Headlight
Schedule
Flashes
when fault
Automower
Connect
FlexiFence
1650 - 006 - 20.02.2023 Introduction - 11
2.9 Display
The display on the product shows information and
settings of the product.
To access the display, push the STOP button.
2.10 Keypad
Use the keypad on the product to move around in the
menu structure. To get access to the keypad, push the
STOP button.
• Use the ON/OFF button (A) to set the product
to ON or OFF. The LED indicator on the keypad
shows if the product is ON or OFF. Refer to
To use
the ON/OFF button on page 31
.
• Use the START button (B) to start the operation of
the product.
• Use the BACK button (C) to move up in the menu
lists.
• Use the arrow buttons (D) to move around in the
menu.
• Use the OK button (E) to do selections.
• Use the MENU button (F) to go to the main menu.
• Use the PARK button (G) to send the product to
the charging station.
• Use the number buttons (H) to enter digits.
A
B
F
G
C E
D
H
12 - Introduction 1650 - 006 - 20.02.2023
3 Installation
3.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the product.
CAUTION: Use original spare parts and
installation material.
Note: Refer to www.husqvarna.com for more
information about installation.
3.2 Main components for installation
The installation involves the following components:
• A robotic lawn mower that mows the lawn
automatically.
• A charging station, which has 3 functions:
• To send control signals along the boundary
wire.
• To send control signals along the guide wire
so that the product can follow the guide wire
to specific remote areas in the garden and
can find its way back to the charging station.
• To charge the product.
• A power supply, which is connected to the
charging station and a 100-240V power outlet.
• Loop wire, which is laid around the work area
and around objects and plants that the product
must not run into. The loop wire is used both as
boundary wire and guide wire.
3.3 To prepare for installation
Read the installation chapter before you start the
installation. Prepare the installation carefully to make the
product operate satisfactorily.
• Make a blueprint of the work area and include all
obstacles. This makes it easier to examine where
to put the charging station, the boundary wire and
the guide wire.
• Make a mark on the blueprint where to put the
charging station, the boundary wire and the guide
wire.
• Make a mark on the blueprint where the guide wire
connects to the boundary wire. Refer to
To install
the guide wire on page 18
.
• Fill in holes in the lawn to make it level.
CAUTION:
Holes with water in
the lawn can cause damage to the
product.
• Cut the grass before you install the product. Make
sure that the grass is maximum 10 cm / 3.9 in.
Note: The first weeks after installation the sound level
when the product cuts the grass can be higher than
usual. The sound level decreases after some time.
3.4 Before the installation of the wires
You can select to attach the wires with stakes or bury
them. You can use the 2 procedures for the same work
area.
CAUTION: If you use a dethatcher
in the work area, bury the boundary wire
and the guide wire to prevent them from
damage.
3.4.1 To examine where to put the charging
station
• Keep a minimum 3 m / 10 ft. of free space in front
of the charging station. Refer to
To examine where
to put the guide wire on page 17
.
• Keep a minimum of 150 cm / 60 in. of free space
to the right and left of the center of the charging
station.
• Put the charging station near a power outlet.
• Put the charging station on a level surface.
• The baseplate of the charging station must not be
bent.
max. 5 cm / 2"
max. 5 cm / 2"
• If the work area has two parts separated with a
steep slope, we recommend to put the charging
station in the lower section.
1650 - 006 - 20.02.2023
Installation - 13
• Put the charging station in an area with protection
from the sun.
• If the charging station is installed on an island,
make sure to connect the guide wire to the island.
Refer to
To make an island on page 16
.

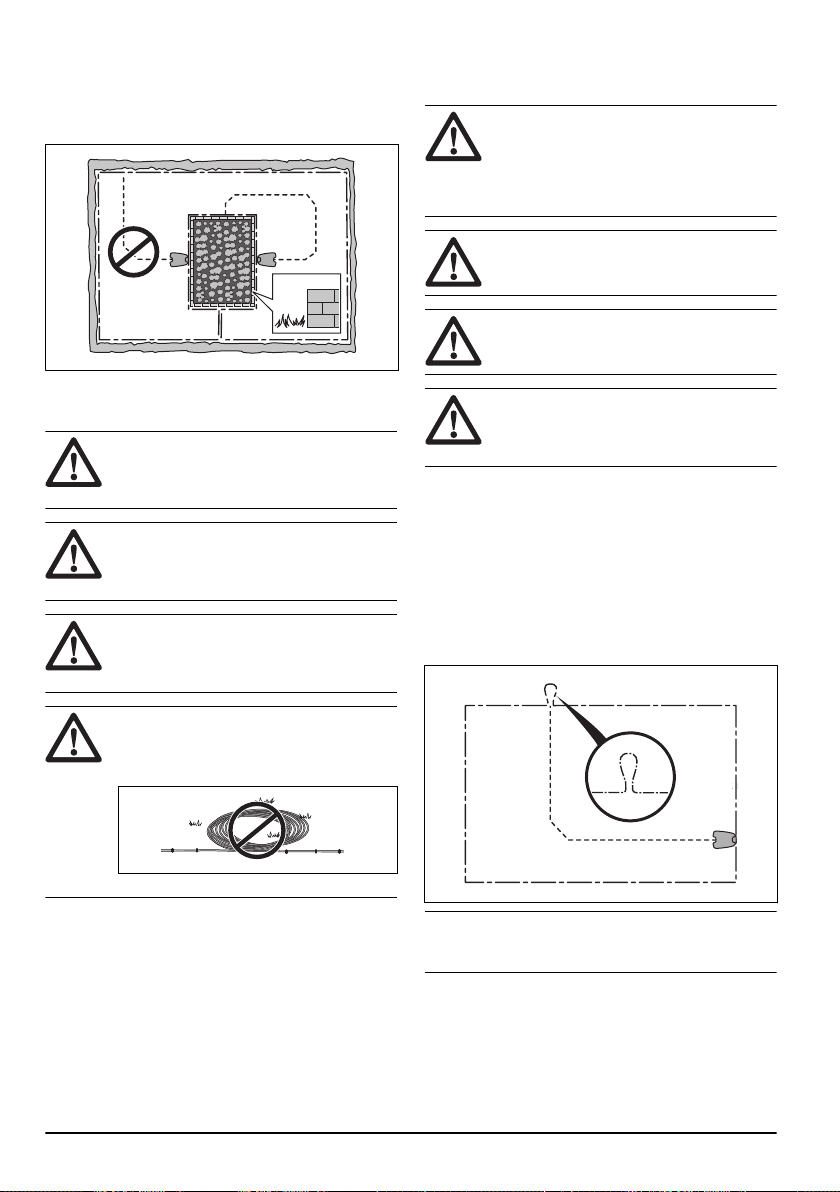

3.4.2 To examine where to put the power
supply
WARNING: Do not cut or extend
the low-voltage cable. There is a risk of
electrical shock.
CAUTION: Make sure that the blades
on the product do not cut the low-voltage
cable.
WARNING: The power supply cable
and extension cable must be outside the
work area to avoid damage to the cables.
CAUTION: Do not put the low-voltage
cable in a coil or below the charging station
plate. The coil causes interference with the
signal from the charging station.
• Put the power supply in an area with a roof and
protection from the sun and rain.
• Put the power supply in an area with good airflow.
• Use a residual-current device (RCD) with a tripping
current of maximum 30 mA when you connect the
power supply to the power outlet.
Low-voltage cables of different lengths are available as
accessories.
3.4.3 To examine where to put the
boundary wire
CAUTION: There must be a barrier of
minimum 15 cm / 6 in. in height between
the boundary wire and water bodies, slopes,
precipices or public roads. This will prevent
damage to the product.
CAUTION: Do not let the product
operate on gravel.
CAUTION: Do not make sharp bends
when you install the boundary wire.
CAUTION: For careful operation
without noise, isolate all obstacles such as
trees, roots and stones.
The boundary wire should be put as a loop around the
work area. Sensors in the product senses when the
product approaches the boundary wire, and the product
selects another direction. All parts of the work area must
be maximum 35 m / 115 ft. from the boundary wire.
To make the connection easier between the guide wire
and the boundary wire, it is recommended to make an
eyelet where the guide wire will be connected. Make the
eyelet with approximately 20 cm / 8 in. of the boundary
wire.
Note:
Make a blueprint of the work area before you
install the boundary wire and guide wire.
14 - Installation 1650 - 006 - 20.02.2023

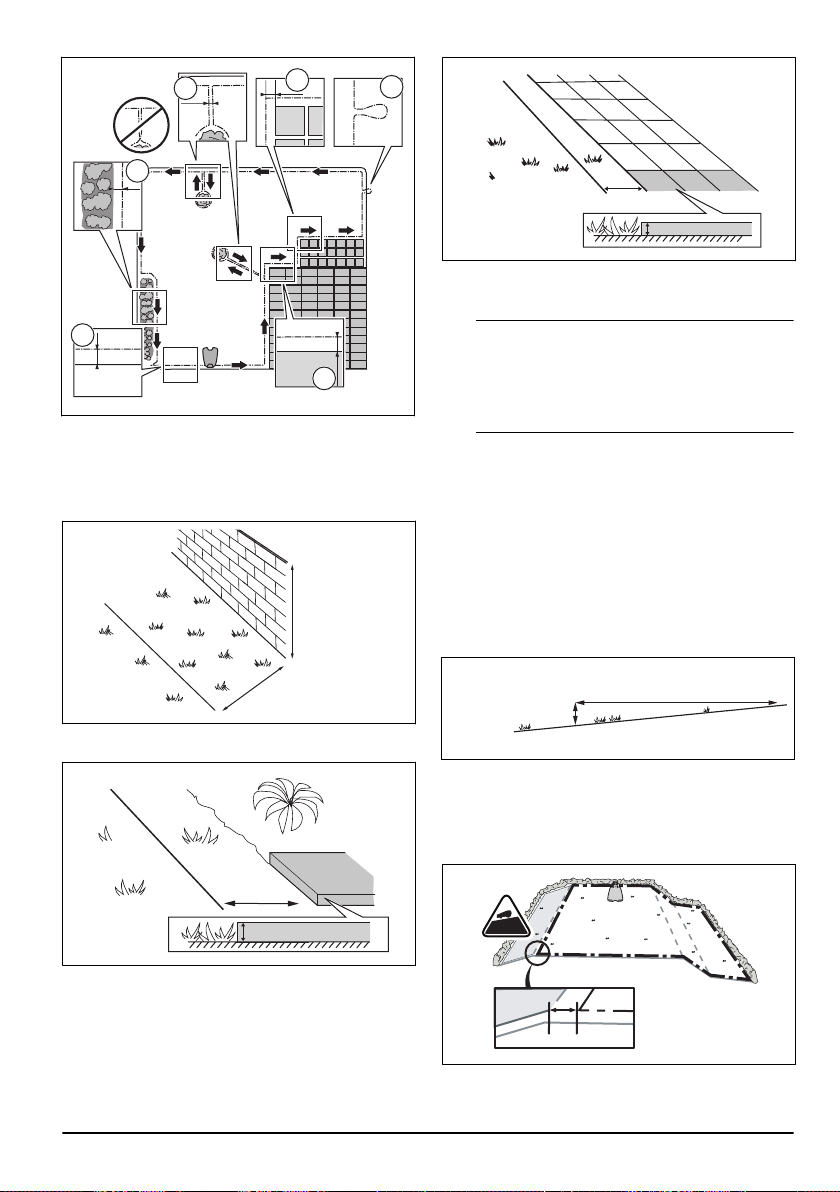

A
B
C
E
D
F
• Put the boundary wire around all of the work area
(A). Adapt the distance between the boundary wire
and obstacles.
• Put the boundary wire 35 cm / 14 in. (B) from an
obstacle that is more than 5 cm / 2 in. high.
35 cm /14
"
> 5 cm / 2
"
• Put the boundary wire 30 cm / 12 in. (C) from an
obstacle that is 1-5 cm / 0.4-2 in. high.
1-5 cm / 0.4 - 2"
30 cm / 12"
• Put the boundary wire 10 cm / 4 in. (D) from an
obstacle that is less than 1 cm / 0.4 in. high.
10 cm / 4"
max 1 cm / 0.4"
• If you have a paving stone path that is in level with
the lawn, put the boundary wire below the paving
stone.
Note: If the paving stone is minimum 30 cm / 12
in. wide, use the factory setting for the
Drive Past
Wire
function to cut all the grass adjacent to the
paving stone. Refer to
To set the Drive Past Wire
function on page 28
.
• If you make an island, put the boundary wire that
runs to and from the island near together (E). Put
the wires in the same stake. Refer to
To make an
island on page 16
.
• Make an eyelet (F) where the guide wire is to be
connected to the boundary wire.
3.4.3.1 To put the boundary wire in a slope
The product can operate in 40% slopes. Slopes that are
too steep must be isolated with the boundary wire. The
gradient (%) is calculated as the vertical height divided
by the horizontal distance. Example: 10 cm / 100 cm =
10%.
10 cm/ 4"
100 cm/ 40"
10%
• For slopes steeper than 40% inside the work area,
isolate the slope with boundary wire.
• For slopes steeper than 15% along the outer edge
of the lawn, put the boundary wire 20 cm / 8 in. (A)
from the edge.
A
>15%
1650 - 006 - 20.02.2023
Installation - 15
• For slopes adjacent to a public road, put a barrier
of minimum 15 cm / 6 in. along the outer edge of
the slope. You can use a wall or a fence as a
barrier.

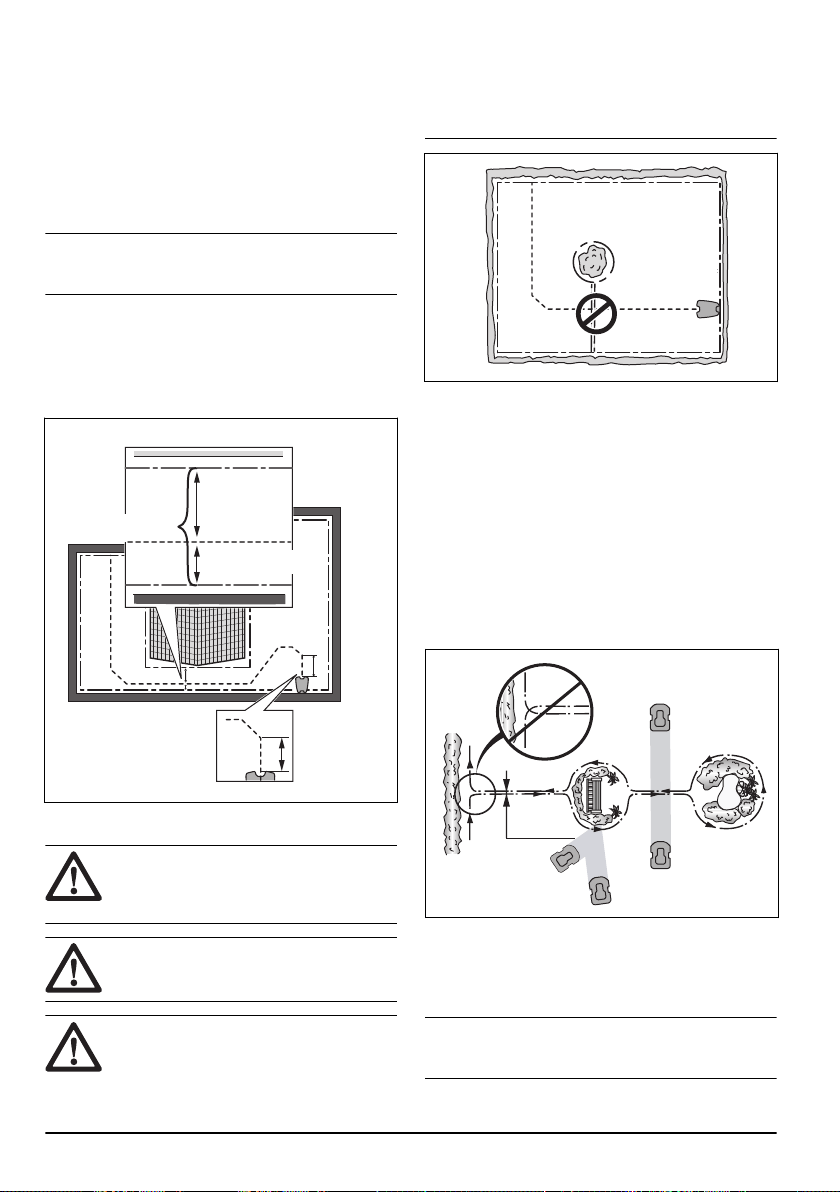

3.4.3.2 Passages
A passage is a section that has boundary wire on each
side and that connects 2 parts of the work area. The
distance between the boundary wire on each side in the
passage must be a minimum of 60 cm / 24 in.
Note: If a passage is less than 2 m / 6.5 ft. wide,
install a guide wire through the passage.
The recommended minimum distance between the
guide wire and the boundary wire is 30 cm / 12 in. The
product always runs to the left of the guide wire as seen
facing the charging station. It is recommended to have
as much free area as possible to the left of the guide
wire (A).
>2 m / 6.5 ft
A
>30 cm / 12"
>60 cm / 24"
3.4.3.3 To make an island
CAUTION:
Do not put a section
of boundary wire across the other. The
sections of boundary wire must be parallel.
CAUTION: Do not put the guide wire
across the boundary wire.
CAUTION: Isolate or remove obstacles
that are less than 15 cm / 6 in. in height.
Isolate or remove obstacles that slope
slightly, for example, stones, trees or roots.
This will prevent damage to the blades of the
product.
To make an island, isolate areas in the work area with
the boundary wire. We recommend to isolate all stable
objects in the work area.
Some obstacles are resistant to a collision, for example,
trees or bushes that are more than 15 cm / 6 in. in
height. The product will collide with the obstacle and
then select a new direction.
• Put the boundary wire to and around the obstacle
to make an island.
• Put the 2 sections of boundary wire to and from the
island close together. This will make the product
run across the wire.
• Put the 2 sections of boundary wire in the same
stake.
0 cm / 0
"
3.4.3.4 To make a secondary area
Make a secondary area (B) if the work area has 2 areas
that are not connected with a passage. The work area
with the charging station is the main area (A).
Note:
The product must be manually moved between
the main area and the secondary area.
16 - Installation 1650 - 006 - 20.02.2023

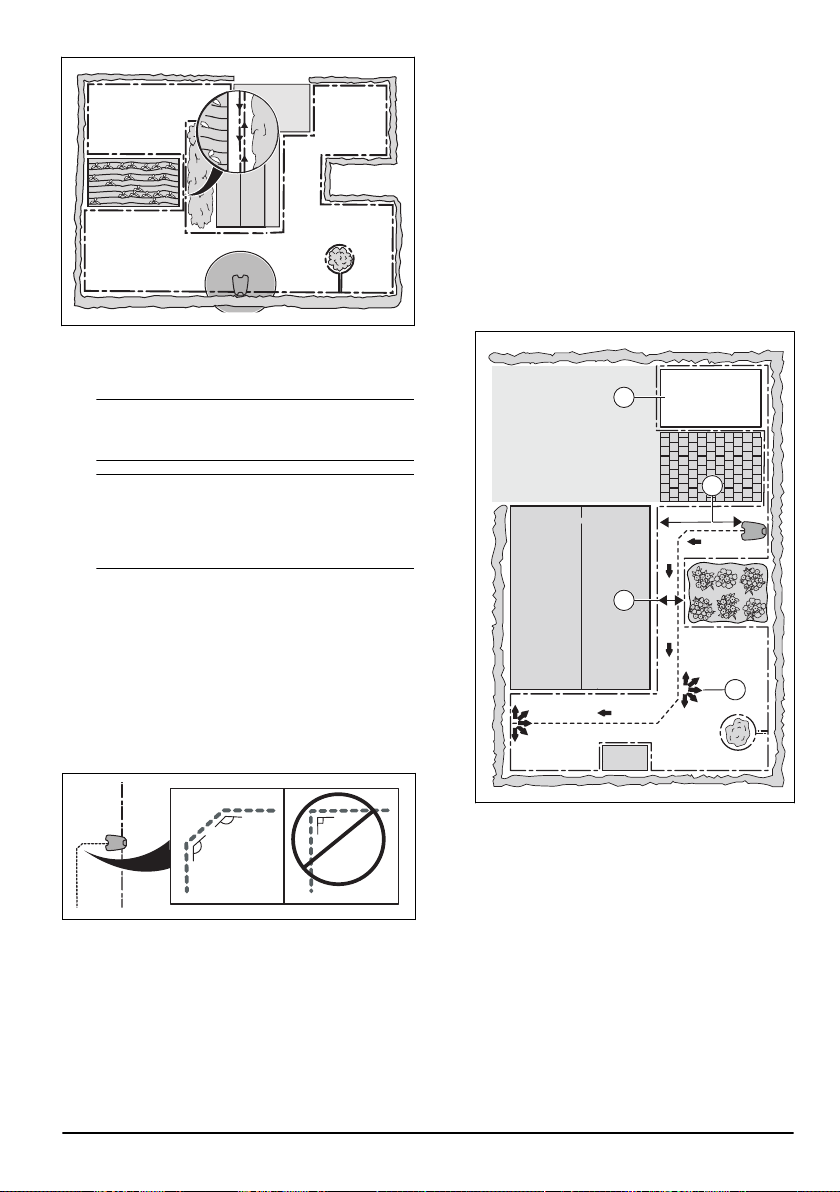

B
A
• Put the boundary wire around the secondary area
(B) to make an island. Refer to
To make an island
on page 16
.
Note: The boundary wire must be put as 1 loop
around all of the work area (A + B).
Note: When the product cuts grass in the
secondary area, the
Secondary area
mode must
be selected. Refer to
Secondary area on page
31
.
3.4.4 To examine where to put the guide
wire
• Put the guide wire in a line at a minimum of 2 m /
6.5 ft. in front of the charging station.
• Make as much free area as possible to the left of
the guide wire when facing the charging station.
• Put the guide wire minimum 30 cm / 12 in. from the
boundary wire.
• Do not make sharp bends when you install the
guide wire.
135º
135º
90º
• If the work area has a slope, put the guide wire
diagonally across the slope.
3.4.5 Work area examples
• If the charging station is put in a small area (A),
make sure that the distance to the boundary wire
is at a minimum 3 m / 10 ft. in front of the charging
station.
• If the work area has a passage (B) with no guide
wire installed, the minimum distance between the
boundary wires is 2 m / 6.5 ft. With a guide
wire installed through the passage, the minimum
distance between the boundary wires is 60 cm / 24
in.
• If the work area has areas which are connected by
a narrow passage (B), you can set the product to
first follow and then leave the guide wire after a
certain distance (C). The settings can be changed
in
GPS Assisted Navigation, Lawn Coverage and
Systematic Passage Mowing on page 25
.
• If the work area includes a secondary area
(D), refer to
Secondary area on page 31
. Put
the product in the secondary area and select
Secondary area mode
.
B
D
C
A
3.5 Installation of the product
3.5.1 Installation tools
• Hammer/plastic mallet: To simplify putting the
stakes into the ground.
• Edge cutter/straight spade: To bury the boundary
wire.
• Combination pliers: For cutting the boundary wire
and pressing the connectors together.
• Adjustable plier: For pressing the couplers
together.
1650 - 006 - 20.02.2023
Installation - 17

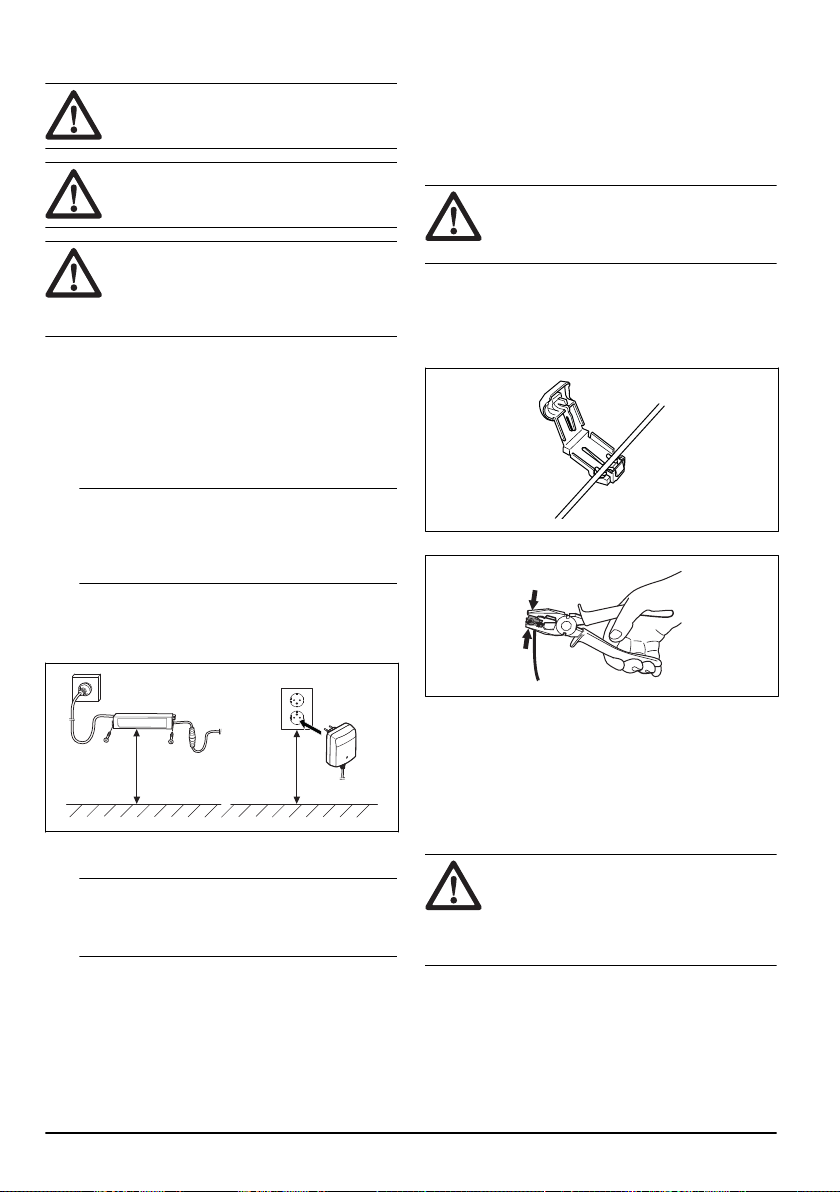

3.5.2 To install the charging station
CAUTION: Do not make new holes in
the charging station plate.
CAUTION: Do not put your feet on the
baseplate of the charging station.
WARNING: Make sure that the plugs of
the low-voltage cable and the power supply
unit are clean and dry before you connect
them.
When connecting the power supply, only use a power
outlet that is connected to an residual-current (RCD)
device.
1. Read and understand the instructions about the
charging station. Refer to
To examine where to put
the charging station on page 13
.
2. Put the charging station in the selected area.
Note: Do not attach the charging station to the
ground with the screws until the guide wire is
installed. Refer to
To install the guide wire on page
18
.
3. Connect the low-voltage cable to the charging
station.
4. Put the power supply at a minimum height of 30
cm / 12 in.
min 30 cm / 12”
5. Connect the power supply cable to a 100-240V
power outlet.
Note:
The product can be put in the charging
station to charge while you install the boundary
wire and the guide wire.
6. Put the low-voltage cable in the ground with stakes
or bury the cable. Refer to
To put the wire into
position with stakes on page 19
or
To bury the
boundary wire or the guide wire on page 19
.
7. Connect the wires to the charging station after
the installation of boundary wire and guide wire is
complete. Refer to
To install the boundary wire on
page 18
and
To install the guide wire on page
18
.
8. Attach the charging station to the ground with the
supplied screws after the guide wire is installed.
Refer to
To install the guide wire on page 18
.

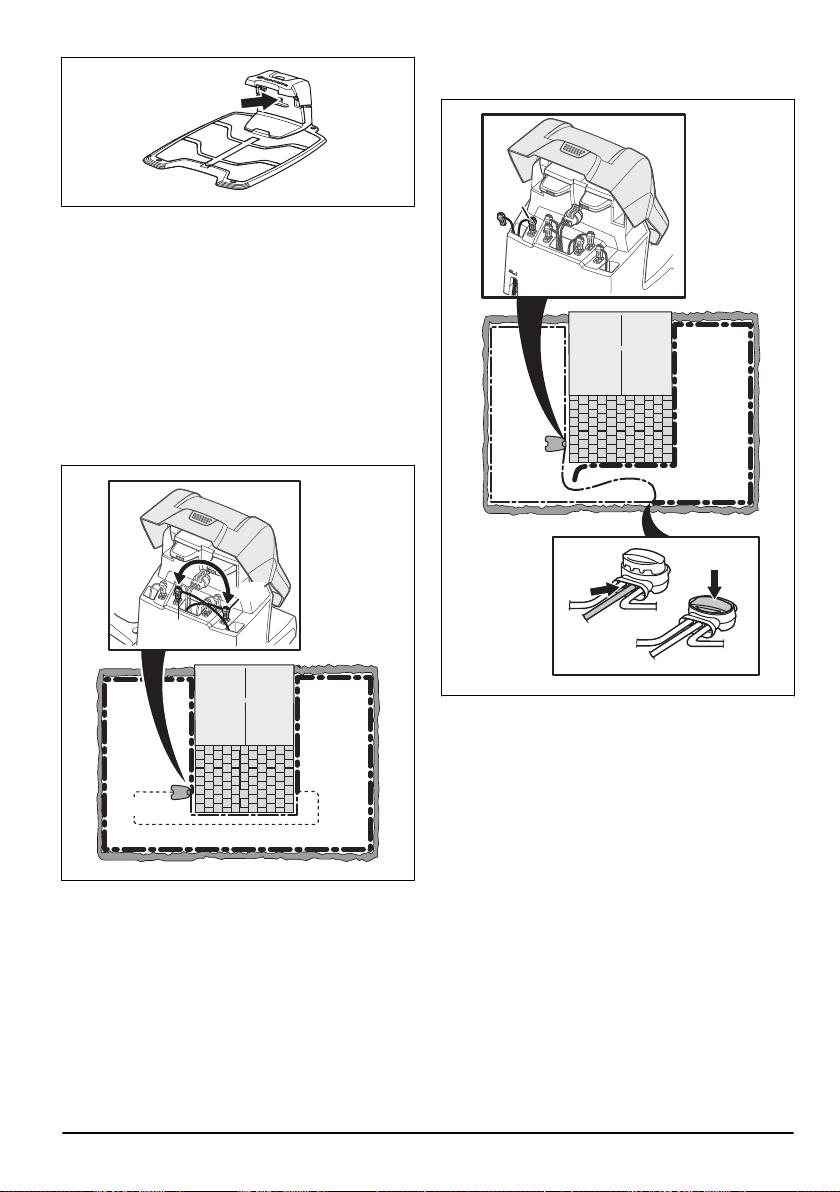

3.5.3 To install the boundary wire
CAUTION: Do not put remaining wire in
a coil. The coil causes interference with the
product.
1. Put the boundary wire around all of the work
area. Start and complete the installation behind the
charging station.
2. Open the connector and put the boundary wire in
the connector.
3. Close the connector with a pair of pliers.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in. above
each connector.
5. Push the right connector onto the metal pin on the
charging station with the mark "AR".
6. Push the left connector onto the metal pin on the
charging station with the mark "AL".
3.5.4 To install the guide wire
CAUTION:
Twinned cables, or a
screw terminal block that is insulated with
insulation tape are not satisfactory splices.
Soil moisture will cause the wire to oxidize
and after a time result in a broken circuit.
1. Open the connector and put the wire in the
connector.
2. Close the connector with a pair of pliers.
3. Cut the guide wire 1-2 cm / 0.4-0.8 in. above each
connector.
18
- Installation 1650 - 006 - 20.02.2023

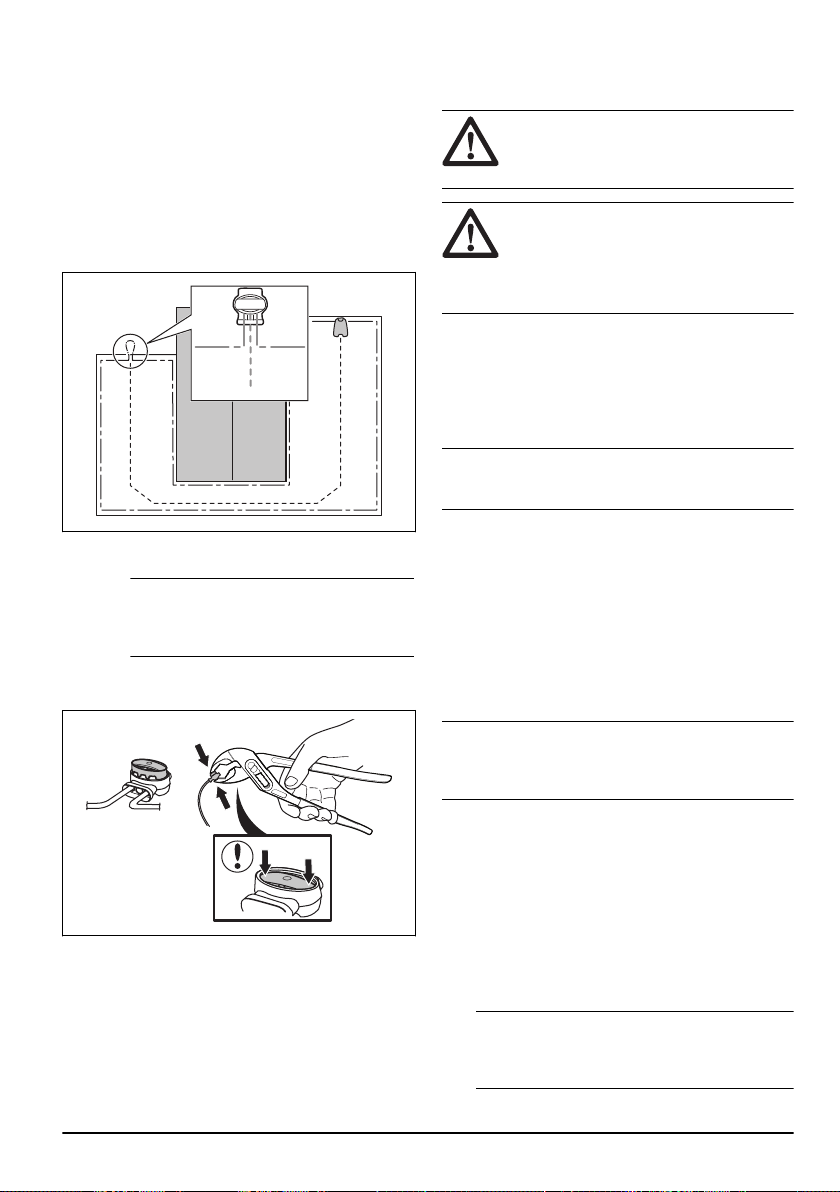

4. Push the guide wire through the slot in the
charging station plate.
5. Push the connector onto the metal pin on the
charging station with the mark "GUIDE".
6. Disconnect the charging station from the power
outlet.
7. Put the end of the guide wire at the eyelet on the
boundary wire.
8. Cut the boundary wire with a pair of wire cutters.
9. Connect the guide wire to the boundary wire with a
coupler.
a) Put the 2 ends of the boundary wire and the
end of the guide wire into the coupler.
Note: Make sure that you can see the ends
of the wires through the transparent area of
the coupler.
b) Push down the cover on the coupler with
adjustable pliers to attach the wires in the
coupler.
10. Attach the guide wire to the ground with stakes or
bury the guide wire in the ground. Refer to
To put
the wire into position with stakes on page 19
or
To bury the boundary wire or the guide wire on
page 19
.
11. Connect the charging station to the power outlet.
3.6 To put the wire into position with
stakes
CAUTION: Make sure that the stakes
hold the boundary wire and the guide wire
against the ground.
CAUTION: Cutting the grass too low
right after installation can damage the wire
insulation. Damage to the insulation may
not cause disruptions until several weeks or
months later.
1. Put the boundary wire and the guide wire on the
ground.
2. Put the stakes at a maximum of 75 cm / 30 in.
distance from each other.
3. Attach the stakes to the ground with a hammer or a
plastic mallet.
Note: The wire is overgrown with grass and not visible
after a few weeks.
3.7 To bury the boundary wire or the
guide wire
• Cut a groove in the ground with an edge cutter or a
straight shovel.
• Put the boundary wire or the guide wire 1-20 cm /
0.4-8 in. into the ground.
3.8 To extend the boundary wire or the
guide wire
Note:
Extend the boundary wire or the guide wire if it
is too short for the work area. Use original spare parts,
for example couplers.
1. Disconnect the charging station from the power
outlet.
2. Cut the boundary wire or the guide wire with a pair
of wire cutters where it is necessary to install the
extension.
3. Add wire where it is necessary to install the
extension.
4. Put the boundary wire or the guide wire into
position.
5. Put the wire ends into a coupler.
Note:
Make sure that you can see the ends of
the boundary wire or the guide wire through the
transparent area of the coupler.
1650 - 006 - 20.02.2023 Installation - 19

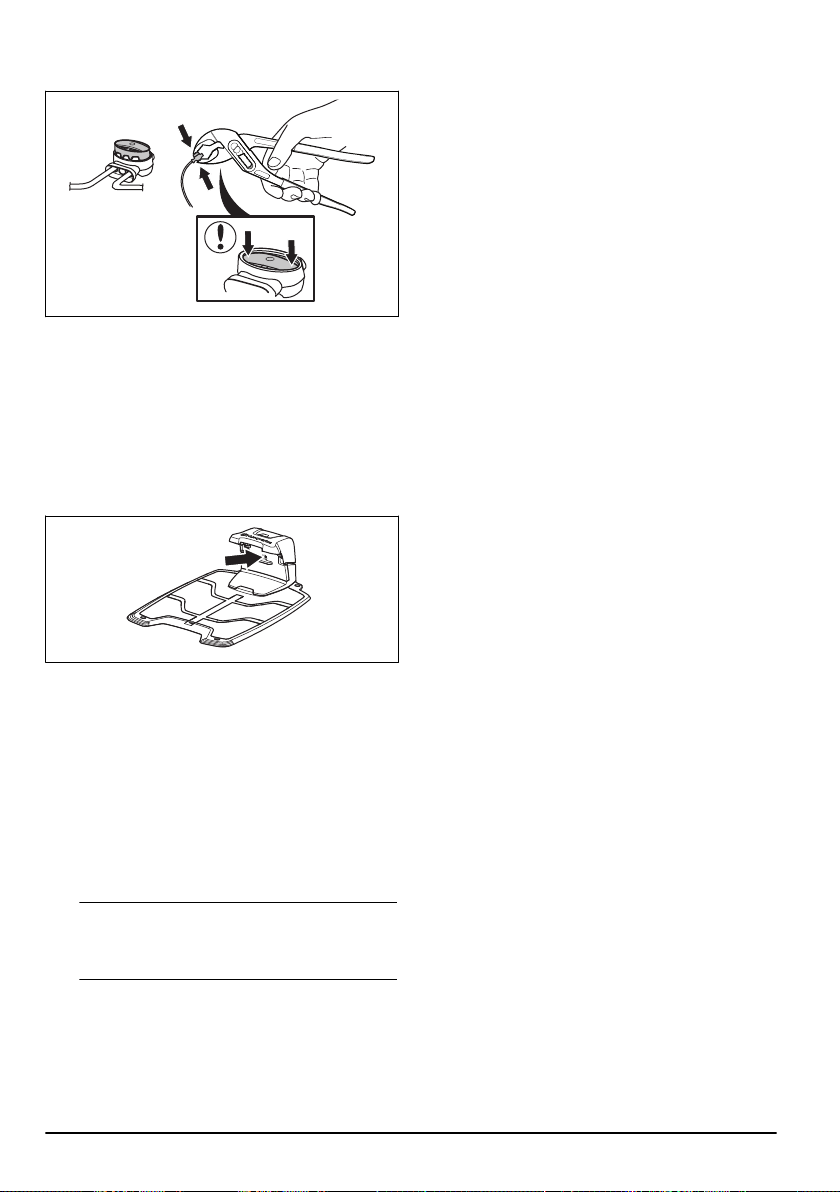

6. Push down the cover on the coupler with
adjustable pliers to attach the wires in the coupler.
7. Put the boundary wire or the guide wire into
position with stakes.
8. Connect the charging station to the power outlet.
3.9 After the installation of the product
3.9.1 To do a visual check of the charging
station
1. Make sure that the indicator LED lamp on the
charging station has a green light.
2. If the indicator LED lamp does not have a green
light, do a check of the installation. Refer to
Indicator lamp in the charging station on page 42
and
To install the charging station on page 18
.
3.9.2 To do the basic settings
Before the product starts to operate for the first time, you
must do the basic settings.
1. Put the product in the charging station.
2. Switch on the product.
3. Push the arrow buttons and the OK button. Select
language, country, date, time and set a PIN code.
Note:
For some models, a factory PIN code is
necessary before you select a personal PIN code.
It is not possible to use 0000 as PIN code.
20 - Installation 1650 - 006 - 20.02.2023

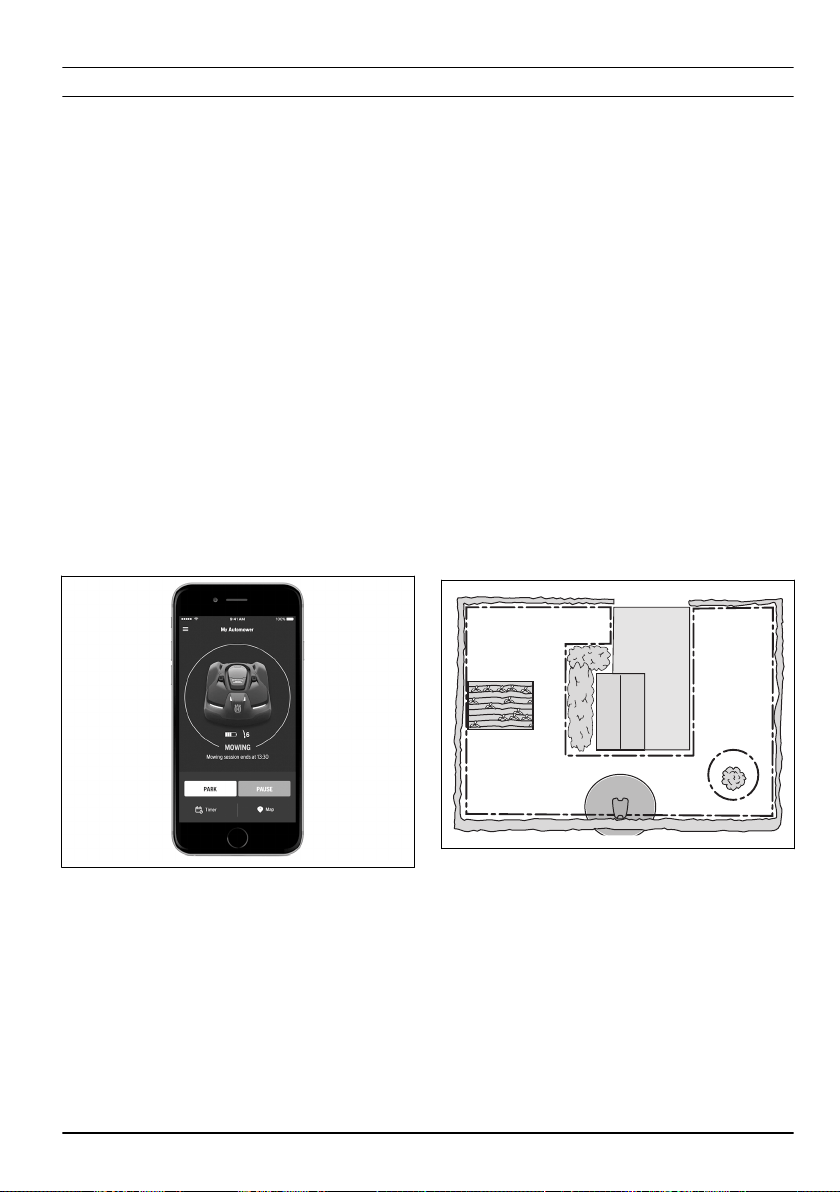

4 Product settings
You can use the keypad and the display on the product
or the Automower
®
Connect app to do the settings for
the functions of the product. The functions of the product
have factory settings that are applicable for almost all
work areas, but the settings can be adapted to the
conditions for each work area.
4.1 Automower
®
Connect app
The product can connect to mobile devices that have
the Automower
®
Connect app installed. Automower
®
Connect is a free app for your mobile device. You
can use the extended functions for the product in the
Automower
®
Connect app.
• The
Dashboard
shows the current operation of the
product. You can select an operating mode for the
product in the dashboard.
• The
Map
shows the current position of the product
and the set center point for the function.
• In the
Settings
menu you can set the settings for
the product.
• In the
Statistics
menu you can see the statistics of
the product.
• In the
Messages
menu you can find the
Fault
messages
and the
Information messages
of the
product.
The Automower
®
Connect app has Long-range cellular
connectivity and Short-range Bluetooth
®
connectivity.
4.1.1 To install the Automower
®
Connect
app
1. Download the Automower
®
Connect app on your
mobile device.
2. Sign up for a Husqvarna account in the
Automower
®
Connect app.
3. An e-mail is sent to the registered e-mail address.
Follow the instructions in the e-mail in less than 24
hours to validate your account.
4. Log in to your Husqvarna account in the
Automower
®
Connect app.
4.1.2 To pair Automower
®
Connect and the
product
Bluetooth
®
communication and the Automower
®
Connect kit for cellular communication are included in
Automower
®
405X/415X.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories
>
Automower
®
Connect
>
Pairing
>
New pairing
.
3. Follow the instructions in the Automower
®
Connect
app.
4.1.3 Automower
®
Intelligent Mapping
(AIM)
Automower
®
Intelligent Mapping (AIM) is available in
the Automower
®
Connect app. The technology uses
different sensors, GPS included, in the product. The
precision of the map is approximately 1 m / 3.3 ft.
B
A
C
Some of the functions with are:
• It shows a map of the lawn in Automower
®
Connect app with charging station, boundary wire,
guide wire and islands.
• You can make work areas (A) and (B) in the
installation where you can set a schedule and
cutting height for each work area.
• You can make stay-out zones (C) in which the
product cannot enter and cut grass.
1650 - 006 - 20.02.2023
Product settings - 21
Note: With the AIM function you can set work areas
and stay-out zones with a precision of approximately 1
m / 3.3 ft.
The data collection for the map starts automatically. The
product collects data while it operates and the map is
completed in 1-2 weeks. Remove temporary obstacles
on the lawn when the product operates and collects
data. If you change the installation of the wires or
charging station, you must do a new map. Read more
about in the Automower
®
Connect app.
4.1.4 Download firmware over the air FOTA
(Firmware over the air)
The product has a function that automatically downloads
new firmware. When a new firmware is available, a
notification shows in the app where you can select
to install the new firmware. In the factory setting this
function is enabled.
4.2 Product settings with keypad and
display
4.2.1 To get access to the menu in the
display of the product
1. Push the STOP button.
2. Use the number buttons and the OK button to
enter the PIN code.
3. Push the MENU button.
4.2.2 Menu structure
The main menu contains:
•
Schedule
•
Cutting height
•
Security
•
Messages
•
Weather timer
•
Installation
•
Settings
•
Accessories
Refer to
Menu structure overview - 1 on page 10
and
Menu structure overview - 2 on page 11
.
4.2.3 Schedule
Note:
The lawn should not be cut too often to obtain
the best result. If the product is allowed to operate too
much, the lawn may appear flattened. The product is
also subjected to unnecessary wear.
4.2.3.1 To set the schedule
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Schedule > Overview
.
3. Use the arrow buttons and the OK button to select
the day.
4. Use the right arrow button to select the period.
5. Push the OK button.
6. Calculate the suitable operating hours. Refer to
Make an estimate of the necessary operating time
on page 22
.
7. Enter the time with the number buttons. The
product can cut the grass 1 or 2 periods each day.
8. If the product must not cut grass on a specified
day, unselect the box adjacent to the 2 time
periods.
4.2.3.2 Make an estimate of the necessary operating
time
If the work area is less than maximum product capacity,
the schedule must be set to decrease the wear on the
lawn and the product. The product has a maximum
cutting time each day. You can set the operating time of
the product in the schedule. The operating time includes
cutting, searching and charging. The operating time can
be different because of many reasons, for example the
layout of the work area, the grass growth and age of the
battery. When the product has operated to the maximum
cutting time in a day, the message
Today's mowing
complete
is shown in the display of the product.
The recommended operating times for some work area
examples are shown in the table below. If the result is
not satisfactory, increase the operating time.
Area, m
2
Recommended operating
time, h
500 10
1000 17
1500 24
4.2.3.3 To copy the schedule setting
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
22
- Product settings 1650 - 006 - 20.02.2023
2. Use the arrow buttons and the OK button to move
through the menu structure
Schedule > Overview >
Copy
.
3. Use the arrow buttons and the OK button to copy
the schedule setting. You can copy the schedule
settings day to day or for the full week.
4.2.3.4 To reset the schedule setting
You can remove all schedule settings and use the
factory setting.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Schedule > Overview >
Reset
.
a) Push the arrow buttons to select
Current
day
to only reset the current day to factory
settings.
b) Push the arrow buttons to select
All week
to
reset all schedule settings to factory settings.
3. Push the OK button.
4.2.4 Cutting height
4.2.4.1 Adjust the cutting height
CAUTION:
During the first weeks after
a new installation, the cutting height must be
set to MAX to avoid damaging the loop wire.
After this, the cutting height can be lowered
step by step every week until the desired
cutting height has been reached.
The cutting height can be varied from MIN (2 cm / 0.8
in.) to MAX (5 cm / 2 in.).
To set the cutting height
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Cutting height
>
Cutting height
.
3. Use the arrow buttons to set the cutting height.
4. Push the OK button.
4.2.4.2 TargetHeight
Use the TargetHeight function to lower the cutting height
from the maximum cutting height to the specified cutting
height gradually during 10 days. If you change the
cutting height manually during this time it will disable the
TargetHeight function.
To set the TargetHeight
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Cutting height
>
TargetHeight
.
3. Push the OK button to enable or disable the
function.
4. Push the BACK button.
4.2.5 Security level
There are 3 security levels for the product.
Function
Low Medium High
PIN code
X X
STOP button
pressed
X
Carried away
X
•
PIN-code
- The correct PIN-code must be entered
to get access to the menu structure of the product.
If the incorrect PIN-code is entered 5 times, the
product is locked for a time. The lock is extended
for each new incorrect try.
•
STOP button pressed
- The alarm goes off if the
STOP button has been pushed and the PIN code
is not entered in less than 30 seconds.
•
Carried away
- The alarm goes off if the product is
lifted.
4.2.5.1 To set the security level
Select 1 of 3 security levels for your product.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Security >
Security level
.
3. Use the arrow buttons and the OK button to select
the level of security.
4. Push the OK button.
4.2.5.2 To create a New loop signal
The loop signal is randomly selected to create a unique
link between the product and the charging station. In
1650 - 006 - 20.02.2023
Product settings - 23
rare cases, there may be a need to generate a new
signal, for instance if two adjacent installations have a
very similar signal.
1. Place the product in the charging station.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
3. Use the arrow buttons and the OK button to move
through the menu structure
Security > Advanced >
New loop signal
.
4. Await confirmation that the loop signal has been
generated. This normally takes about 10 seconds.
4.2.5.3 To change the PIN-code
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Security >
Advanced > Change PIN-code
.
3. Enter the new PIN code.
4. Push the OK button.
5. Enter the new PIN code again.
6. Push the OK button.
7. Make a note of the new PIN code. Refer to
Introduction on page 6
.
4.2.5.4 To change the duration of the alarm
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Security > Advanced >
Duration > Duration of alarm
.
3. Use the arrow buttons to select a time interval of 1
to 20 minutes.
4. Push the BACK button.
4.2.6 Messages
In this menu the previous fault and information
messages can be found. For some of the messages,
there are tips and advice to help to rectify the fault.
Refer to
Troubleshooting on page 36
.
If the product is disrupted in any way, for example it
is trapped or the battery is low, a message is saved
relating to the disruption and the time it happened.
If the same message is repeated several times, this
may indicate that an adjustment to the installation or the
product is required. Refer to
Installation on page 13
.
4.2.6.1 To read the messages
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the
arrow buttons and the OK button to move
through the menu structure
Messages > Fault
messages
and
Messages > Info messages
.
3. Read the messages and read the
Troubleshooting
to get information and recommendations to correct
the faults.
4.2.7 Weather timer
Weather timer
automatically adjust the cutting time to
the growth of the grass. The product is not permitted to
operate more than the schedule settings.
Note: When using
Weather timer
, it is recommended
to make as much operating time as possible available
for
Weather timer
. Do not restrict the schedule more
than necessary.
The first operation of the day is set by the schedule
settings. The product always complete 1 mowing cycle,
and then
Weather timer
selects if the product will
continue to operate or not.
Note:
Weather timer
is reset if the product does not
operate for more than 50 hours, or if a
Reset of all user
settings
is done.
Weather timer
is not changed if a
Reset
of schedule settings
is done.
4.2.7.1 To set the Weather timer
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Weather timer > Use
Weather timer
.
3. Push the OK button to select the
Weather timer
.
4. Push the BACK button.
4.2.7.2 To set the Weather timer frequency
Set how frequently the product cuts the grass when the
Weather timer
is in use. There are 3 frequency levels:
Low, Mid
and
High
. The higher the frequency, the more
sensitive the product is to the grass growth. That is, if
the grass growth is high then the product is allowed to
work longer.
Note:
If the mowing results are not optimal when
using
Weather timer
, the schedule settings may need
adjusting. Do not restrict the schedule more than
necessary. Also, check that the blade disc is clean and
that the blades are in good condition.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
24
- Product settings 1650 - 006 - 20.02.2023

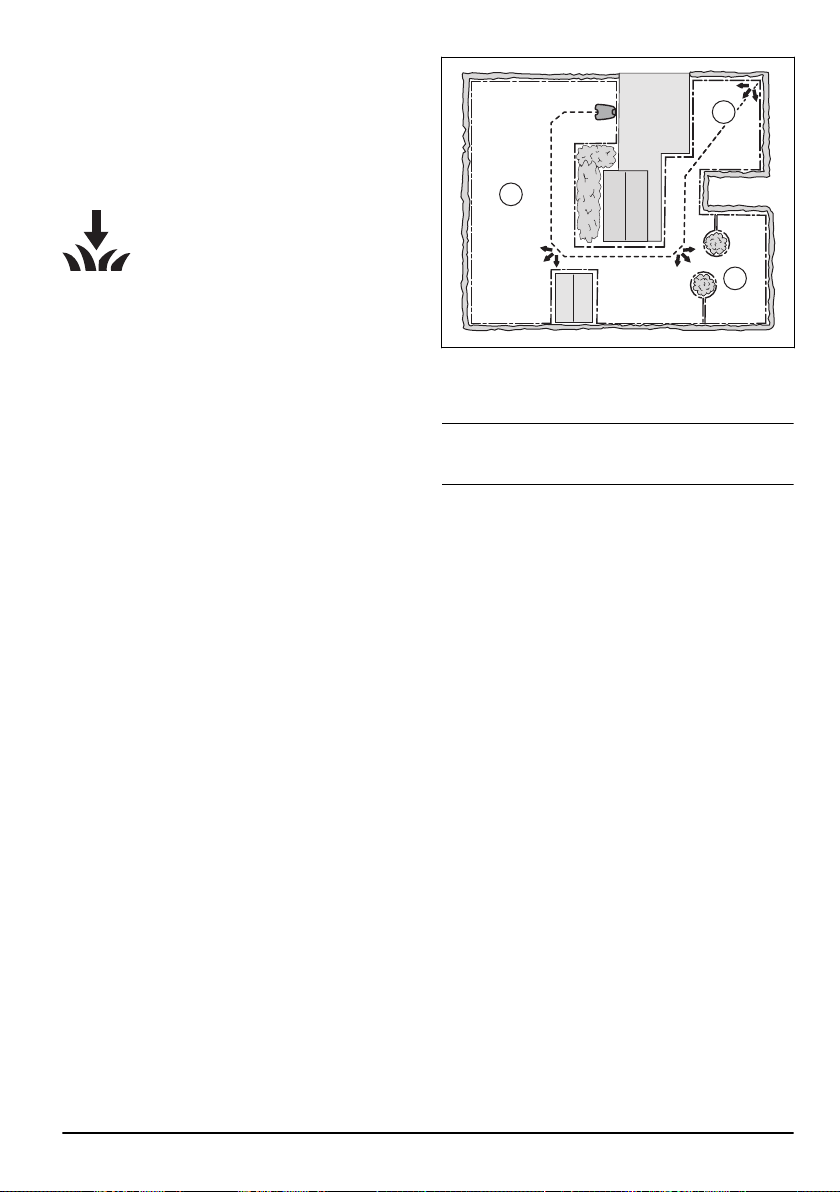

2. Use the arrow buttons and the OK button to
move through the menu structure
Weather timer
> Cutting time
.
3. Use the arrow buttons to select
Low, Mid
or
High
frequency.
4. Push the BACK button.
4.2.8 Installation
In the Installation menu it is possible to adapt the
settings of the product for best mowing result.
4.2.8.1 GPS Assisted Navigation, Lawn Coverage and
Systematic Passage Mowing
The
GPS Assisted Navigation
function helps the product
to select the most optimal operation. Use the
Lawn
coverage
function to do manual settings or to use the
function
Systematic Passage Mowing
.
If the work area includes remote parts that are
connected with narrow passages, the
Lawn Coverage
and
Systematic Passage Mowing
function are useful to
be able to maintain a well-cut lawn in all parts of the
yard. The
Lawn Coverage
function is used to guide
the product to remote parts of the work area. The
Systematic Passage Mowing
function is used for narrow
passage mowing. A guide wire must be installed to use
these functions. You can set a maximum of 3 remote
areas.
With the
Lawn Coverage
function the product first
follows and then leaves the guide wire after a certain
distance and starts to mow the lawn.
The
Systematic Passage Mowing
function is suitable
to mow narrow passages of 60 cm - 1.5 m / 23 in. -
4.9 ft. width. The product moves in a pattern to cover
the passage width. The product starts the
Systematic
Passage Mowing
at the set distance from the charging
station. When the product reaches the end of the narrow
passage, the product continues and cuts the lawn as
normal.
Area A, approximately 50%
Area B, approximately 30%
Area C, approximately 20%
A
C
B
To set the GPS Assisted Navigation
Disable the GPS Assisted Navigation to make manual
settings in
Lawn coverage
.
Note: It is recommended to use GPS Assisted
Navigation.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Lawn
coverage
.
3. Push the OK button to enble or disable the
function.
4. Push the BACK button.
To set the Lawn Coverage function
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings > Lawn
Coverage > Area 1-3
.
3. Use the arrow button to select the area.
4. Push the OK button.
5. Measure the distance from the charging station
to the start of the area. Measure along the guide
wire. Refer to
To measure the distance from the
charging station on page 26
.
6. Push the arrow buttons to select the distance,
measured in m.
7. Push the OK button.
8. Use the arrow buttons to select the percentage of
the cutting time the product must cut the area. The
percentage is equal to the percentage of the area
in relation to the complete work area.
a) Measure the area.
1650 - 006 - 20.02.2023
Product settings - 25
b) Divide the measured area with the total work
area.
c) Convert the result to percentage.
Note: The sum of Area 1-3 must be 100% or
less. If the sum is less than 100%, the product
sometimes straddles the guide wire and starts to
mow at the charging station.
9. Push the BACK button.
To set the System Passage Mowing function
Note: To prevent that the grass in the narrow
passage is worn, Husqvarna recommends to set a low
percentage for the
Systematic Passage Mowing
.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings > Lawn
Coverage > Area 1-3
.
3. Use the arrow buttons to select the area.
4. Push the OK button.
5. Measure the distance from the charging station
to the beginning of the narrow passage. Measure
along the guide wire. Refer to
To measure the
distance from the charging station on page 26
.
Note: Make sure that the distance to the
Systematic Passage Mowing
is set inside the
narrow passage.
6. Push the arrow buttons to select the distance.
7. Push the OK button.
8. Use the arrow buttons to select the % of the
cutting time that the product must start the narrow
passage cutting.
9. Use the arrow buttons and the OK button to select
More > Systematic Passage Mowing
.
10. Push the OK button to enable
Systematic Passage
Mowing
.
11. Push the BACK button.
To do a test of the Lawn Coverage function
1. Put the product in the charging station.
2. Do step 1-3 in
To get access to the menu in the
display of the product on page 22
.
3. Use the arrow buttons and the OK button to
move through the menu structure
Settings > Lawn
Coverage > Area > More > Test
.
4. Push the OK button.
5. Push the START button.
6. Close the hatch.
7. Make sure the product can find the area.
To measure the distance from the charging station
1. Put the product in the charging station.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
3. Use the arrow buttons and the OK button to
move through the menu structure
Settings > Lawn
Coverage > Area > How far?
4. Use the arrow buttons to set 500 m / 500 yd as a
distance.
5. Push the OK button.
6. Use the arrow buttons and the OK button to
move through the menu structure
Settings > Lawn
Coverage > Area > More > Test
.
7. Push the OK button.
8. Push the STOP button when the product is at
the distance you select to measure. The distance
shows in the display.
To disable or enable the Lawn Coverage function
Disable or enable the
Lawn Coverage
function for each
area.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings > Lawn
Coverage > Area > Disable
.
3. Push the OK button.
4. Push the BACK button.
To reset the Lawn Coverage settings
You can reset the
Lawn Coverage
settings for each area
and use the factory setting.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings > Lawn
Coverage > Area > More > Reset
.
3. Push the OK button.
4.2.8.2 Methods for the product to find the charging
station
The product has 3 search methods to find the charging
station:
• Irregular - The product operates in the work area
until it finds the signal of the charging station.
• Guide wire - The product operates in the work area
until it finds the signal of the charging station or
the guide wire. If it finds the guide wire the product
moves along the guide wire to the charging station.
• Boundary wire - The product moves in the work
area until it finds the signal of the charging station,
the guide wire or the boundary wire. If it finds
the boundary wire, the product moves along the
boundary wire to the charging station.
26
- Product settings 1650 - 006 - 20.02.2023
The factory setting is set to mix the 3 search methods.
When the battery is low the product starts to search for
the charging station with the irregular method for 3 min.
After 3 min the product changes search method to the
guide wire method. After 11 min the product changes
search method to the boundary wire method.
You can change the settings for how the product finds
the charging station to adapt to the work area.
To set how the product finds the charging station
You can make manual settings to make the product
search for the guide wire or the boundary wire in 0–30
min from when the battery is low.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > To find
the charging station > Overview of search methods
> Guide
.
3. Push the arrow buttons to select 1 of the guide
wires.
4. Push the number buttons to set the time.
5. Push the OK button.
6. Push the BACK button.
7. Use the arrow buttons and the OK button to move
through the menu structure
Installation > To find
the charging station > Overview of search methods
> Boundary wire
.
8. Push the number buttons to set the time.
9. Push the OK button.
10. Push the START button and close the hatch.
To do a test of the guide wire
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Find
charging station > Guide > More > Test guide
.
3. Put the product 3 m / 9 ft. from the guide wire,
facing the guide wire.
4. Push the START button and close the hatch.
5. Make sure the product follows the guide wire to the
charging station.
6. Make sure the product docks with the charging
station.
7. If the product does not dock with the charging
station, change the position of the charging station
or the guide wire. Refer to
To install the charging
station on page 18
and
To install the guide wire on
page 18
.
To do a test of the boundary wire
1. Put the product 3 m / 9 ft. from the boundary wire,
facing the boundary wire.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
3. Use the
arrow buttons and the OK button to move
through the menu structure
Installation > Find
charging station > Overview of search methods >
Boundary > More > Test right / Test left
.
4. Push the START button and close the hatch.
5. Make sure the product follows the boundary wire to
the charging station.
6. Make sure the product docks with the charging
station.
7. Change the position of the charging station or the
boundary wire if the product does not dock with the
charging station. Refer to
To install the charging
station on page 18
and
To install the guide wire on
page 18
.
To change the signal range of the charging station
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Find the
charging station > Overview of search methods >
Charging station range
.
3. Use the left arrow button to select
MAX, MID, MIN
.
4. Push the BACK button.
Note: It is usually better to move the charging station,
than to decrease the range of the charging station
signal.
4.2.8.3 Corridor width
The area adjacent to the boundary wire is the corridor
that the product uses to move to the charging station.
The corridor width is a measure of how far from the
boundary wire the product can operate when following
the boundary wire to and from the charging station.
The corridor width is adjusted automatically. If it is
necessary to adjust the corridor width manually for the
product to operate satisfactorily, you can set the corridor
width between 1-9. The factory setting is 6.
To set the corridor width
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
1650 - 006 - 20.02.2023
Product settings - 27
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Advanced
> Corridor width
.
3. Use the arrow buttons to select a corridor.
4. Use the number buttons to select a corridor width
of 1-9.
Note: Make the corridor width as wide as possible for
a minimum risk of lines in the lawn.
4.2.8.4 Reversing distance
The reversing distance makes the product move in
reverse for a set distance, before the product starts to
cut the lawn.
To set the reversing distance
1. Do steps 1-3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow button and the OK button to move
through the menu structure
Installation > Advanced
> Reversing distance
.
3. Use the number buttons to set the distance.
4. Push the BACK button.
4.2.8.5 Drive Past Wire function
The front of the product always moves past the
boundary wire by a specified distance. Then the product
moves rearward and changes direction. The factory
setting is 32 cm / 13 in. You can select a distance of
25-50 cm / 10-15 in.
Note:
If you change the distance for
Drive Past Wire
,
the distance will change along the boundary wire in all
parts of the work area.
To set the Drive Past Wire function
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow button and the OK button to move
through the menu structure
Installation > Advanced
> Drive Past Wire
.
3. Use the number buttons to set the distance.
4. Push the BACK button.
4.2.9 Settings
In settings you can change the general settings to your
product.
4.2.9.1 ECO mode
ECO mode
disables the signal in the boundary wire,
guide wire and the charging station, when the product is
parked or is charging.
Note: Use
ECO mode
to save energy and to prevent
interference with other equipment, for example hearing
loops or garage doors.
Note: To start the product manually in the work area,
push the STOP button before you remove the product
from the charging station. If not, the product cannot be
started in the work area.
To set the ECO mode
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > ECO mode
.
3. Push the OK button to select the
ECO mode
.
4. Push the BACK button.
4.2.9.2 Spiral Cutting
The product cuts the grass in a spiral pattern if the grass
is longer in an area.
Spiral cutting
can be set in 5 levels:
• Low-
• Low
• Mid
• High
• High+
The level sets how sensitive the product is to changes in
grass height.
Note:
Spiral cutting
is only started in the Main area
mode. Cutting in the
Secondary area
mode does not let
the product to start
Spiral cutting
.
Spiral Cutting
does not
start in slopes steeper than 15%.
To set the Spiral Cutting
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings > Spiral
Cutting > Use Spiral Cutting
.
3. Push the BACK button.
To set the level of Spiral Cutting
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Settings > Spiral
Cutting > Use Spiral Cutting > Intensity
.
28
- Product settings 1650 - 006 - 20.02.2023
3. Use the left arrow button to select the level of the
Spiral Cutting.
4. Push the BACK button.
4.2.9.3 General
In
General
you can change the general settings of the
product.
To set the time & date
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Time & Date
.
3. Use the number buttons to set the time and then
push the BACK button.
4. Use the number buttons to set the date and then
push the BACK button.
5. Use the arrow buttons to set the time format and
then push the BACK button.
6. Use the arrow buttons to set the date format and
then push the BACK button.
To set the language
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Language.
3. Use the arrow buttons to select language and then
push the BACK button.
To set the Country & Timezone
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Country & Timezone.
3. Use the arrow buttons to select country and then
push the BACK button.
To set the unit format
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Unit format.
3. Use the arrow buttons to select unit format and
then push the BACK button.
To reset all user settings
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Reset all user settings
.
3. Use the right
arrow button to select
Proceed with
reset of all user settings?
4. Push the OK button to reset all the user settings.
Note:
Security level, PIN code, Loop signal,
Messages, Date & Time, Language
and
Country
settings
are not reset.
Frost Guard
The grass is more sensitive to wear if there is frost on
the grass. If the
Frost Guard
is enabled, the product
does not start to cut the grass if the temperature is less
than 5° C / 41° F.
Note: The frost sensor is at the inner side of
the chassis. There can be a temperature difference
compared to the ambient temperature.
To set the Frost Guard
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Installation
> Frost Guard
.
3. Push the OK button to select
Frost Guard
.
4. Push the BACK button.
The About menu
The
About
menu displays information about the product,
for example serial number and firmware versions.
4.2.10 Accessories
Settings for accessories mounted on the product can be
made in this menu.
4.2.10.1 Information
This menu handles accessories mounted on the
product. Contact your local Husqvarna representative for
more information on available accessories.
4.2.10.2 Automower
®
Connect
The product can connect to mobile devices that
have the Automower
®
Connect app installed. The
Automower
®
Connect app has Long-range cellular
connectivity and Short-range Bluetooth
®
connectivity.
Refer to
Automower
®
Connect app on page 21
.
Note:
Automower
®
Connect is always connected to
your product while the mobile device have connection
with the mobile network and the product is switched on.
1650 - 006 - 20.02.2023 Product settings - 29
Note: All countries do not support Automower
®
Connect because of regional specified cellular systems.
The included Automower
®
Connect life-time service only
applies if there is a third part sub-supplier of 2G/3G/4G
available in the operational area. In some countries
Bluetooth
®
is not available because of legal reasons.
To enable the GeoFence function
GeoFence is a GPS-based theft protection that makes a
virtual fence for the product. You will get a message if
the product is moved on the other side of the GeoFence.
1. Put the product in the center of the work area.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
3. Use the arrow buttons and the OK button to
move through the menu structure
Accessories
> Automower Connect > GeoFence > Activate
GeoFence
.
4. Push the OK button.
5. Select
Activate GeoFence
and push the OK
button.
To set a new center point for the Geofence function
1. Put the product in the center of the work area.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
3. Use the arrow buttons and the OK button to
move through the menu structure
Accessories >
Automower Connect > GeoFence > New center
point
.
4. Push the OK button.
To set the GeoFence level of sensitivity
The higher level of GeoFence sensitivity, the easier the
alarm starts.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories >
Automower Connect > GeoFence
.
3. Use the arrow buttons to select level of GeoFence
sensitivity.
4. Push the BACK button.
4.2.10.3 To avoid collisions with the Automower
®
house
The wear on the product and the Automower
®
house
decreases when you select
Avoid collisions with mower
.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Accessories > Mower
house > Avoid collisions with mower
.
Note:
If
Avoid collisions with mower
is selected it
can result in grass that is not cut around the charging
station.
4.2.10.4 Headlights Automower
®
405X/415X
To set the schedule for the headlights
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories >
Headlights > Schedule
.
3. Select between
Always ON
,
Evening only
(19:00-00:00),
Evening & night
(19:00-07:00) or
Always OFF
.
To set the Flashes when fault function
The headlights flashes if the product stops to operate
because of a fault if
Flashes when fault
is enabled.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to
move through the menu structure
Accessories >
Headlights > Flashes when fault
.
3. Use the OK button to enable or disable the
Flashes when fault
function.
4.2.10.5 FlexiFence
If you install the FlexiFence accessory, you must enable
the FlexiFence function of the product.
To enable the FlexiFence function
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 22
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Installation
> FlexiFence
.
3. Push the OK button to enable
FlexiFence
.
4. Push the BACK button.
30
- Product settings 1650 - 006 - 20.02.2023
5 Operation
5.1 To use the ON/OFF button
WARNING: Read and understand the
safety chapter before you use the product.
• Push the ON/OFF button for 3 seconds to set the
product to ON. Make sure that the LED indicator
comes on.
• The product is ON and in power save mode if the
LED indicator flashes. Push the ON/OFF button for
3 seconds to set the product to ON.
• Push the ON/OFF button for 3 seconds to set the
product to OFF. Make sure that the LED indicator
goes out.
5.2 To start the product
1. Push the STOP button to open the hatch.
2. Push the ON/OFF button for 3 seconds. The
display is lit up.
3. Enter the PIN code.
4. Push the START button.
5. Select an operating mode. Refer to
Operating
modes - Start on page 31
.
6. Push the OK button.
7. Close the hatch.
Note:
If the product is parked in the charging station,
the product will start to operate when the battery is fully
charged and if the
Schedule
settings is set for operation
Note: The first weeks after installation the perceived
sound level when cutting the grass may be higher than
expected. When the product has cut the grass for some
time, the perceived sound level is much lower.
5.2.1 Operating modes - Start
•
Main area
•
Secondary area
•
Override schedule
•
Spot cutting
5.2.1.1 Main area
Use the operating mode
Main area
for the product to cut
and charge automatically.
5.2.1.2 Secondary area
Use
Secondary area
operating mode to cut secondary
areas. You must move the product manually between
the main area and the secondary area. The product cuts
for a selected period of time or until the battery is empty.
Note: You must put the product manually in the
charging station to charge the product when it is in a
secondary area. The product will move out from the
charging station and stop when the battery is charged.
You must select an operating mode to start the product.
Note: If you will cut the main area after the battery is
charged, set the product to
Main area
mode before you
put the product in the charging station.
5.2.1.3 Override schedule
Use the operating mode
Override schedule
to
temporarily override the
Schedule
settings for
24h
or
3
days
.
Note:
It is not possible to cut more than the maximum
cutting time for each day. Refer to
Make an estimate of
the necessary operating time on page 22
.
5.2.1.4 Spot cutting
Use the operating mode
Spot cutting
to cut a selected
area in a spiral pattern. You must move the product
manually to the selected area before you start the
Spot
cutting
operating mode.
Note:
After the product has operated in the operating
mode
Spot cutting
, it will automatically start to cut in the
operating mode
Main area
or
Secondary area
.
5.3 To park the product
1. Push the STOP button to open the hatch.
2. Push the ON/OFF button for 3 seconds. The
display is lit up.
3. Enter the PIN code.
1650 - 006 - 20.02.2023
Operation - 31
4. Push the PARK button.
5. Select an operating mode. Refer to
Operating
modes - Park on page 32
.
6. Push the OK button.
7. Close the hatch.
5.3.1 Operating modes - Park
•
Park until further notice
•
Start with schedule
5.3.1.1 Park until further notice
Use the operating mode
Park until further notice
for the
product to go back to the charging station. The product
will stay in the charging station until you select a new
operating mode.
5.3.1.2 Start again with next schedule
Use the operating mode
Start again with next schedule
for the product to go back to the charging station. The
product will stay in the charging station until the next
Schedule
setting.
5.4 To stop the product
1. Push the STOP button to make the product and
the cutting motor stop.
5.5 To set the product to OFF
1. Push the STOP button to open the hatch.
2. Push the ON/OFF button for 3 seconds.
3. Make sure that the LED indicator on the keypad is
off to make sure that the product is set to OFF.
5.6 To charge the battery
WARNING:
Only charge the product
using a charging station which is intended
for it. Incorrect use may result in electric
shock, overheating or leakage of corrosive
liquid from the battery.
In the event of leakage of electrolyte flush
with water and seek medical help if it comes
in contact with the eyes etc.
When the product is new or has been stored for a long
period, the battery can be empty and must be charged
before you can start the product. In the
Main area
mode,
the product cuts and charges automatically.
1. Push the ON/OFF for 3 seconds button to start the
product.
2. Put the product in as far as possible in the
charging station.
3. Make sure that the charging plates on the charging
station connects to the contact plates on the
product.
4. Do a check that the display shows the message
CHARGING
to make sure that the product is
connected correctly to the charging station.
32 - Operation 1650 - 006 - 20.02.2023
6 Maintenance
6.1 Introduction - maintenance
WARNING: The product must be
switched off before any maintenance is
done.
WARNING: Wear protective gloves.
For better operation and longer service life, make sure
to clean the product regularly and replace worn parts.
All maintenance and servicing must be done according
to Husqvarna's instructions. Refer to
Warranty on page
51
.
When the product is first used, the blade disc and
blades should be inspected once a week. If the amount
of wear during this period has been low, the inspection
interval can be increased.
It is important that the blade disc rotates easily. The
edges of the blades should not be damaged. The
lifetime of the blades varies immensely and depends for
instance on:
• Operating time and size of the work area.
• Type of grass and seasonal growth.
• Soil, sand and use of fertilizers.
• The presence of objects such as cones, windfalls,
toys, tools, stones, roots and the like.
The normal life is 3 to 6 weeks when used under
favorable conditions. Refer to
Replacement of the
blades on page 34
on how to replace the blades.
Note:
Working with blunt blades gives a poorer
mowing result. The grass is not cut cleanly and more
energy is needed resulting in the product not mowing
such a large area.
6.2 Clean the product
CAUTION:
Never use a high-pressure
washer to clean the product. Never use
solvents for cleaning.
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass. Use a soft brush
to clean the product. The product can be cleaned with
running water from a water hose.
Husqvarna recommends to use a special cleaning and
maintenance kit, available as accessory. Speak to your
Husqvarna representative for more information.
6.2.1 To clean the chassis and blade disc
Examine the blade disc and blades weekly. To clean the
product fully, the body of the product can be removed. If
the product is dirty, use a brush or a water hose to clean
the product. Do not use a high-pressure washer to clean
the product.
1. Push the ON/OFF button to switch off the product.
The product is disabled when the indicator lamp is
not lit.

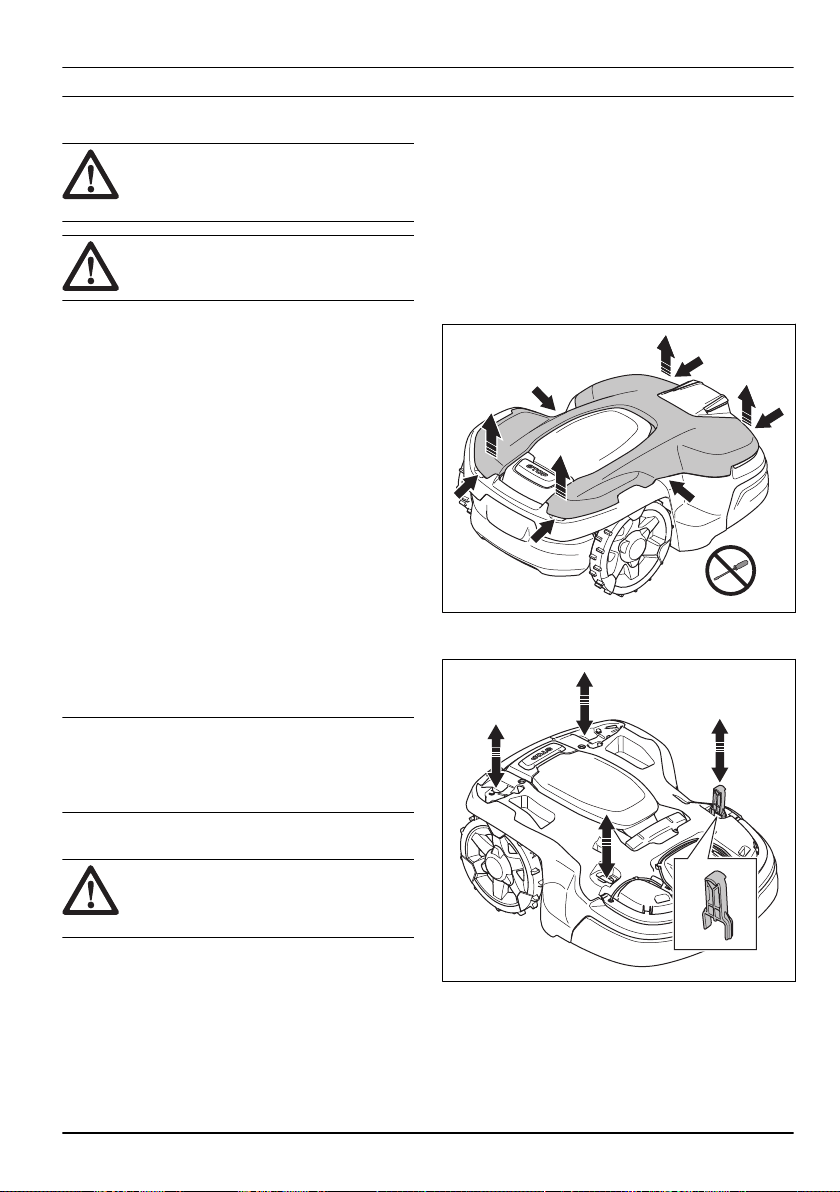

2. Carefully pull the top cover at the rear, the front
and the middle.
3. Lift up the top cover to remove it.
4. Find the 4 positions where the body is attached.
5. Push the maintenance tool down in 1 of the 4
positions, and pull the body up.
6. Continue with the remaining positions while you
hold the body up.
1650 - 006 - 20.02.2023
Maintenance - 33

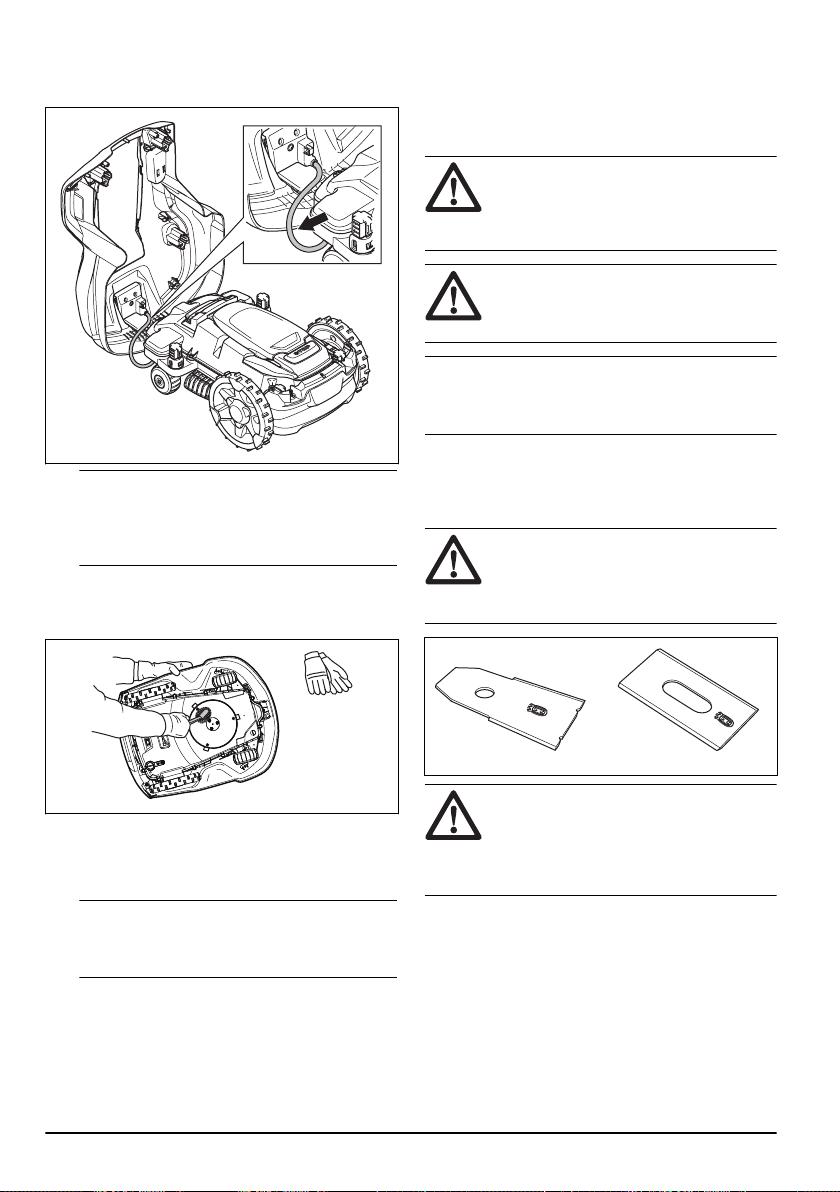

7. Carefully lift the body at the rear and fold it over
to remove the body, do not remove the charging
cable.
Note: Make sure the that the grommets for
the charging cable are correctly installed to seal
against moisture after you remove the body of the
product.
8. Clean the blade disc and chassis with a brush.
At the same time, make sure that the blade disc
rotates freely. Make sure that the blades are not
damaged and can pivot freely.
9. To install the body of the product, put it on the
chassis and push into position.
10. To install the top cover, put it on the body of the
product and push into position.
Note:
Make sure the that the grommets for
the charging cable are correctly installed to seal
against moisture.
6.2.2 To clean the wheels
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass.
• Use a soft brush to clean the wheels.
6.2.3 To clean the body of the product
• Use a moist cloth and a weak soap solution to
clean the body of the product.
6.2.4 To clean the charging station
WARNING: Disconnect the power
supply from the power outlet before
maintenance, or when you clean the
charging station or power supply.
CAUTION: Do not use a high-pressure
washer or running water to clean the
charging station.
Note: The product cannot enter the charging station
if there are objects in the charging station. Clean the
charging station regularly.
• Remove grass, twigs and other objects from the
charging station.
6.3 Replacement of the blades
WARNING: Husqvarna can only
guarantee safety if you use Husqvarna
original blades with the embossed crowned
H-mark logotype.
WARNING: You must replace the
screws when you replace the blades. The
used screws can wear quickly and make the
blade come loose, this can cause serious
injury.
Replace worn or damaged blades for a safe operation.
Replace the blades regularly for a satisfactory cut result
and a low energy use. All 3 blades and screws must
be replaced at the same time to get a balanced cutting
system.
6.3.1 To replace the blades
1. Push the STOP button
2. Push the ON/OFF button for 3 seconds to switch
off the product.
34
- Maintenance 1650 - 006 - 20.02.2023

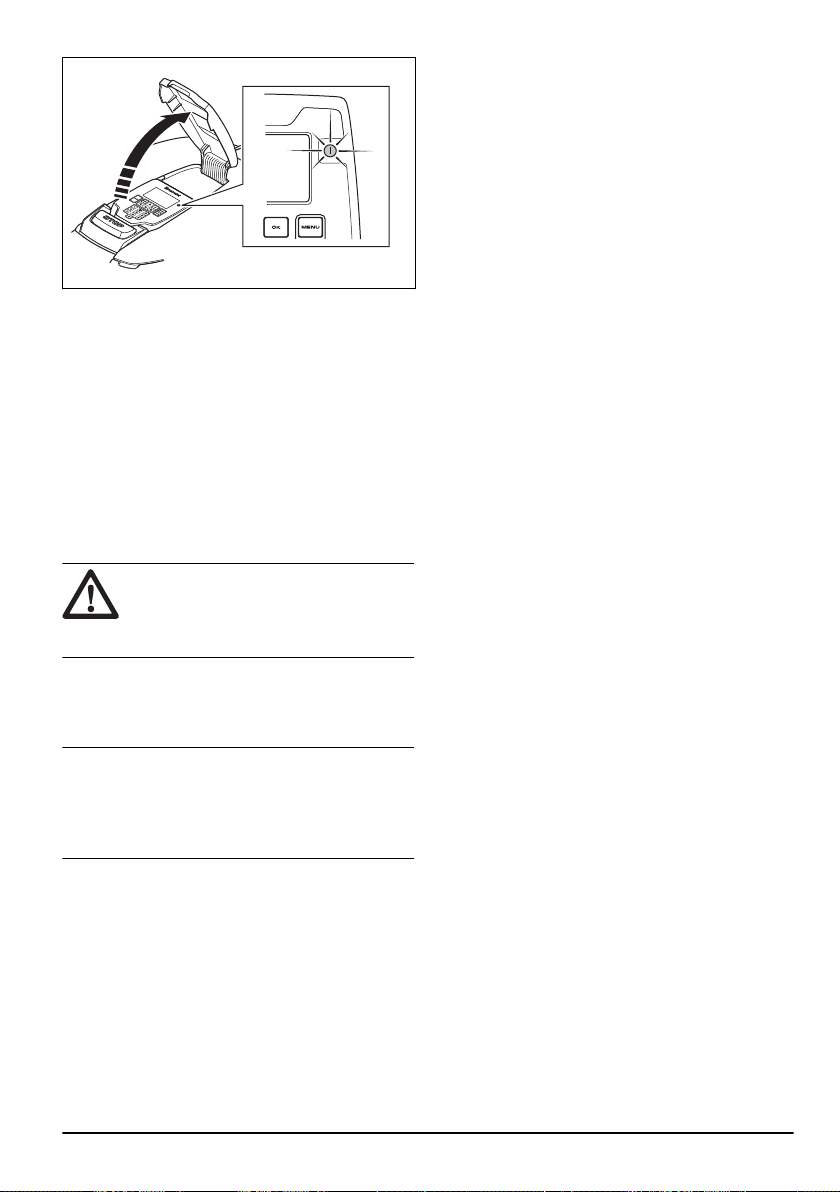

3. Make sure that the indicator lamp on the keypad is
out.
4. Turn the product upside down. Put the product on
a soft and clean surface to avoid scratching the
body and the hatch.
5. Rotate the skid plate so that its holes align with the
screws for the blade.
6. Remove the 3 screws with a screwdriver.
7. Remove the 3 blades.
8. Attach 3 new blades and screws.
9. Make sure that the blades can pivot freely.
6.4 Battery
CAUTION: Charge the battery fully
before you put the product into storage. If
the battery is not fully charged it can cause
damage to the battery.
If the operating time of the product is shorter than usual
between charges, this means that the battery is at the
end of its life cycle. Replace the battery to extend the
operating time.
Note:
The battery life is related to the length of
the season and how many hours a day the product
operates. A long season or many hours of operation
a day means that the battery must be replaced more
regularly.
6.5 Winter service
Take your product to your Husqvarna central service for
service prior to winter storage. Regular winter service
will maintain the product in good condition and create
the best conditions for a new season without any
disruptions.
Service usually includes the following:
• Thorough cleaning of the body, the chassis, the
blade disc and all other moving parts.
• Testing of the product’s function and components.
• Checking and, if required, replacing wear items
such as blades and bearings.
• Testing the product’s battery capacity as well as a
recommendation to replace battery if necessary.
• If new firmware is available, the product is
updated.
1650 - 006 - 20.02.2023 Maintenance - 35
7 Troubleshooting
7.1 Introduction - troubleshooting
In this chapter you can find information and help about faults and symptoms of the product. You can find more
information and FAQ (Frequently Asked Questions) on www.husqvarna.com.
7.2 Fault messages
The fault messages in the table below are shown in the display of the product. Speak to your Husqvarna
representative if the same message shows frequently.
Message Cause Action
No loop signal
The power supply or low-voltage cable is not
connected.
If the LED status indicator on the charging
station is not lit, it shows that there is no
power. Examine the power outlet connection
and the residual-current device. Make sure
that the low-voltage cable is connected to the
charging station.
The power supply or low-voltage cable is
damaged or not connected.
Replace the power supply or low-voltage ca-
ble.
The boundary wire is not connected to the
charging station.
Check that the boundary wire connectors
are fitted properly to the charging station.
Replace connectors if damaged. Refer to
To
install the boundary wire on page 18
.
The boundary is wire broken. Do a check of the LED status indicator on
the charging station. If it shows break in the
boundary wire, replace the damaged section
with a new loop wire and splice using an
original coupler.
ECO mode
is activated and the product has
attempted to start outside the charging sta-
tion.
Put the product in the charging station, start
the product and close the hatch.
The boundary wire is crossed on its way to
and from an island.
Check that the boundary wire is laid accord-
ing to instructions, e.g. in the right direction
around the island. Refer to
To install the
boundary wire on page 18
.
The pairing between the product and the
charging station is lost.
Put the product in the charging station and
generate a new loop signal. Refer to
To cre-
ate a New loop signal on page 23
.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables close by.
Try to move the boundary wire and/or make
islands in the work area to increase the sig-
nal strength.
Connection NOT
changed
Failed to change loop signal. Try to create a
New loop signal
several
times. Refer to
To create a New loop signal
on page 23
. If the problem stays, speak to
your authorized service technician.
36 - Troubleshooting 1650 - 006 - 20.02.2023
Message Cause Action
Wheel motor
blocked, left/right
Grass or other object is wrapped around the
drive wheel.
Clean the wheels and around the wheels.
Wheel motor overloa-
ded, left/right
Wheel drive problem,
right/left
Cutting system
blocked
Grass or other object is wrapped around the
drive wheel.
Clean the wheels and around the wheels.
The blade disc lies in a pool of water. Move the product and prevent the collection
of water in the work area.
The grass is too high. Cut the grass before you install the product.
Make sure that the grass is maximum 10
cm / 3.9 in.
Cutting system imbal-
ance
Too few or too many blades. Do a check of the blades on the blade disc.
Outside working area
The boundary wire connections to the charg-
ing station are crossed.
Check that the boundary wire is connected
correctly.
The boundary wire is too close to the edge of
the work area.
Check that the boundary wire has been laid
according to the instructions. Refer to
To in-
stall the boundary wire on page 18
.
The work area slopes too much by the boun-
dary loop.
The boundary wire is laid in the wrong direc-
tion around an island.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables close by.
Try moving the boundary wire.
The product finds it hard to distinguish the
signal from another product installation close
by.
Put the product in the charging station and
generate a new loop signal.
Slope too steep
The product stopped because the slope is
too steep.
Change the installation of the boundary wire
to not include this steep part of the work
area. Refer to
To put the boundary wire in
a slope on page 15
.
Empty battery
The product cannot find the charging station. Change the position of the guide wire. Refer
to
To install the guide wire on page 18
.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 35
.
The charging station’s antenna is damaged. Check if the indicator lamp in the charging
station flashes red. Refer to
Indicator lamp in
the charging station on page 42
.
The charging plates on the product or con-
tact plates on the charging station are corro-
ded.
Clean the charging and contact plates us-
ing a fine grade emery cloth. If the problem
stays, speak to your authorized service tech-
nician.
1650 - 006 - 20.02.2023 Troubleshooting - 37
Message Cause Action
Battery problem
Temporary battery or firmware related issue
in the product.
Restart the product. If the problem stays,
speak to your authorized service technician.
Incorrect type of battery. Use original batteries recommended by the
manufacturer.
Battery temperature
outside limits
The temperature in the battery is too high or
too low to start operation.
No action. The product will start to operate
when the temperature is in limits.
Wrong PIN code
Wrong PIN code has been entered. Five at-
tempts are permitted, and the keypad is then
blocked for a period of time.
Enter the correct PIN code. If the PIN code is
incorrect, use the link in the app to send the
PIN code to your registered e-mail address.
If you have not registered the e-mail address,
contact your local Husqvarna representative.
No drive
Slipped
The product has got caught in something and
has been slipping.
Free the product and rectify the reason for
the lack of drive. If it is due to wet grass,
wait until the lawn has dried before using the
product.
The work area includes a steep slope. Steep slopes should be isolated. Refer to
To
put the boundary wire in a slope on page 15
.
The guide wire is not laid diagonally in the
slope.
Make sure that the guide wire is installed di-
agonally across the slope. Refer to
To make
a secondary area on page 16
.
Collision sensor
problem, front/rear
Collision
The drive wheels on the product are blocked. Free the product and correct the cause of
problem. If the problem stays, speak to your
authorized service technician.
Alarm! Mower switch-
ed off
The alarm is activated because the product
had been switched off.
Adjust the security level in the
Security
menu. Refer to
Security level on page 23
.
Alarm! Mower stop-
ped
The alarm is activated because the product
has been stopped.
Alarm! Mower lifted
The alarm is activated because the product
has been lifted.
Alarm! Mower tilted
The alarm is activated because the product
has been tilted.
Alarm! Mower was
moved
The alarm is activated because the product
has been lifted.
Alarm! Outside geo-
fence
The alarm was activated because the prod-
uct was outside its
GeoFence
.
38 - Troubleshooting 1650 - 006 - 20.02.2023
Message Cause Action
Charging station
blocked
The contact between the charging plates on
the product on the and contact plates on
the charging station may be poor and the
product has made a number of attempts to
charge.
Put the product in the charging station and
check that the charging plates and contact
plates make good contact.
An object is in the way of the product that
prevents it to enter the charging station.
Remove the object.
The charging station is tilted or bent. Put the baseplate on level ground.
The guide wire is not installed correctly. Check if the guide wire is installed accord-
ing to the instructions. Refer to
To install the
guide wire on page 18
.
Stuck in charging sta-
tion
There is an object in the way of the product
preventing it from leaving the charging sta-
tion.
Remove the object.
Charging system
problem
There is corrosion or dirt on the charging
plates and contact plates.
Restart the product. Clean the charging
plates on the product and the contact plates
on the charging station.
Temporary electronic or firmware problem in
the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Charging current too
high
Incorrect or damaged power supply unit. Restart the product. If the problem stays,
speak to your authorized service technician.
No power in charging
station
Incorrect or damaged power supply unit. Examine the power supply. If it is necessary,
replace the power supply.
Power failure. Find and correct the cause of the power fail-
ure.
No contact between the contact plates and
the charging plates.
Make sure that the charging plates and the
contact plates are connected.
Trapped
The product is stuck in a small area behind a
number of obstacles.
Remove the obstacles or create an island
around the obstacles. Refer to
To make an
island on page 16
.
Mower tilted
The product is tilted more than the maximum
angle.
Move the product to a flat area.
Upside down
The product is leaning too much or has
turned over.
Turn the product the right way up.
Lifted
The lift sensor has been activated as the
product has been lifted.
Check that the product body can move freely
around its chassis. Remove or create an is-
land around objects that can cause the chas-
sis to be lifted. If the problem stays, speak to
your authorized service technician.
1650 - 006 - 20.02.2023 Troubleshooting - 39
Message Cause Action
Electronic problem
Temporary electronic or firmware related is-
sue in the product.
Restart the product. If the problem stays,
speak to your authorized service technician.
Loop sensor prob-
lem, front/rear
Tilt sensor problem
Temporary problem
Invalid sub-device
combination
Temporary battery
problem
Safety function faulty
Invalid system combi-
nation
Zone generator prob-
lem
FlexiFence problem
The battery of the FlexiFence accessory is
low. The FlexiFence accessory does not op-
erate when the battery is empty. The product
can cut in the stay-out zone if you start the
product before you charge the FlexiFence
accessory.
Park the product and charge the FlexiFence
accessory before you start the product.
The temperature in the FlexiFence accessory
is a higher than the maximum limit and is set
to off.
Put the product in an area with protection
from the sun. Let the temperature of the
FlexiFence accessory decrease before you
start the product.
Destination not
reachable
The product cannot reach the destination be-
cause there is no guide wire or boundary
wire within the work area.
Edit or make a new installation of the work
area in the app and include a guide or a
boundary wire in the work area.
The product cannot reach the destination be-
cause there is a stay-out blocking the way to
the work area.
Edit or remove the stay-out zone or make a
new installation of the work area.
Destination blocked
The way of the destination is blocked by an
obstacle.
Remove the obstacle that blocks the way to
the destination.
Battery needs re-
placement
The battery state of health is low. Replace the battery. Speak to your author-
ized service technician.
Battery near end of
life
The battery state of health is critically low. Replace the battery. Speak to your author-
ized service technician.
Invalid firmware con-
figuration
The firmware in the product is not updated. Put the product in the charging station and
update the firmware via FOTA. If the problem
stays, speak to your Husqvarna service.
Map problem
The map object file is incorrect. Do a check of the map in the app. Adjust the
map and save it.
Delete the map and do a new installation.
40 - Troubleshooting 1650 - 006 - 20.02.2023
7.3 Information and warning messages
The information messages in the table below are shown in the display of the product. Speak to your Husqvarna
representative if the same message shows frequently.
Message Cause Action
Limited cutting height
The cutting height adjustment cannot move. Examine the cutting height adjustment and
remove grass or other objects. If the problem
stays, speak to your approved servicing deal-
er.
Unexpected cutting
height adj
Limited cutting height
range
Cutting height prob-
lem
Cutting height
blocked
GPS navigation prob-
lem
Problem with the GPS assisted navigation
equipment.
Speak to your local Husqvarna representa-
tive if this message appears often.
Weak GPS signal
The sky is blocked in large parts of the work
area.
Remove objects that can cause a blockage
of the GPS signal.
Disable the GPS navigation function and use
the
Lawn coverage
function. Refer to
GPS
Assisted Navigation, Lawn Coverage and
Systematic Passage Mowing on page 25
.
Settings restored
A
Reset all user settings
has been done. Usual operation of the product.
Guide 1 not found
The guide wire is not connected to the charg-
ing station.
Connect the guide wire to the charging sta-
tion. Refer to
To install the guide wire on
page 18
.
Damage in the guide wire. Replace the damaged section with new
guide wire.
The guide wire is not connected to the boun-
dary loop.
Connect the guide wire correctly to the boun-
dary loop. Refer to
To install the boundary
wire on page 18
.
Connection changed
New loop signal changed. Usual operation of the product.
Difficult finding home
The product has been following the boundary
wire several laps without finding the charging
station.
The installation has not been done correctly.
Refer to
To install the boundary wire on page
18
.
Wrong corridor width setting on boundary
wire. Refer to
To install the boundary wire on
page 18
.
The product was started on a Secondary
area with the Main area setting.
Needs manual charg-
ing
The product is set to the
Secondary area
op-
erating mode.
Put the product in the charging station.
1650 - 006 - 20.02.2023 Troubleshooting - 41
Message Cause Action
Next start hh:mm
The schedule setting prevents the product
from operating.
Change the schedule settings. Refer to
Schedule on page 22
.
The product has reached its maximum cut-
ting time for the day.
This behavior is normal and no action is re-
quired.
The clock or date in the product is not cor-
rect.
Set the time. Refer to
To set the time & date
on page 29
.
Today's mowing
completed
The product has reached its maximum cut-
ting time for the day.
This behavior is normal and no action is re-
quired. Refer to
Schedule on page 22
.
Connectivity problem
Potential problem on the connectivity circuit
board in the product.
Restart the product. If the problem stays
speak to your authorized service technician.
7.4 Indicator lamp in the charging station
The indicator lamp in the charging station must show a solid or flashing green light for a correct installation. If not,
follow the instructions in the troubleshooting guide below.
Speak to your Husqvarna customer service for more information.
Light
Cause Action
Green solid light Good signals Usual operation of the product.
Green flashing light The signals are good and
ECO mode
is ena-
bled.
Usual operation of the product. Refer to
ECO
mode on page 28
.
Blue flashing light The boundary wire is not connected to the
charging station.
Make sure that the boundary wire is correctly
installed in the charging station. Refer to
To
install the boundary wire on page 18
.
Damage in the boundary wire. Find out where the damage is. Replace the
damaged section with new boundary wire.
Red flashing light Interference in the antenna of the charging
station.
Speak to your Husqvarna customer service.
Red solid light Error in the circuit board or incorrect power
supply in the charging station. The error must
be corrected by an authorized service techni-
cian.
Speak to your Husqvarna customer service.
42 - Troubleshooting 1650 - 006 - 20.02.2023
7.5 Symptoms
If the product does not operate as usual, follow the symptoms table below. Speak to your Husqvarna customer
service if you cannot find the cause for the fault.
Symptoms Cause Action
The product has diffi-
culty docking.
The guide wire is not put straight in a line
and correct distance from the charging sta-
tion.
Do a check of the installation of the charging
station. Refer to
To install the charging sta-
tion on page 18
The guide wire is not put in the slot in the
charging station plate.
Make sure that the guide wire is put straight
in a line and put in the slot in the charging
station plate. Refer to
To install the guide
wire on page 18
.
The charging station is not on a level sur-
face.
Put the charging station on a level surface.
Refer to
To examine where to put the charg-
ing station on page 13
.
The product operates
at the wrong time
The time or the date in the product is not
correct.
Set the time or date. Refer to
To set the time
& date on page 29
.
The start and stop times for operating are
incorrect.
Change the
Schedule
settings. Refer to
Schedule on page 22
.
The product vibrates. The cutting system is not in balance because
of damaged blades.
Examine the blades and screws and replace
them if necessary. Refer to
Replacement of
the blades on page 34
.
The cutting system is not in balance because
of too many blades in the same position.
Do a check that only one blade is attached at
each screw.
Different thickness of blades are installed on
the product.
Do a check if the blades are of different thick-
ness and replace if necessary.
The product oper-
ates, but the blade
disc does not rotate.
The product searches for the charging sta-
tion, or is moving to the starting point.
Usual operation for the product. The blade
disc does not rotate when the product is
searching for the charging station.
The product operates
for shorter periods
than usual between
charges.
Grass or other object causes a blockage to
the blade disc.
Remove and clean the blade disc. Refer to
To clean the chassis and blade disc on page
33
.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 35
.
Blunt blades. More energy is necessary
when cutting the grass.
Replace the blades. Refer to
Replacement of
the blades on page 34
.
Mowing and charg-
ing times are shorter
than usual.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 35
.
1650 - 006 - 20.02.2023 Troubleshooting - 43
Symptoms Cause Action
The product is
parked for hours in
the charging station.
The product has operated the maximum cut-
ting time for the day.
No action. Refer to
Schedule on page 22
.
The hatch is closed but the START button is
not pushed.
Push the STOP button to open the hatch.
Enter the PIN code and confirm with the OK
button. Push the START button and then
close the hatch.
Parking mode is enabled. Change the operating mode. Refer to
Oper-
ating modes - Start on page 31
.
The product does not operate if the battery
temperature is too high or too low.
Make sure that the charging station is put in
an area with protection from the sun.
Uneven mowing re-
sults.
The product operates for a small number of
hours per day.
Increase the cutting time. Refer to
Schedule
on page 22
.
For the shape of the work area it is necessa-
ry to adjust the settings for
Lawn Coverage
to cover all parts of the work area.
Change the settings of the areas where the
product starts to cut and how often. Refer
to
GPS Assisted Navigation, Lawn Coverage
and Systematic Passage Mowing on page
25
.
The work area is too large. Decrease the size of the work area or extend
the schedule. Refer to
Schedule on page 22
.
Blunt blades. Replace all the blades. Refer to
Replace-
ment of the blades on page 34
.
Long grass in relation to the set cutting
height.
Increase the cutting height and then lower it
when the grass is shorter.
Collection of grass by the blade disc or
around the motor shaft.
Remove the collection of grass and clean the
product. Refer to
Clean the product on page
33
.
The battery is empty
and you put the prod-
uct in the charging
station, but it does
not charge and can-
not be set to ON.
If the battery has been deeply discharged,
it will take a long time to charge the battery
and before the product can be set to ON.
Keep the product in the charging station for
24 hours and test if the product can be set
to ON. If the problem remains, speak to your
authorized service technician.
7.6 Find breaks in the loop wire
Breaks in the loop wire are usually the result of
unintentional physical damage to the wire such as when
gardening with a shovel. In countries with ground frost,
also sharp stones that move in the ground can damage
the wire. Breaks can also occur due to the wire being
stretched excessively during installation.
Mowing the grass too low right after the installation can
damage wire insulation. Damage to the insulation may
not cause disruptions until several weeks or months
later. To avoid this, always select the maximum cutting
height the first weeks after installation and then lower
the height one step at a time every second week until
the desired cutting height has been reached.
A damaged splicing of the loop wire can also lead to
disruptions several weeks after the splice was done.
A faulty splice can, for example, be the result of the
coupler not being pressed together hard enough with a
pair of pliers, or that a coupler of lower quality than the
original coupler has been used. Please first check all
known splices before further troubleshooting is done.
A wire break can be located by gradually halving the
distance of the loop where the break may have occurred
until there is only a very short section of the wire left.
The following method does not work if
ECO mode
is
activated. Make sure first that
ECO mode
is switched
off. Refer to
ECO mode on page 28
.
1. Check that the indicator lamp in the charging
station flashes blue, which indicates a break in
the boundary loop. Refer to
Indicator lamp in the
charging station on page 42
.
44 - Troubleshooting 1650 - 006 - 20.02.2023
2. Check that the boundary wire connections to the
charging station are properly connected and not
damaged. Check that the indicator lamp in the
charging station is still flashing blue.
3. Switch the connections between the guide wire
and the boundary wire in the charging station.
Start by switching connection AL and GUIDE.
If the indicator lamp has a solid green light, then
the break is somewhere on the boundary wire
between AL and the point where the guide wire
is connected to the boundary wire (thick black line
in the illustration).
Guide
AL
GUIDE
To rectify the fault you will need boundary wire,
connector(s) and coupler(s):
a) If the suspected boundary wire is short then it
is easiest to exchange all of the boundary wire
between AL and the point where the guide wire is
connected to the boundary wire (thick black line).
b) If the suspected boundary wire is long (thick
black line) then do as follows: Put AL and GUIDE
back to their original positions. Then disconnect
AR. Connect a new loop wire to AR. Connect the
other end of this new loop wire at the middle of the
suspected wire section.
AR
If the indicator lamp now is green, then the
break is somewhere in the wire between the
disconnected end to the point where the new wire
is connected (thick black line below). In that case,
move the connection for the new wire closer to
the disconnected end (roughly at the middle of
the suspected wire section) and check again if the
indicator lamp is green.
1650 - 006 - 20.02.2023
Troubleshooting - 45

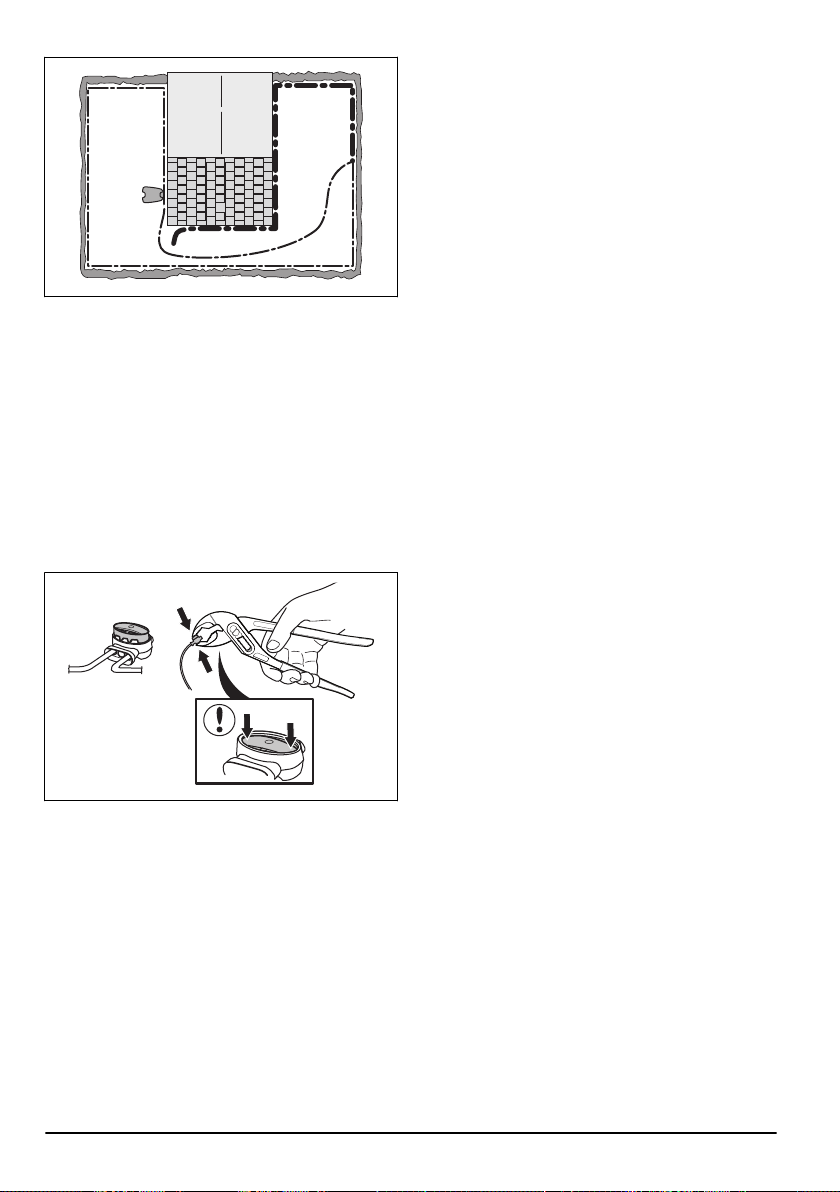

Continue until only a very short section of the wire
remains which is the difference between a solid
green light and a flashing blue light. Then follow
instruction in step 5 below.
4. If indicator lamp still flashes blue in step 3
above:Put AL and GUIDE back in their original
positions. Then switch AR and GUIDE. If indicator
lamp now is lit with a solid green light then
disconnect AL and connect a new boundary wire
to AL. Connect the other end of this new wire at
the middle of the suspected wire section. Follow
the same approach as in 3a) and 3b) above.
5. When the break is found, the damaged section
must be replaced with a new wire. Always use
original couplers.
46 - Troubleshooting 1650 - 006 - 20.02.2023
8 Transportation, storage and disposal
8.1 Transportation
The supplied Li-ion batteries obey the Dangerous Goods
Legislation requirements.
• Obey all applicable national regulations.
• Obey the special requirement on package and
labels for commercial transportations, including by
third parties and forwarding agents.
8.2 Storage
• Fully charge the product. Refer to
To charge the
battery on page 32
.
• Switch off the product. Refer to
To set the product
to OFF on page 32
.
• Clean the product. Refer to
Clean the product on
page 33
.
• Keep the product in a dry, frost free space.
• Keep the product with all wheels on level ground
during storage, or use a wall hanger.
• If you keep the charging station indoors,
disconnect and remove the power supply and
all the connectors from the charging station. Put
the end of each connector wire in a connector
protection box.
Note: If you keep the charging station outdoors,
do not disconnect the power supply and the
connectors.
• Contact Husqvarna sales representative about
what accessories are available for your product.
8.3 Disposal
• Obey the local recycling requirements and
applicable regulations.
• For questions about how to remove the battery,
refer to
To remove the battery on page 47
.

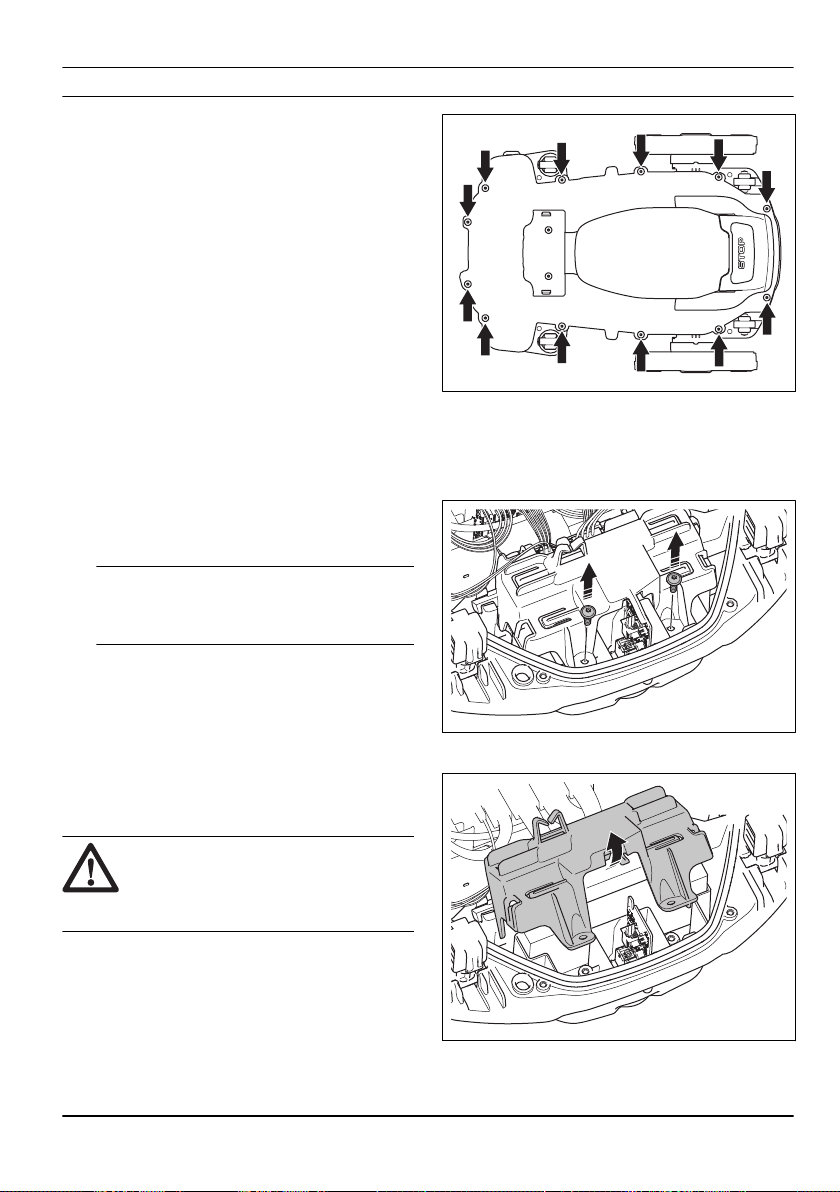

8.3.1 To remove the battery
CAUTION:
Only remove the battery
when you dispose the product. When you
remove the warranty seal, the Husqvarna
warranty is no longer applicable.
1. Remove the top cover and the body of the product.
Follow steps 1-7 in
To clean the chassis and blade
disc on page 33
.
2. Remove the 12 screws with a Torx 20.
3. Lift the rear edge of the top section of the chassis.
4. Disconnect the cable from the main circuit board.
5. Remove the top section of the chassis.
6. Remove the 2 screws that holds the battery with a
Torx 20.
7. Push to detach the clips and lift up the battery
holder.
8. Disconnect the battery cable from the main circuit
board.
1650 - 006 - 20.02.2023
Transportation, storage
and disposal - 47
9 Technical data
9.1 Automower
®
405X/415X
Dimensions Automower
®
405X Automower
®
415X
Length, cm/in. 61/24.0 61/24.0
Width, cm/in. 45/17.7 45/17.7
Height, cm/in. 24/9.4 24/9.4
Weight, kg/lb 9.7/21.4 9.7/21.4
Electrical system Automower
®
405X Automower
®
415X
Battery, Lithium-Ion 18 V/2.0 Ah Art. No. 5937420-01, 5937420-03, 5937420-04,
5937420-05, 5937420-06
Battery, Lithium-Ion 18.25 V/2.0 Ah Art. No. 5937420-02
Power supply (28V DC), V AC 100-240 100-240
Low-voltage cable length, m/ft 10/33 10/33
Mean energy consumption at maximum use 5 kWh/ month for
a work area of 600
m
2
/0.15 acre
10 kWh/month for a
work area of 1500
m
2
/0.37 acre
Charging current, A DC 1.3 1.3
Type of Power Supply Unit
7
ADP-40KR XX, ADP 28FW
XX, FW7313/28/D/XX/Y/1.3/PI,
FW7313/28/D/XX/Y/1.3
Average mowing time, min 50 50
Average charging time, min 60 60
Boundary wire antenna Automower
®
405X Automower
®
415X
Operating Frequency Band, Hz 100-80000 100-80000
Maximum magnetic field
8
, dBuA/m 82 82
Maximum Radio-frequency power
9
, mW @60m <25 <25
Sound data
10
Automower
®
405X Automower
®
415X
Sound level, perceived, dB (A) 62 62
Measured sound power noise level, dB (A) 61 61
Noise emissions uncertainties K
WA
, dB (A) 2 2
Sound pressure noise level at the operator’s ear
11
, dB (A) 53 53
7
XX, YY can be any alphanumeric characters or blank for marketing purpose only, no technical differences.
8
Measured according to EN 303 447.
9
Maximum active output power to antennas in the frequency band in which the radio equipment operates.
10
Determined according to Directive 2006/42/EC and standard EN 50636-2-107. Except Sound level, perceived
that is measured according to ISO 11094:1991.
48 - Technical data 1650 - 006 - 20.02.2023
Mowing Automower
®
405X Automower
®
415X
Cutting system 3 pivoted cutting blades 3 pivoted cutting
blades
Cutting motor speed, rpm 2300 2300
Power consumption during cutting, W+/- 20% 20 20
Cutting height, cm/in. 2-5/0.8-2.0 2-5/0.8-2.0
Cutting width, cm/in. 22/8.7 22/8.7
Narrowest possible passage, cm/in. 60/24 60/24
Maximum slope for work area, % 40 40
Maximum slope for boundary wire, % 15 15
Maximum length boundary wire, m/ft 800/2600 800/2600
Maximum distance to boundary wire, m/ft 35/115 35/115
Maximum length guide loop
12
, m/ft 400/1300 400/1300
Area capacity, m
2
/ acre, +/- 20% 600/0.15 1500/0.37
IP-code Automower
®
405X Automower
®
415X
Robotic lawn mower IPX5 IPX5
Charging station IPX1 IPX1
Power supply IP44 IP44
Frequency Band Support
Automower
®
Connect 2G GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz
Automower
®
Connect 3G Band 19 (800 MHz), Band 5 (850 MHz), Band 8 (900 MHz), Band 2
(1900 MHz), Band 1 (2100 MHz)
Automower
®
Connect 4G Band 12 (700 MHz), Band 17 (700 MHz), Band 28 (700 MHz), Band
13 (700 MHz), Band 20 (800 MHz), Band 26 (850 MHz), Band 5
(850 MHz), Band 19 (850 MHz), Band 8 (900 MHz), Band 4 (1700
MHz), Band 3 (1800 MHz), Band 2 (1900 MHz), Band 25 (1900
MHz), Band 1 (2100 MHz), Band 39 (1900 MHz), Band 18 (850
MHz), Band 66 (1700 MHz), Band 85 (700 MHz)
11
Sound pressure noise uncertainties K
pA
, 2-4 dB (A)
12
The guide loop is the loop that if formed by the guide wire and the part of the boundary wire from the junction
with the guide wire to the right connection in the charging station.
1650 - 006 - 20.02.2023 Technical data - 49
Power Class
Bluetooth
®
Output power 8 dBM
Automower
®
Connect 2G Power Class 4 (GSM/E-GSM) 33 dBm
Power Class 1 (DCS/PCS) 30 dBm
Power Class E2 (GSM/E-GSM) 27 dBm
Power Class E2 (DCS/PCS) 26 dBm
Automower
®
Connect 3G Power Class 3 24 dBm
Automower
®
Connect 4G Power Class 3 23 dBm
Deviations from this general technical data are included in the country specific chapters.
Husqvarna AB does not guarantee full compatibility between the product and other types of wireless systems such as
remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar.
The products are made in England or the Czech Republic. See information on the rating plate. Refer to
Introduction
on page 6
9.2 Registered trademarks
The
Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, inc.
and any use of such
marks by Husqvarna is under license.
50 - Technical data 1650 - 006 - 20.02.2023
10 Warranty
10.1 Warranty terms
Husqvarna
®
warranty covers this product's functionality
for a period of 2 years from date of purchase. The
warranty covers serious faults relating to materials or
manufacturing faults. Within the warranty period, we
will replace the product or repair it at no charge if the
following terms are met:
• The product and the charging station may only be
used in compliance with the instructions in this
Operator’s Manual. This manufacturer's warranty
does not affect warranty entitlements against the
dealer/retailer.
• End-users or non-authorized third parties must not
attempt to repair the product.
Examples of faults which are not included in the
warranty:
• Damage caused by water seepage from using a
high-pressure washer, or from being submerged
under water, for example when heavy rain forms
pools of water.
• Damage caused by lightning.
• Damage caused by improper battery storage or
battery handling.
• Damage caused by using a battery that is not a
Husqvarna original battery.
• Damage caused by not using Husqvarna original
spare parts and accessories, such as blades and
installation material.
• Damage to the loop wire.
• Damage caused by non-authorized changing or
tampering with the product or its power supply.
The blades and wheels are seen as disposable and are
not covered by the warranty.
If an error occurs with your Husqvarna product,
please contact Husqvarna customer service for further
instructions. Please have the receipt and the product’s
serial number at hand when contacting Husqvarna
customer service.
1650 - 006 - 20.02.2023
Warranty - 51
www.husqvarna.com
AUTOMOWER
®
is a trademark owned by Husqvarna AB.
Copyright
©
2023 HUSQVARNA. All rights reserved.
Original instructions
1143081-26
2023-03-13
