1 DESCRIPTION
1.1 PURPOSE
This machine is used to remove and clear away snow
from sidewalks, driveways and other paved ground-level
surfaces.
1.2 OVERVIEW
1
2 3
4
5
4
6
7
8
1
Battery compartment
2
Lock-out button
3
Trigger
4
Impeller
5
Scraper
6
Lower shaft
7
Auxiliary handle
8
Upper shaft
2 GENERAL APPLIANCE
SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term “appliance” in the warnings refers to your
battery-operated (cordless) snow shovel.
• Do not allow children under the age of 14 to operate
this tool. Children who are 14 years of age or older
must read and understand the operating instructions
and safety rules in this manual and must be trained
and supervised by a parent.
• Read the operating and service instruction manual
carefully. Be thoroughly familiar with the controls
and the proper use of the appliance. Know how to
stop the unit and disengage the controls quickly.
• Never allow children to operate the appliance. Never
allow adults to operate the appliance without proper
instruction.
• Keep the area of operation clear of all persons,
particularly small children, and pets.
• Exercise caution to avoid slipping or falling,
especially when operating in reverse.
• Do not use on graveled surfaces.
• Dress Properly – Do not wear loose clothing or
jewelry. They can be caught in moving parts.
• Wear rubber boots when operating the appliance.
• Operation of the appliance in the hand-held position
is unsafe, except in accordance with the special
instructions for such use provided in the operator’s
manual.
• Thoroughly inspect the area where the appliance is
to be used and remove all doormats, sleds, boards,
wires, and other foreign objects.
• Do not operate the appliance without wearing
adequate winter garments. Wear footwear, which
will improve footing on slippery surfaces.
• Adjust the housing height to clear gravel or crushed
rock surface.
• Never attempt to make any adjustments while
the appliance is running (except where specifically
recommended by manufacturer).
• Always wear safety glasses or eye shields during
operation or while performing an adjustment or
repair to protect eyes from foreign objects that may
be thrown from the appliance.
• Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to battery
pack, picking up or carrying the appliance. Carrying
the appliance with your finger on the switch or
energizing appliance that have the switch on invites
accidents.
• Disconnect the battery pack from the appliance
before making any adjustments, changing
accessories, or storing appliance. Such preventive
safety measures reduce the risk of starting the
appliance accidentally.
• When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screw or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
4
English
EN
ejected from the battery may cause irritation or
burns.
• Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at all
times.
• Exercise extreme caution when operating on or
crossing gravel drives, walks, or roads. Stay alert
for hidden hazards or traffic.
• After striking a foreign object, turn the machine off
and remove the battery pack, and then inspect it for
damage. Repair any damage before restarting and
using the machine.
• If the appliance should start to vibrate abnormally,
stop the machine and check immediately for the
cause. Vibration is generally a warning of trouble.
• Stop the machine whenever you leave the operating
position, before unclogging the collector/impeller
housing or discharge guide, and when making any
repairs, adjustments, or inspections.
• When cleaning, repairing, or inspecting, make
certain the collector/impeller and all moving parts
have stopped.
• Exercise extreme caution when operating on slopes.
• Never operate the appliance without proper guards,
keep other safety protective devices in place and
working.
• Never direct the discharge toward people or areas
where property damage can occur. Keep children
and others away.
• Don’t Overreach – Keep proper footing and balance
at all times.
• Do not overload the machine capacity by attempting
to clear snow at too fast a rate.
• Don’t Force appliance – It will perform better and
safer at the rate for which it was designed.
• Never operate the appliance at high transport
speeds on slippery surfaces. Use care when
reversing.
• Never direct discharge at bystanders or allow
anyone in front of the appliance.
• Disengage power to the collector/impeller when the
appliance is transported or not in use.
• Use only attachments and accessories approved by
the manufacturer of the appliance (such as wheel
weights, counterweights, or cabs).
• Never operate the appliance without good visibility
or light. Always be sure of your footing, and keep a
firm hold on the handles.
• Walk, never run.
• Clearing a Clogged Discharge Chute.
• The machine is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
machine by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the machine.
• Hand contact with the rotating impeller inside the
discharge chute is the most common cause of injury
associated with appliances. Never use your hand to
clean out the discharge chute. To clear the chute:
1. SHUT THE ENGINE（Motor） OFF!
2. Wait 10 seconds to be sure the impeller blades
have stopped rotating.
3. Always use a clean-out tool, not your hands.
• If the appliance strikes a foreign object follow these
steps:
1. Stop the appliance. Release the switch.
2. Remove the battery pack.
3. Inspect for damage.
4. Repair any damage before restarting and
operating the appliance.
• Check shear bolts; engine-mounted bolt, etc., at
frequent intervals for proper tightness to be sure the
appliance is in safe working condition.
• Always refer to owner’s guide instructions for
important details if the appliance is to be stored for
an extended period.
• Store Idle appliances Indoors – When not in use,
the appliances should be stored indoors in a dry,
locked-up place – out of reach of children.
• Check shear bolts and other bolts at frequent
intervals for proper tightness to be sure the
equipment is in safe working condition.
• Run the appliance a few minutes after throwing
snow to prevent freeze-up of the collector/impeller.
• Do not use a battery pack or appliance that
is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire，explosion or risk of injury.
• Do not expose a battery pack or appliance to fire
or excessive temperature space. Exposure to fire
or temperature above 265°F (130°C) may cause
explosion.
• Follow all charging instructions and do not charge
the battery pack or appliance outside of the
temperature range specified in the instructions.
Charging improperly or at temperatures outside of
the specified range may damage the battery and
increase the risk of fire.
• Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used
with another battery pack.
• Use appliances only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
• Have servicing performed by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
5
English
EN
• Do not modify or attempt to repair the appliance or
the battery pack (as applicable) except as indicated
in the instructions for use and care.
• Maintain appliance with care - follow instructions for
changing accessories.
• Maintain or replace safety and instructions labels, as
necessary.
3 RECOMMENDED AMBIENT
TEMPERATURE RANGE:
Item Temperature
Snow shovel storage tem-
perature range
1.4 ˚F (-17 ˚C) ~ 113 ˚F
(45 ˚C)
Snow shovel operation
temperature range
1.4 ˚F (-17 ˚C) ~ 113 ˚F
(45 ˚C)
Battery charging tempera-
ture range
39 ˚F (4 °C) ~ 104 ˚F (40
˚C)
Charger operation temper-
ature range
39 ˚F (4 °C) ~ 104 ˚F (40
˚C)
Battery discharging tem-
perature range
1.4 ˚F (-17 ˚C) ~ 113 ˚F
(45 ˚C)
Battery storage tempera-
ture range
32 °F (0 °C) ~ 113 °F (45
°C)

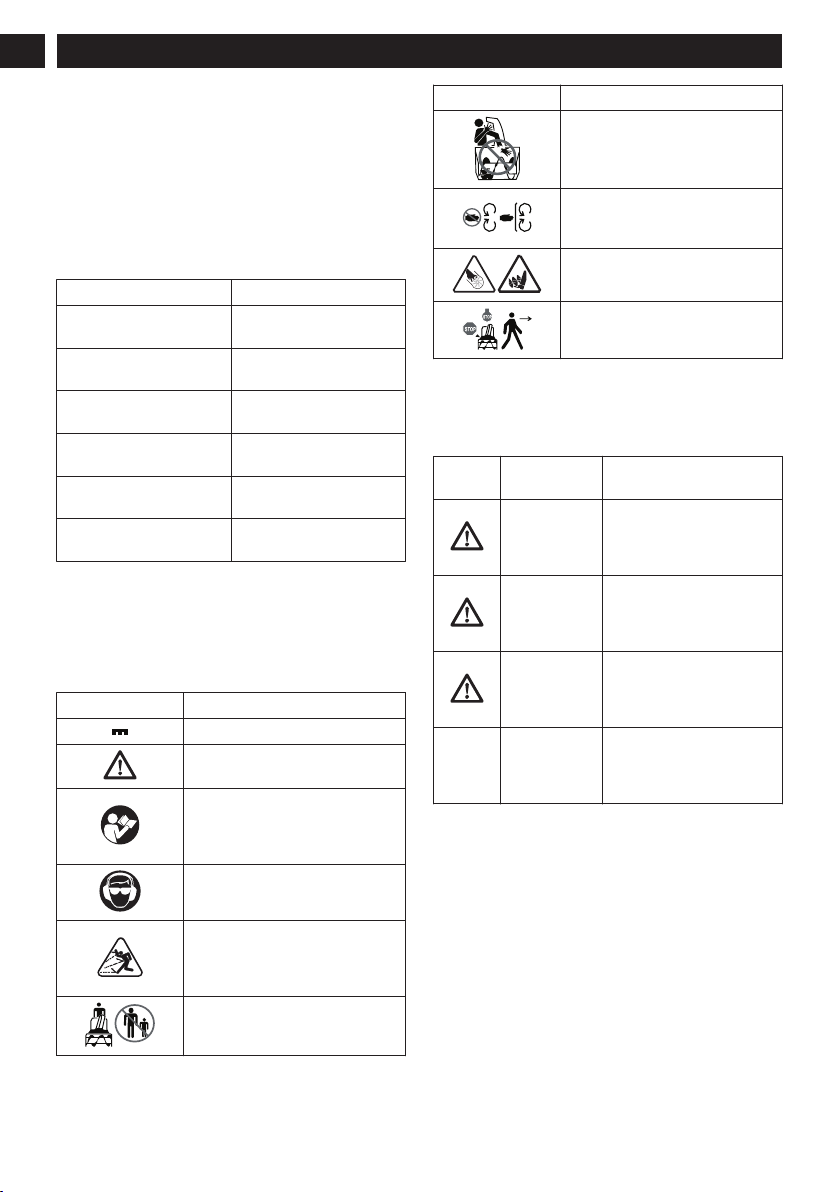

4 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this
tool. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate
the tool better and safer.
Symbol Explanation
Direct current
Precautions that involve your
safety.
Read and understand all instruc-
tions before operating the prod-
uct, and follow all warnings and
safety instructions.
Wear eye protection.
Thrown objects can ricochet and
result in personal injury or proper-
ty damage. Wear protective cloth-
ing and boots.
Keep bystanders a safe distance
from the machine.
Symbol Explanation
Keep hands away from the dis-
charge area.
Stay away from moving parts.
Keep all guards and shields in
place.
Keep feet out of impeller. Keep
feet away from rotating impeller.
Stop the motor and remove the
battery before leaving the product.
5 RISK LEVELS
The following signal words and meanings are intended
to explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently
hazardous situation, which,
if not avoided, will result in
death or serious injury.
WARNING Indicates a potentially haz-
ardous situation, which, if
not avoided, could result in
death or serious injury.
CAUTION Indicates a potentially haz-
ardous situation, which, if
not avoided, may result in
minor or moderate injury.
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation
that may result in property
damage.
6 SERVICE
Servicing requires extreme care and knowledge and
must be performed only by a qualified service
technician. For service we suggest you return the
machine to your nearest AUTHORIZED SERVICE
CENTER for repair. Use only identical manufacturer’s
replacement parts and accessories.
6
English
EN
7 ENVIRONMENTALLY SAFE
BATTERY DISPOSAL
The toxic and corrosive materials below are in the
batteries used in this machine: Lithium-ion, a toxic
material.
WARNING
Discard all toxic materials in a specified manner to
prevent contamination of the environment. Before
discarding damaged or worn out Lithium-ion battery,
contact your local waste disposal agency, or the local
Environmental Protection Agency for information and
specific instructions. Take the batteries to a local
recycling and/or disposal center, certified for Lithium-
ion disposal.
WARNING
If the battery pack cracks or breaks, with or without
leaks, do not recharge it and do not use. Discard it
and replace with a new battery pack. DO NOT TRY
TO REPAIR IT! To prevent injury and risk of fire,
explosion, or electric shock, and to avoid damage to
the environment:
• Cover the terminals of the battery with heavy-duty
adhesive tape.
• DO NOT try to remove or destroy any of the
battery pack components.
• DO NOT try to open the battery pack.
• If a leak develops, the released electrolytes are
corrosive and toxic. DO NOT get the solution in the
eyes or on skin, and do not swallow it.
• DO NOT put these batteries in your regular
household trash.
• DO NOT incinerate.
• DO NOT put them where they will become part of
any waste landfill or municipal solid waste stream.
• Take them to a certified recycling or disposal
center.
8 PROPOSITION 65
WARNING
This product contains a chemical known to the
state of California to cause cancer, birth defects
or other reproductive harm. Some dust created by
power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to
cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated
lumber.
Your risk of exposure to these chemicals varies
depending on how often you do this type of work. To
reduce your exposure to these chemicals, work in a
well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially
designed to filter out microscopic particles.
Save these instructions.
9 INSTALLATION
WARNING
Do not change or make accessories that are not
recommended by the manufacturer.
WARNING
Do not install the battery pack until you assemble all
the parts.
9.1 UNPACK THE MACHINE
WARNING
Make sure that you correctly assemble the machine
before use.
WARNING
• If parts of the machine are damaged, do not use
the machine.
• If parts are missing, do not operate the machine.
• If parts are damaged or missing, contact the
service center.
1. Open the package.
2. Read the documentation provided in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and packing material in compliance
with local regulations.
7
English
EN
WARNING
For your personal safety, do not insert battery before
the tool is assembled completely.

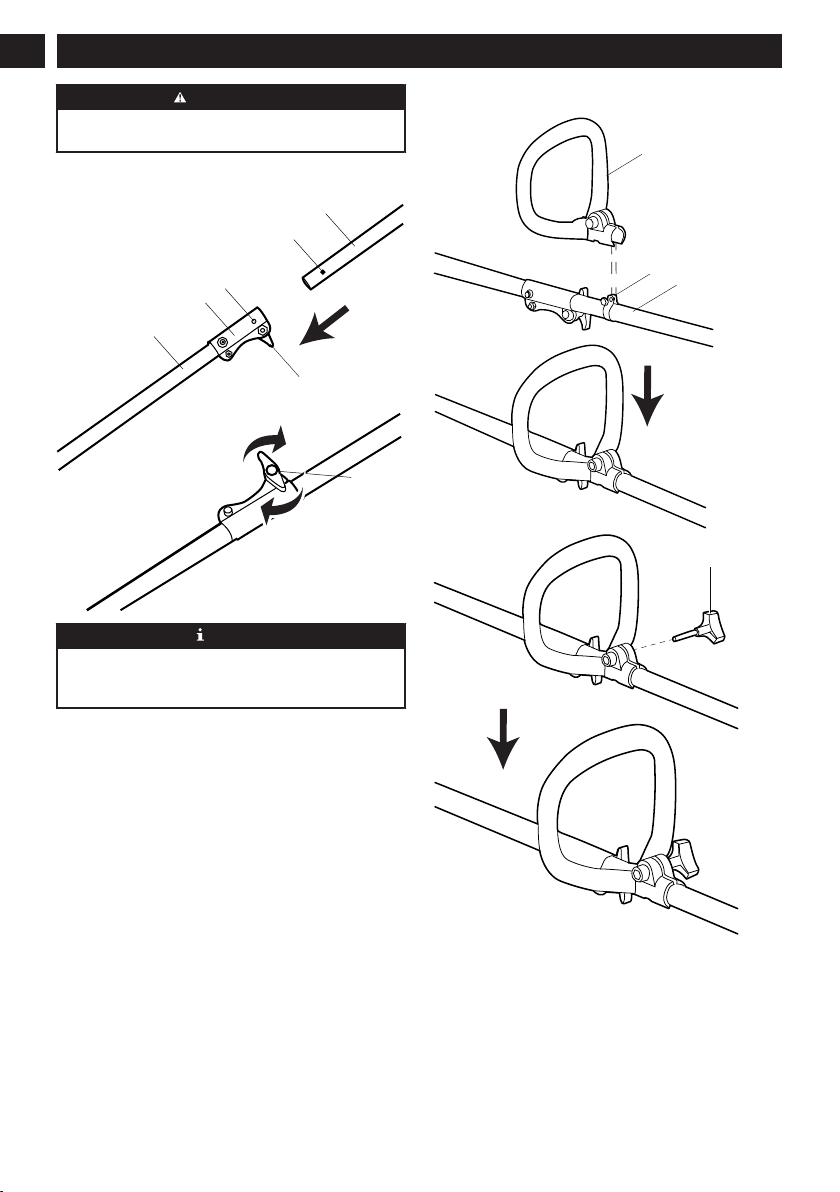

9.2 ATTACH THE SHAFT
12
8
9
10
11
6
12
NOTE
If the button does not release fully in the location hole,
the shafts are not locked into position. Turn from side
to side until the button is locked into position.
1. Loosen the lock knob (12) on the coupler (11).
2. Align the release button (9) with the location hole
(10) and move the two shafts together.
3. Turn the upper shaft (8) until the release button (9)
locks into the location hole (10).
4. Tighten the lock knob (12).
9.3 ATTACH THE AUXILIARY HANDLE
7
13
8
14
1. Push the auxiliary handle (7) onto the upper shaft
(8).
2. Move the auxiliary handle (7) above the metal ring
(13) and make sure that the metal ring (13) fits
between the slot on the auxiliary handle (7).
3. Align the holes on the auxiliary handle (7) and the
metal ring (13).
8
English
EN
4. Put the handle knob (14) through the holes and
tighten it.

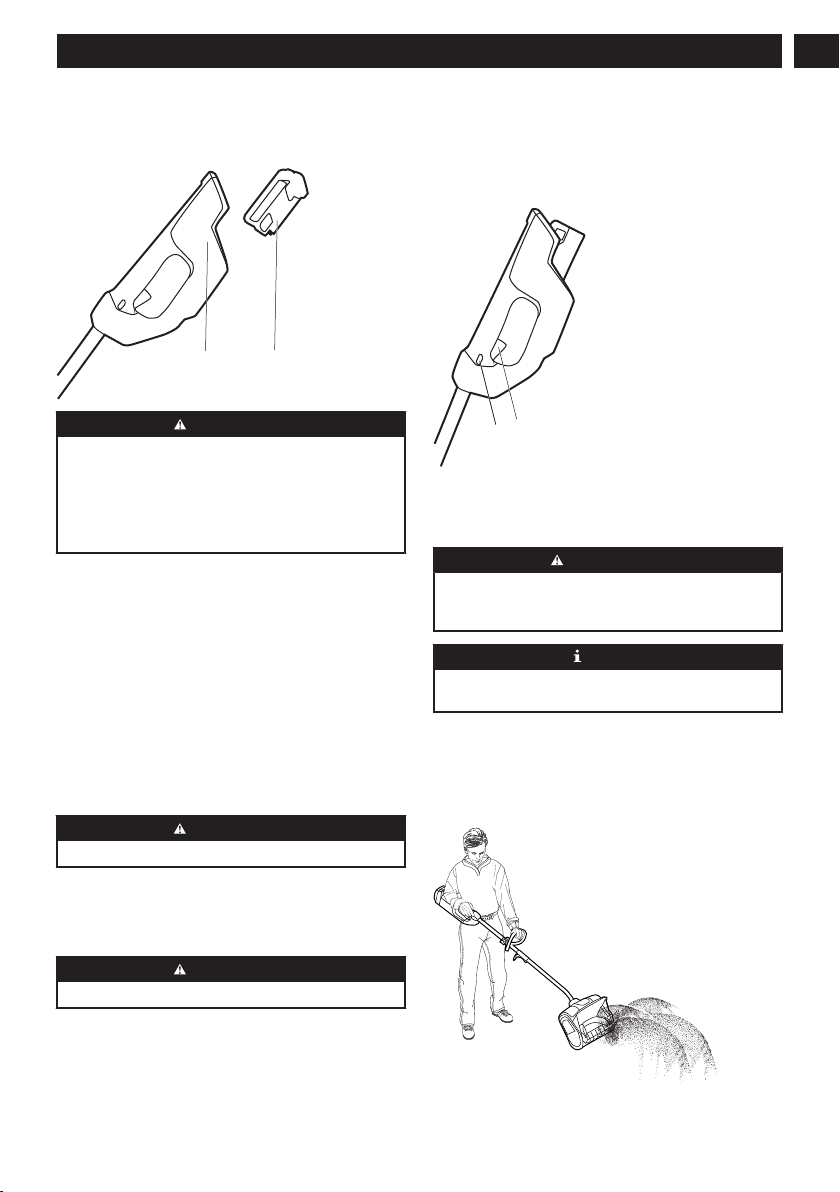

9.4 INSTALL THE BATTERY PACK
1 16
WARNING
• If the battery pack or charger is damaged, replace
the battery pack or the charger.
• Stop the machine and wait until the engine stops
before you install or remove the battery pack.
• Read, know, and do the instructions in the battery
and charger manual.
1. Align the lift ribs on the battery pack (16) with the
grooves in the battery compartment (1).
2. Push the battery pack into the battery compartment
(1) until the battery pack (16) locks into place.
3. When you hear a click, the battery pack is installed.
9.5 REMOVE THE BATTERY PACK
1. Push and hold the battery release button.
2. Remove the battery pack (16) from the machine.
10 OPERATION
WARNING
Wear eye protection during operation.
10.1 COLD WEATHER OPERATION
The safe battery operation temperature ranges from 1°F
(-17°C) to 113°F (45°C).
WARNING
Do not store or charge battery outside.
Battery must be charged and stored indoors prior to use
of the machine.
If the machine does not start:
• remove the battery pack from the machine,
• charge the battery pack to 15 minutes in warm area,
or when the charging light turns green.
• Install the battery pack back in the unit.
10.2 START THE MACHINE
2 3
1. Push and hold the lock-out button (2).
2. Pull the trigger (3) to start the machine.
3. Release the lock-out button (2).
WARNING
Examine the work area. Remove all stones, sticks,
wire, bones, and other debris that can ricochet
because of the rotating impeller.
NOTE
If it is possible, clear the snow in the direction of the
wind.
10.3 STOP THE MACHINE
1. Release the trigger (3) to stop the machine.
10.4 OPERATE THE MACHINE
9
English
EN
1. Start the machine.
2. Push the machine forward until it rides on the
scraper (14).
NOTE
The forward speed is dependent on the depth and
weight of the snow.
11 MAINTENANCE
WARNING
Remove the battery pack from the machine before
maintenance.
WARNING
Wear correct clothing, gloves and safety glasses
before maintenance.
CAUTION
Use only approved replacement parts.
CAUTION
Do not let brake fluids, gasoline, petroleum-based
materials touch the plastic parts. Chemicals can
cause damage to the plastic, and make the plastic
unserviceable.
CAUTION
Do not use strong solvents or detergents on the plastic
housing or components.
11.1 GENERAL MAINTENANCE
• Before each use, examine the machine for
damaged, missing, or loose parts such as screws,
nuts, bolts and caps.
• Tighten all the fasteners and caps correctly.
• Clean the remaining snow on the machine with a
brush.

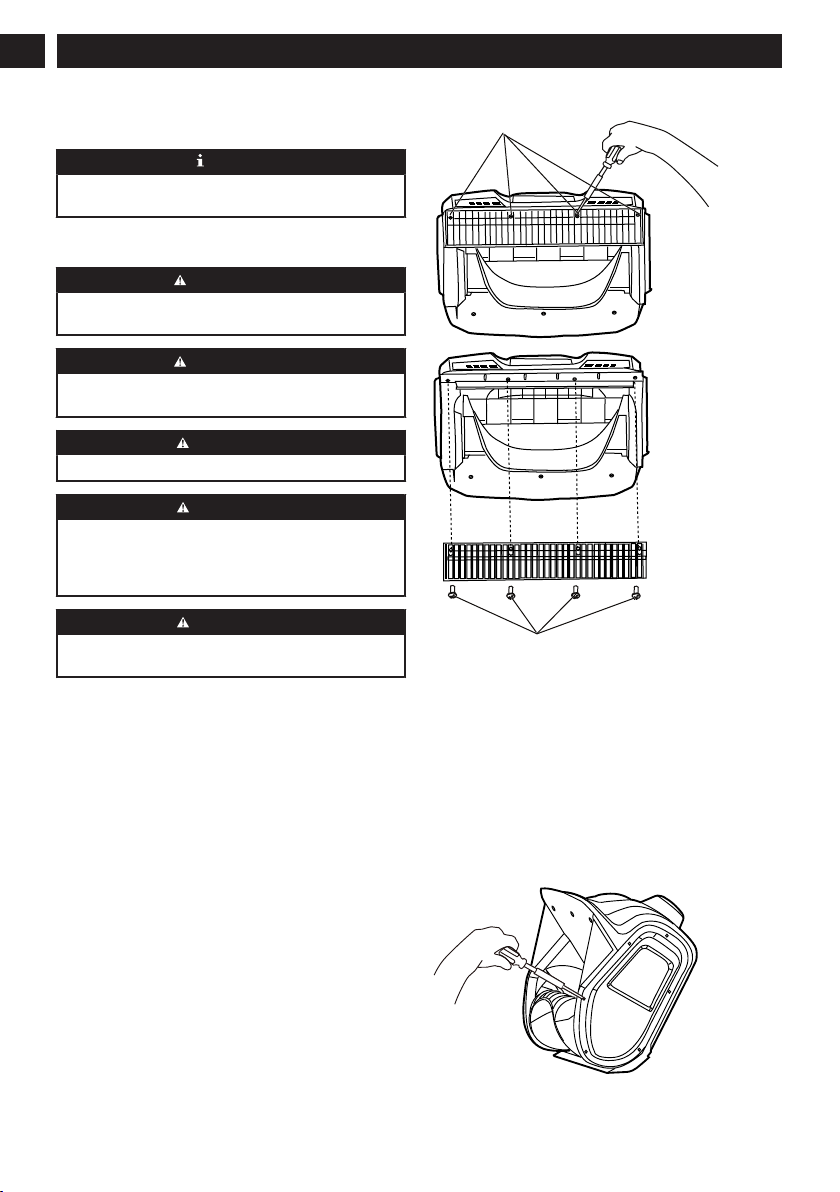

11.2 REPLACE THE SCRAPER
15
15
1. Put the machine on a flat, level surface.
2. Face up the impeller (4).
3. Remove the 4 screws below the impeller (4) that
attach the scraper (5) to machine.
4. Remove the worn scraper (5).
5. Install the new scraper (5).
6. Install and tighten the screws (15) that you removed.

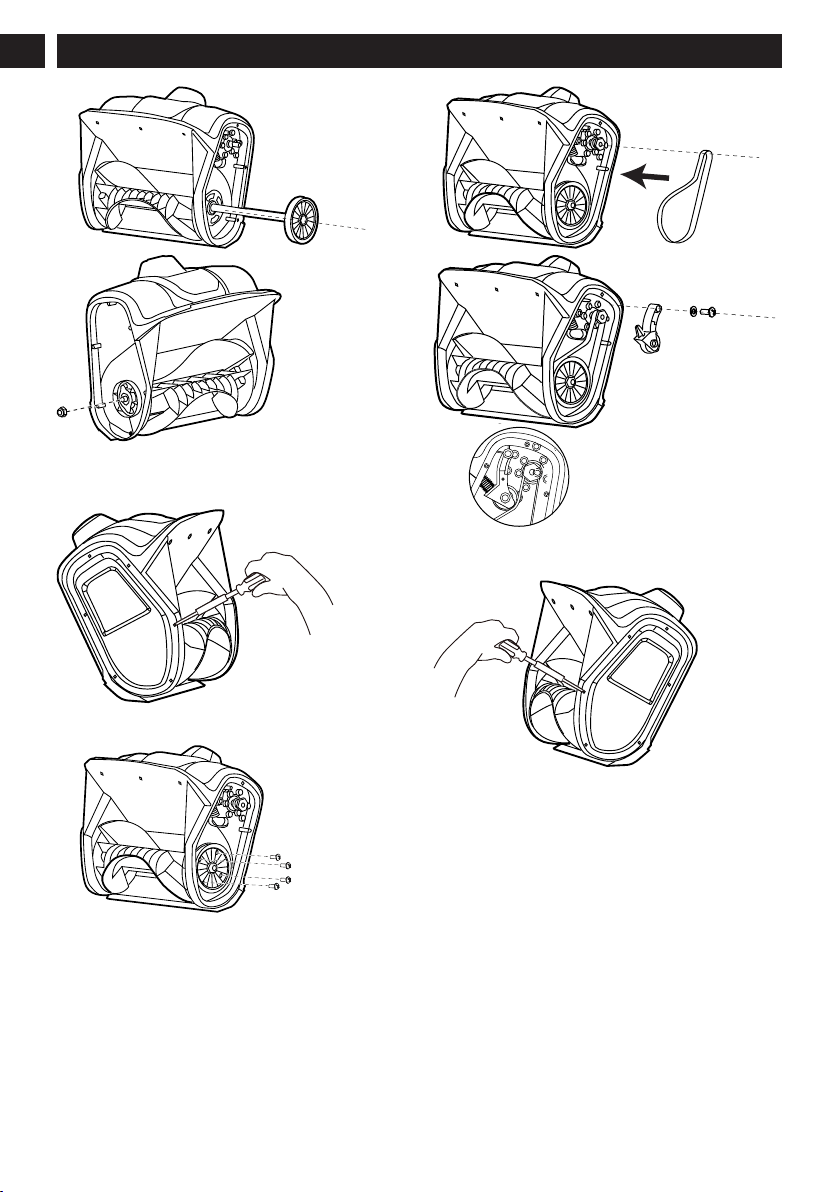

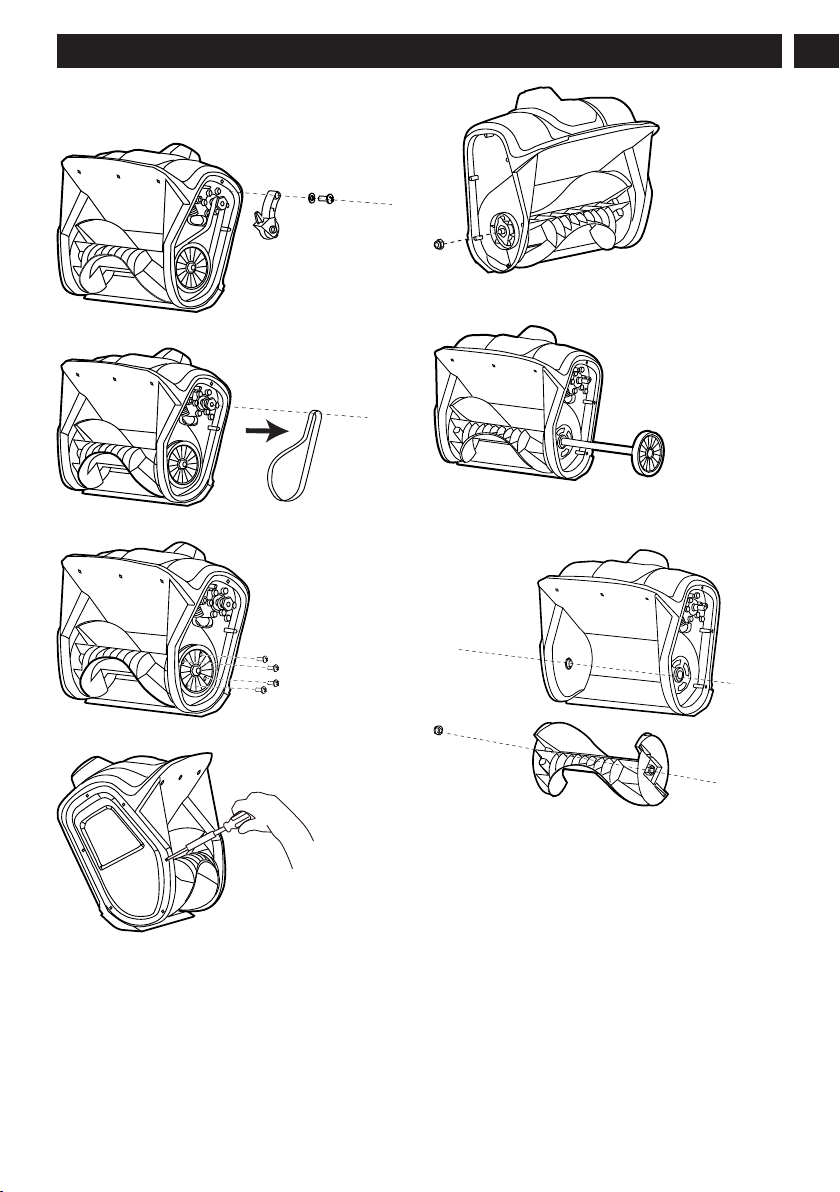

11.3 REPLACE THE IMPELLER
1. Remove 6 screws on the right side cover.
10
English
EN
2. Pull the belt tensioner away from the engine pulley.
Make sure that the washer, spring and screw are not
missing.
3. Remove the belt.
4. Remove the 4 screws.
5. Remove the 6 screws on the left side cover.
6. Remove the nut on the left side plate.
7. Remove the impeller shaft with pulley assembly
attached.
8. Remove the damaged impeller (13). Make sure that
the shaft sleeve on the left side of the shaft is not
missing.
9. Install the impeller shaft with pulley assembly
attached in the new impeller. Make sure that you
replace the retained shaft sleeve on the left side of
the shaft.
11
English
EN
10. Replace and tighten the remaining nut on the left
side plate assembly, screws on the left side cover
and screws on the pulley assembly.
11. Put the belt and the belt tensioner into position.
12. Replace and tighten the remaining screws on the
right side cover.
12 TRANSPORTATION AND
STORAGE
• Clean the machine before storage.
• Make sure the engine is not hot when you stow the
machine.
• Make sure that the machine does not have loose or
damaged parts. If it is necessary, do these steps/
instructions:
• Replace the damaged parts.
• Tighten the bolts.
• Speak to a person of an approved service
center.
• Stow the machine in a locked, dry area.
• Make sure that children cannot come near the
machine.
12
English
EN
• When you move the machine, hold it by the top
handle and auxiliary handle.
13 TROUBLESHOOTING
Problem Possible cause Solution
The handle is
not in position.
The bolts are not
engaged correct-
ly.
Adjust the height
of the handle
and make sure
that the knobs
and bolts are
aligned correctly.
The machine
does not start.
The battery is
not charged.
Charge the bat-
tery by following
the procedures
in the battery
and charger
manual.
The switch is de-
fective.
Have the switch
replaced by an
authorized serv-
ice center.
Battery is too
cold.
Remove battery
from snow throw-
er. Place battery
on charger and
allow to charge
for 10 minutes or
until the chang-
ing light turns
green. Remove
from charger and
install in snow
thrower for use.
Battery may re-
quire service or
replacement.
Call toll free
helpline, at
1-833-493-5483
or replace bat-
tery.
The engine is
on, but the im-
peller does not
turn.
The belt is dam-
aged.
Replace the belt.
A thin layer of
snow stays be-
hind.
The scraper is
damaged.
Replace the
scraper.
* If you cannot find the solution to these problems, call
1-833-493-5483.
14 TECHNICAL DATA
Voltage 40 V
No load speed 1800 RPM
Clearing width 12 in (30.5 cm)
Clearing depth 6 in (15.2 cm)
Impeller size 11 in (27.9 cm)
Weight (without battery
pack)
15.4 lbs (7 kg)
Battery L-600 and other BAF ser-
ies
Charger C-220 and other CAF ser-
ies
15 LIMITED WARRANTY
YEAR
ANS
AÑOS
LIMITED WARRANTY
GARANTIE LIMITÉE
GARANTÍA
LIMITADA
3
Greenworks hereby warranties this product, to the
original purchaser with proof of purchase, for a period
of three (3) years against defects in materials, parts
or workmanship. Greenworks, at its own discretion, will
repair or replace any and all parts found to be defective,
through normal use, free of charge to the customer.
This warranty is valid only for units which have been
used for personal use that have not been purchased
or rented for industrial/commercial use, and that have
been maintained in accordance with the instructions
in the owners’ manual supplied with the product when
new.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to
misuse, commercial use, abuse, neglect, accident,
improper maintenance, or alteration; or
2. The unit, if it has not been operated and/or
maintained in accordance with the owner's manual;
or
3. Normal wear;
4. Routine maintenance items such as lubricants,
blade sharpening;
5. Normal deterioration of the exterior finish due to use
or exposure.
HELPLINE:
Warranty service is available by calling our toll-free
helpline at 1-833-493-5483.
13
English
EN
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power
equipment unit or attachment are the responsibility of
the purchaser. It is the purchaser’s responsibility to
pay transportation charges for any part submitted for
replacement under this warranty unless such return is
requested in writing by Greenworks.
USA address: Canadian address:
Greenworks Tools Greenworks Tools Canada,
Inc.
P.O. Box 1238 P.O. Box 93095, Newmarket,
Ontario
Mooresville, NC 28115 L3Y 8K3
16 EXPLODED VIEW
1
2
No. Part No. Qty Description
1 R0200289-00 1 Impeller assembly
1-1 R0201587-00 1 Belt
1-2 R0202976-00 1 Impreller
1-3 R0201930-00 1 wheel
2 R0203073-00 1 Auxiliary handle assembly
2-1 R0203074-00 1 Auxiliary handle
2-2 R0203072-00 1 Auxiliary handle knob
2-3 R0202533-00 1 Metal ring
14
English
EN
