Model No.: FN56305
aireRyder ORIGINAL CEILING FAN LIMITED LIFETIME WARRANTY
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in
material or workmanship as follows:
If your aireRyder Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in
material or workmanship, we will provide a replacement part free of charge.
If your Fan motor fails at any time within one year after the original date of sale to the original purchaser due to defects
in material or workmanship, we will provide labor to repair the defect, with the exception of take down/reinstallation,
free of charge. The original purchaser will be responsible for all labor costs after this one year period.
If no replacement parts are provided for any part of your Fan motor that fails at any time during your lifetime due to
defects in material or workmanship, we will refund the original purchase price of your Fan.
If your Fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light bulbs, fails at any
time within one year after the original date of purchase due to a defect in material and workmanship, we will repair or, if
we choose, replace the defective blades, switch, or accessory free of charge, with the exception of take
down/reinstallation services.
If the original purchaser ceases to own the Fan, this warranty and any implied warranty, including but not limited to any
implied warranty of merchantability or fitness for a particular purpose, become void. This warranty and any implied
warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, do not
cover glass globes, light bulbs, or finish on any metal portions of the Fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness for a
particular purpose, with respect to any aireRyder Ceiling Fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any aireRyder Ceiling Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the Fan while in your possession, or unreasonable use, including failure to provide
necessary maintenance.
In no event shall aireRyder Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the above
limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
LIMITED LIFETIME WARRANTY
F A N C OF A N C O
PAGE: 1 / 9
190104

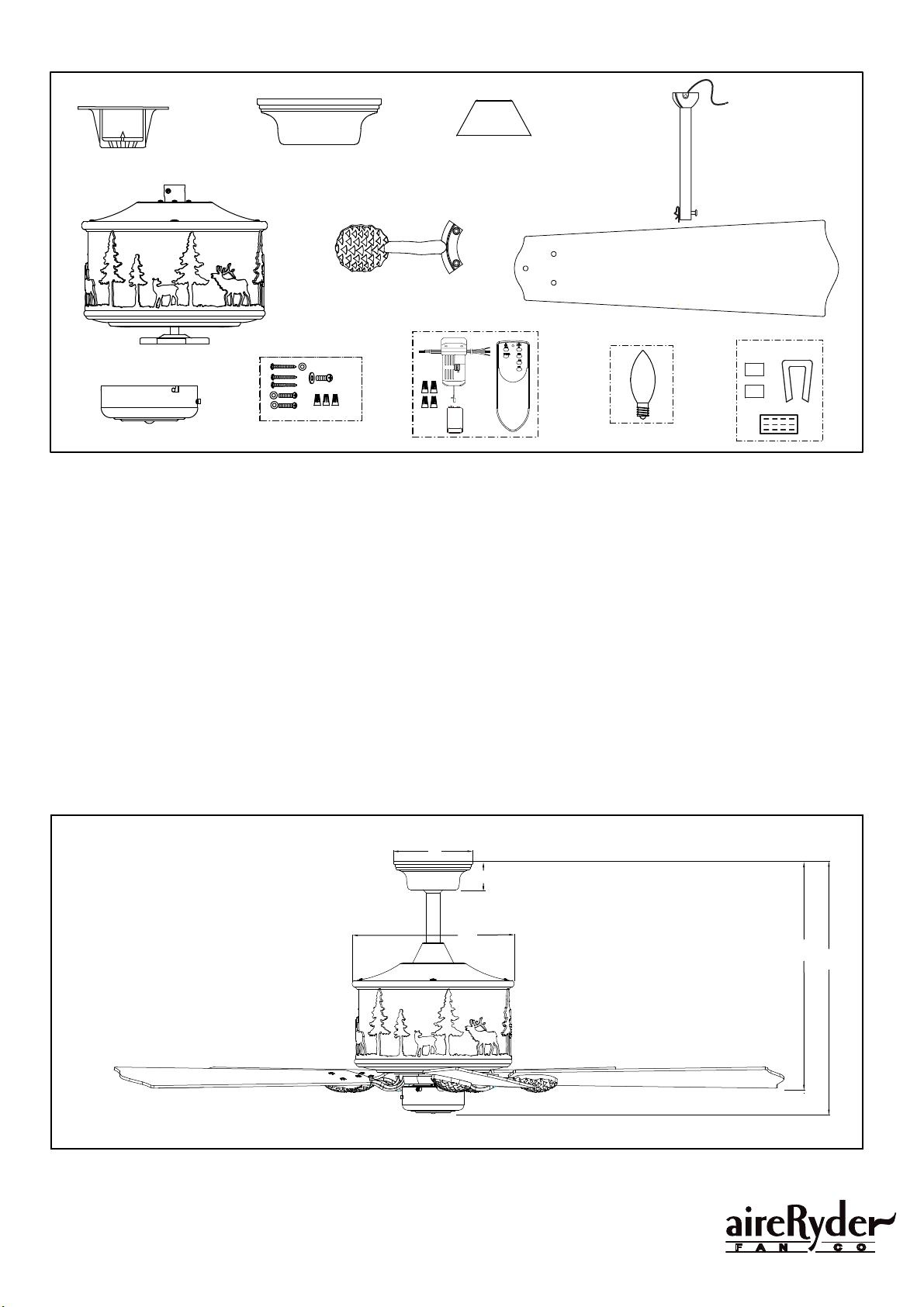

Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Downrod Stand Cover
4.) Downrod Set(Included Hanger Ball,6".Downrod,Hanger Pin & Lock Pin)
5.) Fan Fixture Set
6.) Blade bracket (5PCS)
7.) Fan Blade(5PCS)
8.) Switch Box
9.) Assembly Kit
10.) Remote Control (Receiver & Tramsmitter)
11.) 4-4W Type B11 E12 LED Bulbs (included）
12.) Blade Balancing Kit
Package Contents:
E
C
D
B
A
Dimension Reference (Installed with 6". Downrod):
A. 18". B. 16-1/2". C. 2-1/4". D. 12-3/8". E. 6".
F A N C OF A N C O
PAGE: 2 / 9
I H
OFF
U/L
D/L
LOW
ON
O
N
D
I
P
1 2
3
4
6
3
4
2
1
7
5
8
9
11
10
12
X16
190104

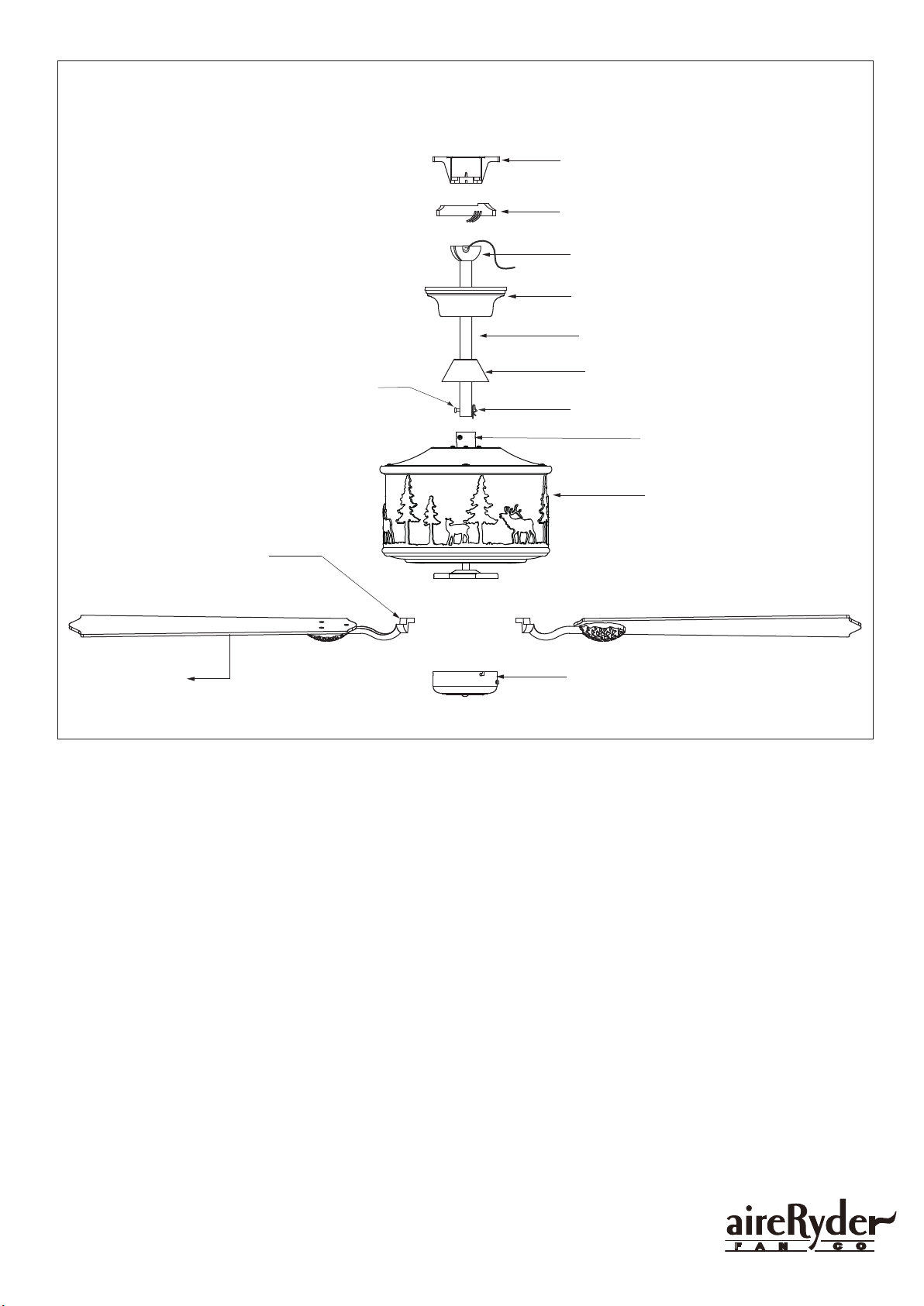

Hanger Bracket
Canopy
Downrod
Downrod Stand Cover
Hanger Ball
Hanger Pin
Blade Bracket
Collar
Lock Pin
Housing
Switch Box
Blade
Exploded View Detail
Receiver
F A N C OF A N C O
PAGE: 3 / 9
190104
F A N C OF A N C O
190104
PAGE: 4 / 9
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation
instructions are not meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors which can not be built into this product.
These factors must be supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING
Motor Wires
Thread the motor wires through the
canopy, downrod stand cover and
downrod.
F A N C OF A N C O
PAGE: 5 / 9

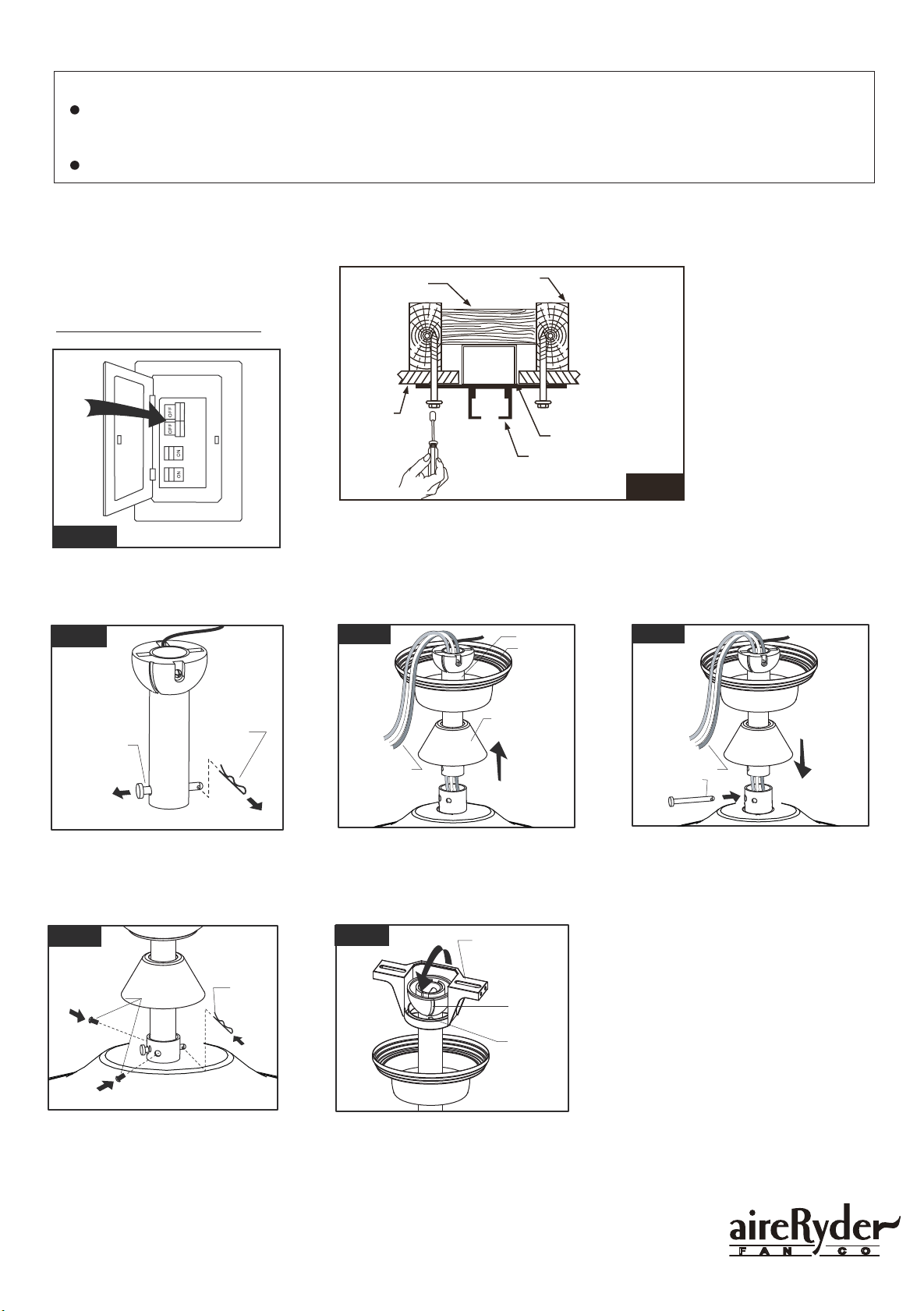

Installation Steps :
Hanger Pin
Lock Pin
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION ON THE SEPARATE
SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN
DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SAVE ALL INSTRUCTIONS.
NOTE: The fan weight is 21.1 lb (9.6 kg). Be sure the outlet box you are using is securely attached to the building structure
and can support the full weight of the fan. Failure to do so can result in serious injury.
Hang the fan on hanger bracket, and
make sure the slot of hanger ball is
snapped into the chip of hanger
bracket exactly.
Note: For slope ceiling installation,
make sure the slot of hanger ball
and the chip of hanger bracket is
face down.
Fig.1
Turn off the electric circuit at the
main fuse or circuit breaker box.
Remove the Lock Pin and take off
the Hanger Pin.
Fig.3
Insert and tighten the two Collar
Screws. Slide Lock Pin into Hanger
Pin until it is locked into position.
Fig.6
Lock Pin
Collar Screw
Slot
Chip
Hanger Bracket
Fig.7
Insert the Downrod into the Collar.
Slide Hanger Pin through holes of
Collar and Downrod.
Fig.5
Motor Wires
Downrod
Downrod Stand
Cover
Canopy
Fig.4
Hanger Pin
Tighten the hanger bracket to the outlet box with two mounting screws. (Make
sure the outlet box is securely installed so that it will be able to support
at least the fan weight.)
WARNING: MOUNT ONLY TO AN OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT"!
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Fig.2.
190104
PAGE: 6 / 9
F A N C OF A N C O
Tighten blades to blade brackets by
using blade screws and washers.
Screw
Canopy
Fig.12
Fig.13
Blade Screw
Washer
Blade Bracket
Blade
Secure the canopy to hanger
bracket with screws.
Fig.11
Attach the loop at the end of the safety cable to
the ceiling surface, then secure it with a flat
washer and dry wall screw. Make sure the flat
washer and dry wall screw are covered by the
fan canopy
Flat Washer
Safety Cable
Dry Wall Screw
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Fig.9

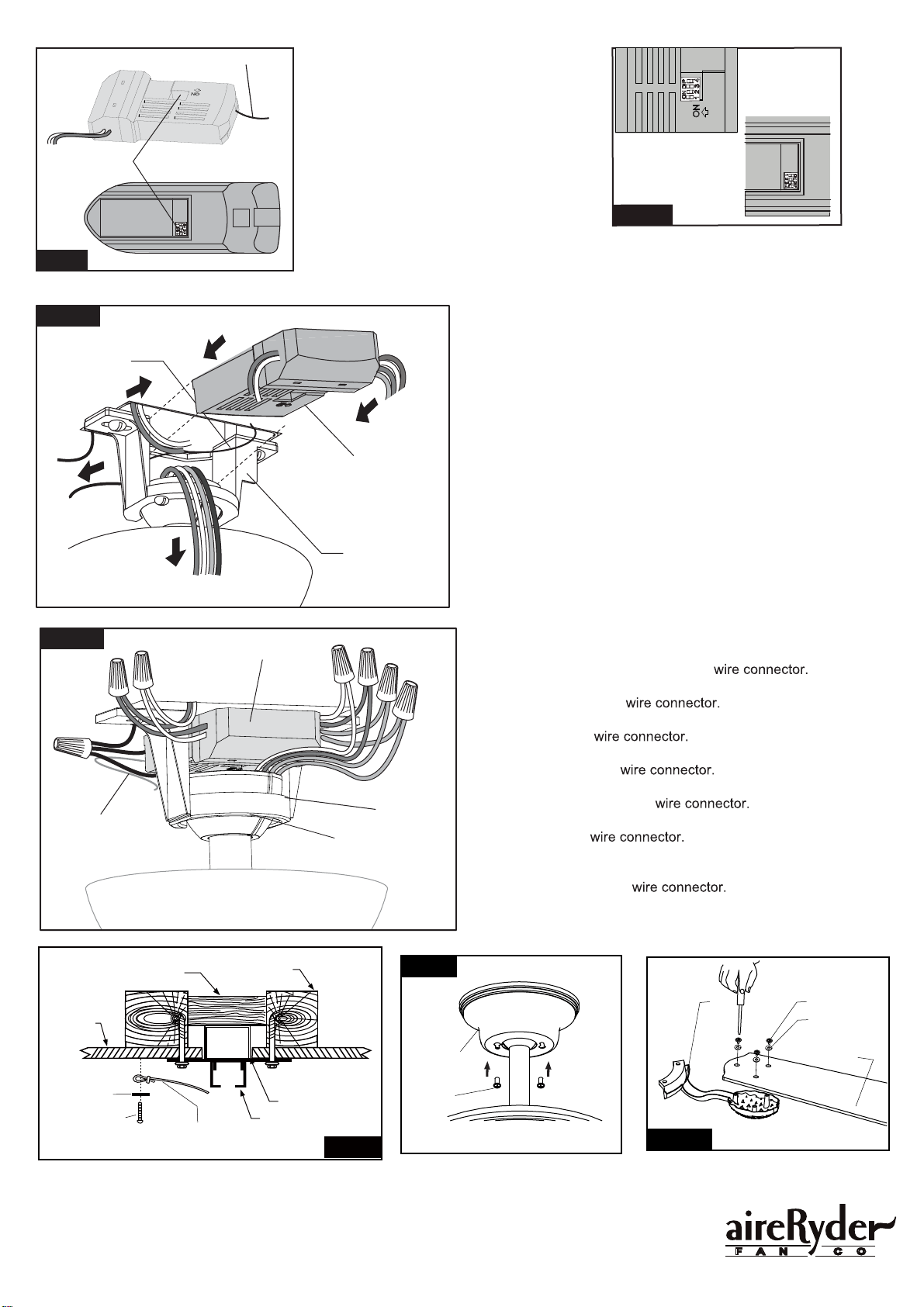

Move Ground Wires (a), Outlet Box wires (b), and
Motor Wires (c) away from the center of the Hanger
Bracket. Then slide Receiver through Hanger
Bracket as shown, Antenna end first, until it is
centered. Finally, cut Motor Wires (c) to length
needed for connections.
Antenna
Receiver
Hanger Bracket
Code example:
1-ON 2-OFF 3-ON 4-OFF
on both DIP Switches.
a.
c.
Fig.8
Antenna
DIP Switch
Transmitter
Receiver
Fig.8a
There is a code switch in the transmitter and
receiver. This "DIP Switch" is a 4 key unit
(Fig.8). All keys were set at "ON" position in
the beginning. Set the keys to a different code.
Make sure the same numbered keys are
switched "ON" for both DIP Switches (Fig.8a).
Take note that the "ON" position may have
different orientation for each.
Fig.10
Hanger
Bracket
Hanger Ball
Receiver
7 .
1 .
5 .
6 .
2 .
3 .
4 .
Antenna:
DO NOT CUT
OR SPLICE
Make wire connections:
1) The Motor white (neutral) wire to the white (neutral) "To
Motor N" wire from Receiver with a
2) The Motor black (hot) wire to the black (hot) "To Motor L" wire
from Receiver with a
3) The Motor blue wire to the blue "For Bottom Light" wire from
Receiver with a
4) The Motor orange wire to the orange "For Upper Light" wire
from receiver with a
5) The white (neutral) wire from Outlet Box to the white "AC in N"
wire from Receiver with a
6) The black wire from Outlet Box to the black "AC in L" wire from
Receiver with a
7) The ground wire from Outlet Box to the green ground wire
from the Hanger Ball and the green ground wire from the
Hanger Bracket with a
Make sure all of wire connectors are connected firmly.
***Tuck all wire connectors and wires carefully up into the Outlet Box,
EXCEPT antenna, which should remain outside Outlet Box.
b.
190104

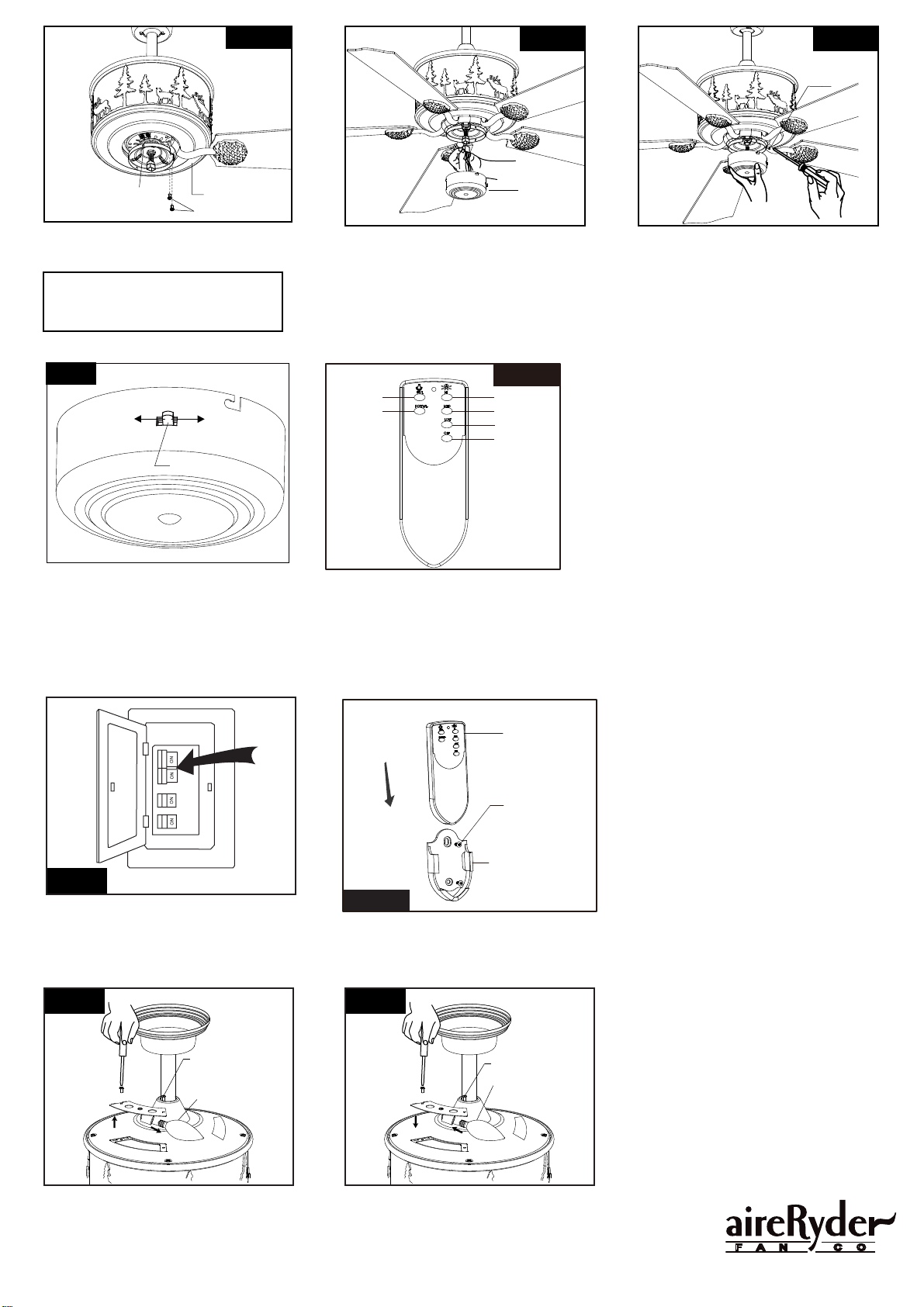

NOTE: Before installing blade
brackets to the motor, please
remove the plastic inserts.
PAGE: 7 / 9
Secure blade brackets to the motor with
motor screws and washers.
Assembly without fan light
Make sure the lead wire of fan light
in switch box is sealed with a wire
connector exactly. Secure the switch box
cover with the switch box screws.
Replace the fan housing inner bulbs
Screw
Plastic Insert
Fig.14
Motor Screw
Blade Bracket
Fig.16Fig.15
Switch Box
Screw
Fig.21
Connect the two terminals respectively
from the motor and the switch box.
Open the inner light plate of worse bulbs
by screw driver.Take off the worse bulb
and install the new one.
Secure the inner light plate back
Switch Box
Screw
Fig.22
F A N C OF A N C O
190104
4-4W Type B11 E12
LED Bulbs
4-4W Type B11 E12
LED Bulbs
(Included)
(Included)
Fig.18
Turn ON the electric circuit at the
main fuse or circuit breaker box.
The slide switch sets the direction
of fan rotation. Select the direction
of fan rotation you need by sliding
the switch.
Push the slide switch left for
"Forward" and right for "Reverse".
Fig.17
Slide Switch
Reverse
Forward
Fig.19
UP / L
DOWN / L
HI
LOW
OFF
MED
Install the battery (9V, included) to the transmitter.
Turn on the electric circuit.
Press "HI" button to
operate
the fan in high speed.
Press "MED" button to
operate
the fan in medium
speed.
Press "LOW" button to
operate
the fan in low speed.
Press "OFF " to turn the fan off.
Press and release the "UP/L" button quickly to turn
on/off the light.
Press and hold the "UP/L" button to adjust the
illumination of light with the dimmer switch.
Press and release the "DOWN/L" button quickly to
turn on/off the the light.
Press and hold the "DOWN/L " button to adjust the
illumination of light with the dimmer switch.
Note:
This remote controller has memory function setting.The fan will operate at the same
speed and the fan light will stay at the same status as the last time the power supply
was turned off.
HI
OFF
U/L
D/L
Install the transmitter wall bracket in
wall by two screws and hang
transmitter in it carefully. (See Fig.20)
Fig.20
Wall Bracket
Transmitter
Screw
MED
HI
OFF
U/L
D/L
LOW
Trouble Shooting Guide
TROUBLE
SUGGESTED REMEDY
PAGE: 8 / 9
F A N C OF A N C O
190104
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. If you experience any faults, please check this Trouble Shooting Guide. If a problem cannot be
remedied or you are experiencing difficulty in installation, please call our Customer Service Department.
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Make sure forward/reverse switch is firmly in left or right position. Fan will not
operate when switch is in the middle.
3. Make sure that the wall control is turned "ON".
4. Check line wire connections to fan and switch wire connections in switch
housing.
CAUTION: Make sure main power is turned off.
1. Make sure all screws in motor housing are snug. (not over tightened)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Make sure wire connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before accessing switch housing.
4. If using an optional ceiling fan light kit, make sure the screws securing
the glassware are finger tight. Make sure light bulb is tight in socket and
not touching glass shade(s). If vibration persists from glass, remove glass and
install a 1/4 in. Wide rubber band on glass neck to act as an insulator. Replace
glass and tighten screws against rubber band.
5. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade brackets.
2. Check that all blade brackets are tightened securely to motor.
3. Make sure that canopy and mounting plate are tightened securely to ceiling
junction box and junction box is mounted firmly to ceiling joist.
4. Most wobble problems of fan are caused when blades are not in equal level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. Interchanging two adjacent blades could redistribute the weight and possibly result
in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from supply wire
coming out of the ceiling.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty light bulbs.
CAUTION: Make sure main circuit is turned off before accessing switch housing.
DYNAMIC BLADE BALANCING KIT
PREFACE
Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the
blades or the blade brackets. Improper assembly in the mounting system may cause some additional
problems. This balancing kit can be used to fix wobbling problems.
DYNAMIC BLADE BALANCING KIT FOR CEILING FANS
1. Make sure that all blades are firmly screwed into the blade brackets.
2. Make sure that all blade brackets are firmly secured to the
motor housing.
3. By looking up at the fan from below, check and be certain that none of the blade brackets are bent
and that none of the blades are out of position.

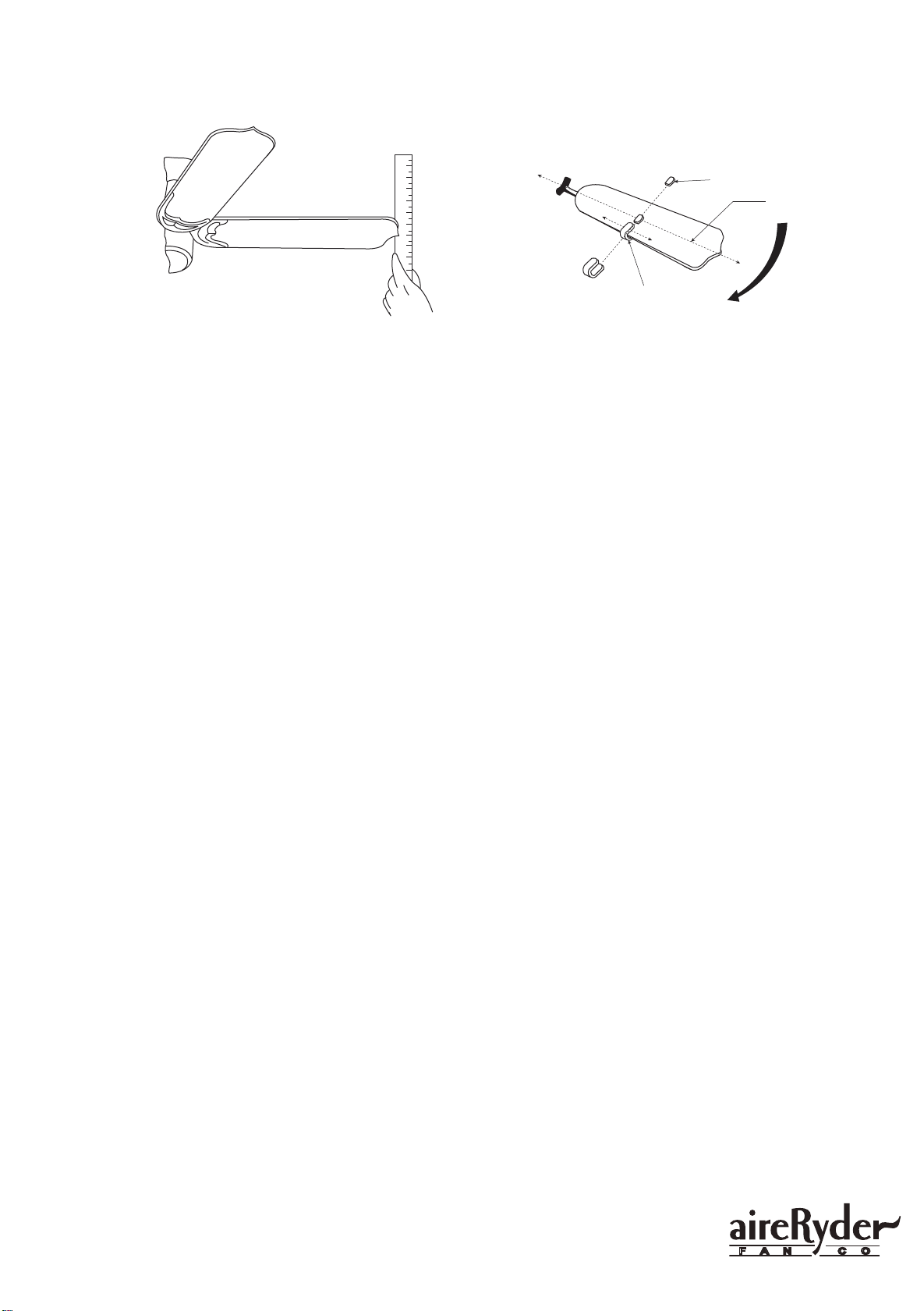

4. Use a yardstick to check the blade tracking. Put the yardstick up against the ceiling vertically and
against the outside leading edge of a blade. Note the distance of the edge of blade to the ceiling.
Carefully turn the blades slowly by hand to check the remaining blades. All distances should be
the same.
Operate the fan ten minutes. After following all the steps and if the wobbling problem is not solved, a
dynamic balancing needs to be done by balancing kit. Follow the procedure listed below:
● Turn the fan off. Select one blade and place the plastic clip on it, where the plastic clip locates is
halfway between the blade bracket and the blade tip on the edge of the blade.
Caution: The plastic clip should be placed on the windward edge of the blade for fear of
clip’s flying off.
● Turn the fan on (set the speed that causes the wobble most). Observe if the wobble is better or
worse. Turn the fan off and move the clip to the next blade. Do the same for all blades and note
on which blade the clip reduces the wobble most. Place the clip on the blade which showed the
most improvement. Move the clip inward and outward on this blade and operate the fan to find
the position where the clip gives the most improvement.
Caution: Stay clear of the blades. If the clip, for any reason, is not secure, injury could result .
● Once the exact position is determined, place a weight on the top of the blade, on its centerline and
most close to the clip. Peel the paper off of the back of the weight and press firmly to ensure that
it is securely attached to the blade. Remove the clip.
Caution: Clean the surface of fan blade before placing the balancing weight so that the
balancing weight can be firmly attached on it.
BALANCING WEIGHT
MEASURING
POINT
YARDSTICK
PLASTIC CLIP
CENTERLINE
COUNTER-
CLOCKWISE
1
2
3
4
5
6
7
8
9
PAGE: 9 / 9
F A N C OF A N C O
190104
