Mobile air system
user manual
user manual
EnviroKlenz® Mobile Air System, 250 CFM
with Air Cartridge & HEPA Filter
Personal Environment Protection For Everyone
13421 Parker Commons Blvd., Suite #102
Fort Myers, FL 33912 U.S.A.
Phone: 239-330-9650
Email: [email protected]
Website: www.EnviroKlenz.com
1
warnings
Unit must be electrically grounded.
• Insert 3-prong plug on power cord directly into matching
grounded receptacle.
• Do not use with a three-prong/two-prong adapter.
Keep wiring and motor dry.
• Never use a water hose or pressure washer to clean electrical
components; water could enter the electrical compartment causing a
shock hazard.
• Do not operate in standing water.
• If electrical components become wet, allow them to dry completely
before using.
Unplug unit before performing any maintenance.
fire and electric shock hazard
hazard
• If using the processor in a containment work area, turn off all sources
ofpowertoopencombustionappliancessuchasreplaces,boilers,
furnaces, water heaters and HVAC systems to avoid the risk of back
drafting deadly carbon monoxide fumes from those appliances.
2
contamination hazard
If unit is used in hazardous or potentially hazardous environments
such as mold mitigation job sites:
• WearNIOSH-approvedprotectivegearwhenchangingtheHEPAlter
as it may contain mold spores.
• Change The EnviroKlenz®CartridgeandHEPAlterafterevery
remediation job.
• Dispose of used HEPA according to your local regulations.
tipping hazard
• Not recommended to stack units on top of each other.
• When stacking units, for storage or transportation in original packaging,
beware of tipping.
• Falling equipment could cause bodily harm.
3
warnings
about enviroklenz®
inside system
lab testing
• AcidGas(HydrogenSulde)
• NitrogenCompound(Ammonia)
• Formaldehyde(CommonIndoorAirPollutant)
• Efcacy
set up & cartridge replacement
best practices
settings
troubleshooting
contact, patents, & Product Family
warranty
2
7
8
10
16
18
19
20
21
22
table of contents
6
24
Cartridge and Filter Change Schedule
warnings
about enviroklenz®
inside system
set up & cartridge replacement
best practices
settings
troubleshooting
contact, patents, & Product Family
warranty
about enviroklenz®
Personal Environment Protection For Everyone
The creation of EnviroKlenz® was inspired by our Customers with multiple
chemical sensitivities and environmental illnesses. We have been honored
to be able to work closely with them and learn from their experience and
feedback. Through their recommendations, we introduced a product line
that is both effective and safe for everyone- especially those with illnesses
triggered by environmental exposures.
mission
how it works
The EnviroKlenz® Mobile Air System is your solution that improves your
personal environment air quality by removing chemical odors, fragrances,
VOCs, particulates, and allergens all at once through a 2 stage process.
Stage 1 consists of the patented EnviroKlenz® technology to neutralize
chemicals, pollutants, and fragrances, Stage 2 removes harmful dust,
particulate, allergens, pet dander, and more.
Theprocessutilizesmultistagetreatmentandltrationenhancedwith
EnviroKlenz® technology to adsorb, neutralize, and eliminate chemical
pollutants coming from a broad array of sources while removing airborne
particles such as dust and miscellaneous debris. The small size of the air
processor allows it to be portable and easily maneuverable.
Theprocesscombinesairow,particulateltration,andtheadvanced
odor-treatment technology of EnviroKlenz® to improve indoor air quality.
The processor moves air through an EnviroKlenz®AirCartridge(stage1)
andaparticulatelter(stage2).Whatmakesthetotalprocessuniqueis
the use of the EnviroKlenz® advanced odor-treatment technology for the
control of odor-causing molecules and a broad array of hazardous indoor
pollutants.
7
Cartridge and Filter Change Schedule
inside system
1. Air Intake
Air is brought in through the 3 top vented sides with 4
different speed settings to choose from, ranging from
85 - 250 CFM.
2. enviroklenz® air cartridge
The EnviroKlenz® Air Cartridge uses patented, natural
technology to adsorb and neutralize VOCs and other
chemicals, without the use of masking agents or harmful
chemicals. In most situations, this cartridge will need
replacement after 6 months of use.
3. hepa filter
HEPAltercapturesparticulateslargerthan0.3microns
ata99.99%efciencyrate.Inmostsituations,theHEPA
lterwillneedreplacementafter2yearsofuse.
4. clean air outtake
Filtered, clean air is directed out into the environment
with the bottom vent. On average, the air will be
exchanged 3 - 5 times per hour on highest setting
depending on the size of the room.
note: Be sure to use and follow your country’s electrical regulations.
8
1
4
2
3
9
Acid gas ( hydrogen sulfide )
Hydrogensuldeisanacidicgasthathasastrongodorofsulfuror
rotten eggs. It is a common pollutant that can come from sewage,
organicdecay,combustion,gases/fuels,andmore.Hydrogensuldeis
similar to many acids, and EnviroKlenz® has similar results against other
sulfur-containing compounds.
0
10
20
30
40
50
60
70
80
90
100
EnviroKlenz®
Carbon Filter Air System
Photocatalytic System
Time span of 60 min
EnviroKlenz® Mobile
Air System
lab testing
10
Nitrogen compound ( ammonia )
Ammonia has a very potent odor and is considered to be hazardous. It
is a pollutant that is commonly found in household cleaning products.
EnviroKlenz® has similar results against related chemicals, including
amines which are derivatives of ammonia and common air quality
pollutants.
0
10
20
30
40
50
60
70
80
90
100
EnviroKlenz
®
Carbon Filter Air System
Photocatalytic System
Time span of 30 min
EnviroKlenz® Mobile
Air System
11
Formaldehyde ( common indoor air pollutant )
Formaldehyde can off-gas from varnishes and paints and is one of many
compounds found in cigarette smoke. It is often found in manufactured
products, synthetic materials, and building products such as pressed
materials. EnviroKlenz® has similar results against a variety of volatile
organiccompounds(VOCs).
0
10
20
30
40
50
60
70
80
90
100
EnviroKlenz®
Carbon Filter Air System
Photocatalytic System
Time span of 90 min
12
EnviroKlenz® Mobile
Air System
• U.S. Army Center for Health Promotion
and Preventive Medicine
• U.S. Army Edgewood Chemical
Biological Center
testing labs
• Battelle Memorial Institute
• Coal Mines Technical Services
• Lloyds Registry
• MPI Research, Inc.
• Nelson Laboratories
Efficacy
The EnviroKlenz Technology has been extensively tested by leading
laboratories around the world. This list includes, but is not limited to:
EnviroKlenz® has been tested and proven effective against a broad
spectrumofhazardouschemicalsandvolatileorganicchemicals(VOCs).

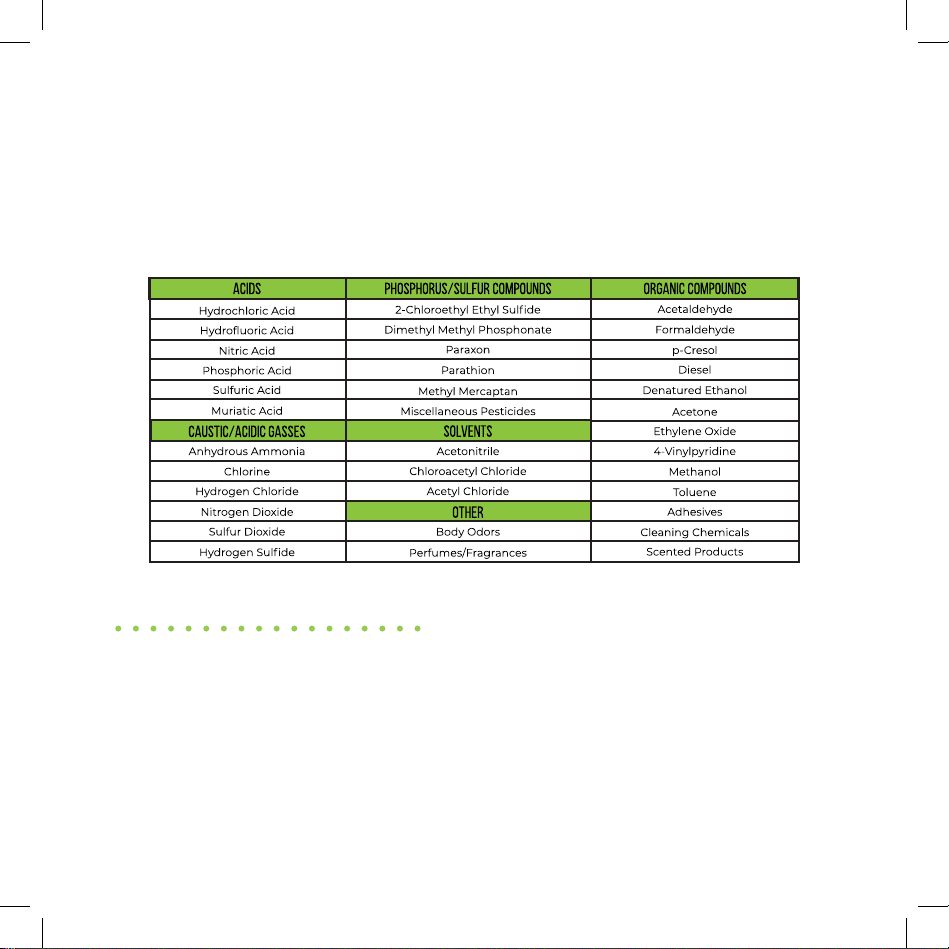

Partial List of Common Compounds That Can Be Successfully Removed/
Neutralized by The EnviroKlenz® Technology.
13

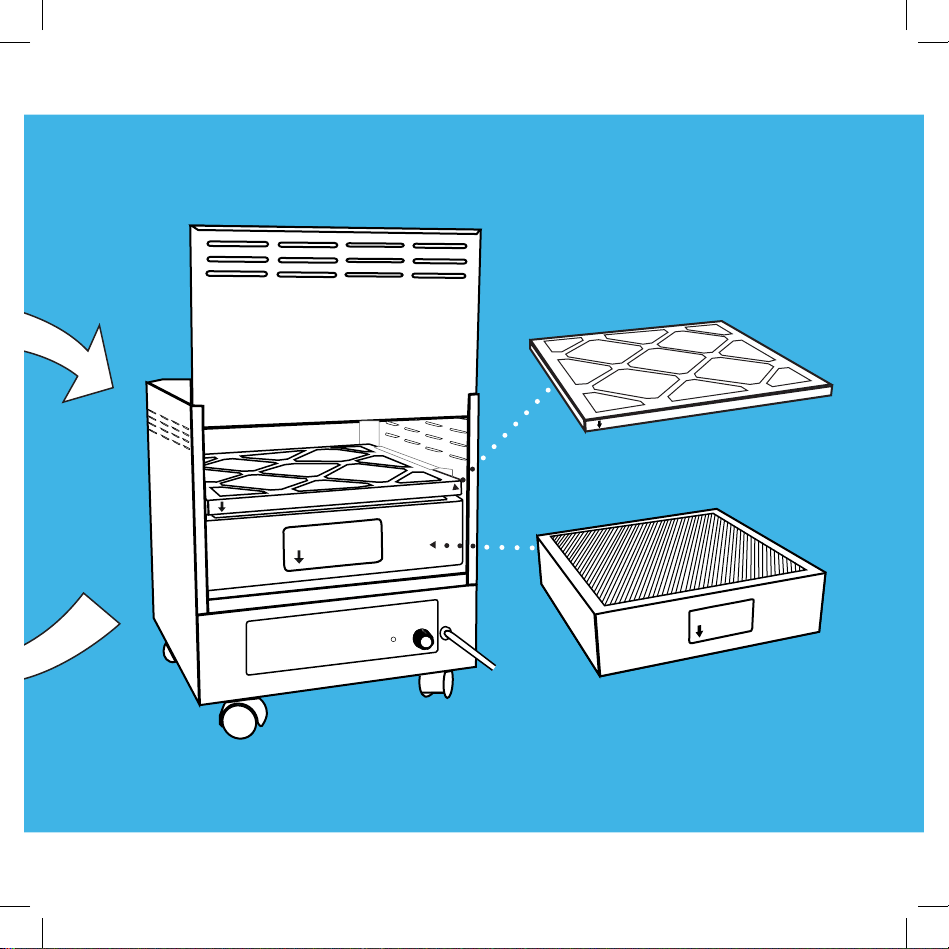

setup & cartridge replacement
step 1: Make sure Mobile System is
unplugged and slide up the back panel
to remove
step 2: Slide in larger HEPA Filter with
airowarrowpointingdown
16
step 3: Slide in smaller Enviroklenz® Air
CartridgetorestontopofHEPAlterwith
airowarrowfacing down
step 4: Replace sliding back
panel with blank side facing out
step 5: Plug Electrical cord into a
grounded outlet (Indicator light
will illuminate to show power
comingtothesystem)
step 6: Turn power control knob
to desired fan speed and begin
enjoying clean, allergen and
chemical free air
17
• Set up the air system in an area where it will get good air circulation, but
won’t also get in the way.
• To help maneuver air in the space, you may want to set up a few fans in
areasthataresomewhatdistantfromtheairunit(s).Havethefan(s)
push/blowtheairtowardstheairunit(s).Thiswillhelpexchangetheair
so that it quickly gets processed through the system.
• Do not place the air unit directly against a wall as you want to ensure
airowandairmovement.
• Leaving a system running 24/7 will help clear the air faster.
• Since the unit is relatively quiet, it can be run on medium or high setting.
Do’s
Don’ts
• Do not use with an ozone-producing machine.
best practices
18
• Since the unit is relatively quiet, it can be run on medium or high setting.
settings
HIGH
MED
LOW
WHISP-AIR
OFF
HIGH
MED
LOW
WHISP-AIR
OFF
HIGH
MED
LOW
WHISP-AIR
OFF
HIGH
MED
LOW
WHISP-AIR
OFF
low
Average 4-5 air exchanges per hour.* 250 CFM.
Very high impact setting ideal for the most critical
environments that need immediate and effective
removal of VOCs and/or chemicals. This includes
newlyappliedpaint,renovation,construction,re
damage,andooddamage.
Average 3-4 air exchanges per hour.* 200 CFM.
Ideal for most situations in which a VOC or chemical
source is noticeable but not overbearing such as
cooking odors or outdoor pesticide use.
Average 2-3 air exchanges per hour.* 150 CFM.
Ideal for everyday maintenance use when a VOC or
chemical source is not overly present or noticeable.
high
medium
Average 1-2 air exchanges per hour.* 85 CFM.
Great for situations that require minimal noise such
as sleeping and watching TV.
whisp-air
*Averages based on an airspace of 3750 cubic feet.
19
issue action
“Odor/pollutant is not
completely eliminated.”
• Removesource(s)fromthearea.
• Removecontaminateditem(s)from
the area.
• Locate source and treat with EnviroKlenz®
Everyday Odor Eliminator.
• Replace EnviroKlenz® Air Cartridge and
repeat EnviroKlenz® Air process.
• Adjust airspeed of unit.
“Odor returns after a
few days.”
• Site may have become recontaminated,
take steps to prevent recontamination
and repeat EnviroKlenz® Air Process.
• Treat source odor with EnviroKlenz®
Everyday Odor Eliminator.
“Mobile Air System will not
turn on.”
• Make sure Mobile Air System is plugged in.
• Check power at the outlet.
• Test the on/off switch.
“The blower wheel is not
turning.”
• Checkforobstruction(s).
• Tighten set screw.
troubleshooting
20
• Checkforobstruction(s).
• Tighten set screw.
13421 Parker Commons Blvd., Suite #102
Fort Myers, FL 33912 U.S.A.
Address
239-330-9650
Phone
Email
contact
patents
EnviroKlenz® is a Registered Trademark of Timilon Technology
Acquisitions LLC, Fort Myers, Florida, USA. The EnviroKlenz® Air System is
produced in the USA and is protected by multiple USA and International
patents, including, but not limited to patent numbers 7,276,640; 7,335,808;
7,661,483; 7,956,232; and 8,038,935.
Product family
Visit our website at www.EnviroKlenz.com
to see our full product line.
21
TimilonTechnologyAcquisitionsLLCwarrantsthatforaperiodofveyears
from the date of purchase, this product will be free from manufacturing
defects. Timilon Technology Acquisitions LLC, at its option, will repair
or replace the product or any component of the product found to have
manufacturing defects during the warranty period. If the product is no
longer available, replacement may be made with a similar product of equal
or greater value.
This warranty is non-transferable and is valid from the date of the original
purchase. Proof-of-purchase is required to obtain warranty performance.
This warranty does not cover consequential damages and/or damages
resulting from negligent use or misuse of the product by failure to store,
maintain and/or use the product in accordance with directions otherwise. In
addition,disassembly,repairs,ormodicationbyanyoneotherthanTimilon
TechnologyAcquisitionsLLC,actsofGod,suchasre,ood,hurricanes,and
tornados will not be covered.
Limited Warranty
Timilon provides a 30-Day Return Window and the following limited
warranty. This limited warranty extends only to the original purchaser.
Please note that any warranty services or questions must be accompanied
by the order number from the transaction through which the warranted
product was purchased. The order number serves as your warranty number
and must be retained. Timilon will offer no warranty service without this
number.
Timilon warrants this product and its parts against defects in materials or
workmanshipforveyearslaborandve-yearpartsfromtheoriginalship
date. During this period, Timilon will repair or replace defective parts with
new or reconditioned parts at Timilon’s option, without charge to you.
warranty
22
Shipping fees incurred from returns for under-warranty service will be paid
by Timilon.
All original parts (parts installed by Timilon at the original system build)
or parts replaced by Timilon or its authorized service center become the
property of Timilon. Any after-market additions or modications will not
be warranted and the customer is responsible for the payment, at current
rates, for any service or repair outside the scope of this limited warranty.
Timilon makes no other warranty, either express or implied, including
but not limited to implied warranties of merchantability, tness for a
particular purpose, or conformity to any representation or description,
with respect to this other than as set forth below. Timilon makes no
warranty or representation, either express or implied, with respect to any
other manufacturer’s product or documentation, its quality, performance,
merchantability, tness for a particular purpose, or conformity to any
representation or description.
The warranty and remedies set forth below are exclusive and in lieu of all
others, oral or written, expressed or implied. No reseller, agent or employee is
authorizedtomakeanymodication,extensionoradditiontothiswarranty.
Procedures for Obtaining Warranty Service
RMA (Returning Merchandise Authorization) Policy:
If repairs are required, the customer must obtain an RMA number and
provide proof of purchase. RMA and services are rendered by Timilon only.
All returned parts must have a RMA number written clearly on the outside
of the package along with a letter detailing the problems and a copy of the
original proof of purchase. No COD packages will be accepted. No package
will be accepted without an RMA number written on the outside of the
package. RMA numbers are only valid for 7 days from the date of issue.
23
CARTRIDGE AND FILTER CHANGE SCHEDULE
Installation
Date
Scheduled
Change Date
6 months after install
EnviroKlenz® Air cartridge
24
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
Installation
Date
Scheduled
Change Date
6 months after install
hepa FILTER
25
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
___ /___ /___ ___ /___ /___
Installation
Date
Scheduled
Change Date
2 years after install
Installation
Date
Scheduled
Change Date
2 years after install
13421 Parker Commons Blvd., Suite #102
Fort Myers, FL 33912 U.S.A.
Phone: 239-330-9650
Email: [email protected]
Website: www.EnviroKlenz.com
