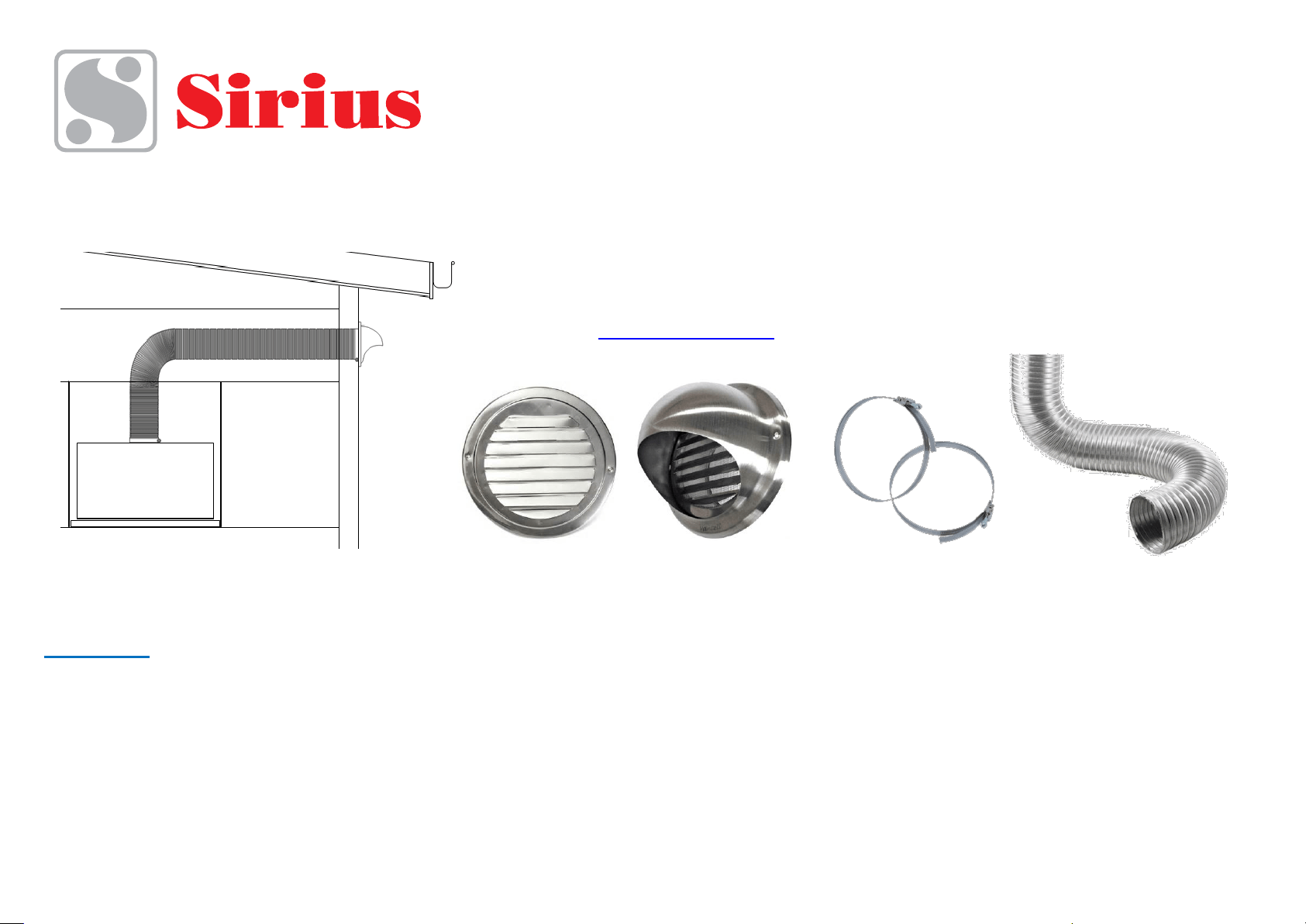

SIRIUS “EASYWALL- 150/200 EasyKIT” installation guide.
Sirius ducting kits are a high quality and simple, complete solution in a box. They provide an
ideal ventilation path to efficiently exhaust your kitchen fumes, steam, heat and odours –
filtered through your rangehood to the outside atmosphere.
Please check that there is a clear path for your ducting to run prior to installation, making sure
to look out for TV, computer, telephone and electrical cables, water and gas pipes, insulat
ion
materials and air conditioning pipes and duct, before cutting or drilling holes.
For new homes, ideally fit the basic ducting (pipe) components at the frame up stage.
Additional lengths of ducting, joins, galvanised steel angled elbows and all other ducting
accessories are available from your local retailer where you purchased your SIRIUS EasyKIT.
For further advice please call our ducting consultation service on Ph: 1300 762 219 (Australia
only) or visit www.siriusbrand.com
and fill in the fields and one of our trained consultants will
assist you in the best manner possible.
Installation Guide:
(Disclaimer) The following instructions are provided as a guide only and in no way constitute or replace your local council requirements or Australian and New Zealand Standards and Building Codes.
Please Note: Whether the ducting used is either 150mm Ø or 200mm Ø the instruction guidelines are the same…
• Semi-Rigid duct can bend reasonably sharply without impeding air-flow, as shown above. During installation wear appropriate safety gear
such as safety glasses and gloves, to avoid accidental injury.
• The best way to stretch out semi-rigid ducting is with your hands circled around the semi-rigid ducting pipe. Start from the centre of the pipe
gently stretching and pulling it out to the ends… carefully form it into the shape and length required. Do this with as few bends as possible.
• If stretched out straight the duct will cover 3 metres. However each bend will reduce the length and a sharp 90⁰ bend could reduce the overall
length by as much as 0.5m.
• If your run exceeds 3 metres, connect another length of semi-rigid to the existing duct with a duct connector part (GDC-150 or GDC-200).
Professional Ducting Range
SRPRO30/150 or 200URC25-215SDV-200SLV-150
