INFINITY 26i – REU-VR2632FFUG
HD 200i – REU-VRM2632FFUC
UP
Rinnai FF coaxial flue system, suitable
for use with the following Rinnai internal
continous flow water heater models:
FF Flue
Installation
Manual
These components shall be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000, AS/NZS 3500 & AS 5601
• Local Regulations and Municipal Building Codes
These components must be installed, serviced and removed by an Authorised Person.
Rinnai Australia 1 Installation Manual
INSTALLATION GENERAL
TABLE OF CONTENTS
CERTIFICATION ....................................................................................... 1
GENERAL .................................................................................................. 1
FF FLUEING OPTIONS ............................................................................. 2
GENERAL INSTALLATION METHODS ................................................... 3
DIRECT HORIZONTAL FLUE ................................................................... 4
EXTENDED HORIZONTAL FLUE ............................................................. 4
VERTICAL FLUE ....................................................................................... 5
COMBINED VERTICAL & HORIZONTAL FLUE ...................................... 5

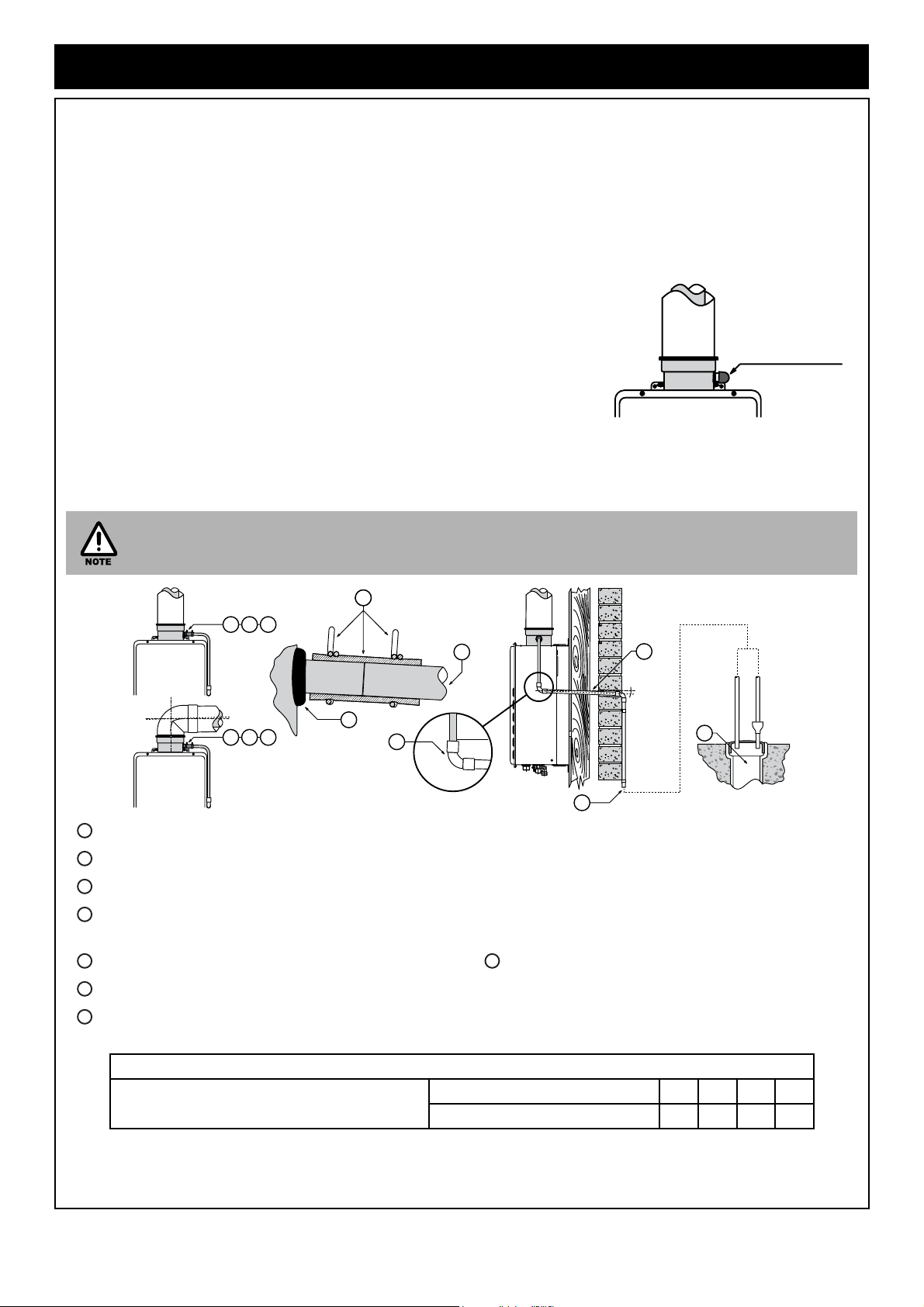

CONDENSATE DRAIN .............................................................................. 6

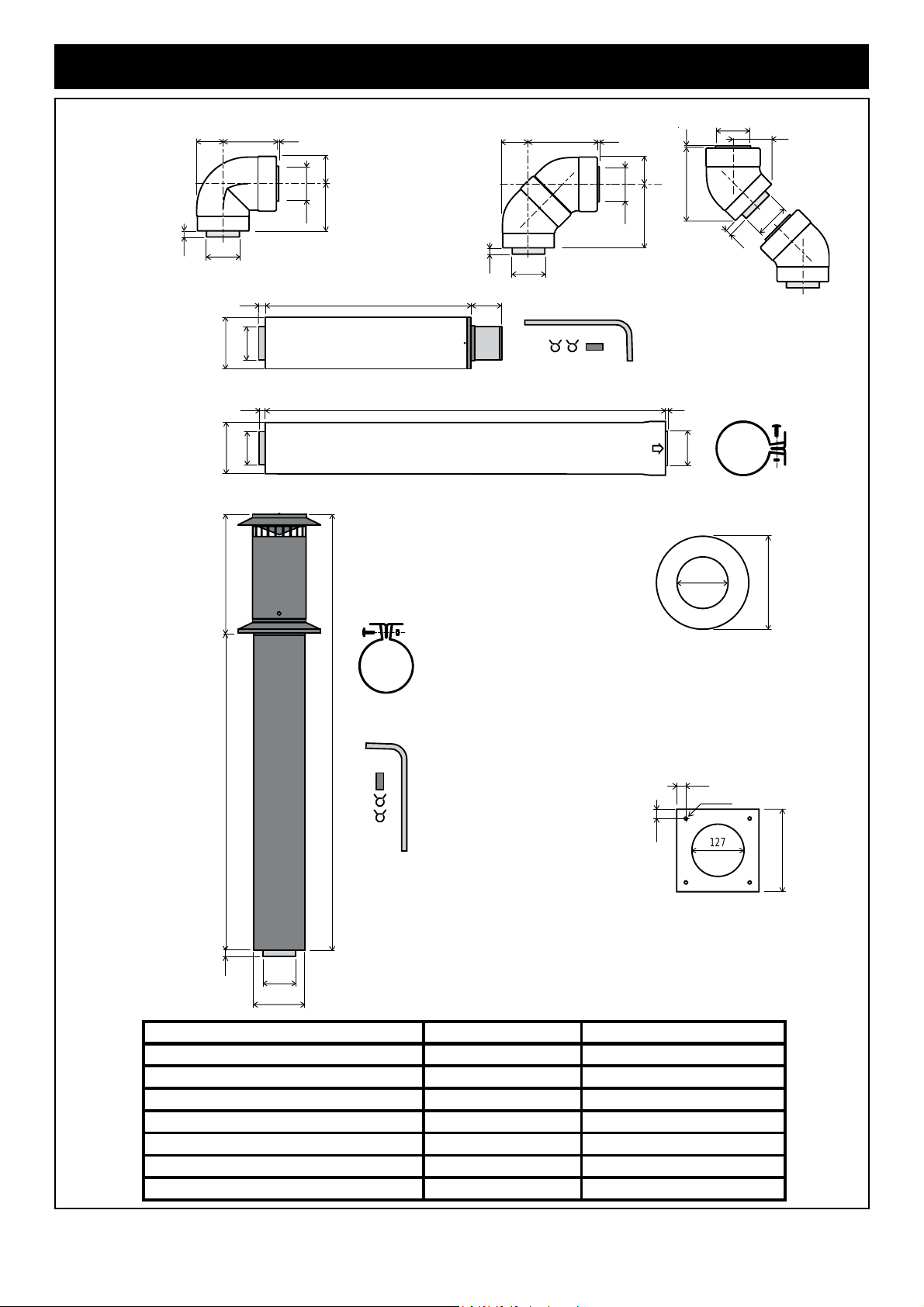

DIMENSIONS ............................................................................................ 8

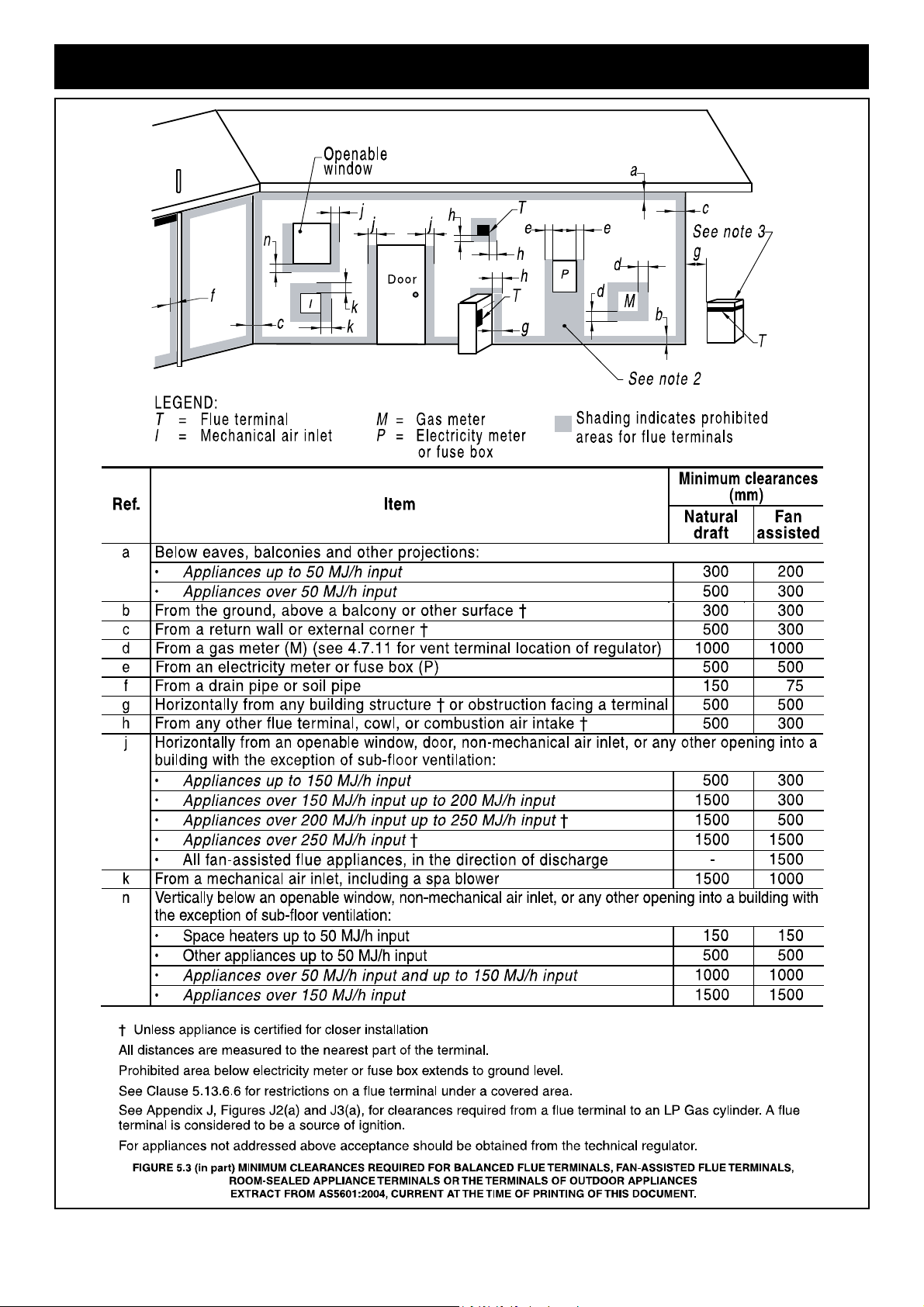

CLEARANCES .......................................................................................... 9
CONTACT INFORMATION ..................................................................... 10
CERTIFICATION
Certified by the Australian Gas Association (AGA) For use only with Rinnai internal continuous flow water heaters.
GENERAL
1. These instructions only apply to the Rinnai FF water heater coaxial flueing system. This flue system utilises pipe
components with an aluminium inner pipe and a white plastic outer pipe.
These instructions DO NOT apply to older Rinnai water heater flueing that has either a stainless steel single skin
or stainless steel coaxial construction. If in doubt contact Rinnai.
2. Before commencing installation, please read the 'Installation Instructions - General', located inside a pouch
behind the front cover of all Rinnai water heater models. The Rinnai internal water heater range must only be
installed with Rinnai water heater flueing as referred to in these instructions.
3. The requirements of the current AS5601/AG601 and local authorities must be met, which is the installers
responsibility.
4. The required clearances of Rinnai internal continuous flow water heater when installed as a single unit are shown
in Fig.1A. The appliances are certified to be installed side by side as shown on page 7, allowing a minimum
distance between flues as follows:
• 270mm between horizontal terminals.
• 160mm between vertical cowls.
5. Rinnai internal continuous flow water heaters fitted with FF flue systems are room sealed as defined in AS5601.
No ventilation in the space where the water heater is installed is required.
6. The outer plastic section of the coaxial flue complies with temperature hazard requirements and can be installed
with zero clearance to combustible material.
This flue must be installed by an authorised person. The Installation must conform to local
regulations.
Installation must comply with the instructions supplied by Rinnai.
Service and removal must be carried out by an authorised person.
Rinnai Australia 2 Installation Manual

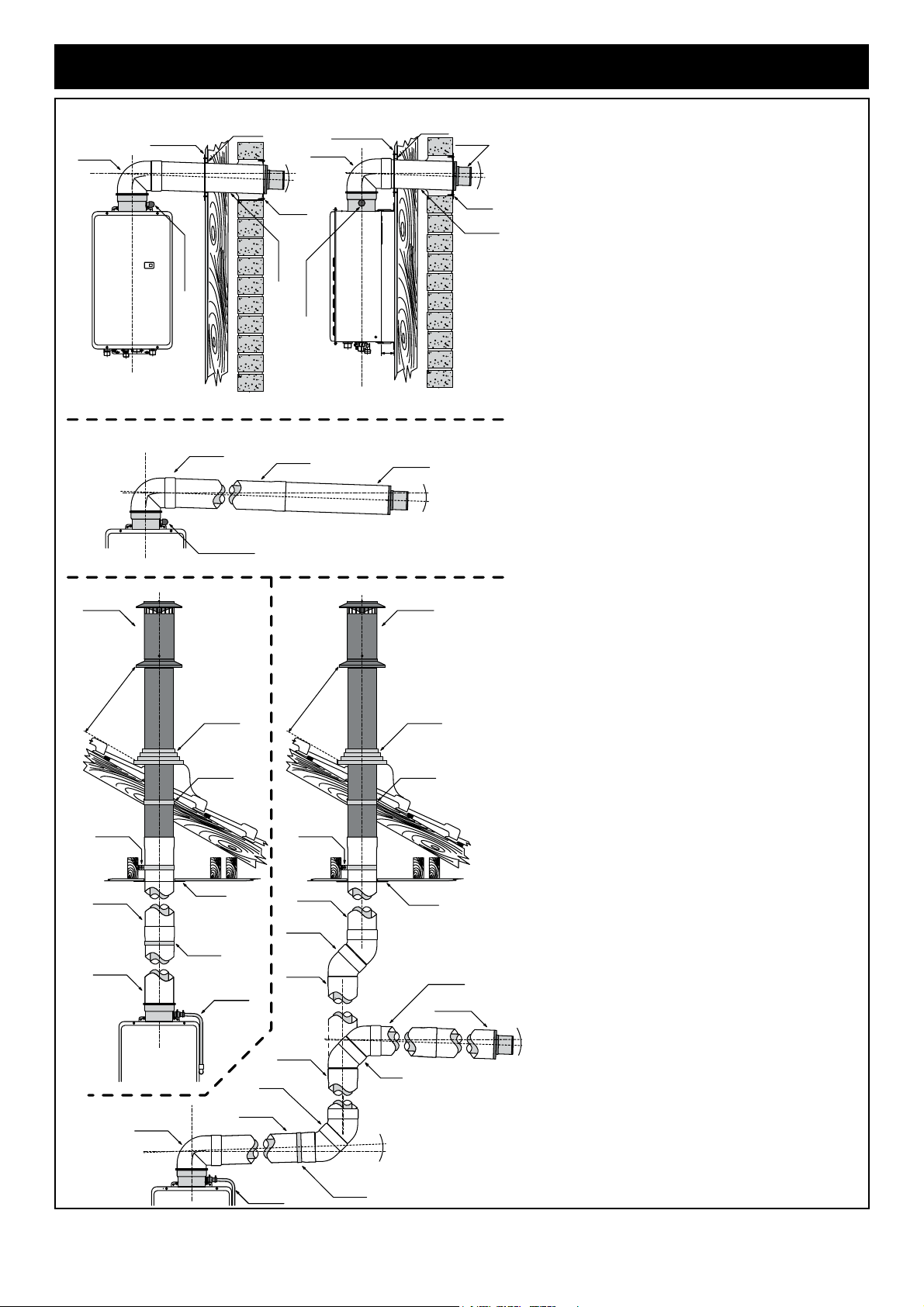

FF FLUEING OPTIONS
DIRECT HORIZONTAL (FIG. 1)
A horizontal flue installation that consists of a
starter bend (FFSBEND) and a wall terminal
(FFWALLTERM) only. See page 4 for details.
HORIZONTAL EXTENDED (FIG. 2)
A horizontal flue installation that consists of a
starter bend (FFSBEND), flue pipe(s)
(FFPIPE1000) and a wall terminal
(FFWALLTERM). See page 4 for details.
VERTICAL (FIG. 3)
A vertical installation that consists of flue
pipe(s) (FFPIPE1000) and a roof terminal
(FFROOFCOWL). See page 5 for details.
VERTICAL / HORIZONTAL (FIG. 4)
A combination of pipe(s) (FFPIPE1000) and
bends (FFSBEND/FFBEND) that terminate
with either a wall (FFWALLTERM) or roof
(FFROOFCOWL) terminal. See page 5 for
details.
For condensation drain fitting requirements
see the section “CONDENSATE DRAIN” on
page 6.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
127mm Hole
FFWALLTERM
FFWALLTERM
FFSBEND
45 minimum
FFSBEND
127mm Hole
FFWPLATE
FFWPLATE or
FFWSEAL (Optional)
FFWPLATE or
FFWSEAL (Optional)
FFWPLATE
2° fall to
terminal
2° fall to
terminal
DrainTube Cap
Drain Tube Cap
Drain Tube Cap
FFWALLTERM
FFSBEND
FFPIPE1000
2° fall to
terminal
DrainTube
(See Page 6)
UP
FFROOFCOWL
FFPIPE1000
FFPIPE1000
Flue pipe clip
supplied with
FFPIPE1000
FFWSEAL
Minimum
Clearance
500 mm
Decktite or lead
collar flushing
Flue pipe clip
supplied with
FFPIPE1000
Flue pipe clip
supplied with
FFROOFCOWL
DrainTube
(See Page 6)
Flue pipe clip
supplied with
FFROOFCOWL
Minimum
Clearance
500 mm
FFROOFCOWL
Decktite or lead
collar flushing
FFPIPE1000
FFBEND
FFPIPE1000
FFWSEAL
2° fall
to trap
Flue pipe clip
supplied with
FFPIPE1000
UP
FFWALLTERM
FFPIPE1000
2° fall t
o
Termin
a
U
P
UP
FFBEND
FFPIPE1000
FFPIPE1000
FFBEND
Flue pipe clip supplied with FFPIPE1000
FFSBEND
Rinnai Australia 3 Installation Manual

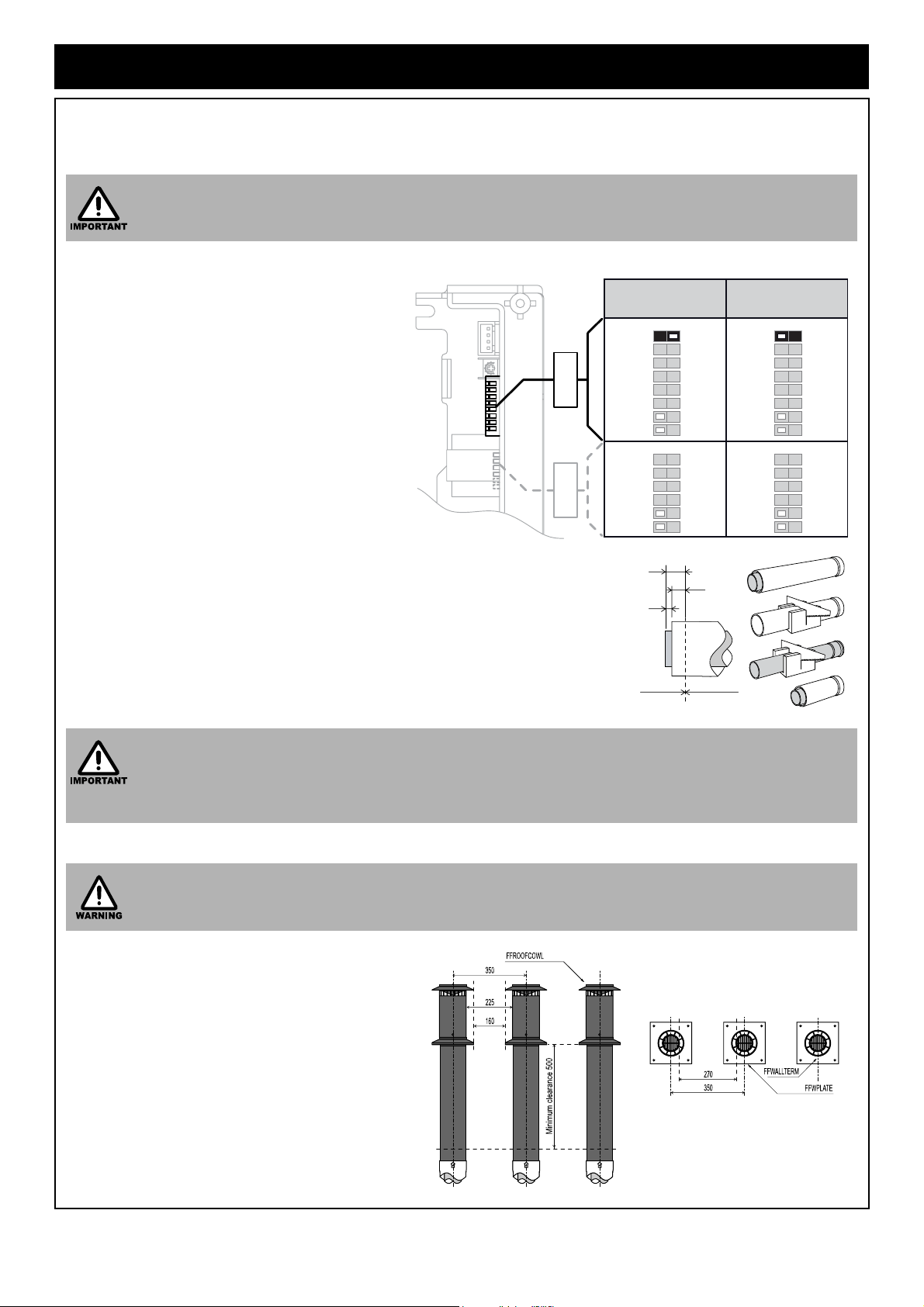

GENERAL INSTALLATION METHODS
Lubricating Components
A container of "O ring" grease is provided with the flue terminal components (FFWALLTERM and FFROOFCOWL).
To ease assembly, lubricate the “O” ring on the inner pipes of each flue component prior to assembly.
Means of disconnection
The appliance connection shall include a means
of disconnection in accordance with AS5601.
Setting Flue Length Dipswitch
Installations can consist of both horizontal and
vertical runs to a maximum length of 9 metres and
with a maximum of three 90° bends.
If flue length exceeds 1.5m, dipswitch 1 of SW1 is
to be switched to the 'OFF' position (Fig. 6).
This increases the combustion fan speed to
overcome the additional friction losses.
Cutting The Flue Components
Using the dimensions shown on page 8, calculate the required number and type of
flue components that are needed to reach from the water heater and the flue
terminal.
When cutting components the outer flue pipe should be cut to the required length
plus 35 mm and the inner flue pipe should be cut to the required length plus 50 mm,
this will ensure that the correct penetration is provided for joining of components.
When inner and outer pipes are re-assembled after cutting the inner pipe should
extend 15mm beyond the end outer pipe (Fig. 7).
Flue Terminals
Multiple Terminal Installations
The terminal clearances in AS5601 do not apply
to the Rinnai internal continuous flow water
heaters when installed side by side (Fig. 8).
AGA certification allows for a horizontal
separation of 160 mm for roof terminals and 270
mm for wall terminals.
Each terminal is to be terminated at the same
vertical height.
Use only a silicone based "O" ring seal lubricant. DO NOT use petroleum based lubricants such
as petroleum jelly, as such products may cause deterioration.
The ONLY COMPONENTS that can be cut are as follows: FFPIPE1000, FFROOFCOWL and
FFWALLTERM.
Ensure all ends are cut square (the use of a mitre box will ensure a clean square cut).
Ensure all cut ends are free from debris and burrs.
The flue gases can reach temperatures up to 200°C. The flue terminal is to terminate in a location
not to cause a nuisance, in accordance with AS5601.
OFFON
SW1
1 2345678
FFU (Internal) Models Only
Short Flue: Total flue
lentgh less than 1.5 metres
OFFON
SW2
12 3 4 56
OFFON
SW1
1 2345678
FFU (Internal) Models Only
Extended Flue: Total flue
length 1.5 metres or greater
OFFON
SW2
12 3 4 56
Flue Length Dipswitch Settings
Dipswitches
SW1
Dipswitches
SW2
Fig. 6
Fig. 7
15
35
50
Required lengthPenetration
Fig. 8
Rinnai Australia 4 Installation Manual

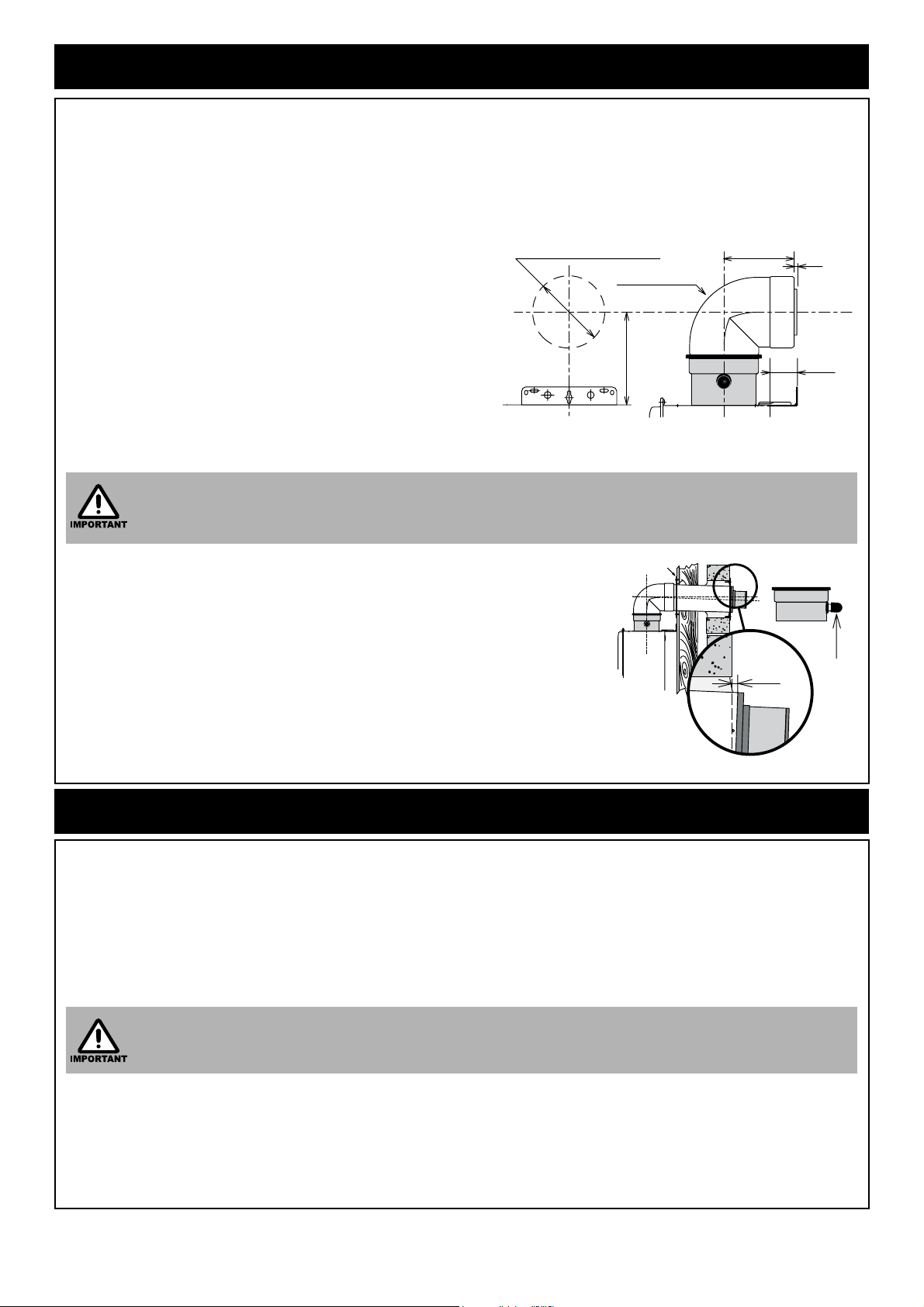

DIRECT HORIZONTAL FLUE
The Rinnai water heater 'direct' flueing components (FFSBEND, FFWALLTERM, FFWSEAL and FFWPLATE) must
be used for this purpose.
Mount the water heater in an appropriate location ensuring that there is enough space to install the flue assembly
and pipe work. Also ensure that positioning of the flue terminal complies with the requirements of AS5601 (Fig.5.3
on page 9).
Installation method
1. Using the dimensions provided in Fig. 9, mark a point along
the appliance centring that is 160mm from the top of the
water heater. This mark forms the centre point for the
127mm diameter wall penetration.
2. When installing the FFSBEND directly backwards from the
appliance it is necessary to extend the adjustable mounting
brackets of the water heater to a minimum of 45mm to
allow for the flue component radius.
3. Make a 127mm wall penetration for the flue. Ensure that
the flue spigot is covered to avoid debris entering the
appliance flue connection.
1. Measure the required length for the horizontal terminal to penetrate the wall
and allow an extra 10mm protrusion from the wall outer surface as shown in
Fig. 10. See the section “Cutting The Flue Components” on page 3 for
correct cutting requirements.
2. Connect the FFWALLTERM to FFSBEND (ensuring components are
pushed 'fully home') and fit associated wall plates/seals as required.
3. To prevent rain water from entering the flue terminal ensure the required 2°
fall to outside is achieved (Fig.2 page 2).
4. Seal the flue around the wall plate using silicon sealant.
This option can be used when the water heater is mounted against an internal wall and flueing needs to extend
horizontally to exit an external wall.
As with the DIRECT HORIZONTAL FLUE option the Rinnai water heater 'direct' flueing components (FFSBEND,
FFWALLTERM, FFWSEAL and FFWPLATE) must be used for this purpose, together with extension pieces
(FFPIPE1000 and FFBEND) components as required.
Total flue length can be up to 9 metres long and a maximum of 3 bends can be used. Horizontal flue is to be installed
with a 2° fall towards the wall terminal to prevent condensation running back into the water heater.
Ensure there is enough space to install the water heater, flue assembly and pipe work. Also ensure that positioning
of the flue terminal complies with the requirements of AS5601 (Fig.5.3 on page 9).
Installation method
1. Follow the installation method as described for the DIRECT HORIZONTAL FLUE option, using FFPIPE1000 and
FFBEND components to extend the installation as required.
If an accurate wall penetration is made then the FFSBEND will cover the hole and an internal wall
plate will not be necessary.
Ensure the drain tube cap remains fitted in place (Fig. 10).
If this can not be achieved and the length of the flue system exceeds 1.5 metres the condensate
drain pipe will require connection, refer to “CONNECTING CONDENSATE DRAIN” on page 6 for
details.
5
160
Min
45
130
Ø127 Wall penetration
FFSBEND
Fig. 9
Fig. 10
Drain
Tube
Cap
10
EXTENDED HORIZONTAL FLUE
Rinnai Australia 5 Installation Manual
VERTICAL FLUE
This option can be used when the water heater is to be flued vertically through the roof.
The Rinnai water heater 'Vertical Flueing Components' (FFROOFCOWL and FFPIPE1000) with extension pieces
(FFPIPE1000) and optional roof seal (FFSEAL) must be used for this purpose.
Total flue length can be up to 9 metres long and have a maximum of 3 bends.
Mount the water heater in an appropriate location ensuring that there is enough space to install the flue assembly
and pipe work. Also ensure that positioning of the flue terminal complies with the requirements of AS5601 (Fig.5.3
on page 9).
Installation method
1. Set plumb bob from the centre of the heater flue outlet to ceiling marking position. Cut 127mm hole in
plasterboard (or a suitable 'oval' for pitched roof applications). Repeat this step for underside of roofing.
2. Calculate the required number and combination of FFPIPE1000 lengths and cut to size as required, see the
section “Cutting The Flue Components” on page 3.
3. Install flue and terminal. Flue to terminate at least 500mm from the end of the flue to the nearest part of the roof,
in accordance with AS5601(Fig. 3 page 2). Seal the roof penetration with an approved flashing.
4. Install roof seal. (Not supplied, if required Rinnai Part No. FFWSEAL).
5. Ensure the flue is fully supported independently of the appliance, by the use of suitable clips or brackets, in
accordance with AS5601. Appropriate standoff brackets are supplied with each FFROOFCOWL and
FFPIPE1000 component.
6. Ensure that the appliance can be removed without causing movement or displacement of the flue, in accordance
with AS5601.
7. Fit the condensate drain tube if required (see “CONDENSATE DRAIN” on page 6).
8. All external joints of the PVC pipe must be glued with approved PVC cement to prevent water entering the flue.
This option allows the water heater to be installed virtually anywhere using a wall (FFWALLTERM) or roof
(FFROOFCOWL) terminal. Extension pieces (FFPIPE1000 and FFBEND) can be mounted horizontally or vertically
as required.
Total flue length can be up to 9 metres long and have a maximum of 3 bends. Mount the water heater in an
appropriate location ensuring that there is enough space to install the flue assembly and pipe work. Also ensure that
positioning of the flue terminal complies with the requirements of AS5601 (Fig.5.3 on page 9).
Installation method
1. Using a combination of the installation procedures covered in the “EXTENDED HORIZONTAL FLUE” on page 4
and “VERTICAL FLUE” on page 5 determine and install the required components.
With vertical flue systems the condensate drain pipe will require connection if the total length of
the flue system exceeds 2 metres. Refer to the section “CONDENSATE DRAIN” on page 6 for
details. If the condensate drain tube is not required to be connected it is important to keep the
drain tube cap in place on the appliance flue spigot. It is only to be removed if the condensate drain
tube is connected. Appliances must not be operated with the drain tube cap removed and with no
condensate drain tube connected.
With combined horizontal and vertical flue systems the condensate drain pipe will require
connection if the total length of the flue system exceeds 1.5 metres. Refer to the section refer to
“CONNECTING CONDENSATE DRAIN” on page 6 for details. If the condensate drain tube is not
required to be connected it is important to keep the drain tube cap in place on the appliance flue
spigot. It is only to be removed if the condensate drain tube is connected. Appliances must not be
operated with the drain tube cap removed and with no condensate drain tube connected.
COMBINED VERTICAL & HORIZONTAL FLUE
Rinnai Australia 6 Installation Manual
CONDENSATE DRAIN
The condensate trap and associated drain connection are integral with the appliance flue spigot. The condensate
trap collects any condensate from the flue system, thereby preventing condensate from entering the water heater
and causing damage.
A condensate drain tube kit is supplied with the terminals (FFWALLTERM and FFROOFCOWL) and will require
connection to the condensate drain connection in flue systems where the total length exceeds 1.5 metres AND
condensate cannot be drained via the flue terminal. Usually, the condensate drain tube requires connection in
‘vertical flue’ and ‘combined vertical & horizontal flue’ systems and does not require connection in ‘direct horizontal’
and ‘extended horizontal’ flue systems.
If the condensate drain tube is not required to be connected it is important to
keep the drain tube cap in place on the appliance flue spigot. It is only to be
removed if the condensate drain tube is connected (Fig. 11).
Appliances must not be operated with the drain tube cap removed and with no
condensate drain tube connected.
Because the condensate is a by-product of gas combustion it is mildly acidic.
For this reason copper tube and fittings MUST NOT be used as it will corrode.
Instead, Rinnai recommend plastic pipes and fittings such as Unplasticised
Polyvinyl Chloride (UPVC) or Polyethylene (PE) which is commonly used for
irrigation piping.
Important Considerations For The Condensate Drain Tube
Flue spigot with integral condensate trap. Water heater drain outlet connection is 16mm.
Aluminium condensate drain tube. (Supplied with flue terminals FFWALLTERM or FFROOFCOWL).
Silicone connection tube and retaining clips. (Supplied with flue terminals FFWALLTERM or FFROOFCOWL).
Continuous fall (of at least 2°) from water heater to discharge point. Lengths and bends in accordance with
‘length And Changes Of Direction’ table below.
16 mm UPVC conduit to terminate in accordance with .
Drainage tube to be sealed to conduit with approved silicone.
Suitable points of discharge are deemed to be drains, sewers or pits. DO NOT discharge onto electrical
connections, earth stakes, copper pipes, concrete paths or into a pond.
Installation Method
(a) The drain line MUST NOT discharge onto electrical connections, earth stakes, copper pipes, concrete paths or
into a pond.
The content of AS3500.4:2003 Section 5.12 ‘Temperature / Pressure Relief and Expansion Control
Valve Drain Lines’ has been used as a guide in preparing these considerations.
Lengths and changes of direction
Maximum length and changes of direction
greater than 45 ° should be as follows:
Max length (Metres) 9 8 7 6
Max changes of direction >45° 3 4 5 6
Drain Tube Cap
Fig. 11
2° fall
Fig. 12
A
B
DC
E
D
G
A B C
A B C
F
A
B
C
D
E G
F
G
Rinnai Australia 7 Installation Manual
CONDENSATE DRAIN
(b) The point of discharge from each drain line shall be located so that the release of condensate does not cause a
nuisance, is readily discernible and incurs no risk of damage to the building.
In view of (a) and (b), suitable points of discharge are deemed to be drains, sewers or pits.
(c) There shall be no tap, valve or other restrictions in any line.
(d) Each line shall fall continuously from the valve to the approved point of discharge.
(e) Drain lines shall not discharge into a storage water heater safe tray.
(f) The end of the condensate drain line shall be:
(g) Where discharging over a tundish or gully trap, drain lines shall have an air gap of a size at least twice the
diameter of the drain line.
Interconnection Of Condensate Drain Lines
Condensate drain lines from multiple water heaters may be joined together provided they conform with the
‘INSTALLATION’ requirements on page 6.
Common Stack Discharge
Where individual water heaters are installed in a multistorey building, the condensate drain lines may discharge into
a common stack, subject to the following:
(a) The discharge from the common stack is to a tundish, having a discharge line, that is not less than the size of
the common stack, directly connected to a fixture trap, and installed in connection with any adjacent soil or waste
stack.
(b) The discharge point of the common stack is such that any discharge is readily visible and not cause any
nuisance.
(c) The common stack is vented by extending the pipe upwards, above the roof level.
Tundish Drain Lines
The drain line from any tundish shall be not less than DN 20 or less than one size larger than that of the largest drain
line discharging into the tundish. Tundish drain lines shall comply with the ‘INSTALLATION’ requirements on
page 6.
Areas Subject To Freezing
In areas where water pipes are prone to freezing, the drain pipe from any valve shall be insulated and not exceed
300 mm in length. It shall discharge into a tundish through an air gap of not less than 75 mm and not more than 150
mm measured from the outlet of the drain pipe to the rim of the tundish.
(i) not lower than 200 mm or higher than 300 mm above an un-paved surface; or
(ii) not lower than 75 mm or higher than 300 mm above a gravel pit not less than 100 mm in diameter in a paved
surface.
Rinnai Australia 8 Installation Manual
DIMENSIONS
FFBEND
(2x 45° Bends)
FFWSEAL
225
125
Thickness 1mm
FFROOFCOWL
Includes:
Drain tube
Silcone lubricant
Wall bracket
(As a 90° OFFSET)
85
166
66
15
80
5
165
64.5
FFSBEND
5
15
80
85
114
130
64.5
66
DESCRIPTION CODE NUMBER BAR CODE NUMBER
Starter Bend FFSBEND 9314109158311
Flue Pipe 1000mm length FFPIPE1000 9314109107061
Horizontal Flue Terminal FFWALLTERM 9314109107685
Vertical Flue Terminal FFROOFCOWL 9314109107678
Ceiling Ring FFWSEAL 9314109107722
Wall Plate FFWPLATE 9314109107715
490
7515
FFWALLTERM
Includes:
Drain tube
Silcone lubricant
125
80
FFWPLATE
200
127
Thickness 1mm
20
20
Ø6 x 4
765 29015
125
80
1060
FFPIPE1000
Includes:
Wall bracket
UP
975 515
125
80
85
(As a 45° OFFSET)
5176
1
5
8
0
92
85
Universal 45/90 Degree Bend FFBEND 9314109143058
Rinnai Australia 9 Installation Manual
CLEARANCES
10 RA TSD01-011 Issue 4.0 12/06/08
Head Office
10-11 Walker Street,
Braeside, Victoria 3195
P.O. Box 460
Tel: (03) 9271 6625
Fax: (03) 9271 6622
National Help Lines
Sales & Service
Tel: 1300 555 545* Fax: 1300 555 655*
Spare Parts & Technical Info
Tel: 1300 366 388* Fax: 1300 300 141*
*Cost of a local call Higher from mobile or public phones.
Hot Water Service Line
Tel: 1800 000 340
Australia Pty. Ltd.
ABN 74 005 138 769
Internet: www.rinnai.com.au E-mail: [email protected]
Rinnai has a Service and Spare Parts network with personnel who are fully trained
and equipped to give the best service on your Rinnai appliance. If your appliance
requires service, please call our Hot Water Service Line. Rinnai recommends that
this appliance be serviced every 3 years.
CONTACT INFORMATION
