SOLID SURFACE FOR OUTDOOR BEER DISPENSER, REFRIGERATOR,
REFRIGERATED DRAWERS, ICE MAKER, BEND UNIT AND
BEND UNIT BRACKET
INSTALLATION INSTRUCTIONS
Before you begin, read these instructions completely and carefully.
Getting Started
Remove packaging and retain until installation is complete.
WARNING!
Some parts have sharp edges; care must be taken when handling the various components to
avoid injury. Please read safety information provided in these instructions before beginning
assembly. Wear gloves when handling.
Tool Required
Phillips Screwdriver
5/16 Socket
Safety Glasses
Work Gloves
Contents
Part Description Qty
Screws MS 10-24 X 1-1/8 PH PAN HD SS (for Refrig-
erator, Refrigerator Drawers and Ice Maker only)
4
Flat Washer (for Beer Dispenser only) 4
Screws MS 10-24 X 1-1/8 PH PAN HD SS
(for Beer Dispenser only)
8
Hex Nut 10-24 KEPS (for Beer Dispenser only) 4
Solid Surface
1
Installation Instructions
Solid Surface Installation
Locate holes on the solid surface and place on to the refrigerated unit. Ensure side holes align on the 1.
refrigeration units. Check for proper t and alignment. Insert screws (10-24 X 1-1/8 PH SS) to anchor solid
surface to risers (Fig. 02).
Final check to see that all gaps are spaced even and level. 2.
Solid Surface Installation for Beer Dispenser Only
Mount the draft tower onto the solid surface using the four screws, nuts, 1.
washers (provided) and one mounting gasket (part of draft tower kit in the
Beer Dispenser)(Fig. 03 and 04).

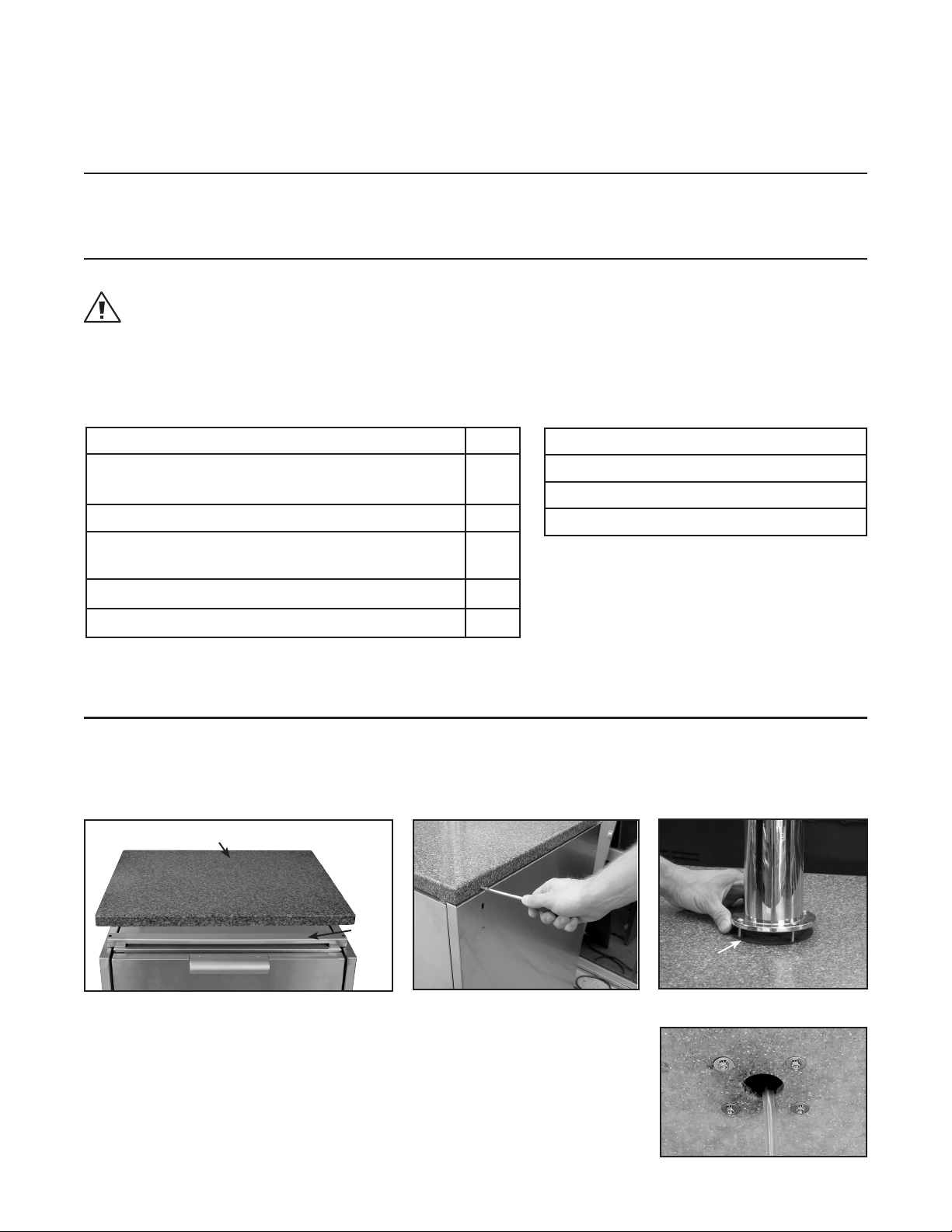

Fig. 01
Solid Surface
Fig. 02
Fig. 03
Fig. 04
Note: Some parts may not be used in your conguration.
Riser
Over. . .
Gasket
