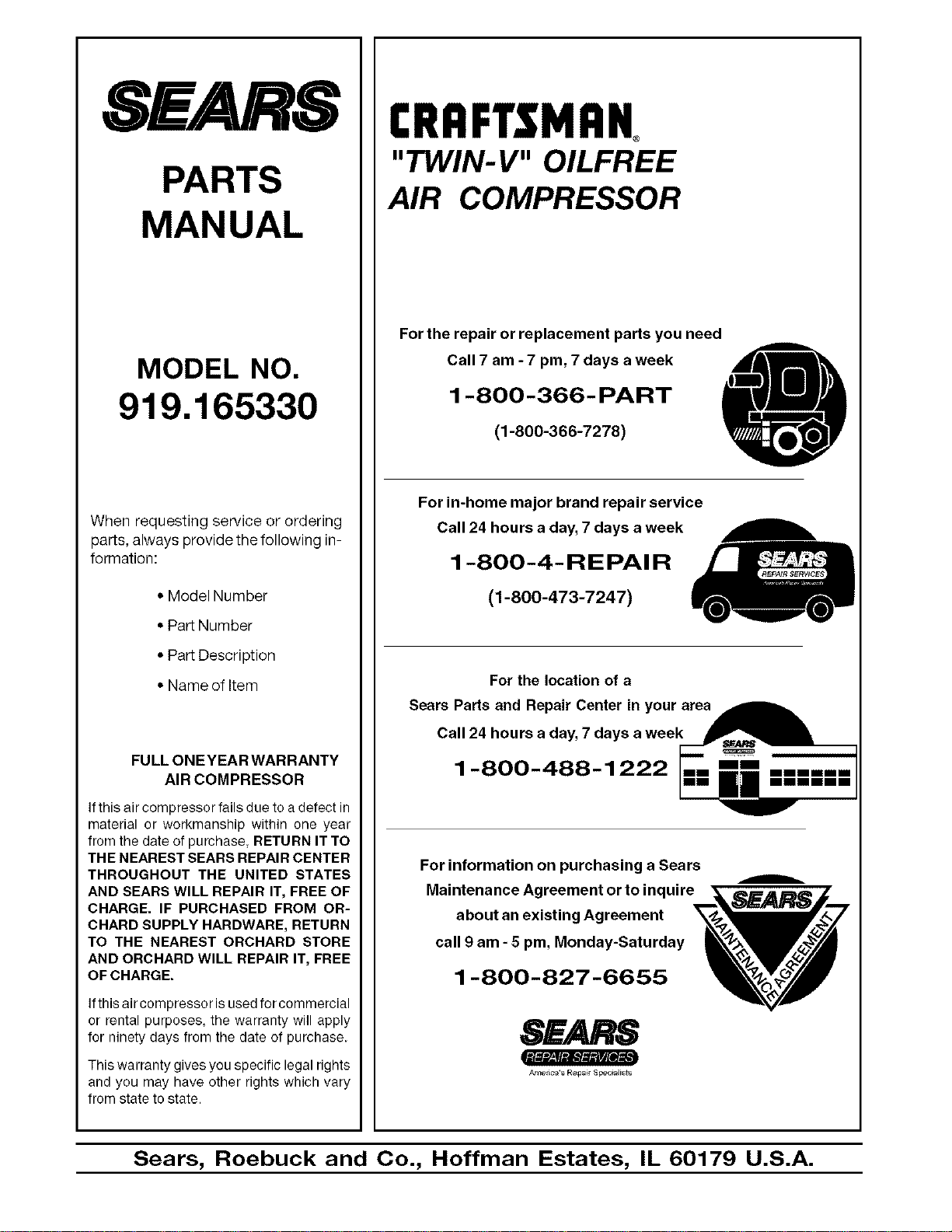

$ 4R$
PARTS
MANUAL
MODEL NO.
919.165330
IMPORTANT:
Read the Safety Guidelines and
All Instructions Carefully Before
Operating,
CRRFTSMRNo
"TWIN-V" OILFREE
AIR COMPRESSOR
SPECIFICATION CHART
Model No. 919.165330
Horsepower 6.5
Displacement CFM 21.2
Bore 2 3/8"
Stroke 1.2"
Voltage-Single Phase 240
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity - GAL 33 Gal. ASME
ApproximateCut-in Pressure 100
Approximate Cut-out Pressure 130
SCFM @40 psig 14.2
SCFM @90 psig 9.9
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
M-165330 10/6/97
