Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at www.samsung.com
Model Serial No.
USER MANUAL
LSP7T / LSP9T
Before Reading This User Manual
This Projector comes with this user manual and an embedded e-Manual.
Before reading this user manual, review the following:
User Manual
Read this provided user manual to see
information about product safety, installation,
accessories, initial configuration, and product
specifications.
e-Manual
For more information about this Projector, read
the e-Manual embedded in the product.
• To open the e-Manual,
> Settings > Support > Open
e-Manual
On the website (www.samsung.com), you can download the manuals and see its contents on
your PC or mobile device.

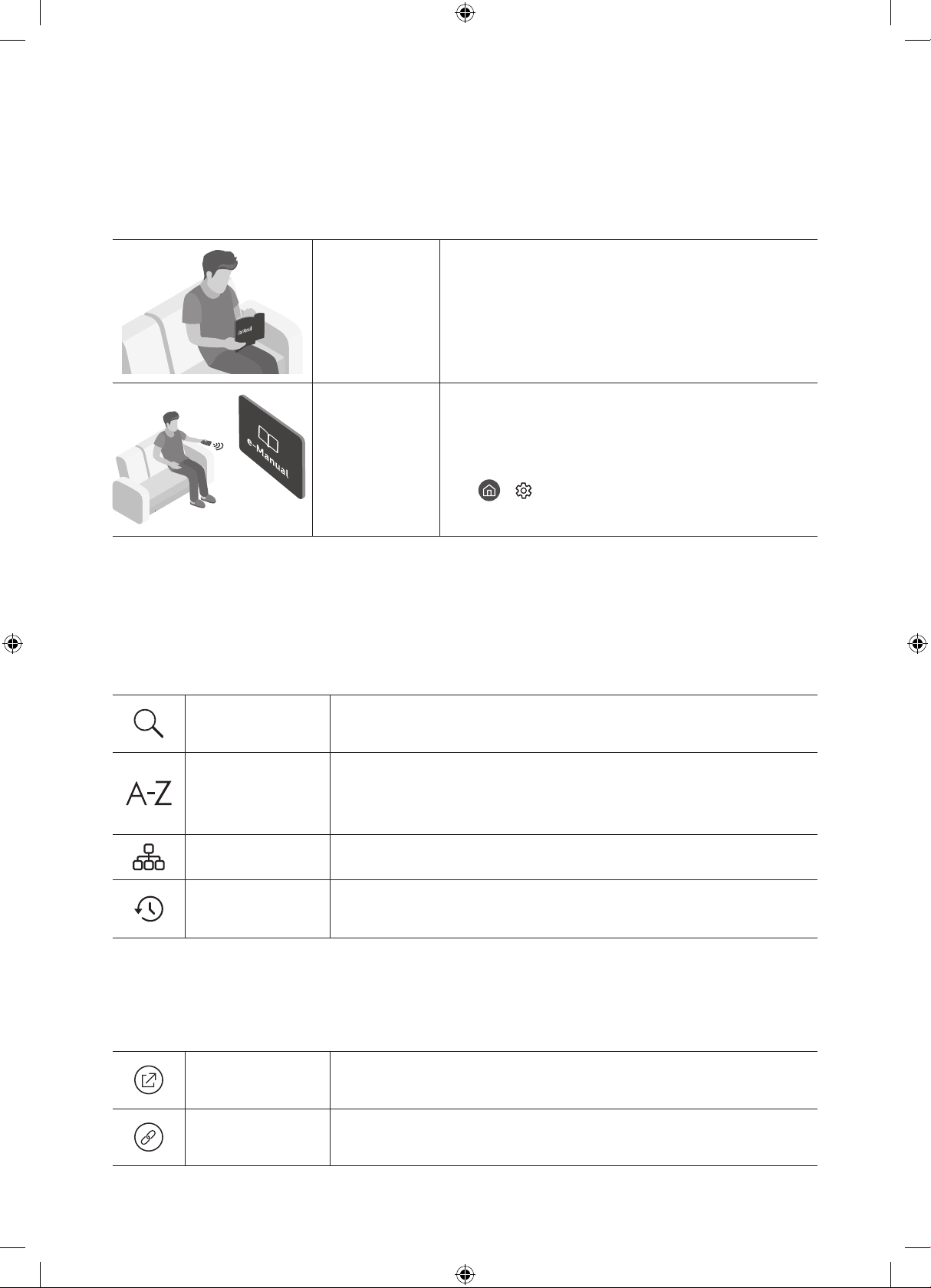

Learning the e-Manual's assistance functions
• Some menu screens cannot be accessed from the e-Manual.
Search
Select an item from the search results to load the
corresponding page.
Index
Select a keyword to navigate to the relevant page.
– The menus may not appear depending on the geographical
area.
Site Map
It displays the lists for each item in e-Manual.
Recently
Viewed Topics
Select a topic from the list of recently viewed topics.
Learning the functions of the buttons that appear on e-Manual
topic pages
Try Now
Allows you to access the corresponding menu item and try out
the feature right away.
Link
Access an underlined topic referred to on an e-Manual page
immediately.
English
English - 2
Features of your Projector

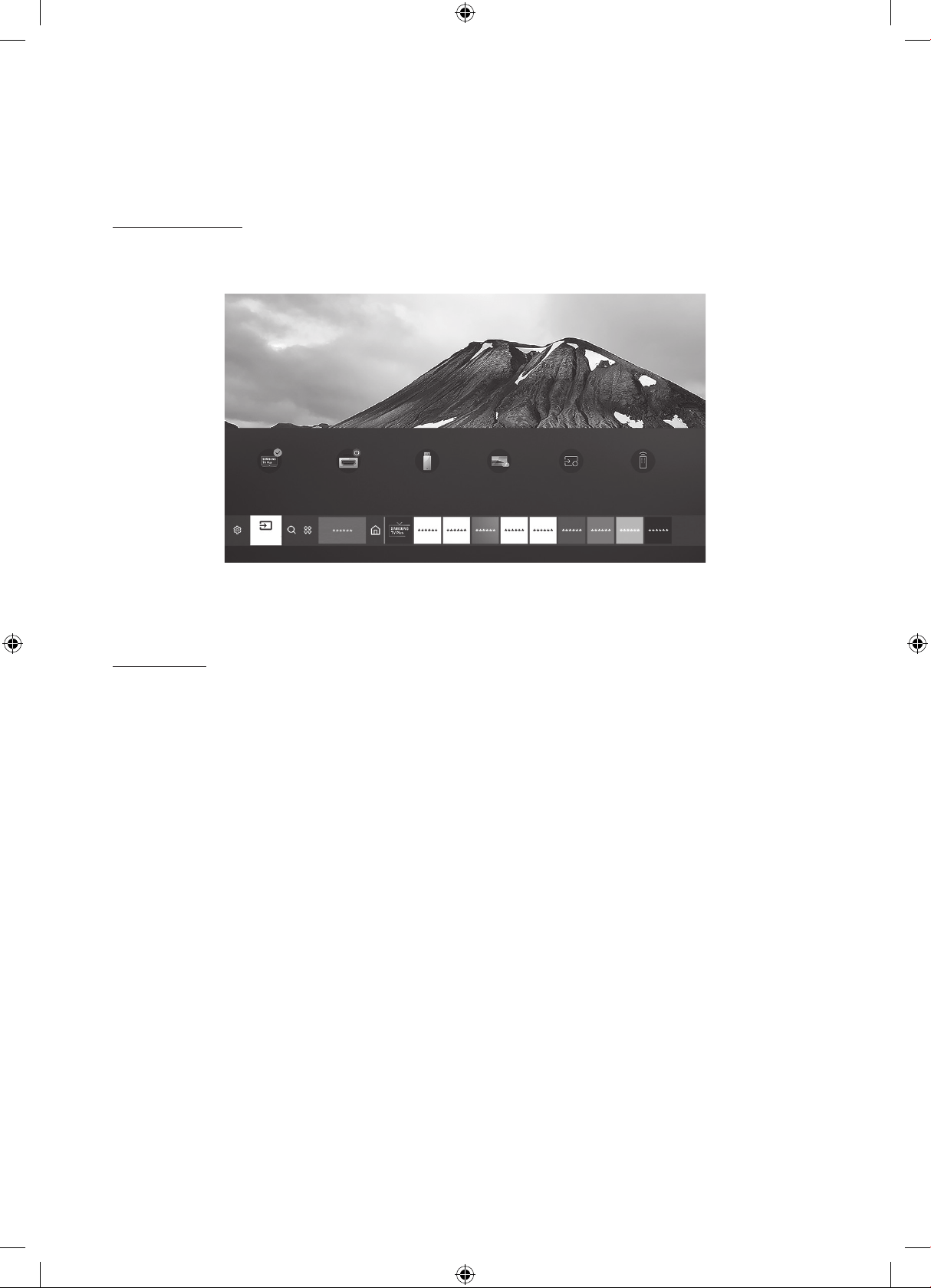

Home Screen
In Home Screen, you can easily run the apps that have been used previously or frequently. The
apps can also be moved or deleted in the screen.
Source
Sources
TV HDMI 1 USB Remote Access Connection Guide Universal Remote
• The image on your Projector may differ from the image above depending on the model and
geographical area.
e-Manual
Get help from a detailed, on-screen user's manual built into your Projector.
English - 3
Warning! Important Safety Instructions
Please read the Safety Instructions before using your Projector.
Refer to the table below for an explanation of symbols which may be on your Samsung
product.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER ALL
SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high
voltage is present inside. It is
dangerous to make any kind of
contact with any internal part
of this product.
This symbol indicates that this
product has included important
literature concerning operation
and maintenance.
AC voltage: Rated voltage
marked with this symbol is AC
voltage.
DC voltage: Rated voltage
marked with this symbol is DC
voltage.
Caution. Consult instructions for
use: This symbol instructs the
user to consult the user manual
for further safety related
information.
Installation
• The slots and openings in the cabinet
and in the back or bottom are provided
for necessary ventilation. To ensure
reliable operation of this apparatus and
to protect it from overheating, these slots
and openings must never be blocked or
covered.
– Do not place this apparatus in a
confined space, such as a bookcase
or built-in cabinet, unless proper
ventilation is provided.
– Do not place this apparatus near or
over a radiator or heat register, or
where it is exposed to direct sunlight.
– Do not place vessels (vases etc.)
containing water on this apparatus,
as this can result in a fire or electric
shock.
• Do not expose this apparatus to rain or
moisture.
• Be sure to contact an authorised
Samsung service centre for information
if you intend to install your Projector in
a location with heavy dust, high or low
temperatures, high humidity, chemical
substances, or where it will operate 24
hours a day such as in an airport, a train
station, etc. Failure to do so may lead to
serious damage to your Projector.
English - 4
• Do not expose this apparatus to dripping
or splashing.
• Do not dispose of batteries in a fire.
• Batteries (battery pack or batteries
installed) shall not be exposed to
excessive heat such as sunshine, fire or
the like.
• CAUTION: There is danger of an explosion
if you replace the batteries used in the
remote with the wrong type of battery.
Replace only with the same or equivalent
type.
• WARNING - TO PREVENT
THE SPREAD OF FIRE, KEEP
CANDLES AND OTHER ITEMS
WITH OPEN FLAMES AWAY
FROM THIS PRODUCT AT ALL
TIMES.
• Use care when touching the
Projector after it has been on
for some time. Some parts can
be warm to the touch.
Operation
• This apparatus uses batteries. In your
community, there might be environmental
regulations that require you to dispose of
these batteries properly. Please contact
your local authorities for disposal or
recycling information.
• Do not drop or strike the product. If the
product is damaged, disconnect the power
cord and contact a Samsung service
centre.
• When you need to turn off the Projector
completely, wait until the fan stops
completely so that the Project can cool
down completely.
Power
• Do not overload wall outlets, extension
cords, or adaptors beyond their capacity,
since this can result in fire or electric
shock.
• Power-supply cords should be placed so
that they are not likely to be walked on or
pinched by items placed upon or against
them. Pay particular attention to cords at
the plug end, at wall outlets, and at the
point where they exit from the appliance.
• To protect this apparatus from a lightning
storm, or when left unattended and
unused for long periods of time, unplug it
from the wall outlet and disconnect the
antenna or cable system. This will prevent
damage to the set due to lightning and
power line surges.
• Before plugging in the AC power cord
of the Projector, make sure that the
operational voltage of the Projector
matches the voltage of your local
electrical power supply. Refer to the
power specifications section of the
manual and/or the power supply label on
the product for voltage and amperage
information.
• Never insert anything metallic into the
open parts of this apparatus. This may
cause electric shock.
• To avoid electric shock, never touch the
inside of this apparatus. Only a qualified
technician should open this apparatus.
English - 5
• Be sure to plug in the power cord until
it is firmly seated. When unplugging the
power cord from a wall outlet, always pull
on the power cord's plug. Never unplug it
by pulling on the power cord. Do not touch
the power cord with wet hands.
• If this apparatus does not operate
normally - in particular, if there are any
unusual sounds or smells coming from
it - unplug it immediately and contact
an authorised dealer or Samsung service
centre.
• Be sure to pull the power plug out of the
outlet if the Projector is to remain unused
or if you are going to leave the house for
an extended period of time (especially
when children, elderly, or disabled people
will be left alone in the house).
– Accumulated dust can cause an
electric shock, an electric leakage,
or a fire by causing the power cord
to generate sparks and heat or by
causing the insulation to deteriorate.
• Use only a properly grounded plug and
wall outlet.
– An improper ground may cause
electric shock or equipment damage.
(Class l Equipment only.)
• To turn off this apparatus completely,
disconnect it from the wall outlet. To
ensure you can unplug this apparatus
quickly if necessary, make sure that the
wall outlet and power plug are readily
accessible.
Cleaning
• To clean this apparatus, unplug the power
cord from the wall outlet and wipe the
product with a soft, dry cloth. Do not
use any chemicals such as wax, benzene,
alcohol, thinners, insecticide, aerial
fresheners, lubricants, or detergents.
These chemicals can damage the
appearance of the Projector or erase the
printing on the product.
• Do not spray water or any liquid directly
onto the Projector. Any liquid that goes
into the product may cause a failure, fire,
or electric shock.
Laser
• Do not block the light coming out of the
projector lens when in operation. The light
will heat the object and may melt, cause
burns or start a fire.
• Do not look directly at the light from the
Projector lens or project the light into any
person's eyes.
• WARNING: MOUNT ABOVE THE HEADS
OF CHILDREN. Additional warning against
eye exposure for close exposures less than
1 m.
English - 6
• As with any bright source, do not stare
into the direct beam, RG2 IEC 62471-
5:2015.
• This projector is class 1 laser product of
IEC 60825-1:2014 and risk group 2 with
the requirements of IEC 62471-5:2015
• Additional instructions to supervise
children, no staring, and not use optical
aids
– Notice is given to supervise children
and to never allow them to stare into
the projector beam at any distance
from the projector.
– Notice is given to use caution when
using the remote control for starting
the projector while in front of the
projection lens.
– Notice is given to the user to avoid the
use of optical aids such as binoculars
or telescopes inside the beam.
• Do not open or disassemble the projector
as this may cause damage by the exposure
of laser Radiation.
Antenna
• Bend down the part where the outdoor
antenna line goes into the inside so that
rainwater cannot flow into it.
• If you are using an outdoor antenna,
please install it away from electrical wires
to make sure it does not touch any nearby
wires even when it falls down due to
heavy wind.
English - 7
English - 8
Before Reading This User Manual ---------------------------------------------------------------- 2
Features of your Projector ---------------------------------------------------------------- 3
Warning! Important Safety Instructions ---------------------------------------------------------------- 4
01 What's in the Box?
02 Product Overview
About the Projector ---------------------------------------------------------------- 11
03 Installing the Projector
Image size and projection distance ---------------------------------------------------------------- 14
Using the Power button ---------------------------------------------------------------- 15
Mounting the Projector on a wall ---------------------------------------------------------------- 16
04 The Remote Control
About the Buttons on the Remote Control ---------------------------------------------------------------- 17
05 The Samsung Smart Remote
About the Buttons on the
Samsung Smart Remote ---------------------------------------------------------------- 19
Installing batteries into the
Samsung Smart Remote ---------------------------------------------------------------- 20
About the Samsung Smart Remote ---------------------------------------------------------------- 20
Controlling External Devices with a Samsung
Remote Control - Using the Universal Remote ---------------------------------------------------------------- 22
06 Connections
Connecting devices to your Projector ---------------------------------------------------------------- 23
Connecting to the Internet ---------------------------------------------------------------- 24
Contents
07 Selecting Connected Devices
Changing the input signal ---------------------------------------------------------------- 25
Editing external devices ---------------------------------------------------------------- 25
Using additional functions ---------------------------------------------------------------- 25
08 Troubleshooting and Maintenance
Troubleshooting ---------------------------------------------------------------- 26
09 Specifications and Other Information
Specifications ---------------------------------------------------------------- 28
Environmental Considerations ---------------------------------------------------------------- 28
Decreasing power consumption ---------------------------------------------------------------- 29
Licences ---------------------------------------------------------------- 29
Warranty Card ---------------------------------------------------------------- 31
WARRANTY CONDITIONS ---------------------------------------------------------------- 31
English - 9

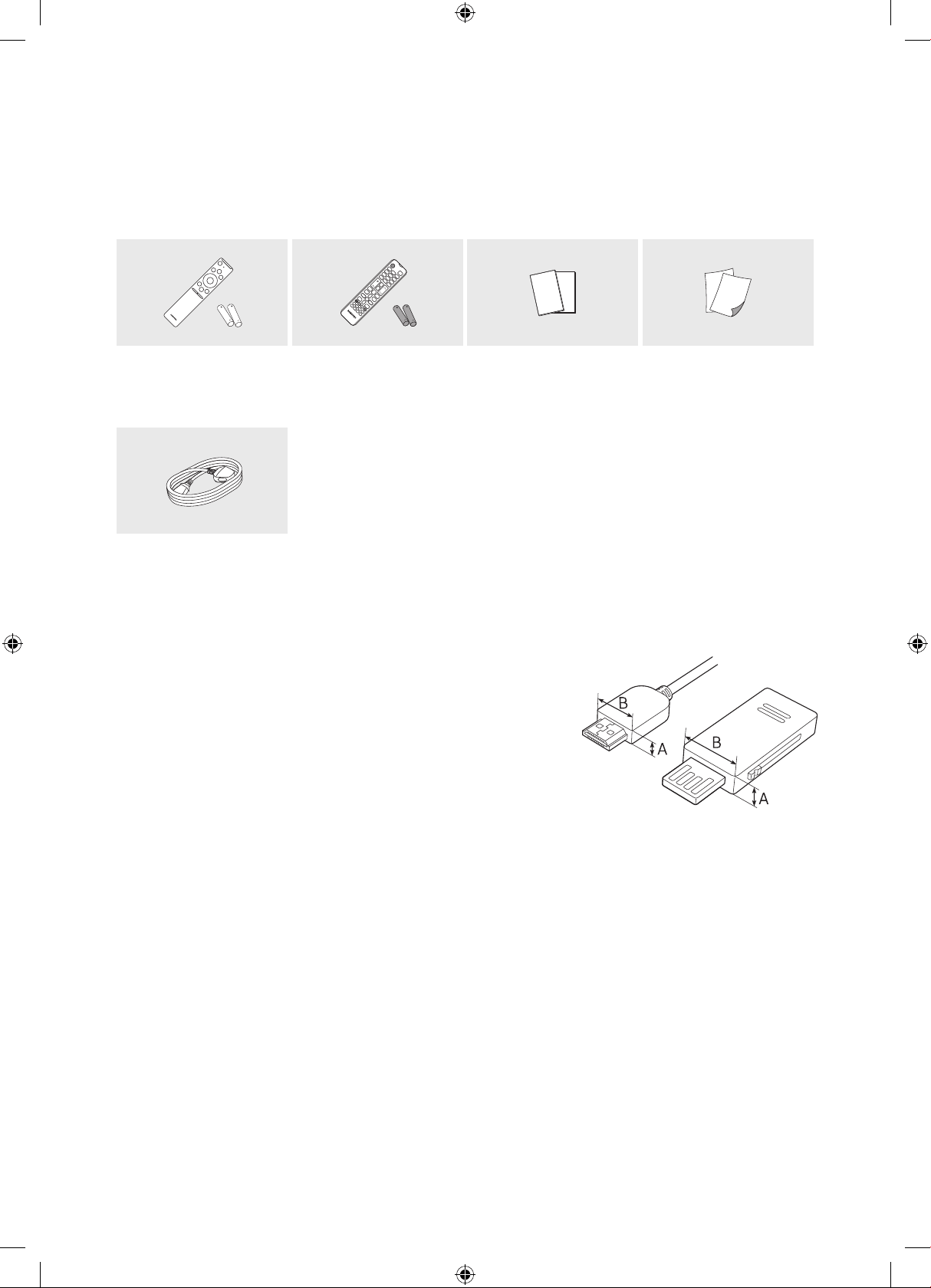

01 What's in the Box?
Make sure the following items are included with your Projector. If any items are missing,
contact your dealer.
Samsung Smart
Remote & Batteries
(AA x 2)
Remote Control &
Batteries
(AAA x 2)
User Manual Regulatory Guide
Power Cable
• The items’ colours and shapes may vary depending on the models.
• Cables not included can be purchased separately.
• When connecting an HDMI or USB cable, or connecting a
USB flash drive to the HDMI or USB port, use a product
that has a width of 18 mm or less and a height of 10 mm
or less. If the USB cable or USB flash drive does not fit the
USB ports of the projector, use an extension cable that
supports USB 2.0.
• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen
may not display or a connection error may occur.
(Recommended HDMI cable types)
– Ultra High-Speed HDMI Cable (3 m or less)
A ≤ 10 mm / B ≤ 18 mm
An administration fee may be charged in the following situations:
(a) An engineer is called out at your request, but it is found that the product has no defect
(i.e., where the user manual has not been read).
(b) You bring the unit to the Samsung service centre, but it is found that the product has no
defect (i.e., where the user manual has not been read).
You will be informed of the administration fee amount before a technician visits.
English - 10
02 Product Overview

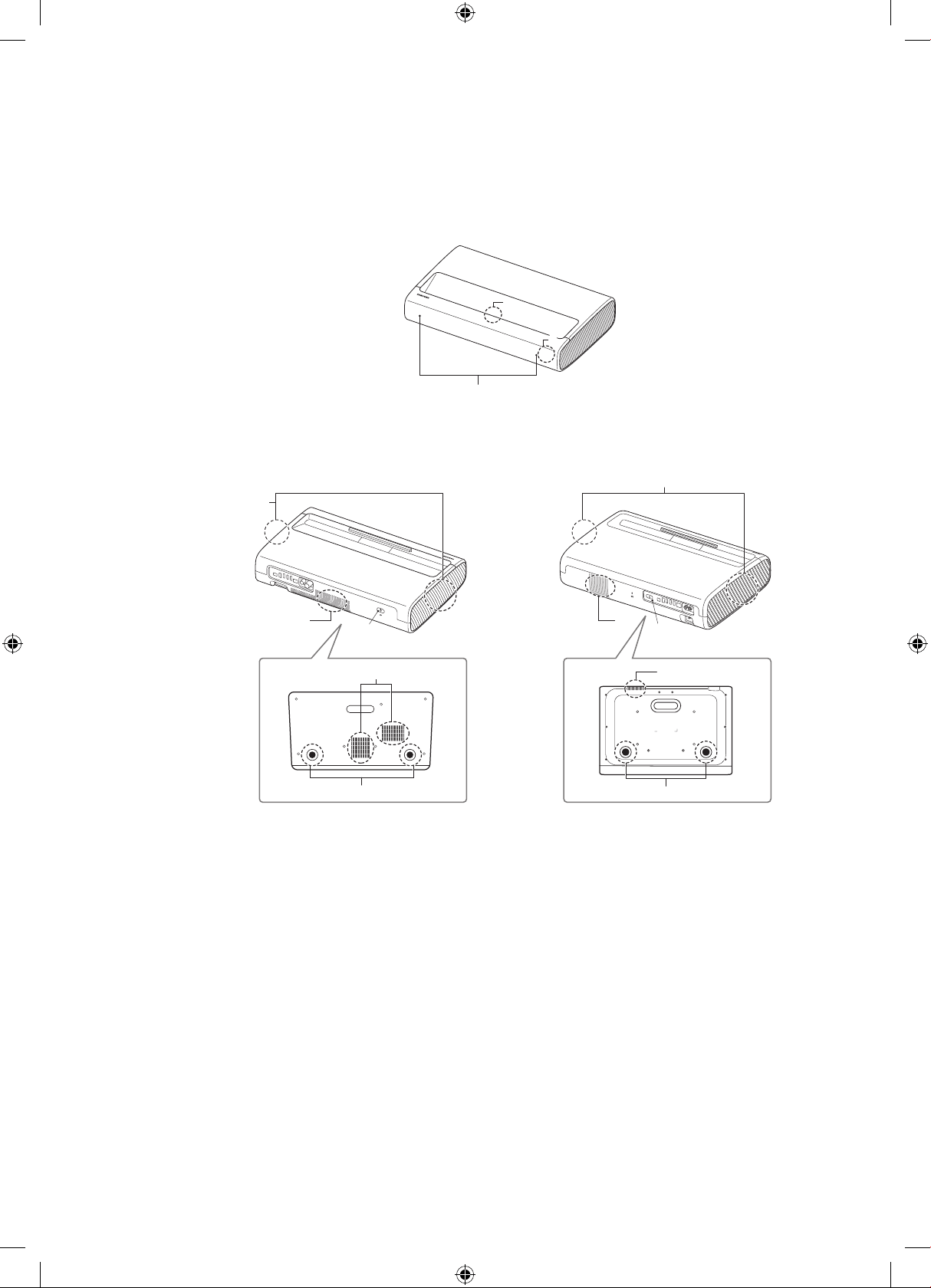

About the Projector
<Front>
1
2
3
SP-LSP7TFA SP-LSP9TFA
<Rear>
4
5
4
6
4
4
5
4
6
4
1
Lens
4
Ventilation
2
Remote control sensor / LED Indicators
5
Power button
3
Speaker
6
Tilt-Adjustment Foot
• The product colour and shape may vary depending on the model.
• Do not block projector intake and exhaust vents.
• When operating the projector in an enclosed space, allow at least 50 cm clearance around
the intake and exhaust vents.
English - 11

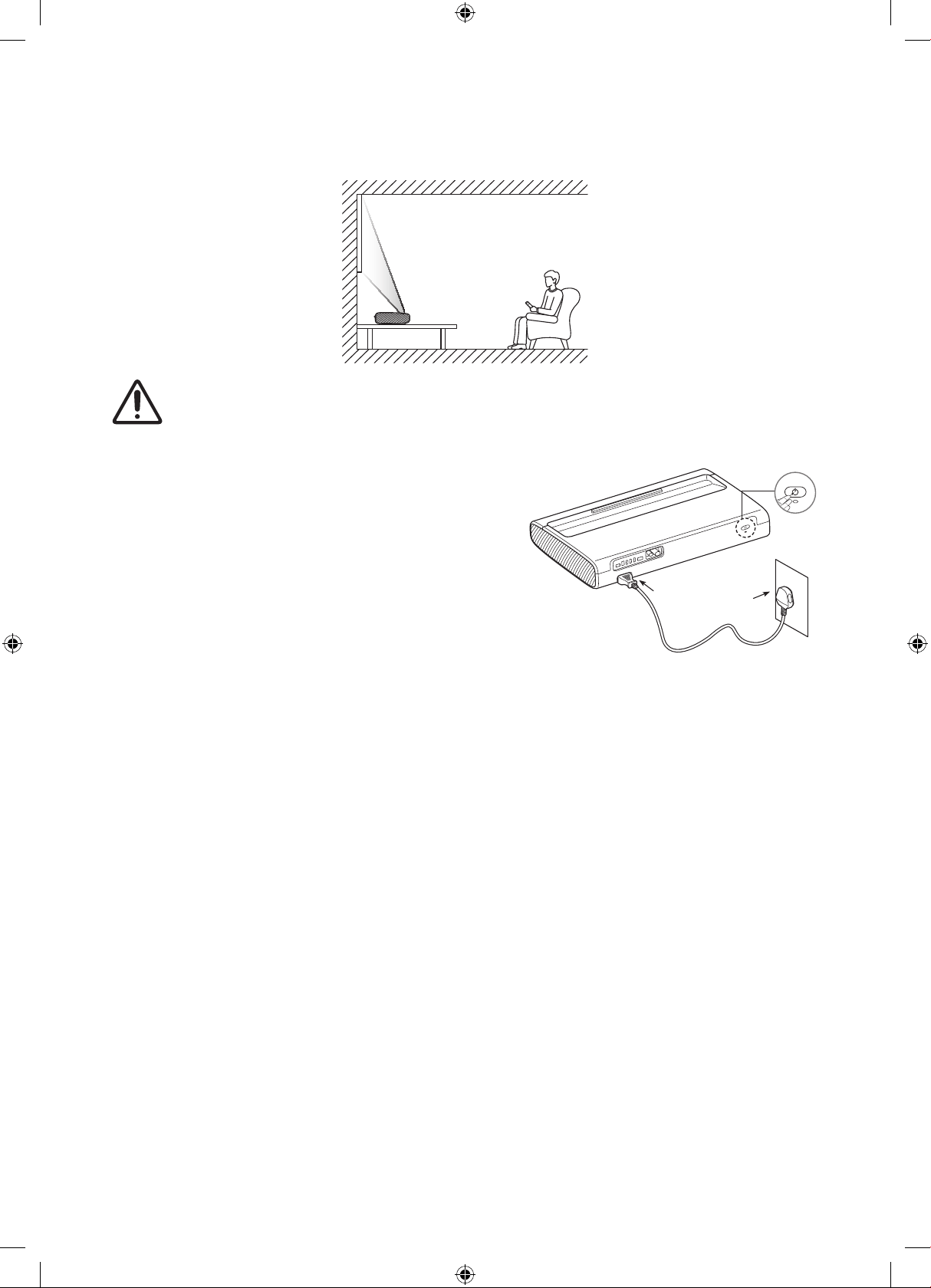

03 Installing the Projector
Install the projector horizontally on a flat surface to prevent it from being tilted.
When the screen and the projector are not aligned horizontally and vertically, or the
screen is curved, the display may get distorted.
1. Place the projector at an appropriate distance
from the screen to be projected, connect with the
power cable, and then turn it on.
• When you turn on your Projector for the first time,
it immediately starts the Initial Setup. Follow
the instructions displayed on the screen and
configure the Projector's basic settings to suit
your viewing environment.
– You can turn on the Projector with the power
button at the rear of the Projector, and then
use the Control menu. The Control menu
appears when the power button is pressed
while the Projector is On.
– When the screen looks skewed or blurred,
adjust the display settings by following the
next instruction.
• The product colour and shape may
vary depending on the model.
English - 12

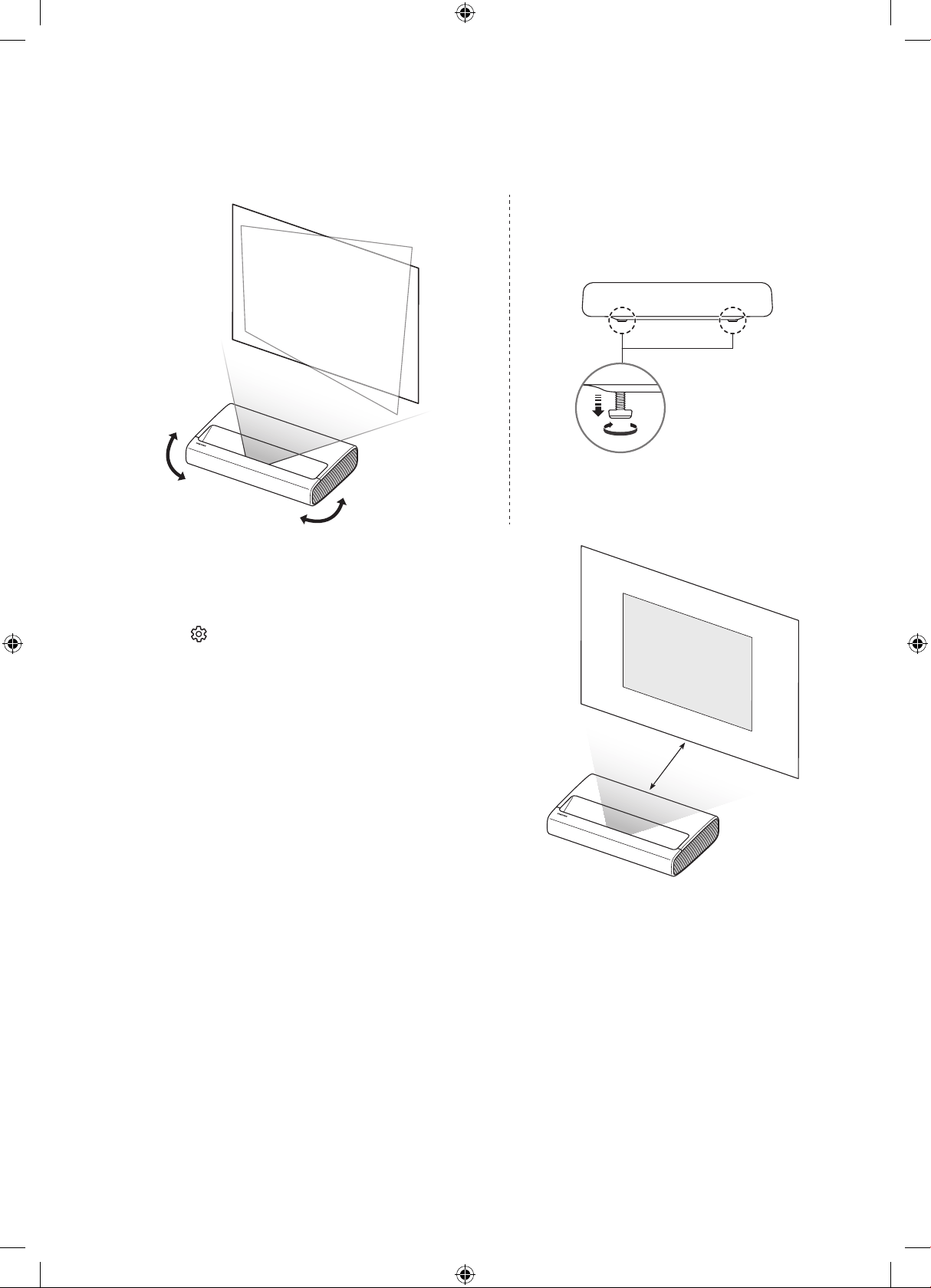

2. Adjust the angle by moving the projector left or right or adjust the angle adjusting tilt-
adjustment foot at the bottom to make the screen to be rectangular.
3. Move the projector forward or backward to adjust
the projection distance for a desired screen size.
– When the projected screen is unclear, adjust
in Settings > General > Projector Settings >
Focus.
– When the projected screen is not a right
angle, adjust in Projector Settings > Screen
Adjustment.
In this case, the screen resolution may
decrease.
– For information about the screen sizes
for each projection distance, refer to the
following table.
English - 13
Image size and projection distance
– The screen sizes for each projection distance may differ depending on the installation
environment.
Screen
SP-LSP7TFA
C (inches) X (mm) Y (mm) A (mm) B (mm)
90 1992 1121 247 349
95 2103 1183 275 364
100 2214 1245 303 379
105 2324 1308 331 394
110 2435 1370 359 409
115 2546 1432 387 424
120 2657 1494 415 439
SP-LSP9TFA
C (inches) X (mm) Y (mm) A (mm) B (mm)
100 2214 1245 113 351
105 2324 1308 134 363
110 2435 1370 154 376
115 2546 1432 175 388
120 2657 1494 196 401
125 2767 1557 217 413
130 2878 1619 238 426
English - 14

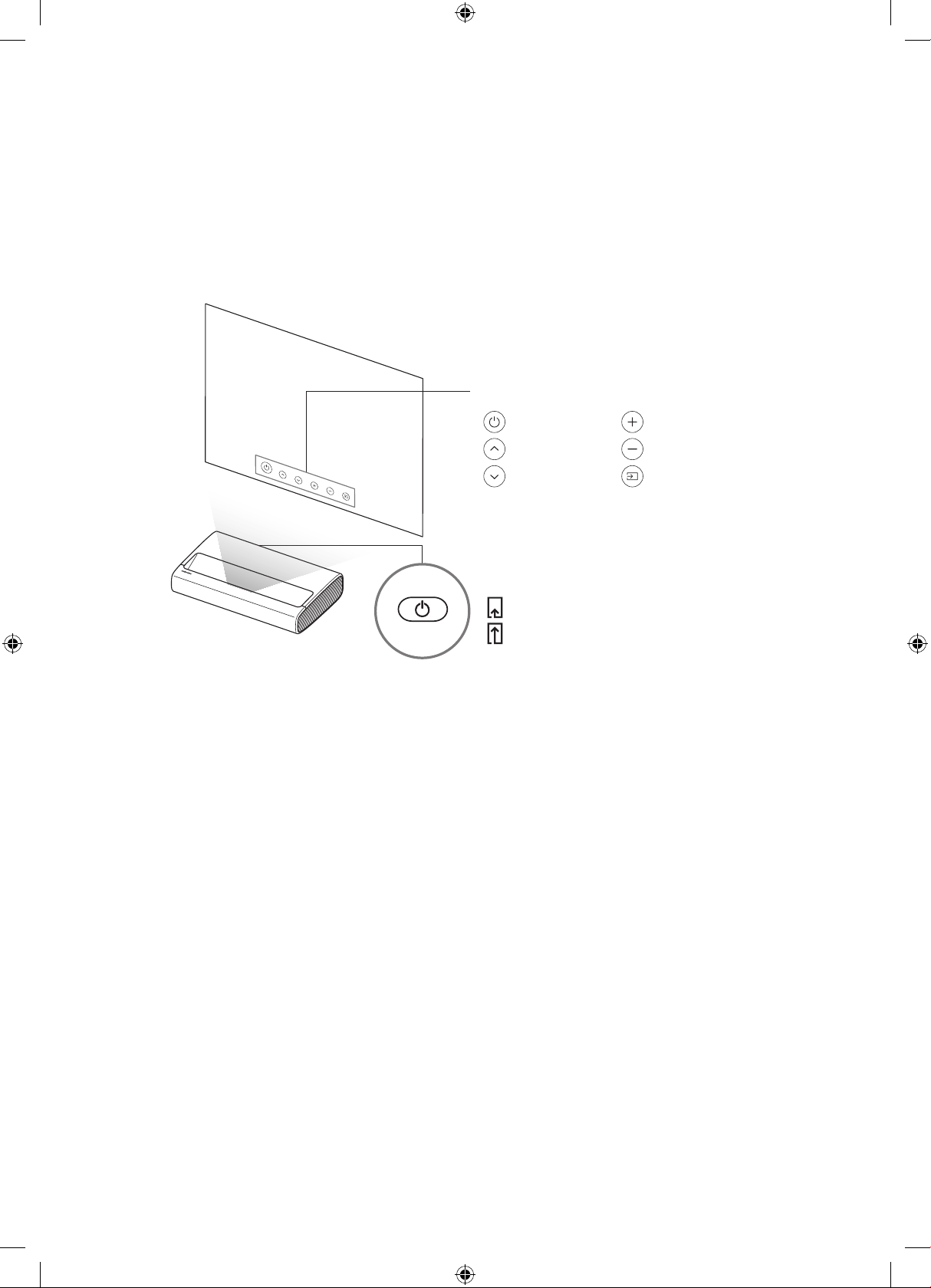

Using the Power button
You can turn on the Projector with the power button at the rear of the Projector, and then use
the Control menu. The Control menu appears when the power button is pressed while the
Projector is On. For more information about its usage, refer to the figure below.
• Manipulate buttons on the side of the product so that the projected screen is not covered.
• Be careful not to directly get the light emitted from the projector lens.
Control menu
:
Power off
:
Volume Up
:
Channel Up
:
Volume Down
:
Channel Down
:
Source
Power button
Press: Move
Press & Hold: Select
• The product colour and shape may vary depending on the model.
English - 15
Mounting the Projector on a wall
In order to install the projector on a wall, be sure to consult with a professional
service agency. Otherwise, the projector may slip or fall off, resulting in personal
injury or damage to the product.
When installing a wall mount kit, we recommend you
fasten all four screws.
Screw hole specs
(A * B) in millimetres
Screw Depth
(mm)
Standard
Screw
Quantity
235 x 135 7-9 M6 4
• The product colour and shape
may vary depending on the
model.
Do not install your wall mount kit while your Projector is turned on. This may result in
personal injury from electric shock.
• Do not use screws that are longer than the standard dimension or do not comply with the
standard screw specifications. Screws that are too long may cause damage to the inside of
the Projector set.
• For wall mounts that do not comply with the standard screw specifications, the length of
the screws may differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to
fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-specified wall
mount is used or when the consumer fails to follow the product installation instructions.
• Always have two people mount the Projector onto a wall.
Other Cautions
• The actual appearance of the Projector may differ from the images in this manual,
depending on the model.
• Be careful when you touch the Projector. Some parts can be somewhat hot.
English - 16
04 The Remote Control

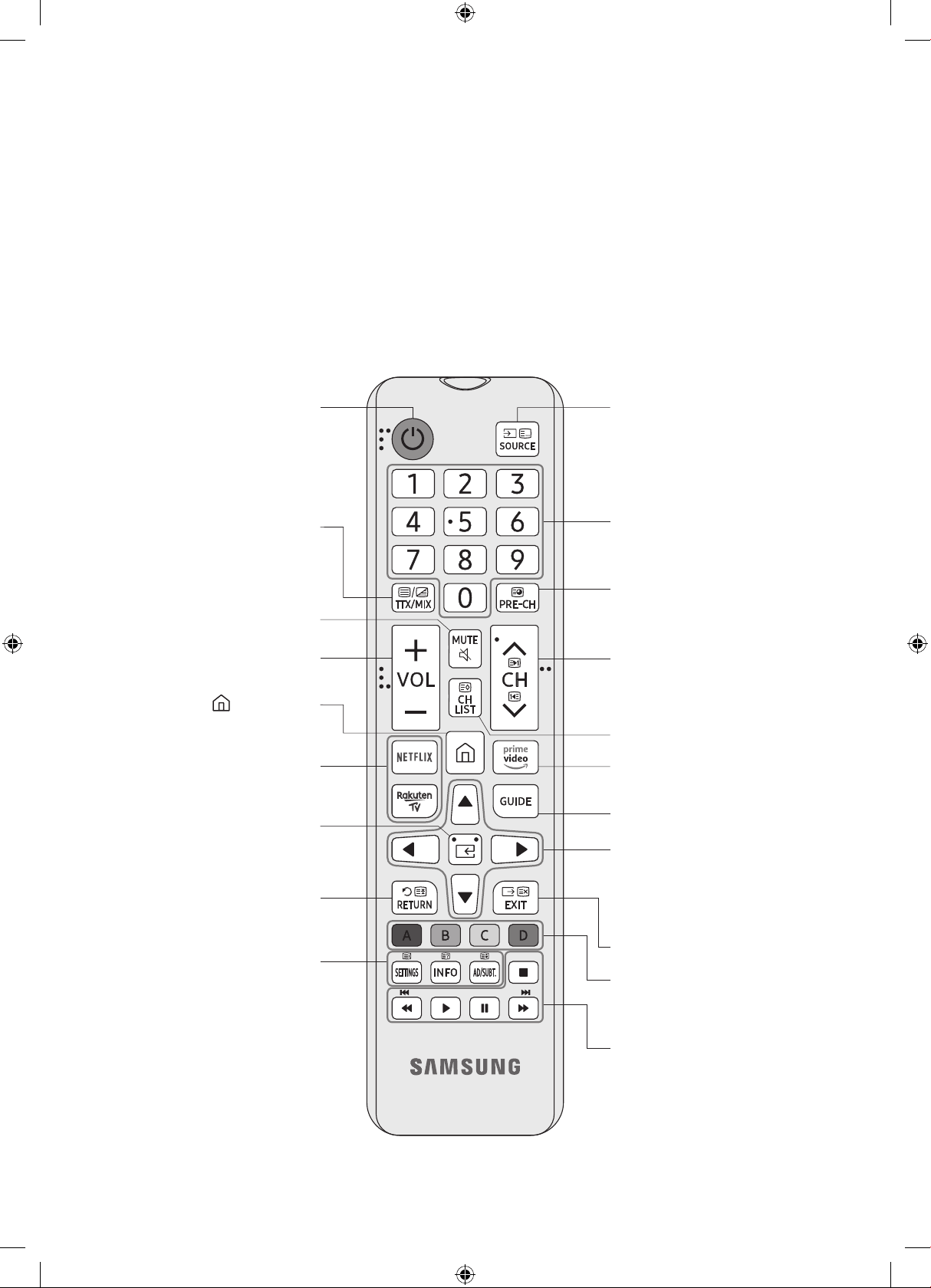

About the Buttons on the Remote Control
• This remote control has Braille points on the Power, Channel, Volume, and Select buttons
and can be used by visually impaired persons.
• The images, buttons, and functions of the remote control may differ depending on the
model.
• If you use the remote control that comes with your Projector to control another TV, some
functions may not operate normally.
Displays and selects available
video sources.
Turns the sound on/off.
Launches the Channel List.
Changes the current channel.
Exits the menu.
Use these buttons according to
the directions on the Projector
screen.
Use these buttons with specific
features. Use these buttons
according to the directions on
the Projector screen.
Press each button to run its
function.
Displays the Guide screen.
Moves the cursor, selects the
on-screen menu items, and
changes the values seen on the
Projector's menu.
P (Power)
Turns the Projector on and off.
Adjusts the volume.
Alternately selects Teletext
mode, Full TTX / Double TTX /
Mix / Live TV.
Returns to the previous channel.
Gives direct access to channels.
Press each button to run its
function.
Returns to the previous menu or
channel.
SETTINGS
Displays the main on-screen
menu.
INFO
Displays information about the
current programme or content.
AD/SUBT.
Displays the Accessibility
Shortcuts.
E (Select)
Selects or runs a focused item.
(Smart Hub)
Launches Home Screen.
English - 17

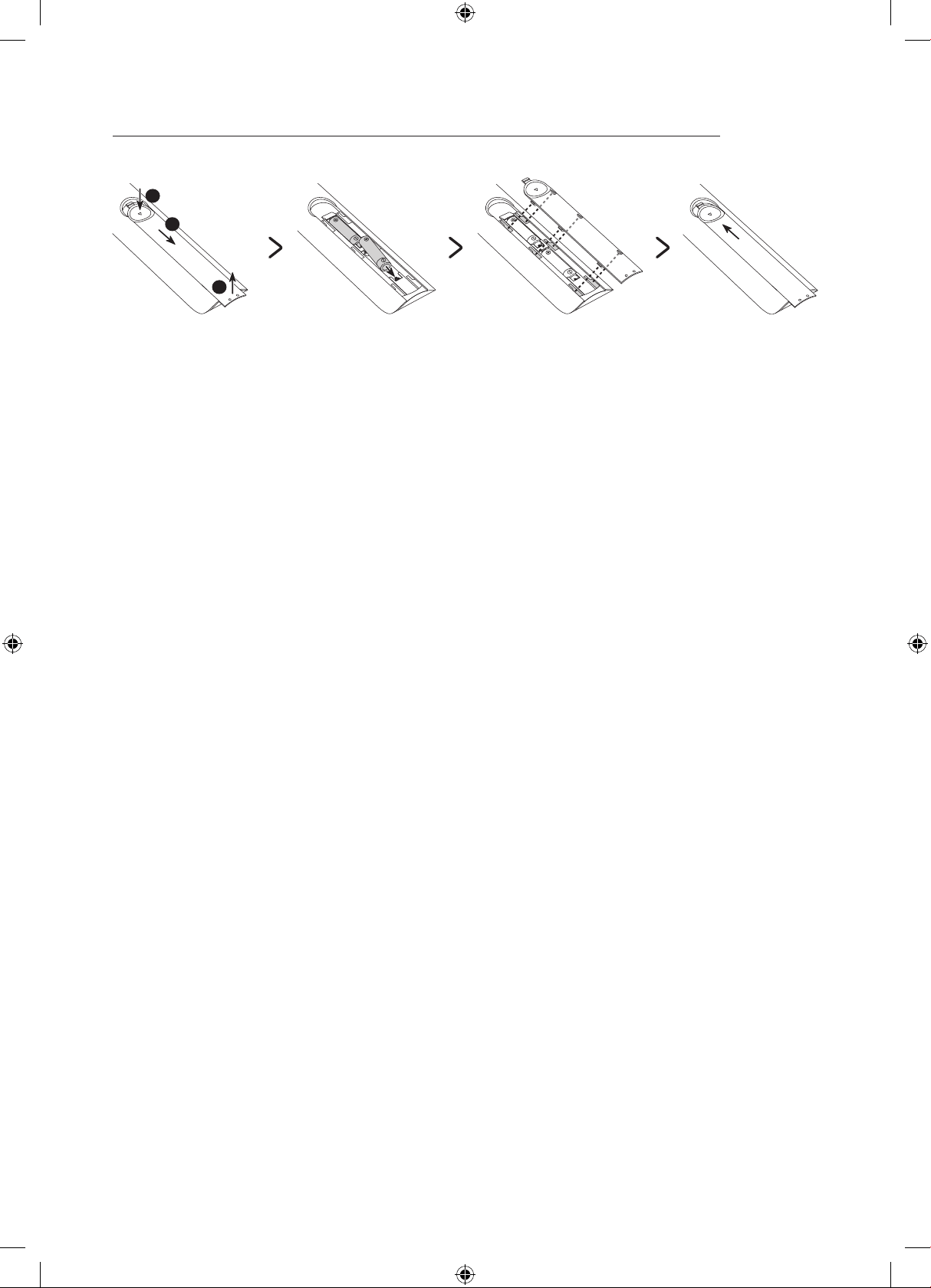

Installing batteries into the remote control (Battery size: AAA)
Match the polarities of the batteries to the symbols on the battery compartment.
2
3
1
• The colour and shape of the remote may vary depending on the model.
• Use the remote control within 7 m of the Projector.
• Bright lights may affect the performance of the remote control. Avoid using the remote
control near special fluorescent lights or neon signs.
• Alkaline batteries are recommended for longer battery life.
1. Gently pull on the battery cover's notch and then remove the cover completely once it
comes loose.
2. Insert 2 AAA alkaline batteries, making sure to align the positive and negative polarities
correctly.
3. Place the battery cover on the remote control and insert the cover into the remote control.
4. Slide the battery cover in the order shown above so that the cover is completely attached
to the remote control.
English - 18
05 The Samsung Smart Remote

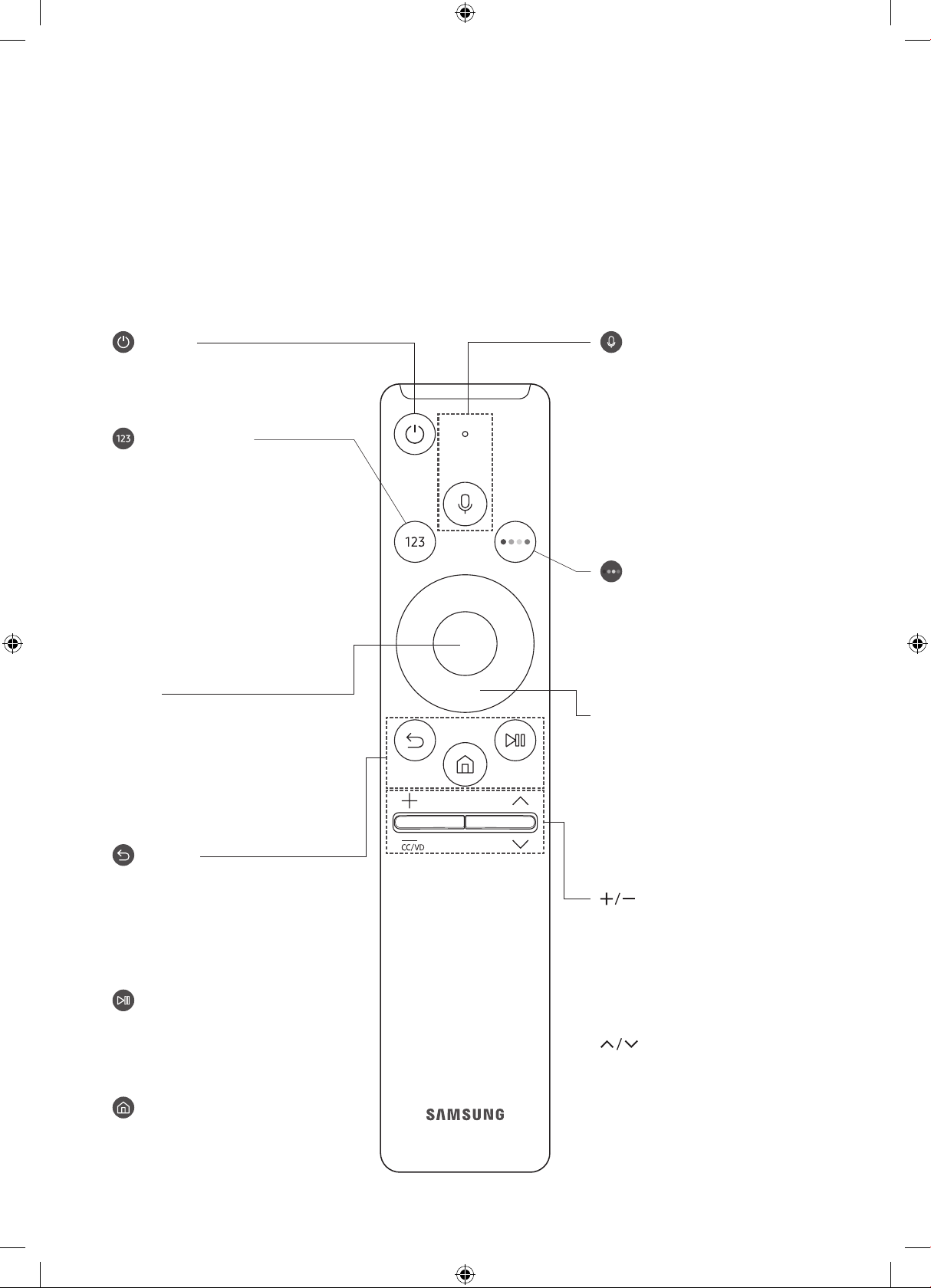

About the Buttons on the Samsung Smart Remote
• The images, buttons, and functions of the Samsung Smart Remote may differ depending on
the model.
• The Universal Remote function operates normally only when you use the Samsung Smart
Remote that comes with the Projector.
(Power)
Press to turn the Projector on or off.
(Number button)
When pressed, a number strip
appears on the bottom of the
screen. Select numbers and then
select Done to enter a numeric
value. Use to change the channel,
enter a PIN, enter a ZIP code, etc.
• When pressed for 1 second or
more, the TTX menu appears.
(Return)
Returns to the previous menu.
When pressed for 1 second or
more, the running function is
terminated. When pressed while
you are watching a programme, the
previous channel appears.
(Play/pause)
When pressed, the playback
controls appear. Using these
controls, you can control the media
content that is playing.
(Smart Hub)
Returns to the Home Screen.
(Volume)
Move the button up or down to
adjust the volume. To mute the
sound, press the button. When
pressed for 1 second or more, the
Accessibility Shortcuts menu
appears.
(Channel)
Move the button up or down to
change the channel. To see the
Guide screen, press the button.
• When pressed for 1 second or
more, the Channel List screen
appears.
Select
Selects or runs a focused item.
When pressed while you are
watching a broadcast programme,
detailed programme information
appears.
Directional button (up/down/left/
right)
Used to navigate the Projector
menu, highlight items on the Home
menu, and change values seen on
the Projector's menu.
(Voice Assistant)
Runs the Voice Assistant you
selected. Press and hold the
button, say a command, and then
release the button to run the Voice
Assistant.
• The supported Voice Assistant's
languages and features may
differ by geographical region.
(Colour button)
Use these coloured buttons to
access additional options specific
to the feature you are using.
English - 19

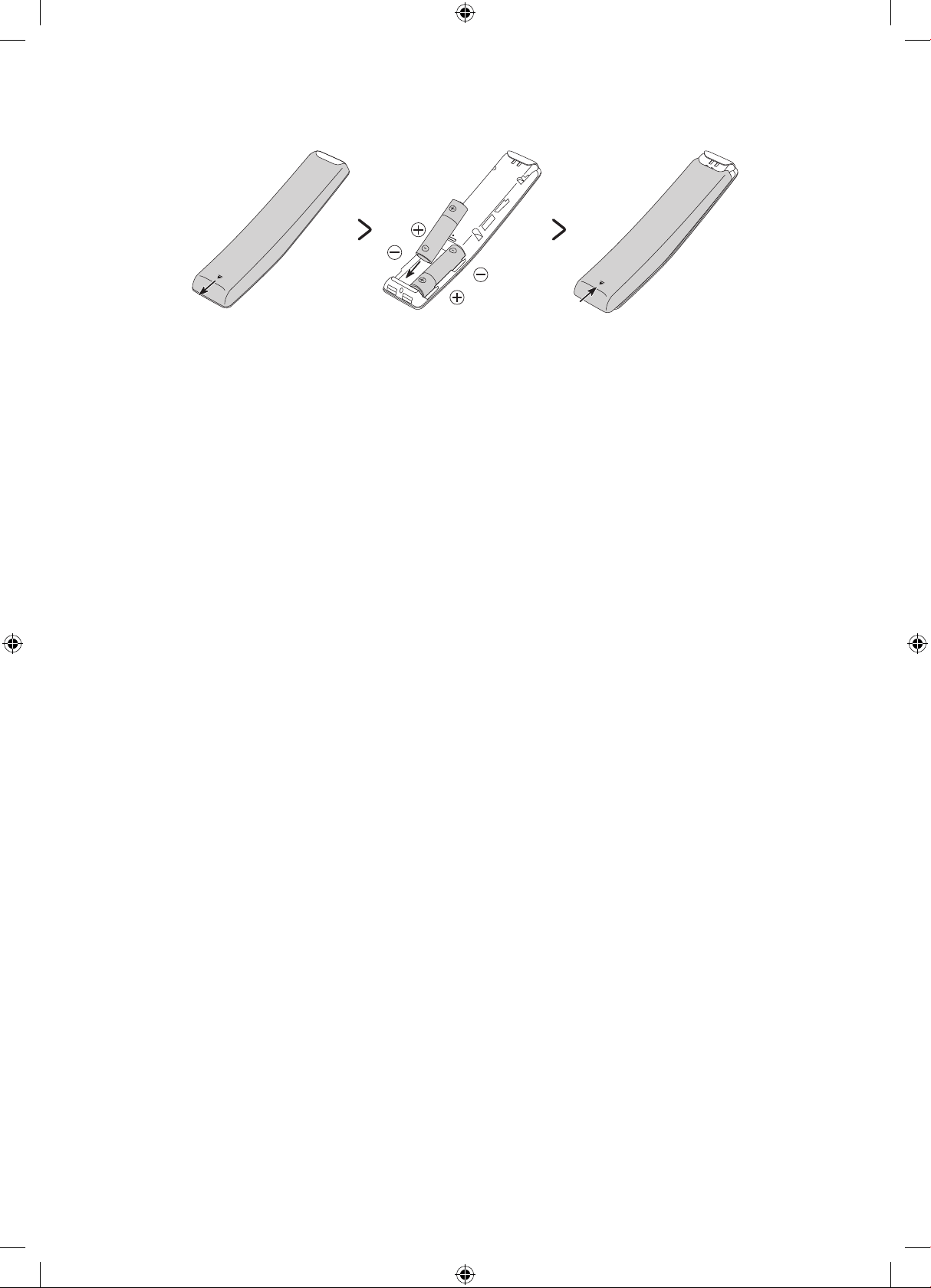

Installing batteries into the Samsung Smart Remote
To install the batteries, push the rear cover open in the direction of the arrow at the bottom
of the illustration, and then insert the batteries as shown in the figure. Make sure that the
positive and negative ends are facing in the correct direction. Close the rear cover as shown.
• Alkaline batteries are recommended for longer battery life.
About the Samsung Smart Remote
When you start the Projector for the first time by pressing the P (Power) button on the
Samsung Smart Remote, the Projector automatically pairs with the Samsung Smart Remote.
Once the Projector and Samsung Smart Remote have paired, you can use the Samsung Smart
Remote to operate the Projector.
We recommend using Samsung Smart Remote at a distance of less than 6 m. A usable
distance may differ depending on the wireless environmental conditions.
English - 20

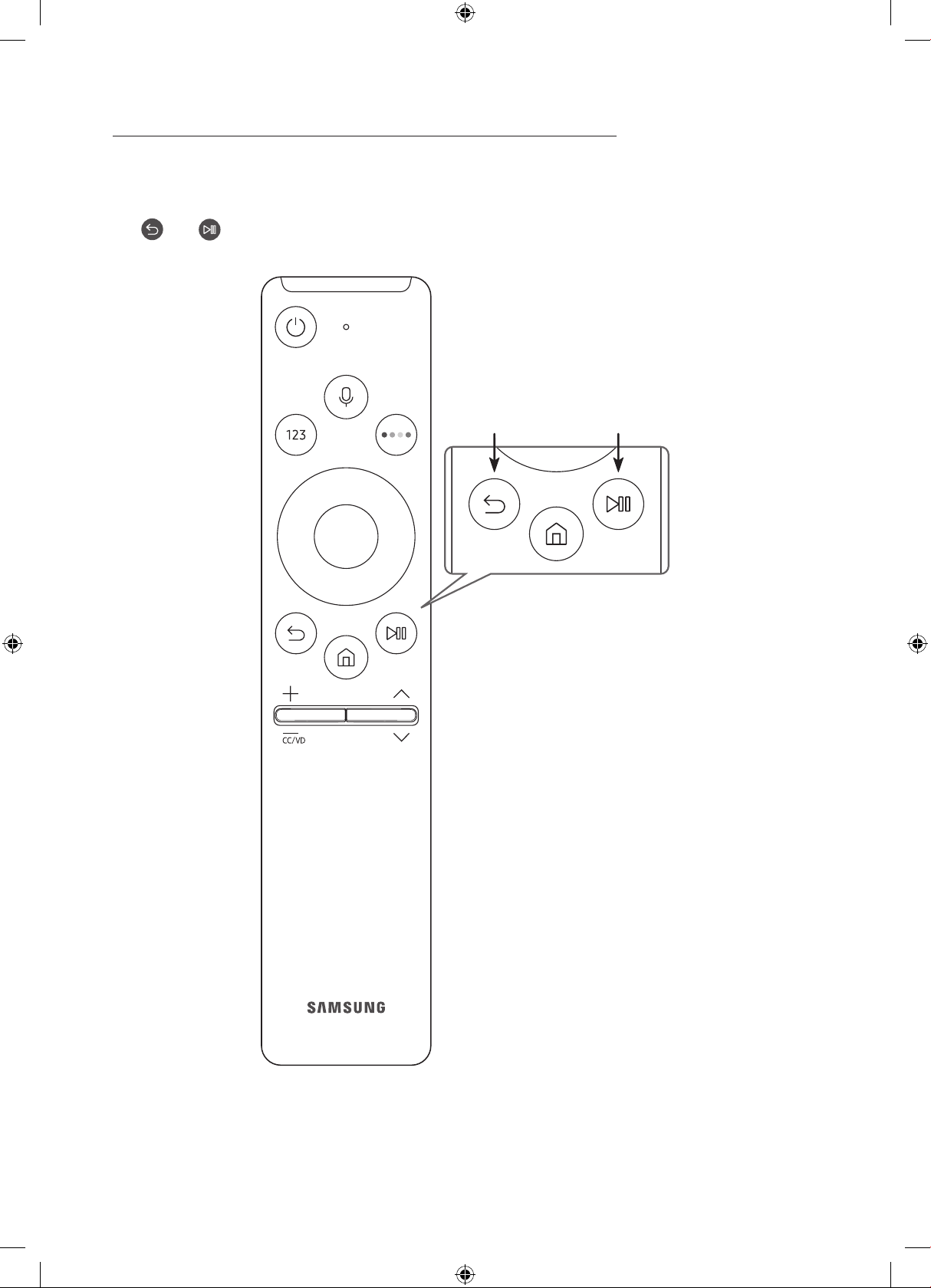

Pairing the Projector to the Samsung Smart Remote
When you turn on the Projector for the first time, the Samsung Smart Remote pairs to
the Projector automatically. If the Samsung Smart Remote does not pair to the Projector
automatically, point it at the remote control sensor of the Projector, and then press and hold
the and buttons simultaneously for 3 seconds or more.
• The Samsung Smart Remote can only be paired to one Projector at a time.
English - 21
Controlling External Devices with a Samsung Remote Control -
Using the Universal Remote
> s Source > Universal Remote
You can control external devices connected to the Projector using a Samsung remote control.
To control external devices, register them by following the instructions on the screen.
• This function may not be supported depending on the model.
• You can also use the Anynet+ (HDMI-CEC) function to operate external Samsung devices
with your Projector's remote control without any additional setup.
• Certain external devices connected to the Projector may not support the universal remote
feature.
• Do not place any obstacles in front of an external device and Projector's logo. It may cause
signals from the remote control to be transmitted improperly.
• The Projector memorises both the external device and its connection port (HDMI 1, HDMI 2,
etc.).
• If you have difficulty controlling external devices with the Universal Remote, try adjusting
the positions of the external devices.
• This function may not operate properly depending on the Projector installation
environment and the features of external devices.
English - 22
06 Connections

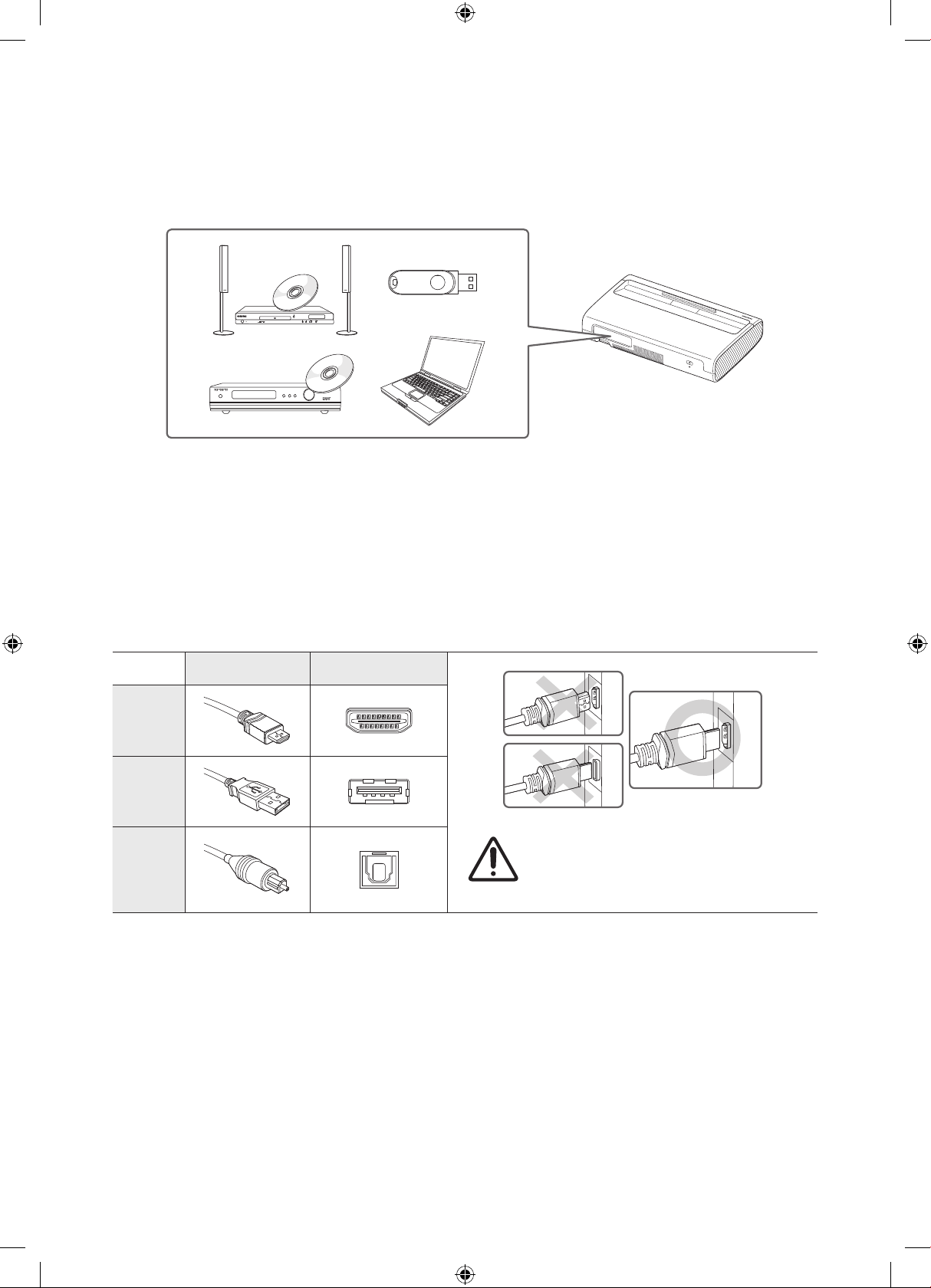

Connecting devices to your Projector
You can connect various external devices using the connectors located at the back of the
product. Check the connectors and then refer to the Quick Guide for more instructions on
supported external devices.
For more information about connections, see the e-Manual chapter "Guide > Connections".
Make sure you have the correct cable before plugging it in. Illustrations of common plugs and
ports are shown below.
Cable Plugs Ports
HDMI
USB
Optical
Warning
Do not plug cables in upside down.
Be sure to check the orientation of
the plug before plugging it in.
English - 23
Connecting to the Internet
Connecting the Projector to a network gives you access to online services such as the Smart
Hub, as well as software updates.
• For more information about Smart Hub, see the e-Manual chapter, "Guide > Smart Features
> Using Smart Hub".
• The shape of the rear panel differs among the models.

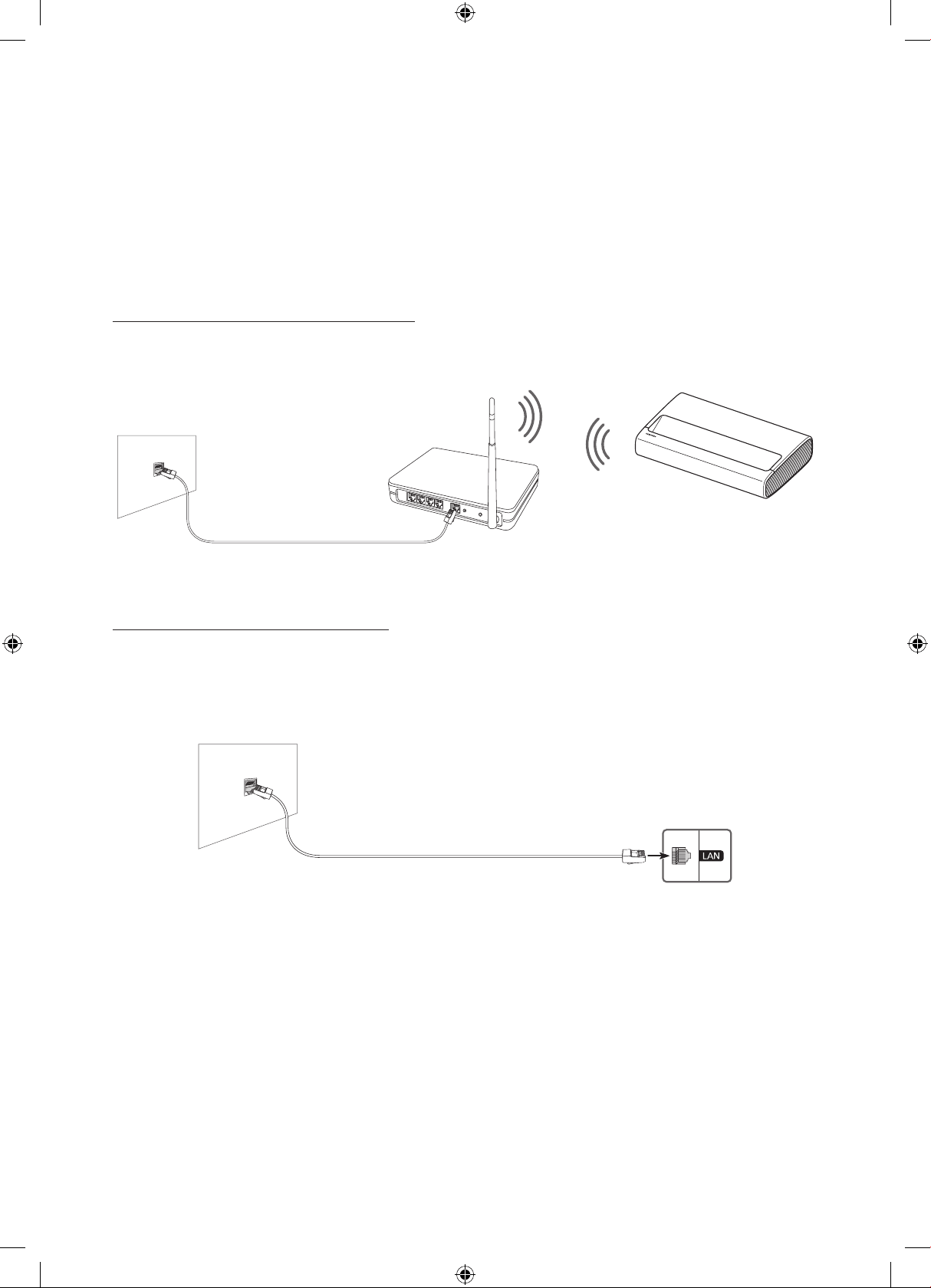

Network Connection - Wireless
Connect the Projector to the Internet using a wireless access point or modem.
Wireless IP access point
or modem with a DHCP
Server
LAN Cable (Not Supplied)
The LAN Port on the Wall
Network Connection - Wired
There are three main ways to connect your Projector to your network using cable, depending
on your network setup. They are illustrated starting below:
The LAN Port on the Wall
LAN Cable (Not Supplied)
• The Projector will not be able to connect to the Internet if your network speed is below 10
Mbps.
• To connect a LAN cable, use a CAT 7 (*STP type) cable for the connection. (100/10 Mbps)
* Shielded Twisted Pair
English - 24
07 Selecting Connected Devices
Changing the input signal
> s Source
When you select a connected external device on the Source screen, the output of the selected
device is displayed on the Projector's screen.
• For more information about selecting connected devices, see the e-Manual chapter "Guide
> Connections > Switching between external devices connected to the Projector".
Editing external devices
You can change the port name for a connected external device or add it to Home Screen.
1. Move the focus to a connected external device.
2. Press the Up directional button. The following functions become available.
– Available functions may differ depending on the port type.
• Universal Remote: You can control external devices connected to the Projector using
a Samsung remote control. To control external devices, register them by following the
instructions on the screen.
• Edit: You can rename the input ports and change the device icons.
• Information: You can view the detailed information about the external devices
connected to the Projector.
• Add to Home: You can add the port of an external device to the Home Screen for quick
switching.
Using additional functions
You can use the following features on the Source screen.
• Remote Access: Use the Projector to access your PC via remote PC or Screen Sharing
(Wireless).
• Connection Guide: The guide to device connections
• Universal Remote: Lets you register external devices to your Samsung remote control and
control them using the Remote.
English - 25
08 Troubleshooting and Maintenance
Troubleshooting
If the Projector seems to have a problem, first review this list of possible problems and
solutions. Alternatively, review the Troubleshooting Section in the e-Manual. If none of the
troubleshooting tips apply, please visit "www.samsung.com" and click Support or contact the
Samsung service centre listed on the back cover of this manual.
• To keep your Projector in optimum condition, upgrade to the latest software. Use the
Update Now or Auto update functions on the Projector's menu ( > Settings > Support >
Software Update > Update Now or Auto update).
The Projector won’t turn on.
• Make sure that the AC power cable is securely plugged in to the Projector and the wall
outlet.
• Make sure that the wall outlet is working and the Remote control sensor at the front right
of the Projector is lit and glowing a solid red.
• Try pressing the Power button at the rear of the Projector to make sure that the problem is
not with the remote control. If the Projector turns on, refer to “The remote control does not
work".
English - 26
There is no picture/video/sound, or a distorted picture/video/sound
from an external device, or “Weak or No Signal” is displayed on the
Projector, or you cannot find a channel.
• Make sure the connection to the device is correct and that all cables are fully inserted.
• Remove and reconnect all cables connected to the Projector and the external devices. Try
new cables if possible.
• Confirm that the correct input source has been selected ( > Source).
• Perform a Projector self diagnosis to determine if the problem is caused by the Projector or
the device ( > Settings > Support > Device Care > Self Diagnosis > Picture Test or Sound
Test).
• If the test results are normal, reboot the connected devices by unplugging each device's
power cable and then plugging it in again. If the issue persists, refer to the connection
guide in the user manual of the connected device.
• If you are not using a cable box or satellite box, and your Projector is receiving TV signals
from an antenna or a cable wall connector, run Auto Tuning to search for channels ( >
Settings > Broadcasting > (Auto Tuning Settings) > Auto Tuning).
– The Auto Tuning Settings may not appear depending on the model or geographical
area.
– If you are using a cable box or satellite box, please refer to the cable box or satellite box
manual.
The remote control does not work.
• Check if the power indicator at the front right of the Projector blinks when you press the
remote's Power button. If it does not, replace the remote control's batteries.
• Make sure that the batteries are installed with their poles (+/–) in the correct direction.
• Try pointing the remote directly at the Projector from 1.5-1.8 m away.
• If your Projector came with a Samsung Smart Remote (Bluetooth Remote), make sure to
pair the remote to the Projector.
English - 27
09 Specifications and Other Information
Specifications
Model Name
SP-LSP7TFA SP-LSP9TFA
Display Resolution 3840 x 2160
Lens Fixed Lens
Image Size (Diagonal) 90″ ~ 120″ 100″ ~ 130″
Sound (Output) 30 W 40 W
Dimensions (W x H x D)
Body
With Feet
532.0 x 119.1 x 342.0 mm
532.0 x 132.7 x 342.0 mm
550.0 x 128.0 x 367.0 mm
550.0 x 141.0 x 367.0 mm
Weight (With Feet) 9.1 kg 11.5 kg
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
10°C to 40°C (50°F to 104°F)
10% to 80%, non-condensing
-20°C to 45°C (-4°F to 113°F)
5% to 95%, non-condensing
• The design and specifications are subject to change without prior notice.
• This device is a Class B digital apparatus.
• For information about the power supply, and more information about power consumption,
refer to the label-rating attached to the product.
– For the label-rating and laser-related cautions, see the surface of the bottom of the
projector.
• Typical power consumption is measured according to IEC 62087.
• The figures and illustrations in this User Manual are provided for reference only and may
differ from the actual product appearance. The product design and specifications may
change without notice.
Following the repair by a non-authorised service provider, self-repair or non-professional
repair of the product, Samsung is not liable for any damage to the product, any injury or
any other product safety issue caused by any attempt to repair the product which does not
carefully follow these repair and maintenance instructions. Any damage to the product caused
by an attempt to repair the product by any person other than a Samsung certified service
provider will not be covered by the warranty.
Please visit samsung.com/support to find futher information about external power adapter
and remote control associated with EU Ecodesign directive - ErP regulation
English - 28
Decreasing power consumption
When you shut the TV off, it enters Standby mode. In Standby mode, it continues to draw a
small amount of power. To decrease power consumption, unplug the power cable when you
don't intend to use the TV for a long time.
Licences
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
