Operating Instructions
Microwave Oven
Models: NN-H665/SN667/
SN676/SN677
\
Precautions ......................... Inside cover
Important Safety Instructions ......... 1-3
Installation and Grounding
Instructions ....................................... 3-4
Safety Precautions ........................... 5-6
Timer Feature (Kitchen Timer/Stand
Time/Delay Start) ................................. 18
Microwave Shortcuts ...................... 19-20
Food Characteristics ............................ 21
Cooking Techniques ....................... 21-22
Quick Guide to Operation .................... 26
Control Panel ...................................... 8-9
Starting to Use Your Oven ................... 10
Setting the Clock ................................. 10
Child Safety Lock ................................ 10
Selecting Power & Cook Time ............. 11
Quick Min Feature ............................... 11
Keep Warm Feature ............................ 11
Popcorn Feature .................................. 12
More/Less Feature .............................. 12
Inverter Turbo Defrost Feature ............ 13
Defrosting Tips & Techniques ......... 13-14
Sensor Reheat Feature ....................... 15
Sensor Cook Feature .......................... 15
Sensor Cook Chart .............................. 16
Microwave Recipes ............................. 17
Care and Cleaning of Your Microwave
Oven .................................................... 23
Accessory Purchases .......................... 23
Before Requesting Service .................. 24
Limited Warranty & Customer Service
Directory .............................................. 25
Cookware Guide .................................... 7
Oven Components Diagram .................. 8
Specifications ...................................... 27
User's Record ...................................... 27
Notes ................................................... 28
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
Para instrucciones en espahol, voltee el libro.
F00038M80AP
iPress0307-0
Printed in China
Microwuve Ore. Sufe ,
Your safety and the safety of others are very important.
We have provided important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol. It is used to alert you to poten-
tial hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and
either the word "DANGER", "WARNING" or "CAUTION". These
words mean:
You can be killed or seriously injured if
you don't immediately follow instructions.
You can be killed or seriously injured if
you don't follow instructions.
You can be exposed to a potentially haz-
ardous situation which, if not avoided,
may result in minor or moderate injury.
All safety messages will tell you what the potential hazard is, tell you how to
reduce the chance of injury, and tell you what can happen if the instructions
are not followed.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door
operation can result in harmful exposure to microwave energy. It is impor-
tant not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door close properly and that there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
© Copyrighted by Matsushita Electric Industrial Co., Ltd. 2007.
Thank you for purchasing a Panasonic Microwave Oven.
Your microwave oven is a cooking appliance and you should use as much care
as you use with a stove or any other cooking appliance. When using this electric
appliance, basic safety precautions should be followed, including the following:
--To reduce the risk of burns, electric
shock, fire, injury to persons, or exposure to excessive microwave energy:
1. Read all instructions before using this appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPO-
SURE TO EXCESSIVE MICROWAVE ENERGY," found on the inside front
cover.
3. This appliance must be grounded. Connect only to a properly grounded outlet.
See "GROUNDING INSTRUCTIONS" found on page 4.
4. As with any cooking appliance, DO NOT leave oven unattended while in use.
5. Install or locate this appliance only in accordance with the installation instruc-
tions found on page 3.
6. DO NOT cover or block any openings on this appliance.
7. DO NOT store this appliance outdoors. DO NOT use this product near water--
for example, near a kitchen sink, in a wet basement, or near a swimming pool
or similar locations.
8. Use this appliance only for its intended use as described in this manual. DO
NOT use corrosive chemicals, vapors, or non-food products in this appliance.
This type of oven is specifically designed to heat, or cook food. It is not
designed for industrial or laboratory use. The use of corrosive chemicals in
heating or cleaning will damage the appliance and may result in radiation
leaks.
9. When cleaning surfaces of the door and oven that come together on closing
the door, use only mild, non-abrasive soaps or detergents applied with a
sponge or soft cloth.
10. DO NOT allow children to use this appliance, unless closely supervised by an
adult. DO NOT assume that because a child has mastered one cooking skill
he/she can cook everything.
11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not
working properly, or if it has been damaged or dropped.
12. DO NOT immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. DO NOT let cord hang over edge of a table or counter.
15. This appliance should be serviced only by qualified service personnel. Contact
the nearest authorized service center for examination, repair or adjustment.
16. Some products such as whole eggs with or without shell, narrow neck bottles
and sealed containers--for example, closed glass jars--may explode and
should not be heated in this oven.
17. To reduce the risk of fire in the oven cavity:
(a) DO NOT overcook food. Carefully attend appliance when paper, plastic, or
other combustible materials are placed inside the oven to facilitate cooking.
(b) Remove wire twist-ties from paper or plastic bags before placing bag in
oven.
(c) If material inside the oven ignites, keep oven door closed, turn oven
off, and disconnect the power cord, or shut off power at the fuse or
circuit breaker panel.
(d) DO NOT use the cavity for storage purposes. DO NOT leave paper
products, cooking utensils or food in the cavity when not in use.
18.SuperheatedLiquids
Liquids,suchaswater,coffee,orteaareabletobeoverheatedbeyondthe
boilingpointwithoutshowingevidence(orsigns)ofboiling.Visiblebubbling
isnotalwayspresentwhenthecontainerisremovedfromthemicrowave
oven.THISCOULDRESULTINVERYHOTLIQUIDSSUDDENLYBOILING
OVERWHENTHECONTAINERISDISTURBEDORAUTENSILIS
INSERTEDINTOTHELIQUID.
Toreducetheriskofinjurytopersons:
(a)STiRTHELiQUiDBOTHBEFOREANDHALFWAYTHROUGH
HEATING iT.
(b) Do not heat water and oil, or fats together. The film of oil will trap
steam, and may cause a violent eruption.
(c) DO NOT use straight-sided containers with narrow necks.
(d) After heating, allow the container to stand in the microwave oven for a
short time before removing the container.
19. DO NOT cook directly on the turntable. It can crack, and cause injuryor
damage to the oven.
TO AVOID THE RiSK OF SHOCK:
DO NOT remove outer panel from oven. Repairs must be done only by a qualified serv-
ice person.
TO REDUCE THE RiSK OF EXPOSURE TO MICROWAVE
ENERGY:
DO NOT tamper with, or make any adjustments or repairs to Door,
Control Panel Frame, Safety Interlock Switches, or any other part
of oven, microwave leakage may result.
TO AVOID THE RiSK OF FIRE:
1. DO NOT operate the oven empty. The microwave energy will
reflect continuously throughout the oven causing overheating and
damage, if food or water is not present to absorb energy.
2. DO NOT store flammable materials next to, on top of, or in the
oven.
3. DO NOT dry clothes, newspapers or other materials in the oven, or use newspaper or
paper bags for cooking.
4. DO NOT hitor strike Control Panel. Damage to controls may occur.
5. DO NOT use recycled paper products unless the paper product is labeled as safe for
microwave oven use. Recyled paper products may contain impurities which may
cause sparking.
TO AVOID THE RiSK OF SCALDING:
POT HOLDERS should always be used when removing items from the oven. Heat is
transferred from the HOT food to the cooking container and from the container to the
Glass Tray.The Glass Tray can also be very HOT after removing the cooking container
from the oven.
SAVE THESE INSTRUCTIONS

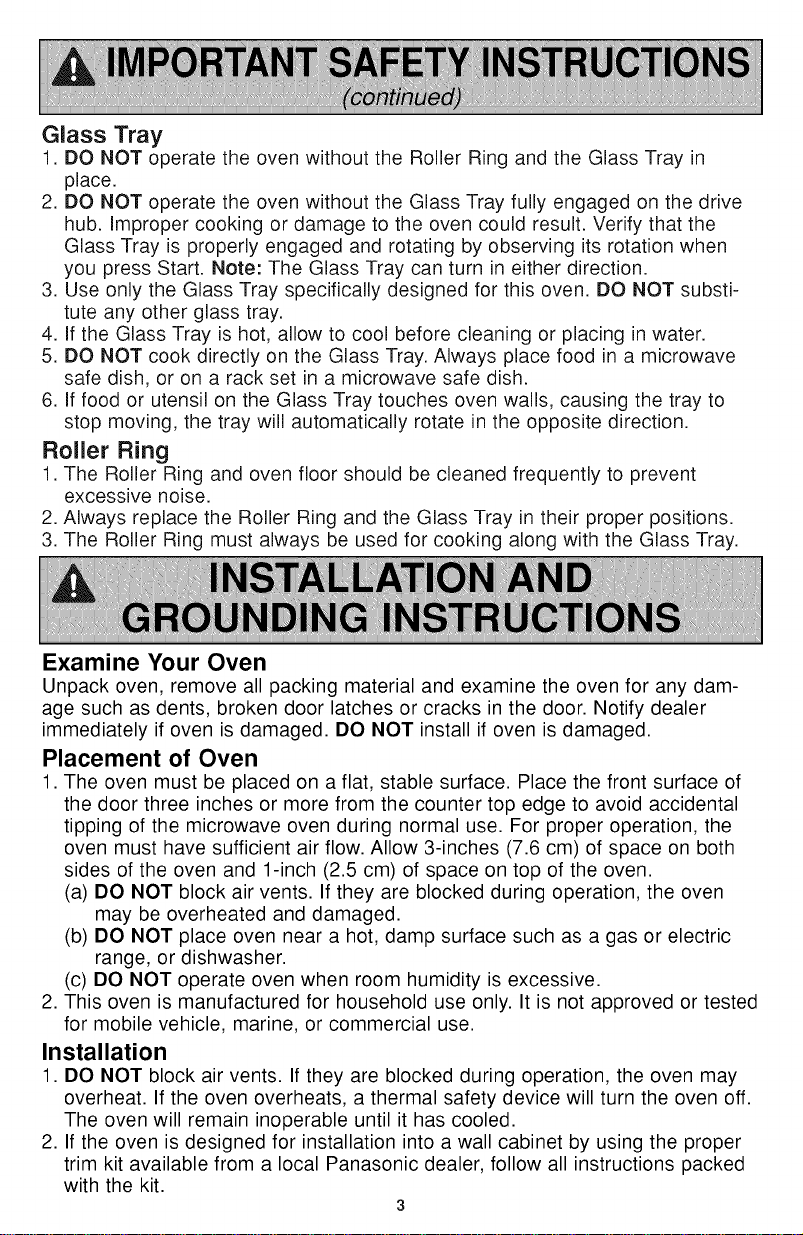

For proper use of your oven, read remaining safety cautions and operating instructions.
Glass Tray
1. DO NOT operate the oven without the Roller Ring and the Glass Tray in
place.
2. DO NOT operate the oven without the Glass Tray fully engaged on the drive
hub. Improper cooking or damage to the oven could result. Verify that the
Glass Tray is properly engaged and rotating by observing its rotation when
you press Start. Note: The Glass Tray can turn in either direction.
3. Use only the Glass Tray specifically designed for this oven. DO NOT substi-
tute any other glass tray.
4. If the Glass Tray is hot, allow to cool before cleaning or placing in water.
5. DO NOT cook directly on the Glass Tray. Always place food in a microwave
safe dish, or on a rack set in a microwave safe dish.
6. If food or utensil on the Glass Tray touches oven walls, causing the tray to
stop moving, the tray will automatically rotate in the opposite direction.
Roller Ring
1. The Roller Ring and oven floor should be cleaned frequently to prevent
excessive noise.
2. Always replace the Roller Ring and the Glass Tray in their proper positions.
3. The Roller Ring must always be used for cooking along with the Glass Tray.
Examine Your Oven
Unpack oven, remove all packing material and examine the oven for any dam-
age such as dents, broken door latches or cracks in the door. Notify dealer
immediately if oven is damaged. DO NOT install if oven is damaged.
Placement of Oven
1. The oven must be placed on a flat, stable surface. Place the front surface of
the door three inches or more from the counter top edge to avoid accidental
tipping of the microwave oven during normal use. For proper operation, the
oven must have sufficient air flow. Allow 3-inches (7.6 cm) of space on both
sides of the oven and 1-inch (2.5 cm) of space on top of the oven.
(a) DO NOT block air vents. If they are blocked during operation, the oven
may be overheated and damaged.
(b) DO NOT place oven near a hot, damp surface such as a gas or electric
range, or dishwasher.
(c) DO NOT operate oven when room humidity is excessive.
2. This oven is manufactured for household use only. It is not approved or tested
for mobile vehicle, marine, or commercial use.
Installation
1. DO NOT block air vents. If they are blocked during operation, the oven may
overheat. If the oven overheats, a thermal safety device will turn the oven off.
The oven will remain inoperable until it has cooled.
2. If the oven is designed for installation into a wall cabinet by using the proper
trim kit available from a local Panasonic dealer, follow all instructions packed
with the kit.
3
--iMPROPER USE OF THE GROUNDING PLUG
CAN RESULT iNA RiSK OF ELECTRIC SHOCK.
Consult a qualifiedelectrician or service person if the grounding instructionsare not com-
pletely understood, orif doubt exists as to whether the appliance isproperly grounded. Ifit
is necessary to use an extensioncord, use only a three wire extension cord that has a
three prong polarized grounding plug, and a three slot receptaclethat will accept the plug
on the appliance.The marked rating of the extensioncord should be equal to or greater
than the electrical rating ofthe appliance.
Grounding Instructions
THIS APPLIANCE MUST BE GROUNDED. In the event of an electricalshort circuit,
grounding reduces the risk ofelectric shock by providing an escape wire for the electric
current. This appliance isequipped with a cord having a grounding wire with a grounding
plug.The plug must be plugged intoan outlet that isproperly installed andgrounded.
• Plug into properly installedand grounded 3 prong outlet.
• DO NOT remove ground prong.
• DO NOT use an adapter.
PowerSupply
1.A short power-supplycord isprovided to reduce the risks resulting from becoming
entangled in or trippingover a longer cord.
2. Longer cord sets orextension cords are availableand may be used if care is exercised
in their use. Do not letcord hang over edge of a table or counter.
3. If a long cord orextension cord is used, (1) the marked electricalrating of thecord set
or extension cord should be at least as great as the electrical ratingof the appliance, (2)
the extension cord must be a grounding-type3-wire cord, and (3) the longer cord
should be arranged so that itwill not drape overthe counter top or table-
top where it can be pulled on by childrenor tripped over accidentally.
r.._ql
Wiring Requirements
The oven must be operated on a SEPARATE CIRCUIT.No other applianceshould share
the circuitwith the microwave oven. If itdoes, the branch circuitfuse may blow or the cir-
cuit breaker may trip.The oven must be plugged into at least a 20 AMP,120 VOLT,60 Hz
GROUNDED OUTLET.Where a standard two-prong outlet isencountered, it isthe
personal responsibilityand obligationof the consumer to have it replacedwith a properly
grounded three-prong outlet.The VOLTAGEused must be the same as specified on this
microwave oven (120 V,60 Hz). Using a higher voltage isdangerous and may result in a
fire or oven damage. Using a lowervoltage will cause slow cooking. Panasonic is NOT
responsible for any damages resultingfrom the use of the oven with any voltage other
than specified.
TV/Radio Interference
1.Operation ofthe microwave oven may cause interferenceto your radio,TV or similar
equipment.
2.When there is interference, it may be reduced or eliminated bytaking the following
measures:
(a) Placethe radio,TV, etc. away from the microwave oven as far as possible.
(b) Use a properly installed antenna to obtain strongersignal reception.
(c)Clean door and sealingsurfaces of the oven. (See Care and Cleaning ofYour
Microwave Oven)
4
Follow These Safety Precautions When Cooking in Your Oven.
IMPORTANT
Proper cooking depends upon the power, the time setting and quantity of
food. If you use a smaller portion than recommended but cook at the time
for the recommended portion, fire could result.
1) HOME CANNING / STERiLiZiNG / DRYING FOODS /
SMALL QUANTITIES OF FOODS
• DO NOT use your oven for home canning. Your oven cannot maintain the food
at the proper canning temperature. The food may be contaminated and then
spoil.
• DO NOT use the microwave oven to sterilize objects (baby bottles, etc.). It is
difficult to keep the oven at the high temperature needed for sterilization.
• DO NOT dry meats, herbs, fruits or vegetables in your oven. Small quantities
of food or foods with low moisture content can dry out, scorch or catch on fire if
overheated.
2) POPCORN
Popcorn may be popped in a microwave oven corn popper. Microwave pop-
corn which pops in its own package isalso available. Follow popcorn manu-
facturers' directions and use a brand suitable for the cooking power of your
microwave oven.
CAUTION: When using pre-packaged microwave popcorn, you can follow
recommended package instructions or use the popcorn pad (refer to page 12).
Otherwise, the popcorn may not pop adequately or may ignite and cause a
fire. Never leave oven unattended when popping popcorn. Allow the popcorn
bag to cool before opening, always open the bag facing away from your face
and body to prevent steam burns.
3) DEEP FAT FRYING
• DO NOT deep fat fry in your microwave oven. Cooking oils may burst into flames
and may cause damage to the oven and perhaps result in burns. Microwave utensils
may not withstand the temperature of the hot oil, and can shatter or melt.
4) FOODS WITH NONPOROUS SKINS
• DO NOT COOK/REHEAT WHOLE EGGS, WITH OR WITHOUT THE SHELL.
Steam buildup in whole eggs may cause them to explode, and possibly damage the
oven or cause injury. Reheating SLICED hard-boiled eggs and cooking SCRAMBLED
eggs is safe.
• Potatoes, apples, whole squash and sausages are examples of foods with non-
porous skins. These types of foods must be pierced before microwave cooking to
prevent them from exploding.
CAUTION: Cooking dry or old potatoes can cause fire.
5) GLASS TRAY / COOKING CONTAINERS / FOIL
• Cooking containers get hot during microwaving. Heat is transferred from the
HOT food to the container and the Glass Tray. Use pot holders when removing
containers from the oven or when removing lids or plastic wrap covers from
cooking containers, to avoid burns.
• The Glass Tray will get hot during cooking, it should be allowed to cool before
handling or before paper products, such as paper plates or microwave popcorn
bags, are placed in the oven for microwave cooking.
• When using foil in the oven, allow at least 1-inch (2.5 cm) of space between
foil and interior oven wails or door.
• Dishes with metallic trim should not be used, as arcing may occur.
6) PAPER TOWELS / CLOTHS
• DO NOT use paper towels or cloths which contain a synthetic fiber woven into
them. The synthetic fiber may cause the towel to ignite. Use paper toweling
under supervision.
7) BROWNING DISHES / OVEN COOKING BAGS
• Browning dishes or grills are designed for microwave cooking only. Always fol-
low instructions provided by the manufacturer. DO NOT preheat browning dish
more than 6 minutes.
• If an oven cooking bag is used for microwave cooking, prepare according to
package directions. DO NOT use a wire twist-tie to close bag, instead use
plastic ties, cotton string or a strip cut from the open end of the bag.
8) THERMOMETERS
• DO NOT use a conventional meat thermometer in your oven. Arcing may
occur. Microwave safe thermometers are available for both meat and candy.
9) BABY FORMULA/BABY FOOD
• DO NOT heat baby formula or baby food in the microwave oven. The glass jar
or surface of the food may appear warm while the interior can be so hot as to
burn the infant's mouth and esophagus.
10) REHEATING PASTRY PRODUCTS
• When reheating pastry products, check temperatures of any fillings before eat-
ing. Some foods have fillings which heat faster and can be extremely hot, while
the surface remains warm to the touch (ex. Jelly Donuts).
11) GENERAL OVEN USAGE GUiDELiNES
• DO NOT use the oven for any purpose other than the preparation of food.
Cookware Guide
ITEM
Aluminum Foil
Browning Dish
Brown paper bags
Dinnerware:
Labeled
"Microwave Safe"
Unlabeled Dinnerware
Disposable polyester
Paperboard Dishes
Fast Food Carton
with Metal Handle
Frozen Dinner Tray
Metal
Frozen Dinner Tray
Microwave safe
Glass Jars
Heat Resistant Oven
Glassware & Ceramics
Metal Bakeware
Oven Cooking Bag
Paper Plates & Cups
Paper Towels & Napkins
Recycled Paper Towels
& Napkins
Parchment Paper
Plastic:
Microwave Safe
Cookware
Plastic, Melamine
Plastic Foam Cups
Plastic Wrap
Straw, Wicker, Wood
Thermometers-
Microwave safe
Thermometers-
Conventional
Wax paper
MICROWAVE
Yes for
Shielding
only
Yes
No
Yes
Yes
No
No
Yes
No
Yes
No
No
Yes
Yes
Yes
No
Yes
Yes,
use caution
No
Yes,
use caution
Yes
Yes,
use caution
Yes
COMMENTS
Small strips of foil can be molded around thin parts of
meat or poultry to prevent overcooking. Arcing can occur
if foil is too close to oven wall or door and damage to your
oven will result.
Browning dishes are designed for microwave cooking
only. Check browning dish information for instructions
and heating chart. Do not preheat for more than 6 minutes.
May cause a fire in the oven.
Check manufacturers' use and care directions for use in
microwave heating. Some dinnerware may state on the
back of the dish, "Oven-Microwave Safe".
Use CONTAINER TEST below.
Some frozen foods are packaged in these dishes. Can be
purchased in grocery stores.
Metal handle may cause arcing.
Metal can cause arcing and damage to your oven.
Heat only 1 tray in the oven at one time.
Most glass jars are not heat resistant. Do not use for
cooking or reheating.
Ideal for microwave cooking and browning.
(See CONTAINER TEST below)
Not recommended for use in microwave ovens. Metal can
cause arcing and damage to your oven.
May cause arcing which could cause a fire in the oven.
T-o-llow manufacturers' directions. Close bag with_
tie provided, a strip cut from the end of the bag, or a piece
of cotton string. Do not close with metal twist-tie. Make six
1/2-inch (1 cm) slits near the closure.
Use to warm cooked foods, and to cook foods that require
short cooking times such as hot dogs.
Use to warm rolls and sandwiches, only if labeled safe for
microwave use.
Recycled paper products may contain impurities which may
cause sparks.
Use as a cover to prevent spattering. Safe for use in
microwave, microwave/convection and conventional ovens.
Should be labeled, "Suitable for Microwave Heating." Check
manufacturers' directions for recommended uses.
Some microwave safe plastic containers are not suitable for
cooking foods with high fat or sugar content. The heat from
hot food may cause the plastic to warp.
This material absorbs microwave e_. Dishes get HOT!
-Plastic foam will melt if foods reach a high temperature, st-t-t-t-t-t-t-t-t_
to reheat foods to a low serving temperature only.
Use to cover food during cooking to retain moisture and
prevent spattering. Should be labeled "Suitable for
Microwave Heating". Check package directions.
Use only for short term reheating and to bring food to a low
serving temperature. Wood may dry out & split or crack
when used.
Use only microwave safe meat and candy thermometers.
Not suitable for use in microwave oven, will cause sparks
No and get hot.
Yes Use as a cover to prevent spattering and to retain moisture.
CONTAINER TEST
TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water
and place i! in the microwave oven alongside the empty container to be tested; heat one (1)minute at PIO
(NIGH). Ifthe container is microwave oven safe (transparent to microwave energy), the empty container
shouldremain comfortably cool and the water should be hot. If the container is hot it has absorbed some
mcrowave energy and sliou d NOT be used. Th s test cannot be used for past c conta nets.
7
Oven Components Diagram
@ @ @
_) External Air Vent
@ Internal Air Vent
@ Door Safety Lock System
@ Exhaust Air Vent
(_ Control Panel
(_ Identification Plate (Alternatelocation)
@ Identification Plate (Alternatelocation)
Oven Light:
Oven Light turns on only while cooking and will
® Glass Tray
(_ Roller Ring
(_ Heat/Vapor Barrier Film
(donot remove)
® Waveguide Cover (do not remove)
(D Warning Label
Menu Label
not turn on when oven door is opened.
Control Panel
(1) Display Window
(2) Power Level Pad (,_ page 11)
(3) Inverter Turbo Defrost Pad
(_ page 13)
(4) Popcorn Pad (,_ page 12)
(5) Sensor Reheat Pad
(_ page 15)
(6) Sensor Cook Pad (,_ page 15)
(7) Keep Warm Pad (,_ page 11)
(8) Timer Pad (,_ page 18)
(9) Clock Pad (,_ page 10)
(10) Quick Min Pad (_ page 11)
(11) More/Less Pad (_ page 12)
2) Number Pads
3) Start Pad
One tap allows oven to begin func
tioning. If door is opened or
Stop/Reset Pad is pressed once
during oven operation, Start Pad
must be pressed again to restart
oven.
(14) Stop/Reset Pad
Before cooking: One tap clears
memory.
During cooking: One tap
temporarily stops the cooking
process.
Another tap cancels all your
instructions and time of day or colon
appears in the Display Window.
Beep Sound:
When a pad is pressed correctly, a beep will be heard.
If a pad is pressed and no beep is heard, the unit did not or cannot accept the instruction.
When operating, the oven will beep twice between programmed stages. At the end of any
complete program, the oven will beep 5 times.
Control
NN-SN677
Panel (continued)]
NN-H665*
(1) --
(2) --
(3) --
(7) --
-- (4)
-- (5)
-- (6)
-- (9)
--(11)
-- (13)
(4)
(5)
(2)--
(10)--
(12)_
(8) . .
(14)--
_i_ Sensor 1300W
Sensor Sensor
Popcorn Reheat Cook
(1-9)
Turbo Keep
Level Defrost Warm
(lOLevels) (Ib/kg_
I I
-- Ou e lMorel Lessl
[ ,v,,n! ! J
"1
j 2 3
4 5 6
._J 7 8 9
Timer _ 0 Clock --
Stop/Reset Start
-- (6)
(3)
--(7)
(11)
-- (9)
-- (13)
* The control panel of NN-SN667/SN676 has the same key layout as NN-H665.
Note:
If an operation is set and Start Pad is not pressed, after 6 minutes, the oven will auto-
matically cancel the operation. The display will revert back to clock or colon mode.
DisplayWindow
.
If you wish to
use metric
system (g/kg):
Plug into a properly
grounded electrical
outlet.
The oven automatical-
ly defaults to the impe-
rial measure system
(oz/Ib).
Press Start to convert
to metric. Verify your
selection in the dis-
play window.
3. • Press Stop/Reset.
• Colon appears in
the display window.
Setting the Clock
Example: To set 11:25 a.m. or p.m.
1. • Press Clock once.
• Colon flashes.
....... %
[
Child Safe Loc
This feature prevents the electronic oper-
ation of the oven until cancelled. It does
not lock the door.
To Set:
To Cancel:
• Press Start 3 times.
"Child" appears in the
display window.
• "Child" continues to
be displayed until
Child Lock is can-
celled. Keypads
may be pressed but
the microwave will
not start.
• Press Stop/Reset 3
times.
• The display will
return to colon or
time of day when
Child Lock has
been cancelled.
NOTE:
You can set Child Lock feature when the
display shows a colon or time of day.
.
=
• Enter time of day using
the number pads.
• Time appears in
the display window;
colon continues
flashing.
• Press Clock.
• Colon stops flash-
ing; time of day is
entered.
NOTES:
1. To reset the clock, repeat step 1-3.
2. The clock will retain the time of day as
long as the oven is plugged in and
electricity is supplied.
3. Clock is a 12 hour display.
4. Oven will not operate while colon is
flashing.
10
Example: To cook at P 6 (MEDIUM) I
power for 1 minute 30 seconds
I
1. • Press Power Level
until the desired
power level appears
Press 5 times, in the display window.
2. • Set Cooking Time
using number pads.
3. • Press Start.
• Cooking will start.
The time in the
display window will
count down.
Press
once
twice
3 times
4 times
5 times
6 times
7 times
8 times
9 times
10 times
NOTES:
Power Level
P10 (HIGH)
P9
P8
P7 (MED-HIGH)
P6 (MEDIUM)
P5
P4
P3 (MED-LOW)/DEFROST
P2
P1 (LOW)
1. For more than one stage cooking, repeat
steps 1 and 2 for each stage of cooking
before pressing Start Pad. The maxi-
mum number of stages for cooking is 5.
When operating, two beeps will sound
between each stage. Five beeps will
sound at the end of the entire sequence.
2. When selecting P10 (HIGH) power for
the first stage, you may begin at step 2.
3. When selecting P10 (HIGH) power, the
maximum programmable time is 30 min-
utes. For other power levels, the maxi-
mum time is 99 minutes and 99 sec-
onds.
4. For reheating, use P10 (HIGH) for liq-
uids, P7 (MED-HIGH) for most foods and
P6 (MEDIUM) for dense foods.
5. For defrosting, use P3 (MED-LOW).
DO NOT OVER COOK. This oven requires
less time to cook than an older unit. Over
cooking will cause food to dry out and may
cause a fire. A microwave oven's cooking
power tells you the amount of microwave
power available for cooking.
11
Automatic features are provided for your
convenience. If results are not suitable to
your individual preference or if serving size
is other than what is listed on page 17,
please refer to page 11 for manual cooking.
QuickMin Feature]
This feature allows you to set or add
cooking time in 1 minute increments up to
10 minutes.
To Set Cooking Time:
1. • Press Quick Min until
the desired cooking
time (up to 10 min-
Q_k utes) appears in the
display window.
Power Level is pre-set
at P10.
= • Press Start.
Cooking begins and
the time will count
down. At the end of
cooking, 5 beeps
sound.
NOTES:
1. If desired, you can use other power
levels. Select desired power level
before setting cooking time.
2. After setting the time by Quick Min
Pad, you cannot use Number Pads.
3. Quick Min Pad can be used to add
more time during manual cooking.
KeepWarmFeature]
This feature will keep food warm for up to
30 minutes after cooking.
Example: To keep 2 cups of gravy warm
1. • Press Keep Warm.
2. • Set warming time, up
to to 30 minutes.
3. • Press Start.
• Keep Warm will
start. The time in
the display window
will count down.
NOTE:
Keep Warm can be programmed as the
final stage after cook time/s have been
manually entered. It cannot be used in
combination with sensor or auto features.
PopcornFeature
Example: To pop 3.5 oz. of popcorn
=
Press once
=
=
or
Optional
• Press Popcorn until
the desired size
appears in the display
window•
Press Weight
once 3.5 oz (99 g)
twice 3.0 oz (85 g)
3 times 1.75 oz (50 g)
• (see More/Less
Feature•)
• Press Start.
• After several
seconds, cooking
time appears in the
display window and
begins to count
down.
NOTES ON POPCORN FEATURE:
1. Pop one bag at a time.
2. Place bag in oven according to manu-
facturers' directions.
3. Start with popcorn at room tempera-
ture.
4. Allow popped corn to sit unopened for
a few minutes.
5. Open bag carefully to prevent burns,
because steam will escape.
6. Do not reheat unpopped kernels or
reuse bag.
NOTE:
If popcorn is of a different weight than list-
ed, follow instructions on popcorn pack-
age. Never leave the oven unattended.
If popping slows to 2 to 3 seconds
between pops, stop oven. Overcooking
can cause fire.
REMARKS:
When popping multiple bags one right
after the other, the cooking times may
vary slightly. This does not affect the pop-
corn results.
More/LessFeature]
For Popcorn:
By using the More/Less Pad, the programs
can be adjusted to cook popcorn for a
longer or shorter time if desired.
•Adds time
• Subtracts time
More 2 = Adds Approx. 20 secs.
More 1 = Adds Approx. 10 secs.
original setting
Less 1 = Subtracts Approx. 10 secs.
Less 2 = Subtracts Approx. 20 secs.
Press More/Less pad before pressing Start.
For Sensor Reheat/Cook:
Preferences for food doneness vary with
each individual. After having used the
Sensor Reheat/Cook feature a few times,
you may decide you would prefer your food
cooked to a different doneness.
_or# •Adds time
• Subtracts time
More 1 =Adds Approx. 10% time
original setting
Less 1 = Subtracts Approx. 10% time
Press More/Less pad before pressing Start.
12
inverter Turbo Defrost Feature
This feature allows you to defrost foods such as: meat, poultry and seafood simply by
entering the weight.
E×ampie: To defrost 1.5 pounds of meat I
Place food on microwave safe dish.
1. • Press Inverter Turbo
InverterTurbo
Defrost.
2. • Enter weight of the
@ @ food using the num-
ber pads.
3. °
Press Start.
Defrosting will start.
The time will count
down. Larger weight
foods will cause a sig-
nal midway through
defrosting. If 2 beeps
sound, turn over,
rearrange foods or
shield with aluminum
foil.
Conversion Chart:
Follow the chart to convert ounces or
hundredths of a pound into tenths of a
pound. To use Inverter Turbo Defrost,
enter the weight of the food in Ibs. (1.0)
and tenths of a lb. (0.1). If a piece of
meat weighs 1.95 Ibs. or 1 lb. 14 oz.,
enter 1.9 Ibs.
Ounces Hundredths Tenths of
of a Pound a Pound
0 .01 - .05 0.0
1 - 2 .06 - .15 0.1
3 - 4 .16 - .25 0.2
5 .26 - .35 0.3
6 - 7 .36 - .45 0.4
8 .46 - .55 0.5
9 - 10 .56 - .65 0.6
11 - 12 .66 -.75 0.7
13 .76 - .85 0.8
14- 15 .86 -.95 0.9
Defrosting Tips & Techniques
Pre_oaration For Freezing:
1. Freeze meats, poultry, and fish in packages with only 1 or 2 layers of food. Place
wax paper between layers.
2. Package in heavy-duty plastic wraps, bags (labeled "For Freezer"), or freezer paper.
3. Remove as much air as possible.
4. Seal securely, date, and label.
To Defrost:
1. Remove wrapper. This helps moisture to evaporate. Juices from food can get hot and
cook the food.
2. Set food in microwave safe dish.
3. Place roasts fat-side down. Place whole poultry breast-side down.
4. Select power and minimum time so that items will be under-defrosted.
5. Drain liquids during defrosting.
6. Turn over (invert) items during defrosting.
7. Shield edges and ends if needed. (See Cooking Techniques).
After Defrosting:
1. Large items may be icy in the center. Defrosting will complete during STANDING TIME.
2. Let stand, covered, following stand time directions on page 14.
3. Rinse foods indicated in the chart.
4. Items which have been layered should be rinsed separately or have a longer stand time.
13
F
Defrosting Tips & Techniques (cor,tir,.o )1
DEFROST AFTER DEFROSTING
FOOD TIME at P3 DURING DEFROSTING
rnins (per Ib) Stand Time Rinse
Fish and Seafood
[up to 3 Ibs. (1.4 kg)]
Crabmeat Break apart/Rearrange
Fish Steaks Turn over 5 rain. YES
Fish Fillets Turn over/Rearrange/Shield ends
Sea Scallops BreakapartJRemovedefrostedpieces
Whole fish Turn over
Meat Turn over/Remove defrosted
Ground Meat portion/Shield edges 10 rain.
Roasts Turn over/Shield ends and 30min.inrefrig.
[21/2-4Ibs. (1.1-1.8 kg)] defrosted surface
Chops/Steak Turn over/Rearrange/Shield ends
and defrosted surface
Ribs/T-bone Turn over/Rearrange/Shield ends
and defrosted surface
5 rain. NO
Stew Meat Break apart/Rearrange/
Remove defrosted pieces
Liver (thinly sliced) Drain liquid/Turn over/
Separate pieces
Turn over
Bacon (sliced)
Poultry
Chicken, Whole
[up to 3 Ibs. (1.4 kg)]
Cutlets
Turn over/Shield
6
4to 6
4to 6
4to 6
4to 6
4to 5
4to8
6to8
6to8
4to8
4to 6
4
4to 6
4to 6
4to 6
6to8
6
Break apart/Turn over/
Remove defrosted Pieces
YES
Pieces Break apart/Turn over/Shield
Cornish Hens Turn over/Shield
Turkey Breast Turn over/Shield
[5-6 Ibs. (2.3-2.7 kg)]
20min.inrefrig.
5 min.
10 min.
20min.inrefrig.
14
SensorReheatI SensorCook1Feature Feature
This sensor feature allows you to reheat
cooked, refrigerated food without setting
time. The oven simplifies programming.
Example: To reheat a plate of food
1. ° Press Sensor Reheat.
2. • (see More/Less
Feature)
or (trpage 12)
Optional
3. • Press Start.
• Cooking starts.
Cooking is complete when 5 beeps
sound. (When steam is detected by the
Genius Sensor and 2 beeps sound, the
remaining cooking time will appear in the
display window.)
NOTE:
Casseroles -Add 3 to 4 tablespoons of liquid,
cover with lid or vented plastic wrap. Stir when
time appears in the display window.
Canned foods - Empty contents into casse-
roledish or serving bowl, cover dish with lid or
vented plasticwrap. After reheating, letstand
for a few minutes.
Plate of food -Arrange food on plate; top with
butter,gravy, etc. Cover with lid or vented
plasticwrap. After reheating, let stand for a
few minutes.
DO NOT USE SENSOR REHEAT:
1. To reheat bread and pastry products. Use
manual power and time for these foods.
2. For raw or uncooked foods.
3. Ifoven cavity iswarm.
4. For beverages.
5. For frozen foods.
This sensor feature allows you to cook
food without setting time. The oven simpli-
fies programming.
Example: To cook Frozen Entrees
1. • Press until the desired
food number appears
Press 4 times in the display window.
2. • (see More/Less
Feature)
or (trpage 12)
Optional
3. • Press Start.
• Cooking starts.
Cooking is complete when 5 beeps
sound. (When steam is detected by the
Genius Sensor and 2 beeps sound, the
remaining cooking time will appear in the
display window.)
For the best results with the GENIUS
SENSOR, follow these
recommendations,
BEFORE Reheating/Cooking:
1. The room temperature surrounding the
oven should be below 95° F (35° C).
2. Food weight should exceed 4 oz. (110 g).
3. Be sure the glass tray, the outside of the
cooking containers and the inside of the
microwave oven are dry before placing
food in the oven. Residual beads of
moisture turning into steam can mislead
the sensor.
4. Cover food with lid, or with vented plastic
wrap. Never use tightly sealed plastic
containers--they can prevent steam from
escaping and cause food to overcook.
DURING Reheating/Cooking:
DO NOT open the oven door until 2 beeps
sound and cooking time appears on the
Display Window. Doing so will cause inac-
curate cooking since the steam from food is
no longer contained within the oven cavity.
Once the cooking time begins to count
down, the oven door may be opened to stir,
turn, or rearrange foods.
AFTER Reheating/Cooking:
All foods should have a stand time.
15
Sensor Cook Chart
Recipe Serving/Weight
Oatmeal 0.5- 1cup
(40- 80 g)
BreakfastSausage 2 - 8 links
(onlyforNN-SN667/H665/SN676
Omelet 2,4 eggs
Soup 1-2cups
(only for NN-SN677) (250 -500 ml)
Frozen Entrees
Frozen Pizza (single)
Potatoes
8 - 32 oz.
(225- 900 g)
8 OZ.
(225 g)
1 -4 potatoes
(6- 8 oz. each)
(170- 225 g)
Fresh Vegetables 4 - 16oz.
(110- 450 g)
Frozen Vegetables 6- 16oz.
(170- 450 g)
Pasta 2- 8 oz.
(0nlyforNN-SN667/H665/SN676(56- 225 g)
Frozen Dinners 11- 16oz.
(only for NN-SN677) (300 -450 g)
Hints
Place inside a microwave safe serving bowlwith
no cover. Follow manufacturers'directions for
preparation.
Follow manufacturers'directions for preparation of
pre-cooked breakfast sausage. Place ina radial
pattern.
Follow basic Omelet recipe on page 17.
Pour soup into a microwave safe serving bowl.
Cover with lid or vented plastic wrap. Stir after
cooking.
Follow manufacturers' directions for preparation.
After 2 beeps, stir or rearrange. Be careful when
removing the film cover after cooking. Remove
facing away from you to avoid steam burns.
If additional time is needed, continue to cook
manually.
Follow manufacturers'directions for preparation.
Add more time of cooking if needed.
Pierce each potato with a fork 6 times spacing
around surface. Place potato or potatoes around the
edge of paper-towel-lined glass tray (Turntable), at
least 1 inch (2.5 cm) apart. Do not cover. Turnover
after 2 beeps. Let stand 5 minutes to complete
cooking.
All piecesshouldbe the same size.Washthoroughly,
add 1 tbsp. ofwater per1/2cup of vegetables,and
coverwith lid or vented plasticwrap. Do notsalt/butter
untilafter cooking.
Washthoroughly,add 1 tbsp. of water per 1/2cup
of vegetables, andcover with lidor vented plastic
wrap. Do not salt/butter untilafter cooking.
(Not suitable forvegetables in butteror sauce.)After
2 beeps, stir or rearrange.
Place pastawith hot tap water in a microwave safe
casserole dish. Coverwith lid or vented plasticwrap.
Follow manufactures' directions for covering or
removing covers. Donot use frozen foods
packaged in foil trays.
16

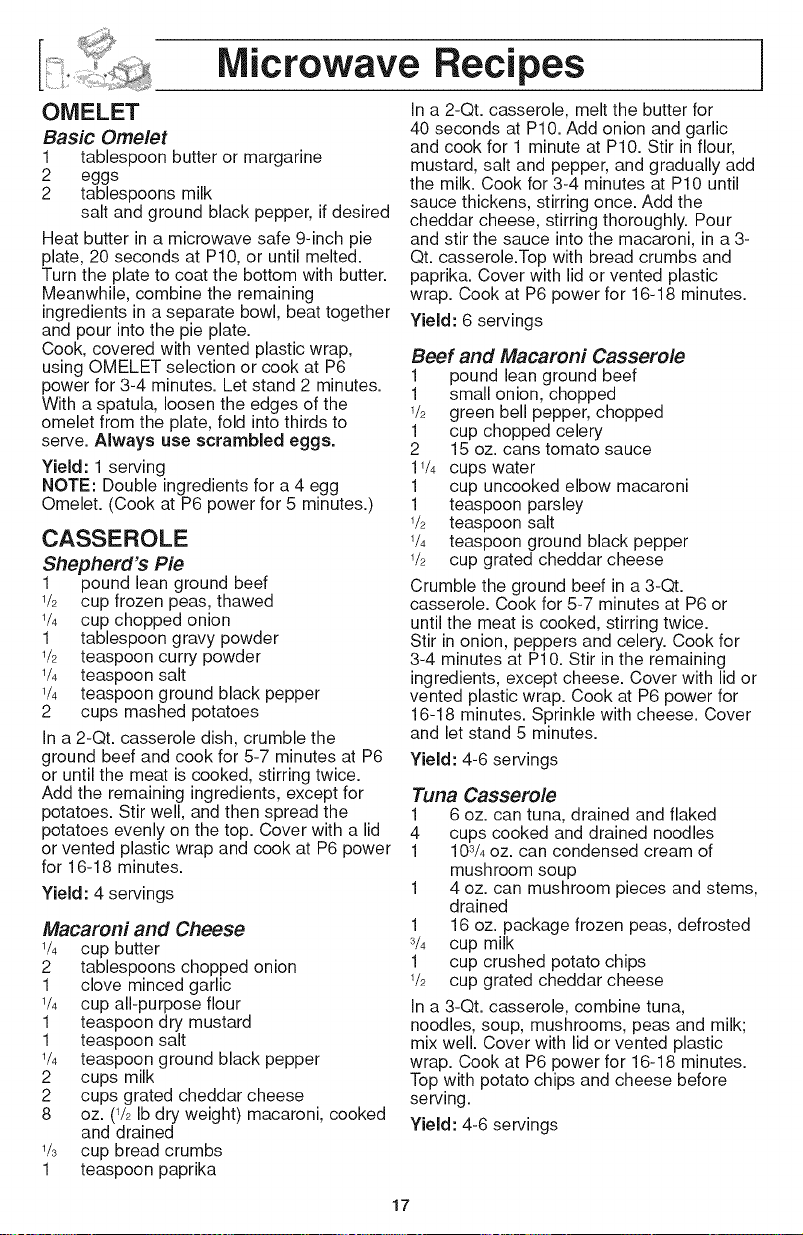

Microwave Recipes
OMELET
Basic Omelet
1 tablespoon butter or margarine
2 eggs
2 tablespoons milk
salt and ground black pepper, if desired
Heat butter in a microwave safe 9-inch pie
plate, 20 seconds at P10, or until melted.
Turn the plate to coat the bottom with butter.
Meanwhile, combine the remaining
ingredients in a separate bowl, beat together
and pour into the pie plate.
Cook, covered with vented plastic wrap,
using OMELET selection or cook at P6
power for 3-4 minutes. Let stand 2 minutes.
With a spatula, loosen the edges of the
omelet from the plate, fold into thirds to
serve. Always use scrambled eggs.
Yield: 1 serving
NOTE: Double ingredients for a 4 egg
Omelet. (Cook at P6 power for 5 minutes.)
CASSEROLE
Shepherd's Pie
1 pound lean ground beef
1/2 cup frozen peas, thawed
1/4 cup chopped onion
1 tablespoon gravy powder
1/2 teaspoon curry powder
1/4 teaspoon salt
1/4 teaspoon ground black pepper
2 cups mashed potatoes
In a 2-@. casserole dish, crumble the
ground beef and cook for 5-7 minutes at P6
or until the meat is cooked, stirring twice.
Add the remaining ingredients, except for
potatoes. Stir well, and then spread the
potatoes evenly on the top. Cover with a lid
or vented plastic wrap and cook at P6 power
for 16-18 minutes.
Yield: 4 servings
Macaroni and Cheese
1/4 cup butter
2 tablespoons chopped onion
1 clove minced garlic
1/4 cup all-purpose flour
1 teaspoon dry mustard
1 teaspoon salt
1/4 teaspoon ground black pepper
2 cups milk
2 cups grated cheddar cheese
8 oz. (1/2Ib dry weight) macaroni, cooked
and drained
1/3 cup bread crumbs
1 teaspoon paprika
In a 2-Qt. casserole, melt the butter for
40 seconds at P10. Add onion and garlic
and cook for 1 minute at P10. Stir in flour,
mustard, salt and pepper, and gradually add
the milk. Cook for 3-4 minutes at P10 until
sauce thickens, stirring once. Add the
cheddar cheese, stirring thoroughly. Pour
and stir the sauce into the macaroni, in a 3-
Qt. casserole.Top with bread crumbs and
paprika. Cover with lid or vented plastic
wrap. Cook at P6 power for 16-18 minutes.
Yield: 6 servings
Beef and Macaroni Casserole
1 pound lean ground beef
1 small onion, chopped
1/2 green bell pepper, chopped
1 cup chopped celery
2 15 oz. cans tomato sauce
11/4 cups water
1 cup uncooked elbow macaroni
1 teaspoon parsley
1/2 teaspoon salt
1/4 teaspoon ground black pepper
1/2 cup grated cheddar cheese
Crumble the ground beef in a 3-Qt.
casserole. Cook for 5-7 minutes at P6 or
until the meat is cooked, stirring twice.
Stir in onion, peppers and celery. Cook for
3-4 minutes at P10. Stir in the remaining
ingredients, except cheese. Cover with lid or
vented plastic wrap. Cook at P6 power for
16-18 minutes. Sprinkle with cheese. Cover
and let stand 5 minutes,
Yield: 4-6 servings
Tuna Casserole
1 6 oz. can tuna, drained and flaked
4 cups cooked and drained noodles
1 103/4oz. can condensed cream of
mushroom soup
1 4 oz. can mushroom pieces and stems,
drained
1 16 oz. package frozen peas, defrosted
3/4 cup milk
1 cup crushed potato chips
1/2 cup grated cheddar cheese
In a 3-@. casserole, combine tuna,
noodles, soup, mushrooms, peas and milk;
mix well. Cover with lid or vented plastic
wrap. Cook at P6 power for 16-18 minutes.
Top with potato chips and cheese before
serving.
Yield: 4-6 servings
17
Timer Feature
This feature allows you to program the
oven as a kitchen timer. It can also be
used to program a standing time after
cooking is completed and/or to program a
delay start.
To Use as a Kitchen Timer:
Example: To count down 5 minutes.
1. • Press Timer.
2. • Set desired amount of
time using number
pads.
(up to 99 minutes and
99 seconds).
3. • Press Start.
• Time will count
down without oven
operating.
To Set Stand Time:
Example: To cook at P6 power for 3
minutes, with stand time of
5 minutes.
1. • Enter the desired
Power Level (see
page 11 for directions).
Press 5 times
2. • Set desired cooking
time using number
pads.
3. • Press Timer.
4.
5.
• Set desired amount of
Stand Time using
number pads. (up to
99 minutes and 99
seconds)
• Press Start.
• Cooking will start.
After cooking, stand
time will count down
without oven
operating.
CAUTION:
If oven lamp is lit while using the timer
feature, the oven is incorrectly pro=
grained. Stop oven immediately and
re=read instructions.
To Set Delay Start:
Example: To delay the start of cooking
for 5 minutes, and cook at P6
power for 3 minutes.
1. • Press Timer.
2.
=
_i_i_i_i!_iiiiil;_¸¸_i_!i!!_i!ii!ii_i;_i:i'i!i_!ii_ii:¸
Press 5 times
4. •
5. •
NOTE:
1.
2.
3.
• Enter desired amount
of delay time using
number pads. (up to
99 minutes and 99
seconds)
Enter the desired
Power Level (see
page 11 for directions).
Set desired cooking
time using number
pads.
Press Start.
• Delay time will
count down. Then
cooking will start.
When each stage finishes, a two-beep
signal sounds. At the end of the pro-
gram, the oven will beep five times.
If the oven door is opened during
Stand Time, Kitchen Timer or Delay
Time, the time on the display will con-
tinue to count down.
Stand time and Delay start cannot be
programmed before any automatic
Function. This is to prevent the starting
temperature of food from rising before
defrosting or cooking begins. A change
in starting temperature could cause
inaccurate results.
18
Microwave Shortcuts
FOOD POWER TiME DiRECTiONS
(in mins.)
Toseparate refrigerated P10 (HIGH) 30 sec. Remove wrapper and place in microwave
Bacon, safe dish. After heating, use aplastic
1pound (450 g) spatula to separate slices.
Tosoften Brown Sugar P10 (HIGH) 20 - 30 sec. Place brown sugar in microwavesafe dish
1cup (250 ml) with a slice of bread.Cover with lid or
plasticwrap.
TosoftenrefrigeratedButter,
1stick,1/4pound (110g)
TomeltrefrigeratedButter,
1stick,1/4pound (110g)
P3 (MED-LOW)
P6 (MEDIUM)
Remove wrapper and place butter in a
microwave safe dish.
Remove wrapper and place butter in a
microwave safe dishcovered with lid or
vented plastic wrap.
Tomelt Chocolate, P6 (MEDIUM) 1 - 11/2 Remove wrapper and place chocolate
1square, 1oz. (28 g) in a microwavesafe dish.After heating,stir
Tomelt Chocolate, P6 (MEDIUM) 1 - 11/2 until completely melted. Note: Chocolate
1/2cup (125 ml) chips holds its shape even when softened.
TotoastCoconut, P10 (HIGH) 1 Place in a microwave safe dish.
1/2cup (125 ml) Stir every 30 seconds.
TosoftenCream Cheese, P3 (MED-LOW) 1 - 2 Remove wrapper and place ina
8 oz. (225 g) microwave safe bowl.
Tobrown Ground Beef, P10 (HIGH) 4- 5 Crumble intoa microwave safe colander
1pound (450 g) set into another dish. Coverwith plastic
wrap. Stir twice. Drain grease.
Tocook Vegetables,
P8 31/2-4Fresh
(1/2Ib)
(225 g)
Frozen
(10 oz)
(285 g)
Canned
(15 oz)
(430 g)
P8
P8
31/2-4
31/2-4
All pieces should be the samesize. Wash
thoroughly,add 1tbsp ofwater per1/2cup
of vegetables, andcover with lid or vented
plasticwrap. Do notsalt/butter until after
cooking.
Washthoroughly,add 1tbsp of water per
1/2cup of vegetables,and coverwith lid or
vented plastic wrap. Do not salt/butter until
after cooking. (Notsuitable for vegetables in
butter or sauce.)
Empty contents into microwave safe serving
bowl. Cover with lid or vented plasticwrap.
19
Microwave Shortcuts ont nu ,J 1
FOOD POWER TiME DiRECTiONS
(in rains.)
Tocook baked Potato,
(6- 8 oz. each)
(170- 225 g)
1 P8
P8
P10 (HIGH)
31/2-4
6-7
20 - 30 sec.
2
TosteamHandTowels- 4 Soak in water,then wring out excess.
Place on a microwave safe dish.
Heat. Presentimmediately.
Tosoften ice Cream, P3 (MED-LOW) 1 - 11/2 Check often to prevent melting.
1/2gallon (2 L)
Cup of liquid
Toboilwater, broth, etc.
1cup, 8 oz. (250 HI)
2 cups, 16 oz. (500HI)
P10 (HIGH)
P7 (MED-HIGH
Cup of liquid
To warm Beverage,
1cup, 8 oz. (250 HI)
2 cups, 16 oz. (500HI)
11/2- 2
21/2-3
Pierce each potatowith a fork 6times
spacingaround surface. Place potatoor
potatoes around the edge of paper-towel-
lined glass tray (Turntable),at least 1 inch
(2.5 cm)apart. Do not cover. Let stand 5
minutes to complete cooking.
Heated liquids can erupt if not stirred.
Do not heat liquids in microwave oven
withoutstirring before heating.
11/2- 2
21/2-3
Toroast Nuts, P10 (HIGH) 3- 4 Spread nuts intoa 9-inch (23 cm)
11/2cups (375 HI) microwave safe pie plate.
Stir occasionally.
TotoastSesame Seeds, P10 (HIGH) 2- 21/2 Place in asmall microwave safe bowl.
1/4cup (60HI) Stir twice.
Toskin Tomatoes, P10 (HIGH) 30 sec. Place tomato into a microwave safebowl
(one at a time) containing boilingwater. Rinse and peel.
Repeat for each tomato.
ToremoveCookingOdors, P10 (HIGH) 5 Combine 1to 11/2cups (250- 375 HI)
waterwith the juice and peel of one lemon
in a 2quart microwave safe bowl.
After water finishes boiling,wipe interior of
ovenwith a cloth.
20
[Food Characteristics I
Bone and Fat
Both bone and fat affect cook-
ing. Bones may cause irregu-
lar cooking. Meat next to the
tips of bones may overcook
while meat positioned under a large bone,
such as a ham bone, may be under-
cooked. Large amounts of fat absorb
microwave energy and the meat next to
these areas may overcook.
Density
Porous, airy foods such as
breads, cakes or rolls take
less time to cook than
heavy, dense foods such as
potatoes and roasts. When ,_, ._
reheating donuts or other .............
foods with different centers be very care-
ful. Certain foods have centers made with
sugar, water, or fat and these centers
attract microwaves (For example, jelly
donuts). When a jelly donut is heated, the
jelly can become extremely hot while the
exterior remains warm to the touch. This
could result in a burn if the food is not
allowed to cool properly in the center.
Quantity
Two potatoes take longer to cook ,,:-_........
than one potato. As the quantity of :/;' "
the food decreases so does the
cooking time. Overcooking will
cause the moisture content in the
food to decrease and a fire could result.
Never leave microwave unattended while
in use.
Shape
Uniform sizes heat more
evenly. The thin end of a
drumstick will cook more
quickly than the meaty
end. To compensate for irregular shapes,
place thin parts toward the center of the
dish and thick pieces toward the edge.
Size
Thin pieces cook more
quickly than thick pieces.
Starting Temperature
Foods that are at room temperature
take less time to cook than if they
are chilled, refrigerated, or frozen.
ICooking Techniques]
Piercing
Foods with skins or mem-
branes must be pierced
scored or have a strip of
skin peeled before cook-
ing to allow steam to
escape. Pierce clams,
oysters, chicken livers, whole potatoes
and whole vegetables. Whole apples or
new potatoes should have a 1-inch strip
of skin peeled before cooking. Score
sausages and frankfurters. Do not
Cook/Reheat whole eggs with or without
the shell. Steam build up in whole eggs
may cause them to explode, and possibly
damage the oven or cause injury.
Reheating SLICED hard-boiled eggs and
cooking SCRAMBLED eggs is safe.
Browning
Foods will not have the
same brown appearance as
conventionally cooked foods
or those foods which are
cooked utilizing a browning
feature. Meats and poultry
may be coated with browning sauce,
Worcestershire sauce, barbecue sauce or
shake-on browning sauce. To use, com-
bine browning sauce with melted butter or
margarine and brush on before cooking.
For quick breads or muffins, brown sugar
can be used in the recipe in place of
granulated sugar, or the surface can be
sprinkled with dark spices before baking.
Spacing
Individual foods, such as
baked potatoes, cupcakes
and appetizers, will cook more
evenly if placed in the oven
equal distances apart. When
possible, arrange foods in a circular pattern.
21
Cooking Techniques (continued)1
Covering
As with conventional cooking, moisture
evaporates during microwave cooking.
Casserole lids or plastic wrap are used for a
tighter seal. When using plastic wrap, vent
the plastic wrap by folding back part of the
plastic wrap from the edge of the dish to
allow steam to escape. Loosen or remove
plastic wrap as recipe directs for stand time.
When removing plastic wrap covers, as well
as any glass lids, be careful to remove them
away from you to avoid steam burns.
Various degrees of moisture retention are
also obtained by using wax paper or paper
towels.
Shielding
Thin areas of meat and poultry cook more
quickly than meaty portions. To prevent
overcooking, these thin areas can be shield-
ed with strips of aluminum foil. Wooden
toothpicks may be used to hold the foil in
place.
,&CAUTION is to be exercised when
using foil. Arcing can occur if foil is too close
to oven wall or door and damage to your
oven will result.
Cooking time
A range of cooking time is given in each
recipe. The time range compensates for the
uncontrollable differences in food shapes,
starting temperature, and regional prefer-
ences. Always cook food for the minimum
cooking time given in a recipe and check for
doneness. If the food is undercooked, con-
tinue cooking. Itis easier to add time to an
undercooked product. Once the food is
overcooked, nothing can be done.
Stirring
Stirring is usually necessary during
microwave cooking. Always bring the
cooked outside edges toward the center
and the less cooked center portions toward
the outside of the dish.
Rearranging
Rearrange small items such as chicken
pieces, shrimp, hamburger patties, or pork
chops. Rearrange pieces from the edge to
the center and pieces from the center to the
edge of the dish.
22
Turning
It isnot possible to stir some foods to dis-
tribute the heat evenly. At times, microwave
energy will concentrate in one area of the
food. To help insure even cooking, these
food need to be turned. Turn over large
foods, such as roasts or turkeys, halfway
through cooking.
Stand Time
Most foods will continue to cook by conduc-
tion after the microwave oven is turned off.
In meat cookery, the internal temperature
will rise 5°F to 15°F (3°C to 8°C), if allowed
to stand, tented with foil, for 10 to 15 min-
utes. Casseroles and vegetables need a
shorter amount of standing time, but this
standing time is necessary to allow foods to
complete cooking to the center without over-
cooking on the edges.
Test for Doneness
The same tests for doneness used in con-
ventional cooking may be used for
microwave cooking. Meat isdone when
fork-tender or splits at fibers. Chicken is
done when juices are clear yellow and
drumstick moves freely. Fish is done when it
flakes and is opaque. Cake isdone when a
toothpick or cake tester is inserted and
comes out clean.
ABOUT FOOD SAFETY AND
COOKING TEMPERATURE
Check foods to see that they are cooked to
the United States Department of
Agriculture's recommended temperatures.
CO|
160°F ...for fresh pork, ground meat,
boneless white poultry, fish,
seafood, egg dishes and
frozen prepared food.
165°F ...for leftover, ready-to-reheat
refrigerated, and dell and
carryout "fresh" food.
170°F ...white meat of poultry.
180°F ...dark meat of poultry.
Totest for doneness, insert a meat ther-
mometer in a thick or dense area away from
fat or bone. NEVER leave the thermometer
in the food during cooking, unless it is
approved for microwave oven use.
Careand Cleaning of Your MicrowaveOven]
Unplug oven at wall outlet. If outlet is inacces- Be sure to place the Roller Ring and the Glass
Tray in the proper position and press
sible, leave oven door open while cleaning.
Stop/Reset Pad to c ear the D sp ay.
Menu Label / Warning Label: Glass Tray:
Do not remove, wipe with a damp Remove and wash in
cloth, warm soapy water or in
a dishwasher.
Inside of the oven:
Wipe with a damp cloth
after using. Mild detergent
may be used if needed.
Do not use
gents or abrasives.
Oven Door:
Wipe with a soft dry
cloth when steam
accumulates inside or
around the outside of
the oven door. Durin(
cooking, especially
under high humidity
conditions, steam is
given off from the
food. (Some steam
will condense on cool-
er surfaces, such as
the oven door. This is
normal.)
Inside surface is cov-
ered with a heat and
vapor barrier film. D._qe
not remove.
Outside oven surfaces:
Clean with a damp cloth.
To prevent damage to the
operating parts inside the
oven, water should not be
allowed to seep into ventila-
tion openings.
Roller Ring and oven cavity floor:
Clean the bottom surface of the oven
with mild detergent water or window
cleaner, and dry. Roller Ring may be
washed in mild soapy water or dish-
Control Panel:
* Covered with a
removable protective
film to prevent
scratches during
shipping. Small bub-
bles may appear
under this film.
(Hint - To remove
film, apply masking
or clear tape to an
exposed comer and
pull gently.)
* If the Control Panel
becomes wet, clean
it with a soft dry
cloth. Do not use
harsh detergents or
abrasives.
Do not remove wave guide cover:
It is important to keep cover
washer. These areas should be kept clean in the same manner as the
clean to avoid excessive noise, inside of the oven.
IT IS IMPORTANT TO KEEP THE OVEN CLEAN AND DRY.
FOOD RESIDUE AND CONDENSATION MAY CAUSE RUSTING
OR ARCING AND DAMAGE TO THE OVEN. AFTER USE, WIPE
DRY ALL SURFACES-INCLUDING VENT OPENINGS, OVEN
SEAMS, AND UNDER GLASS TRAY.
PARTS DESCRIPTION PART NUMBER
Instructions / Operating Manual (this book) F00038M80AP
Glass Tray F06014T01AP
Roller Ring Assembly F290D9330AP
Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our
Web Site at: http://www.pstc.panasonic.corn
or, send your request by E-mail to: npcparts(_us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday-Friday 9 am to 8 pm, EST.)
Panasonic Service and Technology Company
20421 84th Avenue South,
Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
23
Before RequestingService
/These things are normal-
The oven causes
interference with
my TV.
Some radio and TV interference might occur when you cook
with the microwave oven. This interference is similar to the
interference caused by small appliances such as mixers,
vacuums, blow dryers, etc. It does not indicate a problem with
your oven.
Steam accumulates
on the oven door and
warm air comes from
the oven vents.
During cooking, steam and warm air are given off from the
food. Most of the steam and warm air are removed from the
oven by the air which circulates in the oven cavity. However,
some steam will condense on cooler surfaces such as the
oven door. This is normal. After use, the oven should be
wiped dry (see page 23).
J
I PROBLEM
Oven will not turn on. 1 ,,_
Oven will not start
cooking.
The Glass Tray j
wobbles.
When the oven is
operating, there is
noise coming from
the glass tray.
The word "Child"
appears in the
Display Window.
I Theovenstops cooking
bymicrowaveand"H97"
or "H98" appearsinthe
displaywindow.
POSSIBLE CAUSE I REMEDY I
The oven is not plugged in Remove plug from outlet, wait
securely. 10 seconds and re-insert.
Circuit breaker or fuse is Reset circuit breaker or replace
tripped or blown, fuse.
There is a problem with the Plug another appliance into the
outlet, outlet to check if it is working.
"The door is not closed Close the oven door securely.
completely.
Start Pad was not pressed Press Start Pad.
after programming.
Another program is already Press Step/Reset Pad to cancel
entered into the oven. the previous program and enter
new program.
program is not correct. Program again according to the
Operating Instructions.
_Stop/Reset Pad has been Program oven again.
pressed accidentally.
The Glass Tray is not Take out Glass Tray and Roller
positioned properly on the Ring. Wipe with a damp cloth and
Roller Ring or there is food reset Roller Ring and Glass Tray
under the Roller Ring. properly.
The Roller Ring and oven Clean these parts according to
bottom are dirty. Care and Cleaning of your
Microwave Oven (see page 23).
The CHILD LOCK was Deactivate LOCK by pressing
activated by pressing Stop!Reset pad 3 times.
Start pad 3 times.
This displaying indicates a Please contact an authorised
problem with the microwave Service Center (see page 25).
generation system.
24
LimitedWarranty&CustomerServicesDirectory1
PANASONIC CONSUMER ELECTRONICS COMPANY, PANASONIC SALES COMPANY,
DIVISION OF PANASONIC CORPORATION OF DIVISION OF PANASONIC PUERTO
NORTH AMERICA RICO, INC.
One Panasonic Way Ave. 65 de Infanteria, Km. 9.5
Secaucus, New Jersey 07094 San Gabriel Industrial Park
Carolina, Puerto Rico 00985
Panasonic Microwave Oven Product
Limgted Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship, Panasonic
Consumer Electronics Company or Panasonic Sales Company (collectively referred to as "the warrantor")
will, for the length of the period indicated on the chart below, which starts with the date of original purchase
("warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it
with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.
PARTS LABOR
ALL PARTS (EXCEPT MAGNETRON TUBE) 1 (ONE) YEAR 1 (ONE) YEAR
MAGNETRON TUBE 5 (FIVE) YEAR 1 (ONE) YEAR
During the "Labor" warranty period there will be no charge for labor. During the "Parts" warranty period,
there will be no charge for parts. You must carry-in or mail-in your product during the warranty period. This
warranty only applies to products purchased andserviced in the United States or Puerto Rico. This warranty
is extended only to the original purchaser of a new product which was not sold "as is". A purchase receipt or
other proof of the original purchase date is required for warranty service.
Carry-in or Mail-in Service
For Carry-In or Mail-In Service in the United States call 1-800-211-PANA(7262) or visit Panasonic Web Site:
http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
glass, plastic parts, temperature probes(if included) and normal wear and tear or cosmetic damage. The war-
rantyALSO DOES NOTCOVER damages which occurred in shipment, or failures which are caused by prod-
ucts not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infes-
tation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of con-
sumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use
(such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other
than a Factory Service center or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTEDUNDER "LiMiTED WARRANTY COV-
ERAGE". THE WARRANTOR iS NOT LIABLE FOR iNCiDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARiSiNG OUT OF ANY BREACH OF THiS WAR-
RANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, or travel to and from the servicer. The items listed are not exclusive, but are for
illustration only.)ALL EXPRESS AND iMPLiED WARRANTIES, iNCLUDiNG THE WARRANTY OF MER-
CHANTABILITY, ARE LiMiTED TO THE PERIOD OF THE LiMiTED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on
how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have others rights which vary from state to
state. If a problem with this product develops dunng or after the warranty penod, you may contact your deal-
er or Service center. If the problem is not handled to your satisfaction, then write to the warrantor's
Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THiS LiMiTED WARRANTY ARE YOUR
RESPONSiBiLiTY.
Obtain Product Information and Operating Assistance; locate your nearest Dealer or servicenter; pur-
chase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web
Site at: _anasoni¢.com/¢onsumersu_o_t
or, contact us via the web at: htt _ic.com/contactinfo
You may also contact us directly at: 1-800-211-PANA(7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
#_ r/i3_ #!t',t'a
Panasonic Puerto Rico, Inc.
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787)750-4300, Fax (787)768-2910
25
QUICK GUIDE TO OPERATION
Feature How to Operate
To set
Clock _ @ Thru _
('o-page 10) Press once. Enter time of day. Press once.
To set
Power and Time _ @ Thru _
('o-page 11) Pressto selectPowerLevel. Set cooking time. Press.
To Use Child To Set: To Cancel:
Safety Lock
(.o-page 10) Press 3 times. Press 3 times.
To cook using _ or
Popcorn ......................
('o-page 12) Select weight. Optional. Press.
To cook using Q_k
Quick Min M_ "_
('o-page 11) (up to 10 min.) Press.
To use _ Thru
Keep Warm ...............
(.o-page 11) Press once. Set keep warm time. (up to 30 rain.) Press.
To reheat using _ _re or _
Sensor Reheat R_h_ .... .......................
('o-page 15) Press once. Optional. Press.
To cook using ......
Sensor Cook _ or
(.o-page 15) Pressto selectfood number. Optional. Press.
To defrost using
Inverter Turbo _ @ Thru _
Defrost
(.o-page 13) Press once. Set weight. Press.
To use as a
Kitchen Timer _ _ Thru @
('o-page 18) Press once. Set time. Press.
To Set / Input up to 1
Stand Time |4-stage cooking i"-_" _i r _ Thru
(o-page 18) \ programs, j Press once. Set time. Press.
To Set ! Input up to !
Delay Start Tier _ Thru _ 4-stage cooking
('o-page 18) Press once. Set time. [ programs. _ Press.
26
Specifications
Power Source:
Power Consumption:
Cooking Power:*
Outside Dimensions
(H x W x D):
Oven Cavity Dimensions
(H x W x D):
Operating Frequency:
Net Weight:
Trim Kit for NN-SN676/SN677 only:
Model Number:
Outside Dimensions:
Cabinet Opening:
NN-H665 NN-SN667/SN676/SN677
120 V, 60 Hz
12.7 Amps, 1,480 W
1,300 W
11 7/8"x 20 3/8"x 15 7/8" 11 7/8"x 20 3/8"x 15 1%6"
(301 mmx 518 mmx 402 ram) (301 mmx 518 mmx 404 ram)
8 7/8"x 14 8/4"x 15 8/18"
(225 mm x 375 mm x 386 mm)
2,450 MHz
Approx. 24 Ibs. (11 kg) Approx. 26 Ibs. (11.8 kg)
NN-TK529SF
(Stainless)
22"x 161/2''
(685 mm x 419 mm)
22"/16" x 15%_" x 21"
(576 mm x 389 mm x 533.4 mm)
*IEC Test procedure Specifications subject to change without notice.
User's Record
The serial number of this product may be
found on the back side of the oven. You
should note the model number and the
serial number of this oven in the space
provided and retain this book as a per-
manent record of your purchase for
future reference.
Model No.
Serial No.
Date of Purchase
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
One Panasonic Way
Secaucus, New Jersey 07094
Panasonic Sales Company, Division
of Panasonic Puerto Rico, Inc. ("PSC")
Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Matsushita Electric Industrial Co., Ltd.
Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd.
898 Long Dong Road, Pu Dong, Shanghai, China 201203
Web Site: http://www.panasonic.co.jp/global
27
Notes
28
