VP600 Battery
Instructions for use
107417355 C (04. 2018)
2
Operating instructions .................................................................................................... 6
Bedienungsanweisungen ............................................................................................. 12
Instructions de fonctionnement ................................................................................... 19
Gebruiksaanwijzingen ................................................................................................... 25
Istruzioni per l’uso ......................................................................................................... 31
Bruksanvisning .............................................................................................................. 37
Bruksanvisning .............................................................................................................. 43
Betjeningsvejledning .................................................................................................... 49
Käyttöohje ...................................................................................................................... 55
Instruccciones de funcionamiento .............................................................................. 60
Instruções de Funcionamento ..................................................................................... 66
Οδηγίες λειτουργίες ...................................................................................................... 72
Kullanma Talimatları ...................................................................................................... 79
Navodila za delovanje ................................................................................................... 86
Upute za uporabu .......................................................................................................... 92
Návod na obsluhu ......................................................................................................... 98
Návod k obsluze .......................................................................................................... 104
Instrukcje dotyczące obsługi ......................................................................................110
Használati útmutató .....................................................................................................117
Instrucţiuni de utilizare ................................................................................................ 123
Указания за експлоатация ........................................................................................ 129
Руководство по эксплуатации ................................................................................. 136
Tööjuhised ................................................................................................................... 143
Norādījumi par ekspluatāciju ...................................................................................... 149
Naudojimo instrukcija ................................................................................................. 155
取扱説明書 ...................................................................................................................... 161
操作说明 ......................................................................................................................... 167
3

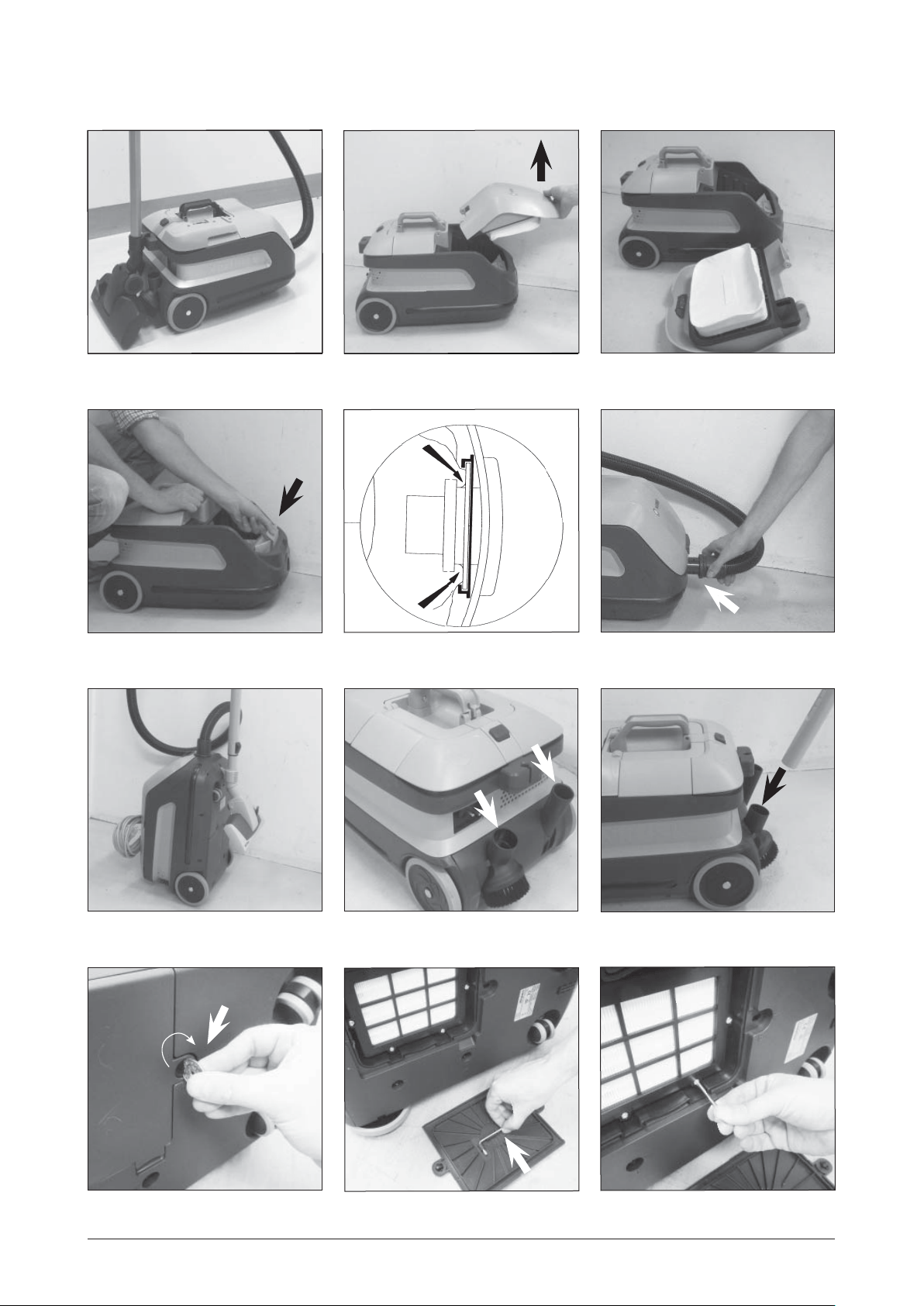

1. To open
3. Hose connection 3. Hose connection
2. Dust bag
2. Dust bag
4. Tools 5.
5. Filter change
Setup and operation
4

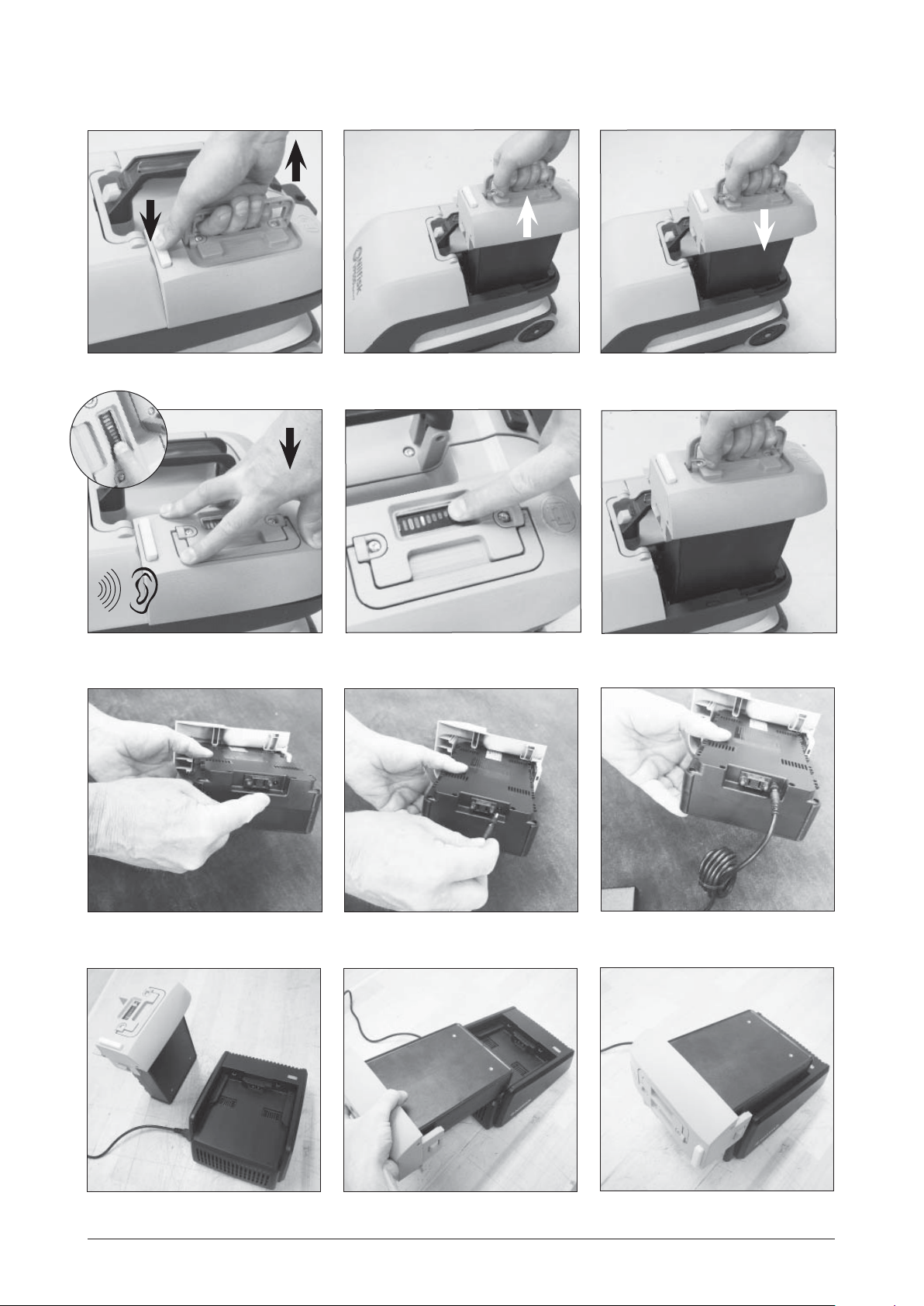

7. Battery indicator 8. Charging FW8060/48 & BC500
Click
6. Battery module change
5
12. Warning
11. Combi nozzle
10. Power boost function9. Start/stop
6 Original instruction
1 IMPORTANT SAFETY INSTRUCTIONS
1.1 Symbols used to mark instructions
DANGER
Danger that leads directly to serious or irreversible injuries, or
even death.
WARNING
Danger that can lead to serious injuries or even death.
CAUTION
Danger that can lead to minor injuries and damage.
Before starting up your machine for the first time, this instruction manual must be read through
carefully. Save the instructions for later use.
1.2 Instructions for use
Besides the operating instructions and the binding accident prevention regulations valid in the country
of use, observe recognised regulations for safety and proper use. Read all instructions before using
the battery operated machine. Save the instructions for later use.
1.3 Purpose and intended use
This machine is for commercial use, for example in hotels, schools, hospitals, factories, shops and
offices other than normal residential housekeeping purposes. Accidents due to misuse can only be
prevented by those using the machine.
This machine is suitable to clean (vacuuming) smooth and solid floors, in civil or industrial environ-
ment, under safe operation conditions by a qualified operator.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
1.4 Warnings
WARNING
• Carefully read all the instructions before performing any mainte-
nance/repair procedure.
• To reduce the risk of fire, electric shock, or injury, take the battery
out of the machine before performing any maintenance procedure.
• Do not smoke while charging the battery.
• Always protect the machine against the sun, rain and bad weather,
both under operation and inactivity conditions.
• This machine must be used indoors in dry conditions, it must not be
used or kept outdoors in wet conditions.
• Before using the machine, close all covers as shown in the Instruc-
tions for Use Manual.
• Do not use without dust bag and filters in place.
• Prevent unintentional starting. Carrying the appliance with your fin-
ger on the switch or energizing appliance that have the switch on
invites accidents.
Original instruction 7
• This machine is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given super-
vision or instruction concerning use of the machine by a person re-
sponsible for the safety.
• Children should be supervised to ensure that they do not play with
the machine.
• Close attention is necessary when used near children. Use only as
shown in this Manual. Use only Nilfisk’s recommended accesso-
ries.
• Check the machine carefully before each use, always check that all
the components have been properly assembled before use. If the
machine is not perfectly assembled it can cause damages to peo-
ple and properties.
• Take all necessary precautions to prevent hair, jewels and loose
clothes from being caught by the machine moving parts.
• Do not put any object into openings. Do not use with any opening
blocked. Keep free of dust, lint, hair and anything that may reduce
the flow.
• Use the machine only where a proper lighting is provided.
• While using this machine, take care not to cause damage to people
or objects.
• Use extra care when cleaning on stairs.
• The humidity must be between 30 % and 95 %.
• In case of fire, use a powder fire extinguisher, not a water one.
• Do not tamper with the machine safety guards and follow the ordi-
nary maintenance instructions scrupulously.
• Do not remove or modify the plates affixed to the machine.
• In case of machine malfunctions, ensure that these are not due to
lack of maintenance. If necessary, request assistance from the au-
thorised personnel or from an authorised Service Center.
• If parts must be replaced, require ORIGINAL spare parts from an
Authorised Dealer or Retailer.
• To ensure machine proper and safe operation, the scheduled main-
tenance shown in the relevant chapter of this Manual, must be per-
formed by the authorised personnel or by an authorised Service
Center.
• Do not wash the machine with direct or pressurised water jets, or
with corrosive substances.
• The machine must be disposed of properly, because of the pres-
8 Original instruction
ence of toxic-harmful materials (batteries, etc.), which are subject
to standards that require disposal in special centres (see Scrapping
chapter).
• Before performing any maintenance, repair, cleaning or replace-
ment procedure disconnect the battery.
• This machine must be used by properly trained operators only.
• Do not wear jewels when working near electrical components.
• Do not operate the machine near toxic, dangerous, flammable and/
or explosive powders, liquids or vapours.
• Do not pick up anything that is burning or smoking, such as ciga-
rettes, matches or hot ashes.
• This machine is not suitable for collecting dangerous powders.
• The machine working temperature must be between 0 °C and +40
°C. Due to battery requirements.
• The machine storage temperature must be between -20 °C and
+40 °C. Due to battery requirements.
1.5 Warnings
BATTERY AND CHARGER
• This machine use a Lithium-ion battery.
• If the appliance is to be stored unused for a long period, the batter-
ies are removed.
• When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to an-
other. Shorting the battery terminals together may cause burns or a
fire.
• Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If liq-
uid contacts eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
• Never use other batteries than that one supplied with machine or
original replacement.
• Do not use a battery pack or appliance that is damaged or modi-
fied. Damaged or modified batteries may exhibit unpredictable be-
havior resulting in fire, explosion or risk of injury.
• Before every use check for any sign of damage.
• Do not expose a battery pack or appliance to fire or excessive tem-
perature. Exposure to fire or temperature above 130°C may cause
explosion.
Original instruction 9
• Follow all charging instructions and do not charge the battery pack
or appliance outside of the temperature range specified in the in-
structions. Charging improperly or at temperatures outside of the
specified range may damage the battery and increase the risk of
fire.
• If the battery is leaking return it to a Nilfisk Service Center.
• The battery must be removed from the machine before the ma-
chine is scrapped.
• Protect the charger againts moisture and store it in a dry place.
• Do not use the charger if it or it’s cord are wet.
• Before using the battery charger, ensure that frequency and volt-
age values, indicated on it rating plate, match the electrical mains
voltage.
• Do not use the charger in explosive invironment.
• Do not carry the charger by holding the main cord.
• Do not pull or carry the machine by the battery charger cord and
never use the battery charger cord as a handle. Do not close a
door on the battery charger cord, or pull the battery charger cord
around sharp edges or corners. Do not run the machine on the bat-
tery charger cord.
• Keep the battery charger cord away from heated surfaces.
• Do not charge the battery if the battery charger cord or the plug are
damaged.
• Do not cover the charger.
• Do not recharge with other chargers than that one provided with
the machine or original replacement or accessories.
10 Original instruction
1.6 Approved batteri and chargers
Battery pack: 10S4P-UR18650RX.
Chargers: FW8060/48, BC500.
1.7 Maintenance
All necessary operating, maintenance and repair procedures must be performed by qualified person-
nel or by Nilfisk Service Centers. Only original spare parts and accessories must be used.
Contact Nilfisk for service or to order spare parts and accessories, specifying the machine model,
product code and serial number.
1.8 Charging of the battery pack
The battery pack is delivered approx. 30 % charged because this gives a long storage time and a
safe transportation.
Connect the charger directly to the battery pack or mount the battery pack in the charger depending
on the application. (See the User guide for the charger or for the appliance).
The battery pack should be charged in a dry environment and within an ambient temperature range
of 0°C to +40°. (32°F to +104°F)
The battery pack has an integrated Battery Management System, which protects the cells against
abusive charging and discharging. The system also maximizes the battery life by balancing the cells
during charge.
1.9 Storage of the battery pack
A fully discharged battery pack should not be stored uncharged for more than 4-weeks maximum.
A 30 % charged battery pack (2 Green LED’s) can be stored for up to 24 month in a temperature
range from -20 to +40°C. (-4°F to +104°F)
Failure to observe the guide line for storage, might lead to a defect battery pack, which must be dis-
posed of. (See section Disposal of Battery pack).
For details of after sales service contact Nilfisk directly.
2.0 Warranty
Our general conditions of business are applicable with regard to the guarantee.
Unauthorised modifications to the appliance, the use of incorrect brushes in addition to using the ap-
pliance in a way other than for the intended purpose exempt the manufacturer from any liability for
the resulting damage.
As specified in European Directive 2012/19/EU on old electrical and electronic appliances, used
electrical goods must be collected separately and recycled ecologically. Contact your local au-
thorities or your nearest dealer for further information.
Original instruction 11
Specifications
VP600 Battery
eco/boost
Voltage V36
Rated power W 650
Power consumption W 190/465
Battery capacity A
h
/ Wh 7,8/280,8
Battery type Lithium Ion
Run time min 60/30
Protection grade (moist., dust) ll/IP 20
Protection class (electrical) II
Airflow with hose and tube litres/sec 21.7/26.7
Suction power with hose and tube W 45/116
Vacuum at nozzle kPa 86/129
Sound pressure level L
PA
(ISO 11203) dB(A) 56/61
Sound power level L
WA
(EN/ISO 9614-2) dB(A) 68/74
Vibration ISO 5349 a
h
m/s
2
≤ 2,5
Sack filter, surface area cm
2
2400
Dust bag capacity litres L 8
Width mm 300
Depth mm 480
Height mm 270
Weight incl. battery kg 10
Number of filters 2
Charge time min ≤ 40
Specifications and details are subject to change without prior notice.
EU Declaration of Conformity
Nilfi sk A/S
Kornmarksvej 1
DK-2605 Broendby
DENMARK
Hereby solely declare, that the:
Product: VAC - Commercial - Battery
Description: 36V DC, IPX0
Type:
VP600 Battery
Are in compliance with the following standards:
EN 60335-1:2012+A11:2014
EN 60335-2-69:2012
EN 61000-6-3:2007+A1:2011
EN 61000-6-1:2007
EN 50581:2012
EN 60950-1:2006+A1:2010+A2:2013+A11:2009+A12:2011
Following the provisions of:
2006/42/EC
2014/30/EU
2011/65/EC
Broendby, 19-04-2018
Lars Gjødsbøl
Executive Vice President Global Products & Services
HEAD QUARTER
DENMARK
Nilfi sk A/S
Kornmarksvej 1
DK-2605 Broendby
Tel.: (+45) 4323 8100
www.nilfi sk.com
SALES COMPANIES
ARGENTINA
Nilfi sk Argentina
Herrera 1855 Piso 4° B Ofi c 405
Ciudad de Buenos Aires
Tel.: (+54) 11 6091 1576
www.nilfi sk.com.ar
AUSTRALIA
Nilfi sk Pty Ltd
Unit 1/13 Bessemer Street
Blacktown NSW 2148
Tel.: (+61) 2 98348100
www.nilfi sk.com.au
AUSTRIA
Nilfi sk GmbH
Metzgerstrasse 68
5101 Bergheim bei Salzburg
Tel.: (+43) 662 456 400 90
www.nilfi sk.at
BELGIUM
Nilfi sk n.v-s.a.
Riverside Business Park
Boulevard Internationalelaan 55
Bâtiment C3/C4 Gebouw
Bruxelles 1070
Tel.: (+32) 24 67 60 50
www.nilfi sk.be
BRAZIL
Nilfi sk do Brasil
Av. Eng. Luis Carlos Berrini, 550
40 Andar, Sala 03
SP - 04571-000 Sao Paulo
Tel.: (+11) 3959-0300 / 3945-4744
www.nilfi sk.com.br
CANADA
Nilfi sk Canada Company
240 Superior Boulevard
Mississauga, Ontario L5T 2L2
Tel.: (+1) 800-668-8400
www.nilfi sk.ca
CHILE
Nilfi sk S.A. (Comercial KCS Ltda)
Salar de Llamara 822
8320000 Santiago
Tel.: (+56) 2684 5000
www.nilfi sk.cl
CHINA
Nilfi sk
4189 Yindu Road
Xinzhuang Industrial Park
201108 Shanghai
Tel.: (+86) 21 3323 2000
www.nilfi sk.cn
CZECH REPUBLIC
Nilfi sk s.r.o.
VGP Park Horní Počernice
Do Čertous 1/2658
193 00 Praha 9
Tel.: (+420) 244 090 912
www.nilfi sk.cz
DENMARK
Nilfi sk Danmark A/S
Industrivej 1
Hadsund, DK-9560
Tel.: 72 18 21 20
www.nilfi sk.dk
FINLAND
Nilfi sk Oy Ab
Koskelontie 23 E
02920 Espoo
Tel.: (+358) 207 890 600
www.nilfi sk.fi
FRANCE
Nilfi sk SAS
26 Avenue de la Baltique
Villebon sur Yvette
91978 Courtabouef Cedex
Tel.: (+33) 169 59 87 00
www.nilfi sk.fr
GERMANY
Nilfi sk GmbH
Guido-Oberdorfer-Straße 2-10
89287 Bellenberg
Tel.: (+49) (0)7306/72-444
www.nilfi sk.de
GREECE
Nilfi sk A.E.
Αναπαύσεως 29
Κορωπί Τ.Κ. 194 00
Tel.: (30) 210 9119 600
www.nilfi sk.gr
HOLLAND
Nilfi sk B.V.
Versterkerstraat 5
1322 AN Almere
Tel.: (+31) 036 5460760
www.nilfi sk.nl
HONG KONG
Nilfi sk Ltd.
2001 HK Worsted Mills
Industrial Building
31-39, Wo Tong Tsui St.
Kwai Chung, N.T.
Tel.: (+852) 2427 5951
www.nilfi sk.com
HUNGARY
Nilfi sk Kft.
II. Rákóczi Ferenc út 10
2310 Szigetszentmiklós-Lakihegy
Tel.: (+36) 24 475 550
www.nilfi sk.hu
INDIA
Nilfi sk India Limited
Pramukh Plaza, ‘B’ Wing, 4th fl oor, Unit
No. 403
Cardinal Gracious Road, Chakala
Andheri (East) Mumbai 400 099
Tel.: (+91) 22 6118 8188
www.nilfi sk.in
IRELAND
Nilfi sk
1 Stokes Place
St. Stephen’s Green
Dublin 2
Tel.: (+35) 3 12 94 38 38
www.nilfi sk.ie
ITALY
Nilfi sk SpA
Strada Comunale della Braglia, 18
26862 Guardamiglio (LO)
Tel.: (+39) (0) 377 414021
www.nilfi sk.it
JAPAN
Nilfi sk Inc.
1-6-6 Kita-shinyokohama, Kouhoku-ku
Yokohama, 223-0059
Tel.: (+81) 45548 2571
www.nilfi sk.com
MALAYSIA
Nilfi sk Sdn Bhd
Sd 33, Jalan KIP 10
Taman Perindustrian KIP
Sri Damansara
52200 Kuala Lumpur
Tel.: (60) 3603 627 43 120
www.nilfi sk.com
MEXICO
Nilfi sk de Mexico, S. de R.L. de C.V.
Pirineos #515 Int.
60-70 Microparque
Industrial WSantiago
76120 Queretaro
Tel.: (+52) (442) 427 77 00
www.nilfi sk.com
NEW ZEALAND
Nilfi sk Limited
Suite F, Building E
42 Tawa Drive
0632 Albany Auckland
Tel.: (+64) 9 414 1996
Website: www.nilfi sk.com
NORWAY
Nilfi sk AS
Bjørnerudveien 24
1266 Oslo
Tel.: (+47) 22 75 17 80
www.nilfi sk.no
PERU
Nilfi sk S.A.C.
Calle Boulevard 162, Of. 703, Lima 33-
Perú
Lima
Tel.: (511) 435-6840
www.nilfi sk.com
POLAND
Nilfi sk Sp. Z.O.O.
Millenium Logistic Park
ul. 3 Maja 8, Bud. B4
05-800 Pruszków
Tel.: (+48) 22 738 3750
www.nilfi sk.pl
PORTUGAL
Nilfi sk Lda.
Sintra Business Park
Zona Industrial Da Abrunheira
Edifi cio 1, 1° A
P2710-089 Sintra
Tel.: (+351) 21 911 2670
www.nilfi sk.pt
RUSSIA
Nilfi sk LLC
Vyatskaya str. 27, bld. 7/1st
127015 Moscow
Tel.: (+7) 495 783 9602
www.nilfi sk.ru
SINGAPORE
Den-Sin
22 Tuas Avenue 2
639453 Singapore
Tel.: (+65) 6268 1006
www.densin.com
SLOVAKIA
Nilfi sk s.r.o.
Bancíkovej 1/A
SK-821 03 Bratislava
Tel.: (+421) 910 222 928
www.nilfi sk.sk
SOUTH AFRICA
Nilfi sk (Pty) Ltd
Kimbult Offi ce Park
9 Zeiss Road
Laser Park
Honeydew
Johannesburg
Tel: +27118014600
www.nilfi sk.co.za
SOUTH KOREA
Nilfi sk Korea
3F Duksoo B/D, 317-15
Sungsoo-Dong 2Ga
Sungdong-Gu, Seoul
Tel.: (+82) 2497 8636
www.nilfi sk.co.kr
SPAIN
Nilfi sk S.A.
Torre d’Ara,
Passeig del Rengle, 5 Plta. 10
a
08302 Mataró
Tel.: (34) 93 741 2400
www.nilfi sk.es
SWEDEN
Nilfi sk AB
Taljegårdsgatan 4
431 53 Mölndal
Tel.: (+46) 31 706 73 00
www.nilfi sk.se
SWITZERLAND
Nilfi sk AG
Ringstrasse 19
Kircheberg/Industri Stelz
9500 Wil
Tel.: (+41) 71 92 38 444
www.nilfi sk.ch
TAIWAN
Nilfi sk Ltd
Taiwan Branch (H.K)
No. 5, Wan Fang Road
Taipei
Tel.: (+88) 6227 00 22 68
www.nilfi sk.tw
THAILAND
Nilfi sk Co. Ltd.
89 Soi Chokechai-Ruammitr
Viphavadee-Rangsit Road
Ladyao, Jatuchak, Bangkok 10900
Tel.: (+66) 2275 5630
www.nilfi sk.co.th
TURKEY
Nilfi sk A.S.
Serifali Mh. Bayraktar Bulv. Sehit Sk. No:7
Ümraniye, 34775 Istanbul
Tel.: +90 216 466 94 94
www.nilfi sk.com.tr
UNITED ARAB EMIRATES
Nilfi sk Middle East Branch
SAIF-Zone
P.O. Box 122298
Sharjah
Tel.: (+971) (0) 655-78813
www.nilfi sk.com
UNITED KINGDOM
Nilfi sk Ltd.
Nilfi sk House, Bowerbank Way
Gilwilly Industrial Estate, Penrith
Cumbria CA11 9BQ
Tel: (+44) (0) 1768 868995
www.nilfi sk.co.uk
UNITED STATES
Nilfi sk, Inc.
9435 Winnetka Ave N,
Brooklyn Park
MN- 55445
www.nilfi sk.com
VIETNAM
Nilfi sk Vietnam
No. 51 Doc Ngu Str.
P. Vinh Phúc, Q.Ba Dinh
Hanoi
Tel.: (+84) 761 5642
www.nilfi sk.com
