User Manual - Transcript

• Page 1: HWO60S4MX1 HWO60S7EX1 Models HWO60S4LMX1 Cod0040304139 User Manual Builtin Electric Oven
• Page 2 - English - : Safety instructions4 How to save energy5 Disposal of the appliance5 Unpacking5 Description of the appliance6 Installation8 Operation10 Prior first use10 Electronic programmer10 Oven15 Cleaning and maintenance17 Operation in case of emergency19 Baking in the oven20 Technical information26 Mechanical timer15
• Page 3 - English - : The appliance and its accessible parts become hot during use Care should be taken to avoid touching heating elements Children less than 8 years of age shall be kept away unless supervisedcontinuously During use the appliance becomes hot Care should be taken touching heating elements inside the ovento avoid WARNING Accessible parts may become hot during use Young children should be kept away This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision DISPOSAL OF THE APPLIANCE Old appliances should not simply be disposed of with normal household waste but should be delivered to a collection and recycling centre for electric and electronic equipment A symbol shown on the product the instruction manual or the packaging shows that it is suitable for recycling Materials used inside the appliance are recyclable and are labeled with information concerning this By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment Information on appropriate disposal centers for used devices can be provided by your local authority

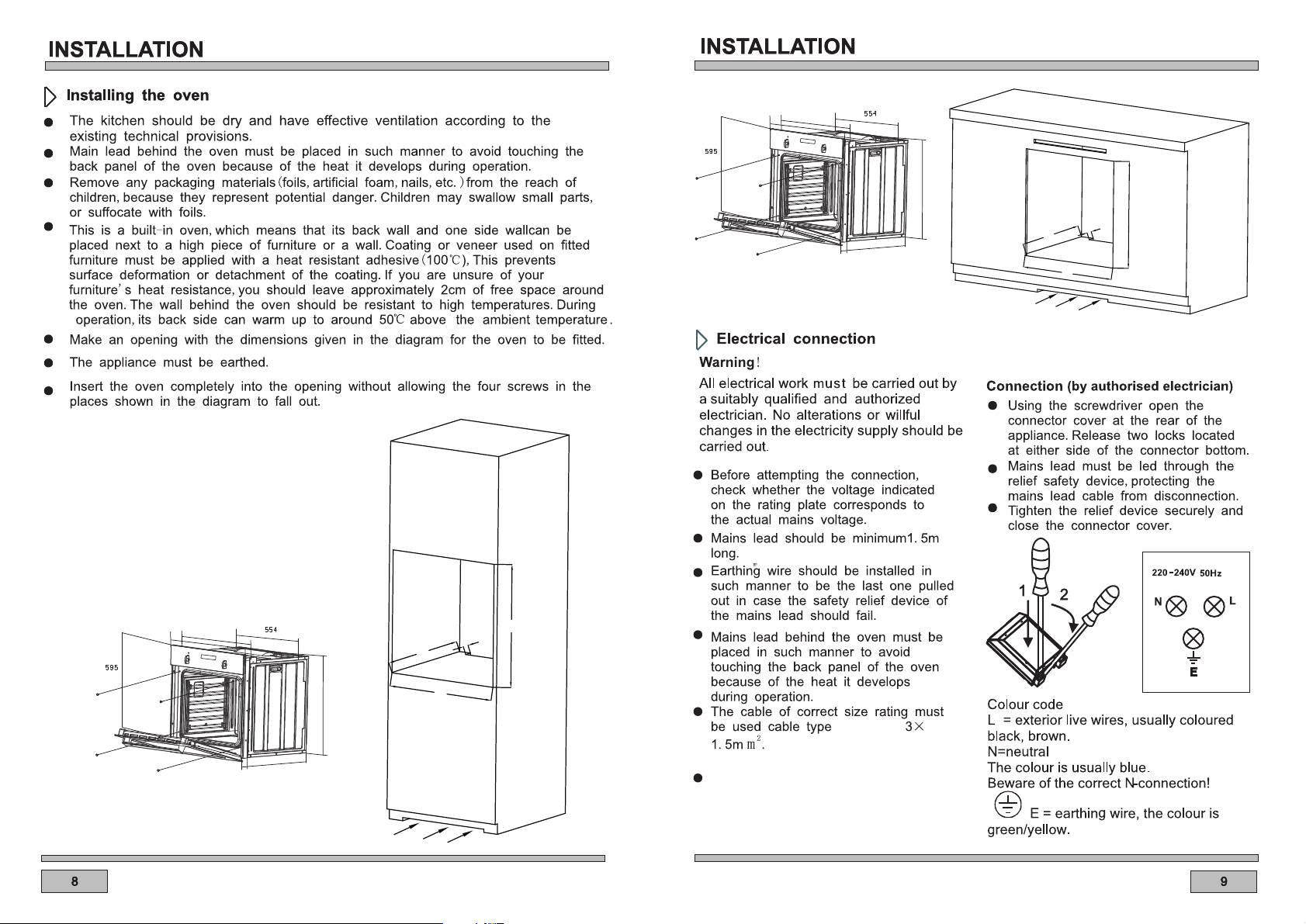

• Page 5 - English - : The means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under over voltage the grounding wire shall be longer than the other wires fixed wiring in accordance with the wiring rules HO5RRF

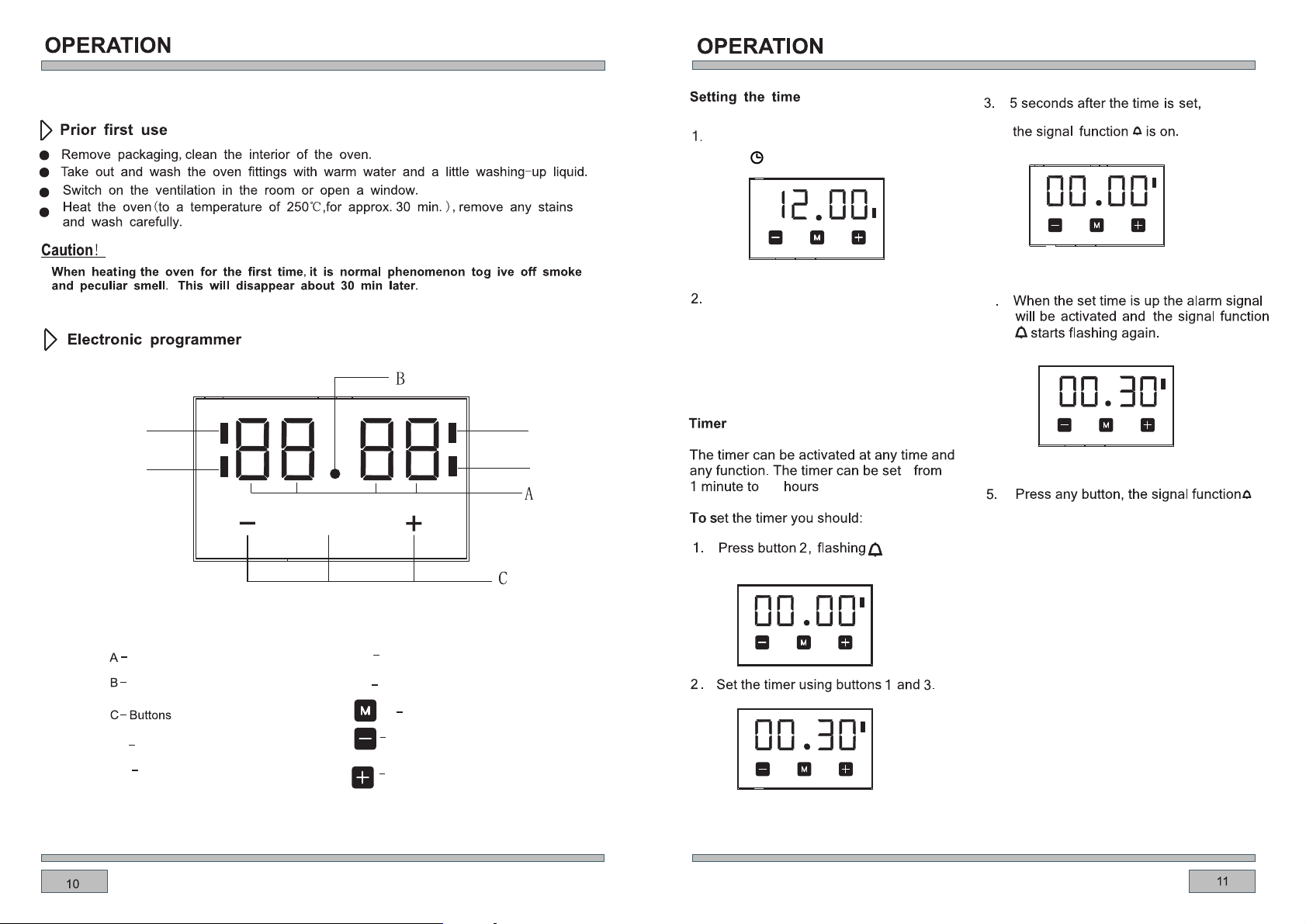

• Page 6 - English - : Button1 Button3 MODE Button2 D E F G At power on 1200quot and flashes displayed Enter the timer setting or directly press the button 2 The current time can be set with button 1 and 3 5 secondsafter the time has been set the new data will be saved 23 and 59 minutes your setting is saved and alarm signal will go off Or signal will be turned off automatically after 2 minutes the alarm To decrease the numbers on the digital display To increase the numbers on the digital display Display field Seconds Icon Function Timer Cooking time Current time End of cooking time D E F G
• Page 7 - English - : cooking End of cooking time automatically change to 500 end of cooking time Cooking time automatically change Press button 2 to adjust the cook time the and always on cooking And press button 2 Press any buttonthe alarm signal and the icon go offwill Or end of cooking time the alarm after 2 minutes turned signal will be off automatically and the will go off to 300 End of cooking time current time cooking time Press any buttonthe alarm signal and the icon go offwill Or the alarm after 2 minutes turned signal will be off automatically Press the function button to adjust the cooking time End of cooking time end of cooking time end of end of cooking time After the auto function be offthe cooking time to 0end of cooking time and current time remains the same want to oven work of 3 hoursend of cooking time 500 300 500 Or press button twice end of cooking time set either the cooking time by end

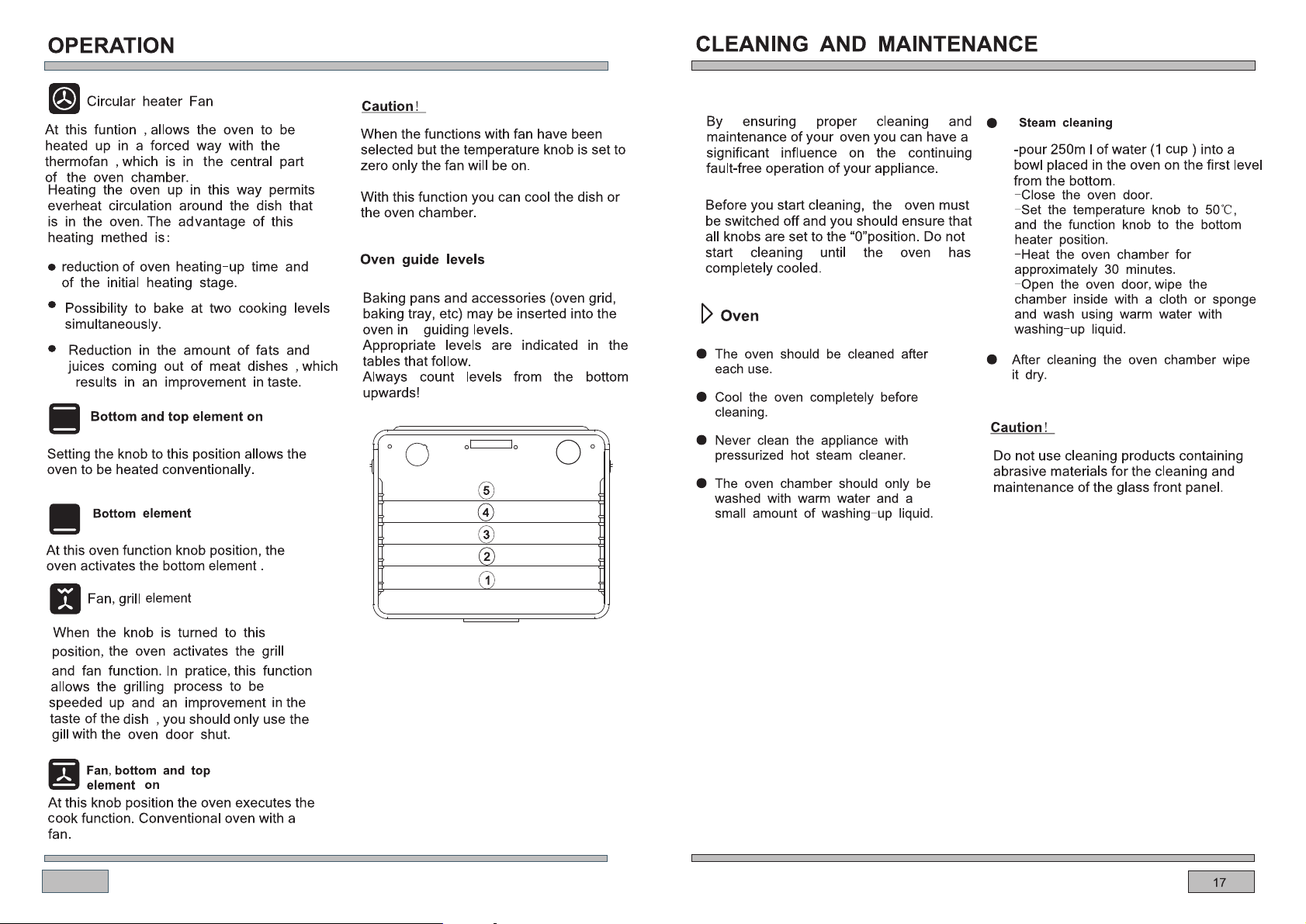

• Page 8 - English - : If the cooking time set to be 0 or the end of cooking time set to be the current timethe auto function will be off 1 and 3 1 and 3 end of cooking time 1 and 3 end of cooking time End of cooking time gt current time cooking time lt 10hours At least more than one minute cooking time cooking time and end of cooking time must be set After the auto function be offthe cooking time to 0end of cooking time and current time remains the same The oven is switched off automatically end of cooking time When use oven user must set food cooking time 2Turn function knob to the function position you want 3Turn temperature knob to the position you wanttemperature 4After above operation oven knob runs normally 5When oven works till preset time timer will have sound which means the cooking is finished in a clockwise way between 120 minutes 10 and If you dont want the oven work controlled by the mechanical timer a anticlockwiseway to the position Caution Dont turn in a clockwise way from 120 to mechanical timer This function uses the fan to circulate the heat from the grill element around the food The temperature can be set between 50 and250
• Page 10 - English - : Switch off all working units of the oven Call the service centre Some minor faults can be fixed by referring to the instructions given in the table Knob is Changing the Oven Lamp Press the symbol and outward the plastic latch that is in the corner at the top of the door Next take out the glass from the second blocking mechanism and remove After cleaning insert and block the glass panel and insert in the blocking mechanism Install door Before any maintenance is started involving electrical parts the appliance must be disconnected from the power supply If the oven has been in use let the oven cavity and the heating elements cool down before attempting any maintenance Changing the bulb Unscrew the protective cover We recommend that you wash and dry the glass cover at this point Carefully remove the old bulb and insert the new bulb suitable for high temperatures 300ºC having the following specifications 220240V 50Hz 25W G9 fitting Refit the protective cover IMPORTANT Never use screwdrivers or other utensils to remove the light cover This could damage the enamel of the oven or the lampholder Remove only by hand IMPORTANT Never replace the bulb with bare hands as contamination from your fingers can cause premature failure Always use a clean cloth or gloves Please note The bulb replacement is not covered by your guarantee l l Tilting the hinge safety catches Door removal
• Page 11 - English - : Pastry Baking Table Type of pastry Guide level from down upwards Temp Guide level from down upwards Temp Baking time in min Sweet pastry Raisin cake 2 160170 2 150160 5570 Ring cake 2 160170 2 150160 6070 Tree cake tart form 2 160170 2 150160 4560 Cheese cake tart form 2 180190 3 160170 6080 Fruit cake 2 190200 3 170180 5070 Fruit cake with icing 2 180190 3 160170 6070 Sponge cake 2 180190 2 160170 3040 Flake cake 3 190200 3 170180 2535 Fruit cake mix dough 3 180190 3 160170 5070 Cherry cake 3 190210 3 170200 3050 Jelly roll 3 190200 3 170180 1525 Fruit fan 3 160170 3 150160 2535 Plait bun 2 190210 3 180210 3550 Christmas cake 2 180190 3 170200 4570 Apple pie 2 190210 3 170200 4060 Puff paste 2 180190 3 160170 4060 Salted pastry Bacon roll 2 190200 3 170180 4560 Pizza 2 220240 3 210230 3045 Bread 2 200220 3 180210 5060 Rolls 2 210230 3 200220 3040 Cookies Caraway roll 3 180190 3 160170 1525 Biscuits 3 180190 3 160170 2030 Danish pastry 3 190210 3 170200 2035 Flaky pastry 3 200210 3 180200 2030 Cream puff 3 190210 3 170200 2545 Deep frozen pastry Apple pie cheese pie 2 190210 3 170200 5070 Cheese cake 2 190200 3 170180 6585 Pizza 2 210230 3 200220 2030 Chips for oven 2 210230 3 200220 2035 Potato fries for 2 210230 3 200220 2035
• Page 12 - English - : Roasting table Type of meat Weight in grams Guide level from bottom up Temp Roasting time in min temp Roasting time in min Beef Beef loin 1000 2 210230 2 200220 100120 Beef loin 1500 2 210230 2 200220 120150 Roast beef rare 1000 2 230240 2 220230 3040 Roast beef well done 1000 2 230240 2 220230 4050 Pork Pork roast with skin 1500 2 190200 2 170180 140160 Flank 1500 2 200210 2 180190 120150 Flank 2000 2 190210 2 170200 150180 Pork loin 1500 2 210230 2 200220 120140 Meat roll 1500 2 210230 2 200220 120140 Pork cutlet 1500 2 190210 2 170200 100120 Minced meat roast 1500 2 220230 2 210220 6070 Veal Veal roll 1500 2 190210 2 170200 90120 Veal knuckle 1700 2 190210 2 170200 120130 Lamp Lamp prime ribs 1500 2 200210 2 180200 100120 Mutton blade bone 1500 2 200210 2 180200 120130 Venison Hare ribs 1500 2 200220 2 180210 100120 Hare blade bone 1500 2 200220 2 180210 100120 Boar ham 1500 2 200220 2 180210 100120 Poultry Chicken entire 1200 2 210220 2 200210 6070 Hen 1500 2 210220 2 200210 7090 Duck 1700 2 190210 2 170200 120150 Goose 4000 2 170180 2 150160 180200 Turkey 5000 2 160170 2 140150 180240 Fish Fish entire 1000 2 210220 2 200210 5060 Fish soufflé 1500 2 190210 2 170200 5070
