MODEL NO.
536.797561
Caution:
Read and Follow
All Safety Rules
and Instructions
Before Operating
This Equipment
.................................. i ............. _'L'Ul'lLl== _ --
9 iNCH =3.0 HORSEPOWER
EDGER/TRIMMER
= Assembly
= Operation
• Customer Responsibilities
° Service and Adjustments
• Repair Parts
SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.
i lliH lllllllllli,i,llll,lll _ ,,,,,,, ,,, ,, ,,,,,, i i ,,,llmll
Part No 324779

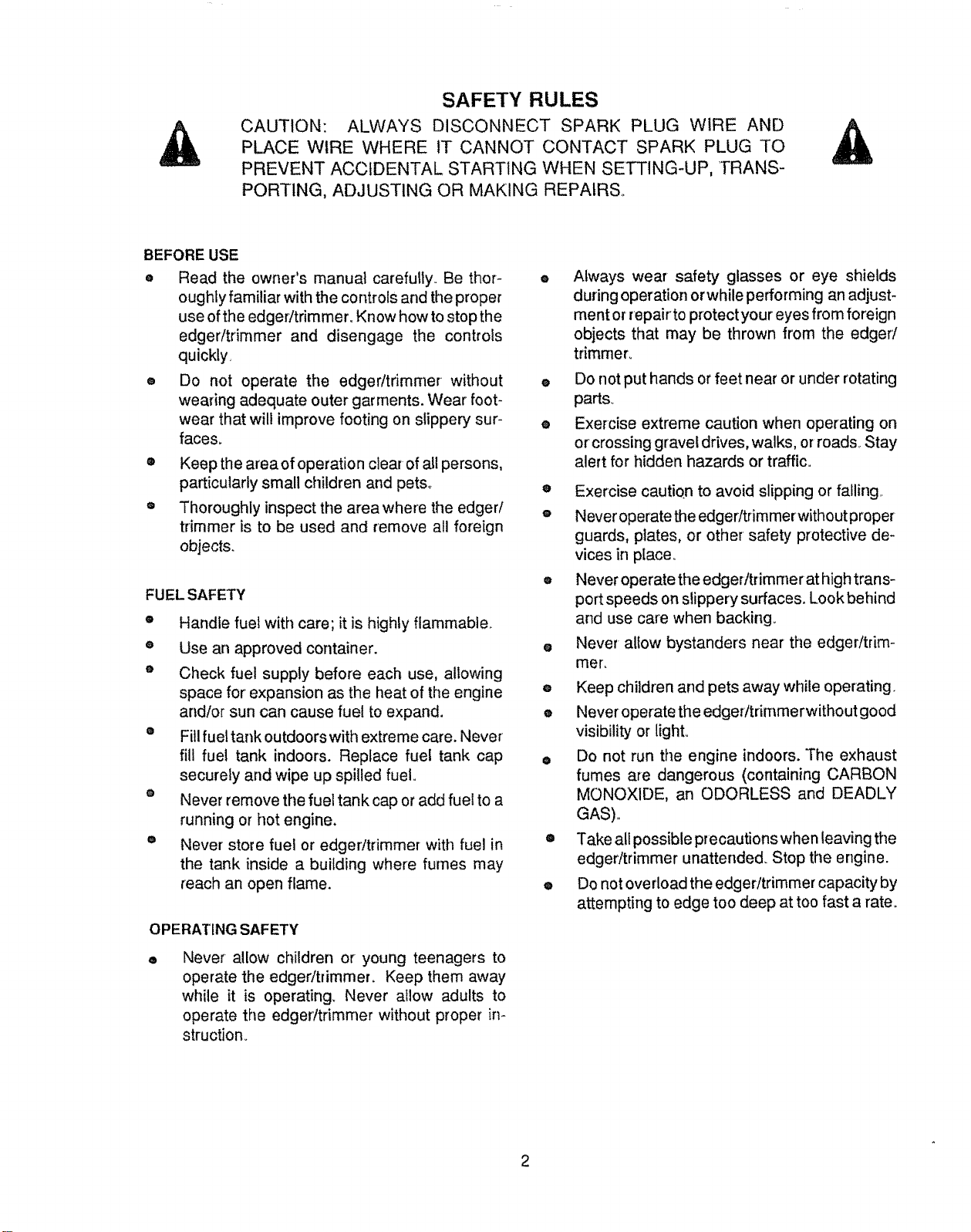

SAFETY RULES
CAUTION: ALWAYS DISCONNECT SPARK PLUG WIRE AND
PLACE WIRE WHERE IT CANNOT CONTACT SPARK PLUG TO
PREVENT ACCIDENTAL STARTING WHEN SETTING-UP, 'TRANS-
PORTING, ADJUSTING OR MAKING REPAIRS,.
BEFORE USE
e Read the owner's manual carefully Be thor-
oughly familiar with the controls and the proper
use of the edgedtrimmer. Know how to stop the
edger/trimmer and disengage the controls
quickly.
e Do not operate the edger!trimmer without
wearing adequate outer garments. Wear foot-
wear that wilt improve footing on slippery sur-
faces.
® Keep the area of operation clear of all persons,
particularly small children and pets_
= Thoroughly inspect the area where the edger/
trimmer is to be used and remove all foreign
objects.
FUEL SAFETY
e Handle fuel with care; it is highly flammable,.
® Use an approved container.
e Check fuel supply before each use, allowing
space for expansion as the heat of the engine
and/or sun can cause fuel to expand.
e Fill fuel tank outdoors with extreme care. Never
fill fuel tank indoors. Replace fuel tank cap
securely and wipe up spilled fuel,
® Never remove the fuel tank cap or add fuel to a
running or hot engine.
® Never store fuel or edger/trimmer with fuel in
the tank inside a building where fumes may
reach an open flame.
OPERATING SAFETY
Never allow children or young teenagers to
operate the edger/trimmer, Keep them away
while it is operating. Never allow adults to
operate the edger/trimmer without proper ir_-
struction.
o Always wear safety glasses or eye shields
during operation orwhile performing an adjust-
ment or repairto protectyour eyes from foreign
objects that may be thrown from the edger/
trimrner_
® Do not put hands or feet near or under rotating
parts.
® Exercise extreme caution when operating on
or crossing gravel drives, walks, or roads.. Stay
alert for hidden hazards or traffic.
• Exercise cautiQn to avoid slipping or falling
® Never operate the edgefltrimmer without proper
guards, plates, or other safety protective de-
vices in place.,
• Never operate the edger/trimmer at high trans-
port speeds on sfippery surfaces. Look behind
and use care when backing.
e Never allow bystanders near the edger!trim-
mer,
® Keep children and pets away while operating.
® Never operate the edgerttnmmerwithout good
visibility or light°
e Do not run the engine indoors. The exhaust
fumes are dangerous (containing CARBON
MONOXIDE, an ODORLESS and DEADLY
GAS),.
® Take all possible precautionswhen leaving the
edgerttrimmer unattended. Stop the engine.
e Do not overload the edgerttrimmer capacity by
attempting to edge too deep at too fast a rate.
SAFETY RULES
SAFE STORAGE
o Always refer to the owner's manual storage
section for important details if the edger/trim-
mer is to be stored for an extended period.
• Never leave the edger/trimmer with fuel in the
fuel tank inside abuilding where ignition sources
are present such as water and space heaters,
clothes dryers, andthe like+.Allow the engine to
cool before placing in any enclosure_
® Keep the edger/trimmer in safe working condi-
tion+ Check all fasteners at frequent intervals
for proper tightness,.
® Stop the blade whenever you leave the operat-
ing position. Also, stop the engine and discon-
nect the spark plug wire before unclogging the
blade and when making any repairs, adjust-
ments, or inspections.
e When cleaning, repairing, or inspecting, shut-
off the engine and make certain all moving
parts have stopped+
a Never attempt to make any adjustments while
the engine is running (except when specifically
recommended by the manufacturer)..
REPAIRIADJUSTMENTS SAFETY
® After striking a foreign object, stop the engine
(motor). Remove the wire from the spark plug,
and keep the wire away from the plug to
prevent accidental starting. Thoroughly inspect
the edger/trimmer for any damage, and repair
the damage before restarting and operating
the edgedtrimmer..
® If the edger/trimmer should start to vibrate
abnormally, stop the engine (motor) and check
immediately for the cause+ Vibration is gener-
ally a warning of troubieo
i iii ii i i iiil.+ i i iiii iii iii i ii,lml,,ll,ulli
I
A LOOK FOR THIS SYMBOL TO POINT OUT
,_j_ IMPORTANT SAFETY PRECAUTIONS. IT I
MEANS--ATTENTION!!! BECOME ALERT!!!_
i
3
CONGRATULATIONS on your purchase of a Sears
Craftsman Edger/Trimmer. It has been designed, engi-
neered and manufactured to give you the best possible
dependability and performance.
Should you experience any problemyou cannot easity
remedy, please contact your' nearest Sears Service
CentedDepartment. We have competent, well-trained
techniciansand thepropertoolsto service or repairthis
unit.
Please read andreta{nthis manual. The instructions will
enable you to assemble and maintain your edger/trim-
mer properly. Always observe the.,SAFETY RUL.ES."
MODEL
NUMBER 536.797561
SERIAL
NUMBER
DATE OF
PURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE
FOUND ON A DECAL ON THE FRAME OF THE
EDGER/TRIMMER BEHIND THE ENGtNE_
YOU SHOULD RECORD BOTH SERIAL NUMBER
AND DATE OF PURCHASE AND KEEP INASAFE
PLACE FOR FUTURE REFERENCE°

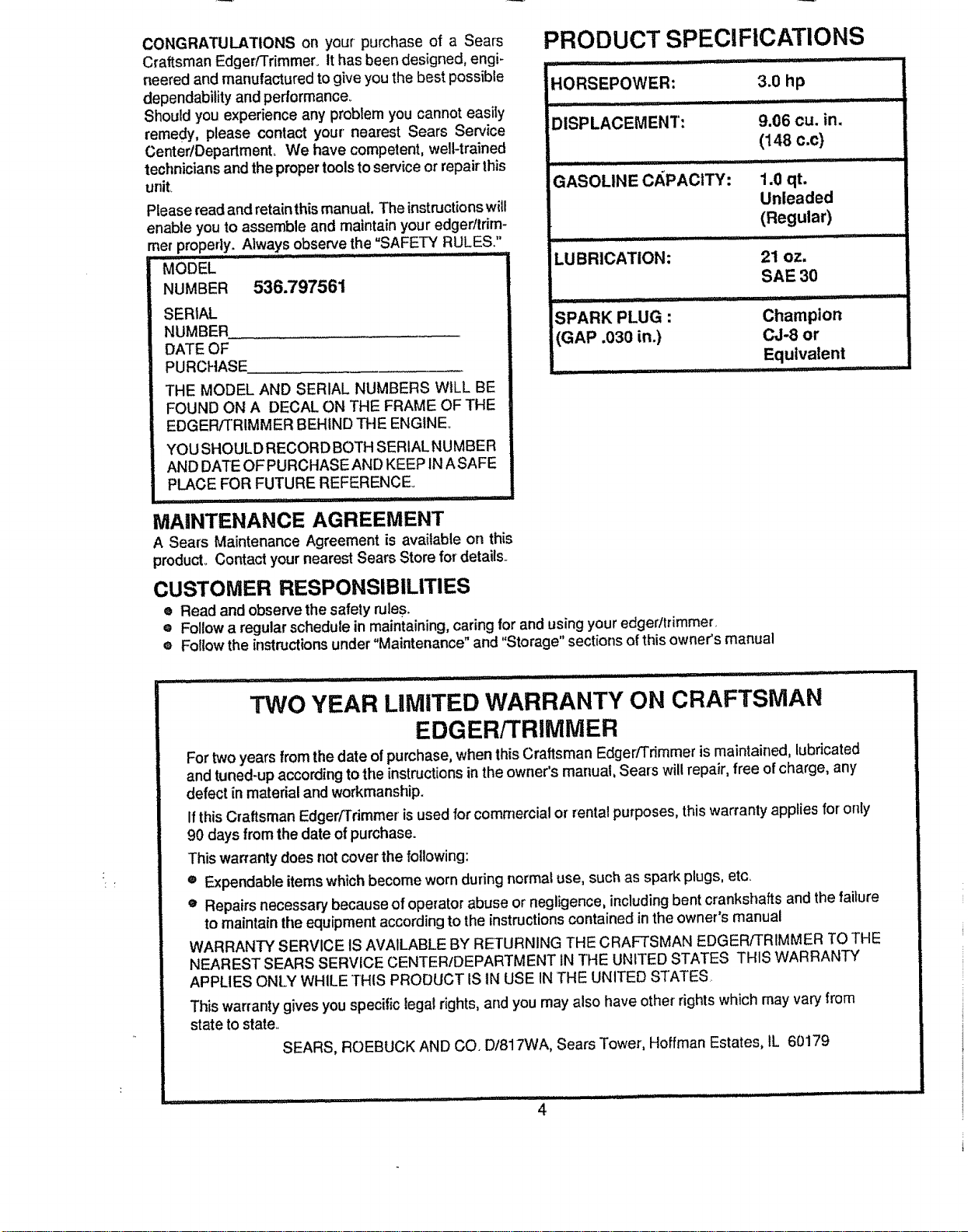

PRODUCT SPECIFICATIONS
.... i / i1' I filL" ......... " .............
HORSEPOWER: 3.0 hp
DISPLACEMENT: 9.06 cu. in.
(148 c.c)
GASOLINE CAPACITY: 1.0 qt.
Unleaded
(Regular)
LUBRICATION: 21 oz.
SAE 30
SPARK PLUG :............. ....... Champion ""
(GAP .030 in.) CJ-8 or
, Equivalent
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on this
product,,Contact yournearest Sears Store for=details.
CUSTOMER RESPONSIBILITIES
e Read and observethe safety njleso
e Followa regularschedule in maintaining, caring for and usingyour edger/trimmer,
e Follow the instructions under"Maintenance" and "Storage" sections of thisowner's manual
_:: I/I ,,, iiI It .................... iiiiiiiiiii/ / ......... 11111
TWO YEAR LIMITED WARRANTY ON CRAFTSMAN
EDGER/TRIMMER
Fortwo years from the date ofpurchase, when thisCraftsman Edger/Trimmer is maintained, lubricated
and tuned-upaccordingto the instructionsin theowner's manual, Sears willrepair, free ofcharge, any
defectin materialand workmanship.
Ifthis Craftsman Edger/[rimmer isused forcommercial or rental purposes,this warrantyapplies for only
90 days fromthe date of purchase.
Thiswarranty does not coverthe following:
® Expendable items whichbecome worn duringnormal use, suchas spark plugs,etc=
e Repairs necessary because of operatorabuse or negligence, including bent crankshaftsand the faifure
to maintain the equipmentaccording to the instructionscontained inthe owner's manual
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN EDGER/TRIMMER TO THE
NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES THIS WARRANTY
APPLIES ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES.
This warrantygives you specific legal rights, and you may also have other rights which may vary from
state to state..
SEARS, ROEBUCK AND CO. D/817WA, Sears Tower, Hoffman Estates, tL 60179
4
,_,_,,,,,,,,,_,,_,_,,_, ,i j i ,i , i,u U,lU ................... i ii ,, .................lUlUU
TABLE O CONTE TS....
,_=,,=,,L_,=_,=
SAFETY a_gCES ............................................ 2_3
PRODUCT SPECIFICATIONS ..............................4
CUSTOMER RESPONSIBILITIES ......4, 12-13
WARRANTY .............................................................4
TABLE OF CONTENTS ...................................... 5
ASSEMBLY ...................................................................5-7
OPERATION ................................................. 8-11
SERVICE AND ADJUSTMENTS ...............14-'t 5
TROUBLE SHOOTING ..................................... 16
STORAGE ................................................................ 17
REPAIR PARTS
(EDGER/TRIMMER) ........................................18-20
REPAIR PARTS (ENGINE) ...................... 21-23
PARTS ORDERING/SERVICE .........Back Cover
............ ...................... i ii lU lUll
BLY
.............................. i i u ,u,l,l,lu ii ....................
CONTENTS OF SHIPPING CARTON TOOLS REQUIRED FOR ASSEMBLY
1 - 9inchEdgerfrrimmercompletefyassembledexcept
forthe control rod, handles and wheels
1 - Control Rod
1 - Owner's Manual (Not Shown)
1 - Parts Bag
1 - Upper Handle Assembly
i - Lower Handle Assembly
3- Wheels
2 - 1/2 inch Wrenches and
2 - 9/t6 inch Wrenches or
2 - Adjustable Wrenches
1 - Flatblade Screwdriver
1- Knife
CONTENTS OF PARTS BAG (shown actual size)
2 - 5116-18 x 1-114inch
Hex Head Screws
4 - 5/16-18 x 5f8 inch Hex
Head Wide Flange Screws
t'1
li
1 - 5t16-18 x 3-114inch
Hex Head Screw
@11 -I
1 - 1.39 tnch long Spacer
(front wheel assembly)
I - 3/8-16 x 1,,40inch
Shoulder Boll
2 - Hair Pins
1 - 3t8-16 Hex Head
Wide Flange Locknuls
6 - 5/16-18 Hex Nuts
© i........ill............
1- 1.05 inch long Spacer
(front wheel assembly)
@
1 - ,70 inch long Spacer
(left rear wheel assembly)
1- Cotter Pin
@
I - 1/2 x 3/4 inch Flatwasher
(right rear wheel assembly)
5
Wide Range Locknut _.,..,JJ
2 - 11/32 x 11/16 Inch
Flatwashers
(front wheet assembly)
u, uu i ul i i .................
1.5/16-18
:: HIIIIIIIIIIII III II II I'll I I _ I . I: ............................ '1 ' ---. " I rl"/' ..... .......... : IIII I LI
ASS LY
1' I III L IIILIIIlll I " : ........... : III IIIIIIIIIII IIII " .......................
III ' III II I'I" ::: .......................... :
Q
CAUTION: ALWAYS WEAR SAFETY
GLASSES OR EYE SHIELDS WHILE
ASSEMBLING EDGER!TRIMMER.
:: ........... ........... :: :

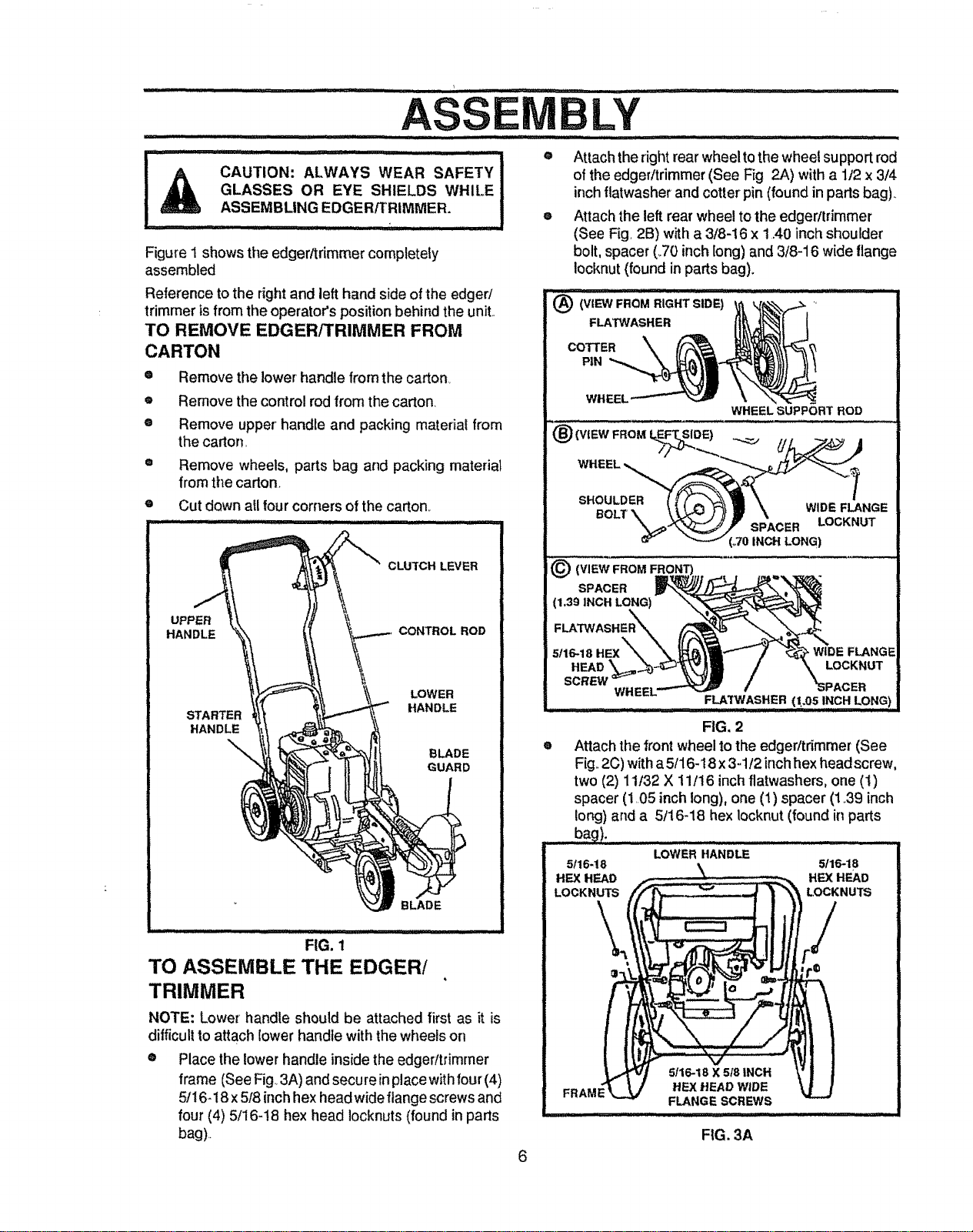

Figure I shows the edger/trimmer completely
assembled
Reference to the right and left hand side of the edger/
trimmer is from the operator's positionbehind the unit..
TO REMOVE EDGER/TRIMMER FROM
CARTON
® Remove the lower'handle fromthe carton.
e Remove the control rod from the carton
® Remove upper handle and packing material from
the carton.
Remove wheels, parts bag and packing material
fromtile carton
Cut down all fourcorners of the carton_
IJLIIIII I I I IIIII ...........................
CLUTCH LEVER
UPPER
HANDLE '_......, CONTROL ROD
STARTER
HANDLE
LOWER
HANDLE
BLADE
GUARD
BLADE
FIG. 1
TO ASSEMBLE THE EDGER/
TRIMMER
NOTE: Lower handle should be attached first as it is
difficult to attach lowerhandle with the wheels on
® Place the lower handle inside the edger/trimmer
frame (See Fig_3A) and secure inplace withfour(4)
5/16-!8 x5/8 inch hex head wide flangescrews and
four (4) 5/16-18 hex head iocknuts (found in parts
bag)..
o
Attach the right rear wheeltothe wheel support rod
of the edger/trimmer (See Fig 2A) with a 1/2 x 3/4
inch flatwasher and cotter pin (found in parts bag)..
Attach the left rear wheel to the edger/trimmer
(See Fig, 2B) witha 3/8-16 x 1A0 inch shoulder
bolt, spacer (_70inchlong)and 3/8-16 wide flange
Iocknut (found in parts bag).
(_) (VIEW FROM RIGHT SIDE)
FLATWASHER
COTTER
PIN
WHEEL
(_) (VIEW FROM
WHEEL _
SHOULDER
_ (VIEW FROM
SPACER
(1,39 INCH LONG)
WHEEL SUPPC)RT ROD
WIDE FLANGE
SPACER LOCi(NUT
Io7OINCHLONG)
5f16-18 HEX WIDE FLANGI
LOCKNUT
SCREW
WHEEL" ACER
FLATWASHER (!,,05 !NCH LONG
FIG. 2
Attach the frontwheel to theedger/trimmer (See
Fig.,2C) with a5/16-18 x3-1/2 inch hex head screw,
two (2) 11/32 X 11/16 inch flatwashers, one (t)
spacer (1.05 inch long), one (t) spacer (139 inch
long) and a 5/16-18 hex locknut (found in parts
bag): ......................................
LOWER HANDLE
5116-18 5f16-18
HEX HEAD HF-.XHEAD
LOCKNUTS LOCKNUTS
O
6
5/16-18 X 5f8 INCH
HEX HEAD WIDE
FLANGE SCREWS
IIII I iii I,
FIG, 3A
........... T_ Illlllll I I'11' II1!] ! ffll'lJ I I '1 I '1'11' I I ,,,i
ASSI I li LY

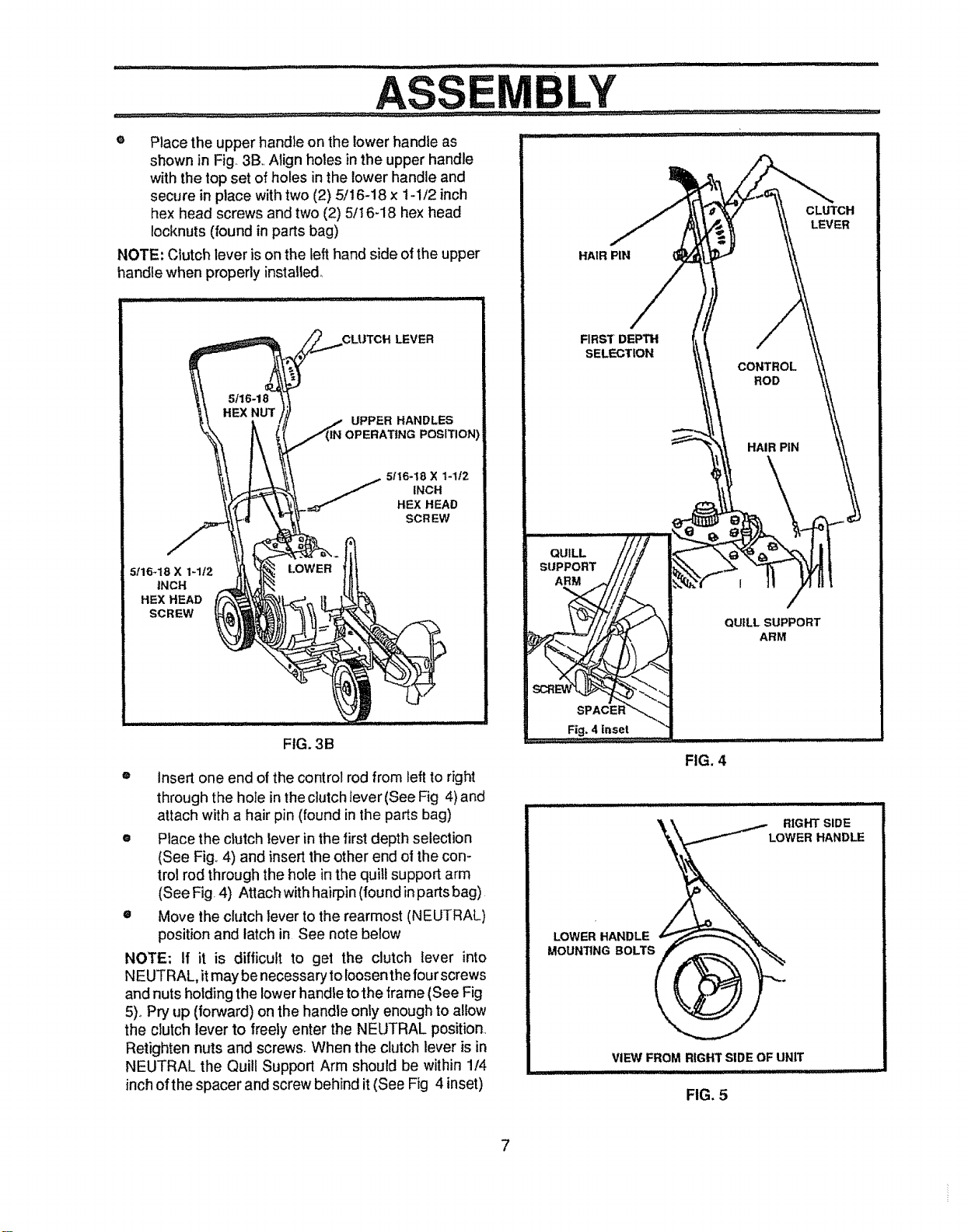

e Place the upper handle on the lower handle as
shown in Fig. 3B. A1ignhotes inthe upper handle
with the top set of holes in the lower handle and
secure in place with two (2) 5/16-18 x t-1/2 inch
hex head screws and two (2) 5/16-18 hex head
Iocknuts(found in parts bag)
NOTE: Clutch lever ison the left hand side of the upper
handle when properly instatted_
LEVER
FIG, 3B
• Insert one end ofthe control rod from leftto right
through the hole inthe clutch fever(See Fig 4)and
attach with a hair pin (found in the parts bag)
o Place the clutch lever inthe first depth selection
(See Fig. 4) and insertthe other end oi the con-
trol rod through the hole in the quill support arm
(See Fig. 4) Attach with hairpin (found inparts bag)
• Move the clutch lever to the rearmost (NEUTRAL)
position and latch in See note below
NOTE: if it is difficult to get the clutch lever into
NEUTRAL, itmay be necessary toloosen the four screws
and nuts holding the lower handle to the frame (See Fig
5)..Pry up (forward) on the handle only enough to allow
the clutch lever to freely enter the NEUTRAL position..
Retighten nuts and screws. When the clutch lever is in
NEUTRAL the Quill Support Arm should be within 1/4
inch of the spacer and screw behind it (See Fig 4 inset)
HAIR PIN
CLUTCH
LEVER
FIRST DEPTH
SELECTION
CONTROL
ROD
HAIR PIN
QUILL
SUPPORT
ARM
SPACER
Fig. 4 inset
FIG. 4
QUILL SUPPORT
ARM
LOWER HANDLE
MOUNTING BOLTS
VIEW FROM RIGHT SIDE OF UNIT
FIG, 5
7

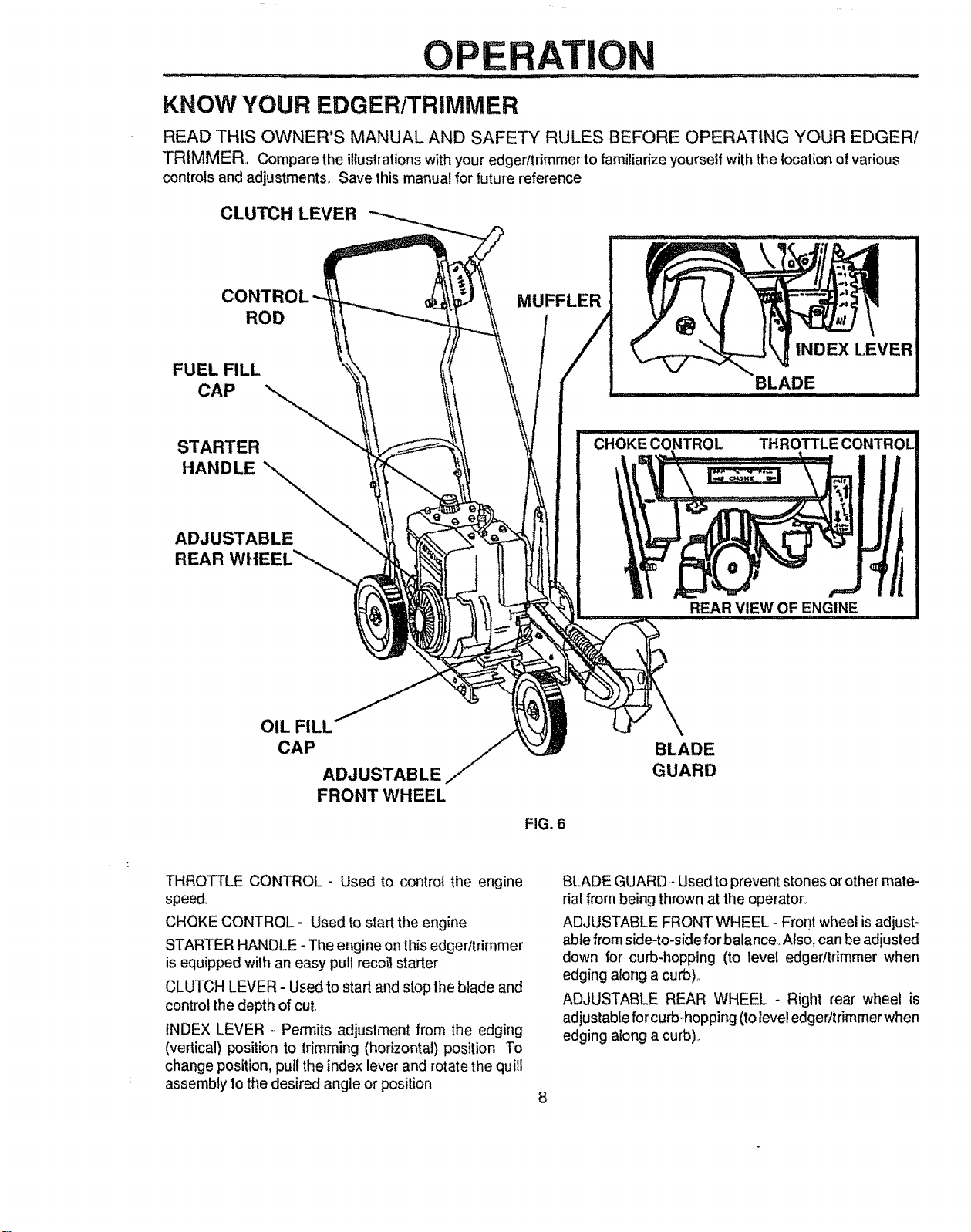

KNOW YOUR EDGER/TRIMMER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR EDGER/
TRIMMER, Compare the iUustrationswithyouredgerttrimmerto familiarizeyourselfwitt_the locationof various
controlsand adjustments,. Save this manualfor future reference
CLUTCH LEVER
ROD
FUEL FILL
CAP
MUFFLER
INDEX LEVER
BLADE
STARTER
REAR WHE!
THROTTLE CONTR(
REAR VIEW OF ENGINE
OIL FILL
CAP
ADJUSTABLE
FRONT WHEEL
FIG, 6
BLADE
GUARD
THROTTLE CONTROL - Used to control the engine
speed,
CHOKE CONTROL - Used to start the engine
STARTER HANDLE -The engine on this edger/trimmer
is equipped with an easy pull recoi1starter
CLUTCH LEVER - Used to start and stop theblade and
control the depth of cut.
INDEX LEVER - Permits adjustment from the edging
(vertical) positionto trimming (horizontal) position To
change position, pull the indexlever and rotatethe quill
assembly to the desired angle or position
BLADE GUARD - Used toprevent stones orother mate-
rial from being thrownat the operator.
ADJUSTABLE FRONT WHEEL - Front wheel is adjust-
able from side-to-side for balance..Also, can be adjusted
down for curb-hopping (to level edgedtrimmer when
edging along a curb),.
ADJUSTABLE REAR WHEEL - Right rear wheel is
adjustable forcurb-hopping (to leveledger/trimmer when
edging along a curb)..
.......................... . i iiiiii i iiii i , i 1,171 .........
OPE 0
.......................... i .......".':'T". "' ,.,,, _ ,,_L
The operation o!this edger/trimmer Canresult in foreignobjects beingthrown intothe
eyes, which can result in severe eye damager Always wear safety glasses or eye
shields while operating the edger/trimmer,
We recommend standard safety glasses or Wide Vision Safety Mask for over your
glasses
CAUTION: KEEP AWAY FROM THE RO-
TATING BLADE. THE BLADE CAN CAUSE
INJURY.

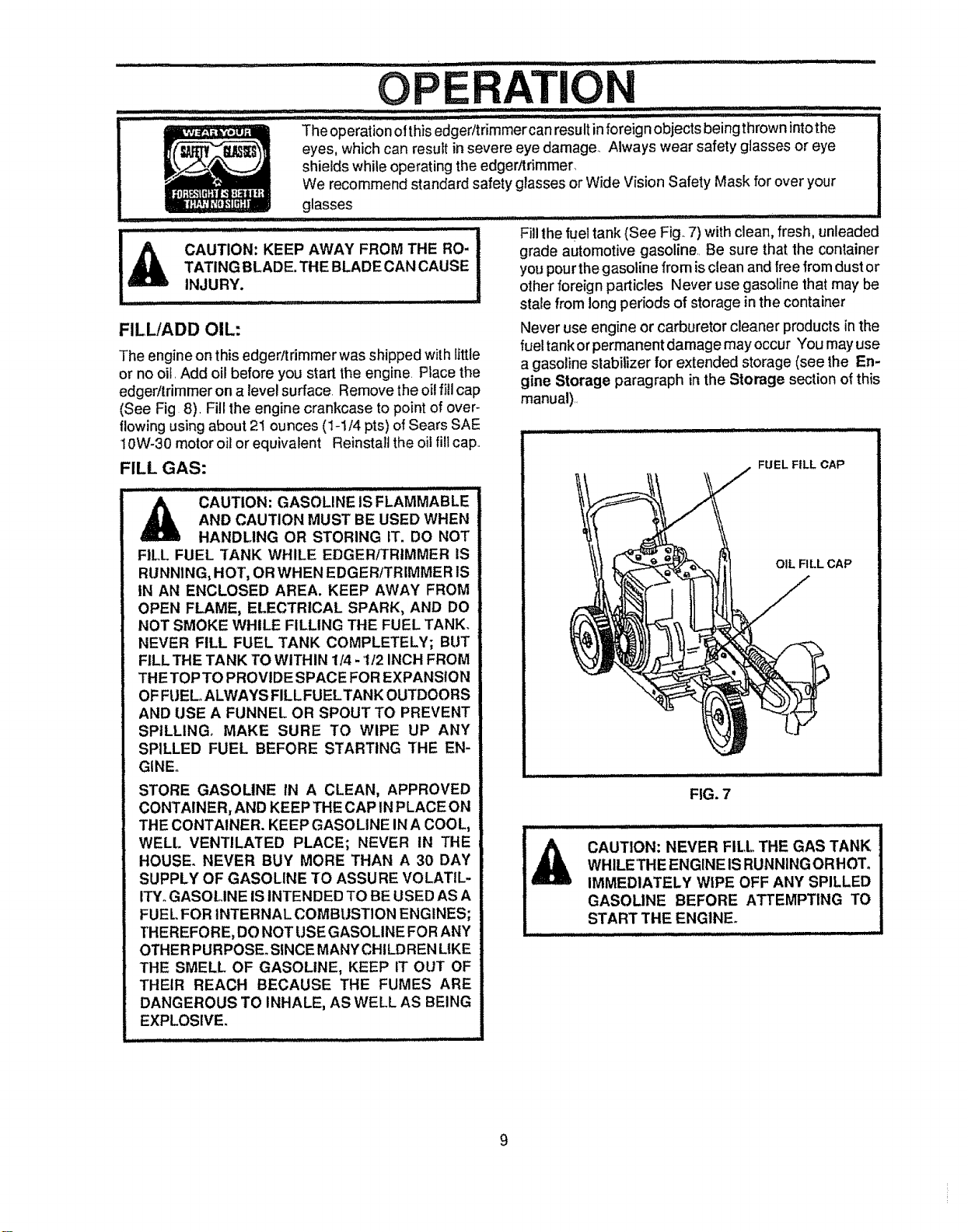

FILL/ADD OIL:
The engine on this edger/trimmer was shipped with little
or no oil. Add oil before you start the engine. Place the
edger/trimmer on a level surface. Remove the oil fill cap
(See Fig 8). Fill the engine crankcase to point of over-
flowing using about 21 ounces (1-1/4 pts) of Sears SAE
10W-30 motor oil or equivalent Reinstall the oil fillcap..
FILL GAS:
CAUTION: GASOLINE IS FLAMMABLE
AND CAUTION MUST BE USED WHEN
HANDLING OR STORING IT. DO NOT
FILL FUEL "I'ANK WHILE EDGER/TRIMMER IS
RUNN1NG_HOT, OR WHEN EDGER/TRIMMER IS
tN AN ENCLOSED AREA. KEEP AWAY FROM
OPEN FLAME, ELECTRICAL SPARK, AND DO
NOT SMOKE WHILE FILLING THE FUEL TANK.
NEVER FILL FUEL TANK COMPLETELY; BUT
FILL THE TANK TO WITHIN 1/4 -1/2 INCH FROM
THETOPTO PROVIDE SPACE FOR EXPANSION
OFFUEL°ALWAYS FILL FUELTANK OUTDOORS
AND USE A FUNNEL OR SPOUT TO PREVENT
SPtLLING_ MAKE SURE TO WIPE UP ANY
SPILLED FUEL BEFORE STARTING THE EN-
GINE.
STORE GASOLINE IN A CLEAN, APPROVED
CONTAINER_ AND KEEP THE CAP IN PLACE ON
THE CONTAINER. KEEP GASOLINE IN A COOL,
WELL VENTILATED PLACE; NEVER IN THE
HOUSE. NEVER BUY MORE THAN A 30 DAY
SUPPLY OF GASOLINE 70 ASSURE VOLATIL-
ITY°GASOLINE IS INTENDED TO BEUSED AS A
FUEL FOR INTERNAL COMBUSTION ENGINES;
THEREFORE, DO NOT USEGASOLINE FOR ANY
OTHER PURPOSE. SINCE MANYCHILDREN LIKE
THE SMELL OF GASOLINE, KEEP IT OUT OF
THEIR REACH BECAUSE THE FUMES ARE
DANGEROUS TO INHALE, AS WELL AS BEING
EXPLOSIVE.
........................................ i ,,
Fill thefuel tank (See Fig_7) with clean, fresh, unleaded
grade automotive gasoline. Be sure that the container
you pour the gasoline fromis clean and freefrom dust or
other foreign particles Never use gasoline that may be
stale from long pedods of storage in the container
Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur You may use
a gasoline stabilizer for extended storage (see the En-
gine Storage paragraph in the Storage section of this
manual).
J UI J L
FUEL FILL CAP
OIL FILL CAP
FIG. 7
|
CAUTION: NEVER FILL THE GAS TANK I
WHILE'THE ENGINE IS RUNNING ORHOT. I
IMMEDIATELY WIPE OFF ANY SPILLED I
GASOLINE BEFORE ATTEMPTING TO
START THE ENGINE_ I
Ill I L'_I _ / II I I IIIIIIlU"I I I I I II IIII Ill' H _lln' i,iiiii "".
O RAT
........................ i illll,,,,,meul .......................
PRE-USE CHECK OF CONTROLS o When the engine starts, move the choke control to
the OFF speed position To increase the engine
Allcontrols should be checked for proper function before
servicing or starting the engine
e Move the clutch lever to all six (6) positions inthe
selector plate, Make surethe clutch leversnaps into
all six (6) holes (See Fig 6).
e Move the index lever to afisix notches in the index
plate (See Fig..6)..
• Return the clutch lever to the rearmost hole in the
selector plate and return the index lever' to the
vertical (deeper notch) position
speed, push the throttle control lever' up. To de-
crease the engine speed pull the throttle control
down
NOTE: The cutting blade speed is controlled by the
engine speed..To reducethe cutting blade speed, push
down on the throttle control lever..To increase the blade
speed, push up on the throttle control lever..
To stop the engine, make sure the clutch lever is all
• the way back (or'up) and move the throttle control
lever to the STOP position.
TO START THE ENGINE
Before starting the engine, be sure you have read and
understood allthe instructionsonthepreceding pages The
edger/trimmer is equipped with a recoil starter. The
operation of the engine is controlled by the throttle and
choke control levels
o Pull the clutch lever all the way back (or up) to the
rearmosthole to raise and disengage the blade.
o Move the throttle control lever (See Fig. 6) tothe
RUN position..
o
Move the choke control lever (See Fig 6) to the
FULL choke postion.
NOTE: A warm engine should not need to be choked
• To start engine, grasp the starter handle firmlywith
your right hand.
e Hold the upper handle firmly with your left hand
e PulIup sharply onthe recoilstarter handie DONOT
allow the starter rope to snap back, let it rewind
slowly while holding the starter handle.
NOTE: Itwilltake a few pulls on the starter handle tofeed
gas from the fueltank to the carburetor
CAUTION: NEVER RUN THE ENGINE IN-
DOORS OR IN A POORLY VENTILATED
AREA. ENGINE EXHAUST CONTAINS
CARBON MONOXIDE, AN ODORLESS
GAS AND DEADLY GAS.
KEEP HANDS, FEET, HAIR AND LOOSE
CLOTHING AWAY FROM ANY MOVING
PARTS ON THE ENGINE OR EDGER!
TRIMMER.
WARNING - AVOID THE MUFFLER AND
SURROUNDING AREAS (SEE FIGo 6),
TEMPERATURES MAY EXCEED 150° F.
i • _1 ll,ll=,ll= m
CAUTION: NEVER LEAVE THE EDGER/
TRIMMER UNATTENDED WHILE _,HE EN-
GINE ISRUNNING. ALWAYS DISENGAGE
THE CUTTING BLADE AND STOP THE
ENGINE,
..... : : I I II IIII IIII u ii II
EDGING OPERATION
e Start theengine and move the clutch lever forward
(or down) to engage the cutting blade
e Select the edging depth you need There are 5
selections up to 2-3/4 inchesdeep
IMPORTANT: IFVERY DEEP EDGINGIS REQUIRED,
WERECOMMEND THATA SHALLOW
CUT BE MADE FIRST, THEN CUTS
AT GREATER DEPTHS UNTIL THE
DESIRED DEPTH IS OBTAINED..
TRIMMING OPERATION
Stop the engine and disconnect the spark plug wire
from the spark plug
Loosen theteeknob (See Fig, 8) on the front wheel
arm and slidethe wheel alltheway tothe rightside
e Tighten the tee knob securely.,
CAUTION: THE FRONT WHEEL MUST BE
IN TIlE EXTREME RIGHT POSITION TO
PREVENT THE BLADE FROM STRIKING
WHEEL WHILE IN TRIMMING POSITION.
TEE KNOB
FRONT WHEEL SHOWN ALL THE WAY TO THE RIGHT
FIG. 8
t0
OPERATION
Li J ill i i i ii,l,ll IlL .... ....... _ Ill I I"""l,lll_J' '_.................
® Pulithe index lever out of itsnotch (See Fig9) and KEEP THE EDGER/TRIMMER CLEAN
positionitin the notchmarked "90"
Always removethedirtanddebrisfrom theedger!trimmer
Reconnect the spark plug wire and start the after each use,,Check for loose or damaged parts after
engine, Move the clutchleverto the desired trim- eachuse Tightenanyloosefasteners Checkthecontrols
ming height often to make sure they are functioningproperly See the
Pre-Use Check of Controls paragraph Inthe Operation
A CAUTION: NEVER LEAVE THE EDGER/! section of this manual.
_, TRIMMER UNATTENDED WHILE THE EN- i
u_== GINEIS RLINNING.ALWAYSDISENGAGE !
THE CUTTING BLADE AND STOP THE !
ENGINE ........... I
o
INDEX LEVER
INDEX LEVER IN THE NOI'CH MARKED "90"
FIG. 9

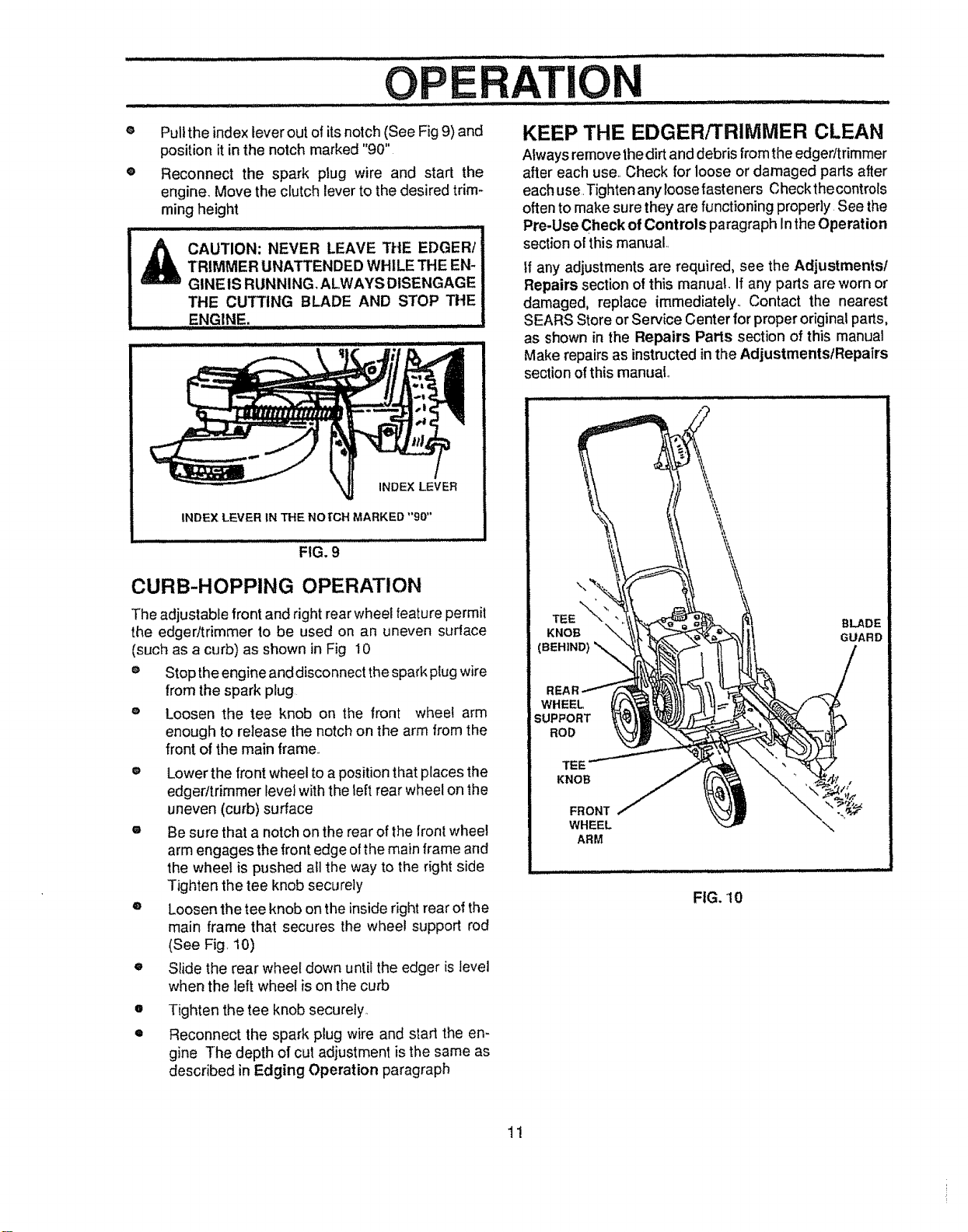

CURB-HOPPING OPERATION
The adjustable front and right rear wheel feature permit
the edger/trimmer to be used on an uneven surface
(such as a curb) as shown in Fig 10
® Stop the engine and disconnect the spark plug wire
from the spark plug
o Loosen the tee knob on the front wheel arm
enough to release the notch on the arm from the
front of the main frame..
® Lower the frontwheel toa position that places the
edger!trimmer level with the left rear wheel on the
uneven (curb) surface
g Be sure that a notch on the rearof the front wheel
arm engages the front edge ofthe main frame and
the wheel is pushed all the way to the right side
Tighten the tee knob securely
® Loosen the tee knob on the inside right rear of the
main frame that secures the wheel support rod
(See Fig. 10)
e Slide the rear wheel down until the edger is level
when the left wheel is on thecurb
o
Q
Tighten the tee knob securely.
Reconnect the spark plug wire and start the en-
gine The depth of cut adiustment is the same as
described in Edging Operation paragraph
If any adjustments are required, see the Adjustments/
Repairs section of this manual_ If any parts are worn or
damaged, replace immediately_ Contact the nearest
SEARS Store or Service Center for proper original parts,
as shown in the Repairs Parts section of this manual
Make repairs as instructed in the AdjustmentstRepatrs
section ofthis manual
\
TEE BLADE
KNOB GUARD
WHEEL
SUPPORT
ROD
TEE
KNOB
FRONT
WHEEL
ARM
\
FIG. 10
1!

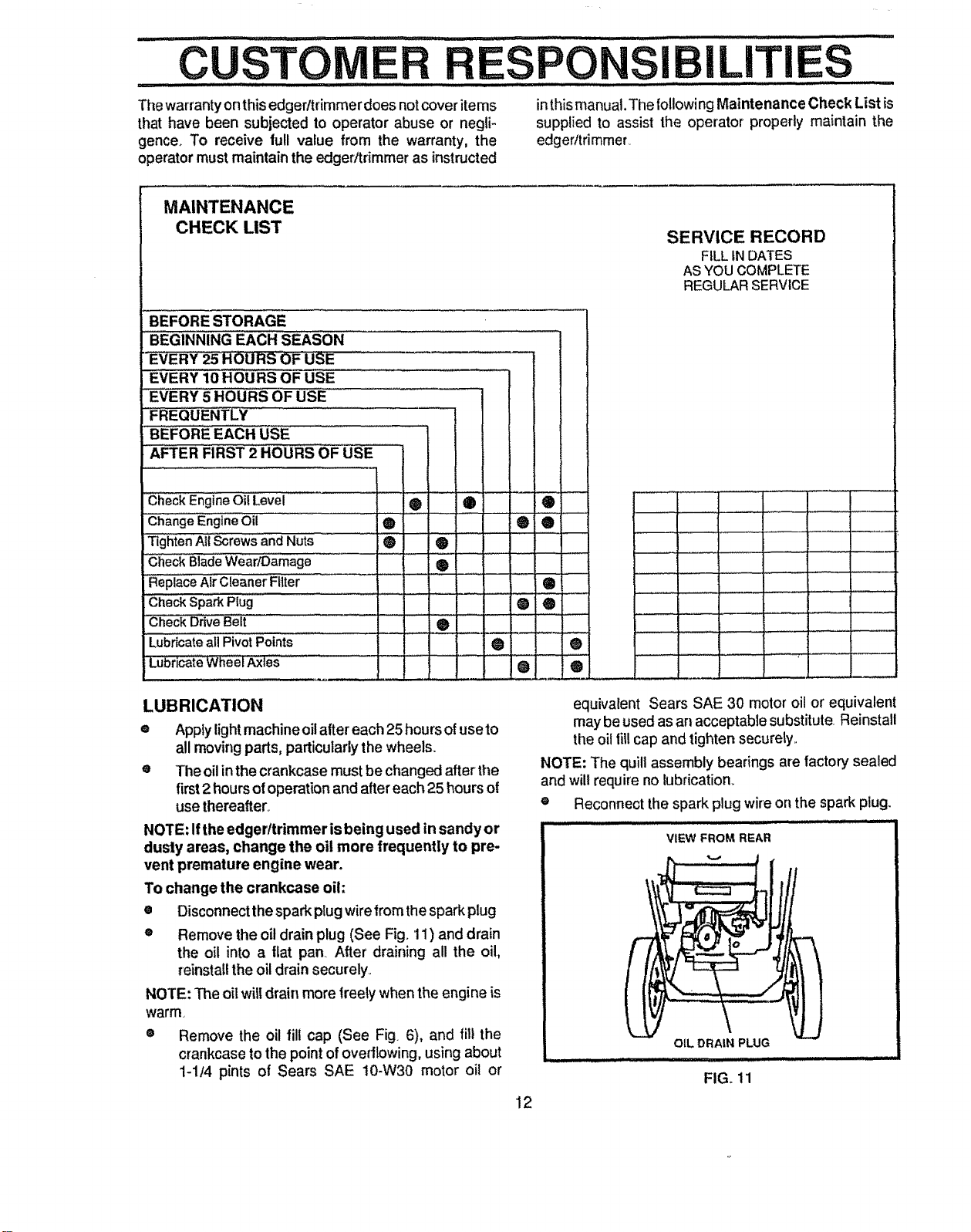

..........CUSTOMER RESPONSIBILITIES
.............. : .................. JL,, llll, i, iu llllll ,,,,ui ii ,,,,,,,,,,,ill i ......
The warranty onthis edger/trimmer does notcover items
that have been subjected to operator abuse or negli-
gence. To receive full value from the warranty, the
operator must maintain the edger/trimmer as instructed
inthismanual, The followingMaintenance Check List is
supplied to assist the operator properly maintain the
edgerttrimmer
MAINTENANCE
CHECK LIST
BEFORE STORAGE
BEGINNING EACH SEASON
:_-VERY25 HOU RS OF-USE
iEVERY 10 HOURS OF USE
EVERY 5 HOURS OF USE
FREQUENTLY
BEFORE EACH USE
AFTER FIRST 2 HOURS OF USE
Check Engine Oil Level
Change Engine Oil
Tighten All Screws and Nuts
Check Blade Wear/Damage
Replace Air Cleaner Filter
Check Spark Plug
Lubricate all Pivot Points
l_uSricat_:Wh_l _les
®
®
®
_ !® ............
....... Q
,,,,,,,, ,,,, ,, ....
®
®
LUBRICATION
® Apply light machine oil after each 25 hours of use to
all moving parts, particularly the wheels.
e The oilin the crankcase must be changed after the
first 2 hoursof operation and after each 25 hoursof
use thereafter.
NOTE: If the edger/trimmer isbeing used in sandy or
dusty areas, change the oil more frequently to pre-
vent premature engine wear,
To change the crankcase oil:
e Disconnect thespark plugwirefromthe spark plug
® Remove the oil drain plug (See Fig. 11) and drain
the oil into a flat pan After drafffing all the oil,
reinstall the oil drain securely.
NOTE: The oil willdrain more freely when the engine is
warm.
Remove the oil fill cap (See Fig. 6), and fil! the
crankcase to the point of overflowing, using about
1-1/4 pints of Sears SAE 10-W30 motor oil or
,,,,_
®
®
12
®
O
®
.....
i ®
i i®
SERVICE RECORD
FILLIN DATES
ASYOUCOMPLETE
REGULARSERVICE
, ,,,,
equivalent Sears SAE 30 motor oil or equivalent
may be used as an acceptable substitute Reinstall
the oil _l cap and tighten securety.
NOTE: The quill assembly bearings are factory sealed
and will require no lubrication.
o Reconnect the spark plug wire on the spark plug.
VIEW FROM REAR
CUSTOM ESPON LiT!
a ::: ii ii ,11, ,111 i i iii1,11111111 ii i i LI

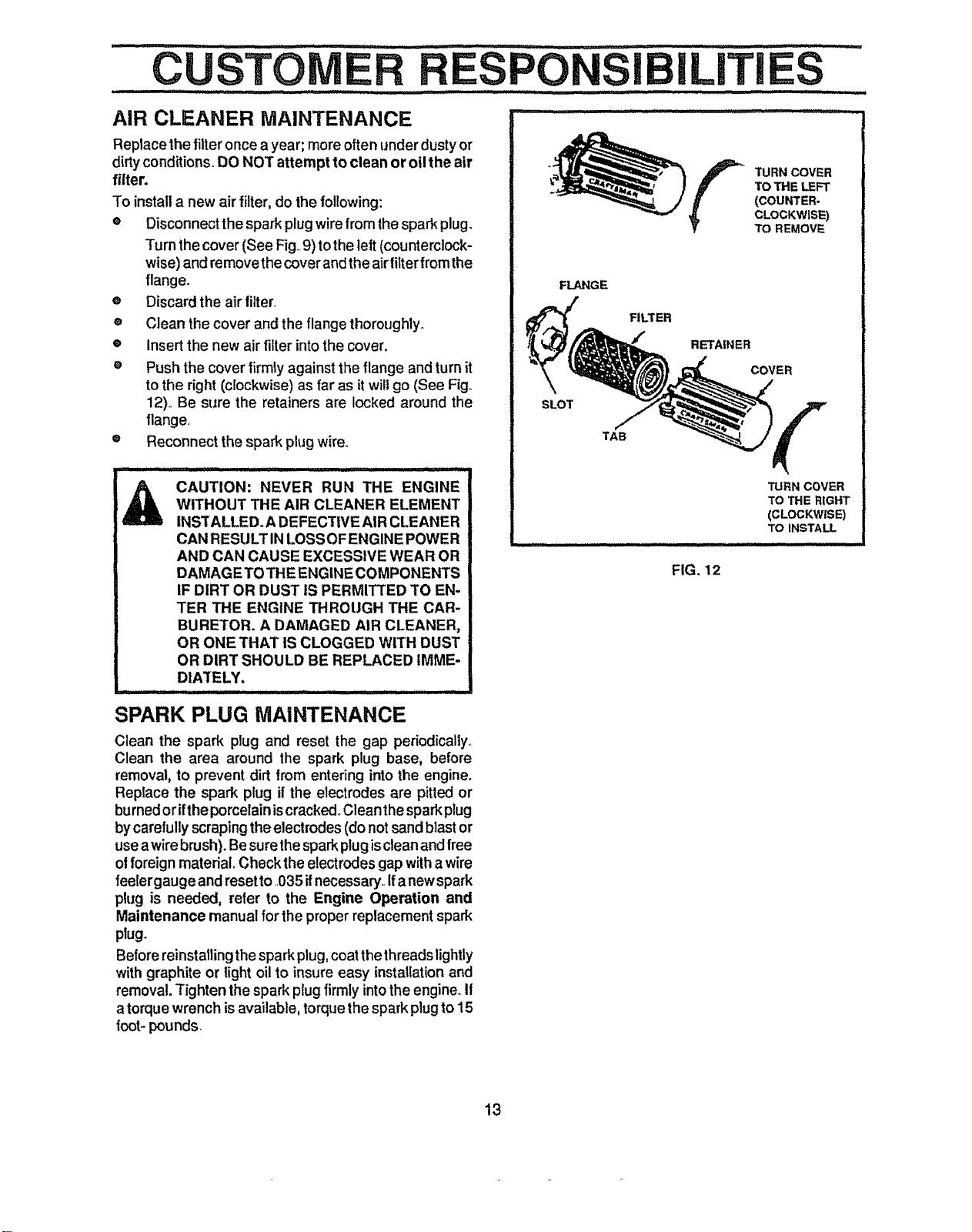

AIR CLEANER MAINTENANCE ....."...................................... .....
Replace the filter once a year; more often under dusty or
dirty cond_ionso DO NOT attempt to clean or oil the air
filter.
To install a new air filter, do the following:
e Disconnect the spark plugwire fromthe spark plug,
Turn the cover (See Fig,,9) tothe left (counterclock-
wise) and remove the cover and the airfilter from the
flange.
Discard the air litter,
o
o
@
@
Clean the cover and the flange thoroughly.
Insert the new air filter into the cover.
Push the cover firmly against the flange and turn it
to the right (clockwise) as far as it willgo (See Fig.,
12)., Be sure the retainers are locked around the
flange,
Reconnect the spark plug wire,,
CAUTION: NEVER RUN THE ENGINE
WITHOUT THE AIR CLEANER ELEMENT
INSTALLED. ADEFECTIVE AIR CLEANER
CAN RESULT IN LOSSOFENGINE POWER
AND CAN CAUSE EXCESSIVE WEAR OR
DAMAGE TO THE ENGINE COMPONENTS
IF DIRT OR DUST IS PERMITTED TO EN-
TER THE ENGINE THROUGH THE CAR-
BURETOR. A DAMAGED AIR CLEANER,
OR ONE THAT IS CLOGGED WITH DUST
OR DIRT SHOULD BE REPLACED IMME-
DIATELY,
::::_...... i ii ill ii ii ............ ii i i mill .
SPARK PLUG MAINTENANCE
Clean the spark plug and reset the gap periodically,,
Clean the area around the spark plug base, before
removal, to prevent dirt from entering into the engine.
Replace the spad_ plug if the electrodes are pitted or
burned or ifthe porcelain iscracked_Clean thespark plug
by carefully scraping the electrodes (do not sand blast or
use a wirebrush). Be surethespark plug isclean and lree
otforeign material. Check the electrodes gap witha wire
feeler gauge and reset to,035i1necessary,, Ifa newspark
plug is needed, refer to the Engine Operation and
Maintenance manualfor the properreplacement spark
plugo
Before reinstallingthe spark plug,coatthethreadslightly
with graphite or light oilto insure easy instatlation and
removal. Tighten thespark plugfirmlyintotheengine. If
a torquewrench isavailable, torquethespark plugto 15
foot-pounds,
TURN COVER
TO THE LEFT
(COUNTER-
CLOCKWISE)
TO REMOVE
SLOT
FLANGE
FILTER
TAB
RETAINER
COVER
FIG. 12
TURN COVER
TO THE RIGHT
(CLOCKWIS_
TO INSTALL
13
..... _ i i iiiill
SE CE
CAUTION: ALWAYS STOP THE ENGINE
AND DISCONNECT THE SPARK PLUG
WIRE BEFORE MAKING ANY REPAIRS
TO THE EDGER/TRIMMERo
ADJUST TS
CAUTi0N:i_c) NOT ATTEMPT TO
SHARPEN THIS BLADE. YOU COULD
CAUSE DAMAGE TO THE BLADE WH ICH
COULD RESULT IN BREAKAGE AND
POSSIBLE USER OR BYSTANDER IN-
JURY,

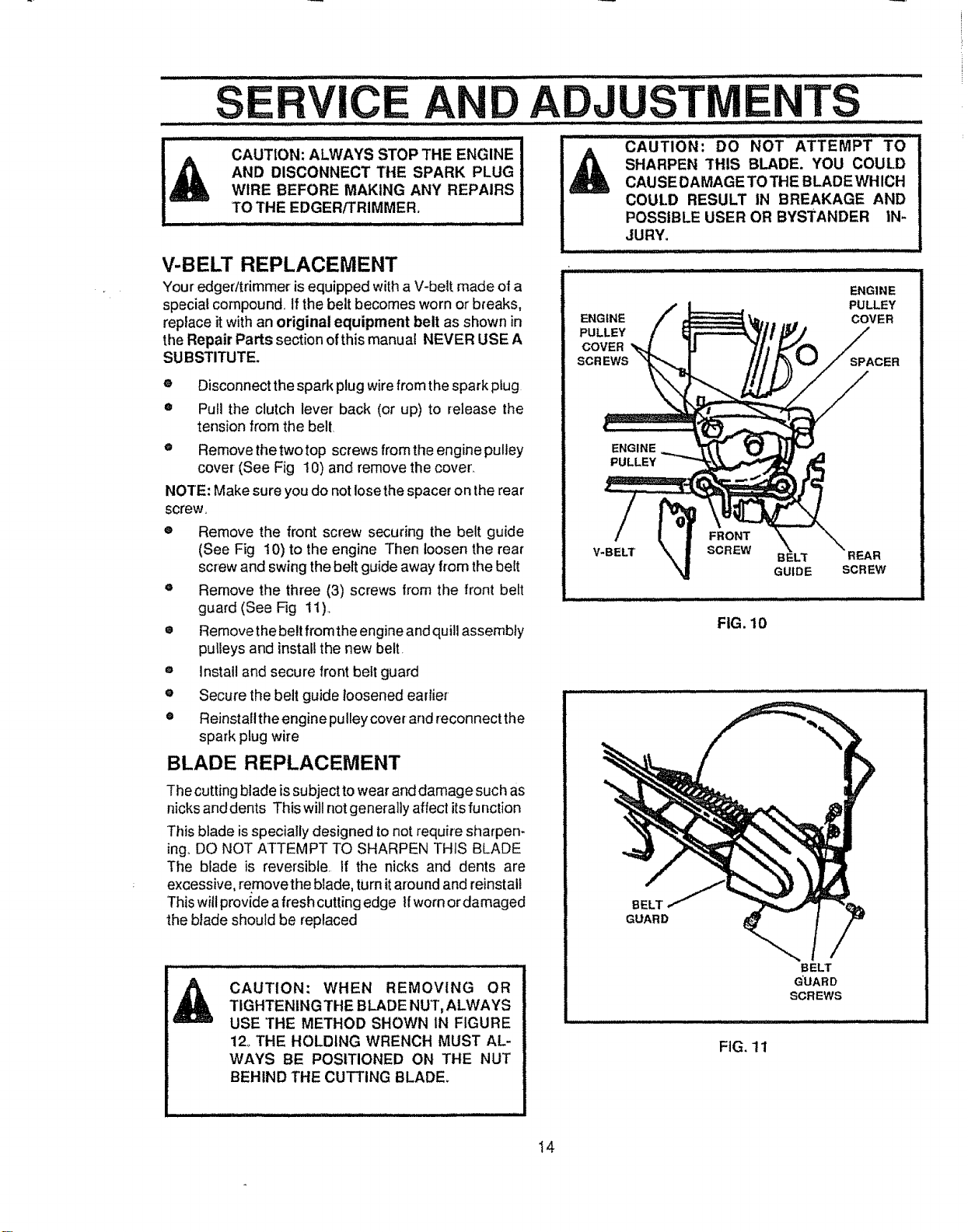

V-BELT REPLACEMENT
Youredger/trimmeris equippedwitha V-belt made of a
special compound. Ifthe belt becomes worn or breaks,
replace it with an original equipment belt as shown in
the Repair Parts section of this manual NEVER USE A
SUBSTITUTE.
® Disconnect the spark plug wirefrom thespark plug
e Pull the clutch lever back (or up) to release the
tension from the belt
e Remove the two top screws from the engine pulley
cover (See Fig !0) and remove the cover.
NOTE: Make sure you do notlose the spacer on the rear
screw,
e Remove the front screw securing the belt guide
(See Fig t0) to the engine Then loosen the rear
screw and swing the belt guide away from the belt
e Remove the three (3) screws from the front belt
guard (See Fig 11)..
e Remove the belt from the engine and quill assembly
pulleys and installthe new belt,
® lnstal! and secure front belt guard
e Secure the belt guide loosened earlier-
e Reinstallthe engine puIleycover and reconnectthe
spark plug wire
BLADE REPLACEMENT
The cutting blade is subject to wear anddamage such as
nicks anddents This willnotgenerally affect itsfunction
This blade isspecially designed to not require sharpen-
ing,,DO NOT ATTEMPT TO SHARPEN THiS BLADE
The blade is reversible. If the nicks and dents are
excessive, remove the blade, turn itaround and reinstall
This will provide afresh cutting edge Ifwomordamaged
the blade should be replaced
CAUTION: WHEN REMOVING OR
TIGHTENING THE BLADE NUT, ALWAYS
USE THE METHOD SHOWN IN FIGURE
12oTHE HOLDING WRENCH MUST AL-
WAYS BE POSITIONED ON THE NUT
BEHIND THE CUTTING BLADE_
ENGINE
PULLEY
COVER
SCREWS
ENGINE
PULLEY
COVER
SPACER
ENGINE
PULLEY
V-BELT
FRONT
SCREW
BELT
GUIDE
REAR
SCREW
FIG. 10
BELT J
GUARD
BELT
GUARD
SCREWS
FIG. 11
14
SERVICE AN .....ADJUST .....E TS
................... ,_ : . ii iin III iiii ii i iii .... iiiii i : : ,. "..... _ iiiiiii

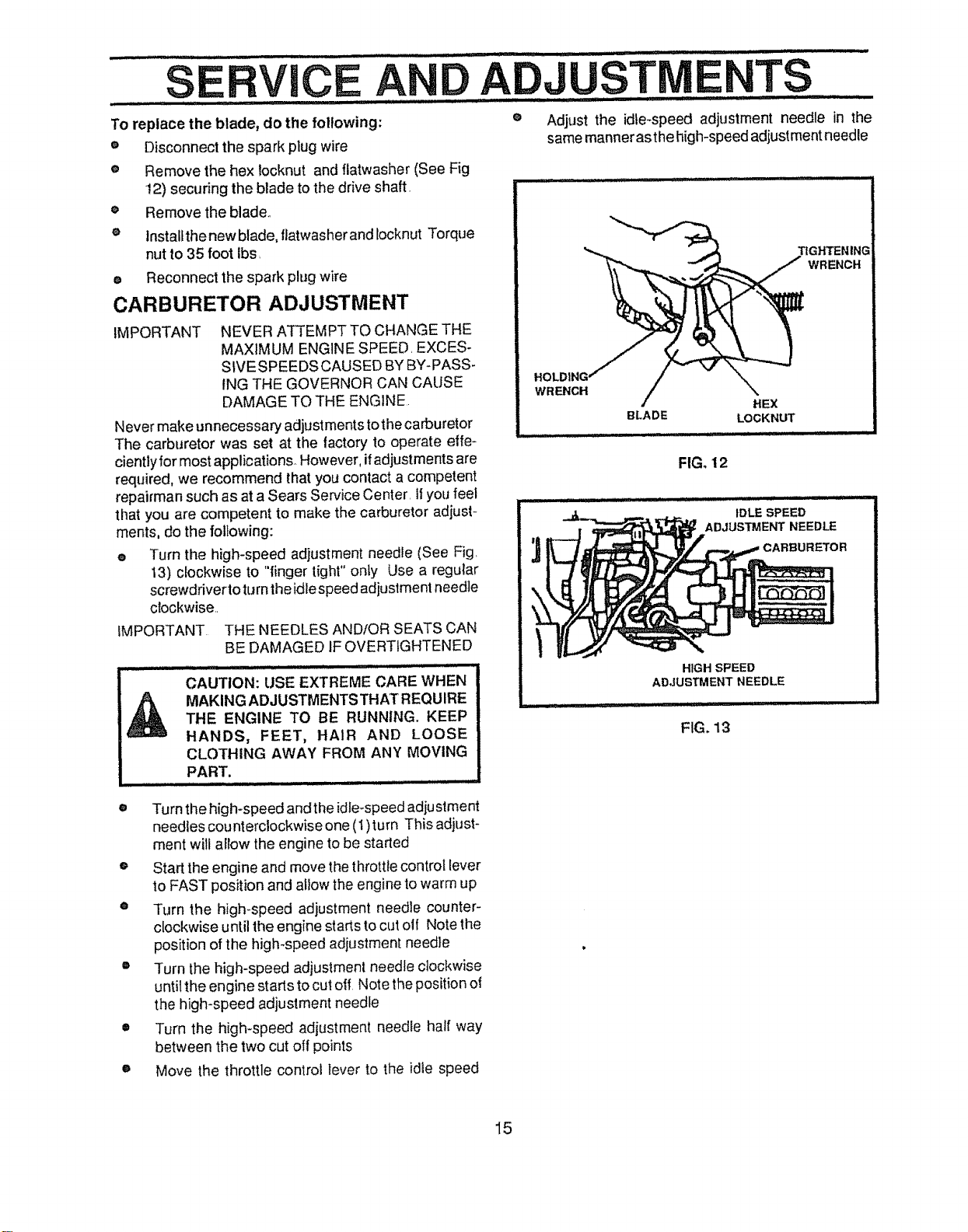

e Adjust the idte_speed adjustment needle in the
same manner asthe high-speed adjustment needle
To replace the blade, do the following:
e Disconnect the spark plug wire
e Remove the hex Iocknut and flatwasher (See Fig
12) securing the blade to the drive shaft.
e Remove the blade,,
® lnstallthe new blade, flatwasher and locknut Torque
nut to 35 foot ibs
e Reconnect the spark piing wire
CARBURETOR ADJUSTMENT
IMPORTANT NEVER ATTEMPT TO CHANGE THE
MAXIMUM ENGINE SPEED, EXCES-
SIVE SPEEDS CAUSED BY BY-PASS-
ING THE GOVERNOR CAN CAUSE
DAMAGE TO THE ENGINE.
Never make unnecessary adjustments tothe carburetor
The carburetor was set at the tactory to operate eife-
ciently for most applications° However, ifadjustments are
required, we recommend thatyou contact a competent
repairman such as at a Sears Service Center, if you feel
that you are competent to make the carburetor adjust-
ments, do the following:
e Turn the high-speed adjustment needle (See Fig,
13) clockwise to "finger tight" only Use a regular
screwdriver toturn the idle speed adjustment needie
clockwise,,
IMPORTANT. THE NEEDLES AND/OR SEATS CAN
BE DAMAGED IF OVERTtGHTENED
CAUTION: USE EXTREME CARE WHEN
MAKING ADJUSTMENTS THAT REQUIRE
THE ENGINE TO BE RUNNING. KEEP
HANDS, FEET, HAIR AND LOOSE
CLOTHING AWAY FROM ANY MOVING
PART,
TIGHTENING
WRENCH
WRENCH
HEX
BLADE LOCKNUT
FIG, 12
i|1
IDLE SPEED
ADJUSTMENT NEEDLE
CARBURETOR
HIGH SPEED
ADJUSTMENT NEEDLE
± i i , ,_,., ,. i i,i1,,,,, ,i, ,i
FIG. 13
O
o
o
Turn the high-speed and the idie_speedadjustment
needles counterclockwise one (1)turn This adjust-
ment will allow the engine to be started
Start the engine and move the throttle controt lever
to FAST position and allow the engine to warm up
Turn the high-speed adjustment needle counter-
clockwise until the engine starts tocut oil Note the
position of the high-speed adjustment needle
Turn the high-speed adjustment needle clockwise
untiithe engine starts to cut o{f Note the position of
the high-speed adjustment needle
Turn the high-speed adjustment needle half way
between the two cut off points
o Move the throttle control lever to the idle speed
15
.....I TROU LESHOOTI ........G........................
i l i, i,w/iu,J, _ ...................................................................
TROUBLE
Difficult starting
Engine runs erratically
Cutting blade fails to
turn
Blade fails to cut
properly
Excessive vibration
CAUSE
Stale fuel
ii i i i i N,iilli_liliiilliiii,i ii i iiiiii i,
Defective spark plug
Clogged fuel filter
Blocked fuel line or empty fuel tank
, ,,, ,,, ,,,,,1,1,1, ,u
Carburetor out of adjustment
Fouled spark plug
j,, :: ......................... ,i
Clogged air cleaner
Jammed due to foreign object
Loose blade
Defective V-bett
Defective quitt bearings
Damaged or worn blade
Loose parts
CORRECTION
Drain fuel tank. Filt with fresh fuel,,
ii i i i]Hi u "
Clean and re-gapspark plug,,
Replace fuel filter
......... II I I_I HI_IIIII ......... L LII IIIIILILILIIJ
Clean fuel line; check gas tank_
Have carburetor' adjusted_
iii/,_,l,,, i
Clean and adjust gap
i
Tap clean or replace air cleaner
CLearobstruction,
Tighten blade retaining nut
Replace the V-bett.
Replace the bearings.
Reverse blade or replace blade,.
Stop engine immediately,tighten all bolts If
vibrationcontinues, take the unitintothe
nearest SEARS Service Center_
16
;:; 7 ,,t,,tt,,,j it tt , _tj i it ,,,i !,
CAUTION: NEVER STORE YOUR
EDGER/TRIMMER INDOORS OR IN AN
ENCLOSED, POORLY VENTILATED
AREA IF GASOLINE REMAINS IN THE TANK,
FUMES MAY REACH AN OPEN FLAME, SPARK
OR PILOT LIGHT FROM A FURNACE, WATER
HEATER, CLOTHES DRYER, CIGARETTE, ETC°
To prevent engine damage ( ifedger/trimmer is not used
for more than 30 days) follow the steps below.

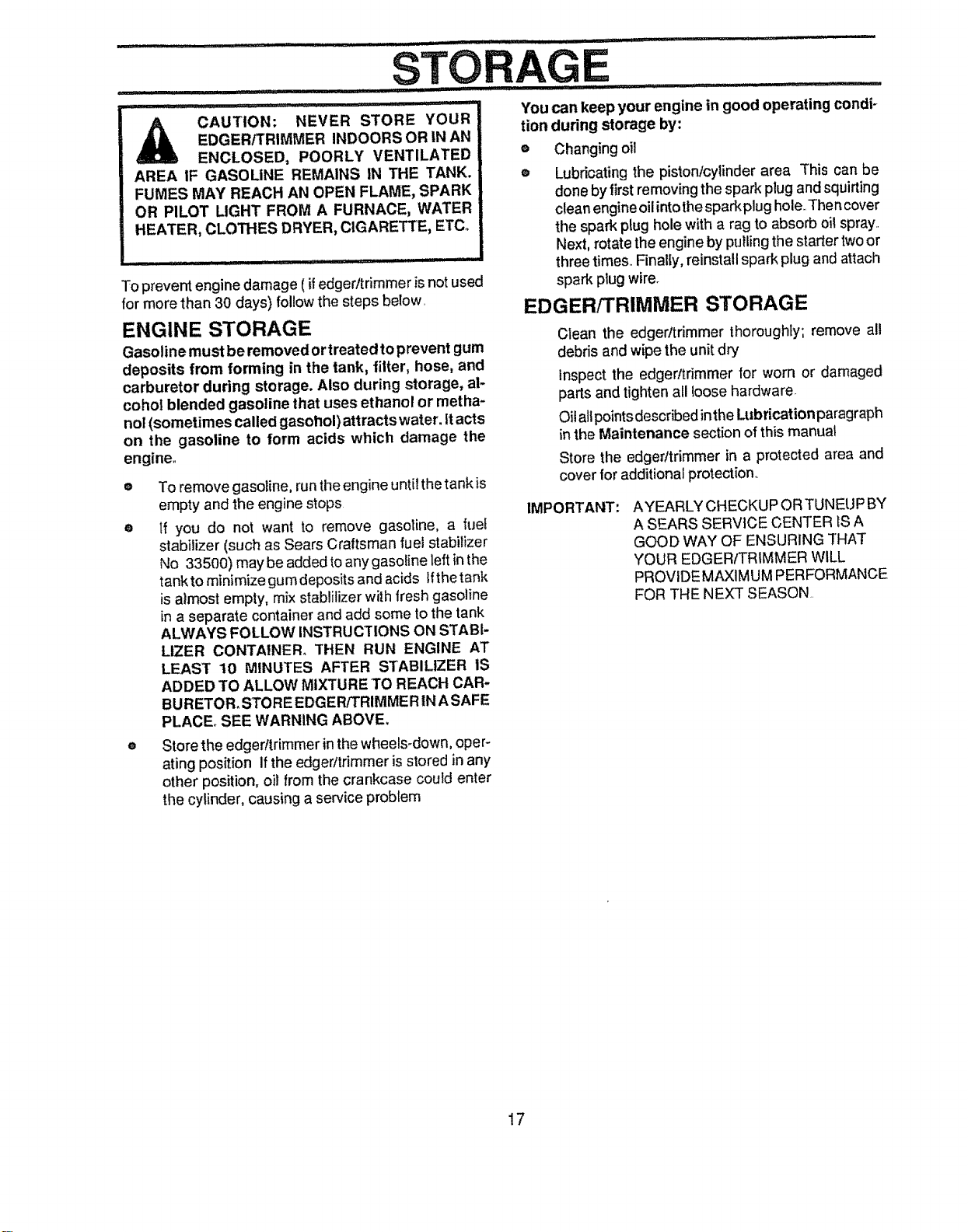

ENGINE STORAGE
Gasoline must be removed ortreated toprevent gum
deposits from forming in the tank, filter, hose, and
carburetor during storage, Also during storage, al-
cohol blended gasoline that uses ethanol or metha-
nol (sometimes called gasohol)attracts water, it acts
on the gasoline to form acids which damage the
engine=
o
o
To remove gasoline, run the engine until thetank is
empty and the engine stops
If you do not want to remove gasoline, a fuel
stabilizer (such as Sears Craftsman fuet stabilizer
No 33500) may be added to any gasoline left in the
tank to minimize gum deposits and acids tfthe tank
isaimost empty, mix stablilizer with fresh gasoline
in a separate container and add some to the tank
ALWAYS FOLLOW INSTRUCTIONS ON STABI-
LIZER CONTAINER. THEN RUN ENGINE AT
LEAST 10 MINUTES AFTER STABILIZER IS
ADDED TO ALLOW MIXTURE TO REACH CAR-
BURETOR. STORE EDGER/TRIMMER tN ASAFE
PLACE. SEE WARNING ABOVE,
You can keep your engine in good operating condi-
tion during storage by:
• Changing oil
® Lubricating the piston/cylinder area This can be
done by first removing the spark plug and squirting
clean engine oil intothespark plug hole..Then cover
the spark plug hole with a rag to absorb oil spray..
Next, rotate the engine by pulling the starter twoor
three times,.Finafly, reinstall spark plug and attach
spark plug wire.
EDGER/TRIMMER STORAGE
Clean the edger!trimmer thoroughly; remove all
debris and wipe the unit dry
Inspect the edger/trimmer for worn or damaged
parts and tighten all loose hardware.
Oitallpoints described inthe Ltibrication paragraph
in the Maintenance section of this manual
Store the edger/trimmer in a protected area and
cover for additional protection,.
IMPORTANT: AYEARLY CHECKUP ORTUNEUP BY
A SEARS SERVICE CENTER tS A
GOOD WAY OF ENSURING THAT
YOUR EDGER/TRIMMER WILL
PROVIDE MAXIMUM PERFORMANCE
FOR THE NEXT SEASON..
O
Store the edgerltrimmer inthe wheels-down, oper-
ating position If the edger/trimmer is stored in any
other position, oil from the crankcase could enter
the cylinder, causing a service problem
17

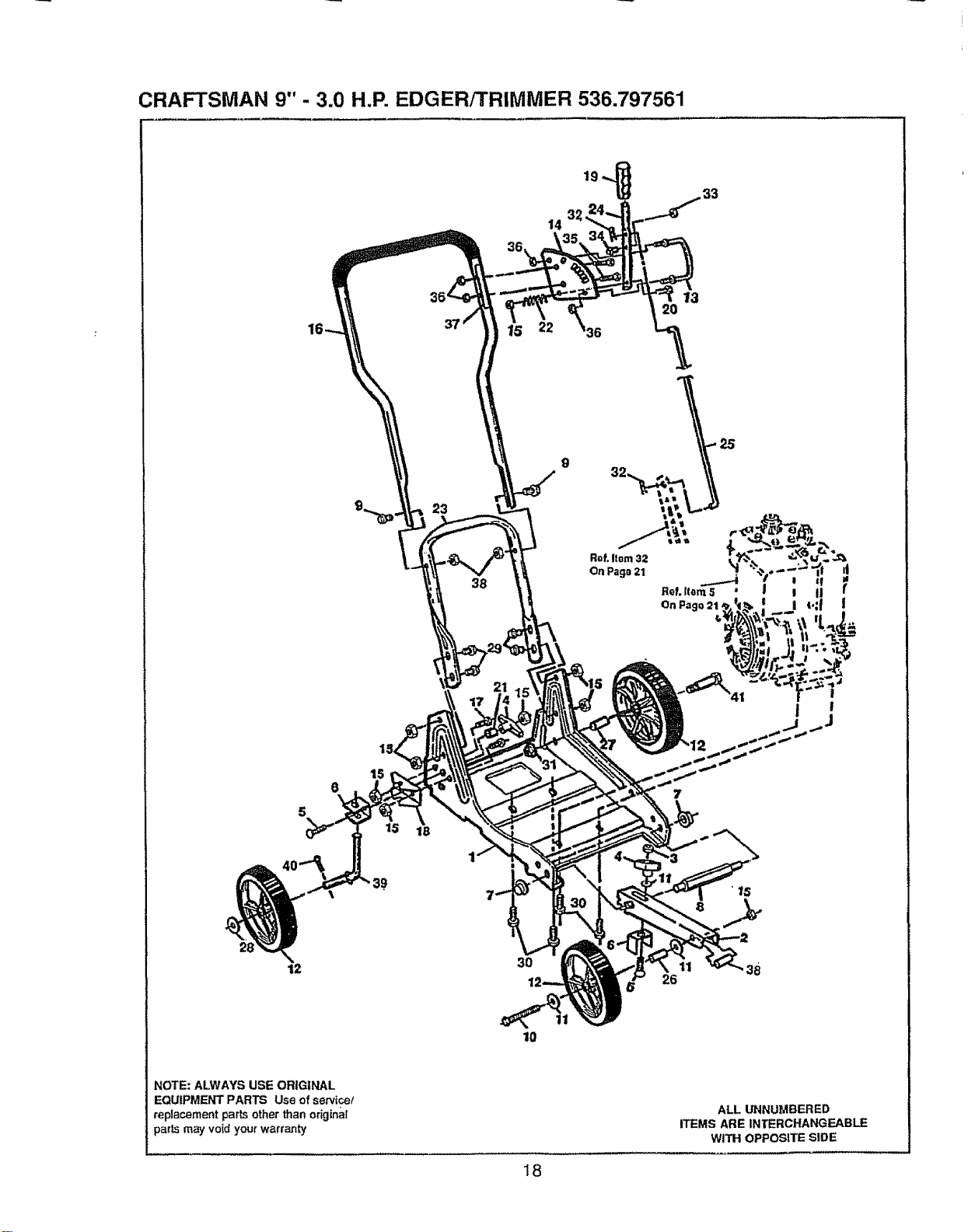

CRAFTSMAN 9"- 3.0 H.P. EDGER/TRIMMER 536.797561
28
12
NOTE: ALWAYS USE ORIGINAL
EQUIPMENT PARTS Use of service/
replacement parts other than original
parts may void your warranty
23
18
38
21
30
10
14
9
Raf. Item 32
On Page 21
13
20
38
26
ALL UNNUMBERED
ITEMS ARE INTERCHANGEAB_
WITH OPPOSITE SIDE
18

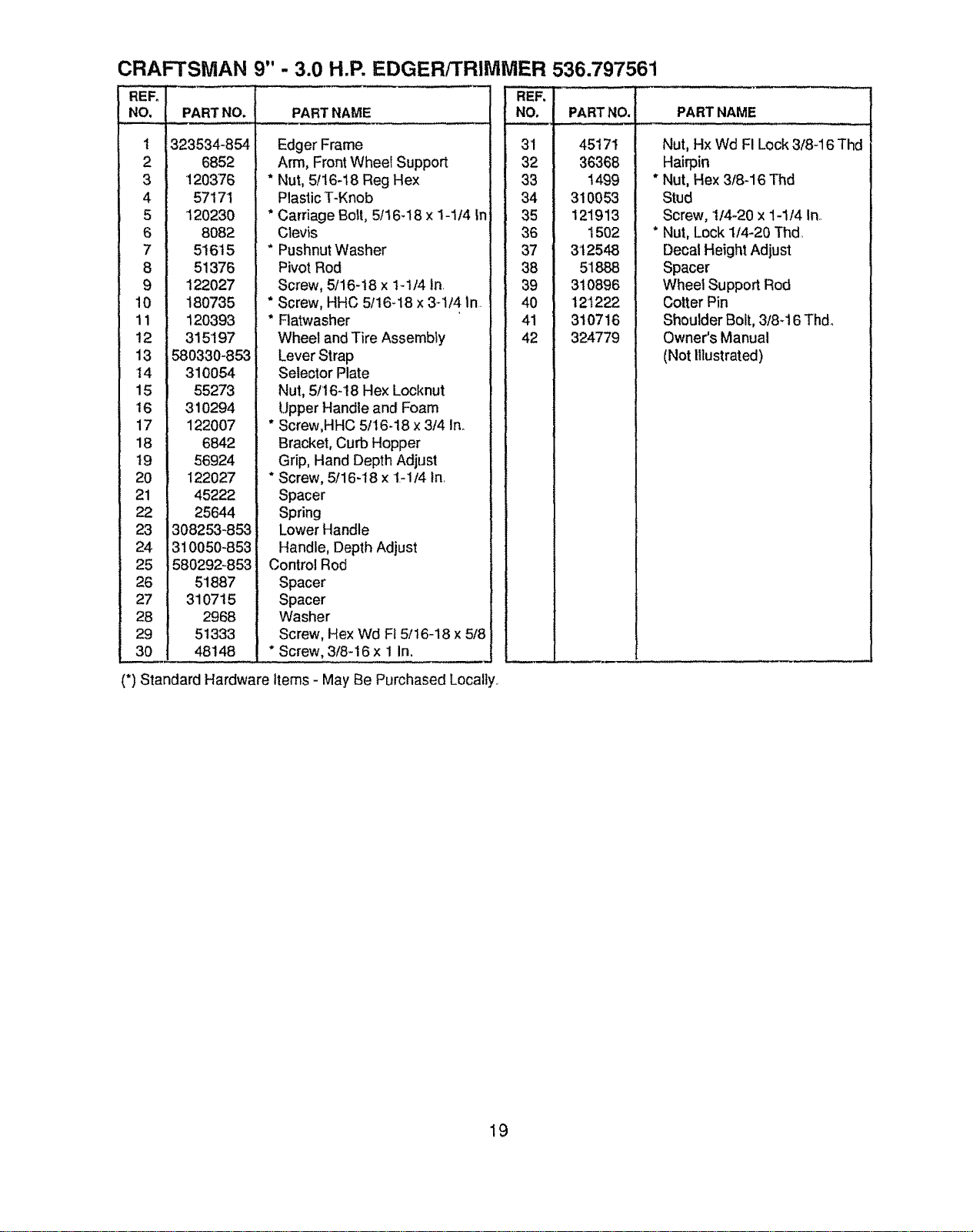

CRAFTSMAN 9" - 3.0 H.P. EDGER/TRIMMER 536.797561
REFo
NO.
I
2
3
4
5
6
7
8
9
10
11
t2
13
t4
15
t6
17
18
19
2O
21
22
23
24
25
26
27
28
29
3O
PART NO.
323534-854
6852
120376
5717t
120230
8082
51615
51376
122027
180735
120393
315197
580330-853
310054
55273
310294
122007
6842
56924
122027
45222
25644
308253-853
310050-853
580292-853
5'1887
310715
2968
51333
48148
PART NAME
Edger Frame
Arm, Front Wheet Support
* Nut, 5/t6-18 Reg Hex
Plastic T-Knob
* Carriage Bolt, 5/16-18 x 1-1/4 in
Ctevis
* Pushnut Washer
Pivot Rod
Screw, 5/16-t8 x 1_1/4In
* Screw, HHC 5/16-18 x 3_1t4In.
* Ratwasher
Wheel and Tire Assembly
Lever Strap
Selector Plate
Nut, 5/'16-18Hex Locknut
Upper Handle and Foam
* Screw,HHC 5/16-18 x 3/4 inn
Bracket, Curb Hopper
Grip, Hand Depth Adjust
* Screw, 5116-18 x 1.-1/4 In.
Spacer
Spring
Lower Handle
Handle, Depth Adjust
Control Rod
Spacer
Spacer
Washer
Screw, Hex Wd Ft 5/16-18 x 5/8
* Screw, 3/8=16x 1 In, w_
(*) Standard Hardware Items - May Be Purchased Locally.
REF.
NO.
31
32
33
34
35
36
37
38
39
40
41
42
PART NO.
45171
36368
t499
310053
121913
1502
312548
51888
310896
121222
31O716
324779
PART NAME
Nut, Hx Wd FI Lock 3/8-16 Thd
Hairpin
Nut, Hex 3t8-16 Thd
Stud
Screw, 1/4-20 x 1-1/4 In_
Nut, Lock 1t4-20 Thd,
Decal Height Adjust
Spacer
Wheel Support Rod
Cotter Pin
Shoulder Bolt, 3/8-16 Thdo
Owner's Manual
(Not Illustrated)
19
CRAFTSMAN 9"- 3.0 H.P. EDGER/TRIMMER 536.797561
37
t0
11
40 2
1
3
4
!
"t9 t8
REF,
NO. PARTNO.
1 31478t
2 181608
3 313011
4 320353
5 314794
6
7
8
9
10
1t
12
13
14
15
16
t7
18
19
20
2t
22
308155
308237
53407
173030
309300
181624
308254
308262
274654
305634
41t666
32668
43846
48697
120371
4935
2968
PARTNAME __
Pulley, Half
Screw, 5/16-24 x 1.0 HHC
Screw and Washer Assembly
Retainer
Engine, Craftsman4 Cycle
Model 143814032
TorsionSpring
Spacer
Spacer
Screw, HHC, 5/16-18 x 3-314 In..
Engine PulleyCover
Screw, HHC, 5/t6-24 x 3 In
ShoulderBoil, 3/8-16 Thd
Belt Guard
Locknut,Reg Hex 1/2-20 Thd
Pulley,Half
Screw, Tap, #10-16 x 112In
V-Belt
BallBearing
Drive Shaft
Nut, 1/2-20 Thd
Shield Washer
Flatwasher
REF. I
NO,
23 I
24 I
25 I
26 i
27 I
28 i
29 I
3O I
31 l
32 1
33 I
34 I
35 !
36 ;
37 :
38
39
40
41
42
43
i44
2O
PARTNO,
323500
1498
324860
315233
320222
1499
126211
88716
46023
308501
120396
308243
308154-854
35075
315095
308466
312561
45602
1501
324476
324475
120393
PART NAME
Quill Arm Assembly
Nut, 5/16_18 Reg Hex
Decal, Blade Rotation, Edger
Compression Spring
Blade Guard
Nut, 5/16-18 Thd,
Carriage Bolt,5/16-18 x 5/8 In
Blade
Nut, Wide Flange, 1/2-20 "l-hd_
Quill Support Assembly
Ftatwasher, _531x1.06x095
Deflector
Strap
Hi-Pro Key
Spacer
IndexLever
Decal ,Angle Indicator
Flatwasher
Flatwasher, _203x .56 x _040
Decal, Warning Edger Blade
Decal, Danger Blade, Edger
Flatwasher, 344x 69x 065

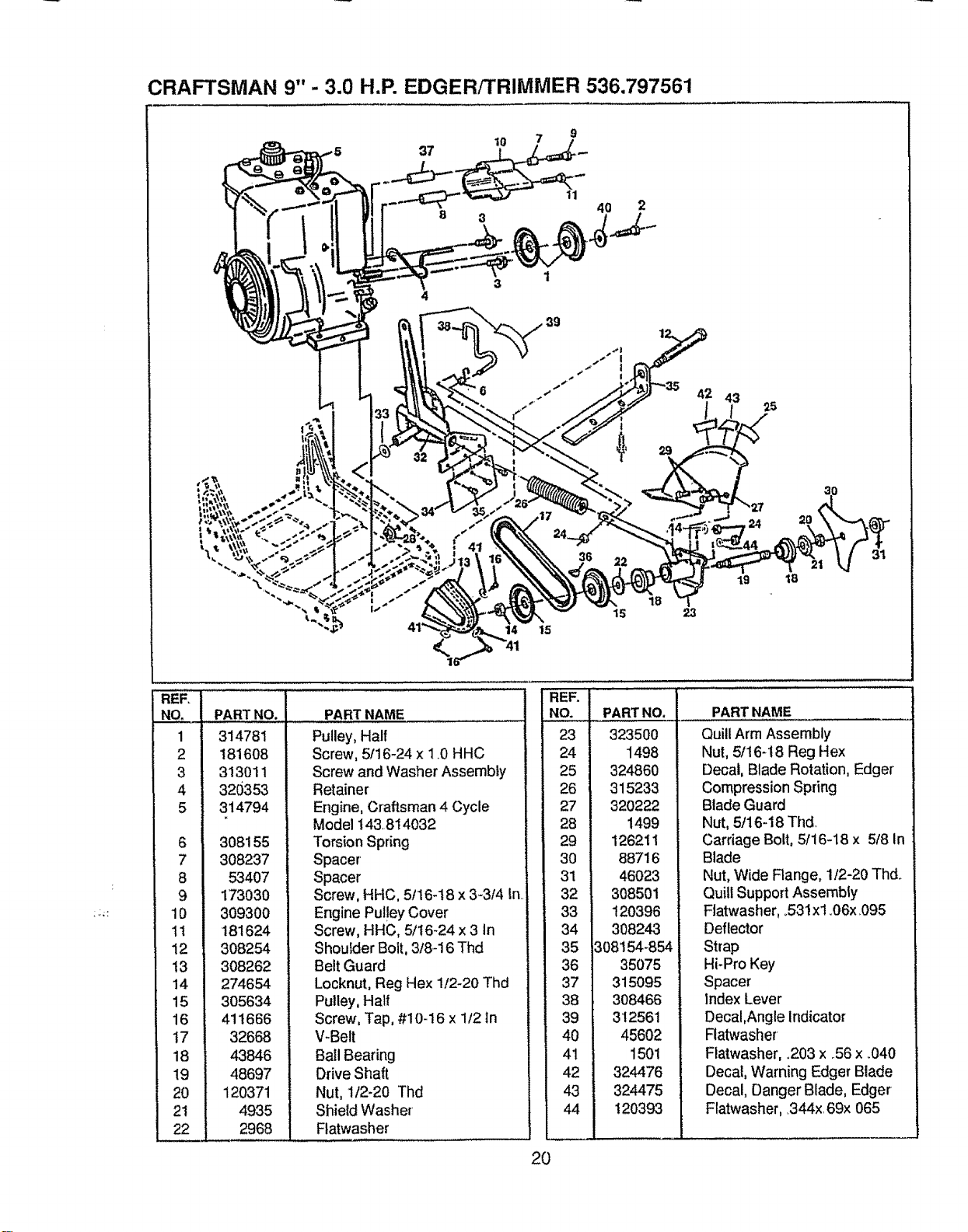

CRAFTSMAN 4 CYCLE ENGINE MODEL: 143.814032
29
14
11
9
iNo.
i 2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
r
i Z%.
6322O8
l 631615
I 631767
631O36
_650506
j 63O766
650417
31841
63O735
631562
63O738
63O739
°630740
63O737
"630748
632164
"630746
631049
630742
"630932_
21 630750
22 *630978
23 63O751
24 65O545
25 632042
26 631184
27 631971
28 631183
29 631893
P_Name
Carburetor
Shaft Et Lever Assy+,Throttle
Spring, Throttle return
Shutter, ThrotlJe
Screw, Thmttte _ Choke shutter
Spring, idle regulating screw
Screw, idle regulating
Shaft _ Lever Assy.o Choke
Spring, Choke poshioning
Shutter, Choke
Screw, Idle edjusm_ent
Sprig, Adjustment screw
Washer, Adjustment screw
"0".. Ring, Adjustment screw
Screw, Main adjustment
Plug, Welch
FKting, Fuel
Plug, Welch
Spring, Needle valve
Gasket, Needle valve seat
Inlet Needle, Seat, Gasket _ Spring
GASSy,(lncL Nos, 18 r= 191
asker, Diaphragm
Diaphragm Assy,, [IncL No,,21}
Cover, IOiaphragm
Screw, Pan flex hd,, 6-32 x 3/8
Spring, Choke return
Washer, Flat
Seal, Dust
Washer, Felt
Repair Kit {includes items
marked *)
REWIND STARTER NO. 590642A
ReL Part
_o. No. Part Name
_2
1
2
5
6
7
8
9
10
11
12
13
_90642A
5905_A
5OO6O0
590615
5906O1
59O598
590616
590617
590618
590619
S90620
59O643
590535
59O452
Starter, Rewind
Pin, Sp=ing (lncL No_ 4)
Washer
Retainer
Washer
Spring, Brake
Dog, Stz_rter
Spring, Dog
Pulley
Spr_ng, Rewind
Cover, Spring
Housing Assy., Starter
Rope, Starter (Length 98" _ 9/64"
dia.)
Handle, Starter
21
CRAFTSMAN 4 CYCLE ENGINE MODEL: 143.814032
75
\
178
131
172
39O
D
/
327
MODELandSERIAL
NUMBERSHERE
370A
f
22

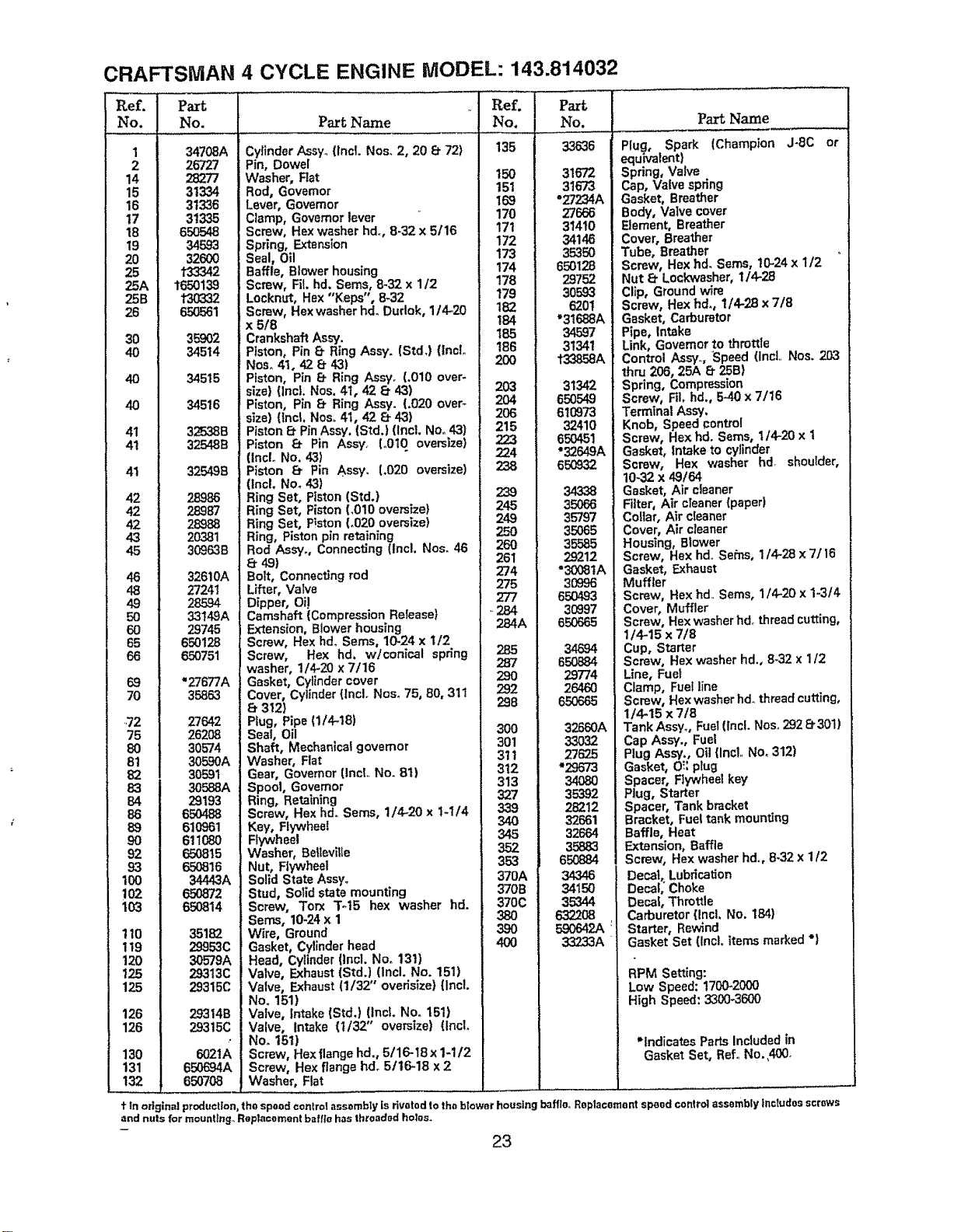

CRAFTSMAN 4 CYCLE ENGINE MODEL: 143.814032
[ l_ef.
! No.
P,
! 2
' 14
15
16
17
I8
19
20
25
25A
25B
26
3O
4O
4O
4O
41
41
41
42
42
42
43
45
46
48
4.9
50
60
65
66
69
70
.72
75
8O
81
82
83
84
86
89
9O
92
93
100
!02
103
110
119
120
125
125
126
126
130
131
!32
Part
No.
34708A
26727
28277
31334
31336
31335
650548
34593
32600
t33342
1650139
t30332
650561
35902
34514
34515
34516
325388
32548B
32549B
28986
28987
28988
20381
30963B
32610A
27241
28594
33149A
29745
650128
650751
"27677A
35863
27642
26208
30574
305.90A
30591
30588A
29193
65O488
610961
611080
650815
650816
34443A
65O872
65O814
35182
29953C
30579A
29313C
29315C
29314B
29315C
6021A
650694A
650708
Part Na'ne
CylinderAssy..(Incl. Nos. 2, 20 e 72)
Pin, Dowel
Washer, Rat
Rod, Governor
Lever, Governor
Clamp, Governor lever
Screw, Hexwasher hdo,8-32 x 5116
Spring, Extension
Seal, Oil
Baffle, Blower housing
Screw, Fil, hd. Sems, 8-32 x 1/2
Locknut, Hex "Keps", 8-32
Screw, Hex washer hd. Durlok, 1/4-20
x 5/8
CrankshaftAssy.
Piston, Pin 8, Ring Assy. (Std.) (tncL
Nos,.41.42 Et43)
Piston, Pin _ Ring Assy. (,010 over-
size) (incl. Nos, 41, 42 6" 43)
Piston, Pin _ Ring Ass'y. (.020 over_
size) {tnc!.Nos. 41, 42 8`48)
Piston_ PinAssy. (StdJ (Incl. No. 43)
Piston 8- Pin Assy_ (oo10oversize)
(tncL No. 431
Piston 8` Pin Assy. (.020 oversize)
(Incl, No. 43)
Ring Set, Piston(Std.)
Ring Sat, Piston(,010 oversize)
Ring Set, P;ston(,020 oversize)
Ring, Pistonpin retaining
Rod Assy., Connecting(incl. Nos. 46
e 49)
Bolt, Connectingrod
Lifter, Valve
Dipper, Oi!
Camshaft (CompressionRelease)
Extension,Blowerhousing
Screw, Hex hd. Seres, 10-24 x 1/2
Screw, Hex hd. w/conical sprlng
washer, 1/4-20 x 7/16
Gasket, Cylindercover
Cover, Cylinder{Incl. Nos_75, 80. 311
312)
Plug, Pipe (1/4-18)
Seal, Oil
Shaft, Mechanicalgovernor
Washer, Flat
Gear, Governor(lncL No. 8t)
Spool, Governor
Ring, Retaining
Screw, Hex hd. Seres, 1/4-20 x 1_1/4
Key, Flywheel
Flywheel
Washer, Betleville
Nut, Flywheel
Solid State Assy°
Stud, Solid state mounting
Screw, Torx To15 hex washer hd.
Seres, 10-24x 1
Wire, Ground
Gasket, Cylinderhead
Head, Cylinder(Incl. No. 131)
Valve, Exhaust(Std.) (Incl. No. 151)
Valve, Exhaust (1/32" overJsize)(Incl.
NoD151)
Valve, Intake {Std.) |Incl. NoD151)
Valve, Intake (t/32" oversize) (IncL
No. 151)
Screw, Hexflange hd., 5/16-18 x 1-i/2
Screw, Hexflange halo5/16-18 x 2
Washer, Flat
.,I Ref.
r No,
I 13S
150
151
169
170
171
172
173
174
178
179
182
t84
185
185
2OO
2O3
2O4
2O6
215
223
224
238
239
245
249
25O
260
261
274
275
2T/
284A
285
287
29O
292
298
300
301
31t
312
313
327
339
340
345
352
353 i
370AI
370B l
370C1
380
390
400
=
i
I
Pazt
No.
33636
31672
31673
"27234A
27666
314t0
34146
35350
650128
29752
30593
6201
"31688A
34597
31341
133858A
31342
B505€9
610973
32410
65O451
*32649A
65O932
34338
35O66
35797
35065
35585
29212
"3008tA
3O996
650493
30997
65O665
34694
650884
29774
26460
6_665
32660A
33O32
27625
*29673
34080
35392
28212
32661
32664
35883
650884
34346
34150
35344
632208
590642A
33233A
Part Name
PIug, Spark (Champion J-eC or
equivalent)
Spdng, Valve
Cap, Valve spring
Gasket, Breather
Body, Valve cover
Element, Breather
Cover, Breather
Tube, Breather
Screw, Hexhd. Seres, 10-24x t/2
Nut 8` Lockwasher,1/4-28
Clip, Groundwire
Screw, Hex hd, 1/4.28 x 7/8
Gasket, Carburetor
Pipe, Intake
Link, Governorto thmttte
Control Assy., Speed (IncL Nos. 203
thpJ206, 25A Et25B)
Spring, Compression
Screw, FiLhd., 5-40x 7/16
Terminal Assy.
Knob, Speedcontrol
Screw, Hexhd. Seres, 1/4-20 x t
Gasket, Intake to cylinder
Screw, Hex washer hd shoulder,
10-32x 49/64
Gasket, Air cleaner
Fitter, Air cleaner{paped
Collar, Air cleaner
Cover, Air cleaner
Housing, Blower
Screw, Hex hd. Beans,1/4-28 x7/16
Gasket, Exhaust
Muffler
Screw, Hex hd..Same, 1/4`20 x 1-3/4
Cover, Muffler
Screw, Hexwasher hd_thread cutting,
1/4-15 x 7/8
Cup, Starter
Screw, Hex washer hd., 8-32 x 1/2
Line, Fuel
Clamp, Fuelline
Screw, Hexwasherhdothreadcutting,
1/4-15 x 718
Tank Assy, Fuel{lncL Nos.292 Et301)
Cap Assy., Fuel
Plug Assy., Oil {IncLNo, 312)
Gasket, O!: plug
Spacer, Flywheel key'
Plug, Starter
Spacer, Tankbracket
Bracket, Fuel tankmounting
Baffle, Heat
Exten-_sion,Baffle
Screw, Hex washer hd..,8-32 x 1/2
Decal, Lubrication
Decal/Choke
Decal, Throttle
Carburetor (Incl, No. 184)
Starter, Rewind
Gasket Set (Incl. itemsmarked °)
RPM Setting:
Low Speed: t700-2000
High Speed: 3300-3600
*indicates Parts Includedin
Gaskst Set, RefoNo.,400.
f in original production, the speed centre! assembly is riveted to the blower housing baffled Replacement speed control assembly _nctudos screws
and nuls for mounting,, Replacement baffle has threaded holes.
23
OWNER'S
MANUAL
MODEL NO.
536,797561
HOW TO ORDER
REPAIR PARTS
CRRFrSMRN®
9 INCH-
3.0 HORSEPOWER
EDGER/3"RIMMER
Each EDGER/fRtMMER has its own MODEL
NUMBER on a model plate on the frame behind
the engine.
Each ENGINE has its own MODEL NUMBER
found on the BLOWER HOUSING.
Always mention these MODEL NUMBERS when
requesting service or Repair Parts for your
EDGER/TRIMMER_
All parts may be ordered through any Sears,
Roebuck and Compady Service Centers and
Retail Stores.
WHEN ORDERING REPAIR PARTS, ALWAYS
GIVE THE FOLLOWING INFORMATION:
* PRODUCT- "EDGERff'RIMMER"
* MODEL NUMBER - 536,797561
* ENGINE MODEL NUMBER - 143.814032
* PART NUMBER
* PART DESCRIPTION
"Your Sears merchandise has added value when you
consider that Sears has service units nationwide staffed
with Sears trained technicians. °Professional technicians
specifically trainedon Sears Products, having the parts,
tools and equipment to insure that we meet our pledge
to you_ we service what we sell"
, Hoffman Estates,
............ llll j ill i L ll/llll
SEARS, ROEBUCK AND CO.
324779 08f24/92
IL 60179
Printed in U_S.Ao
