USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTEX70417.2
Serial No.
Write the serial number in the space
above for reference.
nordictrack.com
Serial Number
Decal
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
support.nordictrack.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
2

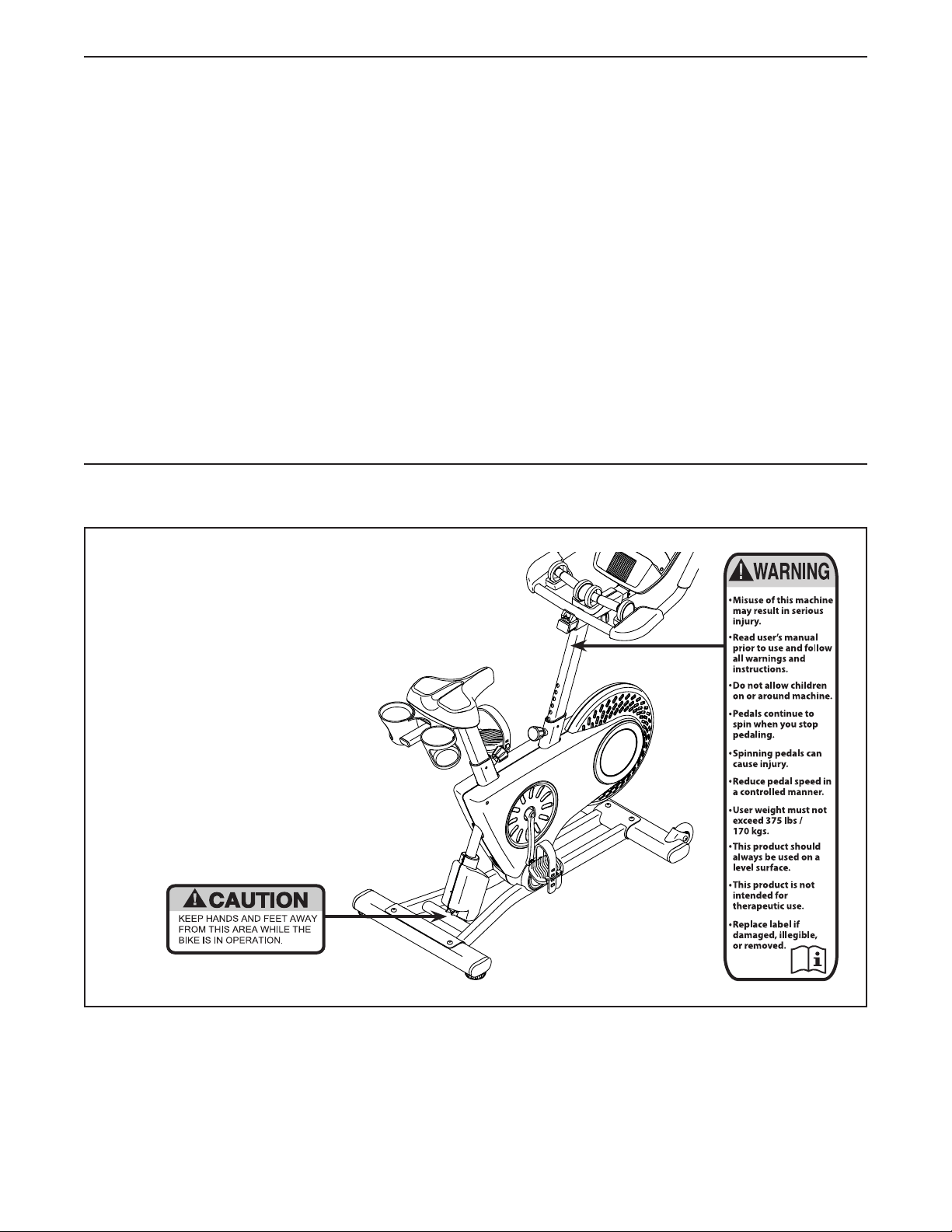

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
MAINTENANCE AND TROUBLESHOOTING .....................................................29
EXERCISE GUIDELINES ....................................................................31
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

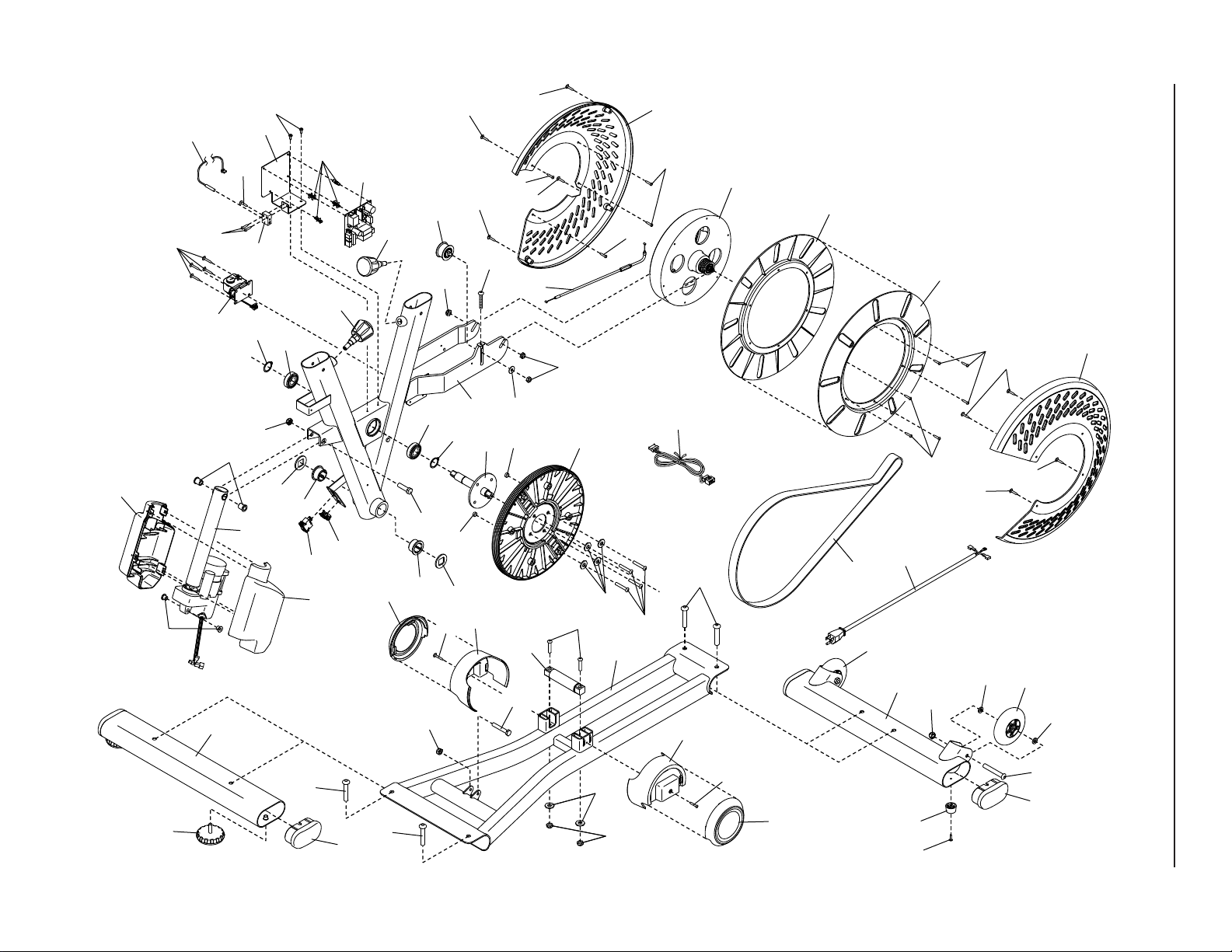

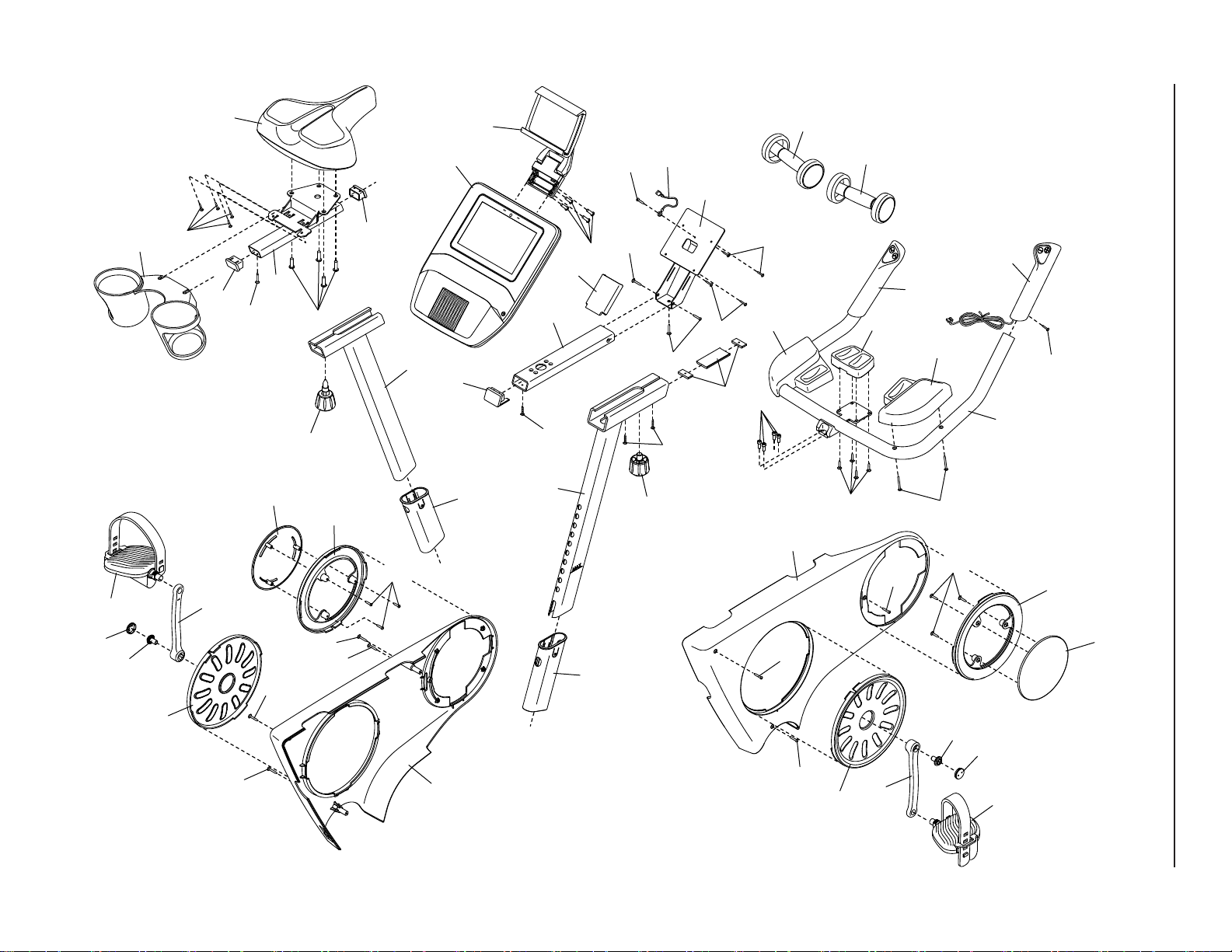

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth
®
word mark
and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade-
mark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.
3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all
important precautions and instructions in this manual and all warnings on your exercise bike before
using your exercise bike. ICON assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
9. Keep children under age 16 and pets away
from the exercise bike at all times.
10. When connecting the power cord, plug the
power cord into a grounded circuit.
11. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
12. Do not operate the exercise bike if the power
cord or plug is damaged, or if the exercise
bike is not working properly.
13. DANGER: Always unplug the power
cord and press the power switch to the off
position when the exercise bike is not in
use and before cleaning the exercise bike.
Servicing other than the procedures in this
manual should be performed by an autho-
rized service representative only.
14. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
15. The exercise bike should not be used
by persons weighing more than 375 lbs.
(170 kg).
16. Be careful when mounting and dismounting
the exercise bike.
17. Always keep your back straight while using
the exercise bike; do not arch your back.
18. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
4
all
STANDARD SERVICE PLANS
5
Congratulations for selecting the revolutionary
NORDICTRACK
®
GRAND TOUR PRO exercise
bike. The GRAND TOUR PRO exercise bike is unlike
any ordinary exercise bike. With full adjustability, an
advanced console, an incline system allows you to
simulate actual terrain, and an array of other innova-
tive features, the GRAND TOUR PRO exercise bike is
designed to let you enjoy the outdoor cycling experi-
ence indoors.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Seat
Seat Knob
Hand Weight
Fan
Incline Control
Handlebar
Handlebar Knob
Wheel
Water Bottle Holder*
*Water bottle is not included
Pedal/Strap
Resistance Control
Speakers
Tablet Holder
Leveling Foot
Power Switch/Power Cord
Console
Length: 4 ft. 10 in. (147 cm)
Width: 2 ft. (61 cm)
Post Knobs
6
M10 x 58mm Screw (74)–4
M6 x 16mm
Screw (107)–3
M8 x 16mm
Screw (56)–4
Tablet Holder
Screw (82)–4
M4 x 10mm
Screw (92)–4
M4 x 16mm
Screw (34)–4
M4 x 12mm
Screw (93)–1
M6 x 20mm
Screw (103)–4

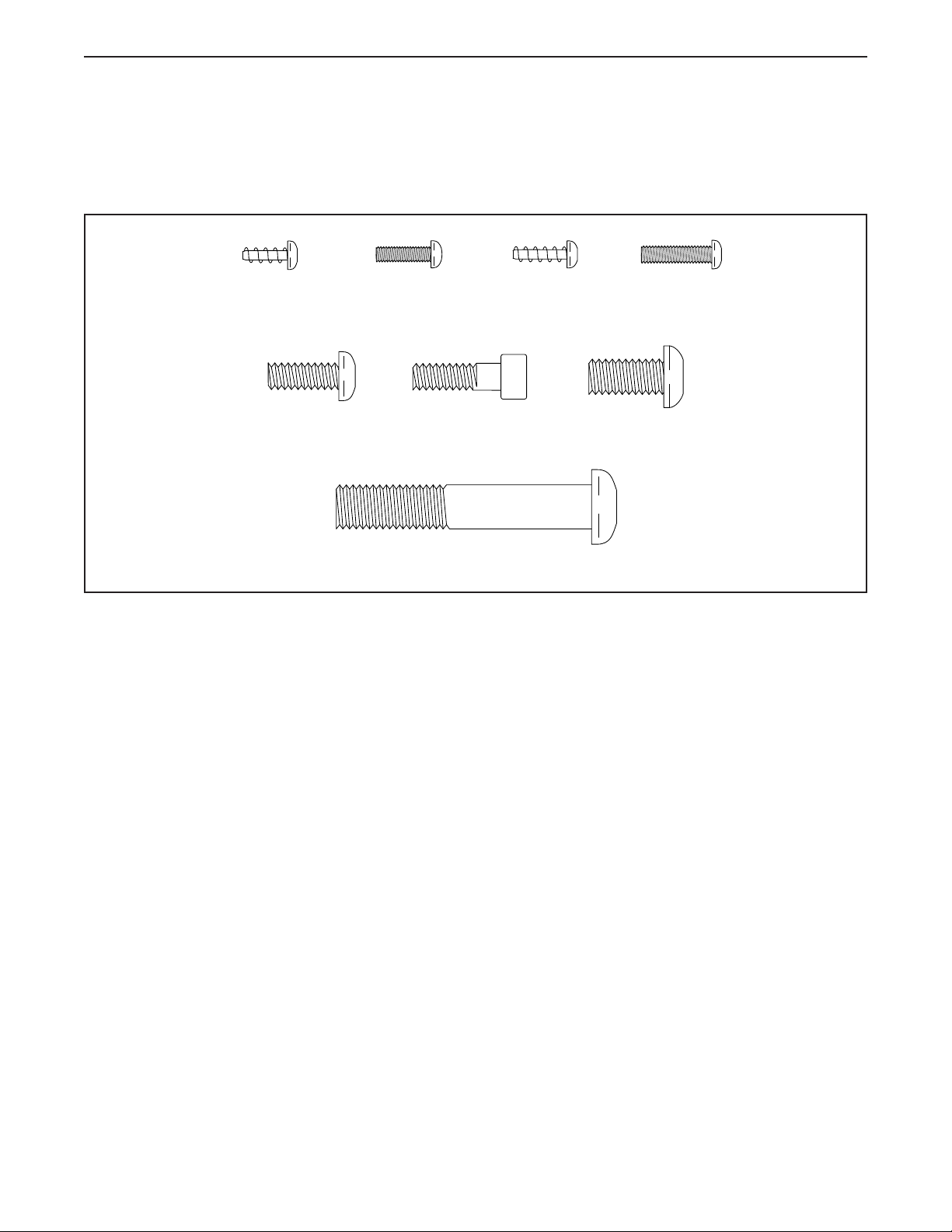

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
7
2
23
1
74

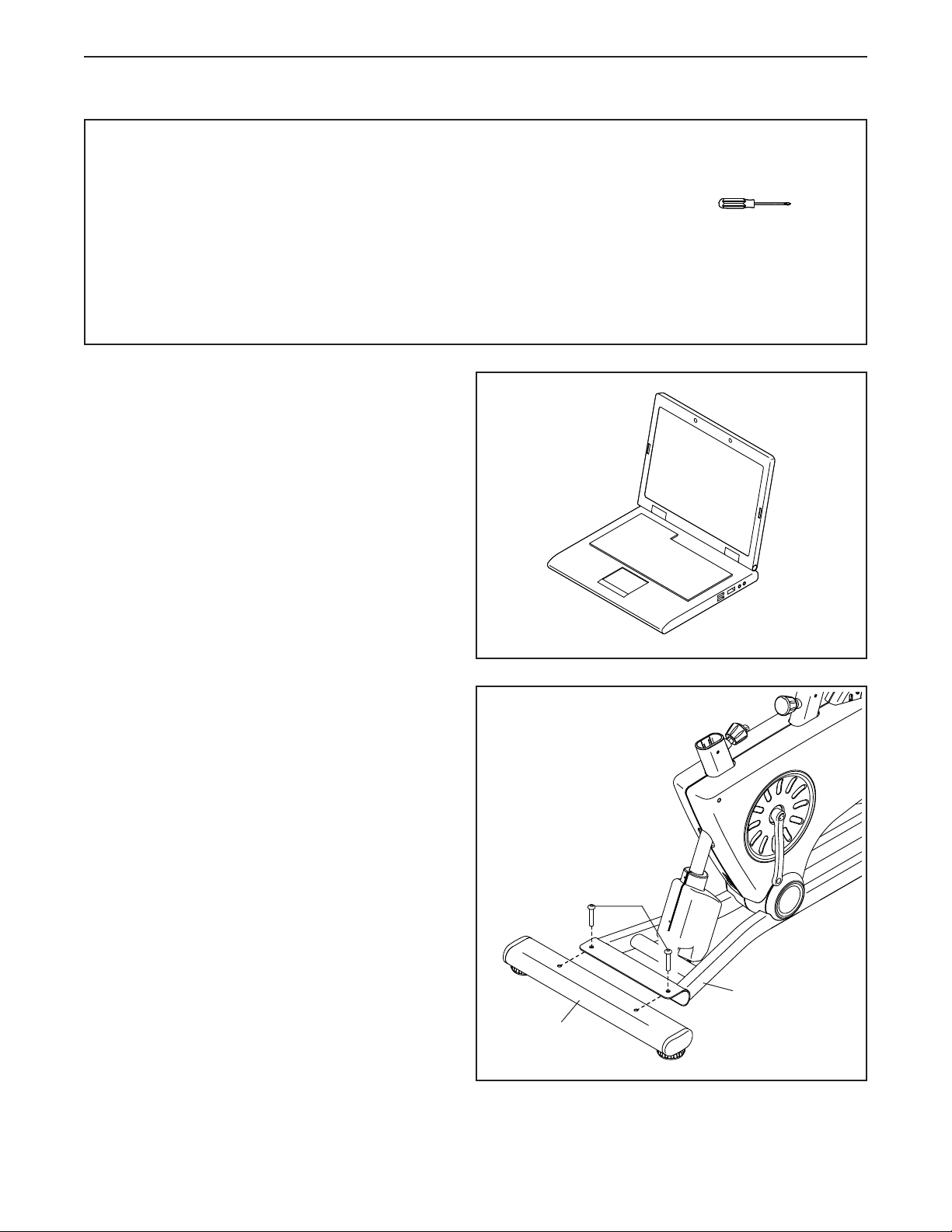

2. If there is a shipping support attached to the
rear of the Base (1), remove the screws from the
shipping support, and discard the screws and
the shipping support.
Then, attach the Rear Stabilizer (23) to the Base
(1) with two M10 x 58mm Screws (74).
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
8
4
8
92
3

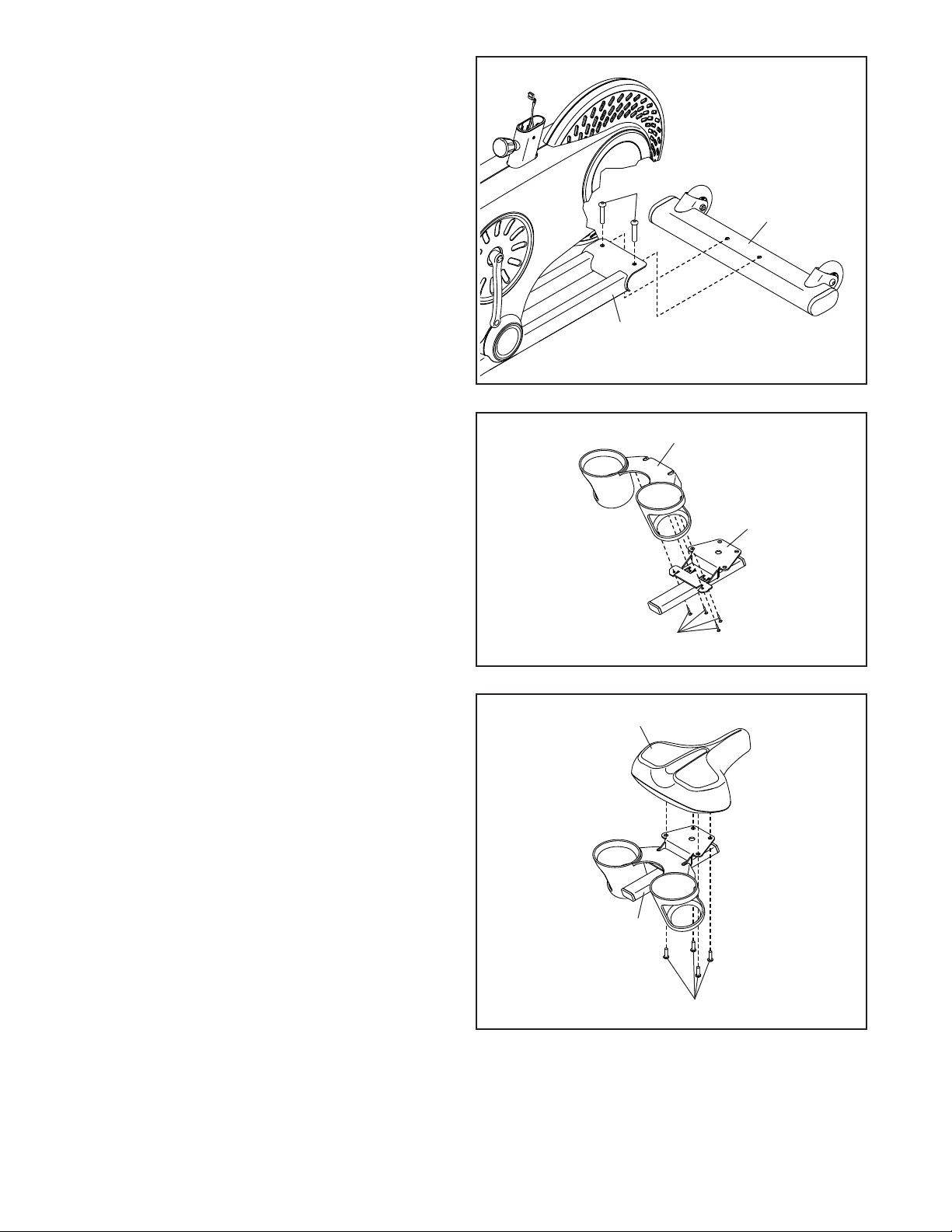

3. If there is a shipping support attached to the
front of the Base (1), remove the screws from
the shipping support, and discard the screws
and the shipping support.
Then, attach the Front Stabilizer (22) to the Base
(1) with two M10 x 58mm Screws (74).
74
22
1
4. Attach the Water Bottle Holder (8) to the Seat
Carriage (4) with four M4 x 10mm Screws (92);
start all the Screws, and then tighten them.
4
5
5. Attach the Seat (5) to the Seat Carriage (4)
with four M8 x 16mm Screws (56); start all the
Screws, and then tighten them.
4
5
56
9
6. Locate the Post Knob (47) on the rear of the
Frame (2). Loosen and pull the Post Knob.
Next, orient a Post Bushing (42) as shown. Insert
the Post Bushing into the Frame (2). Make sure
that the tabs (A) on the Post Bushing are in
the holes (B) in the Frame.
Next, orient the Seat Post (3) as shown, insert
it into the Frame (2), and then release the Post
Knob (47) into one of the adjustment holes (C) in
the Seat Post. Make sure that the Post Knob is
in an adjustment hole. Then, tighten the Post
Knob.
6
3
C
2
47
42
A
B
7. Loosen and pull the Seat Knob (29).
Next, insert the Seat Carriage (4) into the Seat
Post (3), and release the Seat Knob (29) into
one of the adjustment holes in the Seat Carriage.
Make sure that the Seat Knob is in an adjust-
ment hole. Then, tighten the Seat Knob.
See the inset drawing. Tighten an M4 x 12mm
Screw (93) into the underside of the Seat
Carriage (4).
7
29
3
4
93
4
10
9

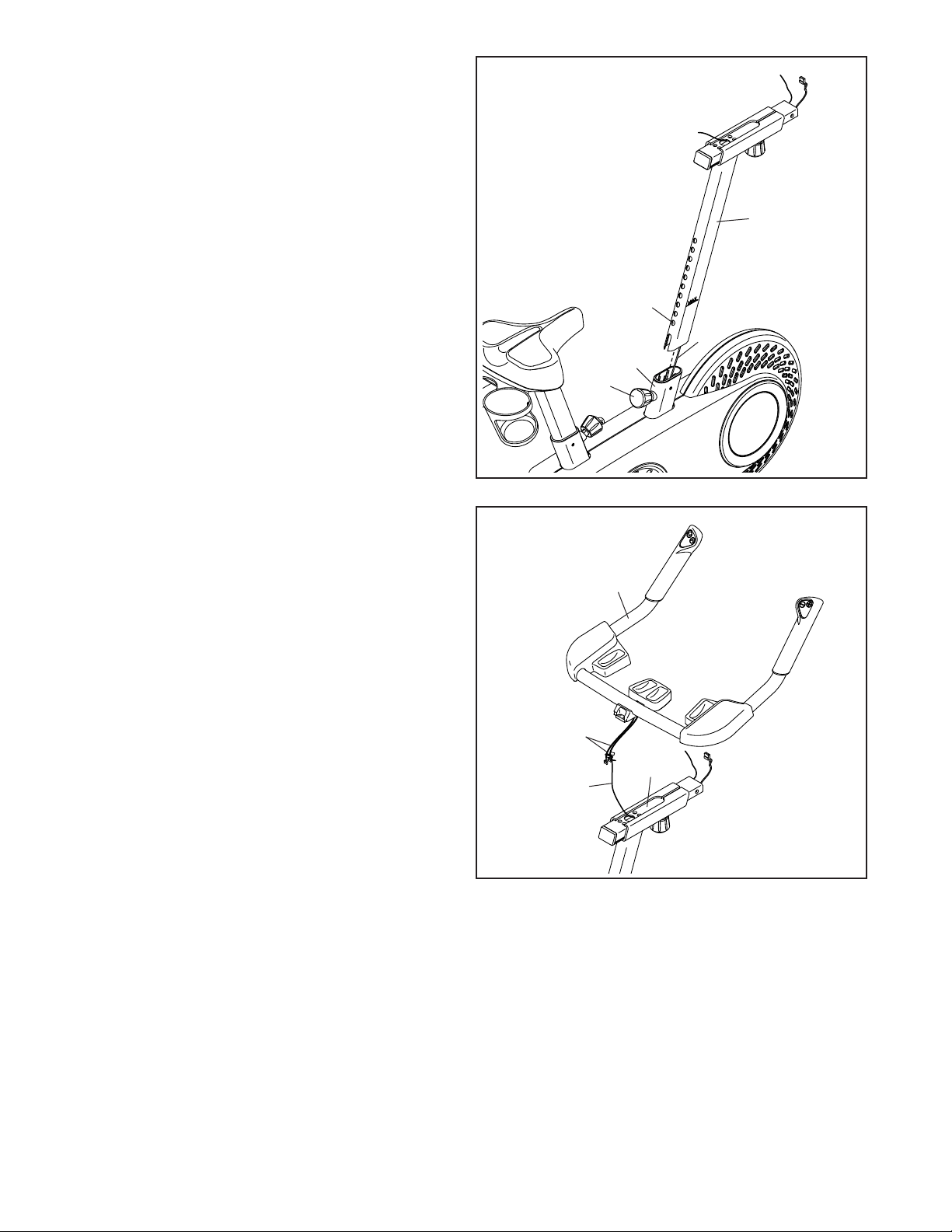

9. Have a second person hold the Handlebar Post
(6) near the Frame (2).
Locate the long wire tie (D) in the Handlebar
Post (6). Tie the lower end of the long wire tie to
the Main Wire (68).
Next, locate the middle of the long wire tie
(D) in the access hole (E) in the Handlebar
Carriage (99). Pull the long wire tie upward in the
indicated location (F) until the end of the Main
Wire (68) is in the access hole.
See the inset drawing. Next, pull the free end
of the long wire tie (D) until the Main Wire (68) is
routed through the Handlebar Carriage (99) as
shown. Then, untie and discard the long wire tie;
do not remove the short wire tie (G).
99
68
D
D
D
E
F
G
6
99
2
68
D
8
2
47
42
68
8. Orient a Post Bushing (42) as shown and hold
it near the Frame (2). Insert the Main Wire (68)
upward through the Post Bushing.
Next, locate the Post Knob (47) on the front of
the Frame (2). Loosen and pull the Post Knob,
and then insert the Post Bushing into the Frame.
Make sure that the tabs (A) on the Post
Bushing are in the holes (B) in the Frame.
Then, release the Post Knob (47) into the hole in
the Post Bushing (42).
A
B
11
11
99
7
11. Have a second person hold the Handlebar (7)
near the Handlebar Carriage (99).
Locate the short wire tie (G) in the Handlebar
Carriage (99). Tie the indicated end of the short
wire tie to the two wires (I) on the Handlebar (7).
Next, pull the other end of the short wire tie
(G) until the two wires (I) are routed through
the Handlebar Carriage (99). Then, untie and
discard the wire tie.
G
I
10
47
68
6
2
10. Tip: Avoid pinching the Main Wire (68) during
this step.
Loosen and pull the Post Knob (47).
Next, insert the Handlebar Post (6) into the
Frame (2), and release the Post Knob (47) into
the lowest adjustment hole (H) in the Handlebar
Post. Then, tighten the Post Knob.
Note: After the exercise bike is assembled, you
can adjust the Handlebar Post (6) to the desired
height.
Avoid pinching the
Main Wire (68)
H
12
14
9
14. Have a second person hold the Console (9) near
the Console Bracket (33).
Connect the console wires to the Main Wire (68),
to the Ground Wire (111), and to the two wires (I)
from the Handlebar (7); make sure to connect
the console wire that has an “R” tag to the
wire that has an “R” tag. Insert the excess wire
into the Console Bracket (33).
Tip: Avoid pinching the wires. Attach the
Console (9) to the Console Bracket (33) with four
M4 x 16mm Screws (34); start all the Screws,
and then tighten them.
Avoid pinching
the wires
33
111
68
I
34
7
13. Hold the Console Bracket (33) near the
Handlebar Carriage (99). Insert the Main Wire
(68) and the two wires (I) from the Handlebar (7)
upward through the Console Bracket.
Tip: Avoid pinching the wires. Attach the
Console Bracket (33) to the Handlebar Carriage
(99) with three M6 x 16mm Screws (107); start
all the Screws, and then tighten them.
Then, press the Wire Cover (32) onto the
Console Bracket (33).
13
33
7
99
107
107
32
Avoid pinching
the wires
I
68
12. Loosen the Handlebar Knob (95). Next, slide
the Handlebar Carriage (99) forward as far as
possible. Then, tighten the Handlebar Knob.
Tip: Avoid pinching the wires. Attach the
Handlebar (7) to the Handlebar Carriage (99)
with four M6 x 20mm Screws (103); start all the
Screws, and then tighten them.
12
99
95
7
103
Avoid pinching
the wires
13
18. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat beneath the exercise bike to protect the floor.
62
63
61
17. Identify the Right Pedal (62).
Using the included flat wrench tool, firmly
tighten the Right Pedal (62) clockwise into the
Right Crank Arm (64).
Firmly tighten the Left Pedal (61)
counterclockwise into the Left Crank Arm
(63). IMPORTANT: You must turn the Left
Pedal counterclockwise to attach it.
To adjust the straps on the Pedals (61, 62),
see HOW TO USE THE PEDAL STRAPS on
page 15.
17
64
15
9
10
15. Attach the Tablet Holder (10) to the Console (9)
with four Tablet Holder Screws (82); start all the
Tablet Holder Screws, and then tighten them.
16
15
72
69
16. Set the two Hand Weights (15) on the Hand
Weight Rest (83) and on the Armrests (69, 72).
82
83
15
14
HOW TO USE THE EXERCISE BIKE
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
Plug the power
cord (A) into
an appropriate
outlet (B) that is
properly installed
and grounded in
accordance with
all local codes and
ordinances. The
outlet must be
on a nominal 120-volt circuit.
A temporary
adapter (C) may
be used to con-
nect the power
cord to a 2-pole
receptacle (D)
as shown at the
right if a properly
grounded outlet is
not available.
The lug (E) or wire extending from the adapter must
be connected with a metal screw (F) to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a
qualied electrician to determine whether the out-
let box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualied electrician.
B
A
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
D
C
E
F
15
HOW TO ADJUST THE EXERCISE BIKE
The exercise bike can be adjusted to promote correct
form and to ensure proper training of the muscles.
Note: Make adjustments in small increments,
and then pedal the exercise bike to test the
adjustments.
How to Adjust the Seat Post
For effective train-
ing, the seat should
be at the proper
height. As you
pedal, there should
be a slight bend in
your knees when
the pedals are in
the lowest position.
To adjust the height
of the seat post,
loosen and pull the
post knob (G), move
the seat post upward or downward, release the post
knob into an adjustment hole in the seat post, and then
tighten the post knob. Move the seat post upward or
downward slightly to make sure that the post knob
is engaged in an adjustment hole.
How to Adjust the Seat Carriage
To adjust the
position of the seat
carriage, loosen
and pull the seat
knob (H), move
the seat carriage
forward or back-
ward, release the
seat knob into an
adjustment hole in
the seat carriage,
and then retighten the seat knob.
How to Adjust the Handlebar Post
To adjust the height
of the handle-
bar post, loosen
and pull the post
knob (I), move the
handlebar post
upward or down-
ward, release the
post knob into an
adjustment hole in
the handlebar post,
and then tighten the
post knob. Move the seat post upward or downward
slightly to make sure that the post knob is engaged
in an adjustment hole.
How to Adjust the Handlebar Carriage
To adjust the
position of the
handlebar car-
riage, loosen the
handlebar knob (J),
move the handlebar
carriage forward
or backward, and
then retighten the
handlebar knob.
HOW TO USE THE PEDAL STRAPS
Adjust the strap (K)
on each pedal to
the desired position,
and press the end
of the strap onto the
tab (L) on the pedal.
G
H
I
J
L
K
16

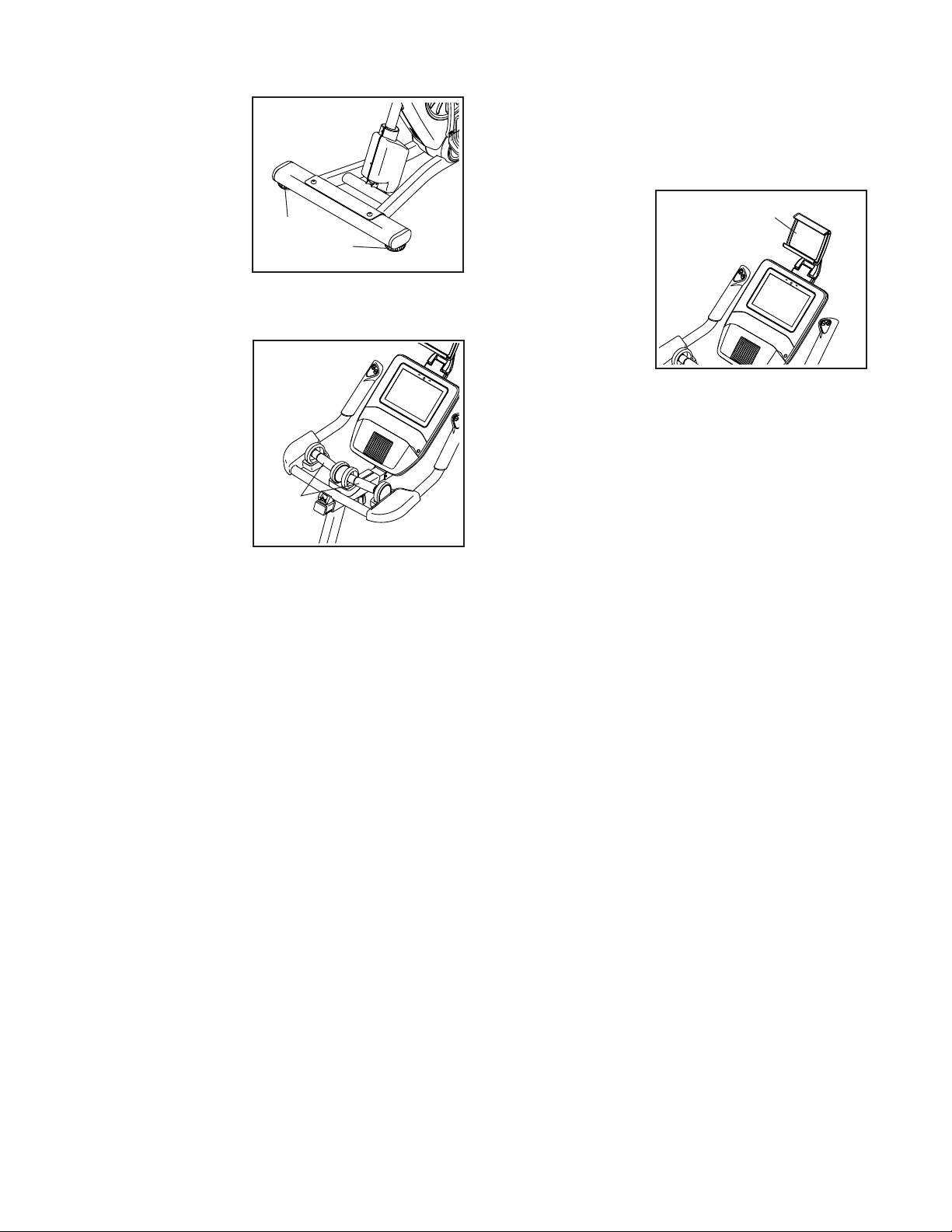

HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on
your floor during
use, turn one or
both of the leveling
feet (M) on the rear
stabilizer until the
rocking motion is
eliminated.
HOW TO USE THE HAND WEIGHTS
To add upper body
exercise to your
workouts, use the
hand weights (N)
while you pedal.
When you are not
using the hand
weights, store them
on the hand weight
rest.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder (O) is designed
for use with most full-size tablets. Do not place
any other electronic device or object in the tablet
holder.
To insert a tablet
into the tablet holder
(O), set the bottom
edge of the tablet
in the tray. Then,
pull the clip over
the top edge of the
tablet. Make sure
that the tablet is
firmly secured in
the tablet holder.
Rotate and pivot the tablet holder to the desired angle.
Reverse these actions to remove the tablet from the
tablet holder.
M
M
N
O
17
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
resistance of the pedals and the incline of the frame as
it guides you through an effective exercise session.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the frame with the touch of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can also measure your
heart rate using an optional heart rate monitor. See
page 27 for information about purchasing an
optional chest heart rate monitor.
You can also listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To turn on the power, see page 18. To learn how
to use the touch screen, see page 18. To set up
the console, see page 19.
CONSOLE DIAGRAM
HOW TO USE THE CONSOLE
18
HOW TO TURN ON THE POWER
IMPORTANT: If the exercise bike has been exposed
to cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console or other
electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE POWER
CORD on page 14). Next,
locate the power switch on the
frame near the power cord.
Press the power switch to the
reset position (A).
The console will then turn on and be ready for use.
Note: When you turn on the power for the rst time,
the incline system may calibrate automatically. The
frame will move upward and downward as it calibrates.
When the frame stops moving, the incline system is
calibrated.
IMPORTANT: If the incline system does not
calibrate automatically, see step 6 on page 19
and manually calibrate the incline system.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you use the
touch screen:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout.
• To type information into a text box, first touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch ?123. To view
more characters, touch ~[<. Touch ?123 again to
return to the number keyboard. To return to the letter
keyboard, touch ABC. To use a capital character,
touch the shift button (upward-facing arrow symbol).
To use multiple capital characters, touch the shift
button again. To return to the lowercase keyboard,
touch the shift button a third time. To clear the last
character, touch the clear button (backward-facing
arrow with an X symbol).
A
19
HOW TO SET UP THE CONSOLE
Before you use the exercise bike for the first time, set
up the console.
1. Connect to your wireless network.
To use iFit workouts and to use several other
features of the console, the console must be con-
nected to a wireless network. Follow the prompts
on the screen to connect the console to your wire-
less network.
2. Customize settings.
Follow the prompts on the screen to set the desired
unit of measurement and your time zone.
Note: To change these settings later, see HOW TO
CHANGE CONSOLE SETTINGS on page 25.
3. Log into or create an iFit account.
Follow the prompts on the screen to log into your
iFit account or to create an iFit account.
4. Tour the console.
The first time you use the console, a tour
presentation will guide you through the features of
the console.
5. Check for firmware updates.
First, touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, and
then touch Update. The console will check for firm-
ware updates. For more information, see HOW TO
CHANGE CONSOLE SETTINGS on page 25.
6. Calibrate the incline system.
First, touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, and
then touch Calibrate Incline. The frame will rise
and lower as it calibrates. For more information,
see HOW TO CHANGE CONSOLE SETTINGS on
page 25.
The console is now ready for you to begin working out.
The following pages explain the workouts and other
features that the console offers.
To use the manual mode, see page 20. To use
a featured workout or an onboard workout, see
page 21. To create a draw-your-own-map work-
out, see page 23. To use an iFit workout, see
page 24.
To change console settings, see page 25. To
connect to a wireless network, see page 26. To
use the sound system, see page 27. To connect
an HDMI cable, see page 27.
Note: If there is a sheet of plastic on the screen,
remove the plastic.
20
HOW TO USE THE MANUAL MODE
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select the main menu.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
3. Change the resistance of the pedals and the
incline of the frame as desired.
Touch Manual Start and begin pedaling.
You can change the resistance of the pedals by
pressing one of the numbered Quick Resistance
buttons on the console, pressing the Resistance
increase and decrease buttons on the console, or
pressing the Resist increase and decrease buttons
on the right handlebar.
To vary the motion of the pedals, you can change
the incline of the frame by pressing one of the num-
bered Quick Incline/Decline buttons on the console,
pressing the Incline/Decline increase and decrease
buttons on the console, or pressing the Incline/
Decline increase and decrease buttons on the left
handlebar.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level or for the frame to reach the
selected incline level.
4. Follow your progress.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown.
Drag upward on the screen to enter the fullscreen
display mode. Drag downward on the screen to
view the workout information displays.
Touch the various workout information displays
to view more options. Touch the more button
(+ symbol) to view statistics or charts. Touch the
center of the screen to view even more display
mode options.
If desired, adjust
the volume level by
pressing the volume
increase and decrease
buttons on the
console.
To pause the workout, simply touch the screen
or stop pedaling. To continue the workout, simply
resume pedaling.
To end the workout session, first touch the screen
to pause the workout. Next, touch End; a workout
summary will appear on the screen. If desired, you
can publish your results using one of the options on
the screen. Then, touch Finish to return to the main
menu.
5. Wear a heart rate monitor and measure your
heart rate if desired.
You can wear an optional heart rate monitor
to measure your heart rate. For more informa-
tion about the optional heart rate monitor, see
page 27. Note: The console is compatible with
Bluetooth
®
Smart heart rate monitors.
When your heartbeat is detected, your heart rate
will be shown in the display on the screen.
21
6. Turn on the fan if desired.
The fan has several
speed settings, includ-
ing an auto mode.
While the auto mode is
selected, the speed of
the fan will automatically increase or decrease as
your pedaling speed increases or decreases. Press
the fan increase and decrease buttons repeatedly
to select a fan speed or to turn off the fan.
Note: If the pedals are not moved for a while when
the main menu is selected, the fan will turn off
automatically.
7. When you are finished exercising, unplug the
power cord.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components of the exercise bike may
wear prematurely.
HOW TO USE A FEATURED WORKOUT OR AN
ONBOARD WORKOUT
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select the main menu or the workout library.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
Touch the buttons at the bottom of the screen to
select either the main menu (Home button) or the
workout library (Browse button).
3. Select a workout.
To select a workout from the main menu or the
workout library, simply touch the desired workout
button on the screen. Slide or flick the screen to
scroll upward or downward if necessary.
Note: To use a featured workout, the console must
be connected to a wireless network (see HOW
TO CONNECT TO A WIRELESS NETWORK on
page 26).
The featured workouts on your console will change
periodically. To save one of the featured workouts
for future use, you can add it as a favorite by touch-
ing the favorites button (heart symbol). You must
be logged into your iFit account to save a featured
workout (see step 3 on page 19).
To draw your own map for a workout, see HOW TO
CREATE A DRAW-YOUR-OWN-MAP WORKOUT
on page 23.
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories you will
burn during the workout.
4. Start the workout.
Touch Start Workout to start the workout.
The workout will function in the same way as the
manual mode (see page 20).
During some workouts, an iFit coach will guide you
through a video workout. Touch the sound button
(music notes symbol) to select music, trainer voice,
and volume options for the workout.
During some workouts, the screen will show a map
of the route and a marker indicating your prog-
ress. Touch the buttons on the screen to select the
desired map options.
During some workouts, the screen may show a
target speed. As you exercise, keep your pedaling
speed near the target speed shown on the screen.
A message may appear prompting you to increase,
decrease, or maintain your pedaling speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
22
If the resistance level and/or incline level is too
high or too low, you can manually override the
setting by pressing the Resistance buttons or the
Incline/Decline buttons. If you press a Resistance
button, you can then manually control the resis-
tance level (see step 3 on page 20). If you
press an Incline/Decline button, you can then
manually control the incline level (see step 3 on
page 20). To return to the programmed resis-
tance and/or incline settings of the workout,
touch Follow Workout.
Note: The calorie goal shown in the workout
description is an estimate of the number of
calories that you will burn during the workout.
The actual number of calories that you burn
will depend on various factors, such as your
weight. In addition, if you manually change the
resistance level or incline level of the frame
during the workout, the number of calories you
burn will be affected.
To pause the workout, simply touch the screen
or stop pedaling. To continue the workout, simply
resume pedaling.
To end the workout, touch the screen to pause the
workout, and then follow the prompts on the screen
to end the workout and return to the main menu.
When the workout ends, a workout summary will
appear on the screen. If desired, you can select
options such as adding the workout to your sched-
ule (see HOW TO USE AN IFIT WORKOUT on
page 24) or adding the workout to your favorites
list. Then, touch Save Workout to return to the main
menu.
5. Follow your progress.
See step 4 on page 20.
6. Wear a heart rate monitor and measure your
heart rate if desired.
See step 5 on page 20.
7. Turn on the fan if desired.
See step 6 on page 21.
8. When you are finished exercising, unplug the
power cord.
See step 7 on page 21.
23
HOW TO CREATE A DRAW-YOUR-OWN-MAP
WORKOUT
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select a draw-your-own-map workout.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
To select a draw-your-own-map workout, touch the
Create button at the bottom of the screen.
3. Draw your map.
Navigate to the area on the map where you want
to draw your workout by typing in the search box
or by sliding your fingers on the screen. Touch
the screen to add the start point for your workout.
Then, touch the screen to add the end point for
your workout.
If you want to start and end your workout at the
same point, touch Close Loop or Out & Back in the
map options. You can also select whether you want
your workout to snap to the road.
If you make a mistake, touch Undo in the map
options.
The screen will display the elevation and distance
statistics for your workout.
4. Save your workout.
Touch Save New Workout to save your workout. If
desired, enter a title and description for your work-
out. Then, touch the continue button (> symbol).
5. Start the workout.
Touch Start Workout to start the workout. The
workout will function in the same way as a featured
workout or an onboard workout (see page 21).
6. Follow your progress.
See step 4 on page 20.
7. Wear a heart rate monitor and measure your
heart rate if desired.
See step 5 on page 20.
8. Turn on the fan if desired.
See step 6 on page 21.
9. When you are finished exercising, unplug the
power cord.
See step 7 on page 21.
24
HOW TO USE AN IFIT WORKOUT
To use an iFit workout, the console must be connected
to a wireless network (see HOW TO CONNECT TO A
WIRELESS NETWORK on page 26). An iFit account
is also required.
1. Add workouts to your schedule on iFit.com.
On your computer, smartphone, tablet, or other
device, open an internet browser, go to iFit.com,
and log in to your iFit account.
Next, navigate to Menu > Library on the website.
Browse the workout programs in the library and join
the desired workouts.
Then, navigate to Menu > Schedule to view your
schedule. All of the workouts that you have joined
will appear on your schedule; you can arrange or
delete the workouts on your schedule as desired.
Take time to explore the iFit.com website before
you log out.
2. Select the main menu.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
3. Log in to your iFit account.
If you have not already done so, touch the menu
button (three horizontal lines symbol) on the screen
and then touch Log in to log in to your iFit account.
Follow the prompts on the screen to enter your
username and password.
To switch users within your iFit account, touch
the menu button, touch Settings, and then touch
Manage Accounts. If more than one user is associ-
ated with the account, a list of users will appear.
Touch the name of the desired user.
4. Select an iFit workout that you have previously
added to your schedule on iFit.com.
IMPORTANT: Before iFit workouts will load, you
must add them to your schedule on iFit.com
(see step 1).
To load an iFit workout from iFit.com to the
console, touch the Calendar button at the bottom of
the screen.
When you load a workout, the screen will show an
overview of the workout that includes details such
as the duration and distance of the workout and
the approximate number of calories you will burn
during the workout.
5. Start the workout.
Touch Start Workout to start the workout. The
workout will function in the same way as a featured
workout or an onboard workout (see page 21).
6. Follow your progress.
See step 4 on page 20.
7. Wear a heart rate monitor and measure your
heart rate if desired.
See step 5 on page 20.
8. Turn on the fan if desired.
See step 6 on page 21.
9. When you are finished exercising, unplug the
power cord.
See step 7 on page 21.
For more information about iFit, go to iFit.com.
25
HOW TO CHANGE CONSOLE SETTINGS
IMPORTANT: Some of the settings and features
described may not be enabled. Occasionally, a
firmware update may cause your console to function
slightly differently.
1. Select the settings main menu.
First, turn on the power (see HOW TO TURN ON
THE POWER on page 18). Note: It may take a
few moments for the console to be ready for use.
Next, select the main menu (Home button). When
you turn on the console, the main menu will appear
on the screen after the console boots up. If you
are in a workout, touch the screen and follow the
prompts to end the workout and return to the main
menu. If you are in the settings menus, touch the
back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
Then, touch the menu button (three horizontal lines
symbol) on the screen, and then touch Settings.
The settings menu will appear on the screen.
2. Navigate the settings menus and change
settings as desired.
Slide or flick the screen to scroll upward or down-
ward if necessary. To view a settings menu, simply
touch the menu name. To exit a menu, touch the
back button (arrow symbol). You may be able to
view and change settings in the following settings
menus:
Account
• My Prole
• In Workout
• Manage Accounts
Equipment
• Equipment Info
• Equipment Settings
• Maintenance
• Wi-Fi
About
• Legal
3. Customize the unit of measurement and other
settings.
To customize the unit of measurement, the time
zone, or other settings, touch Equipment Info or
Equipment Settings, and then touch the desired
settings.
The console can display speed and distance in
either standard or metric units of measurement.
4. View machine information or console app
information.
Touch Equipment Info, and then touch Machine
Info or App Info to view information about your
exercise bike or about the console app.
5. Update the console firmware.
For the best results, regularly check for
firmware updates. Touch Maintenance, and then
touch Update to check for firmware updates using
your wireless network. The update will begin auto-
matically. IMPORTANT: To avoid damaging the
exercise bike, do not turn off the power while
the firmware is being updated.
The screen will show the progress of the update.
When the update is complete, the exercise bike will
turn off and then turn back on. If it does not, press
the power switch into the off position. Wait for sev-
eral seconds, and then press the power switch into
the reset position. Note: It may take a few minutes
for the console to be ready for use.
Note: Occasionally, a firmware update may cause
the console to function slightly differently. These
updates are always designed to improve your
exercise experience.
26
6. Calibrate the incline system.
To calibrate the incline system, touch Maintenance,
touch Calibrate Incline, and then touch Begin. The
frame will automatically rise to the maximum incline
level, lower to the minimum incline level, and then
return to the starting position. This will calibrate
the incline system. When the incline system is
calibrated, touch Finish.
IMPORTANT: Keep pets, feet, and other objects
away from the exercise bike while the incline
system is calibrating.
7. Exit the settings main menu.
If you are in a settings menu, touch the back
button. Then, touch the close button (x symbol) to
exit the settings main menu.
HOW TO CONNECT TO A WIRELESS NETWORK
To use iFit workouts and to use several other features
of the console, the console must be connected to a
wireless network.
1. Select the main menu.
First, turn on the power (see HOW TO TURN ON
THE POWER on page 18). Note: It may take a
few moments for the console to be ready for use.
Next, select the main menu (Home button). When
you turn on the console, the main menu will appear
on the screen after the console boots up. If you
are in a workout, touch the screen and follow the
prompts to end the workout and return to the main
menu. If you are in the settings menus, touch the
back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
2. Select the wireless network menu.
Touch the menu button (three horizontal lines
symbol), and then touch Wi-Fi to select the wire-
less network menu.
3. Enable Wi-Fi.
Make sure that Wi-Fi
®
is enabled. If it is not
enabled, touch the Wi-Fi toggle to enable it.
4. Set up and manage a wireless network
connection.
When Wi-Fi is enabled, the screen will show a
list of available networks. Note: It may take a few
moments for the list of wireless networks to appear.
Note: You must have your own wireless network
and an 802.11b/g/n router with SSID broadcast
enabled (hidden networks are not supported).
When a list of networks appears, touch the desired
network. Note: You will need to know your network
name (SSID). If your network has a password, you
will also need to know the password.
Follow the prompts on the screen to enter your
password and connect to the selected wireless
network. (To use the keyboard, see HOW TO USE
THE TOUCH SCREEN on page 18.)
When the console is connected to your wireless
network, a checkmark will appear next to the
wireless network name.
If you are having problems connecting to an
encrypted network, make sure that your password
is correct. Note: Passwords are case-sensitive.
Note: The console supports unsecured and
secured (WEP, WPA™, and WPA2™) encryption.
A broadband connection is recommended; perfor-
mance depends on connection speed.
Note: If you have questions after following
these instructions, go to support.iFit.com for
assistance.
5. Exit the wireless network menu.
To exit the wireless network menu, touch the back
button (arrow symbol).
27
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play but-
ton on your personal audio
player. Adjust the volume
level using the volume
increase and decrease
buttons on the console or the volume control on your
personal audio player.
HOW TO CONNECT AN HDMI CABLE
To show your con-
sole screen on a
TV or monitor, plug
an HDMI cable (not
included) into the
port (D) on the con-
sole and into a port
on your TV or moni-
tor; make sure that
the HDMI cable is
fully plugged in.
Note: To purchase an HDMI cable, see your local
electronics store.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. The optional chest heart rate monitor will
enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all Bluetooth
Smart heart rate monitors.
D
28
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.
IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console
must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or
transmitter.
Note: The console contains FCC ID: SMFOMC360526A.
29
HOW TO MAINTAIN THE EXERCISE BIKE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the exercise bike is used.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in and that the power
switch is in the reset position. If there are exterior wires
on the console, make sure that the connectors on the
wires are oriented correctly and are connected firmly.
If you are having problems connecting the console
to a wireless network or if you are having problems
with your iFit account or iFit workouts, go to
support.iFit.com.
If the console does not boot up properly, or if the con-
sole freezes and does not respond, reset the console
to the factory default settings. IMPORTANT: Doing
this will erase all custom settings you have made
to the console. Resetting the console requires two
people. First, press the power switch and unplug the
power cord. Next, locate the small reset opening (A)
on the back or the side of
the console. Using a bent
paper clip, press and hold
the reset button inside the
opening, and have a second
person plug in the power
cord and press the power switch. Continue holding the
reset button until the console turns on. When the reset
operation is complete, the console will turn off and then
turn back on. If it does not, press the power switch off
and then on again. Once the console turns on, check
for rmware updates (see step 6 on page 25). Note:
It may take a few minutes for the console to be ready
for use.
TABLET HOLDER TROUBLESHOOTING
If the tablet holder does
not stay in place, rotate
the tablet holder backward
and tighten the Screw (B)
until the tablet holder stays
in place when it is rotated
to the desired position.
INCLINE SYSTEM TROUBLESHOOTING
If the frame does not move to the correct incline level,
see HOW TO CHANGE CONSOLE SETTINGS on
page 25 and calibrate the incline system.
B
MAINTENANCE AND TROUBLESHOOTING
A
30
HOW TO ADJUST THE REED SWITCH
If the console does not display accurate feedback, the
reed switch should be adjusted. Before you adjust the
reed switch, unplug the power cord.
Next, insert a standard screwdriver under the left
Shield Disc (18) in the location shown by the arrow,
and gently pry the Shield Disc off the Left Shield (11).
Then, carefully move the Shield Disc over the Left
Crank Arm (63) and away from the opening in the Left
Shield.
See the inset drawing above. Locate the Reed
Switch (35). Turn the Left Crank Arm (63) until a
Magnet (55) is aligned with the Reed Switch. Next,
loosen the M5 x 16mm Screw (76), slide the Reed
Switch slightly closer to or away from the Magnet, and
then retighten the Screw.
Then, plug in the power cord, and move the Left
Crank Arm (63) back and forth so that the Magnet (55)
passes the Reed Switch (35) repeatedly.
Repeat these actions until the console displays correct
feedback. Then, reattach the left shield disc.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, the drive belt
may need to be adjusted. Before you adjust the drive
belt, unplug the power cord.
Next, insert a standard screwdriver under the Right
Shield Ring (19) in the location shown by the arrow,
and gently pry the Right Shield Ring off the Right
Shield (12).
See the inset drawing. Tighten the Idler Adjustment
Screw (39) slightly.
Then, plug in the power cord, and pedal the exercise
bike for a moment.
Repeat these actions until the pedals no longer slip.
Then, reattach the right shield ring.
55
35
63
76
18
63
11
19
39
12
31
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training zone. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, exercise for at least
four minutes. Then, stop
exercising and place
two fingers on your
wrist as shown. Take a
six-second heartbeat
count, and multiply the
result by 10 to find your heart rate. For example, if your
six-second heartbeat count is 14, your heart rate is 140
beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
EXERCISE GUIDELINES
32
Key No. Qty. Description Key No. Qty. Description
1 1 Base
2 1 Frame
3 1 Seat Post
4 1 Seat Carriage
5 1 Seat
6 1 Handlebar Post
7 1 Handlebar
8 1 Water Bottle Holder
9 1 Console
10 1 Tablet Holder
11 1 Left Shield
12 1 Right Shield
13 2 Access Cover
14 1 Right Mechanism Shield
15 2 Hand Weight
16 1 Right Motor Cover
17 1 Left Motor Cover
18 2 Shield Disc
19 1 Right Shield Ring
20 1 Right Pivot Cover
21 2 Pivot Cap
22 1 Front Stabilizer
23 1 Rear Stabilizer
24 4 Stabilizer Cap
25 2 Leveling Foot
26 2 Foot
27 2 Wheel
28 2 Seat Carriage Cap
29 1 Seat Knob
30 1 Lift Motor
31 1 Resistance Motor
32 1 Wire Cover
33 1 Console Bracket
34 17 M4 x 16mm Screw
35 1 Reed Switch/Wire
36 1 Clamp
37 1 Idler Pulley
38 4 M4 x 25mm Screw
39 1 Idler Adjustment Screw
40 1 Eddy Mechanism
41 2 Mechanism Ring
42 2 Post Bushing
43 1 Left Mechanism Shield
44 1 Left Shield Ring
45 4 M8 Split Washer
46 1 Left Pivot Cover
47 2 Post Knob
48 1 Power Switch
49 1 Grommet
50 1 Control Board
51 1 Board Bracket
52 4 Standoff
53 1 Crank Pulley
54 1 Crank
55 2 Magnet
56 4 M8 x 16mm Screw
57 2 Bearing
58 2 Snap Ring
59 2 Frame Bushing
60 1 Pivot Axle
61 1 Left Pedal
62 1 Right Pedal
63 1 Left Crank Arm
64 1 Right Crank Arm
65 2 Crank Arm Cap
66 1 Drive Belt
67 1 Power Cord
68 1 Main Wire
69 1 Left Armrest
70 1 Left Grip/Wire
71 1 M6 Locknut
72 1 Right Armrest
73 2 M8 x 90mm Screw
74 4 M10 x 58mm Screw
75 2 M8 x 50mm Bolt
76 1 M5 x 16mm Screw
77 1 M10 x 62mm Bolt
78 2 5/16" x 19mm Flange Screw
79 4 M8 x 12mm Screw
80 7 M8 Locknut
81 1 Right Grip/Wire
82 4 Tablet Holder Screw
83 1 Hand Weight Rest
84 4 Wheel Spacer
85 1 M8 Washer
86 2 #8 x 8mm Screw
87 2 Large Motor Bushing
88 4 M4 x 50mm Screw
89 2 M4 x 19mm Screw
90 1 M6 x 41mm Screw
91 2 M4 x 8mm Screw
92 12 M4 x 10mm Screw
93 1 M4 x 12mm Screw
94 4 M4 x 38mm Screw
95 1 Handlebar Knob
96 4 M4 x 12mm Flange Screw
97 1 Brake Pad/Locks
98 2 Small Motor Bushing
99 1 Handlebar Carriage
100 1 M10 Locknut
PART LIST
Model No. NTEX70417.2 R0220A
33
Key No. Qty. Description Key No. Qty. Description
101 4 M4 x 10mm Flange Screw
102 1 Handlebar Carriage Cap
103 4 M6 x 20mm Screw
104 2 38mm Washer
105 2 M4 x 16mm Flange Screw
106 6 #8 x 16mm Screw
107 3 M6 x 16mm Screw
108 1 M4 x 45mm Screw
109 2 M8 x 3mm Washer
110 1 M4 x 12mm Ground Screw
111 1 Ground Wire
112 1 Resistance Cable
* – Assembly Tool
* – User’s Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
34
67
66
24
50
52
34
89
51
25
23
21
26
75
60
73
24
20
84
27
84
1
22
36
35
74
27
71
80
34
39
112
59
59
2
80
80
37
38
38
38
38
58
34
49
48
57
100
104
104
105
77
21
46
98
96
31
17
16
30
87
85
40
92
92
92
92
92
92
41
106
106
14
43
41
68
74
74
76
90
80
109
47
47
58
45
79
53
54
55
55
57
85
EXPLODED DRAWING A
Model No. NTEX70417.2 R0220A
35
42
6
91
42
3
29
86
88
88
13
64
62
12
65
78
19
18
28
93
34
4
5
28
56
8
7
81
34
70
69
72
94
101
92
103
107
107
15
15
83
11
13
63
78
65
44
18
34
34
88
88
108
86
102
34
34
99
97
82
32
10
9
95
33
110
111
61
EXPLODED DRAWING B
Model No. NTEX70417.2 R0220A
