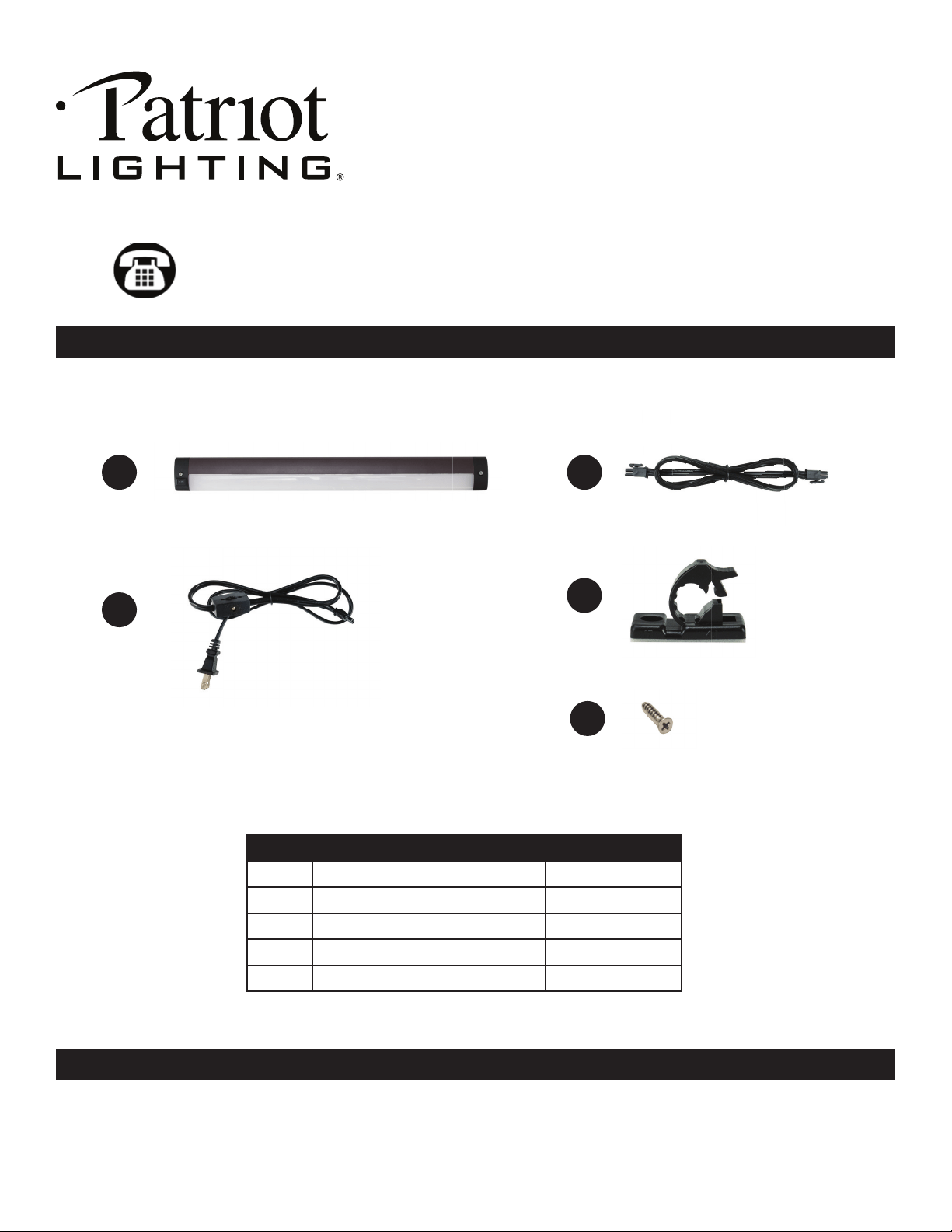

PACKAGE CONTENTS
Note: Hardware not shown to actual size.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at
1-800-285-8051 Monday – Friday 8:00 a.m. – 5:00 p.m. CST
A
B
C
PART DESCRIPTION QUANTITY
A LED Under Cabinet Light 1
B 4 ft power cord 1
C 12 in. linking cable 1
D Cord clip 3
E Captive mounting screw 2
D
Patriot Lighting® is a registered trademark
of Menard, Inc. All Rights Reserved.
LED UNDER CABINET LIGHT
Sku Numbers: 346-0701 and 346-0700
Model Numbers: 0025-0022 and 0025-0021
E
Before beginning assembly, installation, or operation of product, make sure all parts are present. Compare
parts with package and hardware contents list on page 1. If any part is missing or damaged, do not attempt to
assemble, install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Philips screwdriver or screwgun with Philips bit, measuring tape
and safety glasses. Estimated assembly time: 10 minutes
SAFETY INFORMATION
PREPARATION
WARNING: These products may represent a possible shock or re hazard if improperly installed or attached
in any way. Products should be installed in accordance with these instructions, current electrical codes, and/
or the current National Electric Code (NEC). Disconnect power to the unit prior to installation.
WARNING: To reduce risk of re, electric shock, or injury to persons,
• Always be sure that power supply is turned off at fuse box or circuit breaker before installing, cleaning, or
servicing the xture.
• Do not turn on xture with missing or damaged lens.
• There are no serviceable parts inside the xture.
• If attached to a movable cabinet, route and secure cords so that they will not be pinched or damaged
when the cabinet is pushed to the wall.
• Not intended for recessed installations in ceilings or softs.
• Suitable for indoor dry locations only.
• Not intended for surface installation inside built-in furnishings such as kitchen cabinets, china cabinets, or
trophy cases.
• The National Electric Code (NEC) does not permit cords to be concealed where damage to the cord’s
insulation may go unnoticed. To prevent re damage, do not run cord behind walls, ceilings, softs, or
cabinets where it may be inaccessible for examination. Cords should be visually examined periodically
and immediately replace when any damage is noted.
• Do not alter cords in any manner.
• Do not touch hot lens.
• Keep xtures away from curtains and other combustible materials.
WARNING: Injury to persons and damage to the xture and/or mounting surface may result if the xture
is pulled from the surface. To reduce the likelihood of such injury or damage, mount to a surface that is
mechanically sound. The mounting surface must be at least 1/2 inch thick.
SAVE THESE INSTRUCTIONS.
For safest operation, read and become familiar with complete installation
instructions prior to use. Pay close attention to this manual and stay within its guidelines when using this product.
CAUTION:
• If you have any doubts about how to install this lighting xture, or if the xture fails to operate completely,
contact a qualied licensed electrical contractor.
• All parts must be used as indicated in this manual. Do not substitute any parts, leave parts out, or use
parts that are worn out or broken. Failure to obey this instruction could invalidate the ETL certication.
• This xture has a polarized plug (one blade is wider than the other) as a safety feature. This plug can be
used in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still
does not t, contact a qualited electrician. Never use with an extension cord unless the plug can be fully
instered. Do not alter the plug.
• Not for use in dimming circuits.
• Use only the plastic clips provided to secure the cords.
• Not for use with plastic furniture.
• Do not mount over a sink or stove.
• LEDs emit bright light. Avoid looking directly at the light source.
• These models (Patriot Lighting
®
346-0701 and 346-0700) are compatible only with each other.
• The maximum number of xtures per run cannot exceed any the following: 12 of the 18 inch xtures
(Patriot Lighting
®
346-0701); 8 of the 24 inch xtures (Patriot Lighting
®
346-0700); nor the combined
xture wattage of 120W where 346-0701 = 9 watts and 346-0700 = 15 watts.
2

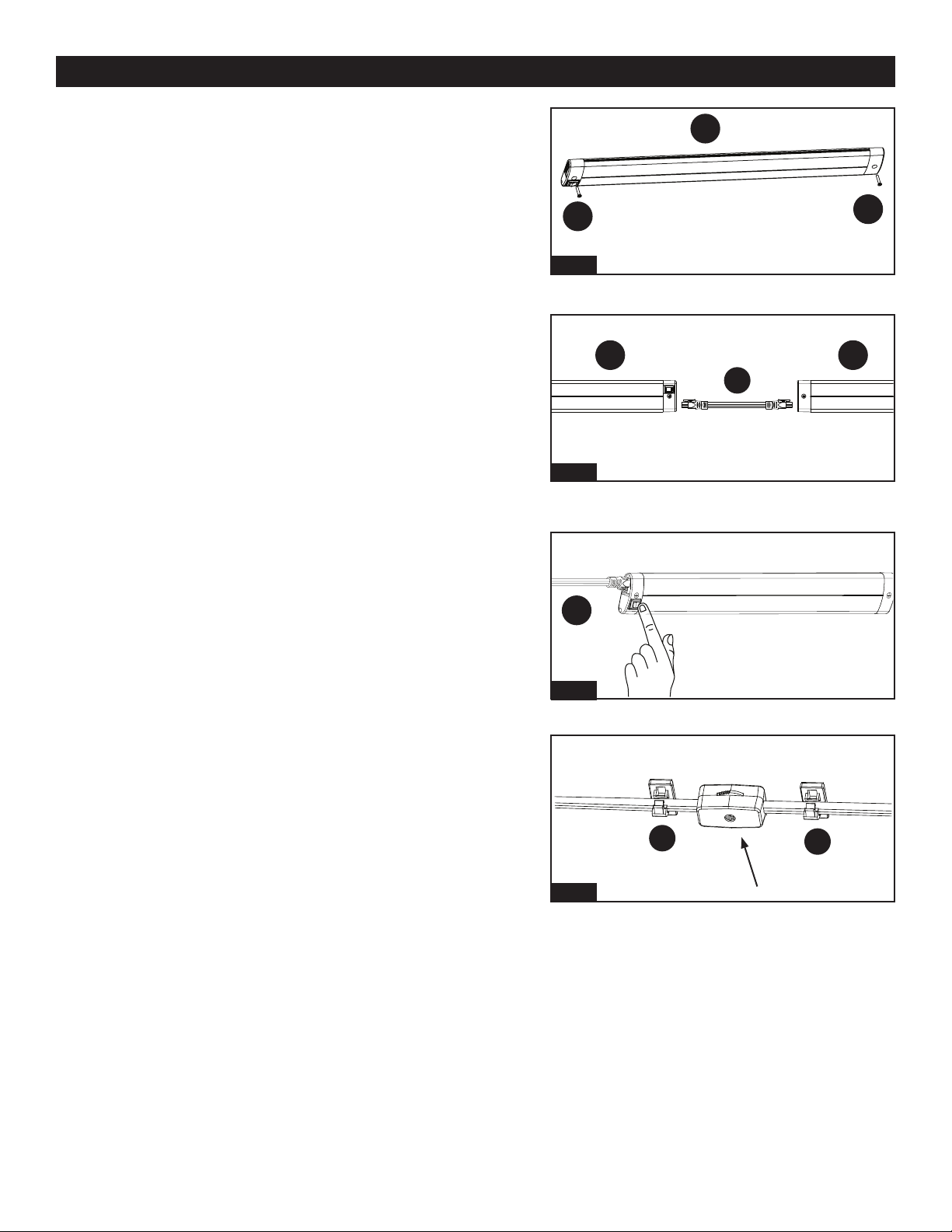

INSTALLATION INSTRUCTIONS
3
3. Attach the power cord (B) to the end of the xture that
is closest to the receptacle to be used. Plug other end
of power cord into receptacle.
Use rocker switch on the xture for high/low control.
4. Peel backing off cord clips (D) and afx to desired
locations to help keep cords out of sight.
Use roll switch on the power cord for on/off control.
Fig. 3
Fig. 4
1. Determine the desired location, keeping in mind the
distance to the nearest receptacle. When determining
placement, note that the power cord can be attached
to either end of the xture. Use a Philips screwdriver
(or screwgun with a Philips bit) to secure xture (A) to
mounting surface using the captive mounting screws
(E) included. Mounting surface must be at least 1/2 in.
thick. For installation of a single xture, skip to step 3.
2. Repeat step 1 for all xtures to be linked to one
power cord. Be sure to locate xtures (A) such that
the linking cable (C) can reach the power ports on the
ends of the xtures and make a secure connection.
Leave a minimum of 2-1/2 in. clearance between
xtures for linking.
Fig. 1
Fig. 2
A
A A
E
E
C
D
D
B
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at
1-800-285-8051 Monday – Friday 8:00 a.m. – 5:00 p.m. CST
4
If, during normal use, this PATRIOT LIGHTING
®
lighting xture breaks or fails due to a defect in material
and workmanship within ve (5) years from the date of original purchase, simply bring this lighting xture
with your original sales receipt back to your nearest MENARDS
®
retail store. At its discretion, PATRIOT
LIGHTING
®
agrees to have the product or any defective part(s) repaired or replaced with the same or similar
PATRIOT LIGHTING
®
product free of charge, within the stated warranty period, when returned by the original
purchaser with original sales receipt. This warranty; (1) excludes expendable parts including but not limited
to light bulbs; (2) does not cover damage that has resulted from abuse or misuse; and (3) does not cover any
losses, labor, injuries to persons/property or costs. This warranty does give you specic legal rights and you
may have other rights, which vary from state to state.
FIVE-YEAR LIMITED WARRANTY
• Use only a mild soap and/or water with a soft cloth to clean the xture. Harsh chemicals will damage the
xture. Do not wipe the xture with a rough cloth that may scratch the nish or the lens.
CARE AND MAINTENANCE
1) The light does not come on at all:
a) Advance roll switch on power cord one time to turn on xture.
b) If outlet is on a switched circuit, make sure the wall switch and circuit breaker are on.
If neither a) nor b) xes this issue, please consult a certied electrician.
TROUBLESHOOTING
