G
01
02
BLUETTI
03
Just Power On
5.IN THE BOX
Standard Accessories
No. Category Quantity
1
1
2
1
3
1
4
B300 Portable Power Station
User Manual
Please read the manual before use and follow its
guidance, keep this manual for future reference.
1
5
Warranty Card
Please keep this Warranty Card properly.
1
6
Certicate of QC PASS
1
B300 Portable Power Station
Connect B300 to the battery port of AC300 or
AC200Max to extend the capacity
PV Input Cable
(MC4 - XT90) (10A, MAX 200W)
Charging B300 via solar panels with MC4 ports.
B30 0 Bat t ery M odule
Bat t ery Expansion Cable
04
BLUETTI

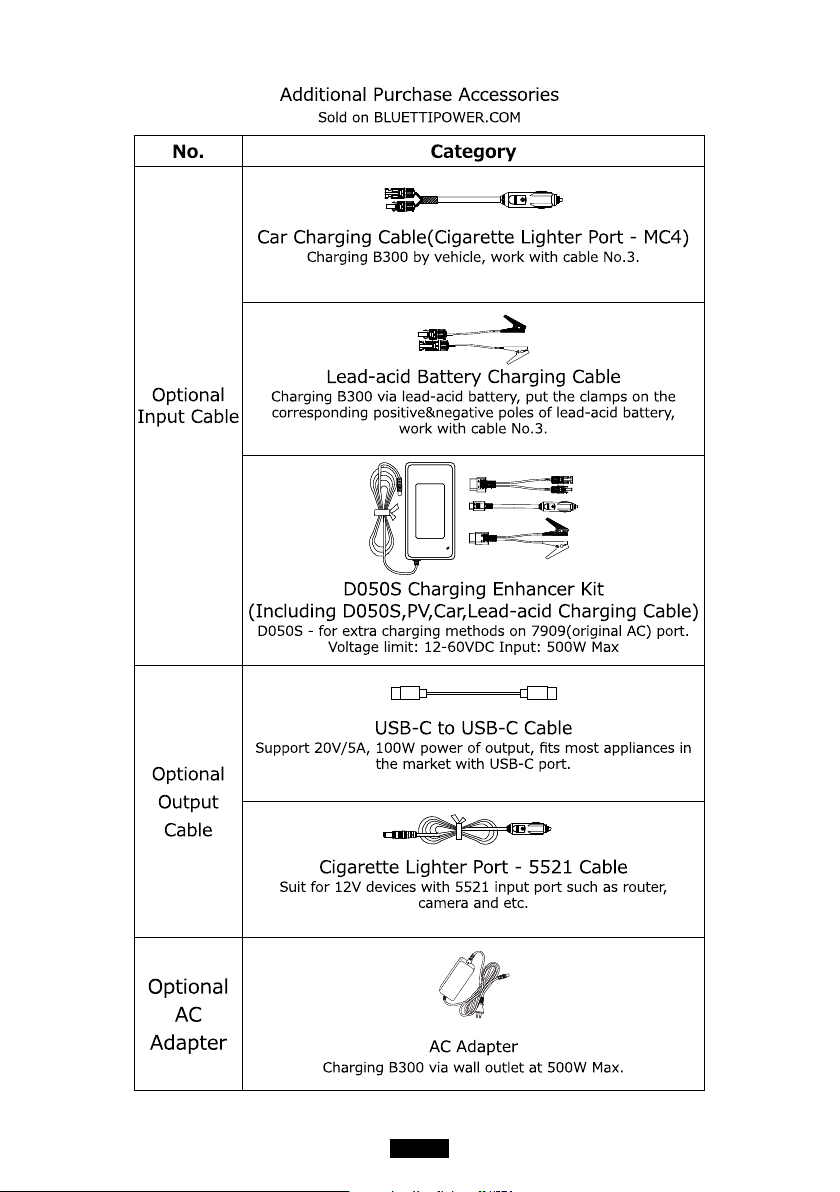

Additional Purchase Accessories
Sold on BLUETTIPOWER.COM
No. Category
Optional
Input Cable
Car Charging Cable(Cigarette Lighter Port - MC4)
Charging B300 by vehicle, work with cable No.3.
Lead-acid Battery Charging Cable
Charging B300 via lead-acid battery, put the clamps on the
corresponding positive&negative poles of lead-acid battery,
work with cable No.3.
D050S Charging Enhancer Kit
(Including D050S,PV,Car,Lead-acid Charging Cable)
D050S - for extra charging methods on 7909(original AC) port.
Voltage limit: 12-60VDC Input: 500W Max
Optional
Output
Cable
USB-C to USB-C Cable
Support 20V/5A, 100W power of output, ts most appliances in
the market with USB-C port.
Cigarette Lighter Port - 5521 Cable
Suit for 12V devices with 5521 input port such as router,
camera and etc.
Optional
AC
Adapter
AC Adapter
Charging B300 via wall outlet at 500W Max.
05
6
1
2
3
4
5
7
9
8
06
BLUETTI
07
08
BLUETTI
Button 01
Button 02
①
②
Barb down
Lock
①
②
Barb down
Lock
AC300 AC300
B300 B300
First Step
Second Step
Finish
Battery Expansion
09
10
BLUETTI
AC200MAX + B300 *2 = 8192Wh
11.TECHNICAL SPECIFICATIONS
General Specs
Model No. B300
Net Weight 36.1kg (79.6lbs)
Dimensions 520*320*266mm (20.5*12.5*10.5in)
Charge Temperature 0-40℃ (32-104 ℉ )
Discharge Temperature -20-40℃ (-4-104 ℉ )
Storage Temperature -20-40℃ (-4-104 ℉ )
Working Environment
Humidity
10-90%
Capacity 3072-12288Wh (60-240Ah)
Battery Type LiFePO4
11
Standard Battery Voltage 51.2VDC
DC Output
Cigarette Lighter Port *1 12VDC,10A
USB-A *1 3.6-12VDC, 3A,18W
USB-C PD3.0 supported
*1 5-15VDC,3A;
20VDC,5A,100W
AC Input
AC(through 7909 via
T500)
500W Max
Specs 58.8VDC, 8A
PV Input
MPPT(single) Voltage Limit 12-60VDC
Max. Power of Input 200W
Max Input Current 10A
Car Charging
Input Voltage 12/24VDC
Current 8.2A
Max Input Power 196.8W
Battery Port *2
Specs 58.8VDC, 80A
12. FAQ (Frequently Asked Questions)
● How to claim the warranty?
Please refer to the warranty card you received from where you have ordered
the product from.
● Can the unit be upgraded?
When B300 has been connected to AC300, the rmware including ARM, DSP,
IOT and BMS can be upgraded online through OTA via BLUETTI APP.
● Can it be charged and discharged at the same time?
Yes, the unit supports pass-through charging function for DC outputs.
12
BLUETTI
Ｇ
13
Company: POWEROAK GmbH
Address: Lindwurmstr. 114, 80337
München Germany
Mail: [email protected]
Company: POWEROAK ENERGY UK CO.,LTD
Address: Suite 108 Chase Business Center 39-41
Chase Side London United Kingdom N14 5BP
Mail:[email protected]
P/N:17.0303.0401-00A0
