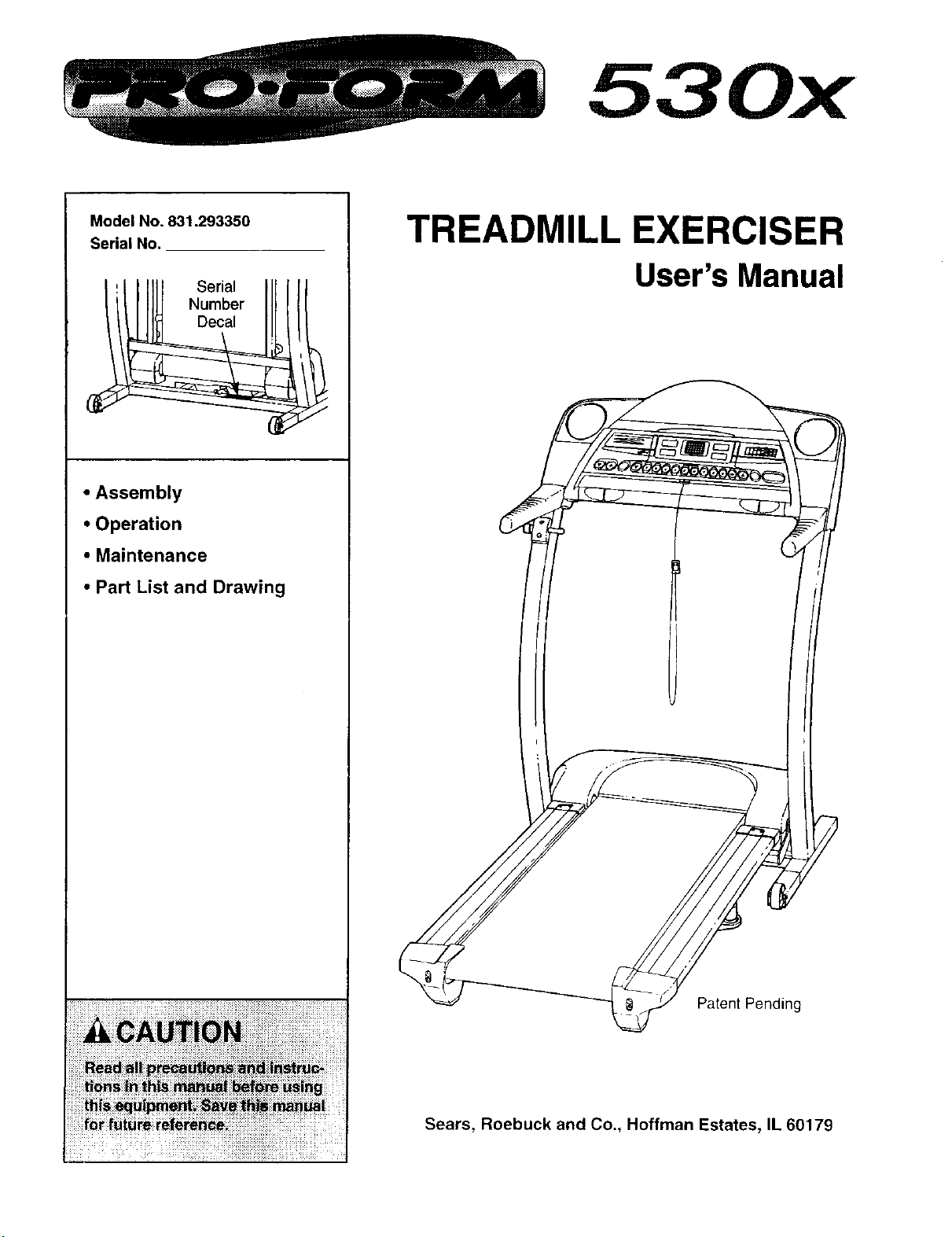

TREADMILL EXERCISER
User's Manual
Sears, Roebuck and Co., Hoffman Estates, IL 60179
530x

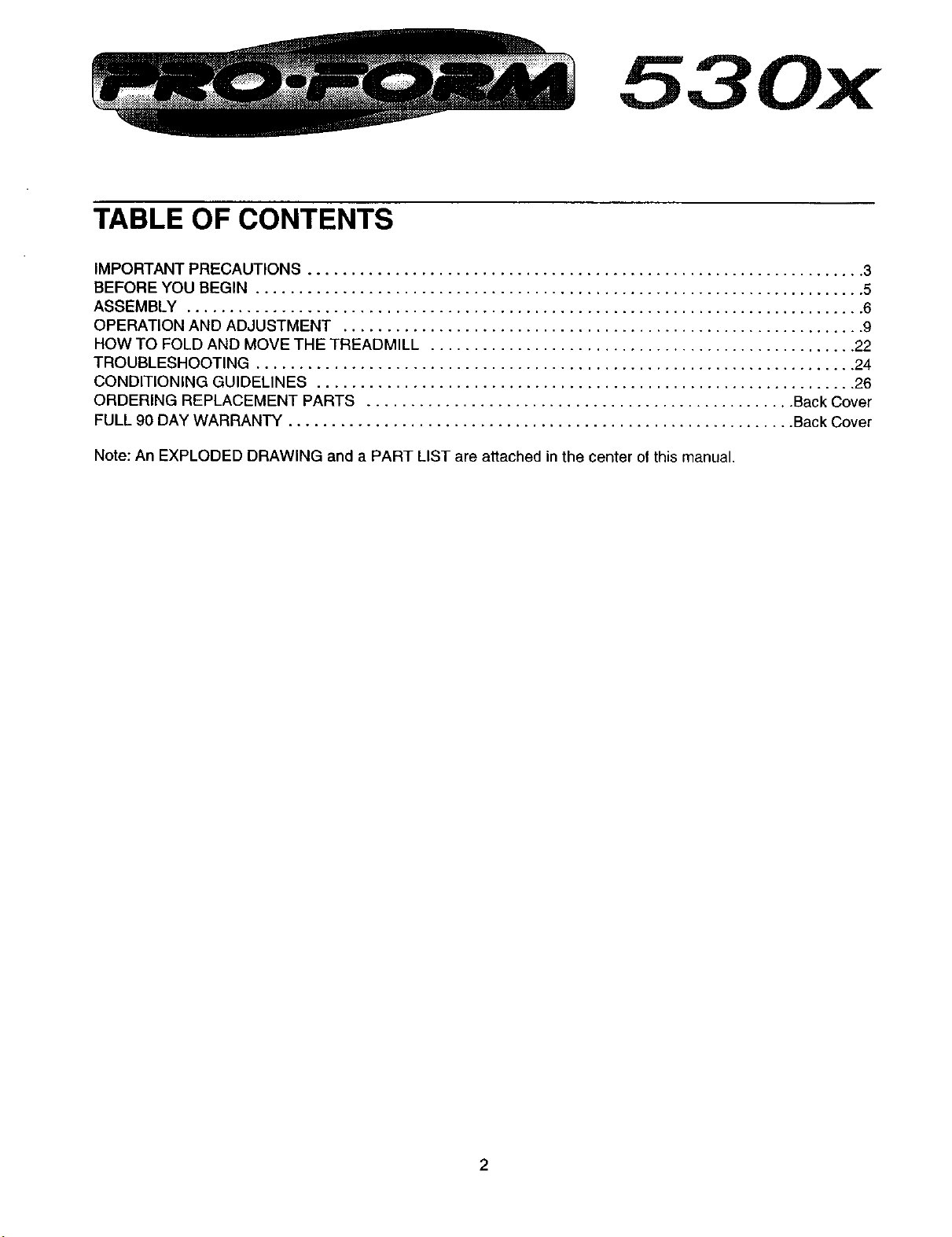

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................. 3
BEFORE YOU BEGIN ....................................................................... 5
ASSEMBLY ............................................................................... 6
OPERATION AND ADJUSTMENT ............................................................. 9
HOW TO FOLD AND MOVE THE TREADMILL .................................................. 22

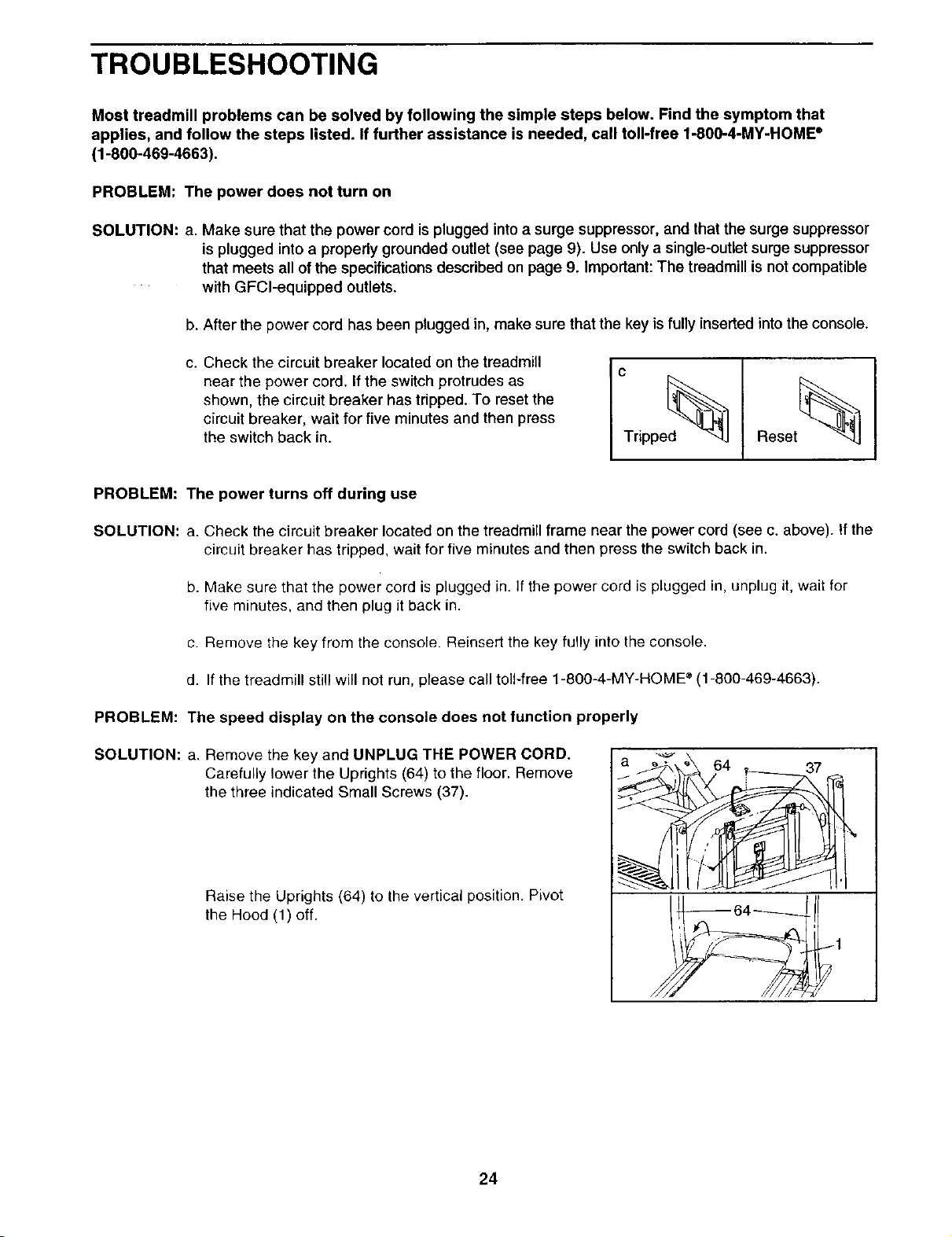

TROUBLESHOOTING ...................................................................... 24
CONDITIONING GUIDELINES ............................................................... 26
ORDERING REPLACEMENT PARTS .................................................. Back Cover

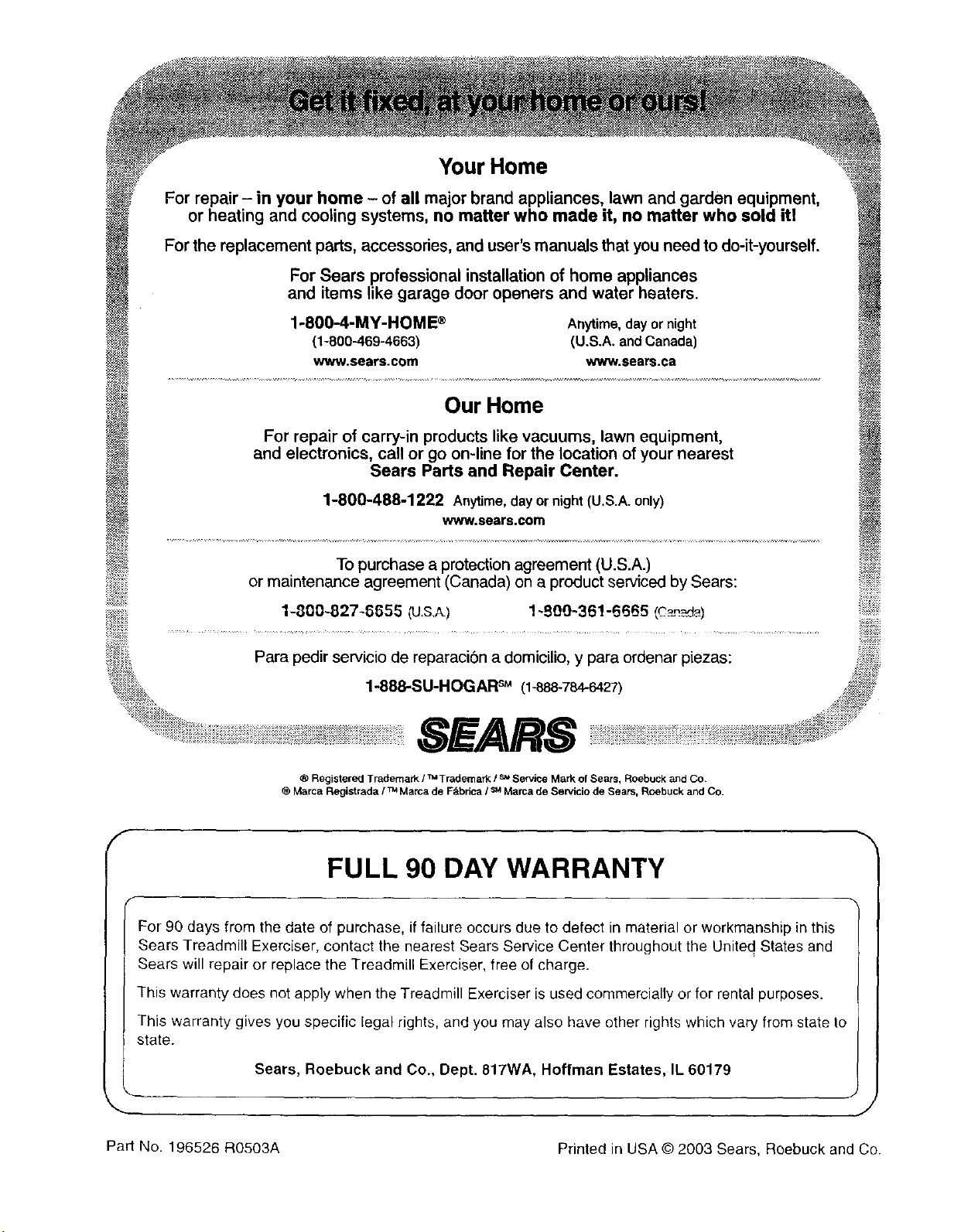

FULL 90 DAY WARRANTY ........................................................... Back Cover

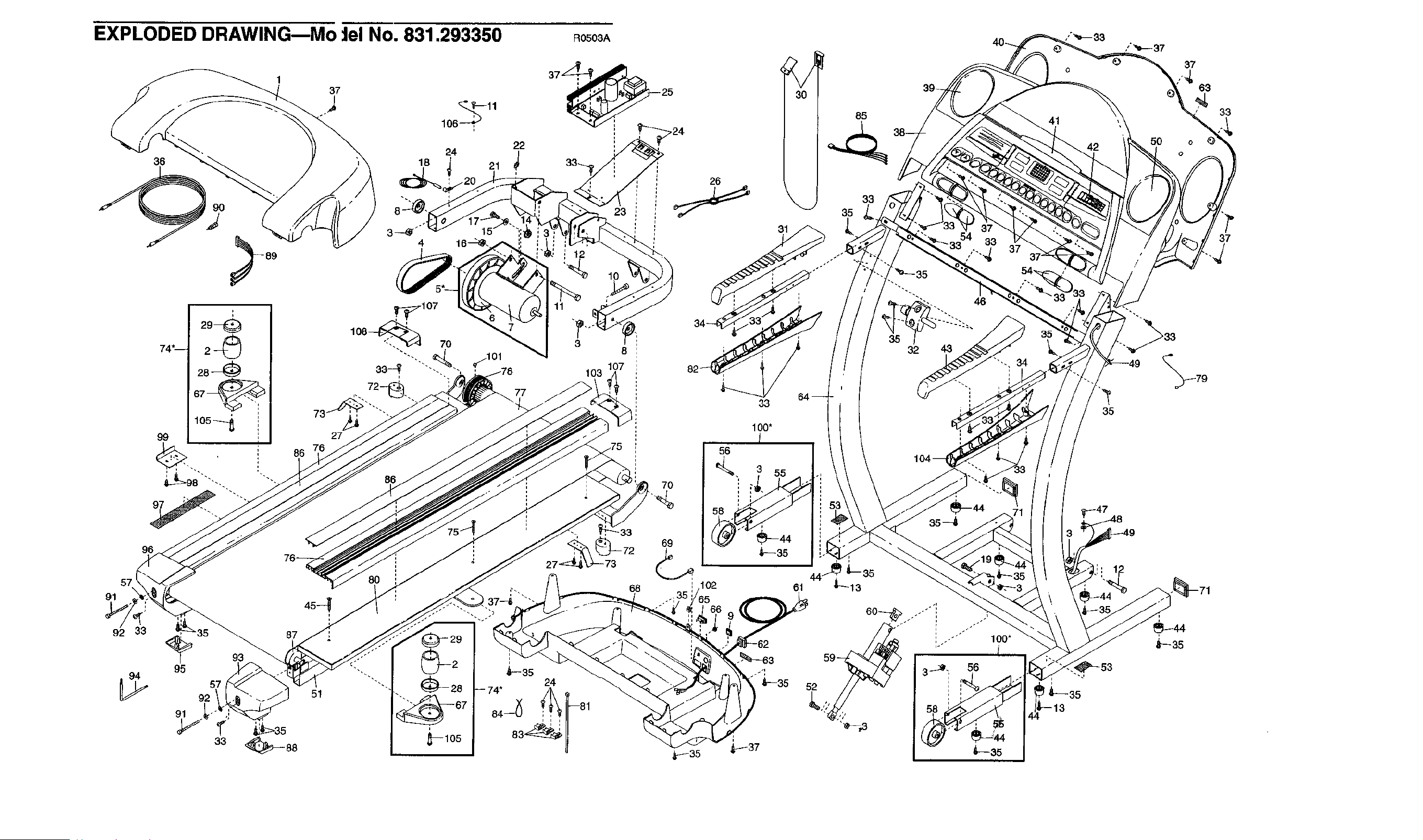

Note: An EXPLODED DRAWING and a PART LIST are attached in the center ofthis manual,
2

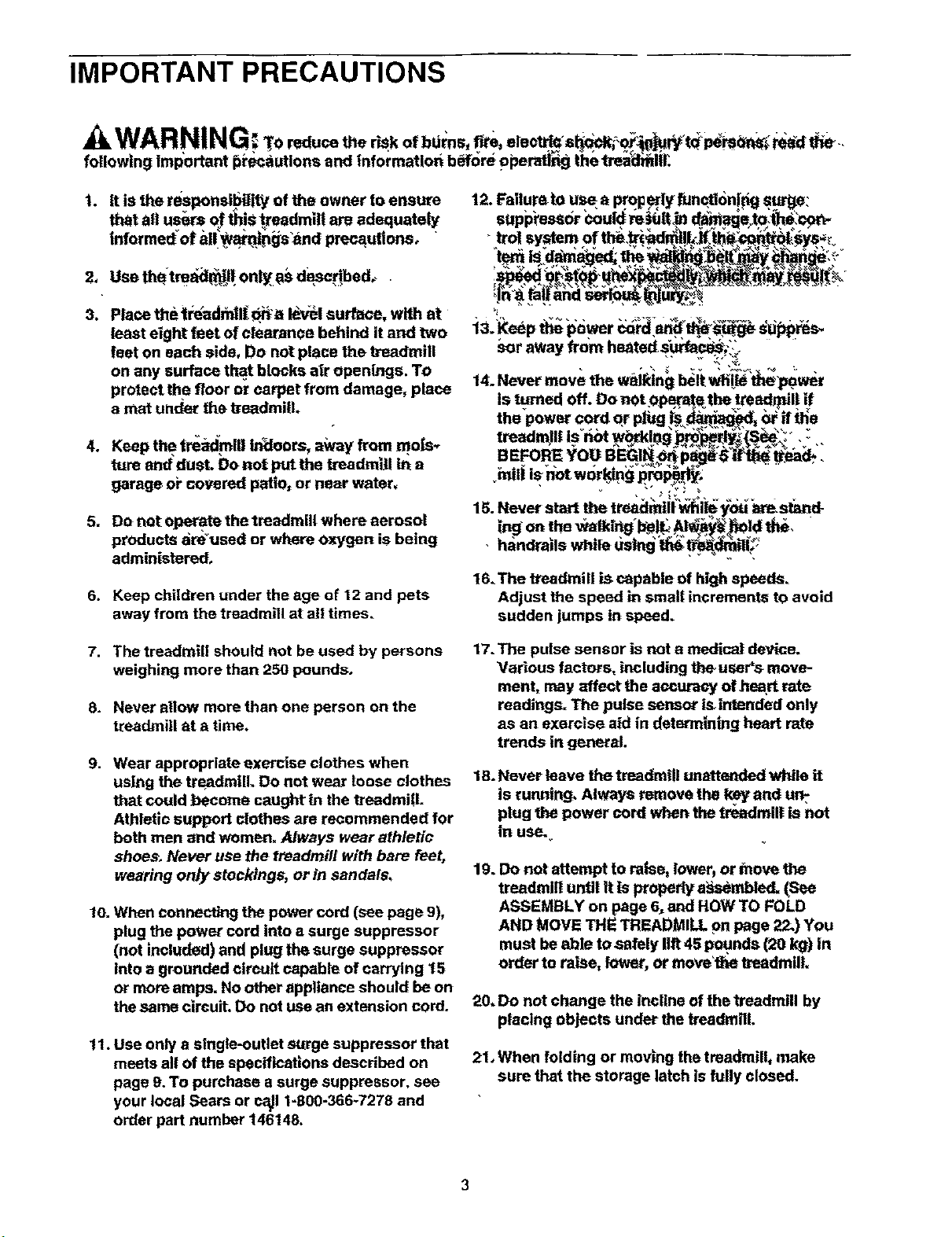

IMPORTANT PRECAUTIONS
following important precautions and information before pperat|r_g thefi'ea_lH_18_
1. it is the r_sponsil_i_ity of the owner to ensure
that all uses of this treadmill are adequately
informedof alllWa_..pgs'and preca,uttone, "
2, Usethe, trez_l[P_.',,ll:ont_,._d,escribed_ •
3. Pisemthe _t_adndl[, ",o_'alevel surface, with at
least eight feet of cisarance behind it and two
feet on each side, Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a met under the keadmilL
4. Keep the tre_d_mlll Ir_lo0rs, away from m,oJs.
lure and dust. Do not put the treadmill in a
garage oi" covered patio, or near water,
5. Do not ope ,r,at,e the treadmill where aerosol
products 6re'used or where oxygen is being
administered,
6. Keep children under the age of 12 and pets
away from the treadmill at all tirnes_
12. Failure to use, a pro[_erly run_on!_ surge:
s.ppi_esSdr Coul,_re_dt ._ ddhtage_oi{!7_'cgrv
zeroIs:dam_ the_:l_It_rd_v _.. n_e:_-v
"o!n_m!_an= senoF_"R_luP/3_
sol away from heate_.uda_.;::_.
is turned Off. Do _zOtOp._te the fre_d,q_ilt if
the_power cord or plug is _'_ _ if tl_e
e EFORE YOO BEGIN_ p_g_5 ,f"t_ t_P__a@.
Never
ugonthe "
• handrails white using'tfi_:_m_ _'I_:
16,The breadmill L9capable of high speeds,
Adjust the speed in smatt increments to avoid
sudden jumps in speed,
7. The treadmill should not be used by persons
weighing more than 250 pounds,
8. Never allow more than one person on the
treadmill st a time.
9. Wear appropriate exercise clothes when
using the treadmill Do not wear loose clothes
t_at could _ecome caught in the treadmil_L
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes, Never use the treadmill with bare feet,
wearing only stockings_ or in sandals,
10, When connectlmj the power cord (see page 9),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more stops. No other appliance should be on
the same circuiL Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 9. To purchase a surge suppressor, see
your local Sears or ca_lI-800-366-7278 and
order part number 146148.
17. The pulse sensor is not e medicat device.
Various factors, including _ user's move=
merit, may affect the acoura_ of heart _ate
readings. The pulse eensor is intended only
as an exercise aid in determining heart rote
trends in general.
1B. Never leave the treadmill unattended while it
is running, Always remove the key alld urP,
plug the power cord when the tr_admll_ is not
in use.
19. Do not attempt to raise=Iower_or move the
treadmill until it is properly a_semble_ (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVIE THE TREADMILL ,onpage 22.) You
must be able to safely lift 45 pounds (20 kg) in
order to raise, fowl, or move'the treadmill
20. Do not change the incline of the treadmill by
pisclng objects under the trcadmfll.
21, When folding or moving the treadmill, make
sure that the storage latch is fully closed.
3

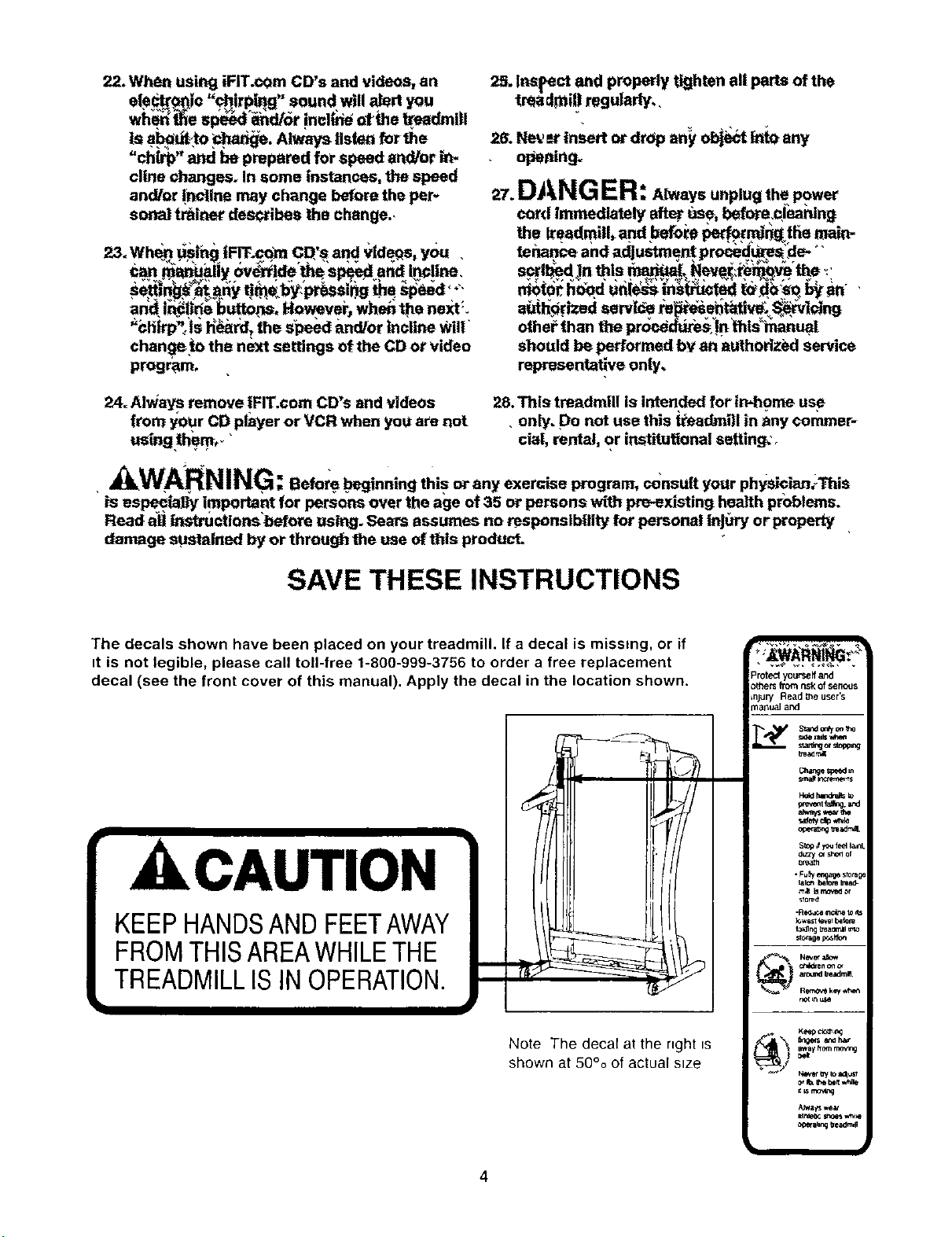

22. Wh_m usiP,g iFIT.com CD's and videos, an
e[.e_lLr_o_|o"€_.!rp'tqg" sound will alert you
wh_._ f_e sp_=d°_d/or !ncl_ ot_he k eadmlll
Is abodt.to _e. Always ilsf_ for the
"ch_p" _ fie prepared fol. speed and/or
cllne changes. In some instances, the speed
and/or Incline may change before the pep
sonar trbirmr descl_ibes the change.•
=an_ai|y ov+_Ide'th_,spe_.=nRi_l_•
an_i_l_'n_+6utto_n__weve_',whe_thenext:+
cfilrp ..is h_ard, the s_peedand/or incline Will
chan g_ _z>the ne_xtsettings of tile CD o_ video
program,
2& Inspect and properly tighten all parts of the
treadmiU regularly..
26. Ne_et insert or drOp an_ _ in{o any
opening_
2_.DANG ER: _w.s..plu_thepower
cord immediately after t_sp,10eros:oleaning
the Ireadmill. and heroinePe_._ .m]o_the I_
tehat?._;'eand adjustmey_t proced_._le- ""
s_lt_d _n this _ Nev_r'e '_ vsthe _,
ntotor, hoqd u_le_ mstftmted to_.d.olso.,by_ ,
a_tzed servide m_e_eot_tive-. _l_ng
other than t_e pr_.,dd_ir'es.'[n'tht_'htaaual.
should be performed by an suthorizbd service
representat!ve onbj.
24. AirWaysremove fFIT.som CD's and videos 28. This treadmill is inten.ded for in*home u.se
from your CD player or VCR wben you are not . only. Do not use this treadmi)l in any €ommeP
_,themo-" cial, rental, or institutional setting.'.
•_kWARNING: Beforebeginningthisoranyexerciseprogram,consUltyourphyS'_ian;This
_sespe_..ial_y imPorta.nt for persons over the age of 35 or pe_sons with pre-existing health problems.
Read all instructions before _mktg. Sears assumes no rCsponslbiUty for personal InJ_'_j or I_operty
damage sustalnnd by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on your treadmill. If a decal is missing, or if
it is not legible, please call toll-free 1-800-999-3756 to order a free replacement
decal (see the front cover of this manual). Apply the decal in the location shown•
, CAUTION
KEEPHANDSANDFEETAWAY
FROMTHISAREAWHILETHE
TREADMILLISINOPERATION.
Note The decal at the nght _s
shown at 50°o of actual size
_rotect yourself and
)t_ets ;Tom nsk of senc4Js
njury Read t_e user's
l_anual and
Keep c_r_,n_
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM ®
530x treadmill. The 530x treadmill combines advanced
technology with innovative design to help you get the
most from your exercise program in the convenience
and privacy of your home. And when you're not exer-
cising, the unique 530x can be folded up, requiring less
than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, call 1-800-4-MY-HOME ° (1-800-469-
4663).To help us assist you, please note the product
model number and serial number before calling. The
model number of the treadmill is 831.293350. The ser-
ial number can be found on a decal attached to the
treadmill (see the front cover of this manual for the lo-
cation).

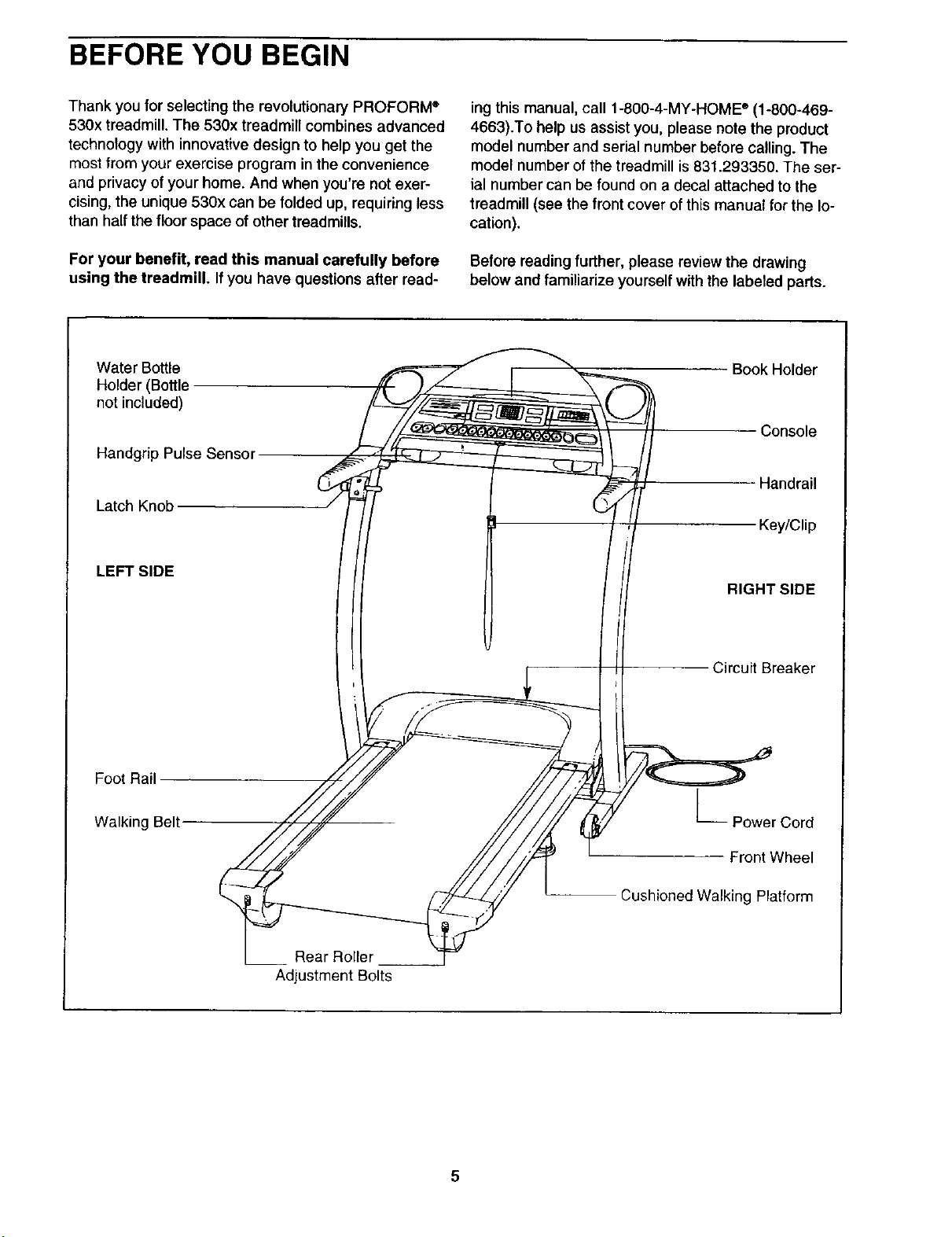

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Water Bottle
Holder (Bottle
not included)
Handgrip Pulse Sensor
Latch Knob
LEFT SIDE
Book Holder
Console
Handrail
Key/Clip
RIGHT SIDE
Foot Rail
Walking Belt
Circuit Breaker
_-- Power Cord
Front Wheel
Cushioned Walking Platform
Rear Roller y
Adjustment Bolts
5
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly iscompleted. Note: If a part needed for assembly is not in the
parts bag, first check to see if ithas been pre-assembled. If a part is missing, call toll-free 1-800-999-3756.
Assembly requires your own Phillips screwdriver (_ and rubber mallet c:::_.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant.During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

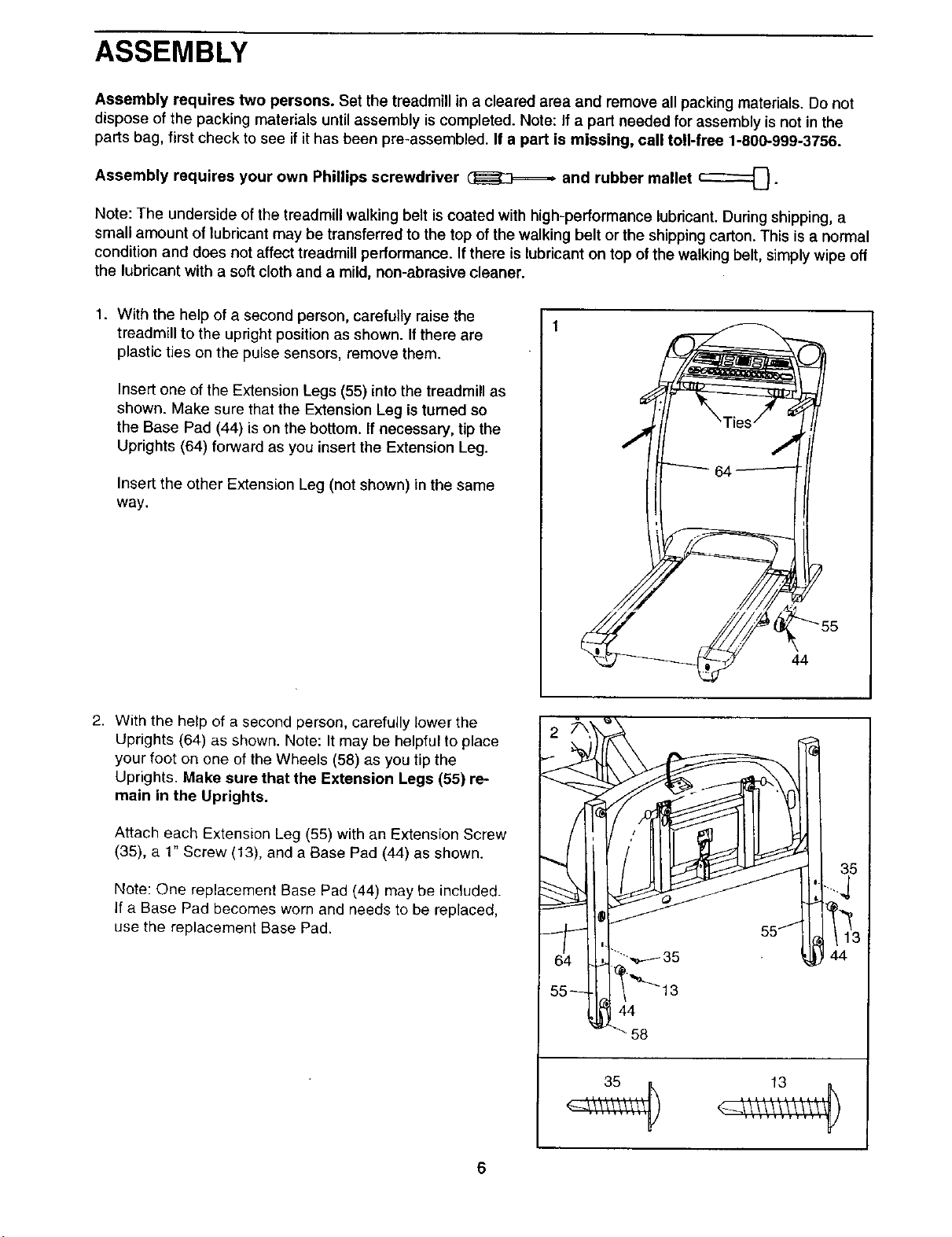

1. With the help of a second person, carefully raise the
treadmill to the upright position as shown. If there are
plastic ties on the pulse sensors, remove them.
Insert one of the Extension Legs (55) intothe treadmill as
shown. Make sure that the Extension Leg is turned so
the Base Pad (44) is on the bottom. If necessary, tip the
Uprights (64) forward as you insert the Extension Leg.
Insert the other Extension Leg (not shown) in the same
way.
44
2. With the help of a second person, carefully lower the
Uprights (64) as shown. Note: It may be helpful to place
your foot on one of the Wheels (58) as you tip the
Uprights. Make sure that the Extension Legs (55) re-
main in the Uprights.
Attach each Extension Leg (55) with an Extension Screw
(35), a 1" Screw (13), and a Base Pad (44) as shown.
Note: One replacement Base Pad (44) may be included.
if a Base Pad becomes worn and needs to be replaced,
use the replacement Base Pad.
6
2 A,

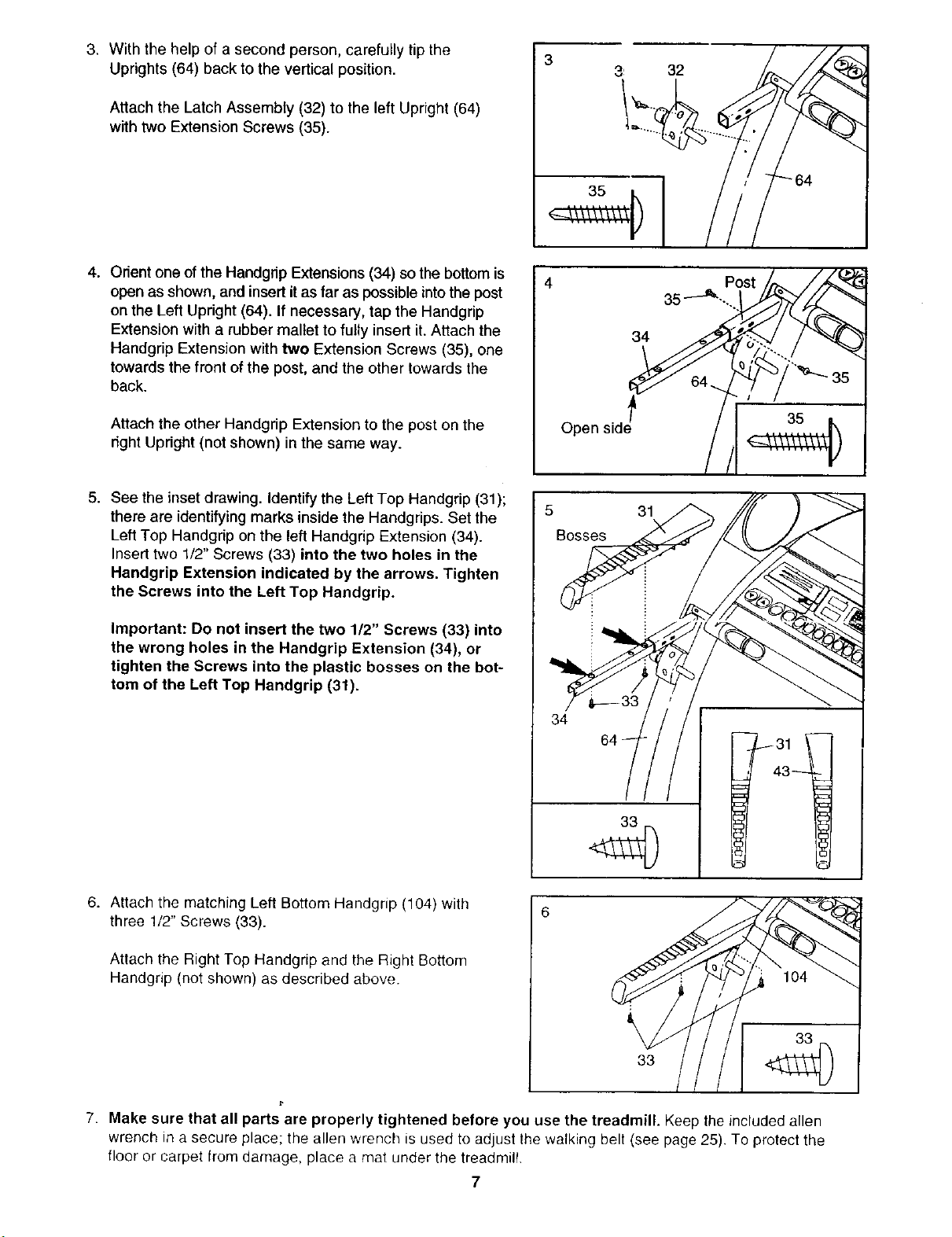

3. Withthehelpofasecondperson,carefullytipthe
Uprights(64)backtotheverticalposition.
AttachtheLatchAssembly(32)totheleftUpright(64)
withtwoExtensionScrews(35).
35
32
4. Orientone of the Handgrip Extensions (34) so the bottom is
open as shown, and insert it as far as possible into the post
on the Left Upright (64). If necessary, tap the Handgrip
Extension with a rubber mallet to fully insert it. Attach the
Handgrip Extension with two Extension Screws (35), one
towards the front of the post, and the other towards the
back.
Attach the other Handgrip Extension to the post on the
right Upright (not shown) in the same way.
Open side
5. See the inset drawing. Identify the Left Top Handgrip (31);
there are identifying marks inside the Handgrips. Set the
Left Top Handgrip on the left Handgrip Extension (34).
Insert two 1/2" Screws (33) into the two holes in the
Handgrip Extension indicated by the arrows. Tighten
the Screws into the Left Top Handgrip.
Important: Do not insert the two 112" Screws (33) into
the wrong holes in the Handgrip Extension (34), or
tighten the Screws into the plastic bosses on the bot-
tom of the Left Top Handgrip (31).
6. Attach the matching Left Bottom Handgrip (104) with
three 1/2" Screws (33).
Attach the Right Top Handgrip and the Right Bottom
Handgrip (not shown) as described above.
6
104
7. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place; the allen wrench is used to adjust the walking belt (see page 25). To protect the
floor or carpet from damage, place a mat under the treadmill

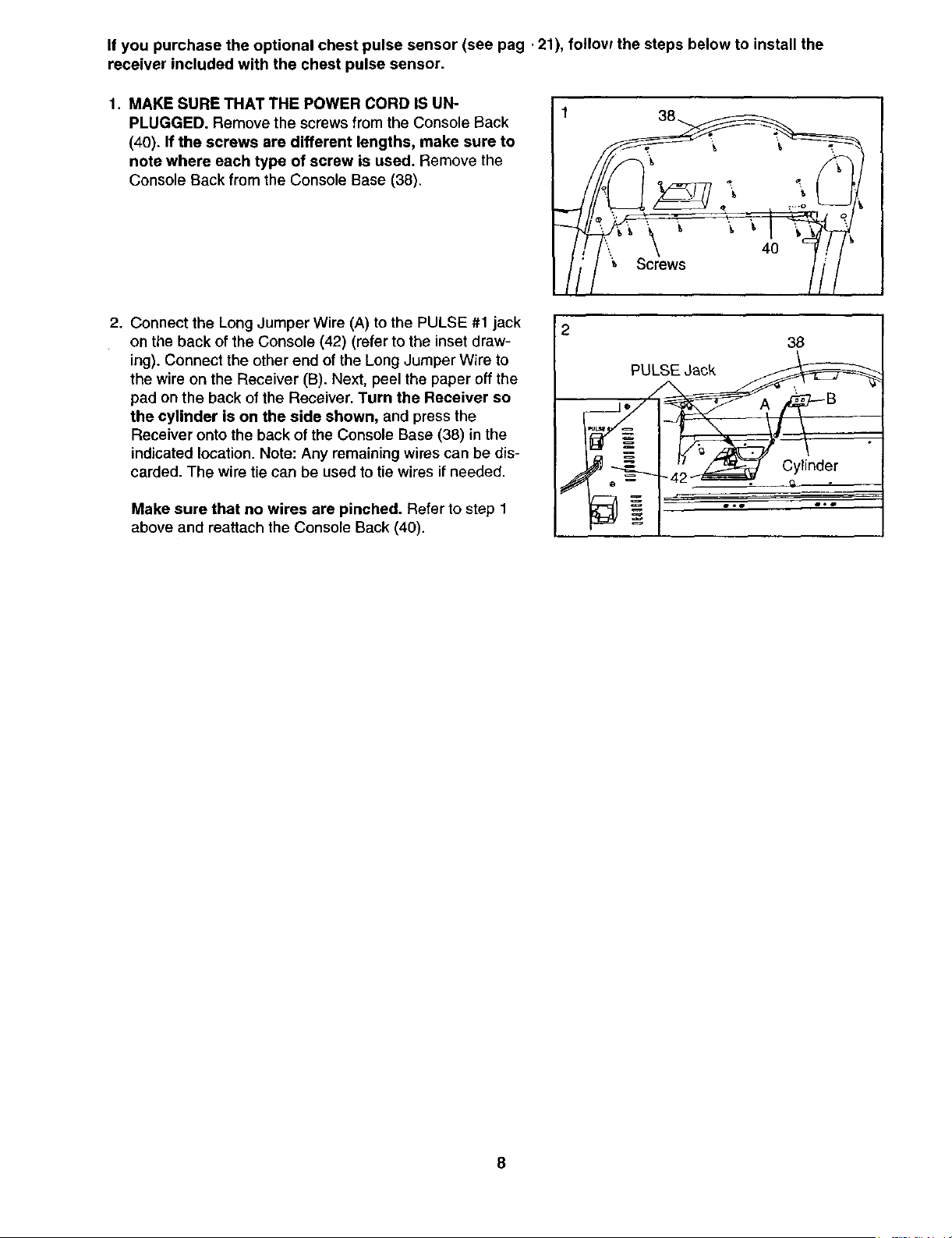

If you purchase the optional chest pulse sensor (see pag ,21), follow the steps below to install the
receiver included with the chest pulse sensor.
1. MAKE SURE THAT THE POWER CORD IS UN-
PLUGGED. Remove the screws from the Console Back
(40). If the screws are different lengths, make sure to
note where each type of screw is used. Remove the
Console Back from the Console Base (38).
Scows
1
2. Connect the Long Jumper Wire (A) to the PULSE #1 jack
on the back of the Console (42) (refer to the inset draw-
ing). Connect the other end of the Long Jumper Wire to
the wire on the Receiver (B). Next, peel the paper off the
pad on the back of the Receiver. Turn the Receiver so
the cylinder is on the side shown, and press the
Receiver onto the back of the Console Base (38) in the
indicated location. Note: Any remaining wires can be dis-
carded. The wire tie can be used totie wires if needed.
Make sure that no wires are pinched. Refer to step 1
above and reattach the Console Back (40).
2
38
......
8
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE TM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.

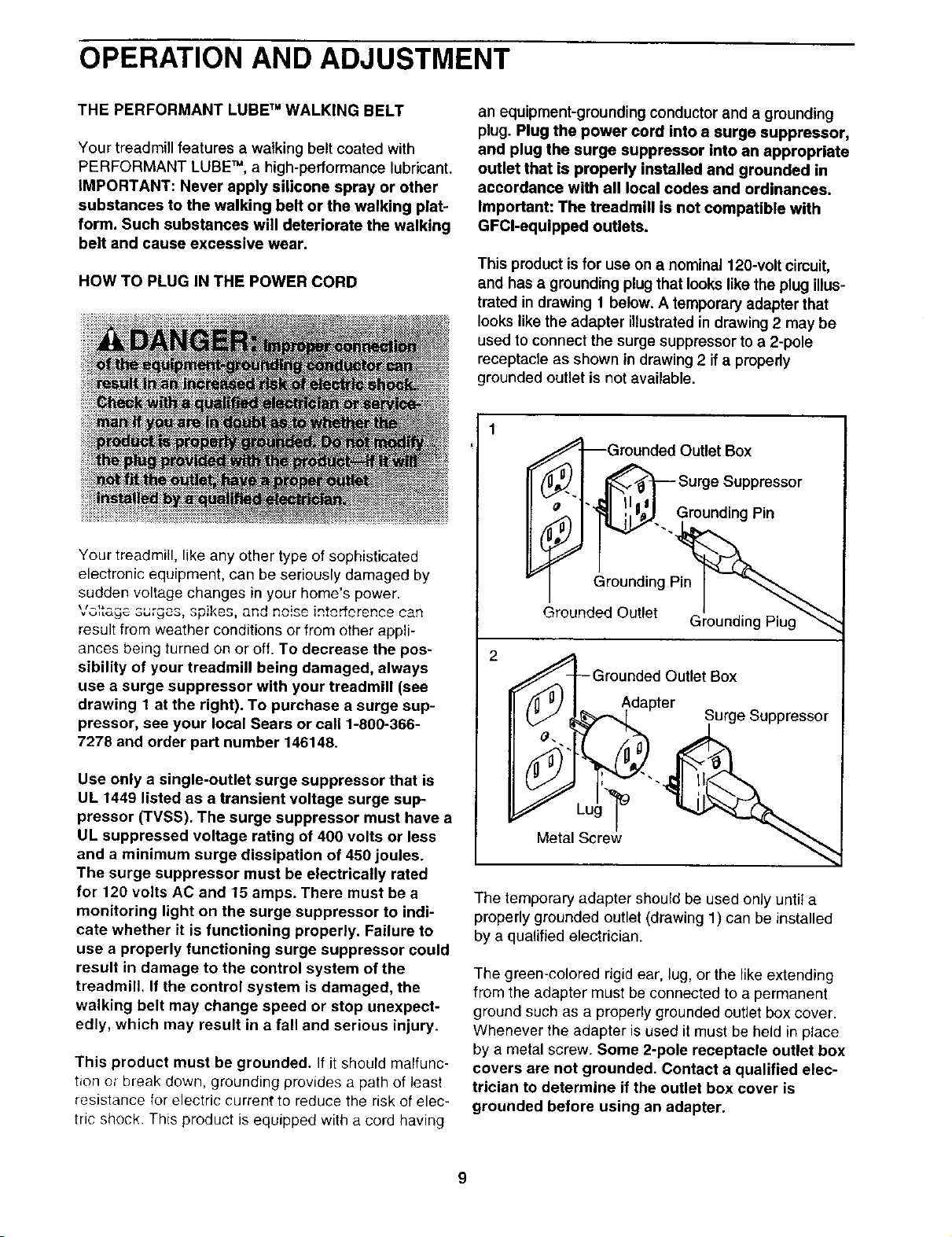

HOW TO PLUG IN THE POWER CORD
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCl-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a propedy
grounded outlet is not available.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
_,,_ o,.,_, oF,,.O._, Qn.. , _ iRt0rforence can
result from weather conditions or from other appli-
ances being turned on or off. To decrease the pos-
sibility of your treadmill being damaged, always
use a surge suppressor with your treadmill (see
drawing 1 at the right). To purchase a surge sup-
pressor, see your local Sears or call 1-809-366-
7278 and order part number 146148.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
-Grounded Outlet Box
_.J ,,_ Surge Suppressor
°_'_... Grounding Pin
Grounding Pin
Grounded Outlet
Grounding Piu,
Grounded Outlet Box
Adapter ^
("._" _r Surge _uppressor
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.

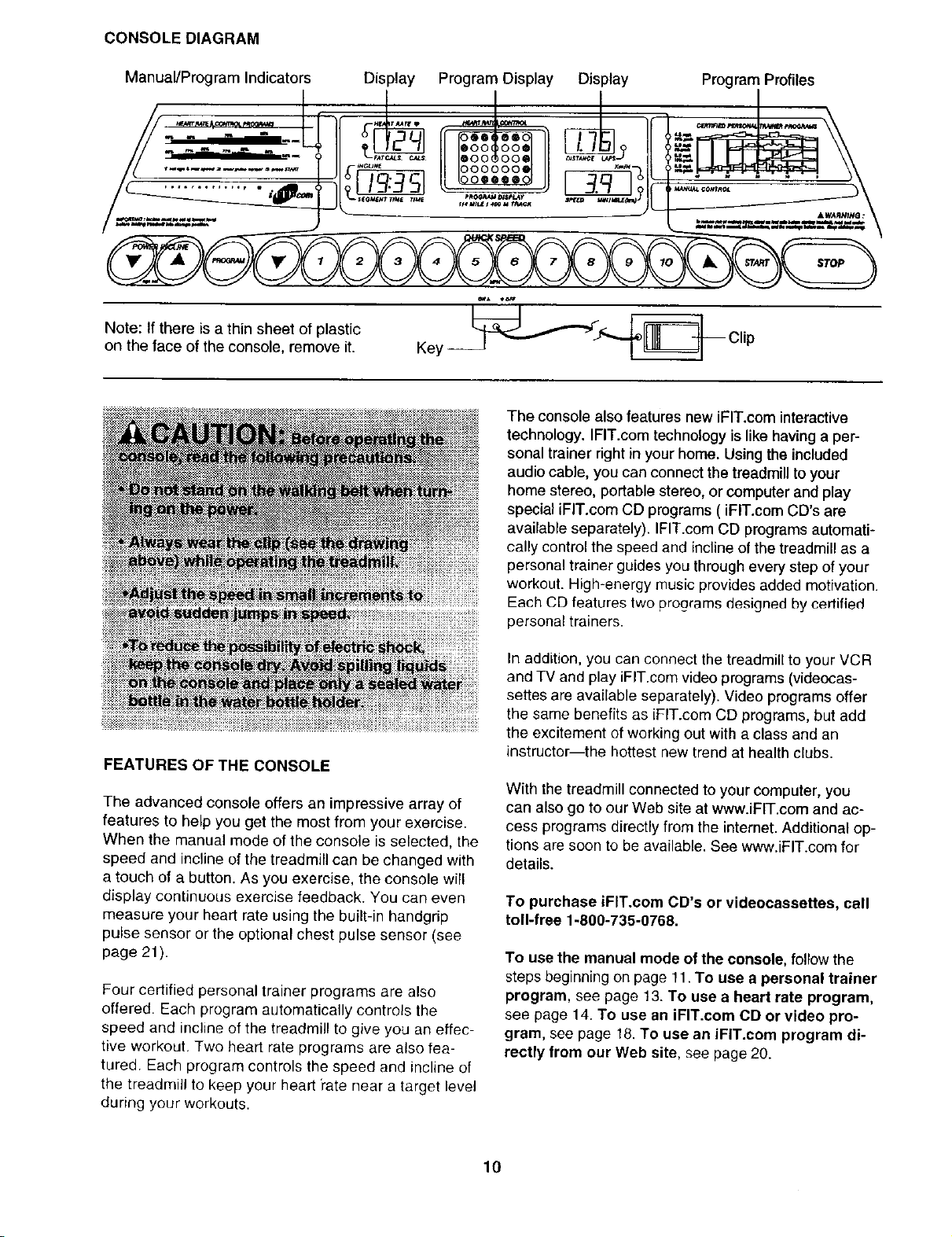

CONSOLE DIAGRAM
Manual/Program Indicators
Display Program Display Display
DO0
DOO
DO0000@
Program Profiles
Note: If there is a thin sheet of plastic
on the face of the console, remove it.
FEATURES OF THE CONSOLE
The advanced console offers an impressive array of
features to help you get the most from your exercise.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
a touch of a button. As you exercise, the console will
display continuous exercise feedback. You can even
measure your heart rate using the built-in handgrip
pulse sensor or the optional chest pulse sensor (see
page 21).
Four certified personal trainer programs are also
offered. Each program automatically controls the
speed and incline of the treadmill to give you an effec-
tive workout. Two heart rate programs are also fea-
tured. Each program controls the speed and incline of
the treadmill to keep your heart 'rate near a target level
during your workouts.
The console also features new iFIT.com interactive
technology. IFIT.com technology is like having a per-
sonal trainer right in your home. Using the included
audio cable, you can connect the treadmill to your
home stereo, portable stereo, or computer and play
special iFJT.com CD programs ( iFIT.com CD's are
available separately). IFIT.com CD programs automati-
cally control the speed and incline of the treadmill as a
personal trainer guides you through every step of your
workout. High-energy music provides added motivation.
Each CD features two programs designed by certified
personal trainers.
In addition, you can connect the treadmill to your VCR
and TV and play iFIT.com video programs (videocas-
settes are available separately). Video programs offer
the same benefits as iHT.com CD programs, but add
the excitement of working out with a class and an
instructor--the hottest new trend at health clubs.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and ac-
cess programs directly from the internet. Additional op-
tions are soon to be available. See www.iFIT.com for
details.
To purchase iFIT.com CD's or videocassettes, call
toll-free 1-800-735-0768.
To use the manual mode of the console, follow the
steps beginning on page 11. To use a personal trainer
program, see page 13. To use a heart rate program,
see page 14. To use an iFIT.com CD or video pro-
gram, see page 18.To use an iFIT.com program di-
rectly from our Web site, see page 20.
10

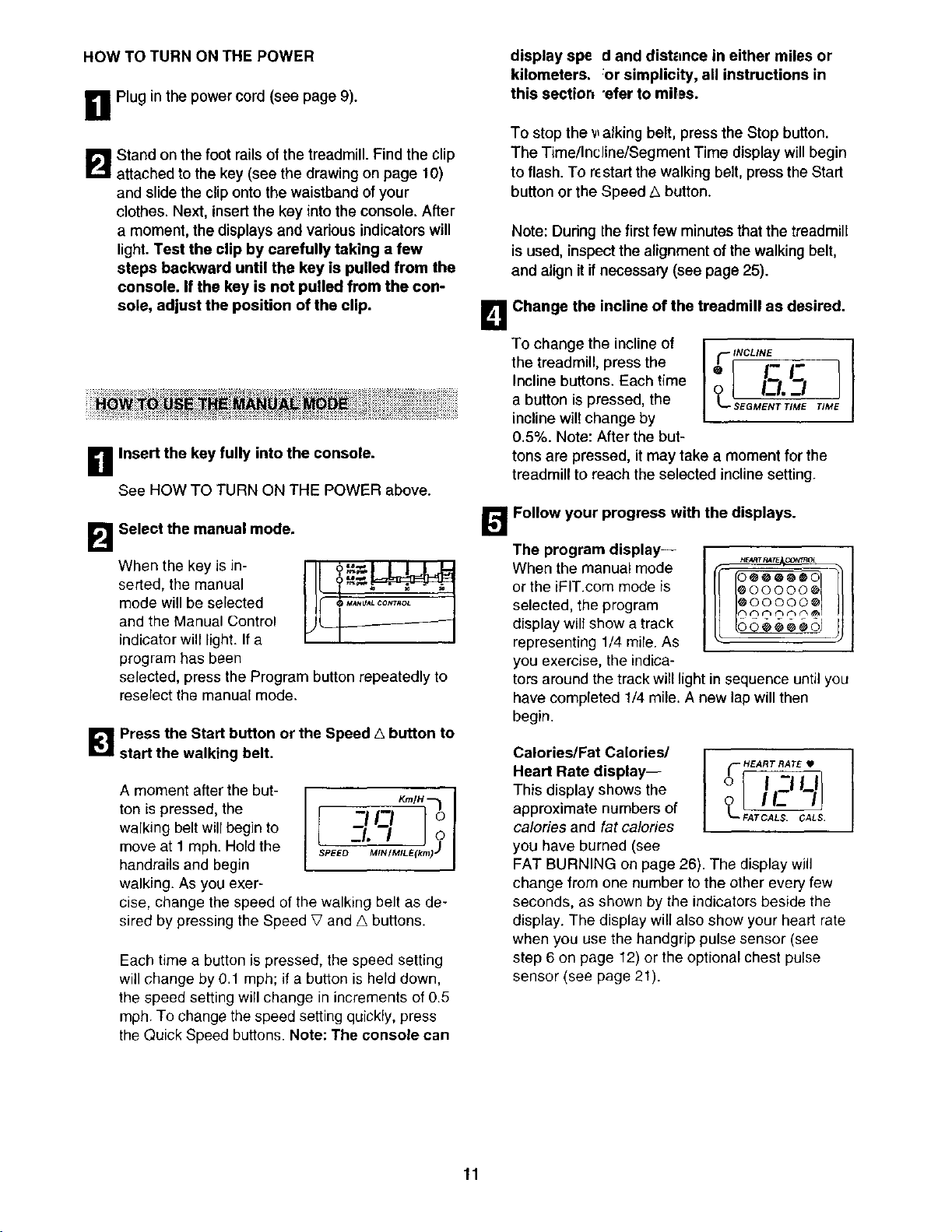

HOW TO TURN ON THE POWER
B Plug in the power cord (see page 9).
'#.1
Stand on the foot rails ofthe treadmill.Find the clip
attached to the key (see the drawing on page 10)
and slide the clip onto the waistband of your
clothes. Next, insert the key into the console. After
a moment, the displays and various indicators will
light. Test the clip by carefully taking a few
steps backward until the key is pulled from the
console. If the key is not pulled from the con-
sole, adjust the position of the clip.
B Insert the key fully into the console.
See HOW TO TURN ON THE POWER above.
B Select the manual mode.
When the key is in-
serted, the manual
mode will be selected
and the Manual Control
indicator will light. If a
program has been
ILL
selected, press the Program button repeatedly to
reselect the manual mode.
1_1 Press the Start button or the Speed _ button to
start the walking belt.
A moment after the but- I r x"m_l
ton is pressed, the -_ I-_1 o
walking belt will begin to I l ---Io_ O
move at 1 mph. Hold the sPs_o MIN/MILE(km)")
handrails and begin
walking. As you exer-
cise, change the speed of the walking belt as de-
sired by pressingthe Speed _ and G buttons.
Each time a button is pressed, the speed setting
will change by 0.1 mph; if a button is held down,
the speed setting will change in increments of 0.5
mph. To change the speed setting quickly, press
the Quick Speed buttons. Note: The console can
display spe d and distance in either miles or
kilometers. :or simplicity, all instructions in
this section "efer to miles.
To stop the _ alking belt, press the Stop button.
The Time/Incline/Segment Time display will begin
to flash. To r_start the walking belt, press the Start
button or the Speed G button.
Note: During thefirst few minutes that the treadmill
is used, inspect the alignment of the walking belt,
and align it if necessary (see page 25).
L_I Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline buttons. Each time
a button is pressed, the
incline will change by
0.5%. Note: After the but-
tons are pressed, it may take a moment for the
treadmill to reach the selected incline setting.
_ Follow your progress with the displays.
The program display--
When the manual mode
or the iFIT.cem mode is
selected, the program
display will show a track
representing 1/4 mile. As
you exercise, the indica-
tors around the track will light in sequence until you
have completed 1/4 mile. A new lap will then
begin.
Ca°ries/FaCa°res/I I
Heart Rate display-- HEARTRATE•
This display shows the
oI_L
approximate numbers of t--_TCA_ CA_S
calories and fat calories "
you have burned (see
FAT BURNING on page 26). The display will
change from one number to the other every few
seconds, as shown by the indicators beside the
display. The display will also show your heart rate
when you use the handgrip pulse sensor (see
step 6 on page 12) or the optional chest pulse
sensor (see page 21).
11

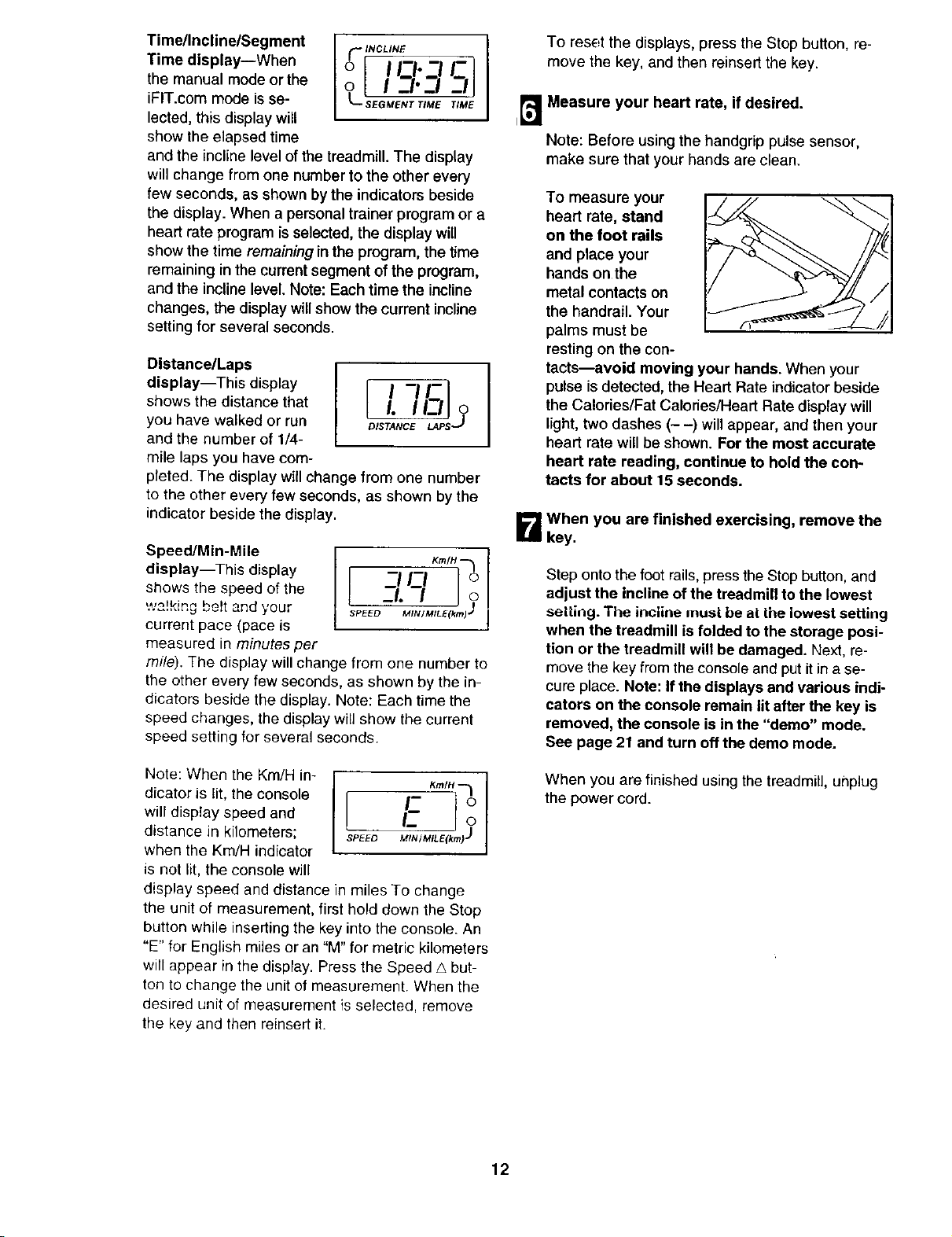

Time/Incline/Segment
Timedisplay--When
themanualmodeorthe
iFIT.commodeisse-
lected,thisdisplaywill
showtheelapsed time
INCLINE I
n.-J r
o l l _l" -l l
L. SEGMENT TIME TIME
and the incline levelof the treadmill. The display
will change from one number to the other every
few seconds, as shown bythe indicators beside
the display. When a personal trainer program or a
heart rate program is selected, the display will
show the time remaining in the program, the time
remaining in the current segment of the program,
and the incline level. Note: Each time the incline
changes, the display will show the current incline
setting for several seconds.
Distance/Laps
display--This display
shows the distance that
you have walked or run
and the number of 1/4-
mile laps you have corn-
[ I -I!-l I
I. iI _?
l)lS_-N_ LAPS
pleted. The display will change from one number
to the other every few seconds, as shown by the
indicator beside the display.
Speed/Min-Mile
display--This display
shows the speed of the
we!king bolt and your
current pace (pace is
measured in minutes per
Krn/H "-_ I
-I CI-_ o
?!
SPEED MINIMILE(km) J I
mile). The display will change from one number to
the other every few seconds, as shown by the in-
dicators beside the display. Note: Each time the
speed changes, the display will show the current
speed setting for several seconds.
Note: When the Km/H in-
dicator is lit, the console
will display speed and
distance in kilometers;
when the Km/H indicator
is not lit, the console will
KmlH --_
I- 0
[ ,-30
SPEEO _MILE(_J
display speed and distance in miles To change
the unit of measurement, first hold down the Stop
button while inserting the key into the console. An
"E" for English miles or an "M" for metric kilometers
will appear in the display. Press the Speed A but-
ton to change the unit of measurement. When the
desired unit of measurement is selected, remove
the key and then reinsert it.
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
Measure your heart rate, if desired.
Note: Before using the handgrip pulse sensor,
make sure that your hands are clean.
TO measure your
heart rate, stand
on the foot rails
and place your
hands onthe
metal contacts on
the handrail. Your
palms must be
resting on the con-
tacts--avoid moving your hands. When your
pulse is detected, the Heart Rate indicatorbeside
the Calories/Fat Calories/Heart Rate display will
light,two dashes (- -) willappear, and then your
heart rate willbe shown. For the most accurate
heart rate reading, continue to hold the con-
tacts for about 15 seconds.
B When you are finished exercising, remove the
key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage posi-
tion or the treadmill wilt be damaged. Next, re-
move the key from theconsole and put itin a se-
cure place. Note: If the displays and various indi-
cators on the console remain lit after the key is
removed, the console is in the "demo" mode.
See page 21 and turn off the demo mode.
When you are finished using the treadmill, unplug
the power cord.
12

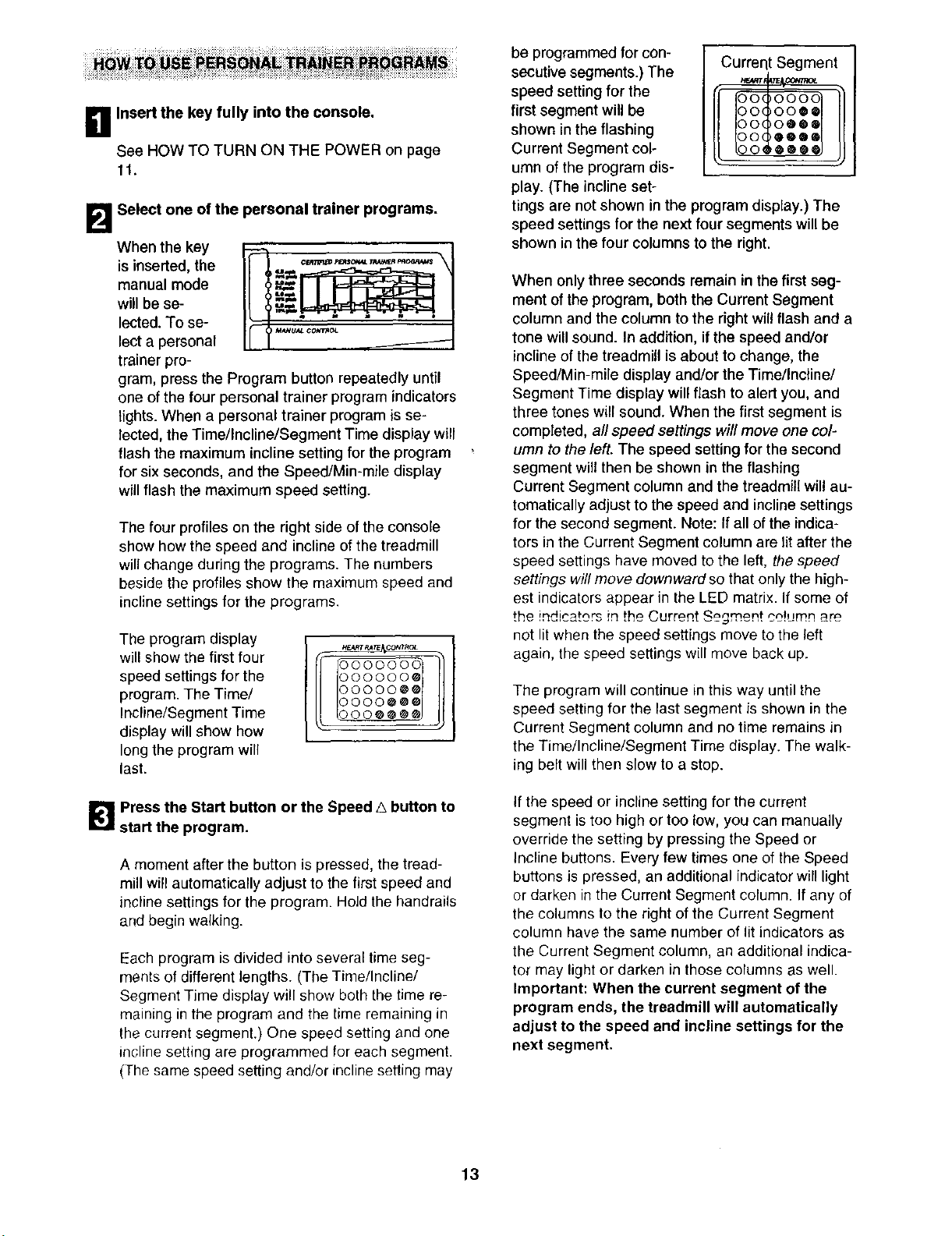

B Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
11.
B
Select one of the personal trainer programs.
When the key
is inserted,the ,_,,,_ ,,_o,,_,,,,,__=,,,_
manual mode ')"_-=
Ilrl
willbe se- )_,_.
4 = • m •
lected. To se-
M_uI4. ¢otrt_ol.
lect a personal _____--_----
trainer pro-
gram, press the Program button repeatedly until
one of the four personal trainer program indicators
tights. When a personal trainer programis se-
lected, the Time/Incline/Segment Time display will
flash the maximum incline setting for the program
for six seconds, and the Speed/Min-mile display
willflash the maximum speed setting.
The four profiles on the right side of the console
show how the speed and incline of the treadmill
will change during the programs. The numbers
beside the profiles show the maximum speed and
incline settings for the programs.
The programdisplay
will show the first four
speed settings for the
program. The Time/
Incline/Segment Time
display will show how
long the program will
last.
_T _CON7_3L
DOO000@
DOOO0@@;
DOOOe@E
bO0@@@_
B Press the Start button or the Speed _ button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each program is divided into several time seg-
ments of different lengths. (The Time/Incline/
Segment Time display will show both the time re-
maining in the program and the time remaining in
the current segment.) One speed setting and one
incline setting are programmed for each segment.
(The same speed setting and/or incline setting may
be programmed for con-
secutive segments.) The
speed setting for the
first segment will be
shown in the flashing
Current Segment col-
umn of the program dis-
play. (The incline set-
Currerlt Segment
tings are not shown in the program display.) The
speed settings for the next four segments will be
shown in the four columns to the right.
When onlythree seconds remain in the first seg-
ment ofthe program, both the Current Segment
column and the column to the right willflash and a
tone willsound. In addition, ifthe speed and/or
inclineof the treadmill is about to change, the
Speed/Min-mile display and/or the Time/Incline/
Segment Time display willflash to alert you, and
three tones will sound. When the first segment is
completed, all speed settings will move one col-
, umn to the left. The speed setting for the second
segment will then be shown in the flashing
Current Segment column and the treadmill wil! au-
tomatically adjust to the speed and incline settings
for the second segment. Note: If all of the indica-
tors in the Current Segment column are lit after the
speed settings have moved to the left, the speed
settings will move downward so that only the high-
est indicators appear in the LED matrix. If some of
the indicators in the Current Segment ce!_mn are
not lit when the speed settings move to the left
again, the speed settings will move back up.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and no time remains in
the Time/Incline/Segment Time display. The walk-
ing belt will then slow to a stop.
If the speed or incline setting for the current
segment is too high or too low, you can manually
override the setting by pressing the Speed or
Incline buttons. Every few times one of the Speed
buttons is pressed, an additional indicator will light
or darken in the Current Segment column. If any of
the columns to the right of the Current Segment
column have the same number of lit indicators as
the Current Segment column, an additional indica-
tor may light or darken in those columns as well.
Important: When the current segment of the
program ends, the treadmill will automatically
adjust to the speed and incline settings for the
next segment.
13

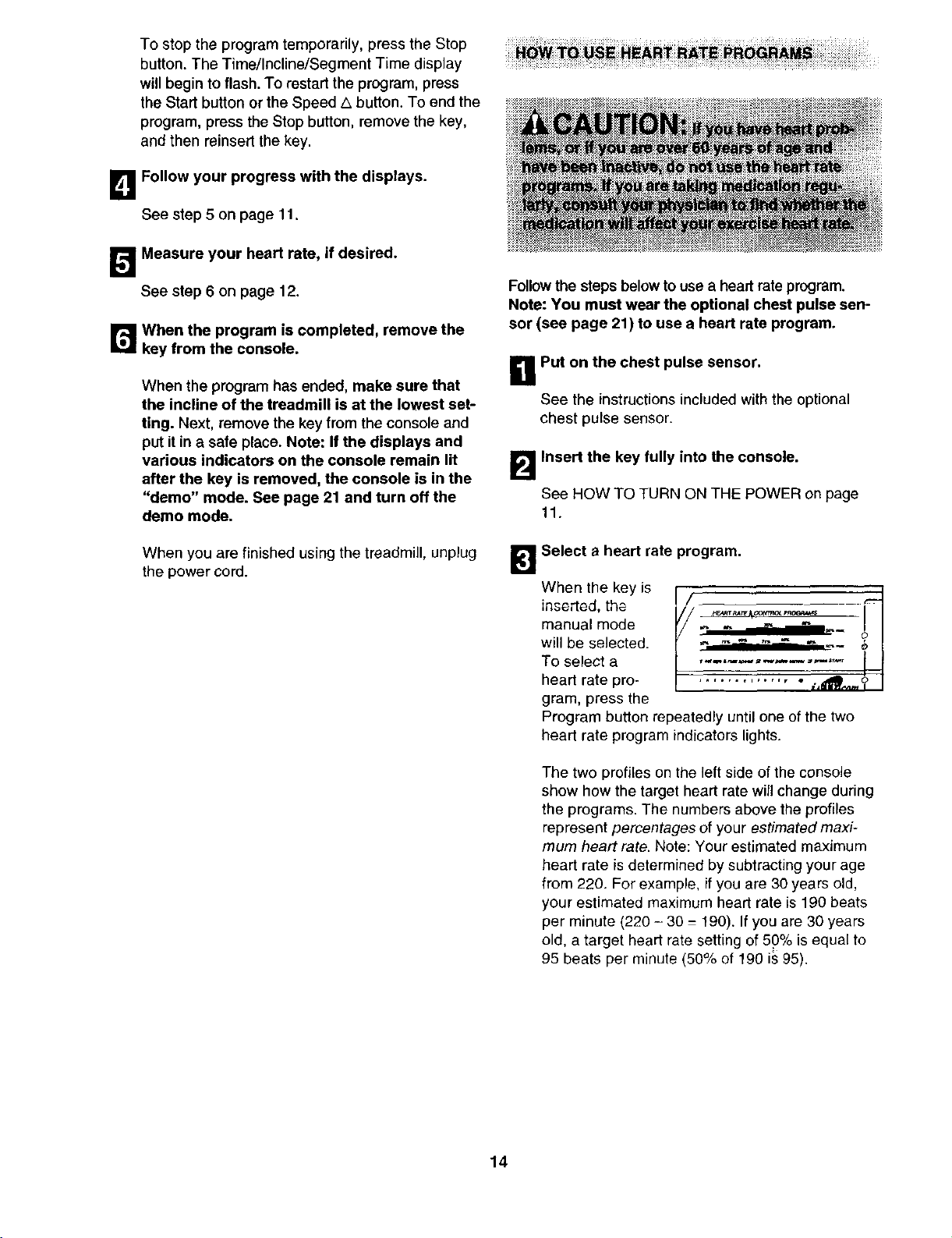

To stop the program temporarily, press the Stop
button. The Time/Incline/Segment Time display
will begin to flash. To restart the program, press
the Start button or the Speed A button. To end the
program, press the Stop button, remove the key,
and then reinsert the key.
D Follow your progress with the displays.
See step 5 on page 11.
1_',_Measure your heart rate, if desired.
See step 6 on page 12.
r_When the program is completed, remove the
key from the console.
When the program has ended, make sure that
the incline of the treadmill is at the lowest set-
ting. Next, remove the key from the console and
put itin a safe place. Note: If the displays and
various indicators on the console remain lit
after the key is removed, the console is in the
"demo" mode. See page 21 and turn off the
demo mode.
When you are finished using the treadmill, unplug
the power cord.
Follow the steps belowto usea heart rateprogram.
Note: You must wear the optional chest pulse sen-
sor (see page 21) to use a heart rate program.
B Put on the chest pulse sensor.
See the instructionsincluded with the optional
chest pulse sensor.
B Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
11.
_1 Select a heart rate program.
When the key is
inserted, th_
manual mode
will be selected.
To select a
heart rate pro-
gram, press the
,* f*_.,ll,t fr I_
Program button repeatedly until one of the two
heart rate program indicators lights.
The two profiles on the left side of the console
show how the target heart rate will change during
the programs. The numbers above the profiles
represent percentages of your estimated maxi-
mum heart rate. Note: Your estimated maximum
heart rate is determined by subtracting your age
from 220. For example, ifyou are 30 years old,
your estimated maximum heart rate is 190 beats
per minute (220 - 30 - 190). If you are 30 years
old, a target heart rate setting of 50% is equal to
95 beats per minute (50% of 190 is 95).
14

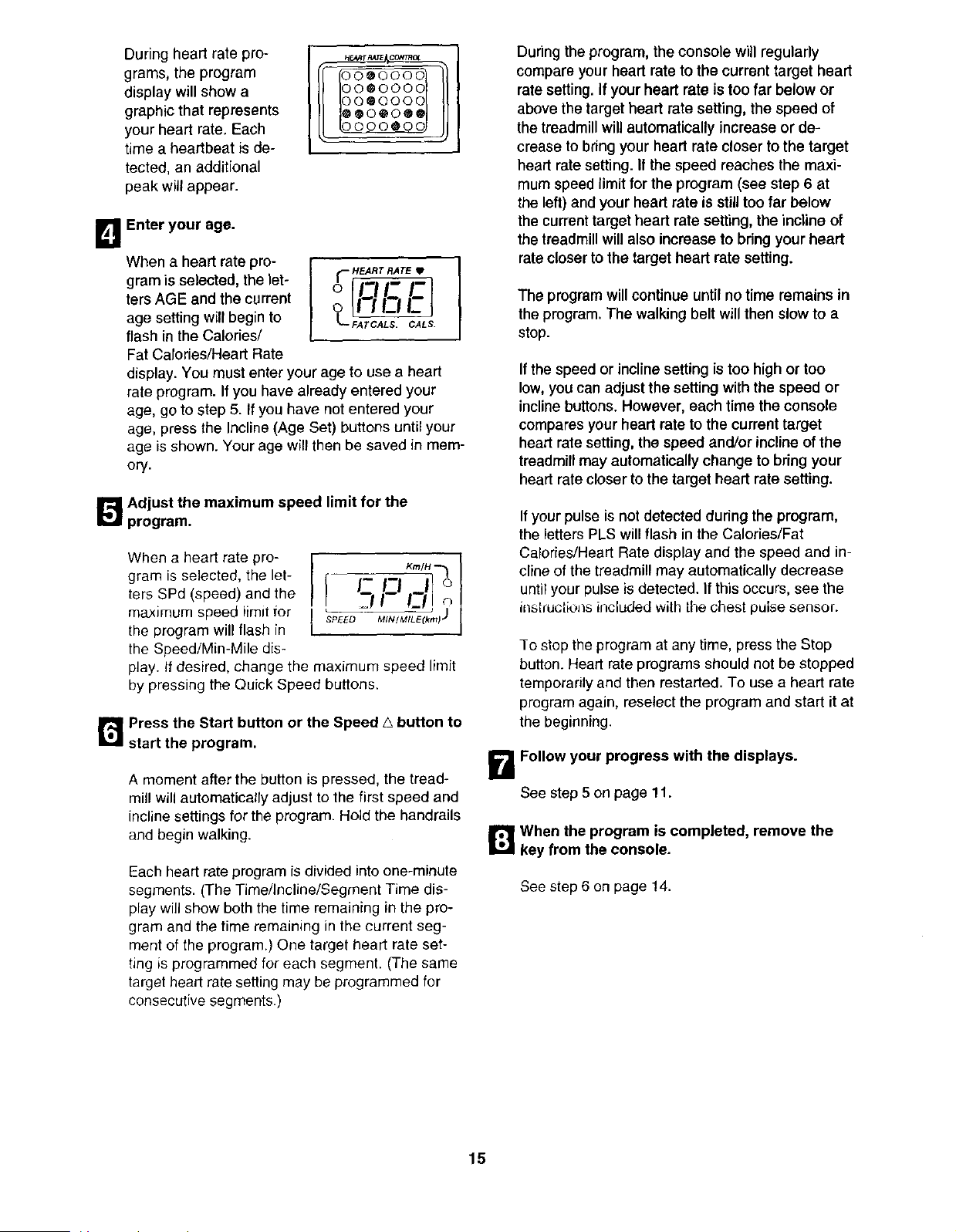

During heart rate pro-
grams, the program
display will show a
graphic that represents
your heart rate. Each
time a heartbeat is de-
tected, an additional
peak will appear.
B Enter your age.
When a heart rate pro-
gram is selected, the let-
ters AGE and the current
age setting will begin to
flash in the Calories/
Fat Calories/Heart Rate
leap
LFArc, . o,,s
display. You must enter your age to use a heart
rate program. If you have already entered your
age, go to step 5. If you have not entered your
age, press the Incline (Age Set) buttons until your
age isshown. Your age will then be saved in mem-
ory.
[]Adjust the maximum speed limit for the
program.
When a heart rate pro- [ K,,,;h'-'_
gram is se]ected, thelet- I I I- I-| __ o
ters SPd (speed) and the _--=! I- I-_!1
maximum speed limrifor
I
MIN/MILE(km} "_SPEED
the program will flash in I
the Speed/Min-Mile dis-
play. If desired, change the maximum speed limit
by pressing the Quick Speed buttons.
r_ Press the Start button or the Speed G button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each heart rate program is divided intoone-minute
segments. (The Time/incline/Segment Time dis-
play will show both the time remaining in the pro-
gram and the time remaining in the current seg-
ment of the program.) One target heart rate set-
ting is programmed for each segment. (The same
target heart rate setting may be programmed for
consecutive segments.)
During theprogram, the console will regularly
compare your heart rate to the current target heart
rate setting. If your heart rate is too far below or
above the target heart rate setting, the speed of
the treadmill will automatically increase or de-
crease to bring your heart rate closer to the target
heart rate setting. If the speed reaches the maxi-
mum speed limitfor the program (see step 6 at
the left) and your heart rate is still too far below
the current target heart rate setting, the incline of
the treadmill will also increase to bring your heart
rate closer to the target heart rate setting.
The program will continue until no time remains in
the program. The walking belt will then slow to a
stop.
If the speed or incline setting is too high or too
low, you can adjust the setting with the speed or
incline buttons. However, each time the console
compares your heart rate to the current target
heart rate setting, the speed and/or incline of the
treadmill may automatically change to bring your
heart rate closer to the target heart rate setting.
If your pulse is not detected during the program,
the letters PLS will flash in the Calories/Fat
Calories/Heart Rate display and the speed and in-
cline of the treadmill may automatically decrease
until your pulse is detected. If this occurs, see the
inshuctions included with the chest pulse sensor.
To stop the program at any time, press the Stop
button. Heart rate programs should not be stopped
temporarily and then restarted. To use a heart rate
program again, reselect the program and start it at
the beginning.
B Follow your progress with the displays.
See step 5 on page 11.
!_1 When the program is completed, remove the
key from the console.
See step 6 on page 14.
15
:.2::::::::::::>:::;:_:_::_::;;:::_:_:_;_:#::_ f ___:::__:::::::::t:::::f__::_-¥_::_::_:;::::2::::5::::if::::f:: :::::i:t:::::::::::::::_::#:i::::::::::::::k::2 : ::::::__:::::i::::;_;:;:::: ::_3:!:_::__:_
_,:_ • .4 % . : _ . v : ::!:::i:ii
To use iFIT.com CD's, the treadmill must be con-
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
16 and 17 for connecting instructions. To use iFIT.com
videocassettes, the treadmill must be connected to
your VCR. See page 18 for connecting instructions.To
use iFIT•com programs directly from our intemet
site, the treadmill must be connected to your home
computer. See page 17 for connecting instructions.

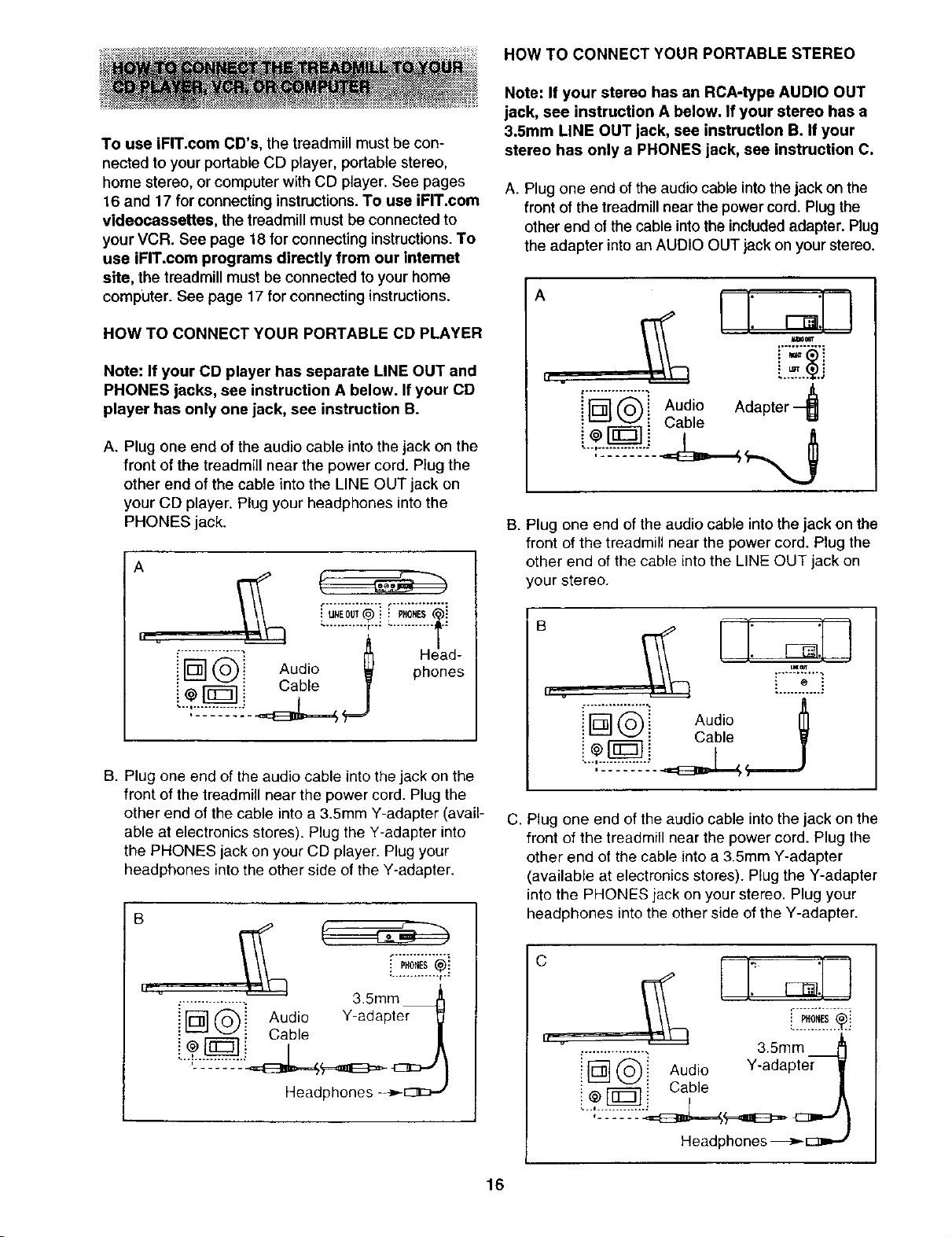

HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
A
udio W
i @_ _ Cable
L.:..._.._..=.:!_
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter (avail-
able at electronics stores). Plug the Y-adapter into
the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adapter.
B
................. 3.5mm
i[_)] @ Audio Y-adapter
Cable
i _O,ES@i
.............. t,.
Headphones --->-E::]__
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below• If your stereo has a
3.5mm LINE OUT jack, see instruction B• If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter. Plug
the adapter intoan AUDIO OUT jack on your stereo.
A
II u
°r_(_i Audio Adapter _
_ _ i Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
B
L-l;
i@® Audio
Cable
[mem
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adapter.
,................: 3.5mm_
i r_] (8)i Audio Y-adapter
:..: ............_l_9=_El:_
16

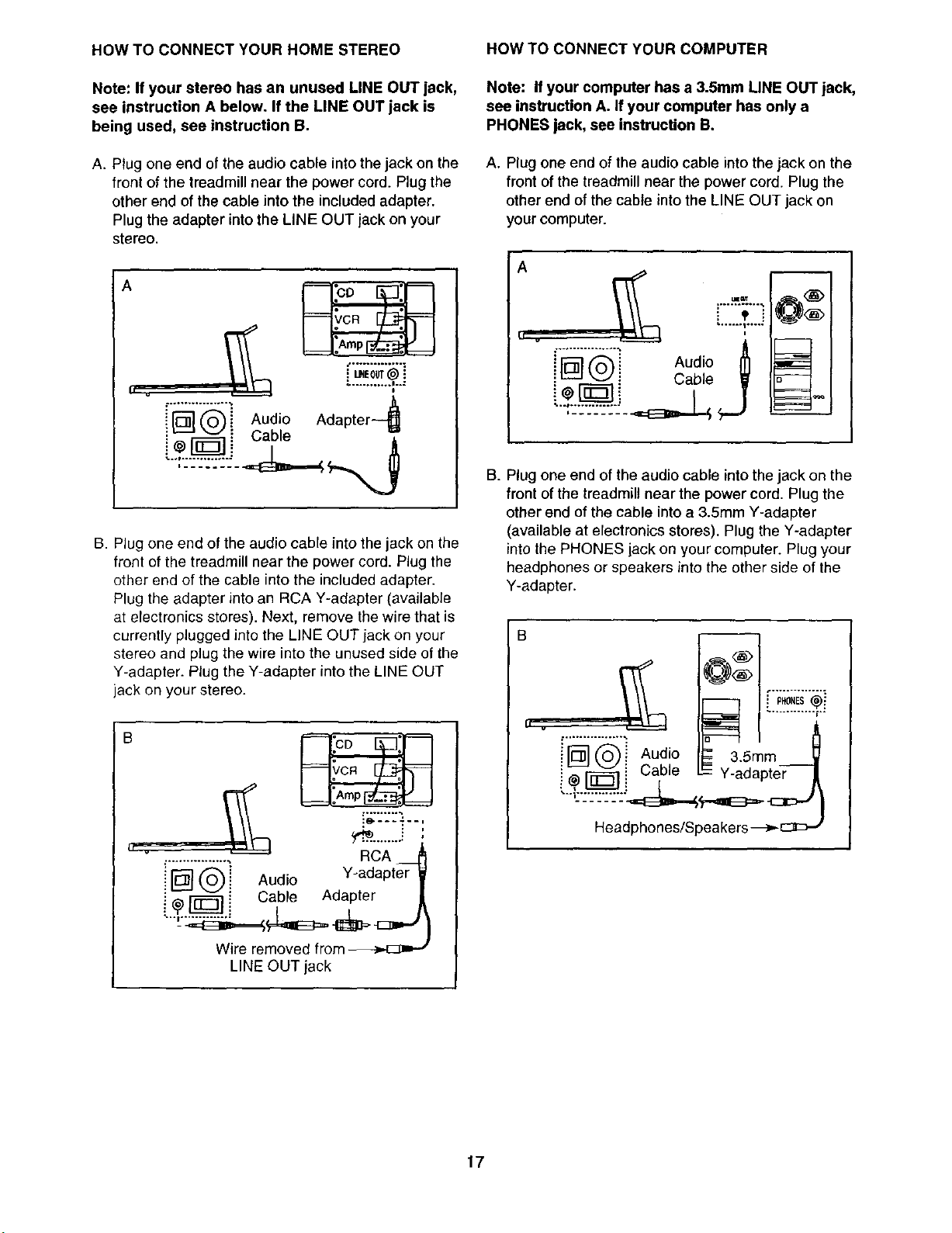

HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the LINE OUT jack on your
stereo.
A
J[ u
! L_EOUT@!
i'_']"_'_i Audio Adapter--_
i @-'_] ! Cable t,
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the LINE OUT
jack on your stereo.
B
v
"_"@ i Audio AdY'_ dapt
LINE OUT jack
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
'A
" Aod,o
_" _ Cable W
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at erectronics stores). Plug the Y-adapter
intothe PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adapter.
B
h
[] (_ i Audio 3.Smm
@J-_i Cable Y-adapte_
Headphones/Speakers--->-cJ_-"
17

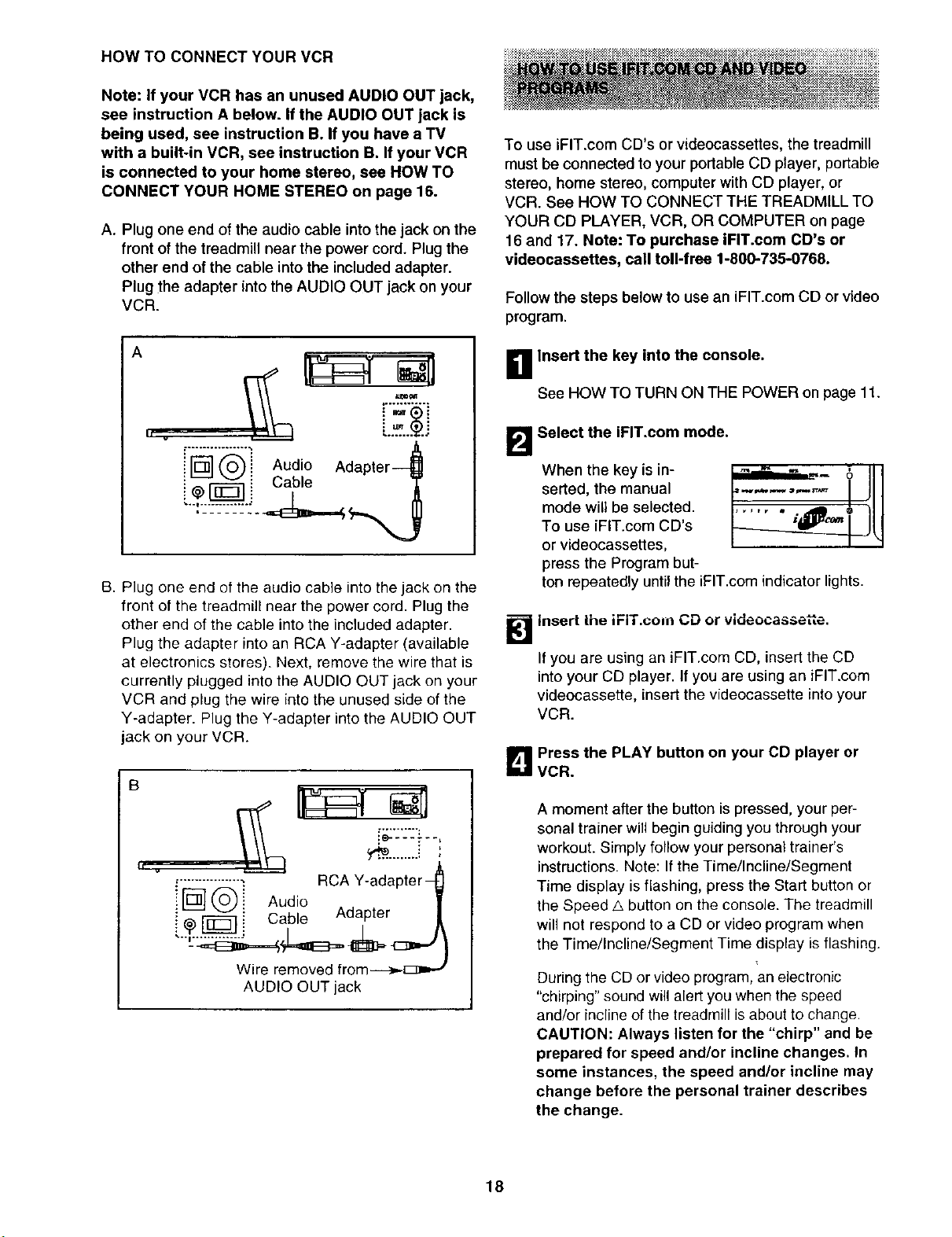

HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the AUDIO OUT jack on your
VCR.
A
I[ v
i'_'_i Audio Adapter_
i-- "_" i Cable "1"
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
B
_---_----_..,
..,................-: RCA Y-adapter _
!r @i Audio !
i _, _ i Cable Adapter |
_'T-"_ _ / I\
Wire removed from--_,,-[_D-."
AUDIO OUT jack
To use JFIT.com CD's or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on page
16 and 17. Note: To purchase iFIT.com CD's or
videocassettes, call toll-free 1-800-735-0768.
Follow the steps below to use an iFIT.com CD or video
program.
D Insert the key into the console.
See HOW TO TURN ON THE POWER on page 11.
B Select the iFIT.com mode.
When the key is in-
serted, the manual
mode will be selected.
To use iFIT.com CD's
or videocassettes,
press the Program but-
ton repeatedly until the iFIT.com indicator lights.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.cem CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette intoyour
VCR.
L_l Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your per-
sonal trainer will begin guiding you through your
workout. Simply follow your personal trainer's
instructions. Note: If the Time/Incline/Segment
Time display is flashing, press the Start button or
the Speed _ button on the console. The treadmill
will not respond to a CD or video program when
the Time/Incline/Segment Time display is flashing.
During the CD or video program, an electronic
"chirping" sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the "chirp" and be
prepared for speed and/or incline changes. In
some instances, the speed and/or incline may
change before the personal trainer describes
the change.
18

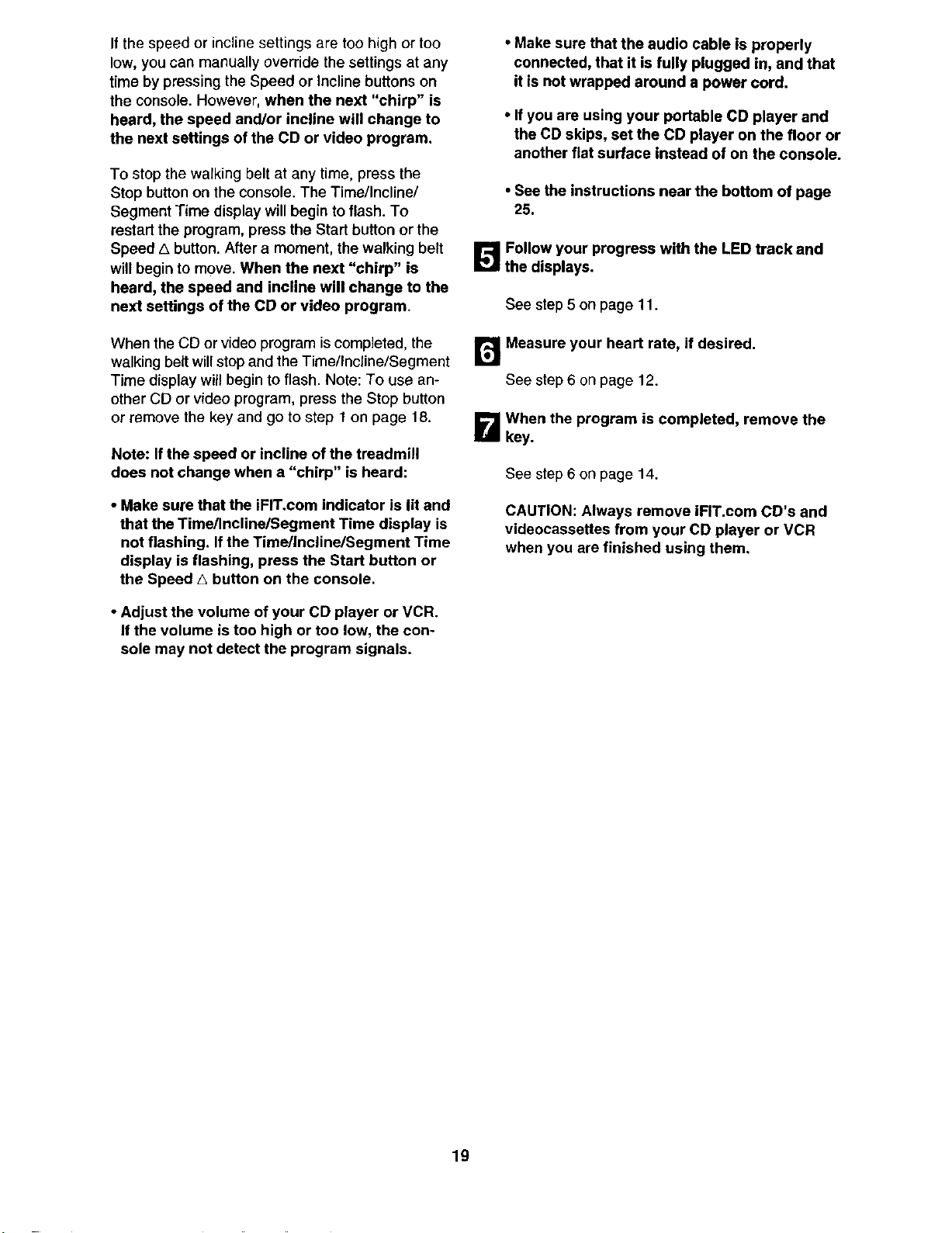

If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Incline/
Segment Time display will begin to flash. To
restart the program, press the Start button or the
Speed Z_button. After a moment, the walking belt
will begin to move. When the next "chirp" is
heard, the speed and incline will change to the
next settings of the CD or video program.
When the CD or video program is completed, the
walking belt will stop and the Time/Incline/Segment
Time display will begin to flash. Note: To use an-
other CD or video program, press the Stop button
or remove the key and go to step 1 on page 18.
Note: If the speed or incline of the treadmill
does not change when a "chirp" is heard:
• Make sure that the iFIT.com indicator is lit and
that the Time/Incline/Segment Time display is
not flashing. If the Time/Incline/Segment Time
display is flashing, press the Start button or
the Speed A button on the console.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
• If you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
• See the instructions near the bottom of page
25.
l_'J_Follow your progress with the LED track and
the displays.
See step 5 on page 11.
B Measure your heart rate, if desired.
See step 6 on page 12.
B When the program is completed, remove the
key.
See step 6 on page 14.
CAUTION: Always remove iFIT.com CD's and
videocassettes from your CD player or VCR
when you are finished using them.
19

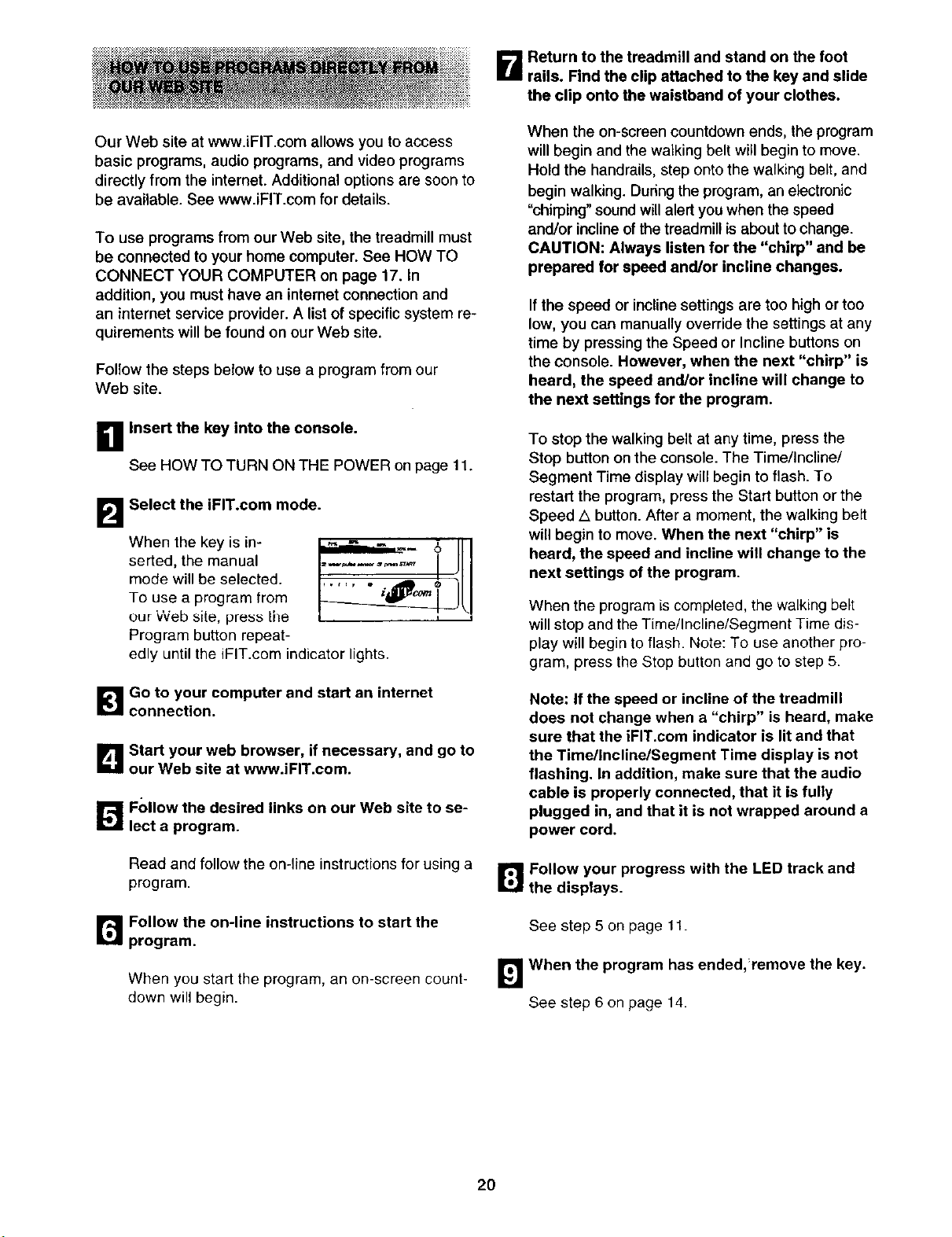

Our Web site at www.iFIT.com allows you to access
basic programs, audio programs, and video programs
directly from the internet. Additional options are soon to
be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 17. in
addition, you must have an internet connection and
an internet service provider. A list of specific system re-
quirements will be found on our Web site.
Follow the steps below to use a program from our
Web site.
g Insert the key into the console.
See HOW TO TURN ONTHE POWER on page 11.
B Select the iFIT.com mode.
When the key is in- _" " - _.- 6 /
serted, themanual _*_ tI/---_'-..... J
mode will be selected. I,,,,, , .,,n el _|
To use a program from
our Web site, press [i_e
Program button repeat-
edly until the iFIT.com indicator lights.
_Go to your computer and start an internet
connection.
Start your web browser, if necessary, and go to
_ur Web site at www.iFIT.com.
_ Follow the desired links on our Web site to se-
lect a program.
Read and follow the on-line instructionsfor using a
program.
r_ Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
B Return to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
"chirping" sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the "chirp" and be
prepared for speed and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings for the program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Incline/
Segment Time display will begin to flash. To
restart the program, press the Start button or the
Speed A button. After a moment, the walking belt
will begin to move. When the next "chirp" is
heard, the speed and incline will change to the
next settings of the program.
When the program is completed, the walking belt
willstop and the Time/Incline/Segment Time dis-
play will begin to flash. Note: To use another pro-
gram, press the Stop button and go to step 5.
Note: if the speed or incline of the treadmill
does not change when a "chirp" is heard, make
sure that the iFIT.com indicator is lit and that
the Time/Incline/Segment Time display is not
flashing. In addition, make sure that the audio
cable is properly connected, that it is fully
plugged in, and that it is not wrapped around a
power cord.
Q Follow your progress with the LED track and
the displays.
See step 5 on page 11.
B When the program has ended, remove the key.
See step 6 on page 14.
20

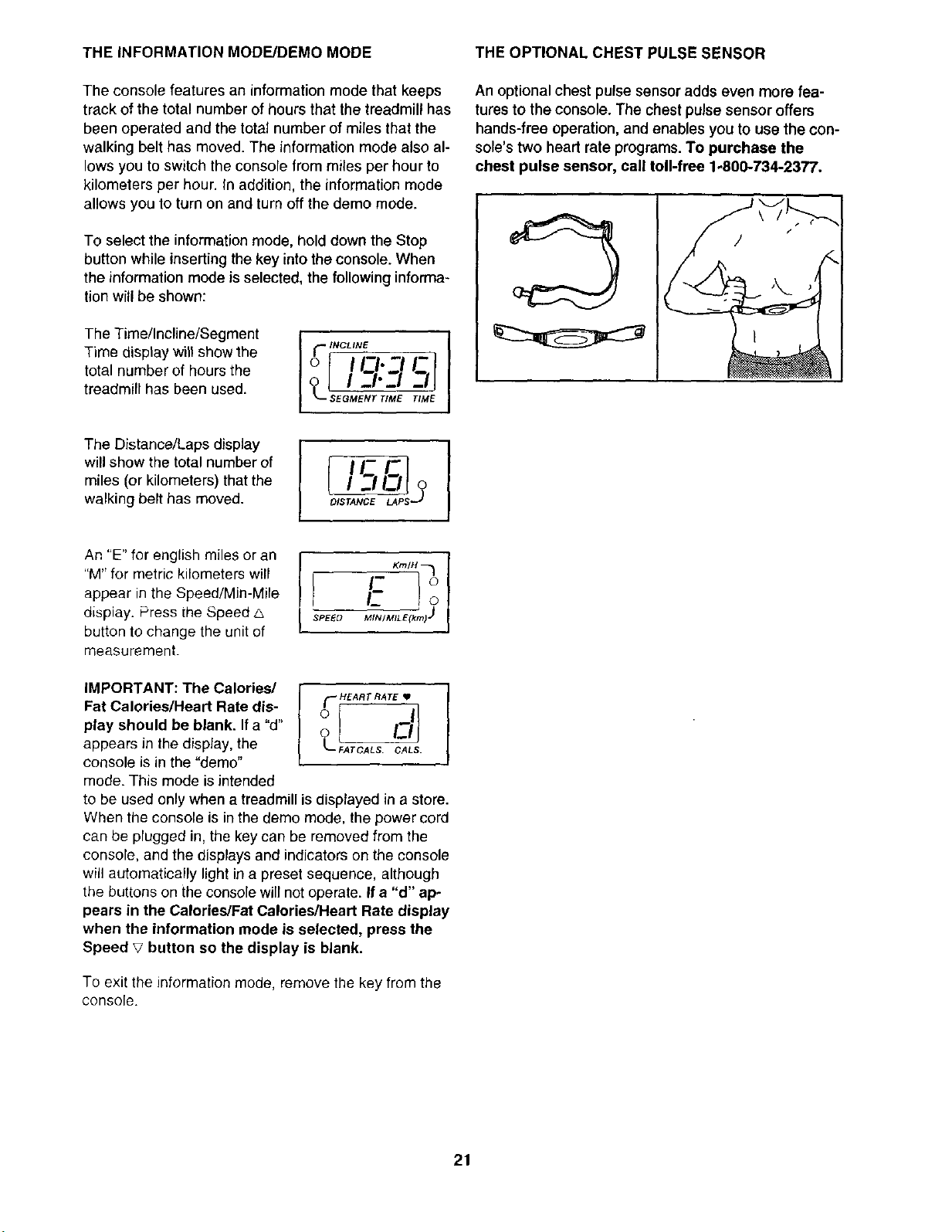

THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also al-
lows you to switch the console from miles per hour to
kilometers per hour. In addition, the information mode
allows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop
button while insertingthe key into the console. When
the information mode is selected, the following informa-
tion will be shown:
The Time/Incline/Segment
Time display will show the
total number of hours the
treadmill has been used.
('- INCLINE I
o Fi-i-I.il S]
oJ I_1"1
[- ,7 E."E
The Distance/Laps display
will show the total number of
miles (or kilometers) that the
walking belt has moved.
I
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more fea-
tures to the console. The chest pulse sensor offers
hands-free operation, and enables you to use the con-
sows two heart rate programs. To purchase the
chest pulse sensor, call toll-free 1-800-734-2377.
An "E" for english miles or an
"M" for metric kilometers will
appear in the Speed/Min-Mile
dispiay. Press the Speed z_
button to change the unit of
measurement.
KmlH
I- o
I
SPEED M_NIMILE(km) ")
IMPORTANT: The Calories/
Fat Calories/Heart Rate dis-
play should be blank. Ifa "d"
appears in the display, the
console is in the "demo"
mode. This mode is intended
_'-HEARTRATE 9
FATCALS. CALS.
to be used only when a treadmill is displayed in a store.
When the console is in the demo mode, the power cord
can be plugged in, the key can be removed from the
console, and the displays and indicators on the console
will automatically light in a preset sequence, although
the buttons on the console will not operate. If a "d" ap-
pears in the Calories/Fat Calories/Heart Rate display
when the information mode is selected, press the
Speed V button so the display is blank.
To exit the information mode, remove the key from the
console.
21

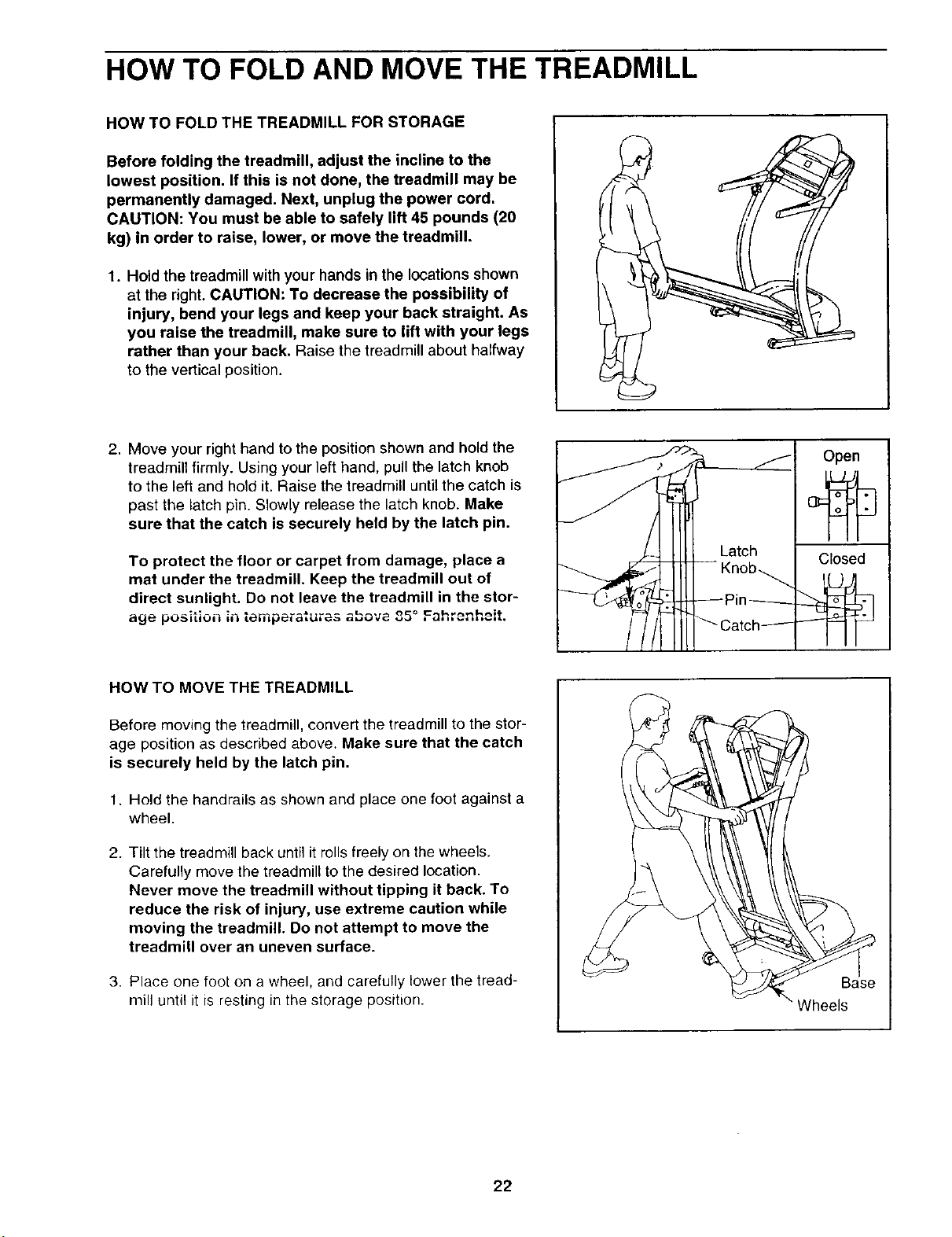

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be
permanently damaged. Next, unplug the power cord.
CAUTION: You must be able to safely lift 45 pounds (20
kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. CAUTION: To decrease the possibility of
injury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your legs
rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob
to the left and hold it. Raise the treadmill until the catch is
past the latch pin. Slowly release the latch knob. Make
sure that the catch is securely held by the latch pin.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age positio_ _nte_pe_atu_a_ abov_ 35° Fahrenheit.
Open
Closed
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the catch
is securely held by the latch pin.
1. Hold the handrails as shown and place one foot against a
wheel.
2. Tilt the treadmillback until it rolls freely on the wheels.
Carefully move the treadmill to the desired location.
Never move the treadmill without tipping it back. To
reduce the risk of injury, use extreme caution while
moving the treadmill. Do not attempt to move the
treadmill over an uneven surface.
3. Place one foot on a wheel, and carefully lower the tread-
mill until it is resting in the storage position.
Wheels
22

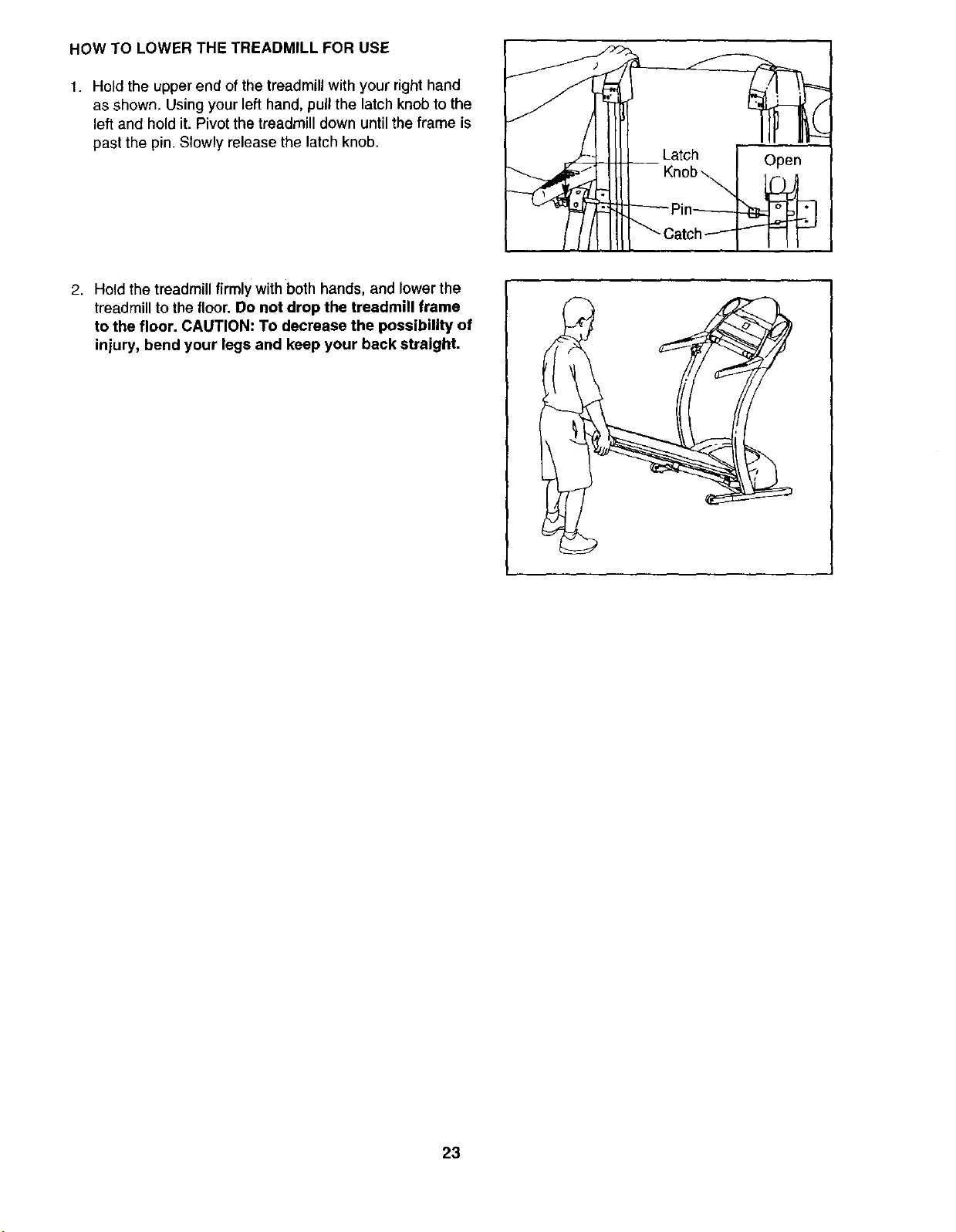

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand
as shown. Using your left hand, pull the latch knob to the
left and hold it. Pivot the treadmill down until the frame is
past the pin. Slowly release the latch knob.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Do not drop the treadmill frame
to the floor. CAUTION: To decrease the possibility of
injury, bend your legs and keep your back straight.
23
TROUBLESHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, call toll-free 1-800-4-MY-HOME"
(1-800-469-4663).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged intoa surge suppressor, and that the surge suppressor
is plugged into a propedy grounded outlet (see page 9). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 9. Important: The treadmill is not compatible
with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call toil-free 1-800-4-MY-HOME ®(1-800-469-4663).
PROBLEM: The speed display on the console does not function properly
SOLUTION: a. Remove the key and UNPLUG THE POWER CORD.
Carefully lower the Uprights (64) to the floor. Remove
the three indicated Small Screws (37).
Raise the Uprights (64) to the vertical position. Pivot
the Hood (1) off.
• i
24

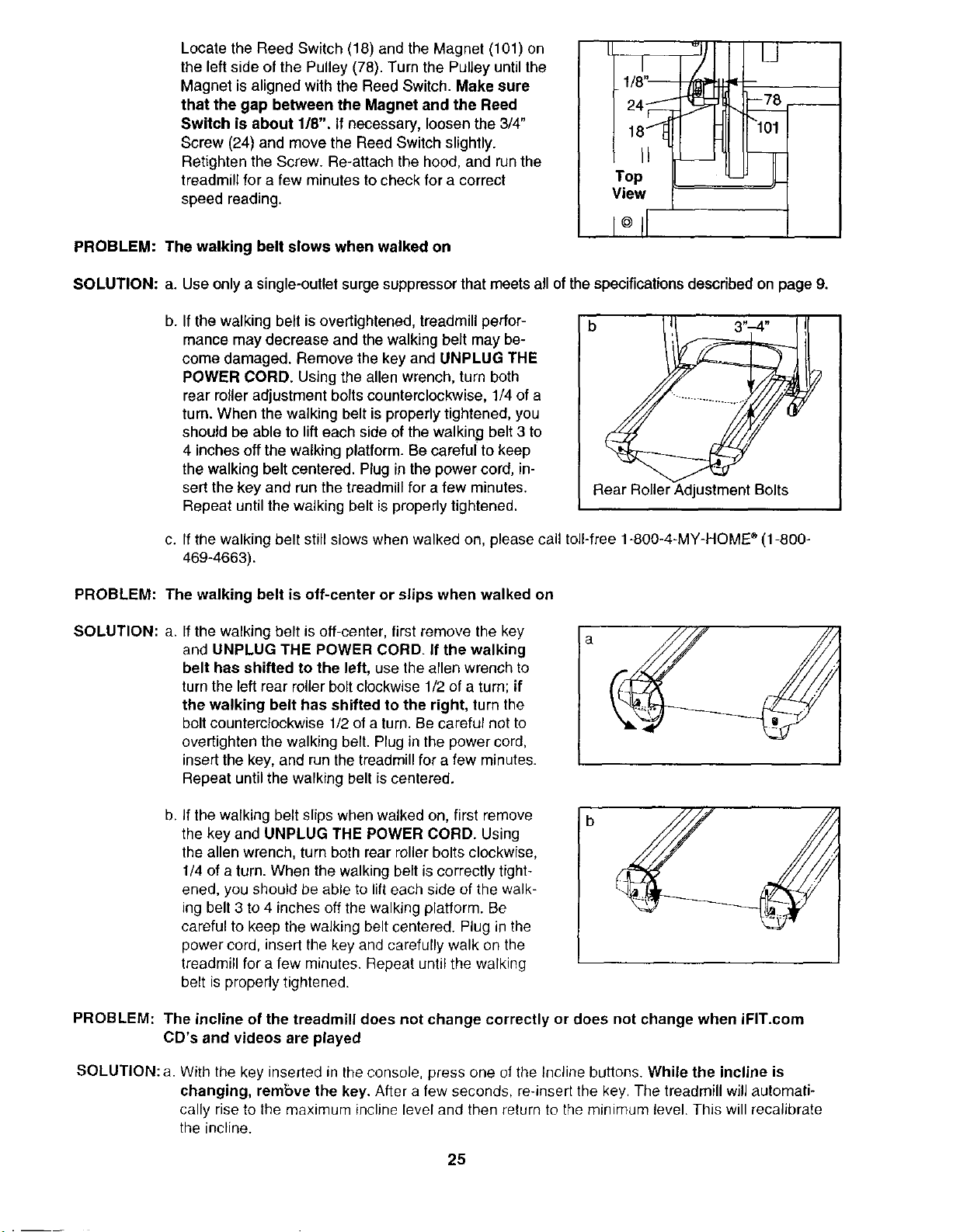

Locate the Reed Switch (18) and the Magnet (101) on
the left side of the Pulley (78). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8". if necessary, loosen the 3/4"
Screw (24) and move the Reed Switch slightly.
Retighten the Screw. Re-attach the hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
PROBLEM: The walking belt slows when walked on
U---I--
I/8"_
24 .
Top
View
78 __
loll
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
b. If the walking belt is ovedightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walkir_ belt 3 to
4 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, in-
sert the key and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please call toll-free 1-800-4-MY-HOME ®(1-800-
469-4663).
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is oft-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
bolt counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
a
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tight-
ened, you should be able to lift each side of the walk-
ing belt 3 to 4 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insed the key and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com
CD's and videos are played
SOLUTION: a. With the key inseded in the console, press one of the Incline buttons. While the incline is
changing, rembve the key. After a few seconds, re-insert the key. The treadmill will automati-
cally rise to the maximum incline level and then return to the minimum level. This will recalibrate
the incline.
25

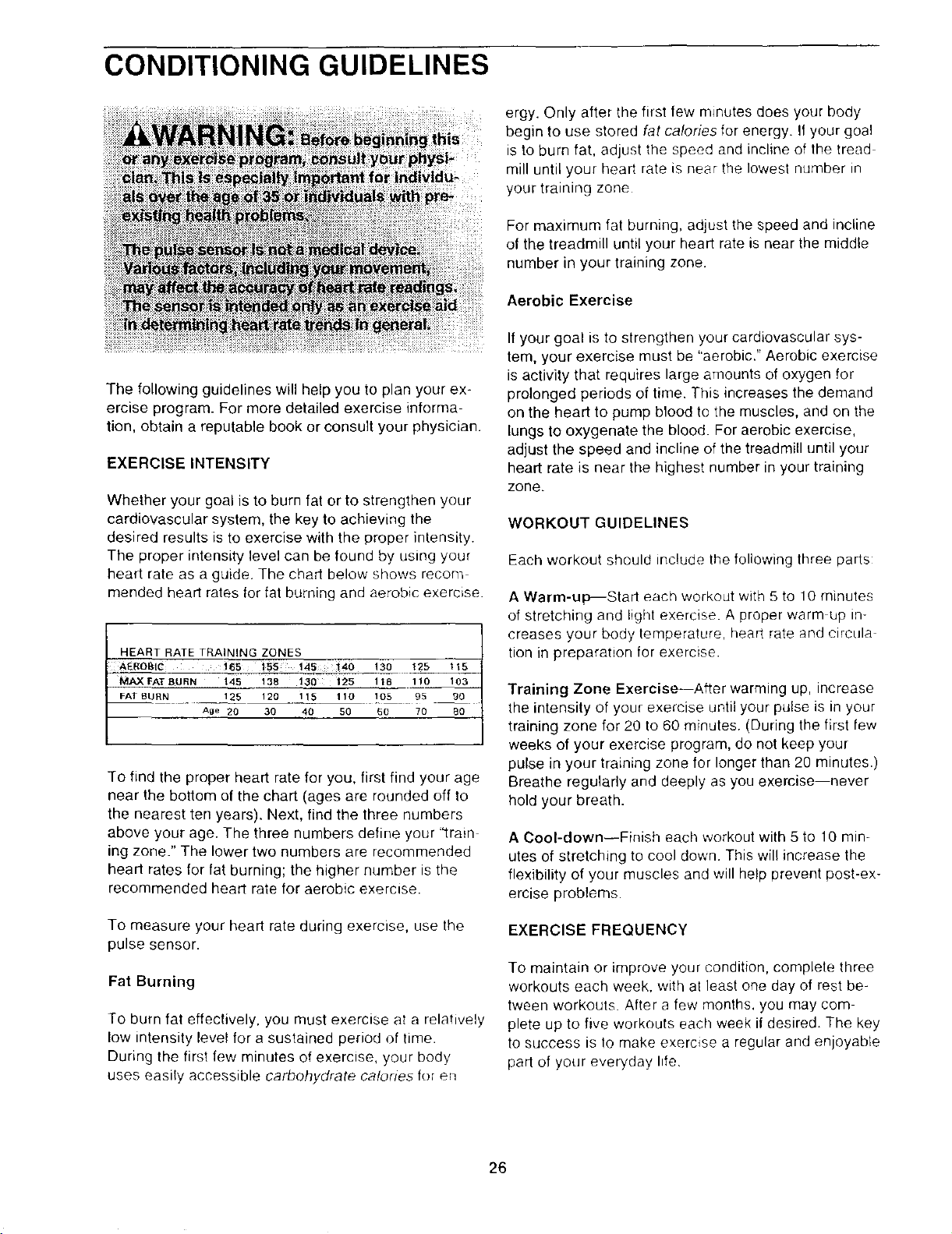

CONDITIONING GUIDELINES
The following guidelines will help you to plan your ex-
ercise program. For more detailed exercise informa-
tion, obtain a reputable book or consult your physician.
EXERCISEINTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom
mended heart rates tor fat burning and aerobic exercise.
HEART RATE TRAINING ZONES
AEROBIC i65 i55 145 /40 130 !25 t 15
MAX FAT BURN 145 138 130 125 118 110 103
FAT BURN 125 120 115 110 105 95 90
Age 20 30 40 50 50 70 80
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your '"train
ing zone." The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for era
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the tread
mill until your heart rate is near the lowest number in
your training zone
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time, This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up--Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm up in-
creases your body temperature, heart rate and eircula
tion in preparation for exercFse.
Training Zone Exercise--After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise--never
hold your breath.
A Cool-down--Finish each workout with 5 to 10 min-
utes of stretching to cool down. This wil! increase the
flexibility of your muscles and will help prevent post-ex-
ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com
plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday hie,
26

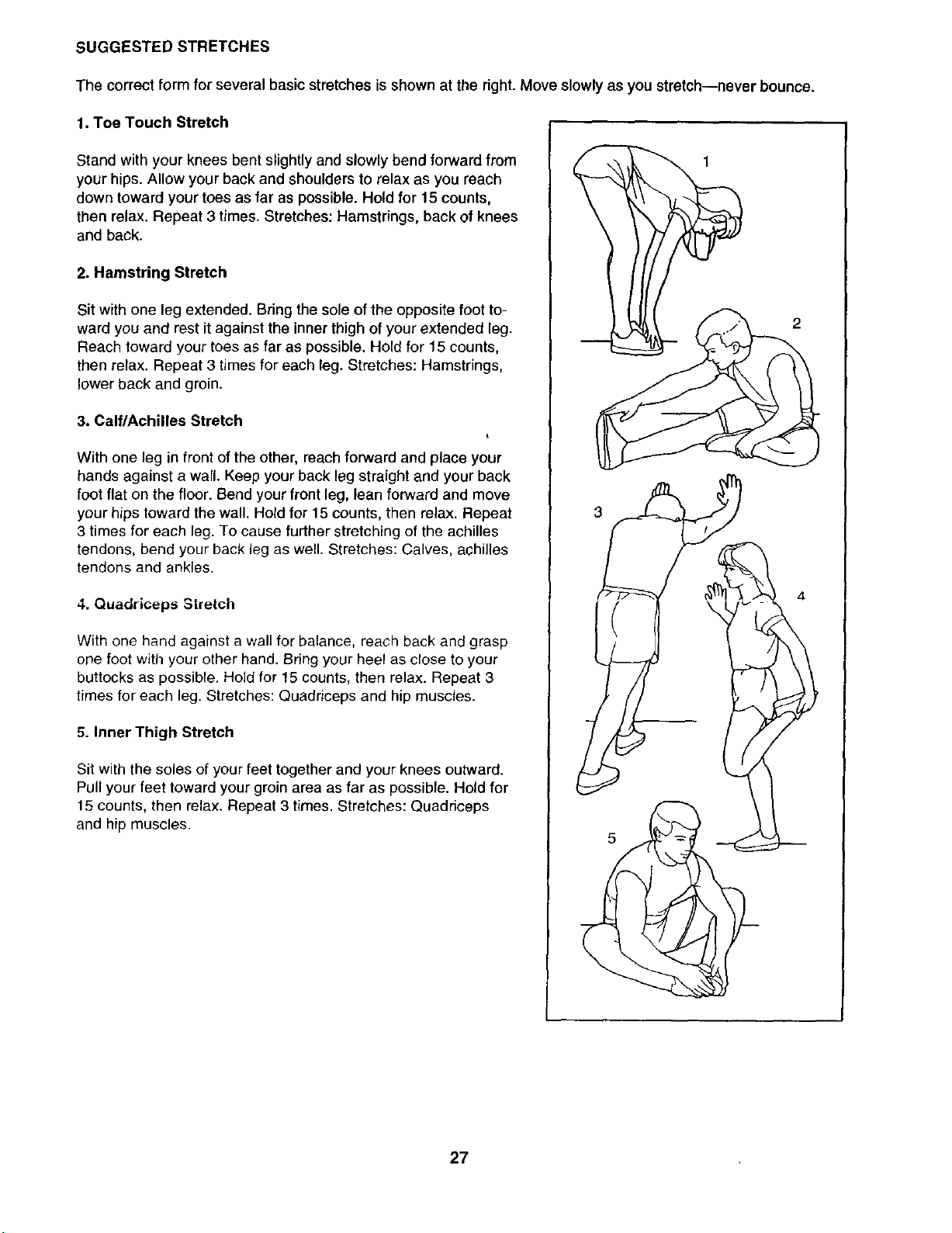

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.Move slowly as you stretch--never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot to-
ward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for t 5 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps
and hip muscles.
3
2
4
27

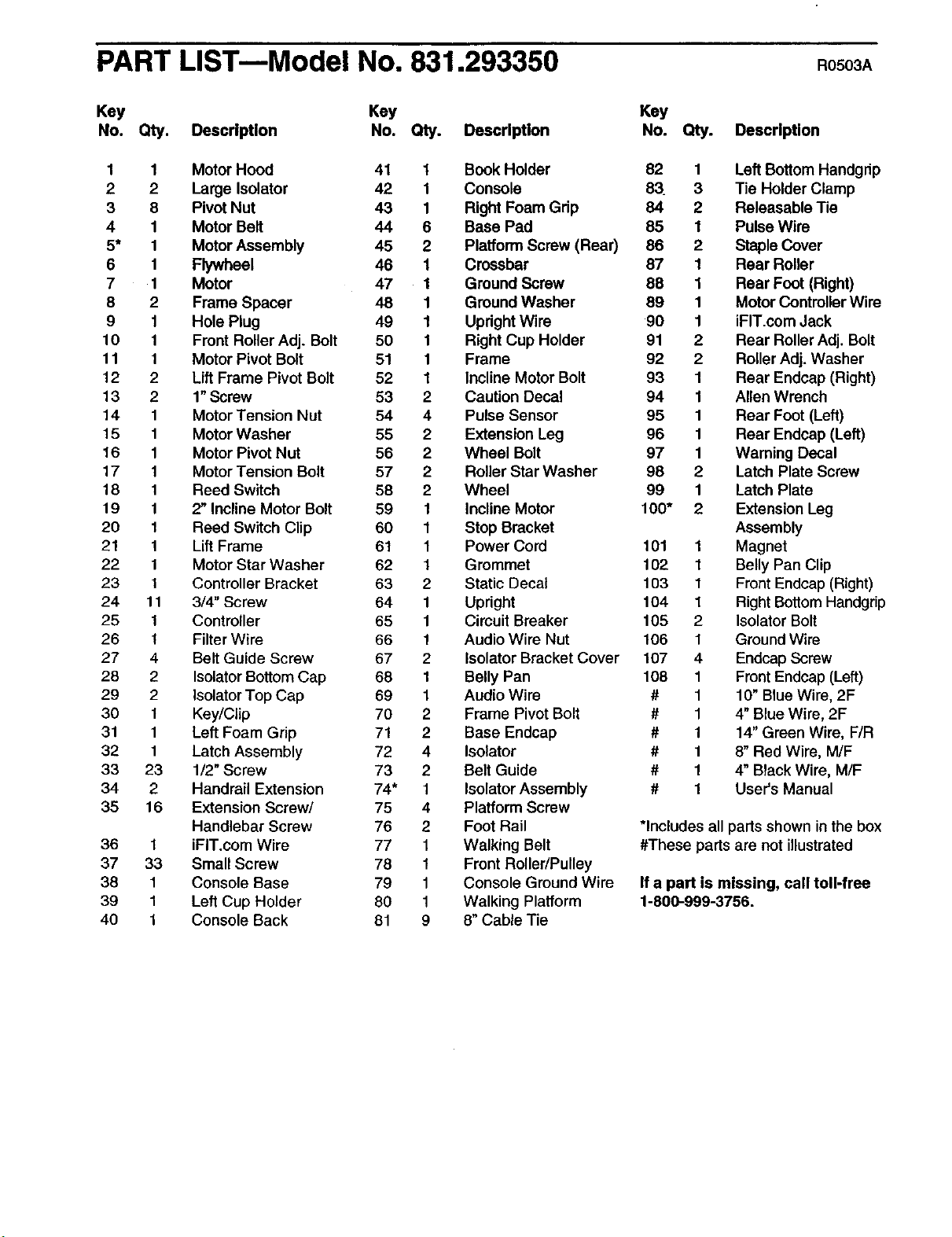

PART LISTmModel No. 831.293350 R0S03A
Key Key Key
No. Qty. DescripUon No. Qty. Description No. Qty. Description
1 1 Motor Hood 41 1 Book Holder
2 2 Large Isolator 42 1 Console
3 8 Pivot Nut 43 1 Right Foam Grip
4 1 Motor Belt 44 6 Base Pad
5* 1 Motor Assembly 45 2 Platform Screw (Rear)
6 1 Flywheel 46 1 Crossbar
7 1 Motor 47 1 Ground Screw
8 2 Frame Spacer 48 1 Ground Washer
9 1 Hole Plug 49 1 Updght Wire
10 1 Front Roller Adj. Bolt 50 1 Right Cup Holder
11 1 Motor Pivot Bolt 51 1 Frame
12 2 Lift Frame Pivot Bolt 52 1 Incline Motor Bolt
13 2 1" Screw 53 2 Caution Decal
14 1 Motor Tension Nut 54 4 Pulse Sensor
15 1 Motor Washer 55 2 Extension Leg
16 1 Motor Pivot Nut 56 2 Wheel Bolt
17 1 Motor Tension Bolt 57 2 Roller Star Washer
18 1 Reed Switch 58 2 Wheel
19 1 2" Incline Motor Bolt 59 1 Incline Motor
20 1 Reed Switch Clip 60 1 Stop Bracket
21 1 Lift Frame 61 1 Power Cord
22 1 Motor Star Washer 62 1 Grommet
23 1 Controller Bracket 63 2 Static Decal
24 11 3/4" Screw 64 1 Upright
25 1 Controller 65 1 Circuit Breaker
26 1 Filter Wire 66 1 Audio Wire Nut
27 4 Belt Guide Screw 67 2 Isolator Bracket Cover
28 2 IsolatorBottomCap 68 1 Belly Pan
29 2 isolatorTop Cap 69 1 Audio Wire
30 1 Key/Clip 70 2 Frame Pivot Bolt
31 1 Left Foam Grip 71 2 Base Endcap
32 1 Latch Assembly 72 4 Isolator
33 23 1/2" Screw 73 2 Belt Guide
34 2 Handrail Extension 74* 1 Isolator Assembly
35 16 Extension Screw/ 75 4 Platform Screw
Handlebar Screw 76 2 Foot Rail
36 1 iFIT.com Wire 77 1 Walking Belt
37 33 Small Screw 78 1 Front Roller/Pulley
38 1 Console Base 79 1 Console Ground Wire
39 1 Left Cup Holder 80 1 Walking Platform
40 1 Console Back 81 9 8" Cable Tie
82 1 Left Bottom Handgrip
83 3 Tie Holder Clamp
84 2 Releasable Tie
85 1 Pulse Wire
86 2 Staple Cover
87 1 Rear Roller
88 1 Rear Foot (Right)
89 1 Motor Controller Wire
90 1 iFIT.com Jack
91 2 Rear RollerAdj. Bolt
92 2 RollerAdj. Washer
93 1 Rear Endcap (Right)
94 1 Allen Wrench
95 1 Rear Foot (Left)
96 1 Rear Endcap (Left)
97 1 Warning Decal
98 2 Latch Plate Screw
99 1 Latch Plate
100" 2 Extension Leg
Assembly
101 1 Magnet
102 1 Belly Pan Clip
103 1 FrontEndcap (Right)
104 1 RightBottomHandgrip
105 2 IsolatorBolt
106 1 Ground Wire
107 4 EndcapScrew
108 1 FrontEndcap (Left)
# 1 10" Blue Wire, 2F
# 1 4" Blue Wire, 2F
# 1 14" Green Wire, F/R
# 1 8" Red Wire, M/F
# 1 4" Black Wire, M/F
# 1 User's Manual
*Includes all parts shown in the box
#These parts are not illustrated
If a part is missing, call toll-free
1-800-999-3756.
EXPLODED DRAWING--Mo Jel No. 831.293350
36
37
106_ '_11
24
18 21
99
86
_101
22
77
RO503A
11
3
8
107
103
32
33
100"
I
56
43
54
46
41
34
42
50 o
0
35
33
37
57,
91
92 33
95
57
87
91
33 _88
86
51 _28
_105
7O
f
Your Home
For repair - in your home - of all major brand appliances, lawn and garden equipment,
or heating and cooling systems, no matter who made it, no matter who sold itl
For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® Anytime, day or night
(1-800-469-4663) (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in products like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts and Repair Center.
1-800-488-1222 Anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-808-827-8855 (U.S.A.) !-800-38!-6665 (c_.q__)
Para pedir servicio de reparaci6n a domicilio, y para ordenar piezas:
1-888-SU-HOGAR sM (1-888-7846427)
8BAR8
® Registered Trademark / _ Trademark / sMService Mark of Sears, Roebuck and Co.
® Mama eegistrada / _ Mama de F_brica / ,SMMama de Servicio de Sears, Roebuck and Co.
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
Sears Treadmill Exerciser, contact the nearest Sears Service Center throughout the United States and
Sears will repair or replace the Treadmill Exerciser, free of charge.
This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
J
J
Part No. 196526 R0503A Printed in USA © 2003 Sears, Roebuck and Co.
