User Manual 6150 Manco fun-kart

6150 Manco fun-kart - Use Manual - Use Guide PDF.
Documents: Go to donwload!
  • Owner's manual - (English)

User manual of Manco 6150 (30 pages)
file thumbnail

READ THIS MANUAL CAREFULLY IT CONTAINS IMPORTANT SAFETY INFORMATION 6150 150cc Fun Kart

RECOMMENDED MINIMUM OPERATOR AGE: 12

THIS VEHICLE IS FOR OFF-ROAD USE ONLY THIS VEHICLE IS NOT DESIGNED FOR USE ON RENTAL TRACKS OR RACING

BEFORE OPERATING THIS VEHICLE.

THE OWNER AND EACH OPERATOR MUST UNDERSTAND THIS VEHICLE WAS NOT DESIGNED OR MANUFACTURED TO MEET SPECIFICATIONS FOR USE ON PUBLIC ROADS.

STREETS.

HIGHWAYS.

AND THOROUGHFARES.

THE OWNER AND EACH OPERATOR MUST READ AND UNDERSTAND ALL THE INSTRUCTIONS FOR PROPER ASSEMBLY AND SAFE OPERATION.

AS WELL AS THE INSTRUCTIONS CONCERNING THE ENGINE AND ALL OTHER PORTIONS OF THE VEHICLE.

CHILDREN MUST BE OF AGE 12 OR OLDER AND SUPERVISED BY AN ADULT AT ALL TIMES WHEN USING THIS FUN-KART.

O?

F:Ai:T. i/:)T/;2/ i9

&i "O+JtA]

_;5'

MY VEHICLE IDENIFICATION NUMBER

Record the VIN number and Model number of your Manco Fun Kart below for service and insurancerecords.

The VIN number is hard tagged on the kart frame just behind the drivers seat.

VIN: Model: 6t60L

MANCO POWERSPORTS LIMITED WARRANTY

Manco PowerSports (hereinafter referred to as "Manco") hereby warrants to the original purchaser that the

The period of warranty is thirty (30) days from date of purchase for the component parts (except as noted

The original purchaser must operate the vehicle and maintain the vehicle in accordance with the instructions

General Exclusions: This limited warranty does not cover component failure or damage caused by any of the

Manual. Additionally. this warranty does not cover component failure or damage to vehicles which are leased

Specific Exclusions: This limited warranty does not apply to components. which are subject to normal wear and

MANCO MAKES NO OTHER WARRANTY OF ANY KIND.

EXPRESSED OR IMPLIED.

ALL WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WHICH EXCEED THE OBLIGATIONS

AND TIME LIMITATIONS SPECIFIED IN THE WARRANTY ABOVE ARE HEREBY DISCLAIMED BY MANCO

AND EXCLUDED FROM THIS WARRANTY.

ADDITIONALLY.

THIS WARRANTY EXCLUDES ANY

INCIDENTAL OR CONSEQUENTIAL DAMAGES.

INCLUDING BUT NOT LIMITED TO LOSS OF USE. SOME

STATES DO NOT ALLOW A MANUFACTURER TO EXCLUDE OR LIMIT INCIDENTAL OR CONSEQUENTIAL

DAMAGES AND. THEREFORE.

THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY WILL LAST. IT IS

POSSIBLE THAT THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU

SPECIFIC LEGAL RIGHTS.

AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS.

WHICH VARY. FROM

STATE TO STATE.

PAGE 1

Wi'. %8iC 'i:/; _:!81"Jq. .

61{_(} NUi'@E:: 4)@i:

SUBJECT

General Information and Safety

Vehicle Recerds

Warranty Information

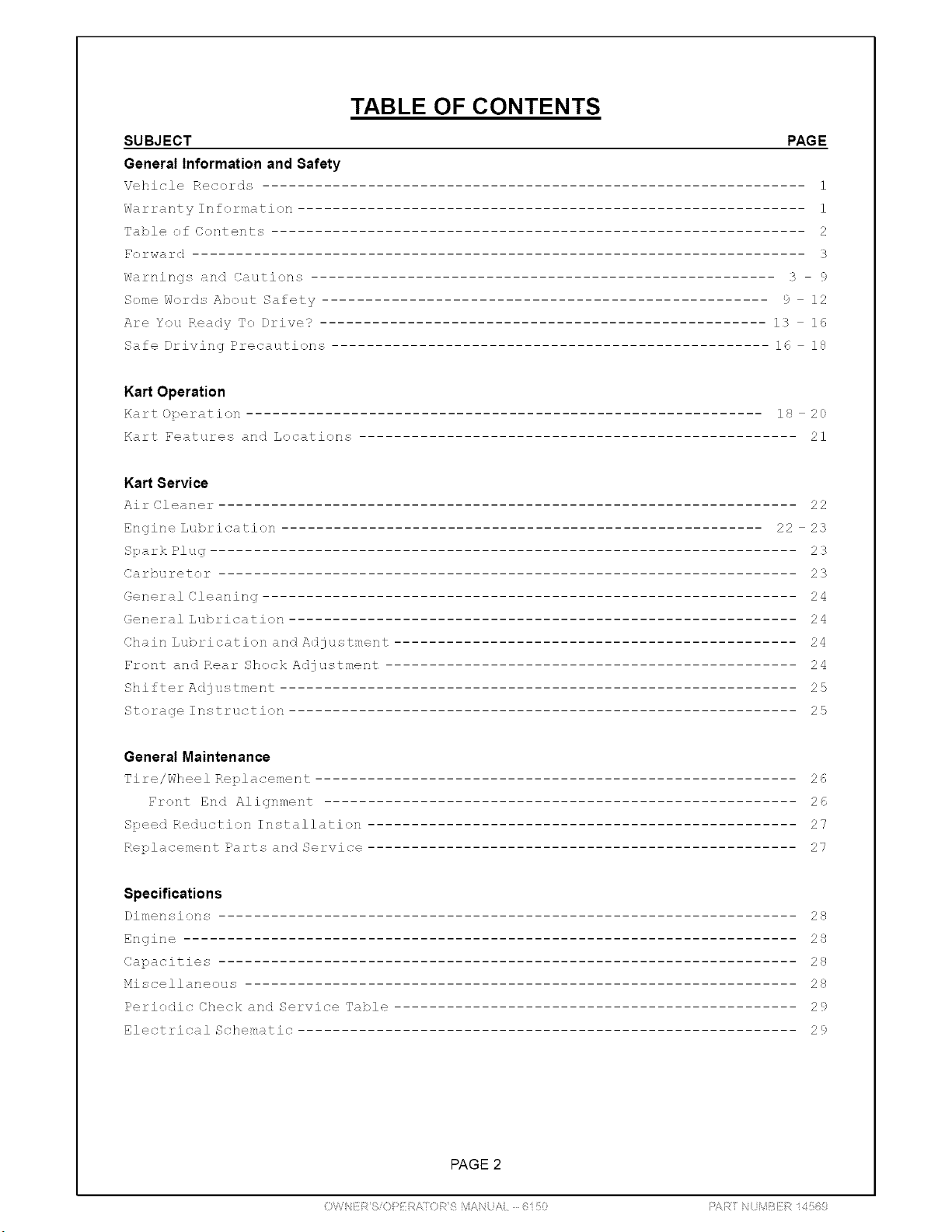

Table of Contents

Fe rwa rd

Warnings and Cautions

Seine Werds About Safety

Are You Ready Te Drive?

Safe Driving Precautions

TABLE OF CONTENTS

Kart Operation

Kart Operation

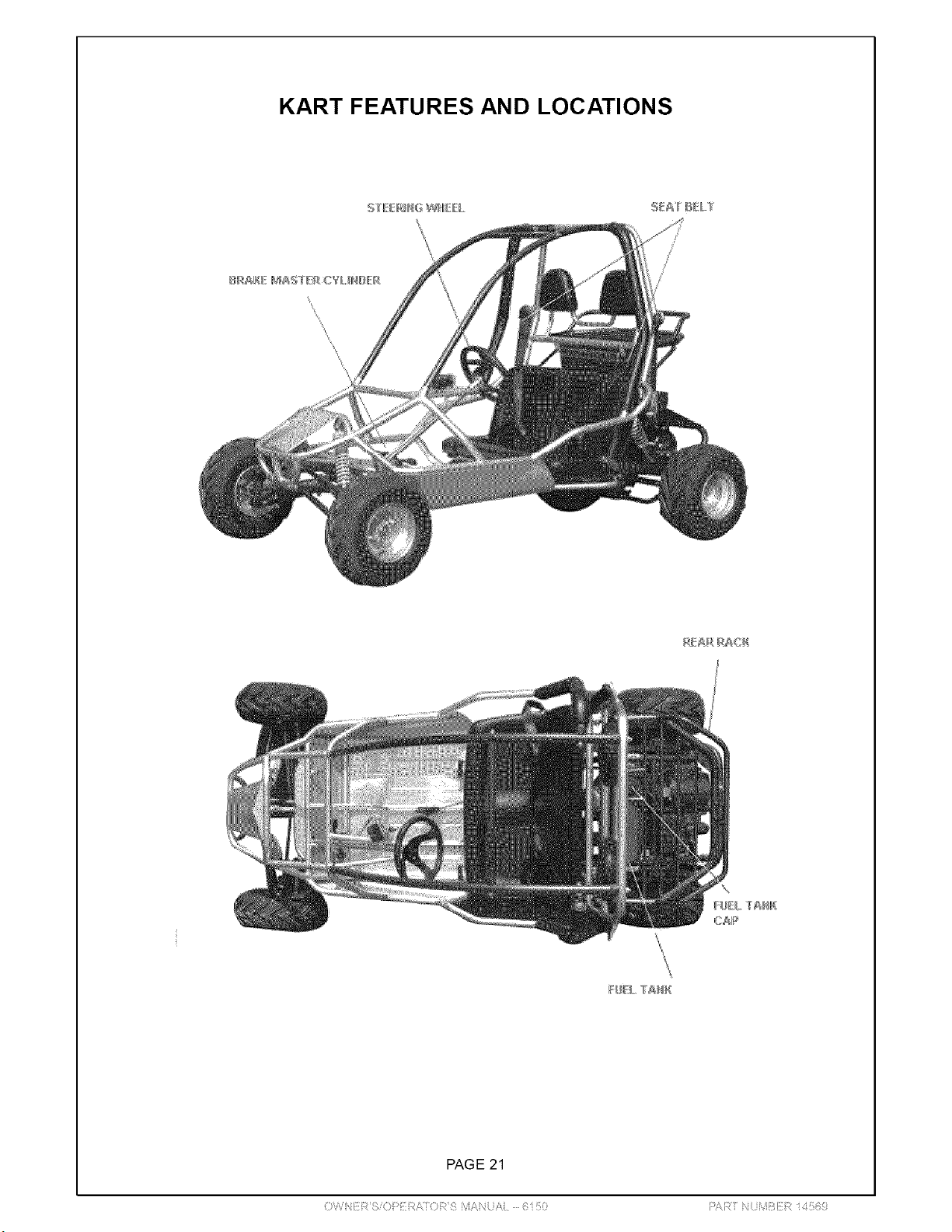

Kart Features and hecatiens

Kart Service

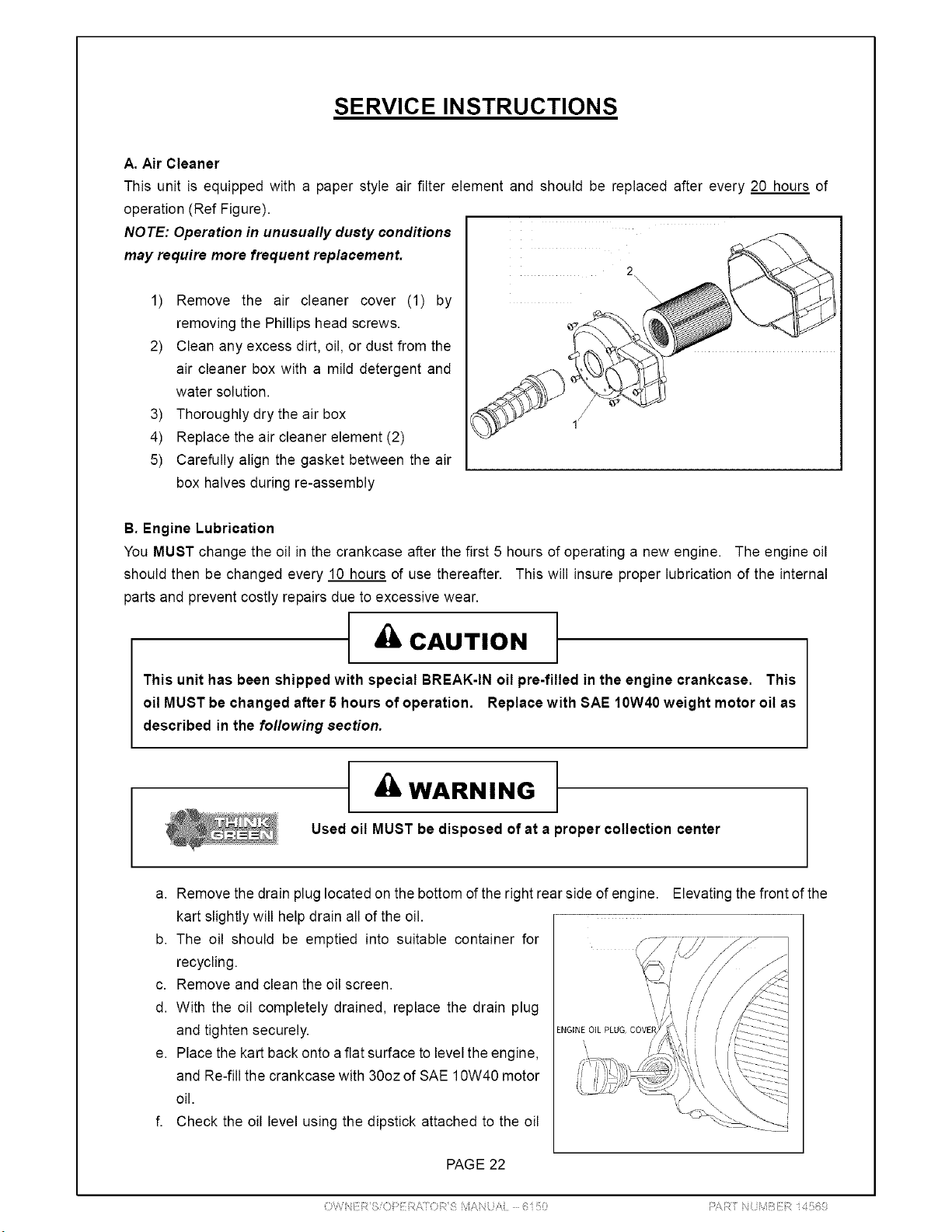

Air Cleaner

Engine Lubricatien

Spark Plug

Carburetor

GeneralCleaninq

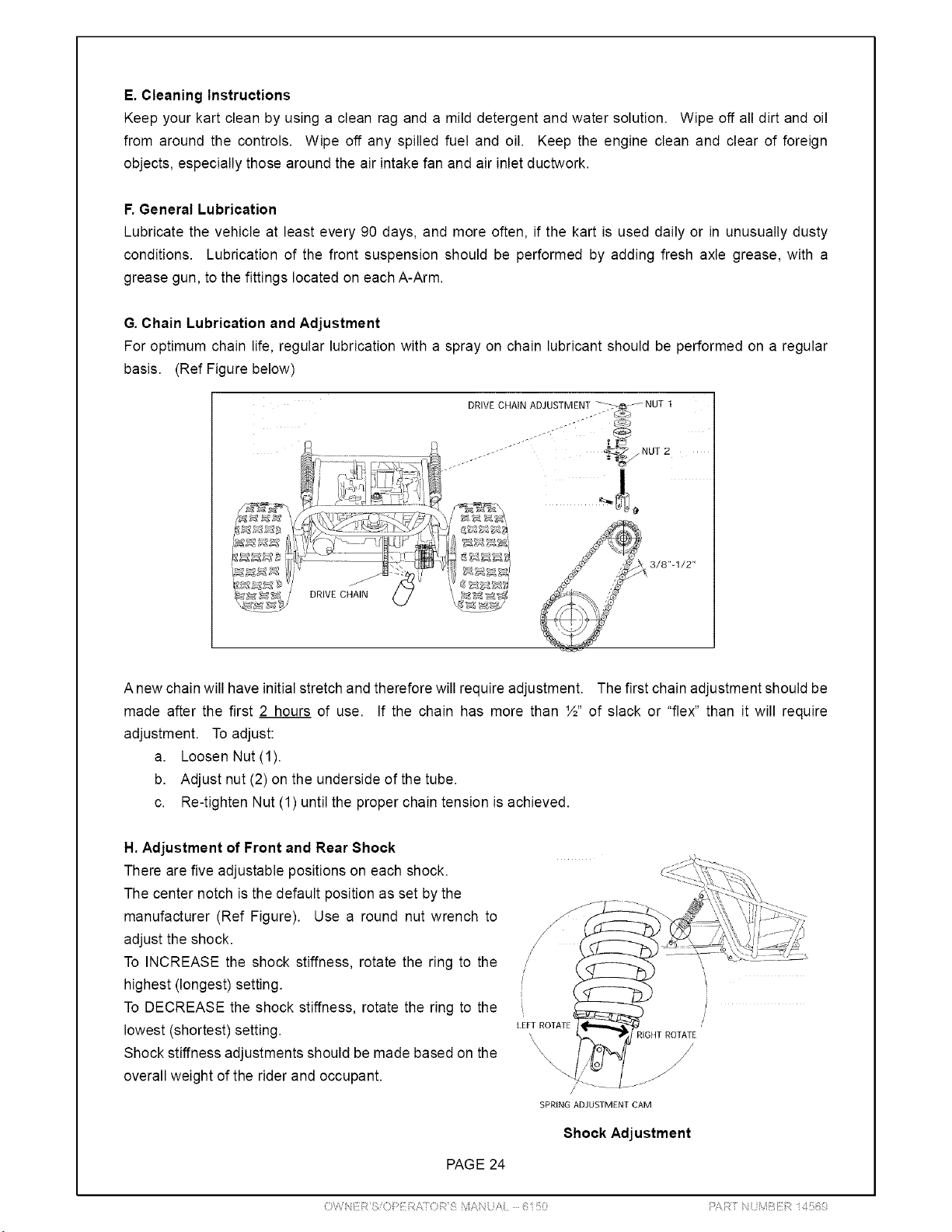

GeneralLubricatiH

FrHt anJ Rear Shock Adjustment

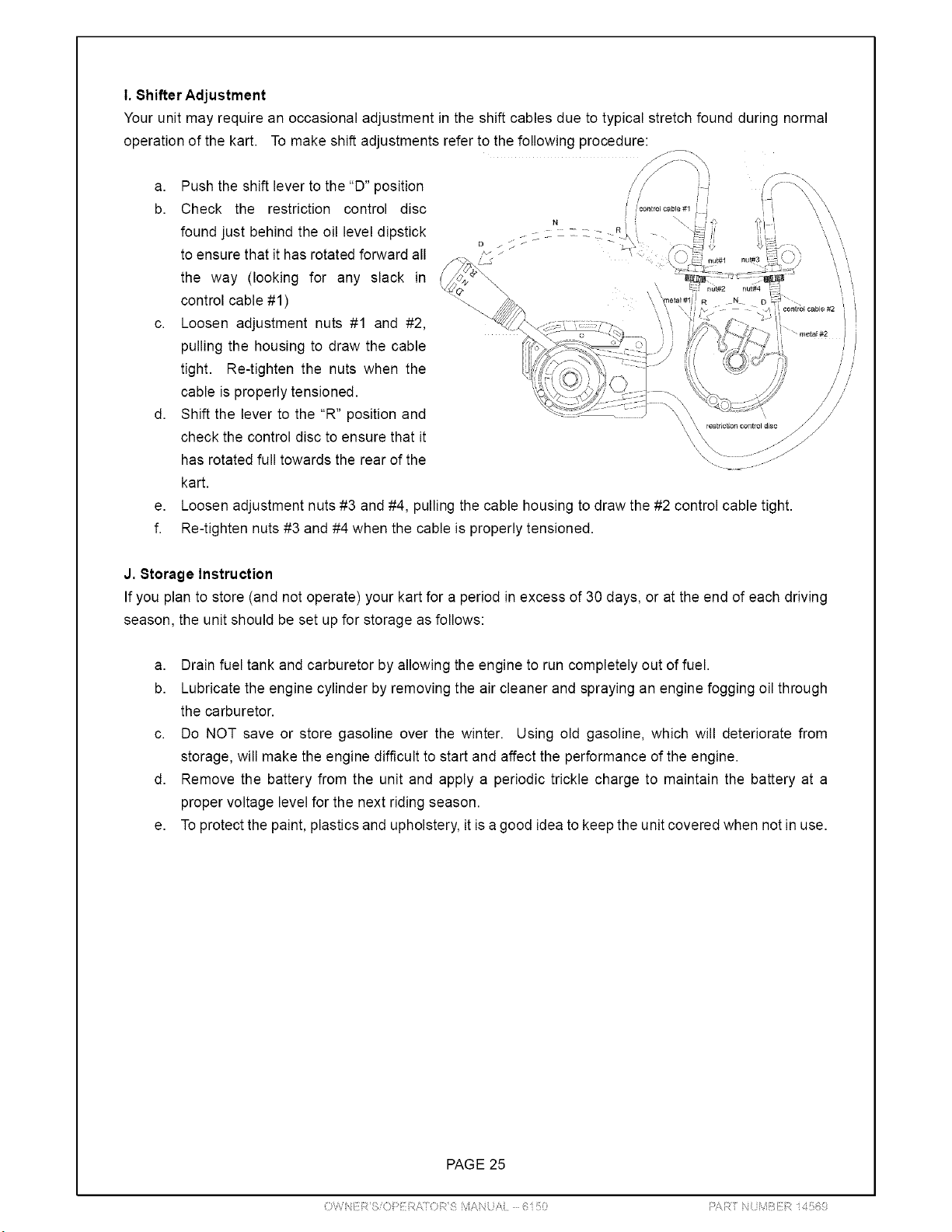

ShifterAdjustment

Storage Instructi

General Maintenance

Tire/Wkeel Replacement

FrHt EnJ Alignment

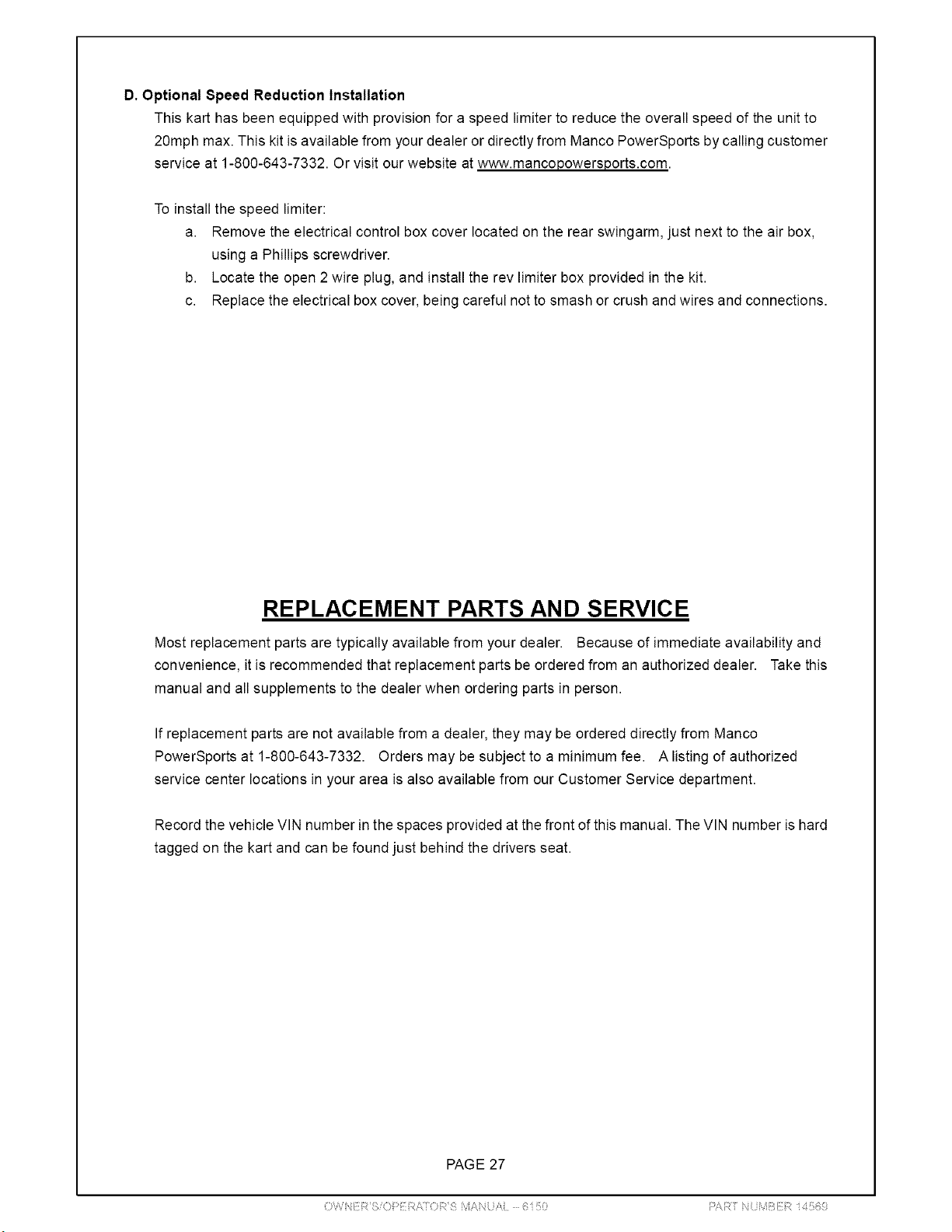

Speed ReJuctiH InstallatiH

Replacement Parts anJ Service

Specifications

Dimensiens

Engine

Capacities

Miscellaneous

Periodic Check and Service Table

Electrical Schematic

PAGE

PAGE 2

)Wi'. %SiC 'i:/; _:!Si"_'i. . 61{_<}

FORWARD

Congratulations on the purchase of your Manco Fun Kart.

Before operating this vehicle. the owner and each

Be sure to follow the recommended maintenance schedule and service your kart accordingly.

Preventative

Beginners are urged to seek instruction from a dealer or qualified instructor before and during the initial use of

We hope you will have a fun. safe experience with our products and thank you again for choosing a Manco Fun

Machine.

CAUTIONS AND WARNINGS

This is the safety alert symbol.

When you see this symbol on your machine or in this

Read and follow all instructions in this Owner's manual and any accompanying

Operations and Safety video.

WARNING

Indicates a potential hazard that could result in severe personal injury or death

CAUTION

Indicates a potential hazard which may result in personal injury or damage to the Fun-Kart.

NOTE: Use of the word "NOTE" will alert you to key information or instructions.

PAGE 3

IMPORTANT SAFETY INFORMATION

_'k WARNING

Exhaust fumes are toxic.

California Proposition 65 WARNING: Gasoline engine exhaust from this Fun-Kart contains

NEVER operate this Fun-Kart indoorsor in an enclosed area without adequate ventilation

WARNING

This Fun-Kart may have been supplied to you completely assembled. To prevent injury or

WARNING

Check tire pressure before each use.

Prior to operating the vehicle check and adjust tire pressure to the proper operating

WARNING

Fun-Kart modification or removal of original equipment or safety decals can render the

Fun-Kart unsafe for operation.

• k WARNING

Safety decals must be replaced if they become unreadable or detached from the Fun-Kart.

If decals are unreadable or missing. warning of potential hazards or safety requirements

WARNING

This Fun-Kart is not designed for use on rental tracks of any kind.

PAGE 4

WARNING

NEVER adjust. repair. or clean the Fun-kart while it is in motion.

WARNING

The safe operation of this Fun-Kart is dependent upon the operator's ability to exercise proper

Operator and passenger must not be too small or too large for controlled operation.

Operator and passenger must be of sufficient age. understanding. mental capacity. and

Fun-Kart should only be operated after mature. supervised instructionand sufficient

WARNING

Operator and any passengers MUST always wear properly fitting motorcycle helmet

Most accident fatalities are due to head injuries.

Operator (and any passenger) should also wear face shields or goggles. boots. gloves

(See KART OPERATION)

A'I WARNING

Long hair. loose clothes. or jewelry can get caught in moving parts below and behind the seat

Remove or tie back anythingloose that can reach below and behind the seat before riding.

WARNING

NEVER place hands. feet. or any body parts or clothing near the engine. wheels. chain. and

Use caution in performing required maintenance on or near operating engine.

Use caution after the engine has been running. since the engine and other drive components

WARNING

STOP the engine if the Fun-Kart makes unusual noises or vibrations.

Check the Fun-Kartfor damage.

Excessive noise or vibration is a sign of loose or worn parts.

PAGE 5

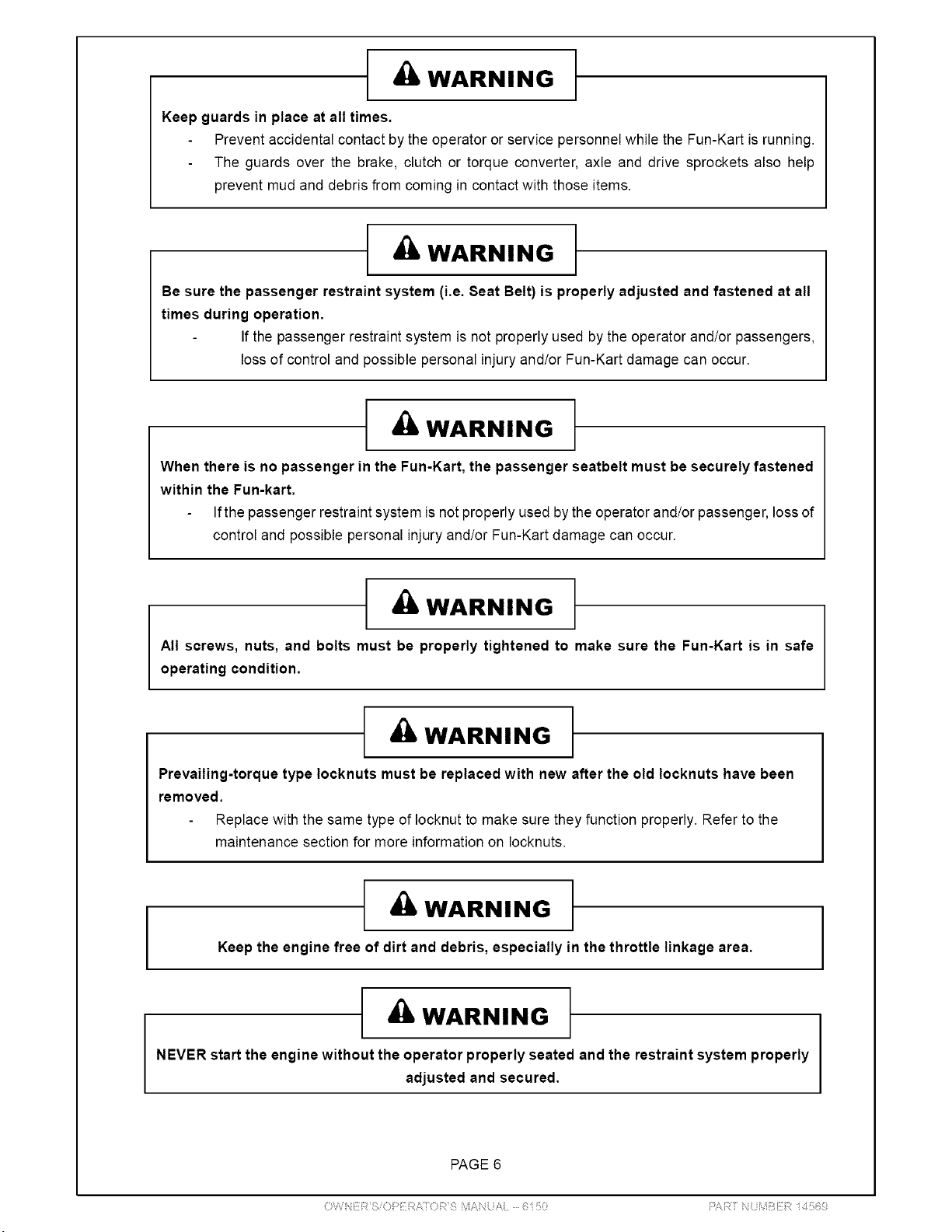

WARNING

Keep guards in place at all times.

Prevent accidental contact by the operator or service personnel while the Fun-Kart is running.

The guards over the brake. clutch or torque converter. axle and drive sprockets also help

WARNING

Be sure the passenger restraint system (i.e. Seat Belt) is properly adjusted and fastened at all

If the passenger restraint system is not properly used by the operator and/or passengers.

WARNING

When there is no passenger in the Fun-Kart. the passenger seatbelt must be securely fastened

If the passenger restraint system is not properly used by the operator and/or passenger. loss of

WARNING

All screws. nuts. and bolts must be properly tightened to make sure the Fun-Kart is in safe

WARNING

Prevailing-torque type Iocknuts must be replaced with new after the old Iocknuts have been removed.

Replace with the same type of Iocknut to make sure they function properly. Refer to the maintenance section for more information on Iocknuts.

WARNING

Keep the engine free of dirt and debris. especially in the throttle linkage area.

WARNING

NEVER start the engine without the operator properly seated and the restraint system properly

PAGE 6

WARNING

NEVER start the engine without checking to see that the throttle control is in idle position.

WARNING

NEVER tamper with. alter. or change the Fun-Kart's engine governor settings.

The governoras set by the engine manufacturer. limitsmaximum engine speed and protects

Excessive engine speed is potentially dangerous to operator. passengers. bystanders. and

WARNING

Check fuel supply before each use.

NEVER fill fuel tank while the engine is running or hot.

DO NOT overfill tank.

ALWAYS allow at least ½" of expansion space at the top of tank.

There should not be any fuel in the filler neck.

Replace cap tightly to prevent a fuel spillage fire hazard.

NOTE: Always use an original gas cap or OEM replacement.

NEVER fill fuel tank while the Fun-Kart is inside a building.

After filling the tank. move the Fun-Kart at least ten feet before attempting to start the engine.

WARNING

ALWAYS use extreme caution when starting the engine.

Hot engine. muffler. or drive components can burn on contact.

WARNING

Wet. slippery. rough. or sloped terrain is potentially dangerous and may result in injury if

Operator must use mature judgment. skill. and experience to choose a speed suitable for

Operator must use mature judgment. skill and experience in choosing suitable terrain for

£k WARNING

When turning on pavement. loose gravel. or similar surfaces. there is an increased risk in loss of control. ALWAYS SLOW DOWN!

PAGE 7

WARNING

ALWAYS SLOW DOWN when turning.

High-speed turning can cause loss of control and/or possible operator injury.

Turning on a slope increases the risk of rollover.

Practice operation is required to coordinate turning skill.

Failure to operate this Fun-kart at a safe speed while turning can result in a strong possibility

WARNING

Washing or operating the Fun-Kart in freezing temperatures can result in water freezing in the throttle cable conduit and/or on the throttle mechanism.

This may result inthe throttlesticking which can cause the engine to continue to run and result in loss of control.

WARNING

Operating the Fun-Kart in conditions where water. mud. snow. dirt. sand. or other debris can

This may result in the throttle sticking which can cause the engine to continue to run and result in loss of control.

WARNING

Assembly. maintenance. and/or repair of this Fun-Kart should only be performed by

WARNING

Read and keep all supplied printed material.

Supplements to this Operator's Manual contain updated informationrelative to your specific

Fun-Kart model. It is importantto keep all of these documents for reference.

WARNING

When making repairs or adjustments to the Fun Kart. the spark plug wire MUST be

When working on. around. or restarting engine. use extreme caution to avoid contact with

Ensure that all guards are in place prior to starting the engine.

PAGE 8

CAUTION

During Fun-Kart storage. keep it in a place where gasoline fumes will not reach and open

For long-term storage. fuel tank should be drained in an open. cool area.

Engine must be allowed to cool before storage in any enclosure.

NEVER store the Fun-kart in close proximity to appliances such as hot water heaters or furnaces.

WARNING

NEVER operate the Fun-Kart while under the influence of alcohol. drugs. or medication of any kind.

Such operation is dangerous to yourself and/or others.

CAUTION

Brush Bars assembled to this Fun-Kart are for decorative purpose and limited brush

Brush Bars were not designed for roll over or to restrict all brush or tree branches from

CAUTION

If the Fun-Kart should start making unusual noise or vibrating abnormally. the engine should

SOME WORDS ABOUT SAFETY

The following pages present important information and recommendations to help you drive your Kart

PAGE 9

WNI _:S/C R/ _ !Si":i. _. 5(}

SAFETY LABELS

The following labels have been applied to your Fun Kart and should be considered as permanent parts of

Manco PowerSports Customer Service department for warning label replacements.

ATTENTION

Prior to operating vehicle. check and adinst tire pressure to tile proper operating pressure as indicated on the sidewall of each tire.

To change gears stop the vehicle.

Shift with the

Engine at idle.

Shifting gears with N the engine speed above idle or with the kart in motion

11330-D

RiskofDeathorrious injury

+ Shoulderlengthandlongerhairorloose clothingcangetcaughtinmovingparts behindorbelowtheseat. e Restrainhairatoraboveshoulderlevel.

Restrainedhairmustnotinterfere withthe properfit ofthehelmet.

+ Securelyrestrainanythingloesethat reachesbehindorbelowteseat.

Guardsaresup.plementary SafetyDevices.

Therestraintof hairandclothingisthe irimarymeansof avoidingentanglement. ueathorInjury.

133o

THIS IRT IS NOT SUITABLE FOR A CHILD UNDER 12 YEARS A Speed reduction kit is available for this kart.

11330-E

This rack is intended for carrying light items up to 25tbs maximum.

All items must secured with proper tie downs before operating this vehicle.

PAGE 10

QUALIFICATIONS FOR FUN-KART USERS

This Fun-Kart is restricted to use by operator and passenger with a minimum age of twelve years.

Fun-Karts

Consumer Responsibility for Safe Use and Maintenance of a Fun-Kart

Fun-Karts shall not be modified from the manufacturer's original design and configuration.

Fun-Karts shall not be used to perform racing. stunt riding. jumps. spinouts. donuts. or other maneuvers as

Prior to each use. the operator shall perform the preoperational checks specified by the manufacturer. and

I.

That all fasteners are in place and tightened securely.

Fun-Kart engines shall not be started unless the operator is seated in proper position for vehicle operations

Long hair. loose clothes. or jewelry can get caught in moving parts below the seat or surrounding

Fun-Karts shall only be fueled by a supervisor knowledgeable with regard to proper fueling techniques.

A supervisor shall verify personally that everyone operating or riding is knowledgeable. capable. and has

PAGE 11

WNI _:S/C R/ _ !SI"Ji. _. 5(}

Fun-Kart operators and passengers shall adhere to all manufacturer's recommendations and instructions.

WARNING

Long hair. loose clothes. or jewelry can get caught in moving parts below and behind the seat

Persons with the following conditions shall not ride in or operate a Fun-Kart: a.

Those with heart conditions

10. Fun-Kart shall not be used to:

11. Fun-kart operators always shall use appropriate protective clothing. including but not limited to a

12. No operator or other person shall contact any portion of the engine. wheels. or drive train for any purpose

13. Passenger restraints must be used in accordance with. and limited to. the manufacturer's guidelines.

14. Fun-Kart components shall be maintained and repaired in accordance with the manufacturer's

PAGE 12

WNI _:S/C R/' _ !Si"Ji. . _. 5(}

ARE YOU READY TO DRIVE?

Before each drive. you need to make sure that you and your kart are both ready to drive.

To help get you

Read this owner's manual and the labels on your kart carefully.

Make sure you understand all the safety messages.

Know how to operate all the controls.

View and understand the included safety DVD

Protective Apparel

Although complete protection is not possible. wearing proper gear can reduce the chance of injury should you

Helmet and Eye Protection

Your helmet is your most important piece of protective gear because it offers the best

Open-face helmets offer some protection. but a full-face helmet offers more.

Regardless of the style.

WARNiNG

Operating this kart without wearing an approved motorcycle helmet. eye protection. and

Always wear and approved motorcycle helmet that fits properly and wear eye protection

(goggles or face shield). gloves. boots. long-sleeved shirt or jacket and long pants.

Additional Driving Gear

In addition to a helmet and eye protection. we also recommend:

Sturdy off-road motorcycle boots to help protect feet. ankles. and lower legs.

Off-Road motorcycle gloves to help protect your hands

Driving pants with knee and hip pads. a driving jersey with padded elbows. and

Driver Training

Developing your driving skills is an ongoing process.

Even if you are and experienced driver. take time to

PAGE 13

::;;" /'>:

WARNING

Operating this kart without your seat belt could cause you to be thrown from the kart. causing

No Alcohol or Drugs

Alcohol. drugs and karts don't mix. Even a small amount of alcohol can impairyour ability to operate a kart

Consult your doctor to be sure it is safe to operate a vehicle after taking medication.

WARNING

Operating this kart after consuming alcohol or drugs can seriously affect your judgment.

IS YOUR VEHICLE READY TO DRIVE?

Before each drive. it is importantto inspectyour kart and make sure any problems you find are corrected. A

If your kart has overturned or has been involved in a collision. do not drive it until your kart has been inspected

WARNING

Improperly maintaining this kart or failing to correct a problem before driving can cause an

Always perform a pre-drive inspection before every drive and correct any problems.

Pre-Ride Inspection

The following checklist should be utilized to inspect your vehicle before each use to ensure that it is in

PAGE 14

ENGINE STOPPED CHECKLIST

ITEM ACTION

Engine Oil Level Refer to operator's manual.

Refer to operator's manual.

Fuel level DO NOT refuel a hot engine. Allow engine to

Warning Decals Replace as necessary.

Tires

INSPECTION PROCEDURE

Add oil if required.

Check for leaks.

Tighten filler cap securely.

Add fuel if necessary.

DO NOT overfill.

DO NOT mix oil with gas.

Replace cap tightly.

Make sure all warning decals are

)ressure gauge is required to

Replace tires if tread height is less than 1/8" at center of tire. Add or remove air as

Drive Train Check condition and tension Lubricate. adjust tension as necessary.

Throttle

Fasteners

Brush bars

Steering

Frame / Chassis

Battery

Check for smooth operation.

Ensure throttle 'snaps' back to idle.

Check for frayed or loose cable.

Check for mud. debris. and ice in

Check wheels to see that all axle

Check for missing fasteners.

Check that all other fasteners are

Make sure all brush bars are in

)lace and securely attached.

Make sure steering turns freely

Check for proper 'toe-in' of wheels.

Check for bent or otherwise

Check that the battery is secured

Check all guards covering moving )arts.

Guards

Replace damaged cable.

Clean out any mud and debris. If ice is

)resent. move Fun-kart to a warm place and

Tighten fasteners as necessary.

Replace fasteners as necessary

Replace damaged bars or fasteners and

Lubricate and adjust as necessary.

Replace as necessary.

Clean / tighten as necessary.

Tighten fasteners on loose guards.

Replace

PAGE 15

WN[:::SiO'iR/'_:!S 615(} I:R N/;[email protected]:: 4[[email protected]

ITEM INSPECTION PROCEDURE ACTION

Lights Check for proper operation See OPERATION - Control Console

Check fasteners are tight. check

Ball Joints that all cotter pins are in place.

See MAINTENANCE - Chassis Check for ball looseness

ENGINE STARTED CHECKLIST

ITEM INSPECTION PROCEDURE ACTION

Stop Switch Perform stop switch test.

Repair / replace as necessary.

Throttle Check idle adjustment. &djust as necessary.

Brakes Ensure brakes function properly. &djust / replace as necessary.

Correct any discrepancies according to this Operator's Manual before riding. If the problem cannot be corrected. contact an authorized dealer for assistance or call 1-800-643-7332 for Customer Service.

SAFE DRIVING PRECAUTIONS

Off-Road Use Only: Your kart and its tires are designed and manufactured for off-road use only. not for use

WARNING

Operating this kart on paved surfaces may seriously affect handling and control of the kart.

When driving off-road. also remember to always obey local off-road driving laws and regulations.

Obtain

You should never drive your kart on public streets. roads or highways. even if they are not paved. Drivers of

WARNING

Operating this kart on public streets. roads or highways could result in a collision with another

PAGE 16

Wi. I:_:SiC 'i:/; _:!<;V:q. ;: _. {7(}

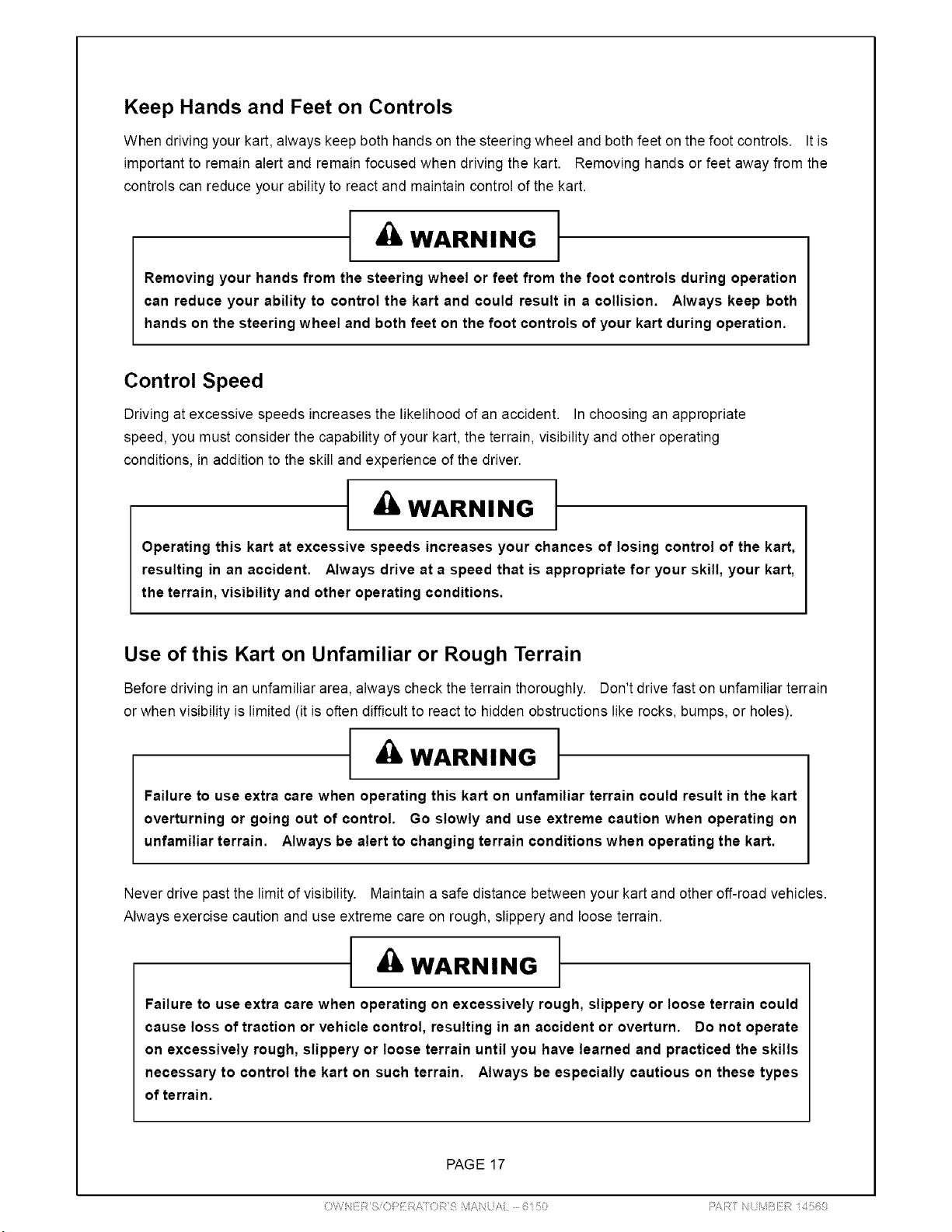

Keep Hands and Feet on Controls

When driving your kart. always keep both hands on the steering wheel and both feet on the foot controls.

It is

WARNING

Removing your hands from the steering wheel or feet from the foot controls during operation

Control Speed

Driving at excessive speeds increases the likelihood of an accident.

In choosing an appropriate

WARNING

Operating this kart at excessive speeds increases your chances of losing control of the kart.

Use of this Kart on Unfamiliar or Rough Terrain

Before driving in an unfamiliar area. always check the terrain thoroughly.

Don't drive fast on unfamiliar terrain

WARNING

Failure to use extra care when operating this kart on unfamiliar terrain could result in the kart

Never drive past the limit of visibility.

Maintain a safe distance between your kart and other off-road vehicles.

Always exercise caution and use extreme care on rough. slippery and loose terrain.

WARNING

Failure to use extra care when operating on excessively rough. slippery or loose terrain could

PAGE 17

Do Not Perform Stunts

You should always operate your kart in a safe and reasonable manner.

WARNING

When driving. always keep all four

Attempting wheelies. jumps. and other stunts increase the chances of an accident. including

KART OPERATION

Operation controls t -w-.. .ot

Do not attempt to start or operate the engine until completely familiar with the location and use

A. Throttle

The right foot pedal is the throttle. controlling the speed of the kart.

As the engine speed increases above idle.

WARNING

Every time. prior to starting the engine. check the throttle assembly to ensure that when the

B. Brake

The brake is controlled by the left foot pedal (See Figure).

Applying pressure to the pedal draws the brake pads against

IGNI'[ON STARTSWTCH ENGINE STOP BUTTON

Your kart is also equipped with a hand operated parking brake

C. Lights

This kart may come equipped with front running lights and/or a

ASM TRANS SHIFT LEVER PARKING BRAKE

PAGE 18

[k WARNING

Your kart may or may not be equipped with daytime lights. Lights are designed for daytime use

Aftermarket and standard equipment lights are not intended for nighttime operation of the kart.

D. Engine Starting

With the unit shifted into the "NEUTRAL" gear. and with the parking brake applied. insert the key into

CAUTION

This unit has been shipped with a special BREAK-IN oil pre-filled in the engine crankcase.

This oil MUST be changed after 6 hours of operation.

Replace with a 10W40 weight motor oil

E. Engine Stop Switch

Before driving this vehicle. test the Engine Stop Switch to ensure that it is operating properly.

With the engine

NOTE: The key switch should always be turned to the "OFF" position when the kart is not in use to

R Rear View Mirror

This kart may come equipped with a rear view mirror.

Adjust the mirror such that objects can be easily seen

G. Seat Adjustment

The unit is equipped with an adjustable drivers seat.

To adjust. lift the lever just in front of the seat bottom

(between the drivers legs) and move the seat either forward or backward.

Release the lever at the desired

WARNING

Never operate this kart when the seat is not securely locked into position.

Serious injury or

PAGE 19

WNI _:S/C R/ _ !Si"Ji. _. 5(}

H. Occupant Restraints

This kart is equipped with 3 point retracting seat belts.

Insert the metal tongue into the buckle until it is

1.Rear Cargo Rack

This kart is equipped with a rear cargo rack.

The rack should be used for transporting small items. however.

WARNING

Failure to properly tie down loose items and exceeding the maximum rating of the cargo rack

J. Gear Selection

This kart is equipped with a Drive / Neutral / Reverse transmission.

To shift gears. bring the kart to a complete

Damage to the fun kart will occur if the unit is shifted into a different gear while the kart is still

K. Steering Adjustment

This kart may come equipped with an adjustable tilt steering

[k WARNING

Do not operate the kart without ensuring that the steering adjustment knob is securely

PAGE 20

SERVICE INSTRUCTIONS

A. Air Cleaner

This unit is equipped with a paper style air filter element and should be replaced after every 20 hours of

NOTE: Operation in unusually dusty conditions

Remove the air cleaner cover (1) by

Clean any excess dirt. oil. or dust from the

Thoroughly dry the air box

Replace the air cleaner element (2)

Carefully align the gasket between the air

B. Engine Lubrication

You MUST change the oil in the crankcase after the first 5 hours of operating a new engine.

The engine oil

CAUTION

This unit has been shipped with special BREAK-IN oil pre-filled in the engine crankcase.

This

WARNING

Used oil MUST be disposed of at a proper collection center

Remove the drain plug located on the bottom of the right rear side of engine.

Elevating the front of the a.

ENGINE OIL PLUG

PAGE 22

E. Cleaning Instructions

Keep your kart clean by using a clean rag and a mild detergent and water solution.

Wipe off all dirt and oil

F.General Lubrication

Lubricate the vehicle at least every 90 days. and more often. if the kart is used daily or in unusually dusty

G. Chain Lubrication and Adjustment

For optimum chain life. regular lubrication with a spray on chain lubricant should be performed on a regular

DRIVE CHAIN ADJUSTMENT

NUT 1

DRIVE CHAIN

A new chain will have initial stretch and therefore will require adjustment.

The first chain adjustment should be

H. Adjustment of Front and Rear Shock

There are five adjustable positions on each shock.

The center notch is the default position as set by the

To INCREASE the shock stiffness. rotate the ring to the

To DECREASE the shock stiffness. rotate the ring to the

Shock stiffness adjustments should be made based on the

PAGE 24

[ EFT ROTATE

\'. \

SPRING ADJUSTMENT CAM

Shock Adjustment

GENERAL MAINTENANCE

Front Wheel Replacement

Do not disassemble the castle nuts when you

Figure)

Tighten the nuts securely after replacing the wheels.

Rear Wheel Replacement

Do not disassemble the castle nuts when you

Figure)

Tighten the nuts after replacing the wheels.

C. Front Wheel Alignment (Ref Toe Adjustment Diagram)

The front wheels should be set with a "toe-in" from 1/8"to 1/4". At the centerline of the tires. measure the

Distance A and the Distance B.

For proper toe adjustment. Dimension A should be 1/8" - 1/4" greater than Dimension B.

To make adjustments: a.

Loosen the lock nuts on both sides of Front Tie Rods.

PAGE 26

D. Optional Speed Reduction Installation

This kart has been equipped with provision for a speed limiter to reduce the overall speed of the unit to

20mph max. This kit is available from your dealer or directly from Manco PowerSports by calling customer

To install the speed limiter:

REPLACEMENT PARTS AND SERVICE

Most replacement parts are typically available from your dealer.

Because of immediate availability and

If replacement parts are not available from a dealer. they may be ordered directly from Manco

PowerSports at 1-800-643-7332.

Orders may be subject to a minimum fee.

A listing of authorized

Record the vehicle VIN number in the spaces provided at the front of this manual. The VIN number is hard

PAGE 27



Newest Added: 435B

Manco 6150 | Pages: 30 | File type: PDF | Filename: 45538780_6150.pdf | Size: 2.95 MB | Language: English

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com

Manco 6150 Questions and Answers


Manco

Manco

Owner manual PDF of 6150 Manco fun-kart.

Use manuals file type: PDF. Manco

Related Products
