DWR-960
User Manual
Wireless AC1200 4G LTE Router
Version 1.00 | 27/10/2021
iD-Link DWR-960 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Copyright © 2021 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation, Inc.
Hardware Revision Date Description
B1 1.00 27/10/2021 • Initial release
Preface
iiD-Link DWR-960 User Manual
Table of Contents
Product Overview ..............................................................1
Package Contents .........................................................................1
System Requirements ................................................................. 2
Introduction ...................................................................................3
Hardware Overview .....................................................................4
Overview ..................................................................................4
LED Indicators ........................................................................6
Installation ......................................................................... 7
Initial Setup ..................................................................................... 7
RESET .................................................................................... 7
SIM .........................................................................................7
WPS .......................................................................................7
Wireless Installation Considerations ......................................8
Conguration .....................................................................9
Initial Connection to the Router .............................................9
Connect via Ethernet Cables ............................................9
Connect via Wi-Fi ................................................................10
Web-based Conguration .......................................................12
Conguration Utility ..........................................................12
Navigation .....................................................................................13

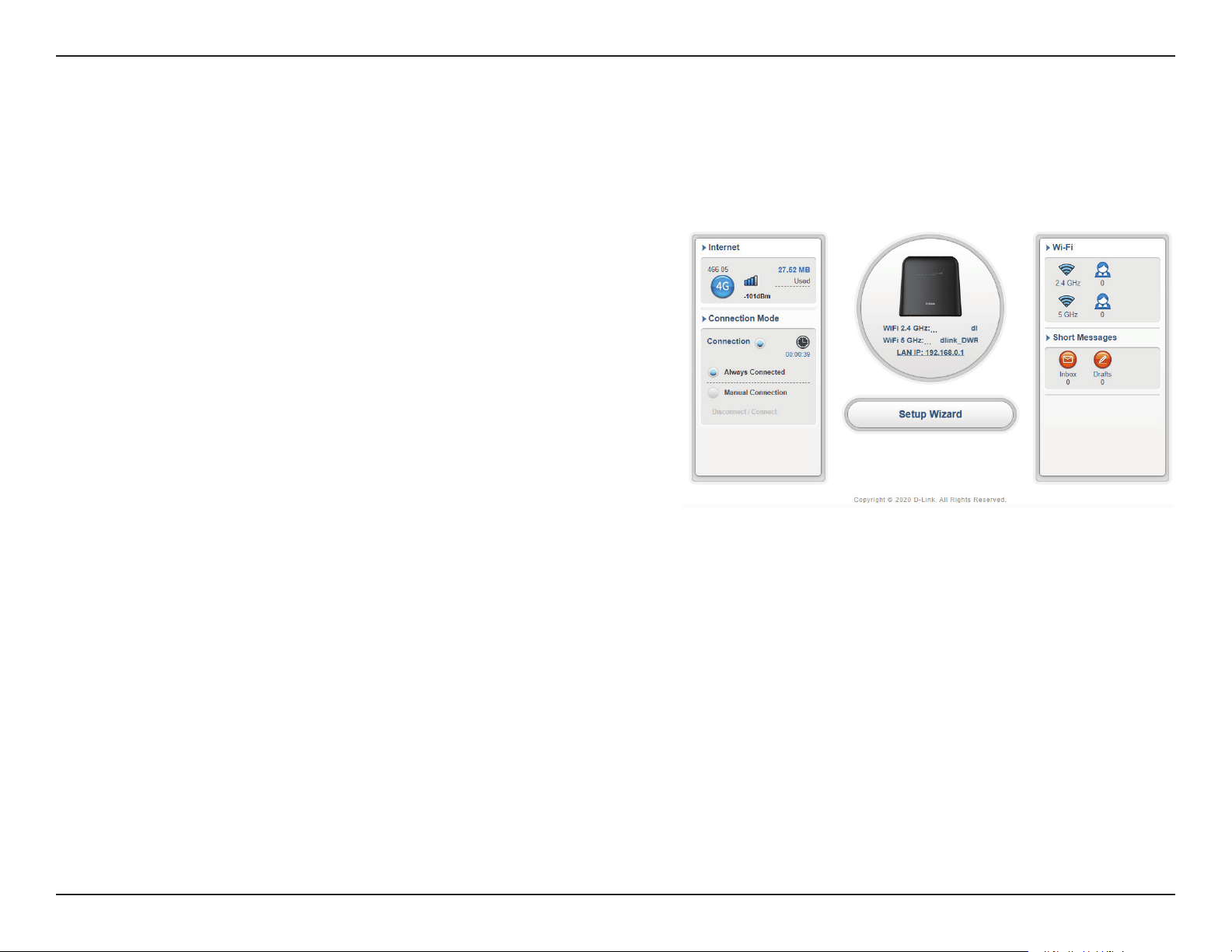

Quick Access ................................................................................. 14

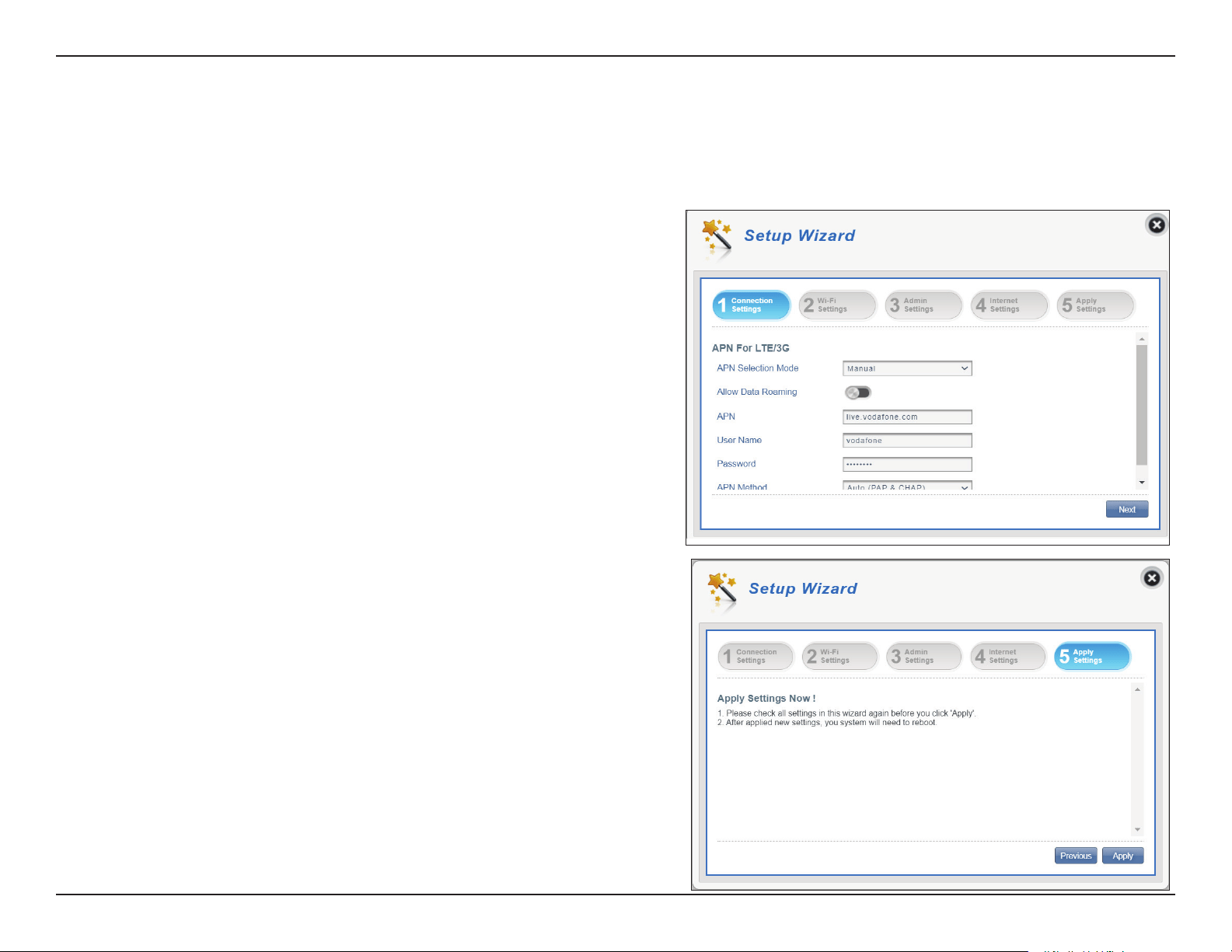

Setup Wizard ................................................................................15
Internet Settings .........................................................................16

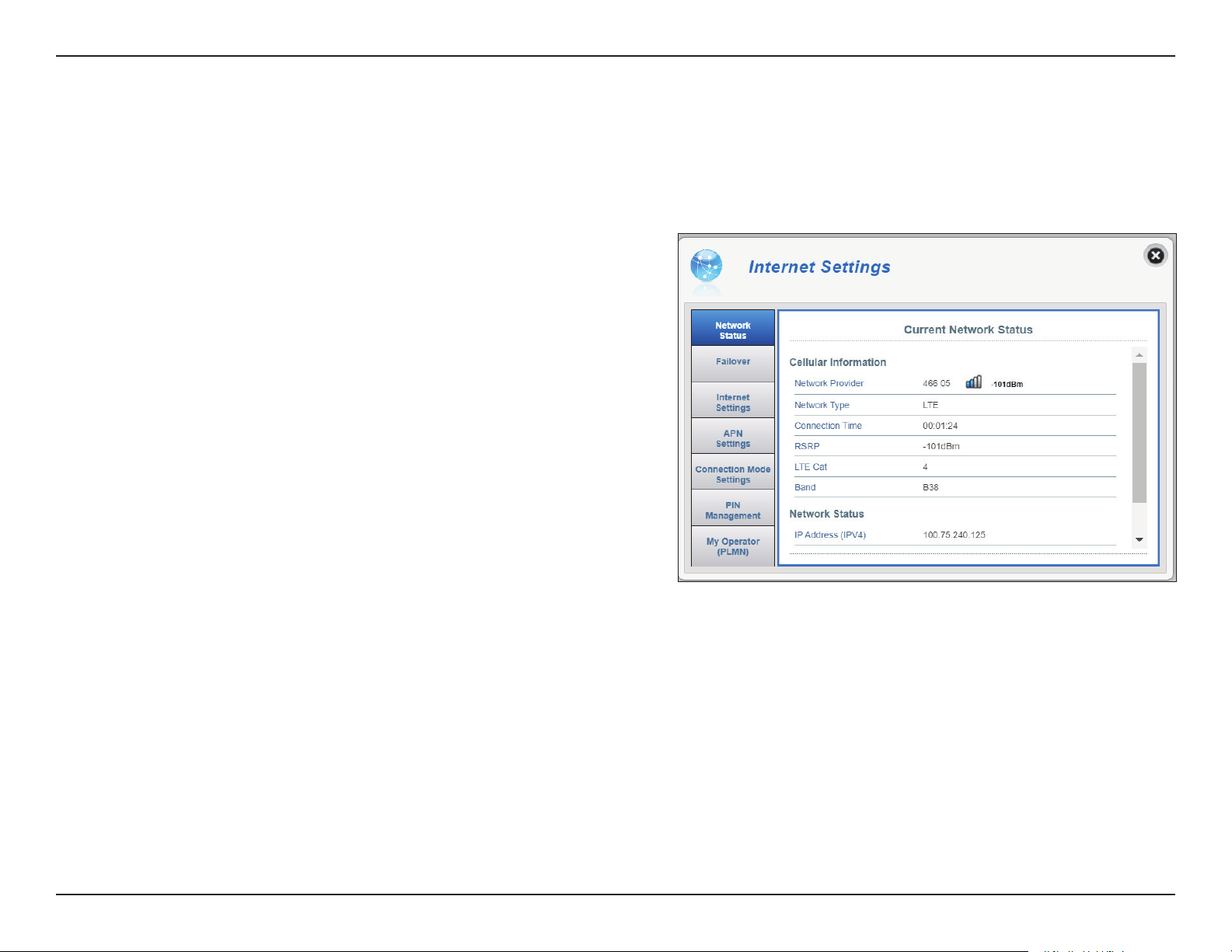

Network Status ....................................................................16

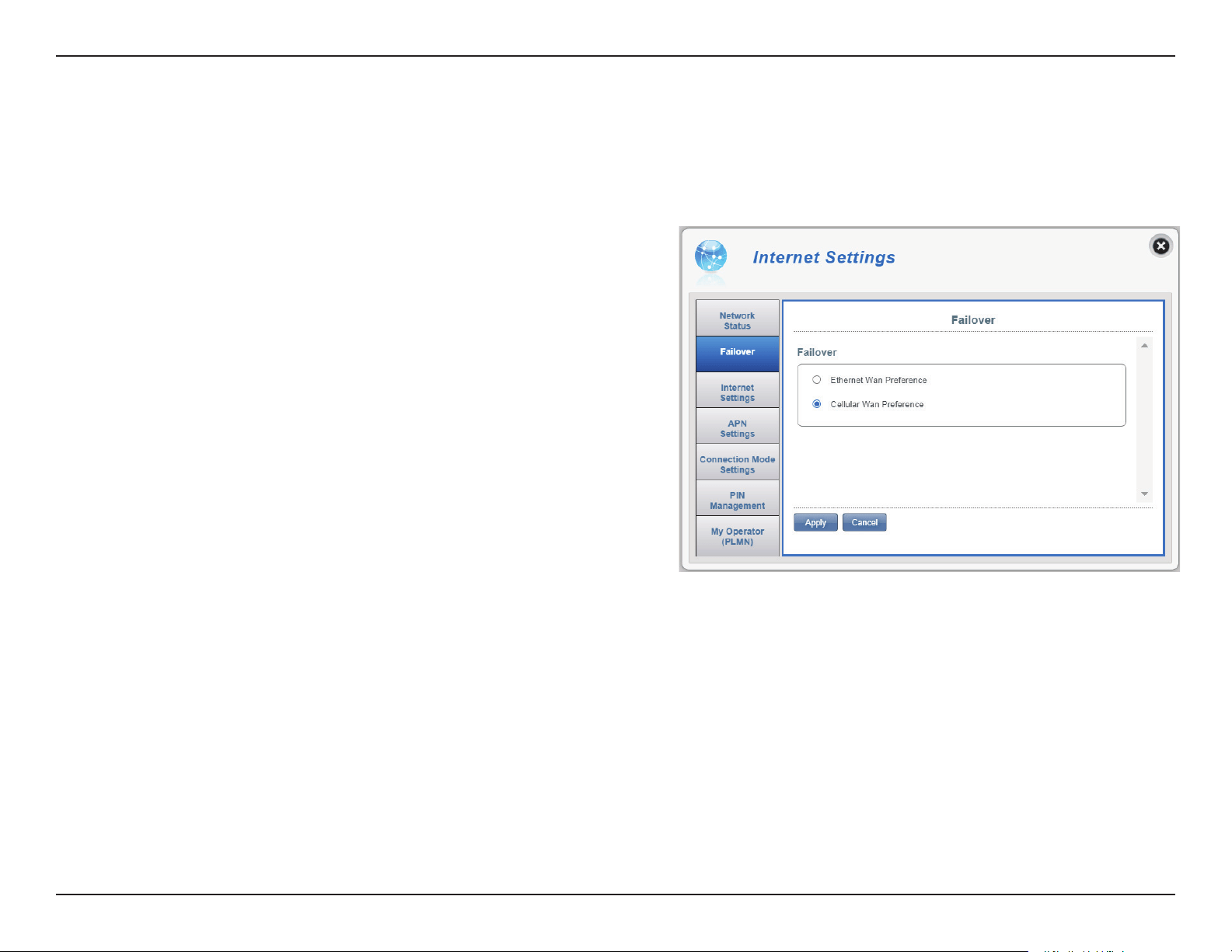

Failover ...................................................................................17

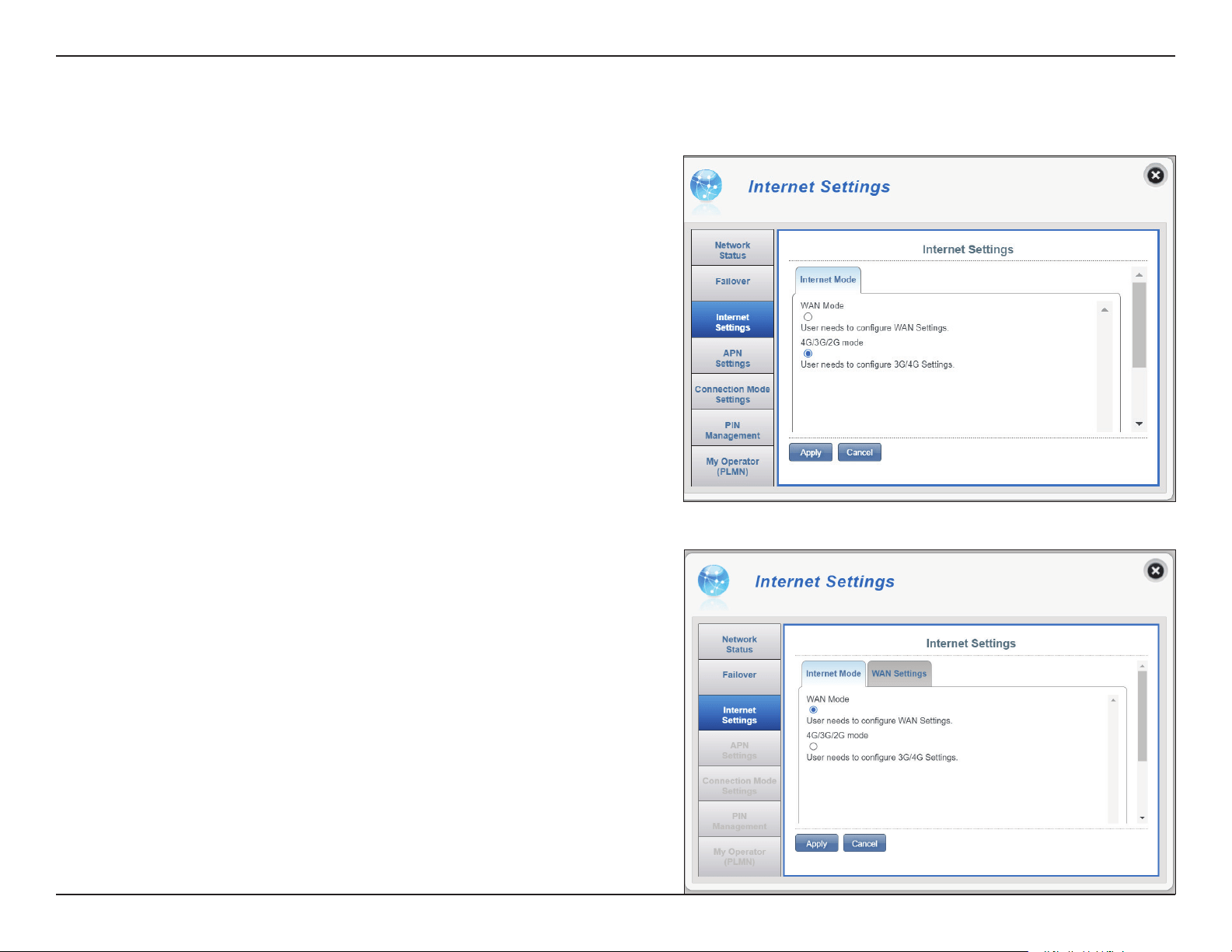

Internet Settings .................................................................18

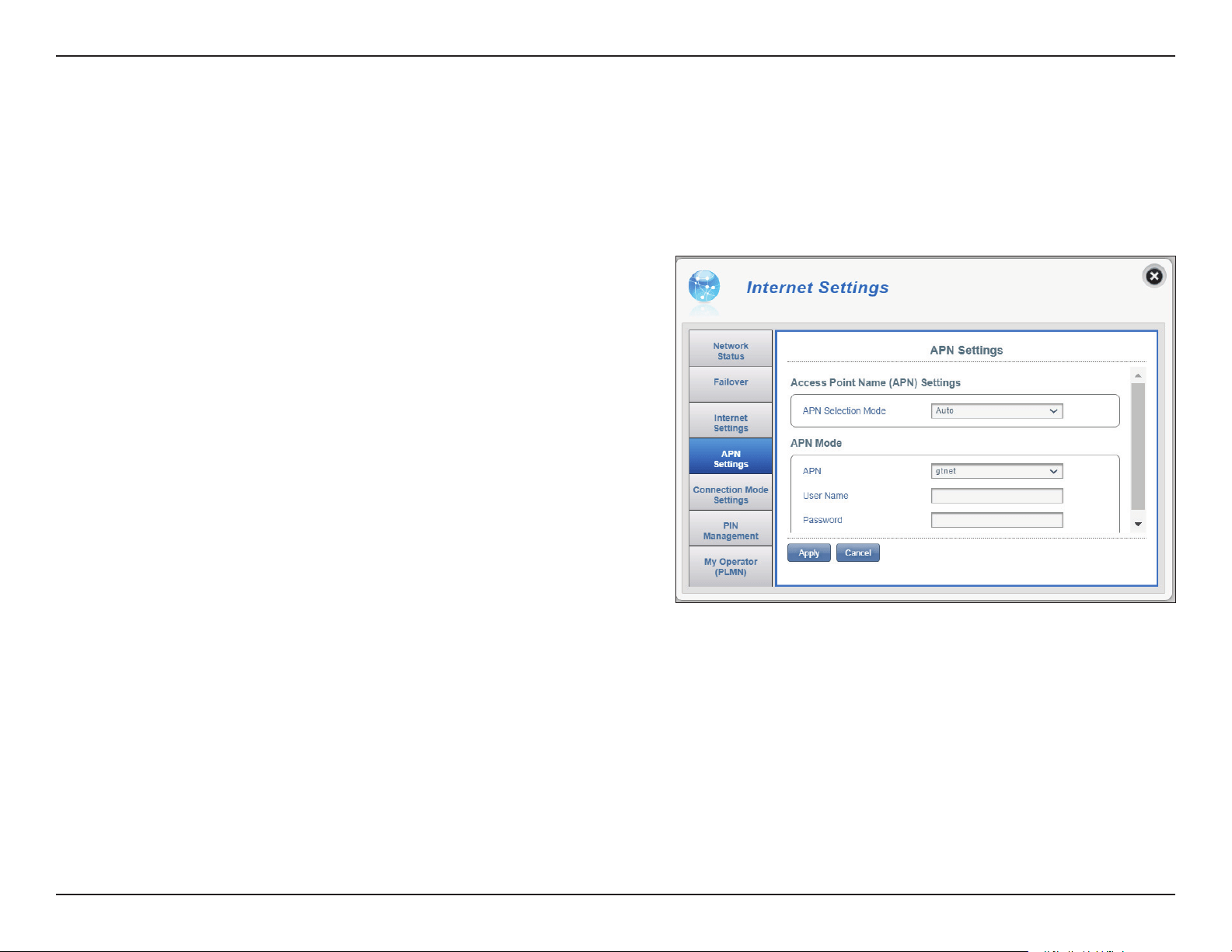

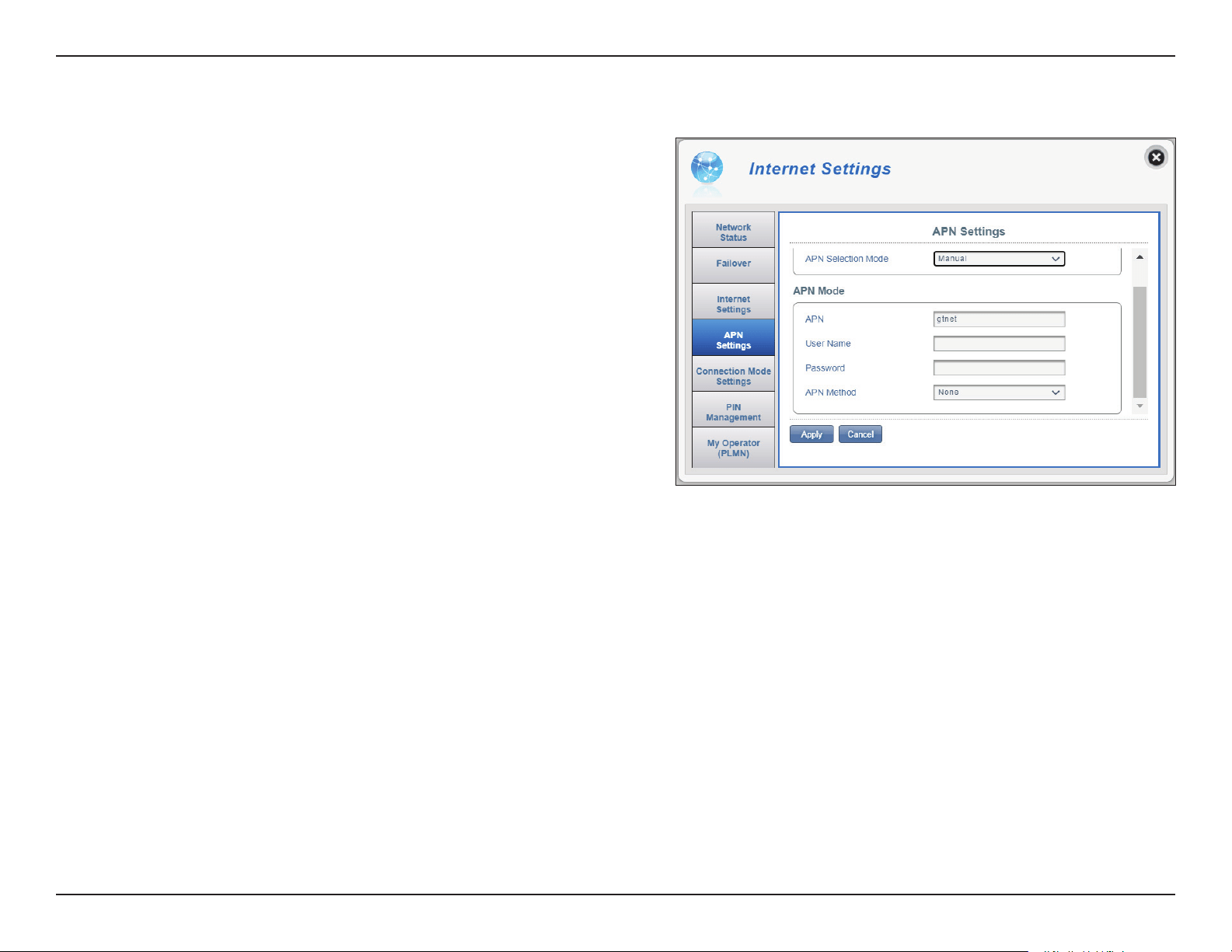

APN Settings ......................................................................... 20

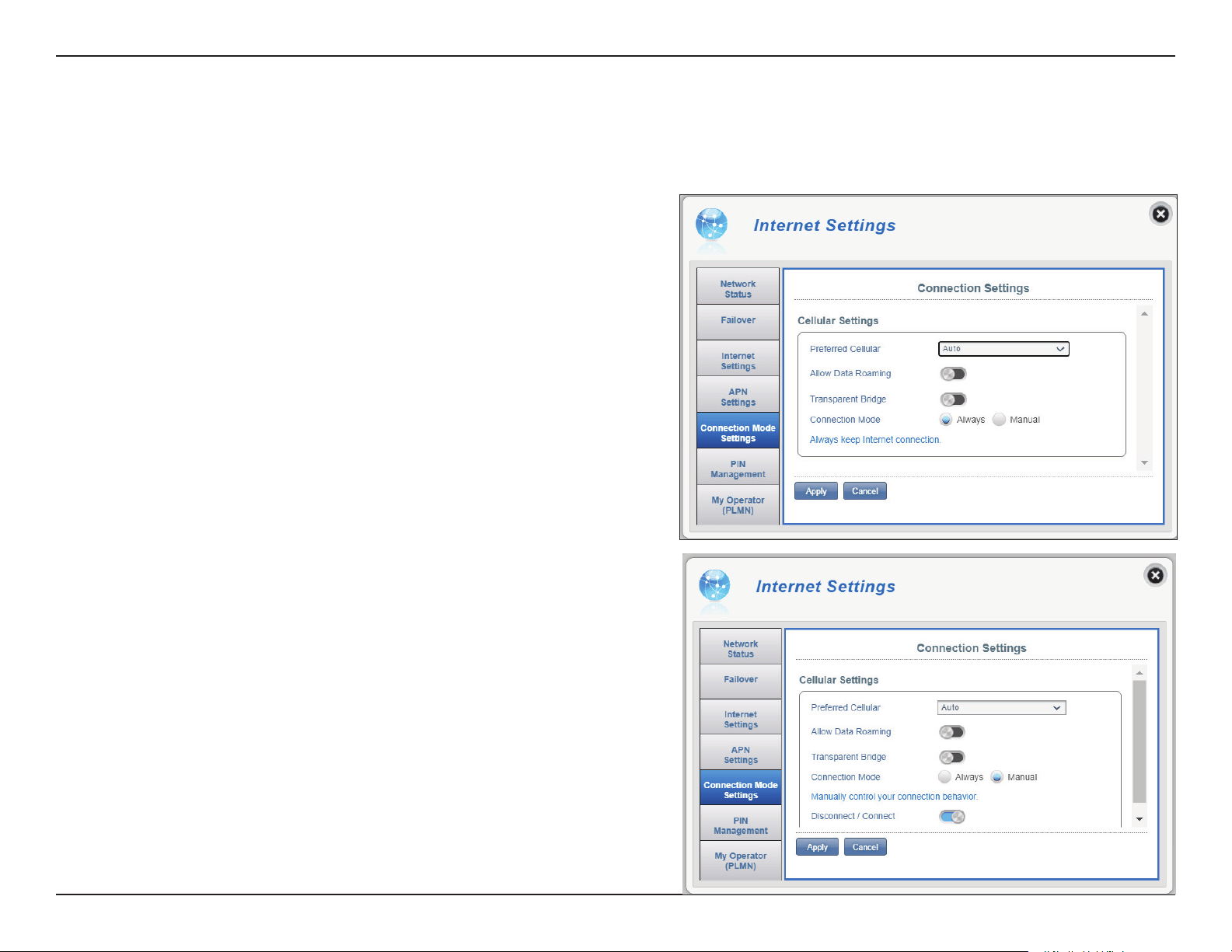

Connection Mode Settings .............................................22
PIN Management ................................................................23

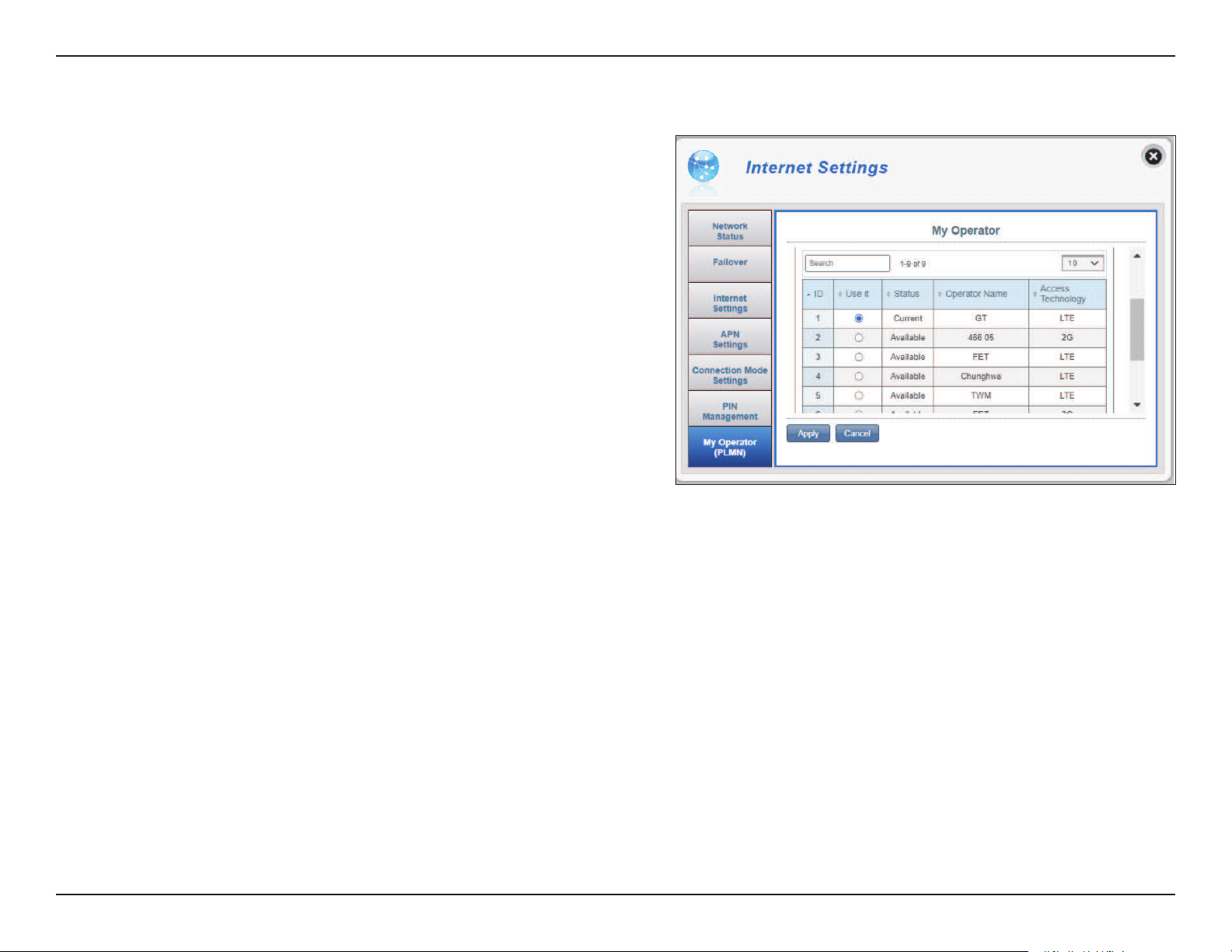

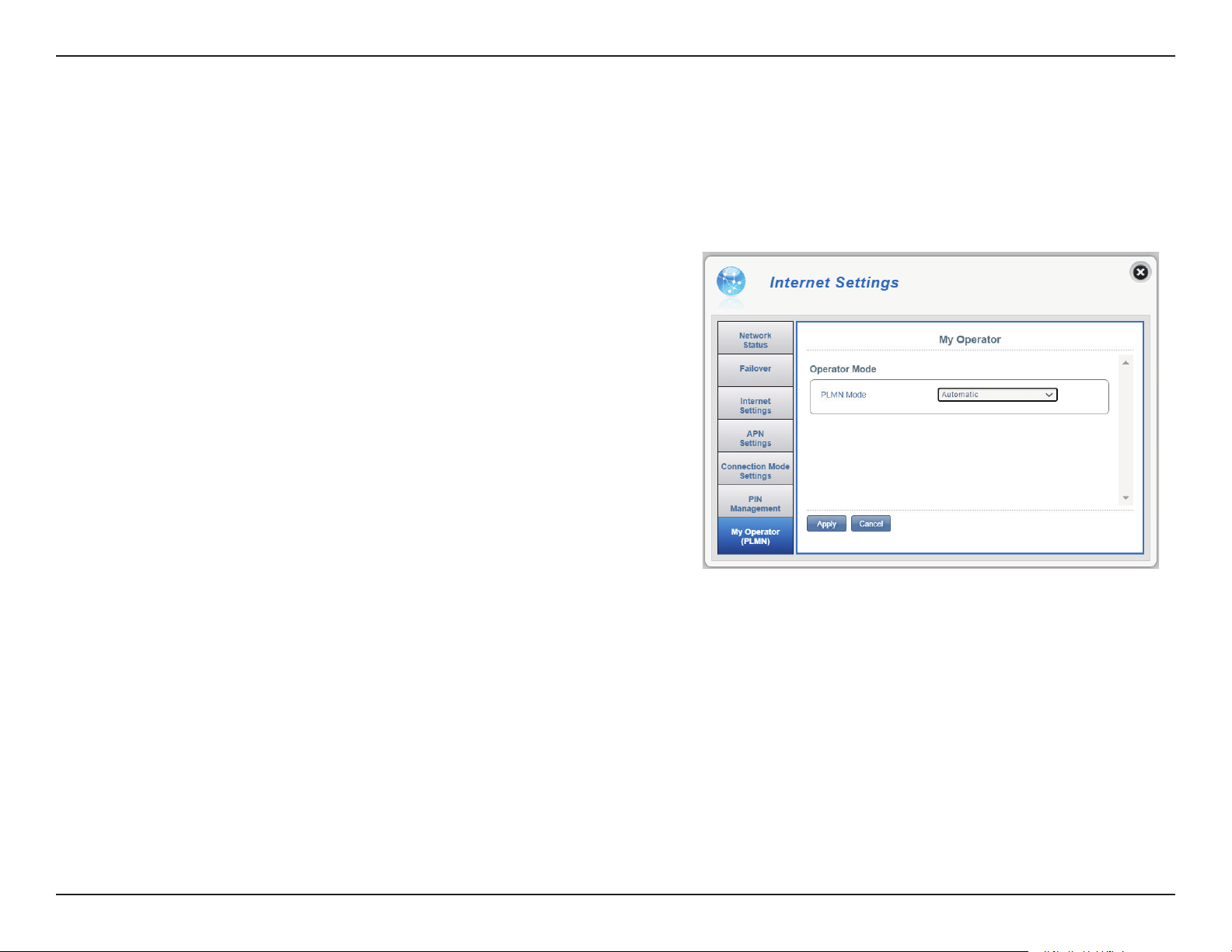

My Operator (PLMN) ..........................................................24
Wi-Fi Settings ...............................................................................26

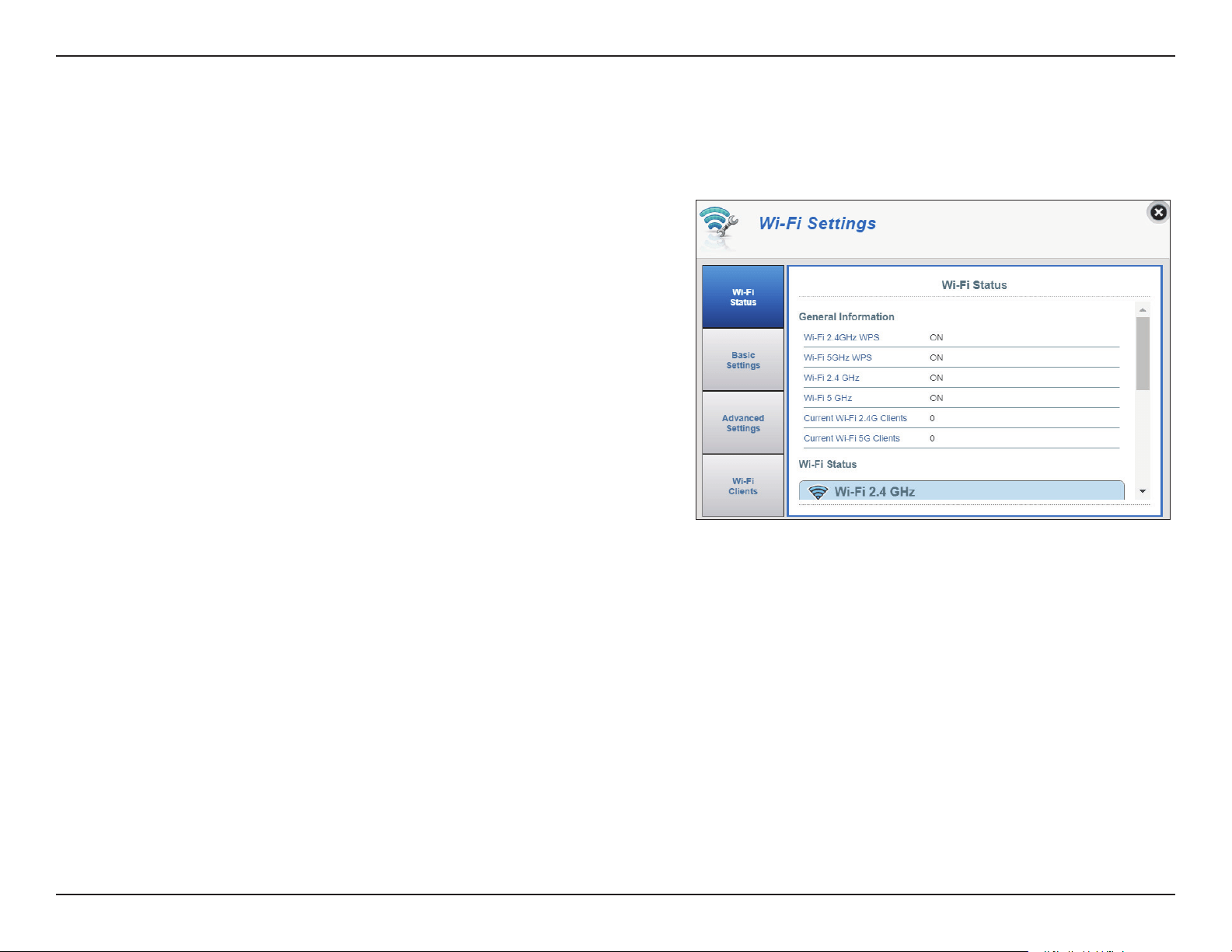

Wi-Fi Status ...........................................................................26

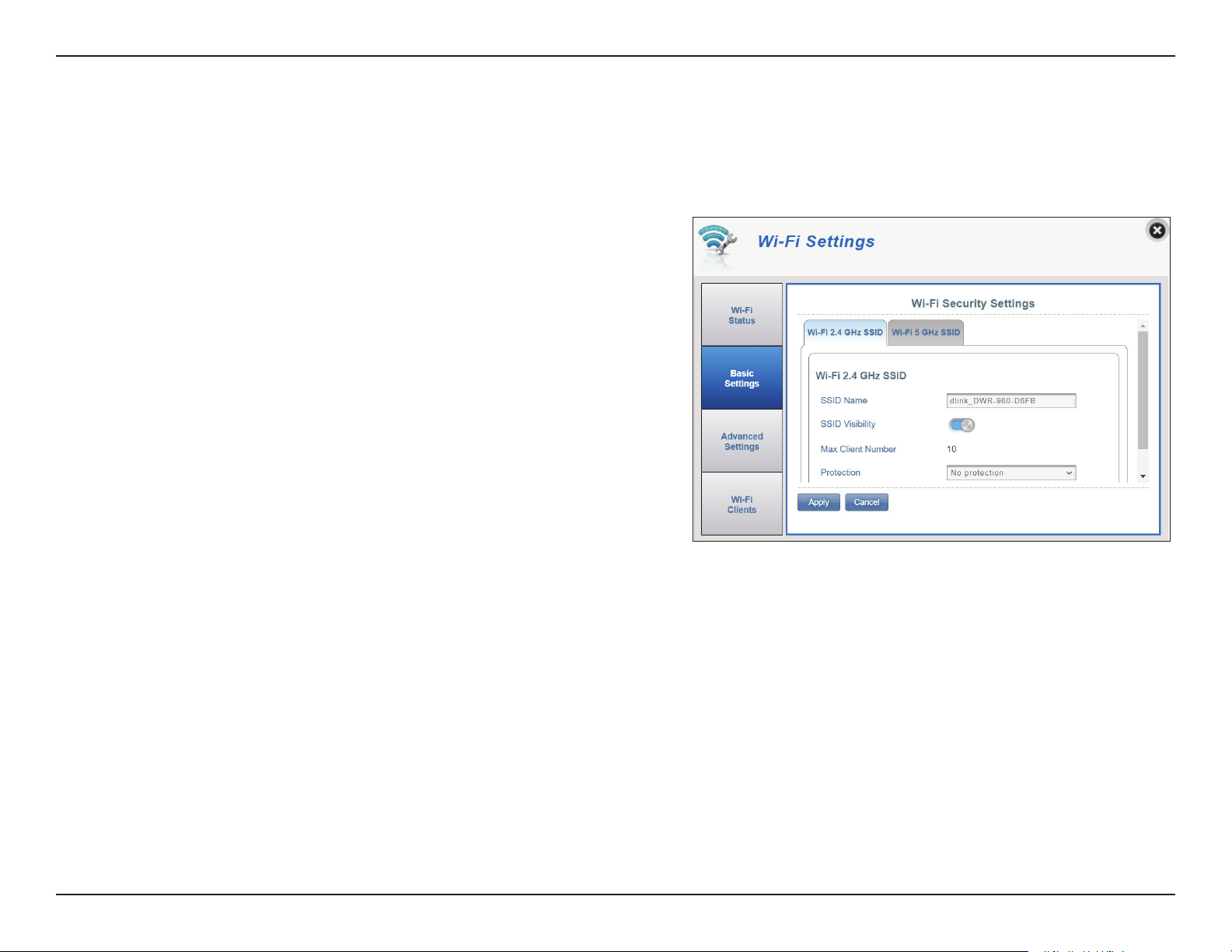

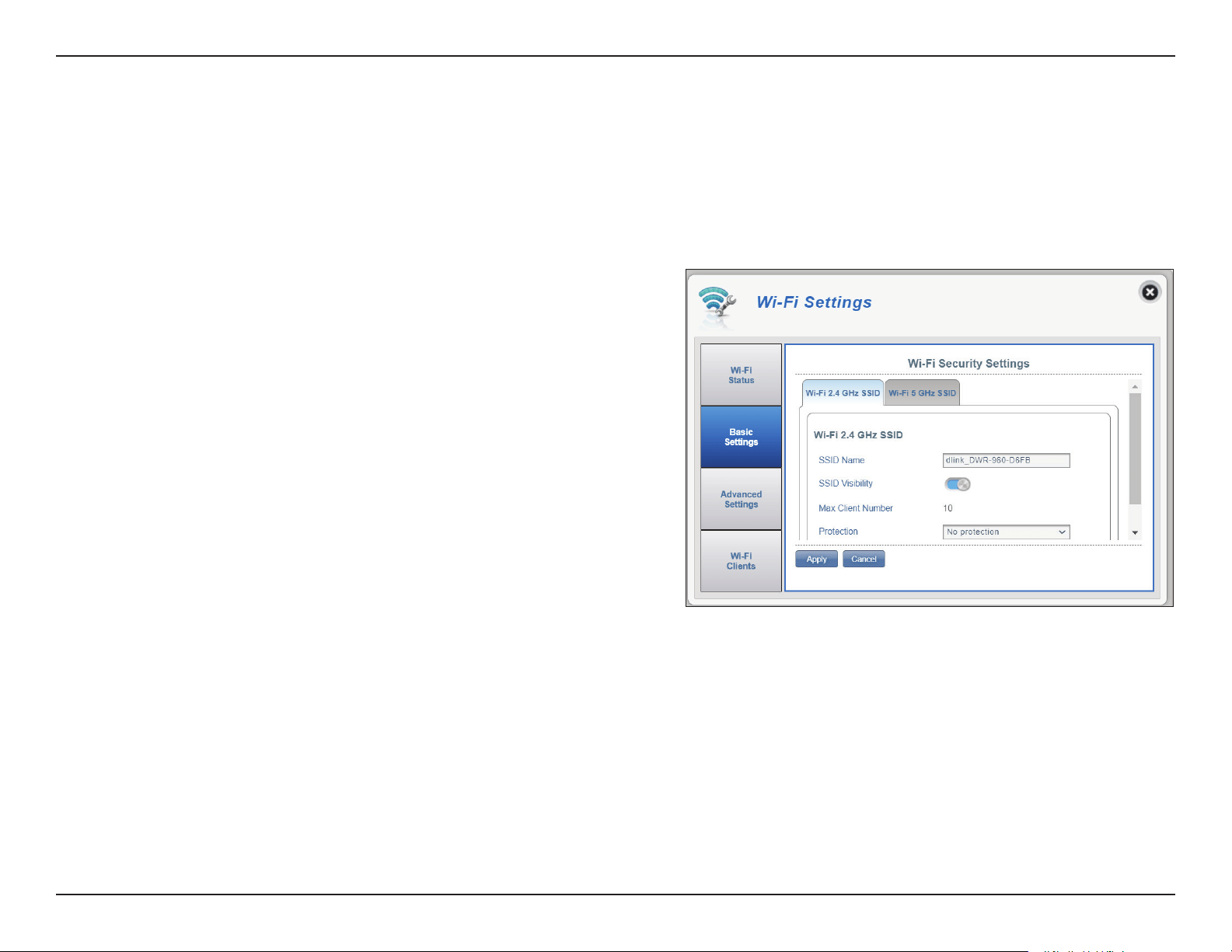

Basic Settings .......................................................................27

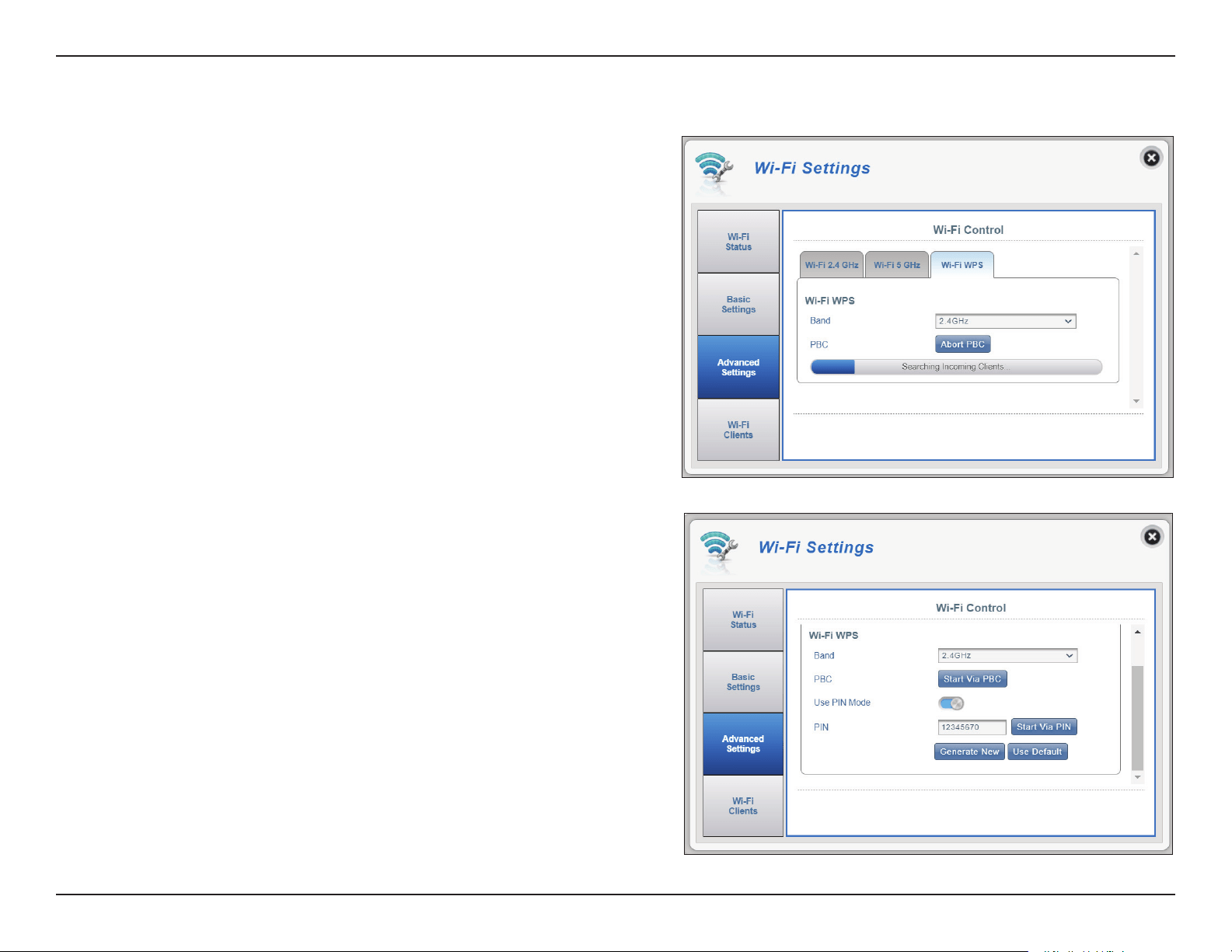

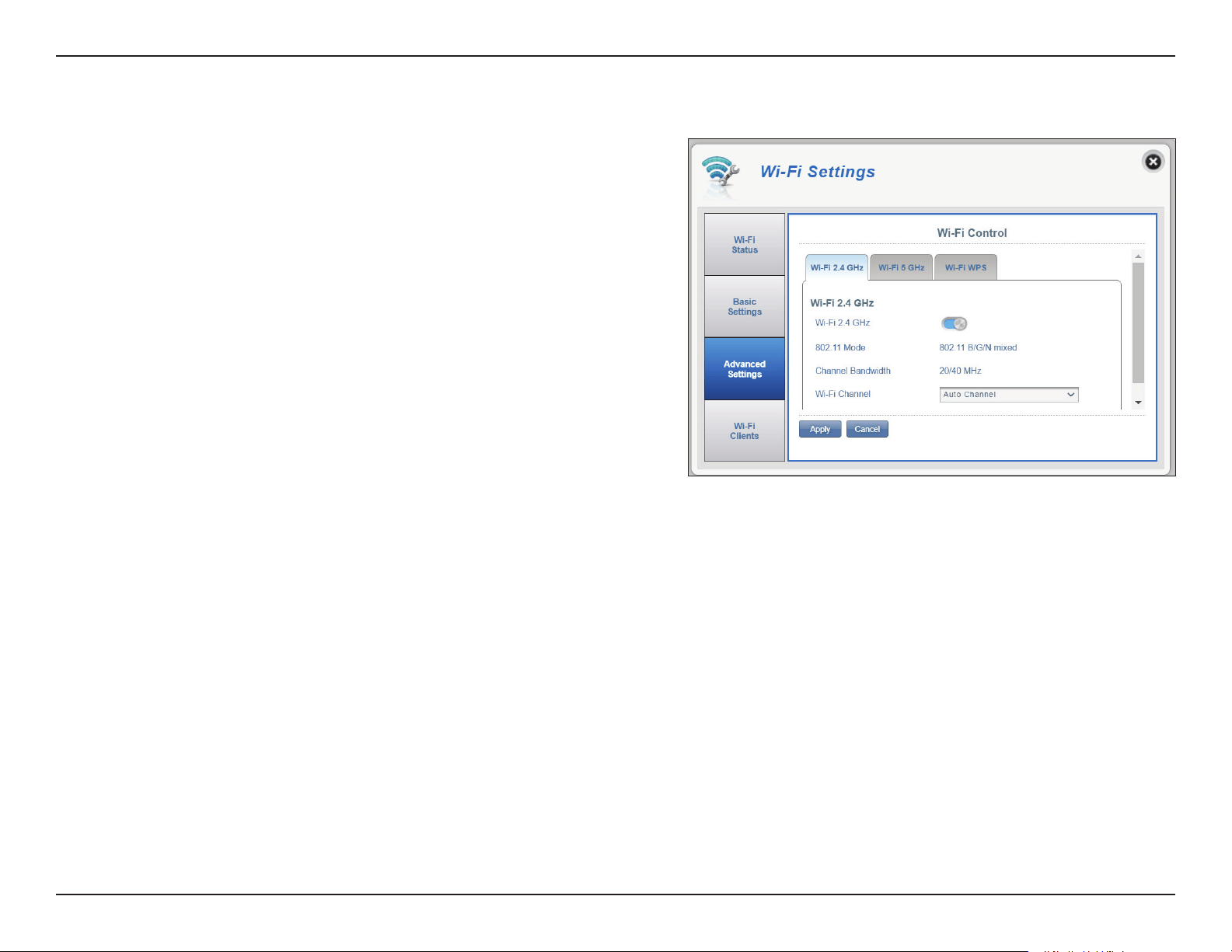

Advanced Settings .............................................................29

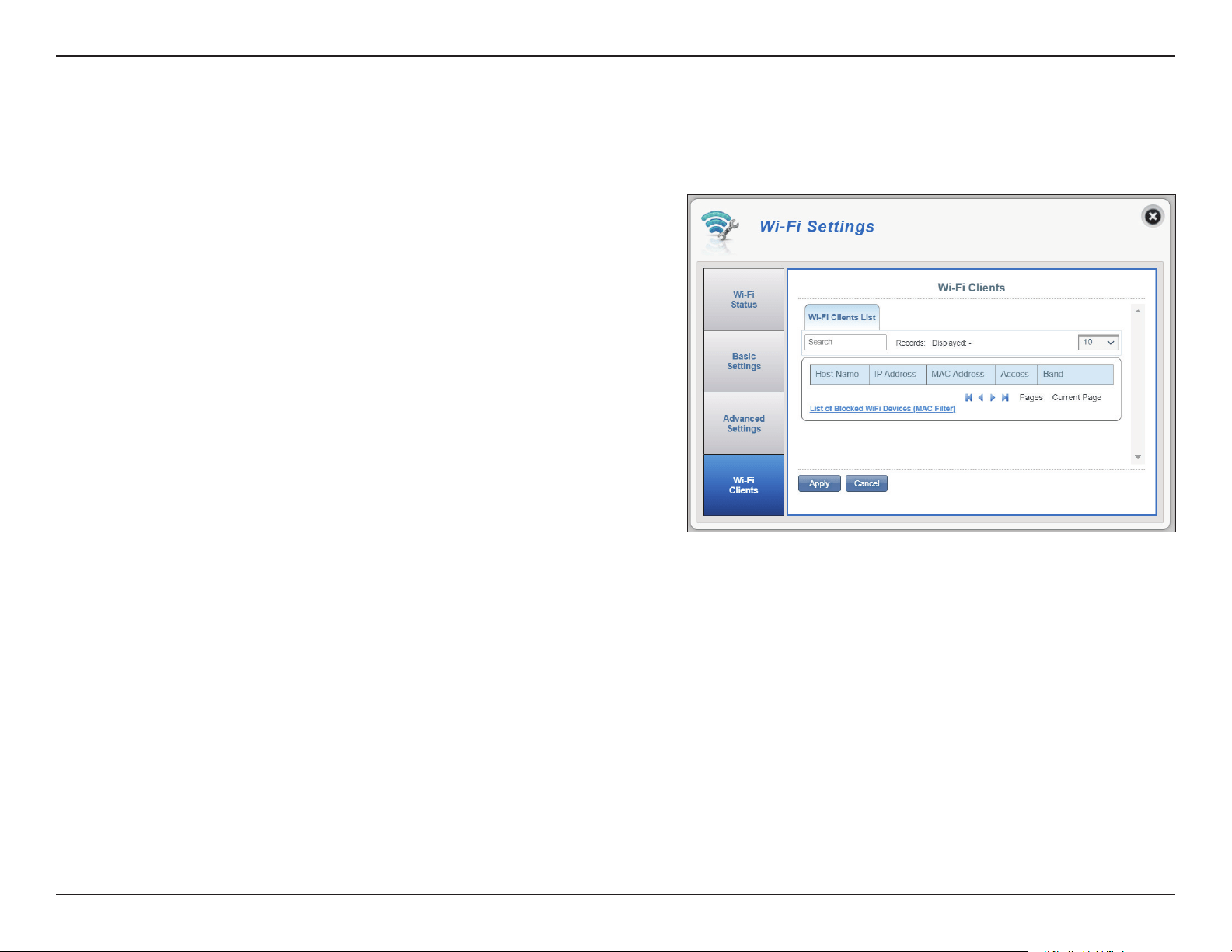

Wi-Fi Clients ..........................................................................31
Settings ..........................................................................................32

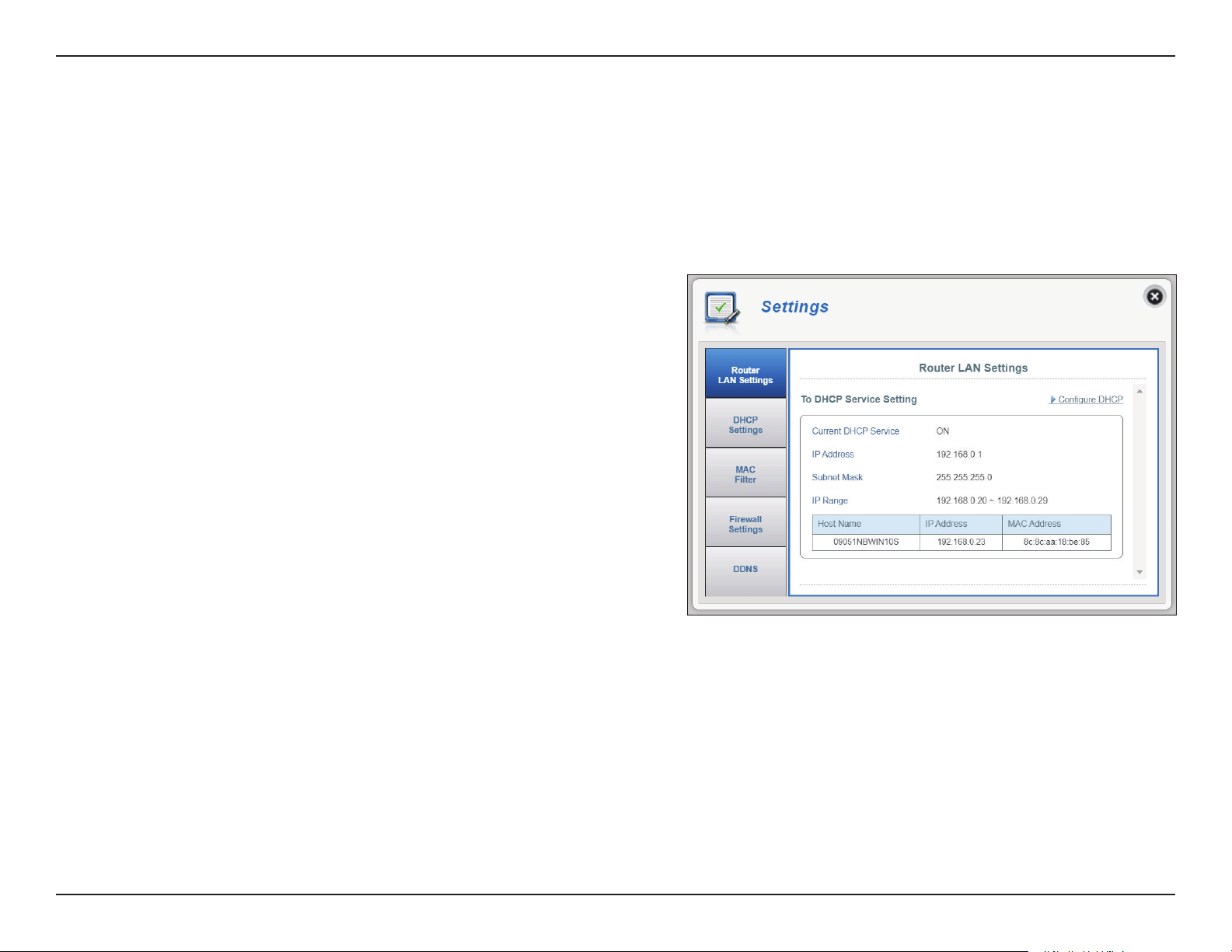

Router LAN Settings ..........................................................32

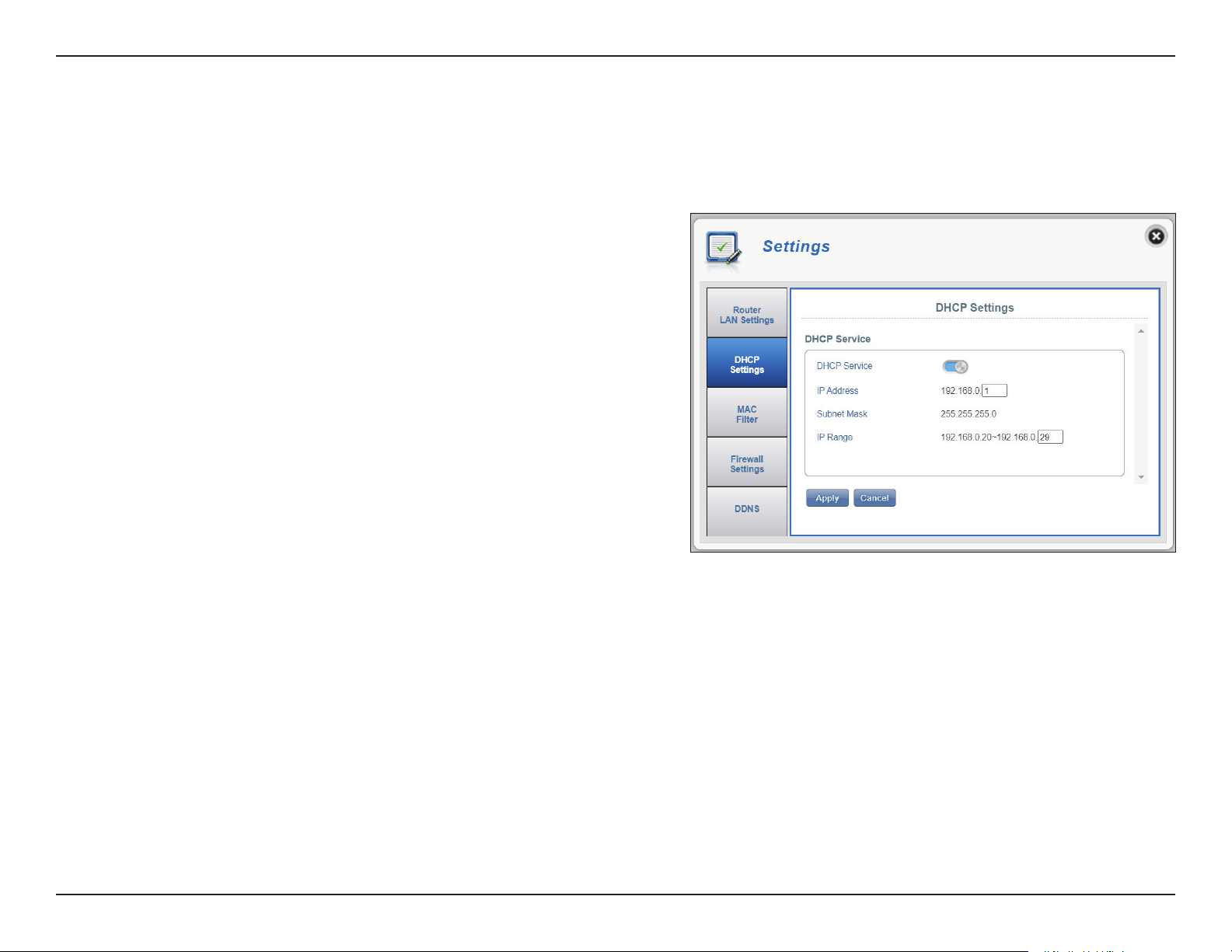

DHCP Settings ...................................................................... 33

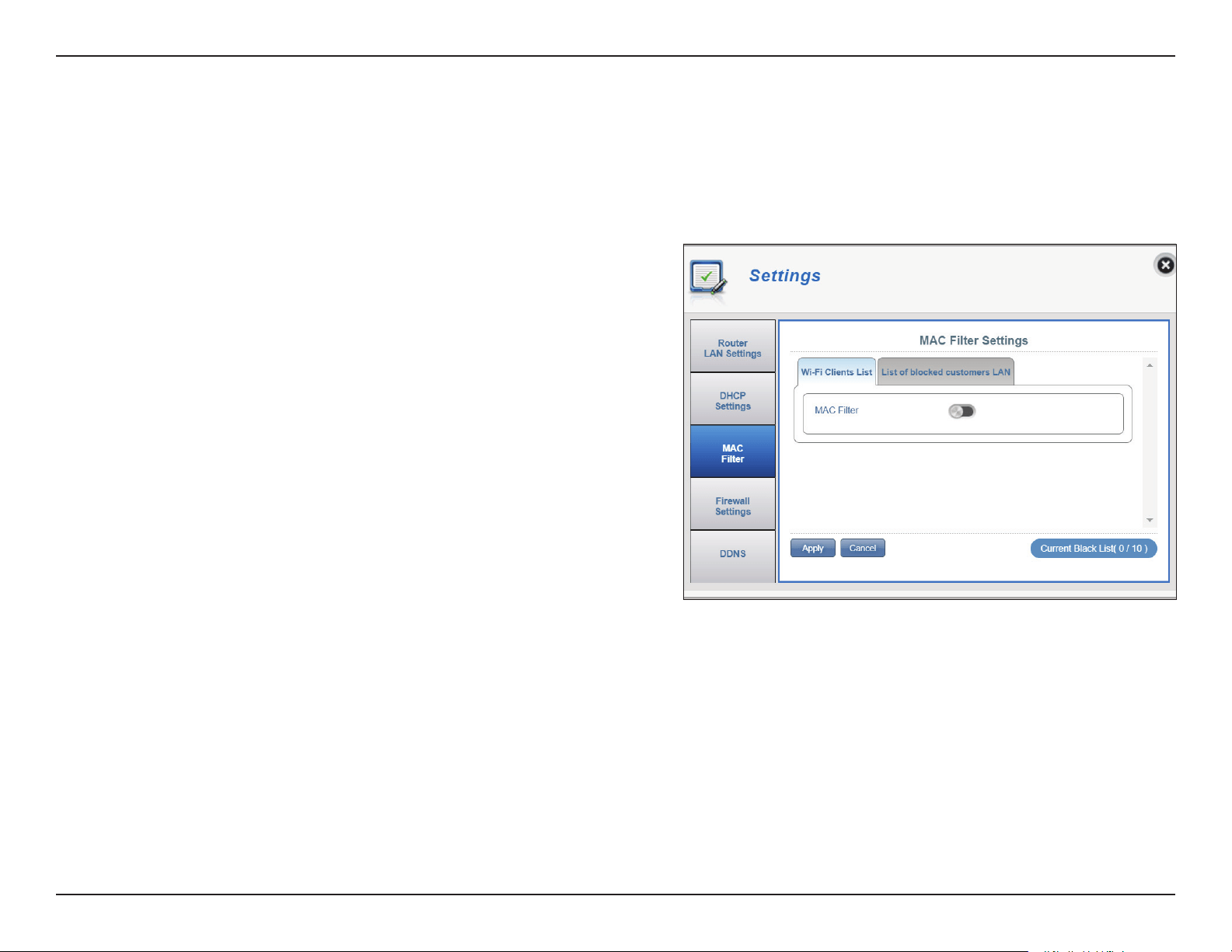

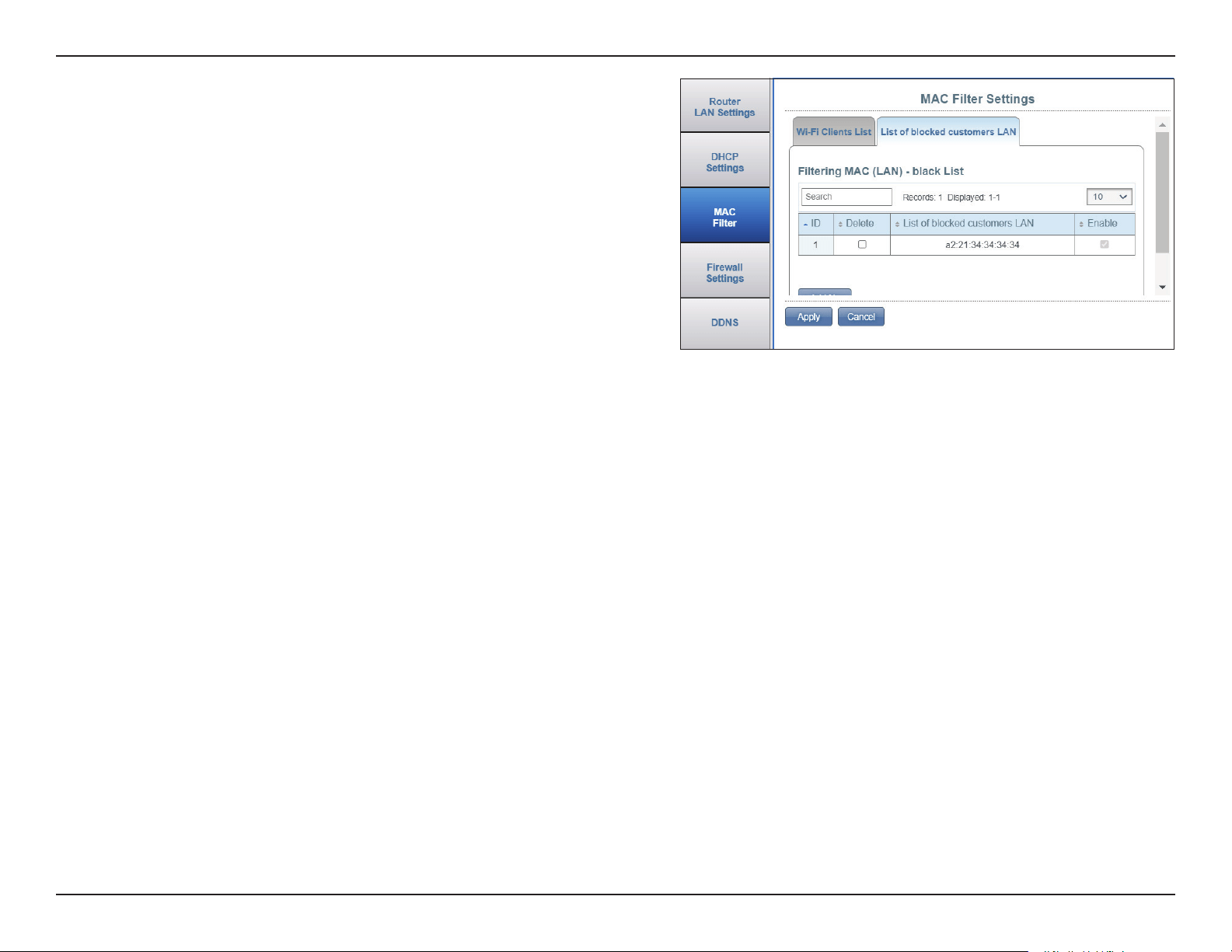

MAC Filter ..............................................................................34

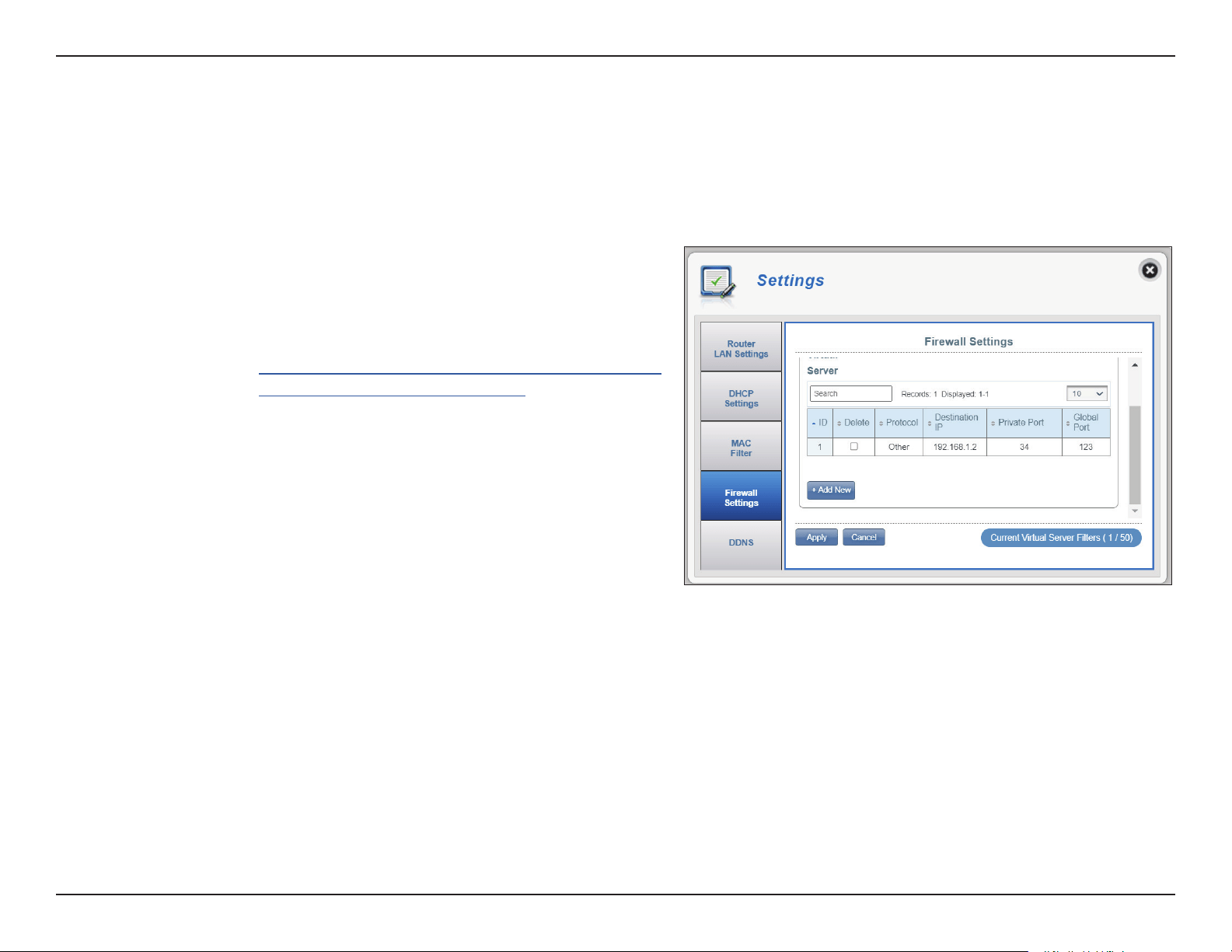

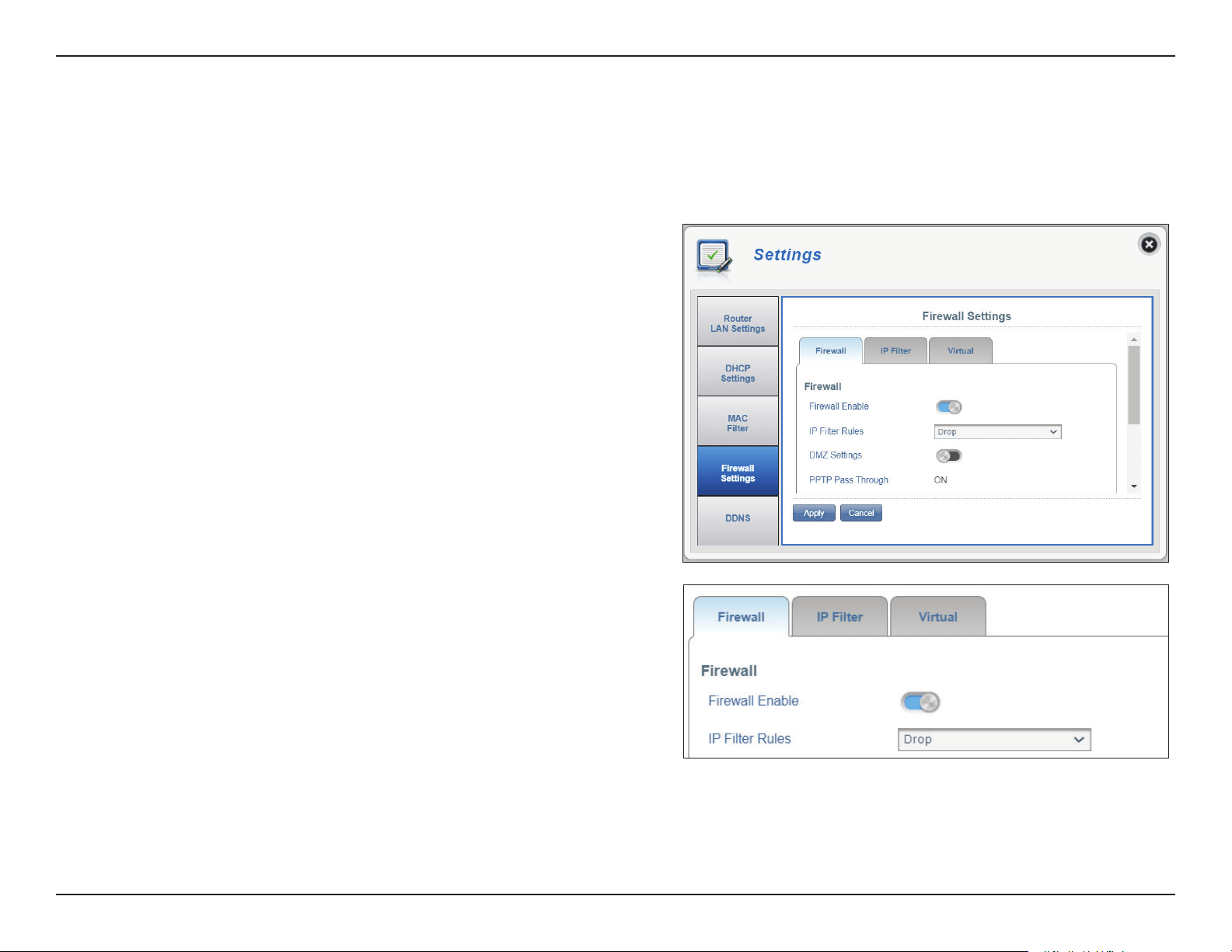

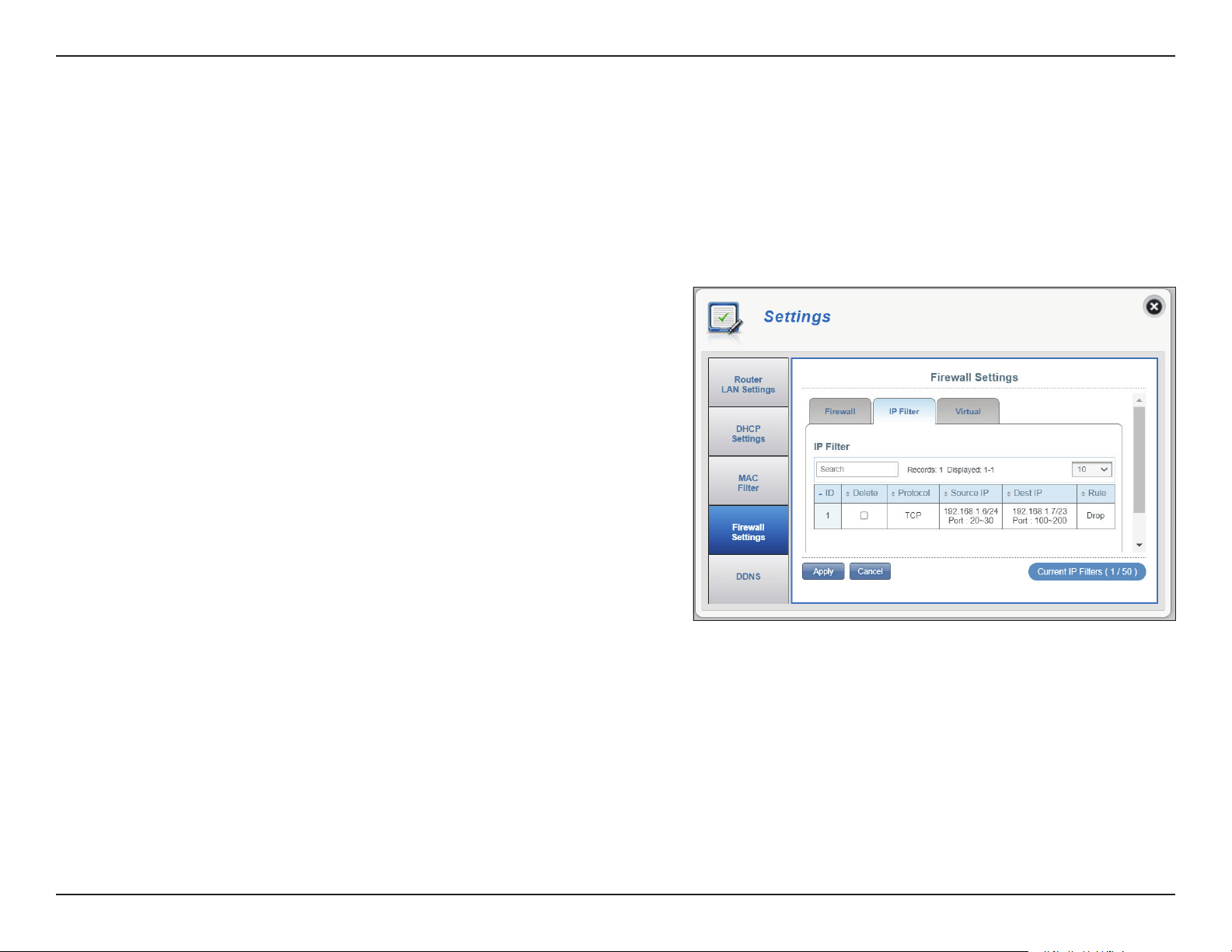

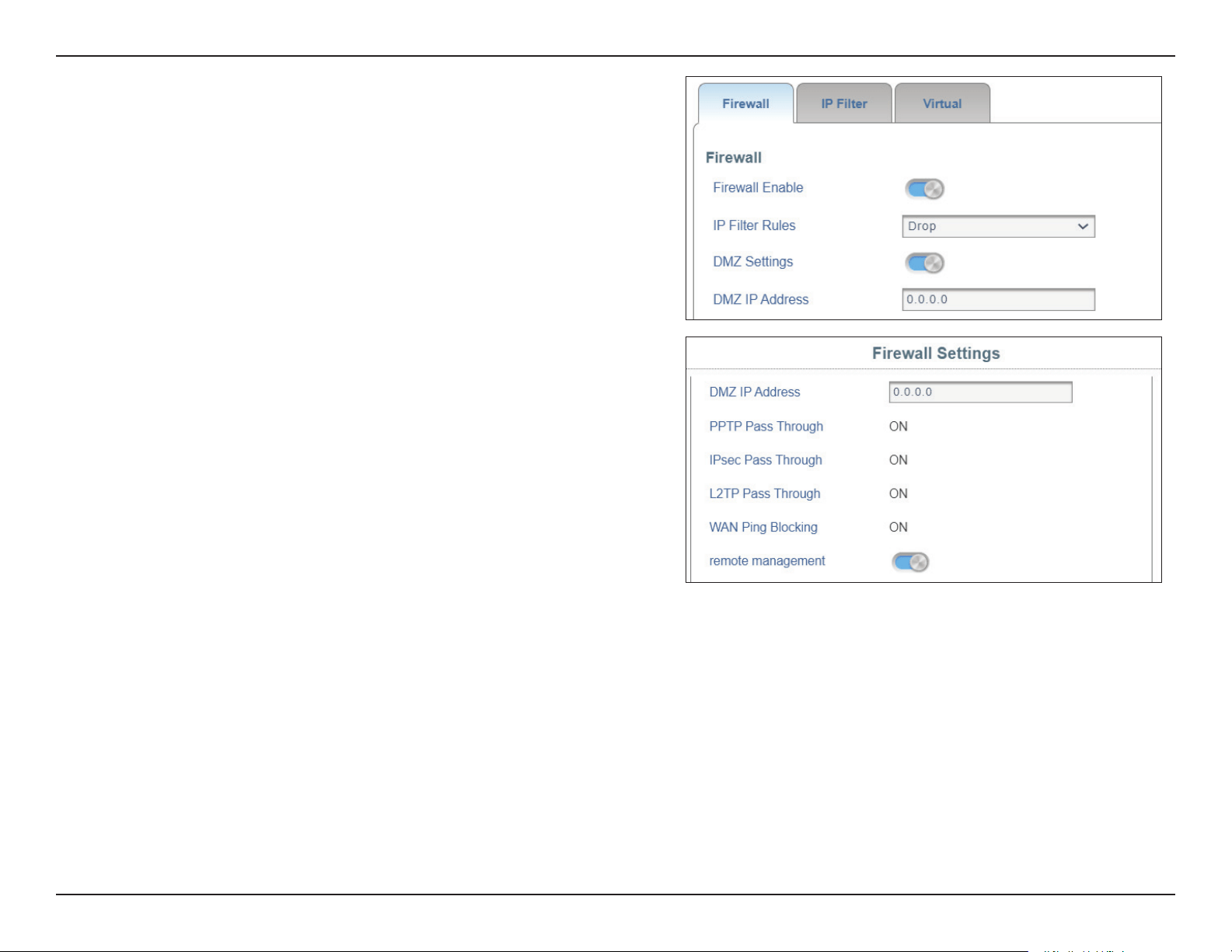

Firewall Settings ..................................................................36

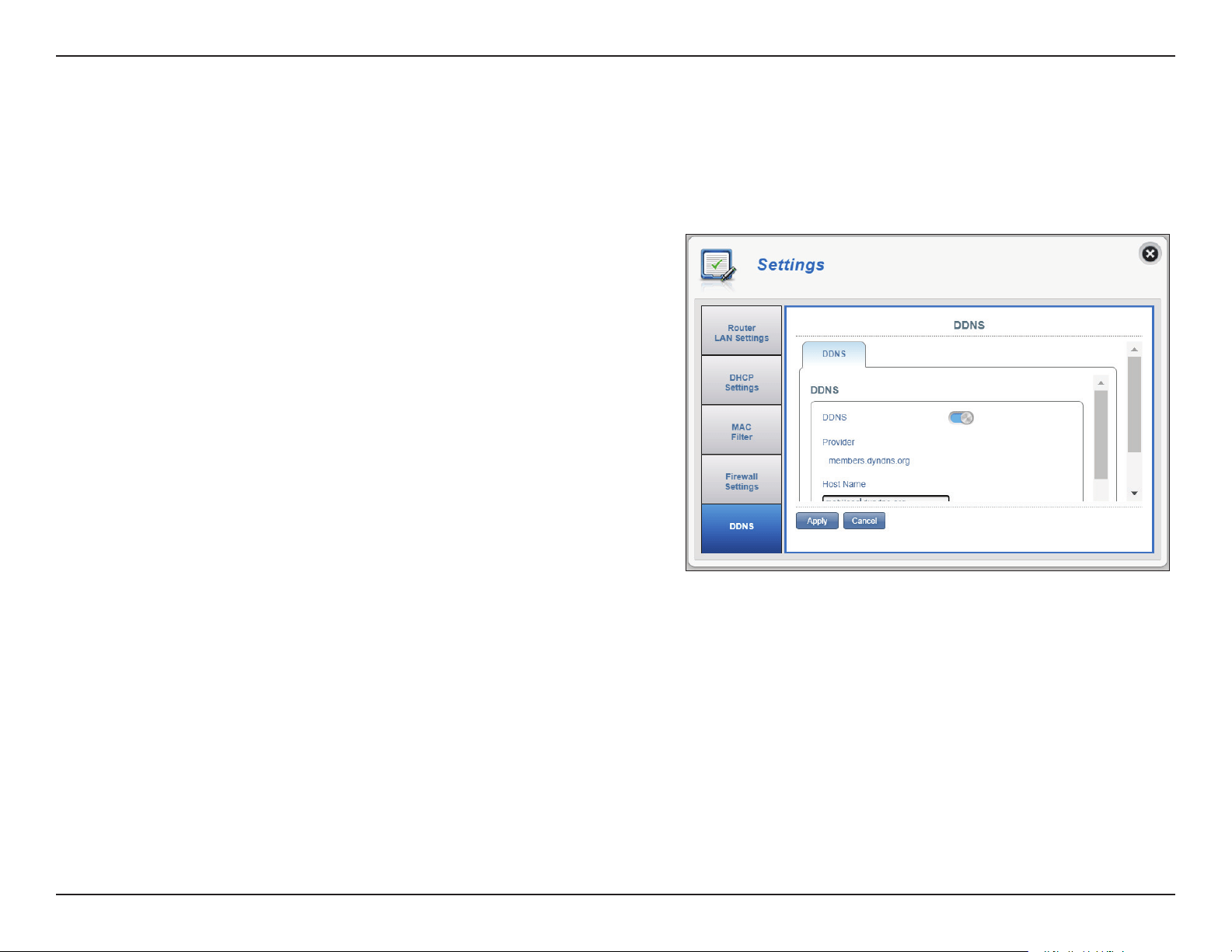

DDNS .......................................................................................40
System ............................................................................................41

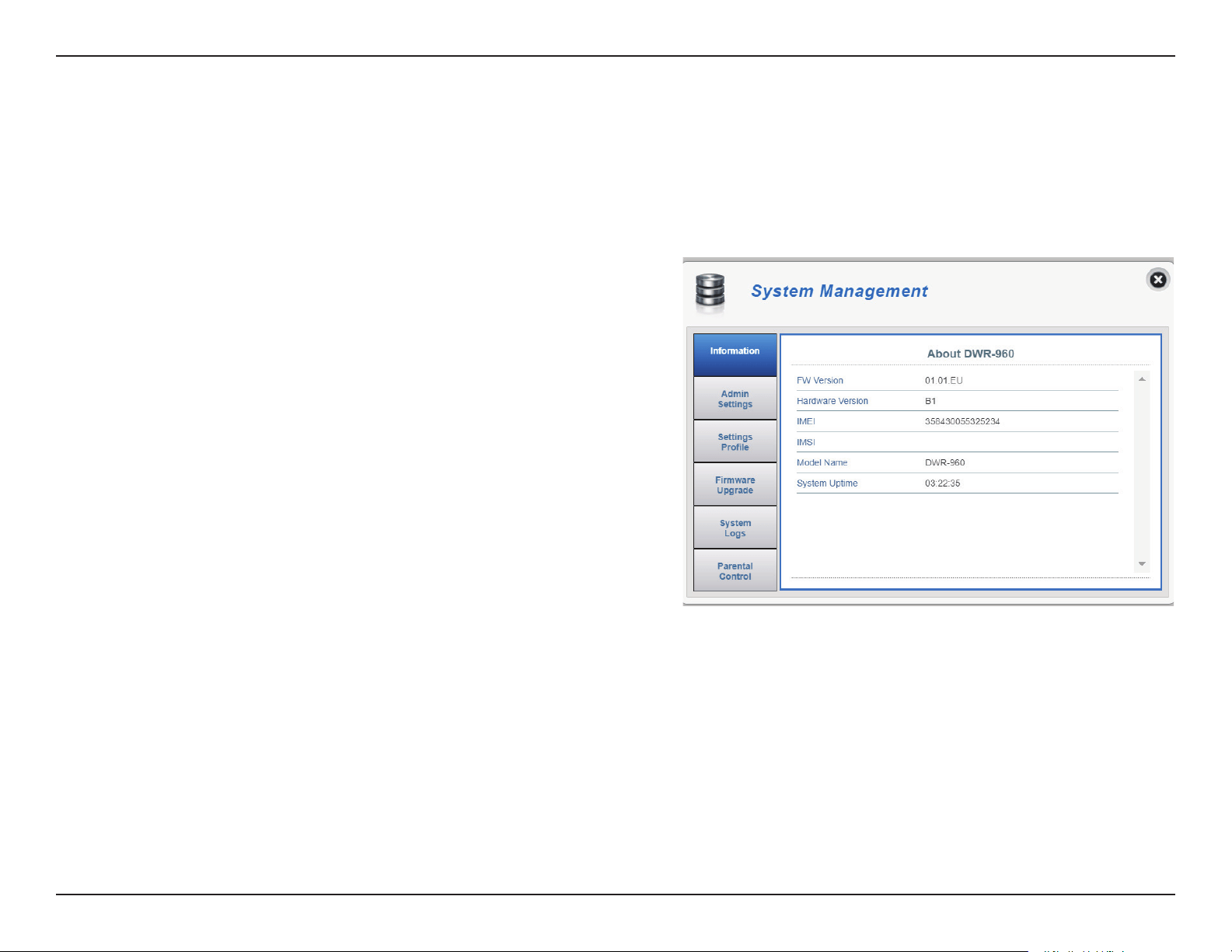

Information ...........................................................................41
Admin Settings ....................................................................42

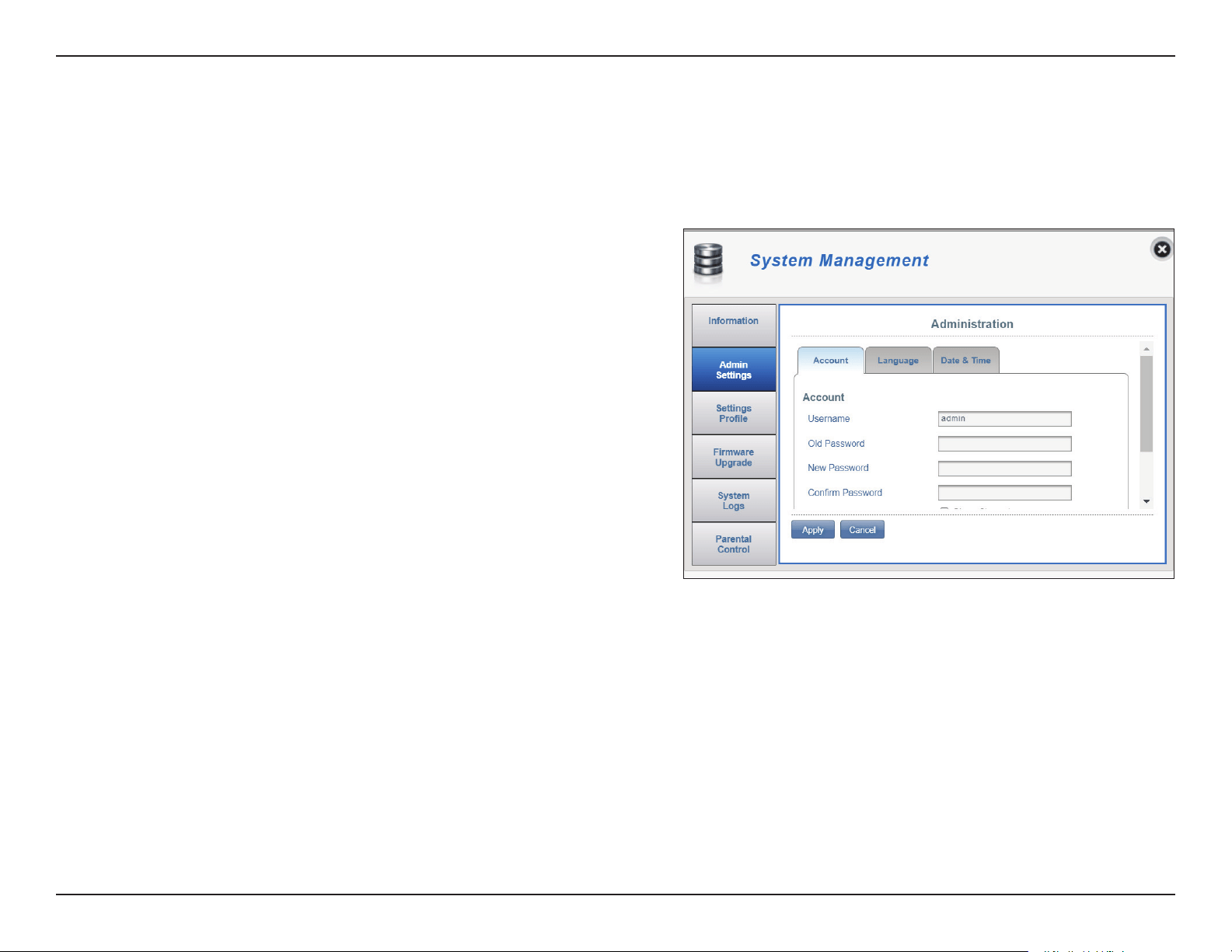

Account .............................................................................42

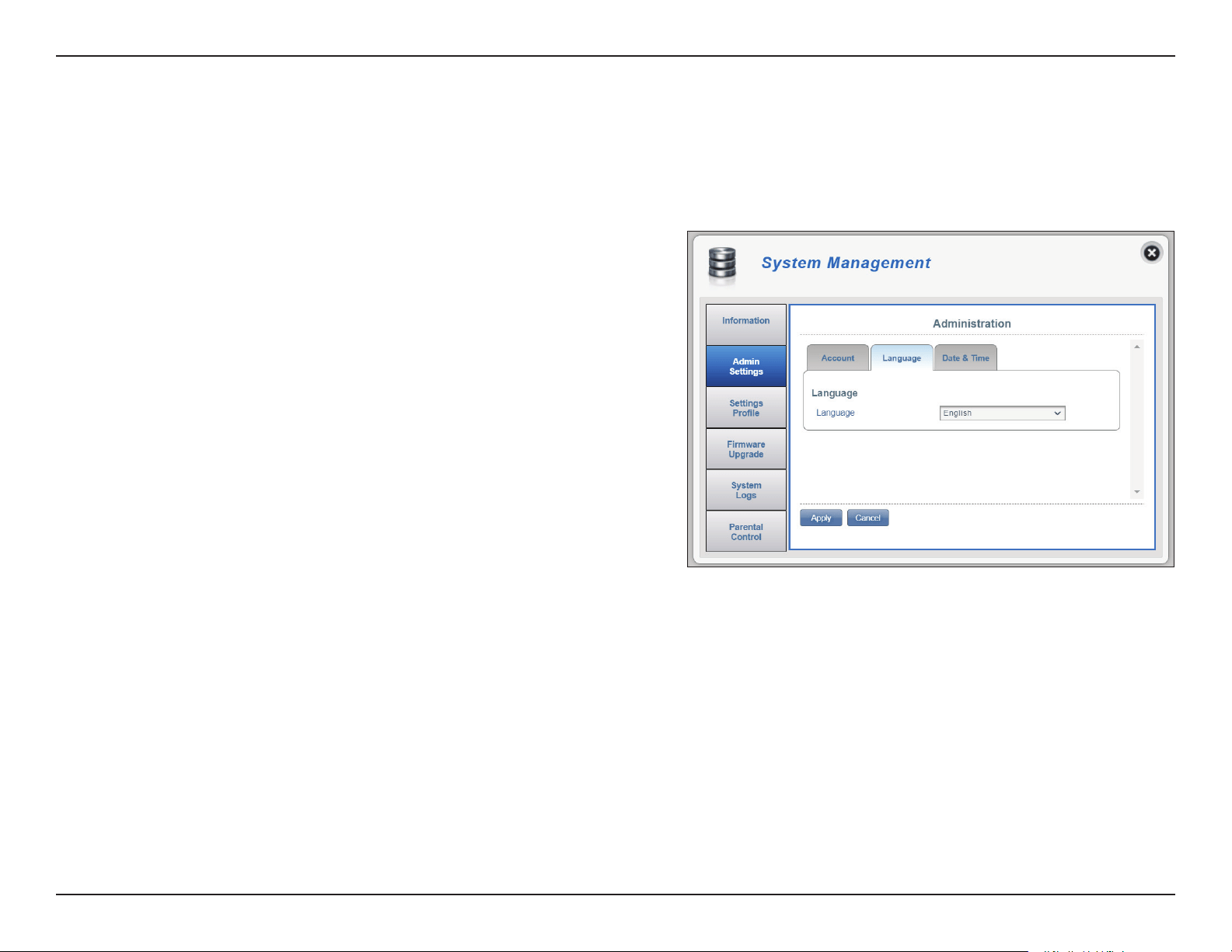

Language ..........................................................................43

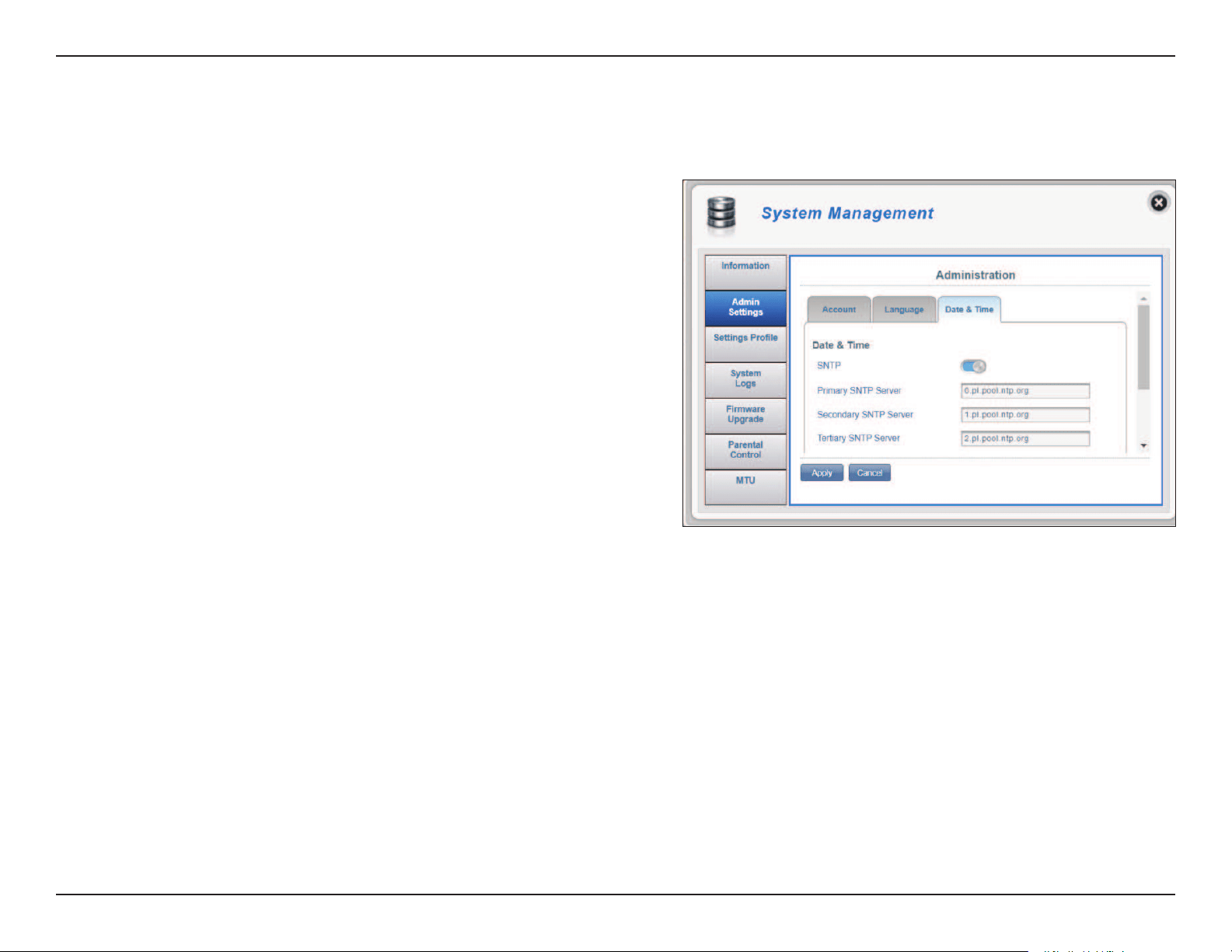

Date & Time ......................................................................44

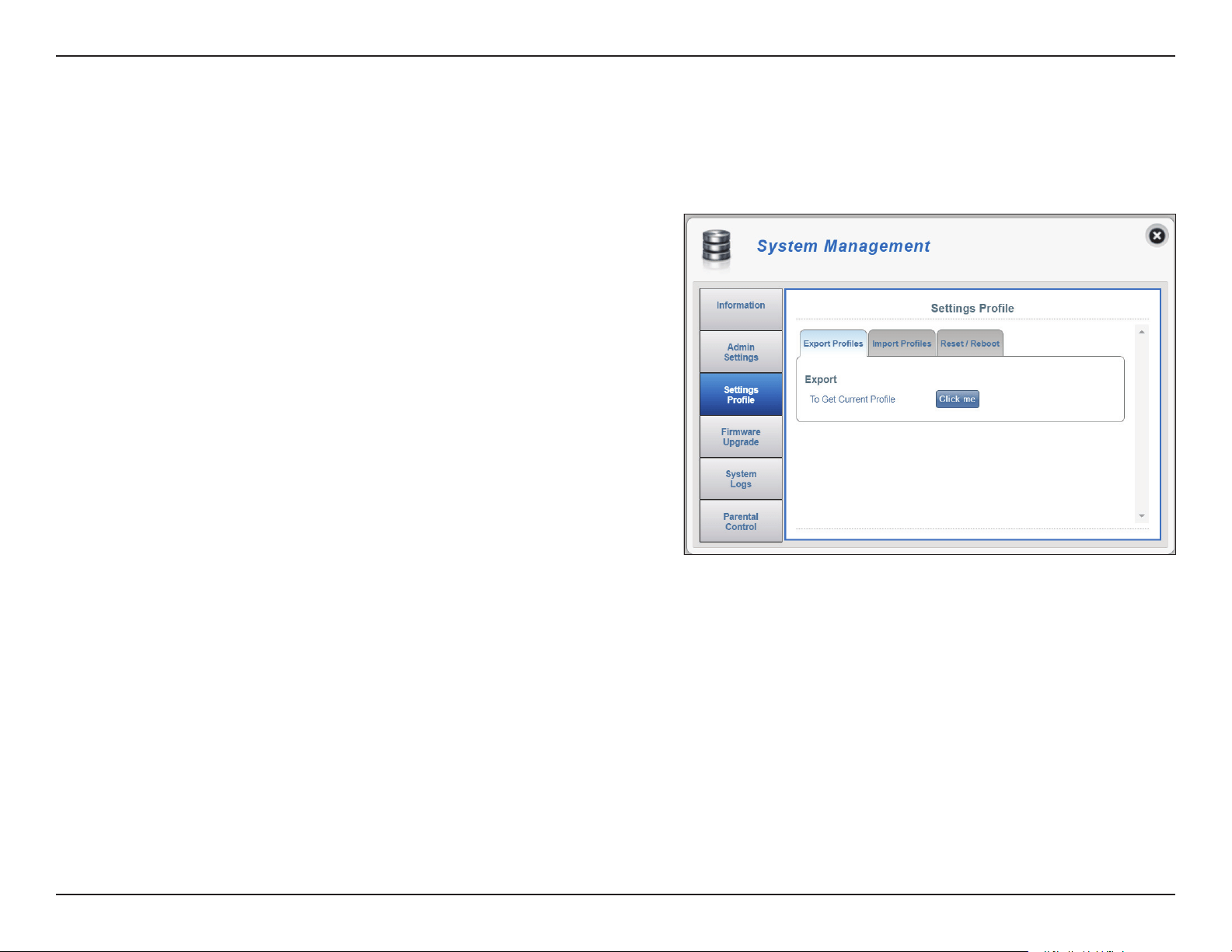

Settings Prole ..................................................................... 46
Reset / Reboot ................................................................. 48
Firmware Upgrade ..............................................................49
System Logs ..........................................................................50
Table of Contents
iiiD-Link DWR-960 User Manual
Table of Contents
Parental Control ..................................................................51
SMS ..................................................................................................52
Short Messages ...................................................................52
USSD ........................................................................................53
Connecting to a Wireless Network .................................54
WPS Button ...................................................................................54
Connecting to a Wireless Network .................................55
Using Windows 10 ..................................................................... 55
Using Windows 8 .......................................................................57
Using Windows 7 .......................................................................59
Using Windows
®
XP ....................................................................62
Troubleshooting ..............................................................63
Networking Basics ...........................................................65
Check your IP address ...............................................................65
Statically Assign an IP address ...............................................66
Technical Specications ..................................................67
Regulatory Information ..................................................68
1D-Link DWR-960 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing or damaged, please contact your reseller.
Power Adapter
D-Link DWR-960 Wireless AC1200 4G LTE Router
3G/4G Antennas
RJ45 Cable
2D-Link DWR-960 User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• A compatible mini-SIM/UICC card with mobile data service
1
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows
®
, Macintosh, or Linux-based operating system
Browser Requirements:
• Internet Explorer 9 or higher
• Firefox 12 or higher
• Safari 4 or higher
• Chrome 20 or higher
1
Subject to services and service terms available from your carrier.
3D-Link DWR-960 User Manual
Section 1 - Product Overview
Introduction
High-Speed Mobile Internet with LTE Connectivity
The DWR-960 Wireless AC1200 4G LTE Router gives you high-speed Internet wherever you are and lets you share it on the go. Using LTE technology,
you can achieve a download speed of up to 300 Mbps and a upload speed of up to 100 Mbps
1
. The built-in LTE antenna provides a reliable connection
to your mobile service provider, and separate internal Wi-Fi antenna give extended coverage to the computers and wireless devices connected to the
DWR-960.
Mobile Internet for All of Your Devices
With the DWR-960, you can get online with your notebook, smartphone, tablet, or any other wireless device using a single mobile connection. The
DWR-960 provides high-speed Wireless AC coverage with 2.4G and 5G radio bands, giving high-speed wireless access to everybody – whether you are
with colleagues on a business trip or travelling with friends and family.
Built-in Software for Instant Access Anywhere
The DWR-960 is truly plug-and-play, with drivers already on the router, so you can connect without installing anything. Open a browser, connect to the
router, and you can set up your network right from the web interface. Once the device is set up, you can simply power it on to start up your portable
mobile network without further conguration, meaning that you can share your mobile Internet connection without a cable or DSL .
The D-Link DWR-960 Wireless AC1200 4G LTE Router lets you share a fast mobile Internet connection with multiple PCs and devices letting you and
your friends enjoy the advantage of wireless connectivity anywhere, anytime. It oers 4G LTE and 3G HSPA+ compatibility for fast downlink and uplink
data rates, so you get fast upload and download speeds in areas without wired Internet connectivity.
1
All references to speed are for comparison purposes only. Actual speeds will vary depending on a range of factors including mobile network coverage, signal strength, network activity, and environmental conditions.
4D-Link DWR-960 User Manual
Section 1 - Product Overview
Hardware Overview
Overview
1 SIM/UICC Card Slot
Insert a SIM/UICC card to access the Internet through mobile connectivity. Or you may opt to use the
W/LAN port below (No.8).
2 WPS Button Press this button to add new wireless devices quickly and easily using Wi-Fi Protected Setup (WPS).
3 Reset Button
Using a paper clip, press and hold this recessed button for 5 seconds to reset the device to factory
defaults. All LEDs will be on and then o except the Power LED which will remain on during the reset.
4 LED Indicators Status display. Please refer to LED Indicators on page 6.
1
2
3
4
5 6
7 8
5D-Link DWR-960 User Manual
Section 1 - Product Overview
5 Power Button Press this button to power on or o the device.
6 Power Input Receptacle for the included 12 V/1 A power adapter.
7 LAN
Use a RJ-45 Ethernet cable to connect a computer, network equipment such as NAS (Network Attached
Storage) or switch.
8 W/LAN Use a RJ-45 Ethernet cable to connect the device to an Ethernet-based cable, DSL or ber modem.
6D-Link DWR-960 User Manual
Section 1 - Product Overview
Hardware Overview
LED Indicators
Number Name Explanation
1 Power
Solid Green Powered on.
O Powered o.
2 2.4 GHz
Solid Green Wi-Fi is enabled.
Blinking Green (slow) Trac is being transmitted over Wi-Fi.
Blinking Green (fast) WPS is activated. The LED will ash for 120 seconds or until a user connects.
O Wi-Fi is disabled.
3 5 GHz
Solid Green Wi-Fi is enabled.
Blinking Green (slow) Trac is being transmitted over Wi-Fi.
Blinking Green (fast) WPS is activated. The LED will ash for 120 seconds or until a user connects.
O Wi-Fi is disabled.
4 LAN
Solid Green RJ-45 Ethernet cable connected.
Blinking Green Trac is being transmitted over the Ethernet cable.
O RJ-45 Ethernet cable not connected.
5 Internet
Solid Blue Connected to an LTE network/Ethernet WAN.
Blinking Blue Trac is being transmitted over LTE/Ethernet WAN.
Solid Green Connected to a 2G/3G network.
Blinking Green Trac is being transmitted over 2G/3G.
Solid Red No SIM/UICC card inserted or no Internet service.
6 Signal Strength
Green (Level 1-4) Indicates mobile connection signal strength. The stronger the signal, the
more the lit bars.
64321
5
7D-Link DWR-960 User Manual
Section 2 - Installation
Installation
Initial Setup
Ensure that your DWR-960 is disconnected and powered o before performing the steps below.
1. Verify that your SIM/UICC card is installed and has been activated by your carrier. To install
your SIM/UICC card, follow the orientation diagram next to the slot. Push gently until it
locks into place.
Caution: Always unplug/power o the router before installing or removing the SIM/UICC card.
Never insert or remove the SIM/UICC card while the router is powered on.
2. Attach the included antennas to the back of the router, screwing them in clockwise. Arrange
them so that they point upwards.
3. Connect the power adapter to the socket on the back panel of your DWR-960. Plug the
other end of the power adapter into the wall outlet or power strip.
4. Press the power button and wait for three seconds for the device to be powered on.
a. The Power LED will light up green to indicate that power is being supplied to the router
and the router is turned on.
b. After a few moments, the LED indicators will show the status of the router’s various
functions. For more information, please refer to LED Indicators on page 6.
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in an attic or garage.
1.
SIM
card
SIM
WPS
RESET
2.
3.
8D-Link DWR-960 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DWR-960 can be accessed using a wireless connection from anywhere within the operating range of its wireless network. Keep in mind that
the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may adversely aect wireless
signals. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key to maximizing
the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the router and other network devices. Each wall or ceiling can reduce your adapter’s range
from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters) appears to be almost 3 feet (1 meter) thick at a
45-degree angle. At a 2-degree angle it appears over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a
wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways. Materials such as glass, metal,
brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal doors, and
aluminum studs may also have a negative eect on range.
4. If you are using a 2.4 GHz cordless phone, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base
transmits a signal even when the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as
ceiling fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.
9D-Link DWR-960 User Manual
Section 3 - Conguration
Conguration
Initial Connection to the Router
This section shows you how to congure your new DWR-960 using the conguration utility that can be accessed via your web browser.
By default, the DWR-960 comes congured to work with most 4G SIM/UICC cards. If you wish to congure the router, you will need to establish a
direct connection with the router in order to access the web-based conguration utility. Refer to the following two sections for wired and wireless
connection methods. Once you have congured your router, you will be able to connect to a wireless network using the Wi-Fi settings that you
specied in the conguration process.
If you are conguring the router from a PC with a wired Ethernet connection, plug one end of an Ethernet cable into the port labelled LAN on the
back of the router, and the other end into the Ethernet port on your computer.
Connect via Ethernet Cables
Modem
10D-Link DWR-960 User Manual
Section 3 - Conguration
Connect via Wi-Fi
Note: The following example uses Windows 10’s built-in wireless connection utility. If you are using a dierent operating system, or a third-party
connection utility, the process may be dierent. Please refer to the documentation that came with your operating system or wireless adapter for
further information on how to connect to a wireless network.
To connect to the router using Wi-Fi, on the taskbar of your Windows, click the
or the
icon.
Note: If you see the
icon, unplug the network cable and try again.
By default, the network name (SSID) of the DWR-960 will be in the format dlink_DWR-960_XXXX
or dlink_DWR-960-5G_XXXX (where XXXX represents the last 4 digits of the Wi-Fi interface’s MAC
address). Note that the default SSID and password can be found on the device label on the
bottom of the device .
Once you have located your DWR-960’s wireless network, select it and click Connect.
dlink_DWR-960-5G_xxxx
dlink_DWR-960-5G_xxxx
11D-Link DWR-960 User Manual
Section 3 - Conguration
You will then be prompted to enter the network security key for your router. Enter the security
key in the box provided and click OK. Your wireless connection utility will conrm that the
connection is successful, and you can move to the next step to continue the conguration
process.
You can also set up a connection using the Windows built-in WPS feature. Please see
Connecting to a Wireless Network on page 55.
dlink_DWR-960-5G_xxxx
12D-Link DWR-960 User Manual
Section 3 - Conguration
Web-based Conguration
To access the conguration utility, open a web browser (such as Internet Explorer) and enter
the IP address of the router, which is 192.168.0.1 by default in the address bar.
Enter admin as the username and leave the password blank on the login page. You will be
required to change the password when logging in for the rst time.
Click Sign in to continue.
Conguration Utility
13D-Link DWR-960 User Manual
Section 3 - Conguration
On the home page of the interface, you will nd the menu bar at the top of the page which includes tabs for easy navigation.
The Internet tab allows you to congure your Internet settings, including details about your mobile operator.
The Wi-Fi tab allows you to congure your Wi-Fi network, as well as add new devices using WPS.
The Settings tab allows you to congure rewall and security settings.
The System tab allows you to view system information, change your login information, and upgrade the rmware.
From the SMS tab, you can send and receive SMS text messages, as well as send USSD (Unstructured
Supplementary Service Data) codes, also known as “Quick Codes” or “Feature Codes.”
Navigation
Internet
Wi-Fi
Settings
System
SMS
14D-Link DWR-960 User Manual
Section 3 - Conguration
Quick Access
A quick access page will be displayed on the home page of the DWR-960. The headings below provide links to conguration pages where you can
alter settings in more detail.
This area displays your Internet provider, the type of
Internet service you are using, signal strength, and
the total amount of mobile Internet data used since
the start of the bill cycle.
This area displays the length of time the Internet has
been up and allows you to change between Always
Connect and Manual Connect.
The Wi-Fi section displays the number of devices
currently connected to the router wirelessly via the
2.4 GHz and 5 GHz band.
This area displays the number of SMS messages in
your inbox and your draft messages.
Internet
Connection Mode
Wi-Fi
Short Messages
15D-Link DWR-960 User Manual
Section 3 - Conguration
Setup Wizard
The setup wizard is designed to guide you through a step-by-step process of initial device conguration. It will assist you in the following basic
congurations: Wi-Fi setting, Admin setting, and Internet setting.
APN For LTE/3G
On this page, you can configure your Access Point Name (APN) settings.
Depending on your mobile service provider, you may have to congure the
optional settings manually. Please consult your ISP in such case.
Click Next to continue.
Wi-Fi 2.4 GHz SSID/Wi-Fi 5 GHz SSID
On this page, you can congure your Wi-Fi settings. Enter the Wi-Fi name and the
protection mode with encryption method. Enter the Pre-Shared Key which will
be required for client connection. You can also click New Key to let the system
generate a key automatically for you.
Click Next to continue.
Admin Settings
On this page, you can congure the admin account’s password and the language
of the web conguration utility. You can also set the system’s date and time.
Click Next to continue.
Internet Settings
On this page, you can congure the Internet connection mode: WAN or cellular
mode. For the WAN connection mode, you can choose the connection method
from the following: Static, PPPoE, or DHCP. For PPPoE and Static, you may need
to contact you ISP or network administrator for the respective parameters for
connection.
Click Next to continue. The next page simply requires you to click Apply for the
congurations to take eective.
16D-Link DWR-960 User Manual
Section 3 - Conguration
In this section you can check your current network status as well as your network provider and data usage.
Internet Settings
Network Status
Displays your current network provider and signal
strength.
Displays the type of network you are connected to.
The length of time you have been connected to the
network.
Reference Signal Received Power (RSRP), which
measures the power level in the LTE cell network.
Indicates the category of the LTE.
Indicates the LTE frequency band.
Network Provider
Network Type
Connection Time
RSRP
LTE Cat
Band
Cellular Information
Network Status
Displays your current IP address.
Displays the total amount of data downloaded.
Displays the total amount of data uploaded.
IP Address (IPV4)
Total DL
Total UL
Note: These counters may be reset when the battery or SIM/UICC card is
removed.
17D-Link DWR-960 User Manual
Section 3 - Conguration
You can congure the failover feature to maintain Internet connection when one of the connection methods fails.
Select either one of the following to be the
preferred connection method if both are connected:
• Ethernet WAN Preference
• Cellular WAN Preference
Failover
Failover
Failover
18D-Link DWR-960 User Manual
Section 3 - Conguration
Internet Settings
WAN Mode - Select this option if you want the
DWR-960 to connect to the Internet through the
WAN port (W/LAN) on the back of the device.
4G/3G/2G mode- Select this option if you want
the DWR-960 to connect to the Internet using the
inbuilt LTE modem.
Click Apply to save your changes.
Internet Mode
Internet Settings
If you select WAN Mode, congure the following WAN Settings:
Choose the WAN Connection Type: Static, DHCP, or PPPoE. If you select
PPPoE for the WAN Connection Type:
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Verify Password Enter the same password again.
Operation Mode Select Keep Alive, On Demand, or Manual.
Idle Time Congurable when On Demand is selected. Enter
a maximum idle time during which the Internet
connection is maintained during inactivity. To
disable this feature, select Keep Alive or Manual
as the operation mode.
19D-Link DWR-960 User Manual
Section 3 - Conguration
If you select Static for the WAN Connection Type:
IP Address Enter the IP address provided by your ISP.
Subnet Mask Enter the subnet mask of the IP address.
Default Gateway Enter the default gateway provided by your ISP.
Primary DNS Enter the primary DNS server IP address assigned
by your ISP.
Secondary DNS Enter the secondary DNS server IP address assigned
by your ISP.
If you select DHCP for the WAN Connection Type:
Host Name The host name is optional but may be required by
some ISPs. Leave it blank if you are not sure.
20D-Link DWR-960 User Manual
Section 3 - Conguration
APN Settings
Auto - Select this option if you want the DWR-960
to automatically connect to a mobile network after
it has been powered on, or has been disconnected
from its current mobile network.
Manual - Enter the Access Point Name (APN) for the
connection. If you do not know this information,
please contact your service provider.
Click Apply to save your changes.
APN Selection Mode
In this section you can congure your Access Point Name (APN) settings. Depending on your mobile service provider, you may
have to input optional settings before use. If so, you may need to contact your service provider regarding these details.
Access Point Name (APN) Settings
21D-Link DWR-960 User Manual
Section 3 - Conguration
APN
User Name
Password
APN Method
APN Mode
If you are already connected to a mobile network,
your ISP will provide the necessary APN which you
can select from the drop-down list. If no options
are available, use the manual conguration on the
previous page.
Enter the username to be used for this connection.
Enter the password to be used for this connection.
Choose the authentication method (i.e. PAP, CHAP
or None) that your ISP uses to connect to its mobile
network. If you do not know this information, please
contact your service provider. For more information
refer to Connection Mode Settings on page 22.
Click Apply to save your changes.
If manual is selected for APN mode:
22D-Link DWR-960 User Manual
Section 3 - Conguration
Connection Mode Settings
Preferred Cellular
Allow Data Roaming
Transparent Bridge
Connection Mode
This section allows you to choose your desired cellular network, congure data roaming and connection mode.
Cellular Settings
Toggle the switch to enable or disable your Internet
connection.
Click Apply to save your changes.
Connect/Disconnect
manually
Auto - Automatically connects to a mobile network.
2G mode - Only connects to a 2G mobile network.
3G mode - Only connects to a 3G mobile network.
LTE mode - Only connects to a LTE/4G mobile
network.
Enabling this if you want to allow data roaming.
Data roaming lets you use an Internet connection
internationally or outside of you Internet provider’s
coverage. Enabling this feature may lead to very
high data charges. Check with your provider for
details.
Choose this option to congure your router to the
bridge mode. Enabling this option will disable Wi-Fi
function.
Choose between Always or Manual for Internet
connection.
If you select Manual Connection Mode:
23D-Link DWR-960 User Manual
Section 3 - Conguration
PIN Management
The number of retries left to access your SIM/UICC.
Note: If you exceed the number of retries, your SIM/
UICC card will be locked and can only be unlocked by
your operator.
Move the toggle to enable SIM card PIN Lock
Protection. In order to use this function you need
to know the PIN of the SIM/UICC card.
You can disable the SIM Card PIN Lock protection or
change the PIN code later.
No. of Retry
SIM/UICC
Card PIN Lock
Protection
This section allows you to lock the SIM/UICC card currently inserted into the DWR-960.
If SIM Card PIN Lock Protection is enabled:
Enter your SIM/UICC pin code here.
Click Apply to save your changes.
PIN Code
SIM
24D-Link DWR-960 User Manual
Section 3 - Conguration
My Operator (PLMN)
This page allows you to view available Public Land Mobile Networks (PLMN). This page can also be used to select a preferred
network when you are roaming outside of your home network.
Displays the current mode the DWR-960 is
operating in.
Select Automatic to allow the DWR-960 to
automatically connect to the rst available network
when roaming.
Select Manual to choose your preferred roaming
network from the list below.
Click Apply to save your changes.
PLMN Mode
Operator Mode (PLMN)
25D-Link DWR-960 User Manual
Section 3 - Conguration
ID number assigned to each available PLMN.
Check the box to select your desired network.
The network’s status.
The name of the cellular network provider.
The cellular network’s access technology.
Click Apply to save your changes.
ID
Use it
Status
Operator Name
Access Technology
If you select Manual Mode:
Click on your preferred network to select it, or type in the Search box to nd
your desired network.
Note: You will need to manually disconnect from the current mobile data service
before selecting a network using PLMN.
Available Operators
26D-Link DWR-960 User Manual
Section 3 - Conguration
Wi-Fi Settings
Wi-Fi Status
This page displays your current Wi-Fi status and Wi-Fi settings.
Wi-Fi WPS
Wi-Fi 2.4 GHz/5 GHz
Current Wi-Fi Clients
Displays whether Wi-Fi Protected Setup (WPS) is
enabled.
Displays whether Wi-Fi is enabled.
Displays the number of clients connected to your Wi-Fi
network.
General Information
SSID Name
Encryption
DHCP
IP Address
Subnet
MAC Address
Displays the name of your Wi-Fi network.
Displays your current Wi-Fi network encryption mode.
Displays whether DHCP server is enabled.
Your router’s IP address.
Your router’s subnet mask.
The MAC address of the respective Wi-Fi network
interface.
Wi-Fi Status
27D-Link DWR-960 User Manual
Section 3 - Conguration
Basic Settings
In this page you can view your Wi-Fi encryption settings, modify your SSID name and SSID visibility, and congure related security features.
Displays the name of your Wi-Fi network. Click in the
box to edit.
Enable or disable SSID visibility to clients. Disabling
SSID broadcast requires you to congure your wireless
connection manually by providing information such
as network name, security type, encryption type, and
security key.
By default WPA personal is selected. You may also
select WEP or No Protection.
Auto (WPA or WPA2) - The router will automatically
determine the version of WPA to be used based on
the client that is connecting to it.
WPA2 - Clients will only be able to associate with
the router using the WPA2 standard. Clients that do
not support WPA2 will not be able to associate with
the router.
AES - A newer encryption with stronger protection
for WPA2.
Note: Use of WPA2 is required in order to achieve
802.11n speeds.
AES/TKIP - TKIP is an encryption method commonly
used by older devices. Select this option for
compatibility with old devices.
SSID Name
SSID Visibility
Protection
WPA Mode
Cipher Type
Wi-Fi 2.4 GHz/5 GHz SSID
If you select WPA Personal:
28D-Link DWR-960 User Manual
Section 3 - Conguration
Authentication Type:
WEP Passphrase:
Key 1-4:
Shared - The encryption key used to authenticate
wireless client and encrypt data.
Enter your passphrase for clients to connect to the
router. Once you have entered a passphrase, select
the WEP key length, then click Generate to create
keys automatically.
You can set up to 4 WEP keys. Select the WEP key
you wish to use by clicking on the radial buttons
next to the keys. Each key allows you to use either
64 bit or 128 bit characters.
Click Apply to save the current settings.
If you select WEP:
The pre-shared key is the password for clients to
connect to your network. Enter a password with 8
and 63 characters in length.
Click Apply to save your changes.
Pre-Shared Key
29D-Link DWR-960 User Manual
Section 3 - Conguration
Advanced Settings
Wi-Fi 2.4 GHz/5 GHz
802.11 Mode
Channel Bandwidth
Wi-Fi Channel
Toggle the switch to enable/disable Wi-Fi radio frequency
on your router.
The type of Wi-Fi connection currently being accepted
by the router.
2.4 GHz: Enable this option to allow clients complied
with a mix of 802.11n/g/b standards to the router.
5 GHz: Enable this option to allow clients complied with
a mix of 802.11ac/n/a to connect to the router.
The current channel width being used by your router.
A wider 80 or 40 MHz channel (depending on the
radio frequency) may increase performance but could
cause interference with other Wi-Fi devices. This router
will automatically reduce to 20 MHz if interference is
detected.
Choose the clearest channel to help optimize the
performance and coverage of your wireless network.
By default the channel is set to Auto Channel. This can
be changed to t the channel setting for your wireless
environment. Note that not all channels are available in
all regions. If you cannot see your SSID from your client
device, try manually setting a low-numbered channel.
Click Apply to save your changes.
Wi-Fi 2.4 GHz/5 GHz
30D-Link DWR-960 User Manual
Section 3 - Conguration
Push Button Conguration (PBC) enables you to easily
connect your devices to the DWR-960 by pushing a PBC
button on both devices. This mechanism is referred to
as WPS (Wi-Fi Protected Setup). Click Start Via PBC, to
begin the WPS process. This button works in the same
manner as the WPS button on the bottom of the device.
Refer to WPS Button on page 54 for more information.
Select the wireless band rst for WPS setting.
Use toggle to enable PIN protection for use with the
WPS feature.
Note: WPS PIN Mode is disabled by default. This mode is
less secure and is not recommended. It is retained in this
product for compatibility purposes only.
The PIN is a unique number that can be used on
devices that do not have a WPS button. Click Generate
New to generate a new random PIN, or select Use
Default to restore the factory PIN. Note that if the
WPS PIN feature is enabled, using a new PIN is strongly
recommended.
To use this feature:
1. Click the Start Via PIN to start the WPS process.
2. Follow the user manual of the client device for
entering the PIN for WPS. On Windows 7, select
the network name you want to connect, then you
will be prompted to enter the PIN.
PBC
Band
Use PIN Mode
PIN
Wi-Fi WPS
31D-Link DWR-960 User Manual
Section 3 - Conguration
Wi-Fi Clients
This page shows your current client list and allows you to lter clients by host name, IP address, and MAC address. It also enables you to prevent
wireless clients from accessing your network.
Host Name
IP Address
MAC Address
Access
Band
A unique name for each wireless client that is connected
to your router.
The IP address of the wireless client that is connected
to your router.
The hardware address of the client’s wireless adapter.
Toggle this switch to allow or restrict wireless client
access to your network.
The Wi-Fi radio frequency, i.e. 2.4GHz or 5GHz.
Note: If a Wi-Fi client has been blocked, you will see their
MAC address in the MAC Filter on page 34. You can
delete the entry to permit its access on that page.
Click Apply to save your changes.
Wi-Fi Clients List
32D-Link DWR-960 User Manual
Section 3 - Conguration
Settings
Router LAN Settings
This page shows your current router LAN settings such as IP address, subnet mask, and IP range.
DHCP Service
IP Address
Subnet Mask
IP Range
Display the status of DHCP service, which can be
enabled/disabled on the next tab.
The current LAN IP address. This is also the IP address
of the web conguration utility.
The subnet mask of the LAN interface.
The range of IP addresses to be assigned by the DHCP
server.
The table below lists the DHCP lease status with the
following information:
Host Name: The host name of the client computer.
IP Address: The client’s IP address that is assigned by
the DHCP service.
MAC Address: The MAC address of the client device.
Click Apply to save your changes.
33D-Link DWR-960 User Manual
Section 3 - Conguration
DHCP Settings
Here you can disable or enable your router’s DHCP service, congure the IP address for the DWR-960, and set the range of IP addresses assigned
by the DHCP server.
DHCP Service
IP Address
Subnet Mask
IP Range
Enable or disable the DHCP Service.
Click on the last digit to alter your router’s current LAN
IP address. Note that if you change this setting, you will
need to enter this new IP address into your browser to
access to the conguration utility.
The subnet mask of the LAN interface.
Click on the last digit to congure the range of IP
addresses assigned by the DHCP server.
Click Apply to save your changes.
DHCP Service
34D-Link DWR-960 User Manual
Section 3 - Conguration
MAC Filter
Toggle this switch to enable or disable the MAC lter.
Here is a list of clients’ MAC addresses on Wi-Fi that
have been denied access to your network.
ID number given to each client in the list.
Check this box to delete this client from the list.
Specify the MAC address of the computer to be
ltered.
Click the Add New button and manually enter the
MAC address of the client that you want to deny access
to your network.
Note: You can view the current list of clients connected to
your network and their MAC addresses in Wi-Fi Clients
on page 31.
Click Apply to save your changes.
MAC Filter
MAC Filter- Black List
ID
Delete
MAC Address
Add New
This page allows you to set MAC lters (Media Access Control) which can be used to allow or deny access to your network. A MAC address is a unique
ID assigned by the manufacturer for devices for network communication. You can either manually add a MAC address or select the MAC address
from the list of clients that are currently connected to the router.
MAC Filter Settings - Wi-Fi Clients List
Congure the following to block Wi-Fi clients:
35D-Link DWR-960 User Manual
Section 3 - Conguration
Here is a list of clients’ MAC addresses on the LAN that
have been denied access to your network.
ID number given to each client in the list.
Check this box to delete this client from the list.
Specify the MAC address of the computer to be
ltered.
Click the Add New button and manually enter the
MAC address of the client that you want to deny access
to your network.
Click Apply to save your changes.
MAC Filter (LAN) -
Black List
ID
Delete
MAC Address
Add New
MAC Filter Settings - List of blocked customers LAN
Congure the following for blocking Ethernet LAN clients:
36D-Link DWR-960 User Manual
Section 3 - Conguration
Firewall Enable
IP Filter Rules
DMZ Settings
DMZ IP Address
PPTP Pass Through
IPSec Pass Through
L2TP Pass Through
WAN Ping Blocking
Firewall Settings
A rewall helps protect your network from external cyber attack and intrusions. This page allows you to alter your router’s rewall settings.
Clicking this toggle activates the IP Filter. For more
information, see IP Filter on page 38.
Select Drop or Accept. Choose Drop to block IP
addresses dened in the IP Filter tab and allow all
other network trac to pass through the router. Or
select Accept to allow only those dened trac to
pass through your router.
Toggling the DMZ (Demilitarized Zone) will expose a
chosen computer to the outside world by completely
disabling rewall and routing all inbound trac to the
DMZ IP Address.
Enter the IP address of the DMZ host on the LAN to
be exposed to the Internet.
Note: This feature is only recommended for advanced
users. Enabling this option will potentially expose your
computer to attacks over the Internet.
Allows clients to connect to their corporate network
or VPN using the PPTP protocol.
Allows clients to connect to their corporate network
or VPN using the IPsec protocol.
Allows clients to connect to their corporate network
or VPN using the L2TP protocol.
When enabled the DWR-960 will not respond to pings
from WAN.
Firewall Settings
37D-Link DWR-960 User Manual
Section 3 - Conguration
Remote Management
Clicking this toggle allows access to web conguration
over the Internet. This setting may open your router
to external security threats and is not recommended
for most users.
Click Apply to save your changes.
38D-Link DWR-960 User Manual
Section 3 - Conguration
IP Filter
The DWR-960 can lter packets based on parameters such as IP addresses and ports. IP ltering allows you to dene access rules for rewall settings.
Please refer to Firewall Settings on page 36. The DWR-960 supports a maximum of 50 lters.
ID
Delete
Protocol
Source IP
Dest IP
Subnet Mask
Source Port Number
Destination Port
Number
ID number given to new IP lters.
Click here to select the lters you wish to delete.
The protocol for the IP lter rule. The options are ICMP,
TCP, and UDP.
The source IP address to which the rule is applied.
The destination IP address to which the rule is applied.
The length of the mask (1-32).
The source port number for the associated service.
The destination port number for the associated
service.
Click Apply to save your changes.
If you turn on Firewall Enable:
39D-Link DWR-960 User Manual
Section 3 - Conguration
Virtual Server
The virtual server allows you to specify a single public port on the router for redirection to an internal LAN IP address and private LAN port.
ID
Delete
Protocol
Destination IP
Private Port
Global Port
ID number given to new IP lters.
Click here to select the lters you wish to delete.
The protocol for the IP lter rule. Refer to
https://www.iana.org/assignments/protocol-
numbers/protocol-numbers.xhtml
for Assigned Internet Protocol Numbers.
The destination IP address of virtual server.
The internal port to open for this service.
The public port to open for this service.
Click Add New to add a new virtual server. Then click
Apply to save your changes.
40D-Link DWR-960 User Manual
Section 3 - Conguration
DDNS
Here you can enable the DDNS feature. Dynamic Domain Name System (DDNS) links a domain name to a changing IP address.
DDNS
Provider
Host Name
Username / E-mail
Password / Key
Enable or disable the DDNS.
Displays the DDNS provider name that is supported
on the router.
Enter the host name that you registered with your
dynamic DNS service provider.
Enter your dynamic DNS username.
Enter your dynamic DNS password.
Click Apply to save your changes.
41D-Link DWR-960 User Manual
Section 3 - Conguration
System
Information
FW Version
Hardware Version
IMEI
IMSI
Model Name
System Uptime
The current rmware version of the DWR-960.
The current hardware version of the DWR-960.
International Mobile Equipment Identity is a unique
number assigned to every mobile device.
The SIM/USIM/UICC card has a unique number called
an International Mobile Subscriber Identity (IMSI). This
is used to identify and authenticate users on cellular
devices.
The model name of your D-Link router.
The length of time since last restart.
Note: The FW version number displayed on the image
above may dier from the model you have purchased
due to rmware updates or regional variation.
About DWR-960
42D-Link DWR-960 User Manual
Section 3 - Conguration
Admin Settings
Account
This tab allows you to customize your own username and password as well as adjust the web conguration’s automatic logout timer.
Username
Old Password
New Password
Conrm Password
Auto logout after
Adjust your login username of the web conguration.
Enter your old password.
Enter your new password.
Enter the new password again.
Click on the drop-down arrow to select the elapsed
time before being automatically logged out of the web
conguration.
Click Apply to save your changes.
43D-Link DWR-960 User Manual
Section 3 - Conguration
Language
This tab allows you to change the default language setting.
Select your desired language of the web
conguration interface.
Click Apply to save your changes.
Language
44D-Link DWR-960 User Manual
Section 3 - Conguration
Click the toggle to Enable or Disable automatic
time synchronization with a Simple Network Time
Protocol (SNTP) server.
Enter an SNTP server address which will be used to
synchronize the router’s time and date.
Select your current Coordinated Universal Time
zone (UTC).
You can specify (in hours) how frequently the
DWR-960 will update the time from an SNTP server.
Enable this option if your region uses Daylight
Saving Time. If you have selected Enable, enter the
start date and end date.
Click Apply to save your changes.
SNTP
Primary,
Secondary and
Tertiary SNTP
Server
Time Zone
Synchronization
Cycle
Daylight Saving
Date & Time
On the Date & Time tab, you can adjust the date, time, and network time synchronization settings of your router.
45D-Link DWR-960 User Manual
Section 3 - Conguration
If you disable automatic synchronization with an SNTP server:
Time Zone
Date & Time
Current Time
Daylight Saving
Select your current Coordinated Universal Time
zone (UTC).
Select date (MM-DD-YYYY) and time (HH-MM AM/
PM) manually.
The current time for the time zone you have
selected is displayed here.
Enable this option if your region uses Daylight
Saving Time. Enter the start date and end date after
it is enabled.
Click Apply to save your changes.
46D-Link DWR-960 User Manual
Section 3 - Conguration
Export Proles
On the Export Proles tab you can export your current conguration to a computer.
Click the Click Me button to download the current
settings of your DWR-960. It will be in .sav le format
and will be saved in your browser’s download
directory.
To Get Current
Prole
Settings Prole
47D-Link DWR-960 User Manual
Section 3 - Conguration
Browse your computer for previously exported
settings.
Click Apply Import to restore the router to a
previously congured state.
Select
Import Proles
On the Import Proles tab, you can import previously saved settings for the router.
48D-Link DWR-960 User Manual
Section 3 - Conguration
Reset / Reboot
On the Reset/Reboot tab you can reboot your router or reset it to factory default settings. You can also reset your router by using a straightened
paperclip to press and hold the reset button on the router for 5 seconds.
Select the Reset to Default button to reset the
DWR-960 to factory default settings.
Select the Reboot button to reboot the DWR-960.
Reset to Default
Reboot
49D-Link DWR-960 User Manual
Section 3 - Conguration
Firmware Upgrade
This page allows you to manually upgrade your router’s rmware.
Select Manual to manually upgrade your router’s
rmware. To upgrade automatically, select Remote
Server from the drop down menu, then click
Check Remote Server and follow the on-screen
instructions.
If you have selected a manual upgrade, select the
appropriate le for the upgrade, then click the Start
Update button.
The current version of your rmware.
Note: The FW version number displayed on the image
to the right may dier from your router due to rmware
updates or regional variation.
Note: Do not unplug the device or interrupt the upgrade
process (upgrade in progress is shown on the right) until
the process is complete. Interrupting The upgrade process
may corrupt the device.
Upgrade My Router
Open File
Current Version
Upgrade My Router
50D-Link DWR-960 User Manual
Section 3 - Conguration
The System Logs page displays all of the router’s logs. Here you can
view, refresh and clear system logs.
System Logs
51D-Link DWR-960 User Manual
Section 3 - Conguration
Parental Control
Here you can create and edit parental control policies.
Parental Control
Congure the following for a new Parental Control
policy:
Choose either Everyday or Selected days for policy
schedule.
For the Selected days option, select the days of the
week to apply the schedule.
Select the Start Time and End Time during which
the policy will be enforced.
Enter the MAC address to add devices to the policy.
Enter the hostname of the client device.
Note: Devices not on the Congured rules list will not be
aected by the control policies.
Click Apply to save your changes.
Schedule
Rule
MAC Address
52D-Link DWR-960 User Manual
Section 3 - Conguration
SMS
Short Messages
On the Short Messages Settings page you can organize, send and receive Short Message Service (SMS) messages by selecting among the Inbox,
Drafts and Setup tab. These messages can either be saved to the router’s internal memory or on the SIM card itself.
Setup
Store To
Current Short
Messages
SMS Center
Number
Choose between the location to store contact
numbers, either on your SIM/UICC card or the
DWR-960 device.
The current number of messages in the Inbox and
Drafts.
Your SIM/UICC card’s contact number, which should
be preset by your wireless network operator.
Click Apply to save your changes.
Inbox
Search Type in keyword to display messages containing
this keyword.
To reply a message, click the respective Content
column, ll in the reply Content, then click Send to
send the message immediately or Save as Draft to
save it in the Drafts box.
Click Apply to save your changes.
To add a new message, click +Add New in the upper-
right corner. Type in the receiver’s number in Send to
and messages in Content, then click Send to send
the message immediately or Save as Draft to save it
in the Drafts box.
Drafts
53D-Link DWR-960 User Manual
Section 3 - Conguration
USSD
Enter an application activation code and click
the Send button. This allows you to activate
applications or information services by sending a
message to your ISP.
Unstructured Supplementary Service Data (USSD) allows ISP-specic applications to be activated using instant messaging services.
USSD Code
USSD
54D-Link DWR-960 User Manual
Section 3 - Conguration
Connecting to a Wireless Network
WPS Button
Step 2 - Within 2 minutes, press the WPS button on your wireless device (or launch the software utility and start the WPS
process).
Step 3 - Allow up to 1 minute for your connection to be congured. Once the LEDs stop blinking, you will be connected using
WPA2 encryption.
The easiest way to connect your wireless devices to the router is with WPS (Wi-Fi Protected Setup). Most wireless devices such
as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS button (or a software
utility with WPS) that you can press to connect to the router. Please refer to your user manual for the wireless device you want
to connect to make sure you understand how to enable WPS. Once you know, follow the steps below:
Step 1 - Press the WPS button on the router for about 1 second. The wireless LEDs will start to blink.
WPS Button
55D-Link DWR-960 User Manual
Section 3 - Conguration
Connecting to a Wireless Network
Using Windows 10
When connecting to the DWR-960 wirelessly for the rst time, obtain the default network name (SSID) and security key (Wi-Fi password) printed
on the device label on the bottom of the router.
To join an existing network, locate the wireless network icon in the taskbar, next to the time display and click
on it.
Clicking on this icon will display a list of wireless networks within connecting proximity of your computer.
Select the desired network by clicking on the SSID.
dlink_DWR-960-5G_xxxx
Wireless Icon
56D-Link DWR-960 User Manual
Section 3 - Conguration
To connect to the SSID, click Connect.
To automatically connect with the router when your device next detects the SSID, check Connect Automatically.
You will then be prompted to enter the network security key (Wi-Fi password) for the wireless network. Enter
the password in the box and click Next to connect to the network. Your computer will now automatically
connect to this wireless network when it is detected.
dlink_DWR-960-5G_xxxx
dlink_DWR-960-5G_xxxx
57D-Link DWR-960 User Manual
Section 4 - Connecting to a Wireless Network
It is recommended to enable wireless security method (WPA personal) on your wireless router or access point before conguring your wireless
adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password).
To join an existing network, locate the wireless network icon in the taskbar, next to the time display.
Clicking on this icon will display a list of wireless networks within connecting proximity of your computer.
Select the desired network by clicking on the network name.
Using Windows 8
dlink_DWR-960_xxxx
Wireless Icon
58D-Link DWR-960 User Manual
Section 4 - Connecting to a Wireless Network
You will then be prompted to enter the network security key (Wi-Fi password) for the wireless network. If this
is the rst time connecting to your router, a unique security key for your router will be displayed on a sticker
in the router’s battery bay. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also press the WPS button on
your router at this point to enable the WPS function.
When you have established a successful connection to a wireless network, the word Connected will appear
next to the name of the network to which you are connected.
dlink_DWR-960_xxxx
dlink_DWR-960_xxxx
59D-Link DWR-960 User Manual
Section 4 - Connecting to a Wireless Network
Using Windows 7
Windows 7 users may use the built-in wireless utility to connect to a wireless network. If you are using another company’s utility or Windows 2000,
please refer to the user manual of your wireless adapter for help with wireless connection. Most utilities will have a “site survey” option similar to
the Windows 7 utility as shown below.
If you receive the Wireless Networks Detected pop-up, click on the center of the message
to access the utility. You can also click on the wireless icon in your system tray (lower-right
corner).
The utility will display available wireless networks in your area.
Wireless Icon
dlink_DWR-960_xxxx
60D-Link DWR-960 User Manual
Section 4 - Connecting to a Wireless Network
Highlight the wireless network (SSID) you would like to connect to and click the Connect
button.
If you get a good signal but cannot access the Internet, check your TCP/IP settings for your
wireless adapter. Refer to Networking Basics on page 65 for more information.
dlink_DWR-960_xxxx
61D-Link DWR-960 User Manual
Section 4 - Connecting to a Wireless Network
The following window appears while your computer tries to connect to the router.
Enter the same security key or passphrase (Wi-Fi password) that is on your router and click
OK. You can also connect by pushing the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the connection fails, please
verify that the security settings are correct. The key or passphrase must be exactly the same
as the one congured on the wireless router.
62D-Link DWR-960 User Manual
Section 4 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows
®
XP
Windows
®
XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service Pack 2 users. If you are
using another company’s utility or Windows
®
2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless
network. Most utilities will have a “site survey” option similar to the Windows
®
XP utility as shown below.
If you receive the Wireless Networks Detected pop-up, click on the center of the bubble
to access the utility.
or
Right-click on the wireless computer icon in your system tray (lower-right corner next to
the time). Select View Available Wireless Networks.
The utility will display available wireless networks in your area. Click on a network (displayed
using the SSID) and click the Connect button.
When the Wireless Network Connection window appears, Enter the Network key (Wi-Fi
password) and conrm the entry, then click Connect.
If you get a good signal but cannot access the Internet, check the TCP/IP settings for your
wireless adapter. Refer to Networking Basics on page 65 for more information.
dlink_DWR-960_xxxx
63D-Link DWR-960 User Manual
Section 5 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DWR-960. Read the following descriptions
if you are having problems.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of your router (192.168.0.1 for example), you are not connecting to a website on the Internet nor do you have to be
connected to the Internet. The device has the utility built on to a ROM chip in the device itself. Your computer must be on the same IP subnet to
connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Internet Explorer 9 or later, Chrome 20 or later, Firefox 12 or later, and Safari 4 or later.
• If attempting to connect wirelessly, ensure that the wireless LED indicators are lit. Also, ensure that you are connected to the correct
SSID for your mobile router.
• Make sure that the computer you are using is not connected to any other devices (such as routers or switches) which might have
the same IP address as the DWR-960, as this may cause an IP address conict. If you have a conict, temporarily unplug any other
devices from your computer while you congure the DWR-960. You can change the IP address of the DWR-960 using the conguration
utility (go to Settings > DHCP Settings). You may also need to renew your computer’s IP address conguration. To do this, start the
Command utility: Click on Start and type cmd in the Search box. For older versions of Windows®, click on Start > Run. In the run box
type cmd and click OK. This will bring up a black screen with white text. At the command prompt, type ipcong /release and wait
for the process to be completed. Next, type ipcong /renew which will renew your computer’s IP address conguration.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate, Norton
Personal Firewall, and Windows
®
rewall may block access to the conguration pages. Check the help les included with your rewall
software for more information on disabling or conguring it.
• Access the web-based conguration. Open your web browser and enter the IP address of your D-Link router in the address bar. This
should open the login page for your web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds
and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
64D-Link DWR-960 User Manual
Section 5 - Troubleshooting
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Please note that this process will change all your settings back to the factory defaults. To
reset the router, locate the reset button (hole) on the bottom of the unit. With the router powered on, use a paperclip to hold the recessed button
down for about 5 seconds. Release the button and the router will go through its reboot process. Wait about 40 seconds to access the router. The
default IP address is 192.168.0.1. When logging in, leave the password eld blank which is the default admin password.
65D-Link DWR-960 User Manual
Appendix A - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click on Start and type cmd in the Search box. On older versions
of Windows, click Start > Run. In the run box type cmd and click
OK.
At the prompt, type ipcong and press Enter.
It will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0 or empty, check your adapter installation, security settings, and the settings on your router. Some rewall software programs
may block a DHCP request on newly installed adapters.
66D-Link DWR-960 User Manual
Appendix A - Networking Basics
Statically Assign an IP address
Step 2
Select Wi-Fi > Manage known networks. For Windows 7/8/XP, click Change adapter settings. Choose the network you want to modify,
right-click on it, then select Properties.
Step 3
Under IP assignment, select Edit. For Windows 7/8/XP, select Internet Protocol Version 4 (TCP/IPv4) Properties. Then select Use the
Following IP Address.
If you are not using the DHCP service on the router, or you need to assign a static IP address, please follow the steps below:
Step 4
Under Edit IP settings, select Manual. If IPv4 is selected, type the IP address settings in IP address, Subnet
mask, and Gateway elds.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a number
between 2 and 254. Make sure that the number you choose is not in use on the network. Set Default Gateway
the same as the LAN IP address of your router.
Set Preferred DNS the same as the LAN IP address of your router. The Alternate DNS is only optional or you may
enter a DNS server from your ISP.
Step 5
When you’re done, click Save.
Step 1
Windows
®
10 Click on Start > Settings > Network & Internet.
Windows
®
7/8 Click on Start > Control Panel > Network and Internet > Network and Sharing Center.
Windows
®
XP Click on Start > Control Panel > Network Connections.
67D-Link DWR-960 User Manual
Appendix B - Technical Specications
Technical Specications
Radio Frequency Bands
1
• FDD-LTE: Band 1/3/7/8/20/38
• (CA DL support: B1+B3, B1 + B7, B1+B8, B1+B20, B3+B8, B3+B20, B3+B7, B3+38,
B7+B20, B3+B3 B7+B7, B38+B38; CA UL Support: 3C, 7C, 38C)
• DC-HSPA+/HSPA+/HSUPA/HSDPA/WCDMA: B1/B8
• EDGE/GPRS/GSM: B2/B3/B5/B8
Cellular Access
2
• LTE maximum speed: 300 Mbps DL/100 Mbps UL
• DC-HSPA+ maximum speed: 42 Mbps DL/5.76 Mbps UL
• HSPA+ maximum speed: 21 Mbps DL/ 5.76 Mbps UL
• HSPA maximum speed: 7.2 Mbps DL/5.76 Mbps UL
• UMTS maximum speed: 384 Kbps DL/384 Kbps UL
• EDGE mode maximum speed: 237 Kbps DL/118 Kbps UL
• GPRS mode maximum speed: 85.6 Kbps DL/42.8 UL
WAN Connection
• DHCP
• Static
• PPPoE
Wi-Fi Access Point
• 802.11ac
• 802.11a
• 802.11n
• 802.11g
• 802.11b
Antenna
• 2 x 3G/ LTE external Antennas
SIM/UICC Slot
• Standard mini-SIM/UICC card interface
Indicators
• Power/2.4GHz/5GHz/LAN/INTERNET LED Indicators
• 4-level Signal Strength LED indicator for mobile connectivity
Wireless Encryption
• 64 / 128-bit WEP (Wired Equivalent Privacy)
• WPA-PSK & WPA2-PSK (Wi-Fi Protected Access - Pre-Shared Key)
• Wi-Fi Protected Setup (WPS)
Firewall
• NAT
• Port Range Forwarding
• DMZ
• UPnP
Dimensions (L x W x H)
• 132 x 126 x 44 mm
Weight
• 300 g
Operating Temperature
• 0 to 40 ˚C (32 to 104 ˚F)
Storage Temperature
• -10 to 70 ˚C (14 to 158 ˚F)
1 Supported frequency band is dependent upon regional hardware version.
2 Data rates are theoretical. Data transfer rate depends on network capacity, signal strength, and other factors.
68D-Link DWR-960 User Manual
Appendix C - Regulatory Information
68
Regulatory Information
Frequency Band(s)
Frequenzband
Fréquence bande(s)
Bandas de Frecuencia
Frequenza/e
Frequentie(s)
Max. Output Power (EIRP)
Max. Output Power
Consommation d’énergie max.
Potencia máxima de Salida
Potenza max. Output
Max. Output Power
2.4 G TX/RX 2412 MHz - 2472 MHz 18.02 dBm (E.I.R.P)
GSM-900
TX 800 MHz - 915 MHz
RX 925 MHz - 960 MHz
33.5 dBm (Power class 4)
GSM1800
TX 1710 MHz - 1785 MHz
RX 1805 MHz - 1880 MHz
31.0 dBm (Power class 4)
WCDMA FDD I
TX 1922.4 MHz - 1977.6 MHz
RX 2112.4 MHz - 2167.6 MHz
24.5 dBm (Power class 3)
WCDMA FDD
VIII
TX 882.4 MHz - 912.6 MHz
RX 927.4 MHz - 957.6 MHz
24.5 dBm (Power class 3)
LTE Band 1
TX 1922.5 MHz - 1977.5 MHz
RX 2112.5 MHz - 2167.5 MHz
25 dBm (Power class 3)
LTE Band 3
TX 1710.7 MHz - 1784.3 MHz
RX 1805.7 MHz - 1879.3 MHz
25 dBm (Power class 3)
CE EMI Class A Warning
This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.
69D-Link DWR-960 User Manual
Appendix C - Regulatory Information
69
LTE Band 7
TX 2502.5 MHz - 2567.5 MHz
RX 2622.5 MHz - 2687.5 MHz
25 dBm (Power class 3)
LTE Band 8
TX 880.7 MHz - 914.3 MHz
RX 925.7 MHz - 959.3 MHz
25 dBm (Power class 3)
LTE Band 20
TX 834.5 MHz - 859.5 MHz
RX 793.5 MHz - 818.5 MHz
25 dBm (Power class 3)
LTE Band 38 TX/RX 2572.5 MHz - 2617.5 MHz 25 dBm (Power class 3)
70D-Link DWR-960 User Manual
Appendix C - Regulatory Information
70
European Community Declaration of Conformity:
Česky [Czech]
Tímto D-Link Corporation prohlašuje, že tento produkt, jeho příslušenství a software jsou v souladu se směrnicí
2014/53/EU. Celý text ES prohlášení o shodě vydaného EU a o rmwaru produktu lze stáhnout na stránkách k
produktu www.dlink.com.
Dansk [Danish]
D-Link Corporation erklærer herved, at dette produkt, tilbehør og software er i overensstemmelse med direktiv
2014/53/EU. Den fulde tekst i EU-overensstemmelseserklæringen og produktrmware kan wnloades fra
produktsiden hos www.dlink.com.
Deutsch [German]
Hiermit erklärt die D-Link Corporation, dass dieses Produkt, das Zubehör und die Software der Richtlinie 2014/53/
EU entsprechen. Der vollständige Text der Konformitätserklärung der Europäischen Gemeinschaft sowie die
Firmware zum Produkt stehen Ihnen zum Herunterladen von der Produktseite im Internet auf www.dlink.com zur
Verfügung.
Eesti [Estonian]
Käesolevaga kinnitab D-Link Corporation, et see toode, tarvikud ja tarkvara on kooskõlas direktiiviga 2014/53/EL.
Euroopa Liidu vastavusdeklaratsiooni täistekst ja toote püsivara on allalaadimiseks saadaval tootelehel www.dlink.
com.
English
Hereby, D-Link Corporation, declares that this product, accessories, and software are in compliance with directive
2014/53/EU. The full text of the EU Declaration of Conformity and product rmware are available for download
from the product page at www.dlink.com
Español [Spanish]
Por la presente, D-Link Corporation declara que este producto, accesorios y software cumplen con las directivas
2014/53/UE. El texto completo de la declaración de conformidad de la UE y el rmware del producto están
disponibles y se pueden descargar desde la página del producto en www.dlink.com.
Ελληνική [Greek]
Με την παρούσα, η D-Link Corporation δηλώνει ότι αυτό το προϊόν, τα αξεσουάρ και το λογισμικό
συμμορφώνονται με την Οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης της ΕΕ και το
υλικολογισμικό του προϊόντος είναι διαθέσιμα για λήψη από τη σελίδα του προϊόντος στην τοποθεσία www.dlink.
com.
Français [French]
Par les présentes, D-Link Corporation déclare que ce produit, ces accessoires et ce logiciel sont conformes aux
directives 2014/53/UE.Le texte complet de la déclaration de conformité de l'UE et le icroprogramme du produit
sont disponibles au téléchargement sur la page des produits à www.dlink.com.
Italiano [Italian]
Con la presente, D-Link Corporation dichiara che questo prodotto, i relativi accessori e il software sono conformi
alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE e il rmware del prodotto sono
disponibili per il download dalla pagina del prodotto su www.dlink.com.
71D-Link DWR-960 User Manual
Appendix C - Regulatory Information
71
Latviski [Latvian]
Ar šo uzņēmums D-Link Corporation apliecina, ka šis produkts, piederumi un programmatūra atbilst direktīvai
2014/53/ES. ES atbilstības deklarācijas pilno tekstu un produkta aparātprogrammatūru var lejupielādēt attiecīgā
produkta lapā vietnē www.dlink.com.
Lietuvių [Lithuanian]
Šiuo dokumentu „D-Link Corporation“ pareiškia, kad šis gaminys, priedai ir programinė įranga atitinka direktyvą
2014/53/ES. Visą ES atitikties deklaracijos tekstą ir gaminio programinę aparatinę įrangą galima atsisiųsti iš gaminio
puslapio adresu www.dlink.com.
Nederlands [Dutch]
Hierbij verklaart D-Link Corporation dat dit product, accessoires en software voldoen aan de richtlijnen 2014/53/
EU. De volledige tekst van de EU conformiteitsverklaring en productrmware is beschikbaar voor download van de
productpagina op www.dlink.com.
Malti [Maltese]
Bil-preżenti, D-Link Corporation tiddikjara li dan il-prodott, l-aċċessorji, u s-software huma konformi mad-Direttiva
2014/53/UE. Tista’ tniżżel it-test sħiħ tad-dikjarazzjoni ta’ konformità tal-UE u l-rmware tal-prodott mill-paġna tal-
prodott fuq www.dlink.com.
Magyar [Hungarian]
Ezennel a D-Link Corporation kijelenti, hogy a jelen termék, annak tartozékai és szoftvere megfelelnek a 2014/53/
EU sz. rendeletek rendelkezéseinek. Az EU Megfelelőségi nyilatkozat teljes szövege és a termék rmware a termék
oldaláról tölthető le a www.dlink.com címen.
Polski [Polish]
D-Link Corporation niniejszym oświadcza, że ten produkt, akcesoria oraz oprogramowanie są zgodne z
dyrektywami 2014/53/EU. Pełen tekst deklaracji zgodności UE oraz oprogramowanie sprzętowe do produktu
można pobrać na stronie produktu w witrynie www.dlink.com.
Português [Portuguese]
Desta forma, a D-Link Corporation declara que este produto, os acessórios e o software estão em conformidade
com a diretiva 2014/53/UE. O texto completo da declaração de conformidade da UE e do rmware
Slovensko[Slovenian]
Podjetje D-Link Corporation s tem izjavlja, da so ta izdelek, dodatna oprema in programnska oprema skladni z
direktivami 2014/53/EU. Celotno besedilo izjave o skladnosti EU in vdelana programska oprema sta na voljo za
prenos na strani izdelka na www.dlink.com.
Slovensky [Slovak]
Spoločnosť D-Link týmto vyhlasuje, že tento produkt, príslušenstvo a softvér sú v súlade so smernicou 214/53/
EÚ. Úplné znenie vyhlásenia EÚ o zhode a rmvéri produktu sú k dispozícii na prevzatie zo stránky produktu www.
dlink.com.
Suomi [Finnish]
D-Link Corporation täten vakuuttaa, että tämä tuote, lisävarusteet ja ohjelmisto ovat direktiivin 2014/53/EU
vaatimusten mukaisia. Täydellinen EU-vaatimustenmukaisuusvakuutus samoin kuin tuotteen laiteohjelmisto ovat
ladattavissa osoitteesta www.dlink.com.
72D-Link DWR-960 User Manual
Appendix C - Regulatory Information
72
Svenska[Swedish]
D-Link Corporation försäkrar härmed att denna produkt, tillbehör och programvara överensstämmer med
direktiv 2014/53/EU. Hela texten med EU-försäkran om överensstämmelse och produkt-rmware kan hämtas från
produktsidan på www.dlink.com.
Íslenska [Icelandic]
Hér með lýsir D-Link Corporation því yr að þessi vara, fylgihlutir og hugbúnaður eru í samræmi við tilskipun
2014/53/EB. Sækja má ESB-samræmisyrlýsinguna í heild sinni og fastbúnað vörunnar af vefsíðu vörunnar á www.
dlink.com.
Norsk [Norwegian]
Herved erklærer D-Link Corporation at dette produktet, tilbehøret og programvaren er i samsvar med direktivet
2014/53/EU. Den fullstendige teksten i EU-erklæring om samsvar og produktets fastvare er tilgjengelig for
nedlasting fra produktsiden på www.dlink.com.
Warning Statement:
The power outlet should be near the device and easily accessible.
73D-Link DWR-960 User Manual
Appendix C - Regulatory Information
73
NOTICE OF WIRELESS RADIO LAN USAGE IN THE EUROPEAN COMMUNITY FOR WIRELESS PRODUCT ONLY:
• This device is restricted to indoor use when operated in the European Community using channels in the 5.15-5.35 GHz band to reduce the
potential for interference.
• This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries. This
equipment may be operated in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, PL, PT, RO, SM, SE, RS, SK, ES,
CI, HU, and CY.
Usage Notes:
• To remain in conformance with European National spectrum usage regulations, frequency and channel limitations will be applied on the
products according to the country where the equipment will be deployed.
• This device is restricted from functioning in Ad-hoc mode while operating in 5 GHz. Ad-hoc mode is direct peer-to-peer communication
between two client devices without an Access Point.
• Access points will support DFS (Dynamic Frequency Selection) and TPC (Transmit Power Control) functionality as required when operating in
5 GHz band within the EU.
• Please refer to the product manual or datasheet to check whether your product uses 2.4 GHz and/or 5 GHz wireless.
HINWEIS ZUR VERWENDUNG VON DRAHTLOS-NETZWERK (WLAN) IN DER EUROPÄISCHEN GEMEINSCHAFT ( NUR FÜR
EIN DRAHTLOSES PRODUKT )
• Der Betrieb dieses Geräts in der Europäischen Gemeinschaft bei Nutzung von Kanälen im 5,15-5,35 GHz Frequenzband ist ausschließlich auf
Innenräume beschränkt, um das Interferenzpotential zu reduzieren.
• Bei diesem Gerät handelt es sich um ein zum Einsatz in allen EU-Mitgliedsstaaten und in EFTA-Ländern - ausgenommen Frankreich. Der
Betrieb dieses Geräts ist in den folgenden Ländern erlaubt: AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT,
PL, PT, RO, SM, SE, RS, SK, ES, CI, HU, CY
Gebrauchshinweise:
• Um den in Europa geltenden nationalen Vorschriften zum Nutzen des Funkspektrums weiterhin zu entsprechen, werden Frequenz und
Kanalbeschränkungen, dem jeweiligen Land, in dem das Gerät zum Einsatz kommt, entsprechend, auf die Produkte angewandt.
• Die Funktionalität im Ad-hoc-Modus bei Betrieb auf 5 GHz ist für dieses Gerät eingeschränkt. Bei dem Ad-hoc-Modus handelt es sich um eine
Peer-to-Peer-Kommunikation zwischen zwei Client-Geräten ohneeinen Access Point.
• Access Points unterstützen die Funktionen DFS (Dynamic Frequency Selection) und TPC (Transmit Power Control) wie erforderlich bei Betrieb
auf 5 GHz innerhalb der EU.
• Bitte schlagen Sie im Handbuch oder Datenblatt nach nach, ob Ihr Gerät eine 2,4 GHz und / oder 5 GHz Verbindung nutzt.
74D-Link DWR-960 User Manual
Appendix C - Regulatory Information
74
AVIS CONCERNANT L'UTILISATION DE LA RADIO SANS FIL LAN DANS LA COMMUNAUTÉ EUROPÉENNE (UNIQUEMENT
POUR LES PRODUITS SANS FIL)
• Cet appareil est limité à un usage intérieur lorsqu'il est utilisé dans la Communauté européenne sur les canaux de la bande de 5,15 à 5,35 GHz
an de réduire les risques d'interférences.
• Cet appareil est un système de transmission à large bande (émetteur-récepteur) de 2,4 GHz, destiné à être utilisé dans tous les États-
membres de l'UE et les pays de l'AELE. Cet équipement peut être utilisé dans les pays suivants : AL, AD, BE , BG, DK, DE, FI, FR, GR, GW, IS, IT,
HR, LI, LU, MT , MK, MD, MC, NL, NO, AT, PL, PT, RO, SM, SE, RS, SK, ES, CI, HU, CY
Notes d'utilisation:
• Pour rester en conformité avec la réglementation nationale européenne en matière d'utilisation du spectre, des limites de fréquence et de
canal seront appliquées aux produits selon le pays où l'équipement sera déployé.
• Cet appareil ne peut pas utiliser le mode Ad-hoc lorsqu'il fonctionne dans la bande de 5 GHz. Le mode Adhoc fournit une communication
directe pair à pair entre deux périphériques clients sans point d'accès.
• Les points d'accès prendront en charge les fonctionnalités DFS (Dynamic Frequency Selection) et TPC (Transmit Power Control) au besoin lors
du fonctionnement dans la bande de 5 GHz au sein de l'UE.
• Merci de vous référer au guide d'utilisation ou de la che technique an de vérier si votre produit utilise 2.4 GHz et/ou 5 GHz sans l.
AVISO DE USO DE LA LAN DE RADIO INALÁMBRICA EN LA COMUNIDAD EUROPEA (SOLO PARA EL PRODUCTO
INALÁMBRICO)
• El uso de este dispositivo está restringido a interiores cuando funciona en la Comunidad Europea utilizando canales en la banda de 5,15-5,35
GHz, para reducir la posibilidad de interferencias.
• Este dispositivo es un sistema de transmisión (transceptor) de banda ancha de 2,4 GHz, pensado para su uso en todos los estados miembros
de la UE y en los países de la AELC. Este equipo se puede utilizar en AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL,
NO, AT, PL, PT, RO, SM, SE, RS, SK, ES, CI, HU, CY
Notas de uso:
• Para seguir cumpliendo las normas europeas de uso del espectro nacional, se aplicarán limitaciones de frecuencia y canal en los productos
en función del país en el que se pondrá en funcionamiento el equipo.
• Este dispositivo tiene restringido el funcionamiento en modo Ad-hoc mientras funcione a 5 Ghz. El modo Ad-hoc es la comunicación directa
de igual a igual entre dos dispositivos cliente sin un punto de acceso.
• Los puntos de acceso admitirán la funcionalidad DFS (Selección de frecuencia dinámica) y TPC (Control de la potencia de transmisión) si es
necesario cuando funcionan a 5 Ghz dentro de la UE.
• Por favor compruebe el manual o la cha de producto para comprobar si el producto utiliza las bandas inalámbricas de 2.4 GHz y/o la de 5
GHz.
75D-Link DWR-960 User Manual
Appendix C - Regulatory Information
75
AVVISO PER L’USO DI LAN RADIO WIRELESS NELLA COMUNITÀ EUROPEA (SOLO PER PRODOTTI WIRELESS)
• Nella Comunità europea, l’uso di questo dispositivo è limitato esclusivamente agli ambienti interni sui canali compresi nella banda da 5,15 a
5,35 GHz al ne di ridurre potenziali interferenze. Questo dispositivo è un sistema di trasmissione a banda larga a 2,4 GHz (ricetrasmittente),
destinato all’uso in tutti gli stati membri dell’Unione europea e nei paesi EFTA.
• Questo dispositivo può essere utilizzato in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, PL, PT, RO, SM,
SE, RS, SK, ES, CI, HU, CY
Note per l’uso
• Al ne di mantenere la conformità alle normative nazionali europee per l’uso dello spettro di frequenze, saranno applicate limitazioni sulle
frequenze e sui canali per il prodotto in conformità alle normative del paese in cui il dispositivo viene utilizzato.
• Questo dispositivo non può essere attivato in modalità Ad-hoc durante il funzionamento a 5 Ghz. La modalità Ad-hoc è una comunicazione
diretta peer-to-peer fra due dispositivi client senza un punto di accesso.
• I punti di accesso supportano le funzionalità DFS (Dynamic Frequency Selection) e TPC (Transmit Power Control) richieste per operare a 5 Ghz
nell’Unione europea.
• Ti invitiamo a fare riferimento al manuale del prodotto o alla scheda tecnica per vericare se il tuo prodotto utilizza le frequenze 2,4 GHz e/o
5 GHz.
KENNISGEVING VAN DRAADLOOS RADIO LAN-GEBRUIK IN DE EUROPESE GEMEENSCHAP (ALLEEN VOOR
DRAADLOOS PRODUCT)
• Dit toestel is beperkt tot gebruik binnenshuis wanneer het wordt gebruikt in de Europese Gemeenschap gebruik makend van kanalen in de
5.15-5.35 GHz band om de kans op interferentie te beperken.
• Dit toestel is een 2.4 GHz breedband transmissiesysteem (transceiver) dat bedoeld is voor gebruik in alle EU lidstaten en EFTA landen. Deze
uitrusting mag gebruikt worden in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, PL, PT, RO, SM, SE, RS, SK,
ES, CI, HU, CY
Gebruiksaanwijzingen:
• Om de gebruiksvoorschriften van het Europese Nationale spectrum na te leven, zullen frequentie- en kanaalbeperkingen worden toegepast
op de producten volgens het land waar de uitrusting gebruikt zal worden.
• Dit toestel kan niet functioneren in Ad-hoc mode wanneer het gebruikt wordt in 5 GHz. Ad-hoc mode is directe peer-to-peer communicatie
tussen twee klantenapparaten zonder een toegangspunt.
• Toegangspunten ondersteunen DFS (Dynamic Frequency Selection) en TPC (Transmit Power Control) functionaliteit zoals vereist bij gebruik
in 5 GHz binnen de EU.
• Raadpleeg de handleiding of de datasheet om te controleren of uw product gebruik maakt van 2.4 GHz en/of 5 GHz.
76D-Link DWR-960 User Manual
Appendix C - Regulatory Information
76
SAFETY INSTRUCTIONS
The following general safety guidelines are provided to help ensure your own personal safety and protect your product from potential damage.
Remember to consult the product user instructions for more details.
• Static electricity can be harmful to electronic components. Discharge static electricity from your body (i.e. touching grounded bare metal)
before touching the product.
• Do not attempt to service the product and never disassemble the product. For some products with a user replaceable battery, please read
and follow the instructions in the user manual.
• Do not spill food or liquid on your product and never push any objects into the openings of your product.
• Do not use this product near water, areas with high humidity, or condensation unless the product is specically rated for outdoor application.
• Keep the product away from radiators and other heat sources.
• Always unplug the product from mains power before cleaning and use a dry lint free cloth only.
SICHERHEITSVORSCHRIFTEN
Die folgenden allgemeinen Sicherheitsvorschriften dienen als Hilfe zur Gewährleistung Ihrer eigenen Sicherheit und zum Schutz Ihres Produkts.
Weitere Details nden Sie in den Benutzeranleitungen zum Produkt.
• Statische Elektrizität kann elektronischen Komponenten schaden. Um Schäden durch statische Auadung zu vermeiden, leiten Sie
elektrostatische Ladungen von Ihrem Körper ab,
(z. B. durch Berühren eines geerdeten blanken Metallteils), bevor Sie das Produkt berühren.
• Unterlassen Sie jeden Versuch, das Produkt zu warten, und versuchen Sie nicht, es in seine Bestandteile zu zerlegen. Für einige Produkte mit
austauschbaren Akkus lesen Sie bitte das Benutzerhandbuch und befolgen Sie die dort beschriebenen Anleitungen.
• Vermeiden Sie, dass Speisen oder Flüssigkeiten auf Ihr Produkt gelangen, und stecken Sie keine Gegenstände in die Gehäuseschlitze oder
-önungen Ihres Produkts.
• Verwenden Sie dieses Produkt nicht in unmittelbarer Nähe von Wasser und nicht in Bereichen mit hoher Luftfeuchtigkeit oder Kondensation,
es sei denn, es ist speziell zur Nutzung in Außenbereichen vorgesehen und eingestuft.
• Halten Sie das Produkt von Heizkörpern und anderen Quellen fern, die Wärme erzeugen.
• Trennen Sie das Produkt immer von der Stromzufuhr, bevor Sie es reinigen und verwenden Sie dazu ausschließlich ein trockenes fusselfreies
Tuch.
77D-Link DWR-960 User Manual
Appendix C - Regulatory Information
77
CONSIGNES DE SÉCURITÉ
Les consignes générales de sécurité ci-après sont fournies an d’assurer votre sécurité personnelle et de protéger le produit d’éventuels
dommages. Veuillez consulter les consignes d’utilisation du produit pour plus de détails.
• L’électricité statique peut endommager les composants électroniques. Déchargez l’électricité statique de votre corps (en touchant un objet
en métal relié à la terre par exemple) avant de toucher le produit.
• N’essayez pas d’intervenir sur le produit et ne le démontez jamais. Pour certains produits contenant une batterie remplaçable par l’utilisateur,
veuillez lire et suivre les consignes contenues dans le manuel d’utilisation.
• Ne renversez pas d’aliments ou de liquide sur le produit et n’insérez jamais d’objets dans les orices.
• N’utilisez pas ce produit à proximité d’un point d’eau, de zones très humides ou de condensation sauf si le produit a été spéciquement
conçu pour une application extérieure.
• Éloignez le produit des radiateurs et autres sources de chaleur.
• Débranchez toujours le produit de l’alimentation avant de le nettoyer et utilisez uniquement un chion sec non pelucheux.
INSTRUCCIONES DE SEGURIDAD
Las siguientes directrices de seguridad general se facilitan para ayudarle a garantizar su propia seguridad personal y para proteger el producto
frente a posibles daños. No olvide consultar las instrucciones del usuario del producto para obtener más información.
• La electricidad estática puede resultar nociva para los componentes electrónicos. Descargue la electricidad estática de su cuerpo (p. ej.,
tocando algún metal sin revestimiento conectado a tierra) antes de tocar el producto.
• No intente realizar el mantenimiento del producto ni lo desmonte nunca. Para algunos productos con batería reemplazable por el usuario,
lea y siga las instrucciones del manual de usuario.
• No derrame comida o líquidos sobre el producto y nunca deje que caigan objetos en las aberturas del mismo.
• No utilice este producto cerca del agua, en zonas con humedad o condensación elevadas a menos que el producto esté clasicado
especícamente para aplicación en exteriores.
• Mantenga el producto alejado de los radiadores y de otras fuentes de calor.
• Desenchufe siempre el producto de la alimentación de red antes de limpiarlo y utilice solo un paño seco sin pelusa.
78D-Link DWR-960 User Manual
Appendix C - Regulatory Information
78
ISTRUZIONI PER LA SICUREZZA
Le seguenti linee guida sulla sicurezza sono fornite per contribuire a garantire la sicurezza personale degli utenti e a proteggere il prodotto da
potenziali danni. Per maggiori dettagli, consultare le istruzioni per l’utente del prodotto.
• L’elettricità statica può essere pericolosa per i componenti elettronici. Scaricare l’elettricità statica dal corpo (ad esempio toccando una parte
metallica collegata a terra) prima di toccare il prodotto.
• Non cercare di riparare il prodotto e non smontarlo mai. Per alcuni prodotti dotati di batteria sostituibile dall’utente, leggere e seguire le
istruzioni riportate nel manuale dell’utente.
• Non versare cibi o liquidi sul prodotto e non spingere mai alcun oggetto nelle aperture del prodotto.
• Non usare questo prodotto vicino all’acqua, in aree con elevato grado di umidità o soggette a condensa a meno che il prodotto non sia
specicatamente approvato per uso in ambienti esterni.
• Tenere il prodotto lontano da caloriferi e altre fonti di calore.
• Scollegare sempre il prodotto dalla presa elettrica prima di pulirlo e usare solo un panno asciutto che non lasci lacce.
VEILIGHEIDSINFORMATIE
De volgende algemene veiligheidsinformatie werd verstrekt om uw eigen persoonlijke veiligheid te waarborgen en uw product te beschermen
tegen mogelijke schade. Denk eraan om de gebruikersinstructies van het product te raadplegen voor meer informatie.
• Statische elektriciteit kan schadelijk zijn voor elektronische componenten. Ontlaad de statische elektriciteit van uw lichaam (d.w.z. het
aanraken van geaard bloot metaal) voordat uhet product aanraakt.
• U mag nooit proberen het product te onderhouden en u mag het product nooit demonteren. Voor sommige producten met door de
gebruiker te vervangen batterij, dient u de instructies in de gebruikershandleiding te lezen en te volgen.
• Mors geen voedsel of vloeistof op uw product en u mag nooit voorwerpen in de openingen van uw product duwen.
• Gebruik dit product niet in de buurt van water, gebieden met hoge vochtigheid of condensatie, tenzij het product speciek geclassiceerd is
voor gebruik buitenshuis.
• Houd het product uit de buurt van radiators en andere warmtebronnen.
• U dient het product steeds los te koppelen van de stroom voordat u het reinigt en gebruik uitsluitend een droge pluisvrije doek.
79D-Link DWR-960 User Manual
Appendix C - Regulatory Information
79
Disposing of and Recycling Your Product
ENGLISH EN
This symbol on the product or packaging means that according to local laws and regulations this product should be not be disposed
of in household waste but sent for recycling. Please take it to a collection point designated by your local authorities once it has
reached the end of its life, some will accept products for free. By recycling the product and its packaging in this manner you help to
conserve the environment and protect human health.
D-Link and the Environment
At D-Link, we understand and are committed to reducing any impact our operations and products may have on the environment. To minimise
this impact D-Link designs and builds its products to be as environmentally friendly as possible, by using recyclable, low toxic materials in both
products and packaging.
D-Link recommends that you always switch o or unplug your D-Link products when they are not in use. By doing so you will help to save energy
and reduce CO2 emissions.
To learn more about our environmentally responsible products and packaging please visit www.dlinkgreen.com.
DEUTSCH DE
Dieses Symbol auf dem Produkt oder der Verpackung weist darauf hin, dass dieses Produkt gemäß bestehender örtlicher Gesetze
und Vorschriften nicht über den normalen Hausmüll entsorgt werden sollte, sondern einer Wiederverwertung zuzuführen ist. Bringen
Sie es bitte zu einer von Ihrer Kommunalbehörde entsprechend amtlich ausgewiesenen Sammelstelle, sobald das Produkt das Ende
seiner Nutzungsdauer erreicht hat. Für die Annahme solcher Produkte erheben einige dieser Stellen keine Gebühren. Durch ein auf
diese Weise durchgeführtes Recycling des Produkts und seiner Verpackung helfen Sie, die Umwelt zu schonen und die menschliche
Gesundheit zu schützen.
D-Link und die Umwelt
D-Link ist sich den möglichen Auswirkungen seiner Geschäftstätigkeiten und seiner Produkte auf die Umwelt bewusst und fühlt sich verpichtet,
diese entsprechend zu mindern. Zu diesem Zweck entwickelt und stellt D-Link seine Produkte mit dem Ziel größtmöglicher Umweltfreundlichkeit
her und verwendet wiederverwertbare, schadstoarme Materialien bei Produktherstellung und Verpackung.
D-Link empehlt, Ihre Produkte von D-Link, wenn nicht in Gebrauch, immer auszuschalten oder vom Netz zu nehmen. Auf diese Weise helfen
Sie, Energie zu sparen und CO2-Emissionen zu reduzieren.
Wenn Sie mehr über unsere umweltgerechten Produkte und Verpackungen wissen möchten, nden Sie entsprechende Informationen im Internet
unter www.dlinkgreen.com.
80D-Link DWR-960 User Manual
Appendix C - Regulatory Information
80
FRANÇAIS FR
Ce symbole apposé sur le produit ou son emballage signie que, conformément aux lois et règlementations locales, ce produit ne
doit pas être éliminé avec les déchets domestiques mais recyclé. Veuillez le rapporter à un point de collecte prévu à cet eet par les
autorités locales; certains accepteront vos produits gratuitement. En recyclant le produit et son emballage de cette manière, vous
aidez à préserver l’environnement et à protéger la santé de l’homme.
D-Link et l’environnement
Chez D-Link, nous sommes conscients de l'impact de nos opérations et produits sur l'environnement et nous engageons à le réduire. Pour limiter
cet impact, D-Link conçoit et fabrique ses produits de manière aussi écologique que possible, en utilisant des matériaux recyclables et faiblement
toxiques, tant dans ses produits que ses emballages.
D-Link recommande de toujours éteindre ou débrancher vos produits D-Link lorsque vous ne les utilisez pas. Vous réaliserez ainsi des économies
d’énergie et réduirez vos émissions de CO2.
Pour en savoir plus sur les produits et emballages respectueux de l’environnement, veuillez consulter le www.dlinkgreen.com.
ESPAÑOL ES
Este símbolo en el producto o el embalaje signica que, de acuerdo con la legislación y la normativa local, este producto no se debe
desechar en la basura doméstica sino que se debe reciclar. Llévelo a un punto de recogida designado por las autoridades locales una
vez que ha llegado al n de su vida útil; algunos de ellos aceptan recogerlos de forma gratuita. Al reciclar el producto y su embalaje
de esta forma, contribuye a preservar el medio ambiente y a proteger la salud de los seres humanos.
D-Link y el medio ambiente
En D-Link, comprendemos y estamos comprometidos con la reducción del impacto que puedan tener nuestras actividades y nuestros productos
en el medio ambiente. Para reducir este impacto, D-Link diseña y fabrica sus productos para que sean lo más ecológicos posible, utilizando
materiales reciclables y de baja toxicidad tanto en los productos como en el embalaje.
D-Link recomienda apagar o desenchufar los productos D-Link cuando no se estén utilizando. Al hacerlo, contribuirá a ahorrar energía y a reducir
las emisiones de CO2.
Para obtener más información acerca de nuestros productos y embalajes ecológicos, visite el sitio www.dlinkgreen.com.
81D-Link DWR-960 User Manual
Appendix C - Regulatory Information
81
ITALIANO IT
La presenza di questo simbolo sul prodotto o sulla confezione del prodotto indica che, in conformità alle leggi e alle normative locali,
questo prodotto non deve essere smaltito nei riuti domestici, ma avviato al riciclo. Una volta terminato il ciclo di vita utile, portare il
prodotto presso un punto di raccolta indicato dalle autorità locali. Alcuni questi punti di raccolta accettano gratuitamente i prodotti
da riciclare. Scegliendo di riciclare il prodotto e il relativo imballaggio, si contribuirà a preservare l'ambiente e a salvaguardare la
salute umana.
D-Link e l'ambiente
D-Link cerca da sempre di ridurre l'impatto ambientale dei propri stabilimenti e dei propri prodotti. Allo scopo di ridurre al minimo tale impatto,
D-Link progetta e realizza i propri prodotti in modo che rispettino il più possibile l'ambiente, utilizzando materiali riciclabili a basso tasso di
tossicità sia per i prodotti che per gli imballaggi.
D-Link raccomanda di spegnere sempre i prodotti D-Link o di scollegarne la spina quando non vengono utilizzati. In questo modo si contribuirà
a risparmiare energia e a ridurre le emissioni di anidride carbonica.
Per ulteriori informazioni sui prodotti e sugli imballaggi D-Link a ridotto impatto ambientale, visitate il sito all'indirizzo www.dlinkgreen.com.
NEDERLANDS NL
Dit symbool op het product of de verpakking betekent dat dit product volgens de plaatselijke wetgeving niet mag worden weggegooid
met het huishoudelijk afval, maar voor recyclage moeten worden ingeleverd. Zodra het product het einde van de levensduur heeft
bereikt, dient u het naar een inzamelpunt te brengen dat hiertoe werd aangeduid door uw plaatselijke autoriteiten, sommige
autoriteiten accepteren producten zonder dat u hiervoor dient te betalen. Door het product en de verpakking op deze manier te
recyclen helpt u het milieu en de gezondheid van de mens te beschermen.
D-Link en het milieu
Bij D-Link spannen we ons in om de impact van onze handelingen en producten op het milieu te beperken. Om deze impact te beperken, ontwerpt
en bouwt D-Link zijn producten zo milieuvriendelijk mogelijk, door het gebruik van recycleerbare producten met lage toxiciteit in product en
verpakking.
D-Link raadt aan om steeds uw D-Link producten uit te schakelen of uit de stekker te halen wanneer u ze niet gebruikt. Door dit te doen bespaart
u energie en beperkt u de CO2-emissies.
Breng een bezoek aan www.dlinkgreen.com voor meer informatie over onze milieuverantwoorde producten en verpakkingen.
82D-Link DWR-960 User Manual
Appendix C - Regulatory Information
82
POLSKI PL
Ten symbol umieszczony na produkcie lub opakowaniu oznacza, że zgodnie z miejscowym prawem i lokalnymi przepisami
niniejszego produktu nie wolno wyrzucać jak odpady czy śmieci z gospodarstwa domowego, lecz należy go poddać procesowi
recyklingu. Po zakończeniu użytkowania produktu, niektóre odpowiednie do tego celu podmioty przyjmą takie produkty
nieodpłatnie, dlatego prosimy dostarczyć go do punktu zbiórki wskazanego przez lokalne władze. Poprzez proces recyklingu i
dzięki takiemu postępowaniu z produktem oraz jego opakowaniem, pomogą Państwo chronić środowisko naturalne i dbać o
ludzkie zdrowie.
D-Link i środowisko
D-Link podchodzimy w sposób świadomy do ochrony otoczenia oraz jesteśmy zaangażowani w zmniejszanie wpływu naszych działań i produktów
na środowisko naturalne. W celu zminimalizowania takiego wpływu rma D-Link konstruuje i wytwarza swoje produkty w taki sposób, aby były
one jak najbardziej przyjazne środowisku, stosując do tych celów materiały nadające się do powtórnego wykorzystania, charakteryzujące się
małą toksycznością zarówno w przypadku samych produktów jak i opakowań.
Firma D-Link zaleca, aby Państwo zawsze prawidłowo wyłączali z użytku swoje produkty D-Link, gdy nie są one wykorzystywane. Postępując w
ten sposób pozwalają Państwo oszczędzać energię i zmniejszać emisje CO2.
Aby dowiedzieć się więcej na temat produktów i opakowań mających wpływ na środowisko prosimy zapoznać się ze stroną Internetową www.
dlinkgreen.com.
ČESKY CZ
Tento symbol na výrobku nebo jeho obalu znamená, že podle místně platných předpisů se výrobek nesmí vyhazovat do komunálního
odpadu, ale odeslat k recyklaci. Až výrobek doslouží, odneste jej prosím na sběrné místo určené místními úřady k tomuto účelu.
Některá sběrná místa přijímají výrobky zdarma. Recyklací výrobku i obalu pomáháte chránit životní prostředí i lidské zdraví.
D-Link a životní prostředí
Ve společnosti D-Link jsme si vědomi vlivu našich provozů a výrobků na životní prostředí a snažíme se o minimalizaci těchto vlivů. Proto své
výrobky navrhujeme a vyrábíme tak, aby byly co nejekologičtější, a ve výrobcích i obalech používáme recyklovatelné a nízkotoxické materiály.
Společnost D-Link doporučuje, abyste své výrobky značky D-Link vypnuli nebo vytáhli ze zásuvky vždy, když je nepoužíváte. Pomůžete tak šetřit
energii a snížit emise CO2.
Více informací o našich ekologických výrobcích a obalech najdete na adrese www.dlinkgreen.com.
83D-Link DWR-960 User Manual
Appendix C - Regulatory Information
83
MAGYAR HU
Ez a szimbólum a terméken vagy a csomagoláson azt jelenti, hogy a helyi törvényeknek és szabályoknak megfelelően ez a termék
nem semmisíthető meg a háztartási hulladékkal együtt, hanem újrahasznosításra kell küldeni. Kérjük, hogy a termék élettartamának
elteltét követően vigye azt a helyi hatóság által kijelölt gyűjtőhelyre. A termékek egyes helyeken ingyen elhelyezhetők. A termék és
a csomagolás újrahasznosításával segíti védeni a környezetet és az emberek egészségét.
A D-Link és a környezet
A D-Linknél megértjük és elkötelezettek vagyunk a műveleteink és termékeink környezetre gyakorolt hatásainak csökkentésére. Az ezen hatás
csökkentése érdekében a D-Link a lehető leginkább környezetbarát termékeket tervez és gyárt azáltal, hogy újrahasznosítható, alacsony károsanyag-
tartalmú termékeket gyárt és csomagolásokat alkalmaz.
A D-Link azt javasolja, hogy mindig kapcsolja ki vagy húzza ki a D-Link termékeket a tápforrásból, ha nem használja azokat. Ezzel segít az energia
megtakarításában és a széndioxid kibocsátásának csökkentésében.
Környezetbarát termékeinkről és csomagolásainkról további információkat a www.dlinkgreen.com weboldalon tudhat meg.
NORSK NO
Dette symbolet på produktet eller forpakningen betyr at dette produktet ifølge lokale lover og forskrifter ikke skal kastes sammen
med husholdningsavfall, men leveres inn til gjenvinning. Vennligst ta det til et innsamlingssted anvist av lokale myndigheter når
det er kommet til slutten av levetiden. Noen steder aksepteres produkter uten avgift. Ved på denne måten å gjenvinne produktet
og forpakningen hjelper du å verne miljøet og beskytte folks helse.
D-Link og miljøet
Hos D-Link forstår vi oss på og er forpliktet til å minske innvirkningen som vår drift og våre produkter kan ha på miljøet. For å minimalisere denne
innvirkningen designer og lager D-Link produkter som er så miljøvennlig som mulig, ved å bruke resirkulerbare, lav-toksiske materialer både i
produktene og forpakningen.
D-Link anbefaler at du alltid slår av eller frakobler D-Link-produkter når de ikke er i bruk. Ved å gjøre dette hjelper du å spare energi og å redusere
CO2-utslipp.
For mer informasjon angående våre miljøansvarlige produkter og forpakninger kan du gå til www.dlinkgreen.com.
84D-Link DWR-960 User Manual
Appendix C - Regulatory Information
84
DANSK DK
Dette symbol på produktet eller emballagen betyder, at dette produkt i henhold til lokale love og regler ikke må bortskaes som
husholdningsaald, mens skal sendes til genbrug. Indlever produktet til et indsamlingssted som angivet af de lokale myndigheder,
når det er nået til slutningen af dets levetid. I nogle tilfælde vil produktet blive modtaget gratis. Ved at indlevere produktet og dets
emballage til genbrug på denne måde bidrager du til at beskytte miljøet og den menneskelige sundhed.
D-Link og miljøet
Hos D-Link forstår vi og bestræber os på at reducere enhver indvirkning, som vores aktiviteter og produkter kan have på miljøet. For at minimere
denne indvirkning designer og producerer D-Link sine produkter, så de er så miljøvenlige som muligt, ved at bruge genanvendelige materialer
med lavt giftighedsniveau i både produkter og emballage.
D-Link anbefaler, at du altid slukker eller frakobler dine D-Link-produkter, når de ikke er i brug. Ved at gøre det bidrager du til at spare energi og
reducere CO2-udledningerne.
Du kan nde ere oplysninger om vores miljømæssigt ansvarlige produkter og emballage på www.dlinkgreen.com.
SUOMI FI
Tämä symboli tuotteen pakkauksessa tarkoittaa, että paikallisten lakien ja säännösten mukaisesti tätä tuotetta ei pidä hävittää
yleisen kotitalousjätteen seassa vaan se tulee toimittaa kierrätettäväksi. Kun tuote on elinkaarensa päässä, toimita se lähimpään
viranomaisten hyväksymään kierrätyspisteeseen. Kierrättämällä käytetyn tuotteen ja sen pakkauksen autat tukemaan sekä ympäristön
että ihmisten terveyttä ja hyvinvointia.
D-Link ja ympäristö
D-Link ymmärtää ympäristönsuojelun tärkeyden ja on sitoutunut vähentämään tuotteistaan ja niiden valmistuksesta ympäristölle mahdollisesti
aiheutuvia haittavaikutuksia. Nämä negatiiviset vaikutukset minimoidakseen D-Link suunnittelee ja valmistaa tuotteensa mahdollisimman
ympäristöystävällisiksi käyttämällä kierrätettäviä, alhaisia pitoisuuksia haitallisia aineita sisältäviä materiaaleja sekä tuotteissaan että niiden
pakkauksissa.
Suosittelemme, että irrotat D-Link-tuotteesi virtalähteestä tai sammutat ne aina, kun ne eivät ole käytössä. Toimimalla näin autat säästämään
energiaa ja vähentämään hiilidioksiidipäästöjä.
Lue lisää ympäristöystävällisistä D-Link-tuotteista ja pakkauksistamme osoitteesta www.dlinkgreen.com.
85D-Link DWR-960 User Manual
Appendix C - Regulatory Information
85
SVENSKA SE
Den här symbolen på produkten eller förpackningen betyder att produkten enligt lokala lagar och föreskrifter inte skall kastas i
hushållssoporna utan i stället återvinnas. Ta den vid slutet av dess livslängd till en av din lokala myndighet utsedd uppsamlingsplats,
vissa accepterar produkter utan kostnad. Genom att på detta sätt återvinna produkten och förpackningen hjälper du till att bevara
miljön och skydda människors hälsa.
D-Link och miljön
På D-Link förstår vi och är fast beslutna att minska den påverkan våra verksamheter och produkter kan ha på miljön. För att minska denna påverkan
utformar och bygger D-Link sina produkter för att de ska vara så miljövänliga som möjligt, genom att använda återvinningsbara material med
låg gifthalt i både produkter och förpackningar.
D-Link rekommenderar att du alltid stänger av eller kopplar ur dina D-Link produkter när du inte använder dem. Genom att göra detta hjälper
du till att spara energi och minska utsläpp av koldioxid.
För mer information om våra miljöansvariga produkter och förpackningar www.dlinkgreen.com.
PORTUGUÊS PT
Este símbolo no produto ou embalagem signica que, de acordo com as leis e regulamentações locais, este produto não deverá ser
eliminado juntamente com o lixo doméstico mas enviado para a reciclagem. Transporte-o para um ponto de recolha designado pelas
suas autoridades locais quando este tiver atingido o m da sua vida útil, alguns destes pontos aceitam produtos gratuitamente. Ao
reciclar o produto e respectiva embalagem desta forma, ajuda a preservar o ambiente e protege a saúde humana.
A D-Link e o ambiente
Na D-Link compreendemos e comprometemo-nos com a redução do impacto que as nossas operações e produtos possam ter no ambiente.
Para minimizar este impacto a D-Link concebe e constrói os seus produtos para que estes sejam o mais inofensivos para o ambiente possível,
utilizando meteriais recicláveis e não tóxicos tanto nos produtos como nas embalagens.
A D-Link recomenda que desligue os seus produtos D-Link quando estes não se encontrarem em utilização. Com esta acção ajudará a poupar
energia e reduzir as emissões de CO2.
Para saber mais sobre os nossos produtos e embalagens responsáveis a nível ambiental visite www.dlinkgreen.com.
