AX1500 MESH ROUTER
M15
iD-Link M15 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Hardware Revision Date Description
A1 1.01 2021/10/22 Update CE warning statement
A1 1.02 2021/11/12 New cover, removal of Parental Control notice
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App Store
SM
is a service
mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2021 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Power Usage
ErP Power Usage
This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network Standby mode within 1 minute of no
packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy.
Network Standby: 4.47W
Preface
iiD-Link M15 User Manual
Table of Contents
Table of Contents
Product Overview ..............................................................1
Package Contents .........................................................................1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ....................................................................................3
Hardware Overview .....................................................................4
M15 LED Indicator ................................................................ 4
M15 Rear ..................................................................................5
Hardware Setup ............................................................................ 6
Using the EAGLE PRO AI App ..........................................6
Web Based Installation ......................................................8
Conguration .....................................................................9
Accessing the Web User Interface .......................................... 9
Home ..............................................................................................10
Internet ................................................................................... 11
M15 ..........................................................................................12
Connected Clients ..............................................................13
Extenders ...............................................................................14
Mesh Network ...................................................................... 15
Settings ..........................................................................................16
Wizard .....................................................................................16
Internet ................................................................................... 17
IPv4 .....................................................................................17

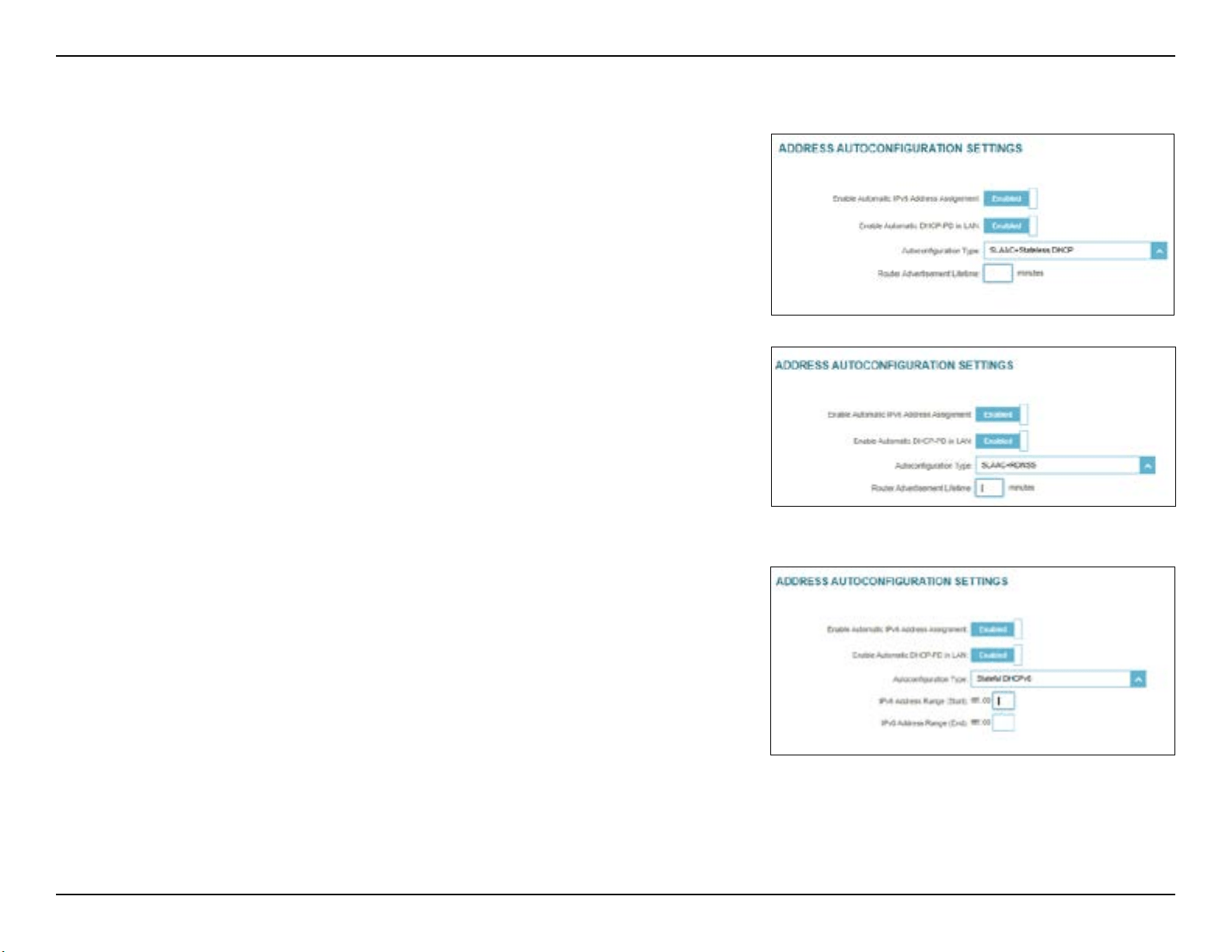

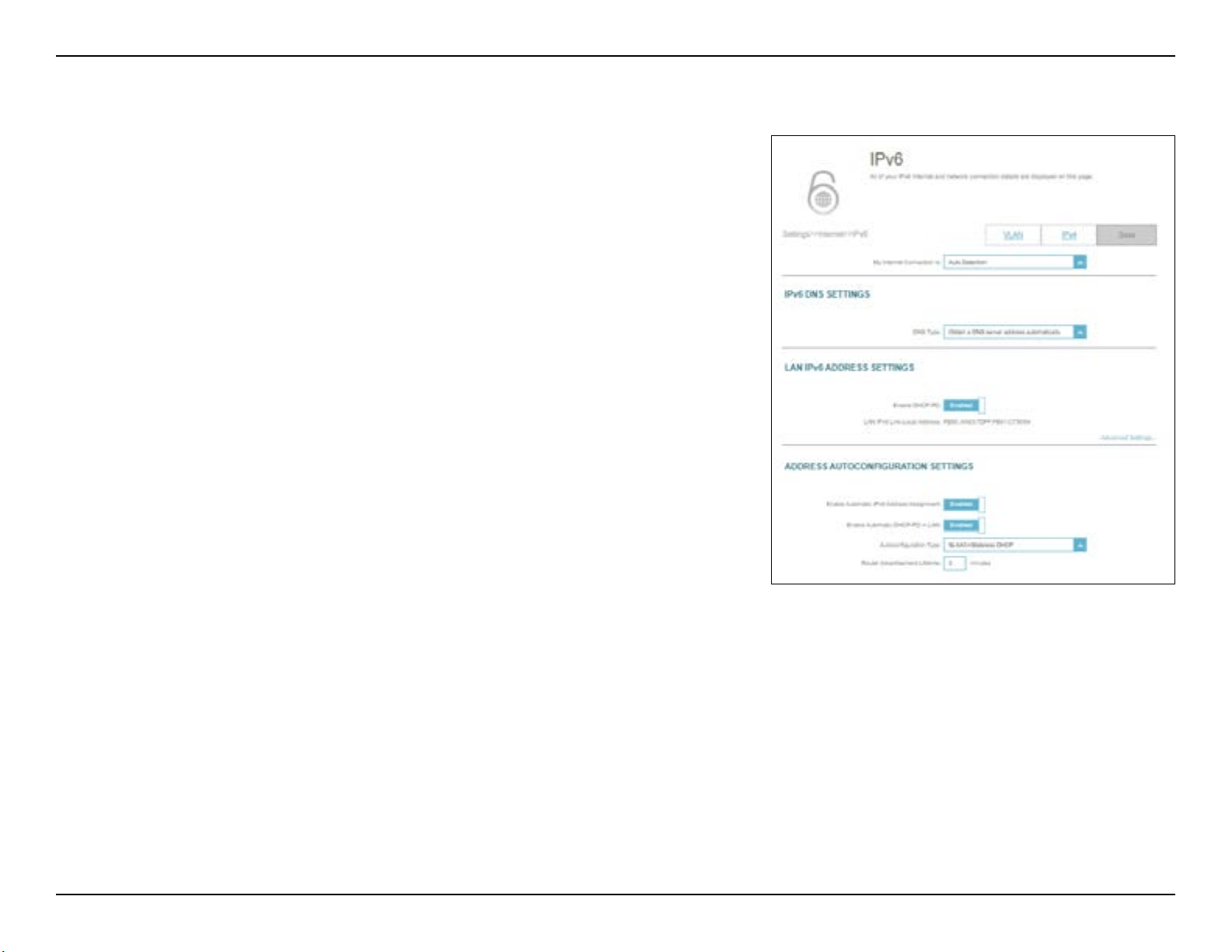

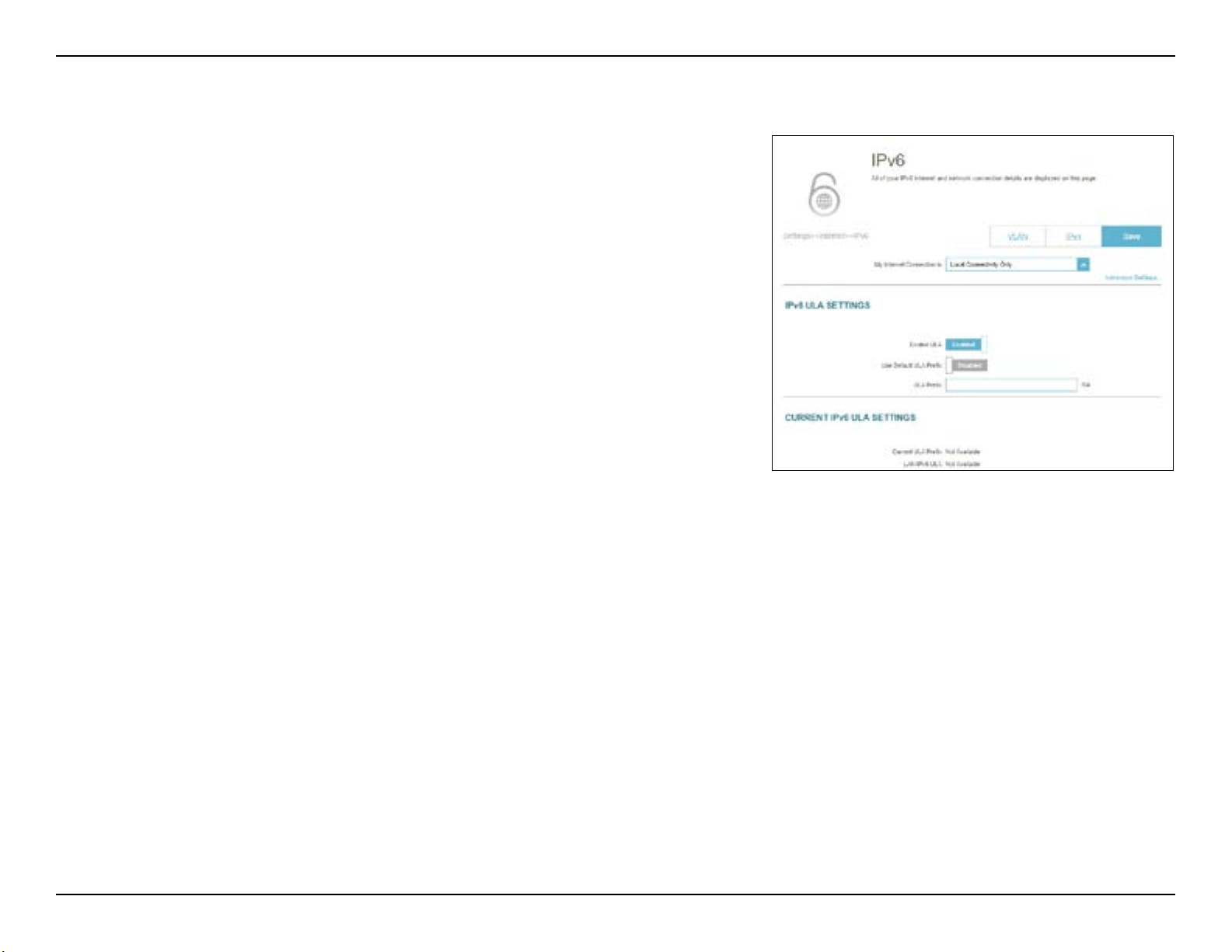

IPv6 .....................................................................................28
Internet - VLAN ...............................................................41
Internet - VLAN (Continued) ......................................42
Wireless ..................................................................................43
Wi-Fi ....................................................................................43
Guest Zone .......................................................................47
Network .................................................................................. 49
D-Link Cloud ......................................................................... 51
Operation Mode .................................................................. 52
Features .......................................................................................... 53

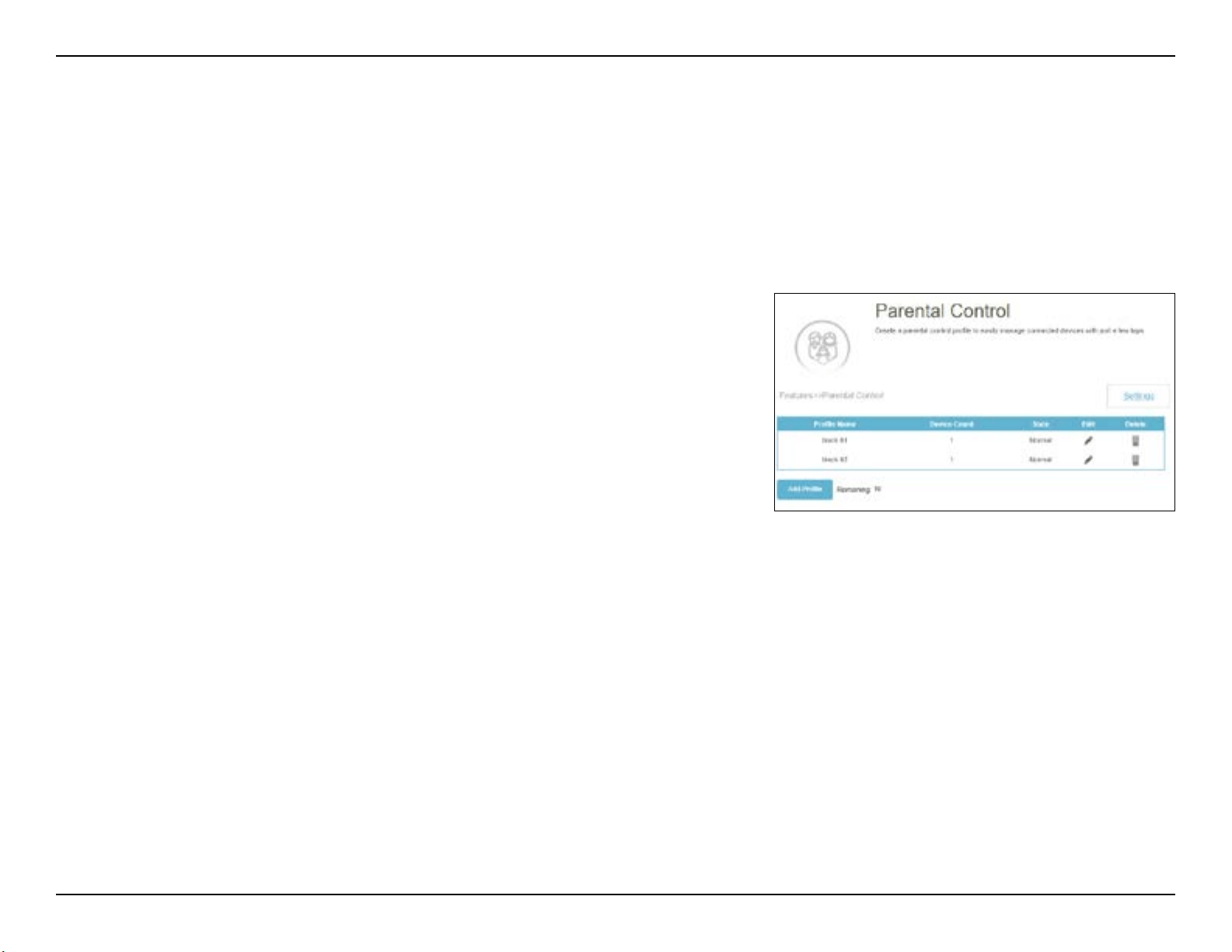

Parental Control ..................................................................53

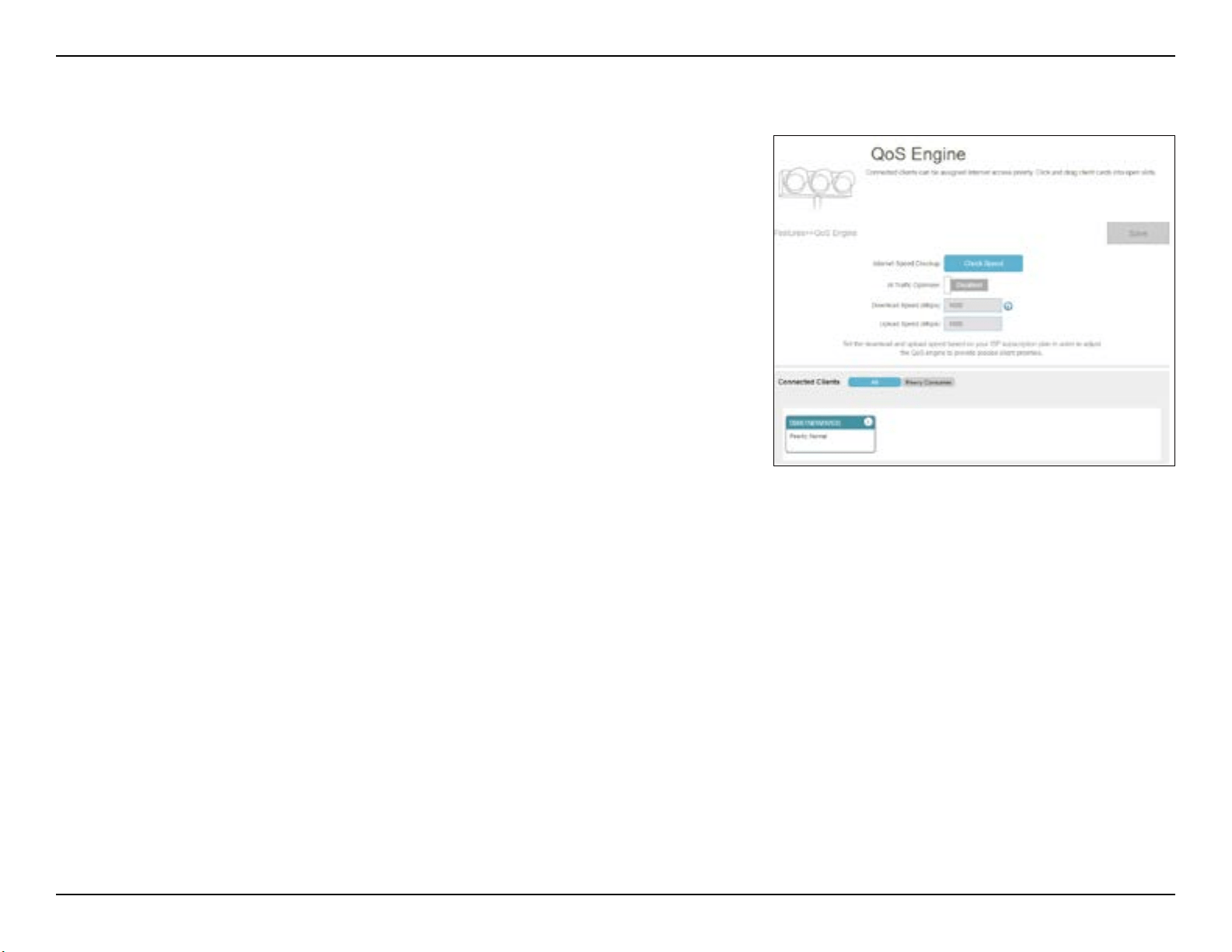

QoS Engine............................................................................56

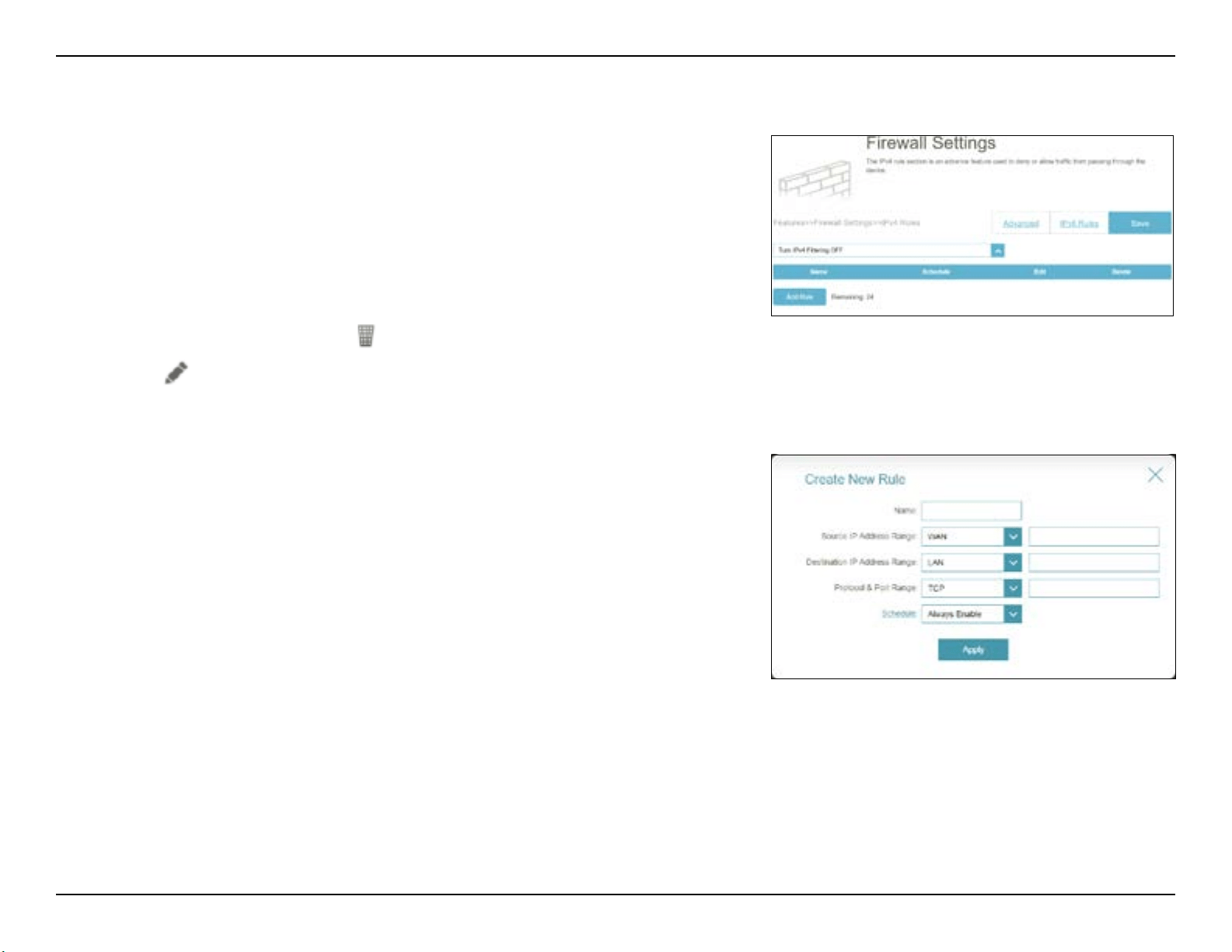

Firewall ...................................................................................58
IPv4/IPv6 Rules ...............................................................60
Port Forwarding .............................................................62
Virtual Server ...................................................................63
Static Routes .........................................................................64
IPv4 .....................................................................................64
IPv6 .....................................................................................65
Dynamic DNS .......................................................................66
Quick VPN ..............................................................................68
Management ................................................................................ 69
Time & Schedule .................................................................69
Time ....................................................................................69
Schedule ...........................................................................70
System Log ............................................................................71
System Admin ......................................................................73
Admin.................................................................................73
System ...............................................................................75
iiiD-Link M15 User Manual
Table of Contents
Connect or Disconnect .................................................. 115
Troubleshooting ............................................................116
Wireless Basics ...............................................................118
Tips ................................................................................................121
Technical Specications ................................................122
Regulatory Information ................................................124
User ..........................................................................................76
Upgrade .................................................................................77

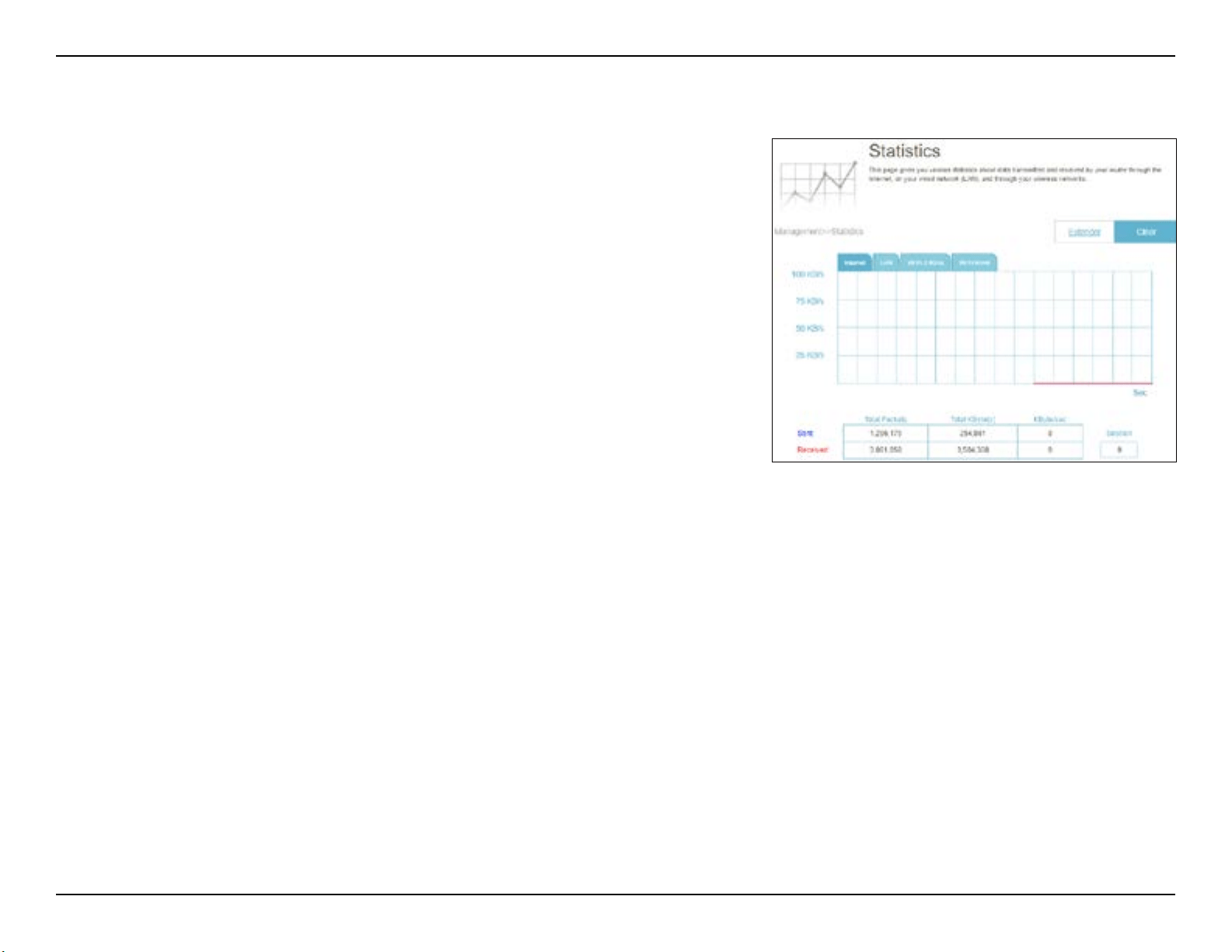

Statistics .................................................................................78
Adding Additional Mesh Points......................................79
Using the EAGLE PRO AI App .................................................79

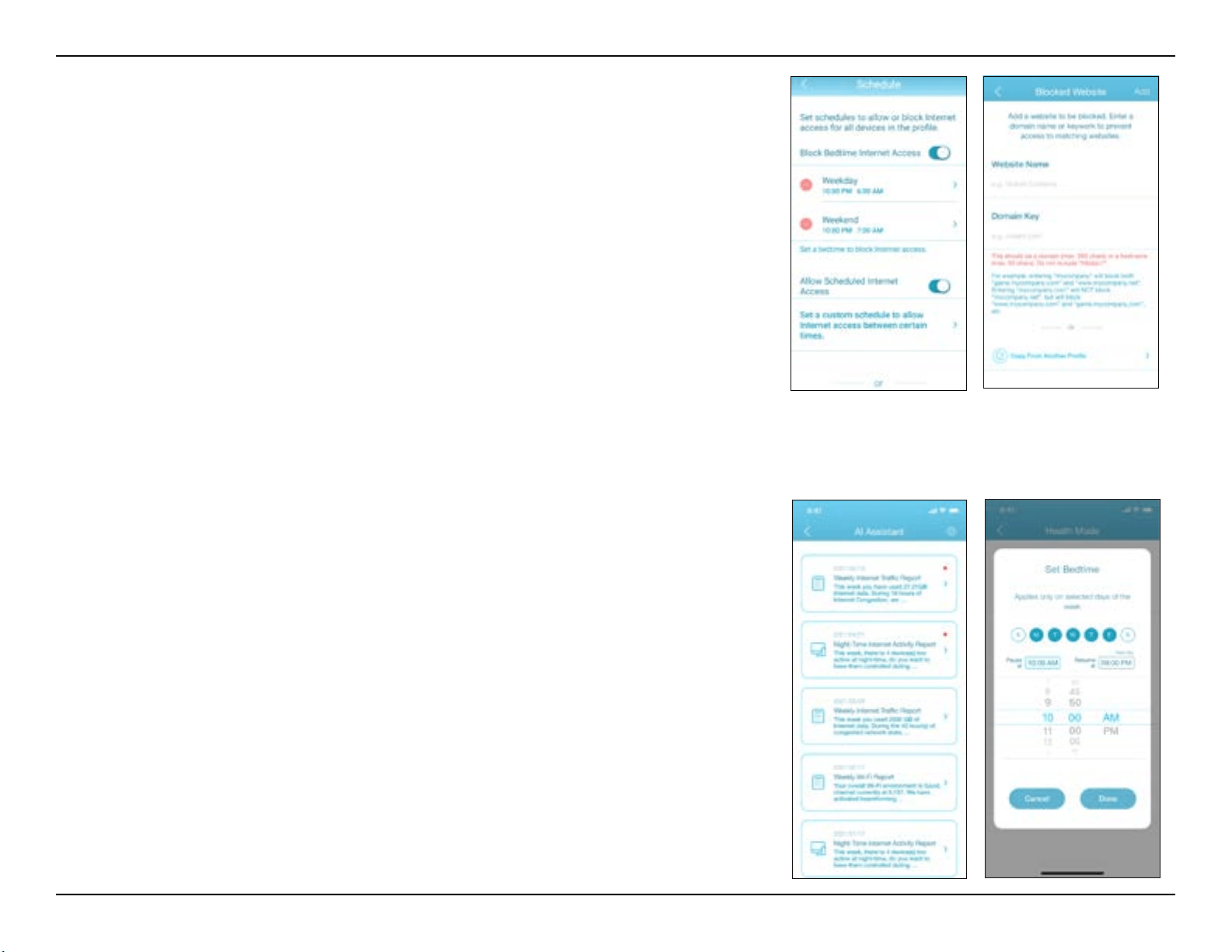

EAGLE PRO AI ...................................................................86

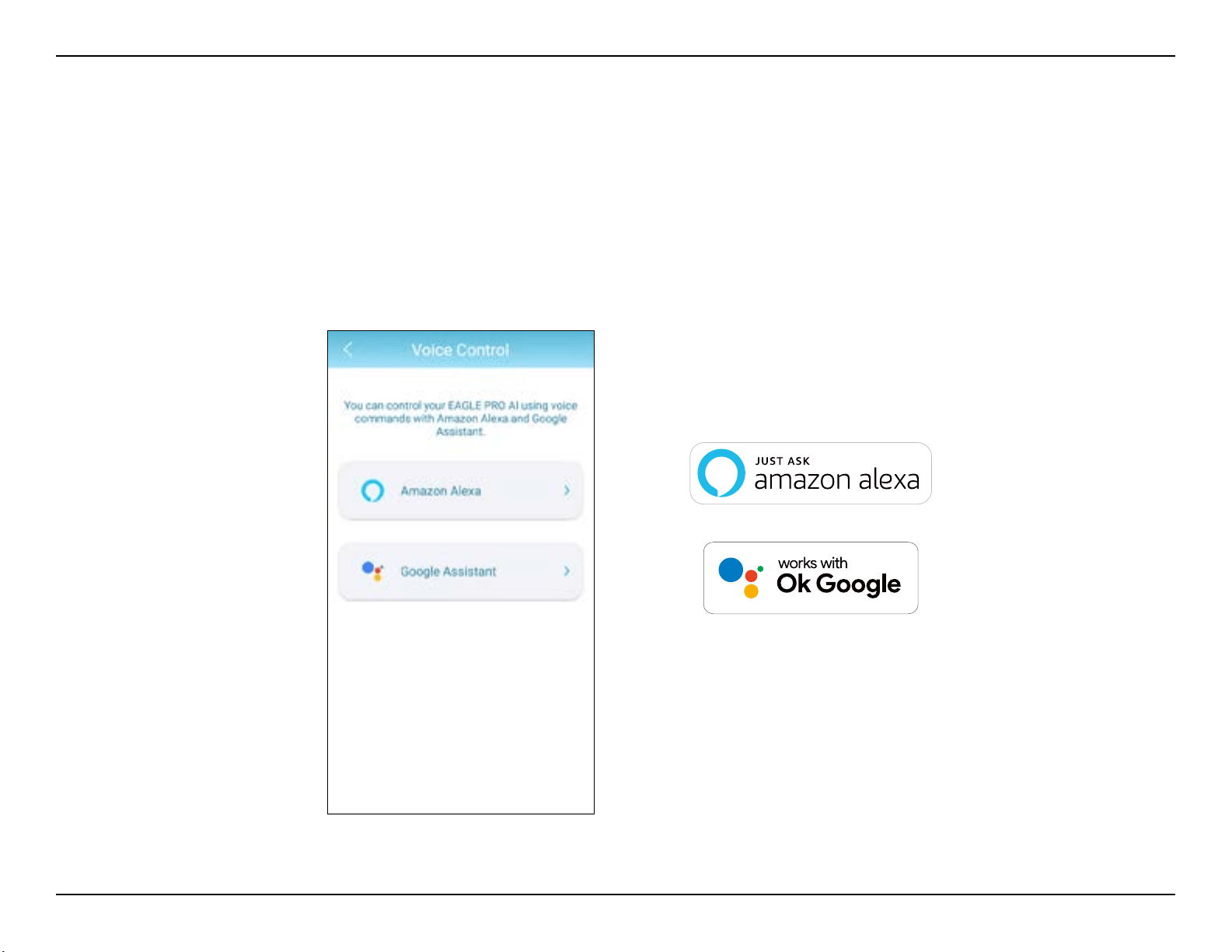

Voice Control ....................................................................90
Link D-Link Cloud Service to Other Services ....................91
Google Home Setup ..........................................................91
Amazon Alexa Setup .........................................................96
Amazon Alexa Voice Commands ..................................99
Google Assistant Setup ................................................. 100
Google Assistant Voice Commands ..........................102
Connect to a Wireless Client .........................................103
WPS Button ................................................................................103
Windows 10 ............................................................................... 104
VPN Setup Instructions .................................................. 104
Connect or Disconnect .................................................. 106
Android .......................................................................................107
VPN Setup Instructions .................................................. 107
Connect or Disconnect .................................................. 109
Mac OS X ..................................................................................... 110
VPN Setup Instructions .................................................. 110
Connect or Disconnect .................................................. 112

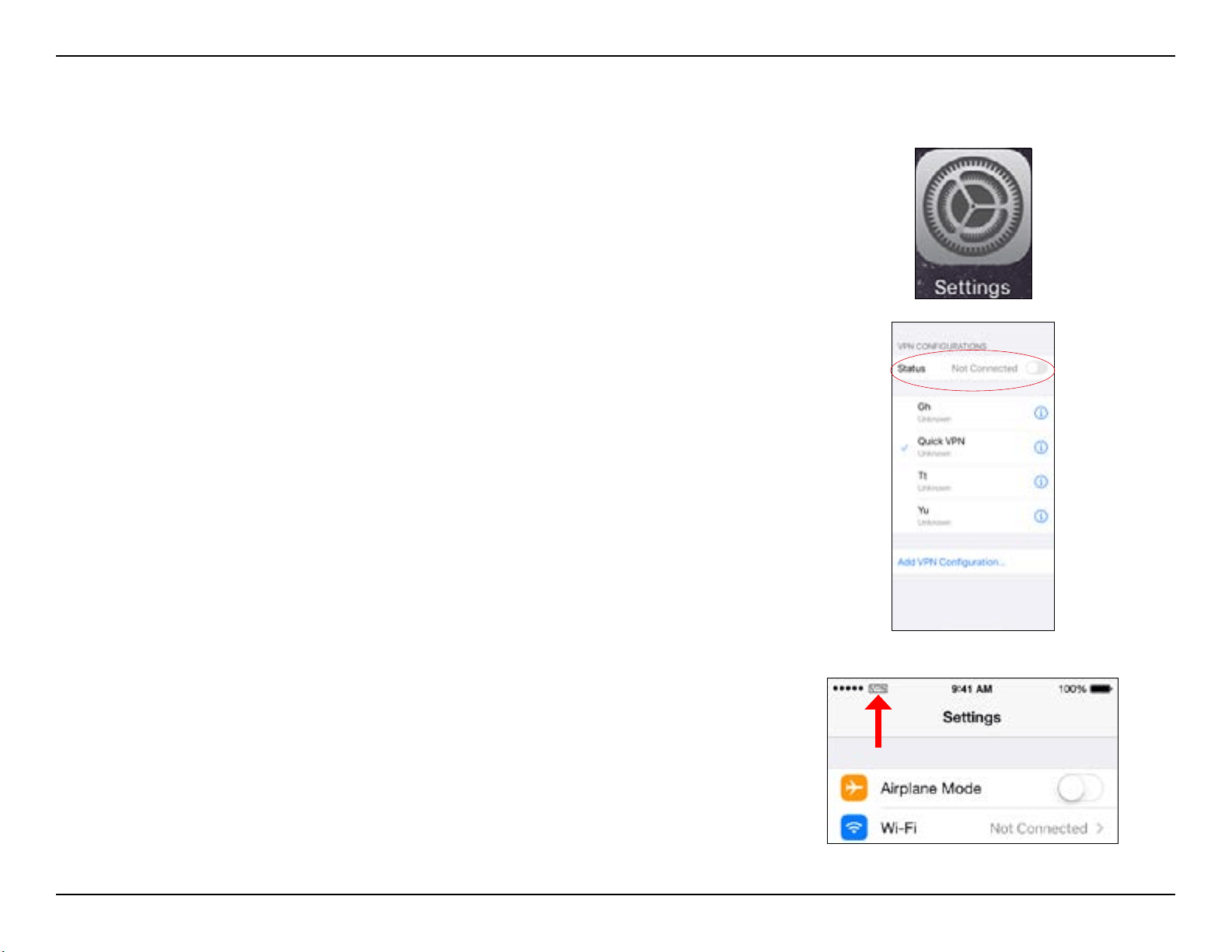

iOS Devices ................................................................................ 113
VPN Setup Instructions .................................................. 113
1D-Link M15 User Manual
Section 1 - Product Overview
If any of the above items are missing or damaged, please contact your local reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the device will cause damage and void the warranty for this product.
Product Overview
Package Contents
M15 AX1500 Mesh Router
Power Adapter (12V, 1A)
Ethernet Cable ( RJ45, 1m)
Quick Installation Guide
2D-Link M15 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable, DSL or ber modem
• IEEE 802.11ax/ac/n/g/b/a wireless clients
• 10/100/1000 Mbps Ethernet
Web-based
Conguration Utility
Requirements
Computer with the following:
• Windows, Macintosh, or Linux-based operating system
• An installed Ethernet adapter or Wi-Fi interface
Browser requirements:
• Internet Explorer 11 or higher
• Firefox 28 or higher
• Safari 6 or higher
• Chrome 28 or higher
EAGLE PRO AI App
Requirements
• iOS® or Android™ device (Please refer to the app's store page to
check whether your device is compatible.)
System Requirements
3D-Link M15 User Manual
Section 1 - Product Overview
Introduction
The M15 provides a breakthrough Wi-Fi solution that’s the perfect t for your modern home. It features high-performance
mesh technology that answers your demand for seamless, fast, and reliable connectivity throughout your home, oce, and
event venues. It oers 802.11ax WLAN with speed up to 1500 Mbps
*
as well as one on-board Gigabit Ethernet port (per unit)
for wired connectivity. Furthermore, you enjoy Wi-Fi that's not only smart, but also manageable with AI-capable assistance.
Featuring integrated voice assistance compatibility for Amazon Alexa and the Google Assistant, you can control your network
with voice commands.
Features
• AI-capable Wi-Fi with Smart Roaming - Seamlessly connects your devices to the strongest signal and optimal channel
as well as wireless band as you move from room to room, eliminating the need for them to disconnect and reconnect.
• Simple Setup - Mesh capability comes with auto-pairing out of the box, just plug them in and get started.
• Prole-based Parental Controls - Assign devices to family members’ proles to individually block devices and websites,
set schedules for full access or limited access, and receive reports on overly active Internet access during nighttime.
• Expandable Network - D-Link’s Wi-Fi Mesh is a scalable solution. Add extra mesh points with our EAGLE PRO AI series
of routers and extenders where you need more coverage.
• Works with Your Existing Router or Gateway - Simply connect to the Router or Gateway provided by your ISP to add
whole home coverage to your network.
• Easy Setup and Flexible Management - Managing your Internet utilization has never been easier; just download the
free EAGLE PRO AI for your mobile device and follow the on-screen step-by-step instructions to add your device. You
also have the option to use a web browser to access the setup wizard for basic conguration and advanced features.
Support for industry-standard Wi-Fi Protected Setup (WPS) lets you create encrypted connections to new devices by
pressing a button.
*
Maximum wireless signal rate derived from IEEE Standard 802.11ax, 802.11ac, 802.11n, and 802.11g/b/a specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, may lower actual data throughput rate.
Environmental conditions will adversely aect wireless signal range.
4D-Link M15 User Manual
Section 1 - Product Overview
Hardware Overview
M15 LED Indicator
1 Status LED
Solid red The M15 is booting up or being factory reset.
Blinking orange
The M15 is syncing to another M15 mesh point or trying to establish an uplink connection.
Once set up, a blinking orange LED indicates there is no uplink connection to the device.
Blinking Orange &
White Alternately
The device is undergoing the rmware upgrade process.
Solid white
The M15 is powered on and running.
Once set up, a solid white LED indicates there is an uplink connection to the device.
Blinking white
Once set up, a blinking white LED indicates a weak connection, or that the mesh point is
connecting to a wireless client using Wi-Fi Protected Setup (WPS).
O
The M15 is powered o.
If the device is powered on and Status LED is disabled, the device is working as normal. Refer
to the Admin section on page 73 for more information.
1
5D-Link M15 User Manual
Section 1 - Product Overview
M15 Rear
1
2
3 4 5
1 Reset Button
Insert a paperclip in the hole and wait for the Status LED turns solid red, then release to reset the router
to default settings.
2 Power Connector Connect the included power adapter here to power on the device.
3 Gigabit WAN Port Using an Ethernet cable, connect your broadband modem to this port.
4 Gigabit LAN Port Connect Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
5 WPS
Press this button to establish an instant connection to a wireless client using Wi-Fi Protected Setup
(WPS).
6D-Link M15 User Manual
Section 2 - Installation
Hardware Setup
Using the EAGLE PRO AI App
The EAGLE PRO AI allows you to install and congure your M15 from your compatible Android or iOS device.
Note: The screenshots may be dierent depending on your mobile device’s OS version. However, the process is the same.
Step 1
Search and install the free EAGLE PRO AI available on the App Store or on
Google Play.
Step 2
Launch the EAGLE PRO AI from the home screen of your device.
Step 3
Sign in to the app using one of the following methods: Facebook, Google,
Apple ID, or an email account. If you already have a D-Link account, you can
tap the Log In link at the bottom of the screen to be redirected to the login
page. It allows you to use cloud services to control and manage your device
including the third-party voice control apps.
7D-Link M15 User Manual
Section 2 - Installation
Step 4
Tap Install New Device. Scan the setup code on the bottom of the device.
Follow the on-screen instructions to complete the setup.
8D-Link M15 User Manual
Section 2 - Installation
Web Based Installation
You can also set up your M15 and congure your Wi-Fi network following the instructions of the web-based user interface.
Step 1
Position the M15 close to your Internet-connected modem. Turn o and
unplug the power to your cable or DSL broadband modem. This is required.
In some cases, you may need to turn it o for up to ve minutes. Then
connect an Ethernet cable to the modem and to INTERNET Port of the M15.
You can now power your modem back on.
Step 2
Connect the power adapter and plug the M15 into a power outlet. Wait for the
M15 to boot up. When the LED starts blinking orange, wirelessly connect your
computer to the Wi-Fi name (SSID) printed on the device label on the bottom
of the device. On Windows, click on the Network Settings icon (
or ) in
the notication area of the Windows taskbar to view available networks.
Note: The Wi-Fi name (SSID), Wi-Fi password, and device password are printed
on the device label on the bottom of the device.
Your M15 is now set up and ready to use. You can now congure your Wi-Fi settings using EAGLE PRO AI or the web-based user
interface. Refer to the Conguration section on page 9 for more information on conguring your network using the web-
based user interface.
Step 3
Type http://XXXX.devicesetup.net/ into a web browser and follow the on-
screen instructions to complete the setup.
Note: XXXX are the last four digits of the device's MAC address. Please refer
to the device label for the MAC address.
MODEM
http://xxxx.devicesetup.net/
SSID:
Password:
Wi-Fi
Wi-Fi
9D-Link M15 User Manual
Section 3 - Conguration
Conguration
Accessing the Web User Interface
http://xxxx.devicesetup.net/
You can access the web-based user interface using one of the following web
browsers:
• Internet Explorer 11 or higher
• Firefox 28 or higher
• Safari 6 or higher
• Chrome 28 or higher
1. Open a web browser.
2. Type http://XXXX.devicesetup.net/ in the address bar. (XXXX represents
the last 4 digits of the device's MAC address)
3. Specify the admin password.
• If this is the rst login, enter the device password printed on the device
label on the bottom of the device.
• If you have previously completed the initial setup, specify the password
you created during initial setup.
4. Click Log In.
Note: The system will automatically log out after a period (180 seconds) of
inactivity.
10D-Link M15 User Manual
Section 3 - Conguration

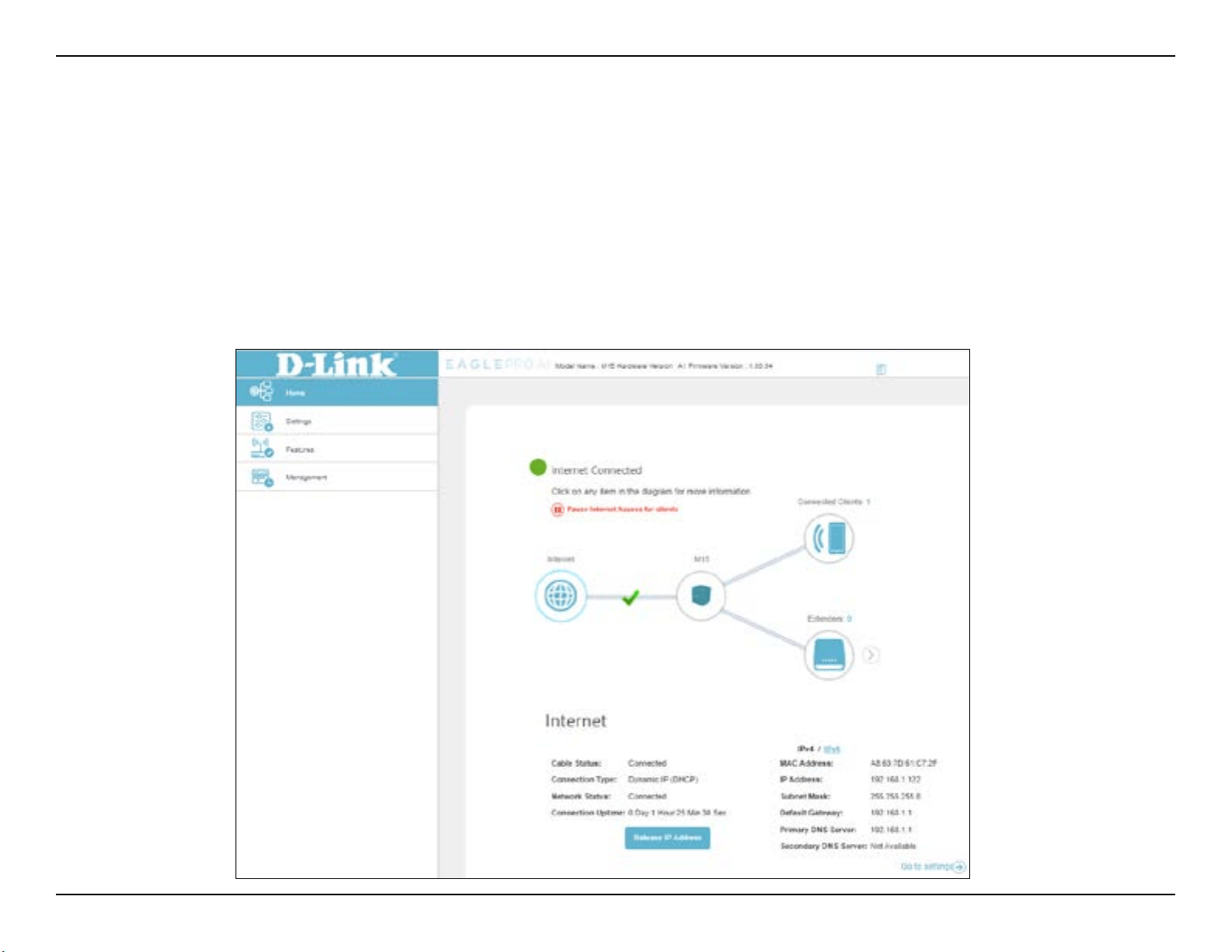

Home
The Home page displays the status of your network connectivity in the form of an interactive topology. You can click each icon
to display information about components of the network at the bottom of the screen. The left navigation pane allows you to
quickly navigate to other pages. Refer to the following sections for a description of these functional pages.
You can access AI Assistant (an AI-assisted message center) for reports on Wi-Fi conditions and bandwidth utilization at the
top right. Note that you need to turn on AI-assisted functions to receive messages.
11D-Link M15 User Manual
Section 3 - Conguration
Internet
To view more details about your Internet connection, click on the Internet
icon.
Click IPv4 or IPv6 to see details of the IPv4 connection and IPv6 connection
respectively.
Click Release IP Address to disconnect from the Internet. To reconnect with
a new IP address assignment, click Renew IP Address.
Click
to stop Internet access for all clients.
Click Click to repair to bring up the setup wizard and go through the initial
conguration again.
To recongure the Internet settings, click Go to settings -> at the bottom
right.
12D-Link M15 User Manual
Section 3 - Conguration
M15
Click on the M15 icon to view details about the M15's wireless and local network
settings. This includes IPv4 and IPv6 local networks, and Wi-Fi information.
To recongure the network or wireless settings, click Go to settings -> at the
bottom right to access the conguration page.
13D-Link M15 User Manual
Section 3 - Conguration
Connected Clients
Click on the Connected Clients icon to view details about the clients currently
connected to your Wi-Fi network.
To edit each client’s settings, click
on the client you want to edit.
Name Displays the name of this client. You can edit the client's name here.
The
icon shows the client is connected through a cable. The
icon shows the client is connected wirelessly.
Vendor Displays the vendor of the device.
MAC Address Displays the MAC address of the device.
IP Address Displays the current IP address of this client.
Reserve IP Enable this option to reserve an IP address for this client.
IP Address
(Reserved)
Specify an IP address for the DHCP server to assign to this client.
Parental Control Enable Parental Control and select a prole to control the client's
Internet access. Make sure that this device is also on the device list
of the selected prole. Refer to Parental Control on page 53 for
more information.
Prole Use the drop-down menu to select a prole to be used for Parental
Control. The prole can be set to Always Block to have this client
blocked from accessing the Internet, or you can create your own
proles to specify the times that the client can access the network.
You can also block access to unwanted websites. Refer to Features
> Parental Control on page 53 for more information.
Click Save when you are done.
14D-Link M15 User Manual
Section 3 - Conguration
Extenders
Click on the Extenders icon to view details about all extenders in your Wi-Fi
network.
To edit an Extender’s name, click
on the top right of the Extender's card
that you want to rename.
To reboot an Extender, click
on the bottom right of the Extender's card and
click Reboot.
To remove an Extender from your Wi-Fi network, click
on the bottom right
of the Extender's card and click Remove.
Name Enter a descriptive name for the M15.
MAC Address Displays the MAC address of the M15.
Flash LED Flash the Status LED of the M15.
Click Save when you are done.
M15
M15
15D-Link M15 User Manual
Section 3 - Conguration
Mesh Network
Click on the Extenders icon to view details about nodes in your mesh Wi-Fi
network.
On this page you can see all the clients currently connected to the extender
along with their IP and MAC addresses and device manufacturers.
To view more information about a client of edit a client’s settings such as IP
reservation and parental control, click
on the client you want to edit.
16D-Link M15 User Manual
Section 3 - Conguration
Settings
Wizard
Go to Settings > Wizard to open the setup wizard. This is the same wizard
that appears when you set up the device using the web interface for the rst
time.
This Wizard will also launch after you click the Click to repair button when no
Internet connection is detected.
17D-Link M15 User Manual
Section 3 - Conguration
Internet
IPv4
Go to Settings > Internet to see the Internet conguration options.
For Dynamic IP (DHCP) refer to Dynamic IP (DHCP) on page 18.
For Static IP, refer to Static IP on page 19.
For PPPoE, refer to PPPoE on page 20.
For PPTP, refer to PPTP on page 22.
For L2TP, refer to L2TP on page 24.
For DS-Lite, refer to DS-Lite on page 26.
To congure an IPv6 connection, click the IPv6 link. Refer to page 28.
My Internet
Connection Is
Choose your Internet connection type from the drop-down menu.
You will be presented with options for your connection type. Click
Advanced Settings... to expand the list and see more options.
18D-Link M15 User Manual
Section 3 - Conguration
Dynamic IP (DHCP)
Select Dynamic IP (DHCP) to obtain IP address information automatically
from your Internet Service Provider (ISP). Select this option if your ISP does not
specify an IP address to use.
Advanced Settings
Host Name The host name is optional but may be required by some ISPs. Leave
it blank if you are not sure.
Primary DNS
Server
Enter the primary DNS server IP address assigned by your ISP. This
address is usually lled in automatically.
Secondary DNS
Server
Enter the secondary DNS server IP address assigned by your ISP. This
address is usually lled in automatically.
MTU Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The default is 1500.
MAC Address
Clone
Secure DNS
DNS over HTTP
Provider
Allow Fall-back
The default MAC address is set to the Internet port’s physical interface
MAC address on the device. You can replace the Internet port’s MAC
address with the MAC address of a connected client.
Enable this option to use public DNS with encryption via DNS-over-
HTTPS (DoH).
Select the public DNS service provider: Google or Cloudare.
Use your primary or secondary DNS server as an alternative if the
congured provider is not working.
Click Save when you are done.
19D-Link M15 User Manual
Section 3 - Conguration
Static IP
Select Static IP if your IP information is provided by your Internet Service
Provider (ISP).
IP Address Enter the IP address provided by your ISP.
Subnet Mask Enter the subnet mask provided by your ISP.
Default Gateway Enter the default gateway address provided by your ISP.
Primary DNS
Server
Enter the primary DNS server IP address provided by your ISP.
Advanced Settings
Secondary DNS
Server
Enter the secondary DNS server IP address assigned by your ISP.
MTU Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
MAC Address
Clone
Secure DNS
DNS over HTTP
Provider
Allow Fall-back
The default MAC address is set to the Internet port’s physical interface
MAC address on the device. You can replace the Internet port’s MAC
address with the MAC address of a connected client.
Enable this option to use public DNS with encryption via DNS-over-
HTTPS (DoH).
Select the DNS-over-HTTPS (DoH) service provider: Google or
Cloudare.
Use your primary or secondary DNS server as an alternative if the
congured provider is not working.
Click Save when you are done.
20D-Link M15 User Manual
Section 3 - Conguration
PPPoE
Select PPPoE if your ISP provides and requires you to enter a PPPoE username
and password in order to connect to the Internet.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Reconnect Mode Select either Always on, On Demand, or Manual.
Maximum Idle
Time
Congurable when On Demand is selected. Enter a maximum idle
time during which the Internet connection is maintained during
inactivity. To disable this feature, select Always on or Manual as the
reconnect mode. The default is 5 minutes.
Advanced Settings
Address Mode
Select Static IP if the following information has been provided by
your ISP: IP address, MTU, and DNS server addresses. In most cases,
select Dynamic IP.
If you select Dynamic IP as the Address Mode:
Service Name Enter the ISP service name (optional).
Primary DNS
Server
Enter the primary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
Secondary DNS
Server
Enter the secondary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
MTU Maximum Transmission Unit (1280~1492)- you may need to change
the MTU for optimal performance with your ISP. The default is 1492.
21D-Link M15 User Manual
Section 3 - Conguration
MAC Address
Clone
The default MAC address is set to the Internet port’s physical interface
MAC address on the device. You can replace the Internet port’s MAC
address with the MAC address of a connected client.
If you select Static IP as the Address Mode:
Address Mode Displays your chosen address mode.
IP Address Enter the IP address provided by your ISP.
Service Name Enter the ISP service name (optional)
Primary DNS
Server
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server
Enter the secondary DNS server IP address assigned by your ISP.
MTU Maximum Transmission Unit (1280~1492)- you may need to change
the MTU for optimal performance with your ISP. The default is 1492.
MAC Address
Clone
Secure DNS
DNS over HTTP
Provider
Allow Fall-back
The default MAC address is set to the Internet port’s physical interface
MAC address on the device. You can replace the Internet port’s MAC
address with the MAC address of a connected client.
Enable this option to use public DNS with encryption via DNS-over-
HTTPS (DoH).
Select the DNS-over-HTTPS (DoH) service provider: Google or
Cloudare.
Use your primary or secondary DNS server as an alternative if the
congured provider is not working.
Click Save when you are done.
PPPoE (continued)
22D-Link M15 User Manual
Section 3 - Conguration
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your Internet Service
Provider (ISP) uses a PPTP connection. Your ISP will provide you with a
username and password.
PPTP Server Enter the PPTP server name or IP address provided by your ISP.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Reconnect Mode Select Always on, On demand, or Manual.
Maximum Idle
Time
Congurable when On Demand is selected. Enter a maximum idle
time during which the Internet connection is maintained during
inactivity. To disable this feature, select Always on or Manual as the
reconnect mode. The default is 5 minutes.
Advanced Settings
Address Mode Select Static IP if the following information is given by your ISP:
IP address, subnet mask, gateway, and DNS server addresses.
In most cases, select Dynamic IP.
If you select Dynamic IP as the Address Mode:
Primary DNS
Server
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server
Enter the secondary DNS server IP address assigned by your ISP.
MTU Maximum Transmission Unit (1280~1460) - you may need to change
the MTU for optimal performance with your ISP. The default is 1400.
23D-Link M15 User Manual
Section 3 - Conguration
PPTP (continued)
If you select Static IP as the Address Mode:
PPTP IP Address Enter the IP address provided by your ISP.
PPTP Subnet
Mask
Enter the subnet mask provided by your ISP.
PPTP Gateway IP
Address
Enter the gateway IP address provided by your ISP.
Primary DNS
Server
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server
Enter the secondary DNS server IP address assigned by your ISP.
MTU Maximum Transmission Unit (1280~1460) - you may need to change
the MTU for optimal performance with your ISP. The default is 1400.
Secure DNS Enable this option to use public DNS with encryption via
DNS-over-HTTPS (DoH).
DNS over HTTP
Provider
Select the DNS-over-HTTPS (DoH) service provider: Google or
Cloudare.
Allow Fall-back Use your primary or secondary DNS server as an alternative if the
congured provider is not working.
Click Save when you are done.
24D-Link M15 User Manual
Section 3 - Conguration
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your Internet Service Provider
(ISP) uses an L2TP connection. Your ISP will provide you with a username and
password.
L2TP Server Enter the L2TP server name or IP address provided by your ISP.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Reconnect Mode Select Always on, On Demand, or Manual.
Maximum Idle
Time
Congurable when On Demand is selected. Enter a maximum idle
time during which the Internet connection is maintained during
inactivity. To disable this feature, select Always on or Manual as the
reconnect mode. The default is 5 minutes.
Advanced Settings
Address Mode Select Static IP if the following information is given by your ISP:
IP address, subnet mask, gateway, and DNS server addresses.
In most cases, select Dynamic IP.
If you select Dynamic IP as the Address Mode:
Primary DNS
Server
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server
Enter the secondary DNS server IP address assigned by your ISP.
MTU Maximum Transmission Unit (1280~1460) - you may need to change
the MTU for optimal performance with your ISP. The default is 1400
25D-Link M15 User Manual
Section 3 - Conguration
L2TP (continued)
If you select Static IP as the Address Mode:
L2TP IP Address Enter the IP address provided by your ISP.
L2TP Subnet
Mask
Enter the subnet mask provided by your ISP.
L2TP Gateway IP
Address
Enter the gateway IP address provided by your ISP.
Primary DNS
Server
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server
Enter the secondary DNS server IP address assigned by your ISP.
MTU Maximum Transmission Unit (1280~1460) - you may need to change
the MTU for optimal performance with your ISP. The default is 1400.
Secure DNS
DNS over HTTP
Provider
Allow Fall-back
Enable this option to use public DNS with encryption via DNS-over-
HTTPS (DoH).
Select the DNS-over-HTTPS (DoH) service provider: Google
or Cloudare.
Use your primary or secondary DNS server as an alternative if the
congured provider is not working.
Click Save when you are done.
26D-Link M15 User Manual
Section 3 - Conguration
DS-Lite
DS-Lite allows local IPv4 packets to travel through an IPv6 network. Congure
the following parameters for Internet connectivity using DS-Lite:
Advanced Settings
DS-Lite
Conguration
Select DS-Lite DHCPv6 Option to let the device allocate the AFTR
IPv6 (Address Family Transition Router) address automatically. Select
Manual Conguration to enter the AFTR IPv6 address manually.
If you select DS-Lite DHCPv6 Option as the DS-Lite Conguration:
B4 IPv4 Address Enter the B4 (Basic Bridging Broadband) IPv4 address that will be
encapsulated into IPv6 packets to transmit over an IPv6 network.
WAN IPv6
Address
Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN
Default Gateway
Once connected, the IPv6 WAN default gateway address will be
displayed here.
If you select Manual Conguration as the DS-Lite Conguration:
AFTR IPv6
Address
Enter the Address Family Transition Router (AFTR) IPv6 address.
This is where an IPv6 packet will be decapsulated.
B4 IPv4 Address Enter the B4 IPv4 address.
WAN IPv6
Address
Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN
Default Gateway
Once connected, the IPv6 WAN default gateway address will be
displayed here.
27D-Link M15 User Manual
Section 3 - Conguration
Secure DNS
DNS over HTTP
Provider
Allow Fall-back
Enable this option to use public DNS with encryption via
DNS-over-HTTPS (DoH).
Select the DNS-over-HTTPS (DoH) service provider: Google or
Cloudare.
Use your primary or secondary DNS server as an alternative if the
congured provider is not working.
Click Save when you are done.
28D-Link M15 User Manual
Section 3 - Conguration
IPv6
Go to Settings > Internet, then click the IPv6 link. To return to the IPv4
settings, click IPv4. To congure the VLAN connection details, click the VLAN
tab.
For Auto Detection, refer to IPv6 Auto Detection on page 29.
For Static IPv6, refer to Static IPv6 on page 31.
For Auto Conguration (SLAAC/DHCPv6), refer to Auto Conguration
(SLAAC/DHCPv6) on page 33.
For PPPoE, refer to PPPoE on page 35.
For 6rd, refer to 6rd on page 38.
For Local Connectivity Only, refer to Local Connectivity Only on page 40.
My Internet
Connection Is
Choose your IPv6 connection type from the drop-down menu. You
will be presented with the options for your connection type. Click
Advanced Settings... to display more options.
29D-Link M15 User Manual
Section 3 - Conguration
IPv6 Auto Detection
Select Auto Detection to automatically detect the IPv6 connection method
used by your Internet Service Provider (ISP). If Auto Detection fails, you can
manually select another IPv6 connection type. Click Save at any time to save
the changes you have made on this page.
IPv6 DNS Settings
Use Link-Local
Address
Select either Obtain DNS server address automatically or
Use the following DNS address.
Primary DNS
Server
If you select Use the following DNS address, enter the primary DNS
server address.
Secondary DNS
Server
Enter the secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable DHCP Prex Delegation.
LAN IPv6 Link-
Local Address
Displays the device’s LAN link-local address.
If Enable DHCP-PD is disabled, enter the following:
LAN IPv6 Address
LAN IPv6 Link-
Local Address
Enter a valid LAN IPv6 address.
Displays the device’s LAN link-local address.
30D-Link M15 User Manual
Section 3 - Conguration
Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable Automatic
DHCP-PD in LAN
Enable or disable DHCP-PD for other IPv6 routers connected to
the LAN interface. This option is only available if the above Enable
DHCP-PD is enabled.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
If you select
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes). The default is
30 minutes.
If you select
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Lifetime
Enter the dynamic IP's retention time. The default is 10080 minutes.
This option is only available if the above Enable DHCP-PD is disabled.
31D-Link M15 User Manual
Section 3 - Conguration
Static IPv6
Select Static IP if your IPv6 information is provided by your Internet Service
Provider (ISP).
Use Link-Local
Address
Enable or disable link-local address use. Enabling this feature will use
your local IPv6 address as the static IP. Disable this feature to manually
enter your static IPv6 address and subnet prex length.
IPv6 Address If Use Link-Local Address is disabled, enter the address supplied
by your ISP.
Subnet Prex
Length
If Use Link-Local Address is disabled, enter the subnet prex length
(1~128) supplied by your ISP.
Default Gateway Enter the default gateway for your IPv6 connection.
Primary DNS Server Enter the primary DNS server address.
Secondary DNS
Server
Enter the secondary DNS server address.
LAN IPv6 Address Settings
LAN IPv6 Address Enter the LAN (local) IPv6 address for the M15.
LAN IPv6 Link-Local
Address
Displays the M15's LAN link-local address.
32D-Link M15 User Manual
Section 3 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment feature.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you select SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes). The default is
30 minutes.
If you select Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Lifetime
Enter the dynamic IP's retention time. The default is 10080 minutes.
Click Save when you are done.
Static IPv6 (Continued)
33D-Link M15 User Manual
Section 3 - Conguration
Auto Conguration (SLAAC/DHCPv6)
Select Auto Conguration (SLAAC/DHCPv6) if your ISP assigns an IPv6
address to M15 upon request. Some ISPs require you to modify connection
settings accordingly before your device can connect to the IPv6 Internet.
IPv6 DNS Settings
DNS Type Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server
Enter the primary DNS server address.
Secondary DNS
Server
Enter the secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable prex delegation services.
LAN IPv6 Link-
Local Address
Displays M15's LAN link-local address.
If Enable DHCP-PD is disabled, congure the following:
LAN IPv6 Address Enter a valid LAN IPv6 address.
LAN IPv6 Link-
Local Address
Displays M15's LAN link-local address for the local network only.
34D-Link M15 User Manual
Section 3 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment feature.
Enabling this feature presents additional conguration options.
Enable Automatic
DHCP-PD in LAN
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface. This option is only available if the above Enable DHCP-
PD is enabled.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
If you select SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes).The default is
30 minutes.
If you select Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Lifetime
Enter the dynamic IP's retention time. The default is 10080 minutes.
This option is only available if the above Enable DHCP-PD is disabled.
Click Save when you are done.
Auto Conguration (SLAAC/DHCPv6) (Continued)
35D-Link M15 User Manual
Section 3 - Conguration
PPPoE
Select PPPoE if your ISP requires you to enter a PPPoE username and
password in order to connect to the Internet.
PPPoE Session Select Create a new session to start a new PPPoE session.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Address Mode Select Static IP if your ISP assigned you an IP address. In most cases,
select Dynamic IP.
IP Address If you selected Static IP as the Address Mode, enter the IP address
provided by your ISP.
Service Name Enter the ISP service name (optional).
Reconnect Mode Select either Always On or Manual.
MTU Maximum Transmission Unit (1280~1492) - you may need to change
the MTU for optimal performance with your ISP. The default is 1492
bytes.
36D-Link M15 User Manual
Section 3 - Conguration
IPv6 DNS Settings
DNS Type Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server
Enter the primary DNS server address.
Secondary DNS
Server
Enter the secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable prex delegation. This option is only available if
using the Dynamic IP.
LAN IPv6 Link-
Local Address
Displays the M15's LAN link-local address.
If Enable DHCP-PD is disabled, enter the following:
LAN IPv6 Address Enter a valid LAN IPv6 address.
LAN IPv6 Link-
Local Address
Displays LAN link-local address of the M15.
PPPoE (Continued)
37D-Link M15 User Manual
Section 3 - Conguration
PPPoE (Continued)
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment feature.
Enabling this feature presents additional conguration options.
Enable Automatic
DHCP-PD in LAN
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface. This option is only available if the above Enable DHCP-
PD is enabled.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you select SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes).The default is
30 minutes.
If you select Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Lifetime
Enter the dynamic IP's retention time. The default is 10080 minutes.
This option is only available if the above Enable DHCP-PD is disabled.
Click Save when you are done.
38D-Link M15 User Manual
Section 3 - Conguration
6rd
IPv6 6rd (rapid deployment) allows IPv6 packets to be transmitted over an
IPv4 network. Congure the IPv6 6rd connection settings in this section.
Assign IPv6 Prex Currently unsupported.
Primary DNS Server Enter the primary DNS server address.
Secondary DNS
Server
Enter the secondary DNS server address.
6rd Manual Conguration
Enable Hub and
Spoke Mode
Enable this feature to minimize the number of routes to the destination
by using a hub and spoke method of networking.
6rd Conguration Choose the 6rd DHCPv4 Option to automatically discover and
populate data values, or choose Manual Conguration to enter the
below settings.
If you selected Manual Conguration as the 6rd Conguration:
6rd IPv6 Prex Enter the 6rd IPv6 network address and prex length supplied by
your ISP.
WAN IPv4 Address Enter the IPv4 network prex (1~32).
6rd Border Relay
IPv4 Address
Enter the 6rd border relay IPv4 address settings supplied by your ISP.
39D-Link M15 User Manual
Section 3 - Conguration
LAN IPv6 Address Settings
LAN IPv6 Address Displays the M15's LAN IPv6 address.
LAN IPv6 Link-
Local Address
Displays the M15's LAN link-local address.
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment feature.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you select SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes). The default is
30 minutes.
If you select Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Lifetime:
Enter the IPv6 address lifetime (in minutes). The default is 10080
minutes.
Click Save when you are done.
6rd (Continued)
40D-Link M15 User Manual
Section 3 - Conguration
Local Connectivity Only
Local Connectivity Only allows you to set up an IPv6 connection that will not
connect to the Internet.
Advanced Settings - IPv6 ULA Settings
Enable ULA Click here to enable Unique Local IPv6 Unicast Addresses settings.
Use Default ULA
Prex
Enable this option to use the default ULA prex.
ULA Prex Enter your own ULA prex if the above setting is disabled.
Current IPv6 ULA Settings
Current ULA
Prex
Displays the current ULA prex.
LAN IPv6 ULA Displays the LAN's IPv6 ULA.
Click Save when you are done.
41D-Link M15 User Manual
Section 3 - Conguration
Internet - VLAN
Go to Settings > Internet, then click the VLAN link to access the conguration options for the VLAN.
VLAN allows Triple-Play services to be dierentiated by dividing a network into segments and allowing access to these ser-
vices by devices only in the assigned segment.
To congure the IPv4 Internet connections, click the IPv4 link. Refer to IPv4 on page 17.
To congure the IPv6 Internet connections, click the IPv6 link. Refer to IPv6 on page 28.
Status
Click to enable or disable the Triple-Play VLAN feature. More
conguration options will be available if the Status is enabled.
Internet Service
Provider
Select your Internet Service Provider for identication purpose
only.
42D-Link M15 User Manual
Section 3 - Conguration
If Triple-Play Status is
Enabled:
VLAN TAG Enable VLAN TAG to enter VLAN ID, as provided by your ISP
Internet VLAN ID Enter the VLAN ID for your Internet connection, as provided
by your ISP.
IPTV VLAN ID Enter the VLAN ID for your IPTV service, as provided by your ISP.
VOIP VLAN ID Enter the VLAN ID for your VoIP network, as provided by your
ISP.
Priority ID Enable or disable trac priority ID for the Internet, IPTV, and
VoIP VLANs. Select a priority ID (0-7) from the drop-down menu
to assign to the corresponding VLAN. Higher priority ID trac
takes precedence over trac with a low priority ID tag.
Interface Trac Type Setting
LAN Port Select the type of connection (Internet, IPTV, or Voice over IP)
coming from the WAN connection to the LAN interface of the
M15.
Internet - VLAN (Continued)
43D-Link M15 User Manual
Section 3 - Conguration
Wireless
Wi-Fi
Wi-Fi Mesh
Status Enable or disable Wi-Fi Mesh if you plan to build a mesh network
in your environment. The mesh network is able to nd the shortest
and fasted path to your gateway/router in a mesh network topology.
Hence, it enhances eciency and reliability.
Smart Connect
Status Enable or disable the Smart Connect Feature. The Smart Connect
feature presents a single wireless network. When connecting clients
to the extended network, the clients will be automatically added to
the best band, either 2.4 GHz or 5 GHz.
Wireless
If Smart Connect Status is Enabled:
Wi-Fi Name
(SSID)
Enter a name for your Wi-Fi network.
Password Create a password for your Wi-Fi network. Wireless clients will need
to enter this password to successfully connect to the network.
Advanced Settings - Wireless
Security Mode Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/ WPA3-
Personal, or WPA3-Personal. WPA3 provides the highest level of
encryption among these. Note that WPS will be disabled if WPA3 is
used.
Go to Settings > Wireless to access the wireless network settings.
44D-Link M15 User Manual
Section 3 - Conguration
Transmission
Power
Schedule
Select the desired wireless transmission power.
Select the time during which the wireless network will be available.
The schedule may be set to Always Enable or you can add your own
schedule.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at the
top of each column. To add a time period to the schedule, simply click
on the start time and drag to the end time. You can add multiple days
and multiple periods per day to the schedule.
Click Save when you are done.
If Smart Connect Status is Disabled, congure the above and below settings for 2.4 and 5GHz
individually.
Security Mode Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/ WPA3-
Personal, or WPA3-Personal. WPA3 provides the highest level of
encryption among these. Note that WPS will be disabled if WPA3 is
used.
802.11 Mode
(2.4GHz)
802.11 Mode
(5GHz)
Select the desired wireless networking standards to use. The available
options for the 2.4 GHz wireless network are Mixed 802.11b/g/n,
Mixed 802.11b/g, Mixed 802.11g/n, 802.11b only, 802.11g only, or
802.11n only.
Select the desired wireless networking standards to use.
The available options for the 5 GHz wireless network are Mixed
802.11a/n/ac/ax, Mixed 802.11a/n/ac, Mixed 802.11a/n, 802.11ac
only, 802.11a only, or 802.11n only.
Wi-Fi (Continued)
45D-Link M15 User Manual
Section 3 - Conguration
Wi-Fi Channel
(2.4GHz)
Wi-Fi Channel
(5GHz)
Channel Width
(2.4GHz)
Channel Width
(5GHz)
HT20/40
Coexistence
(2.4GHz)
Select the desired channel:1-11. The default is Auto (recommended).
Select the desired channel: 36, 40, 44, 48, 149, 153, 157, 161, or 165.
The default is Auto (recommended).
Select Auto 20/40 MHz if you are using both 802.11n and non-
802.11n (802.11b/g) devices, or select 20 MHz if you are using a mix
of 802.11b/g devices.
Select Auto 20/40/80 MHz if you are using 802.11ax, 802.11ac,
802.11n, and 802.11a devices, select Auto 20/40 if you are using
802.11n and 802.11a devices, or select 20 MHz if you are using
802.11a devices.
Enable or disable the existence of both 20 MHz and 40 MHz channel
width. Keep it enabled to achieve the maximum operability of
wireless products using dierent standards in your environment.
However, it might prevent your 802.11n devices from reaching the
maximum performance.
Transmission
Power
Select the desired wireless transmission power: High, Medium, or Low.
Visibility Status The default setting is Visible. Select Invisible if you do not want to
broadcast the SSID of your wireless network.
Wi-Fi (Continued)
46D-Link M15 User Manual
Section 3 - Conguration
AI Wi-Fi Optimizer
AI-assisted Wi-Fi Optimizer intelligently assists in Wi-Fi environment optimization in
your home or oce network. It automatically adopts the "cleanest" channel and utilizes
beamforming technology to improve signal eciency and reduce interference. It also
provides push notications about weekly bandwidth consumption and optimization
performed when network congestion occurs. And coupled with AI Trac Optimizer, the AI
Assistant can advise administrators on prioritizing clients to maintain the overall Internet
quality. Refer to EAGLE PRO AI on page 86 for more information.
AI Wi-Fi Optimizer Enable or disable AI Wi-Fi Optimizer functionality.
Choose
Optimization
Time
Enable or disable scheduled optimization. Select the time at which
the AI Wi-Fi Optimizer will start.
Once this is turned on, you will start receiving weekly reports on
Wi-Fi conditions through AI Assistant.
Wi-Fi Protected Setup
The easiest way to connect your wireless devices to your device is with Wi-Fi Protected Setup (WPS).
WPS-PBC Status Enable or disable WPS-PBC (Push Button Conguration) functionality.
Press to establish a connection with another WPS compatible device.
Wi-Fi (Continued)
47D-Link M15 User Manual
Section 3 - Conguration
Guest Zone
The Guest Zone feature allows you to create a temporary wireless network
that can be used by guests to access the Internet. This zone will be separate
from your main Wi-Fi network.
If Smart Connect is Enabled in the previous Wi-Fi settings, congure the following
for both radio frequencies. If it is Disabled, congure the following for 2.4GHz and
5GHz individually.
Wi-Fi System
Status Enable or disable the Guest Wi-Fi network. The status is disabled by
default.
Wi-Fi Name
(SSID)
Create a name for your wireless network using up to 32 characters.
Password
Schedule
Create a password for wireless connection. Your password must be
between 8-63 characters in length.
Select the time during which the wireless network will be available.
The schedule may be set to Always Enable or you can add your own
schedule.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at the
top of each column. To add a time period to the schedule, simply click
on the start time and drag to the end time. You can add multiple days
and multiple periods per day to the schedule.
48D-Link M15 User Manual
Section 3 - Conguration
Security Mode
Internet Access
Only
Choose None, WPA/WPA2-Personal, WPA2-Personal only, WPA2/
WPA3-Personal, or WPA3-Personal only. WPA3 provides the highest
level of encryption among these. Note that WPS will be disabled if
WPA3 is used.
Enabling this option will conne connectivity to the Internet and
prevent guests from accessing other local network devices.
49D-Link M15 User Manual
Section 3 - Conguration
Network
This section will allow you to change the local network settings of the M15
and congure the DHCP settings. Go to Settings > Network to access this
conguration page. Click Advanced Settings... to expand the conguration
items.
Network Settings
LAN IP Address Enter the IP address of the device. The default IP address is
192.168.0.1. If you change the IP address, once you click Save, you
will need to enter the new IP address in your browser to get back into
the conguration utility.
Subnet Mask Enter the subnet mask of the device. The default subnet mask is
255.255.255.0.
Management
Link
The default address to access the device’s conguration is
http://M15-xxxx.local/ (where xxxx represents the last 4 digits of
your device's MAC address). You can replace M15-xxxx with a name
of your choice.
Local Domain
Name
Enter the domain name (optional).
Enable DNS
Relay
Disable this option to transfer the DNS server information from your
ISP to your computers. If enabled, your computers will use the device's
settings for DNS service (refer to Primary and Secondary DNS Server
settings for each Internet connection type).
50D-Link M15 User Manual
Section 3 - Conguration
DHCP Server
Status Enable or disable the DHCP server.
DHCP IP
Address Range
Enter the start and end IP addresses for the DHCP server's IP
assignment.
Note: If you have reserved static IP addresses to client devices, make
sure the IP addresses are outside of this range or you might have an IP
conict. Refer to Connected Clients on page 13 for how to reserve
IP addresses for clients.
DHCP Lease
Time
Enter the length of time for IP address lease in minutes. The default
is 10080 minutes.
Always
Broadcast
Enable this feature to broadcast your network's DHCP server to LAN/
WLAN clients.
Advanced Settings
WAN Port
Speed
You may set the port speed of the Internet port to 10 Mbps, 100
Mbps, 1000 Mbps, or Auto (recommended).
UPnP Enable or disable Universal Plug and Play (UPnP). PnP provides
compatibility with networking equipment, software, and peripherals.
This is enabled by default.
IPv4 Multicast
Streams
Allow or disallow IPv4 multicast trac to pass through the device
from the Internet. This is enabled by default.
IPv6 Multicast
Streams
Allow or disallow IPv6 multicast trac to pass through the device
from the Internet. This is enabled by default.
Click Save when you are done.
Network (Continued)
51D-Link M15 User Manual
Section 3 - Conguration
D-Link Cloud
Go to Settings > D-Link Cloud to see your D-Link Cloud Service details. This page lists whether you are registered with
D-Link Cloud Service and email address associated with the account. It enables you to manage your device anytime,
anywhere and check the status of your device. Use EAGLE PRO AI to nd out more about D-Link Cloud's features.
52D-Link M15 User Manual
Section 3 - Conguration
Operation Mode
Go to Settings > Operation Mode to select your operation mode. Depending on your network architecture, you can
congure the M15 to function as one of the following types of network device: router, extender, or bridge.
Operation Mode Settings
Router Mode
Bridge Mode
Extender Mode
In this mode, the M15 directly connects to the Internet provided by
your ISP (Internet Service Provider). All client devices from a network
group are connected and managed under this router. This is the
default mode.
In this Mode, the M15 extends your existing network and improves
overall Wi-Fi coverage, meaning that you already have a router on
the premises. Under this mode, the DHCP Server, Parental Control,
QoS, and Firewall related settings rely on the existing router.
In this mode, this device acts as an extender to connect your wireless
devices, expanding Wi-Fi coverage. It provides connectivity between
various wireless devices. This can be useful if you already have an
existing wireless router. You can then manage the extender through
the main router under this mode.
Click Save when you are done.
53D-Link M15 User Manual
Section 3 - Conguration
Features
Parental Control
Go to Features > Parental Control to congure parental control policies. You can congure schedules that set time limits
for Internet access and prevent access to certain websites.
This page displays a list of proles with the following information:
Schedule
Prole Name The name describes this prole.
Device Count The number of devices that this policy will be applied to.
State Displays the current status of Internet accessibility, I.e. Normal,
Schedule Paused, or Paused on Demand.
Edit Edit the access prole.
Delete Remove this access prole.
A maximum of 12 proles can be dened.
To add a prole, congure the following:
Prole Name
Allow Internet
Access
Time
Enter a name for this prole.
Click Enabled and dene the schedule to allow Internet access. Select
the time during which the Internet will be available.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at the
top of each column. To add a time period to the schedule, simply
click on the start time and drag to the end time. You can add multiple
days and multiple periods per day to the schedule. If no time periods
are selected, all devices in this prole will be denied Internet access.
54D-Link M15 User Manual
Section 3 - Conguration
Device
Click Add Device to add devices to be in the dened prole. Select the devices from the
list of connected devices to which the access policy should be applied, then click Apply to
close the screen. Click
Save to save your prole settings and the new prole will be added
to the prole list. You can also modify or delete an existing prole by clicking Edit or Delete
respectively. On the Edit page for a selected prole, you can click
to pause
Internet access to specied devices of the prole immediately.
Block Internet
Access During
Bedtime
Click Enabled and dene the schedule to block Internet access during
bedtime.
To add a bedtime schedule:
Select the time during which bedtime schedule will be active. Select
the days of the week, then select the pause time and the resume
time for the period during which Internet access will be blocked. To
specify dierent time periods for days of the week, click Add another
Bedtime schedule... A maximum of 2 schedules can be dened.
Allow Limited
Access
Enable this option to allow slow Internet access with reduced speed
during restricted hours set above.
You can also modify an existing schedule by clicking Edit.
Website Filter
Click Add Rule to add a new website to be blocked:
Website Name Enter the name for the website. This blocks access to websites based
on a website's address. For example, enter "ABC.com" or "www.ABC.
com."
URL Keyword This blocks access to websites based on the keywords with matching
URLs. For example, use "ABC" to block "www.ABC. com" and "xxx.ABC.
com" and other URLs containing ABC. Enter the same website name
as the above in this eld to block only the specic URL.
You can also modify or delete an existing rule by clicking Edit or
Delete respectively.
55D-Link M15 User Manual
Section 3 - Conguration
Click Settings to view the messages displayed to the device users whose
Internet access has been restricted.
Blocked Webpage Message
For these access controls: Manual Pause Control, Website Filter, Custom Schedule, and
Bedtime Schedule, you can view and customize the messages as well as the titles:
Title
Description
Reset this
message
Preview this
message
Enter the title of the message in the text box.
State the message to inform the user about the restricted access.
Click this button to reset the modied message to its factory default.
Display the presentation of the message on a new webpage.
56D-Link M15 User Manual
Section 3 - Conguration
QoS Engine
Go to Features > QoS Engine to congure clients' Internet access priorities. It
aims to optimize Internet trac to enhance the overall user experience.
Click Check Speed to run a speed check to obtain the upload and download
speeds of your Internet service. Determining Internet speed helps the QoS
engine to distribute Wi-Fi bandwidth to prioritized devices (congured in the
device cards below). Note that you need to agree to the privacy policy before
running the speed test.
AI Trac
Optimizer
Upload Speed
Download
Speed
The intelligent QoS Engine lists devices consuming comparatively
large resources and will intelligently adjust bandwidth to these
devices by assigning a low priority. It will also allocate appropriate
bandwidth to connected devices based on their priorities to maintain
quality online experience.
Once this is turned on, you will start receiving weekly reports on
bandwidth utilization through AI Assistant.
The rate at which the content is being transferred to the Internet in
megabit per second.
The rate at which the content is being transferred to the M15 in
megabit per second.
Click Apply to QoS after the Speed Test to automatically ll in the
above information.
57D-Link M15 User Manual
Section 3 - Conguration
QoS Engine (Continued)
This Quality of Service (QoS) Engine allows you to prioritize particular clients
over others, so that these clients receive higher bandwidth. For example, if
one client is streaming a movie and another is downloading a bulk of les, you
might want to assign the former device a higher priority than the latter so that
the movie streaming is not disrupted.
Under Connected Clients, you will see device cards representing each
connected client. Click All to see all connected devices and Heavy Consumer
to see clients that are particularly active on the Internet.
To assign a priority level to a device, enable AI Trac Optimizer rst.
Then click the client to open its information page. It shows the following
information:
Device Name: The name that describes the client device
MAC Address: The MAC address of the client device
IPv4/IP v6 Address: The IP address in IPv4 and IPv6 addressing mechanism of
the client device.
Priority: Select the priority for the client device with the following categories:
Normal; High: Always Enable, for 1 Day, for 4 Hours, for 2 Hours, or for 1
Hour; Low: Always Enable, for 1 Day, for 4 Hours, for 2 Hours, or for 1 Hour.
Trac Statistics
It shows trac statistics for these activities: TCP ow, UDP ow, and Download
and Upload speeds in megabit per second.
Real-Time & Weekly Trac
Two graphs: Real-time Trac represents real-time data speeds in megabyte
per second or kilobyte per second. Weekly Trac represents daily download
and upload data volume for the past week in kilobyte or megabyte.
If no devices are explicitly assigned a priority, they will all be treated with equal
priority.
58D-Link M15 User Manual
Section 3 - Conguration
Firewall
Enable DMZ Enable or disable Demilitarized Zone (DMZ). This completely exposes
the client to threats over the Internet. This is not recommended unless
they are servers that must be exposed to the WAN.
DMZ IP Address If you enabled DMZ, enter the IP address of the client you wish to
expose, or use the drop-down menu to quickly select it.
Enable SPI IPv4
Enabling Stateful Packet Inspection (SPI) or dynamic packet ltering
helps prevent cyber attacks by tracking more states per session to
validate that the trac passing through the session conforms to the
protocol.
Enable Anti-
Spoof Checking
Enable this feature to help protect your network from certain kinds
of “spoong” attacks.
IPv6 Simple
Security
Enable or disable IPv6 simple security. A simple rewall conguration
that denies access directly to computers behind the router.
IPv6 Ingress
Filtering
Enable or disable IPv6 ingress filtering for incoming packets to
prevent suspicious senders.
Click Save when you are done.
Go to Features > Firewall to congure the rewall settings. The rewall
feature helps protect your network from malicious attacks over the Internet.
To congure the IPv4/IPv6 rewall rules, click the IPv4 Rules tab. Refer to
IPv4/IPv6 Rules on page 60.
59D-Link M15 User Manual
Section 3 - Conguration
Firewall
Advanced (Continued)
Advanced Settings... - Application Level Gateway (ALG) Conguration
Dierent ALGs provide special handling for specic protocols or applications.
A number of ALGs for common applications are enabled by default as stated
below.
PPTP Allows multiple machines on the LAN to connect to their corporate
network using the PPTP protocol.
IPSec (VPN) Allows multiple VPN clients to connect to their corporate network
using IPSec. Some VPN clients support traversal of IPSec through
NAT. This Application Level Gateway (ALG) may interfere with the
operation of such VPN clients. If you are having trouble connecting
with your corporate network, try turning this ALG o. Please check
with the system administrator of your corporate network whether
your VPN client supports NAT traversal.
RTSP Allows applications that uses Real Time Streaming Protocol (RTSP)
to receive streaming media from the Internet.
SIP Allows devices and applications using VoIP (Voice over IP) to
communicate across NAT. Some VoIP applications and devices have
the ability to discover NAT devices and work around them. This SIP
ALG (Session Initiation Protocol Application Layer Gateway) may
interfere with the operation of such devices. If you are having trouble
making VoIP calls, try turning this ALG o.
60D-Link M15 User Manual
Section 3 - Conguration
IPv4/IPv6 Rules
To begin, use the drop-down menu to select whether it is an ALLOW or DENY
rule. You can also choose to turn ltering OFF.
If you want to remove a rule, click
in the Delete column. If you wish to edit
a rule, click
in the Edit column. If you wish to create a new rule, click the
Add Rule button.
Go to Features > Firewall, then click the IPv4 Rules tab or the IPv6 Rules tab
to congure rules for trac ltering.
To congure the Firewall Advanced settings, click the Advanced link. Refer
to Firewall on page 58.
If you click
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Source IP
Address Range
Enter the source IP address range (e.g. 1.1.1.1-1.1.1.2 for IPv4 or
2001::1-2001::2 for IPv6) that the rule will apply to. Using the drop-
down menu, specify whether it is a WAN or LAN IP address. Both a
single IP address and a range of IP addresses can be entered.
Destination IP
Address Range
Enter the destination IP address range (e.g. 1.1.1.1-1.1.1.2 for IPv4 or
2001::1-2001::2 for IPv6) that the rule will apply to. Using the drop-
down menu, specify whether it is a WAN or LAN IP address. Both a
single IP address and a range of IP addresses can be entered.
Protocol & Port
Range
Select the protocol of the traffic to allow or deny (Any, TCP, or UDP)
and then enter the range of ports (e.g. 21-23) that the rule will apply
to. Select Any to allow/deny all types of traffic regardless of the port
number.
61D-Link M15 User Manual
Section 3 - Conguration
Schedule Use the drop-down menu to select the time schedule during which
the rule will be active. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer to
Time & Schedule - Schedule on page 70 for more information.
A maximum of 24 rules can be dened.
62D-Link M15 User Manual
Section 3 - Conguration
Port Forwarding
If you edit or create a rule, the following options will appear:
Name Enter a name for the rule.
Local IP Enter the IP address of the device on your local network to which
the port will be forwarded. Alternatively, select the device from the
drop-down menu.
TCP Port Enter the TCP ports that you want to forward. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
UDP Port Enter the UDP ports that you want to forward. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
Schedule Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedule section. Refer to
Time & Schedule - Schedule on page 70 for more information.
for more information.
Click Apply when you are done.
Go to Features > Port Forwarding to specify a port or range of ports to
open for specic devices on the network. This might be necessary for certain
applications to connect through the router. For example, access from the
Internet can be redirected to a DMZ host using Port Forwarding.
To congure the Virtual Server settings, click the Virtual Server link. Refer to
Virtual Server on page 63.
If you want to remove a rule, click
in the Delete column. If you wish to edit
a rule, click
in the Edit column. If you wish to create a new rule, click the
Add Rule button.
63D-Link M15 User Manual
Section 3 - Conguration
Virtual Server
The virtual server allows you to specify a public port on the M15 for redirection
to an internal LAN IP address and private LAN port. To congure the virtual
server, from the Port Forwarding page click Virtual Server.
If you want to remove a rule, click
in the Delete column. If you wish to edit
a rule, click
in the Edit column. If you wish to create a new rule, click the
Add Rule button.
If you edit or create a rule, the following options will appear:
Name Enter a name for the rule. Alternatively, select the protocol/
Application Name from the drop-down menu. Depending on
the requested service, the router redirects the external service
request to the appropriate internal host.
Local IP Enter the IP address of the computer on your local network
that you want to direct the incoming service to. Alternatively,
select the device from the drop-down menu.
Protocol Select the protocol of the trac to allow or deny (TCP, UDP,
Both, or Other).
Protocol
Number
If you entered Other above, enter the protocol number. Refer
to https://www.iana.org/assignments/protocol-numbers/
protocol-numbers.xhtml for Assigned Internet Protocol
Numbers.
External Port Enter the public port for this service.
Internal Port Enter the private port for this service.
Schedule Use the drop-down menu to select the time schedule that the
rule will be enabled for. The schedule may be set to Always
Enable, or you can create your own schedules in the Schedules
section. Refer to Refer to Time & Schedule - Schedule on
page 70 for more information.
64D-Link M15 User Manual
Section 3 - Conguration
Static Routes
IPv4
If you click on Edit or Add Route, the following options will appear:
Name Enter a name for the route.
Destination
Network
Enter the destination IP address of the subnetwork.
Mask Enter the subnet mask of the destination address.
Gateway Enter the IP address of the next hop, which is the gateway to the
remote network.
Metric The route metric is a value from 1 to 16 that indicates the cost (or
number of hops) of using this route. A value of 1 is the lowest cost
and 16 is the highest cost.
Interface Select the interface that the IP packet must use to transit out of the
device when this route is used.
Click Apply when you are done.
Go to Features > Static Routes to dene custom routes to control how traf-
c moves around your network.
To congure the Static Route IPv6 settings, click the IPv6 tab. Refer to IPv6
on page 65.
If you wish to remove a rule, click
in the Delete column. If you wish to edit a
rule, click
in the Edit column. If you wish to create a new rule, click the Add
Rule button.
65D-Link M15 User Manual
Section 3 - Conguration
If you click on Edit or Add Route, the following options will appear:
Name Enter a name for the route.
DestNetwork Enter the destination IPv6 address of the subnetwork or the prex,
for example, 2010:db9:abcd:1234::
PrexLen Enter the prex length, which is the number of prex bits of the IPv6
address. Enter a value between 64 and 128.
Gateway Enter the IP address of the next hop, which is the gateway to the
remote network.
Metric The route metric is a value from 1 to 16 that indicates the cost of using
this route. A value of 1 is the lowest cost and 128 is the highest cost.
Interface Select the interface that the IP packet must use to transit out of the
device when this route is used.
Click Apply when you are done.
IPv6
Go to Features > Static Routes, then click IPv6 to congure the IPv6 Static
Routes.
To congure the Static Route IPv4 settings, click the IPv4 tab. Refer to IPv4
on page 64.
If you wish to remove a rule, click
in the Delete column. If you wish to edit a
rule, click
in the Edit column. If you wish to create a new rule, click the Add
Rule button.
66D-Link M15 User Manual
Section 3 - Conguration
Most Internet Service Providers (ISPs) assign dynamic (changing) IP addresses.
Using a dynamic DNS service provider, people can enter your domain name in
their web browser to connect to your server no matter what your IP address is.
This feature is helpful when running a virtual server.
Go to Features > Dynamic DNS to access this page.
Enable Dynamic
DNS
Enable or disable dynamic DNS. Enabling this feature will reveal
further conguration options.
Status Displays the current dynamic DNS connection status.
Server Address Select the DDNS service provider from the drop-down menu.
Host Name Enter the host name that you registered with your dynamic DNS
service provider.
User Name Enter your dynamic DNS username.
Password Enter your dynamic DNS password.
Time Out Enter a timeout value (in hours) to indicate how often the router
should update its Dynamic DNS settings.
Click Save when you are done.
Dynamic DNS
67D-Link M15 User Manual
Section 3 - Conguration
Dynamic DNS (Continued)
The IPv6 host settings can be found at the bottom of the Dynamic DNS page.
If you wish to remove a record, click
in the Delete column. If you wish to
edit a record, click
in the Edit column. If you wish to create a new record,
click the Add Record button.
If you edit or create a rule, the following options will appear:
Host Name Enter the host name that you registered with your dynamic DNS
service provider.
IPv6 Address
Enter the IPv6 address of your host or server for DDNS conguration.
Alternatively, select a network interface from LAN devices for DDNS
conguration.
A maximum of 10 records can be dened.
Click Apply when you are done.
68D-Link M15 User Manual
Section 3 - Conguration
Quick VPN
Go to Features > Quick VPN. This page will help you congure the Quick VPN service on the M15. For more information, re-
fer to VPN Setup Instructions on page 104. Before proceeding, ensure that your Internet connection is working properly.
We recommend conguring Dynamic DNS before proceeding with Quick VPN setup. If your router is assigned an IP address
from your ISP using DHCP, it may frequently change, requiring connection parameters to be set accordingly and a DDNS ad-
dress can avoid this hassle.
To congure the User settings and grant users with VPN permission, go to Management > User. Refer to User on page
76.
L2TP over IPSec Enable or disable the Quick VPN server. Quick VPN uses L2TP protocol.
Username Enter a username.
Password Enter a password containing both numbers and letters with 8 to 64
characters in length.
PSK Enter a Pre-shared Key between 6 and 64 characters containing both
numbers and letters.
VPN Prole for
iOS Device and
MAC OS X
Click Export to save the VPN prole settings le for iOS devices or
Mac OS X.
Advanced Settings...
Authentication
Protocol
Choose the authentication protocol type: MSCHAPv2, PAP, or CHAP.
MSCHAPv2 is the default.
MPPE Select the encryption cipher strength for Microsoft Point-to-Point
(MPPE) Encryption: None, RC4-40, or RC4-128. None is the default.
69D-Link M15 User Manual
Section 3 - Conguration
Management
Time & Schedule
Time
The Time page allows you to congure, update, and maintain the correct time
on the internal system clock. From here you can set the time zone and the
Network Time Protocol (NTP) server. Go to Management > Time & Schedule
to access the Time page.
To congure the Schedule settings, click the Schedule tab. Refer to Sched-
ule on page 70.
Time Conguration
Time Zone Select your time zone from the drop-down menu.
Time Displays the current date and time of the device.
Automatic Time Conguration
NTP Server Select from the drop-down menu to use one of the following servers
to synchronize the time and date for your device:
D-Link NTP Server or Google NTP Server.
Choose Manual to set the NTP server's IP address or domain name.
Click Save when you are done.
70D-Link M15 User Manual
Section 3 - Conguration
Schedule
Go to Management > Time & Schedule, then click the Schedule tab. The
Schedule page allows you to control some of the functions based on a
pre-congured schedule, for example, Port Forwarding in Features > Port
Forwarding and Firewall Settings in Features > Firewall as well as sending
Syslog via email in Management > System Log.
To congure the Time settings, click the Time tab. Refer to Time on page
69.
If you wish to remove a schedule, click
in the Delete column. If you wish
to edit a schedule, click
in the Edit column. If you wish to create a new
schedule, click the Add a Schedule button.
On the Schedule creation page, enter the name of your schedule in the Name
eld.
Each box represents half an hour, with the clock time (0~23) at the top of each
column. To add a time period to the schedule, simply click on the start time
and drag to the end time. You can add multiple days and multiple periods per
day to the schedule.
To remove a time period from the schedule, click on the cross icon.
Click Apply to save and close the page. Then click Save when you are done
creating schedules.
71D-Link M15 User Manual
Section 3 - Conguration
System Log
The device keeps a running log of events. This log can be sent automatically to
a Syslog server, or to your email address.
Go to Management > System Log to access this page.
Log Settings
System Log Click the Check System Log button to download a text le containing
the system log. You can view the log entries by opening with any text
editing applications such as WordPad on Windows.
SysLog Settings
Enable Logging
to Syslog Server
Check this box to send the logs to a SysLog Server.
If Logging to Syslog Server is enabled:
Syslog Server IP
Address
Enter the IP address of the Syslog server. If the Syslog server is
connected to the device, select it from the drop-down menu to
automatically populate the eld.
E-mail Settings
Enable E-mail
Notication
Enable this option if you want the logs to be automatically sent to
an email address.
If E-mail notication is enabled:
From E-mail
Address
Enter the sender's email address of the SysLog messages.
72D-Link M15 User Manual
Section 3 - Conguration
System Log (Continued)
To E-mail
Address
Enter the recipient's email address.
SMTP Server
Address
Enter the SMTP server address.
SMTP Server
Port
Enter the SMTP server port. The default is 25.
Enable
Authentication
Enable this if your SMTP server requires authentication.
Account Name Enter your SMTP account name.
Password Enter your SMTP account password.
E-mail Log When Full or On Schedule
Send When Log
Full
If enabled, this option will set the device to send the log when the
log buer is full. The email account for sending logs is congured in
the above section.
Send on
Schedule
If enabled, this option will set the device to send the log according
to a set schedule periodically, so the administrator is always up to
date on the operation of the device. The email account for sending
logs is congured in the above section.
Schedule If you enable Send On Schedule, use the drop-down menu to select
a schedule to apply. The schedule may be set to Always Enable, or
you can create your own schedules on the Schedule page. Refer to
Time & Schedule - Schedule on page 70 for more information.
Click Save when you are done.
73D-Link M15 User Manual
Section 3 - Conguration
System Admin
Admin
This page will allow you to change the administrator (Admin) password
and enable the HTTPS service. Go to Management > System Admin. To
congure the System settings, click the System tab. Refer to System on
page 75.
Admin Password
Password
Enter a new password for the administrator account. You will need to
enter this password whenever you congure the device using a web
browser or add the device to EAGLE PRO AI.
Advanced Settings - Administration
Enable HTTPS
Management
Enable HTTPS to connect to the extender using an encrypted connection.
Instead of using http://XXXX.devicesetup.net/ (where XXXX represents
the last four digits of the device's MAC address), you must use https://
XXXX.devicesetup.net/ in order to connect to the device.
Note: If you previously changed the management link in the Network
section, replace XXXX.devicesetup.net/ with the new management link
(refer to Settings > Network).
Enable HTTPS
Remote
Management
Remote management allows the device to be congured over the
Internet via a web browser. A password is still required to access the web
conguration interface.
74D-Link M15 User Manual
Section 3 - Conguration
Remote Admin
Port
The port number used for accessing the device's web service.
Example: http://x.x.x.x:8081 where x.x.x.x is the Internet IP address of
device and 8081 is the port used for the web management.
Note: If you enable the above HTTPS Remote Management and wish to
access the device remotely with data encryption, you must enter https://
at the beginning of the address.
Advanced Settings - LED Control
Status LED Choose to enable or disable the status indicator LED. When disabled,
the LED will no longer light up solid white during normal operation
and will instead turn o.
The LED will still light up in the corresponding color and mode in
any of the following circumstances:
-Firmware upgrade (ashing orange & white alternately)
-Device reboot (solid red)
-Establishing a WPS connection (ashing white)
-Weak uplink signal (ashing white)
-No uplink signal (ashing orange)
Click Save when you are done.
Admin (Continued)
75D-Link M15 User Manual
Section 3 - Conguration
System
This page will allow you to back up or restore conguration settings or restore
settings from a previous backup. It also allows you to set up a reboot schedule
for automatic reboot. Go to Management > System Admin, then click
System to access this page.
System
Save Settings
To Local Hard
Drive
Click Save to download a backup of your current conguration settings
to your local hard drive. This backup can later be used to restore your
settings.
Load Settings
From Local Hard
Drive
Click Select File to browse your local hard drive for a conguration le
to restore your conguration settings from. Once selected, click Restore
to apply the settings from the conguration backup.
Restore To
Factory Default
Settings
Click Restore to restore all conguration settings back to the settings
that were in eect at the time the device was shipped from the factory.
Any settings that have not been saved will be lost, including any rules
that you have created.
Auto Reboot Conguration
Reboot the
Device
Click the Reboot to reboot the device immediately.
Auto Reboot Use the drop-down menu to select a schedule for the device to
reboot automatically. The schedule may be set to Never, Daily, or
Weekly. Depending on your selection, set a time and week day for
the auto reboot schedule.
Click Save when you are done.
76D-Link M15 User Manual
Section 3 - Conguration
User
Go to Management > User. The User page is used to create, manage, and delete user accounts with VPN connection per-
mission.
If you wish to remove a user, click
in the Delete column. If you wish to edit
a user, click
in the Edit column. If you wish to create a new user, click the
Create User button.
To create a user, click
Create User and congure the following:
User Name Enter a username for the new user account.
Maximum length: 20 characters.
Password Enter a password for the new user account.
Maximum length: 32 characters.
VPN
Status Enable or disable Virtual Private Network (VPN) functionality
for this user.
A maximum of 9 users (not including the Admin) can be created. Click OK to close
the screen.
77D-Link M15 User Manual
Section 3 - Conguration
Upgrade
This page allows you to upgrade the extender’s rmware, either automatically
or manually. To manually upgrade the rmware, you must rst download the
rmware le from http://support.dlink.com.
Go to Management > Upgrade to access this page.
Firmware Information
Current
Firmware
Version
Displays the current rmware version for both the main router as
well as the extenders.
Check for New
Firmware
Click this button to prompt the router to automatically check for a
new rmware version. If a newer version is found, it will prompt you
to install it.
Automatic Firmware Upgrade
Automatic
Upgrade
If enabled, the router will automatically upgrade to the newest
firmware. The system will automatically upgrade to the latest
rmware every day at 3:30-4:00 AM.
Choose Upgrade
Time
Enable this function to set the device to automatically upgrade its
rmware at a set time every day.
Upgrade Time Congurable if Choose Upgrade Time is enabled. Set the hour and
minute to automatically upgrade the device.
Upgrade Manually
Device Name Select the device in the mesh network for manual update.
Select File If you wish to upgrade manually, rst download the rmware le.
Then, click the Select File button and locate the le to install the
new rmware.
78D-Link M15 User Manual
Section 3 - Conguration
Statistics
Go to Management > Statistics. On the Statistics page you can view the amount
of packets that pass through the router on the Internet and LAN interfaces as
well as the trac from Wi-Fi 2.4 GHz and Wi-Fi 5GHz networks.
Router
You can view the
Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5 GHz by clicking the
respective tab at the top. The real-time graph of network trac in
kilobyte per
second
will be shown. To clear the information on the graph, click Clear near
the top of the page.
The table below for each interface and radio frequency shows the total number
of packets and data that are sent and received through the interface.
The trac counter will reset if the device is rebooted.
Extender
Click the Extender tab to view the above information about the extender.
79D-Link M15 User Manual
Section 4 - Adding Additional Extenders
Adding Additional Mesh Points
M15 is a scalable solution for your whole-home wireless network. You can add additional mesh points with our EAGLE PRO AI
series mesh routers and extenders at any time to increase coverage in your home whenever you need to. Adding more mesh
points is quick and convenient using the guided setup with the EAGLE PRO AI app.
Step 1
Open EAGLE PRO AI, tap the main router, then tap + at the top right to add a
new device.
Using the EAGLE PRO AI App
Refer to Hardware Setup on page 6 for instructions on app installation. Then use the following procedure to add mesh
devices in your network.
Note: The screenshots may be dierent depending on your mobile device’s OS version. However, the process is the same.
80D-Link M15 User Manual
Section 4 - Adding Additional Extenders
Step 2
The Scan the Setup code screen appears. Scan the QR code to be guided through
a step-by-step process for setting up the new mesh point. Simply follow the on-
screen steps to complete the installation process as the following steps illustrate.
Repeat this process to add additional mesh points.
Step 3
Tap Extend My Network to extend the mesh network.
81D-Link M15 User Manual
Section 5 - Third Party Services
Step 4
Tap Extend to continue.
Step 5
Connect your mobile device to your home network that you wish to extend.
82D-Link M15 User Manual
Section 5 - Third Party Services
Step 6
Select either Wirelessly or Wired to extend the mesh network wirelessly or
with Ethernet cables.
Step 7
Depending on your selection above, follow the on-screen instruction to
place your device for connecting with the main router.
83D-Link M15 User Manual
Section 5 - Third Party Services
Step 8
Power on your device and wait for the device's status LED turns solid red,
then tap Next.
Step 9
Tap Next when the status LED ashes orange.
84D-Link M15 User Manual
Section 5 - Third Party Services
Step 10
Connect your mobile device to the indicated default Wi-Fi network of your
device.
Step 11
Wait until the status LED turns solid white, then tap Next.
85D-Link M15 User Manual
Section 5 - Third Party Services
Step 12
Place your device in the area where you want extended coverage.
Step 13
The additional mesh point is set up successfully.
86D-Link M15 User Manual
Section 5 - Third Party Services
EAGLE PRO AI
AI Wi-Fi Optimizer:
To enable this function, open the app. From the home screen, tap Wi-Fi and tap .
Then tap the slider for AI Wi-Fi Optimizer. Turn on Wi-Fi Optimizer to have your wireless
connection adopting an interference-free channel automatically and receive weekly Wi-Fi
environment reports every Monday at 8 AM local time.
With EAGLE PRO AI on your smart devices, you can get the M15 up and running quickly. Just plug in the router, open the app
and build your home network by following the easy instructions on the screen. The new EAGLE PRO AI is especially designed
to ease your management work with the following features:
AI Wi-Fi Optimizer: Enable this feature to always connect to the cleanest Wi-Fi Channel using the breakthrough beamforming
technology and receive information about automatic optimization for continuous improvement in the Wi-Fi environment.
AI Trac Optimizer: The QoS engine controls the trac ow intelligently by automatically assigning heavy trac with a low
priority to improve the overall user experience. It also generates information about bandwidth usage of individual devices
and aggregate utilization data.
AI Assistant: The message center reports Internet trac volume and provides usage notications when clients are transmitting
a large amount of data or overly active at night in the weekly bandwidth report. It also enables you to prioritize connected
devices to reduce trac congestion along with the report. Moreover, every improvement made by the Wi-Fi Optimizer will
also be recorded to inform administrators about conditions of the wireless environment.
AI Parental Control: The Parental Control provides the highest exibility of Internet accessibility control and website ltering.
It allows administrators to control the availability of Internet access and its speed on individual devices during the designated
time periods.
87D-Link M15 User Manual
Section 5 - Third Party Services
AI Trac Optimizer:
To enable this function, open the app. From the home screen, tap the main router, scroll
down the Device Info screen to Settings, and tap QoS. Then tap the slider for AI Trac
Optimizer.
Before you start the AI Trac Optimizer, run Speed Test from the Home screen (go to
Home> Internet Speed) to set the download and upload speeds to assist the QoS engine
in distributing the bandwidth to prioritized clients.
To prioritize clients, tap Client Priority from the Home screen. Tap a client device and assign
a priority level with eective duration to this device. High priority devices running online
games, video conferences, or other real-time programs will have the best access. The Red
bar on the left indicates heavy users.
AI Parental Control:
To enable this function, open the app. From the home screen, tap Parental Control.
Then use the following procedure to add a new control prole:
1. Tap Start.
2. Name this prole. Then tap Next to continue.
3. Select client devices to which the prole will be applied.
4. Tap Done to proceed.
5. The prole summary will be displayed. On this page you can tap Pause to pause Internet
immediately to the devices specied in the prole.
You can set schedules to restrict Internet access.
Use Block Bedtime Internet Access to block Internet access during the specied days with
time periods. Up to two schedules can be dened. Use Allow Scheduled Internet Access
to allow Internet access only during the specied days and times. Users cannot access
the Internet except during the hours that you specify. Note that bedtime restriction takes
precedence over the allowed schedules here.
88D-Link M15 User Manual
Section 5 - Third Party Services
You can also block specic websites on this page to prevent the specied devices from
accessing these websites. To do this, tap Website Filter, tap Add Website, then enter the
website name and the domain keyword, for example, enter violent.com to block all access
to this site and violent to block domain names that contain this keyword. Then tap Add at
the top right.
AI Assistant:
Tap AI Assistant to display the weekly reports on bandwidth consumption with
information about heavy users. Weekly reports also give information on the number of
times the system performs trac management automatically when congestion occurs and
provides qualitative rating on your Wi-Fi environment. Furthermore, the Night Time Internet
Activity informs you about the overly active Internet access during nighttime.
This app enables you to proactively improve sleep quality by restricting Internet access
during nighttime. Tap Health Mode to set the bedtime during which Internet access will
be blocked on all devices within the network.
Note: The Bedtime scheduling also restricts local access by disabling Wi-Fi connectivity.
However, remote management through the Internet is allowed.
89D-Link M15 User Manual
Section 5 - Third Party Services
Other Features
Advanced Mode
The advanced mode provides links to the web management interfaces of the device. Note
that this feature is only available with local access (i.e. connected within the same Wi-Fi
network). To access, go to Home > Advanced Mode.
Device Information and Settings
From Home, tap the device (main router) of the mesh network topology to view its
information and settings: name, IP and MAC address, hardware and rmware version, time
zone, and model number. You can also congure the Internet connection method and change
the device password on this page. It also provides basic device maintenance functions:
reboot, LED indicator on/o, rmware update, and device identication with ashing LED.
Client Information and Statistics
From Home, tap the device (Clients) of the mesh network topology to view the clients
currently online and blocked. Tap a device to obtain its information: name, IP and MAC
address, and parental control prole. It also displays real-time trac statistics as well as
weekly trac for each day of the past week for both download and upload data transmissions.
The Priority function allows you to assign a High/Low priority for this device with eective
duration: Always, 1 Day, 4 Hours, 2 Hours, 1 Hour.
Extender Information
From Home, tap the device (Extenders) of the mesh network topology to view the extenders
currently connected with the following information: name, IP and MAC address, and hardware
and rmware version. Tap Clients to view its currently connected clients. You can also identify
the device by ashing an LED indicator and restart the device on this screen.
90D-Link M15 User Manual
Section 5 - Third Party Services
Voice Control
With the M15, you can command your router’s functionality with your voice through Amazon Alexa and the Google Assis-
tant, enabling you to control your network with voice commands. Features include enabling and disabling your Wi-Fi guest
zone without logging in to the web interface, rebooting the router, and checking your router for rmware upgrades. In or-
der to use third-party services to control and manage your device, please register your device with D-Link Cloud Service rst
(refer to Using the EAGLE PRO AI App on page 6 and D-Link Cloud on page 51).
91D-Link M15 User Manual
Section 5 - Third Party Services
Link D-Link Cloud Service to Other Services
In order to use third-party apps to control and manage your device, you will rst need to link your registered D-Link account
with apps such as Google Assistant or Amazon Alexa.
Step 2
Tap Voice Control from the Home screen.
Step 1
Launch EAGLE PRO AI and sign in using your registered D-Link account,
then go to the Home screen.
Google Home Setup
92D-Link M15 User Manual
Section 5 - Third Party Services
Step 4
Link with the Google Assistant.
Step 3
Choose the cloud service (e.g. Google Assistant).
93D-Link M15 User Manual
Section 5 - Third Party Services
Step 5
The Google Home app will be launched.
Step 6
Link your registered account with Google. Depending on your system, note
that if the account link page does not display, please tap "+" on the top left
from the above step to add the device manually:
Tap + Set up device, choose Works with Google, and search for
EAGLE PRO AI. Then sign in using your registered D-Link account.
94D-Link M15 User Manual
Section 5 - Third Party Services
Step 7
Choose your device.
M15
Step 8
Choose a home.
95D-Link M15 User Manual
Section 5 - Third Party Services
Step 9
Choose a location for your device.
Step 10
Device is now successfully set up with the Google Home.
M15
96D-Link M15 User Manual
Section 5 - Third Party Services
Amazon Alexa Setup
You will need the Amazon Alexa app, an Amazon account, and a D-Link account to use this feature.
Note: The screenshots may be dierent depending on your mobile device’s OS version. However, the process is the same.
Step 1
Launch the Amazon Alexa app.
Amazon Alexa
Step 2
Tap Browse Skills.
97D-Link M15 User Manual
Section 5 - Third Party Services
Step 3
Search EAGLE PRO AI for Skills & Games.
Step 4
The EAGLE PRO AI page.
98D-Link M15 User Manual
Section 5 - Third Party Services
Step 5
Tap LAUNCH to link your D-Link account.
Step 6
Congratulations! EAGLE PRO AI has been successfully linked as a skill for
your Amazon device. Refer to Amazon Alexa Voice Commands on the next
page for tasks that you can ask your Amazon Alexa to perform.
99D-Link M15 User Manual
Section 5 - Third Party Services
Amazon Alexa Voice Commands
With EAGLE PRO AI enabled as a skill for Alexa, you can ask Alexa to do any of the following tasks. Before commanding Al-
exa, say "Open EAGLE PRO AI" and respond to Alexa's oering by saying "Help."
Task Command
Enable the guest Wi-Fi “Enable my guest Wi-Fi.”
Disable the guest Wi-Fi “Disable my guest Wi-Fi.”
Find out your Wi-Fi SSID "What is my Wi-Fi SSID?
Find out the guest Wi-Fi name and password "What are my guest Wi-Fi credentials?"
Reboot the router "Reboot my router."
Upgrade the router "Upgrade my router.”
Obtain weekly report messages
"Read messages."
Note: Network can be substituted for Wi-Fi.
If using an Alexa speaker, start your command with one of the following:
1. "Alex, ask EAGLE PRO AI to." For example, command Alexa by saying, " Alexa, ask EAGLE PRO AI to enable my guest Wi-Fi."
2. "Alex, talk to EAGLE PRO AI" and wait for Alexa to respond. Then say your command.
100D-Link M15 User Manual
Section 5 - Third Party Services
Google Assistant Setup
Note: The screenshots may be dierent depending on your mobile device’s OS version. However, the process is the same.
You will need the Google Assistant app, a Google account, and a D-Link account to use this feature.
Step 1
We will set up the pin code rst for controls such as reboot and enable
or disable guest Wi-Fi. Tap Voice Control from the Home screen of the
EAGLE PRO AI app.
Step 2
Tap Edit to customize the pin code or use the randomly generated number.
101D-Link M15 User Manual
Section 5 - Third Party Services
Step 4
Say or Type in your command and provide the pin code when being asked.
Refer to Google Assistant Voice Commands on the next page for tasks that
you can ask your Google Assistant to perform.
Step 3
Launch the Google Assistant app.
Assistant
102D-Link M15 User Manual
Section 5 - Third Party Services
Google Assistant Voice Commands
With EAGLE PRO AI linked with the Google Assistant, you can ask your Google Assistant to do any of these tasks:
Task Command
Check guest Wi-Fi status "Is my guest Wi-Fi enabled?"
Check Wi-Fi status "Is my Wi-Fi enabled?"
Check guest Wi-Fi SSID "What is my guest Wi-Fi SSID?"
Check Wi-Fi SSID "What is my Wi-Fi SSID?"
Enable the guest Wi-Fi “Enable my guest Wi-Fi.”
Disable the guest Wi-Fi “Disable my guest Wi-Fi.”
Find out the guest Wi-Fi password "What is my guest Wi-Fi password?”
1
Reboot the router "Reboot my router."
Update the router "Software update my router.”
Notes:
1. Only supported on Nest Hub with screen display.
2. Network can be substituted for Wi-Fi.
If using a Google Home speaker, start your command by saying "Hey Google.”
Section 6 - Connecting a Wireless Client
Connect to a Wireless Client
WPS Button
The easiest way to connect your wireless devices to your Wi-Fi network is with WPS (Wi-Fi Protected Setup). Most wireless devices
such as wireless adapters, media players, Blu-ray DVD players, wireless printers, and cameras will have a WPS button that you can
press to connect to the mesh point. Please refer to your user manual for the wireless device you want to connect to make sure
you understand how to enable WPS. After consulting your device's manual, follow the steps below:
Step 2 - Within 120 seconds, press the WPS button on your wireless device (or launch the software utility and start the WPS
process).
Step 1 - Press the WPS button on the nearest mesh point for about 1 second. The Status LED on the front will start to blink
white.
Step 3 - Allow up to 1 minute for your connection to be congured. Once the LED stops blinking, you will be connected and
your wireless connection will be encrypted with WPA2, the default Wi-Fi security mode.
WPS Button
104D-Link M15 User Manual
Section 7 - Quick VPN
Windows 10
VPN Setup Instructions
This section provides Quick VPN setup instructions for Windows 10.
Click Start > Settings > Network & Internet > VPN > Add a VPN Connec-
tion.
This section provides Quick VPN setup instructions for Windows 10. Refer to Quick VPN on page 68 for your router setup
instructions.
105D-Link M15 User Manual
Section 7 - Quick VPN
1
Select Windows (built-in) from the VPN Provider menu.
2
Create a name for your VPN connection.
3
Enter your IP/DDNS address of your Quick VPN server.
4
Select L2TP/IPSec with pre-shared key for VPN type.
5
Enter the Passkey.
6
Select User name and password from Type of sign-in info.
If you would like windows to remember your sign-in information, enter
your User name, Password, and select Remember my sign-in info
7
Choose Save.
Your Windows 10 system is now congured to connect to your Quick VPN
server.
On the Add a VPN connection screen, do the following:
106D-Link M15 User Manual
Section 7 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, click on the Network
Settings icon (either
or ) in the notication area of the Windows taskbar
and click on your Quick VPN connection.
The section of VPN in Network & Internet Settings page will open, select
your Quick VPN, then select Connect. Or if the Connect button shows under
the VPN connection, select Connect.
If connected, the VPN connection name will display Connected underneath
it. You can click Disconnect to stop the connection.
108D-Link M15 User Manual
Section 7 - Quick VPN
1
Enter a name for your VPN connection.
2
Select L2TP/IPSec PSK for Type.
3
Enter the IP/DDNS address of your Quick VPN server.
4
Enter your Passkey in IPSec pre-shared key eld.
5
Choose Save.
Your Android device is now congured to connect to your Quick VPN server.
Tap + to create or VPN Settings to edit a VPN connection prole
109D-Link M15 User Manual
Section 7 - Quick VPN
Connect or Disconnect
Tap the Quick VPN connection you created.
To connect, enter your Username and Password, then tap CONNECT.
To disconnect, tap DISCONNECT.
110D-Link M15 User Manual
Section 7 - Quick VPN
Open the exported prole. The Install Prole dialogue will appear; click
Continue and Install.
Enter your user account password when prompted. Close the Proles
dialogue.
Mac OS X
VPN Setup Instructions
This section provides Quick VPN setup instructions for OS X using the Export Prole function. Refer to Quick VPN on page
68 for your router setup instructions.
Go to > System Preferences... > Network and select the Quick VPN
connection and click Authentication Settings.
111D-Link M15 User Manual
Section 7 - Quick VPN
Enter your Passkey in the Shared Secret text box and click OK, Apply, then
OK.
Your Mac is now congured to connect to your Quick VPN server.
112D-Link M15 User Manual
Section 7 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, go to > System
Preferences... > Network.
Select the Quick VPN connection and click on the Connect or Disconnect
button.
113D-Link M15 User Manual
Section 7 - Quick VPN
iOS Devices
VPN Setup Instructions
This section provides Quick VPN setup instructions for iOS devices. Refer to Quick VPN on page 68 for your router setup
instructions.
Go into Settings on your compatible iOS device.
Scroll to and tap General.
Scroll to and tap VPN.
Tap Add VPN Conguration...
114D-Link M15 User Manual
Section 7 - Quick VPN
You should see a pop-up window asking you to ll out the details of your VPN
connection.
Type: Choose IPSec. Tap Back to return to the Add Conguration page.
Description: For reference purposes only, used to dierentiate between
multiple VPN connections.
Server: Enter the IP/DDNS address of your Quick VPN server.
Account: Enter the Username used to authenticate login to VPN server
Password: Enter Password used to authenticate login to VPN server
Secret: Enter your Pre-Shared Key (PSK).
Tap Done to closse the conguration window.
Your iOS device is now congured to connect to your Quick VPN server.
115D-Link M15 User Manual
Section 7 - Quick VPN
Connect or Disconnect
To connect or disconnect from to your Quick VPN server, go to Settings >
VPN and tap the button next to VPN Status.
The VPN icon will appear in the notication area at the top of your screen
indicating that your device is currently connected to the Quick VPN server.
116D-Link M15 User Manual
Section 8 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the router. Read the fol-
lowing descriptions if you are having problems.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website, nor do
you have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer
must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 11 or higher
- Mozilla Firefox 28 or higher
- Google™ Chrome 28 or higher
- Apple Safari 6 or higher
• Verify physical connectivity of the power adapter and network cable by checking the LED indicators of the device.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate
and Norton Personal Firewall may block access to the conguration pages. Check the help les included with your re-
wall software for more information on disabling or conguring it.
• Access the web conguration. Open your web browser and enter the IP address of your D-Link router in the address bar.
This should open the login page for your web conguration.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about
30 seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent com-
puter.
117D-Link M15 User Manual
Section 8 - Troubleshooting
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. This process will change all your settings back to the factory de-
faults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the recessed button down until the Status LED turns red. Release the button and the router will go through its re-
boot process. Wait about 30 seconds to access the router. The address of the web conguration is printed on the device la-
bel on the bottom of the device. You may also enter the default IP address: 192.168.0.1. When logging in, enter the default
device password printed on the device label too.
118D-Link M15 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business or public access wireless networks. D-Link’s new EAGLE PRO AI products allow you
to conveniently and reliably access your network with Wi-Fi 6 mesh system for improved coverage and speeds. Furthermore,
you will be able to enjoy the ecacy of network management that AI-empowered trac prioritization and Wi-Fi environment
optimization delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead
of wires. Innovative ways to utilize WLAN technology are helping people to work and communicate more eciently. The most
recent Wi-Fi 6 has substantial gains over previous generations in speeds and encryption strength. It achieves faster speeds by
communicating with multiple clients more eciently through techniques such as Orthogonal Frequency Division Multiple
Access (OFDMA) and Overlapping Basic Service Sets (OBSS). OFDMA improves channel utilization while OBSS eliminates
network congestion.
Wireless users can use the same applications they use on a wired network. To enjoy the mobility of wireless network more
safely in oce environments and public areas such as airports, shops and universities, Wi-Fi Protected Access (WPA) security
method is commonly employed. It uses a passphrase or key to authenticate your wireless connection. The advanced WPA3
implements the most robust password mechanism via Simultaneous Authentication of Equals (SAE). The Simultaneous
Authentication of Equals (SAE) of WPA3 enhances the protection against dictionary attacks.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to
use servers, printers or an Internet connection supplied through the wired LAN. A combination of Eagle Pro AI series router and
extenders provides this links and whole-house coverage with signicantly faster speeds .
Wireless Basics
119D-Link M15 User Manual
Appendix A - Wireless Basics
How does wireless work?
Wireless works similarly to how cordless phones work, through radio signals that transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area
to be able to connect your computer. There are two dierent types of wireless networks: Wireless Local Area Network (WLAN),
and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a
small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point the signal
can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like manufacturing
plants, industrial locations, university and high school campuses, airports, golf courses, and many other outdoor venues.
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30
feet away. Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly
as much power. This makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
120D-Link M15 User Manual
Appendix A - Wireless Basics
Why D-Link Wi-Fi Mesh?
D-Link’s Wi-Fi Mesh is a scalable solution that allows you to easily increase the coverage of your wireless AX network when
connected to a D-Link Wi-Fi Mesh router. Utilizing the latest Wi-Fi 6 technology, your existing wireless mesh network delivers
higher speeds, eciency and reliability than previous generations. Moreover, multiple mesh devices can be connected with
your mesh router to extend the range and enhance the network capabilities of your home or oce seamlessly, so you can
enjoy a much-improved experience with high-denition streaming media, VR games, and cloud storage.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business,
D-Link has a wireless solution for it.
Home uses/benets
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small oce and home oce uses/benets
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
121D-Link M15 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere, not just at home or oce. People like the freedom of mobility and it’s becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link USB adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations like:
airports, hotels, coee shops, libraries, restaurants, and convention centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or access point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place
the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-
story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access
point. This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Wireless Encryption
Don’t let your next-door neighbors or intruders connect to your wireless network. Encrypt your wireless network by utilizing the
Wi-Fi protected Access security protocols on the router. Refer to the product manual for detail information on how to set it up.
122D-Link M15 User Manual
Appendix B - Technical Specications
Technical Specications
Model M15 M15x2 M15x3
Product Image
General
For singular device unless separated:
Interfaces
1
x WPS Button
1 x
10/100/1000 Mbps Gigabit Ethernet LAN port
1 x
10/100/1000 Mbps Gigabit Ethernet WAN
Port
1 x Power Connector
1 x Reset Button
LED Power/Status
Antenna Type 2 x 2.4G WLAN Internal Antenna
2 x 5G WLAN Internal Antenna
Wi-Fi Data Rate 2.4 GHz Up to 300 Mbps
5 GHz Up to 1201 Mbps
Standards IEEE 802.11ax
1,2,3
IEEE 802.11ac
1,2,3
IEEE 802.11n/g/b/a
IEEE 802.11k
IEEE 802.11v
IEEE 802.11h
WAN Interface Static IP
Dynamic IP
PPPoE
PPTP
L2TP
DS-Lite
Support 802.1p & 802.1q VLAN tagging and Priority bit
Concurrent session: 30000
The marking information is located at the bottom of the apparatus.
1
Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n, 802.11ac and 802.11ax specications. Actual data throughput will vary. Network conditions and
environmental factors - including volume of network trac, building materials and construction, and network overhead - lower actual data throughput rate. Environmental factors will
adversely aect wireless signal range.
2
Frequency Range varies depending on country’s regulation.
3
The router does not include 5.25-5.35 GHz & 5.47-5.725 GHz in some regions.
123D-Link M15 User Manual
Appendix B - Technical Specications
Functionality
Security WPA/WPA2 -Personal
WPA2-Personal
WPA2/WPA3 – Personal (WPS not supported)
WPA3 Only (WPS Not supported)
Firewall DoS
Stateful Packet Inspection
Anti-spoofing Checking
IP/MAC Address Filtering
1 x DMZ
Mesh D-Link Wi-Fi Mesh
QoS D-Link Intelligent QoS Technology
SpeedTest Ookla SpeedTest
Coverage 210 sqm / 2300 sq. ft. 370 sqm / 4000 sq. ft. 500 sqm / 5400 sq. ft.
Physical
Hardware Version
A1
Size 92 x 92 x 93 mm
Weight 200 g
Power Input 12V 1A
Maximum Operating Voltage 12V
Maximum Power
Consumption
12 W
Operating Temperature 0 to 40 °C (32 to 104 °F)
Storage Temperature -20 to 65 °C (-4 to 149 °F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Certifications CE , FCC , IC
Software
EAGLE PRO AI
IOS
Android
Voice Control
Alexa Voice Control
Google Assistant Voice Control
124D-Link M15 User Manual
Appendix C - Safety Statements
Regulatory Information
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device meets all the other requirements specied in Part 15E,
Section 15.407 of the FCC Rules.
Note
The country code selection is for non-USA models only and is not available to all USA models. Per FCC regulations, all WiFi product marketed in
the USA must be xed to USA operational channels only.
IMPORTANT NOTICE:
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 22 cm between the radiator & your body.
125D-Link M15 User Manual
Appendix C - Safety Statements
Innovation, Science and Economic Development Canada (ISED) Statement:
This device complies with ISED licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel
mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still
complies with the e.i.r.p. limit;
(iii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
limits specied for point-to-point and non-point-to-point operation as appropriate; and
(iv) the worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3) shall be clearly
indicated.
(v) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-
5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
126D-Link M15 User Manual
Appendix C - Safety Statements
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur an de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5250 à 5 350 MHz et de 5470 à 5725 MHz doit être conforme à la
limite de la p.i.r.e;
(iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spéciée
pour l'exploitation point à point et l’exploitation non point à point, selon le cas;
(iv) les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, et énoncée à la section
6.2.2 3), doivent être clairement indiqués.
(v) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d.,
qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages
aux dispositifs LAN-EL.
Radiation Exposure Statement
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 40 cm between the radiator and your body.
Déclaration d'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 40 cm de distance entre la source de rayonnement et votre corps.
127D-Link M15 User Manual
Appendix C - Safety Statements
以下警語適用台灣地區
依據 低功率電波輻射性電機管理辦法
第十二條: 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功
能。
第十四條: 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使
用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干
擾。
1.使用此產品時應避免影響附近雷達系統之操作。
「電磁波曝露量MPE標準值1mW/cm
2
，本產品使用時建議應距離人體 22 cm」
128D-Link M15 User Manual
Appendix C - Safety Statements
Frequency Band(s)
Frequenzband
Fréquence bande(s)
Bandas de Frecuencia
Frequenza/e
Frequentie(s)
Max. Output Power (EIRP)
Max. Output Power
Consommation d’énergie max.
Potencia máxima de Salida
Potenza max. Output
Max. Output Power
5 G
5.15 – 5.25 GHz 200 mW
5.25 – 5.35 GHz 200 mW
5.47 – 5.725 GHz 1 W
2.4 G 2.4 – 2.4835 GHz 100 mW
129D-Link M15 User Manual
Appendix C - Safety Statements
European Community Declaration of Conformity:
Česky [Czech]
Tímto D-Link Corporation prohlašuje, že tento produkt, jeho příslušenství a software jsou v souladu se směrnicí
2014/53/EU. Celý text ES prohlášení o shodě vydaného EU a o rmwaru produktu lze stáhnout na stránkách k
produktu www.dlink.com.
Dansk [Danish]
D-Link Corporation erklærer herved, at dette produkt, tilbehør og software er i overensstemmelse med direktiv
2014/53/EU. Den fulde tekst i EU-overensstemmelseserklæringen og produktrmware kan wnloades fra
produktsiden hos www.dlink.com.
Deutsch [German]
Hiermit erklärt die D-Link Corporation, dass dieses Produkt, das Zubehör und die Software der Richtlinie 2014/53/
EU entsprechen. Der vollständige Text der Konformitätserklärung der Europäischen Gemeinschaft sowie die
Firmware zum Produkt stehen Ihnen zum Herunterladen von der Produktseite im Internet auf www.dlink.com zur
Verfügung.
Eesti [Estonian]
Käesolevaga kinnitab D-Link Corporation, et see toode, tarvikud ja tarkvara on kooskõlas direktiiviga 2014/53/EL.
Euroopa Liidu vastavusdeklaratsiooni täistekst ja toote püsivara on allalaadimiseks saadaval tootelehel www.dlink.
com.
English
Hereby, D-Link Corporation, declares that this product, accessories, and software are in compliance with directive
2014/53/EU. The full text of the EU Declaration of Conformity and product rmware are available for download
from the product page at www.dlink.com
Español [Spanish]
Por la presente, D-Link Corporation declara que este producto, accesorios y software cumplen con las directivas
2014/53/UE. El texto completo de la declaración de conformidad de la UE y el rmware del producto están
disponibles y se pueden descargar desde la página del producto en www.dlink.com.
Ελληνική [Greek]
Με την παρούσα, η D-Link Corporation δηλώνει ότι αυτό το προϊόν, τα αξεσουάρ και το λογισμικό
συμμορφώνονται με την Οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης της ΕΕ και το
υλικολογισμικό του προϊόντος είναι διαθέσιμα για λήψη από τη σελίδα του προϊόντος στην τοποθεσία www.dlink.
com.
Français [French]
Par les présentes, D-Link Corporation déclare que ce produit, ces accessoires et ce logiciel sont conformes aux
directives 2014/53/UE.Le texte complet de la déclaration de conformité de l'UE et le icroprogramme du produit
sont disponibles au téléchargement sur la page des produits à www.dlink.com.
Italiano [Italian]
Con la presente, D-Link Corporation dichiara che questo prodotto, i relativi accessori e il software sono conformi
alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE e il rmware del prodotto sono
disponibili per il download dalla pagina del prodotto su www.dlink.com.
130D-Link M15 User Manual
Appendix C - Safety Statements
Latviski [Latvian]
Ar šo uzņēmums D-Link Corporation apliecina, ka šis produkts, piederumi un programmatūra atbilst direktīvai 2014/53/ES.
ES atbilstības deklarācijas pilno tekstu un produkta aparātprogrammatūru var lejupielādēt attiecīgā produkta lapā vietnē
www.dlink.com.
Lietuvių [Lithuanian]
Šiuo dokumentu „D-Link Corporation“ pareiškia, kad šis gaminys, priedai ir programinė įranga atitinka direktyvą 2014/53/
ES. Visą ES atitikties deklaracijos tekstą ir gaminio programinę aparatinę įrangą galima atsisiųsti iš gaminio puslapio adresu
www.dlink.com.
Nederlands [Dutch]
Hierbij verklaart D-Link Corporation dat dit product, accessoires en software voldoen aan de richtlijnen 2014/53/
EU. De volledige tekst van de EU conformiteitsverklaring en productrmware is beschikbaar voor download van de
productpagina op www.dlink.com.
Malti [Maltese]
Bil-preżenti, D-Link Corporation tiddikjara li dan il-prodott, l-aċċessorji, u s-software huma konformi mad-Direttiva
2014/53/UE. Tista’ tniżżel it-test sħiħ tad-dikjarazzjoni ta’ konformità tal-UE u l-rmware tal-prodott mill-paġna tal-prodott
fuq www.dlink.com.
Magyar [Hungarian]
Ezennel a D-Link Corporation kijelenti, hogy a jelen termék, annak tartozékai és szoftvere megfelelnek a 2014/53/EU sz.
rendeletek rendelkezéseinek. Az EU Megfelelőségi nyilatkozat teljes szövege és a termék rmware a termék oldaláról
tölthető le a www.dlink.com címen.
Polski [Polish]
D-Link Corporation niniejszym oświadcza, że ten produkt, akcesoria oraz oprogramowanie są zgodne z dyrektywami
2014/53/EU. Pełen tekst deklaracji zgodności UE oraz oprogramowanie sprzętowe do produktu można pobrać na stronie
produktu w witrynie www.dlink.com.
Português [Portuguese]
Desta forma, a D-Link Corporation declara que este produto, os acessórios e o software estão em conformidade com a
diretiva 2014/53/UE. O texto completo da declaração de conformidade da UE e do rmware
Slovensko[Slovenian]
Podjetje D-Link Corporation s tem izjavlja, da so ta izdelek, dodatna oprema in programnska oprema skladni z direktivami
2014/53/EU. Celotno besedilo izjave o skladnosti EU in vdelana programska oprema sta na voljo za prenos na strani
izdelka na www.dlink.com.
Slovensky [Slovak]
Spoločnosť D-Link týmto vyhlasuje, že tento produkt, príslušenstvo a softvér sú v súlade so smernicou 214/53/EÚ. Úplné
znenie vyhlásenia EÚ o zhode a rmvéri produktu sú k dispozícii na prevzatie zo stránky produktu www.dlink.com.
Suomi [Finnish]
D-Link Corporation täten vakuuttaa, että tämä tuote, lisävarusteet ja ohjelmisto ovat direktiivin 2014/53/EU vaatimusten
mukaisia. Täydellinen EU-vaatimustenmukaisuusvakuutus samoin kuin tuotteen laiteohjelmisto ovat ladattavissa
osoitteesta www.dlink.com.
Svenska[Swedish]
D-Link Corporation försäkrar härmed att denna produkt, tillbehör och programvara överensstämmer med direktiv
2014/53/EU. Hela texten med EU-försäkran om överensstämmelse och produkt-rmware kan hämtas från produktsidan
på www.dlink.com.
131D-Link M15 User Manual
Appendix C - Safety Statements
Íslenska [Icelandic]
Hér með lýsir D-Link Corporation því yr að þessi vara, fylgihlutir og hugbúnaður eru í samræmi við tilskipun
2014/53/EB. Sækja má ESB-samræmisyrlýsinguna í heild sinni og fastbúnað vörunnar af vefsíðu vörunnar á www.
dlink.com.
Norsk [Norwegian]
Herved erklærer D-Link Corporation at dette produktet, tilbehøret og programvaren er i samsvar med direktivet
2014/53/EU. Den fullstendige teksten i EU-erklæring om samsvar og produktets fastvare er tilgjengelig for
nedlasting fra produktsiden på www.dlink.com.
Warning Statement:
The equipment supplied by an approved external power adapter which is considered to be Pluggable Equipment Type A. The socket outlets shall
be installed near the equipment and be easily accessible.
132D-Link M15 User Manual
Appendix C - Safety Statements
NOTICE OF WIRELESS RADIO LAN USAGE IN THE EUROPEAN COMMUNITY FOR WIRELESS PRODUCT ONLY:
• This device is restricted to indoor use when operated in the European Community using channels in the 5.15-5.35 GHz band to reduce the
potential for interference.
• This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries. This
equipment may be operated in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, PL, PT, RO, SM, SE, RS, SK, ES,
CI, HU, and CY.
Usage Notes:
• To remain in conformance with European National spectrum usage regulations, frequency and channel limitations will be applied on the
products according to the country where the equipment will be deployed.
• This device is restricted from functioning in Ad-hoc mode while operating in 5 GHz. Ad-hoc mode is direct peer-to-peer communication
between two client devices without an Access Point.
• Access points will support DFS (Dynamic Frequency Selection) and TPC (Transmit Power Control) functionality as required when operating in
5 GHz band within the EU.
• Please refer to the product manual or datasheet to check whether your product uses 2.4 GHz and/or 5 GHz wireless.
HINWEIS ZUR VERWENDUNG VON DRAHTLOS-NETZWERK (WLAN) IN DER EUROPÄISCHEN GEMEINSCHAFT ( NUR FÜR
EIN DRAHTLOSES PRODUKT )
• Der Betrieb dieses Geräts in der Europäischen Gemeinschaft bei Nutzung von Kanälen im 5,15-5,35 GHz Frequenzband ist ausschließlich auf
Innenräume beschränkt, um das Interferenzpotential zu reduzieren.
• Bei diesem Gerät handelt es sich um ein zum Einsatz in allen EU-Mitgliedsstaaten und in EFTA-Ländern - ausgenommen Frankreich. Der
Betrieb dieses Geräts ist in den folgenden Ländern erlaubt: AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT,
PL, PT, RO, SM, SE, RS, SK, ES, CI, HU, CY
Gebrauchshinweise:
• Um den in Europa geltenden nationalen Vorschriften zum Nutzen des Funkspektrums weiterhin zu entsprechen, werden Frequenz und
Kanalbeschränkungen, dem jeweiligen Land, in dem das Gerät zum Einsatz kommt, entsprechend, auf die Produkte angewandt.
• Die Funktionalität im Ad-hoc-Modus bei Betrieb auf 5 GHz ist für dieses Gerät eingeschränkt. Bei dem Ad-hoc-Modus handelt es sich um eine
Peer-to-Peer-Kommunikation zwischen zwei Client-Geräten ohneeinen Access Point.
• Access Points unterstützen die Funktionen DFS (Dynamic Frequency Selection) und TPC (Transmit Power Control) wie erforderlich bei Betrieb
auf 5 GHz innerhalb der EU.
• Bitte schlagen Sie im Handbuch oder Datenblatt nach nach, ob Ihr Gerät eine 2,4 GHz und / oder 5 GHz Verbindung nutzt.
133D-Link M15 User Manual
Appendix C - Safety Statements
AVIS CONCERNANT L'UTILISATION DE LA RADIO SANS FIL LAN DANS LA COMMUNAUTÉ EUROPÉENNE (UNIQUEMENT
POUR LES PRODUITS SANS FIL)
• Cet appareil est limité à un usage intérieur lorsqu'il est utilisé dans la Communauté européenne sur les canaux de la bande de 5,15 à 5,35 GHz
an de réduire les risques d'interférences.
• Cet appareil est un système de transmission à large bande (émetteur-récepteur) de 2,4 GHz, destiné à être utilisé dans tous les États-
membres de l'UE et les pays de l'AELE. Cet équipement peut être utilisé dans les pays suivants : AL, AD, BE , BG, DK, DE, FI, FR, GR, GW, IS, IT,
HR, LI, LU, MT , MK, MD, MC, NL, NO, AT, PL, PT, RO, SM, SE, RS, SK, ES, CI, HU, CY
Notes d'utilisation:
• Pour rester en conformité avec la réglementation nationale européenne en matière d'utilisation du spectre, des limites de fréquence et de
canal seront appliquées aux produits selon le pays où l'équipement sera déployé.
• Cet appareil ne peut pas utiliser le mode Ad-hoc lorsqu'il fonctionne dans la bande de 5 GHz. Le mode Adhoc fournit une communication
directe pair à pair entre deux périphériques clients sans point d'accès.
• Les points d'accès prendront en charge les fonctionnalités DFS (Dynamic Frequency Selection) et TPC (Transmit Power Control) au besoin lors
du fonctionnement dans la bande de 5 GHz au sein de l'UE.
• Merci de vous référer au guide d'utilisation ou de la che technique an de vérier si votre produit utilise 2.4 GHz et/ou 5 GHz sans l.
AVISO DE USO DE LA LAN DE RADIO INALÁMBRICA EN LA COMUNIDAD EUROPEA (SOLO PARA EL PRODUCTO
INALÁMBRICO)
• El uso de este dispositivo está restringido a interiores cuando funciona en la Comunidad Europea utilizando canales en la banda de 5,15-5,35
GHz, para reducir la posibilidad de interferencias.
• Este dispositivo es un sistema de transmisión (transceptor) de banda ancha de 2,4 GHz, pensado para su uso en todos los estados miembros
de la UE y en los países de la AELC. Este equipo se puede utilizar en AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL,
NO, AT, PL, PT, RO, SM, SE, RS, SK, ES, CI, HU, CY
Notas de uso:
• Para seguir cumpliendo las normas europeas de uso del espectro nacional, se aplicarán limitaciones de frecuencia y canal en los productos
en función del país en el que se pondrá en funcionamiento el equipo.
• Este dispositivo tiene restringido el funcionamiento en modo Ad-hoc mientras funcione a 5 Ghz. El modo Ad-hoc es la comunicación directa
de igual a igual entre dos dispositivos cliente sin un punto de acceso.
• Los puntos de acceso admitirán la funcionalidad DFS (Selección de frecuencia dinámica) y TPC (Control de la potencia de transmisión) si es
necesario cuando funcionan a 5 Ghz dentro de la UE.
• Por favor compruebe el manual o la cha de producto para comprobar si el producto utiliza las bandas inalámbricas de 2.4 GHz y/o la de 5
GHz.
134D-Link M15 User Manual
Appendix C - Safety Statements
AVVISO PER L’USO DI LAN RADIO WIRELESS NELLA COMUNITÀ EUROPEA (SOLO PER PRODOTTI WIRELESS)
• Nella Comunità europea, l’uso di questo dispositivo è limitato esclusivamente agli ambienti interni sui canali compresi nella banda da 5,15 a
5,35 GHz al ne di ridurre potenziali interferenze. Questo dispositivo è un sistema di trasmissione a banda larga a 2,4 GHz (ricetrasmittente),
destinato all’uso in tutti gli stati membri dell’Unione europea e nei paesi EFTA.
• Questo dispositivo può essere utilizzato in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, PL, PT, RO, SM,
SE, RS, SK, ES, CI, HU, CY
Note per l’uso
• Al ne di mantenere la conformità alle normative nazionali europee per l’uso dello spettro di frequenze, saranno applicate limitazioni sulle
frequenze e sui canali per il prodotto in conformità alle normative del paese in cui il dispositivo viene utilizzato.
• Questo dispositivo non può essere attivato in modalità Ad-hoc durante il funzionamento a 5 Ghz. La modalità Ad-hoc è una comunicazione
diretta peer-to-peer fra due dispositivi client senza un punto di accesso.
• I punti di accesso supportano le funzionalità DFS (Dynamic Frequency Selection) e TPC (Transmit Power Control) richieste per operare a 5 Ghz
nell’Unione europea.
• Ti invitiamo a fare riferimento al manuale del prodotto o alla scheda tecnica per vericare se il tuo prodotto utilizza le frequenze 2,4 GHz e/o
5 GHz.
KENNISGEVING VAN DRAADLOOS RADIO LAN-GEBRUIK IN DE EUROPESE GEMEENSCHAP (ALLEEN VOOR
DRAADLOOS PRODUCT)
• Dit toestel is beperkt tot gebruik binnenshuis wanneer het wordt gebruikt in de Europese Gemeenschap gebruik makend van kanalen in de
5.15-5.35 GHz band om de kans op interferentie te beperken.
• Dit toestel is een 2.4 GHz breedband transmissiesysteem (transceiver) dat bedoeld is voor gebruik in alle EU lidstaten en EFTA landen. Deze
uitrusting mag gebruikt worden in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, PL, PT, RO, SM, SE, RS, SK,
ES, CI, HU, CY
Gebruiksaanwijzingen:
• Om de gebruiksvoorschriften van het Europese Nationale spectrum na te leven, zullen frequentie- en kanaalbeperkingen worden toegepast
op de producten volgens het land waar de uitrusting gebruikt zal worden.
• Dit toestel kan niet functioneren in Ad-hoc mode wanneer het gebruikt wordt in 5 GHz. Ad-hoc mode is directe peer-to-peer communicatie
tussen twee klantenapparaten zonder een toegangspunt.
• Toegangspunten ondersteunen DFS (Dynamic Frequency Selection) en TPC (Transmit Power Control) functionaliteit zoals vereist bij gebruik
in 5 GHz binnen de EU.
• Raadpleeg de handleiding of de datasheet om te controleren of uw product gebruik maakt van 2.4 GHz en/of 5 GHz.
135D-Link M15 User Manual
Appendix C - Safety Statements
SAFETY INSTRUCTIONS
The following general safety guidelines are provided to help ensure your own personal safety and protect your product from potential damage.
Remember to consult the product user instructions for more details.
• Static electricity can be harmful to electronic components. Discharge static electricity from your body (i.e. touching grounded bare metal)
before touching the product.
• Do not attempt to service the product and never disassemble the product. For some products with a user replaceable battery, please read
and follow the instructions in the user manual.
• Do not spill food or liquid on your product and never push any objects into the openings of your product.
• Do not use this product near water, areas with high humidity, or condensation unless the product is specically rated for outdoor application.
• Keep the product away from radiators and other heat sources.
• Always unplug the product from mains power before cleaning and use a dry lint free cloth only.
SICHERHEITSVORSCHRIFTEN
Die folgenden allgemeinen Sicherheitsvorschriften dienen als Hilfe zur Gewährleistung Ihrer eigenen Sicherheit und zum Schutz Ihres Produkts.
Weitere Details nden Sie in den Benutzeranleitungen zum Produkt.
• Statische Elektrizität kann elektronischen Komponenten schaden. Um Schäden durch statische Auadung zu vermeiden, leiten Sie
elektrostatische Ladungen von Ihrem Körper ab,
(z. B. durch Berühren eines geerdeten blanken Metallteils), bevor Sie das Produkt berühren.
• Unterlassen Sie jeden Versuch, das Produkt zu warten, und versuchen Sie nicht, es in seine Bestandteile zu zerlegen. Für einige Produkte mit
austauschbaren Akkus lesen Sie bitte das Benutzerhandbuch und befolgen Sie die dort beschriebenen Anleitungen.
• Vermeiden Sie, dass Speisen oder Flüssigkeiten auf Ihr Produkt gelangen, und stecken Sie keine Gegenstände in die Gehäuseschlitze oder
-önungen Ihres Produkts.
• Verwenden Sie dieses Produkt nicht in unmittelbarer Nähe von Wasser und nicht in Bereichen mit hoher Luftfeuchtigkeit oder Kondensation,
es sei denn, es ist speziell zur Nutzung in Außenbereichen vorgesehen und eingestuft.
• Halten Sie das Produkt von Heizkörpern und anderen Quellen fern, die Wärme erzeugen.
• Trennen Sie das Produkt immer von der Stromzufuhr, bevor Sie es reinigen und verwenden Sie dazu ausschließlich ein trockenes fusselfreies
Tuch.
136D-Link M15 User Manual
Appendix C - Safety Statements
CONSIGNES DE SÉCURITÉ
Les consignes générales de sécurité ci-après sont fournies an d’assurer votre sécurité personnelle et de protéger le produit d’éventuels
dommages. Veuillez consulter les consignes d’utilisation du produit pour plus de détails.
• L’électricité statique peut endommager les composants électroniques. Déchargez l’électricité statique de votre corps (en touchant un objet
en métal relié à la terre par exemple) avant de toucher le produit.
• N’essayez pas d’intervenir sur le produit et ne le démontez jamais. Pour certains produits contenant une batterie remplaçable par l’utilisateur,
veuillez lire et suivre les consignes contenues dans le manuel d’utilisation.
• Ne renversez pas d’aliments ou de liquide sur le produit et n’insérez jamais d’objets dans les orices.
• N’utilisez pas ce produit à proximité d’un point d’eau, de zones très humides ou de condensation sauf si le produit a été spéciquement
conçu pour une application extérieure.
• Éloignez le produit des radiateurs et autres sources de chaleur.
• Débranchez toujours le produit de l’alimentation avant de le nettoyer et utilisez uniquement un chion sec non pelucheux.
INSTRUCCIONES DE SEGURIDAD
Las siguientes directrices de seguridad general se facilitan para ayudarle a garantizar su propia seguridad personal y para proteger el producto
frente a posibles daños. No olvide consultar las instrucciones del usuario del producto para obtener más información.
• La electricidad estática puede resultar nociva para los componentes electrónicos. Descargue la electricidad estática de su cuerpo (p. ej.,
tocando algún metal sin revestimiento conectado a tierra) antes de tocar el producto.
• No intente realizar el mantenimiento del producto ni lo desmonte nunca. Para algunos productos con batería reemplazable por el usuario,
lea y siga las instrucciones del manual de usuario.
• No derrame comida o líquidos sobre el producto y nunca deje que caigan objetos en las aberturas del mismo.
• No utilice este producto cerca del agua, en zonas con humedad o condensación elevadas a menos que el producto esté clasicado
especícamente para aplicación en exteriores.
• Mantenga el producto alejado de los radiadores y de otras fuentes de calor.
• Desenchufe siempre el producto de la alimentación de red antes de limpiarlo y utilice solo un paño seco sin pelusa.
137D-Link M15 User Manual
Appendix C - Safety Statements
ISTRUZIONI PER LA SICUREZZA
Le seguenti linee guida sulla sicurezza sono fornite per contribuire a garantire la sicurezza personale degli utenti e a proteggere il prodotto da
potenziali danni. Per maggiori dettagli, consultare le istruzioni per l’utente del prodotto.
• L’elettricità statica può essere pericolosa per i componenti elettronici. Scaricare l’elettricità statica dal corpo (ad esempio toccando una parte
metallica collegata a terra) prima di toccare il prodotto.
• Non cercare di riparare il prodotto e non smontarlo mai. Per alcuni prodotti dotati di batteria sostituibile dall’utente, leggere e seguire le
istruzioni riportate nel manuale dell’utente.
• Non versare cibi o liquidi sul prodotto e non spingere mai alcun oggetto nelle aperture del prodotto.
• Non usare questo prodotto vicino all’acqua, in aree con elevato grado di umidità o soggette a condensa a meno che il prodotto non sia
specicatamente approvato per uso in ambienti esterni.
• Tenere il prodotto lontano da caloriferi e altre fonti di calore.
• Scollegare sempre il prodotto dalla presa elettrica prima di pulirlo e usare solo un panno asciutto che non lasci lacce.
VEILIGHEIDSINFORMATIE
De volgende algemene veiligheidsinformatie werd verstrekt om uw eigen persoonlijke veiligheid te waarborgen en uw product te beschermen
tegen mogelijke schade. Denk eraan om de gebruikersinstructies van het product te raadplegen voor meer informatie.
• Statische elektriciteit kan schadelijk zijn voor elektronische componenten. Ontlaad de statische elektriciteit van uw lichaam (d.w.z. het
aanraken van geaard bloot metaal) voordat uhet product aanraakt.
• U mag nooit proberen het product te onderhouden en u mag het product nooit demonteren. Voor sommige producten met door de
gebruiker te vervangen batterij, dient u de instructies in de gebruikershandleiding te lezen en te volgen.
• Mors geen voedsel of vloeistof op uw product en u mag nooit voorwerpen in de openingen van uw product duwen.
• Gebruik dit product niet in de buurt van water, gebieden met hoge vochtigheid of condensatie, tenzij het product speciek geclassiceerd is
voor gebruik buitenshuis.
• Houd het product uit de buurt van radiators en andere warmtebronnen.
• U dient het product steeds los te koppelen van de stroom voordat u het reinigt en gebruik uitsluitend een droge pluisvrije doek.
138D-Link M15 User Manual
Appendix C - Safety Statements
Disposing and Recycling Your Product
ENGLISH EN
This symbol on the product or packaging means that according to local laws and regulations this product should be not be disposed
of in household waste but sent for recycling. Please take it to a collection point designated by your local authorities once it has
reached the end of its life, some will accept products for free. By recycling the product and its packaging in this manner you help to
conserve the environment and protect human health.
D-Link and the Environment
At D-Link, we understand and are committed to reducing any impact our operations and products may have on the environment. To minimise
this impact D-Link designs and builds its products to be as environmentally friendly as possible, by using recyclable, low toxic materials in both
products and packaging.
D-Link recommends that you always switch o or unplug your D-Link products when they are not in use. By doing so you will help to save energy
and reduce CO2 emissions.
To learn more about our environmentally responsible products and packaging please visit www.dlinkgreen.com.
DEUTSCH DE
Dieses Symbol auf dem Produkt oder der Verpackung weist darauf hin, dass dieses Produkt gemäß bestehender örtlicher Gesetze
und Vorschriften nicht über den normalen Hausmüll entsorgt werden sollte, sondern einer Wiederverwertung zuzuführen ist. Bringen
Sie es bitte zu einer von Ihrer Kommunalbehörde entsprechend amtlich ausgewiesenen Sammelstelle, sobald das Produkt das Ende
seiner Nutzungsdauer erreicht hat. Für die Annahme solcher Produkte erheben einige dieser Stellen keine Gebühren. Durch ein auf
diese Weise durchgeführtes Recycling des Produkts und seiner Verpackung helfen Sie, die Umwelt zu schonen und die menschliche
Gesundheit zu schützen.
D-Link und die Umwelt
D-Link ist sich den möglichen Auswirkungen seiner Geschäftstätigkeiten und seiner Produkte auf die Umwelt bewusst und fühlt sich verpichtet,
diese entsprechend zu mindern. Zu diesem Zweck entwickelt und stellt D-Link seine Produkte mit dem Ziel größtmöglicher Umweltfreundlichkeit
her und verwendet wiederverwertbare, schadstoarme Materialien bei Produktherstellung und Verpackung.
D-Link empehlt, Ihre Produkte von D-Link, wenn nicht in Gebrauch, immer auszuschalten oder vom Netz zu nehmen. Auf diese Weise helfen
Sie, Energie zu sparen und CO2-Emissionen zu reduzieren.
Wenn Sie mehr über unsere umweltgerechten Produkte und Verpackungen wissen möchten, nden Sie entsprechende Informationen im Internet
unter www.dlinkgreen.com.
139D-Link M15 User Manual
Appendix C - Safety Statements
FRANÇAIS FR
Ce symbole apposé sur le produit ou son emballage signie que, conformément aux lois et règlementations locales, ce produit ne
doit pas être éliminé avec les déchets domestiques mais recyclé. Veuillez le rapporter à un point de collecte prévu à cet eet par les
autorités locales; certains accepteront vos produits gratuitement. En recyclant le produit et son emballage de cette manière, vous
aidez à préserver l’environnement et à protéger la santé de l’homme.
D-Link et l’environnement
Chez D-Link, nous sommes conscients de l'impact de nos opérations et produits sur l'environnement et nous engageons à le réduire. Pour limiter
cet impact, D-Link conçoit et fabrique ses produits de manière aussi écologique que possible, en utilisant des matériaux recyclables et faiblement
toxiques, tant dans ses produits que ses emballages.
D-Link recommande de toujours éteindre ou débrancher vos produits D-Link lorsque vous ne les utilisez pas. Vous réaliserez ainsi des économies
d’énergie et réduirez vos émissions de CO2.
Pour en savoir plus sur les produits et emballages respectueux de l’environnement, veuillez consulter le www.dlinkgreen.com.
ESPAÑOL ES
Este símbolo en el producto o el embalaje signica que, de acuerdo con la legislación y la normativa local, este producto no se debe
desechar en la basura doméstica sino que se debe reciclar. Llévelo a un punto de recogida designado por las autoridades locales una
vez que ha llegado al n de su vida útil; algunos de ellos aceptan recogerlos de forma gratuita. Al reciclar el producto y su embalaje
de esta forma, contribuye a preservar el medio ambiente y a proteger la salud de los seres humanos.
D-Link y el medio ambiente
En D-Link, comprendemos y estamos comprometidos con la reducción del impacto que puedan tener nuestras actividades y nuestros productos
en el medio ambiente. Para reducir este impacto, D-Link diseña y fabrica sus productos para que sean lo más ecológicos posible, utilizando
materiales reciclables y de baja toxicidad tanto en los productos como en el embalaje.
D-Link recomienda apagar o desenchufar los productos D-Link cuando no se estén utilizando. Al hacerlo, contribuirá a ahorrar energía y a reducir
las emisiones de CO2.
Para obtener más información acerca de nuestros productos y embalajes ecológicos, visite el sitio www.dlinkgreen.com.
140D-Link M15 User Manual
Appendix C - Safety Statements
ITALIANO IT
La presenza di questo simbolo sul prodotto o sulla confezione del prodotto indica che, in conformità alle leggi e alle normative locali,
questo prodotto non deve essere smaltito nei riuti domestici, ma avviato al riciclo. Una volta terminato il ciclo di vita utile, portare il
prodotto presso un punto di raccolta indicato dalle autorità locali. Alcuni questi punti di raccolta accettano gratuitamente i prodotti
da riciclare. Scegliendo di riciclare il prodotto e il relativo imballaggio, si contribuirà a preservare l'ambiente e a salvaguardare la
salute umana.
D-Link e l'ambiente
D-Link cerca da sempre di ridurre l'impatto ambientale dei propri stabilimenti e dei propri prodotti. Allo scopo di ridurre al minimo tale impatto,
D-Link progetta e realizza i propri prodotti in modo che rispettino il più possibile l'ambiente, utilizzando materiali riciclabili a basso tasso di
tossicità sia per i prodotti che per gli imballaggi.
D-Link raccomanda di spegnere sempre i prodotti D-Link o di scollegarne la spina quando non vengono utilizzati. In questo modo si contribuirà
a risparmiare energia e a ridurre le emissioni di anidride carbonica.
Per ulteriori informazioni sui prodotti e sugli imballaggi D-Link a ridotto impatto ambientale, visitate il sito all'indirizzo www.dlinkgreen.com.
NEDERLANDS NL
Dit symbool op het product of de verpakking betekent dat dit product volgens de plaatselijke wetgeving niet mag worden weggegooid
met het huishoudelijk afval, maar voor recyclage moeten worden ingeleverd. Zodra het product het einde van de levensduur heeft
bereikt, dient u het naar een inzamelpunt te brengen dat hiertoe werd aangeduid door uw plaatselijke autoriteiten, sommige
autoriteiten accepteren producten zonder dat u hiervoor dient te betalen. Door het product en de verpakking op deze manier te
recyclen helpt u het milieu en de gezondheid van de mens te beschermen.
D-Link en het milieu
Bij D-Link spannen we ons in om de impact van onze handelingen en producten op het milieu te beperken. Om deze impact te beperken, ontwerpt
en bouwt D-Link zijn producten zo milieuvriendelijk mogelijk, door het gebruik van recycleerbare producten met lage toxiciteit in product en
verpakking.
D-Link raadt aan om steeds uw D-Link producten uit te schakelen of uit de stekker te halen wanneer u ze niet gebruikt. Door dit te doen bespaart
u energie en beperkt u de CO2-emissies.
Breng een bezoek aan www.dlinkgreen.com voor meer informatie over onze milieuverantwoorde producten en verpakkingen.
141D-Link M15 User Manual
Appendix C - Safety Statements
POLSKI PL
Ten symbol umieszczony na produkcie lub opakowaniu oznacza, że zgodnie z miejscowym prawem i lokalnymi przepisami
niniejszego produktu nie wolno wyrzucać jak odpady czy śmieci z gospodarstwa domowego, lecz należy go poddać procesowi
recyklingu. Po zakończeniu użytkowania produktu, niektóre odpowiednie do tego celu podmioty przyjmą takie produkty
nieodpłatnie, dlatego prosimy dostarczyć go do punktu zbiórki wskazanego przez lokalne władze. Poprzez proces recyklingu i
dzięki takiemu postępowaniu z produktem oraz jego opakowaniem, pomogą Państwo chronić środowisko naturalne i dbać o
ludzkie zdrowie.
D-Link i środowisko
D-Link podchodzimy w sposób świadomy do ochrony otoczenia oraz jesteśmy zaangażowani w zmniejszanie wpływu naszych działań i produktów
na środowisko naturalne. W celu zminimalizowania takiego wpływu rma D-Link konstruuje i wytwarza swoje produkty w taki sposób, aby były
one jak najbardziej przyjazne środowisku, stosując do tych celów materiały nadające się do powtórnego wykorzystania, charakteryzujące się
małą toksycznością zarówno w przypadku samych produktów jak i opakowań.
Firma D-Link zaleca, aby Państwo zawsze prawidłowo wyłączali z użytku swoje produkty D-Link, gdy nie są one wykorzystywane. Postępując w
ten sposób pozwalają Państwo oszczędzać energię i zmniejszać emisje CO2.
Aby dowiedzieć się więcej na temat produktów i opakowań mających wpływ na środowisko prosimy zapoznać się ze stroną Internetową www.
dlinkgreen.com.
ČESKY CZ
Tento symbol na výrobku nebo jeho obalu znamená, že podle místně platných předpisů se výrobek nesmí vyhazovat do komunálního
odpadu, ale odeslat k recyklaci. Až výrobek doslouží, odneste jej prosím na sběrné místo určené místními úřady k tomuto účelu.
Některá sběrná místa přijímají výrobky zdarma. Recyklací výrobku i obalu pomáháte chránit životní prostředí i lidské zdraví.
D-Link a životní prostředí
Ve společnosti D-Link jsme si vědomi vlivu našich provozů a výrobků na životní prostředí a snažíme se o minimalizaci těchto vlivů. Proto své
výrobky navrhujeme a vyrábíme tak, aby byly co nejekologičtější, a ve výrobcích i obalech používáme recyklovatelné a nízkotoxické materiály.
Společnost D-Link doporučuje, abyste své výrobky značky D-Link vypnuli nebo vytáhli ze zásuvky vždy, když je nepoužíváte. Pomůžete tak šetřit
energii a snížit emise CO2.
Více informací o našich ekologických výrobcích a obalech najdete na adrese www.dlinkgreen.com.
142D-Link M15 User Manual
Appendix C - Safety Statements
MAGYAR HU
Ez a szimbólum a terméken vagy a csomagoláson azt jelenti, hogy a helyi törvényeknek és szabályoknak megfelelően ez a termék
nem semmisíthető meg a háztartási hulladékkal együtt, hanem újrahasznosításra kell küldeni. Kérjük, hogy a termék élettartamának
elteltét követően vigye azt a helyi hatóság által kijelölt gyűjtőhelyre. A termékek egyes helyeken ingyen elhelyezhetők. A termék és
a csomagolás újrahasznosításával segíti védeni a környezetet és az emberek egészségét.
A D-Link és a környezet
A D-Linknél megértjük és elkötelezettek vagyunk a műveleteink és termékeink környezetre gyakorolt hatásainak csökkentésére. Az ezen hatás
csökkentése érdekében a D-Link a lehető leginkább környezetbarát termékeket tervez és gyárt azáltal, hogy újrahasznosítható, alacsony károsanyag-
tartalmú termékeket gyárt és csomagolásokat alkalmaz.
A D-Link azt javasolja, hogy mindig kapcsolja ki vagy húzza ki a D-Link termékeket a tápforrásból, ha nem használja azokat. Ezzel segít az energia
megtakarításában és a széndioxid kibocsátásának csökkentésében.
Környezetbarát termékeinkről és csomagolásainkról további információkat a www.dlinkgreen.com weboldalon tudhat meg.
NORSK NO
Dette symbolet på produktet eller forpakningen betyr at dette produktet ifølge lokale lover og forskrifter ikke skal kastes sammen
med husholdningsavfall, men leveres inn til gjenvinning. Vennligst ta det til et innsamlingssted anvist av lokale myndigheter når
det er kommet til slutten av levetiden. Noen steder aksepteres produkter uten avgift. Ved på denne måten å gjenvinne produktet
og forpakningen hjelper du å verne miljøet og beskytte folks helse.
D-Link og miljøet
Hos D-Link forstår vi oss på og er forpliktet til å minske innvirkningen som vår drift og våre produkter kan ha på miljøet. For å minimalisere denne
innvirkningen designer og lager D-Link produkter som er så miljøvennlig som mulig, ved å bruke resirkulerbare, lav-toksiske materialer både i
produktene og forpakningen.
D-Link anbefaler at du alltid slår av eller frakobler D-Link-produkter når de ikke er i bruk. Ved å gjøre dette hjelper du å spare energi og å redusere
CO2-utslipp.
For mer informasjon angående våre miljøansvarlige produkter og forpakninger kan du gå til www.dlinkgreen.com.
143D-Link M15 User Manual
Appendix C - Safety Statements
DANSK DK
Dette symbol på produktet eller emballagen betyder, at dette produkt i henhold til lokale love og regler ikke må bortskaes som
husholdningsaald, mens skal sendes til genbrug. Indlever produktet til et indsamlingssted som angivet af de lokale myndigheder,
når det er nået til slutningen af dets levetid. I nogle tilfælde vil produktet blive modtaget gratis. Ved at indlevere produktet og dets
emballage til genbrug på denne måde bidrager du til at beskytte miljøet og den menneskelige sundhed.
D-Link og miljøet
Hos D-Link forstår vi og bestræber os på at reducere enhver indvirkning, som vores aktiviteter og produkter kan have på miljøet. For at minimere
denne indvirkning designer og producerer D-Link sine produkter, så de er så miljøvenlige som muligt, ved at bruge genanvendelige materialer
med lavt giftighedsniveau i både produkter og emballage.
D-Link anbefaler, at du altid slukker eller frakobler dine D-Link-produkter, når de ikke er i brug. Ved at gøre det bidrager du til at spare energi og
reducere CO2-udledningerne.
Du kan nde ere oplysninger om vores miljømæssigt ansvarlige produkter og emballage på www.dlinkgreen.com.
SUOMI FI
Tämä symboli tuotteen pakkauksessa tarkoittaa, että paikallisten lakien ja säännösten mukaisesti tätä tuotetta ei pidä hävittää
yleisen kotitalousjätteen seassa vaan se tulee toimittaa kierrätettäväksi. Kun tuote on elinkaarensa päässä, toimita se lähimpään
viranomaisten hyväksymään kierrätyspisteeseen. Kierrättämällä käytetyn tuotteen ja sen pakkauksen autat tukemaan sekä ympäristön
että ihmisten terveyttä ja hyvinvointia.
D-Link ja ympäristö
D-Link ymmärtää ympäristönsuojelun tärkeyden ja on sitoutunut vähentämään tuotteistaan ja niiden valmistuksesta ympäristölle mahdollisesti
aiheutuvia haittavaikutuksia. Nämä negatiiviset vaikutukset minimoidakseen D-Link suunnittelee ja valmistaa tuotteensa mahdollisimman
ympäristöystävällisiksi käyttämällä kierrätettäviä, alhaisia pitoisuuksia haitallisia aineita sisältäviä materiaaleja sekä tuotteissaan että niiden
pakkauksissa.
Suosittelemme, että irrotat D-Link-tuotteesi virtalähteestä tai sammutat ne aina, kun ne eivät ole käytössä. Toimimalla näin autat säästämään
energiaa ja vähentämään hiilidioksiidipäästöjä.
Lue lisää ympäristöystävällisistä D-Link-tuotteista ja pakkauksistamme osoitteesta www.dlinkgreen.com.
144D-Link M15 User Manual
Appendix C - Safety Statements
SVENSKA SE
Den här symbolen på produkten eller förpackningen betyder att produkten enligt lokala lagar och föreskrifter inte skall kastas i
hushållssoporna utan i stället återvinnas. Ta den vid slutet av dess livslängd till en av din lokala myndighet utsedd uppsamlingsplats,
vissa accepterar produkter utan kostnad. Genom att på detta sätt återvinna produkten och förpackningen hjälper du till att bevara
miljön och skydda människors hälsa.
D-Link och miljön
På D-Link förstår vi och är fast beslutna att minska den påverkan våra verksamheter och produkter kan ha på miljön. För att minska denna påverkan
utformar och bygger D-Link sina produkter för att de ska vara så miljövänliga som möjligt, genom att använda återvinningsbara material med
låg gifthalt i både produkter och förpackningar.
D-Link rekommenderar att du alltid stänger av eller kopplar ur dina D-Link produkter när du inte använder dem. Genom att göra detta hjälper
du till att spara energi och minska utsläpp av koldioxid.
För mer information om våra miljöansvariga produkter och förpackningar www.dlinkgreen.com.
PORTUGUÊS PT
Este símbolo no produto ou embalagem signica que, de acordo com as leis e regulamentações locais, este produto não deverá ser
eliminado juntamente com o lixo doméstico mas enviado para a reciclagem. Transporte-o para um ponto de recolha designado pelas
suas autoridades locais quando este tiver atingido o m da sua vida útil, alguns destes pontos aceitam produtos gratuitamente. Ao
reciclar o produto e respectiva embalagem desta forma, ajuda a preservar o ambiente e protege a saúde humana.
A D-Link e o ambiente
Na D-Link compreendemos e comprometemo-nos com a redução do impacto que as nossas operações e produtos possam ter no ambiente.
Para minimizar este impacto a D-Link concebe e constrói os seus produtos para que estes sejam o mais inofensivos para o ambiente possível,
utilizando meteriais recicláveis e não tóxicos tanto nos produtos como nas embalagens.
A D-Link recomenda que desligue os seus produtos D-Link quando estes não se encontrarem em utilização. Com esta acção ajudará a poupar
energia e reduzir as emissões de CO2.
Para saber mais sobre os nossos produtos e embalagens responsáveis a nível ambiental visite www.dlinkgreen.com.
