AX1500 4G CAT 6 SMART ROUTER
G416
iD-Link G416 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes.
Manual Revisions
Hardware Revision Date Description
A1 v1.00 2022/05/06 Initial release
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other
countries. App Store
SM
is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2022 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from
D-Link Corporation, Inc.
Preface
iiD-Link G416 User Manual
ErP Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-
saving Network Standby mode within 1 minute of no packets being transmitted.
G416 Network Standby: 5.1W
Switched O: 0.168W
iiiD-Link G416 User Manual
Table of Contents
Table of Contents
Product Overview ..............................................................1
Package Contents .........................................................................1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ....................................................................................3
Hardware Overview .....................................................................4
LED Indicators ........................................................................4
Back Panel ...............................................................................6
Side View .............................................................................7
Installation ......................................................................... 8
Before you Begin ...........................................................................8
Wireless Installation Considerations ......................................9
Setup ...............................................................................................10
EAGLE PRO AI Setup ..........................................................11
Hardware Setup ..................................................................12
Setup Wizard ........................................................................15
Conguration ...................................................................22

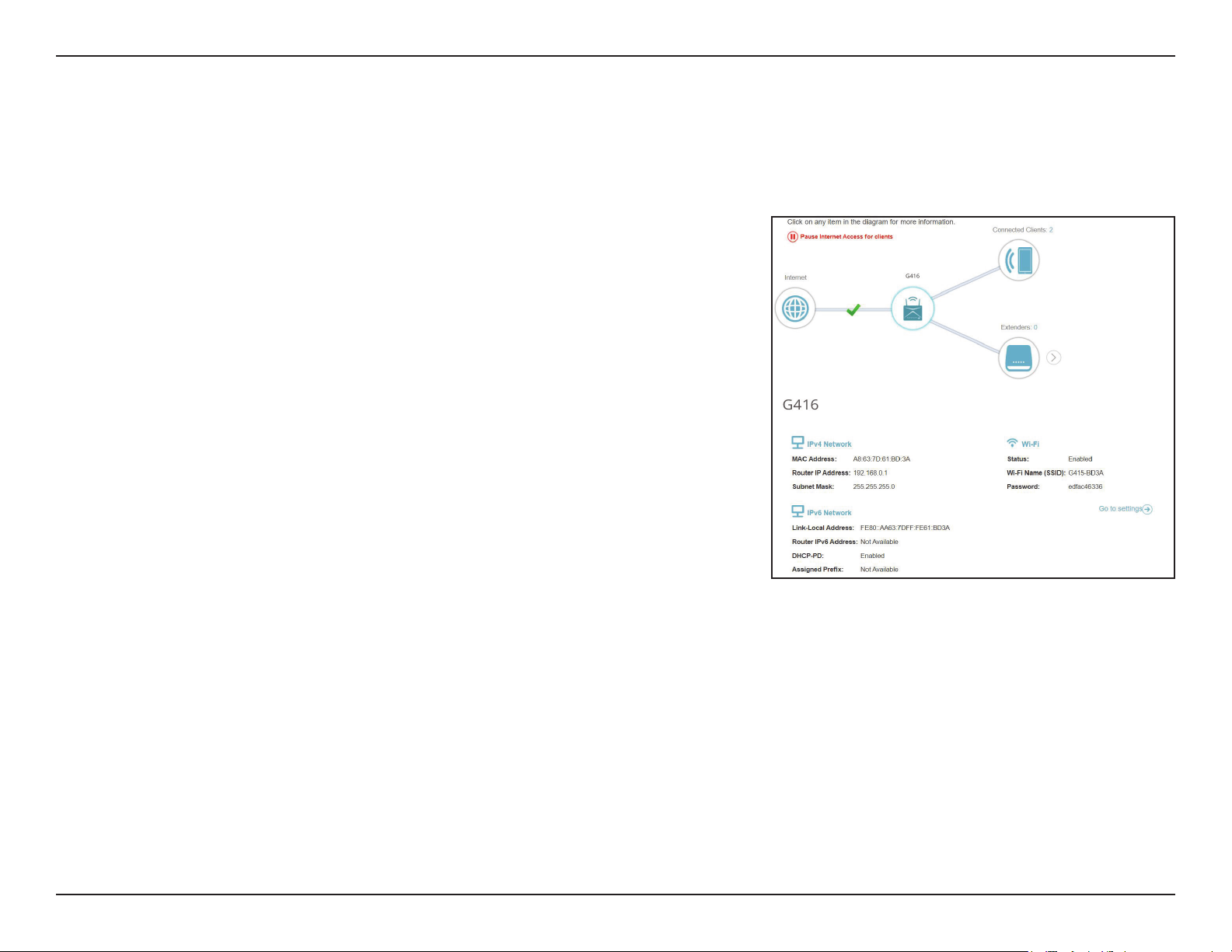

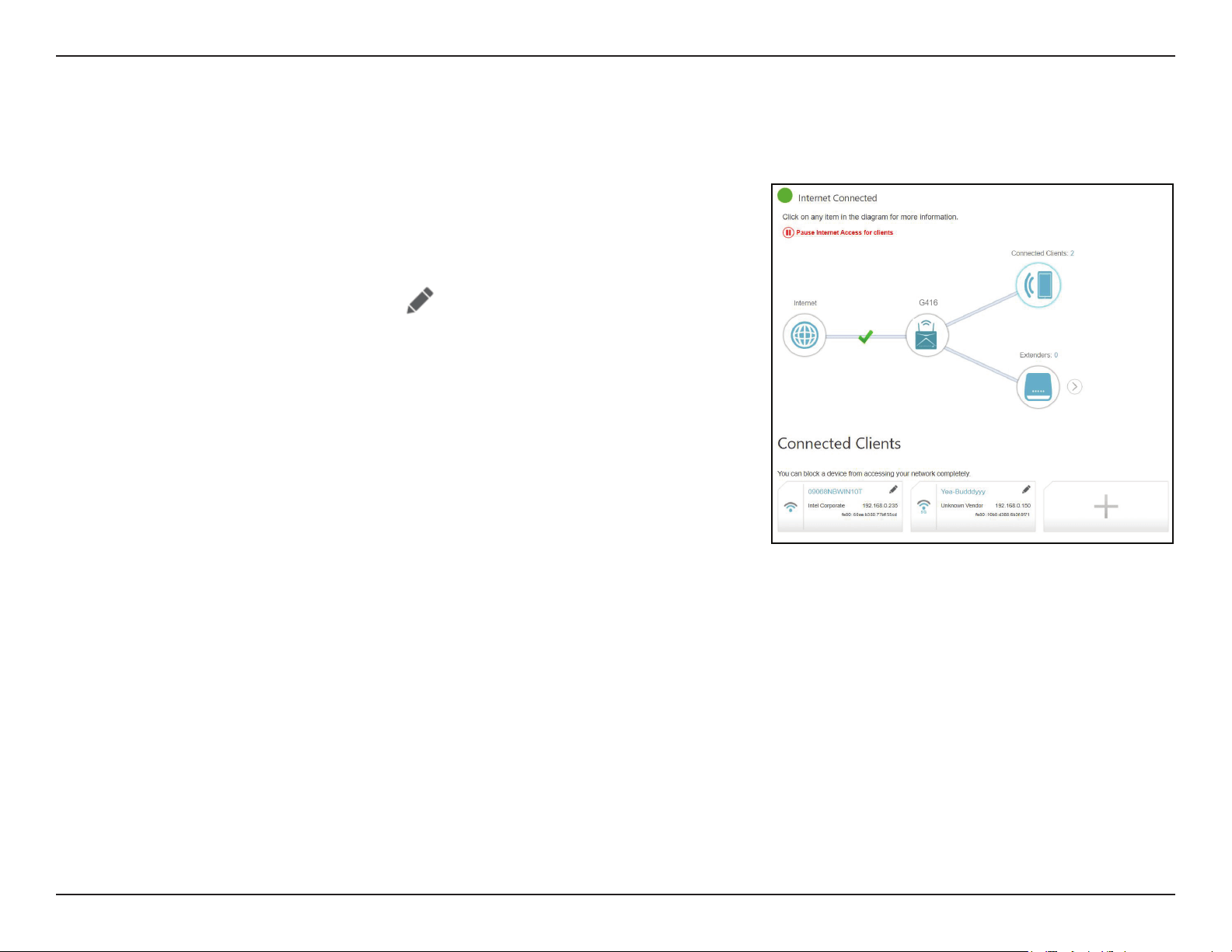

Home ..............................................................................................23
Internet ................................................................................... 24
G416 ........................................................................................25

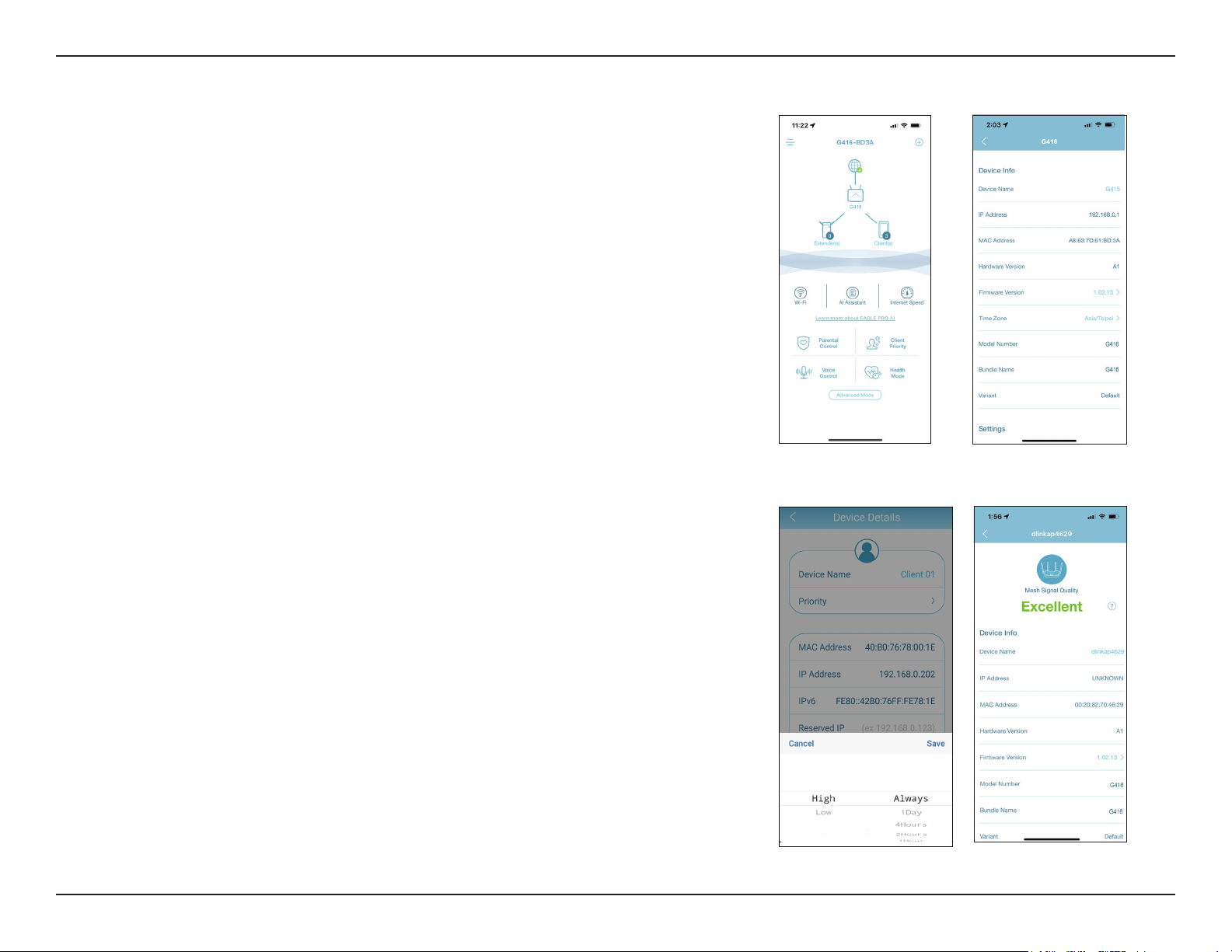

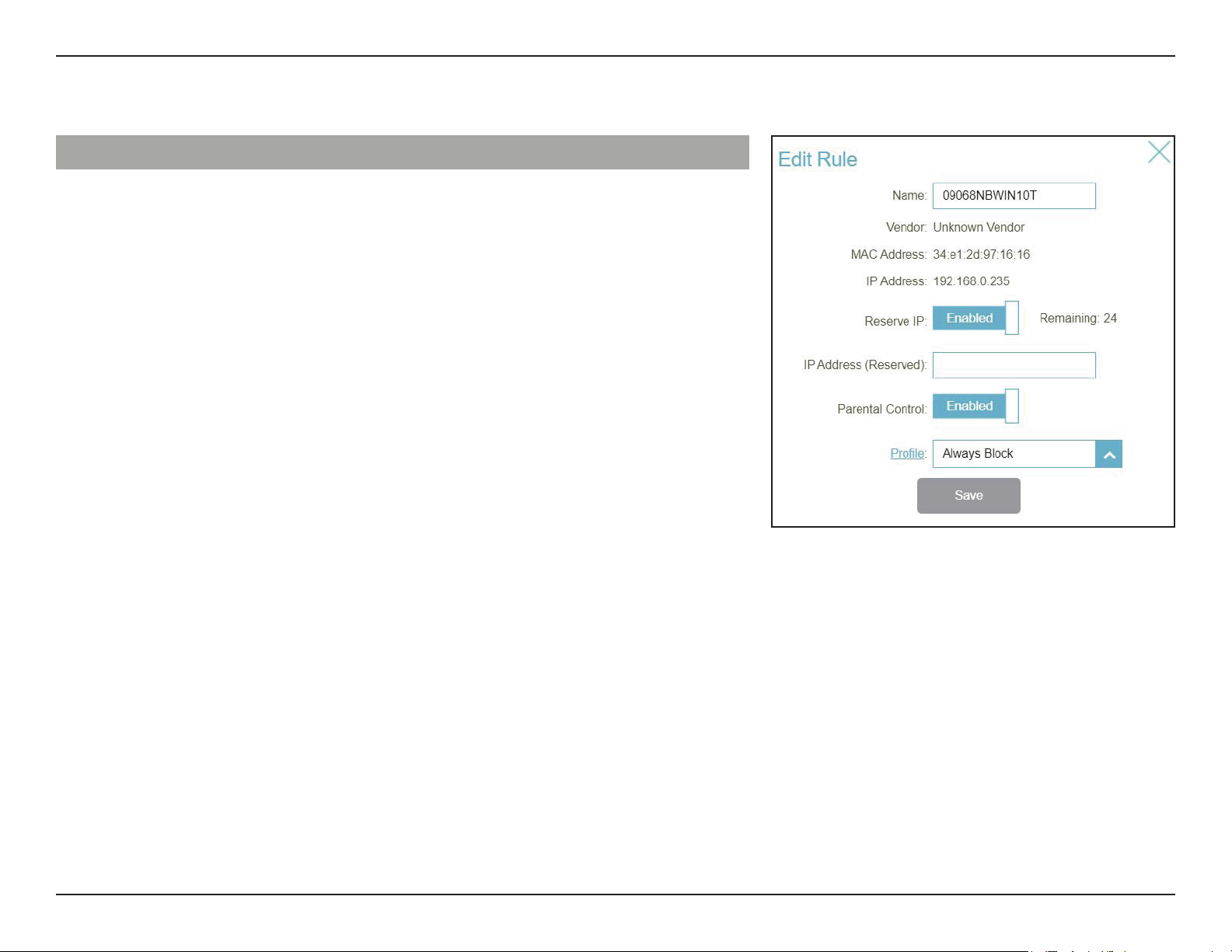

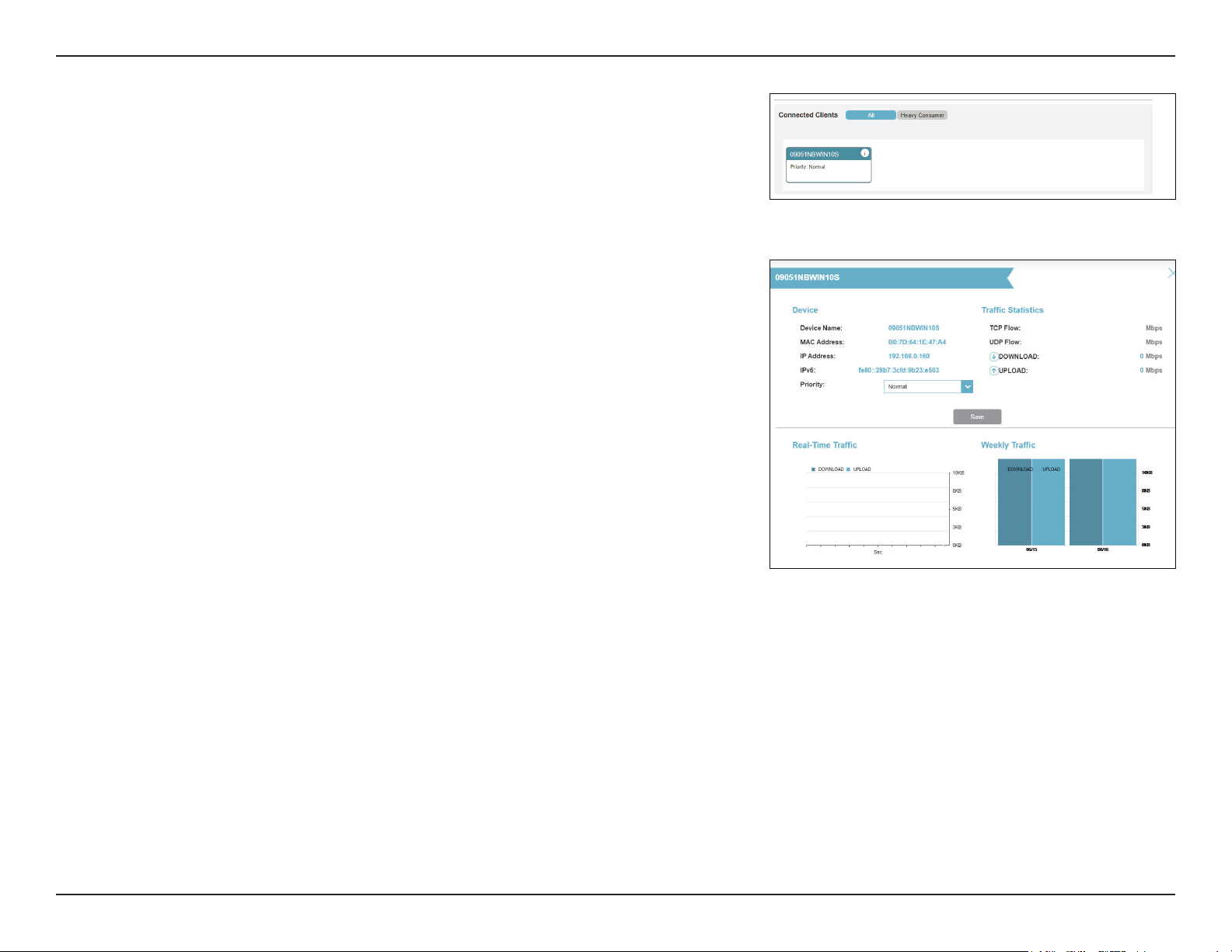

Connected Clients ..............................................................26
Settings ..........................................................................................28
Wizard .....................................................................................28

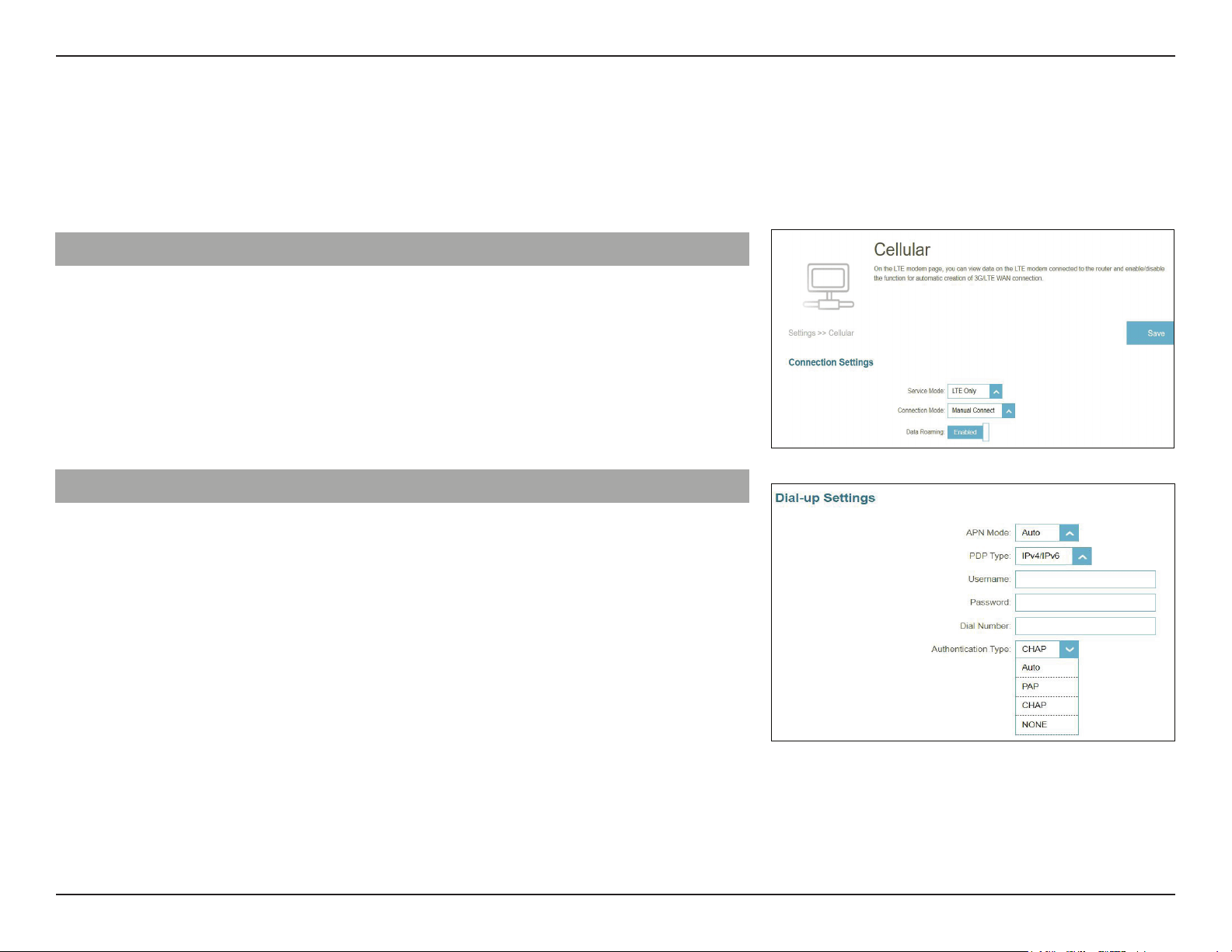

Cellular ....................................................................................29

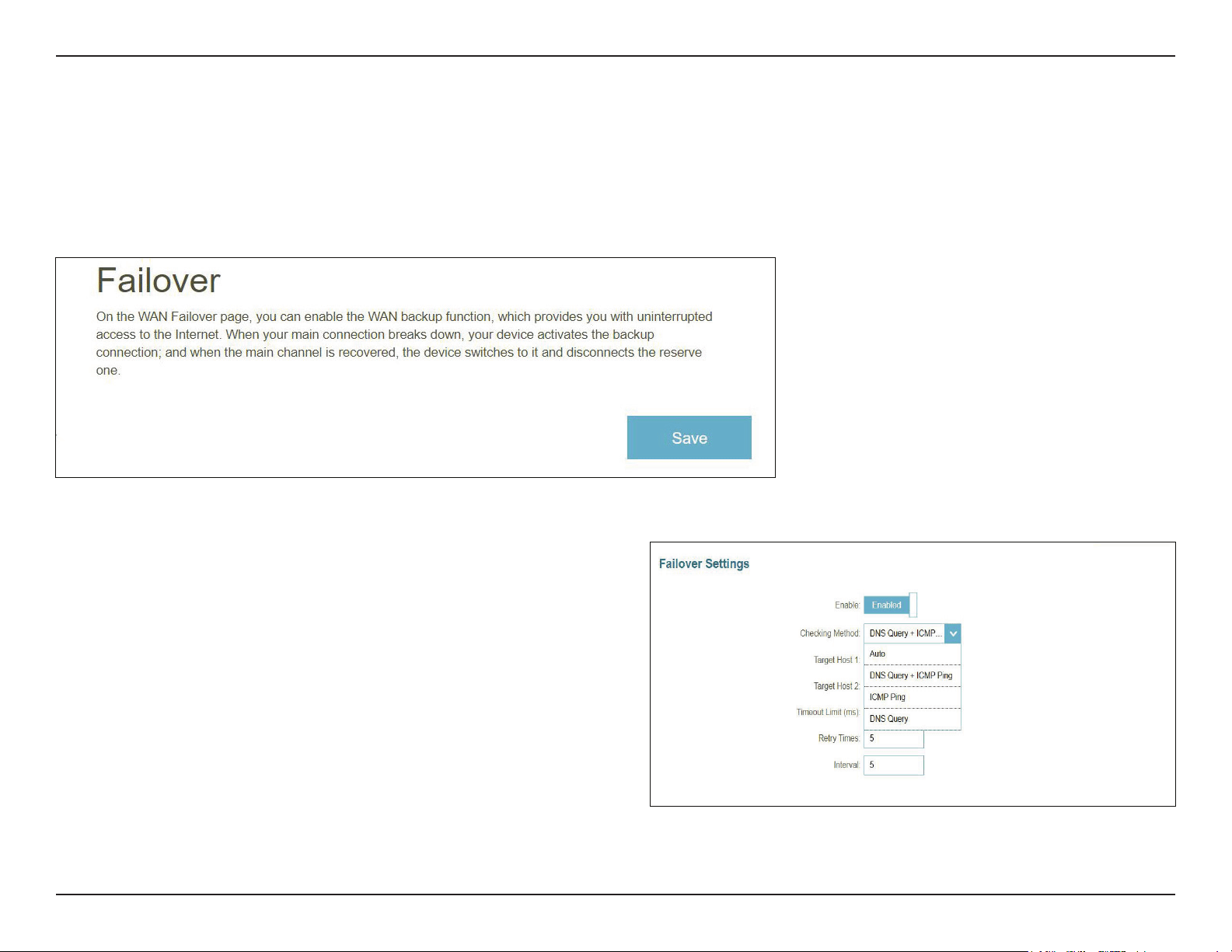

Failover ...................................................................................30

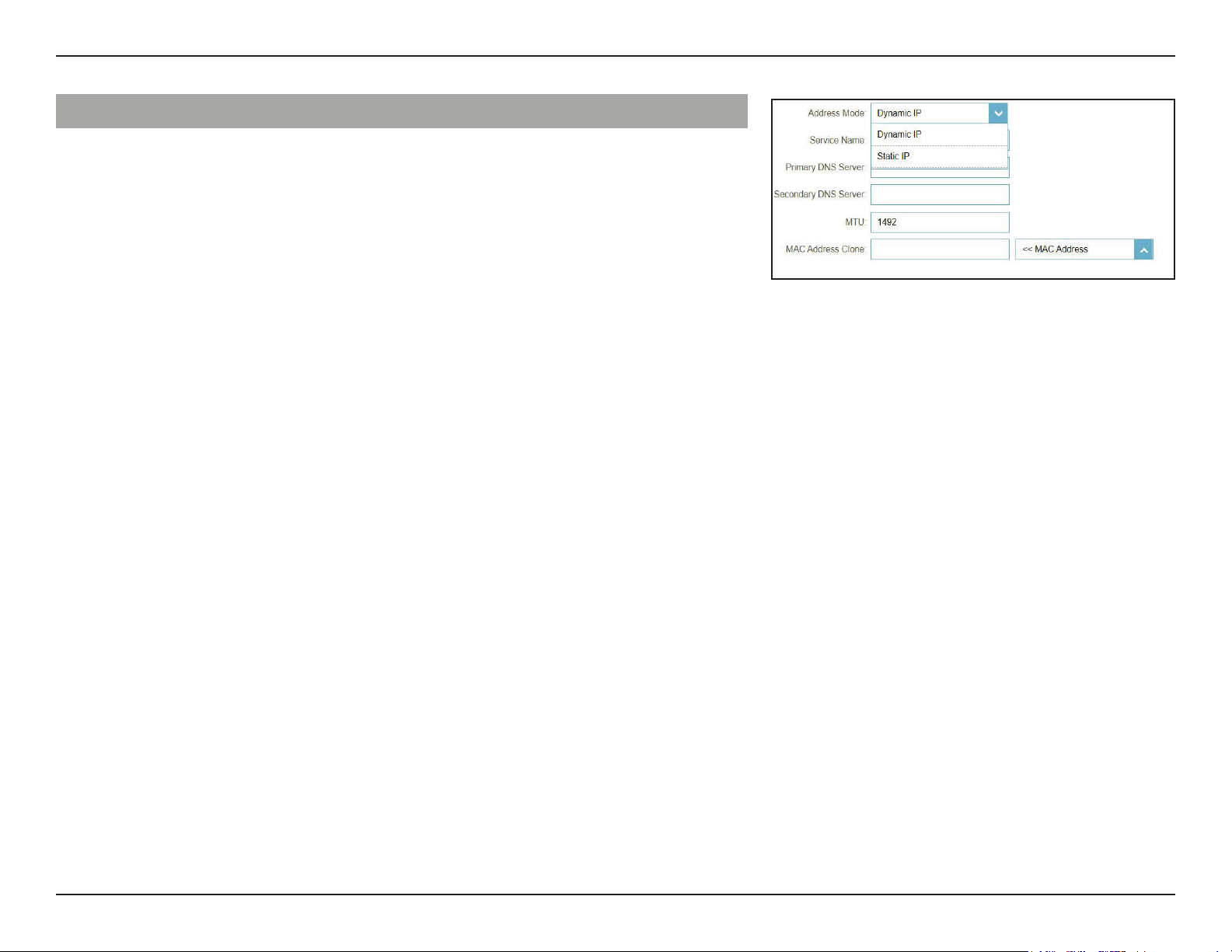

Internet - IPv4 ....................................................................... 31

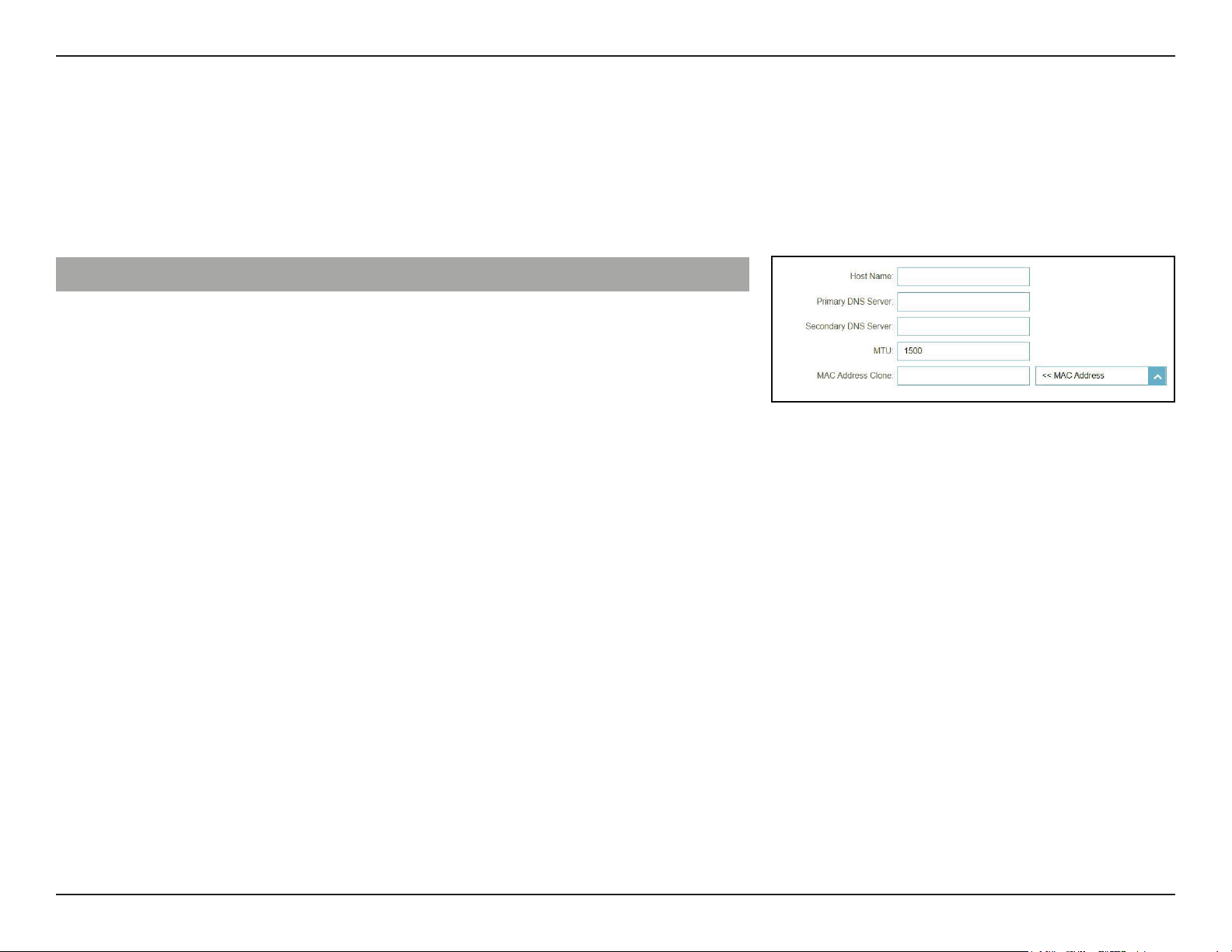

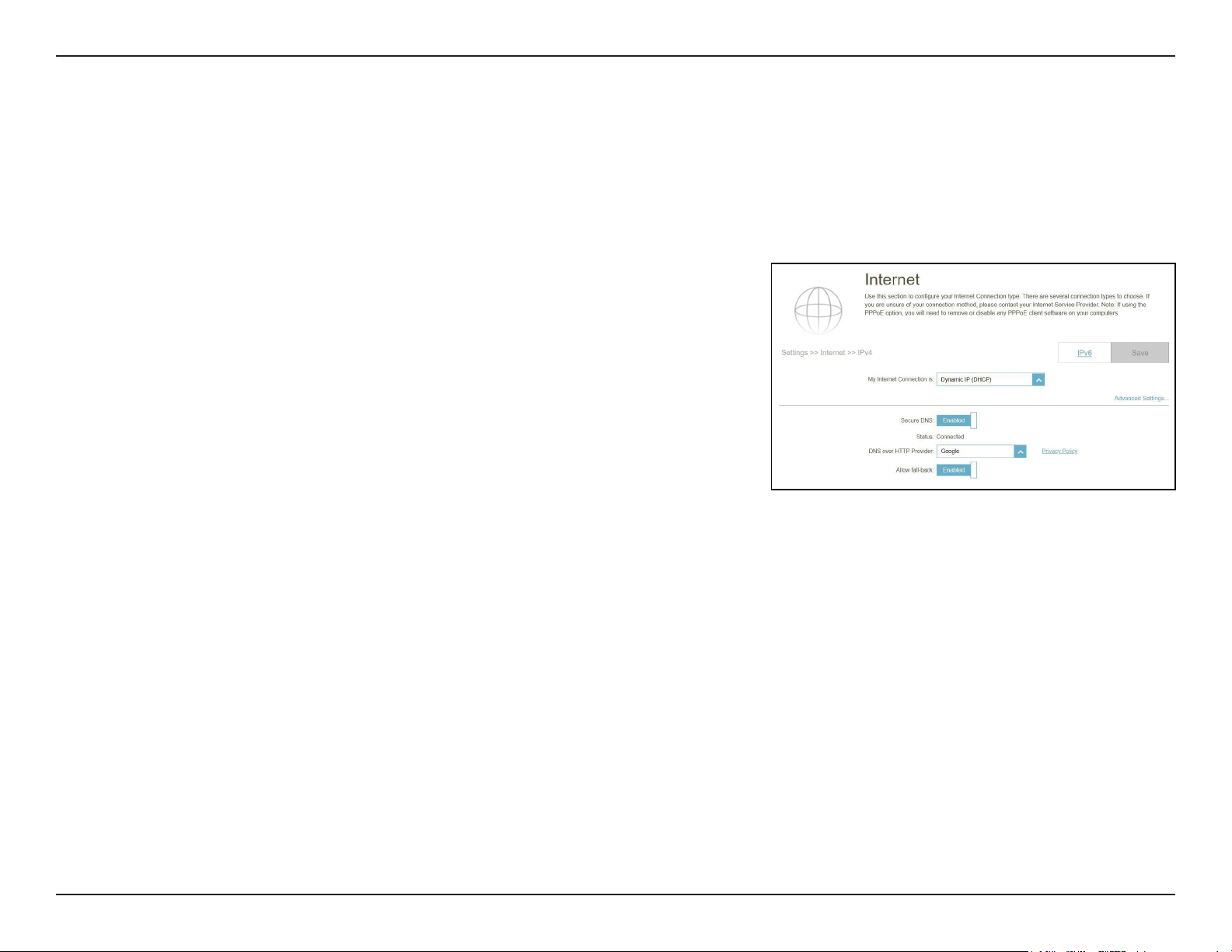

IPv4 - Dynamic IP (DHCP) ............................................32
IPv4 - Static IP ..................................................................33
IPv4 - PPPoE .....................................................................34
Internet - IPv6 ....................................................................... 36
IPv6 - Auto Detection ...................................................37
IPv6 - Static IPv6 .............................................................39
IPv6 - Auto Conguration (SLAAC/DHCPv6) ........41
IPv6 - PPPoE .....................................................................43
IPv6 - 6rd ...........................................................................47
IPv6 - Local Connectivity Only ..................................49
Wireless..............................................................................50
Guest Zone .......................................................................56
Network .................................................................................. 58

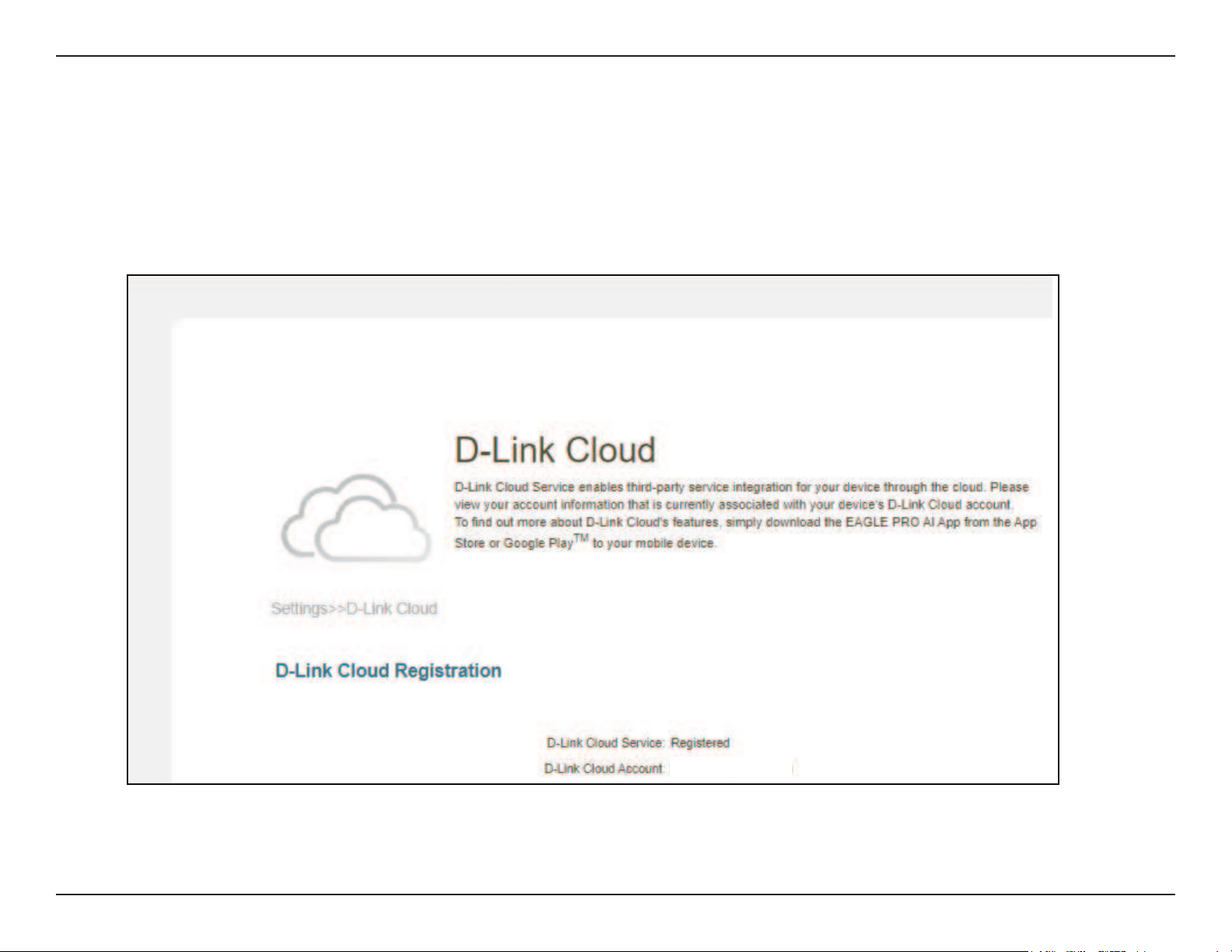

D-Link Cloud ......................................................................... 60
Operation Mode .................................................................. 61
Features ..................................................................................62
Parental Control ..................................................................62
Data Cap .................................................................................65
SMS ..........................................................................................66
PIN ............................................................................................68
USSD ........................................................................................69
QoS Engine............................................................................70
Firewall ...................................................................................72
Firewall Settings - IPv4/IPv6 Rules ................................74
Port Forwarding ..................................................................76
Port Forwarding - Virtual Server ....................................78
Static Routes - IPv4 .............................................................80
ivD-Link G416 User Manual
Table of Contents
Static Routes - IPv6 .............................................................81
Dynamic DNS .......................................................................82
Quick VPN ..............................................................................84
Management ................................................................................ 85
Time & Schedule - Time ....................................................85
Time & Schedule - Schedule ...........................................86
System Log ............................................................................87
System Admin - Admin .....................................................89
System Admin - System ....................................................90
User ..........................................................................................91
Upgrade .................................................................................92
Statistics .................................................................................93
EAGLE PRO AI ...................................................................94
Voice Control ....................................................................98
Register a D-Link Cloud Service Account ...........................99

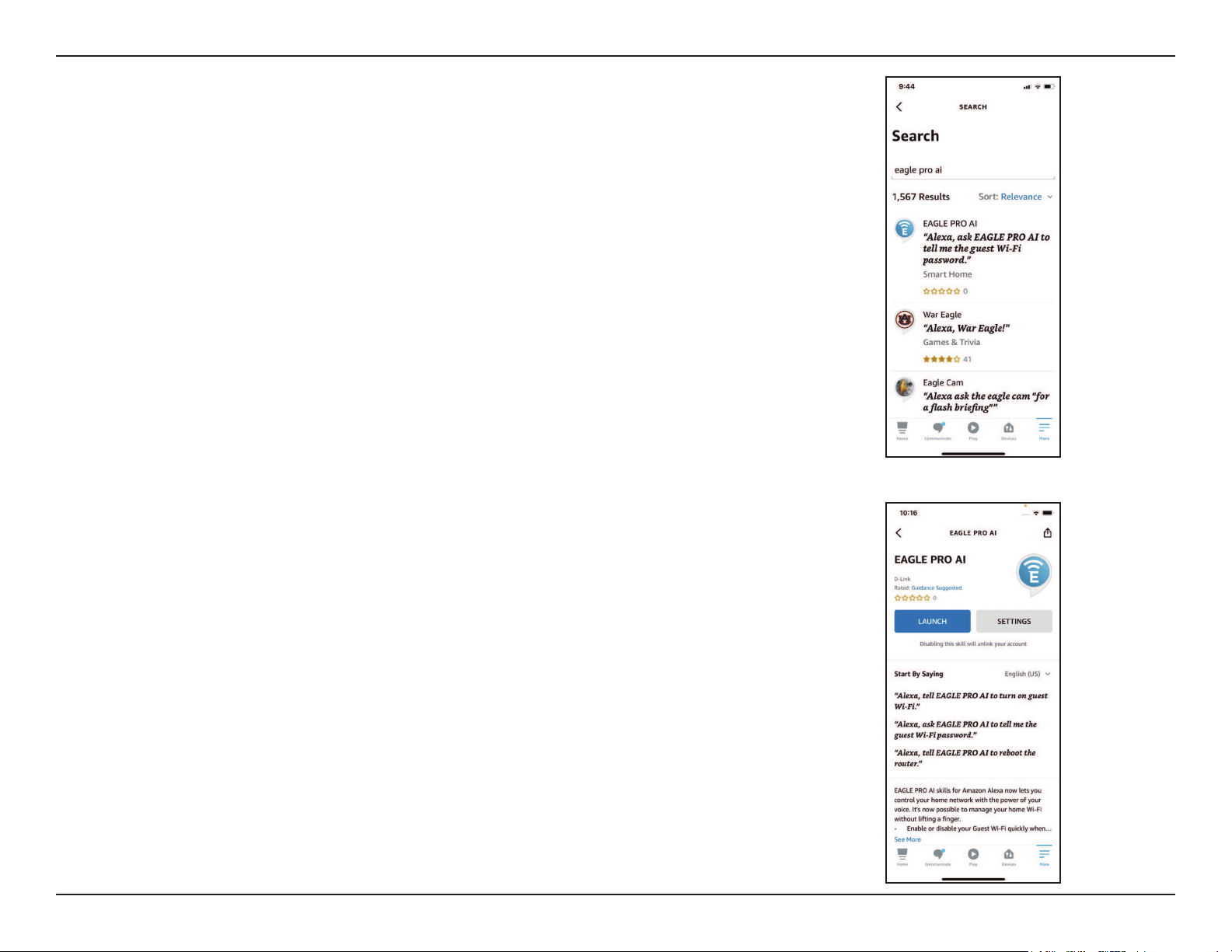

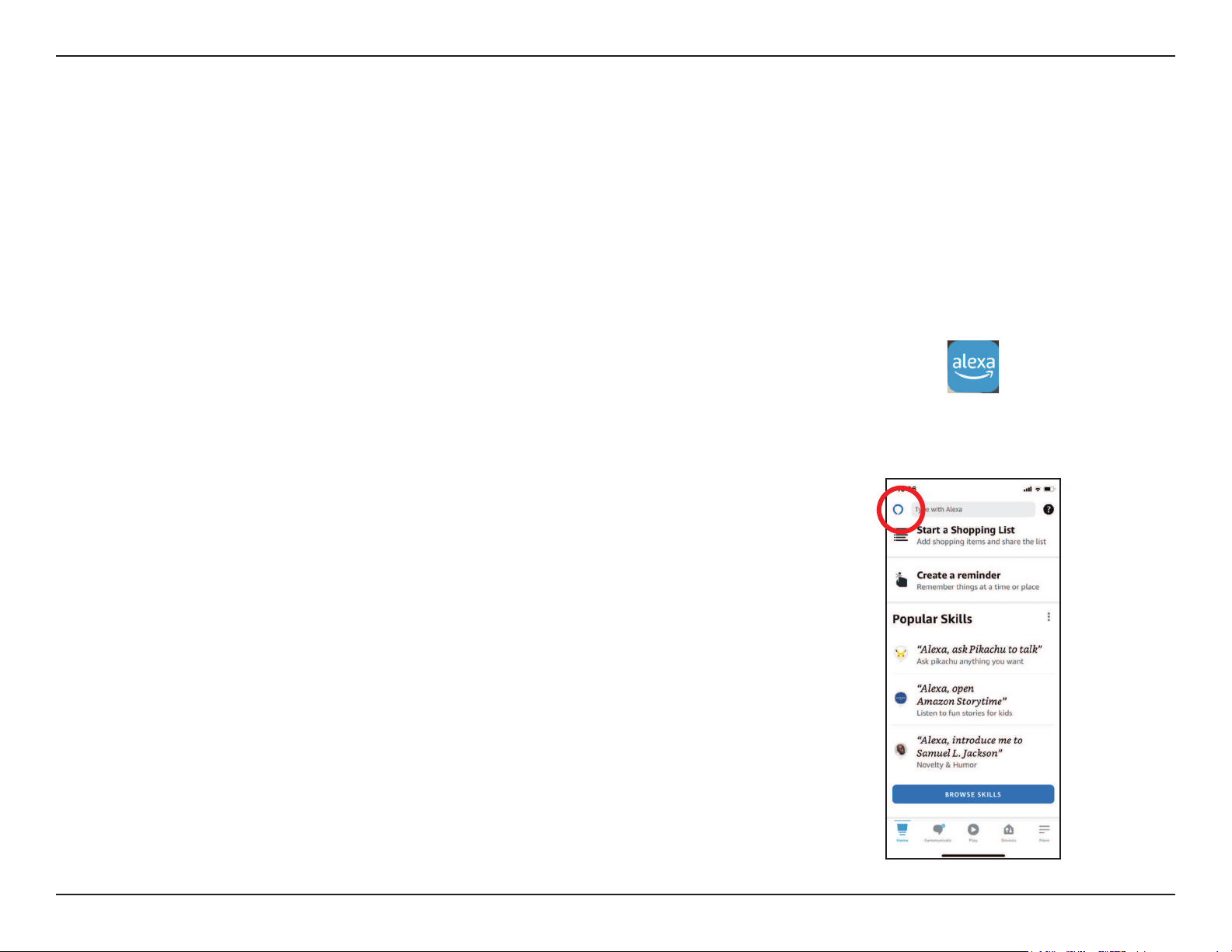

Amazon Alexa Setup ......................................................104
Amazon Alexa Voice Commands ...............................107

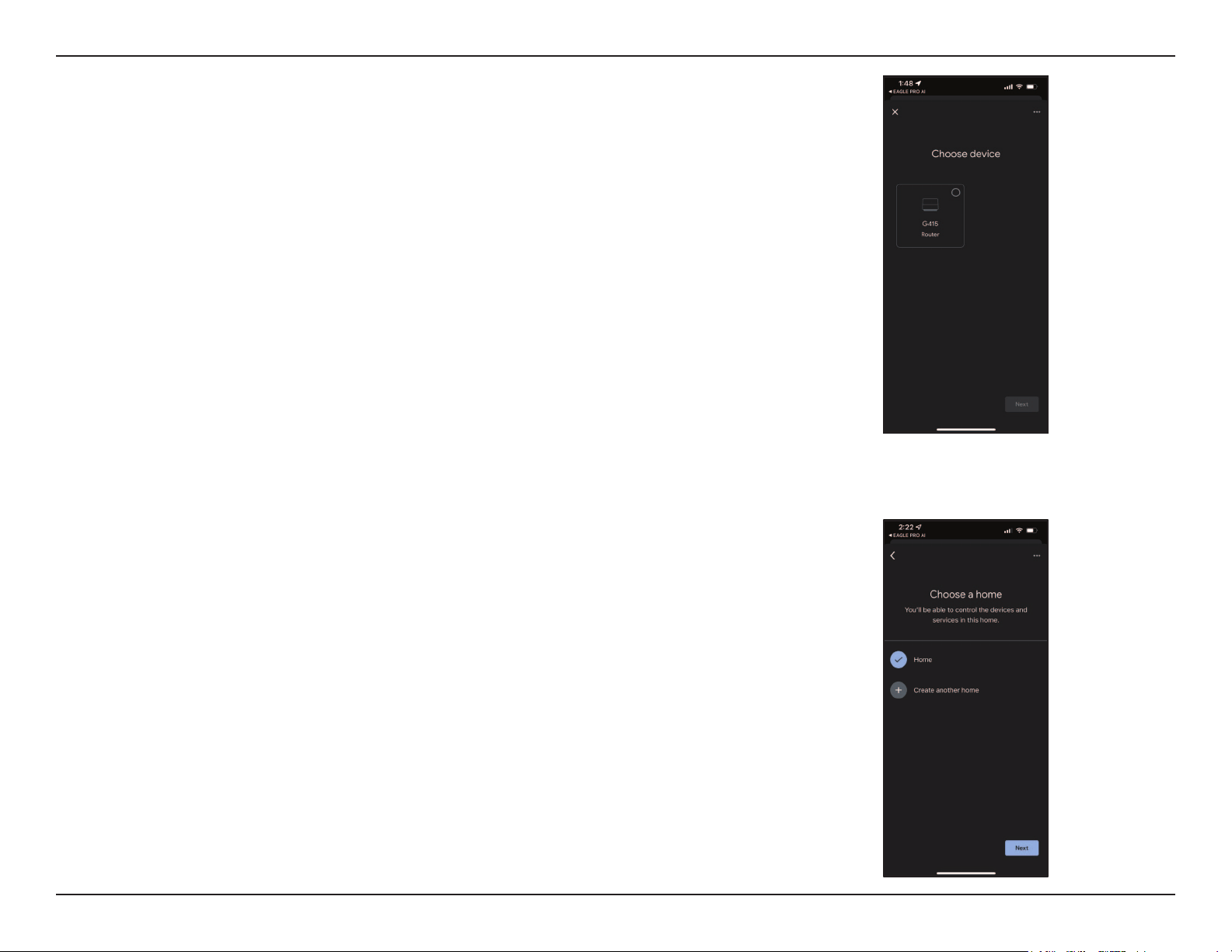

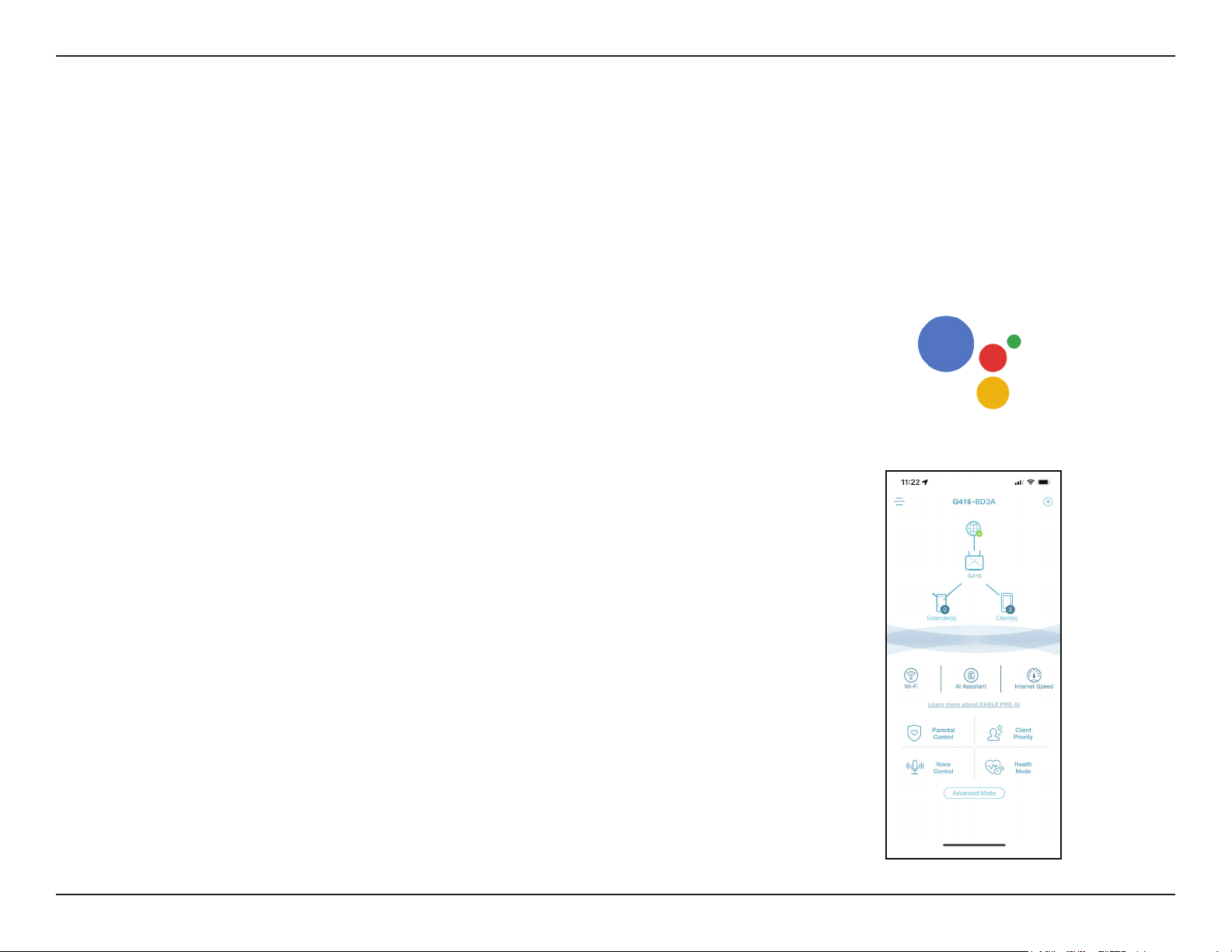

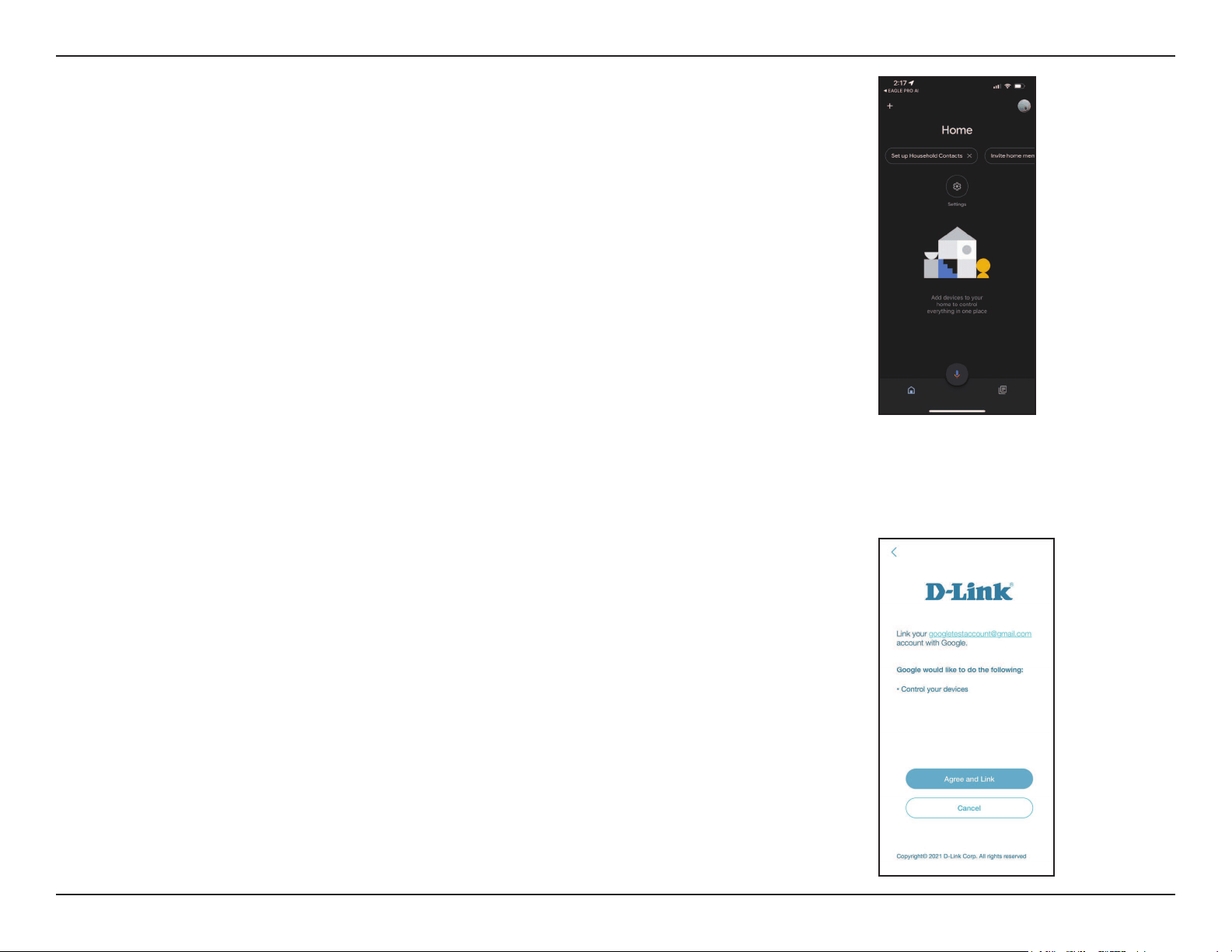

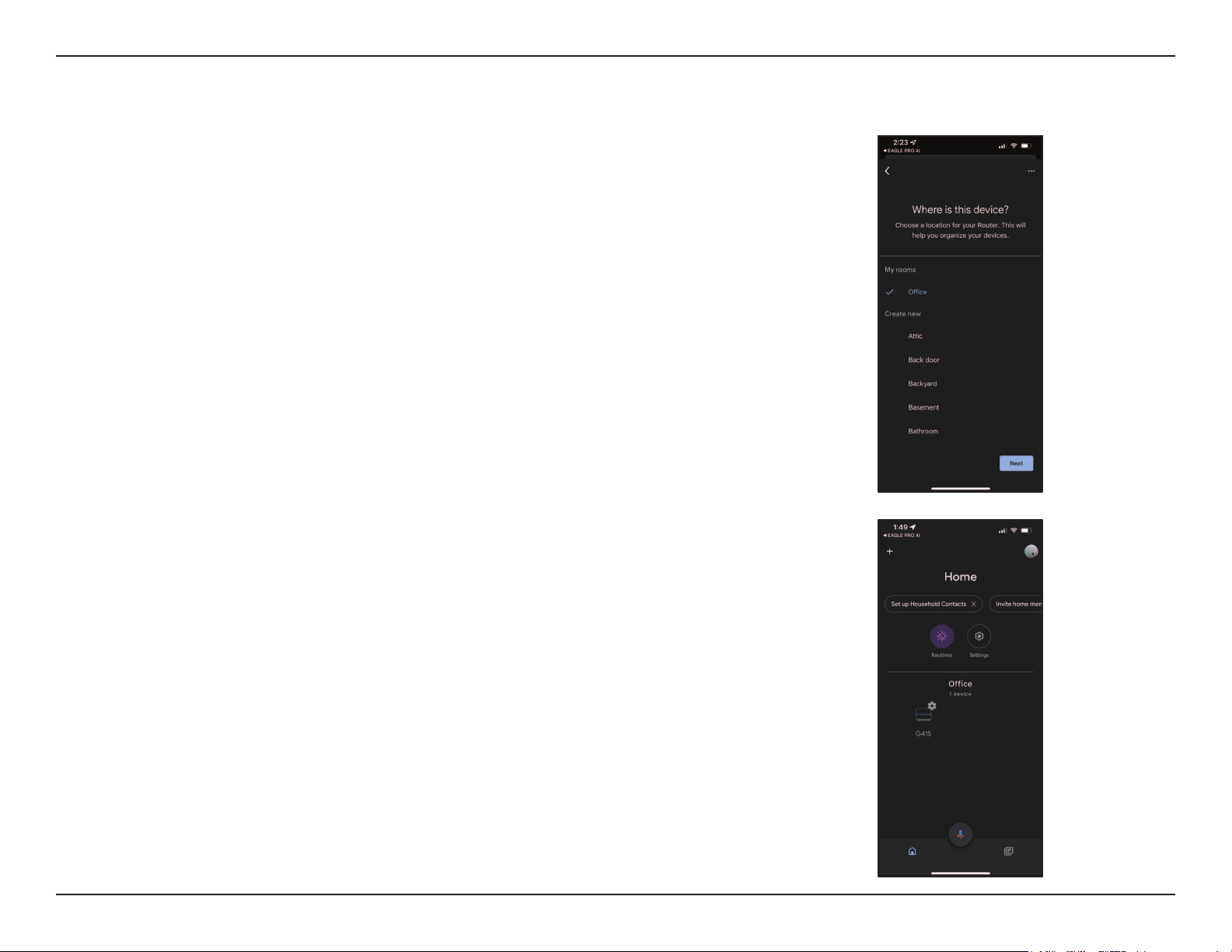

Google Assistant Setup ................................................. 108

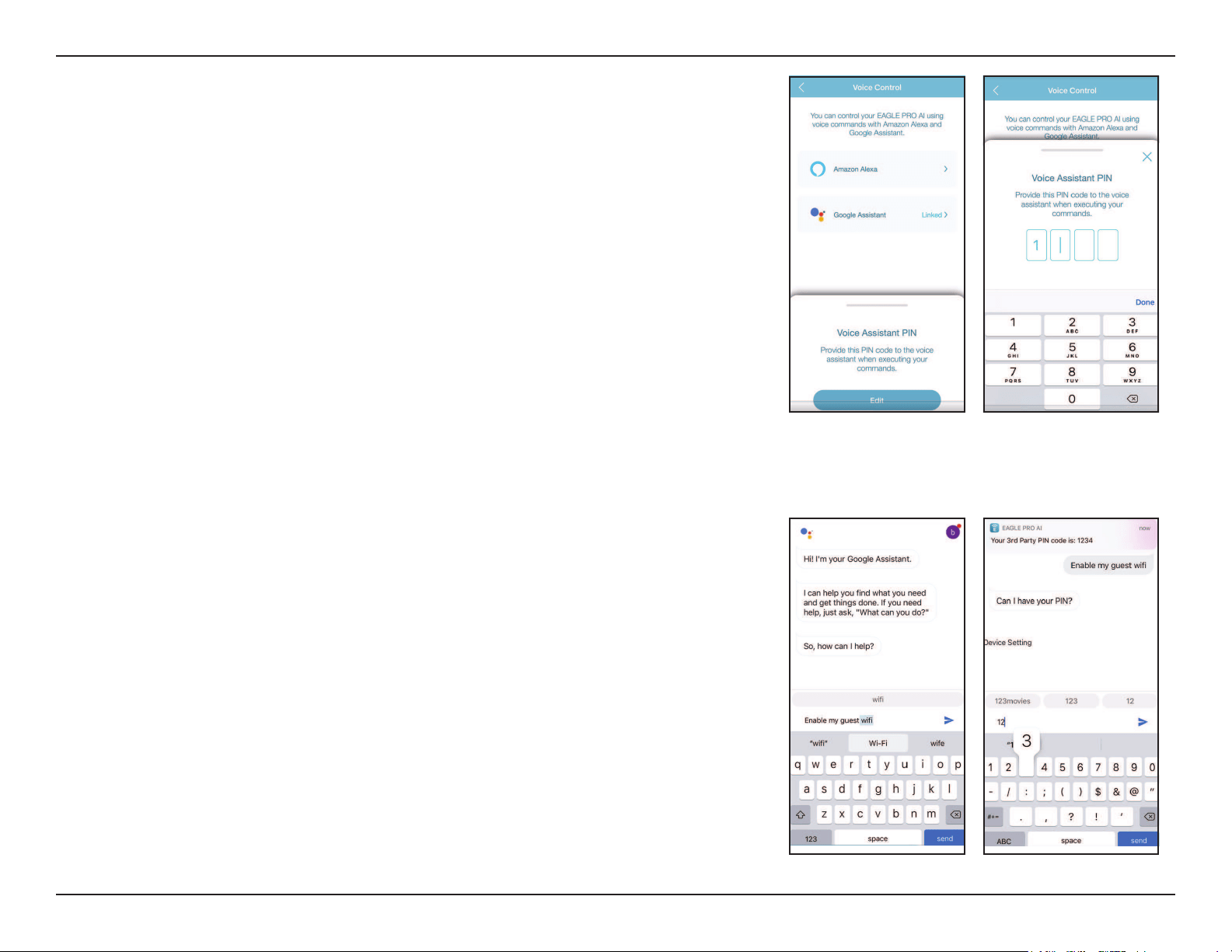

Google Assistant Voice Commands .......................... 110
Quick VPN .......................................................................111
Important Information .......................................................... 112

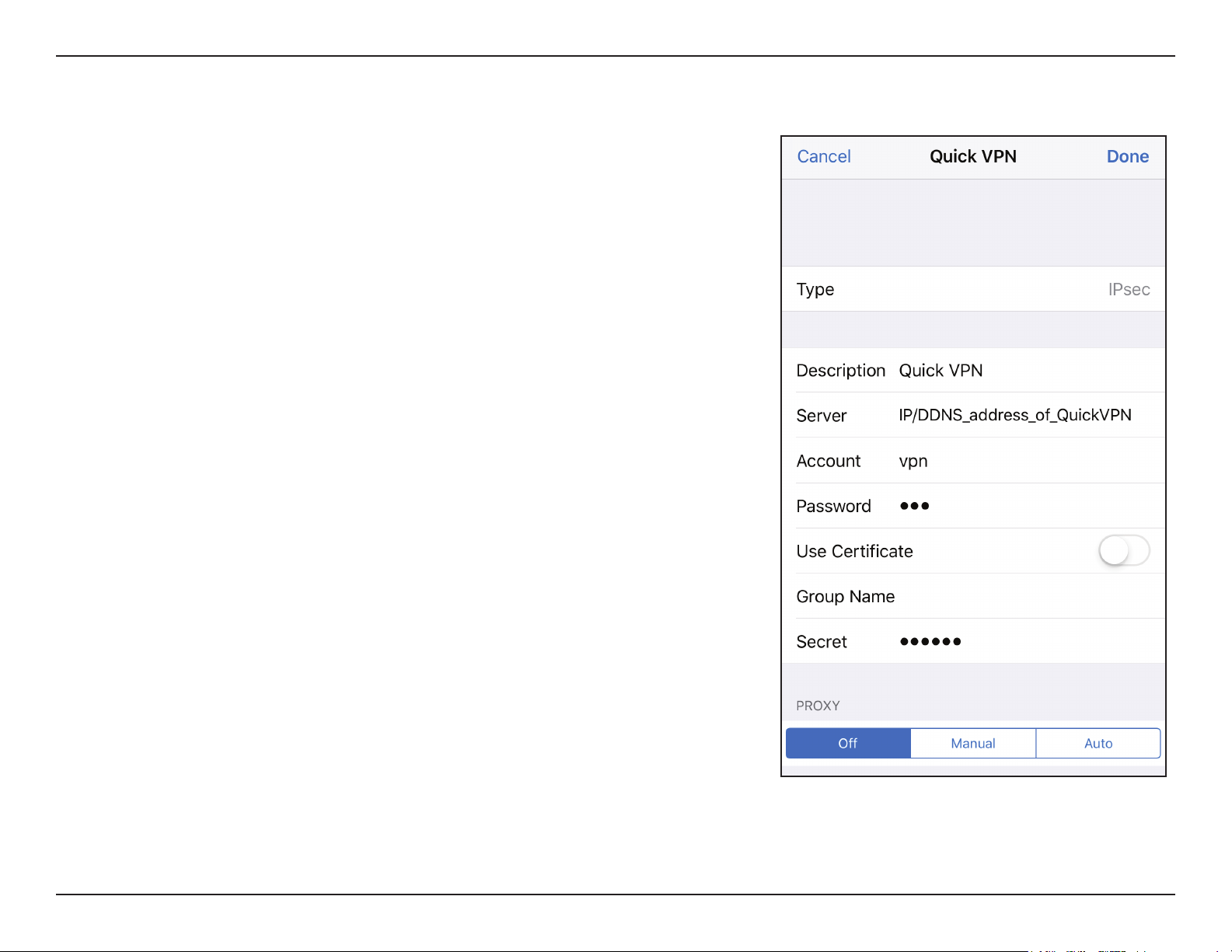

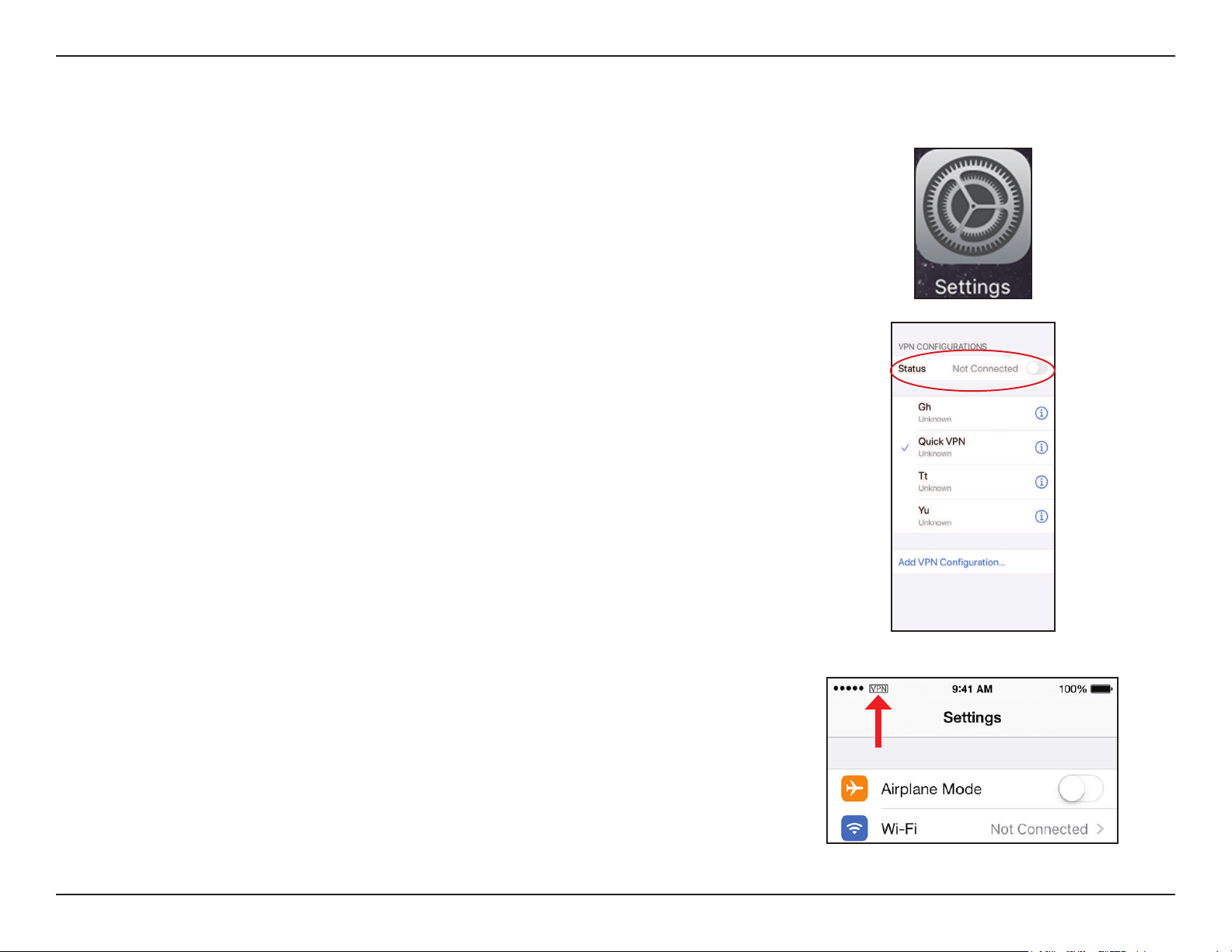

iOS Devices ................................................................................ 113

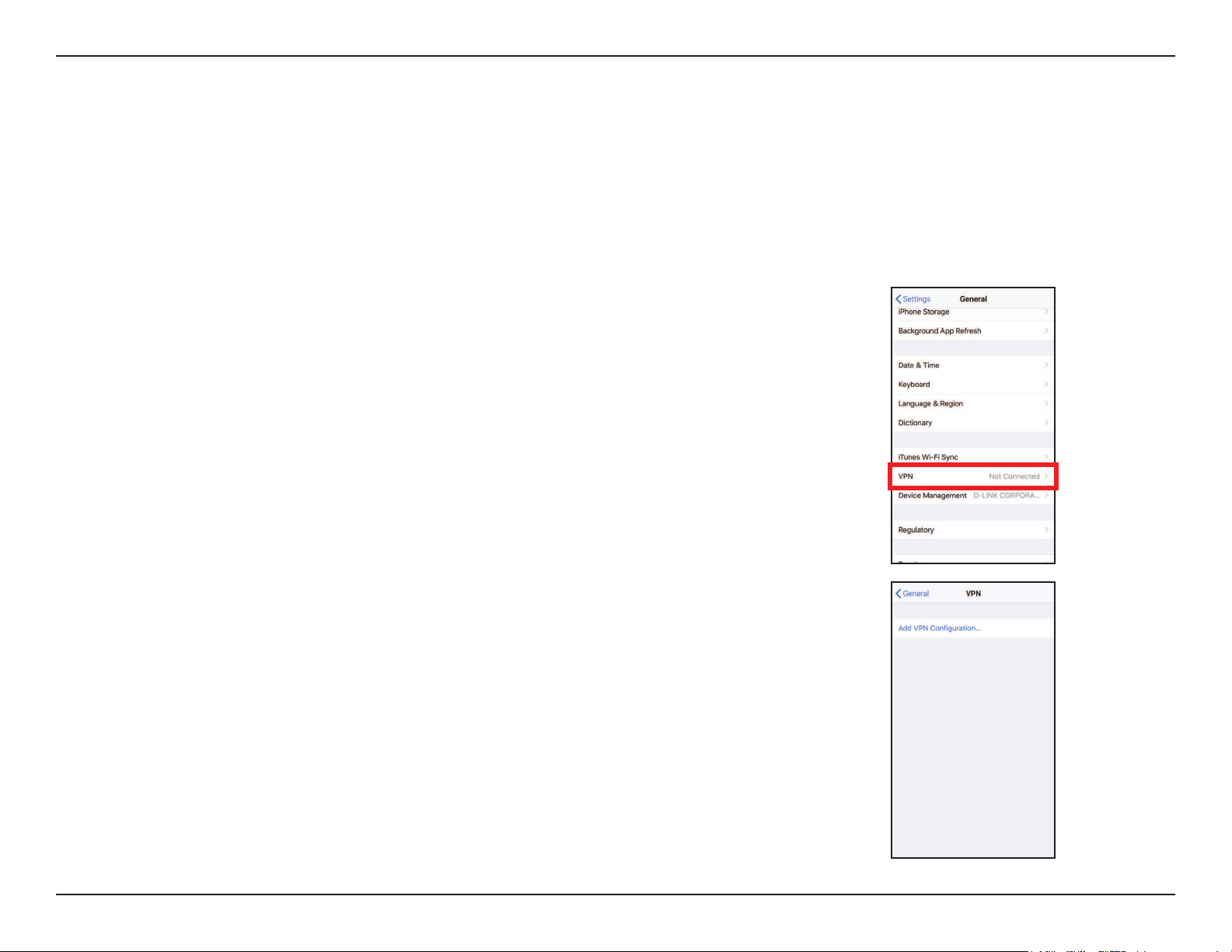

VPN Setup Instructions .................................................. 113
Connect or Disconnect .................................................. 115
Mac OS X ..................................................................................... 116
VPN Setup Instructions .................................................. 116
Connect or Disconnect .................................................. 118
Windows 7 ..................................................................................119
VPN Setup Instructions .................................................. 119
Connect or Disconnect .................................................. 122

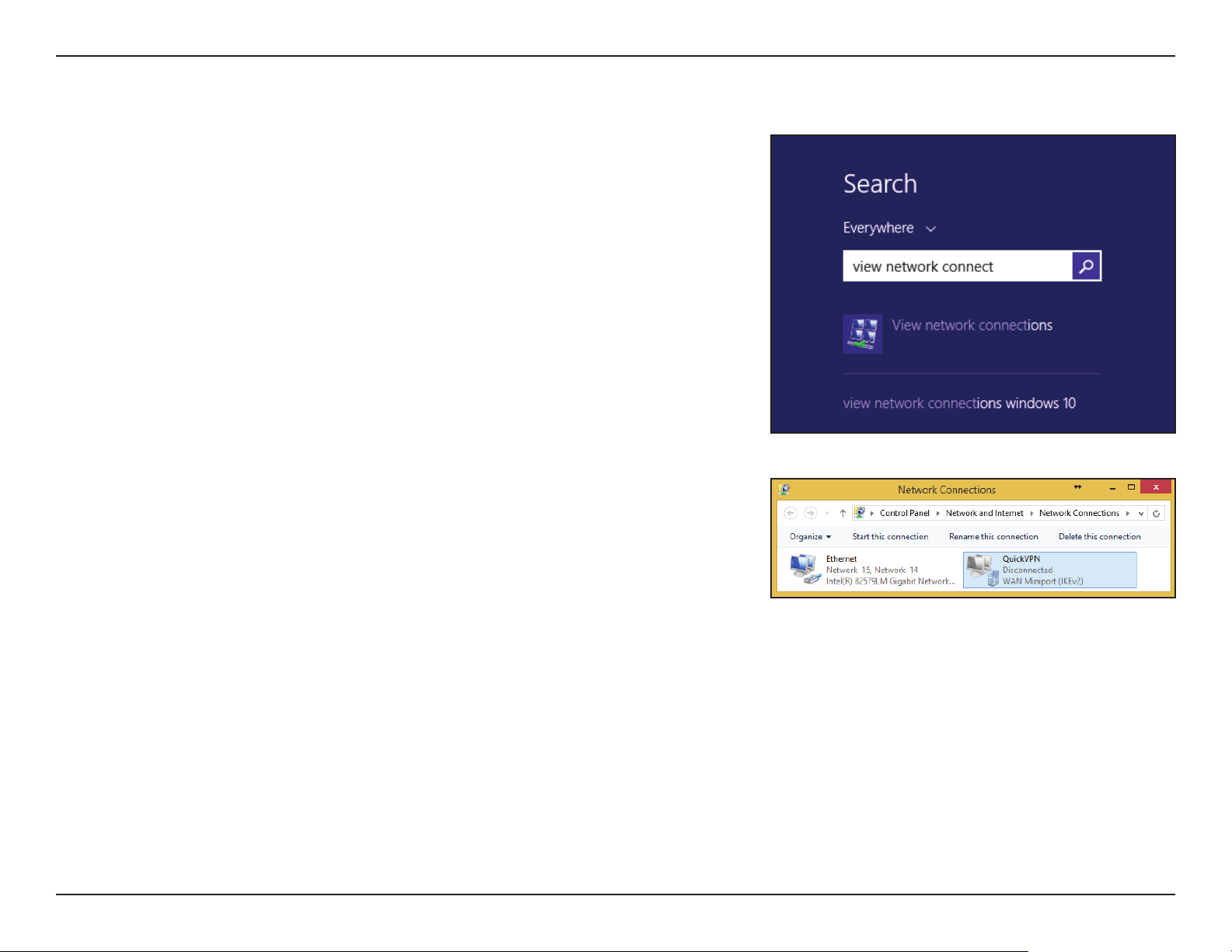

Windows 8.1/8 ..........................................................................123

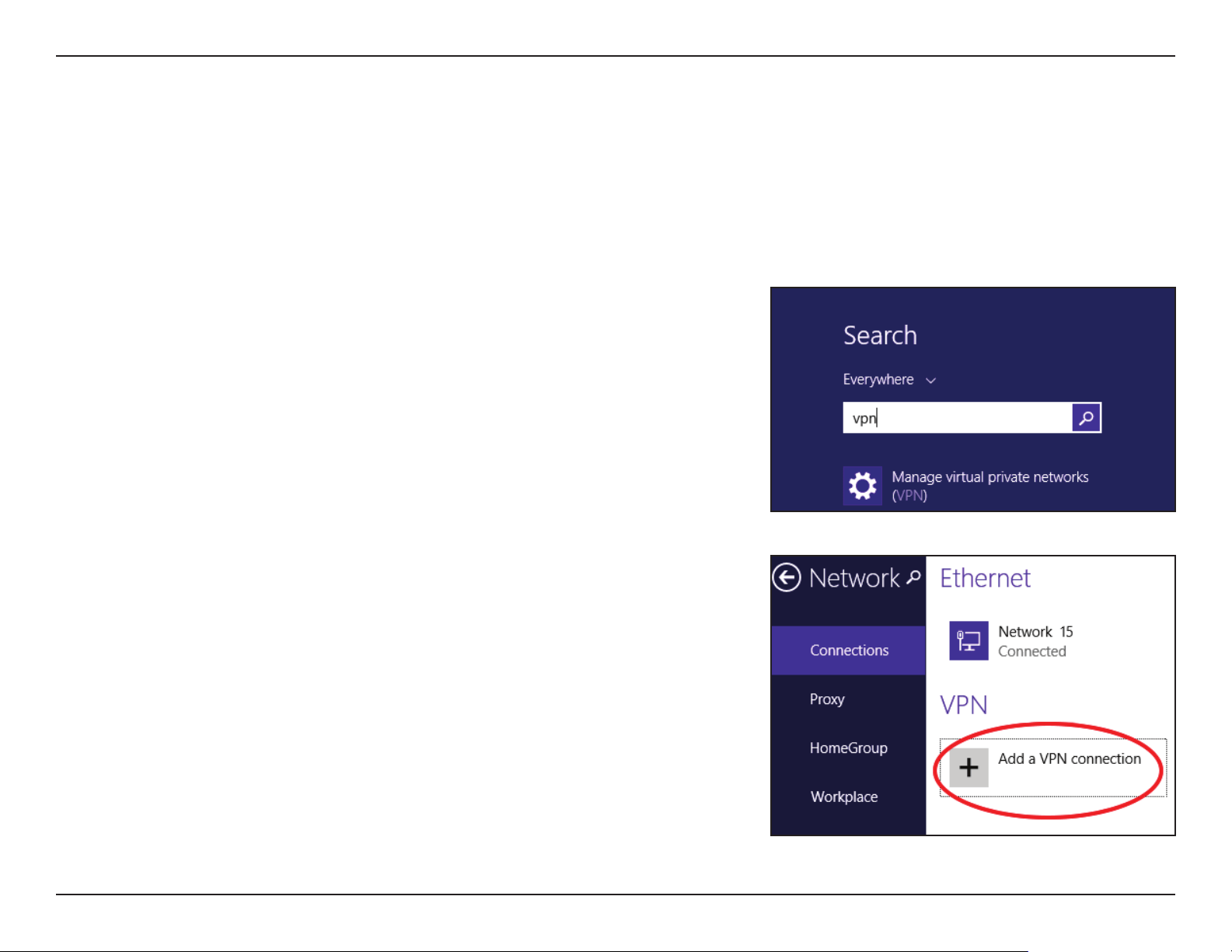

VPN Setup Instructions .................................................. 123

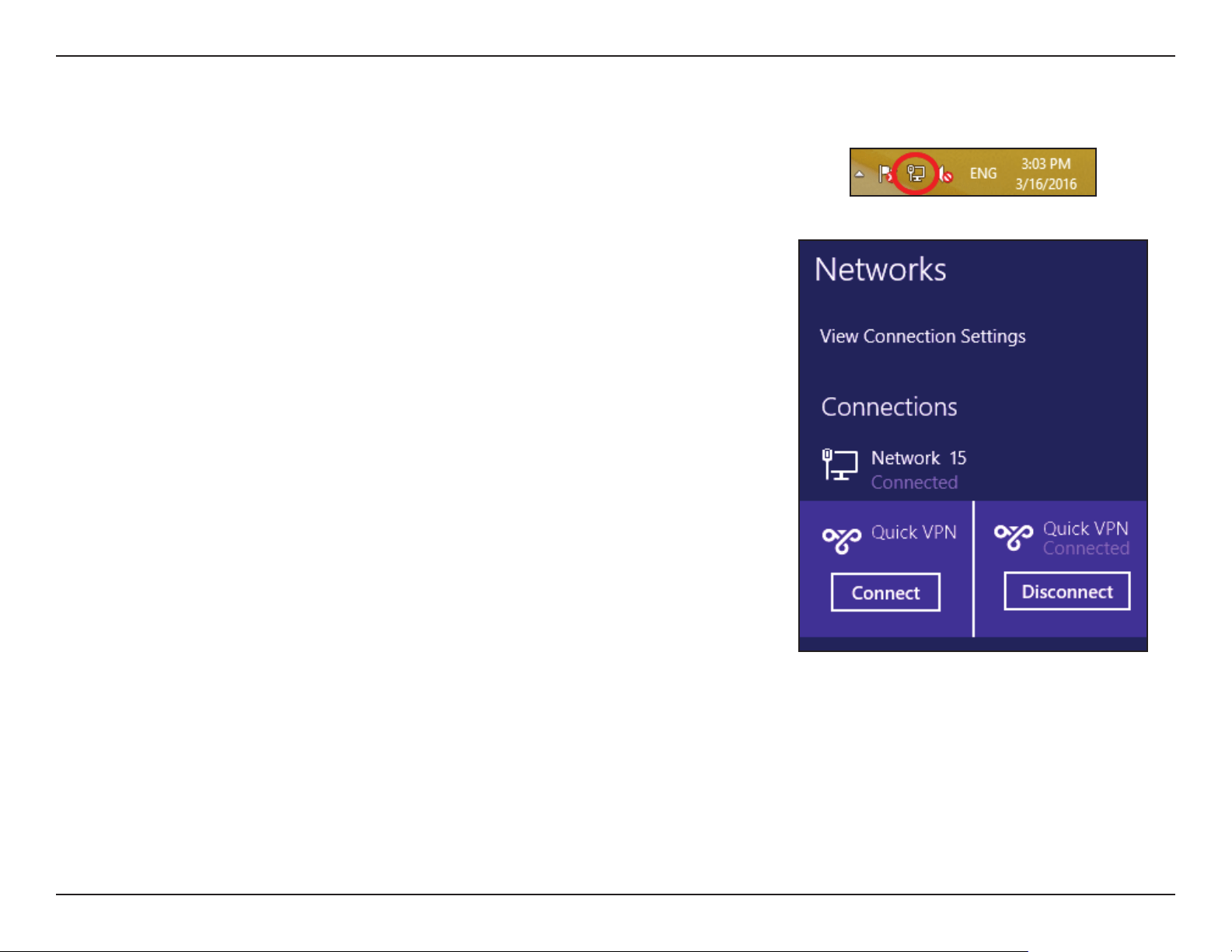

Connect or Disconnect .................................................. 128

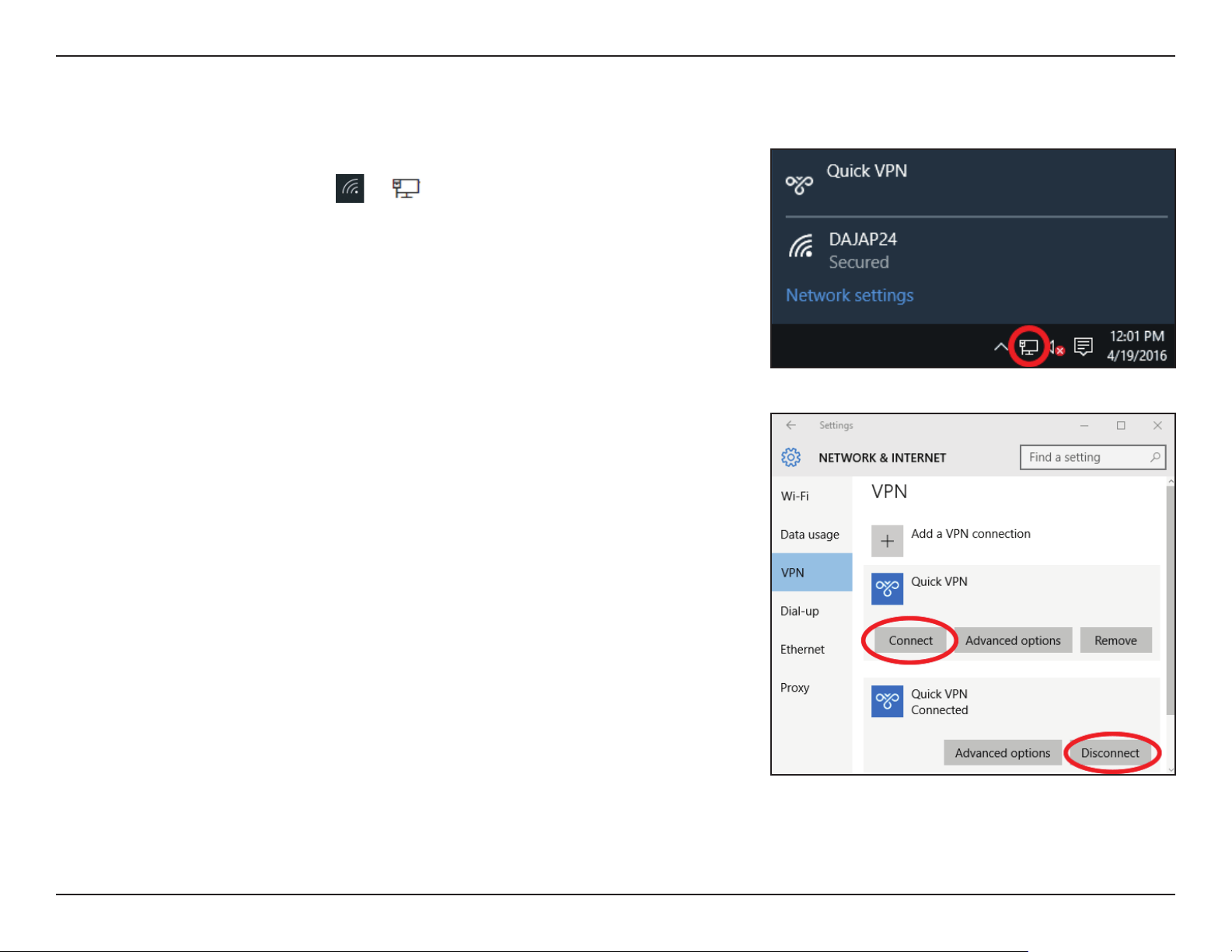

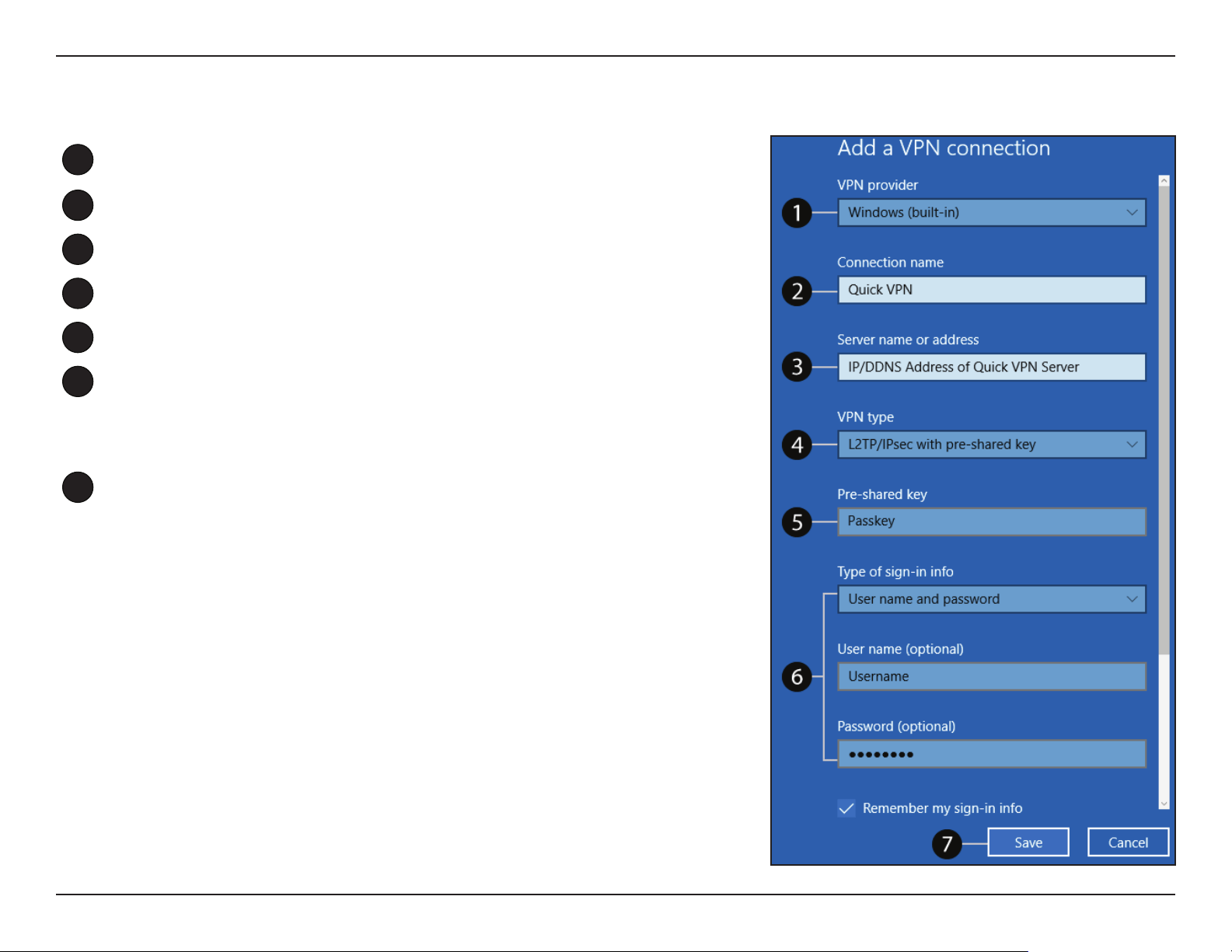

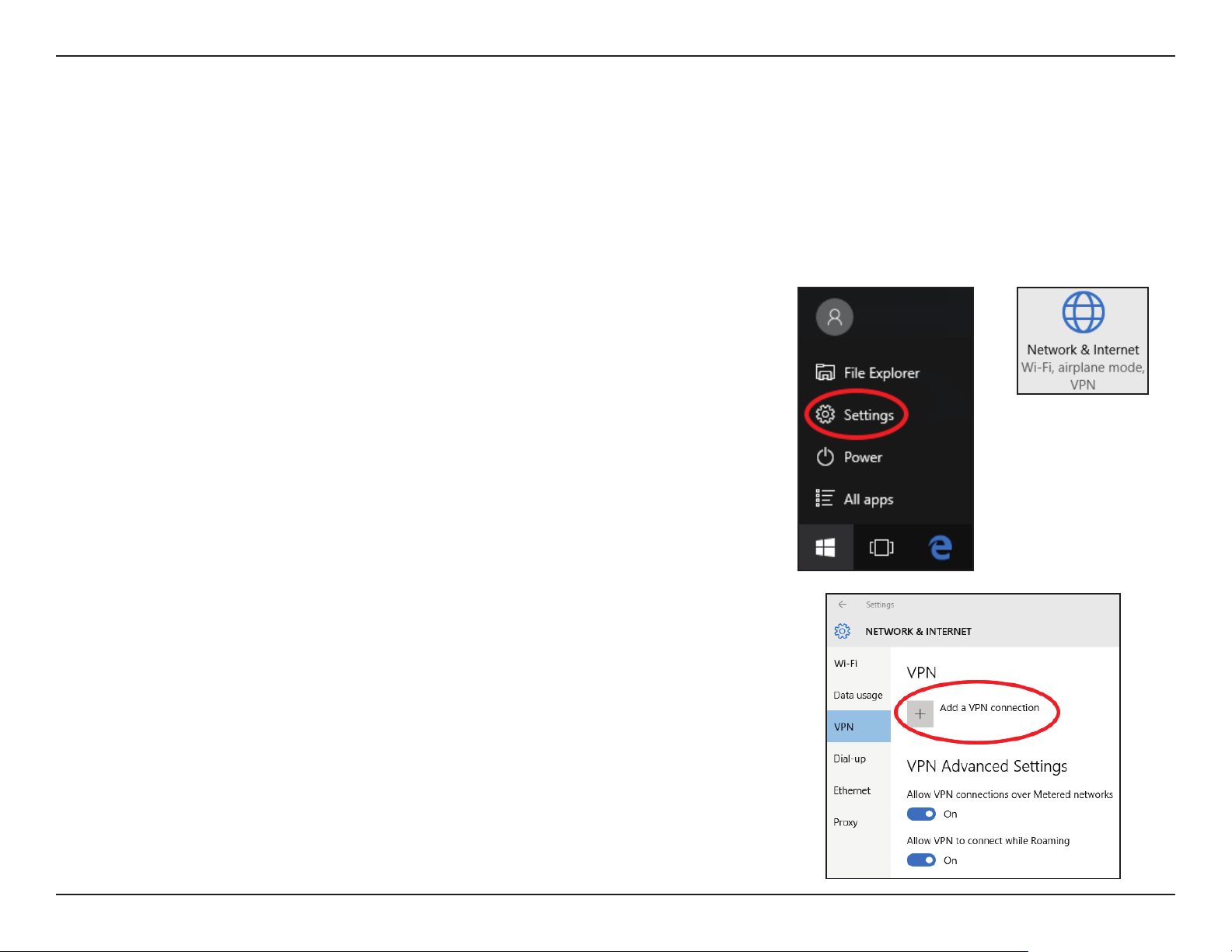

Windows 10 ............................................................................... 129
VPN Setup Instructions .................................................. 129
Connect or Disconnect .................................................. 131

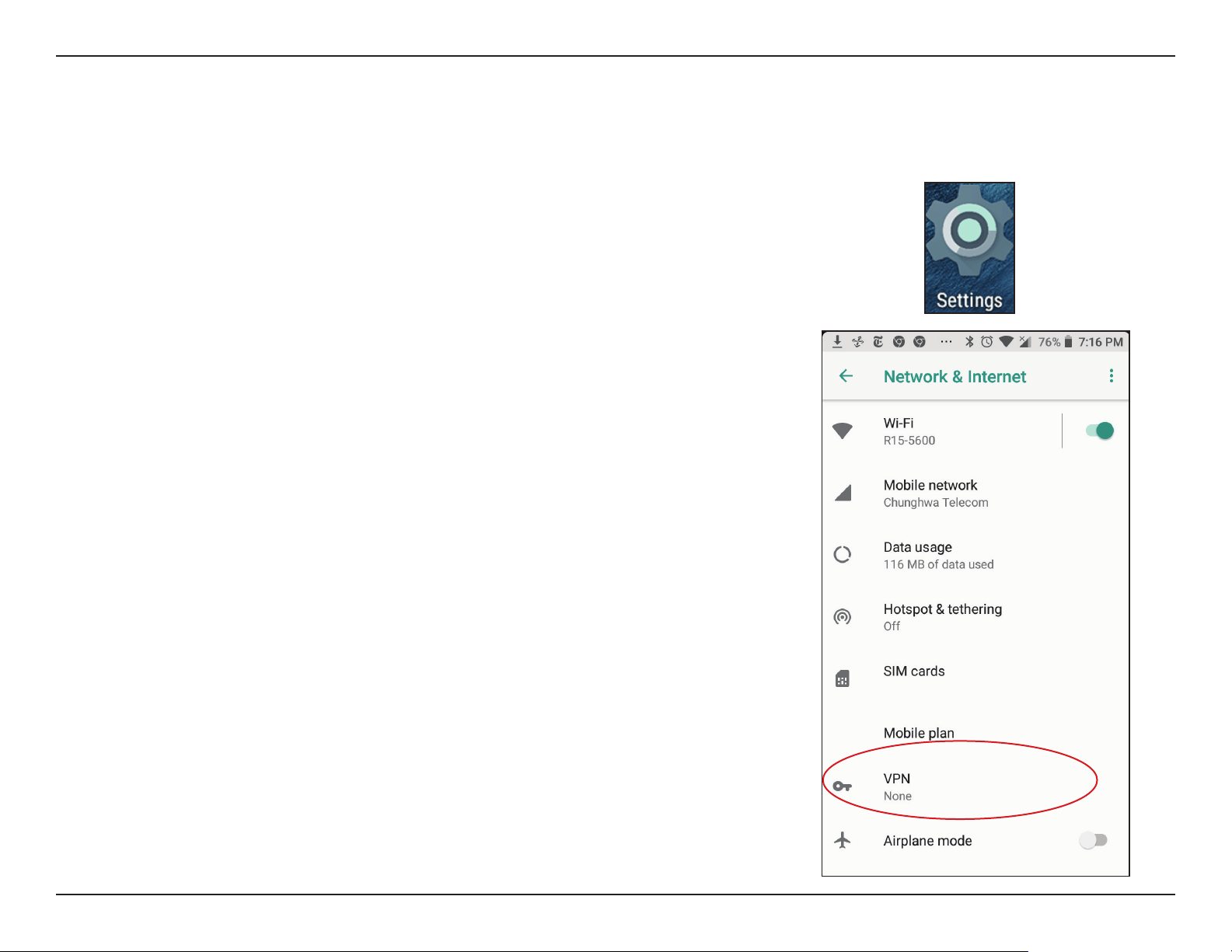

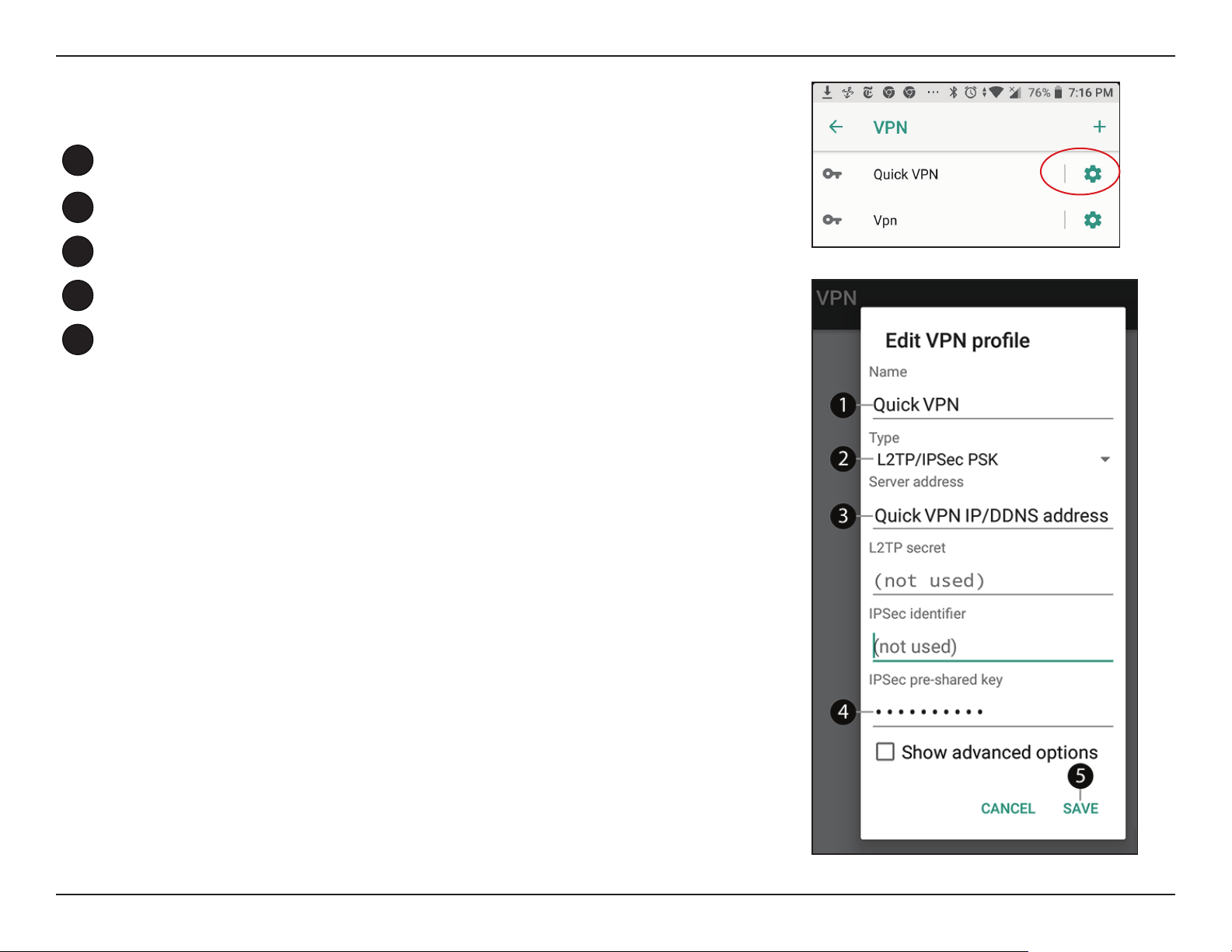

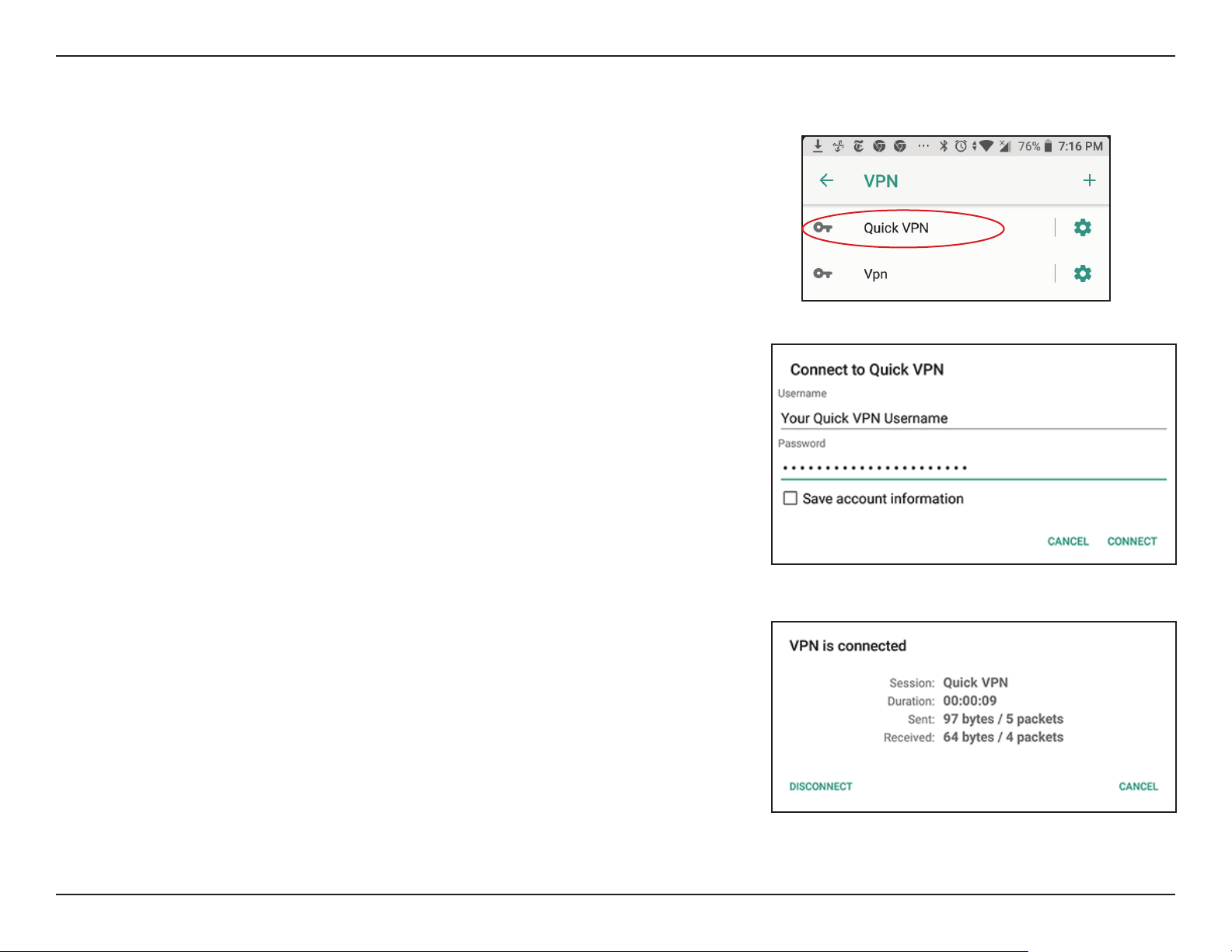

Android .......................................................................................132
VPN Setup Instructions .................................................. 132
Connect or Disconnect .................................................. 134
Connect a Wireless Client to Your Router .....................135
WPS Button ................................................................................135

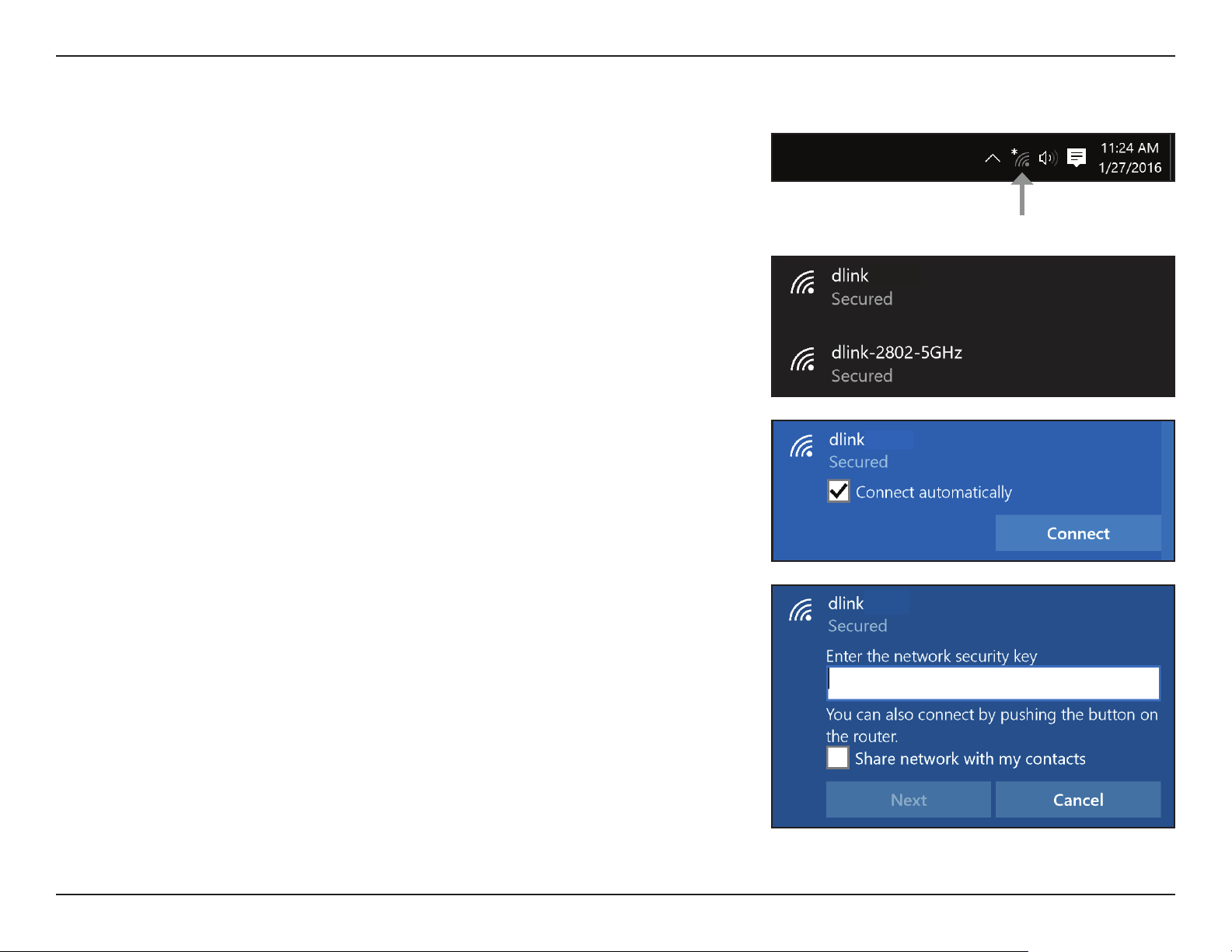

Windows® 10 ............................................................................. 136

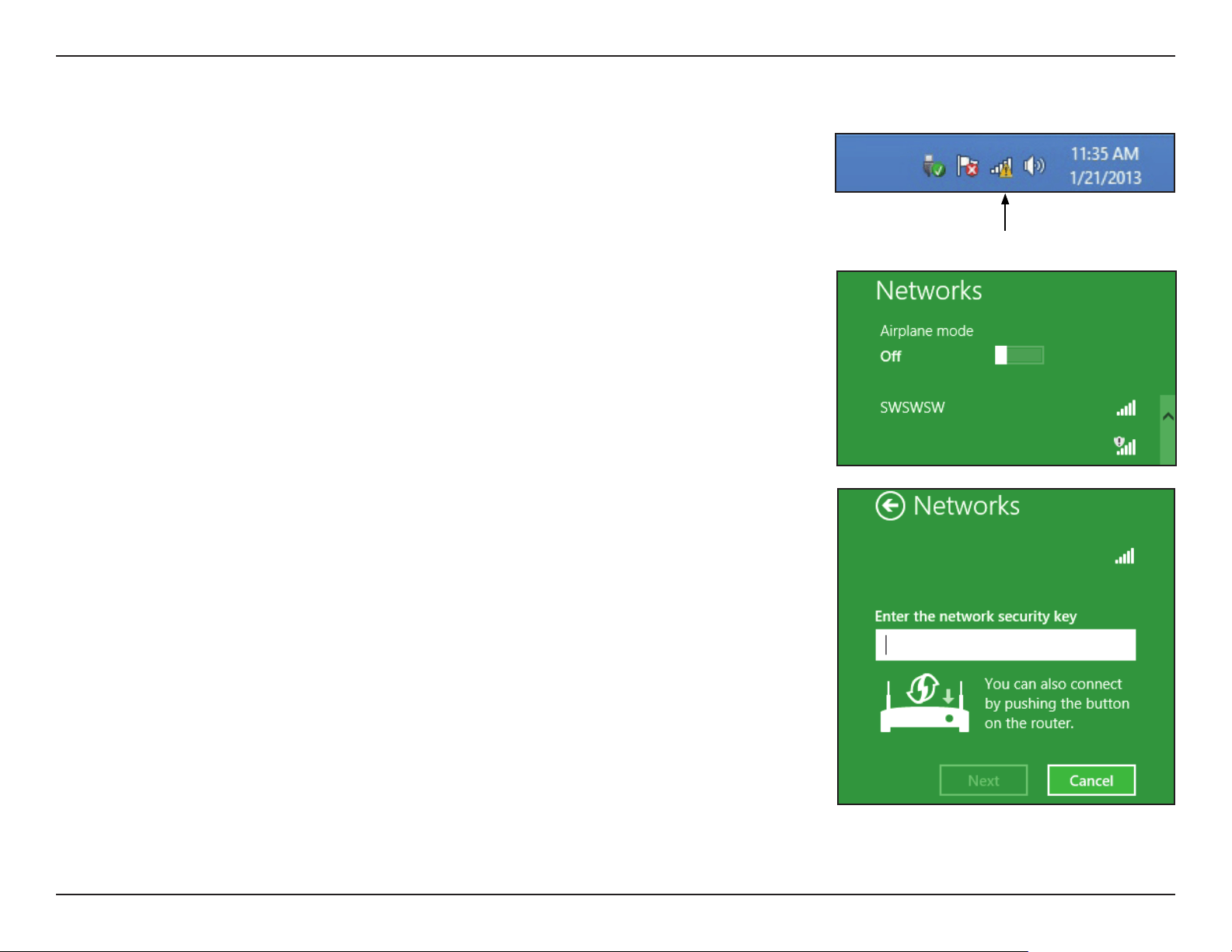

Windows® 8 - WPA/WPA2 ...................................................... 137

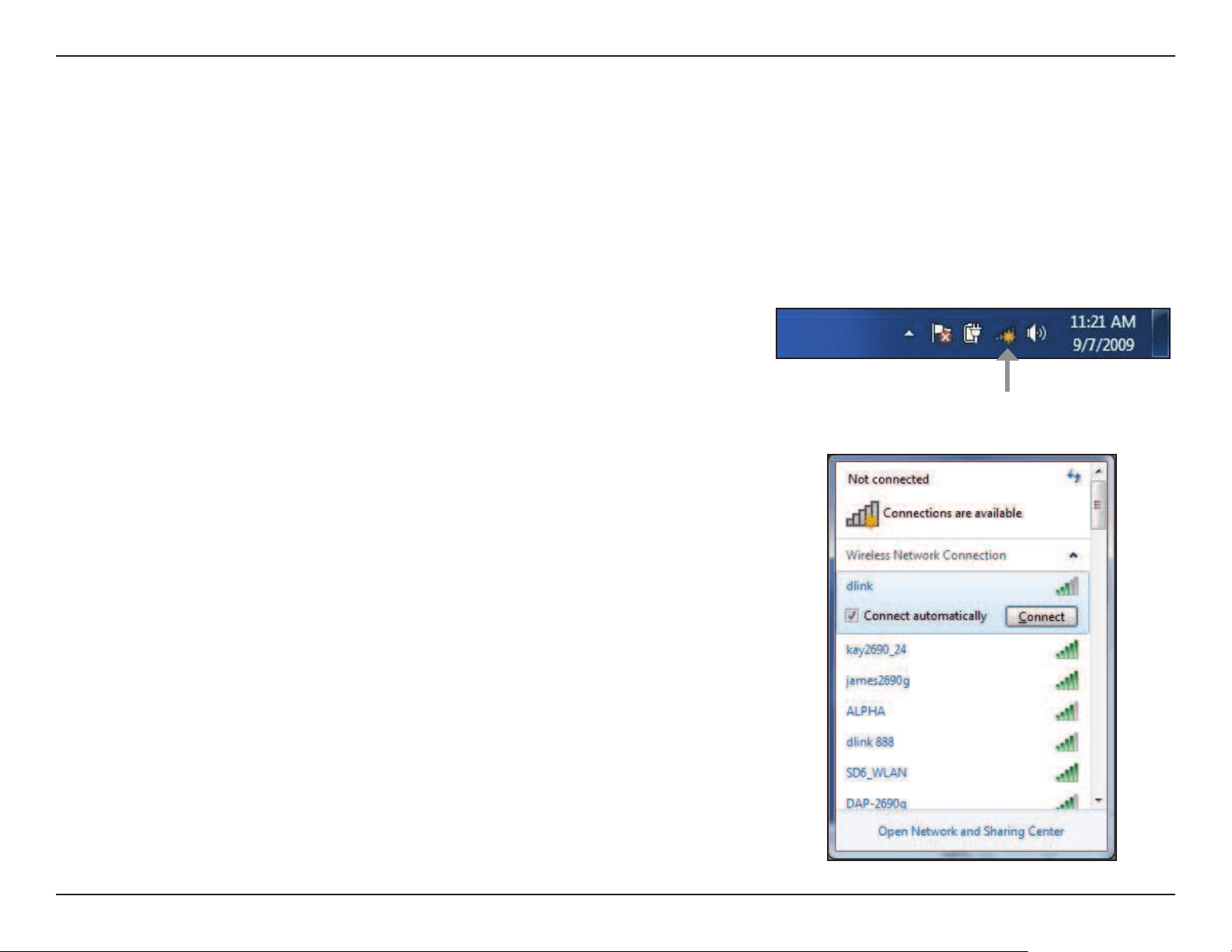

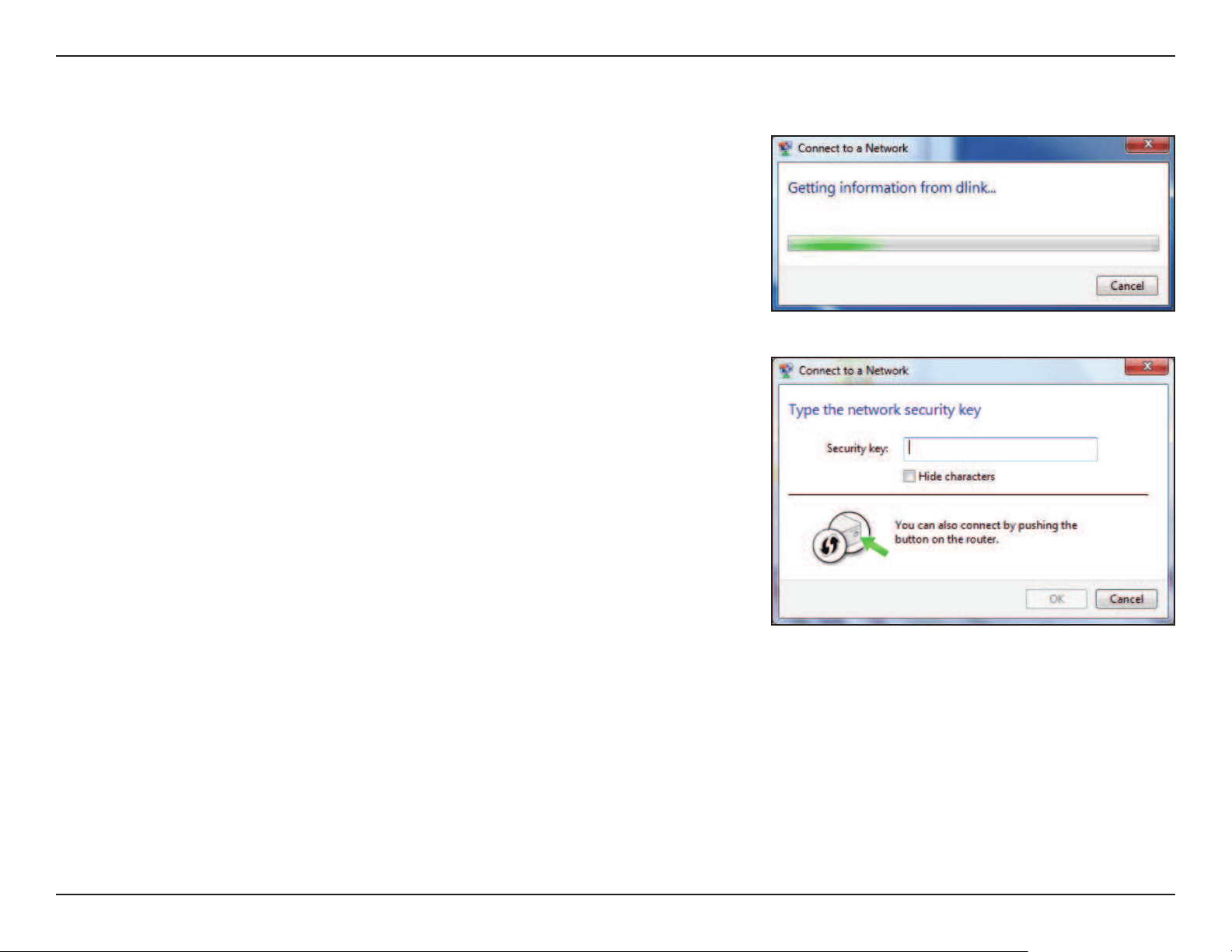

Windows® 7 ................................................................................139
Troubleshooting ............................................................141
Wireless Basics ...............................................................143

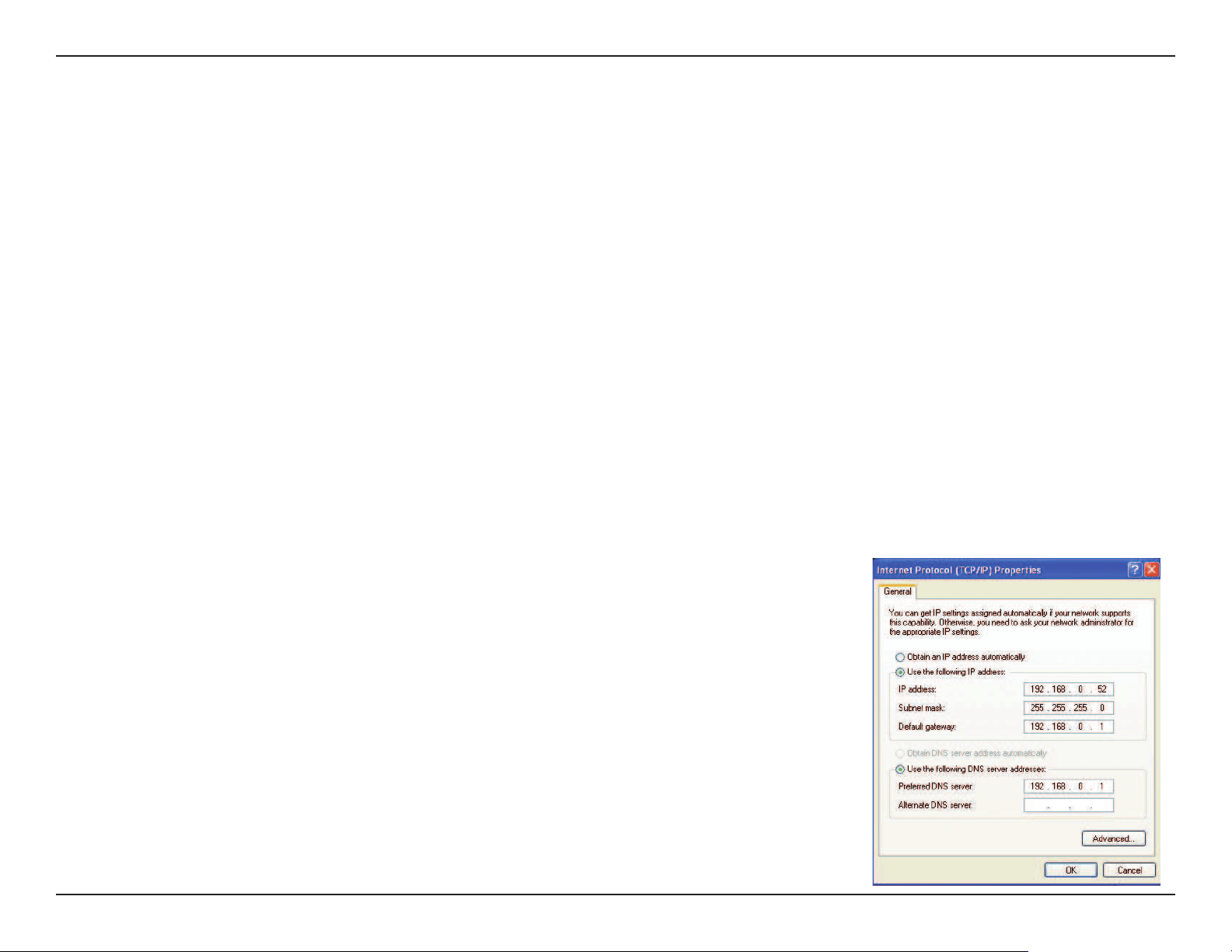

Networking Basics .........................................................147
Wireless Security ...........................................................149
Technical Specications ................................................150
Regulatory Statements .................................................152
1D-Link G416 User Manual
Section 1 - Product Overview
If any of the above items are missing or damaged, please contact your local reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the router will cause damage and void the warranty for this product.
Product Overview
Package Contents
G416 AX1500 4G Cat 6 Smart Router
Power Adapter (12V, 1.5A)
Ethernet Cable (1m)
Quick Installation Guide
2D-Link G416 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable, DSL or ber modem
• IEEE 802.11ax/ac/n/g/b/a wireless clients
• 10/100/1000 Ethernet
Web-based
Conguration Utility
Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or later
• Firefox 28 or later
• Safari 6 or later
• Chrome 28 or later

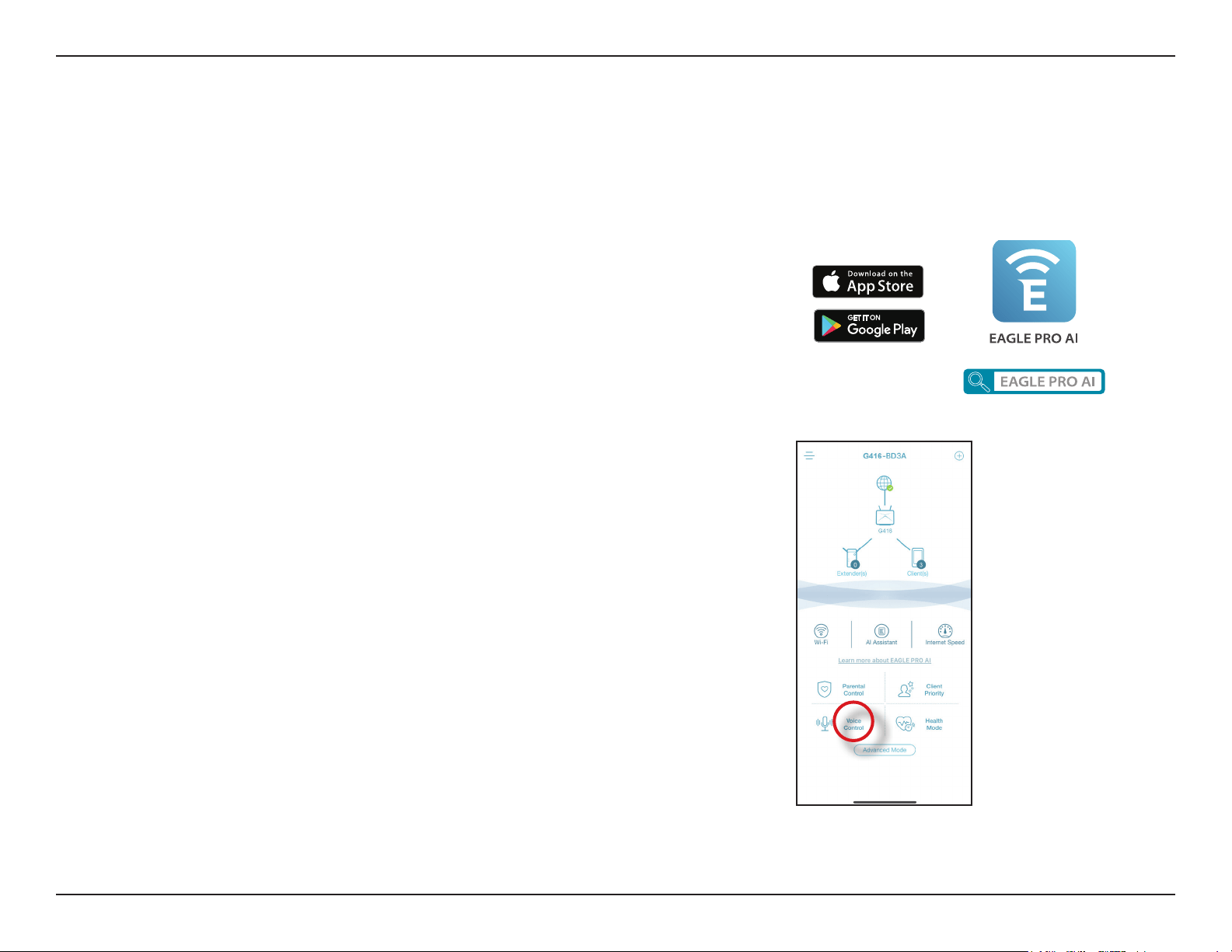

EAGLE PRO AI APP
Requirements
• iOS® or Android™ device (Please refer to the description of the
app’s page to check whether your device is compatible.)
System Requirements
3D-Link G416 User Manual
Section 1 - Product Overview
Introduction
With a powerful network processor, the AX1500 Smart Router packs in strong processing power to help you manage your home or oce network.
It’s a powerful, intelligent home router with AI-assisted trac control, Wi-Fi utilization and mesh optimization, and parental controls. It also has
integrated voice assistant compatibility for Amazon Alexa and Google Assistant so you can control your network with voice commands.
Features
Smooth Wireless Connectivity with Maximized Bandwidth
The innovative AI Trac Optimizer provides weekly usage report to inform administrators about the consumption of network bandwidth along
with heavy users. It also rates the overall condition of the wireless network and states the number of times the engine has optimized the network
automatically based on the network conditions and usage data.
Handle More with a High-Power Processor
With the G416, you’re not only enjoying buer-free gaming and lightning-fast surng, but also features such as optimized QoS, controlled Internet
access with website ltering, and compatibility with voice assistants. All this is possible with the router’s 1.4 GHz dual-core high-power processor,
128 MB of ash memory and 256 MB of RAM.
Intelligent Quality of Service Features
The Quality of Service (QoS) allows you to prioritize important trac to ensure that real-time applications are receiving optimal bandwidth. Moreover,
the inbuilt AI engine collects and analyzes trac data and noties administrators of clients that consume high bandwidth so that they can take
prompt action.
Always Up-to-Date with the Latest Features
The G416 will automatically check daily for updates to make sure that the device always has the latest features and the most secure rmware and
will install the update silently in the background. For extra peace of mind, in the event of failure during the rmware update, the router will store
a backup system image in the memory before proceeding with the update.
Easy Setup and Flexible Management
Managing your Internet utilization has never been easier; just download the free EAGLE PRO AI for your mobile device and follow the on-screen
step-by-step instructions to add your device. You also have the option to use a web browser to access the setup wizard for basic conguration and
advanced features. Support for industry-standard Wi-Fi Protected Setup (WPS) lets you create encrypted connections to new devices by pressing
a button.
4D-Link G416 User Manual
Section 1 - Product Overview
Hardware Overview
LED Indicators
1 Power Solid White The device is on and the system is healthy.
2 Internet
Solid White The Internet connection is established.
Flashing White The device cannot connect to the Internet.
3 Wireless (2.4 GHz)
Solid White The 2.4 GHz wireless band is enabled.
Flashing White The device is transmitting data.
O No internet service available.
4 Wireless (5 GHz)
Solid White The 5 GHz wireless band is enabled.
Flashing White The device is transmitting data.
O No internet service available.
1
2
3
4
5
6
7
5D-Link G416 User Manual
Section 1 - Product Overview
5 LTE/3G
Solid White The cellular signal is on 4G service.
Solid Orange The cellular signal is on 3G/2G service.
6 SMS
Solid White New SMS message is received.
O No new SMS message.
7 Signal Bar
Solid White
1 LED: RSSI < -100 dbm
2 LED: RSSI < -92 dbm
3 LED: RSSI < -84 dbm
4 LED: RSSI > -84 dbm
O No mobile signal.
6D-Link G416 User Manual
Section 1 - Product Overview
Back Panel
1 Power Connector Connector for the supplied power adapter.
2
Gigabit LAN Ports
(1- 3)
Connect Ethernet devices such as computers, switches, storage (NAS) devices, and game
consoles.
3 Gigabit WAN Port Use an Ethernet cable to connect your broadband modem to this port.
2 31
7D-Link G416 User Manual
Section 1 - Product Overview

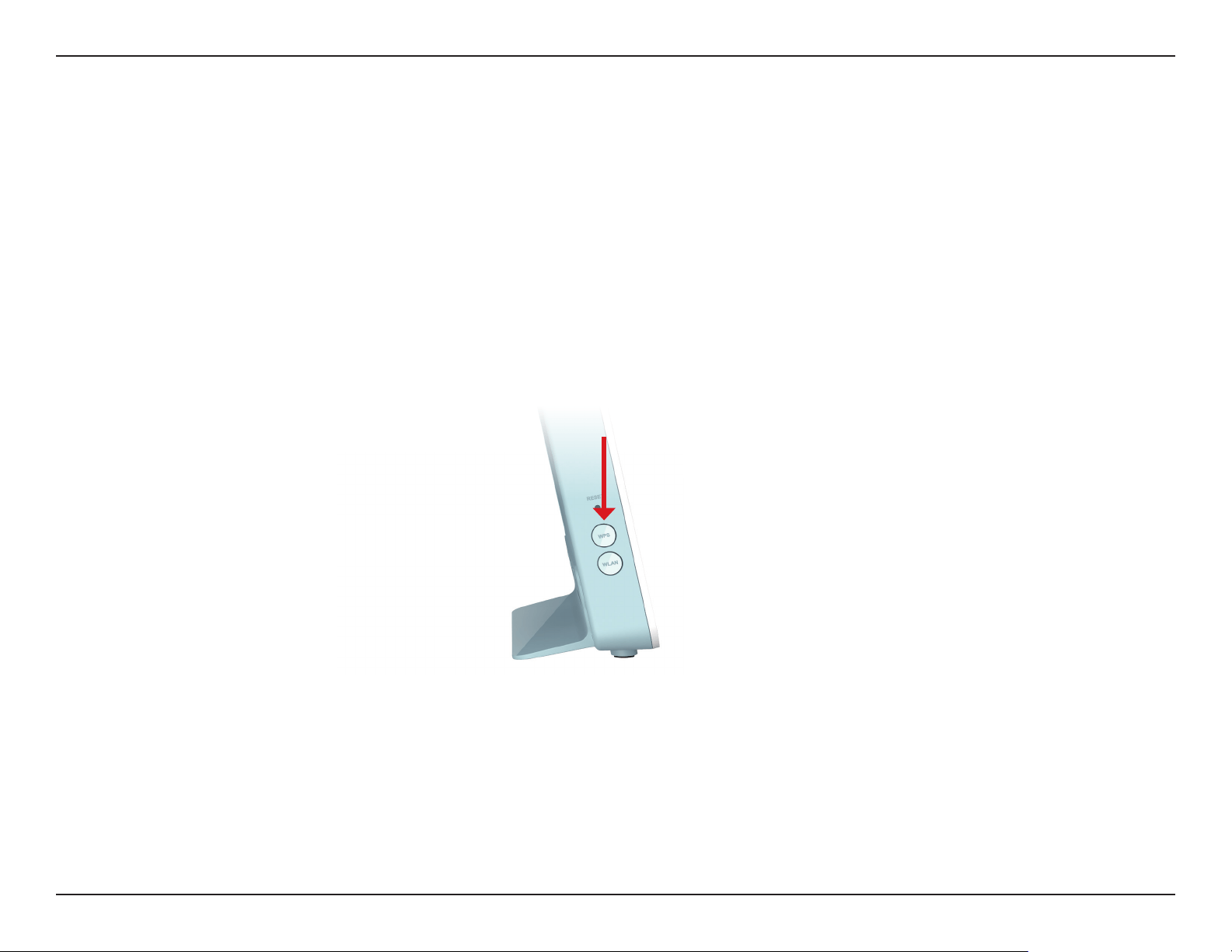

Side View
1 Reset Button Press this button with an unfolded paperclip and hold for ten seconds to reset the device.
2 WPS Button
Press this button to initiate a new WPS connection. See WPS Button on page 134 for
details.
3 WLAN Press this button to toggle wireless LAN on or o.
4 SIM/UICC Card Slot Accepts a standard mini-SIM card for 4G LTE connectivity.
5 Power Button Turns the device on or o.
1
2
3
4
5
8D-Link G416 User Manual
Section 2 - Installation
Before you Begin
• Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, attic, or
garage.
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that it is
connected to the Internet before connecting additional devices.
• If your ISP provides you with a modem/router combo, you will need to set it to “bridge” mode so the router can work
properly. Please contact your ISP or refer to the user manual for your modem/router device.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then
you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the
router, then turn the modem back on. In some cases, you may need to call your Internet Service Provider (ISP) to change
connection types (USB to Ethernet).
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service
Provider handy. This information is likely to include your DSL account's username and password. Your ISP may also supply
you with additional WAN conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to label
each cable or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoET,
BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.
This section will walk you through the installation of your G416.
Installation
9D-Link G416 User Manual
Section 2 - Installation
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or
ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or
ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so
that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try
to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways.
Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and
concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is
as far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use.
Wireless Installation Considerations
10D-Link G416 User Manual
Section 2 - Installation
Setup
There are several ways you can congure your router to connect to the Internet
• EAGLE PRO AI - Use your compatible iOS or Android device to install and congure your router. Refer to EAGLE PRO AI
Setup on page 11.
• Hardware Setup - This section explains how to set up your G416. Refer to Hardware Setup on page 12.
• D-Link Setup Wizard - This wizard will launch when you log in to the router using your browser for the rst time. Refer to
Setup Wizard on page 15.
• Manual Setup - Log in to the router to manually congure your router. Refer to Conguration on page 22
11D-Link G416 User Manual
Section 2 - Installation
EAGLE PRO AI Setup

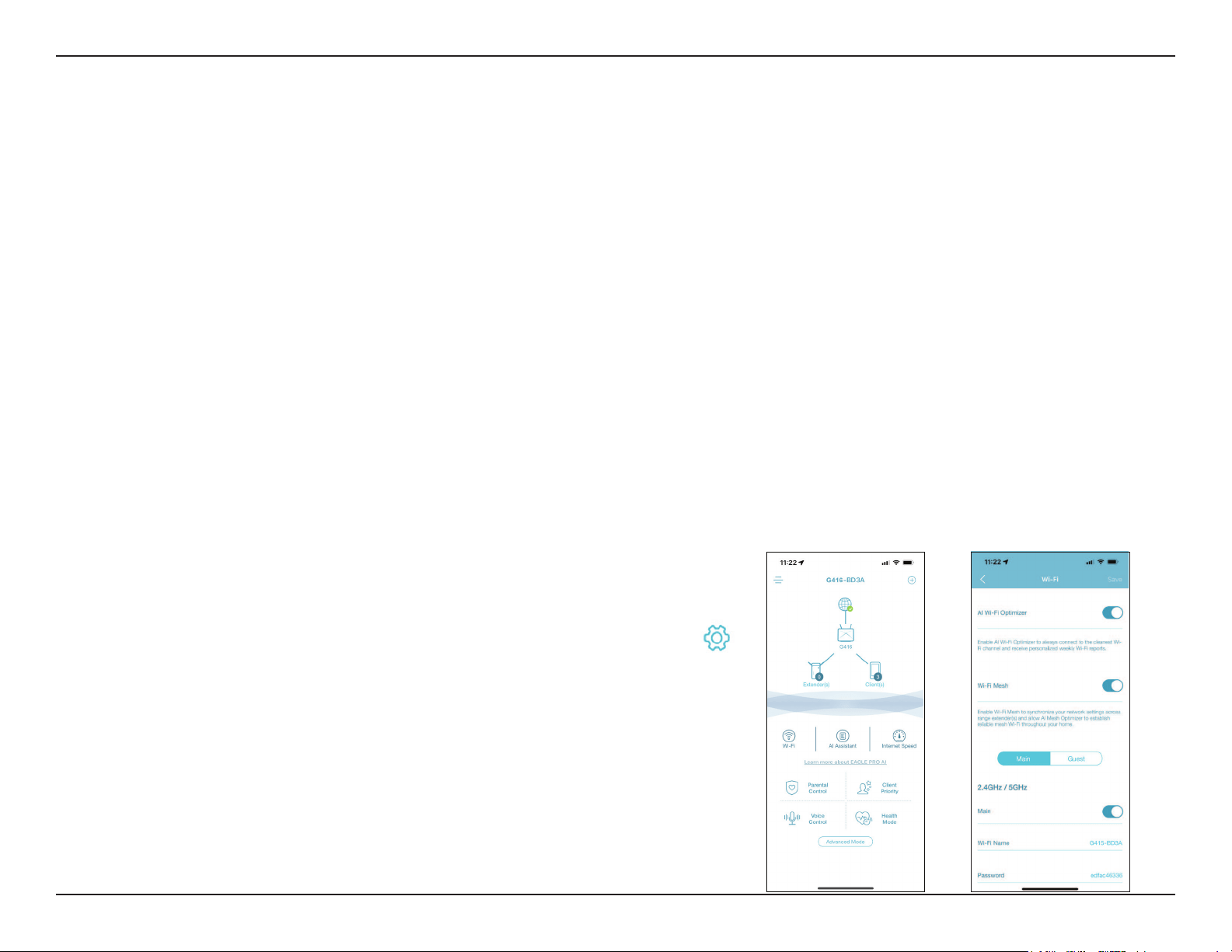

The EAGLE PRO AI allows you to install and congure your G416 from your compatible Android or iOS device.
Note: The screenshots may be dierent depending on your mobile device’s OS version. However, the process is the same.
Step 3
Tap Install New Device. Scan the setup code on the device label on the
bottom of the router. Follow the on-screen instructions to complete the
setup.
Step 1
Search and install the free EAGLE PRO AI available on the App Store or on
Google Play.
Step 2
Launch the EAGLE PRO AI from the home screen of your device.
12D-Link G416 User Manual
Section 2 - Installation

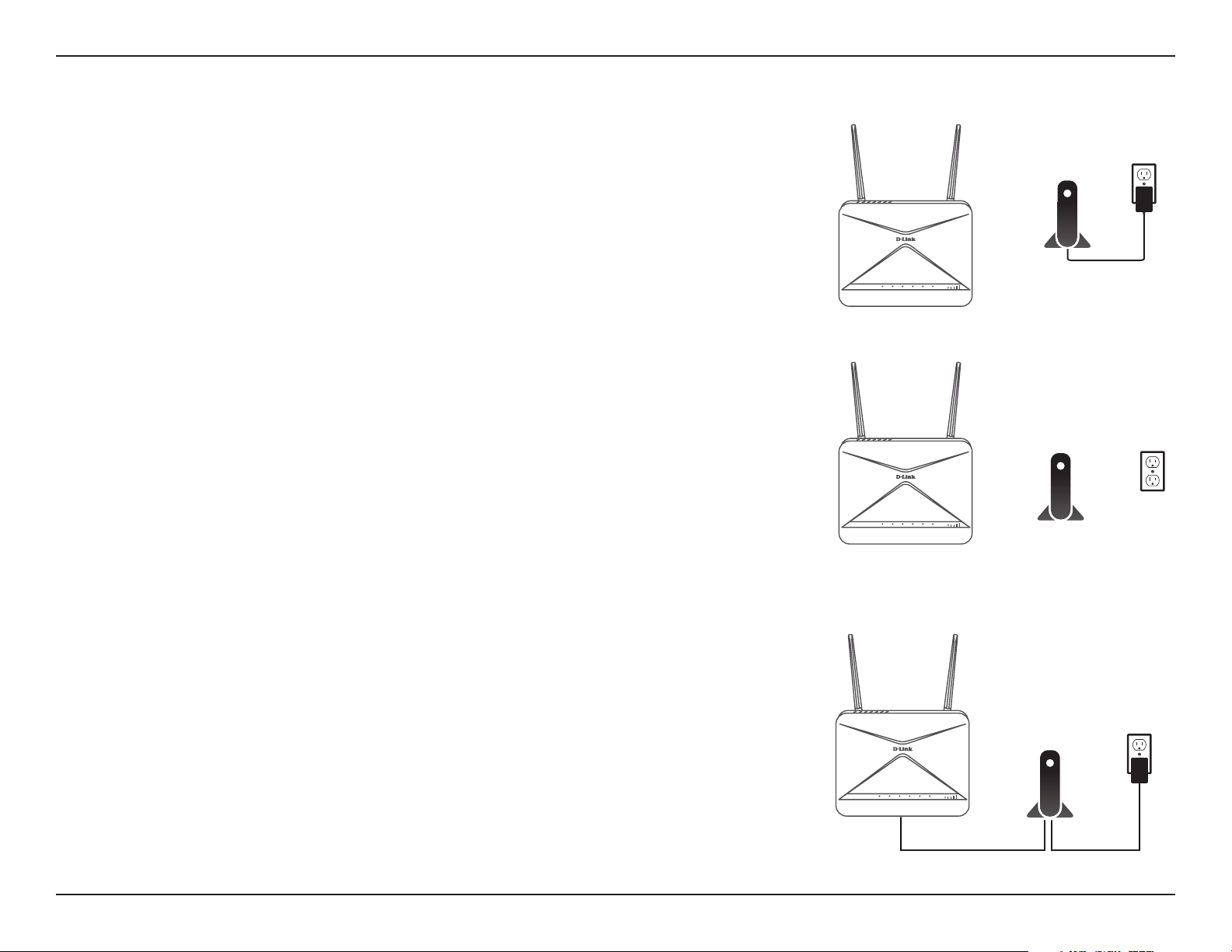

Hardware Setup
Step 1
Position your G416 near your Internet-connected modem. Place it in an open
area for better wireless coverage.
Step 2
Turn o and unplug the power to your cable or DSL broadband modem. This
is required. In some cases, you may need to turn it o for up to ve minutes.
Step 3
Use the Ethernet cable to connect your modem to the port labelled
INTERNET on the router.
MODEM
MODEM
MODEM
13D-Link G416 User Manual
Section 2 - Installation
Step 4
Plug in the power and turn your modem back on and wait approximately
one minute before proceeding with the procedure.
Step 5
Connect the supplied power adapter to the router and a power outlet, and
wait approximately one minute until the LED indicator on the front of the
device changes from orange to solid white.
Step 6
If you are conguring the router wirelessly from a PC, connect to the Wi-Fi network name printed on the label attached to
the bottom of your router. Note: The Wi-Fi name (SSID), Wi-Fi password, and device password are printed on the device
label on the bottom of the device.
SSID:
Password:
MODEM
MODEM
MODEM
14D-Link G416 User Manual
Section 2 - Installation
If you are conguring the router from a PC with a wired Ethernet connection, plug one end of an Ethernet cable into the
port labelled 1 on the back of the router, and the other end into the Ethernet port on your computer.
Step 7
If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already. Try
opening a web browser and connecting to a website. If the website does not load, proceed to Setup Wizard on page 15.
MODEM
15D-Link G416 User Manual
Section 2 - Installation
Setup Wizard
The setup wizard is designed to guide you through a step-by-step process of conguring your new G416 for Internet connection.

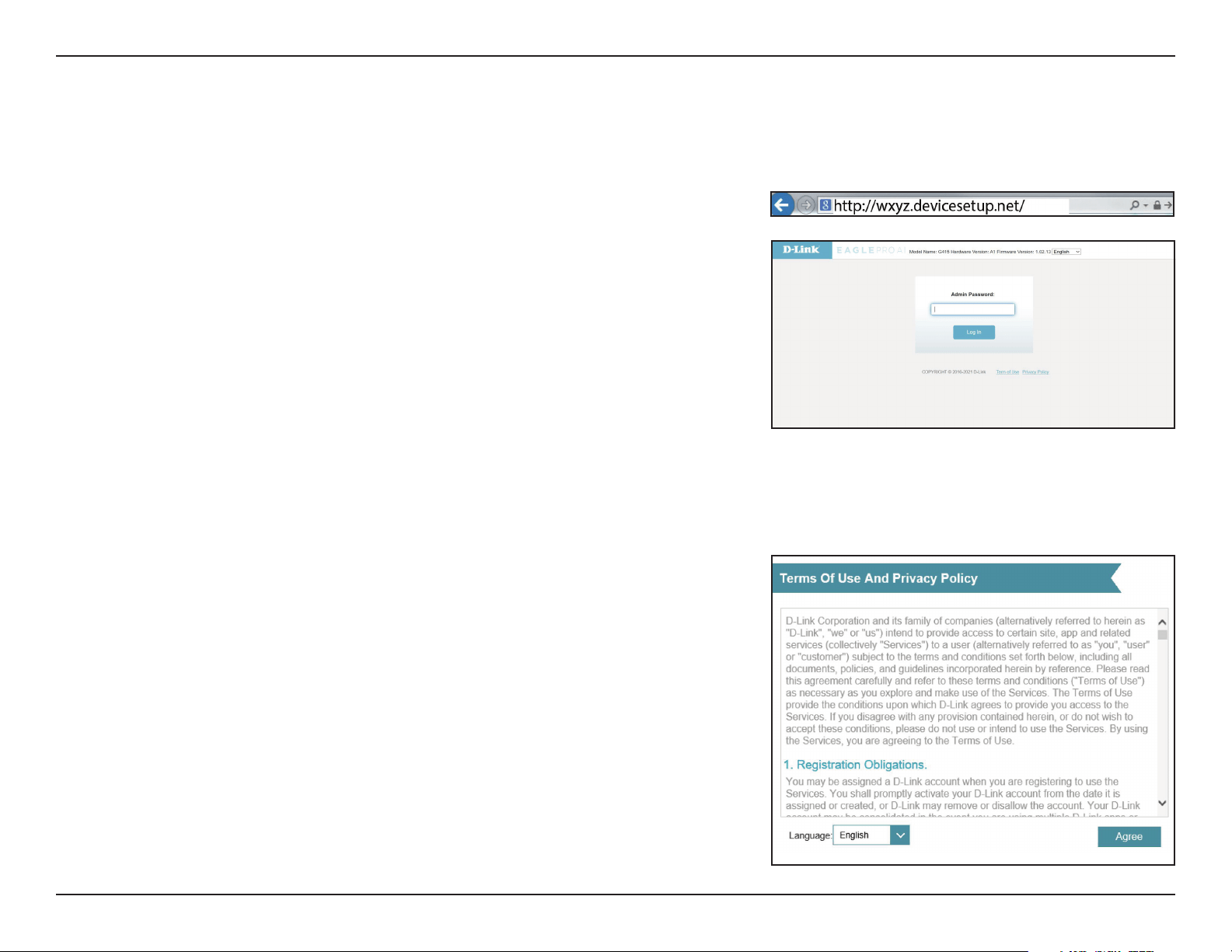

If this is your rst time installing the router, open your web browser and
enter http://xxxx.devicesetup.net/ into the browser (xxxx represents the last 4
digits of the MAC address). Enter the Admin Password and click Log In to start
the configuration process. The web address and device password are printed on
the device label on the bottom of the device.
Agree to the Terms of Use and Privacy Policy before proceeding.
16D-Link G416 User Manual
Section 2 - Installation

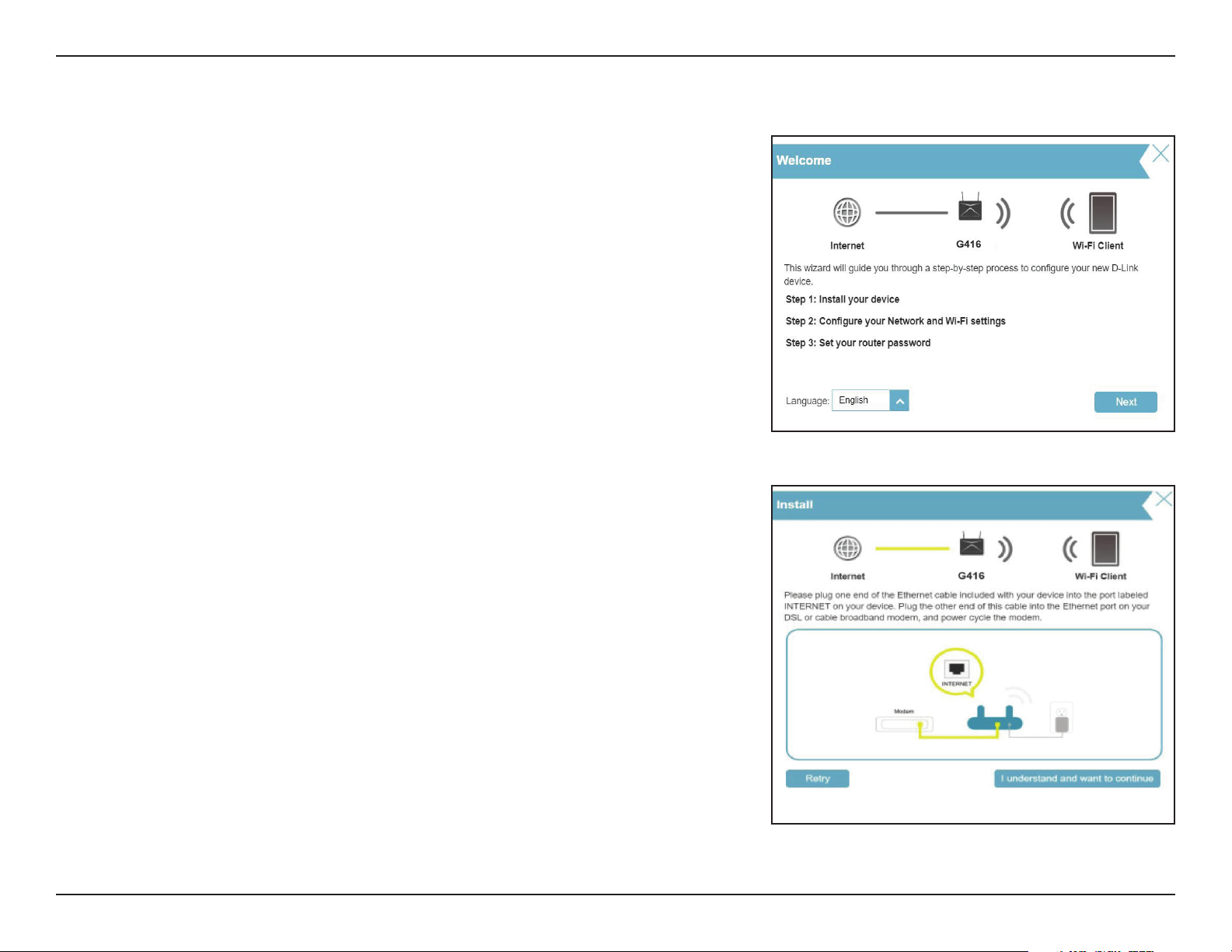

Connect the router and the modem with an Ethernet cable.
Follow the on-screen instructions to congure your new D-Link router and
connect to the Internet.
Click Next to continue.
17D-Link G416 User Manual
Section 2 - Installation
If the router detects or you select PPPoE, enter your PPPoE username and
password. If you do not have this information, please contact your ISP.
Click Next to continue.
Note: Be sure to remove all other existing PPPoE software from your computer.
The software is no longer needed and will not work through a router.
If the router does not detect a valid Internet connection, a list of connection
types will be displayed. Select your Internet connection type (this information
can be obtained from your Internet Service Provider).
Click Next to continue.
18D-Link G416 User Manual
Section 2 - Installation
Type in a Wi-Fi Network Name and Wi-Fi Password to set up your Wi-Fi
network. Your wireless clients will need this network password to be able to
connect to your wireless network.
Click Next to continue.
Note: The router's Smart Connect feature presents a single wireless network. When
connecting clients to an extended network, they will be automatically added to
the best band, either 2.4 GHz or 5 GHz. To disable the Smart Connect feature and
individually congure 2.4 GHz and 5 GHz networks, refer to Wireless on page 50.
If the router detects or you select Static, enter the IP and DNS settings supplied
by your ISP. If you do not have this information, please contact your ISP.
Click Next to continue.
19D-Link G416 User Manual
Section 2 - Installation
Select your time zone from the drop-down menu.
Click Next to continue.
In order to secure the router's conguration page, please enter a password.
You will be prompted for this password every time you log in to the router’s
web conguration utility. Password must be 8-15 characters and contains both
numbers and letters.
Note: It is strongly recommended that you change the default device password.
Click Next to continue.
20D-Link G416 User Manual
Section 2 - Installation
You will be presented with a summary of your settings.
Click Next to apply the settings or Back to make changes.
Keeping your router's firmware up-to-date provides you with the latest
protection and new features over the air. Choose whether to keep your device
up-to-date automatically or to manage the device updates by yourself.
Click Next to continue.
21D-Link G416 User Manual
Section 2 - Installation
Your new settings have been saved and your router is now congured.
Click OK to close the Setup Wizard.
Congratulations, your device has been successfully congured!
You can log in to the web conguration interface with the Admin Password.
Please wait while the device settings are saved.
Do not turn o or unplug your router during this time.
22D-Link G416 User Manual
Section 3 - Conguration
Conguration
Note: If you cannot remember your password for login, use a paperclip to press
the recessed Reset button on the back of the device to restore the router to its
default settings.
The router’s home page will open displaying its current connection status.
The left pane has quick access to Settings, Features, and Management
functions. You can access AI Assistant (an AI-assisted message center for
reports on Wi-Fi conditions and bandwidth utilization at the top right). Note
that you need to turn on AI-assisted functions to receive messages.
Note: The system will automatically log out after a period (180 seconds) of
inactivity.
The Wi-Fi Name(SSID), Wi-Fi Password, and device password are printed on the
Quick Installation Card and on the device label.

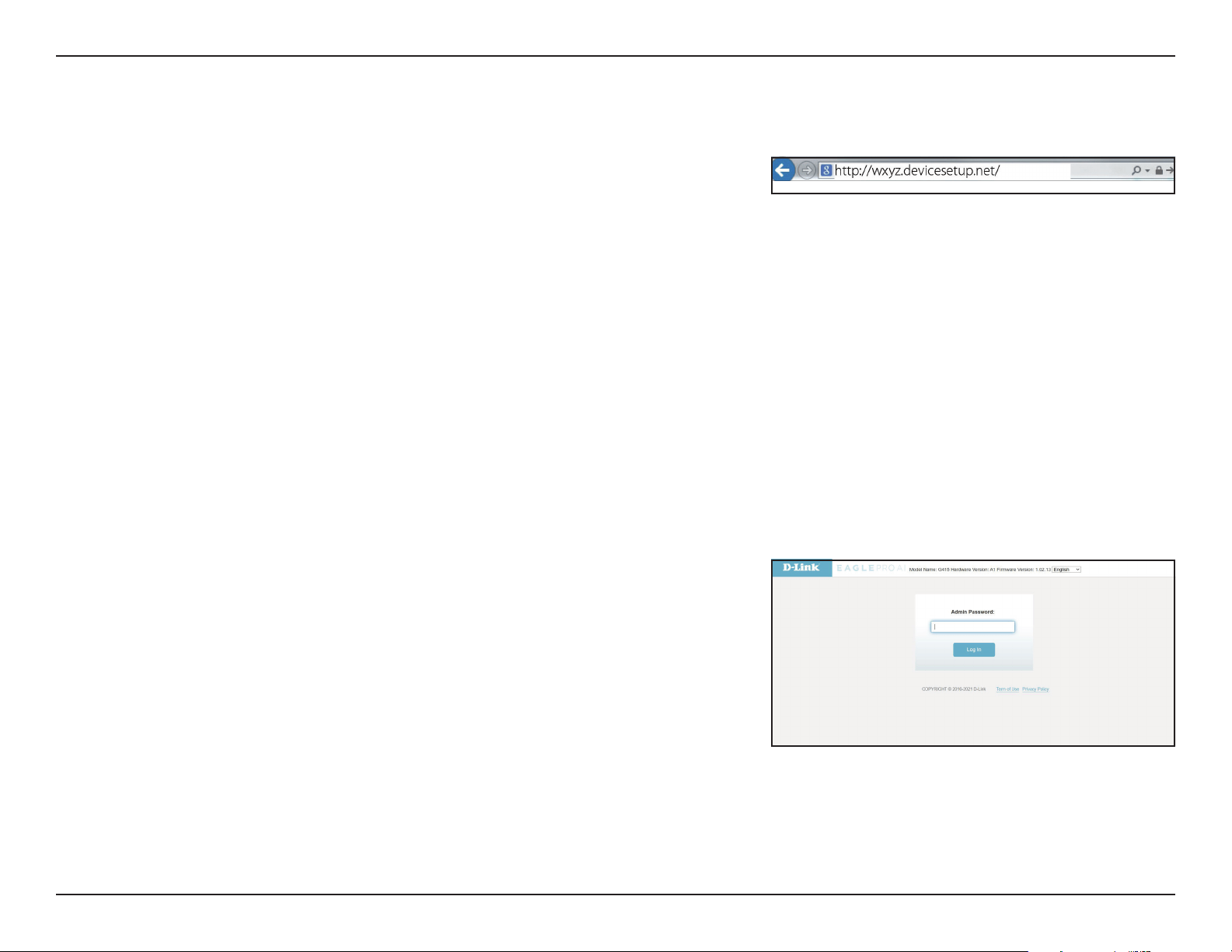

If this is your rst time installing the router, open your web browser and
enter the default management address at
http://XXXX.devicesetup.net/.
(where XXXX represents the last 4 digits of the MAC address).
23D-Link G416 User Manual
Section 3 - Conguration
Home
The Home page displays the status of the router in the form of an interactive diagram. You can click each icon to display
information about the components of the network at the bottom of the screen. The left pane allows you to quickly navigate
to other pages.

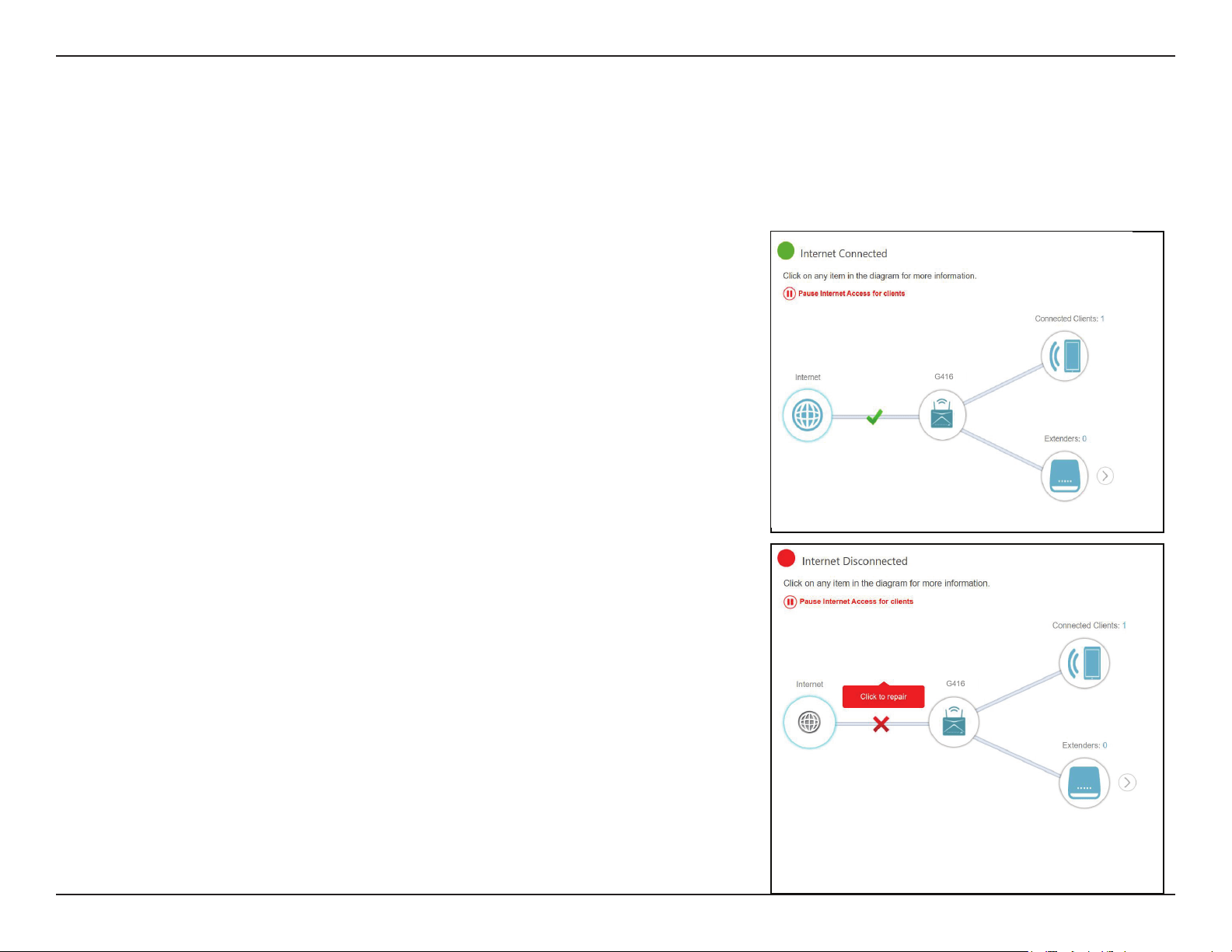

The Home page displays whether the router is currently connected to the
Internet.
If it is disconnected, click Click to repair to bring up the setup wizard, refer
to the Setup Wizard on page 15 for more information.
G416
24D-Link G416 User Manual
Section 3 - Conguration

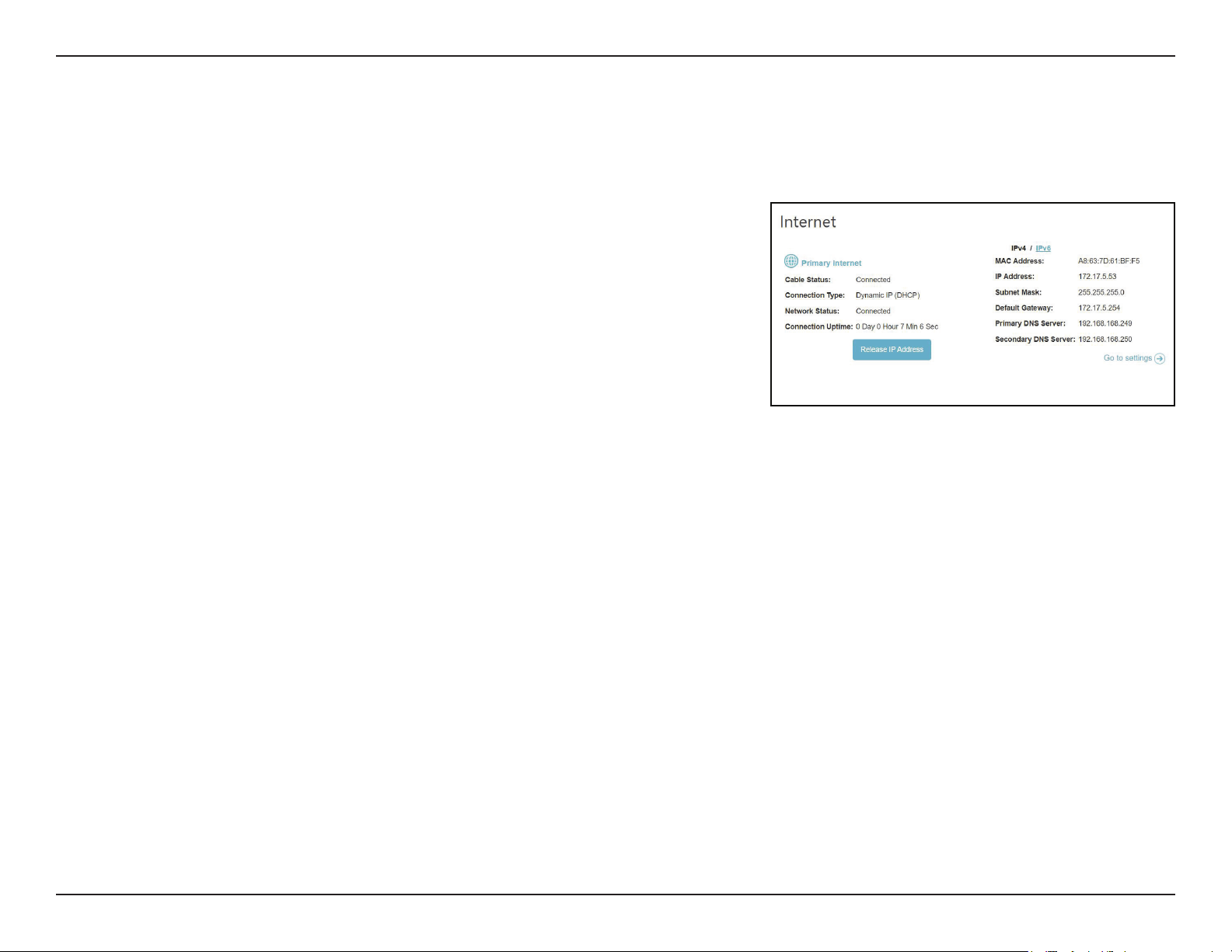

To bring up more details about your Internet connection, click on the Internet icon.
Internet
Click IPv4 or IPv6 to see details of the IPv4 connection and IPv6 connection
respectively.
Click Release IP Address to disconnect from the Internet. To reconnect, click
Renew IP Address.
To recongure the Internet settings, refer to
Internet - IPv4 on page 31.
G416
25D-Link G416 User Manual
Section 3 - Conguration
Click on the G416 icon to view details about the router and its wireless settings.
Here you can see the router’s current Wi-Fi network name and password, as
well as the router's MAC address, IPv4 address, and IPv6 address.
To recongure network settings, either click Go to settings at the bottom of
the page, or click Settings > Network (in the left pane). Refer to Network on
page 58
for more information.
To recongure wireless settings, either click Go to settings, on the lower
right, or click Settings > Wireless menu (in the left pane). Refer to Wireless
on page 50 for more information.
G416
26D-Link G416 User Manual
Section 3 - Conguration
Connected Clients
Click on the Connected Clients icon to obtain information about the connected clients of the router.
On this page you can see all the clients currently connected to the router
along with their IP addresses and device manufacturers.
To view more information about a client or edit a client’s settings such as IP
reservation and parental control, click
on the client you want to edit.
27D-Link G416 User Manual
Section 3 - Conguration
Edit Rule
Name Enter a custom name for this client.
Vendor Displays the vendor of the client.
MAC Address Displays the MAC address of the client.
IP Address Displays the current IP address of the client.
Reserve IP Click Enable to reserve an IP address for the client.
IP Address (Reserved) Specify an IP address for the router's DHCP server to assign.
Parental Control Enable Parental Control and select a prole to control the
client's Internet access. Make sure that this device is also on
the device list of the selected prole.
Prole Use the drop-down menu to select a prole to be used for
Parental Control. The prole can be set to Always Block to
have this client blocked from accessing the Internet, or you
can create your own proles to specify the times that the
client can access the network. You can also block access to
unwanted websites. Refer to Features > Parental Control
on page 62 for more information.
Click Save when you are done.
28D-Link G416 User Manual
Section 3 - Conguration
Settings
Wizard
Go to Settings > Wizard to open the setup wizard. This is the same wizard that appears when you start the router for the
rst time. Refer to Setup Wizard on page 15 for details.
Note: When the Wizard is opened, the router will disconnect from the Internet.
G416
29D-Link G416 User Manual
Section 2 - Installation
Cellular
Go to Settings > Cellular to congure your cellular connection. You can view data on the LTE modem connected to the
router and enable/disable the function for automatic creation of 3G/LTE WAN connection.
Connection Settings
Service Mode: Select 3G Only, 3G Prefer, LTE Only, or Auto to let the
system determine.
Connection
Mode:
Select Auto Connect or Manual Conect.
Data Roaming: Enable or disable Data Roaming.
Dial-up Settings
APN Mode: Select Manual or Auto for APN mode.
APN Name: When APN Mode is set to manual, enter the name of
your APN.
PDP Type: Select IPv4, IPv6, or IPv6/IPv6 for PDP type.
Username: Enter your username.
Password: Enter your password
Dial Number: Enter the dial number
Authentication
Type:
Select PAP, CHAP, NONE, or Auto for your authentication
type.
30D-Link G416 User Manual
Section 2 - Installation
Failover
Go to Settings->Failover to congure the WAN backup function. The G416’s failover feature allows you to set your
router to automatically switch to a backup Internet connection if your primary Internet connection is lost. When the main
connection is recovered, the device will switch back on its own.
Click Save at any time to save the changes you have made on this page.
When Failver is enabled, the following options will appear.
Checking Method: Select between DNS Query +
ICMP Ping, ICMP Ping, DNS
Query, or Auto.
Target Host 1: Enter an IP address for Host 1.
Target Host 2: Enter an IP address for Host 2.
Timeout Limit (ms) Enter the timeout limit in
milliseconds.
Retry Times Enter the entry time.
Interval Enter the interval in seconds.
31D-Link G416 User Manual
Section 3 - Conguration
Internet - IPv4
Go to Settings > Internet to see the Internet conguration options for IPv4 connection.
To congure IPv6 Internet and network connection details, click the IPv6 tab. Refer to Internet - IPv6 on page 36.
Click Save at any time to save the changes you have made on this page.
For IPv4 - Dynamic IP (DHCP) refer to page 32
For IPv4 - Static IP refer to page 33
For IPv4 - PPPoE refer to page 34
My Internet
Connection is
Choose your Internet connection type from the drop-down
menu. You will be presented with Dynamic IP (DHCP), Static
IP, and PPPoE for your connection type.
Enable the secure DNS to use public DNS with encryption via
DNS-over-HTTPS (DoH).
Select the public DNS service provider: Google or Cloudare.
Use your primary or secondary DNS server as an alternative if
the congured provider is not working.
Secure DNS
DNS over HTTP Provider
Allow Fall-back
32D-Link G416 User Manual
Section 3 - Conguration
IPv4 - Dynamic IP (DHCP)
Select Dynamic IP (DHCP) to obtain IP address information automatically from your Internet Service Provider (ISP). Select
this option if your ISP does not specify an IP address to use. Click Save at any time to save the changes you have made on this
page.
Advanced Settings...
Host Name The host name is optional but may be required by some ISPs.
Leave it blank if you are not sure.
Primary DNS Server Enter the primary DNS server IP address assigned by your ISP.
This address is usually lled in automatically.
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP. This address is usually lled in automatically.
MTU Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your ISP. The default is 1500.
MAC Address Clone The default MAC address is set to the Internet port’s physical
interface MAC address on the router. You can replace the
Internet port’s MAC address with the MAC address of a
connected client.
33D-Link G416 User Manual
Section 3 - Conguration
IPv4 - Static IP
Select Static IP if your IP information is provided by your Internet Service Provider (ISP). Click Save at any time to save the
changes you have made on this page.
IP Address Enter the IP address provided by your ISP.
Subnet Mask Enter the subnet mask provided by your ISP.
Default Gateway Enter the default gateway address provided by your ISP.
Primary DNS Server Enter the primary DNS server IP address provided by your ISP.
Secure DNS
DNS over HTTP Provider
Allow Fall-back
Enable the secure DNS to use public DNS with encryption
via DNS-over-HTTPS (DoH).
Select the public DNS service provider: Google or Cloudare.
Use your primary or secondary DNS server as an alternative
if the congured provider is not working.
Advanced Settings...
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP.
MTU Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your ISP.
MAC Address Clone The default MAC address is set to the Internet port’s physical
interface MAC address on the router. You can replace the
Internet port’s MAC address with the MAC address of a
connected client.
34D-Link G416 User Manual
Section 3 - Conguration
IPv4 - PPPoE
Select PPPoE (Point-to-Point Protocol over Ethernet) if your ISP requires you to enter a PPPoE username and password in
order to connect to the Internet. Click Save at any time to save the changes you have made on this page.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Reconnect Mode Select either Always on, On Demand, or Manual.
Maximum Idle Time Congurable when On Demand is selected. Enter a maximum
idle time during which the Internet connection is maintained
during inactivity. The default is 5 minutes. To disable this
feature, select Always on or Manual as the reconnect mode.
Secure DNS
DNS over HTTP Provider
Allow Fall-back
Enable the secure DNS to use public DNS with encryption
via DNS-over-HTTPS (DoH).
Select the public DNS service provider: Google or Cloudare.
Use your primary or secondary DNS server as an alternative
if the congured provider is not working.
35D-Link G416 User Manual
Section 3 - Conguration
Advanced Settings... - Dynamic IP
Address Mode Select Static IP if the following information has been provided
by your ISP: IP address, MTU, and DNS server addresses. In most
cases, select Dynamic IP.
IP Address When Static IP is selected as the address mode, the column
for IP address will appear. Enter the IP address provided by
your ISP.
Service Name Enter the ISP service name (optional)
Primary DNS Server Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP.
MTU Maximum Transmission Unit (1280~1500)- you may need to
change the MTU for optimal performance with your ISP. The
default is 1500.
MAC Address Clone The default MAC address is set to the Internet port’s physical
interface MAC address on the router. You can replace the
Internet port’s MAC address with the MAC address of a
connected client.
36D-Link G416 User Manual
Section 3 - Conguration
Internet - IPv6
Go to Settings > Internet to see the Internet conguration options for IPv4 , then click the IPv6 tab to access the
conguration options for IPv6.
To congure the IPv4 Internet and network connection details, click the IPv4 tab. Refer to Internet - IPv4 on page 31
Click Save at any time to save the changes you have made on this page.
For IPv6 - Auto Detection refer to page 37
For IPv6 - Static IPv6 refer to page 39
For IPv6 - Auto Conguration (SLAAC/DHCPv6) refer to page 41
For IPv6 - PPPoE refer to page 43
For IPv6 - 6rd refer to page 47
For IPv6 - Local Connectivity Only refer to page 49
My Internet
Connection is
Choose your Internet connection type from the drop-down
menu. You will be presented with the appropriate options for
your connection type.
37D-Link G416 User Manual
Section 3 - Conguration

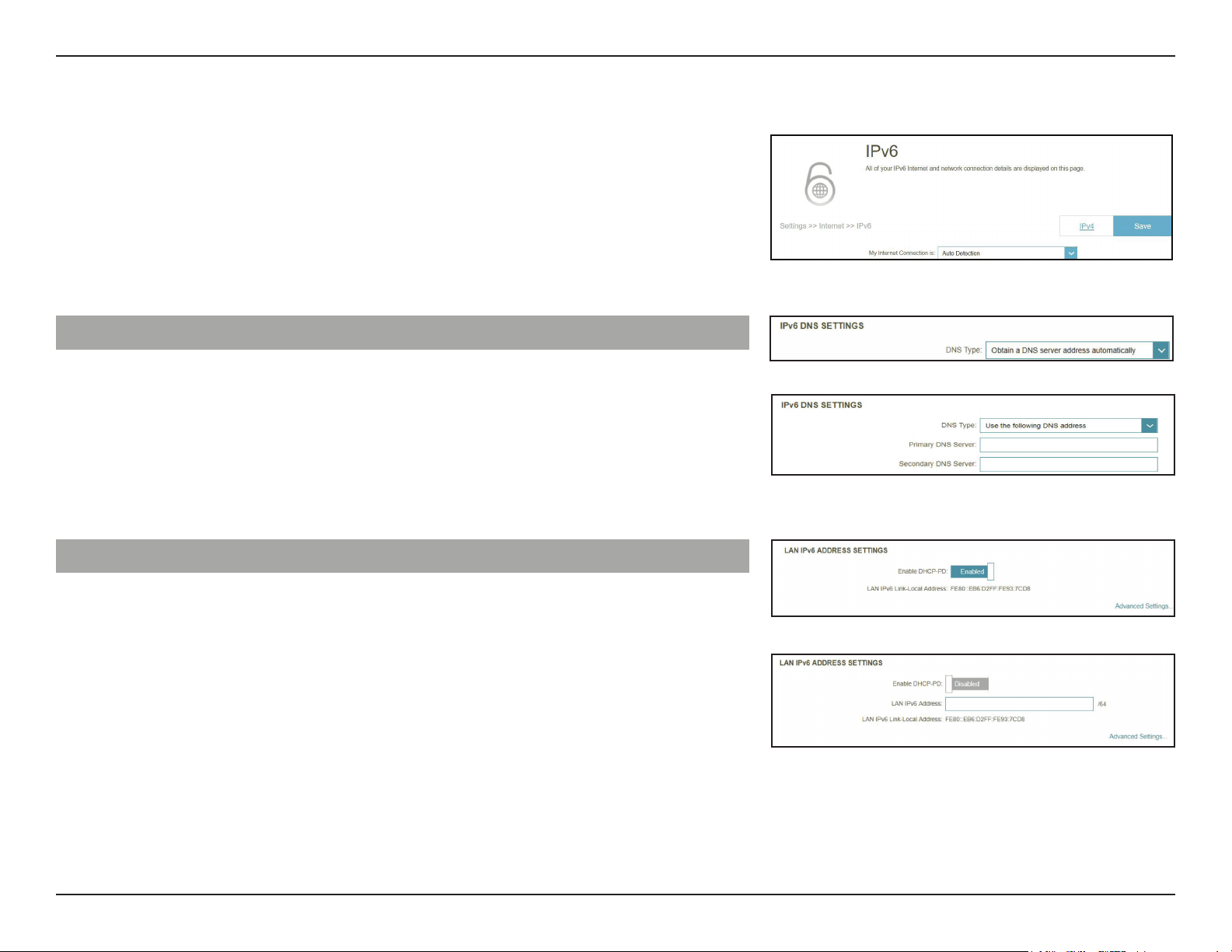

IPv6 - Auto Detection
Select Auto Detection to automatically detect the IPv6 connection method
used by your Internet Service Provider (ISP). If Auto Detection fails, you can
manually select another IPv6 connection type. Click Save at any time to save
the changes you have made on this page.
IPv6 DNS Settings
DNS Type Select either Obtain DNS server address automatically or
Use the following DNS address.
Primary DNS Server If you select Use the following DNS address, enter the
primary DNS server address.
Secondary DNS Server Enter the secondary DNS server address as a backup.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable DHCP prex delegation.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address, which is used only
within the local network.
If
Enable DHCP-PD is disabled, enter the following:
LAN IPv6 Address Enter a valid LAN IPv6 address.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address.
38D-Link G416 User Manual
Section 3 - Conguration

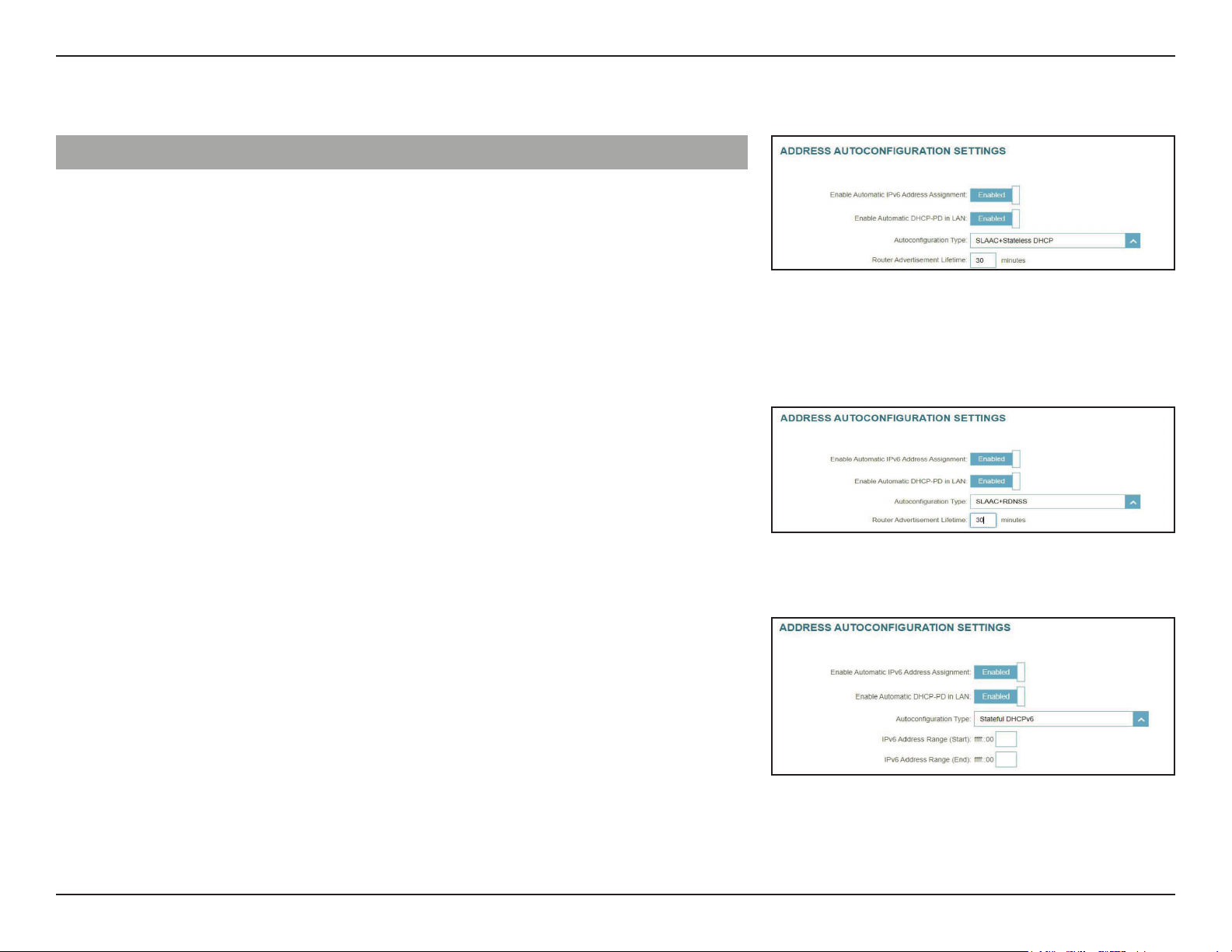

Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment
feature.
Enable Automatic
DHCP-PD in LAN
Enable or disable DHCP-PD for other IPv6 routers connected
to the LAN interface.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
If you select
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
If you select
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address
Range (End)
IPv6 Address Lifetime
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
Enter the dynamic IP's retention time. The default is 10080
minutes.
39D-Link G416 User Manual
Section 3 - Conguration
IPv6 - Static IPv6
Select Static IP if your IPv6 information is provided by your Internet Service Provider (ISP). Click Save at any time to save the
changes you have made on this page.
Use Link-Local Address
Enable or disable link-local address.
IPv6 Address Congurable when Use Link-Local Address is disabled. Enter
the address supplied by your ISP.
Subnet Prex Length Congurable when Use Link-Local Address is disabled. Enter
the subnet prex length (1~128) supplied by your ISP.
Default Gateway Enter the default gateway for your IPv6 connection.
Primary DNS Server Enter the primary DNS server address.
Secondary DNS Server Enter the secondary DNS server address.
LAN IPv6 Address Settings
LAN IPv6 Address Enter the LAN (local) IPv6 address for the router.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address.
40D-Link G416 User Manual
Section 3 - Conguration
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment
feature.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
If you select
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
If you select
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address Lifetime Enter the dynamic IP's retention time. The default is 10080
minutes.
41D-Link G416 User Manual
Section 3 - Conguration
IPv6 - Auto Conguration (SLAAC/DHCPv6)
Select Auto Conguration if your ISP assigns an IPv6 address when your router requests one from the ISP’s server. Some
ISPs require you to congure relevant settings in advance before your router can connect to the IPv6 Internet. Click Save at
any time to save the changes you have made on this page.
IPv6 DNS Settings
DNS Type Select either Obtain DNS server address automatically or
Use the following DNS address.
Primary DNS Server If you select Use the following DNS address, enter the
primary DNS server address.
Secondary DNS Server If you select Use the following DNS address, enter the
secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable prex delegation.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address.
If
Enable DHCP-PD is disabled, congure the following:
LAN IPv6 Address Enter a valid LAN IPv6 address.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address for the local
network only.
42D-Link G416 User Manual
Section 3 - Conguration
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment
feature.
Enable Automatic
DHCP-PD in LAN
If DHCP-PD is enabled in the previous LAN IPv6 Address
Settings, enable or disable automatic DHCP-PD for other IPv6
routers connected to the LAN interface.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
If you select
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
If you select
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address Lifetime If DHCP-PD is disabled in the previous LAN IPv6 Address
Settings, enter the IP address retention period in minutes. The
default is 10080 minutes.
43D-Link G416 User Manual
Section 3 - Conguration
IPv6 - PPPoE
Select PPPoE if your ISP requires you to enter a PPPoE username and password to connect to the Internet. Click Save at any
time to save the changes you have made on this page.
PPPoE Session Create a new PPPoE session.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Address Mode Select either Dynamic IP or Static IP.
IP Address Configurable if Static IP is chosen. Enter the IP address
provided by your ISP.
Service Name Enter the ISP service name (optional).
Reconnect Mode Select either Always On or Manual.
MTU Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your ISP. The default is
1492 bytes.
44D-Link G416 User Manual
Section 3 - Conguration
IPv6 DNS Settings
DNS Type Select either Obtain DNS server address automatically or
Use the following DNS address.
Primary DNS Server If you select Use the following DNS address, enter the
primary DNS server address.
Secondary DNS Server If you select Use the following DNS address, enter the
secondary DNS server address as a backup.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable prex delegation.
LAN IPv6 Address Congurable if the above DHCP-PD is disabled. Enter the IP
address provided by your ISP.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address for the local
network only.
45D-Link G416 User Manual
Section 3 - Conguration
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment.
If
Enable DHCP-PD is enabled in the previous LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN
Enable or disable DHCP-PD for other IPv6 routers connected
to the LAN interface.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
If you select
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes).
If you select
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
46D-Link G416 User Manual
Section 3 - Conguration
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment
feature.
If
Enable DHCP-PD is disabled in the previous LAN IPv6 Address Settings:
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
If you select
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
If you select
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address Lifetime Enter the IPv6 address lifetime (in minutes). The default is
10080 minutes.
47D-Link G416 User Manual
Section 3 - Conguration
IPv6 - 6rd
IPv6 6rd (rapid deployment) allows IPv6 packets to be transmitted over an IPv4 network. Click Save at any time to save the
changes you have made on this page.
Assign IPv6 Prex Currently unsupported.
Primary DNS Server Enter the primary DNS server address.
Secondary DNS Server Enter the secondary DNS server address as a backup.
6rd Manual Conguration
Enable Hub and Spoke
Mode
Enable this option if you want to minimize the number of
routes to the destination by using a hub and spoke method
of networking.
6rd Conguration Choose the 6rd DHCPv4 Option to automatically discover
and populate the data values, or Manual Conguration to
enter the settings yourself.
If you select
Manual Conguration as the 6rd Conguration:
6rd IPv6 Prex Enter the 6rd IPv6 network address and prex length (1~128)
supplied by your ISP.
WAN IPv4 Address Enter the IPv4 network prex.
6rd Border Relay IPv4
Address
Enter the 6rd border relay IPv4 address settings supplied by
your ISP.
48D-Link G416 User Manual
Section 3 - Conguration
LAN IPv6 Address Settings
LAN IPv6 Address Displays the router’s LAN IPv6 address.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address.
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable or disable the Automatic IPv6 Address Assignment
feature.
Autoconguration
Type
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
If you select
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
If you select
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address Lifetime Enter the IPv6 address lifetime (in minutes). The default is
10080 minutes.
49D-Link G416 User Manual
Section 3 - Conguration
IPv6 - Local Connectivity Only
Local Connectivity Only allows you to set up an IPv6 connection that will
not connect to the Internet. Click Save at any time to save the changes you
have made on this page.
Advanced Settings... - IPv6 ULA Settings
Enable ULA Click here to enable Unique Local IPv6 Unicast Addresses
settings.
Use Default ULA Prex Enable this option to use the default ULA prex.
ULA Prex If you disable Use Default ULA Prex, enter your own ULA
prex.
Advanced Settings... - Current IPv6 ULA Settings
Current ULA Prex Displays the current ULA prex.
LAN IPv6 ULA Displays the LAN's IPv6 ULA.
50D-Link G416 User Manual
Section 3 - Conguration
Wireless
Go to Settings > Wireless to see your wireless network settings for your router.
Click Save at any time to save the changes you have made on this page.
Wi-Fi Mesh
Status Enable or disable Wi-Fi mesh if you plan to build a mesh
network in your environment. The mesh network is able to nd
the shortest and fasted path to your gateway/router in a mesh
network topology. Hence, it enhances eciency and reliability.
Smart Connect
Status Enable or disable the Smart Connect Feature. The Smart
Connect feature presents a single wireless network. When
connecting clients to the extended network, the clients
will be automatically added to the best band, either 2.4
GHz or 5 GHz.
Wireless
Wi-Fi Name (SSID) Create a name for your wireless network. Up to 32 characters
are allowed.
Password Create a password to use for wireless security. Wireless clients
will need to enter this password to successfully connect to
the network.
If Smart Connect is Enabled:
G416-BD3A
51D-Link G416 User Manual
Section 3 - Conguration
Wireless - Advanced Settings...
Security Mode Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/
WPA3-Persoanl, or WPA3-Personal. WPA3 provides the
highest level of security among these. Note that WPS will be
disabled if WPA3 is used.
Transmission Power Select the desired wireless transmission power: High, Medium,
or Low.
Schedule Select the time during which the wireless network will be
available. The schedule may be set to Always Enable or you
can add your own schedule.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule.
G416-BD3A
52D-Link G416 User Manual
Section 3 - Conguration
Smart Connect
Status Enable or disable the Smart Connect Feature. When disabled,
2.4GHz and 5GHz conguration options become available.
If Smart Connect is
Disabled:
2.4GHz / 5GHz
Status Enable or disable the 2.4GHz / 5GHz wireless network.
Wi-Fi Name (SSID) Create a name for your wireless network. Up to 32 characters
are allowed.
Password Create a password to use for wireless security. Wireless clients
will need to enter this password to connect to the network.
G416-BD3A
G416-BD3A
53D-Link G416 User Manual
Section 3 - Conguration
2.4GHz - Advanced Settings...
Security Mode Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/
WPA3-Personal, or WPA3-Personal. WPA3 provides the
highest level of security among these. Note that WPS will be
disabled if WPA3 is used.
802.11 Mode (2.4GHz) Select the desired wireless networking standards to use.
The available options for the 2.4 GHz wireless network are
Mixed 802.11b/g/n, Mixed 802.11b/g, Mixed 802.11g/n,
802.11b only, 802.11g only, and 802.11n only.
Wi-Fi Channel Select the desired channel:1-11. The default is Auto
(recommended).
Transmission Power Select the desired wireless transmission power: High, Medium,
or Low.
Channel Width
(2.4GHz)
Select Auto 20/40 MHz if you are using both 802.11n and
non-802.11n (802.11b/g/a) devices, or select 20 MHz if you
are using a mix of 802.11b/g/a devices.
HT20/40 Coexistence
(2.4GHz)
Enable or disable HT20/40 Coexistence.
Visibility Status The default setting is Visible. Select Invisible if you do not
want to broadcast the SSID of your wireless network.
Schedule Select the time during which the wireless network will be
available. The schedule may be set to Always Enable or you
can add your own schedule.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule.
G416-BD3A
54D-Link G416 User Manual
Section 3 - Conguration
5GHz - Advanced Settings...
Security Mode Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/
WPA3-Persoanl, or WPA3-Personal. WPA3 provides the
highest level of security among these. Note that WPS will be
disabled if WPA3 is used.
802.11 Mode (5GHz) Select the desired wireless networking standards to use.
The available options for the 5 GHz wireless network are Mixed
802.11a/n/ac/ax, Mixed 802.11a/n/ac, Mixed 802.11a/n,
802.11ac only, 802.11a only, and 802.11n only.
Wi-Fi Channel Select the desired channel: 36, 40, 44, 48, 149, 153, 157, 161,
or 165. The default is Auto (recommended).
DFS Channel If Auto Channel is selected, select this option to help nd one
with the least interference.
Transmission Power Select the desired wireless transmission power: High, Medium,
or Low.
Channel Width (5GHz) Select Auto 20/40/80 MHz if you are using 802.11ax, 802.11ac,
802.11n, and 802.11a devices, select Auto 20/40 if you are
using 802.11n and 802.11a devices, or select 20 MHz if you
are using 802.11a devices.
Visibility Status The default setting is Visible. Select Invisible if you do not
want to broadcast the SSID of your wireless network.
Schedule Select the time during which the wireless network will be
available. The schedule may be set to Always Enable or you
can add your own schedule.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule.
G416-BD3A
55D-Link G416 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
The easiest way to connect your wireless devices to the router is with Wi-Fi Protected Setup (WPS).
WPS-PBC Status Enable or disable WPS-PBC (Push Button Configuration)
functionality. Press to establish a connection with another
WPS compatible device.
AI Wi-Fi Optimizer
AI-assisted Wi-Fi Optimizer intelligently assists in bandwidth optimization in your home or
oce network. It automatically adopts the "cleanest" channel using the mesh beamforming
technology, which in turn optimizes the overall mesh network. It also provides push
notications about weekly network bandwidth utilization and network management
advice on prioritizing clients to maintain the overall Internet quality. Refer to
EAGLE PRO
AI
on page 94 for more information.
AI Wi-Fi Optimizer
Choose Optimization
Time
Enable or disable AI Wi-Fi Optimizer functionality.
Enable or disable scheduled optimization. Select the time at
which the AI Wi-Fi Optimizer will start.
Once this is turned on, you will start receiving weekly reports on Wi-Fi conditions through
AI Assistant.
56D-Link G416 User Manual
Section 3 - Conguration
Guest Zone
Go to Settings > Wireless, then click the Guest Zone tab to congure your guest Wi-Fi.
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These
zones will be separate from your main wireless network. You may congure dierent zones for the 2.4 GHz and 5 GHz
wireless bands.
Click Save at any time to save the changes you have made on this page.
If Smart Connect is
Enabled in the previous Wireless settings, congure the following for both
radio frequencies. If it is
Disabled, congure the following for 2.4GHz and 5GHz individually.
Wireless
Status Enable or disable the Guest Zone feature. The status is disabled
by default.
Wireless Name (SSID) Create a name for your wireless network using up to 32
characters.
Password Create a password to use for wireless security. Your password
must be between 8-63 characters in length.
Schedule Select the time during which the wireless network will be
available. The schedule may be set to Always Enable or you
can add your own schedule.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule.
57D-Link G416 User Manual
Section 3 - Conguration
Home Network Access
Internet Access Only Enabling this option will conne connectivity to the Internet
and prevent guests from accessing other local network devices.
Advanced Settings
Security Mode Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/
WPA3-Persoanl, or WPA3-Personal. WPA3 provides the
highest level of security among these. Note that WPS will be
disabled if WPA3 is used.
58D-Link G416 User Manual
Section 3 - Conguration
Network
Go to Settings > Network to change the local network settings of the router and congure the DHCP settings.
Click Save at any time to save the changes you have made on this page.
Network Settings
LAN IP Address Enter the IP address of the router. The default IP address is
192.168.0.1. If you change the IP address, you will need to
enter the new IP address in your browser to log in to the web
conguration.
Subnet Mask Enter the subnet mask of the router. The default subnet mask
is 255.255.255.0.
Management Link The default address to access the router’s conguration is
http://G416-xxxx.local/ (where xxx represents the last 4 digits
of your router's MAC address). You can replace G416-xxxx with
a name of your choice.
Local Domain Name Enter the domain name (optional).
Enable DNS Relay Disable this option to transfer the DNS server information from
your ISP to your computers. If enabled, your computers will
use the router's settings for DNS service.
G416-BD3A
59D-Link G416 User Manual
Section 3 - Conguration
DHCP Server
Status Enable or disable the DHCP server.
DHCP IP Address
Range
Enter the start and end IP addresses for the DHCP server's IP
assignment. Note: If you statically assign IP addresses to your
computers or devices, make sure the IP addresses are outside of
this range or you may have an IP conict.
DHCP Lease Time Enter the length of time for the IP address lease in minutes.
The default is 10080 minutes.
Always Broadcast Enable this feature to broadcast your network's DHCP server
to LAN/WLAN clients.
Advanced Settings...
WAN Port Speed You may set the link speed of the Internet port to 10 Mbps,
100 Mbps, 1000 Mbps, or Auto (recommended).
UPnP Enable or disable Universal Plug and Play (UPnP). UPnP
provides compatibility with networking equipment, software,
and peripherals. This is enabled by default.
IPv4 Multicast Streams
Allow or disallow IPv4 multicast trac to pass through the
router from the Internet. This is enabled by default.
IPv6 Multicast Streams
Allow or disallow IPv6 multicast trac to pass through the
router from the Internet. This is enabled by default.
60D-Link G416 User Manual
Section 3 - Conguration
D-Link Cloud
Go to Settings > D-Link Cloud to see your D-Link Cloud Service details. This page lists whether you are registered with
D-Link Cloud Service and email address associated with the account. It enables you to manage your device anytime,
anywhere and check the status of your router. Use the EAGLE PRO AI to nd out more about D-Link Cloud's features.
61D-Link G416 User Manual
Section 3 - Conguration
Operation Mode
Go to Settings > Operation Mode to select your operation mode. Depending on your network architecture, you can
congure the router to function as one of the following types of network device: Router or Mobile Router.
Router Mode: In this mode, G416 directly connects to the Internet provided by your ISP (Internet Service Provider). All
client devices from a network group are connected and managed under this router. This is the default mode.
Mobile Router: In this mode, G416 connects to the Internet via 4G/LTE network provided by your Cellular Internet Service
Provider. All client devices from the network group are connected and managed under this mobile router.
62D-Link G416 User Manual
Section 3 - Conguration
Features
Parental Control
Go to Features > Parental Control to congure parental control policies. You can congure schedules that restrict online
hours and prevent access to certain websites.
Click Save at any time to save the changes you have made on this page.
This page displays a list of proles with the following information:
Prole Name The name describes this prole.
Device Count The number of devices that this policy will be applied to.
State Displays the current status of Internet accessibility, i.e. Normal,
Schedule Paused, or Paused on Demand.
Edit Edit this access prole.
Delete Remove this access prole.
A maximum of 12 proles can be dened. Once a prole has been set, you will start receiving
weekly reports on Internet access activity of the clients through AI Assistant.
To add a prole, congure the following:
Schedule
Prole Name Enter a name for this prole.
Allow Internet Access
Time
Click Enabled and dene the schedule to allow Internet access.
Select the time during which the Internet will be available.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule. If no time periods are selected, all devices in this
prole will be denied Internet access.
63D-Link G416 User Manual
Section 3 - Conguration
Block Internet Access
During Bedtime
Allow Slow Internet
Access
Click Enabled and dene the schedule to block Internet access
during bedtime.
To add a bedtime schedule:
Select the time during which bedtime schedule will be active.
Select the days of the week, then select the pause time and
the resume time for the period during which Internet access
will be blocked. To specify dierent time periods for days of
the week, click Add another Bedtime schedule... A maximum
of 2 schedules can be dened.
Enable this option to allow slow Internet access with reduced
speed during restricted hours set above.
You can also modify an existing schedule by clicking
Edit.
Website Filter
Click
Add Rule to add a new website to be blocked:
Website Name
URL Keyword
Enter the name for the website. This blocks access to websites
based on a website's address. For example, enter "ABC.com"
or "www.ABC.com."
This blocks access to websites based on the keywords with
matching URLs. For example, use "ABC" to block "www.ABC.
com" and "xxx.ABC.com" and other URLs containing ABC. Enter
the same website name as the above in this eld to block only
the specic URL.
You can also modify or delete an existing rule by clicking
Edit or Delete respectively.
Device
Click
Add Device to add devices to be in the dened prole. Select the devices from the
list of connected devices to which the access policy should be applied, then click
Apply
to close the screen. Click
Save to save your prole settings and the new prole will be
added to the prole list. You can also modify or delete an existing prole by clicking
Edit
or
Delete respectively. On the Edit page for a selected prole, you can Pause for Internet
Access
of specied devices of the prole immediately.
64D-Link G416 User Manual
Section 3 - Conguration
Click Settings to view the messages displayed to the device users whose
Internet access has been restricted.
Blocked Webpage Message
For these access controls:
Manual Pause Control, Website Filter, Custom Schedule, and
Bedtime Schedule
, you can view and customize the messages as well as the titles:
Title
Description
Reset this message
Preview this message
Enter the title of the message in the text box.
State the message to inform the user about the restricted
access.
Click this button to reset the modied message to its factory
default.
Display the presentation of the message on a new webpage.
65D-Link G416 User Manual
Section 3 - Conguration
Data Cap
Go to Features -> Data to congure the Data Cap settings for your device. You can monitor the data usage in real-time
and receive alert message when data usage allowance reached.
Click Save at any time to save the changes you have made on this page.
Blocked Webpage Message
Data Cap Enable or disable data cap.
Amount Set the maximum data usage allowance in GB.
Warning Ratio
(%)
Set the Warning Ratio to which the alert message will
be triggered.
Reset Date
Monthly
Enter a day of the month in which the data cap will be
reset.
Send SMS Enable or disable Send SMS when the data cap is
reached
Phone Number When Send SMS is enabled, enter the phone number
in which the alert message will be received.
Note: Sending SMS messages may incur additional
fees. Please contact your ISP for more information.
66D-Link G416 User Manual
Section 3 - Conguration
SMS
Go to Features -> SMS to send or receive SMS messages. This page shows all messages that are stored on the SIM card.
Click Save at any time to save the changes you have made on this page.
Cellular SMS Settings
SMS: Enable or disable the SMS receiving function.
Storage: Select SIM Card or Modem to store the SMS messages.
Keep
Message:
Enable or disable Keep Message.
Keep Number: Set the amount of SMS messages to save. Up to 20
messages can be saved.
Click New SMS to create new SMS messages.
Cellular SMS Settings
Phone
Number:
Enter the phone number of the recipient.
Message Enter your message here.
67D-Link G416 User Manual
Section 3 - Conguration
Status Displays the status of the message.
ID Displays the sender's ID.
Read Displays whether the message has been read.
Date Time Displays the time and date in which the
message is received.
From Phone
Number
Displays the phone number of the sender..
Message Preview: Displays a preview of the message selected.
Delete: Delete the selected SMS message.
In the SMS page, click Inbox to manage the SMS message you have received. Select a message to display its contents in
the SMS window. After you read it, you can delete it, or reply to the sender.
Inbox
68D-Link G416 User Manual
Section 3 - Conguration
PIN
Go to Features -> Pin to congure your SIM card’s PIN. Click Save at any time to save the changes you have made on
this page.
Inbox
SIM PIN Lock Settings Enable or disable SIM PIN Lock
SIM card status Displays the status of your SIM card.
To change your SIM’s PIN, enter the new PIN in the PIN text eld. When PIN
protection is enabled, you'll have to input your PIN whenever your SIM card
is switched.
Click Apply when you are done.
69D-Link G416 User Manual
Section 3 - Conguration
USSD
Go to Features -> USSD to interact with your ISP with USSD . Unstructured Supplementary Service Data (USSD) allows ISP-
specic applications to be activated with an SMS message.
Cellular USSD
Command: Enter an application activation code and click Send. This
will allow you to activate applications by sending an SMS
message to your ISP.
Response: Displays an acknowledgement of receipt from your internet
service provider.
70D-Link G416 User Manual
Section 3 - Conguration
QoS Engine
Go to Features > QoS Engine to congure clients' Internet access priorities. It aims to optimize Internet trac to enhance
the overall user experience.
Click Save at any time to save the changes you have made on this page.
Internet Speed
Checkup
Click Check Speed to run a speed check to determine
how to distribute Wi-Fi bandwidth to prioritized devices.
The speed test helps the QoS engine to distribute Wi-Fi
bandwidth to prioritized devices (congured in the device
cards below)
.
AI Trac Optimizer
Upload Speed
Download Speed
The intelligent QoS Engine lists devices consuming
comparatively large resources and will intelligently adjust
bandwidth to these devices by assigning a low priority. It will
also allocate appropriate bandwidth to connected devices
based on their priorities to maintain quality online experience.
Once this is turned on, you will start receiving weekly reports
on bandwidth usage through AI Assistant.
The rate at which the content is being transferred to the
Internet.
The rate at which the content is being transferred to the router.
Click Apply to QoS after the Speed Test to
automatically ll in the above information.
71D-Link G416 User Manual
Section 3 - Conguration
Under Connected Clients, you will see device cards representing each
connected client. Click All to see all connected devices and Heavy
Consumer to see clients that are particularly active on the Internet.
To assign a priority level to a device, enable the AI Trac Optimizer rst.
Then click the client to open its information page. The following
information will be shown:
Device Name: The name that describes the client device.
MAC Address: The MAC address of the client device.
IPv4/IPv6 Address: The IP address in IPv4 and IPv6 addressing
mechanism of the client device.
Priority: Select the priority and duration for the client
device in the following categories:
Normal/High: Always Enable, 1 Day, 4 Hours, 2
Hours, or 1 Hour.
Low: Always Enable, 1 Day, 4 Hours, 2 Hours, or 1
Hour.
Trac Statistics
The follwing trac statistics is displayed: TCP ow, UDP ow, Download
and Upload speeds (In Mbps).
Real-Time & Weekly Trac
The Real-time Trac and Weekly Trac present real-time speed
measurements in MB/s or KB/s. If no devices are explicitly assigned as
priority, they will all be treated with equal priority.
72D-Link G416 User Manual
Section 3 - Conguration
Firewall
Go to Features > Firewall to congure the router’s rewall settings. The rewall feature protects your network from
malicious attacks over the Internet.
To congure the IPv4 rewall rules, click the IPv4 Rules tab. Refer to Firewall Settings - IPv4/IPv6 Rules on page 74
To congure the IPv6 rewall rules, click the IPv6 Rules tab. Refer to Firewall Settings - IPv4/IPv6 Rules on page 74
Click Save at any time to save the changes you have made on this page.
Enable DMZ Enable or disable Demilitarized Zone (DMZ). Devices in this
zone are completely exposed to threats over the Internet.
This is not recommended unless they are servers that must
be exposed to the WAN.
DMZ IP Address If you enable DMZ, enter the IP address of the client to be
placed in this zone, or use the drop-down menu to quickly
select one of the clients.
Enable SPI IPv4 Enabling Stateful Packet Inspection (SPI) or dynamic packet
ltering helps prevent cyber attacks by tracking more states
per session to validate that the trac passing through the
session conforms to the protocol.
Enable Anti-spoof
Checking
Enable this feature to help protect your network from certain
kinds of “spoong” attacks.
IPv6 Simple Security Enable or disable IPv6 simple security. A simple firewall
conguration that denies access directly to computers behind
the router.
IPv6 Ingress Filtering Enable or disable IPv6 ingress ltering for incoming packets
to prevent suspicious senders.
73D-Link G416 User Manual
Section 3 - Conguration
Advanced Settings... - Application Level Gateway (ALG) Conguration
Dierent ALGs provide special handling for specic protocols or
applications. A number of ALGs for common applications are enabled by
default as stated below.
PPTP Allows multiple machines on the LAN to connect to their
corporate network using the PPTP protocol.
IPSec (VPN) Allows multiple VPN clients to connect to their corporate
network using IPSec. Some VPN clients support traversal of
IPSec through NAT. This Application Level Gateway (ALG)
may interfere with the operation of such VPN clients. If you
are having trouble connecting with your corporate network,
try turning this ALG off. Please check with the system
administrator of your corporate network whether your VPN
client supports NAT traversal.
RTSP Allows applications that uses Real Time Streaming Protocol
(RTSP) to receive streaming media from the Internet.
SIP Allows devices and applications using VoIP (Voice over IP)
to communicate across NAT. Some VoIP applications and
devices have the ability to discover NAT devices and work
around them. This ALG may interfere with the operation of
such devices. If you are having trouble making VoIP calls, try
turning this ALG o.
74D-Link G416 User Manual
Section 3 - Conguration
Firewall Settings - IPv4/IPv6 Rules
To begin, use the drop-down menu to select whether it is an ALLOW or DENY rule. You can
also choose to turn ltering OFF.
If you want to remove a rule, click
in the Delete column. If you wish to edit a rule, click
in the Edit column. If you wish to create a new rule, click the Add Rule button.
Go to Features > Firewall, then click the IPv4 Rules tab or the IPv6 Rules tab to congure rules for ltering the inbound/
outbound trac based on parameters like IP address with ports.
To congure the Firewall Advanced settings, click the Advanced link. Refer to Firewall on page 72
Click Save at any time to save the changes you have made on this page.
75D-Link G416 User Manual
Section 3 - Conguration
If you click
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Source IP Address
Range
Enter the source IP address range (e.g. 1.1.1.1-1.1.1.2 for IPv4
or 2001::1-2001::2 for IPv6) that the rule will apply to. Using
the drop-down menu, specify whether it is a WAN or LAN IP
address. Both a single IP address and a range of IP addresses
can be entered.
Destination IP Address
Range
Enter the destination IP address range (e.g. 1.1.1.1-1.1.1.2
for IPv4 or 2001::1-2001::2 for IPv6) that the rule will apply
to. Using the drop-down menu, specify whether it is a WAN
or LAN IP address. Both a single IP address and a range of IP
addresses can be entered.
Protocol & Port Range Select the protocol of the trac to allow or deny (Any, TCP, or
UDP) and then enter the range of ports (e.g. 21-23) that the
rule will apply to. Select Any to allow/deny all types of trac
regardless of the port number.
Schedule Use the drop-down menu to select the time schedule during
which the rule will be active. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Management > Time & Schedule
- Schedule on page 86 for more information.
A maximum of 24 rules can be dened.
76D-Link G416 User Manual
Section 3 - Conguration
Port Forwarding
If you want to remove a rule, click
in the Delete column. If you want to edit a rule, click
in the Edit column. If you want to create a new rule, click the Add Rule button.
Go to Features > Port Forwarding to specify a port or range of ports to open for specic devices on the network. This
might be necessary for certain applications to connect through the router. For example, access from the Internet can be
redirected to a DMZ host using Port Forwarding.
To congure the Virtual Server settings, click the Virtual Server link. Refer to Port Forwarding - Virtual Server on page
78.
Click Save at any time to save the changes you have made on this page.
77D-Link G416 User Manual
Section 3 - Conguration
If you click
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Local IP Enter the IP address of the computer on your local network to
which you want to direct the incoming service. Alternatively,
select the device from the drop-down menu.
TCP Port Enter the TCP ports that you want to open. You can enter a
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
UDP Port Enter the UDP ports that you want to open. You can enter a
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
Schedule Use the drop-down menu to select the time schedule during
which the rule will be active. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Management > Time & Schedule
- Schedule on page 86 for more information.
78D-Link G416 User Manual
Section 3 - Conguration
Port Forwarding - Virtual Server
Go to Features > Port Forwarding then click the Virtual Server tab to congure its settings and specify a single public
port on your router for redirection to an internal LAN IP with the mapped port. This might be necessary if you are hosting
services behind the router.
To congure the Port Forwarding settings, click the Port Forwarding link. Refer to Port Forwarding on page 76
Click Save at any time to save the changes you have made on this page.
If you wish to remove a rule, click
in the Delete column. If you wish to edit a rule, click
in the Edit column. If you wish to create a new rule, click the Add Rule button.
79D-Link G416 User Manual
Section 3 - Conguration
If you click on
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule. Alternatively, select the protocol/
Application Name from the drop-down menu. Depending on
the requested service, the router redirects the external service
request to the appropriate internal host.
Local IP Enter the IP address of the computer on your local network
that you want to direct the incoming service to. Alternatively,
select the device from the drop-down menu.
Protocol Select the protocol of the trac to allow or deny (TCP, UDP,
Both, or Other).
Protocol Number If you entered Other above, enter the protocol number. Refer
to https://www.iana.org/assignments/protocol-numbers/
protocol-numbers.xhtml for Assigned Internet Protocol
Numbers.
External Port Enter the public port you want to open.
Internal Port Enter the private port you want to open.
Schedule Use the drop-down menu to select the time schedule during
which the rule will be active. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Time & Schedule - Schedule on
page 86 for more information.
80D-Link G416 User Manual
Section 3 - Conguration
Static Routes - IPv4
Go to Features > Static Routes to dene custom routes, controlling that external data trac from a specied IP address
should be forwarded to a specied client in the LAN behind the router.
To congure the Static Route IPv6 settings, click the IPv6 tab. Refer to Static Routes - IPv6 on page 81
Click Save at any time to save the changes you have made on this page.
If you click on
Edit or Add Route, the following options will appear:
Name Enter a name for the route.
Destination Network Enter the destination network IP address to be assigned with
a static route.
Mask Enter the subnet mask of the destination address.
Gateway Enter the IP address of the next hop, which is the gateway to
the remote network.
Metric Enter a route metric value between 1 and 16. This value
indicates the cost of using this route.
Interface Select the interface that the IP packet will use to transit out of
the router when this route is used.
If you wish to remove a rule, click
in the Delete column. If you wish to edit a rule,
click in the Edit column. If you wish to create a new rule, click the Add Rule button.
81D-Link G416 User Manual
Section 3 - Conguration
Static Routes - IPv6
Go to Features > Static Routes, then click IPv6 to congure the IPv6 Static Routes.
To congure the Static Route IPv4 settings, click the IPv4 tab. Refer to Static Routes - IPv4 on page 80.
Click Save at any time to save the changes you have made on this page.
If you click on
Edit or Add Route, the following options will appear:
Name Enter a name for the route.
DestNetwork Enter the destination network address of the route.
PrexLen Enter the number of prex bits of the IP address that will take
this route. Enter a value between 64 and 128.
Gateway Enter the IP address of the next hop, which is the gateway to
the remote network.
Metric Enter a route metric value between 1 between 128. This value
indicates the cost of using this route.
Interface Select the interface that the IP packet will use to transit out of
the router when this route is used.
If you wish to remove a rule, click
in the Delete column. If you wish to edit a rule, click
in the Edit column. If you wish to create a new rule, click the Add Rule button.
82D-Link G416 User Manual
Section 3 - Conguration
Dynamic DNS
Go to Features > Dynamic DNS. This page allows your router to associate an easy-to-remember domain name such as
[YourDomainName].com with a regularly changing IP address assigned by your Internet Service provider. This feature is
helpful when running a virtual server.
Click Save at any time to save the changes you have made on this page.
Enable Dynamic DNS Enable or disable dynamic DNS. Enable this feature to display
more conguration options.
Status Displays the current dynamic DNS connection status.
Server Address Select the DDNS service provider from the drop-down menu.
Host Name Enter the host name that you registered with your dynamic
DNS service provider.
User Name Enter your dynamic DNS account name.
Password Enter your dynamic DNS account password.
Time Out Enter a time-out value (in hours) to indicate how often the
router should update its Dynamic DNS settings.
A maximum of 10 rules can be dened.
83D-Link G416 User Manual
Section 3 - Conguration
Host Name Enter the host name that you registered with your dynamic
DNS service provider.
IPv6 Address Enter the IPv6 address for DDNS conguration. Alternatively,
select the network interface for DDNS conguration.
A maximum of 10 records can be dened.
At the bottom of the page are the IPv6 host settings.
If you wish to remove a record, click
in the Delete column. If you wish to edit a record,
click in the Edit column. If you wish to create a new record, click the Add Record button.
84D-Link G416 User Manual
Section 3 - Conguration
Quick VPN
Go to Features > Quick VPN. This page will help you congure the Quick VPN feature of your router. For more information,
refer to Quick VPN on page 111. Before proceeding, ensure that your Internet connection is working properly. We
recommend conguring Dynamic DNS before proceeding with Quick VPN setup. If your router is assigned an IP address
from your ISP using DHCP, it may frequently change, requiring connection parameters to be set accordingly and a DDNS
address can avoid this hassle.
To congure the User settings and grant users with VPN permission, go to Management > User. Refer to User on page
91.
Click Save at any time to save the changes you have made on this page.
L2TP over IPSec Enable or disable the Quick VPN server. Quick VPN uses L2TP
protocol.
Username Enter a username.
Password Enter a password containing both numbers and letters with
8 to 64 characters in length.
PSK Enter a Pre-shared Key between 6 and 64 characters.
VPN Prole for iOS
Device and MAC OS X
Click Export to save the VPN prole settings le for iOS devices
and Mac OS X.
Advanced Settings...
Authentication
Protocol
Choose the authentication protocol type: MSCHAPv2, PAP,
or CHAP. MSCHAPv2 is set as default.
MPPE Select the encryption cipher strength for Microsoft Point-to-
Point (MPPE) Encryption: None, RC4-40, or RC4-128. None
is set as default.
85D-Link G416 User Manual
Section 3 - Conguration
Management
Time & Schedule - Time
Go to Management > Time & Schedule. The Time page allows you to congure, update, and maintain the correct time on
the internal system clock. From here you can set the time zone and the Network Time Protocol (NTP) server.
To congure the Schedule settings, click the Schedule tab. Refer to Time & Schedule - Schedule on page 86
Click Save at any time to save the changes you have made on this page.
Time Conguration
Time Zone Select your time zone from the drop-down menu.
Time Displays the current date and time of the router.
Automatic Time Conguration
NTP Server Select from the drop-down menu to use one of the following
servers to synchronize the time and date for your router:
D-Link NTP Server or Google NTP Server.
Choose Manual to set the NTP server's IP address or server
name.
86D-Link G416 User Manual
Section 3 - Conguration
Time & Schedule - Schedule
On the Schedule creation page, enter the name of your schedule in the Name eld.
Each box represents half an hour, with the clock time (0~23) at the top of each column. To
add a time period to the schedule, simply click on the start time and drag to the end time.
You can add multiple days and multiple periods per day to the schedule.
To remove a time period from the schedule, click on the cross icon.
Click Apply to save and close the page. Then click Save when you are done creating
schedules.
Go to Management > Time & Schedule, then click the Schedule tab. The Schedule page allows you to control some of the
functions based on a pre-congured schedule, for example, Port Forwarding in Features > Port Forwarding and Firewall
Settings in Features > Firewall as well as sending Syslog via email in Management > System Log.
To congure the Time settings, click the Time tab. Refer to Time & Schedule - Time on page 85
Click Save at any time to save the changes you have made on this page.
If you wish to remove a schedule, click
in the Delete column. If you wish to edit a
schedule, click
in the Edit column. If you wish to create a new schedule, click the Add
a Schedule button.
87D-Link G416 User Manual
Section 3 - Conguration
System Log
Go to Management > System Log. The router keeps a running log of events. This log can be sent to a Syslog server or to
your email address.
Click Save at any time to save the changes you have made on this page.
Log Settings
System Log Click the Check System Log button to download a text le
containing the system log. You can view the log entries by
opening with any text editing applications such as WordPad
on Windows.
SysLog Settings
Enable Logging to
Syslog Server
Check this box to send the router logs to a SysLog Server.
SysLog Server IP
Address
Congurable if Enable Logging to Syslog Server is enabled.
Enter the IP address of the Syslog server. If the Syslog server is
connected to the router, select it from the drop-down menu
to automatically populate the eld.
88D-Link G416 User Manual
Section 3 - Conguration
Email Settings
Enable E-mail
Notication
Enable this option if you want the logs to be automatically
sent to an email address.
If you enable
Enable E-mail Notication, congure the following:
From E-mail Address Enter the sender's email address of the SysLog messages.
To E-mail Address Enter the recipient's email address.
SMTP Server Address Enter the SMTP server address.
SMTP Server Port Enter the SMTP server port. The default is 25.
Enable Authentication Enable this if your SMTP server requires authentication.
Account Name Enter your SMTP account name.
Password Enter your SMTP account's password.
E-mail Log When Full or On Schedule
Send When Log Full If enabled, this option will set the router to send the log when
the log buer is full. The email account for sending logs is
congured in the above section.
Send on Schedule If enabled, this option will set the router to send the log
according to a set schedule periodically, so the administrator
is always up to date on the operation of the router. The email
account for sending logs is congured in the above section.
Schedule If you enable Send On Schedule, use the drop-down menu to
select a schedule to apply. The schedule may be set to Always
Enable, or you can create your own schedules in the Schedules
section. Refer to Time & Schedule - Schedule on page 86
for more information.
89D-Link G416 User Manual
Section 3 - Conguration
System Admin - Admin
Go to Management > System Admin. The Admin page will allow you to change the administrator (Admin) password.
To congure the System settings, click the System tab. Refer to System Admin - System on page 90
Click Save at any time to save the changes you have made on this page.
Admin Password
Password Enter a new password for the administrator account. You will
need to enter this password whenever you congure the
router using a web browser or add the router to EAGLE PRO AI.
Advanced Settings... - Administration
Enable HTTPs
Management
Enable HTTPs Remote
Management
Enable router management using secure HTTP connection.
Enable remote management over the Internet using secure
HTTP connection.
Remote Admin Port Specify the port number for accessing the web conguration
interface. The default is 8081.
LED Control
Status LED Turn the LED status lights on or o.
90D-Link G416 User Manual
Section 3 - Conguration
System Admin - System
Go to Management > System Admin, then click System. This page allows you to save the router’s current conguration,
load a previously saved conguration, reset the router to its factory default settings, or reboot the router.
To congure the Admin settings, click the Admin tab. Refer to System Admin - Admin on page 89
Click Save at any time to save the changes you have made on this page.
System
Save Settings to Local
Hard Drive
This option will save the current router conguration settings
to a le (bin type) on your computer.
Load Settings from
Local Hard Drive
This option will load a previously saved router conguration
le. This will overwrite the router’s current conguration.
Restore to Factory
Default Settings
This option will restore the router back to the default
congurations stored in the rmware. Any settings that have
not been saved will be lost, including any rules that you have
created. If you want to back up the current router conguration
settings before restoring to factory defaults, use the Save
Settings to Local Hard Drive function above.
Auto Reboot Conguration
Reboot the Device Click this button to reboot the router immediately.
Auto Reboot You may set the router to automatically reboot at a set time.
The options are Never, Daily, or Weekly. You may set the day,
and hour and minute of the day for automatic reboot.
91D-Link G416 User Manual
Section 3 - Conguration
User
Go to Management > User. The User page is used to create, manage, and delete user accounts with VPN connection
permission.
Click Save at any time to save the changes you have made on this page.
If you wish to remove a user, click
in the Delete column. If you wish to edit a user, click
in the Edit column. If you wish to create a new user, click the Create User button.
To create a user, click
Create User and congure the following:
User Name Enter a username for the new user account.
Maximum length: 20 characters.
Password Enter a password for the new user account.
Maximum length: 32 characters.
VPN
Status Enable or disable Virtual Private Network (VPN) functionality
for this user.
A maximum of 9 users (not including the Admin) can be created. Click
OK to close the screen.
92D-Link G416 User Manual
Section 3 - Conguration
Upgrade
Go to Management > Upgrade. This page allows you to upgrade the router’s rmware, either automatically or manually. To
manually upgrade the rmware, you must rst download the rmware le from http://support.dlink.com.
Click Save at any time to save the changes you have made on this page.
Firmware Information
Current Firmware
Version
Displays the current rmware version for both the main router
as well as the extenders.
Check for New
Firmware
Click this button to prompt the router to automatically check
for a new rmware version. If a newer version is found, it will
prompt you to install it.
Advanced Settings...Upgrade Manually
Device Name Select the device in the mesh network for manual update.
Select File If you wish to upgrade manually, rst download the rmware
le. Then, click the Select File button and locate the le to
install the new rmware.
Automatic Firmware Upgrade
Automatic Upgrade If enabled, the router will automatically upgrade to the newest
rmware. The system will automatically upgrade to the latest
rmware every day at 3:30-4:00 AM.
Choose Upgrade Time Enable this function to set the router to automatically upgrade
its rmware at a set time every day.
Upgrade Time Congurable if Choose Upgrade Time is enabled. Set the hour
and minute to automatically upgrade the router.
93D-Link G416 User Manual
Section 3 - Conguration
Statistics
Go to Management > Statistics. On the Statistics page you can view the amount of trac that passes through the router on the
Internet and LAN interfaces as well as the trac from Wi-Fi 2.4 GHz and Wi-Fi 5GHz networks.
Router
You can view the
Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5 GHz by clicking the respective
tab at the top. The real-time graph of network trac in KB/s will be shown. To clear the
information on the graph, click
Clear.
The table below for each interface and radio frequency shows the total number of packets
and data that are sent and received through the interface.
The trac counter will reset if the device is rebooted.
Extender
Click the Extender tab to view the above information about the extender.
94D-Link G416 User Manual
Section 3 - Conguration
EAGLE PRO AI
With the EAGLE PRO AI on your smart devices, you can get the G416 up and running quickly. Just plug in the router, open
the app and build your home network by following the easy instructions on the screen. The new EAGLE PRO AI is especially
designed to ease your management work with the following features:
AI Wi-Fi Optimizer: Enable this feature to always connect to the cleanest Wi-Fi Channel using the breakthrough
beamforming technology and receive information about Wi-Fi usage of individual devices and bandwidth utilization
reports for continued improvement of Wi-Fi environment.
AI Trac Optimizer: The QoS engine controls the trac ow intelligently by automatically assigning heavy trac with a
low priority to improve the overall user experience.
AI Assistant: The message center provides feedback and suggestions when clients are transmitting a large amount of data
in the weekly bandwidth report. It also enables you to prioritize connected devices to reduce trac congestion with the
client usage report. Moreover, every improvement made by the AI-assisted Wi-Fi Optimizer will also be recorded to inform
administrators about conditions of the wireless environment.
AI Parental Control: The Parental Control provides the highest exibility of Internet accessibility control and website
ltering. It allows administrators to control the availability of Internet access and speed on individual devices during the
designated time periods.
AI Wi-Fi Optimizer:
To enable this function, open the app. From the Home screen, tap Wi-Fi and tap
.
Then tap the slider for AI Wi-Fi Optimizer. Turn on Wi-Fi Optimizer to have your wireless
connection adopting an interference-free channel automatically and receive weekly Wi-Fi
environment report every Monday at 8 AM local time.
95D-Link G416 User Manual
Section 3 - Conguration
AI Trac Optimizer:
To enable this function, navigate to the Home screen, tap the model icon to enter the Device
Info page, scroll down to Settings, and tap QoS.
Next, tap the AI Trac Optimizer toggle
to enable the function.
When enabling the AI Trac Optimizer, you can run a Speed Test to set the download and
upload speeds to assist the QoS engine in distributing the bandwidth to prioritized clients.
To prioritize clients, tap Client Priority. Tap a client device and tap Priority to assign a priority
level with duration to this device. Devices set as High priority will have faster connection
when running online games, video conferences, or other real-time programs. The Red bar
on the left indicates heavy users.
AI Parental Control:
To enable this function, navigate to the Home screen, tap Parental Control.
Then use the following procedure to add a new control prole:
1. Tap Start.
2. Name this prole. Then tap Next to continue.
3. Select client devices to which the prole will be applied.
4. Tap Done to proceed.
5. The prole summary will be displayed. On this page you can tap Pause to pause Internet
immediately to the devices specied in the prole.
You can set schedules to restrict Internet access.
Use Block Bedtime Internet Access to block Internet access during the specied days and
time periods. Use Allow Scheduled Internet Access to allow Internet access only during the
specied days and hours. Users cannot access the Internet except during the hours that you
specify. Note that bedtime restriction takes precedence over the allowed schedules here.
96D-Link G416 User Manual
Section 3 - Conguration
You can also block specic websites on this page to prevent the specied devices from
accessing certain websites. To do this, tap Website Filter, tap Add Website, then enter the
website name and the domain keyword, for example, enter violent.com to block all access
to this site and violent to block domain names that contain this keyword. Then tap Add at
the top right.
AI Assistant:
Tap AI Assistant to display the weekly reports on bandwidth consumption with
information about heavy users. Weekly reports also give information on the number of
times the system performs trac management automatically when congestion occurs and
provides qualitative rating on your Wi-Fi environment. Furthermore, the NightTime Internet
Activity informs you about the overly active Internet access during nighttime.
This app enables you to proactively improve sleep quality by restricting Internet access
during nighttime. Tap Health Mode to set the bedtime during which Internet access will
be blocked on all devices within the network.
97D-Link G416 User Manual
Section 3 - Conguration
Other Features
Advanced Mode
The advanced mode provides links to the web management interfaces of the device. Note
that this feature is only available with local access (i.e. connected within the same Wi-Fi
network). To access, go to Home > Advanced Mode.
Device Information and Settings
From Home, tap the device (main router) of the mesh network topology to view its
information and settings: name, IP and MAC address, hardware and rmware version, time
zone, and model number. You can also congure the Internet connection method and change
the device password on this page. It also provides basic device maintenance functions:
reboot, LED indicator on/o, rmware update, and device identication with ashing LED.
Client Information and Statistics
From Home, tap the device (Clients) of the mesh network topology to view the clients
currently online and blocked. Tap a device to obtain its information: name, IP and MAC
address, and parental control prole. It also displays real-time trac statistics in megabytes
per second as well as weekly trac in megabytes per day for both download and upload
data transmissions. The Priority function allows you to assign a High/Low priority for this
device with eective duration: Always, 1 Day, 4 Hours, 2 Hours, 1 Hour.
Extender Information
From Home, tap the device (Extenders) of the mesh network topology to view the
extenders currently connected with the following information: name, IP and MAC address,
and hardware and rmware version. Tap Clients to view its currently connected clients. You
can also identify the device by ashing its status LED and restart the device on this screen.
98D-Link G416 User Manual
Section 4 - Third Party Services
Voice Control
With the G416, you can command your router’s functionality with your voice through Amazon Alexa and the Google
Assistant, enabling you to control your network with voice commands. Features include enabling and disabling your Wi-Fi
guest zone without logging in to the web interface, rebooting the router, and checking your router for rmware upgrades.
In order to use third-party services to control and manage your device, please register your device with D-Link Cloud Service
rst.
99D-Link G416 User Manual
Section 4 - Third Party Services
Register a D-Link Cloud Service Account
In order to use third-party apps to control and manage your device, you will rst need to link your D-Link account with the
app such as Google Assistant.
Step 2
Tap Voice Control from the Home screen.
Step 1
Launch EAGLE PRO AI and go to the Home screen.
100D-Link G416 User Manual
Section 4 - Third Party Services
Step 4
Link your Google account.
Step 3
Choose the cloud service.
101D-Link G416 User Manual
Section 4 - Third Party Services
Step 5
The Google Home app will be launched.
Step 6
Link your registered D-Link account with Google.
102D-Link G416 User Manual
Section 4 - Third Party Services
Step 8
Choose your device.
Step 9
Choose a home.
103D-Link G416 User Manual
Section 4 - Third Party Services
Step 10
Choose a location for your device.
Step 11
Device successfully set up with the Google Home.
104D-Link G416 User Manual
Section 4 - Third Party Services
Amazon Alexa Setup
You will need the Amazon Alexa app, an Amazon account, and a D-Link account to use this feature.
Note: The screenshots may be dierent depending on your mobile device’s OS version. However, the process is the same.
Step 1
Launch the Amazon Alexa app.
Amazon Alexa
Step 2
Tap Browse Skills.
105D-Link G416 User Manual
Section 4 - Third Party Services
Step 3
Search EAGLE PRO AI for Skills & Games.
Step 4
The EAGLE PRO AI page.
106D-Link G416 User Manual
Section 4 - Third Party Services
Step 5
Tap LAUNCH to link the skill.
Step 6
Congratulations! EAGLE PRO AI has been successfully linked as a skill for
your Amazon device. Refer to Amazon Alexa Voice Commands on the next
page for tasks that you can ask your Amazon Alexa to perform.
107D-Link G416 User Manual
Section 4 - Third Party Services
Amazon Alexa Voice Commands
With EAGLE PRO AI enabled as a skill for Alexa, you can ask Alexa to do any of the following tasks. Before commanding
Alexa, say "Open EAGLE PRO AI" and respond to Alexa's oering by saying "Help."
Task Command
Enable the guest Wi-Fi “Enable my guest Wi-Fi.”
Disable the guest Wi-Fi “Disable my guest Wi-Fi.”
Find out your Wi-Fi SSID "What is my Wi-Fi SSID?
Find out the guest Wi-Fi name and password "What are my guest Wi-Fi credentials?"
Reboot the router "Reboot my router."
Upgrade the router "Upgrade my router.”
Obtain weekly report messages "Read messages."
Note: Network can be substituted for Wi-Fi.
If using an Alexa speaker, start your command with one of the following:
1. "Alex, ask EAGLE PRO AI to." For example, command Alexa by saying, " Alexa, ask EAGLE PRO AI to enable my guest Wi-Fi."
2. "Alex, talk to EAGLE PRO AI" and wait for Alexa to respond. Then say your command.
108D-Link G416 User Manual
Section 4 - Third Party Services
Google Assistant Setup
Note: The screenshots may be dierent depending on your mobile device’s OS version. However, the process is the same.
Step 1
Launch the Google Assistant app.
Assistant
You will need the Google Assistant app, a Google account, and a D-Link Cloud Service account to use this feature.
Step 2
Tap Voice Control from the Home screen.
109D-Link G416 User Manual
Section 4 - Third Party Services
Step 3
Tap Edit to customize the pin code or use the randomly generated number.
Step 4
Type in your command and provide the pin code as required. Refer to
Google Assistant Voice Commands on the next page for tasks that you can
ask your Google Assistant to perform.
110D-Link G416 User Manual
Section 4 - Third Party Services
Google Assistant Voice Commands
With EAGLE PRO AI linked with the Google Assistant, you can ask your Google Assistant to do any of these tasks:
Task Command
Check guest Wi-Fi status "Is my guest Wi-Fi enabled?"
Check Wi-Fi status "Is my Wi-Fi enabled?"
Check guest Wi-Fi SSID "What is my guest Wi-Fi SSID?"
Check Wi-Fi SSID "What is my Wi-Fi SSID?"
Enable the guest Wi-Fi “Enable my guest Wi-Fi.”
Disable the guest Wi-Fi “Disable my guest Wi-Fi.”
Find out the guest Wi-Fi password "What is my guest Wi-Fi password?”
1
Reboot the router "Reboot my router."
Update the router "Software update my router.”
Notes:
1. Only supported on Nest Hub with screen display.
2. Network can be substituted for Wi-Fi.
If using a Google Home speaker, start your command by saying "Hey Google.”
111D-Link G416 User Manual
Section 5 - Quick VPN
With Quick VPN
Unencrypted Data Encrypted Data
Your Network with
Quick VPN Server
InternetPublic
Unsecured Wi-Fi
Hotspot
Your Laptop
This router is equipped with D-Link's Quick VPN technology. Virtual Private Networking (VPN) creates a connection between
devices across the Internet. Using Quick VPN allows you to securely connect your computer or mobile device to places
with free, untrusted Wi-Fi hotspots in places like coee shops and hotels by encrypting and relaying it through your home
Internet connection. This extra 'hop' reduces the chances of hackers stealing your information, such as logins, passwords,
and credit card numbers. When traveling, Quick VPN lets you watch sports and use video streaming services without
experiencing blackouts or ltering. You can surf the whole Internet just as you would at home.
Public Unsecured
Wi-Fi Hotspot
Internet
Your Laptop
Potential Hacker
Stealing Data
Without Quick VPN
Quick VPN
112D-Link G416 User Manual
Section 5 - Quick VPN
Important Information
The following instructions explain and help you to congure your D-Link Quick VPN enabled router and devices to create
a Virtual Private Network (VPN). This feature is provided for advanced users who wish to connect remotely and use their
router's Internet connection to add a layer of security while using untrusted networks. Congure the Quick VPN Server on
your router rst and then set up client devices to connect through your router's WAN connection.
• Quick VPN only provides an added layer of security against specic types of snooping attacks and does not guarantee complete data integrity
or protection. Only trac in the tunnel between your router and device will be encrypted, WAN trac will leave your D-Link Quick VPN enabled
router unencrypted.
• Keep your Quick VPN Username, Password, and Passkey safe. Keep your Quick VPN Username, Password, and Passkey safe. It is recommended
that you change these credentials periodically.
• A device connected via Quick VPN tunnel may experience lower data throughput and higher latency due to a number of factors including:
Internet conditions, local and remote network Wi-Fi and WAN bandwidth limitations, and increased latency. This may negatively impact real
time voice and video communication.
• Quick VPN supports up to ve concurrent VPN client sessions using the same login and password are supported. Quick VPN uses L2TP/IPsec
with MSCHAPv2, PAP, or CHAP authentication.
• You device may warn you that your information may be intercepted, since you control the Quick VPN server, you may ignore this.
• UDP Ports 500, 4500, 1701 and IP Port 50 must be open in order for Quick VPN to work.
• L2TP/IPsec VPN usage may be restricted in some countries and on some networks. If you have trouble using Quick VPN on some networks, but
not others and are not violating network access rules, try contacting your ISP or network administrator.
• Devices connected via Quick VPN are assigned addresses on a separate subnet (ex. 192.168.1.x). Some network resources may be unavailable
when connecting via Quick VPN.
• If your Internet connection uses DHCP, it is strongly recommended that you rst set up Dynamic DNS (DDNS), such as D-Link DDNS, to eliminate
the need to recongure client devices in the event your ISP assigns you a new WAN IP address.
113D-Link G416 User Manual
Section 5 - Quick VPN
iOS Devices
VPN Setup Instructions
This section provides Quick VPN setup instructions for iOS devices. Refer to Quick VPN on page 84 for your router setup
instructions.
Go into Settings on your compatible iOS device.
Scroll down and tap General.
Scroll down and tap VPN.
Tap Add VPN Conguration...
114D-Link G416 User Manual
Section 5 - Quick VPN
You should see a pop up window asking you to ll out the details of your VPN
connection.
Type: Choose IPSec. Tap Back to return to the Add Conguration page.
Description: For reference purposes only, used to dierentiate between
multiple VPN connections.
Server: Enter the IP/DDNS address of your Quick VPN server.
Account: Enter the Username used to authenticate login to VPN server
Password: Enter Password used to authenticate login to VPN server
Secret: Enter your Pre-Shared Key (PSK).
Tap Done to close the conguration window.
Your iOS device is now congured to connect to your Quick VPN server.
115D-Link G416 User Manual
Section 5 - Quick VPN
Connect or Disconnect
To connect or disconnect from to your Quick VPN server, go to Settings >
VPN and tap the button next to VPN Status.
The VPN icon will appear in the notication area at the top of your screen
indicating that your device is currently connected to the Quick VPN server.
116D-Link G416 User Manual
Section 5 - Quick VPN
Open the exported prole. The Install Prole dialogue will appear; click
Continue and Install.
Enter your user account password when prompted. Close the Proles
dialogue.
Mac OS X
VPN Setup Instructions
This section provides Quick VPN setup instructions for OS X using the Export Prole function. Refer to Quick VPN on page
84 for your router setup instructions.
Go to > System Preferences... > Network and select the Quick VPN
connection and click Authentication Settings.
117D-Link G416 User Manual
Section 5 - Quick VPN
Enter your Passkey in the Shared Secret text box and click OK, Apply, then
OK.
Your Mac is now congured to connect to your Quick VPN server.
118D-Link G416 User Manual
Section 5 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, go to > System
Preferences... > Network.
Select the Quick VPN connection and click on the Connect or Disconnect
button.
119D-Link G416 User Manual
Section 5 - Quick VPN
Windows 7
VPN Setup Instructions
Click the Start button and type vpn into the Search programs and les
box.
Select Set up a virtual private network (VPN) connection.
Enter the IP/DDNS address of your Quick VPN server in the Internet
address box, create a name for your connection in the Destination Name,
check Don't Connect now; just set it up so I can connect later, and click
Next.
This section provides Quick VPN setup instructions for Windows 7. Refer to Quick VPN on page 84 for your router setup
instructions.
120D-Link G416 User Manual
Section 5 - Quick VPN
Enter your Username. If you would like windows to save your password,
enter your Password and check Remember this password. Click Create to
continue.
Do not click Connect Now.
Click Close. Click the Start button and type view network connections into
the Search programs and les text box. Select View network connections.
121D-Link G416 User Manual
Section 5 - Quick VPN
Your Windows 7 system is now congured to connect to your Quick VPN
server.
Click Advanced settings. Enter your Passkey in the Key text box under Use
preshared key for authentication. Click OK to close Advanced Properties
and click OK to close Quick VPN Connection Properties.
122D-Link G416 User Manual
Section 5 - Quick VPN
To connect to or disconnect from your Quick VPN server, click on the
Network Settings icon in the notication area of the Windows taskbar and
from the Dial Up and VPN section click on your Quick VPN connection and
click on the Connect or Disconnect button.
Connect or Disconnect
123D-Link G416 User Manual
Section 5 - Quick VPN
Windows 8.1/8
VPN Setup Instructions
This section provides Quick VPN setup instructions for Windows 8.1/8.
Click the Start button and type vpn.
Select Manage virtual private networks.
From the Network Settings page, click Add a VPN Connection.
This section provides Quick VPN setup instructions for Windows 8.1/8. Refer to Quick VPN on page 84 for your router
setup instructions.
124D-Link G416 User Manual
Section 5 - Quick VPN
1
Select Microsoft from VPN Provider.
2
Create a name for your VPN connection.
3
Enter your IP/DDNS address of your Quick VPN server.
4
Select User name and password from Type of sign-in info.
5
If you would like windows to remember your sign-in information, enter
your User name, Password, and select Remember my sign-in info
6
Choose Save.
125D-Link G416 User Manual
Section 5 - Quick VPN
Select the Security tab. For the Type of VPN, select Layer2Tunneling with
IPsec (L2TP/IPSec).
Right-click on the Quick VPN Connection you just created and left-click on
Properties.
126D-Link G416 User Manual
Section 5 - Quick VPN
Click the Start button and type view network connections.
Select View network connections.
Right-click your Quick VPN Connection and left-click Properties.
Select the Security tab.
For the Type of VPN, select Layer 2 Tunneling with IPsec (L2TP/IPSec).
127D-Link G416 User Manual
Section 5 - Quick VPN
Click Advanced settings. Enter your Passkey in the Key text box under Use
preshared key for authentication.
Click OK to close Advanced Properties and click OK to close Quick VPN
Properties.
Your Windows 8.1/8 system is now congured to connect to your Quick VPN
server.
128D-Link G416 User Manual
Section 5 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, click on the
Network Settings icon in the notication area of the Windows taskbar. Click
on your Quick VPN connection and click on the Connect or Disconnect
button.
129D-Link G416 User Manual
Section 5 - Quick VPN
Windows 10
VPN Setup Instructions
This section provides Quick VPN setup instructions for Windows 10.
Click Start > Settings > Network & Internet > VPN > Add a VPN
Connection.
This section provides Quick VPN setup instructions for Windows 10. Refer to Quick VPN on page 84 for your router setup
instructions.
130D-Link G416 User Manual
Section 5 - Quick VPN
1
Select Windows (built-in) from the VPN Provider menu.
2
Create a name for your VPN connection.
3
Enter your IP/DDNS address of your Quick VPN server.
4
Select L2TP/IPSec with pre-shared key for VPN type.
5
Enter the Passkey.
6
Select User name and password from Type of sign-in info.
If you would like windows to remember your sign-in information, enter
your User name, Password, and select Remember my sign-in info
7
Choose Save.
Your Windows 10 system is now congured to connect to your Quick VPN
server.
On the Add a VPN connection screen, do the following:
131D-Link G416 User Manual
Section 5 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, click on the
Network Settings icon (either
or ) in the notication area of the
Windows taskbar and click on your Quick VPN connection.
The section of VPN in Network & Internet Settings page will open, select
your Quick VPN, then select Connect. Or if the Connect button shows under
the VPN connection, select Connect.
If connected, the VPN connection name will display Connected underneath
it. You can click Disconnect to stop the connection.
133D-Link G416 User Manual
Section 5 - Quick VPN
1
Enter a name for your VPN connection.
2
Select L2TP/IPSec PSK for Type.
3
Enter the IP/DDNS address of your Quick VPN server.
4
Enter your Passkey in IPSec pre-shared key eld.
5
Choose Save.
Your Android device is now congured to connect to your Quick VPN
server.
Tap + to create or VPN Settings to edit a VPN connection prole
134D-Link G416 User Manual
Section 5 - Quick VPN
Connect or Disconnect
Tap the Quick VPN connection you created.
To connect, enter your Username and Password, then tap CONNECT.
To disconnect, tap DISCONNECT.
135D-Link G416 User Manual
Section 6 - Connect a Wireless Client to your Router
Connect a Wireless Client to Your Router
WPS Button
Step 2 - Within 2 minutes, press the WPS button on your wireless device (or launch the software utility and start the WPS
process).
Step 3 - Allow up to 1 minute for your connection to be congured. Once the LEDs stop blinking, you will be connected
securely.
The easiest and most secure way to connect your wireless devices to the router is with WPS (Wi-Fi Protected Setup). Most
wireless devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS
button (or a software utility with WPS) that you can press to connect to the router. Please refer to your user manual for the
wireless device you want to connect to make sure you understand how to enable WPS. Once you know, follow the steps
below:
Step 1 - Press the WPS button on the router for about 1 second. The wireless LEDs will start to blink.
WPS Button
136D-Link G416 User Manual
Section 6 - Connect a Wireless Client to your Router
To join an existing network, locate the wireless network icon in the taskbar,
next to the time display and click on it.
Clicking on this icon will display a list of wireless networks which are within
range of your computer. Select the desired network by clicking on the SSID.
Windows® 10
Wireless Icon
To connect to the SSID, click Connect.
To automatically connect with the router when your device next detects the
SSID, check the Connect Automatically check box.
You will then be prompted to enter the Wi-Fi password (network security
key) for the wireless network. Enter the password into the box and click Next
to connect to the network. Your computer will now automatically connect to
this wireless network when it is detected.
137D-Link G416 User Manual
Section 6 - Connect a Wireless Client to your Router
Windows® 8 - WPA/WPA2
Clicking on this icon will display a list of wireless networks which are within
connecting proximity of your computer. Select the extender’s network by clicking
on the network name.
To join an existing network, locate the wireless network icon in the taskbar, next
to the time display.
Wireless Icon
dlink
You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you
can also press the WPS button on your router at this point to enable the WPS
function.
dlink
138D-Link G416 User Manual
Section 6 - Connect a Wireless Client to your Router
When you have established a successful connection with a wireless network, the
word Connected will appear next to the name of the network to which you are
connected.
dlink
139D-Link G416 User Manual
Section 6 - Connect a Wireless Client to your Router
Windows® 7
WPA/WPA2
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being
used.
Click on the wireless icon in your system tray (lower-right corner).
Wireless Icon
The utility will display any available wireless networks in your area.
Highlight the wireless connection with Wi-Fi name (SSID) you would like to
connect to and click the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP
settings for your wireless adapter. Refer to Networking Basics on page 147
for more information.
140D-Link G416 User Manual
Section 6 - Connect a Wireless Client to your Router
The following window appears while your computer tries to connect to the
router.
Enter the same security key or passphrase (Wi-Fi password) that is on your
router and click OK. You can also connect by pushing the WPS button on the
router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The key
or passphrase must be exactly the same as the one on the wireless router.
141D-Link G416 User Manual
Section 7 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the router. Read the
following descriptions if you are having problems.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website, nor do
you have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer
must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 10 or higher
- Mozilla Firefox 28 or higher
- Google™ Chrome 28 or higher
- Apple Safari 6 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
dierent cable, or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not
be on.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate
and Norton Personal Firewall may block access to the conguration pages. Check the help les included with your rewall
software for more information on disabling or conguring it.
142D-Link G416 User Manual
Section 7 - Troubleshooting
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar.
This should open the login page for your web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. This process will change all your settings back to the factory
defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the recessed button down until the power LED turns orange Release the button and the router will go through its
reboot process. Wait about 30 seconds to access the router. The default IP address is 192.168.0.1. When logging in, enter
the default device password printed on the sticker.
143D-Link G416 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity
within your home, business, or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of
products will allow you to securely access the data you want, when, and where you want it. You will be able to enjoy the freedom
that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of
wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops
and universities. Innovative ways to utilize WLAN technology are helping people work and communicate more eciently. Increased
mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use
servers, printers or an Internet connection supplied through the wired LAN. A wireless router is a device used to provide this link.
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses
radio frequency to connect wirelessly so you have the freedom to connect computers anywhere in your home or oce
network.
Wireless Basics
144D-Link G416 User Manual
Appendix A - Wireless Basics
How does wireless work?
Wireless works similarly to how cordless phones work, through radio signals that transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area to
be able to connect your computer. There are two dierent types of wireless networks: Wireless Local Area Network (WLAN), and
Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has
a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point
the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like
manufacturing plants, industrial locations, university and high school campuses, airports, golf courses, and many other outdoor
venues.
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30
feet away. Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly
as much power. This makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology has become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business,
D-Link has a wireless solution for it.
145D-Link G416 User Manual
Appendix A - Wireless Basics
Home Uses/Benets
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce Uses/Benets
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
Where is wireless used?
Wireless technology is expanding everywhere, not just at home or oce. People like the freedom of mobility and it’s becoming so
popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public places
is usually called “hotspots”.
Using a D-Link USB adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations like:
airports, hotels, coee shops, libraries, restaurants, and convention centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start. That’s
why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
146D-Link G416 User Manual
Appendix A - Wireless Basics
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or access point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to
place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you
have a two-story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/
access point. This would signicantly reduce any interference that the appliances might cause since they operate on same
frequency.
Security
Don’t let your next-door neighbors or intruders connect to your wireless network. Secure your wireless network with the
latest WPA3 security. Refer to the product manual for detail information on how to set it up.
147D-Link G416 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start and type cmd in the Search box.
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the IP address is 0.0.0.0 or empty, check your adapter
installation, security settings, and the settings on your
router. Some rewall software programs may block a
DHCP request on newly installed adapters.
148D-Link G416 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
1. If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps
below:
Windows® 10 Start> Settings > Network & Internet.
Windows® 7 /8 Start > Control Panel > Network and Internet > Network and Sharing Center
Windows® XP Start > Control Panel > Network Connections
2. Select Wi-Fi > Manage known networks. Choose the network you want to modify, right-click (Windows 7/8/XP) and
then select Properties.
3. Under IP assignment, select Edit. For Windows 7/8/XP), select Internet Protocol Version 4 (TCP/IPv4) Properties or
Internet Protocol Version 6 Properties (TCP/IPv6). Then select Use the Following IP Address.
4. Under Edit IP settings, select Manual. If IPv4 is selected, type the IP address settings in IP address, Subnet prex length
(subnet mask), and Gateway elds. If IPv6 is selected, type the IP address settings in IP address, Subnet prex length, and
Gateway elds.
Example: Enter x.x.x.x for IPv4 addressing scheme (where x is between 0 and 255)
and xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx for IPv6 addressing scheme (where x is a
hexadecimal digit).
Set Preferred DNS the same as the LAN IP address of your router. The Alternate DNS is
only optional or you may enter a DNS server from your ISP.
5. When you’re done, click Save.
149D-Link G416 User Manual
Appendix C - Wireless Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The router oers the
following types of security:
• WPA3 (Wi-Fi Protected Access 3) • WPA2 (Wi-Fi Protected Access 2)
• WPA2-PSK (Pre-Shared Key) • WPA (Wi-Fi Protected Access)
• WPA-PSK (Pre-Shared Key)
What is WPA?
WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP (Wired
Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a
hashing algorithm and by adding an integrity-checking feature, ensures that the keys haven’t been tampered
with. WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP
regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively
simple to be snied out and stolen. EAP is built on a more secure public-key encryption system to ensure that
only authorized network users can access the network.
WPA-PSK/WPA2-PSK/WPA3-SAE uses a passphrase or key to authenticate your wireless connection. The key is an alpha-
numeric password between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must
be the exact same key entered on your wireless router or access point. Further, The Simultaneous Authentication of Equals
(SAE) of WPA3 enhances the protection against dictionary attacks.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more
secure public key encryption system to ensure that only authorized network users can access the network.
WPA 3 has the strongest security among these with the increased cryptographic capability and the requirements of the
Protected Management Frames (PMFs) to protect from snooping attack.
150D-Link G416 User Manual
Appendix D - Technical Specications
Technical Specications
Device Interfaces
• Wireless Interface (2.4 GHz): IEEE 802.11ax/n/g/b
• Wireless Interface (5 GHz): IEEE 802.11ax/ac/n/a
• Three 10/100/1000 Mbps LAN port
• One 10/100/1000 Mbps WAN port
• LTE Modem
Band Information:
• Cat6
• LTE FDD: B1/B3/B5/B7/B8/B20/B28
• LTE TDD: B38/B40/B41
• 2CA Band combination:
B1 + B1/B3/B5/B8/B20/B28
B3 + B3/B5/B7/B8/B20/B28
B7 + B5/B7/B8/B20/B28
B38 + B38; B40 + B40; B41 + B41
• WCDMA: B1/B5/B8
Standards
• IEEE 802.11ax
1,2,3
• IEEE 802.11ac
1,2,3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.1p/q (WAN)
• IEEE802.3x
• IEEE 802.11h
• IEEE 802.11k/v
• IEEE 802.11n/g/b/a
Antenna Types
• Two Cellular external antennas with SMA connector
• Two Wi-Fi 2.4G internal antenna
• Two Wi-Fi 5G internal antenna
Security
• WPA3/WPA2/WPA-Personal
• Wi-Fi Protected Setup (WPS)
WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE
Power
• Input: 100 to 240 V AC, 50 / 60 Hz
• Output: 12 V, 1.5 A
Temperature
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -40 to 85 °C (-40 to 185 °F)
Humidity
• Operating: 10% to 95% maximum, non-condensing
• Storage: 0% to 95% maximum, non-condensing
Certications
• CE
• RCM
• NCC/BSMI
Dimensions
• L x W x H: 198 x 170.14 x 66.21 mm (7.79 x 6.69 x 2.60 in)
Weight
• 400 g
151D-Link G416 User Manual
Appendix D - Technical Specications
The marking information is located at the bottom of the apparatus.
1
Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n, 802.11ac and 802.11ax specications. Actual data throughput will vary. Network conditions and environmental factors - including
volume of network trac, building materials and construction, and network overhead - lower actual data throughput rate. Environmental factors will adversely aect wireless signal range.
2
Frequency Range varies depending on country’s regulation.
3
The router does not include 5.25-5.35 GHz & 5.47-5.725 GHz in some regions.
152D-Link G416 User Manual
Appendix E - Regulatory Information
Regulatory Statements
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Non-modications Statement:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance
with FCC multi-transmitter product procedures. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection
of other channels is not possible.
Note
The country code selection is for non-USA models only and is not available to all USA models. Per FCC regulations, all WiFi product marketed in
the USA must be xed to USA operational channels only.
153D-Link G416 User Manual
Appendix E - Regulatory Information
IMPORTANT NOTICE:
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your body.
Innovation, Science and Economic Development Canada (ISED) Statement:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Innovation, Science and Economic Development Canada (ISED) Statement:
This device complies with ISED licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
154D-Link G416 User Manual
Appendix E - Regulatory Information
Radiation Exposure Statement
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your body.
Déclaration d'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement
doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel
mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
limits specied for point-to-point and non-point-to-point operation as appropriate; and
(iii) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5650-5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur an de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e.
spéciée pour l'exploitation point à point et l’exploitation non point à point, selon le cas;
(iii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-
à-d., qu’ils ont la priorité) pour les bandes 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs
LAN-EL.
155D-Link G416 User Manual
Appendix E - Regulatory Information
Frequency Band(s)
Frequenzband
Fréquence bande(s)
Bandas de Frecuencia
Frequenza/e
Frequentie(s)
Max. Output Power (EIRP)
Max. Output Power
Consommation d’énergie max.
Potencia máxima de Salida
Potenza max. Output
Max. Output Power
5 G
5.15 – 5.25 GHz 200 mW
5.25 – 5.35 GHz 200 mW
5.47 – 5.725 GHz 1 W
2.4 G 2.4 – 2.4835 GHz 100 mW
156D-Link G416 User Manual
Appendix E - Regulatory Information
European Community Declaration of Conformity:
Česky [Czech]
Tímto D-Link Corporation prohlašuje, že tento produkt, jeho příslušenství a software jsou v souladu se směrnicí
2014/53/EU. Celý text ES prohlášení o shodě vydaného EU a o rmwaru produktu lze stáhnout na stránkách k
produktu www.dlink.com.
Dansk [Danish]
D-Link Corporation erklærer herved, at dette produkt, tilbehør og software er i overensstemmelse med direktiv
2014/53/EU. Den fulde tekst i EU-overensstemmelseserklæringen og produktrmware kan wnloades fra
produktsiden hos www.dlink.com.
Deutsch [German]
Hiermit erklärt die D-Link Corporation, dass dieses Produkt, das Zubehör und die Software der Richtlinie 2014/53/
EU entsprechen. Der vollständige Text der Konformitätserklärung der Europäischen Gemeinschaft sowie die
Firmware zum Produkt stehen Ihnen zum Herunterladen von der Produktseite im Internet auf www.dlink.com zur
Verfügung.
Eesti [Estonian]
Käesolevaga kinnitab D-Link Corporation, et see toode, tarvikud ja tarkvara on kooskõlas direktiiviga 2014/53/EL.
Euroopa Liidu vastavusdeklaratsiooni täistekst ja toote püsivara on allalaadimiseks saadaval tootelehel www.dlink.
com.
English
Hereby, D-Link Corporation, declares that this product, accessories, and software are in compliance with directive
2014/53/EU. The full text of the EU Declaration of Conformity and product rmware are available for download
from the product page at www.dlink.com
Español [Spanish]
Por la presente, D-Link Corporation declara que este producto, accesorios y software cumplen con las directivas
2014/53/UE. El texto completo de la declaración de conformidad de la UE y el rmware del producto están
disponibles y se pueden descargar desde la página del producto en www.dlink.com.
Ελληνική [Greek]
Με την παρούσα, η D-Link Corporation δηλώνει ότι αυτό το προϊόν, τα αξεσουάρ και το λογισμικό
συμμορφώνονται με την Οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης της ΕΕ και το
υλικολογισμικό του προϊόντος είναι διαθέσιμα για λήψη από τη σελίδα του προϊόντος στην τοποθεσία www.dlink.
com.
Français [French]
Par les présentes, D-Link Corporation déclare que ce produit, ces accessoires et ce logiciel sont conformes aux
directives 2014/53/UE.Le texte complet de la déclaration de conformité de l'UE et le icroprogramme du produit
sont disponibles au téléchargement sur la page des produits à www.dlink.com.
Italiano [Italian]
Con la presente, D-Link Corporation dichiara che questo prodotto, i relativi accessori e il software sono conformi
alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE e il rmware del prodotto sono
disponibili per il download dalla pagina del prodotto su www.dlink.com.
157D-Link G416 User Manual
Appendix E - Regulatory Information
Latviski [Latvian]
Ar šo uzņēmums D-Link Corporation apliecina, ka šis produkts, piederumi un programmatūra atbilst direktīvai
2014/53/ES. ES atbilstības deklarācijas pilno tekstu un produkta aparātprogrammatūru var lejupielādēt attiecīgā
produkta lapā vietnē www.dlink.com.
Lietuvių [Lithuanian]
Šiuo dokumentu „D-Link Corporation“ pareiškia, kad šis gaminys, priedai ir programinė įranga atitinka direktyvą
2014/53/ES. Visą ES atitikties deklaracijos tekstą ir gaminio programinę aparatinę įrangą galima atsisiųsti iš gaminio
puslapio adresu www.dlink.com.
Nederlands [Dutch]
Hierbij verklaart D-Link Corporation dat dit product, accessoires en software voldoen aan de richtlijnen 2014/53/
EU. De volledige tekst van de EU conformiteitsverklaring en productrmware is beschikbaar voor download van de
productpagina op www.dlink.com.
Malti [Maltese]
Bil-preżenti, D-Link Corporation tiddikjara li dan il-prodott, l-aċċessorji, u s-software huma konformi mad-Direttiva
2014/53/UE. Tista’ tniżżel it-test sħiħ tad-dikjarazzjoni ta’ konformità tal-UE u l-rmware tal-prodott mill-paġna tal-
prodott fuq www.dlink.com.
Magyar [Hungarian]
Ezennel a D-Link Corporation kijelenti, hogy a jelen termék, annak tartozékai és szoftvere megfelelnek a 2014/53/
EU sz. rendeletek rendelkezéseinek. Az EU Megfelelőségi nyilatkozat teljes szövege és a termék rmware a termék
oldaláról tölthető le a www.dlink.com címen.
Polski [Polish]
D-Link Corporation niniejszym oświadcza, że ten produkt, akcesoria oraz oprogramowanie są zgodne z
dyrektywami 2014/53/EU. Pełen tekst deklaracji zgodności UE oraz oprogramowanie sprzętowe do produktu
można pobrać na stronie produktu w witrynie www.dlink.com.
Português [Portuguese]
Desta forma, a D-Link Corporation declara que este produto, os acessórios e o software estão em conformidade
com a diretiva 2014/53/UE. O texto completo da declaração de conformidade da UE e do rmware
Slovensko[Slovenian]
Podjetje D-Link Corporation s tem izjavlja, da so ta izdelek, dodatna oprema in programnska oprema skladni z
direktivami 2014/53/EU. Celotno besedilo izjave o skladnosti EU in vdelana programska oprema sta na voljo za
prenos na strani izdelka na www.dlink.com.
Slovensky [Slovak]
Spoločnosť D-Link týmto vyhlasuje, že tento produkt, príslušenstvo a softvér sú v súlade so smernicou 214/53/
EÚ. Úplné znenie vyhlásenia EÚ o zhode a rmvéri produktu sú k dispozícii na prevzatie zo stránky produktu www.
dlink.com.
Suomi [Finnish]
D-Link Corporation täten vakuuttaa, että tämä tuote, lisävarusteet ja ohjelmisto ovat direktiivin 2014/53/EU
vaatimusten mukaisia. Täydellinen EU-vaatimustenmukaisuusvakuutus samoin kuin tuotteen laiteohjelmisto ovat
ladattavissa osoitteesta www.dlink.com.
Svenska[Swedish]
D-Link Corporation försäkrar härmed att denna produkt, tillbehör och programvara överensstämmer med
direktiv 2014/53/EU. Hela texten med EU-försäkran om överensstämmelse och produkt-rmware kan hämtas från
produktsidan på www.dlink.com.
158D-Link G416 User Manual
Appendix E - Regulatory Information
Íslenska [Icelandic]
Hér með lýsir D-Link Corporation því yr að þessi vara, fylgihlutir og hugbúnaður eru í samræmi við tilskipun
2014/53/EB. Sækja má ESB-samræmisyrlýsinguna í heild sinni og fastbúnað vörunnar af vefsíðu vörunnar á www.
dlink.com.
Norsk [Norwegian]
Herved erklærer D-Link Corporation at dette produktet, tilbehøret og programvaren er i samsvar med direktivet
2014/53/EU. Den fullstendige teksten i EU-erklæring om samsvar og produktets fastvare er tilgjengelig for
nedlasting fra produktsiden på www.dlink.com.
Warning Statement:
The power outlet should be near the device and easily accessible.
159D-Link G416 User Manual
Appendix E - Regulatory Information
NOTICE OF WIRELESS RADIO LAN USAGE IN THE EUROPEAN COMMUNITY FOR WIRELESS PRODUCT ONLY:
• This device is restricted to indoor use when operated in the European Community using channels in the 5.15-5.35 GHz band to reduce the
potential for interference.
• This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries. This
equipment may be operated in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, PL, PT, RO, SM, SE, RS, SK, ES,
CI, HU, and CY.
Usage Notes:
• To remain in conformance with European National spectrum usage regulations, frequency and channel limitations will be applied on the
products according to the country where the equipment will be deployed.
• This device is restricted from functioning in Ad-hoc mode while operating in 5 GHz. Ad-hoc mode is direct peer-to-peer communication
between two client devices without an Access Point.
• Access points will support DFS (Dynamic Frequency Selection) and TPC (Transmit Power Control) functionality as required when operating in
5 GHz band within the EU.
• Please refer to the product manual or datasheet to check whether your product uses 2.4 GHz and/or 5 GHz wireless.
HINWEIS ZUR VERWENDUNG VON DRAHTLOS-NETZWERK (WLAN) IN DER EUROPÄISCHEN GEMEINSCHAFT ( NUR FÜR
EIN DRAHTLOSES PRODUKT )
• Der Betrieb dieses Geräts in der Europäischen Gemeinschaft bei Nutzung von Kanälen im 5,15-5,35 GHz Frequenzband ist ausschließlich auf
Innenräume beschränkt, um das Interferenzpotential zu reduzieren.
• Bei diesem Gerät handelt es sich um ein zum Einsatz in allen EU-Mitgliedsstaaten und in EFTA-Ländern - ausgenommen Frankreich. Der
Betrieb dieses Geräts ist in den folgenden Ländern erlaubt: AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT,
PL, PT, RO, SM, SE, RS, SK, ES, CI, HU, CY
Gebrauchshinweise:
• Um den in Europa geltenden nationalen Vorschriften zum Nutzen des Funkspektrums weiterhin zu entsprechen, werden Frequenz und
Kanalbeschränkungen, dem jeweiligen Land, in dem das Gerät zum Einsatz kommt, entsprechend, auf die Produkte angewandt.
• Die Funktionalität im Ad-hoc-Modus bei Betrieb auf 5 GHz ist für dieses Gerät eingeschränkt. Bei dem Ad-hoc-Modus handelt es sich um eine
Peer-to-Peer-Kommunikation zwischen zwei Client-Geräten ohneeinen Access Point.
• Access Points unterstützen die Funktionen DFS (Dynamic Frequency Selection) und TPC (Transmit Power Control) wie erforderlich bei Betrieb
auf 5 GHz innerhalb der EU.
• Bitte schlagen Sie im Handbuch oder Datenblatt nach nach, ob Ihr Gerät eine 2,4 GHz und / oder 5 GHz Verbindung nutzt.
160D-Link G416 User Manual
Appendix E - Regulatory Information
AVIS CONCERNANT L'UTILISATION DE LA RADIO SANS FIL LAN DANS LA COMMUNAUTÉ EUROPÉENNE (UNIQUEMENT
POUR LES PRODUITS SANS FIL)
• Cet appareil est limité à un usage intérieur lorsqu'il est utilisé dans la Communauté européenne sur les canaux de la bande de 5,15 à 5,35 GHz
an de réduire les risques d'interférences.
• Cet appareil est un système de transmission à large bande (émetteur-récepteur) de 2,4 GHz, destiné à être utilisé dans tous les États-
membres de l'UE et les pays de l'AELE. Cet équipement peut être utilisé dans les pays suivants : AL, AD, BE , BG, DK, DE, FI, FR, GR, GW, IS, IT,
HR, LI, LU, MT , MK, MD, MC, NL, NO, AT, PL, PT, RO, SM, SE, RS, SK, ES, CI, HU, CY
Notes d'utilisation:
• Pour rester en conformité avec la réglementation nationale européenne en matière d'utilisation du spectre, des limites de fréquence et de
canal seront appliquées aux produits selon le pays où l'équipement sera déployé.
• Cet appareil ne peut pas utiliser le mode Ad-hoc lorsqu'il fonctionne dans la bande de 5 GHz. Le mode Adhoc fournit une communication
directe pair à pair entre deux périphériques clients sans point d'accès.
• Les points d'accès prendront en charge les fonctionnalités DFS (Dynamic Frequency Selection) et TPC (Transmit Power Control) au besoin lors
du fonctionnement dans la bande de 5 GHz au sein de l'UE.
• Merci de vous référer au guide d'utilisation ou de la che technique an de vérier si votre produit utilise 2.4 GHz et/ou 5 GHz sans l.
AVISO DE USO DE LA LAN DE RADIO INALÁMBRICA EN LA COMUNIDAD EUROPEA (SOLO PARA EL PRODUCTO
INALÁMBRICO)
• El uso de este dispositivo está restringido a interiores cuando funciona en la Comunidad Europea utilizando canales en la banda de 5,15-5,35
GHz, para reducir la posibilidad de interferencias.
• Este dispositivo es un sistema de transmisión (transceptor) de banda ancha de 2,4 GHz, pensado para su uso en todos los estados miembros
de la UE y en los países de la AELC. Este equipo se puede utilizar en AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL,
NO, AT, PL, PT, RO, SM, SE, RS, SK, ES, CI, HU, CY
Notas de uso:
• Para seguir cumpliendo las normas europeas de uso del espectro nacional, se aplicarán limitaciones de frecuencia y canal en los productos
en función del país en el que se pondrá en funcionamiento el equipo.
• Este dispositivo tiene restringido el funcionamiento en modo Ad-hoc mientras funcione a 5 Ghz. El modo Ad-hoc es la comunicación directa
de igual a igual entre dos dispositivos cliente sin un punto de acceso.
• Los puntos de acceso admitirán la funcionalidad DFS (Selección de frecuencia dinámica) y TPC (Control de la potencia de transmisión) si es
necesario cuando funcionan a 5 Ghz dentro de la UE.
• Por favor compruebe el manual o la cha de producto para comprobar si el producto utiliza las bandas inalámbricas de 2.4 GHz y/o la de 5
GHz.
161D-Link G416 User Manual
Appendix E - Regulatory Information
AVVISO PER L’USO DI LAN RADIO WIRELESS NELLA COMUNITÀ EUROPEA (SOLO PER PRODOTTI WIRELESS)
• Nella Comunità europea, l’uso di questo dispositivo è limitato esclusivamente agli ambienti interni sui canali compresi nella banda da 5,15 a
5,35 GHz al ne di ridurre potenziali interferenze. Questo dispositivo è un sistema di trasmissione a banda larga a 2,4 GHz (ricetrasmittente),
destinato all’uso in tutti gli stati membri dell’Unione europea e nei paesi EFTA.
• Questo dispositivo può essere utilizzato in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, PL, PT, RO, SM,
SE, RS, SK, ES, CI, HU, CY
Note per l’uso
• Al ne di mantenere la conformità alle normative nazionali europee per l’uso dello spettro di frequenze, saranno applicate limitazioni sulle
frequenze e sui canali per il prodotto in conformità alle normative del paese in cui il dispositivo viene utilizzato.
• Questo dispositivo non può essere attivato in modalità Ad-hoc durante il funzionamento a 5 Ghz. La modalità Ad-hoc è una comunicazione
diretta peer-to-peer fra due dispositivi client senza un punto di accesso.
• I punti di accesso supportano le funzionalità DFS (Dynamic Frequency Selection) e TPC (Transmit Power Control) richieste per operare a 5 Ghz
nell’Unione europea.
• Ti invitiamo a fare riferimento al manuale del prodotto o alla scheda tecnica per vericare se il tuo prodotto utilizza le frequenze 2,4 GHz e/o
5 GHz.
KENNISGEVING VAN DRAADLOOS RADIO LAN-GEBRUIK IN DE EUROPESE GEMEENSCHAP (ALLEEN VOOR
DRAADLOOS PRODUCT)
• Dit toestel is beperkt tot gebruik binnenshuis wanneer het wordt gebruikt in de Europese Gemeenschap gebruik makend van kanalen in de
5.15-5.35 GHz band om de kans op interferentie te beperken.
• Dit toestel is een 2.4 GHz breedband transmissiesysteem (transceiver) dat bedoeld is voor gebruik in alle EU lidstaten en EFTA landen. Deze
uitrusting mag gebruikt worden in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, PL, PT, RO, SM, SE, RS, SK,
ES, CI, HU, CY
Gebruiksaanwijzingen:
• Om de gebruiksvoorschriften van het Europese Nationale spectrum na te leven, zullen frequentie- en kanaalbeperkingen worden toegepast
op de producten volgens het land waar de uitrusting gebruikt zal worden.
• Dit toestel kan niet functioneren in Ad-hoc mode wanneer het gebruikt wordt in 5 GHz. Ad-hoc mode is directe peer-to-peer communicatie
tussen twee klantenapparaten zonder een toegangspunt.
• Toegangspunten ondersteunen DFS (Dynamic Frequency Selection) en TPC (Transmit Power Control) functionaliteit zoals vereist bij gebruik
in 5 GHz binnen de EU.
• Raadpleeg de handleiding of de datasheet om te controleren of uw product gebruik maakt van 2.4 GHz en/of 5 GHz.
162D-Link G416 User Manual
Appendix E - Regulatory Information
SAFETY INSTRUCTIONS
The following general safety guidelines are provided to help ensure your own personal safety and protect your product from potential damage.
Remember to consult the product user instructions for more details.
• Static electricity can be harmful to electronic components. Discharge static electricity from your body (i.e. touching grounded bare metal)
before touching the product.
• Do not attempt to service the product and never disassemble the product. For some products with a user replaceable battery, please read
and follow the instructions in the user manual.
• Do not spill food or liquid on your product and never push any objects into the openings of your product.
• Do not use this product near water, areas with high humidity, or condensation unless the product is specically rated for outdoor application.
• Keep the product away from radiators and other heat sources.
• Always unplug the product from mains power before cleaning and use a dry lint free cloth only.
SICHERHEITSVORSCHRIFTEN
Die folgenden allgemeinen Sicherheitsvorschriften dienen als Hilfe zur Gewährleistung Ihrer eigenen Sicherheit und zum Schutz Ihres Produkts.
Weitere Details nden Sie in den Benutzeranleitungen zum Produkt.
• Statische Elektrizität kann elektronischen Komponenten schaden. Um Schäden durch statische Auadung zu vermeiden, leiten Sie
elektrostatische Ladungen von Ihrem Körper ab,
(z. B. durch Berühren eines geerdeten blanken Metallteils), bevor Sie das Produkt berühren.
• Unterlassen Sie jeden Versuch, das Produkt zu warten, und versuchen Sie nicht, es in seine Bestandteile zu zerlegen. Für einige Produkte mit
austauschbaren Akkus lesen Sie bitte das Benutzerhandbuch und befolgen Sie die dort beschriebenen Anleitungen.
• Vermeiden Sie, dass Speisen oder Flüssigkeiten auf Ihr Produkt gelangen, und stecken Sie keine Gegenstände in die Gehäuseschlitze oder
-önungen Ihres Produkts.
• Verwenden Sie dieses Produkt nicht in unmittelbarer Nähe von Wasser und nicht in Bereichen mit hoher Luftfeuchtigkeit oder Kondensation,
es sei denn, es ist speziell zur Nutzung in Außenbereichen vorgesehen und eingestuft.
• Halten Sie das Produkt von Heizkörpern und anderen Quellen fern, die Wärme erzeugen.
• Trennen Sie das Produkt immer von der Stromzufuhr, bevor Sie es reinigen und verwenden Sie dazu ausschließlich ein trockenes fusselfreies
Tuch.
163D-Link G416 User Manual
Appendix E - Regulatory Information
CONSIGNES DE SÉCURITÉ
Les consignes générales de sécurité ci-après sont fournies an d’assurer votre sécurité personnelle et de protéger le produit d’éventuels
dommages. Veuillez consulter les consignes d’utilisation du produit pour plus de détails.
• L’électricité statique peut endommager les composants électroniques. Déchargez l’électricité statique de votre corps (en touchant un objet
en métal relié à la terre par exemple) avant de toucher le produit.
• N’essayez pas d’intervenir sur le produit et ne le démontez jamais. Pour certains produits contenant une batterie remplaçable par l’utilisateur,
veuillez lire et suivre les consignes contenues dans le manuel d’utilisation.
• Ne renversez pas d’aliments ou de liquide sur le produit et n’insérez jamais d’objets dans les orices.
• N’utilisez pas ce produit à proximité d’un point d’eau, de zones très humides ou de condensation sauf si le produit a été spéciquement
conçu pour une application extérieure.
• Éloignez le produit des radiateurs et autres sources de chaleur.
• Débranchez toujours le produit de l’alimentation avant de le nettoyer et utilisez uniquement un chion sec non pelucheux.
INSTRUCCIONES DE SEGURIDAD
Las siguientes directrices de seguridad general se facilitan para ayudarle a garantizar su propia seguridad personal y para proteger el producto
frente a posibles daños. No olvide consultar las instrucciones del usuario del producto para obtener más información.
• La electricidad estática puede resultar nociva para los componentes electrónicos. Descargue la electricidad estática de su cuerpo (p. ej.,
tocando algún metal sin revestimiento conectado a tierra) antes de tocar el producto.
• No intente realizar el mantenimiento del producto ni lo desmonte nunca. Para algunos productos con batería reemplazable por el usuario,
lea y siga las instrucciones del manual de usuario.
• No derrame comida o líquidos sobre el producto y nunca deje que caigan objetos en las aberturas del mismo.
• No utilice este producto cerca del agua, en zonas con humedad o condensación elevadas a menos que el producto esté clasicado
especícamente para aplicación en exteriores.
• Mantenga el producto alejado de los radiadores y de otras fuentes de calor.
• Desenchufe siempre el producto de la alimentación de red antes de limpiarlo y utilice solo un paño seco sin pelusa.
164D-Link G416 User Manual
Appendix E - Regulatory Information
ISTRUZIONI PER LA SICUREZZA
Le seguenti linee guida sulla sicurezza sono fornite per contribuire a garantire la sicurezza personale degli utenti e a proteggere il prodotto da
potenziali danni. Per maggiori dettagli, consultare le istruzioni per l’utente del prodotto.
• L’elettricità statica può essere pericolosa per i componenti elettronici. Scaricare l’elettricità statica dal corpo (ad esempio toccando una parte
metallica collegata a terra) prima di toccare il prodotto.
• Non cercare di riparare il prodotto e non smontarlo mai. Per alcuni prodotti dotati di batteria sostituibile dall’utente, leggere e seguire le
istruzioni riportate nel manuale dell’utente.
• Non versare cibi o liquidi sul prodotto e non spingere mai alcun oggetto nelle aperture del prodotto.
• Non usare questo prodotto vicino all’acqua, in aree con elevato grado di umidità o soggette a condensa a meno che il prodotto non sia
specicatamente approvato per uso in ambienti esterni.
• Tenere il prodotto lontano da caloriferi e altre fonti di calore.
• Scollegare sempre il prodotto dalla presa elettrica prima di pulirlo e usare solo un panno asciutto che non lasci lacce.
VEILIGHEIDSINFORMATIE
De volgende algemene veiligheidsinformatie werd verstrekt om uw eigen persoonlijke veiligheid te waarborgen en uw product te beschermen
tegen mogelijke schade. Denk eraan om de gebruikersinstructies van het product te raadplegen voor meer informatie.
• Statische elektriciteit kan schadelijk zijn voor elektronische componenten. Ontlaad de statische elektriciteit van uw lichaam (d.w.z. het
aanraken van geaard bloot metaal) voordat uhet product aanraakt.
• U mag nooit proberen het product te onderhouden en u mag het product nooit demonteren. Voor sommige producten met door de
gebruiker te vervangen batterij, dient u de instructies in de gebruikershandleiding te lezen en te volgen.
• Mors geen voedsel of vloeistof op uw product en u mag nooit voorwerpen in de openingen van uw product duwen.
• Gebruik dit product niet in de buurt van water, gebieden met hoge vochtigheid of condensatie, tenzij het product speciek geclassiceerd is
voor gebruik buitenshuis.
• Houd het product uit de buurt van radiators en andere warmtebronnen.
• U dient het product steeds los te koppelen van de stroom voordat u het reinigt en gebruik uitsluitend een droge pluisvrije doek.
165D-Link G416 User Manual
Appendix E - Regulatory Information
Disposing and Recycling Your Product
ENGLISH EN
This symbol on the product or packaging means that according to local laws and regulations this product should be not be disposed
of in household waste but sent for recycling. Please take it to a collection point designated by your local authorities once it has
reached the end of its life, some will accept products for free. By recycling the product and its packaging in this manner you help to
conserve the environment and protect human health.
D-Link and the Environment
At D-Link, we understand and are committed to reducing any impact our operations and products may have on the environment. To minimise
this impact D-Link designs and builds its products to be as environmentally friendly as possible, by using recyclable, low toxic materials in both
products and packaging.
D-Link recommends that you always switch o or unplug your D-Link products when they are not in use. By doing so you will help to save energy
and reduce CO2 emissions.
To learn more about our environmentally responsible products and packaging please visit www.dlinkgreen.com.
DEUTSCH DE
Dieses Symbol auf dem Produkt oder der Verpackung weist darauf hin, dass dieses Produkt gemäß bestehender örtlicher Gesetze
und Vorschriften nicht über den normalen Hausmüll entsorgt werden sollte, sondern einer Wiederverwertung zuzuführen ist. Bringen
Sie es bitte zu einer von Ihrer Kommunalbehörde entsprechend amtlich ausgewiesenen Sammelstelle, sobald das Produkt das Ende
seiner Nutzungsdauer erreicht hat. Für die Annahme solcher Produkte erheben einige dieser Stellen keine Gebühren. Durch ein auf
diese Weise durchgeführtes Recycling des Produkts und seiner Verpackung helfen Sie, die Umwelt zu schonen und die menschliche
Gesundheit zu schützen.
D-Link und die Umwelt
D-Link ist sich den möglichen Auswirkungen seiner Geschäftstätigkeiten und seiner Produkte auf die Umwelt bewusst und fühlt sich verpichtet,
diese entsprechend zu mindern. Zu diesem Zweck entwickelt und stellt D-Link seine Produkte mit dem Ziel größtmöglicher Umweltfreundlichkeit
her und verwendet wiederverwertbare, schadstoarme Materialien bei Produktherstellung und Verpackung.
D-Link empehlt, Ihre Produkte von D-Link, wenn nicht in Gebrauch, immer auszuschalten oder vom Netz zu nehmen. Auf diese Weise helfen
Sie, Energie zu sparen und CO2-Emissionen zu reduzieren.
Wenn Sie mehr über unsere umweltgerechten Produkte und Verpackungen wissen möchten, nden Sie entsprechende Informationen im Internet
unter www.dlinkgreen.com.
166D-Link G416 User Manual
Appendix E - Regulatory Information
FRANÇAIS FR
Ce symbole apposé sur le produit ou son emballage signie que, conformément aux lois et règlementations locales, ce produit ne
doit pas être éliminé avec les déchets domestiques mais recyclé. Veuillez le rapporter à un point de collecte prévu à cet eet par les
autorités locales; certains accepteront vos produits gratuitement. En recyclant le produit et son emballage de cette manière, vous
aidez à préserver l’environnement et à protéger la santé de l’homme.
D-Link et l’environnement
Chez D-Link, nous sommes conscients de l'impact de nos opérations et produits sur l'environnement et nous engageons à le réduire. Pour limiter
cet impact, D-Link conçoit et fabrique ses produits de manière aussi écologique que possible, en utilisant des matériaux recyclables et faiblement
toxiques, tant dans ses produits que ses emballages.
D-Link recommande de toujours éteindre ou débrancher vos produits D-Link lorsque vous ne les utilisez pas. Vous réaliserez ainsi des économies
d’énergie et réduirez vos émissions de CO2.
Pour en savoir plus sur les produits et emballages respectueux de l’environnement, veuillez consulter le www.dlinkgreen.com.
ESPAÑOL ES
Este símbolo en el producto o el embalaje signica que, de acuerdo con la legislación y la normativa local, este producto no se debe
desechar en la basura doméstica sino que se debe reciclar. Llévelo a un punto de recogida designado por las autoridades locales una
vez que ha llegado al n de su vida útil; algunos de ellos aceptan recogerlos de forma gratuita. Al reciclar el producto y su embalaje
de esta forma, contribuye a preservar el medio ambiente y a proteger la salud de los seres humanos.
D-Link y el medio ambiente
En D-Link, comprendemos y estamos comprometidos con la reducción del impacto que puedan tener nuestras actividades y nuestros productos
en el medio ambiente. Para reducir este impacto, D-Link diseña y fabrica sus productos para que sean lo más ecológicos posible, utilizando
materiales reciclables y de baja toxicidad tanto en los productos como en el embalaje.
D-Link recomienda apagar o desenchufar los productos D-Link cuando no se estén utilizando. Al hacerlo, contribuirá a ahorrar energía y a reducir
las emisiones de CO2.
Para obtener más información acerca de nuestros productos y embalajes ecológicos, visite el sitio www.dlinkgreen.com.
167D-Link G416 User Manual
Appendix E - Regulatory Information
ITALIANO IT
La presenza di questo simbolo sul prodotto o sulla confezione del prodotto indica che, in conformità alle leggi e alle normative locali,
questo prodotto non deve essere smaltito nei riuti domestici, ma avviato al riciclo. Una volta terminato il ciclo di vita utile, portare il
prodotto presso un punto di raccolta indicato dalle autorità locali. Alcuni questi punti di raccolta accettano gratuitamente i prodotti
da riciclare. Scegliendo di riciclare il prodotto e il relativo imballaggio, si contribuirà a preservare l'ambiente e a salvaguardare la
salute umana.
D-Link e l'ambiente
D-Link cerca da sempre di ridurre l'impatto ambientale dei propri stabilimenti e dei propri prodotti. Allo scopo di ridurre al minimo tale impatto,
D-Link progetta e realizza i propri prodotti in modo che rispettino il più possibile l'ambiente, utilizzando materiali riciclabili a basso tasso di
tossicità sia per i prodotti che per gli imballaggi.
D-Link raccomanda di spegnere sempre i prodotti D-Link o di scollegarne la spina quando non vengono utilizzati. In questo modo si contribuirà
a risparmiare energia e a ridurre le emissioni di anidride carbonica.
Per ulteriori informazioni sui prodotti e sugli imballaggi D-Link a ridotto impatto ambientale, visitate il sito all'indirizzo www.dlinkgreen.com.
NEDERLANDS NL
Dit symbool op het product of de verpakking betekent dat dit product volgens de plaatselijke wetgeving niet mag worden weggegooid
met het huishoudelijk afval, maar voor recyclage moeten worden ingeleverd. Zodra het product het einde van de levensduur heeft
bereikt, dient u het naar een inzamelpunt te brengen dat hiertoe werd aangeduid door uw plaatselijke autoriteiten, sommige
autoriteiten accepteren producten zonder dat u hiervoor dient te betalen. Door het product en de verpakking op deze manier te
recyclen helpt u het milieu en de gezondheid van de mens te beschermen.
D-Link en het milieu
Bij D-Link spannen we ons in om de impact van onze handelingen en producten op het milieu te beperken. Om deze impact te beperken, ontwerpt
en bouwt D-Link zijn producten zo milieuvriendelijk mogelijk, door het gebruik van recycleerbare producten met lage toxiciteit in product en
verpakking.
D-Link raadt aan om steeds uw D-Link producten uit te schakelen of uit de stekker te halen wanneer u ze niet gebruikt. Door dit te doen bespaart
u energie en beperkt u de CO2-emissies.
Breng een bezoek aan www.dlinkgreen.com voor meer informatie over onze milieuverantwoorde producten en verpakkingen.
168D-Link G416 User Manual
Appendix E - Regulatory Information
POLSKI PL
Ten symbol umieszczony na produkcie lub opakowaniu oznacza, że zgodnie z miejscowym prawem i lokalnymi przepisami
niniejszego produktu nie wolno wyrzucać jak odpady czy śmieci z gospodarstwa domowego, lecz należy go poddać procesowi
recyklingu. Po zakończeniu użytkowania produktu, niektóre odpowiednie do tego celu podmioty przyjmą takie produkty
nieodpłatnie, dlatego prosimy dostarczyć go do punktu zbiórki wskazanego przez lokalne władze. Poprzez proces recyklingu i
dzięki takiemu postępowaniu z produktem oraz jego opakowaniem, pomogą Państwo chronić środowisko naturalne i dbać o
ludzkie zdrowie.
D-Link i środowisko
D-Link podchodzimy w sposób świadomy do ochrony otoczenia oraz jesteśmy zaangażowani w zmniejszanie wpływu naszych działań i produktów
na środowisko naturalne. W celu zminimalizowania takiego wpływu rma D-Link konstruuje i wytwarza swoje produkty w taki sposób, aby były
one jak najbardziej przyjazne środowisku, stosując do tych celów materiały nadające się do powtórnego wykorzystania, charakteryzujące się
małą toksycznością zarówno w przypadku samych produktów jak i opakowań.
Firma D-Link zaleca, aby Państwo zawsze prawidłowo wyłączali z użytku swoje produkty D-Link, gdy nie są one wykorzystywane. Postępując w
ten sposób pozwalają Państwo oszczędzać energię i zmniejszać emisje CO2.
Aby dowiedzieć się więcej na temat produktów i opakowań mających wpływ na środowisko prosimy zapoznać się ze stroną Internetową www.
dlinkgreen.com.
ČESKY CZ
Tento symbol na výrobku nebo jeho obalu znamená, že podle místně platných předpisů se výrobek nesmí vyhazovat do komunálního
odpadu, ale odeslat k recyklaci. Až výrobek doslouží, odneste jej prosím na sběrné místo určené místními úřady k tomuto účelu.
Některá sběrná místa přijímají výrobky zdarma. Recyklací výrobku i obalu pomáháte chránit životní prostředí i lidské zdraví.
D-Link a životní prostředí
Ve společnosti D-Link jsme si vědomi vlivu našich provozů a výrobků na životní prostředí a snažíme se o minimalizaci těchto vlivů. Proto své
výrobky navrhujeme a vyrábíme tak, aby byly co nejekologičtější, a ve výrobcích i obalech používáme recyklovatelné a nízkotoxické materiály.
Společnost D-Link doporučuje, abyste své výrobky značky D-Link vypnuli nebo vytáhli ze zásuvky vždy, když je nepoužíváte. Pomůžete tak šetřit
energii a snížit emise CO2.
Více informací o našich ekologických výrobcích a obalech najdete na adrese www.dlinkgreen.com.
169D-Link G416 User Manual
Appendix E - Regulatory Information
MAGYAR HU
Ez a szimbólum a terméken vagy a csomagoláson azt jelenti, hogy a helyi törvényeknek és szabályoknak megfelelően ez a termék
nem semmisíthető meg a háztartási hulladékkal együtt, hanem újrahasznosításra kell küldeni. Kérjük, hogy a termék élettartamának
elteltét követően vigye azt a helyi hatóság által kijelölt gyűjtőhelyre. A termékek egyes helyeken ingyen elhelyezhetők. A termék és
a csomagolás újrahasznosításával segíti védeni a környezetet és az emberek egészségét.
A D-Link és a környezet
A D-Linknél megértjük és elkötelezettek vagyunk a műveleteink és termékeink környezetre gyakorolt hatásainak csökkentésére. Az ezen hatás
csökkentése érdekében a D-Link a lehető leginkább környezetbarát termékeket tervez és gyárt azáltal, hogy újrahasznosítható, alacsony károsanyag-
tartalmú termékeket gyárt és csomagolásokat alkalmaz.
A D-Link azt javasolja, hogy mindig kapcsolja ki vagy húzza ki a D-Link termékeket a tápforrásból, ha nem használja azokat. Ezzel segít az energia
megtakarításában és a széndioxid kibocsátásának csökkentésében.
Környezetbarát termékeinkről és csomagolásainkról további információkat a www.dlinkgreen.com weboldalon tudhat meg.
NORSK NO
Dette symbolet på produktet eller forpakningen betyr at dette produktet ifølge lokale lover og forskrifter ikke skal kastes sammen
med husholdningsavfall, men leveres inn til gjenvinning. Vennligst ta det til et innsamlingssted anvist av lokale myndigheter når
det er kommet til slutten av levetiden. Noen steder aksepteres produkter uten avgift. Ved på denne måten å gjenvinne produktet
og forpakningen hjelper du å verne miljøet og beskytte folks helse.
D-Link og miljøet
Hos D-Link forstår vi oss på og er forpliktet til å minske innvirkningen som vår drift og våre produkter kan ha på miljøet. For å minimalisere denne
innvirkningen designer og lager D-Link produkter som er så miljøvennlig som mulig, ved å bruke resirkulerbare, lav-toksiske materialer både i
produktene og forpakningen.
D-Link anbefaler at du alltid slår av eller frakobler D-Link-produkter når de ikke er i bruk. Ved å gjøre dette hjelper du å spare energi og å redusere
CO2-utslipp.
For mer informasjon angående våre miljøansvarlige produkter og forpakninger kan du gå til www.dlinkgreen.com.
170D-Link G416 User Manual
Appendix E - Regulatory Information
DANSK DK
Dette symbol på produktet eller emballagen betyder, at dette produkt i henhold til lokale love og regler ikke må bortskaes som
husholdningsaald, mens skal sendes til genbrug. Indlever produktet til et indsamlingssted som angivet af de lokale myndigheder,
når det er nået til slutningen af dets levetid. I nogle tilfælde vil produktet blive modtaget gratis. Ved at indlevere produktet og dets
emballage til genbrug på denne måde bidrager du til at beskytte miljøet og den menneskelige sundhed.
D-Link og miljøet
Hos D-Link forstår vi og bestræber os på at reducere enhver indvirkning, som vores aktiviteter og produkter kan have på miljøet. For at minimere
denne indvirkning designer og producerer D-Link sine produkter, så de er så miljøvenlige som muligt, ved at bruge genanvendelige materialer
med lavt giftighedsniveau i både produkter og emballage.
D-Link anbefaler, at du altid slukker eller frakobler dine D-Link-produkter, når de ikke er i brug. Ved at gøre det bidrager du til at spare energi og
reducere CO2-udledningerne.
Du kan nde ere oplysninger om vores miljømæssigt ansvarlige produkter og emballage på www.dlinkgreen.com.
SUOMI FI
Tämä symboli tuotteen pakkauksessa tarkoittaa, että paikallisten lakien ja säännösten mukaisesti tätä tuotetta ei pidä hävittää
yleisen kotitalousjätteen seassa vaan se tulee toimittaa kierrätettäväksi. Kun tuote on elinkaarensa päässä, toimita se lähimpään
viranomaisten hyväksymään kierrätyspisteeseen. Kierrättämällä käytetyn tuotteen ja sen pakkauksen autat tukemaan sekä ympäristön
että ihmisten terveyttä ja hyvinvointia.
D-Link ja ympäristö
D-Link ymmärtää ympäristönsuojelun tärkeyden ja on sitoutunut vähentämään tuotteistaan ja niiden valmistuksesta ympäristölle mahdollisesti
aiheutuvia haittavaikutuksia. Nämä negatiiviset vaikutukset minimoidakseen D-Link suunnittelee ja valmistaa tuotteensa mahdollisimman
ympäristöystävällisiksi käyttämällä kierrätettäviä, alhaisia pitoisuuksia haitallisia aineita sisältäviä materiaaleja sekä tuotteissaan että niiden
pakkauksissa.
Suosittelemme, että irrotat D-Link-tuotteesi virtalähteestä tai sammutat ne aina, kun ne eivät ole käytössä. Toimimalla näin autat säästämään
energiaa ja vähentämään hiilidioksiidipäästöjä.
Lue lisää ympäristöystävällisistä D-Link-tuotteista ja pakkauksistamme osoitteesta www.dlinkgreen.com.
171D-Link G416 User Manual
Appendix E - Regulatory Information
SVENSKA SE
Den här symbolen på produkten eller förpackningen betyder att produkten enligt lokala lagar och föreskrifter inte skall kastas i
hushållssoporna utan i stället återvinnas. Ta den vid slutet av dess livslängd till en av din lokala myndighet utsedd uppsamlingsplats,
vissa accepterar produkter utan kostnad. Genom att på detta sätt återvinna produkten och förpackningen hjälper du till att bevara
miljön och skydda människors hälsa.
D-Link och miljön
På D-Link förstår vi och är fast beslutna att minska den påverkan våra verksamheter och produkter kan ha på miljön. För att minska denna påverkan
utformar och bygger D-Link sina produkter för att de ska vara så miljövänliga som möjligt, genom att använda återvinningsbara material med
låg gifthalt i både produkter och förpackningar.
D-Link rekommenderar att du alltid stänger av eller kopplar ur dina D-Link produkter när du inte använder dem. Genom att göra detta hjälper
du till att spara energi och minska utsläpp av koldioxid.
För mer information om våra miljöansvariga produkter och förpackningar www.dlinkgreen.com.
PORTUGUÊS PT
Este símbolo no produto ou embalagem signica que, de acordo com as leis e regulamentações locais, este produto não deverá ser
eliminado juntamente com o lixo doméstico mas enviado para a reciclagem. Transporte-o para um ponto de recolha designado pelas
suas autoridades locais quando este tiver atingido o m da sua vida útil, alguns destes pontos aceitam produtos gratuitamente. Ao
reciclar o produto e respectiva embalagem desta forma, ajuda a preservar o ambiente e protege a saúde humana.
A D-Link e o ambiente
Na D-Link compreendemos e comprometemo-nos com a redução do impacto que as nossas operações e produtos possam ter no ambiente.
Para minimizar este impacto a D-Link concebe e constrói os seus produtos para que estes sejam o mais inofensivos para o ambiente possível,
utilizando meteriais recicláveis e não tóxicos tanto nos produtos como nas embalagens.
A D-Link recomenda que desligue os seus produtos D-Link quando estes não se encontrarem em utilização. Com esta acção ajudará a poupar
energia e reduzir as emissões de CO2.
Para saber mais sobre os nossos produtos e embalagens responsáveis a nível ambiental visite www.dlinkgreen.com.
