_®®@@@
o_®®@@@
PERFORMANCE TREADMILLS
SEARS
Model No. 831.297680
Serial No.
Write the serial number in the space
above for future reference.
Serial Number Decal
EXE F_C | S E
EO u i PM ENT
o
HELPLINE!
1-800-736-6879
A CAUTION
Read all precautions and in-
structions in this manual before
using this equipment. Save this
manual for future reference.
E UAL

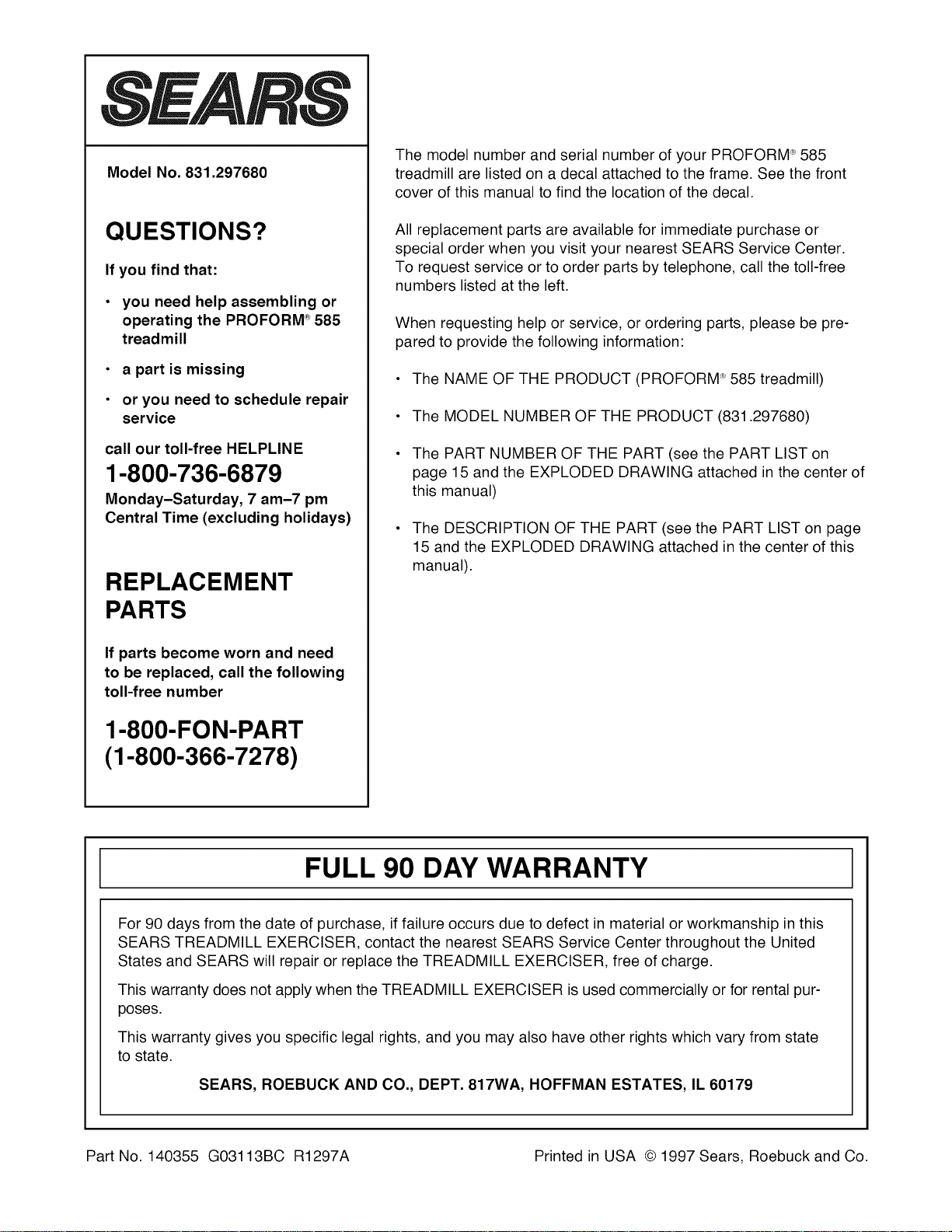

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

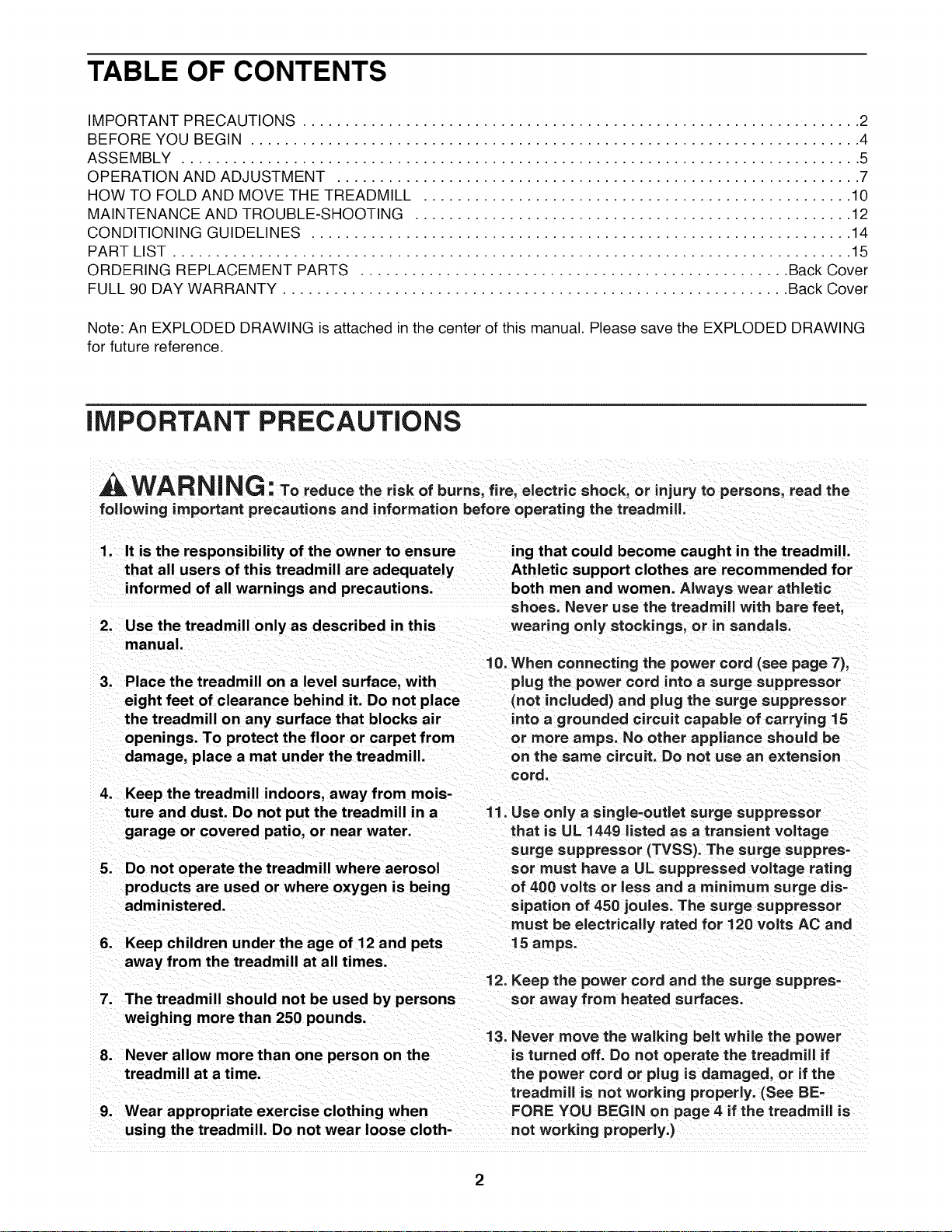

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................. 2
BEFORE YOU BEGIN ....................................................................... 4
ASSEMBLY ............................................................................... 5
OPERATION AND ADJUSTMENT ............................................................. 7
HOW TO FOLD AND MOVE THE TREADMILL .................................................. 10
MAINTENANCE AND TROUBLE-SHOOTING ................................................... 12
CONDITIONING GUIDELINES ............................................................... 14
PART LIST ............................................................................... 15
ORDERING REPLACEMENT PARTS .................................................. Back Cover
FULL 90 DAY WARRANTY ........................................................... Back Cover

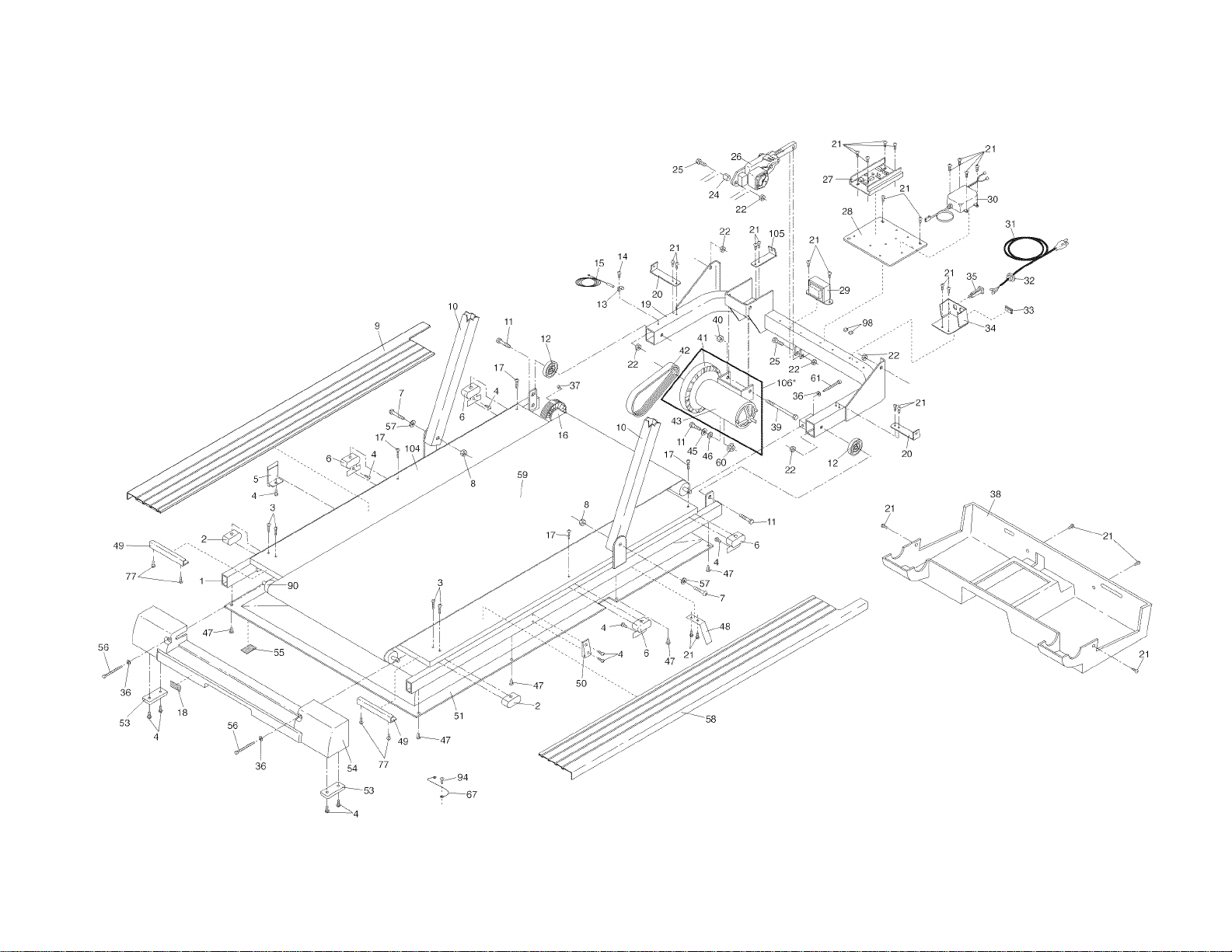

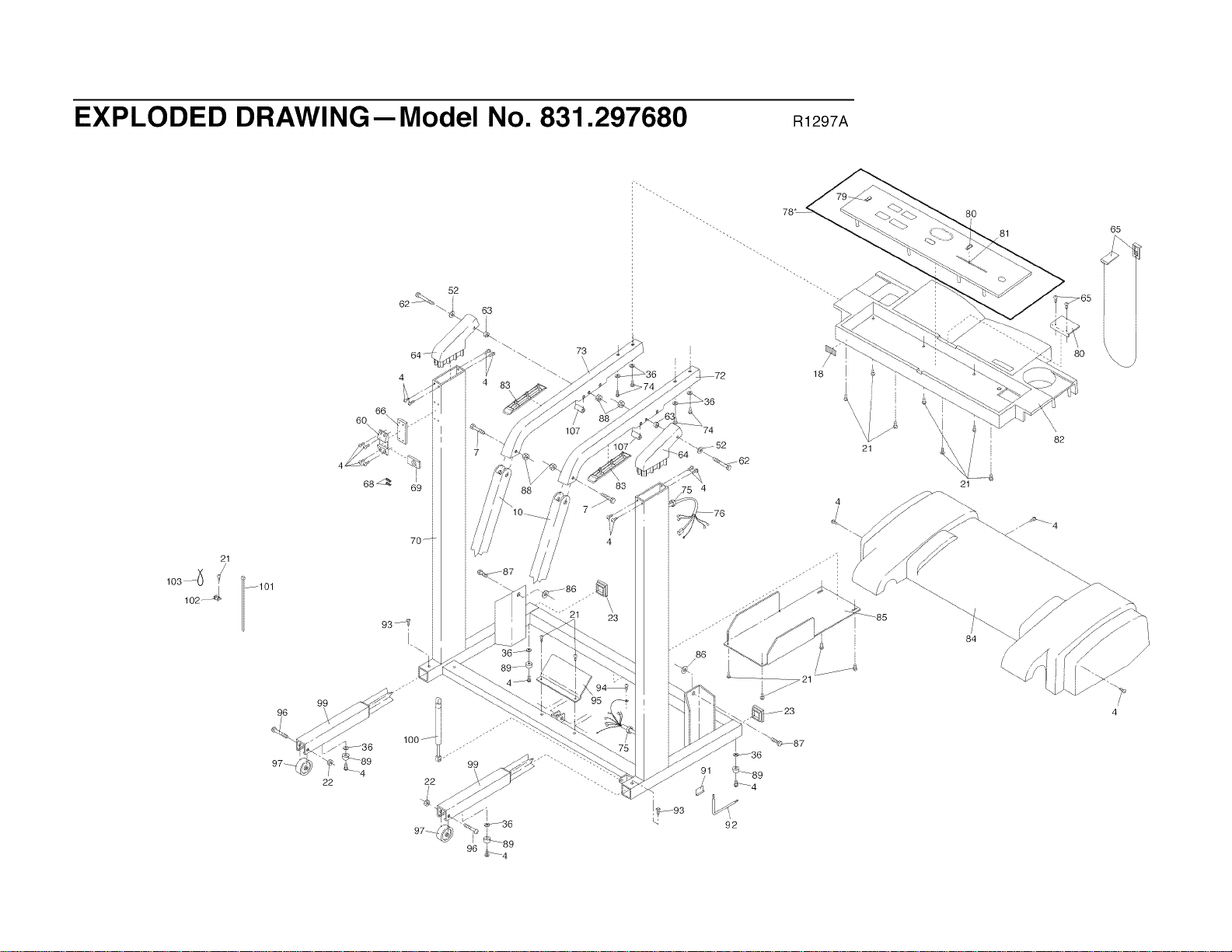

Note: An EXPLODED DRAWING is attached in the center of this manual. Please save the EXPLODED DRAWING
for future reference.
iMPORTANT PRECAUTIONS
"_ WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
.
.
.
.
ing that could become caught in the treadmill.
that all users of this treadmill are adequately Athletic support clothes are recommended for
informed of all warnings and precautions, both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
Use the treadmill only as described in this
manual.
Place the treadmill on a level surface, with
eight feet of clearance behind it. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth-
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 7),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit. Do not use an extension
cord.
11. Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppres-
sor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dis-
sipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and
15 amps.
12. Keep the power cord and the surge suppres-
sor away from heated surfaces.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BE-
FORE YOU BEGIN on page 4 if the treadmill is
not working properly.)
14.Neverstartthetreadmillwhileyouarestand-
ingonthewalking belt. Always hold the
handrails while using the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
ASSEMBLY on page 5, and HOW TO MOVE
THE TREADMILL on page 10.) You must be
able to safely lift 45 pounds (20 kg) in order to
raise, lower, or move the treadmill.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
16. To reduce the possibility of the treadmill 21. Inspect and tighten all parts of the treadmill
overheating, do not operate the treadmill every three months.
continuously for longer than 1 hour.
22. Never insert any object into any opening.
17. The pulse sensor is not a medical device.
Various factors, including the user's move- 23. Always unplug the power cord before per-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
18. Never leave the treadmill unattended while it
is running. Always remove the key when the
treadmill is not in use.
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
forming the maintenance and adjustment
procedures described in this manual. Never
remove the motor hood unless instructed to
do so by an authorized service representa-
tive. Servicing other than the procedures in
this manual should be performed by an au-
thorized service representative only.
24. This treadmill is intended for in-home use
only. Do not use this treadmill in any com-
mercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

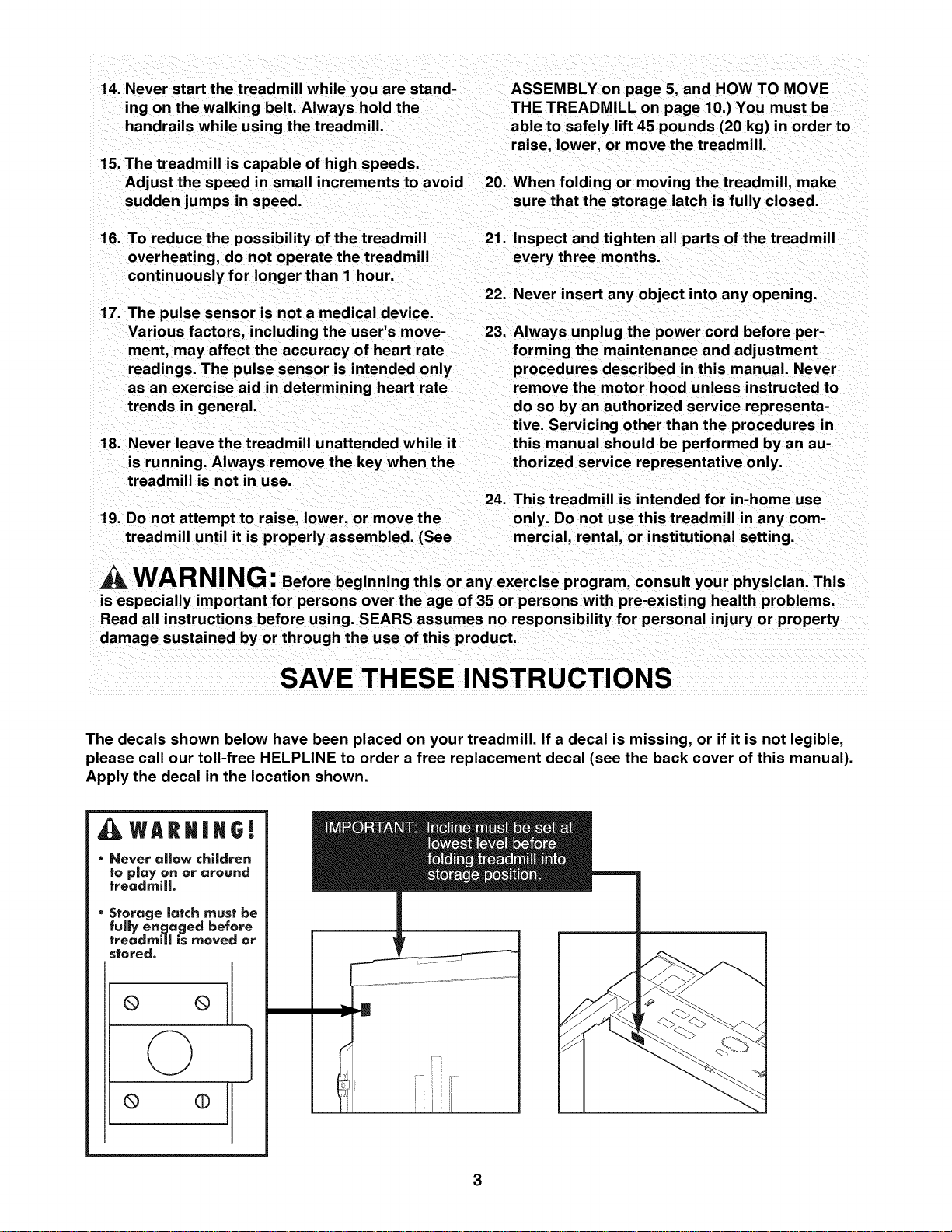

The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible,
please call our toll-free HELPLINE to order a free replacement decal (see the back cover of this manual).
Apply the decal in the location shown.
WARHiHG!
* Never aflow ¢hffdren
to play on or around
treadmill.
© Q
©
® ©
. Storage latch must be
fully engaged before
_readmiiJ is moved or
stored.
Ji
/-,
3
BEFORE YOU BEGIN
Thank you for selecting the innovative PROFORM _
585 treadmill. The 585 treadmill blends advanced
technology with innovative design to let you enjoy an
excellent form of cardiovascular exercise in the conve-
nience and privacy of your home.
For your benefit, read this manual carefully before
using the treadmill. Ifyou have questions after read-
ing the manual, please call our toll-free HELPLINE at
1-800-736-6879, Monday through Saturday, 7 a.m.
until 7 p.m. Central Time (excluding holidays). To help
us assist you, please note the product model number
and serial number before calling. The model number of
the treadmill is 831.297680. The serial number can be
found on a decal attached to the treadmill (see the
front cover of this manual for the location).

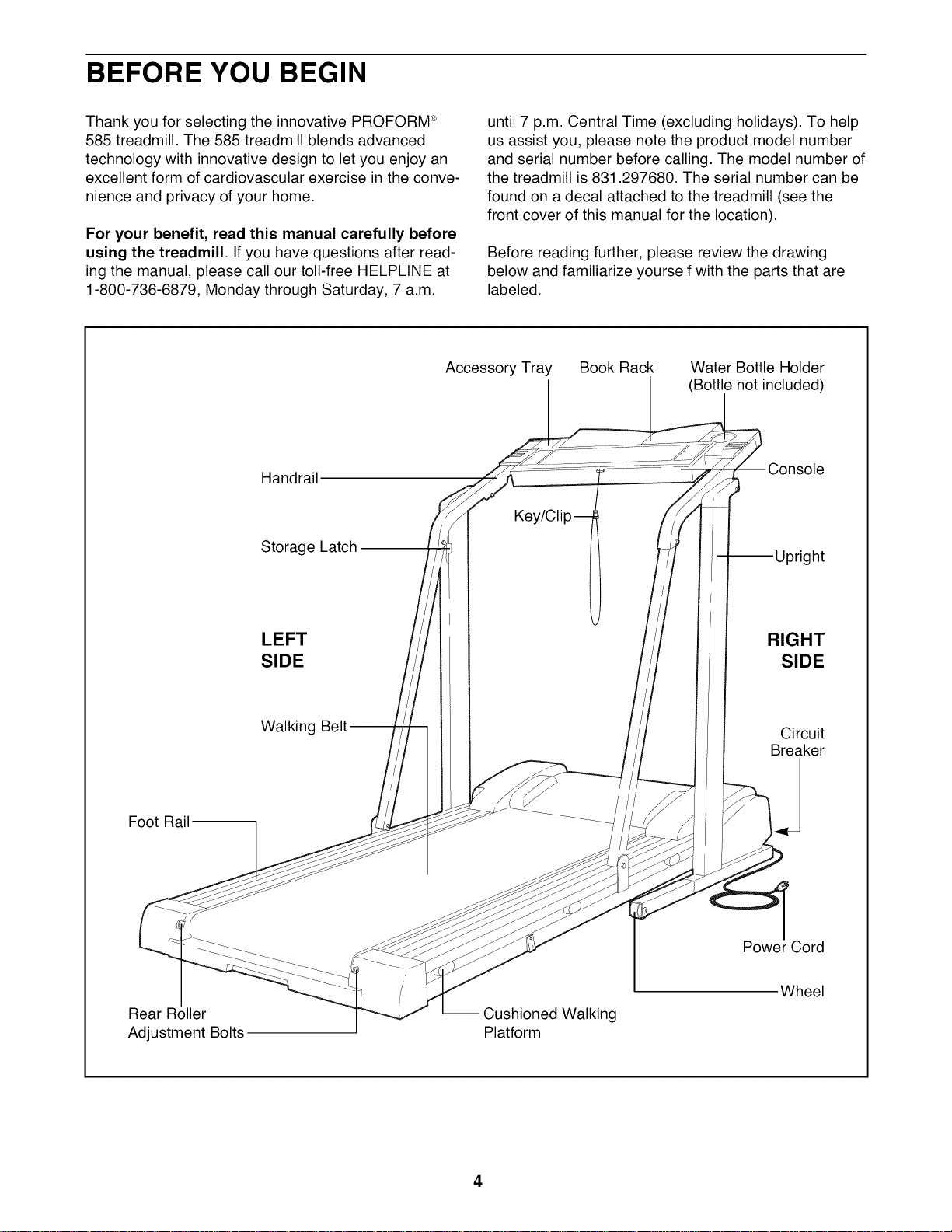

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Accessory Tray
Book Rack Water Bottle Holder
(Bottle not included)
Foot Rail
Handrail
Storage Latch
LEFT
SIDE
Walking
RIGHT
SIDE
Circuit
Breaker
J
Rear Roller
Adjustment Bolts
-- Cushioned Walking
Platform
Power Cord
Wheel
4

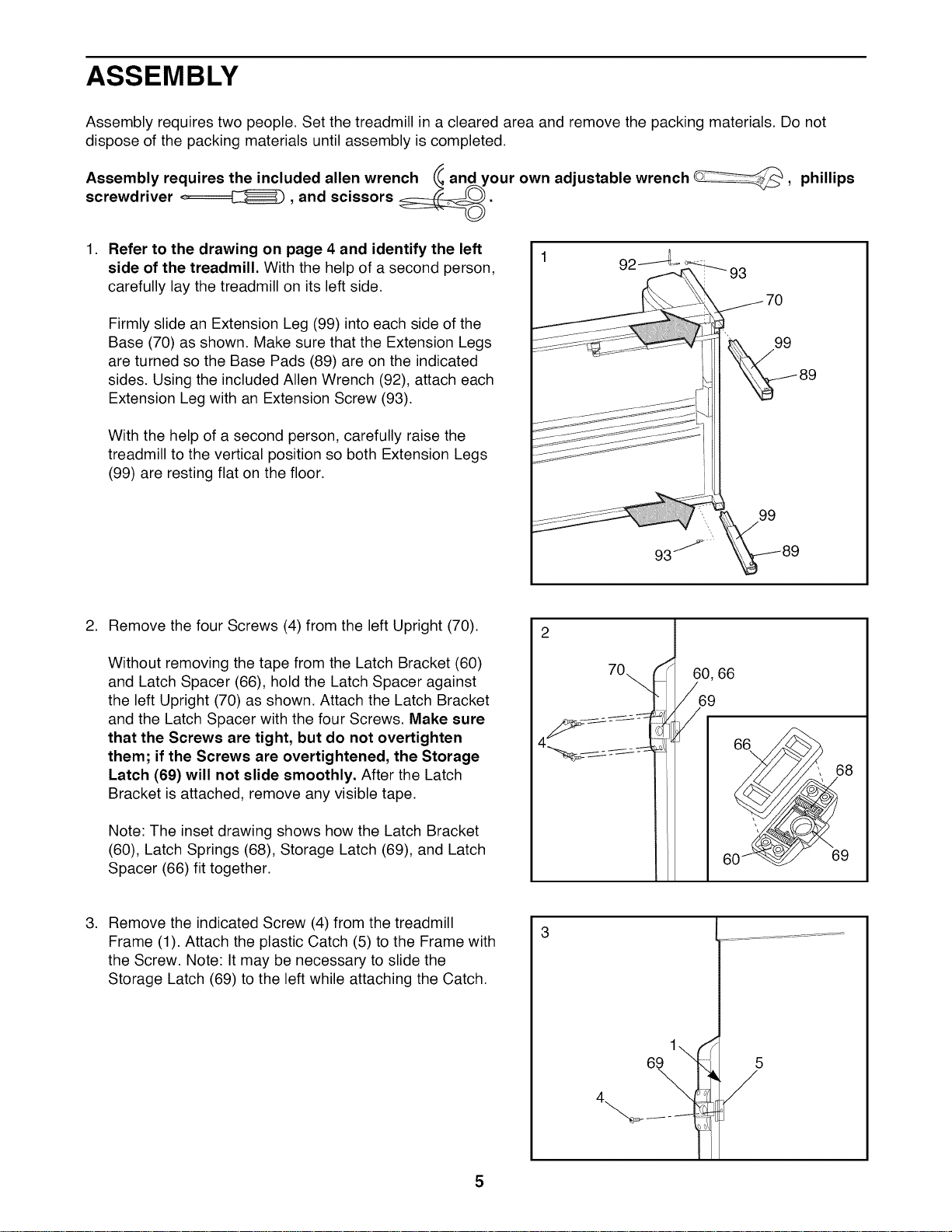

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove the packing materials. Do not
dispose of the packing materials until assembly is completed.
Assembly requires the included allen wrench _ and your own adjustable wrench
screwdriver _-_[Z_) , and scissors _. _, phillips
,
Refer to the drawing on page 4 and identify the left
side of the treadmill. With the help of a second person,
carefully lay the treadmill on its left side.
Firmly slide an Extension Leg (99) into each side of the
Base (70) as shown. Make sure that the Extension Legs
are turned so the Base Pads (89) are on the indicated
sides. Using the included Allen Wrench (92), attach each
Extension Leg with an Extension Screw (93).
With the help of a second person, carefully raise the
treadmill to the vertical position so both Extension Legs
(99) are resting flat on the floor.
99
99
2. Remove the four Screws (4) from the left Upright (70).
Without removing the tape from the Latch Bracket (60)
and Latch Spacer (66), hold the Latch Spacer against
the left Upright (70) as shown. Attach the Latch Bracket
and the Latch Spacer with the four Screws. Make sure
that the Screws are tight, but do not overtighten
them; if the Screws are overtightened, the Storage
Latch (69) will not slide smoothly. After the Latch
Bracket is attached, remove any visible tape.
Note: The inset drawing shows how the Latch Bracket
(60), Latch Springs (68), Storage Latch (69), and Latch
Spacer (66) fit together.
60, 66
_69
/
68
69
,
Remove the indicated Screw (4) from the treadmill
Frame (1). Attach the plastic Catch (5) to the Frame with
the Screw. Note: It may be necessary to slide the
Storage Latch (69) to the left while attaching the Catch.
4. 4
SeeHOWTOLOWERTHETREADMILLFORUSEon
page11.Followtheinstructionsonpage11tolowerthe
treadmill.

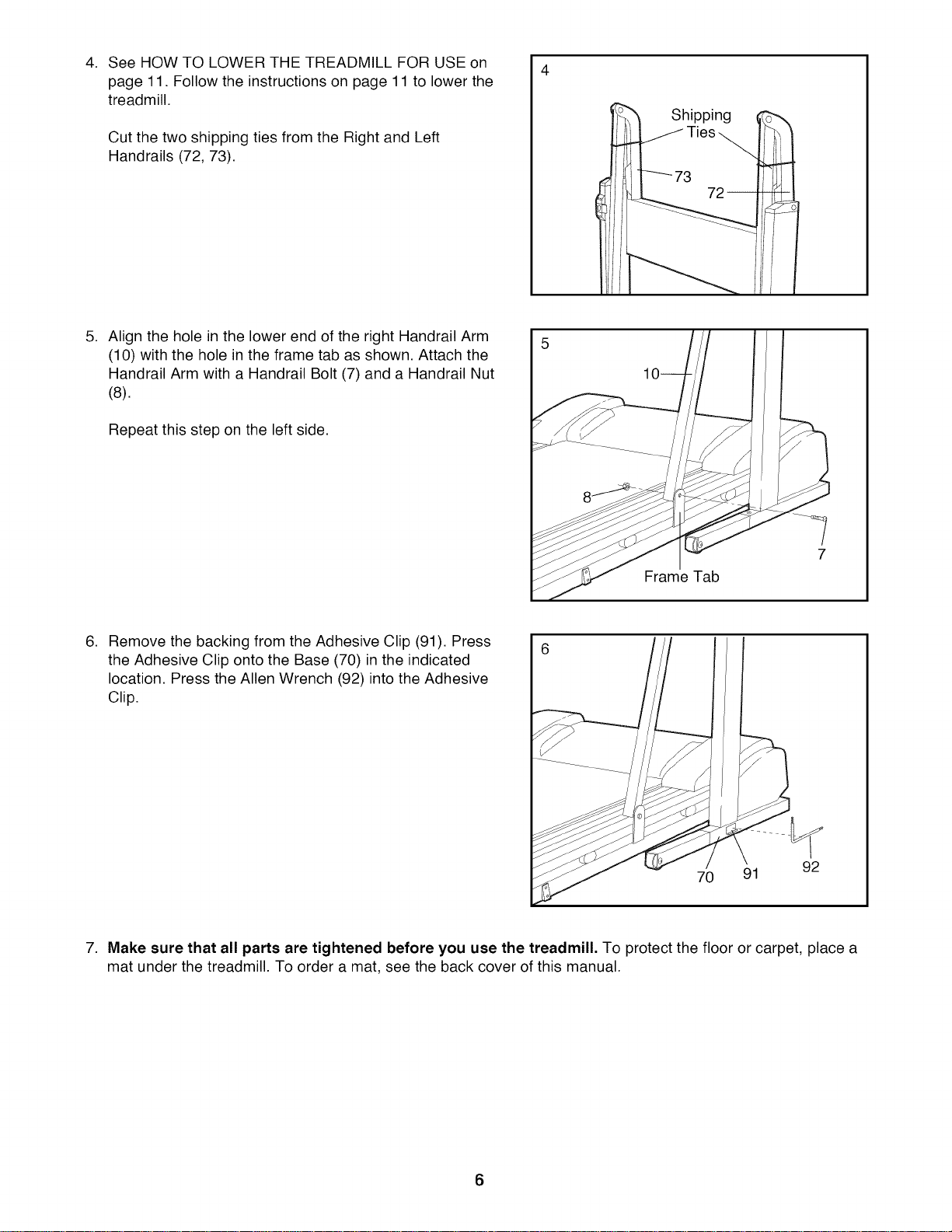

CutthetwoshippingtiesfromtheRightandLeft
Handrails(72,73).
_7 Shipping
,
Align the hole in the lower end of the right Handrail Arm
(10) with the hole in the frame tab as shown. Attach the
Handrail Arm with a Handrail Bolt (7) and a Handrail Nut
(8).
Repeat this step on the left side.
Frame Tab
7
,
Remove the backing from the Adhesive Clip (91). Press
the Adhesive Clip onto the Base (70) in the indicated
location. Press the Allen Wrench (92) into the Adhesive
Clip.
70 91 92
7. Make sure that all parts are tightened before you use the treadmill. To protect the floor or carpet, place a
mat under the treadmill. To order a mat, see the back cover of this manual.

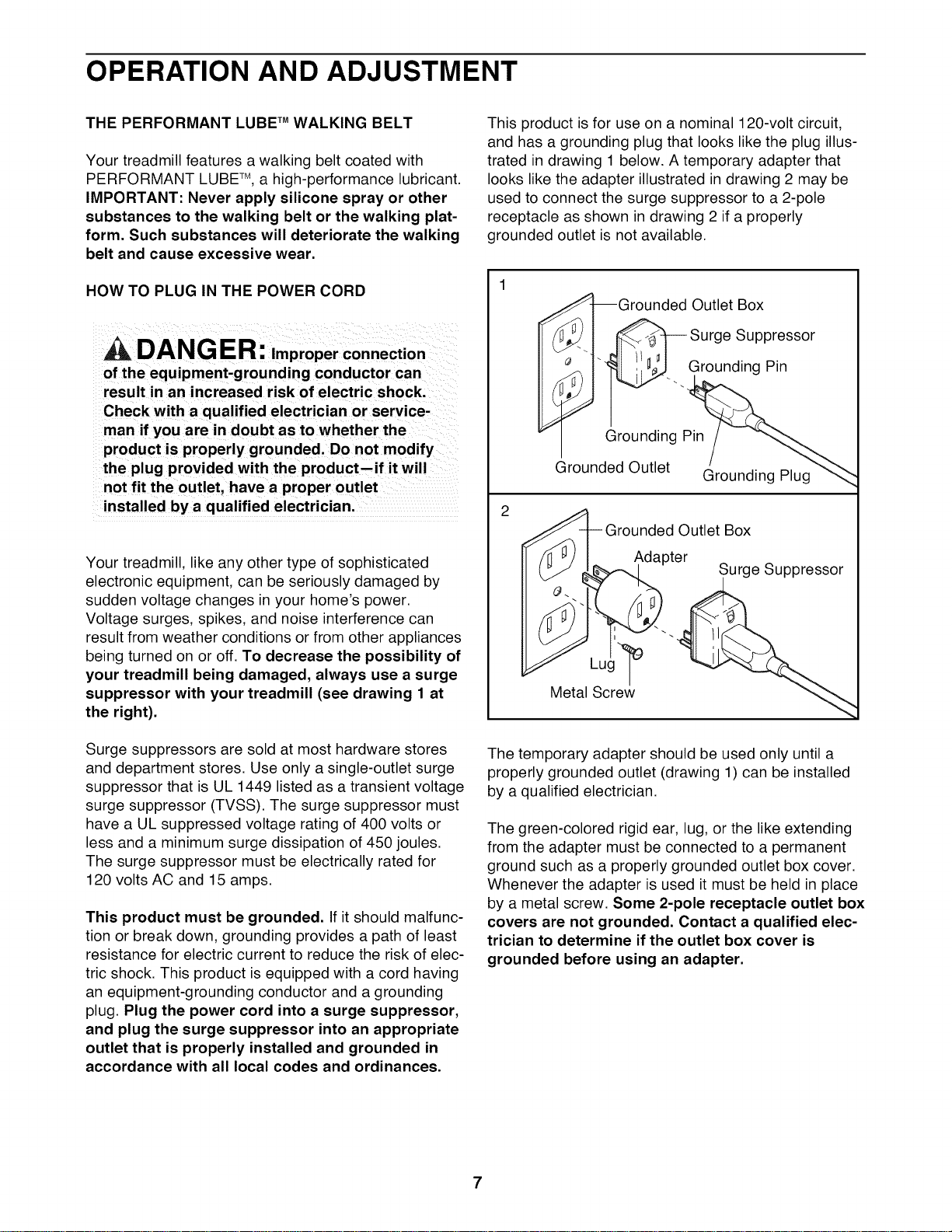

OPERATION AND ADJUSTMENT
THE PERFORMANT LUBE TM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
DANG ER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product--if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right).
Surge suppressors are sold at most hardware stores
and department stores. Use only a single-outlet surge
suppressor that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppressor must
have a UL suppressed voltage rating of 400 volts or
less and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
2
_Grounded Outlet Box
[_. I _SurgeSupp ressor
__!_[IP_II_ t'_ll i;_J Grounding Pin
Grounded Outlet Grounding Plug"_
Grounded Outlet Box
Adapter _
_4_"___.._Surge suppressor
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
7

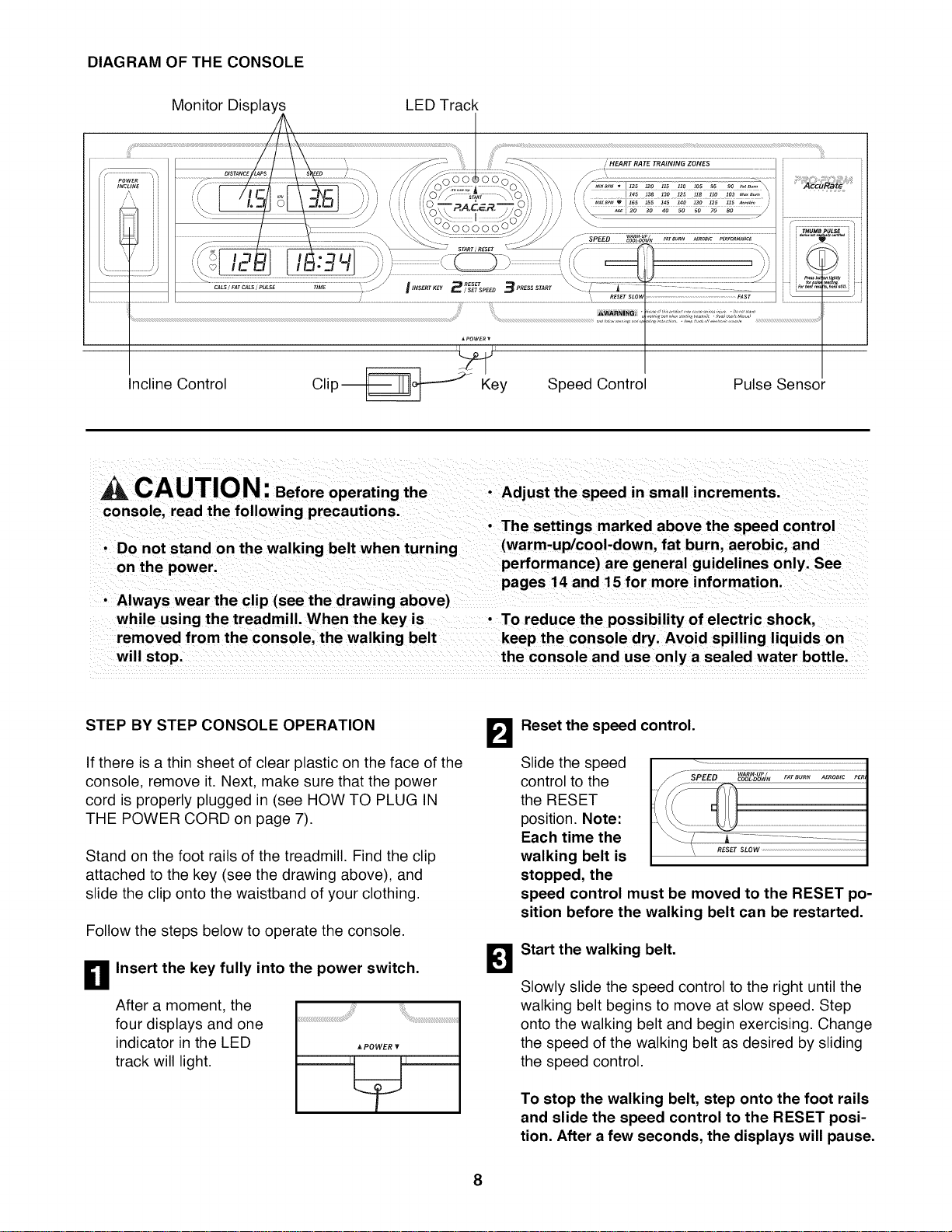

DIAGRAM OF THE CONSOLE
Monitor Dis LED Track
POWER
INCLINE
/ HEART RATE TRAINING ZONES
_POWER_
,nc,,neOontro,O,io ey Speed Control
Pulse Sensor
CAUTION: Beforeoperating the
console, read the following precautions.
• Do not stand on the walking belt when turning
on the power.
• Always wear the clip (see the drawing above)
while using the treadmill. When the key is
• Adjust the speed in small increments.
The settings marked above the speed control
(warm-up/cool-down, fat burn, aerobic, and
performance) are general guidelines only. See
pages 14 and 15 for more information.
• To reduce the possibility of electric shock,
removed from the console, the walking belt keep the console dry. Avoid spilling liquids on
will stop. the console and use only a sealed water bottle.
STEP BY STEP CONSOLE OPERATION
If there is a thin sheet of clear plastic on the face of the
console, remove it. Next, make sure that the power
cord is properly plugged in (see HOW TO PLUG IN
THE POWER CORD on page 7).
Stand on the foot rails of the treadmill. Find the clip
attached to the key (see the drawing above), and
slide the clip onto the waistband of your clothing.
Follow the steps below to operate the console.
[I
Insert the key fully into the power switch.
After a moment, the
four displays and one
indicator in the LED
track will light.
POWER
B
E!
Reset the speed control.
Slide the speed
control to the
the RESET
position. Note:
Each time the
walking belt is
stopped, the
speed control must be moved to the RESET po-
sition before the walking belt can be restarted.
Start the walking belt.
Slowly slide the speed control to the right until the
walking belt begins to move at slow speed. Step
onto the walking belt and begin exercising. Change
the speed of the walking belt as desired by sliding
the speed control.
To stop the walking belt, step onto the foot rails
and slide the speed control to the RESET post-
tion. After a few seconds, the displays will pause.
8

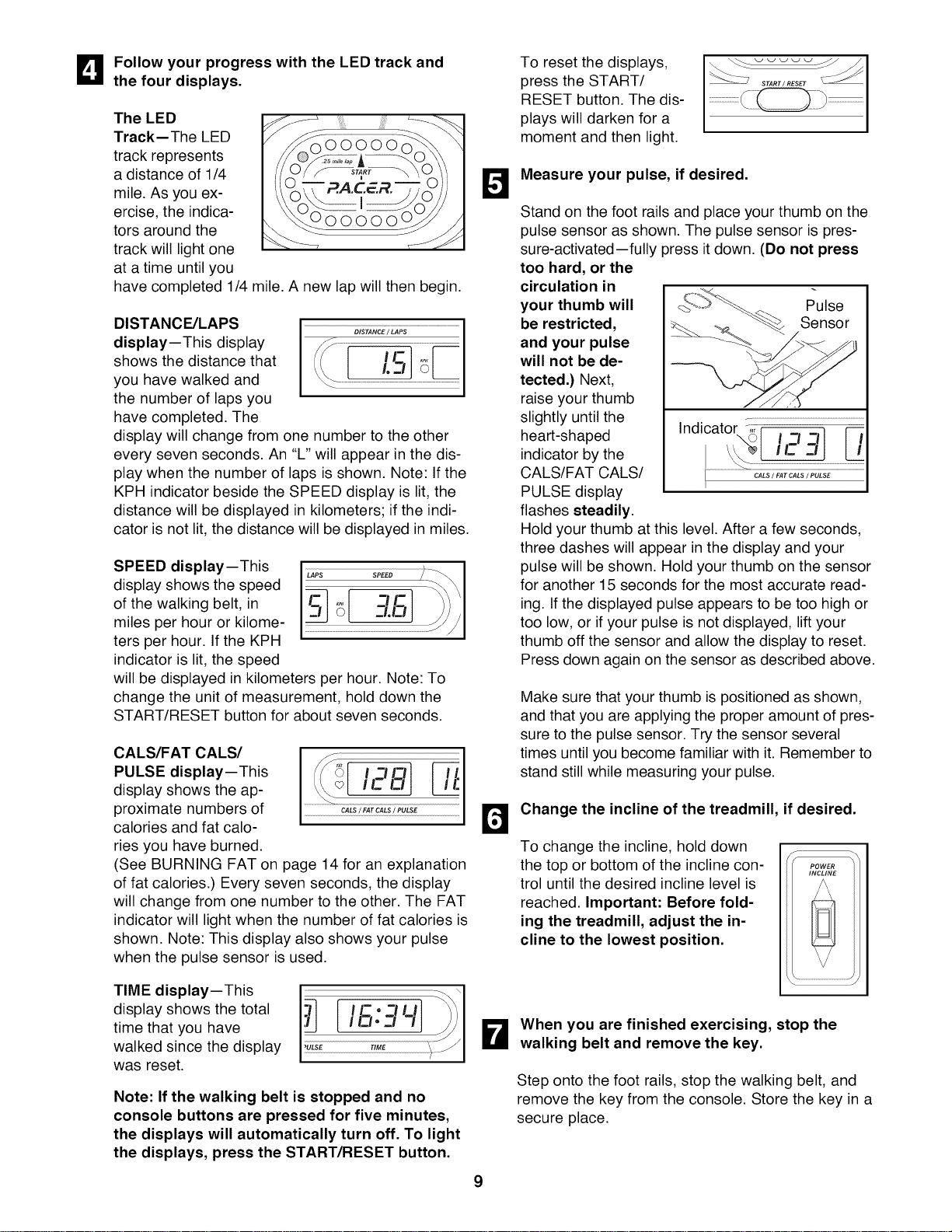

B ollow your progress with the LED track and
the four displays.
The LED
Track--The LED
track represents
a distance of 1/4
mile. As you ex-
ercise, the indica-
tors around the
track will light one
at a time until you
have completed 1/4 mile. A new lap will then begin.
DISTANCE/LAPS
display--This display
shows the distance that
you have walked and
the number of laps you
have completed. The
display will change from one number to the other
every seven seconds. An "L" will appear in the dis-
play when the number of laps is shown. Note: If the
KPH indicator beside the SPEED display is lit, the
distance will be displayed in kilometers; if the indi-
cator is not lit, the distance will be displayed in miles.
SPEED display--This
display shows the speed
of the walking belt, in
miles per hour or kilome-
ters per hour. If the KPH
indicator is lit, the speed
will be displayed in kilometers per hour. Note: To
change the unit of measurement, hold down the
START/RESET button for about seven seconds.
CALS/FAT CALS/
PULSE display--This
display shows the ap-
proximate numbers of CALSJ_ATCALSJPULSE
calories and fat calo-
ries you have burned.
(See BURNING FAT on page 14 for an explanation
of fat calories.) Every seven seconds, the display
will change from one number to the other. The FAT
indicator will light when the number of fat calories is
shown. Note: This display also shows your pulse
when the pulse sensor is used.
T,..Oi..,a.--Th,s
display shows the total I I-. _-'l! I I
time that you have ! L-I. El -JJ
walked since the display _E ,,,,_
was reset.
Note: If the walking belt is stopped and no
console buttons are pressed for five minutes,
the displays will automatically turn off. To light
the displays, press the START/RESET button.
D
9
To reset the displays,
press the START/
RESET button. The dis-
plays will darken for a
moment and then light.
Measure your pulse, if desired.
Stand on the foot rails and place your thumb on the
pulse sensor as shown. The pulse sensor is pres-
sure-activated-fully press it down. (Do not press
too hard, or the
circulation in
your thumb will Pulse
be restricted, Sensor
and your pulse
will not be de-
tected.) Next,
raise your thumb
slightly until the .....................................................................................................
Indicator ,,,, f _!_! _
heart-shaped _! !A!!f -f f
indicator by the
CALS/FAT CALS/ .............ii:i:: Ls _::::::
PULSE display
flashes steadily.
Hold your thumb at this level. After a few seconds,
three dashes will appear in the display and your
pulse will be shown. Hold your thumb on the sensor
for another 15 seconds for the most accurate read-
ing. If the displayed pulse appears to be too high or
too low, or if your pulse is not displayed, lift your
thumb off the sensor and allow the display to reset.
Press down again on the sensor as described above.
Make sure that your thumb is positioned as shown,
and that you are applying the proper amount of pres-
sure to the pulse sensor. Try the sensor several
times until you become familiar with it. Remember to
stand still while measuring your pulse.
Change the incline of the treadmill, if desired.
To change the incline, hold down
the top or bottom of the incline con-
trol until the desired incline level is
reached. Important: Before fold-
ing the treadmill, adjust the in-
cline to the lowest position.
POWER
INCLINE
D
B hen you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails, stop the walking belt, and
remove the key from the console. Store the key in a
secure place.

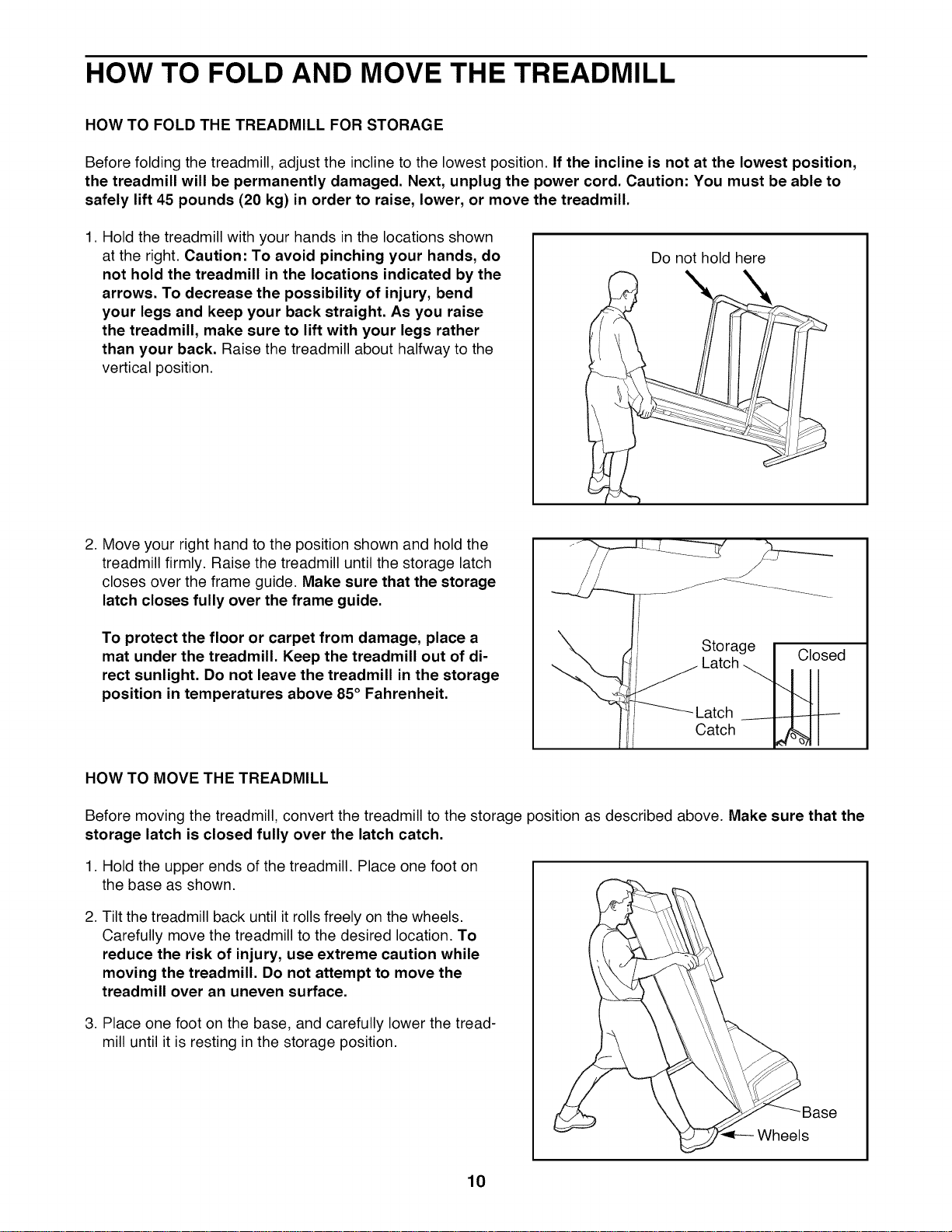

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If the incline is not at the lowest position,
the treadmill will be permanently damaged. Next, unplug the power cord. Caution: You must be able to
safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. Caution: To avoid pinching your hands, do
not hold the treadmill in the locations indicated by the
arrows. To decrease the possibility of injury, bend
your legs and keep your back straight. As you raise
the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the
vertical position.
Do not hold here
2. Move your right hand to the position shown and hold the
treadmill firmly. Raise the treadmill until the storage latch
closes over the frame guide. Make sure that the storage
latch closes fully over the frame guide.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of di-
rect sunlight. Do not leave the treadmill in the storage
position in temperatures above 85 ° Fahrenheit.
f
Storage _^^.,
Latch __s_
Latch
Catch _1
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the
storage latch is closed fully over the latch catch.
1. Hold the upper ends of the treadmill. Place one foot on
the base as shown.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To
reduce the risk of injury, use extreme caution while
moving the treadmill. Do not attempt to move the
treadmill over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
ase
_els
10

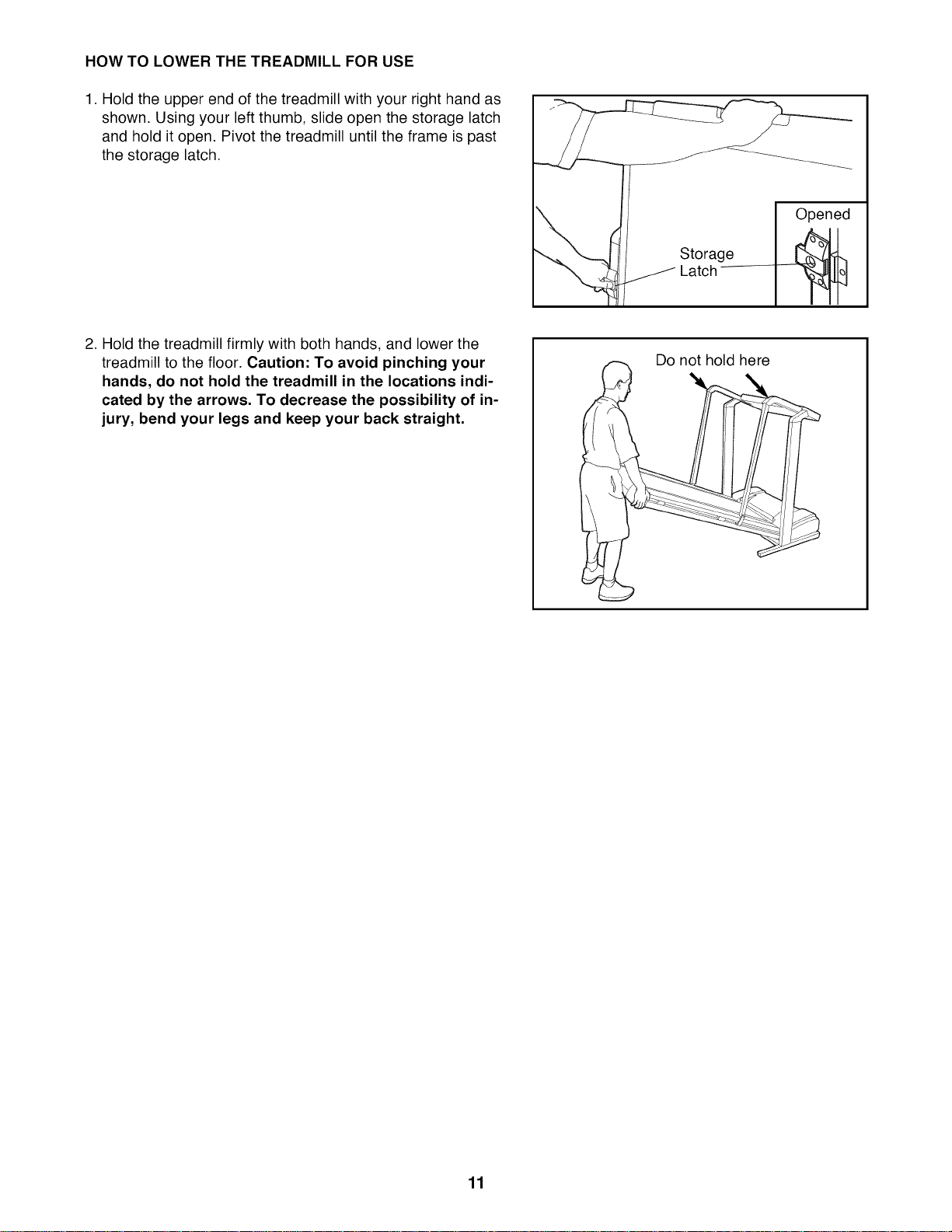

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left thumb, slide open the storage latch
and hold it open. Pivot the treadmill until the frame is past
the storage latch.
Storage
Latch
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Caution: To avoid pinching your
hands, do not hold the treadmill in the locations indi-
cated by the arrows. To decrease the possibility of in-
jury, bend your legs and keep your back straight.
Do not hold here
11

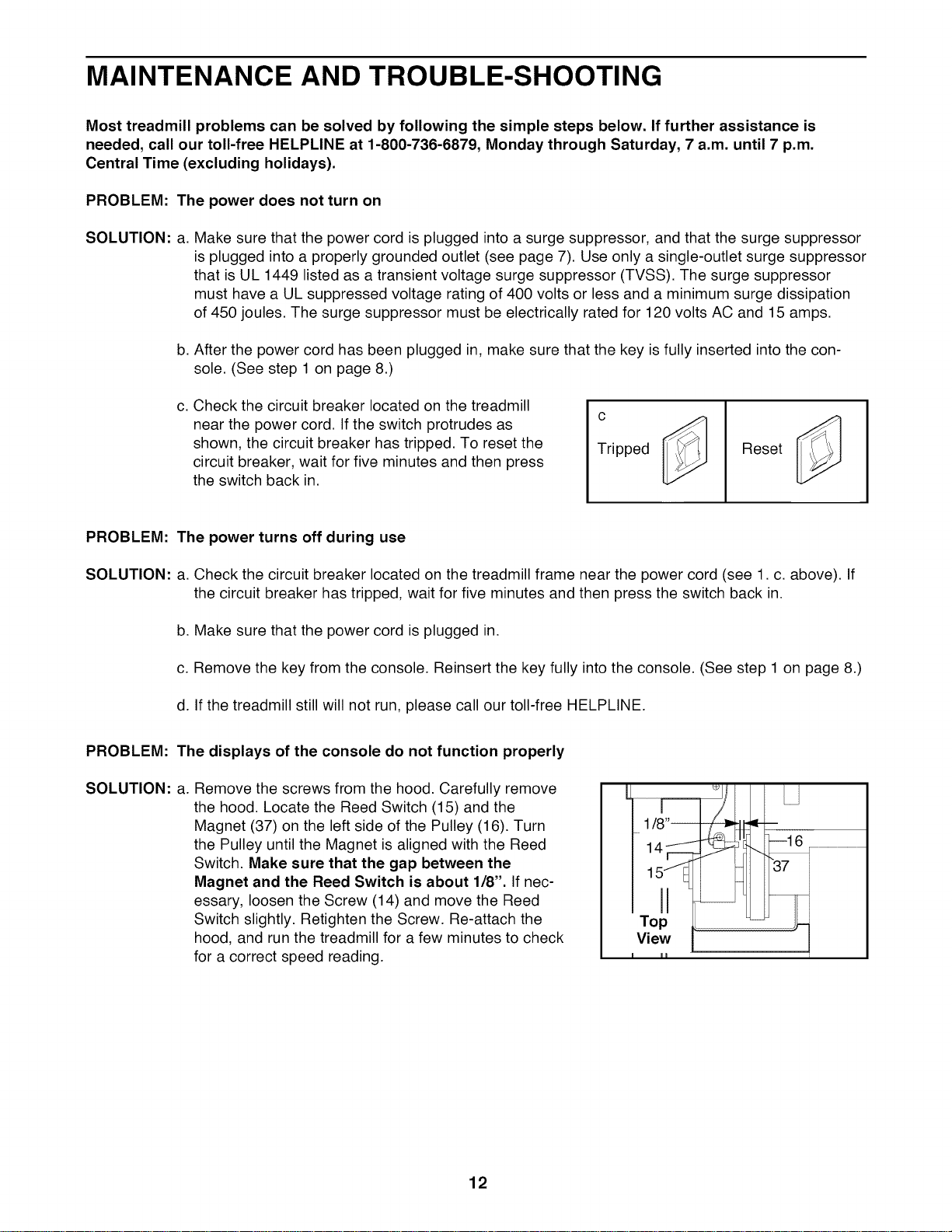

MAINTENANCE AND TROUBLE-SHOOTING
Most treadmill problems can be solved by following the simple steps below. If further assistance is
needed, call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m.
Central Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a.
Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor
must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation
of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the con-
sole. (See step 1 on page 8.)
C,
Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
c
Tripped
Reset
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If
the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console. (See step 1 on page 8.)
d. If the treadmill still will not run, please call our toll-free HELPLINE.
PROBLEM: The displays of the console do not function properly
SOLUTION: a.
Remove the screws from the hood. Carefully remove
the hood. Locate the Reed Switch (15) and the
Magnet (37) on the left side of the Pulley (16). Turn
the Pulley until the Magnet is aligned with the Reed
Switch. Make sure that the gap between the
Magnet and the Reed Switch is about 1/8". If nec-
essary, loosen the Screw (14) and move the Reed
Switch slightly. Retighten the Screw. Re-attach the
hood, and run the treadmill for a few minutes to check
for a correct speed reading.
I
12

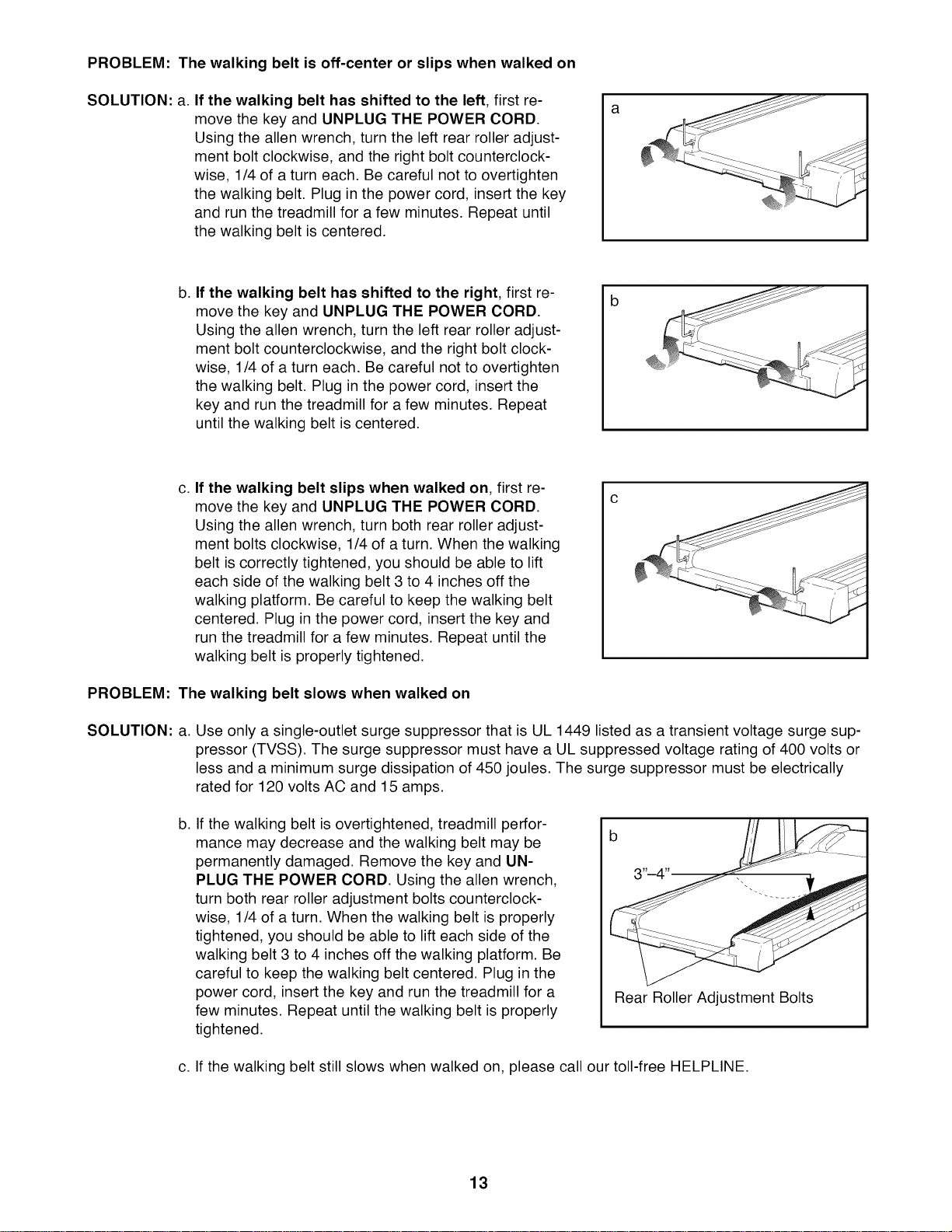

PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a.
If the walking belt has shifted to the left, first re-
move the key and UNPLUG THE POWER CORD.
Using the allen wrench, turn the left rear roller adjust-
ment bolt clockwise, and the right bolt counterclock-
wise, 1/4 of a turn each. Be careful not to overtighten
the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until
the walking belt is centered.
a
b,
If the walking belt has shifted to the right, first re-
move the key and UNPLUG THE POWER CORD.
Using the allen wrench, turn the left rear roller adjust-
ment bolt counterclockwise, and the right bolt clock-
wise, 1/4 of a turn each. Be careful not to overtighten
the walking belt. Plug in the power cord, insert the
key and run the treadmill for a few minutes. Repeat
until the walking belt is centered.
C,
If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the allen wrench, turn both rear roller adjust-
ment bolts clockwise, 1/4 of a turn. When the walking
belt is correctly tightened, you should be able to lift
each side of the walking belt 3 to 4 inches off the
walking platform. Be careful to keep the walking belt
centered. Plug in the power cord, insert the key and
run the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
PROBLEM: The walking belt slows when walked on
SOLUTION: a.
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or
less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically
rated for 120 volts AC and 15 amps.
b,
If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be
permanently damaged. Remove the key and UN-
PLUG THE POWER CORD. Using the allen wrench,
turn both rear roller adjustment bolts counterclock-
wise, 1/4 of a turn. When the walking belt is properly
tightened, you should be able to lift each side of the
walking belt 3 to 4 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key and run the treadmill for a
few minutes. Repeat until the walking belt is properly
tightened.
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.
13

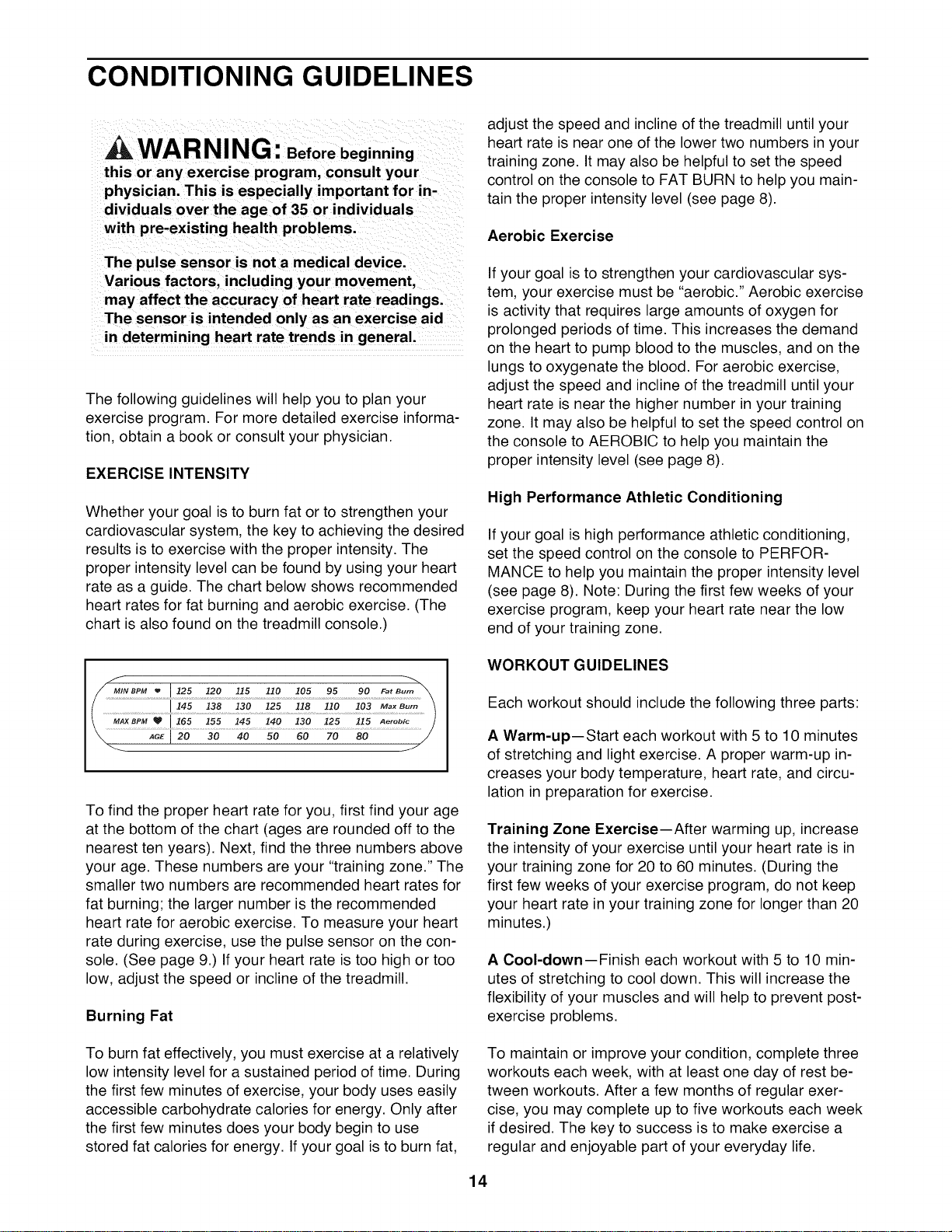

CONDITIONING GUIDELINES
WARNING: Beforebeginning
this or any exercise program, consult your
physician. This is especially important for in-
dividuals over the age of 35 or individuals
with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your
exercise program. For more detailed exercise informa-
tion, obtain a book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the desired
results is to exercise with the proper intensity. The
proper intensity level can be found by using your heart
rate as a guide. The chart below shows recommended
heart rates for fat burning and aerobic exercise. (The
chart is also found on the treadmill console.)
MIN BPM _ I 125 120 115 I]0 105 95 90 Fat Bur,, X
X AGEI 20 30 40 50 60 70 80 /
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. These numbers are your "training zone." The
smaller two numbers are recommended heart rates for
fat burning; the larger number is the recommended
heart rate for aerobic exercise. To measure your heart
rate during exercise, use the pulse sensor on the con-
sole. (See page 9.) If your heart rate is too high or too
low, adjust the speed or incline of the treadmill.
Burning Fat
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your
training zone. It may also be helpful to set the speed
control on the console to FAT BURN to help you main-
tain the proper intensity level (see page 8).
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the higher number in your training
zone. It may also be helpful to set the speed control on
the console to AEROBIC to help you maintain the
proper intensity level (see page 8).
High Performance Athletic Conditioning
If your goal is high performance athletic conditioning,
set the speed control on the console to PERFOR-
MANCE to help you maintain the proper intensity level
(see page 8). Note: During the first few weeks of your
exercise program, keep your heart rate near the low
end of your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up--Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate, and circu-
lation in preparation for exercise.
Training Zone Exercise--After warming up, increase
the intensity of your exercise until your heart rate is in
your training zone for 20 to 60 minutes. (During the
first few weeks of your exercise program, do not keep
your heart rate in your training zone for longer than 20
minutes.)
A Cool-down--Finish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help to prevent post-
exercise problems.
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
14

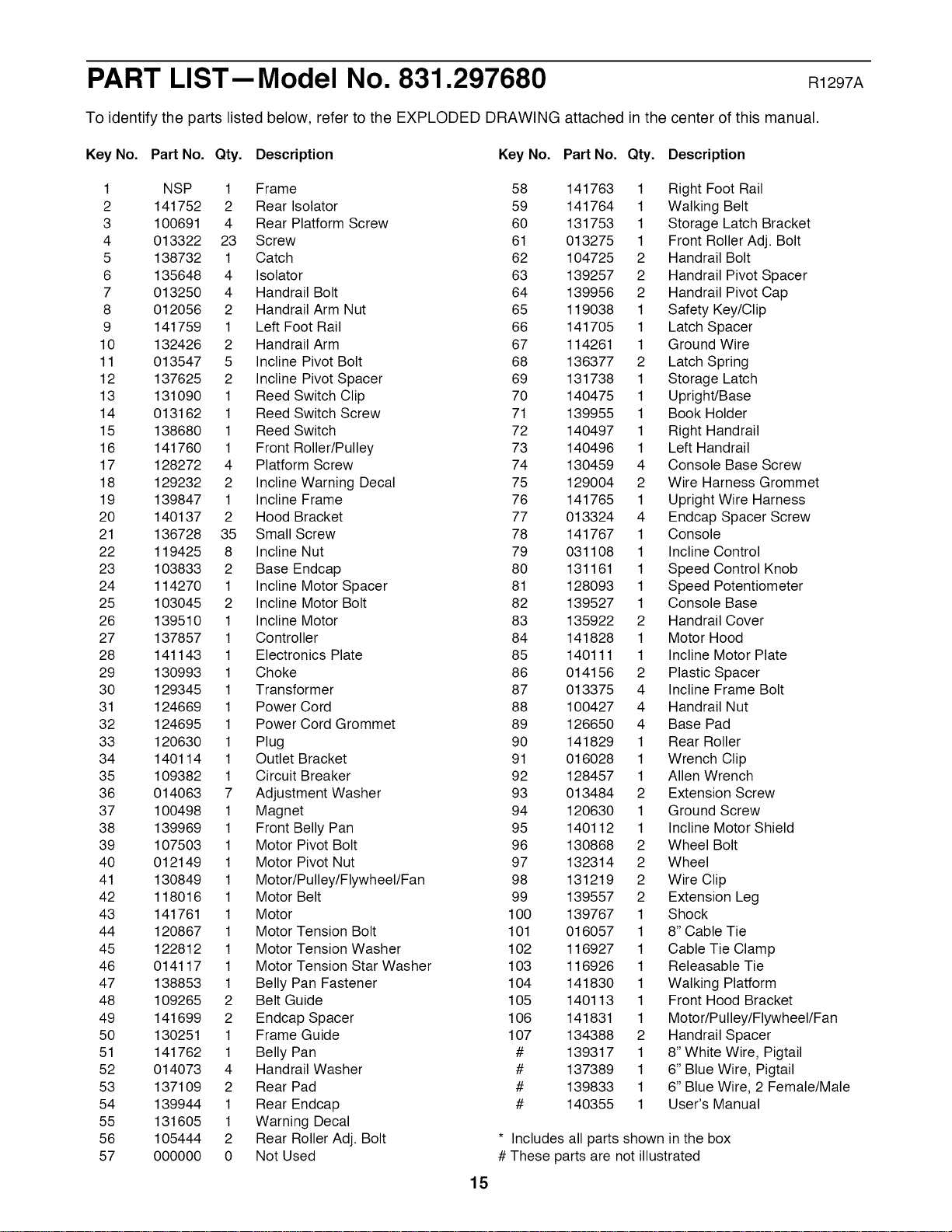

PART LIST--Model No. 831.297680 R1297A
To identify the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
Key No. Part No. Qty. Description Key No. Part No. Qty. Description
1 NSP 1 Frame 58 141763 1 Right Foot Rail
2 141752 2 Rear Isolator 59 141764 1 Walking Belt
3 100691 4 Rear Platform Screw 60 131753 1 Storage Latch Bracket
4 013322 23 Screw 61 013275 1 Front Roller Adj. Bolt
5 138732 1 Catch 62 104725 2 Handrail Bolt
6 135648 4 Isolator 63 139257 2 Handrail Pivot Spacer
7 013250 4 Handrail Bolt 64 139956 2 Handrail Pivot Cap
8 012056 2 Handrail Arm Nut 65 119038 1 Safety Key/Clip
9 141759 1 Left Foot Rail 66 141705 1 Latch Spacer
10 132426 2 Handrail Arm 67 114261 1 Ground Wire
11 013547 5 Incline Pivot Bolt 68 136377 2 Latch Spring
12 137625 2 Incline Pivot Spacer 69 131738 1 Storage Latch
13 131090 1 Reed Switch Clip 70 140475 1 Upright/Base
14 013162 1 Reed Switch Screw 71 139955 1 Book Holder
15 138680 1 Reed Switch 72 140497 1 Right Handrail
16 141760 1 Front Roller/Pulley 73 140496 1 Left Handrail
17 128272 4 Platform Screw 74 130459 4 Console Base Screw
18 129232 2 Incline Warning Decal 75 129004 2 Wire Harness Grommet
19 139847 1 Incline Frame 76 141765 1 Upright Wire Harness
20 140137 2 Hood Bracket 77 013324 4 Endcap Spacer Screw
21 136728 35 Small Screw 78 141767 1 Console
22 119425 8 Incline Nut 79 031108 1 Incline Control
23 103833 2 Base Endcap 80 131161 1 Speed Control Knob
24 114270 1 Incline Motor Spacer 81 128093 1 Speed Potentiometer
25 103045 2 Incline Motor Bolt 82 139527 1 Console Base
26 139510 1 Incline Motor 83 135922 2 Handrail Cover
27 137857 1 Controller 84 141828 1 Motor Hood
28 141143 1 Electronics Plate 85 140111 1 Incline Motor Plate
29 130993 1 Choke 86 014156 2 Plastic Spacer
30 129345 1 Transformer 87 013375 4 Incline Frame Bolt
31 124669 1 Power Cord 88 100427 4 Handrail Nut
32 124695 1 Power Cord Grommet 89 126650 4 Base Pad
33 120630 1 Plug 90 141829 1 Rear Roller
34 140114 1 Outlet Bracket 91 016028 1 Wrench Clip
35 109382 1 Circuit Breaker 92 128457 1 Allen Wrench
36 014063 7 Adjustment Washer 93 013484 2 Extension Screw
37 100498 1 Magnet 94 120630 1 Ground Screw
38 139969 1 Front Belly Pan 95 140112 1 Incline Motor Shield
39 107503 1 Motor Pivot Bolt 96 130868 2 Wheel Bolt
40 012149 1 Motor Pivot Nut 97 132314 2 Wheel
41 130849 1 Motor/Pulley/Flywheel/Fan 98 131219 2 Wire Clip
42 118016 1 Motor Belt 99 139557 2 Extension Leg
43 141761 1 Motor 100 139767 1 Shock
44 120867 1 Motor Tension Bolt 101 016057 1 8" Cable Tie
45 122812 1 Motor Tension Washer 102 116927 1 Cable Tie Clamp
46 014117 1 Motor Tension Star Washer 103 116926 1 Releasable Tie
47 138853 1 Belly Pan Fastener 104 141830 1 Walking Platform
48 109265 2 Belt Guide 105 140113 1 Front Hood Bracket
49 141699 2 Endcap Spacer 106 141831 1 Motor/Pulley/Flywheel/Fan
50 130251 1 Frame Guide 107 134388 2 Handrail Spacer
51 141762 1 Belly Pan # 139317 1 8" White Wire, Pigtail
52 014073 4 Handrail Washer # 137389 1 6" Blue Wire, Pigtail
53 137109 2 Rear Pad # 139833 1 6" Blue Wire, 2 Female/Male
54 139944 1 Rear Endcap # 140355 1 User's Manual
55 131605 1 Warning Decal
56 105444 2 Rear Roller Adj. Bolt * Includes all parts shown in the box
57 000000 0 Not Used # These parts are not illustrated
15
10
\
11
/
12
15
22
21
25
_106" 61\
21
28
\
36
53
18
4
56
36
17
77
8
59
/
/
8
6
47
4
2O
21
38
21
EXPLODED DRAWING--Model No. 831.297680 R1297A
60
68_ 6i9
22
99
63
99
74
I
\
\
\
\
21
75 4
( 86
8O
21
84
81
82
65
_S
Model No. 831.297680
QUESTIONS?
If you find that:
• you need help assembling or
operating the PROFORM °_585
treadmill
• a part is missing
• or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
Monday-Saturday, 7 am-7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need
to be replaced, call the following
toll-free number
1-800-FON-PART
(1-800-366-7278)
The model number and serial number of your PROFORM R_585
treadmill are listed on a decal attached to the frame. See the front
cover of this manual to find the location of the decal.
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center.
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.
When requesting help or service, or ordering parts, please be pre-
pared to provide the following information:
• The NAME OF THE PRODUCT (PROFORM R_'585 treadmill)
• The MODEL NUMBER OF THE PRODUCT (831.297680)
• The PART NUMBER OF THE PART (see the PART LIST on
page 15 and the EXPLODED DRAWING attached in the center of
this manual)
• The DESCRIPTION OF THE PART (see the PART LIST on page
15 and the EXPLODED DRAWING attached in the center of this
manual).
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United
States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.
This warranty does not apply when the TREADMILL EXERCISER is used commercially or for rental pur-
poses.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
Part No. 140355 G03113BC R1297A Printed in USA © 1997 Sears, Roebuck and Co.
