25443
Features:
A smart, efficient and convenient method to manage garden watering
and irrigation.
This manual is a universal manual for all of our 1,2 and 4 zone
Bluetooth
®
timers.
By using our free app on your Android or iOS smart device (minimum
required iOS 9 or Android V7.0), this water timer can be programmed
wirelessly, allowing you to use your smart phone or tablet to control
all the programming and interface functions on your water timers or
irrigation controllers. The app has easy-to-follow cues that are
displayed on your smart device to guide you through the process.
The timer can be set to water on any or all days of the week, from 10
times or more per day, with a duration ranging from one minute to 12
hours.

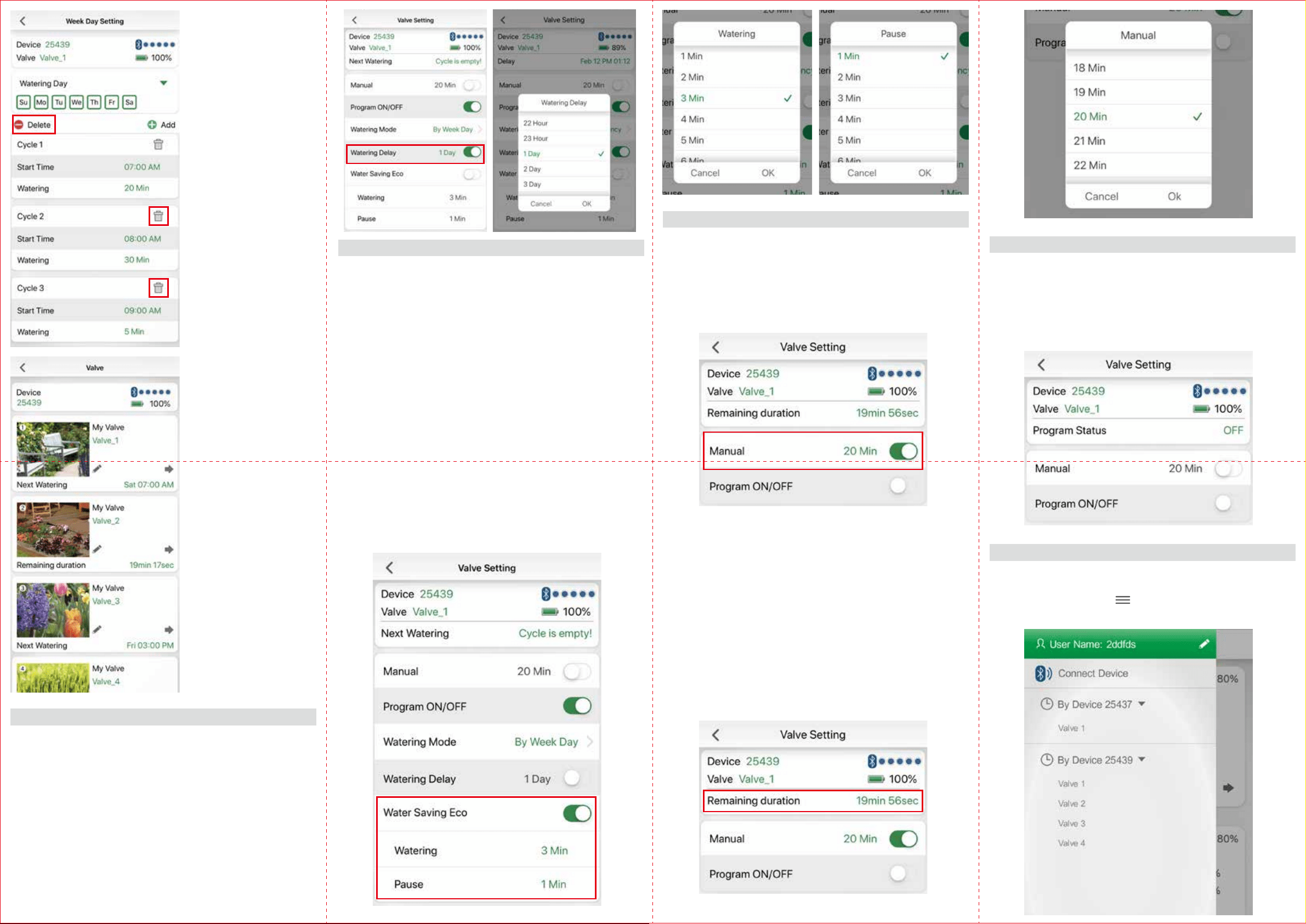

The water-delay setting lets you postpone your irrigation cycle
without losing your preset program. You can also manually control
the settings right at the faucet, without using the app. You can even
manage multiple timers from the same app. These water timers will
automatically water sequentially once they are programmed via your
smartphone or tablet. No need to open the user’s guide to determine
which buttons to push. The App is highly intuitive and programming is
simple.
● The smart Bluetooth
®
Water Timer allows you to change the
method of watering your garden from a range of up to 10 m (30 ft).
Control your garden’s watering schedule from your smart phone or
tablet remotely.
● The easy to install application is simple to operate.
● Daily, weekly and cyclical programming. A four-zone timer allows you
to water four different areas from the same faucet. Each zone can
be programmed with a different start time.
(single and two-zone timers follow this same guide).
● Manage one or more controllers from a single app with the ability to
name each controller, and add an image. You can replace the valve’s
photo and name to easily distinguish where you want to water.
● Works with water pressure from 10 to 120 psi
● Easily change the manual settings from the App to water on
demand (Manual watering available in 1 minute increments up to
360 minutes).
● No need to open the user guide to determine which buttons to push.
The App is highly intuitive and programming is simple.
● Review scheduling by viewing the "Next Watering" feature on
the App.
Bluetooth® Water Timer
Compatible with Bluetooth® 4.0 devices (minimum required iOS 9
and Android V7.0). Pairing is required only once. On subsequent
operations of the app, the app will sync automatically with the
controller and will display the paired controller status screen.
Please visit the Google Play Store or App Store,
search for “EDEN Water Timer” to download
the app. The EDEN
®
Water Timer App is free.
Download and install the EDEN® Water Timer App :
Remove the battery tray and install 4 AA Alkaline batteries
(batteries are not included). Firmly reinstall the battery tray.
Replace batteries when the timer flashes a red light or when the
app light notifies you that batteries need replacing. Please use
only Alkaline batteries.
Any programming changes can be overridden by any auhorized user.
You can add more Bluetooth
®
timers. If you are using more than one
timer controller unit, you can also replace the unit’s photo and the
name to easily distinguish between them.

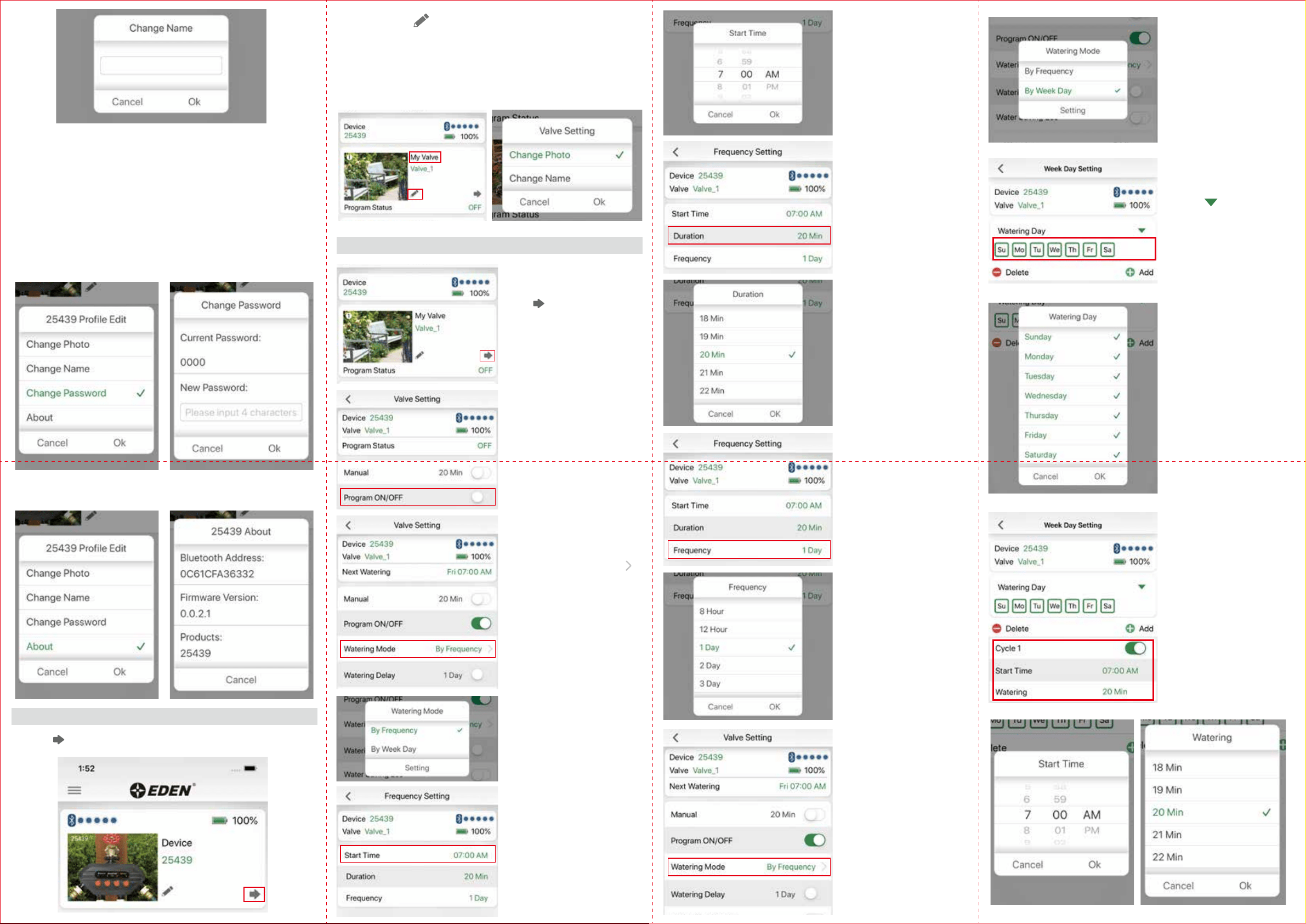

Tap “Change Photo” to replace it
with a new one from the phone
camera or gallery. Then Tap “OK”
to save or “Cancel” to discard
changes.
To change the device name
(max. 12 characters), tap
“Change Name” and “OK”
Tap “OK” once the desired name is entered for your device.
(max. 12 characters)
Select photos from Camera,
Albums or Pre-set Photo.
Noted: If you select Camera, you
can take a photo from the
camera.
Stop Watering :
You can stop watering at any time whether it is during manual
watering, or during a programmed time.
For outdoor use with cold water only!
Not for use with household appliances
Do not mix Alkaline, carbon-zinc, or rechargeable batteries
Used or dead batteries must be removed from the timer and
disposed properly
Tap or the “Device” name on the screen to setup.You can
change the Device profile for device icon, name and password.
You can name your Bluetooth
®
timer if you have more than one.
This helps you identify your timers.
Pairing your Smart Phone with
EDEN
®
Bluetooth
®
Controller:
1.
Install the Bluetooth
®
timer:
Connect the timer to an outdoor hose faucet. Make sure the timer
is securely fastened. Your timer is now ready to be used with any
product that can be attached to a standard hose adapter. You can
attach up to 4 hose devices per timer.
5.
Turn on Your Water :
The water supply must remain on for the timer to work properly.
6.
2.
Your Bluetooth
®
timer is now in pairing mode and will flash a
green light every 2 seconds. You will also hear two clicks
about 2 seconds apart. This is normal and ensures the valve is
closed before you turn on the water.
3.
After the app is installed, tap to launch the app. The app
prompts you to set up the Bluetooth
®
controller. The app displays
the various Bluetooth
®
controllers. Don’t forget to activate
Bluetooth
®
on your smartphone or tablet. If you have forgotten
to activate your smartphone or tablet, the app will suggest you
activate it.
4.
4 Alkaline batteries
Battery cover
Timer Spec:
Edit Device Profile:
25441-EDAMZ
25442-EDAMZ
25443-EDAMZ
❻
Water Outlet (Male thread)
❻
❶
Water Source (Female thread ¾” in)
❶
❷
Bluetooth
®
Timer Control System
❷
❸
Function Indicator
❸
❹
Manual Water Button
❹
❺
Battery Indicator
❺
Caution: Two people can not connect simultaneously!
Only one user at a time can be connected to the device.
For use in North America only.
With Moisture Sensor Feature
Model: 25443-EDAMZ
Range: 30 ft (10 m) without interference
Pressure Operating: 10 - 120 PSI
Temperature Operating: 32 - 110° F (0 - 45° C) T45
Frequency Band: 2402 - 2480 MHz
Operating Frequency: 915 MHz (N. Amer.)
Max Power: < 20 dbm
FCC ID: 2ASWP - 254B1
25443-EDAMZ
IC: 24967-254B1
Power: 3V DC 4x AA LR6 / 1.5V
