OWNER'S MANUAL DRYER

PRODUCT FEATURES

Easy-to-Use Control Panel

An entire selection of user-friendly functions make operating the dryer easy.

Two-Way Easy-Access Reversible Door

The LG EasyLoad TM can be tilted open from the top. hamper-style. allowing you to easily load the dryer without items falling on the floor. The door still swings open to provide easy access for unloading or loading of bulkier items. The door hinge can be reversed to adjust to the installation location.

Flow Sense^TM Duct Blockage Sensing System Indicator

The Flow Sense TM duct blockage sensing system detects and alerts you to restrictions in the installed household ductwork that reduce exhaust airflow through the dryer. If you see the alert: Clean or repair the ducts to remove the restrictions. Keep your ducts free of blockage to help increase efficiency and reduce long drying times caused by blocked ducts.

LG ThinQ

Download the new LG smart phone app to set options. self-diagnose and troubleshoot problems with the appliance. and other useful features. This function uses Wi-Fi.

PRODUCT OVERVIEW

Parts

Accessories

Included Accessories

Optional Accessories

Two-Way Reversible Door (on some models)

The LG EasyLoad™ feature allows you to open the dryer door from the top, hamper-style, when loading the dryer to help guide clothes into the drum and prevent them from falling onto the floor. When unloading the dryer or loading bulkier items, use the swing door for easy access to the drum.

Safety Tether Kit

This optional kit helps prevent the dryer tipping if children climb on the door or if someone should fall onto the door. It is recommended that you install this kit. depending on your situation. but it is not required. Follow the customer installation instructions included with the kit to properly install the kit. If you do not install the kit. store it out of reach of children.

NOTE

• For your safety and for extended product life. use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.

• The images in this guide may be different from the actual components and accessories. which are subject to change by the manufacturer without prior notice for product improvement purposes.

Two-Way Reversible Door (on some models)

OPERATION

WARNING

To reduce the risk of fire. electric shock. or injury to persons. read this entire manual. including the IMPORTANT SAFETY INSTRUCTIONS. before operating this dryer.

Using the Dryer

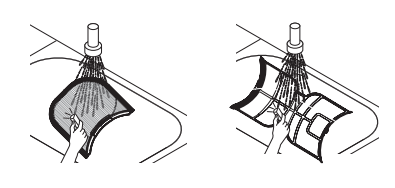

1 Clean the Lint Filter

If the lint filter has not already been cleaned. lift out the filter and remove the lint from the last load. This will help ensure the fastest and most efficient drying perfor mance. Make sure to reinstall the filter. pressing down until it clicks firmly into place.

The dryer will not operate without the lint filter in place.

2 Load the Dryer

Load the dryer with the wet laundry from the washer. If the load is extra large. you may need to divide it into smaller loads for proper performance and fabric care.

3 Turn on The Dryer

Press the POWER button to turn ON the dryer. The cycle LEDs will illuminate and a chime will sound.

4 Select a Cycle

Turn the cycle selector knob in either direction until the LED for the desired cycle is on. The preset temperature. dry level. and option settings for that cycle will be shown. Default settings for the selected cycle can now be changed if desired. Refer to the Cycle Setting and Options page for details.

NOTE

Not all options or modifiers are available on all cycles. A different chime will sound and the LED will not come on if the selection is not allowed.

5 Begin the Cycle

Press the START/PAUSE button to begin the cycle. The cycle can be paused at any time either by opening the door or by pressing the START/PAUSE button.

If the cycle is not restarted within 60 minutes of being paused. the dryer will shut off and the settings will be lost.

6 End of Cycle

When the cycle is finished. the chime will sound. Immediately remove your clothing from the dryer to reduce wrinkling. If Wrinkle Care is selected. the dryer will tumble briefly every few minutes to help prevent wrinkles from setting in the clothes.

Check the Lint Filter Before Every Load

Always make sure the lint filter is clean before starting a new load; a clogged lint filter will increase drying time. To clean. pull the lint filter straight up and roll any lint off the filter with your fingers. Do not rinse or wash the filter to remove lint. Push the lint filter firmly back into place. See Regular Cleaning for more information.

Always ensure the lint filter is properly installed before running the dryer. Running the dryer with a loose or missing lint filter will damage the dryer and articles in the dryer.

Sorting Loads

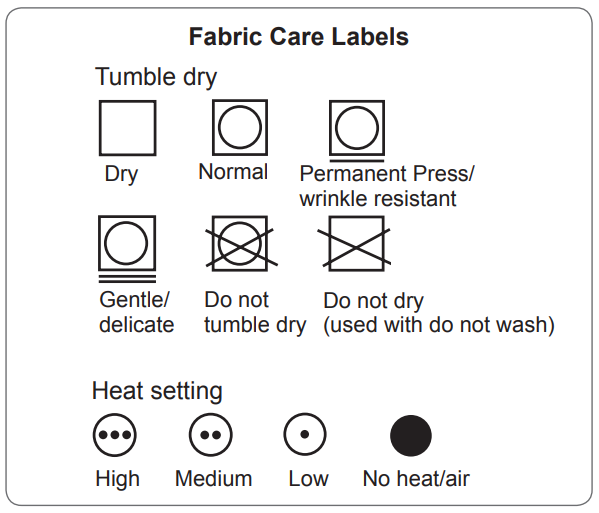

Fabric Care Labels

Most articles of clothing feature fabric care labels that include instructions for proper care.

Group Similar Items

For best results. sort clothes into loads that can be dried with the same drying cycle.

Different fabrics have different care requirements. and some fabrics will dry more quickly than others. For best fabric care results. always dry fabrics with similar care requirements together.

Loading the Dryer

WARNING

To reduce the risk of fire. electric shock. or injury to persons when using this appliance. follow basic precautions. including the following:

• Check all pockets to make sure that they are empty. Items such as clips. pens. coins. and keys can damage both your dryer and your clothes. Flammable objects such as lighters or matches could ignite. causing a fire.

Failure to do so may result in fire. explosion. or death.

• Never dry clothes that have been exposed to oil. gasoline. or other flammable substances. Washing clothes will not completely remove oil residues. Failure to obey this warning may result in fire. explosion. or death.

NOTE

Loading Tips

• Combine large and small items in the same load.

• Damp clothes will expand as they dry. Do not overload the dryer; clothes require room to tumble and dry properly.

• Use mesh laundry bags to separate clothes with zippers. hooks. straps. and drawstrings to prevent them from catching on or tangling with other clothes or damaging the lint filter.

Using the LG EasyLoadTM

Swing Door

Use the swing door when unloading. or when loading bulkier items. for easy access to the drum.

To open the swing door. grasp the top of the door on the side opposite the hinge and pull.

NOTE

Make sure the hamper door release is completely closed before using the swing door.

WARNING

Do not press the three interlock buttons when the door is open. The door may fall off and cause serious injury.

• Do not place heavy items on or lean against the top of the door when it is open.

The dryer could tip forward. causing injury or property damage.

Hamper Door (on some models)

Use the hamper door when loading. The hamper door opens about 40 degrees and acts as a chute to help guide items into the drum and help prevent items from falling onto the floor. It also comes in handy when unloading a few small items. helping prevent the rest of the laundry from being pulled onto the floor.

To open the hamper door. press the release on the top of the door and pull the door forward.

Make sure laundry is fully inserted in the drum before closing the door.

NOTE

Make sure the swing door latch is completely closed before pressing the hamper door release.

WARNING

• Do not attempt to pull the hamper door open more than 40 degrees.

• Be careful when opening and closing the door. Fingers and hands can get caught in the door and cause injury if the door drops forward unexpectedly.

Control Panel

1 POWER Button

Press to turn the dryer ON. Press again to turn the dryer OFF.

NOTE

Pressing the POWER button during a cycle will cancel that cycle and any load settings will be lost.

2 Cycle Selector Knob

Turn this knob to select the desired cycle. Once the desired cycle has been selected. the standard presets are shown in the display. On Manual Dry cycles. these settings can be adjusted using the cycle modifier buttons any time before starting the cycle.

3 START/PAUSE Button

Press this button to start the selected cycle. If the dryer is running. use this button to pause the cycle without losing the current settings.

NOTE

If you do not press the START/PAUSE button to resume a cycle within 60 minutes. the dryer turns off automatically.

4 Cycle Option Buttons

The option buttons allow you to select additional cycle options. Certain buttons also allow you to activate special functions by pressing and holding the button for 3 seconds.

5 Time and Status Display

The display shows the settings. estimated time remaining. options. and status messages for the dryer.

6 MORE TIME/LESS TIME Buttons

Use these buttons with the Time Dry and other Manual Dry cycles to adjust the drying time. Press the MORE TIME button to increase the selected manual cycle time by 1 minute; press the LESS TIME button to decrease the cycle time by 1 minute.

7 Cycle Modifier Buttons

Use these buttons to select the desired cycle settings for the selected cycle. The current settings are shown in the display. Press the button for that modifier to select other settings.

8 Custom PGM

If you have a special combination of settings that you use frequently. you can save these settings as a Custom Program.

9 Flow Sense Duct Blockage Sensing System Indicator

The Flow Sense duct blockage sensing system detects and alerts you to blockages in the ductwork that reduce exhaust flow from the dryer. Maintaining a clean exhaust system improves operating efficiency and helps minimize service calls. saving you money.

10 Clean Filter Reminder

The display will show Clean Filter when the dryer is turned on as a reminder to check the filter. It turns off when the START/PAUSE button is pressed.

11 Cycle Completion Indicator with Check Filter Reminder

This portion of the display shows which stage of the drying cycle is currently underway (Dry. Cool).

12 Estimated Time Remaining

This display shows the estimated time remaining for SENSOR DRY cycles or the actual time remaining for Time Dry or MANUAL DRY cycles.

NOTE

The cycle time on SENSOR DRY cycles may fluctuate as the dryer recalculates drying time for optimal results.

13 WI-FI Indicator

When the appliance is connected to the internet through a home Wi-Fi network. this indicator appears.

Cycle Guide

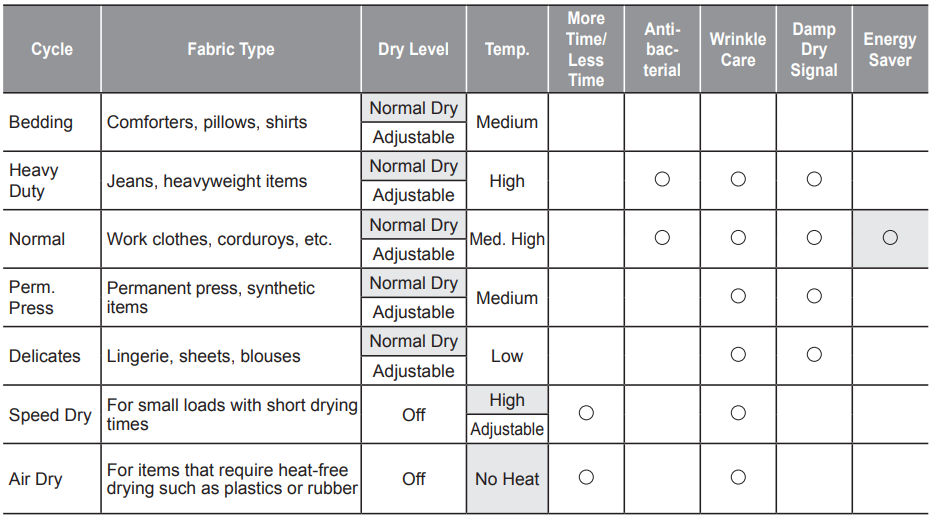

Sensor dry cycles

Sensor dry cycles utilize LG’s unique dual sensor system to detect and compare the moisture level in clothes and in the air and adjust the drying time as needed to ensure superior results. The dryer automatically sets the dryness level and temperature at the recommended setting for each cycle. The estimated time remaining will be shown in the display.

NOTE

To protect your garments not every dryness level. temperature. or option is available with every cycle. See the Cycle Guide for details.

Downloaded

If you download a cycle using the LG ThinQ application. it will be placed in the downloaded cycle position. Choose the Downloaded cycle to run the downloaded cycle.

Manual dry cycles

Use manual dry cycles to select a specific amount of drying time and a drying temperature. When a manual dry cycle is selected. the Estimated Time Remainng display shows the actual time remaining in your cycle. You can change the actual time in the cycle by pressing More Time or Less Time.

Cycle Settings and Options

Cycle Modifier Buttons

SENSOR DRY cycles have preset settings that are selected automatically. MANUAL DRY cycles have default settings. but you may also customize the settings using the cycle modifier buttons. Press the button for that option to view and select other settings.

Dry Level

Selects the level of dryness for the cycle. Press the Dry Level button repeatedly to scroll through available settings.

• This option is only available with SENSOR DRY cycles.
• The dryer will automatically adjust the cycle time. Selecting More Dry or Very Dry will increase the cycle time. while Less Dry or Damp Dry will decrease the cycle time.
• Use a Less Dry or Damp Dry setting for items that you wish to iron.

Temp.

Adjusts the temperature setting. This allows precise care of your fabrics and garments. Press the Temp. button repeatedly to scroll through available settings.

Time Dry

Allows you to manually select the drying time. from 20 to 60 minutes. in 10-minute increments. Use this for small loads or to remove wrinkles.

More Time/Less Time

Use the More Time/Less Time buttons to add or reduce the drying time of a MANUAL DRY cycle in 1-minute increments.

Signal (Option)

Press the Signal (Option) button repeatedly to change the volume or turn on/off the button tones and the end of cycle melody.

Cycle Option Buttons

The dryer features several additional cycle options to customize cycles to meet individual needs. Certain option buttons also feature a special function that can be activated by pressing and holding that option button for 3 seconds. (See Special Functions on the following page for details.)

Adding Cycle Options to a Cycle:

1. Turn on the dryer and turn the cycle selector knob to select the desired cycle.
2. Use the cycle modifier buttons to adjust the settings for that cycle.
3. Press the cycle option button(s) for the option you would like to add. A confirmation message is shown in the display.
4. Press the START/PAUSE button to start the cycle. The dryer starts automatically.

Wrinkle Care

Selecting this option will tumble the load periodically for up to 3 hours after the selected cycle. or until the door is opened. This is helpful in preventing wrinkles when you are unable to remove items from the dryer immediately.

Damp Dry Signal

With this option. the dryer will signal when the load is approximately 80% dry. This allows you to remove faster- drying lightweight items or items that you would like to iron or hang while still slightly damp.

Special Functions

Some cycle option buttons also activate secondary functions. These special functions are marked with an asterisk (*). Press and hold the option button marked with the special function to activate it.

Drum Light

The drum is equipped with a blue LED that illuminates when the dryer is turned on. This light automatically turns off when the door is closed and the cycle starts.

To turn on the light during a cycle. press the Drum Light button. The drum light will illuminate and then turn off automatically after four minutes.

* Control Lock

Use this option to prevent unwanted use of the dryer or to keep cycle settings from being changed while the dryer is operating.

Press and hold the button marked Control Lock for 3 seconds to activate or deactivate the Control Lock function. The Control Lock icon will be shown in the display. and all controls will be disabled except the POWER button.

NOTE

Once set. Control Lock remains active until it is manually deactivated. Control Lock must be turned off to run another cycle. To deactivate Control Lock. press and hold the Control Lock button for 3 seconds.

Energy Saver (on some models)

This option helps to reduce energy consumption in the Normal cycle. depending on the load size.

When the Energy Saver option is selected. the cycle begins with an air dry section and the drying time is increased.

NOTE

The Energy Saver option is turned on by default in the Normal cycle. Turn off the Energy Saver option for a faster Normal cycle which begins with heated drying.

* Default On/Off

This option allows the Energy Saver settings to be changed. To run a Normal cycle without the Energy Saver option. press and hold the Energy Saver button for three seconds. ON or OFF appears in the display.

Custom PGM

If you have a special combination of settings that you use frequently. you can save these settings as a custom program.

Saving a Custom Program:

1. Turn on the dryer and turn the cycle selector knob to select the desired cycle.
2. Use the cycle setting buttons to adjust the settings for that cycle.
3. Press the cycle option button(s) for the option you would like to add. A confirmation message will be shown in the display.
4. Press and hold the Custom PGM button for 3 seconds.

NOTE

You may save only one custom program at a time. Pressing and holding the Custom PGM button will overwrite any previously saved custom program.

Recalling a Custom Program:

1. Turn on the dryer.
2. Press the Custom PGM button.
3. Press the START/PAUSE button to start the cycle.

SMART FUNCTIONS

LG ThinQ Application

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

Installing LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smart phone.

Follow instructions to download and install the application.

LG ThinQ Application Features

Dryer Cycle (Remote Start. Downloaded)

Set or download any preferred cycle and operate by remote control.

Smart Pairing

This function automatically selects the best cycle and settings for the dryer based on usage information from the most recently completed wash cycle.

NOTE

• If the Smart Pairing function is enabled in the LG ThinQ app. when you turn on the dryer after using the washer. the recommended dryer cycle is automatically set.
• To use this function. both the washer and dryer must be connected to Wi-Fi.

Venting Tips

Provides venting tips.

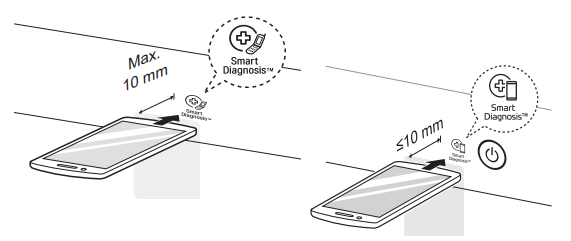

Smart Diagnosis^TM

This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

Energy Monitoring

The dryer energy usage is affected by the cycles and options so you may see some changes in energy usage from one cycle to another.

Push Alerts

When the cycle is complete or the appliance has problems. you have the option of receiving push notifications on a smart phone.

Settings

Set the product nickname and delete product.

NOTE

• To verify the Wi-Fi connection. check that Wi-Fi icon on the control panel is lit.

• LG ThinQ is not responsible for any network connection problems or any faults. malfunctions. or errors caused by network connection.

• The machine supports 2.4 GHz Wi-Fi networks only.

• If the appliance is having trouble connecting to the Wi-Fi network. it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.

• The Wi-Fi connection may not connect or may be interrupted because of the home network environment.

• The network connection may not work properly depending on the internet service provider.

• The surrounding wireless environment can make the wireless network service run slowly.

• This information is current at the time of publication.The application is subject to change for product improvement purposes without notice to users.

Using Dryer Cycle

Remote Start

Use a smart phone to control the appliance remotely or check to see how much time is left in the cycle.

Using Remote Start

1. Press the POWER button.
2. Load the laundry.
3. Press and hold Remote Start button for 3 seconds to enable the Remote Start function.
4. Start a cycle from the LG ThinQ application on your smart phone.

NOTE

• Once the Remote Start mode is enabled. you can start a cycle from the LG ThinQ smartphone application. If the cycle is not started. the machine will wait to start the cycle until it is turned off remotely from the application or the Remote Start mode is disabled.

• If the door is open. Remote Start is disable.

Disabling Remote Start

When the Remote Start is activated. press and hold the Remote Start button for 3 seconds.

Downloaded

Download new and special cycles that are not included in the basic cycles on the appliance.

Appliances that have been successfully registered can download a variety of specialty cycles specific to the appliance.

Only one cycle can be stored on the appliance at a time.

Once cycle download is completed in the appliance. the appliance keeps the downloaded cycle until a new cycle is downloaded.

Wireless LAN Module Specifications

FCC Notice (For transmitter module contained in this product)

This equipment has been tested and found to comply with the limits for a Class B digital device. pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates. uses. and can radiate radio frequency energy and. if not installed and used in accordance with the instructions. may cause harmful interference to radio communications. However. there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception. which can be determined by turning the equipment off and on. the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference and

2) This device must accept any interference received. including interference that may cause undesired operation of the device.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Open Source Software Notice Information

To obtain the source code under GPL. LGPL. MPL. and other open source licenses. that is contained in this product. please visit http://opensource.lge.com.

In addition to the source code. all referred license terms. warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media. shipping. and handling) upon email request to [email protected]. This offer is valid for three (3) years from the date on which you purchased the product.

Smart Diagnosis Function

This feature is only available on models with the or logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE’s negligence. the service may not operate due to external factors such as. but not limited to. Wi-Fi unavailability.

Wi-Fi disconnection. local app store policy. or app unavailability.

• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance. it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Press the Power button to turn on the appliance.

• Do not press any other buttons.

2 Hold the mouthpiece of your phone in front of the or logo.

3 Press and hold the Temp. button for 3 seconds or longer while continuing to hold your phone near the logo.

4 Keep the phone in place untill the tone transmission has finished. The display will count down the time. Once the count down is over and the tones have stopped. the diagnosis will be displayed in the application.

NOTE

• For best results. do not move the phone while the tones are being transmitted.

MAINTENANCE

Regular Cleaning

WARNING

To reduce the risk of fire. electric shock. or injury to persons when using this appliance. follow basic precautions. including the following:

• Unplug the dryer before cleaning to avoid the risk of electric shock. Failure to follow this warning may cause serious injury. fire. electric shock. or death.

• Never use harsh chemicals. abrasive cleaners. or solvents to clean the washer.They will damage the finish.

Cleaning the Exterior

Proper care of your dryer can extend its life. The outside of the machine can be cleaned with warm water and a mild. nonabrasive household detergent. Immediately wipe off any spills with a soft. damp cloth.

NOTE

• Do not use methylated spirits. solvents. or similar products.

• Never use steel wool or abrasive cleansers; they can damage the surface.

Cleaning the Interior

Wipe around the door opening and seal with a soft. damp cloth to prevent lint and dust buildup that could damage the door seal.

Clean the window with a soft cloth dampened with warm water and a mild. nonabrasive household detergent. then wipe dry.

The stainless steel drum can be cleaned with a conventional stainless steel cleaner. used according to the manufacturer’s specifications. Never use steel wool or abrasive cleansers; they may scratch or damage the surface.

Cleaning Around and Under the Dryer

Vacuum lint and dust from around the dryer and underneath it regularly. Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs. immediately check ductwork for obstructions and blockages.

Maintaining Ductwork

Vent ductwork should be checked for lint buildup once per month and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs. immediately check ductwork for obstructions and blockages. Contact a qualified technician or service provider.

Cleaning the Lint Filter

Always clean the lint from the filter after every cycle.

To clean. open the dryer door and pull the lint filter straight up. Then:

1 For everyday cleaning. roll any lint off the filter with your fingers. or

2 Vacuum the lint filter.

3 If the lint filter has become very dirty or clogged with fabric softener. wash the lint filter in warm. soapy water and allow it to dry thoroughly before reinstalling.

NOTE

NEVER operate the dryer without the lint filter in place. NEVER operate the dryer with a wet lint filter.

TROUBLESHOOTING

FAQs: Frequently Asked Questions

Q: When I press a button. why does my dryer beep and then nothing happens?

A: The Control Lock feature is turned on. To turn off Control Lock. turn the dryer on. then press and hold the button that has *Control Lock on or under it for 3 seconds.

Q: Why does my dryer take so long to dry clothes?

A: Proper airflow is critical to the efficient operation of clothes dryers. A lint filter which is full of lint or clogged with fabric softener sheet residue can reduce the airflow to the point that the time required to dry clothing will be greatly increased. Another factor affecting dry time is your home exhaust system. An exhaust system which is dirty and clogged with lint. or is excessively long. needs to be professionally cleaned or repaired.

Q: Why does my dryer start by itself every few minutes?

A: This is how the Wrinkle Care feature works. The dryer runs briefly every few minutes for up to 3 hours after the cycle finishes. This feature is designed to help prevent wrinkles from setting in when the dryer is not unloaded immediately after the cycle is finished.

Before Calling for Service

This dryer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the dryer does not function properly or does not function at all. check the following before you call for service.

Operation

Performance

Error Codes
