MONARCH CEILING FAN
ITEM #1596995
MODEL #MOH52BNK5LRS
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Purchase Date
1
Español p. 19
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
WET Location
4007498
Safety Information ..........................................................................................................................2
Package Contents ..........................................................................................................................5
Hardware Contents ........................................................................................................................6
Preparation .....................................................................................................................................6
Initial Installation .............................................................................................................................
.
6
Wiring ............................................................................................................................................
.
10
Final Installation ............................................................................................................................
.
12
Operating Instructions ...................................................................................................................15
Care and Maintenance .................................................................................................................16
Troubleshooting ............................................................................................................................17
Limited Lifetime Warranty ..............................................................................................................18
Replacement Parts List .................................................................................................................18
TABLE OF CONTENTS
2
Modifications not approved by the party responsible for compliance could void the user's authority to
operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: Dimmable to 10%.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of the MOH52BNK5LRS fan including the light kit is: 18 lbs.
SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
If using this fan in a WET location, this fan must be connected to a supply circuit that is
protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury,
electrical shock or death.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
4
SAFETY INFORMATION
CAUTION
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is required,
call our customer service department.
WARNING
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing or balancing them or cleaning the fan. Do not insert objects between the rotating fan
blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to
avoid electrical shock.
The DC Motor will not operate until blades are installed.
WARNING
A
D
B
F
M
L
I
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Housing 1
E Yoke Cover 1
F LED Light Kit 1
G Blade 5
H Fitter Plate 1
I Shade 1
J Canopy Cover 1
DESCRIPTIONPART
QUANTITY

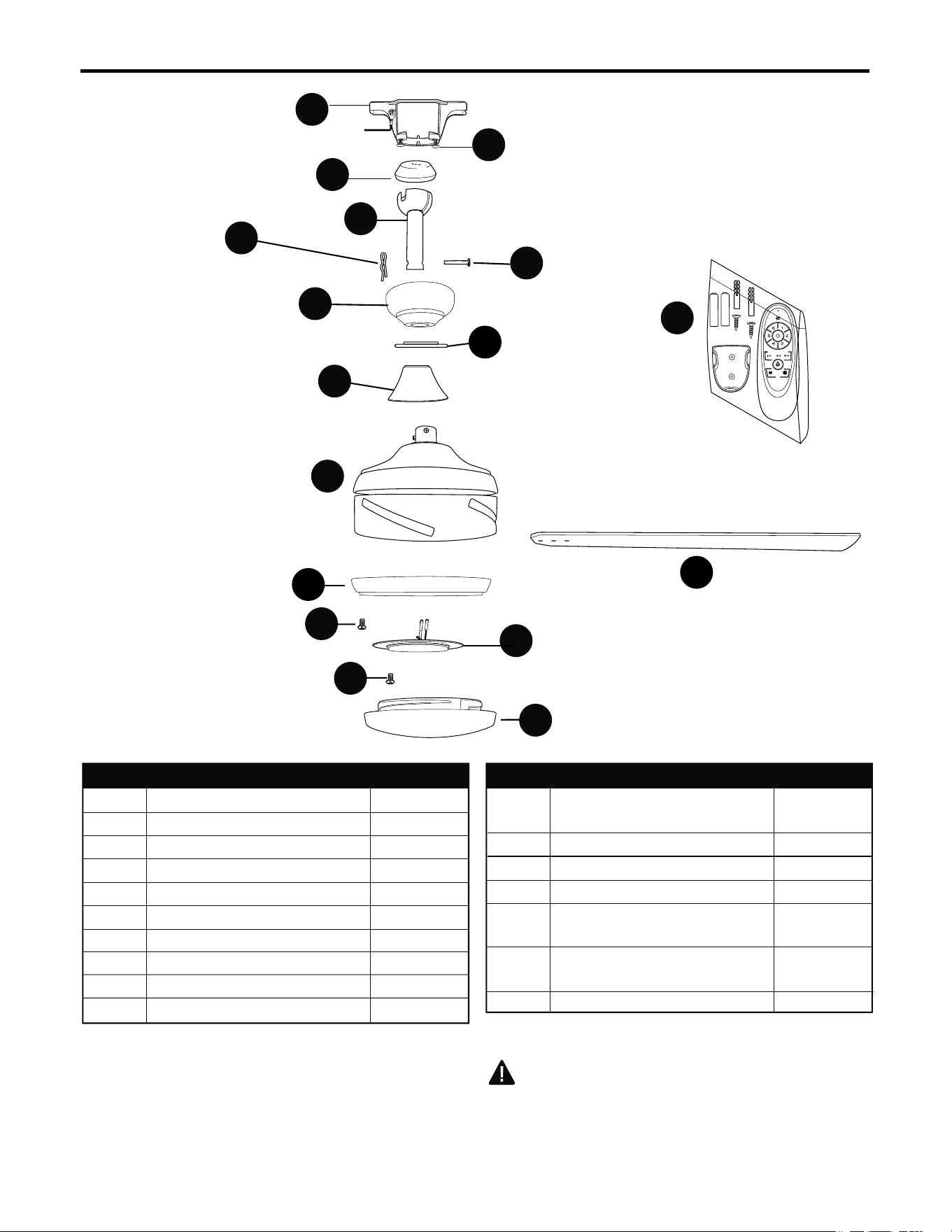

PACKAGE CONTENTS
5
E
O
DESCRIPTIONPART
QUANTITY
K Canopy Mounting Screw 2
(preassembled)
L Pin (preassembled) 1
M Clip (preassembled) 1
N Hanging Ball Cover 1
O Fitter Plate Screw 3
(preassembled)
P Motor Plate Screw 3
(preassembled)
Q Remote Pack 1
H
G
C
K
J
N
Q
P
6
PREPARATION

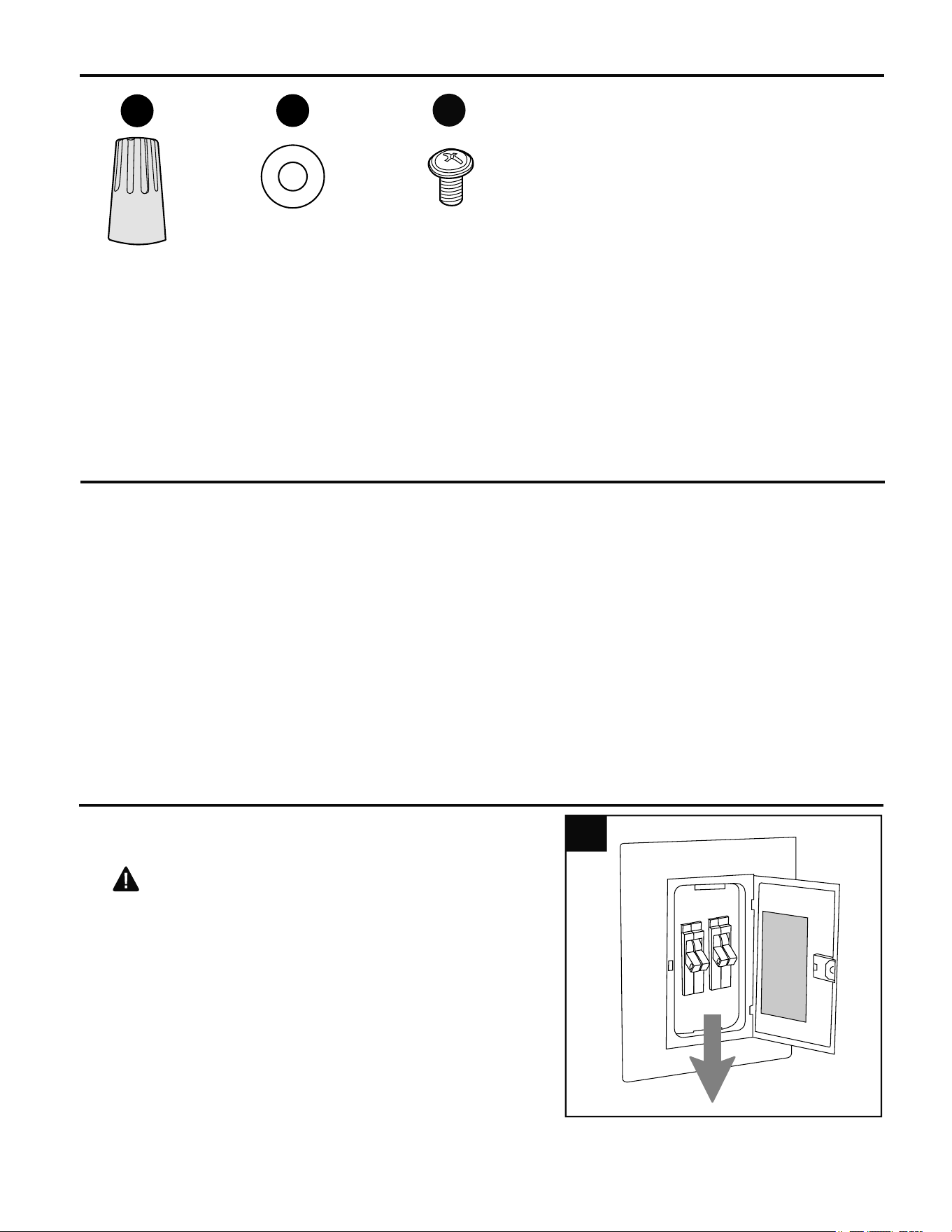

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Pencil, 7/32 in.
Drill Bit, Hammer, Safety Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
Wire
Connector
Qty. 3
AA
BB
Blade
Screw
Qty. 15
+ 1 extra
CC
INITIAL INSTALLATION
Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
Rubber
Blade
Washer
Qty. 15
+ 1 extra

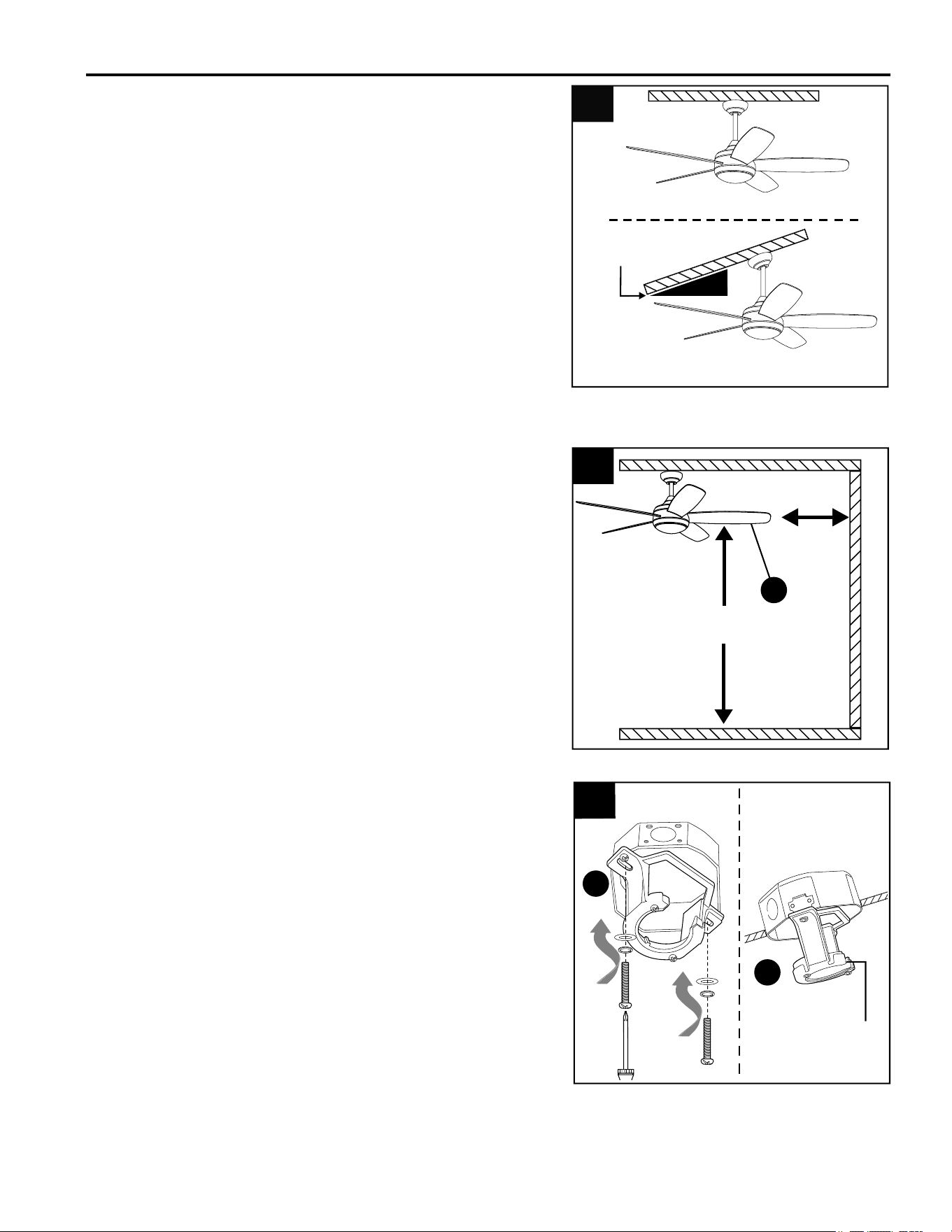

2.
Determine mounting method to use.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
NOTE: Closemount option is not available for this
fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best suited
for angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
7
Check to make sure blades (G) will be at least
30 inches from any obstruction. Check downrod
(A) length to ensure blades (G) will be at least 7 ft.
above the floor.
3.
INITIAL INSTALLATION
7 ft.
min.
30 in.
min.
3
G
2
4.
Open End
4
C
C
ANGLE MOUNTSTANDARD MOUNT
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (C)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (C) is installed facing
the higher point of the ceiling, and ensure the
ceiling angle is not steeper than 19°.
B
A
19° max.
6.
Insert downrod (A) through canopy (B), canopy
cover (J) and yoke cover (E). NOTE: Canopy
cover (J) must be turned with the shiny side
toward the motor housing (D).
Then, thread wires from motor housing (D)
through downrod (A).
6
B
E
A
J
8
INITIAL INSTALLATION

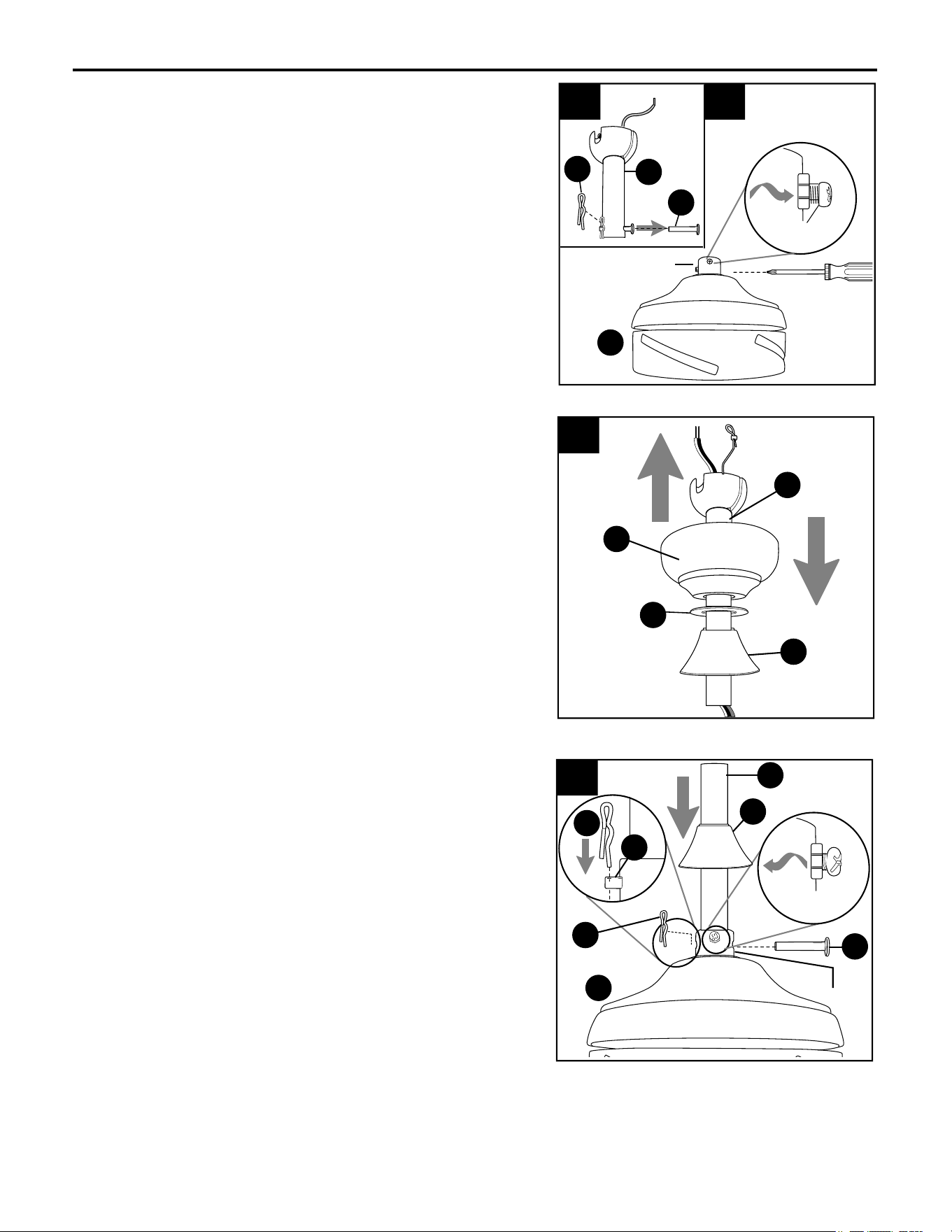

7.
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (L) and clip (M). Tighten
set screws in motor housing yoke and then tighten
preassembled nut on one of the set screws. Then,
slide yoke cover (E) down until it rests on top of
motor housing (D).
7
D
E
L
M
Yoke
M
L
Set Screw
and Nut
Sideview
A
Remove pin (L) and clip (M) from downrod (A).
Partially loosen preassembled set screws and nut
in motor housing yoke at top of motor housing (D).
5A.
5A
M
L
5B
A
Set Screw
Sideview
D
Yoke
5B.
9
INITIAL INSTALLATION

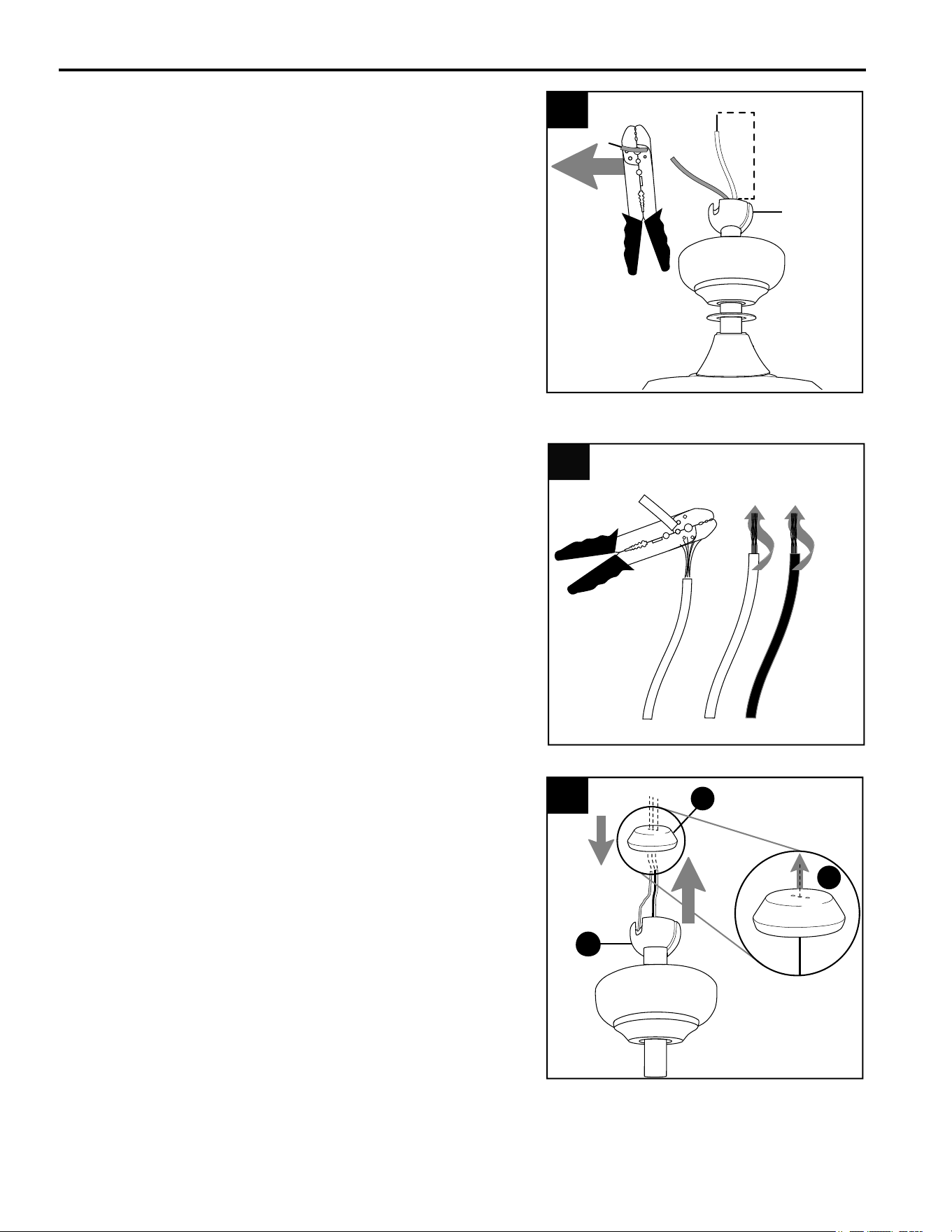

Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead
wires, it is suggested you do so in the following
manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 8 and 9 are not necessary and you may
proceed to Step 10 instead.
8.
Hanging
Ball
8
8 in.
If you decided to cut back the lead wires in Step 8,
strip 1/2 in. of insulation from end of each wire --
white, black, green and blue (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
9.
9
10.
Thread each of the wires through a different hole
in the hanging ball cover (N). Pull hanging ball
cover (N) down securely over hanging ball on
downrod (A).
10
A
N
N

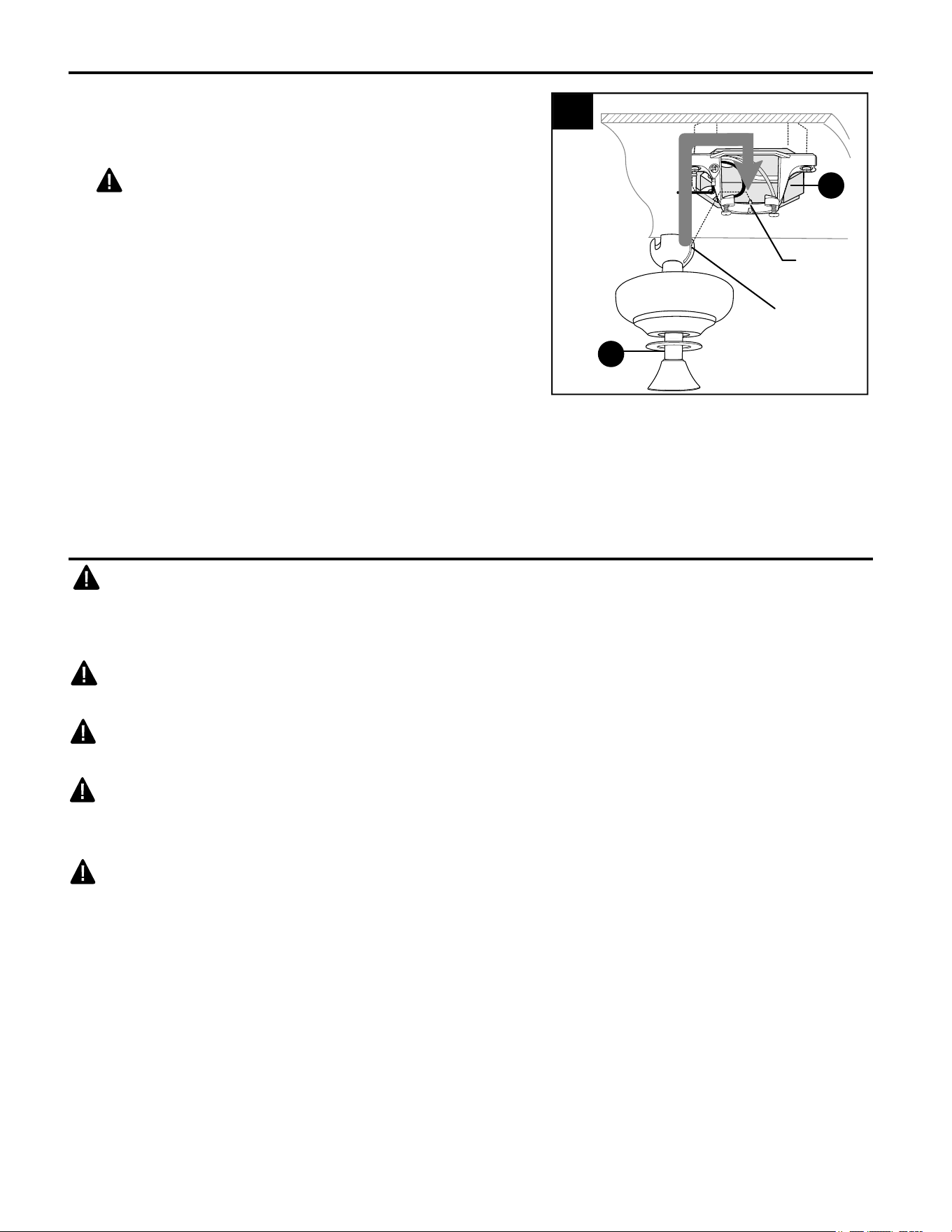

Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align one of the slots in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
11.
A
Tab
11
C
Slot
10

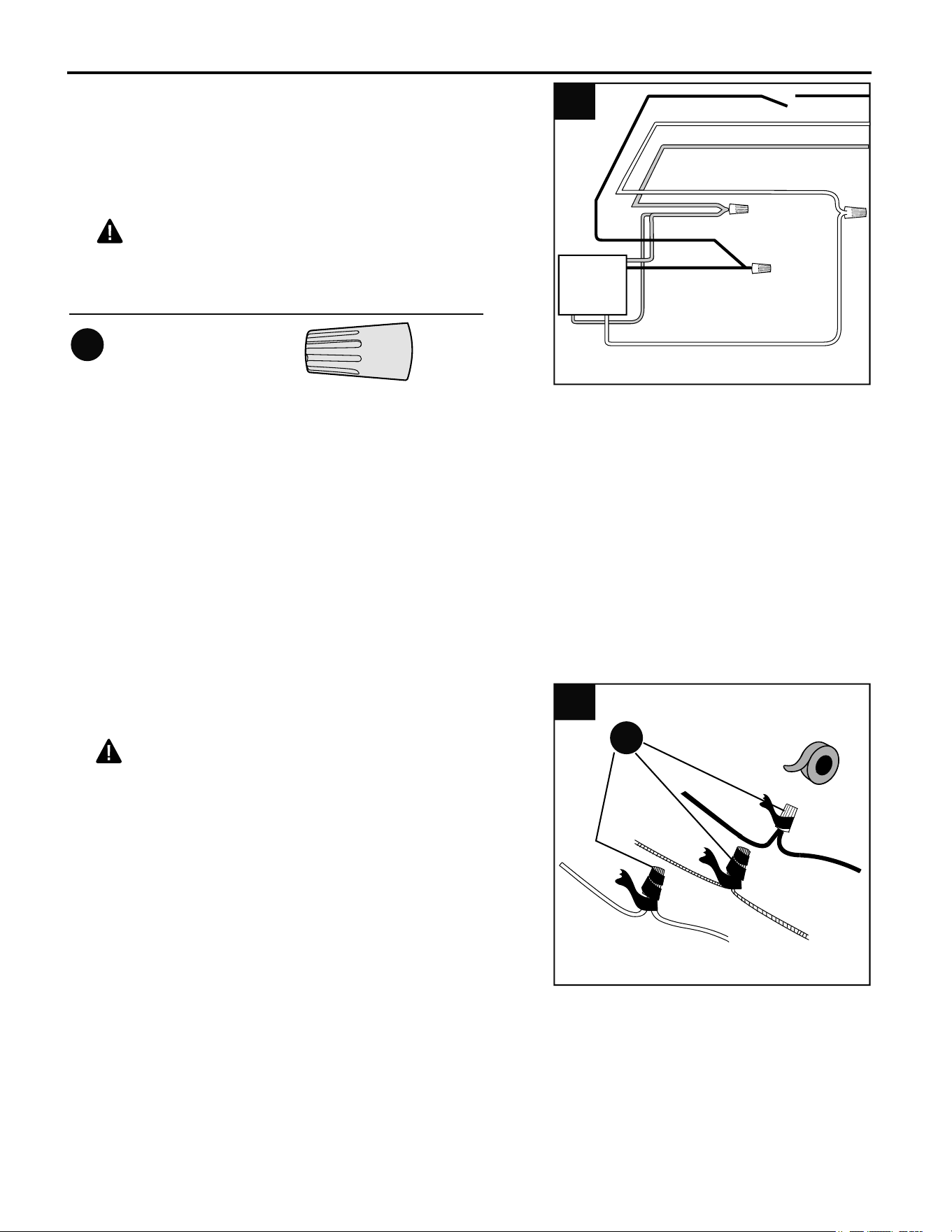

WIRING
INITIAL INSTALLATION
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
DANGER: If using this fan in a WET location, this fan must be connected to a supply circuit
that is protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal
injury, electrical shock or death.
11
WIRING
Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
2
1.
Make the necessary wiring connections for remote
control operation as detailed below and in the
accompanying drawing. To make wire connections,
use wire connectors (AA) in hardware pack, making
sure to screw each wire connector on in a clockwise
direction.
CAUTION: Assistance from another person is
recommended for this step.
Hardware Used
Wire Connector
x 3
AA
Connect BLACK wire from fan to BLACK wire
from ceiling. Connect WHITE wire from fan to
WHITE wire from ceiling. Connect all GROUND
(GREEN) wires together from fan (on mounting
bracket) to BARE/GREEN wire from ceiling.
NOTE: BLACK wire is hot power for fan. WHITE
wire is common for fan and light kit. BARE/GREEN
wire is ground.
1
BLACK
WHITE
GROUND/GREEN (BARE)
WHITE
WHITE
120 V
FROM CEILING
FAN
GREEN
BLACK
GREEN
AA
12

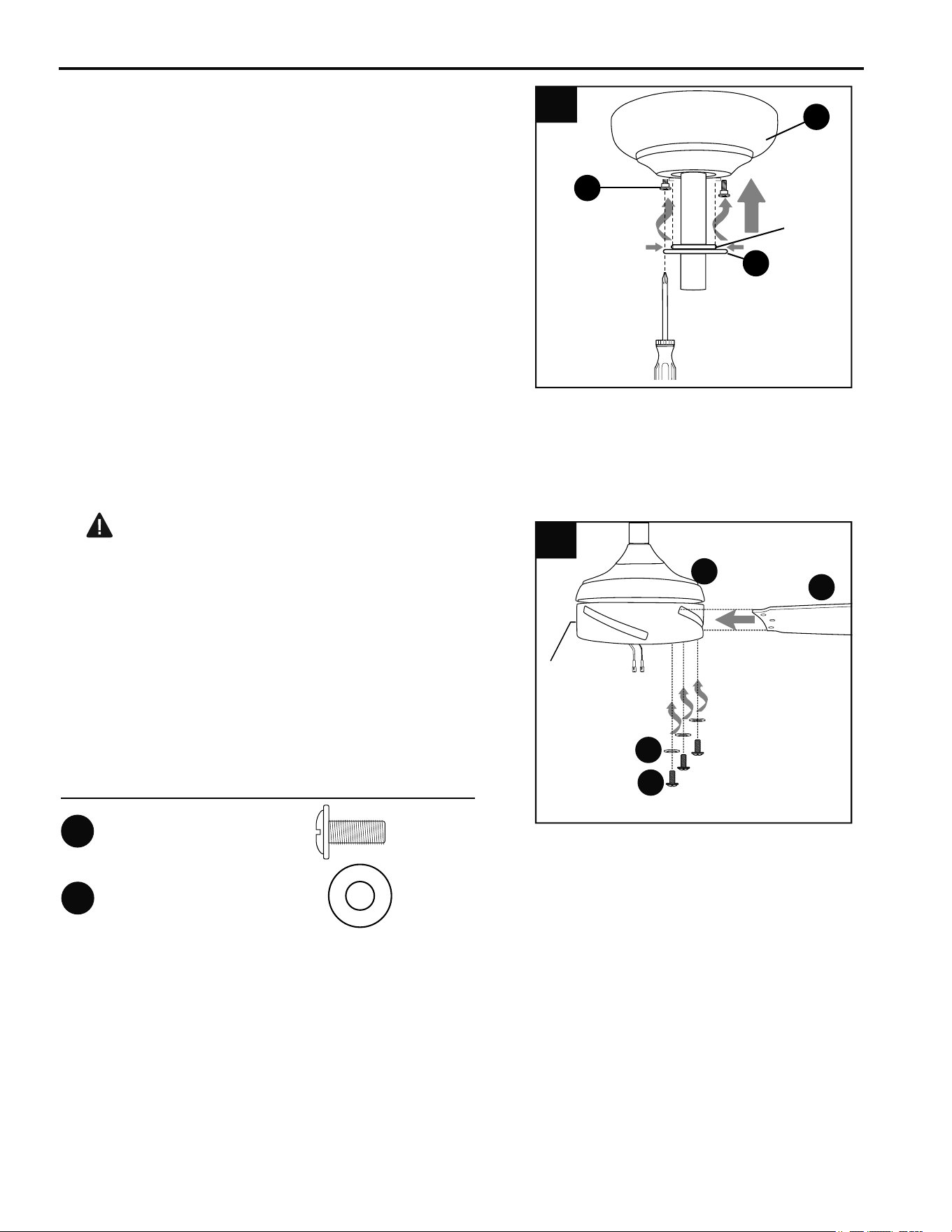

FINAL INSTALLATION
1.
1
K
B
Knobs
J
Locate two canopy mounting screws (K) on underside
of mounting bracket (C) and remove canopy mounting
screw (K) closest to the open end of the mounting
bracket (C). Partially loosen the other canopy
mounting screw (K). Lift canopy (B) to mounting
bracket (C). Place rounded part of slotted hole in
canopy (B) over loosened canopy mounting screw (K)
and push up. Twist canopy (B) to lock. Re-insert
canopy mounting screw (K) that was removed, then
tighten both canopy mounting screws (K).
Locate knobs on center ring of canopy cover (J). Slide
canopy cover (J) up to canopy (B), aligning knobs on
canopy cover (J) with openings in bottom of canopy
(B). Press up firmly on the canopy cover (J) until it fits
into the bottom of the canopy (B) and then turn
canopy cover (J) about ½ in.
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (G). If screws are overtightened, blades (G)
may crack and break.
Insert the blade (G) through the slot on the band of
the motor housing (D). Align holes in blade (G) with
holes in plate on underside of motor. Attach the
blade (G) with blade screws (CC) and rubber blade
washers (BB). Then, tighten each blade screw (CC),
starting with the one in the middle. Repeat for
remaining blades (G).
2.
3
2
D
G
BB
CC
CC
Blade Screw x 15
Rubber Blade Washer x 15
BB
Hardware Used
Band
13
FINAL INSTALLATION

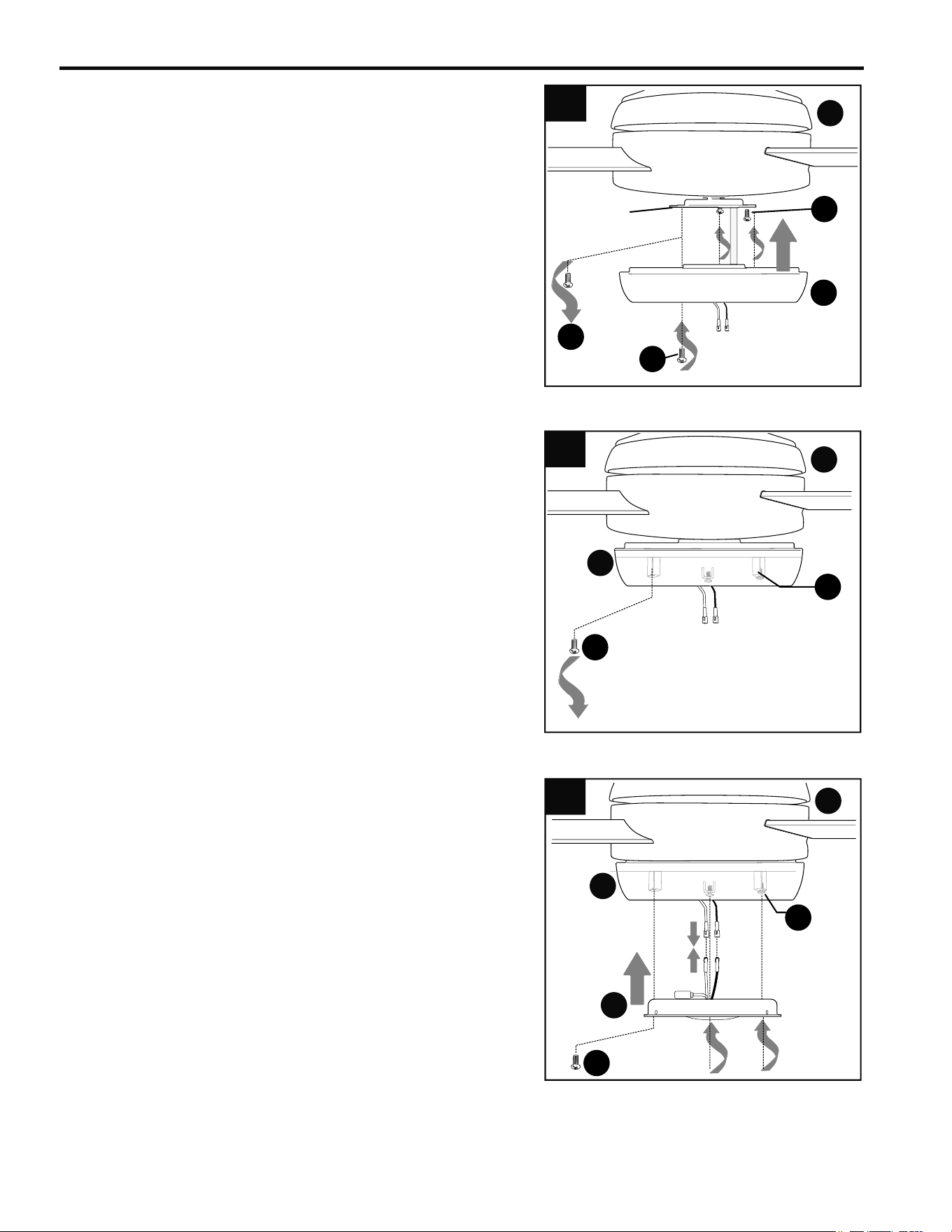

3.
Remove one motor plate screw (P) from motor
plate preassembled on the underside of the motor
housing (D) and partially loosen the other two
motor plate screws (P). Align slotted holes in fitter
plate (H) with loosened motor plate screws (P),
allowing molex connections from motor housing
(D) to come through hole in fitter plate (H). Twist
fitter plate (H) to lock. Re-insert the motor plate
screw (P) that was removed and securely tighten
all three motor plate screws (P).
3
I
P
I
P
I
P
H
D
Motor
Plate
Locate BLUE (or BLACK) and WHITE wires in
motor housing (D). Connect WHITE wire from
LED light kit (F) to WHITE wire from motor
housing (D). Connect BLUE wire from LED light
kit (F) to BLUE (or BLACK) wire from motor
housing (D). Make sure molex connections are
secure.
Carefully arrange wires inside fitter plate (H).
Align slotted holes in LED light kit (F) with
loosened screws in fitter plate (H). Re-insert fitter
plate screw (O) previously removed. Tighten all
three fitter plate screws (O) securely.
5.
3
5
BLUE
WHITE
WHITE
BLUE
F
H
O
4.
Remove one fitter plate screw (O) from underside
of fitter plate (H) and partially loosen the other two
fitter plate screws (O).
3
4
O
O
H
D
O
D
Slots
14

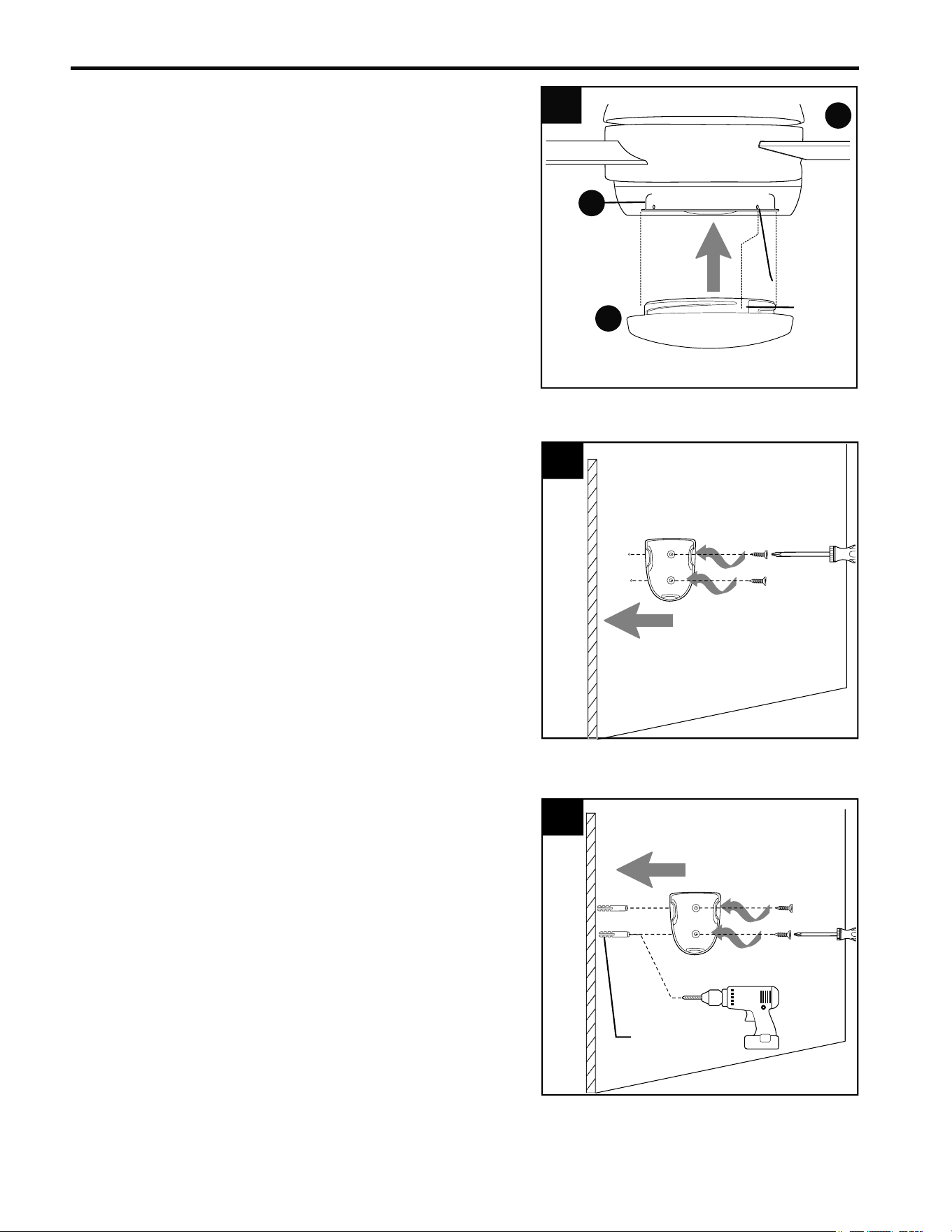

Align slots on shade (I) with protrusions on the
inside of the fitter plate (H). Turn shade (I) to the
right (clockwise) until it no longer turns.
NOTE: Pull down gently on the shade (I) to make
sure that it is secured completely.
6.
3
6
D
I
Protrusions
H
If mounting surface is drywall, mark the
location of the holes using a pencil or a marker
(not included). Use a 7/32 in. drill bit (not
included) to drill two pilot holes in drywall at
marked locations.
Position plastic anchor in each pilot hole. Gently
tap plastic anchors with a hammer (not
included) until flush with wall surface. Screw
bracket screws into plastic anchor.
The remote control transmitter from remote
pack (Q) rests inside the bracket.
8.
8
Remote Control
Bracket
Wall
Bracket
Screws
Wall
Anchors
FINAL INSTALLATION
7
Remote Control
Bracket
Wall
Bracket
Screws
If you wish to use the remote control bracket
from remote pack (Q) on a wood surface, install
bracket screws from remote pack (Q) through
bracket and into the desired installation site.
7.
15
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans.
If this is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
FCC Compliance Notice for Remote Control and LED Light Kit
Modifications not approved by the party responsible for compliance could void the user's authority
to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
Remove screw on the back of remote control
transmitter in remote pack (Q) to remove battery
cover. Install two AAA batteries (included).
Observe diagram inside battery compartment to
install batteries correctly according to polarity.
Replace battery cover on remote control
transmitter with screw just removed.
WARNING: Choking Hazard - Small parts.
Keep batteries away from children.
1.
(back
side)
1
Battery
Cover
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and
state recycling or household hazardous waste coordinators concerning the specifics of the
program in your area. You may also locate a recycling center by calling 1-800-8-BATTERY or
1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or www.earth911.org for more
information.
Remote
Control
Transmitter
Batteries
NOTE: Batteries are NOT rechargeable. Remove batteries with low or no charge and dispose of
properly.
AAA
AAA
16

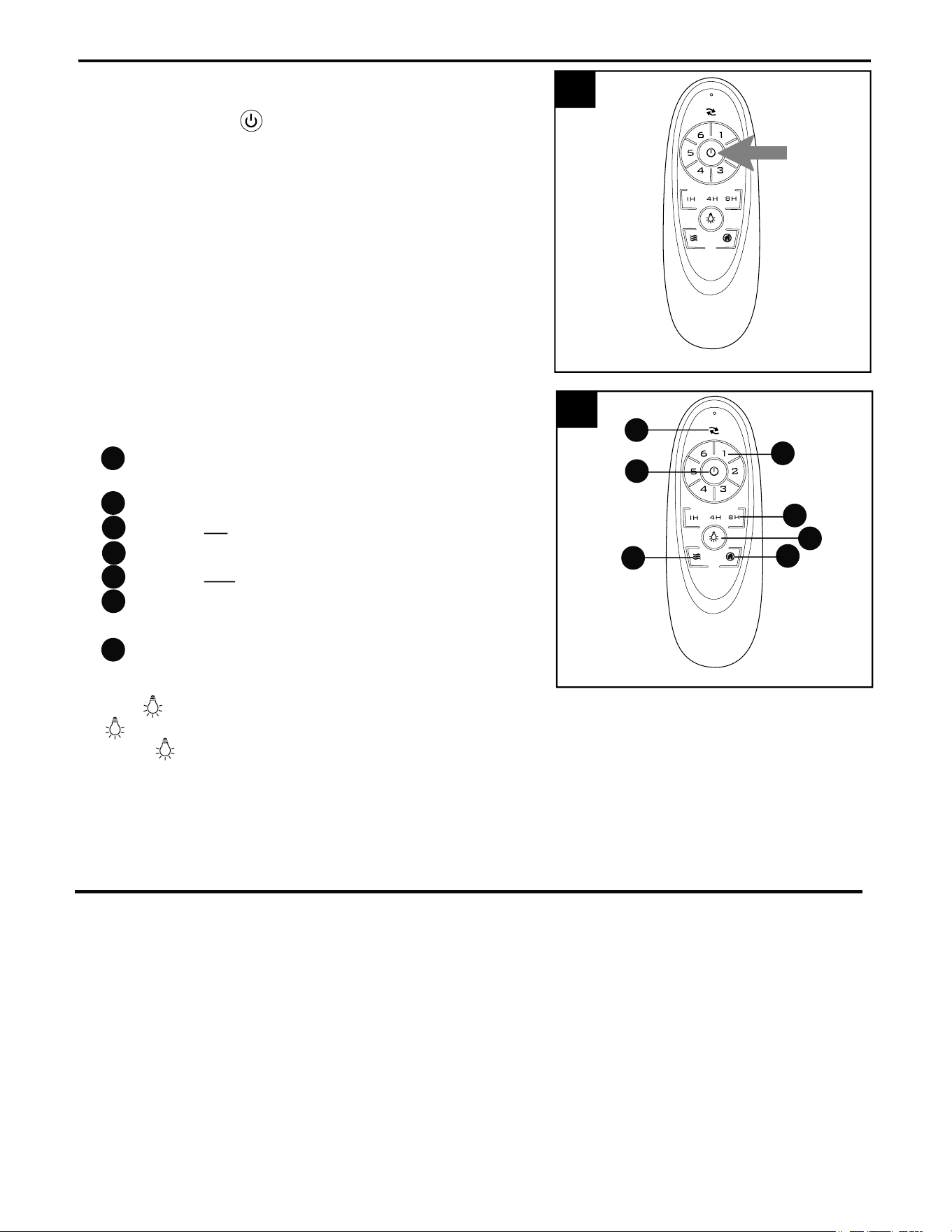

2.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the
ON/OFF button ( ) on the remote control
transmitter for 5 seconds or until fan beeps. Use the
remote control transmitter to test the light and fan
functions to confirm the learning process is complete.
IMPORTANT: To prevent damage to remote control
transmitter, remove the batteries if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
2
Remote Control Transmitter
OPERATING INSTRUCTIONS
3.
3
Remote Control Transmitter
Operation buttons on the panel of the remote control
transmitter:
- Reverse function (fan must be set on low before
reversing blade direction).
- Fan speeds: 1 (lowest) to 6 (highest)
- To turn fan ON or OFF
- Timer: Fan stops after 1 hour/4 hours/8 hours
- To turn light ON or OFF
- Breeze mode: fan speeds automatic cycle
between 1 to 6 speeds.
- Vacation mode: switch on the light kit
5 minutes each 2 hours.
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease light. If you
press button in excess of 7 seconds, it becomes a
dimmer. The light varies cyclically in 8 seconds. The
light button has an auto resume function, which keeps
the light at the same brightness as the last time it was
turned off.
CARE AND MAINTENANCE
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for this fan is 18 watts; do not attempt to replace the LEDs.
1
2
3
3
4
5
6
7
1
2
4
5
6
7
17
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
4. Blades are not installed.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy
and check all connections.
3. Turn off power and repeat
instructions in Step 2 on page
16.
4. Attach blades to fan.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of
a few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor assembly yoke
is (are) not tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a blade
from the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move
fan to another location.
5. Tighten yoke set screw(s)
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
Fan operates but
light fails.
1. Wires in canopy not wired
properly.
2. Wall switch to fan is off.
3. Wires from LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on page 11.
2. Make sure that wall switch to
fan is on.
3. Check wires on light kit fitter
and, if necessary, re-wire
according to instructions on
page 11.
18
C
B
A
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-527-1292, 8:30 a.m. - 5 p.m.,
CST, Monday - Friday.
LIMITED LIFETIME WARRANTY
G
PART DESCRIPTION
C
Mounting Bracket
A
Downrod
B Canopy
G Blade
1596995-C
1596995-A
1596995-B
1596995-G
#
1596995
PART #
GGLI2006
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
