ITEM #2599775
Español p. 21
ATTACH YOUR RECEIPT HERE
Purchase Date
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Sunday.
RR20282
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
MODEL #TX52MBK5L
THOROUGHBRED II
CEILING FAN
4007498
2
Safety Information ...............................................................................................................
.
. 2
Package Contents ..............................................................................................................
.
. 4
Hardware Contents
...........................................................................................................................
5
Preparation ........................................................................................................................... 5
Initial Installation ................................................................................................................... 6
Downrod-Style Fan Mounting ............................................................................................... 7
Closemount-Style Fan Mounting ........................................................................................
.
.. 9
Wiring ...................................................................................................................................11
Final Installation .................................................................................................................. 13
Installing Fan Without Light Kit ........................................................................................... 16
Operating Instructions ......................................................................................................... 17
Care and Maintenance ...................................................................................................
.
.... 18
Troubleshooting .................................................................................................................. 19
Limited Lifetime Warranty ................................................................................................... 20
Replacement Parts List ....................................................................................................... 20
TABLE OF CONTENTS
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 18.7 lbs.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation
between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
SAFETY INFORMATION
3
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
NOTE: The device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
LED Bulb. Model：E26A15-6.5D-30200-B328-01
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
CAUTION
NOTE: Dimmable to 10% with select dimmers. See Lowes.com for more information.
PACKAGE CONTENTS
4
4
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A
Downrod 1
B
Mounting Bracket
1
C
Canopy
1
D Yoke Cover
1
E Motor Housing 1
F
Shade
1
G
Bulb
3
H
Light Kit Fitter
1
I Rubber Washer 1
(preassembled)
J
Flat Washer
1
(preassembled)
K Hex Nut
(preassembled)
1
L Finial Plate
(preassembled)
1
M Finial
(preassembled)
1
N Switch Housing 1
DESCRIPTIONPART
QUANTITY
O
Pin (preassembled) 1
P Clip (preassembled)
1
Q
Motor Screw/Washer 10
(preassembled) + 1 extra
R
Switch Housing
Screw
3
(preassembled)
S Cap (preassembled) 1
T
Canopy Mounting Screw /
4
Washer (preassembled)
U Hex Nut (preassembled)
1
V
10 mm Lock Washer
1
(preassembled)
W
Blade Arm 5
X
Blade 5
Y Pull Chain Extension 2
DESCRIPTION
QUANTITY
PART
G
F
K
N
I
Y
H
C
B
D
E
M
W
P
O
Q
T
R
S
X
U
V
A
L
J
5
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
PREPARATION
Blade
Screw
Qty. 15
+ 1 extra
CC
Wire
Connector
Qty. 4
AA
BB
CC
Blade
Washer
Qty. 15
+ 1 extra
INITIAL INSTALLATION
6
2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (X) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
3.
ON
OFF
ON
OFF
1
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
A
B
2
19° max.
7 ft.
min.
30 in.
min.
X
3
INITIAL INSTALLATION
7
DOWNROD-STYLE FAN MOUNTING
4
Open End
B
B
E
Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(B) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (B) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
4.
5.
Remove motor screw/washers (Q) from
underside of motor housing (E) and save for
blade arm attachment later on. [If there are
plastic motor blocks installed with the motor
screws/washers (Q), discard the plastic motor
blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 9.
Remove pin (O) and clip (P) from downrod (A).
Partially loosen preassembled set screws and
nuts in yoke at top of motor housing (E).
1a.
1b.
1a
P
E
O
1b
A
Yoke
Set Screw
& Nut
Sideview
ANGLE
MOUNT
STANDARD
MOUNT
Plastic
Motor
Block
Q
5
Plastic Motor Block
DOWNROD-STYLE FAN MOUNTING
8
4.
2.
3.
Insert downrod (A) through canopy (C), and yoke
cover (D). Thread wires from motor housing (E) up
through downrod (A).
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
Slip downrod (A) into yoke, align holes and
re-install pin (O) and clip (P). Tighten downrod set
screws and then tighten nuts. Slide yoke cover (D)
down until it rests on top of motor housing (E).
A
2
C
D
4
Hanging
Ball
8 in.
3
P
C
O
Set Screw
and Nut
E
A
D
9
DOWNROD-STYLE FAN MOUNTING
5.
6.
Twist canopy cover until the two small protrusions
on the inner lip of the canopy cover align with the
notches on the bottom of the canopy (C). Remove
preassembled canopy cover from bottom of
canopy (C).
NOTE: The downrod (A), yoke cover (D) and
canopy cover are not used in this type of
installation.
CLOSEMOUNT-STYLE FAN MOUNTING
1.
If you cut back the lead wires in Step 4, strip 1/2 in.
of insulation from end of of each wire -- white,
black, green and blue (if applicable). Twist stripped
ends of each strand of wire within the insulation
with pliers (not included).
Install hanging ball of downrod (A) into opening of
mounting bracket (B). Align the slot in hanging ball
with the tab in mounting bracket (B).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (B) may result in
serious injury or death.
Continue to WIRING on page 11.
Canopy
Cover
B
1
C
Tab
5
B
6
A
Slot
CLOSEMOUNT-STYLE FAN MOUNTING
10
Temporarily hang fan on the tab on the mounting
bracket (B) using one of the non-slotted holes in
the canopy (C).
4.
3.
2.

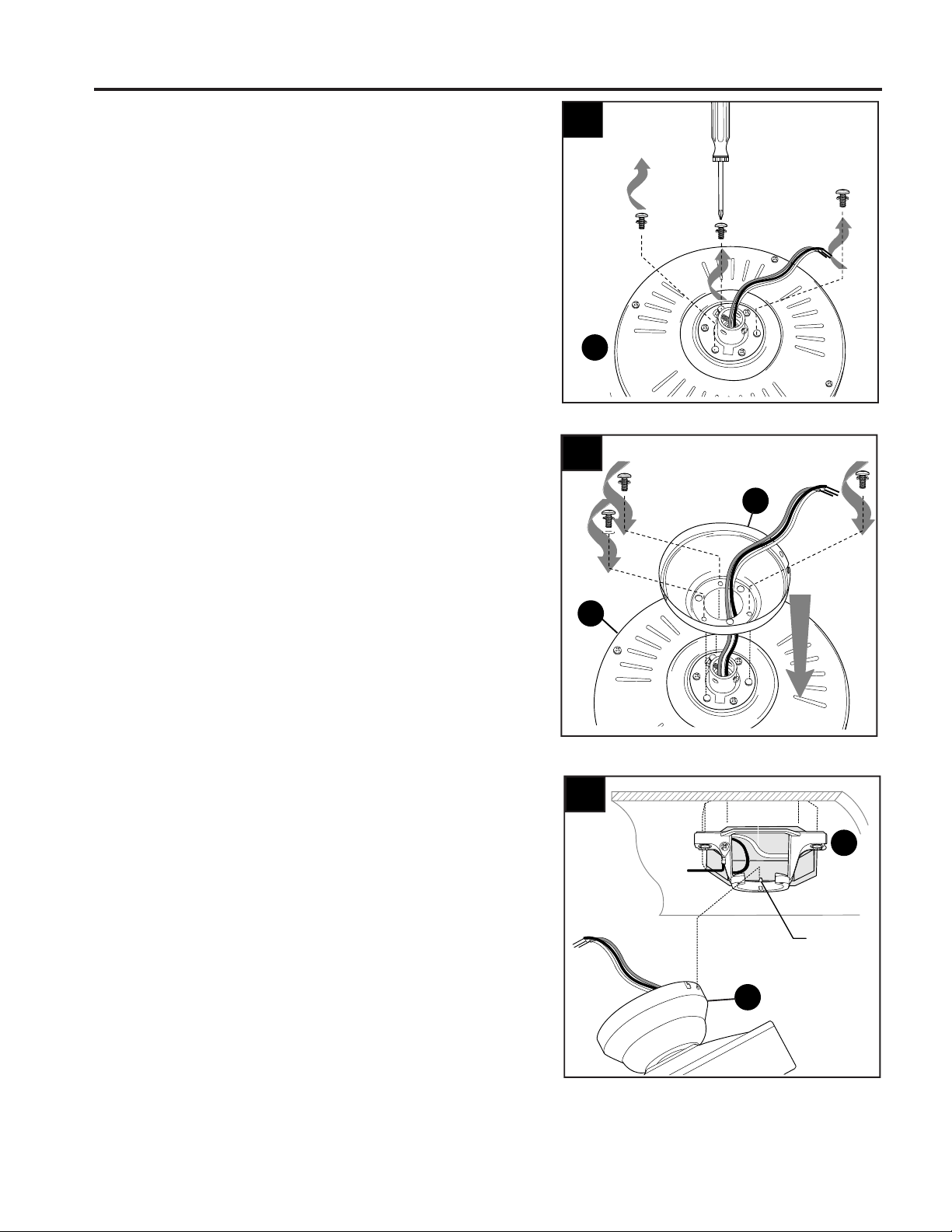

Remove every other preassembled screw/washer
from top of motor housing (E).
Pull wires up through hole in the middle of the
canopy (C) and attach canopy (C) to motor
housing (E) using the three screws/washers
previously removed.
E
2
3
C
E
C
Tab
C
4
B
11
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.

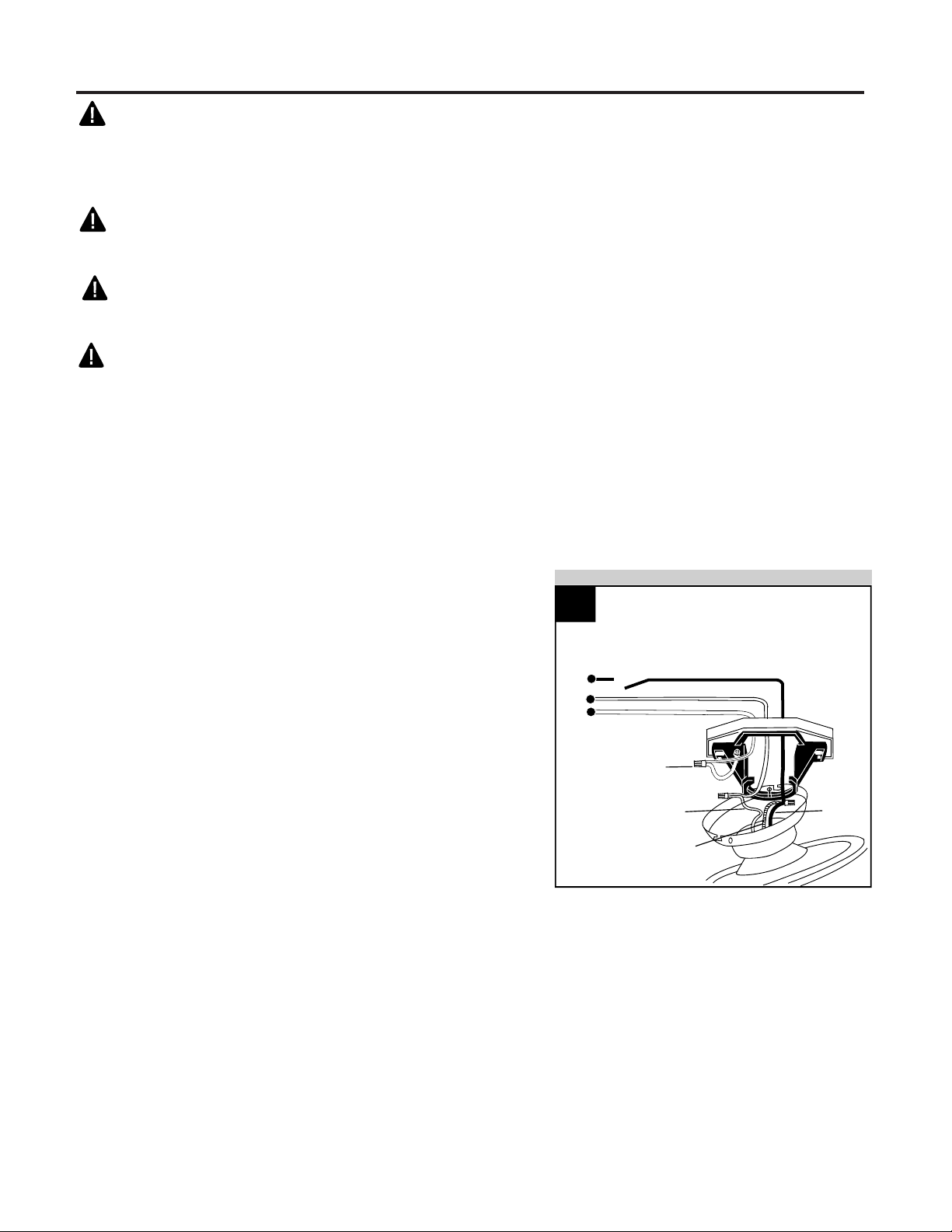

Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c) that
fits your situation and make appropriate wiring
connections as follows: [IMPORTANT: Use one of the
wire connectors (CC) to make each wire connection,
making sure to screw wire connector (CC) on in a
clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect
GROUND (GREEN) wires from downrod (A) and
mounting bracket (B) to BARE/GREEN wire from
ceiling.
1.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range
dimmer switch to control fan speed.
WIRING
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
GREEN
WHITE
BLACK
BLUE
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
WIRING
12

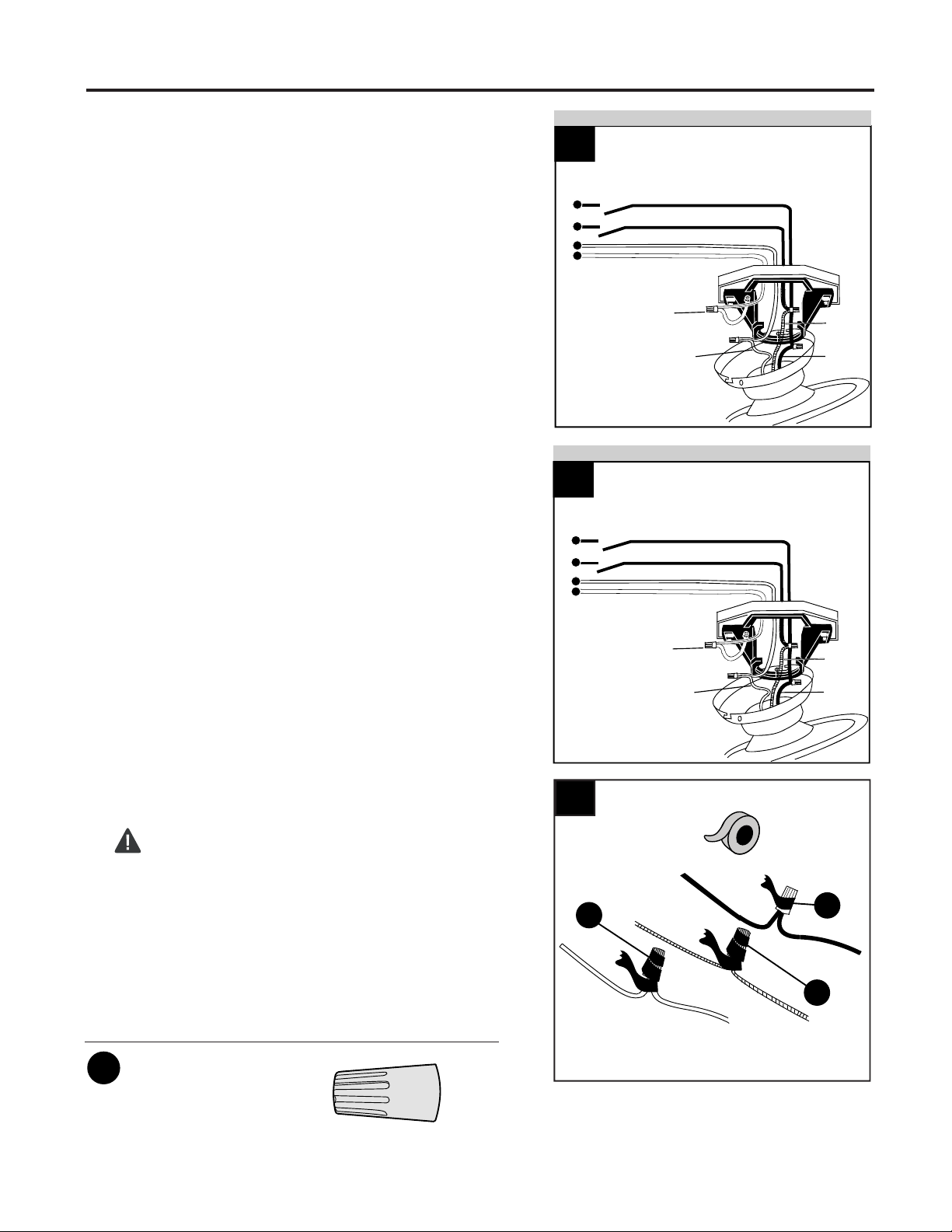

1c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: Connect BLACK wire from fan
to BLACK wire from the independent wall switch for
the fan. Connect BLUE wire from fan to the BLACK
wire from the other independent wall switch for the
light. Connect WHITE wire from fan to WHITE wire
from ceiling. Connect GROUND (GREEN) wires
from downrod (A) and mounting bracket (B) to
BARE/GREEN wire from ceiling.
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE wire connections on the opposite
side of the outlet box from the BLACK and BLUE wire
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
CC
Wire Connector x 4
Hardware Used
CC
CC
2
CC
GREEN
WHITE
BLACK
BLUE
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
1b
GREEN
WHITE
BLACK
BLUE
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1c
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. GREEN or BARE wire is ground.
1b. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: Connect BLACK wire from fan
to BLACK wire from ceiling. Connect BLUE wire
from fan to the BLACK (or RED) wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect GROUND (GREEN) wires from downrod
(A) and mounting bracket (B) to BARE/GREEN wire
from ceiling.
3.
13
1.
FINAL INSTALLATION
2.
Hardware Used
Blade Screw
x 15
AA
Blade Washer
x 15
BB
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (X). If screws are overtightened, blades (X)
may crack and break.

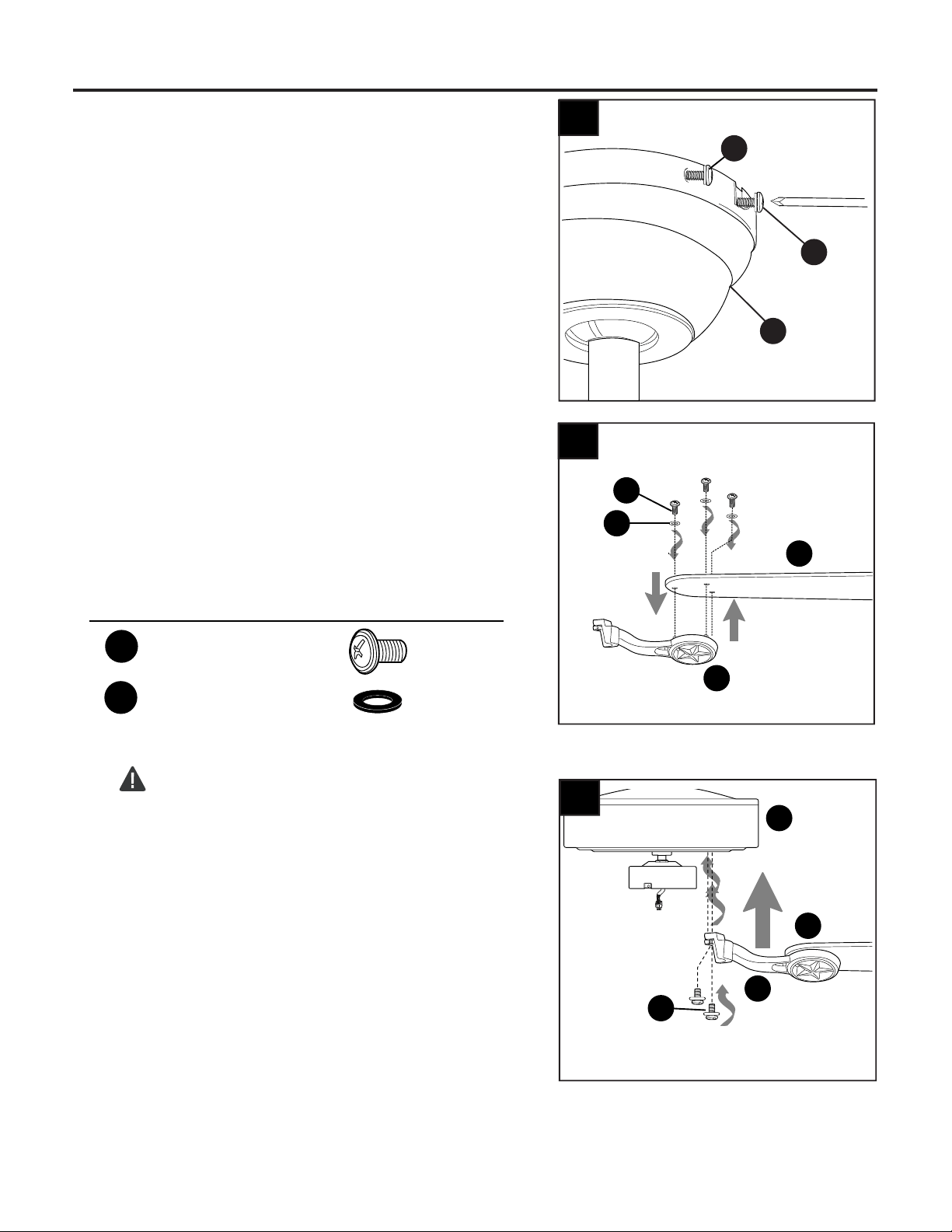

Attach blade arms (W) to the bottom of motor
housing (E) with motor screws/washers (Q)
previously removed (Step 5, page 7). Tighten motor
screws/washers (Q) securely. Note: Make sure to
completely secure each blade arm before
proceeding to the next.
If you do NOT wish to use the light kit, skip to
INSTALLING FAN WITHOUT LIGHT KIT on page
16.
If you DO wish to use the light kit, proceed to
Step 4.
Temporarily lift canopy (C) to mounting bracket (B)
to determine which two canopy mounting
screws/washers (T) in mounting bracket (B) align with
slotted holes in canopy (C) and partially loosen these
two canopy mounting screws/washers (T). Remove
the other two canopy mounting screws/washers (T).
Now, lift canopy (C) to mounting bracket (B) again,
aligning slotted holes in canopy (C) with loosened
canopy mounting screws/washers (T) in mounting
bracket (B). Twist canopy (C) clockwise to lock.
Re-insert the two canopy mounting screws/washers
(T) that were just removed and tighten all canopy
mounting screws/washers (T) securely.
Partially insert three blade screws (AA) along with
three blade washers (BB) into holes in blade (X) to
attach blade arm (W) to blade (X). Then, tighten
each blade screw (AA) starting with the one in the
middle.
Repeat for remaining blades (X) and blade arms
(W).
1
C
T
T
2
BB
AA
W
X
3
X
W
E
Q
FINAL INSTALLATION
14
4.
6.
Remove three switch housing screws (R) from motor
plate on underside of the motor housing (E). Connect
male plug from motor housing (E) to female plug from
switch housing (N), matching up the colors on the
plugs for correct fit. Make sure plugs connect tightly.
Carefully arrange wires inside switch housing (N).
Align holes in switch housing (N) with holes in motor
plate, and secure switch housing (N) with three switch
housing screws (R) previously removed. Tighten all
screws securely.
Note: Make sure to align gap on motor plate with the
reverse switch on switch housing (N) for a correct fit.

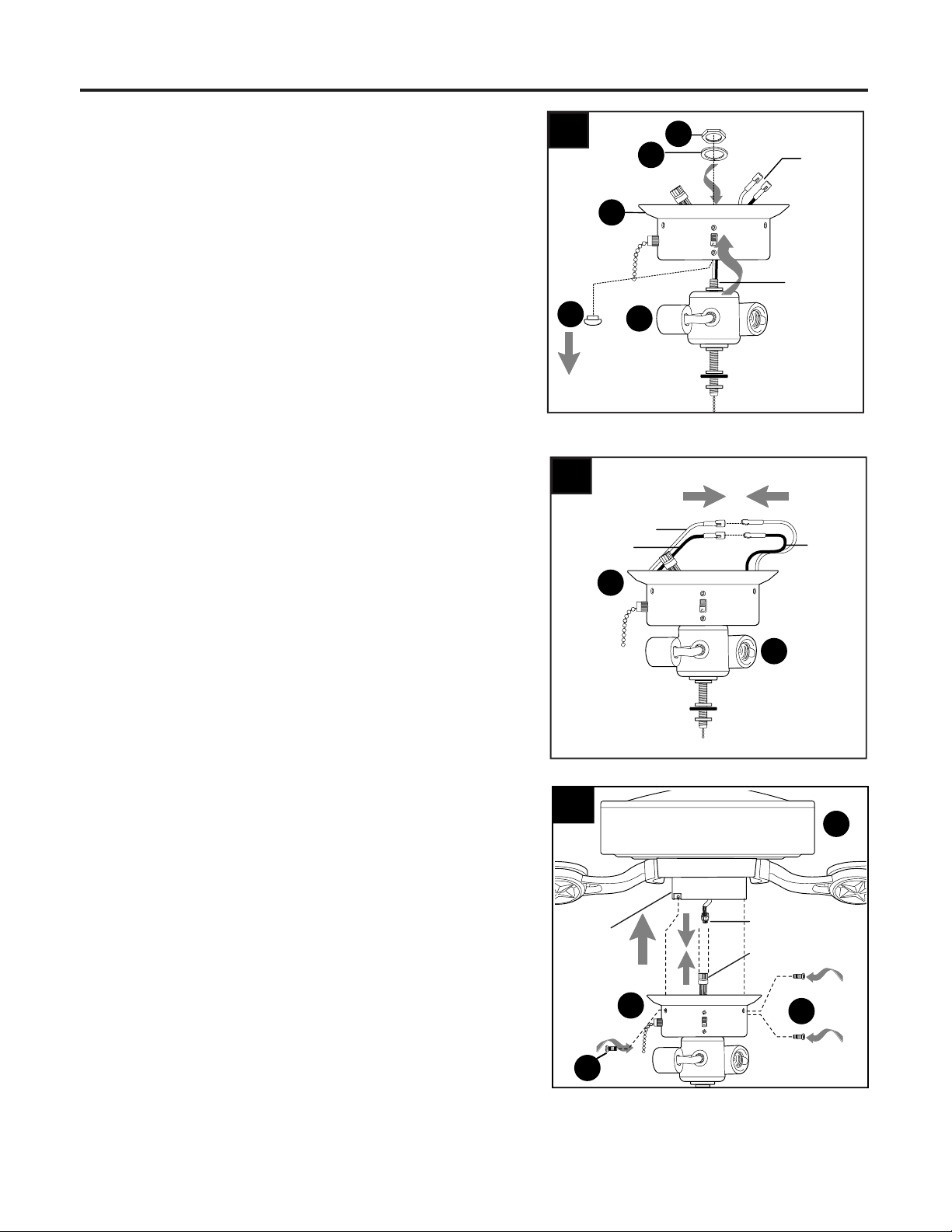

To install the fan with the light kit, remove
preassembled hex nut (U) and lock washer (V) from
threaded rod at top of light kit fitter (H). Punch center
cap (S) out of switch housing (N) with a screwdriver
(not included). Gently feed molex wires (one at a
time) from light kit fitter (H) through hole in middle of
switch housing (N), and then screw switch housing
(N) onto threaded rod on light kit fitter (H). Tighten
hex nut (U) over lock washer (V) for a secure fit.
Connect WHITE molex wire from light kit fitter
(H) to WHITE molex wire from switch housing
(N). Connect BLACK molex wire from light kit
fitter (H) to BLUE molex wire from switch
housing (N). Make sure molex wire connections
snap together securely.
5.
4
5
Molex
Wires
Blue
White
Molex
Wires
S
U
V
Threaded
Rod
Molex
Wires
H
H
N
N
6
E
N
R
R
Motor
Plate
Male Plug
Female
Plug
Black
15
FINAL INSTALLATION

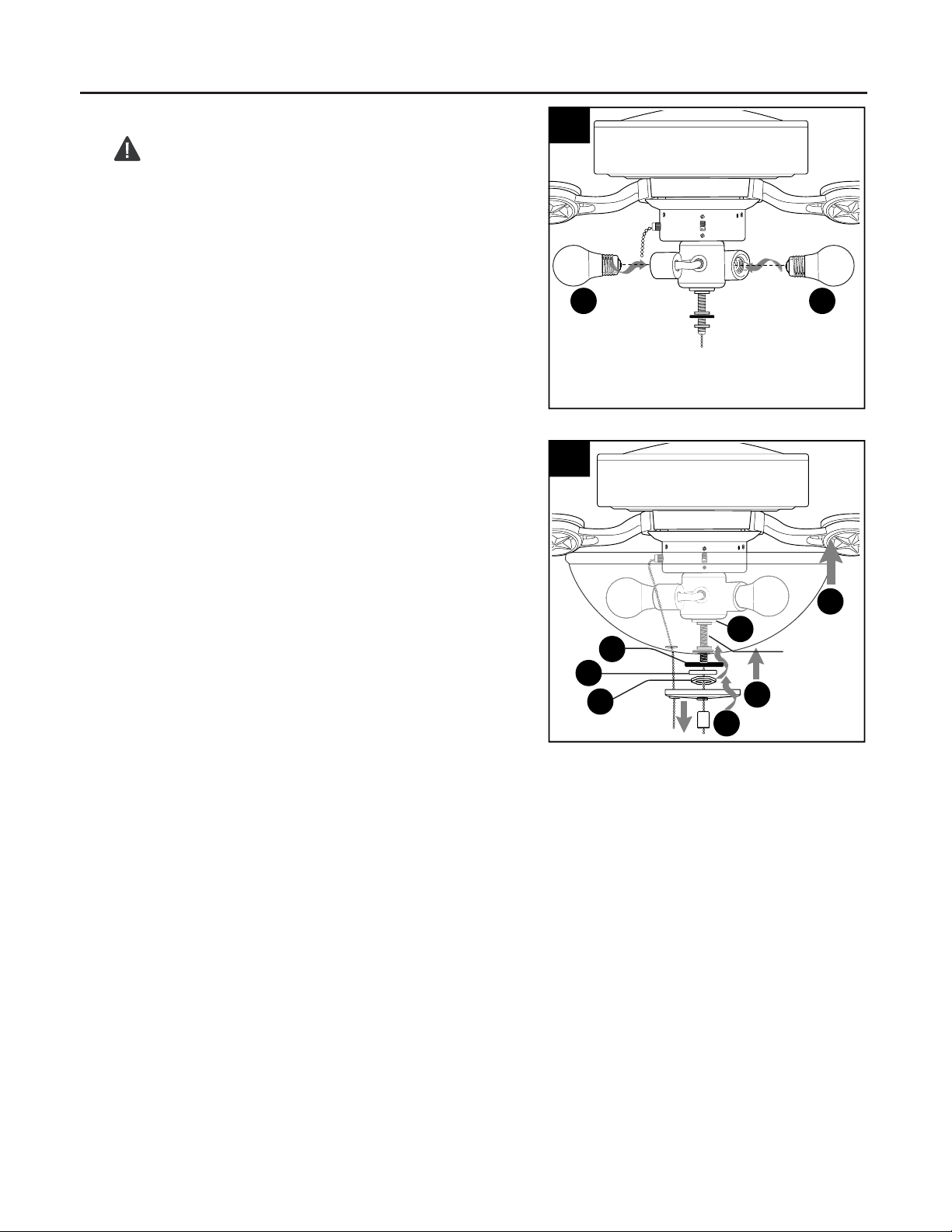

Install bulbs (G).
WARNING: When replacing bulbs, allow bulbs
and shade to cool down before touching.
7.
8.
Remove finial (M), finial plate (L), hex nut (K),
flat washer (J) and rubber washer (I) from light
kit fitter (H). Align hole in center of shade (F)
with threaded rod on light kit fitter (H), allowing
pull chains to come through corresponding
holes in shade (F). Push up gently on shade (F)
until threaded rod comes through hole. (Be sure
fan pull chain does not rub against bulbs during
fan operation.) Secure shade (F) with rubber
washer (I), flat washer (J) and hex nut (K).
Align hole in center of finial plate (L) with
threaded rod, allowing light pull chain to come
through hole in finial plate (L) and push up.
Thread center pull chain through hole in finial
(M) and secure finial plate (L) by tightening
finial (M).
NOTE: Do NOT overtighten hex nut (K) and
finial (M) as shade may crack or break.
7
G
J
K
F
I
L
G
Pull Chain
Threaded
Rod
8
M
H
16
INSTALLING FAN WITHOUT LIGHT KIT
1.
If you do NOT wish to use the light kit, remove
three switch housing screws (R) from motor plate on
underside of the motor housing (E). Connect male
plug from motor housing (E) to female plug from
switch housing (N), matching up the colors on the
plugs for correct fit. Make sure plugs connect tightly.
Carefully arrange wires inside switch housing (N).
Align holes in switch housing (N) with holes in motor
plate, and secure switch housing (N) with three
switch housing screws (R) previously removed.
Tighten all screws securely.
Note: Make sure to align gap on motor plate with the
reverse switch on switch housing (N) for correct fit.
Attach pull chain extensions (Y) or custom
pull chain extensions (not included) to fan
and light pull chains.
Attach pull chain extension (Y) or custom pull chain
extension (not included) to the fan pull chain.
2.
9.
FINAL INSTALLATION
Y
9
(For Fan)
(For Light)
Y
1
N
R
R
R
2
Y
E
E
Motor
Plate
Male Plug
Female
Plug
OPERATING INSTRUCTIONS
The fan pull chain has four positions to control
fan speed. One pull is HIGH, two is MEDIUM,
three is LOW and four turns the fan OFF.
1.
2.
Use the fan reverse switch on the switch housing
(N) to optimize the fan for seasonal performance.
A ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat
setting in winter without feeling a difference in your
comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3.
17
The pull chain located in the center is used to
turn the light ON or OFF.
Reverse Switch
N
3
2
1
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
18
3c
At least twice each year, lower canopy (C) to check downrod (A) assembly, and then tighten all
screws on fan. Clean motor housing (E) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (X) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use standard-base 6.5-watt LED bulbs or incandescent/CFL equivalent, up to 60
watts.
3a
3b
3c. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
3a. In warmer weather, setting the reverse switch
in the DOWN position will result in downward
airflow creating a wind chill effect.
3b. In cooler weather, setting the reverse switch
in the UP position will result in upward airflow that
can help move stagnant, hot air off the ceiling
area.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check that male and female
plugs in switch housing are
connected properly according to
instructions on page 14.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of
a few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
TROUBLESHOOTING
19
Fan operates but
light fails (if
applicable).
1. Bulb(s) not installed correctly.
2. Wires in canopy not wired
properly.
3. Wall switch to fan is off.
4. Wires in light kit fitter not wired
correctly.
1. Re-install bulb(s).
2. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 and 12.
3. Make sure that wall switch to
fan is on.
4. Check that molex connections
in light kit fitter are connected
properly according to instructions
on page 14.
Printed in China
PWLI2008
20
LIMITED LIFETIME WARRANTY
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
H
PART DESCRIPTION PART#
A
Downrod
B
Mounting Bracket
C
Canopy
H Light Kit Fitter
W Blade Arm
X Blade
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST,
Monday - Sunday.
2599775-A
2599775-B
2599775-C
2599775-H
2599775-W
2599775-X
A
B
C
X
W
