V-ZUG Ltd
Tumble dryer
Adora TL WP
Operating instructions
2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
➤ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
• Indicates a list.
Validity
The model number corresponds to the first 3 digits on the identification plate.
These operating instructions apply to the model:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2010
Caution, risk of fire!
Denotes important safety precautions. Failure to observe said
precautions can result in injury or damage to the appliance or
fittings!
Denotes useful tips for the user.
Model Type Model no.
Adora TL WP WT-ATLWPZ 958
3
Contents
1 Safety precautions 5
1.1 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.5 Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.6 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Your appliance 12
2.1 Appliance description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2 Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3 Operating and display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.4 Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3 Programme overview 17
3.1 Programme sequence for automatic programmes . . . . . . . . . . . . . . . . . 17
3.2 Automatic programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.3 Fabric type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.4 Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4 User settings 23
4.1 Level of dryness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.2 Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.3 Restoring factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5Drying 27
5.1 Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.2 Changing selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.3 Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.4 Aborting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.5 Programme selection with childproof lock activated . . . . . . . . . . . . . . . 33
5.6 End of programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6 Care and maintenance 36
6.1 Cleaning intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6.2 Error message A9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6.3 Build-up of fluff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6.4 Cleaning the door filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.5 Clean the base cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.6 Cleaning the mesh filter in base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.7 Cleaning the filter mat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.8 Cleaning the moisture sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4
7 Trouble-shooting 42
7.1 What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8 Drying tips 49
8.1 Fabric care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9 Spare parts 51
10 Technical data 52
10.1 Notes for testing institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.2 Automatic energy-saving standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
11 Disposal 54
12 Notes 55
13 Index 57
14 Repair service 59
5
1 Safety precautions
In accordance with the requirements of IEC 60335-1:
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
1.1 Transport
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please
therefore follow the precautions given in these operating
instructions.
Read the operating instructions carefully before placing the appliance
in operation!

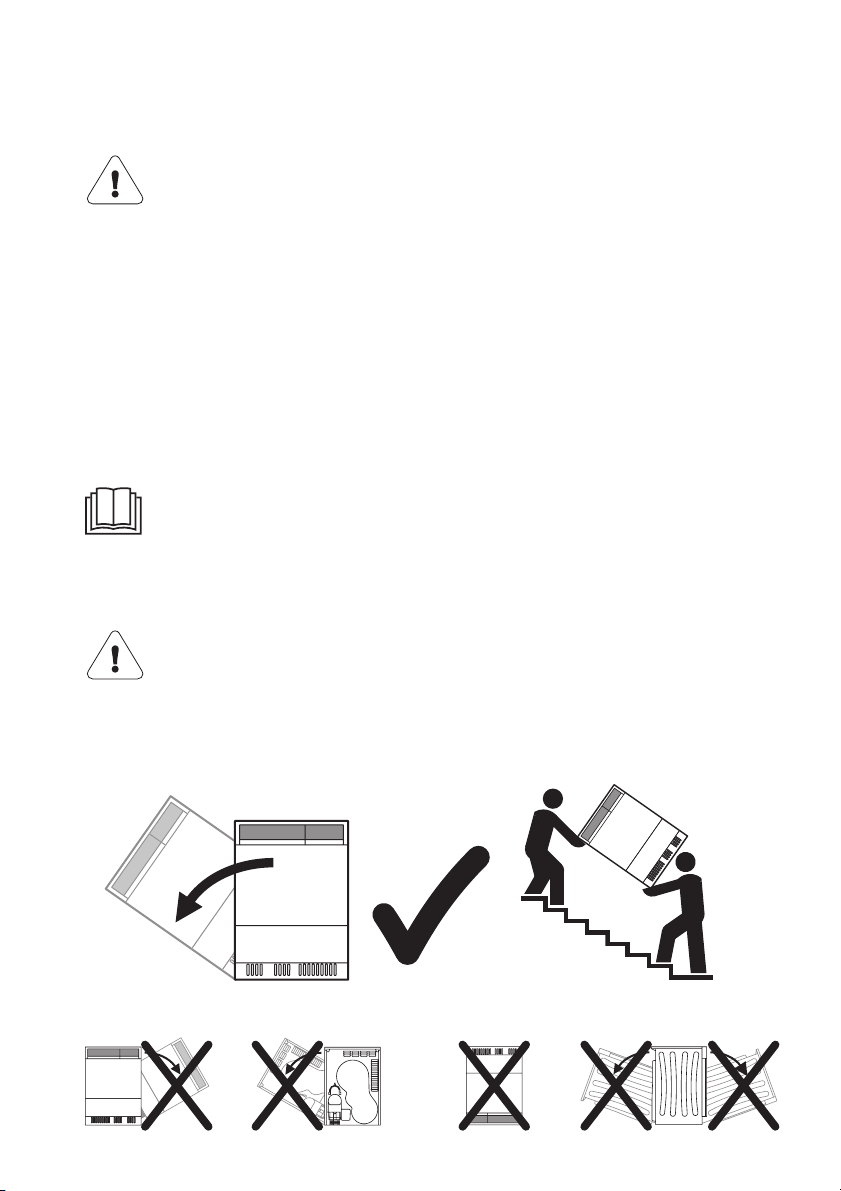

The appliance is only to be transported in the upright position!
Transporting it in any other position will result in damage to the
appliance!
When carried carefully, without being shaken, the appliance may
be tilted to the left by a maximum of 90° (viewed from the front).
Front,
upside down SideBackFront
Front
Front
1 Safety precautions
6
1.2 Before using for the first time
• The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
• Dispose of the packaging material in accordance with local regulations.
• Ensure access to the place of disconnection (e.g. socket outlet, wall switch,
fuse).
• It is advisable to wipe out the drum with a damp cloth.
• Please follow the precautions in the
USING FOR THE FIRST TIME section
before operating the newly installed appliance.
1.3 Correct use
• The appliance is suitable for drying home textiles. It is designed for use in
the home and for the above-mentioned purpose only. No liability is
assumed for any damage caused by improper or incorrect use.
• Any repairs, modifications or manipulations to the appliance, especially
any electrical parts, should only be carried out by the manufacturer, its
Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the
REPAIR SERVICE section. If necessary, please contact Customer
Services.
• Use original spare parts only.
• Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instruc-
tions accompany the appliance, together with the instructions on instal-
lation. In this way, the new owner can inform themselves about how to use
the appliance correctly and read the pertinent safety precautions.
Allow the appliance to stand for about 2 hours in the normal
operating position. Failure to do so can result in damage to the
appliance.
1 Safety precautions
7
Do not use the appliance to dry the following
•Unwashed washing.
• Textiles that have been cleaned, treated or soaked with flammable
chemicals, detergents or solvents (benzine, alcohol, stain remover, oil,
paint, wax, etc). Fire or explosion hazard!
Wash materials containing such substances first by hand with water or
allow the solvent to evaporate completely.
• Fabrics with traces of hair spray, hair gel, nail varnish remover or other
similar substances. Danger of gas build-up!
• Washing containing foam rubber or other rubber-like material. Ignition
hazard!
To minimize the risk of fire in a tumble dryer, the following should be
observed:
• Regularly clean the filters.
• Items that have been spotted or soaked with vegetable or cooking oil
constitute a fire hazard and should not be placed in a tumble dryer.
Oil-affected items can ignite spontaneously, especially when exposed to
heat sources such as in a tumble dryer. The items become warm, causing
an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch fire. Piling, stacking or
storing oil-affected items can prevent heat from escaping and so create a
fire hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have
been contaminated by hair care products be placed in a tumble dryer they
should first be washed in hot water with extra detergent – this will reduce,
but not eliminate, the hazard. The «cool down» cycle of tumble dryers
should be used to reduce the temperature of the items. They should not be
removed from the tumble dryer or piled or stacked while hot.
• Items that have been previously cleaned in, washed in, soaked in or
spotted with petrol/gasoline, dry-cleaning solvents or other flammable or
explosive substances should not be placed in a tumble dryer.
Highly flammable substances commonly used in domestic environments
include acetone, denatured alcohol, petrol/gasoline, kerosene, spot
removers (some brands), turpentine, waxes and wax removers.
1 Safety precautions
8
• Items containing foam rubber (also known as latex foam) or similarly
textured rubber like materials should not be dried in a tumble dryer on a
heat setting.
Foam rubber materials can, when heated, produce fire by spontaneous
combustion.
• Fabric softeners or similar products should not be used in a tumble dryer
to eliminate the effects of static electricity unless this practice is specifically
recommended by the manufacturer of the fabric softener or product.
• Undergarments that contain metal reinforcements should not be placed in
a tumble dryer.
Damage to the tumble dryer can result if metal reinforcements come loose
during drying.
• Plastic articles such as shower caps or babies’ waterproof napkin covers
should not be placed in a tumble dryer.
• Rubber-backed articles, clothes fitted with foam rubber pads, pillows,
galoshes and rubber-coated tennis shoes should not be placed in a tumble
dryer.
1 Safety precautions
9
1.4 Children in the home
• Packaging material (e.g. plastic, polystyrene) can be dangerous for
children. Danger of suffocation! Keep packaging material away from
children.
• The appliance is designed for use by adults who are familiar with these
operating instructions. Children are often unable to recognise the danger
of electrical appliances. Ensure proper supervision and do not allow
children to play with the appliance – there is a danger that children could
get locked inside.
• Tumble dryer additives (e.g. tumbler dryer sheets) can irritate the eyes,
mouth and throat and even cause choking! Keep tumble dryer additives
out of the reach of children.
• Use the childproof locking facility.
1 Safety precautions
10
1.5 Note on use
• Do not use the appliance if visibly damaged or if the inlet pipes are
damaged. Contact Customer Services.
• If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
• If the mains cable of the appliance is damaged, it must be replaced by
Customer Services in order to avoid hazard.
• Keep pets away from the appliance.
• To protect your washing, follow the fabric care symbols and the hints and
advice in the
DRYING TIPS section.
• Do not use a fabric conditioner or other fabric care solutions for the wash.
Otherwise pay attention to the manufacturer’s information.
• Do not operate the appliance without or with a damaged door filter. Fire
hazard from fluff build-up!
• Take care not to allow fluff to build up around the drier.
• Before closing the appliance door and starting a programme, ensure that
there are no foreign objects or pets in the drum.
• During the drying process, the back, drum and inside of the appliance door
become hot. Care should be taken to avoid touching these parts.
• Never end the drying programme prematurely. A short cooling phase takes
place at the end of the drying programme. Providing you are able to do so,
remove the load quickly and spread it out to enable the heat to evaporate.
• The condensate water collected is not suitable for drinking.
• During longer periods of non-use, switch off the electricity by pulling out the
mains plug. Never pull the mains plug out by the cable.
Do not use the pivoting operating panel to lift or move the
appliance.
1 Safety precautions
11
1.6 Maintenance
• Disconnect the appliance from the mains before carrying out maintenance
work.
• The door filter must be cleaned each time after a drying programme.
• Do not spray the outside or the inside of the appliance with water. Do not
use a steam cleaner.
• Do not sit, lean or rest on the appliance door.
• Do not climb on to the appliance. Danger of tipping!
• Use original spare parts only.
Ensure the drum has stopped moving before reaching inside. Do
not touch the drum while it is still in motion – risk of serious injury!
12
2 Your appliance
2.1 Appliance description
The appliance operates with a closed air circuit. With the help of the heat
pump, the moisture is extracted from the air which is then heated up again.
Recovering heat in this way sharply reduces energy consumption. The
appliance has no electric heating element.
Thanks to the heat pump, the appliance dries at lower temperatures. All the
programmes are therefore gentler on your laundry.
The condensate water collected is discharged through an outlet at the rear
into the drainage system.
In general, as heat pumps give off a certain amount of moisture, rooms in
which there are heat pumps should be aired. If the room is kept closed, it
should be aired occasionally (either by opening the door to the room or a
window) between several consecutive drying programmes.
• Capacity: 6 kg dry load
• 5 automatic programmes
•Timed drying
• Programme for various fabrics
• Additional functions
• Crease guard at end of programme
• Digital display
• Childproof lock
• Automatic energy-saving stand-by
– Airing – Leisurewear
–Silk –Denim
– Shirts – Down filling thin/thick
–Easy care
– Delayed start
2 Your appliance
13
2.2 Construction
1 Operating and display elements
(pivoting operating panel)
2 Appliance door
3 Door filter
4 Cover
5 Cassette in base
6 Air grille
7 Identification plate/
serial number (FN)
8 Cleaning instructions
Cassette in base
9 Mesh filter in base
10 Filter mat
The appliance door can be set to open to the left or to the right. Our
Customer Services can make the necessary adjustments to the
appliance.
The operating panel can be set in one of
3 positions.
1
3
8
6
10
9
2
5
4
7
2 Your appliance
14
2.3 Operating and display elements
Automatic programmes
Additional programme
Additional functions
Extra dry
Normal dry
Iron dry
Damp
Woollens
Step button
Fabric type
Timed drying
Easy care
Delayed start
End of programme
MIN.
2 Your appliance
15
Display elements
• Display (digital display) for:
Programme duration
Remaining programme duration
Delayed start
Hints and trouble-shooting
• Level of dryness display
• Cooling down/airing
Indicator lights
The buttons, the automatic programmes, the additional programmes and
certain additional functions are equipped with an indicator light.
Indicator light flashes
Select programme or function.
Indicator light is illuminated
Programme or function is active.
Indicator light is not illuminated
Programme or function is switched off.
Iron dry
Cupboard dry normal
2 Your appliance
16
2.4 Using for the first time
When the appliance is connected to the power supply for the first time, it is
possible to select a function test. The purpose of the function test is to check
the installation and it lasts about 3 minutes. For the function test the appliance
must not to have been standing in the normal operating position for approx.
2 hours as the heat pump is not started. The function test can therefore be
selected immediately after installation.
Start function test
➤ Connect appliance and wait for to show in the display.
➤ Start the function test with button .
The function test can be interrupted in 2 ways:
Continue the function test:
➤ Press the button.
– The remaining time shows in the display, e.g. .
Abort function test:
➤ By pressing the button the function test is aborted and all displays go
out.
End of function test:
– All displays go out on completion of the function test.
The function test cannot be aborted by an interruption of the mains
supply.
Once the function test has been run, it can no longer be selected and
the appliance enters the normal selection mode.
1. Open the appliance door.
– flashes in the display.
– Indicator lights for buttons and flash after closing the appliance
door.
Or
2. Press the button.
– Indicator lights for buttons and flash.
The appliance is ready to operate after the required waiting time of
approx. 2 hours in the normal operating position.
17
3 Programme overview
3.1 Programme sequence for automatic programmes
The drying programme has 3 phases:
Drying
The washing is tumble dried until it reaches the set level of dryness. The
drying programme is monitored by a moisture sensor. As soon as the
required level of dryness is reached, the «Cooling down/airing» phase starts.
Cooling down/airing
The washing is cooled down to a temperature at which creasing is minimized.
This phase lasts between 1–10 minutes. The washing can now be unloaded.
If the washing is not unloaded, the «Crease guard» programme starts.
Crease guard
The dried washing is moved at frequent intervals to prevent creasing.
If the «Easy care» function has been selected «Crease guard» runs
90 minutes, otherwise with all other programmes it runs 30 minutes. «Crease
guard» can be stopped at any time simply by opening the appliance door or
by pressing the button.
3 Programme overview
18
3.2 Automatic programmes
To select the right drying programme, follow the fabric care symbols
on garment labels, e.g. .
Programme Symbol Use
Extra dry
For thick, multi-layered fabrics and mixed loads.
Not suitable for knitted or woven articles such as T-shirts and underwear
as they could shrink.
Normal dry For similar items of washing (e.g. terry towelling and underwear).
Iron dry For items that are to be ironed.
Damp For items that are to be pressed in a mangle (e.g. table linen).
Woollens
For woollen fabrics labelled as washable. Gentle drying through a gentle
drum action and a low temperature (ca. 45 °C).
Timed
drying
For drying off textiles. Also for drying suitable sleeping bags and quilts, and
any individual items of washing.
MIN.
3 Programme overview
19
The stated values for the programme duration and energy apply for the
maximum stated capacity with a wash spun at approx. 1000 rpm (corre-
sponds to a residual moisture of approx. 60 %). A higher spinning speed and
a smaller load reduce them by about 20–30 %.
Capacity Residual moisture Programme duration Energy
1–6 kg –4 % to –1 % 2h20 1,85 kWh
1–6 kg –1 % to 2 % 2h00 1,58 kWh
1–6 kg 8 % to 16 % 1h40 1,32 kWh
1–6 kg 20 % to 30 % 1h30 1,17 kWh
1 kg 0 % to 5 % 1h35 0,98 kWh
1–6 kg – 0h10 to 1h30 –
3 Programme overview
20
3.3 Fabric type
Display Use
P1 Airing For refreshing or airing little-worn garments.
P2 Silk
For drying silk fabrics. Follow the fabric care labels as silk tends
to crease easily. Low temperature for gentle drying.
P3 Shirts Fabrics are gently dried to «cupboard dry».
P4 Leisurewear Leisure- and sportswear (sympatex, goretex, etc.) are dried gently.
P5 Denim
Denim fabrics are dried to «cupboard dry».
Follow the fabric care labels as denim material can shrink.
P6 Thin down filling
For light-weight down textiles (e.g. thin duvets and jackets).
Optimum load: 1 item
P7 Thick down filling
For bulky down textiles (e.g. pillows, jackets and thick duvets).
If recommended, tennis balls can be used for fluffing up the down
during drying.
Optimum load: 1 item
3 Programme overview
21
Capacity Residual moisture Programme duration Energy
2,5 kg – 0h10 0,02 kWh
1,5 kg 0 % to 2 % 0h45 0,51 kWh
7 in total 0 % to 2 % 0h45 0,50 kWh
3 kg 0 % to 2 % 1h55 1,53 kWh
4 kg –1 % to 2 % 1h55 1,55 kWh
2 kg –1 % to 1 % 2h30 1,92 kWh
2 kg –1 % to 1 % 2h40 2,15 kWh
3 Programme overview
22
3.4 Additional functions
Function/symbol Use
Max.
load
Easy care
Gentle drying for mixed fabrics (e. g. shirts, pullovers, T-shirts). The
level of dryness is reduced.
2,5 kg
Delayed start
Take advantage of cheap-rate electricity (setting range:
1–24 hours).
During shut-off periods – determined by the local electricity supplier –
the delayed start time is extended by the length of time the electricity
is shut off. This is not shown in the display.
–
23
4 User settings
Providing no programme is running and no error message is displayed, the
user settings can be changed with the appliance door open or closed. The
procedure is generally the same for all settings.
Changing user settings
➤ Hold the button depressed for 5 seconds.
– The display shows: .
➤ Press the button repeatedly until the desired setting shows in the
display, e.g.: for childproof lock OFF.
➤ To change, press the button.
– The display shows for childproof lock ON.
– The setting is taken over automatically and must not be confirmed.
Exiting user settings
➤ Press the button repeatedly until the display goes out.
If no button is pressed within the next 20 seconds, user settings is
exited and the display goes out.
4 User settings
24
The following diagram gives an overview of the possible user settings.
no change
restore
* Factory setting
Childproof lock
Level of dryness
Factory settings
➤ Hold button depressed for 5 seconds
very strong drying
strong drying
low drying
normal drying *
very low drying
OFF *
ON
4 User settings
25
4.1 Level of dryness
The appliance is designed to provide the most energy-efficient drying. The
moisture sensor continually monitors the level of dryness of the washing. If
the washing is not being dried sufficiently – or being overdried – the level of
dryness can be reset.
Changing the level of dryness
➤ Hold the button depressed for 5 seconds.
– The display shows:
➤ Press the button repeatedly until the actual setting shows in the
display, e.g.:
➤ Press the button repeatedly until the desired setting shows in the
display, e.g.:
➤ Press the button repeatedly until the display goes out.
Levels of dryness
Changing the level of dryness changes the level of dryness setting of
all the programmes. Care should be taken when increasing the level
of dryness, as overdrying can damage fabrics.
Very low drying
Low drying
Normal drying (factory setting)
Strong drying
Very strong drying
4 User settings
26
4.2 Childproof lock
The childproof lock is to prevent small children accidentally starting or
stopping a programme. When the childproof lock is on, a programme can
only be started by pressing two buttons simultaneously.
Switching the childproof lock on/off
➤ Hold the button depressed for 5 seconds.
– The display shows: .
➤ Press the button repeatedly until the actual setting shows in the
display, e.g.: for childproof lock OFF.
➤ To change, press the button.
– The display shows for childproof lock ON.
– The setting is taken over automatically and must not be confirmed.
➤ Press the button repeatedly until the display goes out.
4.3 Restoring factory settings
The factory settings can be restored.
➤ Hold the button depressed for 5 seconds.
– The display shows: .
➤ Press the repeatedly until the actual setting shows in the display, e.g.:
for no change.
➤ To change, press the button.
– Shown in the display is restore factory settings.
– The setting is taken over automatically and must not be confirmed.
➤ Press the button repeatedly until the display goes out.
27
5Drying

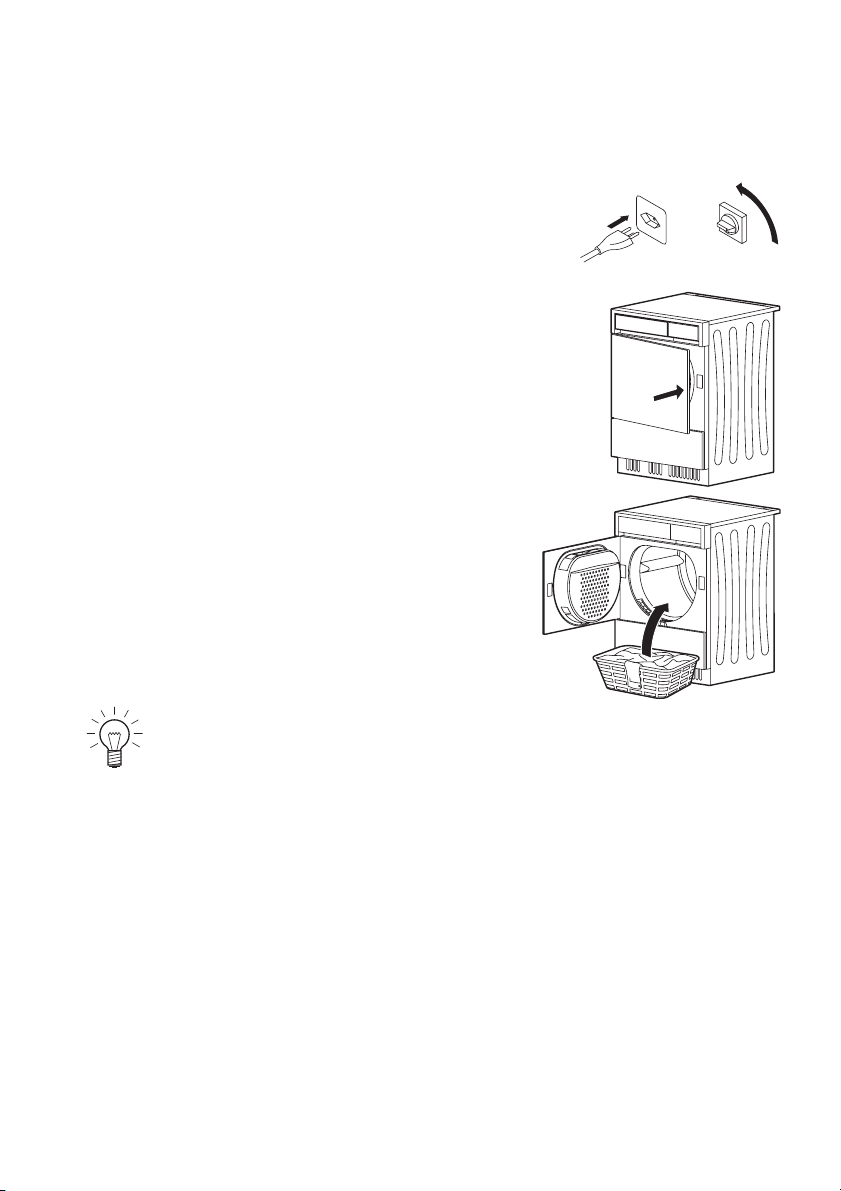

Preparing the appliance
➤ Plug the appliance in at the mains or turn
the wall switch on.
Loading the appliance
➤ Open the appliance door (press the middle of
the lock side of the door at the edge).
➤ Loosely load wet washing items one by one.
•See
PROGRAMME OVERVIEW for maximum
drying load capacity.
• Do not fill drum more than ½ full.
• Large blankets, in particular, need plenty of
room to tumble.
➤ Close the appliance door (pushing firmly to).
– The programme selection indicator lights flash.
– The appliance is ready for select programme.
If no programme selection is made within 20 seconds, all displays go out.
However, it is still possible to make a programme selection.
When you close the appliance door, check that no items of washing
are trapped.
1
0
1
0
5 Drying
28
5.1 Programme selection
An automatic programme is selected by pressing step button . All the
necessary settings for the programme are made automatically.
Additional functions can be selected or deselected by pressing the corre-
sponding button.
If no buttons are pressed within 20 seconds, the drying programme selected
starts automatically.
Duration remaining indicator
The expected programme duration is displayed when selecting the
programme. This refers to a similar wash composition with defined weight.
Load determining takes place after the programme start:
– The maximum programme duration is shown and the letter «h»
flashes for approx. 1 minute.
– The expected remaining duration is calculated and then displayed.
– The letter «h» starts to flash again:
The remaining duration is calculated anew and then displayed .
Use the
PROGRAMME OVERVIEW to determine which programme is
the most suitable for your washing.
The actual running time can vary from the displayed duration
according to the fabric type. Therefore the indicated remaining
duration can stay unchanged for a few minutes, especially towards
the end of the programme. During this period the letter «h» flashes
and the remaining duration calculation is carried out anew.
5 Drying
29
Selecting an automatic programme
➤ Close the appliance door.
– Indicator lights for buttons , and flash.
➤ Press button until the indicator light for the desired programme lights,
or
➤ press button until the fabric type programme e.g. shows for
approx. 3 seconds in the display.
– The maximum duration (hours/minutes) is shown. The expected
programme duration shows only after the load determining approx.
1minute).
– The indicator light for the additional function «easy care» flashes for
20 seconds.
– If no buttons are pressed within 20 seconds, the drying programme
selected starts automatically.
During these 20 seconds, it is possible to select a different
drying programme. In this case, all additional programmes
selected are cancelled and must be reselected.
MIN.
5 Drying
30
Selecting timed drying
➤ Close the appliance door.
– Indicator lights for buttons , and flash.
➤ Press the button.
➤ Press repeatedly to select desired duration, i.e. 10, 20, 30, 40, 50, 60 or
90 minutes.
– The duration selected appears in the display.
– The indicator lights for any additional functions that may be selected
flash for 20 seconds.
Selecting easy care
➤ Press button whilst the indicator light is flashing.
The programme duration always includes a 10-minute «Cooling
down/airing» phase.
MIN.
MIN.
5 Drying
31
Selecting delayed start
➤ Hold button pressed immediately after the programme selection, or
keep pressing it until the desired delayed start duration shows in the
display (max. 24 hours).
– The display goes dark.
– After the desired delayed start period is up, the programme selected
starts automatically.
Items of washing may be added at any time.
The time remaining to the delayed start can be reduced (in hourly
intervals) to zero by repeatedly pressing the button.
5 Drying
32
5.2 Changing selection
During programme selection
➤ Press button .
– The next programme is selected.
– All selected settings are cancelled.
5.3 Interrupting a programme
A running programme can be interrupted at any time to add/remove an item
of washing before time.
➤ Open the appliance door.
– Flashing in the display is the remaining time, respectively the delay time.
➤ Close the appliance door (pushing firmly to).
– The indicator light for the selected programme lights and button
flashes.
➤ Press the button.
– The drying programme continues.
Once a programme has started, it is no longer possible to change it.
The programme must be aborted.
After closing the appliance door the heat pump starts after a waiting
time of 10 minutes and the programme duration is lengthened corre-
spondingly.
5 Drying
33
5.4 Aborting a programme
➤ Press the button.
– The programme is aborted and all settings cancelled.
5.5 Programme selection with childproof lock activated
How to turn the childproof lock on/off is described in USER SETTINGS.
➤ Close the appliance door.
– The display shows: .
– Indicator lights for buttons and flash.
➤ Hold button pressed and also press button or .
Programme interruption through door opening
➤ Open the appliance door.
– Running programme is interrupted.
➤ Close the appliance door.
➤ Hold button pressed and also press the flashing button or .
– Programme is continued.
The appliance can be operated without further regard to the child-
proof lock until the programme starts.
MIN.
MIN.
MIN.
5 Drying
34
Programme abort through door opening
➤ Open the appliance door.
– Running programme is interrupted.
➤ Hold button pressed and also press the flashing button or .
– Programme is aborted.
Programme abort through button selection
With the door closed, carry out the following step 2×:
➤ Hold button pressed and also press the illuminated button or .
– Programme is aborted.
MIN.
MIN.
5 Drying
35
5.6 End of programme
– The display shows:
– The indicator light for the programme that has finished illuminates.
– The indicator light for the button flashes.
«Crease guard» starts if the appliance is not unloaded straightaway. When it
has finished, the indicator lights and plain text display go out.

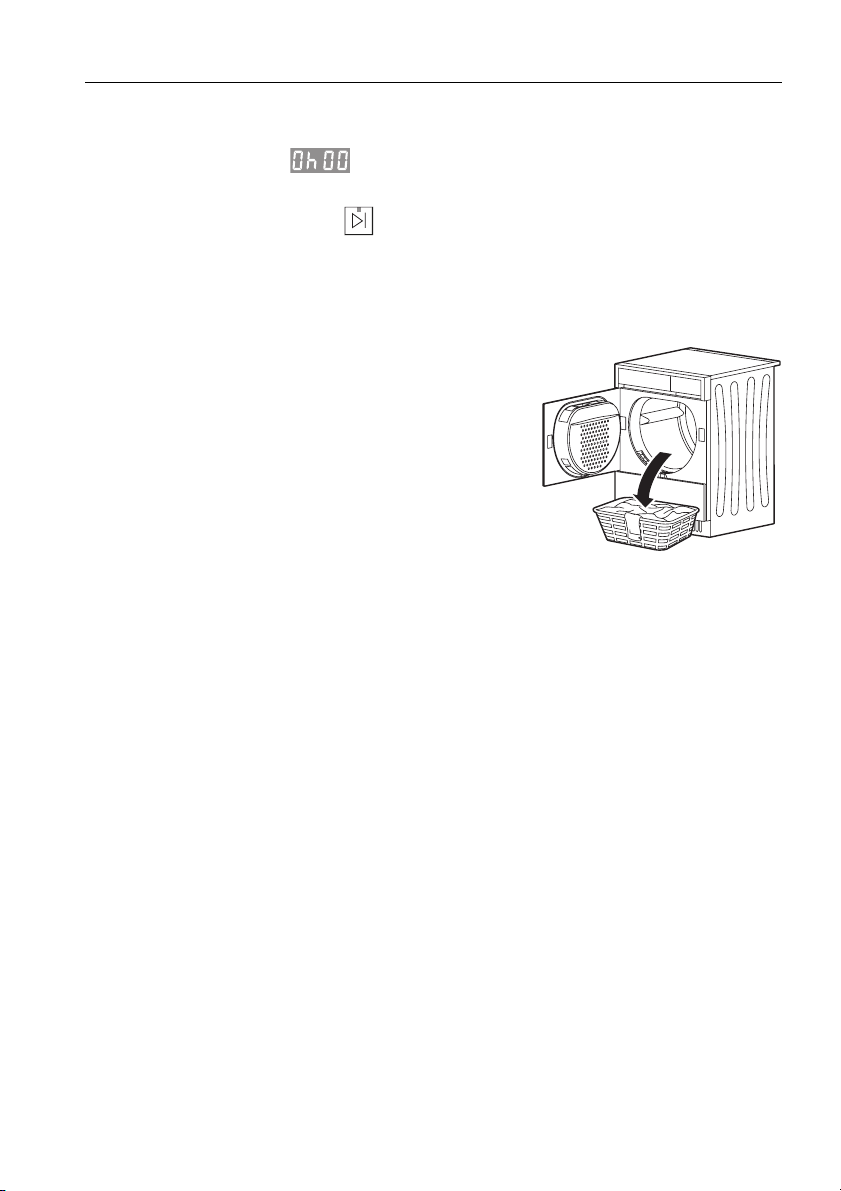

Unloading the washing
➤ Open the appliance door.
– The indicator lights and the display go out.
➤ Unload the washing.
➤ Clean the door filter.
➤ Close the appliance door.
If the appliance door is opened during the «Cool down» phase, the
programme is aborted and the indicator lights and display go out.
When you have finished washing for the day
➤ Clean the door filter.
➤ Check the mesh filter in base and clean it if necessary.
➤ Close the appliance door.
36
6 Care and maintenance
6.1 Cleaning intervals
To minimize the risk of fire hazard regularly clean the filters!

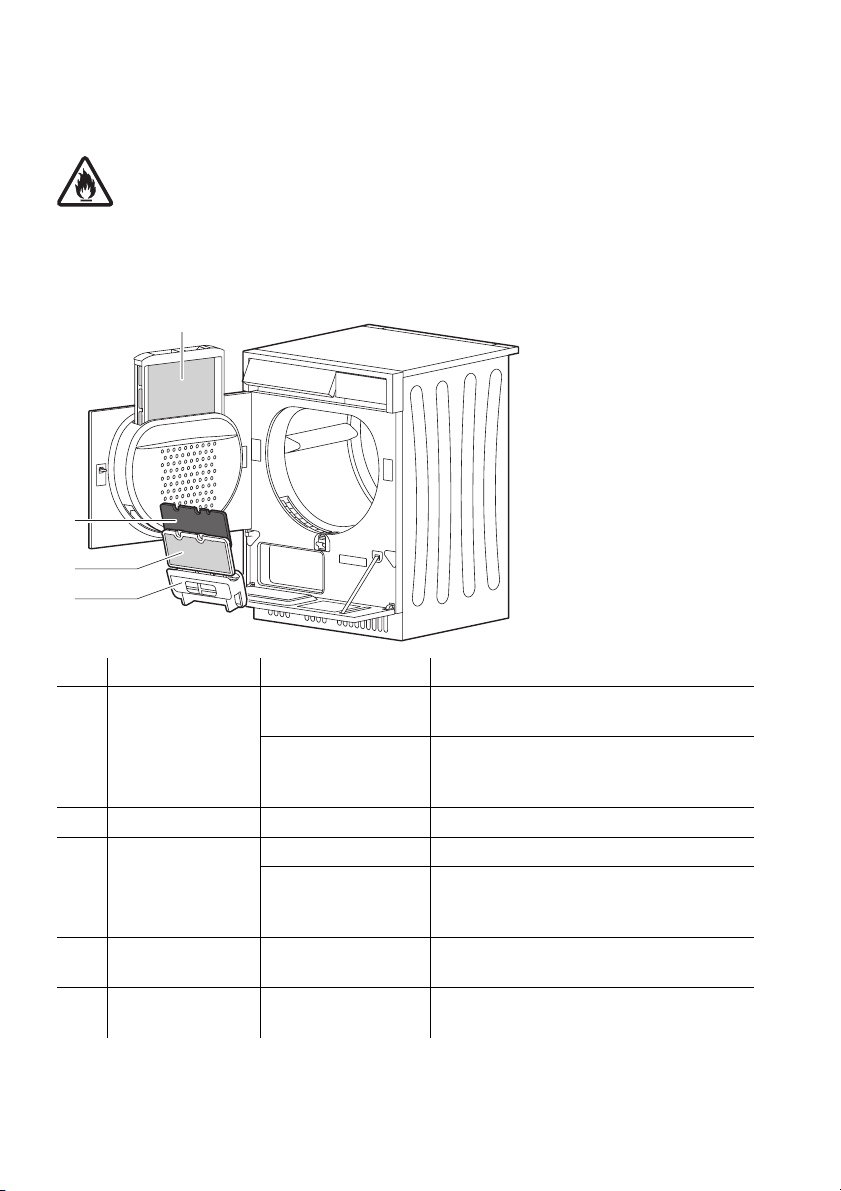

Pos. Part Cleaning intervals Cleaning
1
Door filter
each time after a drying
programme
remove any fluff
whenever there is a
heavier build-up of
deposits
using an abrasive liquid cleaning agent and a
sponge, rinse with water and allow to drip dry;
use cleaning vinegar to soften hard water
2
Base cassette as required ** remove any fluff
3
Mesh filter
in base
as required ** remove any fluff
whenever there is a
heavier build-up of
deposits
using an abrasive liquid cleaning agent and a
sponge, rinse with water and allow to drip dry;
use cleaning vinegar to soften hard water
4
Filter mat * in
base mesh filter
every six months
rinse under running water, then allow to drip
dry
Appliance
housing
occasionally clean with damp cloth and wipe dry
* A spare filter mat is included in the service set supplied.
** A coating of fluff can build up more or less quickly depending on the type of wash and the size of load.
1
4
3
2
6 Care and maintenance
37
6.2 Error message A9

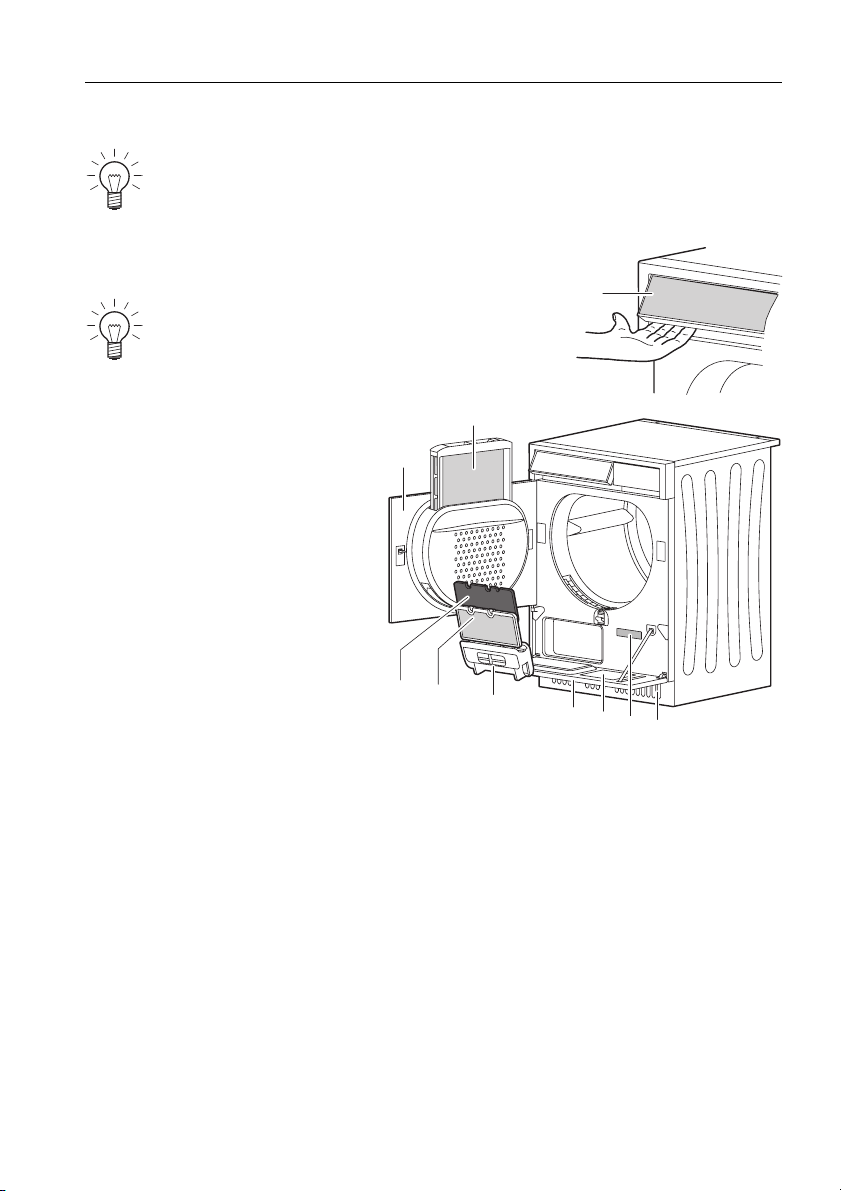

Check and, if necessary, clean the following parts in the appliance:
• Door filter
• Base cassette
• Mesh filter in base
• Filter mat in base mesh filter
6.3 Build-up of fluff
Fluff is made up of fine textile fibres that largely come from the manufacturing
process, from wear and tear during use and from items being washed. Fluff
is not caused by excessive strain on the washing in the appliance. Even when
washing is hung out to dry on a washing line, fluff is shed when the washing
is shaken out or ironed.
Fl uff sticks to washing when it is wet. The fluff is relea sed during tu m b le drying
and gets trapped in the door filter. This is why there is always a build-up of
fluff in the filter – sometimes more, sometimes less depending on the type of
washing – after tumble drying.
A thick coating of fluff results in a reduced process air flow which can
impair the drying process and activate fault message «A9».

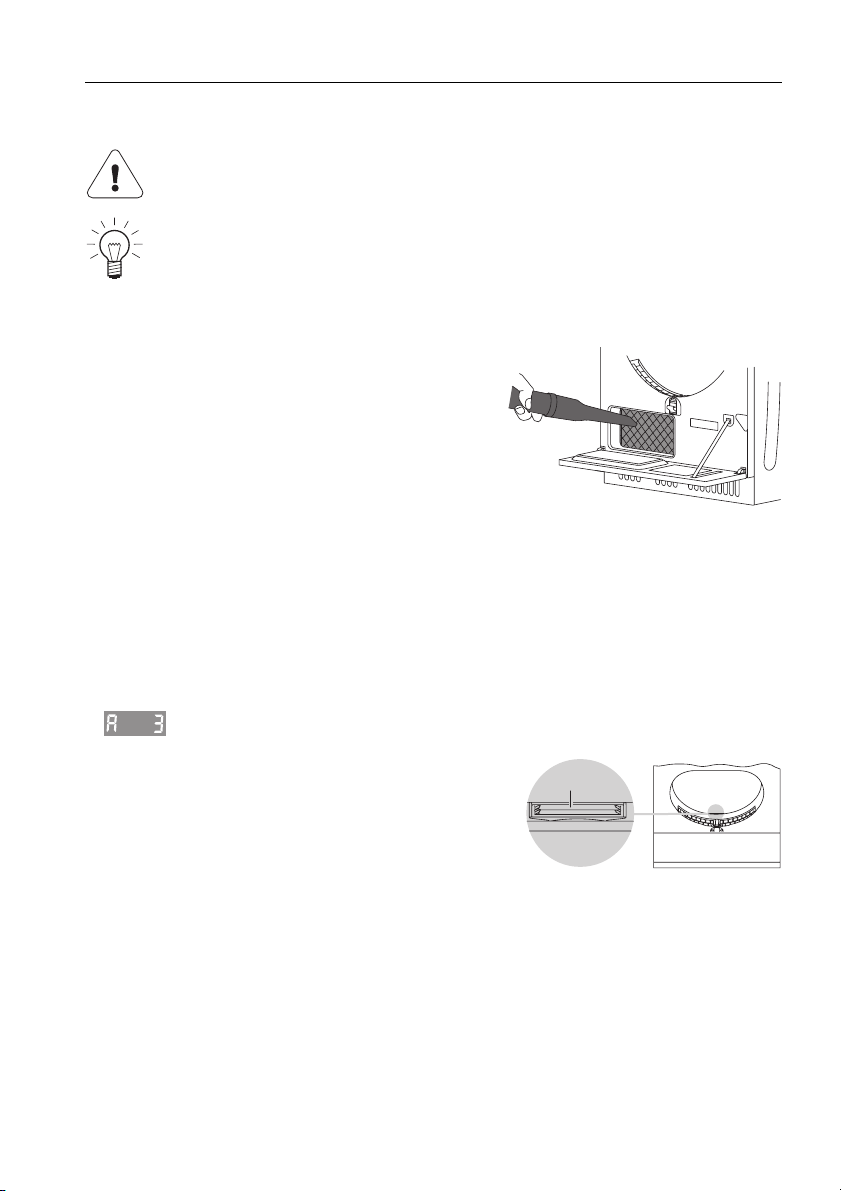

If the error message still appears after the mesh filter in base and the
filter mat have been cleaned, clean the filter mat (in front of the heat
pump) carefully using a vacuum cleaner.
6 Care and maintenance
38

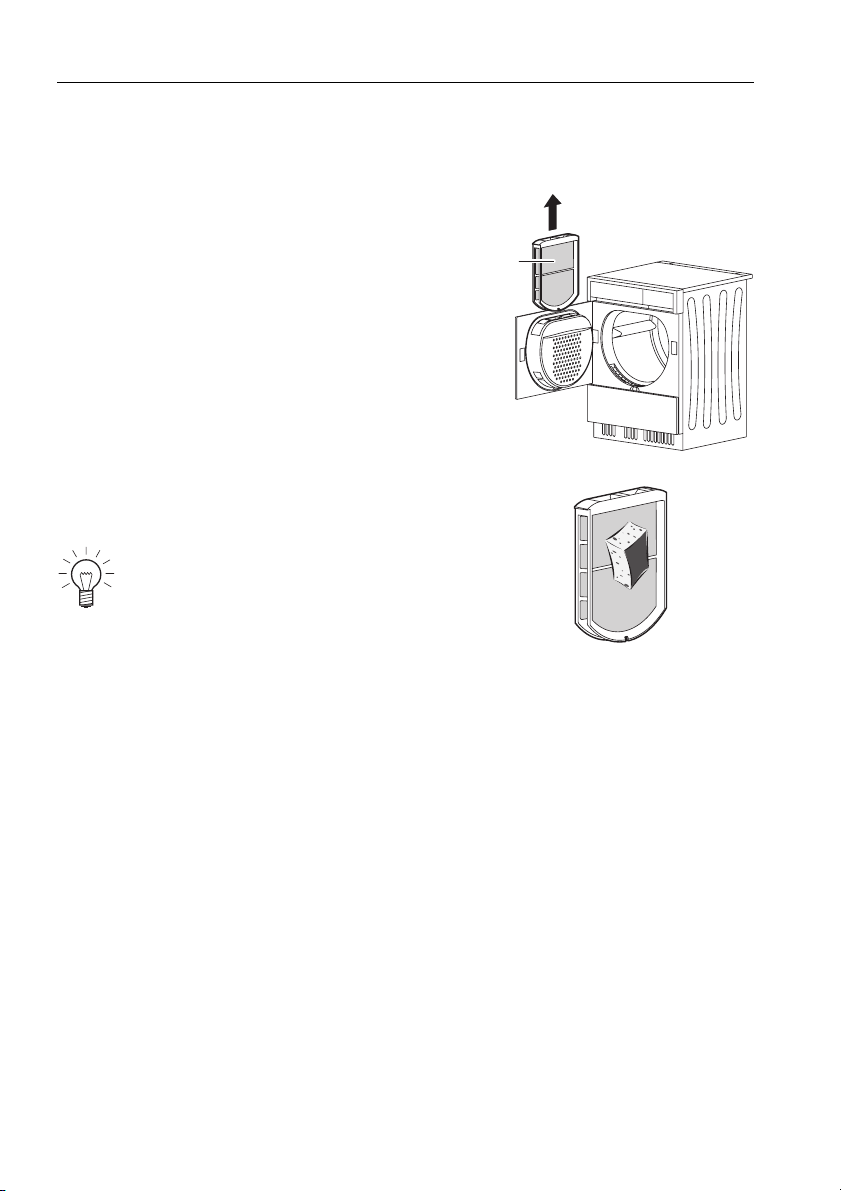

➤ Open the appliance door.
➤ Lift the door filter 1 out.
➤ Remove any fluff.
➤ Hold door mesh filter up to the light to detect
deposits. Wash door mesh filter to clean off
heavy deposits.
➤ Clean with an abrasive liquid cleaning
agent (immerse if necessary) and a
sponge; use cleaning vinegar to soften
hard water.
➤ Rinse off under running water and allow to
drip dry.
➤ Replace the door filter. Ensure it is positioned
correctly.
6.4 Cleaning the door filter
each time after a drying programme
The appliance will not start without the
door filter in place.
1
6 Care and maintenance
39

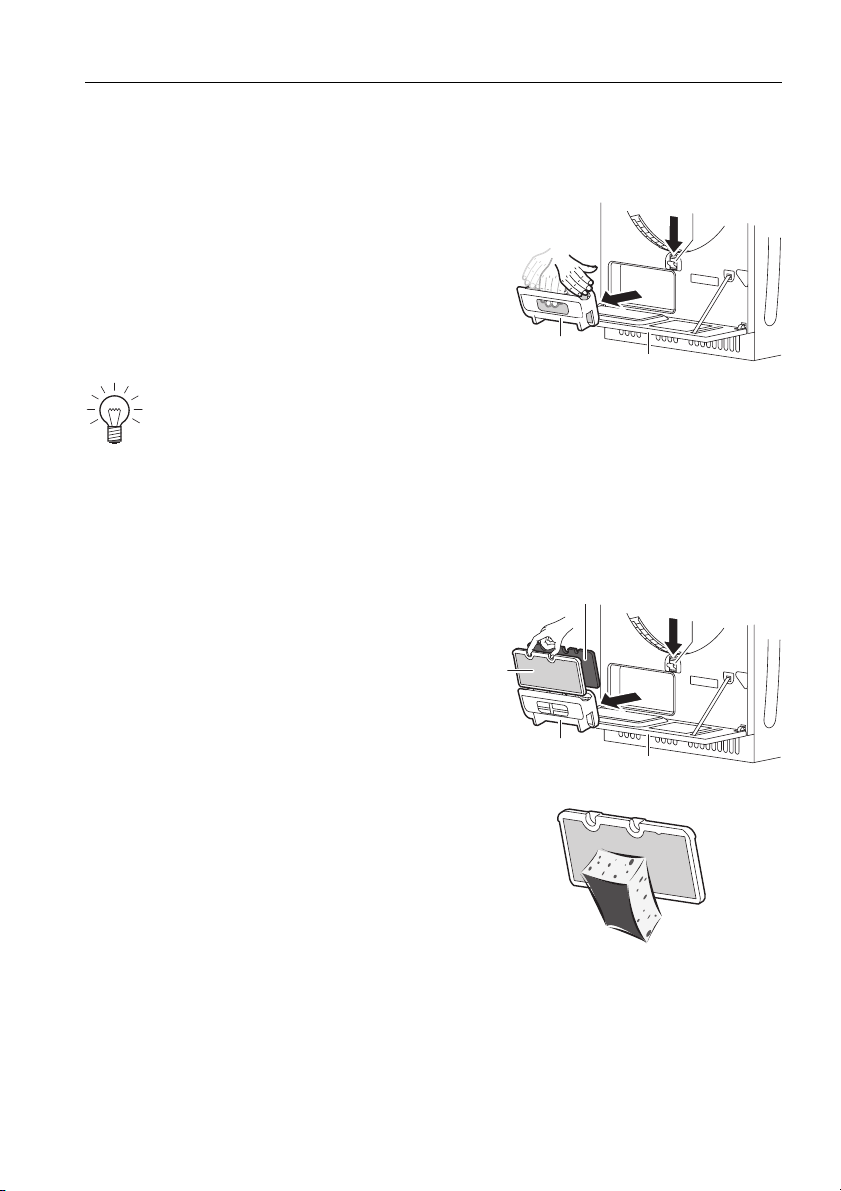

➤ Open the appliance door.
➤ Open the cover 1 by pressing the release
catch 2.
➤ Remove the cassette in base 3.
➤ Remove fluff from the base mesh filter in
the base cassette.
➤ Replace the cassette in base and close
the cover.
➤ Open the appliance door.
➤ Open the cover 1 by pressing the release
catch 2.
➤ Take out base cassette 3 and separate
filter mat 5 from the base mesh filter 4.
➤ Hold base mesh filter up to the light to
detect deposits. Wash base mesh filter to
clean off heavy deposits.
➤ Clean with an abrasive liquid cleaning
agent (immerse if necessary) and a
sponge; use cleaning vinegar to soften
hard water.
➤ Rinse off under running water and
allow to drip dry.
➤ Replace the filter mat on the base mesh
filter and insert it in the base cassette.
Make sure it is correctly positioned.
➤ Replace the cassette in base and close
the cover.
6.5 Clean the base cassette
as required
The appliance will not start without
the cassette in base being in place.
6.6 Cleaning the mesh filter in base
as required
1
3
2
3
4
2
5
1
6 Care and maintenance
40
6.7 Cleaning the filter mat
➤ Open the appliance door.
➤ Open the cover 1 by pressing the release
catch 2.
➤ Remove the cassette in base 3.
➤ Remove the mesh filter in base 4 from the
cassette in base.
➤ Remove the filter mat 5 from the mesh
filter in base.
➤ Rinse the filter mat under running water
and allow to drip dry.
➤ Put the filter mat back into the mesh filter
in base and then return this into the
cassette in base. Ensure the filters are
sitting properly.
➤ Replace the cassette in base and close
the cover.
Clean filter mat in base mesh filter
every six months
Never operate the appliance without the filter mat.
A spare filter mat is included in the service set supplied.
3
4
2
5
1
6 Care and maintenance
41
➤ Open the appliance door and the
cleaning cover.
➤ Remove the cassette in base.
➤ Clean the filter mat carefully using a
vacuum cleaner with the crevice tool
attachment.
➤ Replace the cassette in base and close
the cleaning cover.
6.8 Cleaning the moisture sensor
The moisture sensor detects the level of moisture in the washing. If the
moisture sensor is dirty, it may produce false readings.
If shows in the display, the moisture sensor must be cleaned.
➤ Open the appliance door.
➤ Remove any fluff or foreign objects on the
moisture sensor 1. If necessary, clean with
a damp cloth and then wipe dry.
Cleaning the filter mat in front of the heat pump
as required
Never remove the filter mat.
If the «A9» error message still appears after the filters and the filter
mat have been cleaned, clean the filter mat in front of the heat pump
very carefully using a vacuum cleaner. The fins behind could
otherwise be damaged.
1
42
7 Trouble-shooting
This section lists problems which you can resolve simply yourself by following
the instructions given. If any other error messages appear or if you are unable
to resolve the problem, call Customer Services.
7.1 What to do if …
… flashes
Before contacting Service please make a note of the FN number on
the appliance identification plate also the full fault message
(E-number).
Possible cause Solution
•The drain hose is
blocked, kinked or
defective.
• Pumping height of the
drain hose (>1.2 m).
• Connected to concealed
double drain trap.
➤ Check the part of the hose that is not
housed in the appliance.
➤ Resolve the problem.
➤ Cancel the error message by pressing the
button.
➤ Start the programme.
➤ If the fault reappears, note down the
complete error message and FN number,
then switch off mains supply once more.
➤ Call Customer Services.
7 Trouble-shooting
43
… flashes
… flashes
Possible cause Solution
• The moisture sensor is
dirty or wet.
➤ Clean the moisture sensor and then wipe
dry.
➤ Cancel the error message by pressing the
button.
➤ Start the programme.
➤ If the fault reappears, note down the
complete error message and FN number,
then switch off mains supply once more.
➤ Call Customer Services.
Possible cause Solution
• The following parts in the
appliance could be
blocked:
– Door filter
– Mesh filter in base
–Filter mat
➤ Check and, if necessary, clean the parts.
➤ Cancel the error message by pressing the
button.
➤ Start the programme.
➤ If the fault reappears, note down the
complete error message and FN number,
then switch off mains supply once more.
➤ Call Customer Services.
• The ambient temperature
is too high.
➤ Improve the ventilation of the room.
• The load is too wet/
heavy.
➤ Spin washing at a higher speed/reduce the
size of load.
Do not disregard this error message. Failure to observe it can cause
the appliance to become defective.
7 Trouble-shooting
44
… lights
… lights
Possible cause Solution
• The door filter is missing.
• The appliance door is
open.
➤ Insert the door filter and ensure it is
positioned correctly or close the appliance
door.
➤ Cancel the error message by pressing the
button.
➤ Start the programme.
➤ If the fault reappears, note down the
complete error message and FN number,
then switch off mains supply once more.
➤ Call Customer Services.
Possible cause Solution
• The following parts in the
appliance have not been
inserted properly:
– Cassette in base
– Mesh filter in base
–Filter mat
➤ Insert parts correctly.
➤ Close the cover.
➤ Cancel the error message by pressing the
button.
➤ Start the programme.
➤ If the fault reappears, note down the
complete error message and FN number,
then switch off mains supply once more.
➤ Call Customer Services.
7 Trouble-shooting
45
… lights
… and flash alternately
Possible cause Solution
• Button or was
pressed several times
without taking into
account operating with
childproof lock active.
➤ Hold button pressed, then also press
button or .
You now have control with childproof lock
activated. The appliance can be operated
without further regard to the childproof lock
until the programme starts.
Possible cause Solution
• Various situations in the
appliance can lead to an
«F» error message.
➤ Cancel the error message by pressing the
button.
➤ Interrupt the mains supply for approx.
1 minute.
➤ Switch the supply back on and select a
programme.
➤ If the fault reappears, note down the
complete error message and FN number,
then switch off mains supply once more.
➤ Call Customer Services.
MIN.
MIN.
7 Trouble-shooting
46
… and flash alternately
… it is not possible to select a new programme after closing the appliance
door
… the appliance will not start
Possible cause Solution
• Over-voltage ➤ Cancel the error message by pressing the
button.
➤ Interrupt the mains supply for approx.
1minute.
➤ Switch the supply back on and select a
programme.
➤ If the fault reappears, note down the
complete error message and FN number,
then switch off mains supply once more.
➤ Call Customer Services.
Possible cause Solution
• A programme was
interrupted.
➤ Press the button.
➤ Select a new programme.
Possible cause Solution
• The appliance door is
open.
➤ Close the appliance door.
• The door filter is missing.
➤ Insert the door filter and ensure it is
positioned correctly.
• An interruption in the
power supply.
➤ Plug in at the mains.
➤ Turn the mains switch on.
➤ Check the fuses.
7 Trouble-shooting
47
… the washing is not dry enough
… the programme takes significantly longer than indicated in the display
Possible cause Solution
• The load contains
different types of fabric.
➤ Select a longer programme.
➤ Select the programme.
➤ Change the level of dryness.
• An interruption in the
power supply.
➤ Plug in at the mains.
➤ Turn the mains switch on.
➤ Check the fuses.
• The moisture sensor is
dirty.
➤ Clean the moisture sensor.
• The demonstration mode
(dEno) is activated.
➤ Pull out and replace the mains connector
plug and then plug it in again.
If shows, clear the demonstration
mode with appliance door open and button
combination , and .
Possible cause Solution
• The following parts in the
appliance could be
blocked:
– Door filter
– Mesh filter in base
–Filter mat
➤ Check and, if necessary, clean the parts.
• Very wet washing.
➤ Spin washing at a higher speed.
• The ambient temperature
is too high.
➤ Improve the ventilation of the room.
MIN.
7 Trouble-shooting
48
… the washing is charged with static electricity
… the duration remaining indicator remains frozen for a longer period
Possible cause Solution
• Wash items that are made
of man-made fibres.
Static charge is a normal characteristic of
man-made fibres and nothing to do with the
appliance.
Possible cause Solution
• Not reached the level of
dryness required.
➤ This is not a malfunction. No action is
necessary. Once the level of dryness
required is reached, the duration remaining
indicator will run automatically again.
• The wash load is very
mixed (especially with
heavier textiles).
➤ This is not a malfunction. No action is
necessary. The duration remaining
indicator will run automatically in a while.
• Build-up of fluff in filters.
➤ Clean the filters.
49
8Drying tips
8.1 Fabric care symbols
To select the right drying programme, follow the fabric care symbols on
garment labels.
General tips
• For the wash you are recommended not to use fabric conditioners or other
fabric care solutions, otherwise comply with the manufacturer’s instruc-
tions. Tumble drying automatically leaves fabrics soft and fluffy.
• The use of fabric conditioner in the wash can lead over time to the
formation of a thin, barely visible film in the drum and on the moisture
sensors. This can cause a malfunction resulting in the washing not being
dried to the level of dryness required.
• Use tumbler dryer sheets sparingly.
• Protect items of washing from getting damaged.
➤ Fasten duvet and pillow cases, hook and eye fasteners and zips.
➤ Fasten cloth belts and apron ties.
• Only put a few items of washing in the drum when drying fabrics that
crease easily.
• When drying bulky items (e.g. sleeping bags, duvets, etc.) strictly follow the
fabric care symbols.
Tumble dry, medium heat
Tumble dry, low heat
Do not tumble dry
8 Drying tips
50
• Woollen and silk fabrics often carry the «Do not tumble dry» label.
➤ For woollen and silk fabrics, follow the fabric care symbols on garment
labels.
➤ Press the button and select the relevant programme.
• For easy-care fabrics (e.g. shirts and cotton mixed fabrics), additionally
select the easy care function and put only a few items in the drum.
• Knitted and woven items (e.g. T-shirts) tend to shrink. Additionally select
the easy care function.
• Items of clothing with metal fasteners (e.g. overalls) should be tumble dried
using the additional timed drying programme. The metal fasteners
could cause the washing to be overdried in an automatic programme.
Energy saving tips
• Well-spun washing requires a shorter drying time and saves energy.
➤ Spin washing well before tumble drying. Tumble drying largely removes
creases that come from spinning in the washing machine.
• Dirty fluff mesh filters and filter mats reduce the air flow rate when drying
and result in longer drying times and a high energy consumption.
➤ Fluff mesh filters and filter mats must be cleaned regularly in accordance
with the operating instructions.
• The maximum capacity of the relevant programme should be used to its
full extent.
• Small, light wash items dry more quickly; different materials can have
different drying durations.
➤ Sort items according to type and size to avoid over-drying of individual
items.
MIN.
51
9 Spare parts
Please give model number and exact description when ordering parts.
Door filter
Mesh filter in base
Filter mat in base mesh filter
(2 items)
Cassette in base
for mesh filter in base and filter mat
52
10 Technical data
Dimensions
Ambient conditions
Electrical connection
➤ See identification plate
Height: 85 cm
Width: 60 cm
Depth: 60 cm
Weight: 65 kg
Dry load capacity: 6 kg
Permissible room temperatures
when appliance in operation 5 °C to 35 °C
10 Technical data
53
10.1 Notes for testing institutes
➤ The correct determination of the declaration data is given with wash item
after an intake phase of 5 complete drying programmes (Automatic
programme: Normal dry ).
➤ Wash the base mesh filter in the base cassette after every drying
programme.
➤ The moisture sensor is calibrated based on average water hardness levels.
To adjust the water conductivity value of the appliance according to the
norm (0.45 mmol/l), set the level of dryness to «4» in the user settings.
Set to standard programme according to AS/NZS 2442:
• Cotton, normal dry, 6 kg load capacity
➤ Select automatic programme «normal dry» (press the button until
the indicator light for «normal dry» lights).
10.2 Automatic energy-saving standby
The appliance is equipped with automatic stand-by to avoid consuming
energy unnecessarily.
The appliance door must be kept closed to obtain the lowest standby current
consumption.
All displays go out within minutes of a programme finishing. Energy
consumption is reduced to an absolute minimum. The safety functions,
however, remain activated.
54
11 Disposal
Packaging
• All packaging materials (cardboard, plastic film (PE) and polystyrene
(EPS)) are marked and should, if possible, be collected for recycling and
disposed of in an environmentally friendly way.
Disconnection
• Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
• Disable the appliance to prevent accidents caused by improper use,
especially through children playing.
• Pull the plug out of the mains socket or have the appliance disconnected
from the mains by a qualified electrician. Then cut off the mains cable.
• Remove or disable the lock on the appliance door.
Disposal
• The old appliance should not be discarded as worthless rubbish. If
disposed of correctly, the raw materials can be recovered for recycling.
• The symbol on the identification plate warns that the appliance may
not be disposed of in normal household waste.
• The appliance must be disposed of in accordance with local regulations
on waste disposal. For more information on the handling, disposal and
recycling of the product, please contact the local authorities, the local
recycling facilities for household waste or the retailer from whom you
purchased the appliance.
Note on heat pump
This appliance is CFC-free (the refrigeration cycle contains R134a).
55
12 Notes
12 Notes
56
57
13 Index
A
Additional functions . . . . . . . . . 14, 22
Additional programme . . . . . . . . . . 14
Airing . . . . . . . . . . . . . . . . . . . . 17, 20
Ambient conditions . . . . . . . . . . . . 52
Appliance
Construction . . . . . . . . . . . . . . . . 13
Description . . . . . . . . . . . . . . . . . 12
Loading . . . . . . . . . . . . . . . . . . . . 27
Preparing. . . . . . . . . . . . . . . . . . . 27
Automatic energy-saving
standby . . . . . . . . . . . . . . . . . . . . . 53
Automatic programmes . . . . . . 14, 18
Selecting . . . . . . . . . . . . . . . . . . . 29
B
Base cassette
Cleaning . . . . . . . . . . . . . . . . . . . 39
C
Care. . . . . . . . . . . . . . . . . . . . . . . . 36
Changing selection . . . . . . . . . . . . 32
Childproof lock . . . . . . . . . . . . 26, 33
Cleaning
Base cassette . . . . . . . . . . . . . . . 39
Door filter. . . . . . . . . . . . . . . . . . . 38
Filter mat . . . . . . . . . . . . . . . . . . . 40
Filter mat in base mesh filter . . . . 40
Mesh filter in base . . . . . . . . . . . . 39
Moisture sensor. . . . . . . . . . . . . . 41
Cleaning intervals . . . . . . . . . . . . . 36
Cool down . . . . . . . . . . . . . . . . . . . 17
Crease guard. . . . . . . . . . . . . . . . . 17
D
Damp. . . . . . . . . . . . . . . . . . . . . . . 18
Delayed start . . . . . . . . . . . . . . . . . 22
Selecting . . . . . . . . . . . . . . . . . . . 31
Denim . . . . . . . . . . . . . . . . . . . . . . 20
Dimensions . . . . . . . . . . . . . . . . . . 52
Disconnection . . . . . . . . . . . . . . . . 54
Display
A0 Check outlet . . . . . . . . . . . . . 42
A3 Moisture sensor clean . . . . . . 43
A4 childproof lock active. . . . . . . 45
A9 Mesh and filter clean . . . . . . . 43
Close appliance door . . . . . . . . . 44
F.. see instructions . . . . . . . . . . . 45
Insert filter in door . . . . . . . . . . . . 44
Insert filter mat. . . . . . . . . . . . . . . 44
Display elements . . . . . . . . . . . . . . 14
Disposal . . . . . . . . . . . . . . . . . . . . 54
Door filter
Cleaning . . . . . . . . . . . . . . . . . . . 38
Down . . . . . . . . . . . . . . . . . . . . . . . 20
Drying . . . . . . . . . . . . . . . . . . . 17, 27
Timed . . . . . . . . . . . . . . . . . . . . . 30
Drying tips . . . . . . . . . . . . . . . . . . . 49
Duration remaining indicator . . . . . 28
Frozen . . . . . . . . . . . . . . . . . . . . . 48
E
Easy care . . . . . . . . . . . . . . . . 22, 30
Error messages . . . . . . . . . . . . . . . 42
A9 Mesh and filter clean . . . . 37, 43
Extra dry . . . . . . . . . . . . . . . . . . . . 18
F
F.. Call Customer Services . . . . . . 45
Fabric care symbols . . . . . . . . . . . 49
Fabric conditioners . . . . . . . . . . . . 49
Fabric types. . . . . . . . . . . . . . . . . . 20
Factory settings . . . . . . . . . . . . . . . 26
Filter mat
Cleaning . . . . . . . . . . . . . . . . . . . 40
Finished washing for the day. . . . . 35
First time using . . . . . . . . . . . . . . . 16
Fluff . . . . . . . . . . . . . . . . . . . . . . . . 37
Function test . . . . . . . . . . . . . . . . . 16
58
13 Index
I
Identification plate . . . . . . . . . . . . . 59
Indicator lights. . . . . . . . . . . . . . . . 15
Iron dry . . . . . . . . . . . . . . . . . . . . . 18
L
Leisurewear. . . . . . . . . . . . . . . . . . 20
Level of dryness . . . . . . . . . . . . . . 25
M
Maintenance . . . . . . . . . . . . . . . . . 36
Mesh filter in base
Cleaning . . . . . . . . . . . . . . . . . . . 39
Model no. . . . . . . . . . . . . . . . . . . . . . 2
Moisture sensor
Cleaning . . . . . . . . . . . . . . . . . . . 41
N
Normal dry . . . . . . . . . . . . . . . . . . 18
Notes for testing institutes. . . . . . . 53
O
Operating elements. . . . . . . . . . . . 14
P
Packaging . . . . . . . . . . . . . . . . . . . 54
Programme
Aborting . . . . . . . . . . . . . . . . . . . 33
End . . . . . . . . . . . . . . . . . . . . . . . 35
Interrupting . . . . . . . . . . . . . . . . . 32
Overview . . . . . . . . . . . . . . . . . . . 17
Selection . . . . . . . . . . . . . . . . . . . 28
Sequence . . . . . . . . . . . . . . . . . . 17
Q
Quick instructions . . . . . . . . . . . . . 60
R
Repair service . . . . . . . . . . . . . . . . 59
Room temperature . . . . . . . . . . . . 52
S
Safety . . . . . . . . . . . . . . . . . . . . . . . 54
Safety precautions
Before using for the first time . . . . . 6
Children in the home . . . . . . . . . . . 9
Correct use. . . . . . . . . . . . . . . . . . . 6
Maintenance . . . . . . . . . . . . . . . . . 11
Note on use . . . . . . . . . . . . . . . . . 10
Transport . . . . . . . . . . . . . . . . . . . . 5
Shirts. . . . . . . . . . . . . . . . . . . . . . . . 20
Silk . . . . . . . . . . . . . . . . . . . . . . . . . 20
Spare filter mat . . . . . . . . . . . . 36, 40
Spare parts . . . . . . . . . . . . . . . . . . . 51
Symbols . . . . . . . . . . . . . . . . . . . . . . 2
T
Technical data . . . . . . . . . . . . . . . . 52
Testing institutes
Notes . . . . . . . . . . . . . . . . . . . . . . 53
Timed drying . . . . . . . . . . . . . . . . . . 18
Selecting. . . . . . . . . . . . . . . . . . . . 30
Tips . . . . . . . . . . . . . . . . . . . . . . . . . 49
Transport. . . . . . . . . . . . . . . . . . . . . . 5
Tumbler dryer sheets . . . . . . . . . . . 49
Type . . . . . . . . . . . . . . . . . . . . . . . . . 2
U
User settings. . . . . . . . . . . . . . . . . . 23
Using for the first time. . . . . . . . . 6, 16
V
Validity . . . . . . . . . . . . . . . . . . . . . . . 2
W
Washing
Unloading . . . . . . . . . . . . . . . . . . . 35
Woollens . . . . . . . . . . . . . . . . . . . . . 18
59
14 Repair service
Whether you contact us about a malfunction or an order, please always state
the serial number (FN) and the model type of your appliance. Enter these
details below and also on the service sticker which comes with the appliance.
Stick it in a conspicuous place or in your telephone or address book.
You will also find the same details on the certificate of guarantee, the original
sales invoice and the identification plate of the appliance.
➤ Open the appliance door.
➤ Open the cover.
– The identification plate is located bottom right.
The
TROUBLE-SHOOTING section will help you to carry out small
repairs yourself, saving you the time and trouble of calling out a
service technician and the cost that goes along with it.
FN
Appliance
Quick instructions
Please first read the safety precautions in the operating instructions!
➤ Open the appliance door
➤ Check the door filter
➤ Load the washing
➤ Close the appliance door
➤ Select programme
➤ Select any additional functions, if required
➤ The appliance starts automatically after 20 seconds
After the programme has finished:
➤ Unload the dry washing when the indicator light for the button flashes
➤ Clean the door filter
➤ Close the appliance door
When you have finished washing for the day:
➤ Clean the door filter
➤ Check the mesh filter in base and the cassette in base and clean it if
necessary
➤ Close the appliance door
J958.360-2
V-ZUG Ltd
Industriestrasse 66, CH-6301 Zug
[email protected], www.vzug.com
