Installation instructions
Heat pump dryer
One-family household
1014097-R05
07/11/2017
1014097-R05
1
For Service and Spare Part Information please contact: V-ZUG AUSTRALIA Pty. Ltd. Tel+61732096822
The appliance should be installed by qualified personnel only.
Each step must be carried out and checked in full in the order specified.
Validity
The installation instructions apply to the models: TS WP (12005), TSLQ WP (12006)

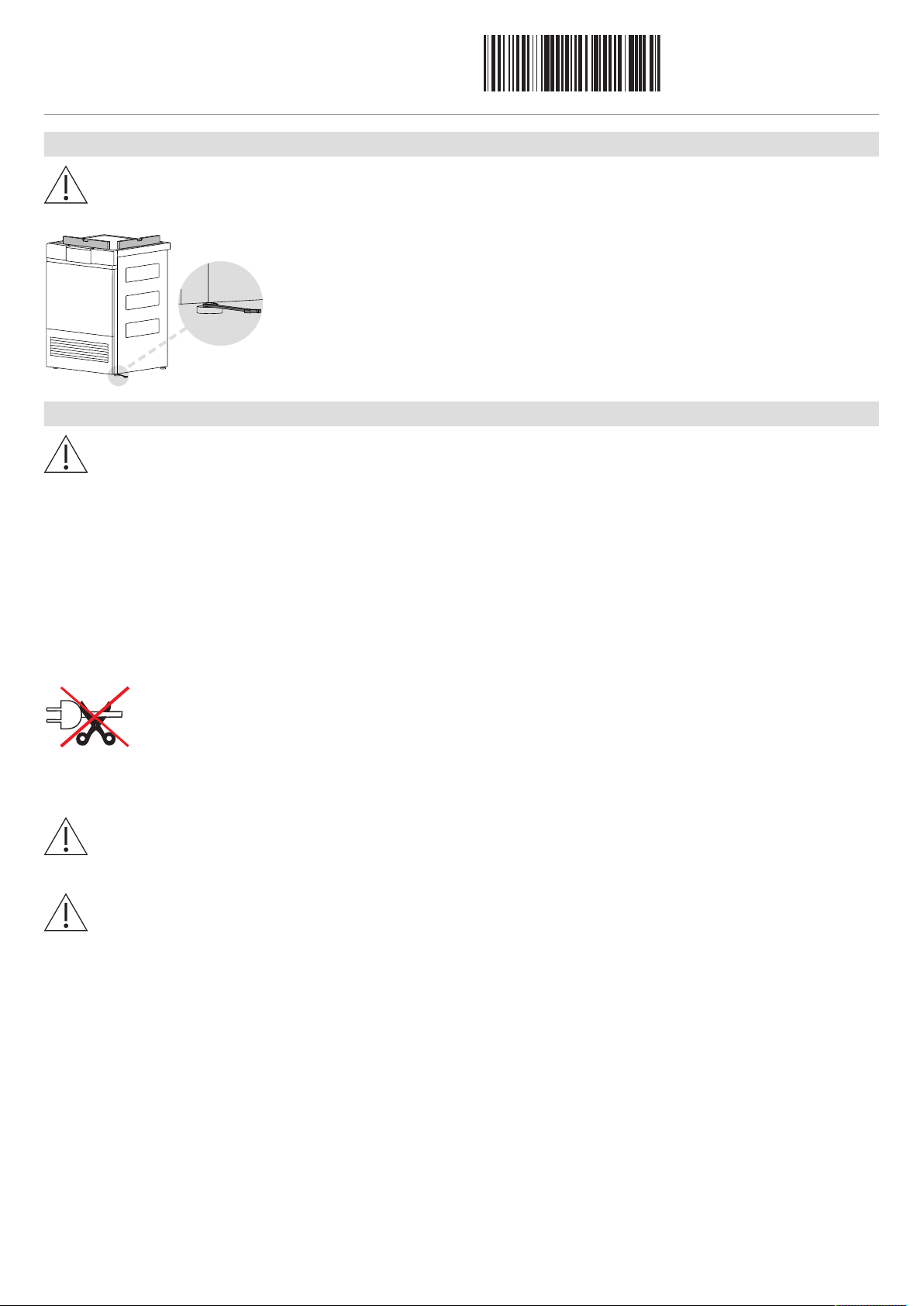

Transport
Transport the appliance in an upright position only! Transporting it in any other position will result in damage to the
appliance! When carried carefully without being shaken, the appliance may be tilted a maximum of 90° to the left
(viewed from the front).
Front
Front
Identification plate
1
▸ Open the appliance door.
– The identification plate 1 is located bottom right.

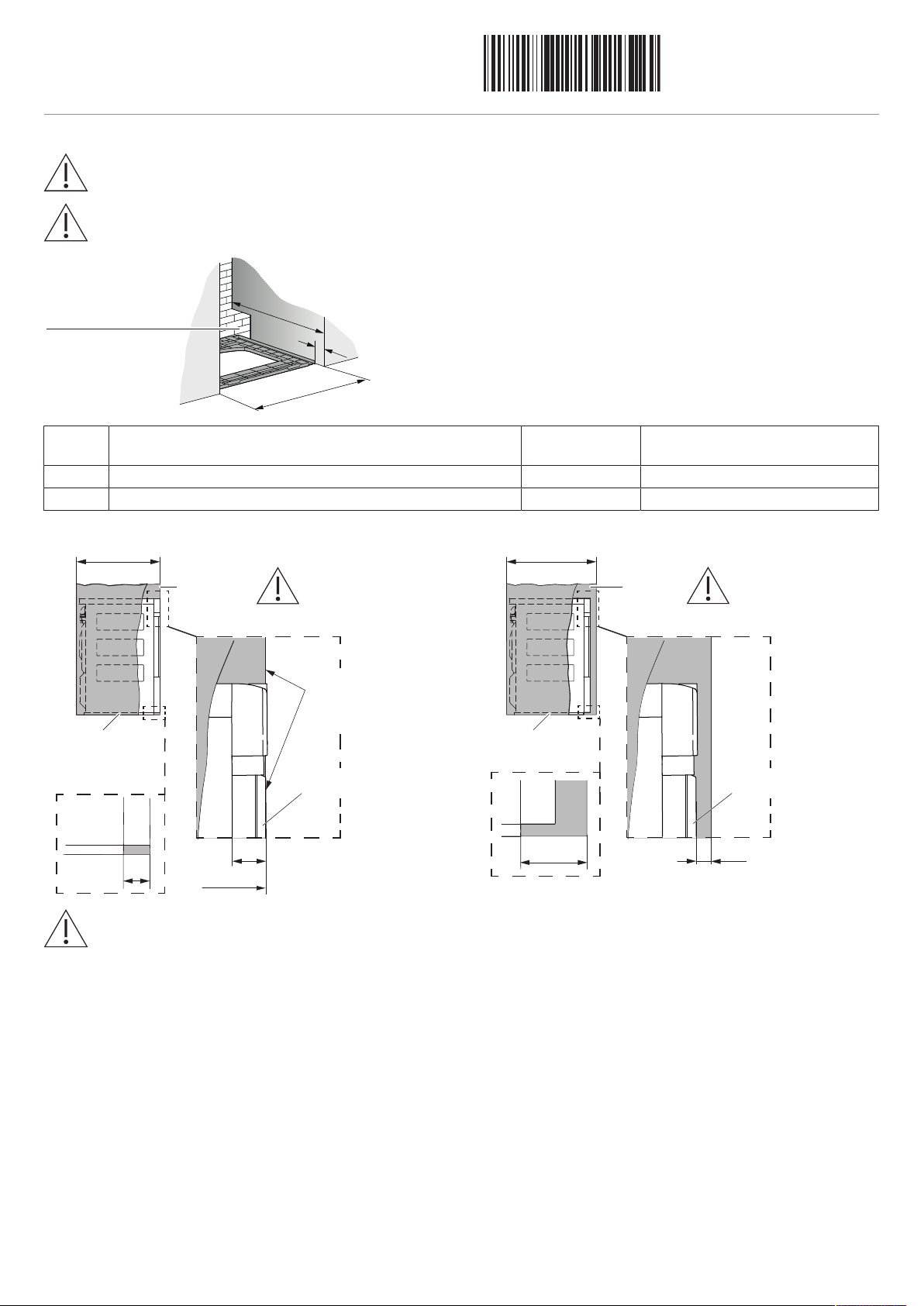

Supplied installation accessories
The necessary installation accessories are located in the washing drum and in the appliance packaging.
Designation Article no. Number See installation step
Installation plate
(incl. double-sided adhesive tape)
W40653 1 1. Positioning the installation plate
Tower panel W55687 1 1. Positioning the installation plate
Condensate drain set
(incl. screw material)
W56298 1 5. Connecting condensate drain
Room conditions/Ventilation
Keep all ventilation slits on the appliance clear and unobstructed. Otherwise an adequate supply of air is not guaran-
teed.
▸ Ventilate the room well. Avoid the room temperature rising above 35°C.
▸ The room temperature must be kept between the range of 15 – 25°C to ensure the economic running of the appliance.
Installation room volume <20m³, room with ventilation:
There must be air inlet and outlet openings (open window, ventilation grille or slits in the door, ventilation system) to the adjacent room
or to the outside.
Installation room volume ≥20m³, room without ventilation:
Condensation may form on thermal bridges! The room must therefore be aired (by opening a window or the door to the room) after run-
ning several consecutive drying programmes.
