Installation instructions
Heat pump dryer
One-family household
1068340-R03
31/10/2019
1068340-R03
1
For Service and Spare Part Information please contact: V-ZUG AUSTRALIA Pty. Ltd. Tel+61732096822
The appliance should be installed by qualified personnel only.
Each step must be carried out and checked in full in the order specified.
Validity
The installation instructions apply to the models: 12011–12013
Transport
Transport the appliance in an upright position only! Transporting it in any other position will result in damage to the
appliance! When carried carefully without being shaken, the appliance may be tilted a maximum of 90° to the left
(viewed from the front).
Identification plate
1
▸ Open the appliance door.
– The identification plate 1 is located
bottom right.
Supplied installation accessories
The necessary installation accessories are located in the washing drum and in the appliance packaging.
Designation Article no. Number See installation step

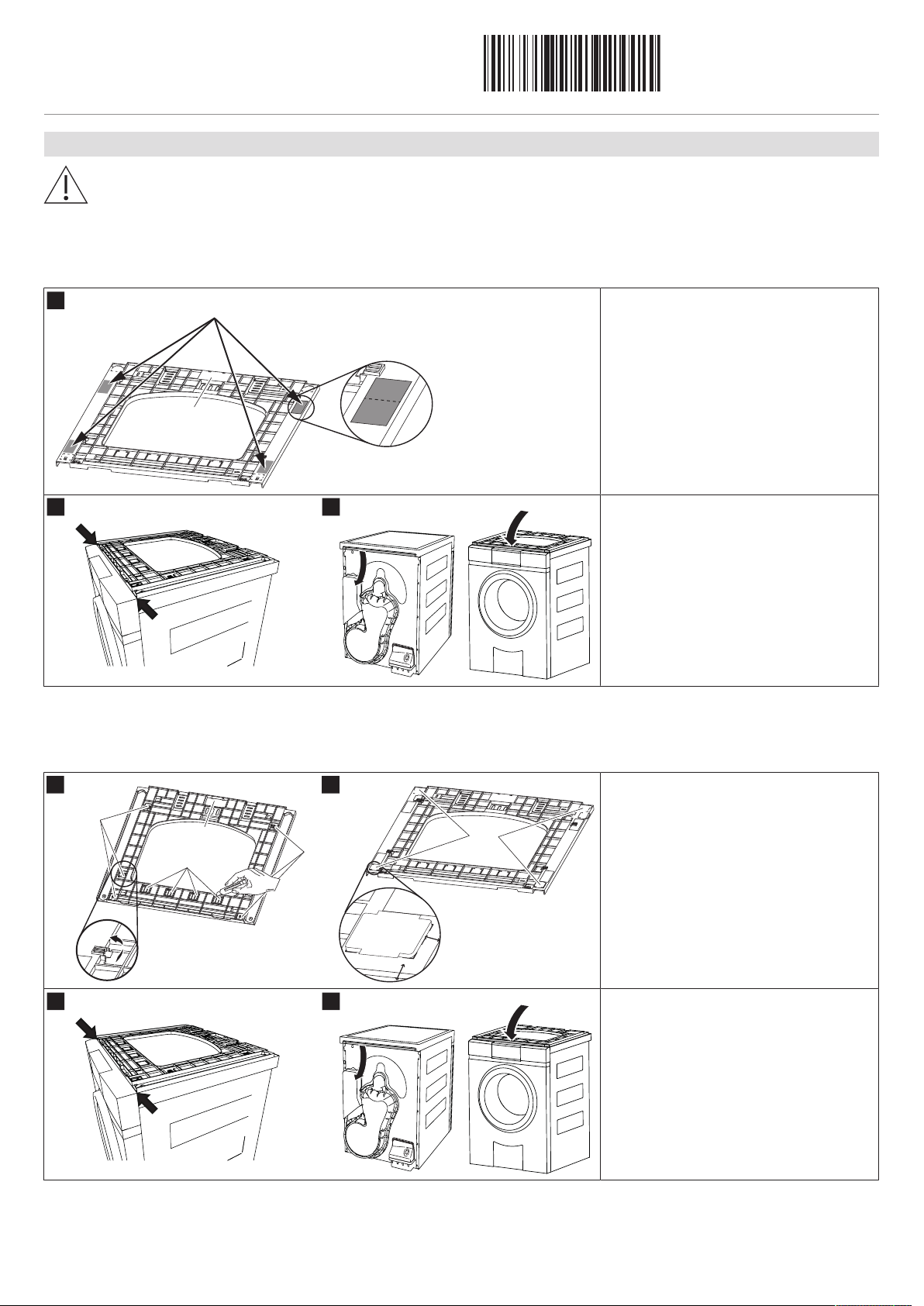

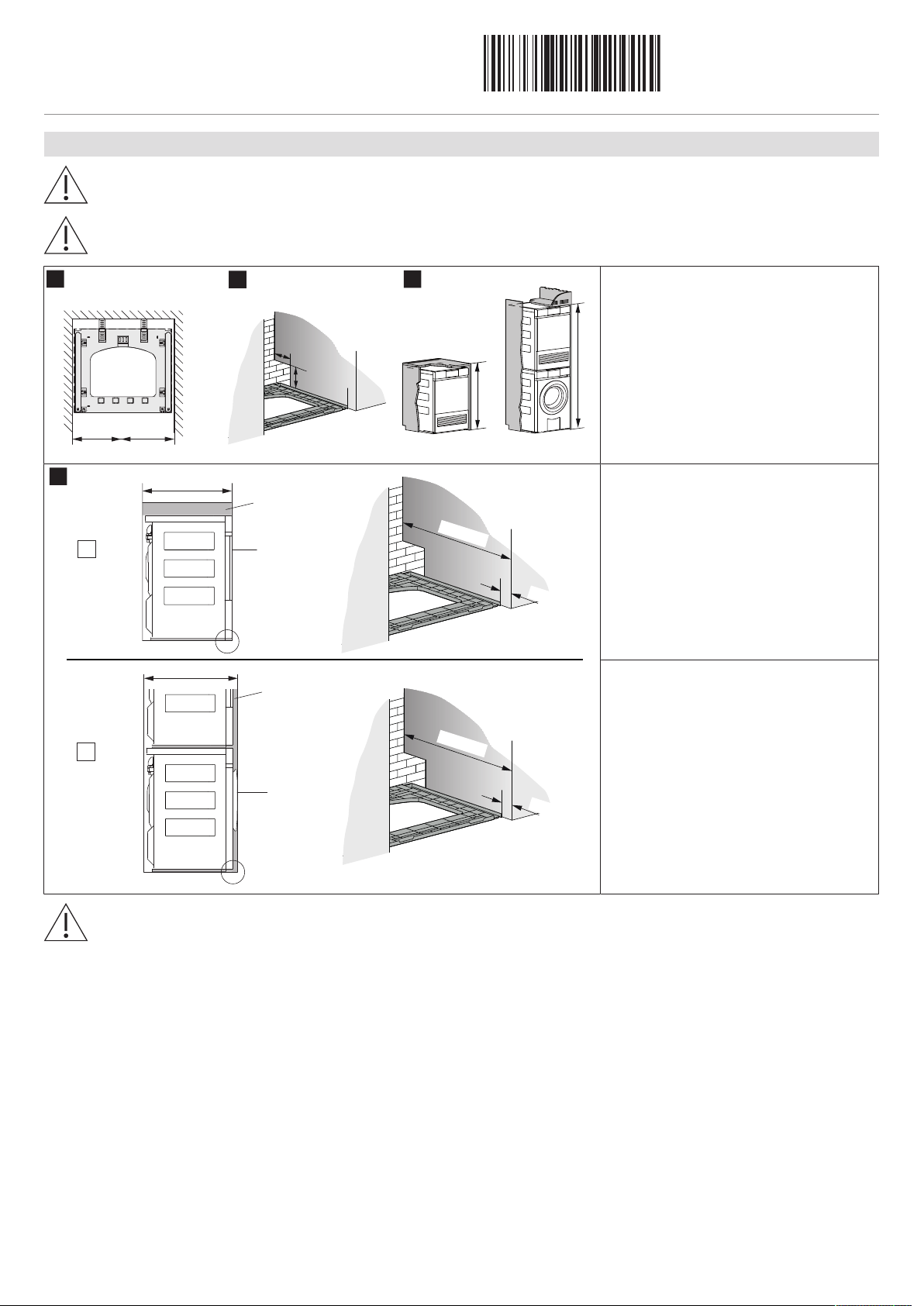

Installation plate (incl. double-sided adhesive tape) W40653 1 2. Positioning the installation plate

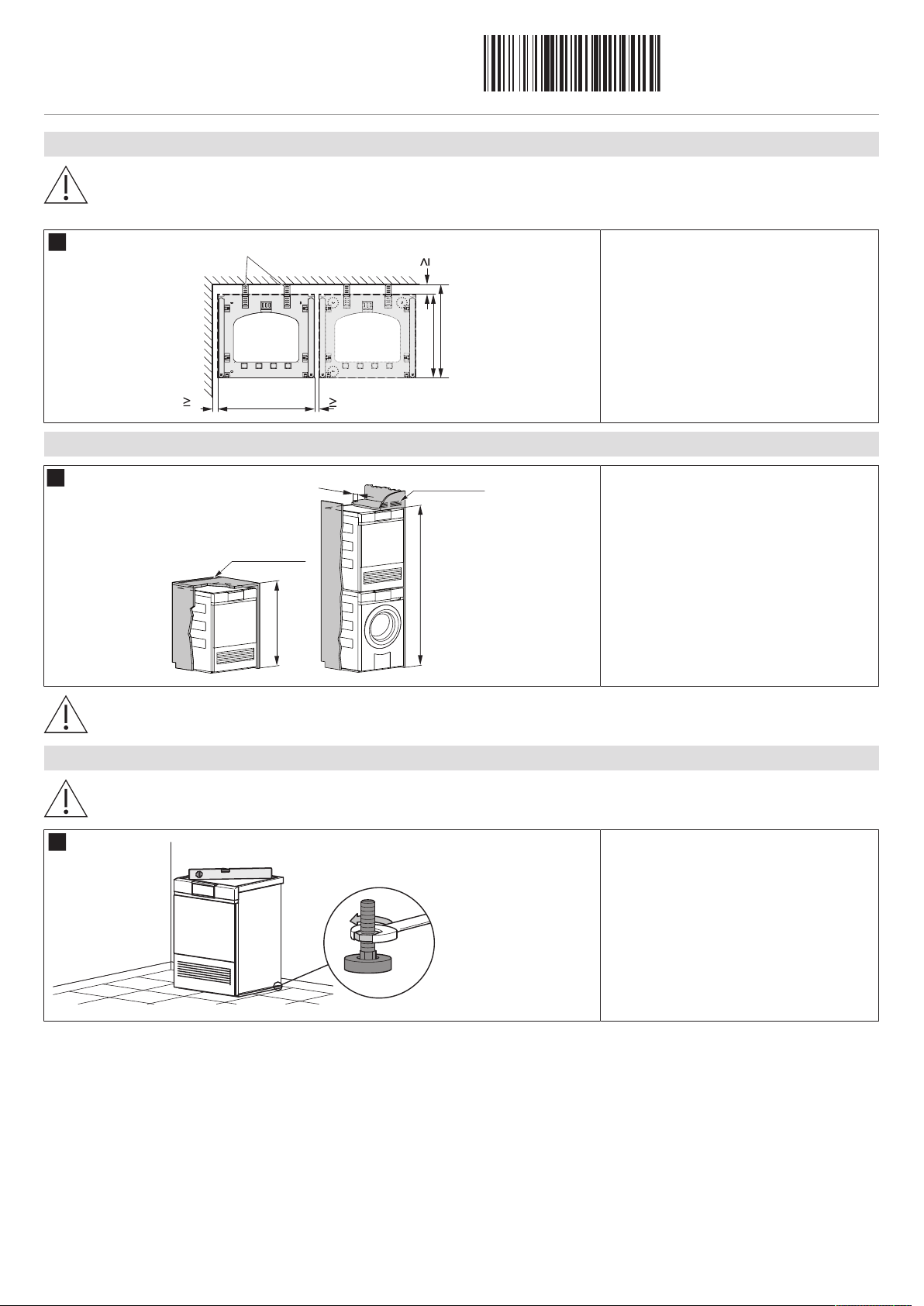

Tower panel W55687 1 2. Positioning the installation plate

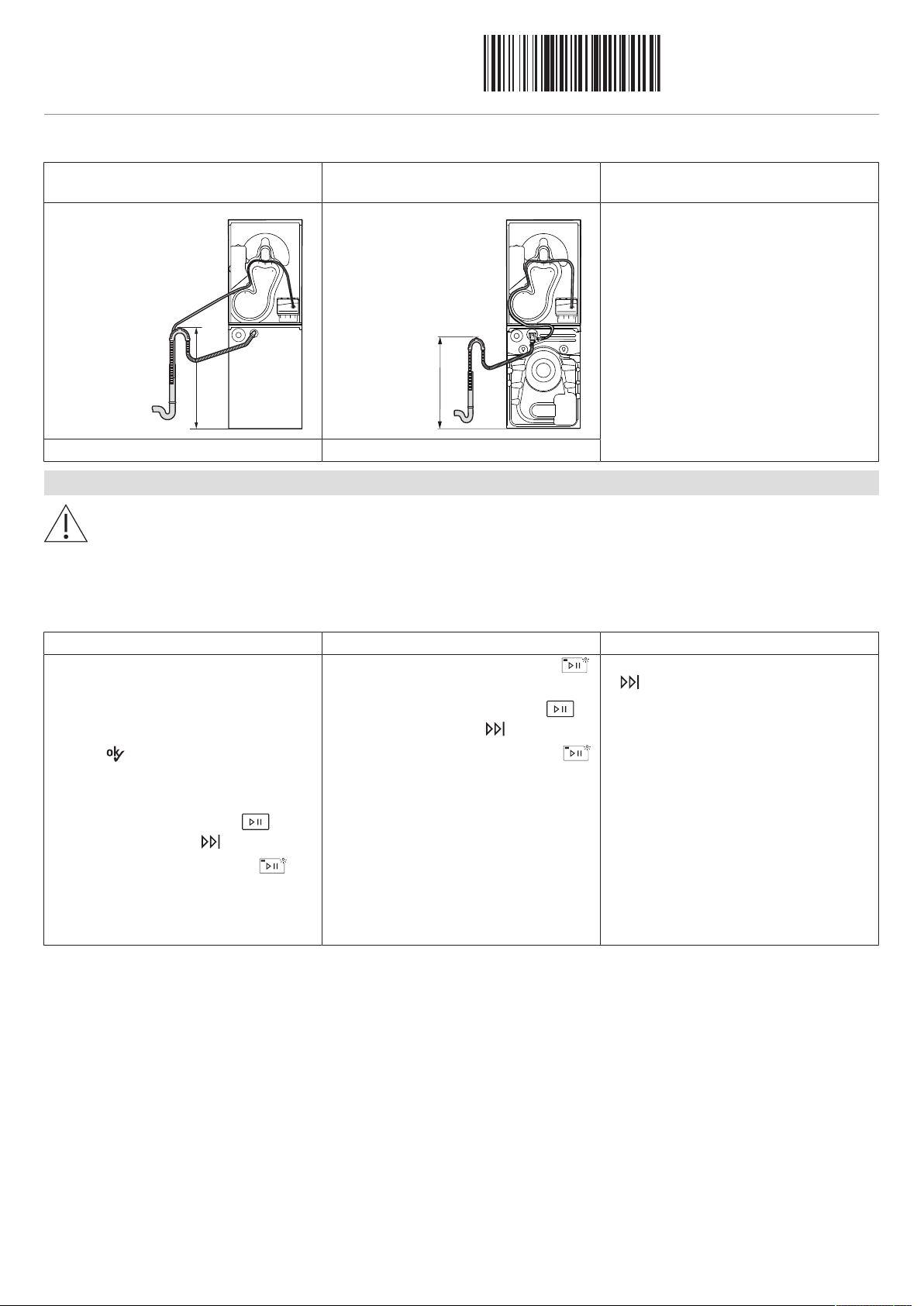

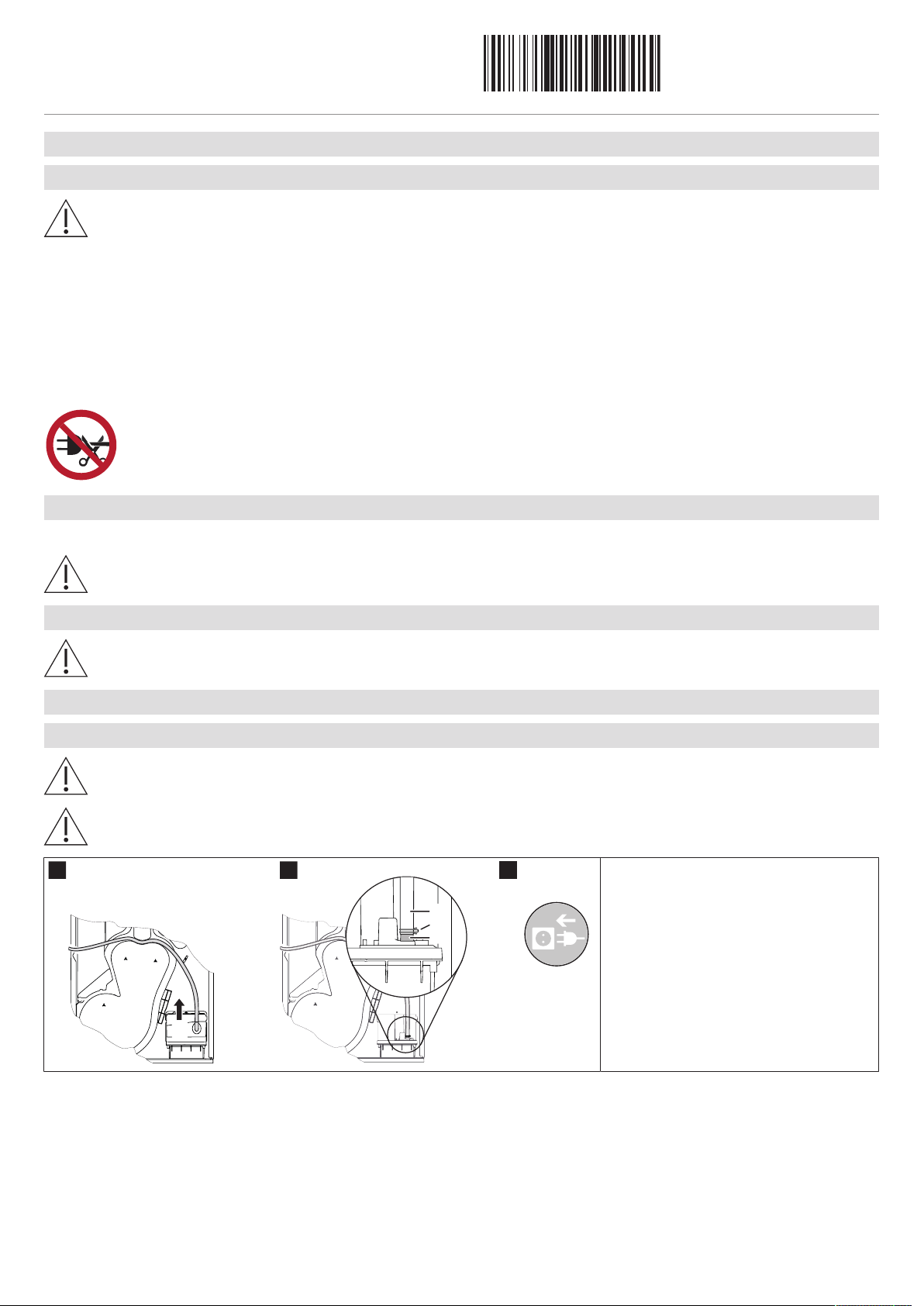

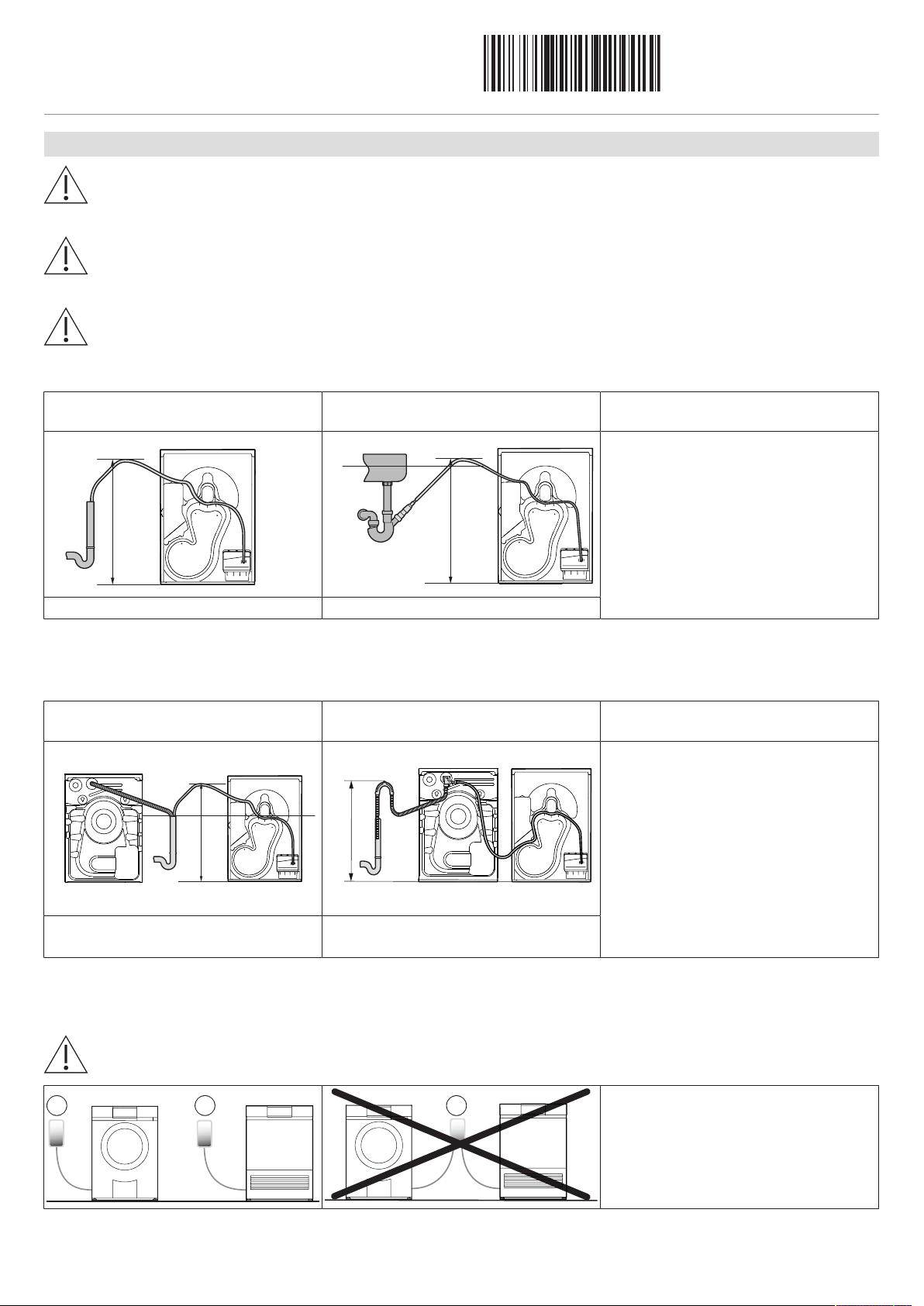

Condensate drain set (incl. screw material) W56298 1 6. Connecting condensate drain

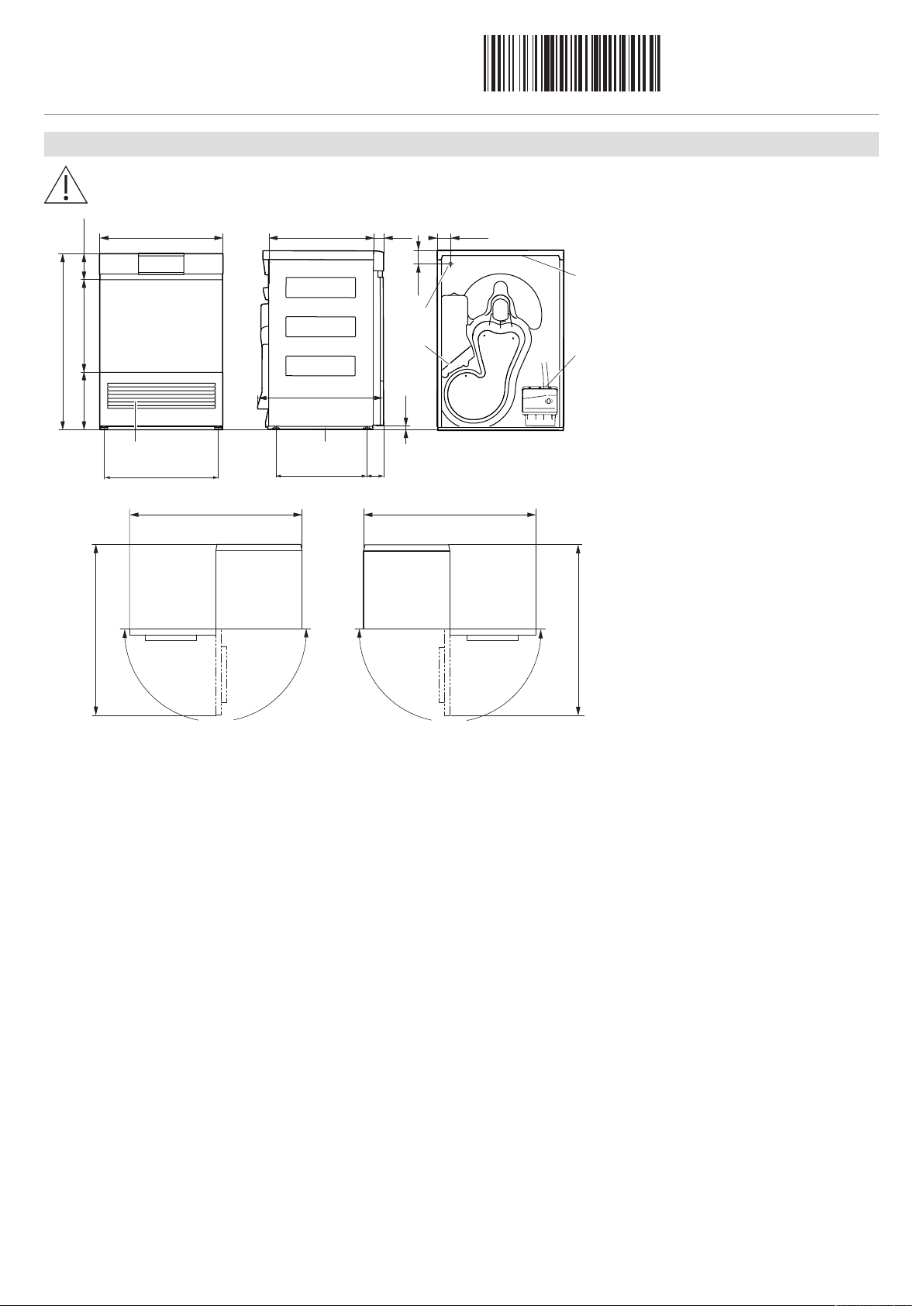

Room conditions/Ventilation
Keep all ventilation slits on the appliance clear and unobstructed. Otherwise an adequate supply of air is not guaran-
teed.
▸ Ventilate the room well. Ensure that the temperature of the room is between 5–35°C.
▸ The room temperature must be kept between the range of 15–25°C to ensure the economic running of the appliance.
Room size <10m² (<20m³) Room size ≥10m² (≥20m³)
▸ Room must be ventilated: There must be air inlet and outlet
openings to the adjacent room or to the outside, e.g. open win-
dow, ventilation grille or slits in the door, ventilation system.
▸ Condensation may form on thermal bridges! The room must
therefore be aired after running several consecutive drying pro-
grammes, e.g. by opening a window or door to the room.
