the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/global/register
Model Serial No.

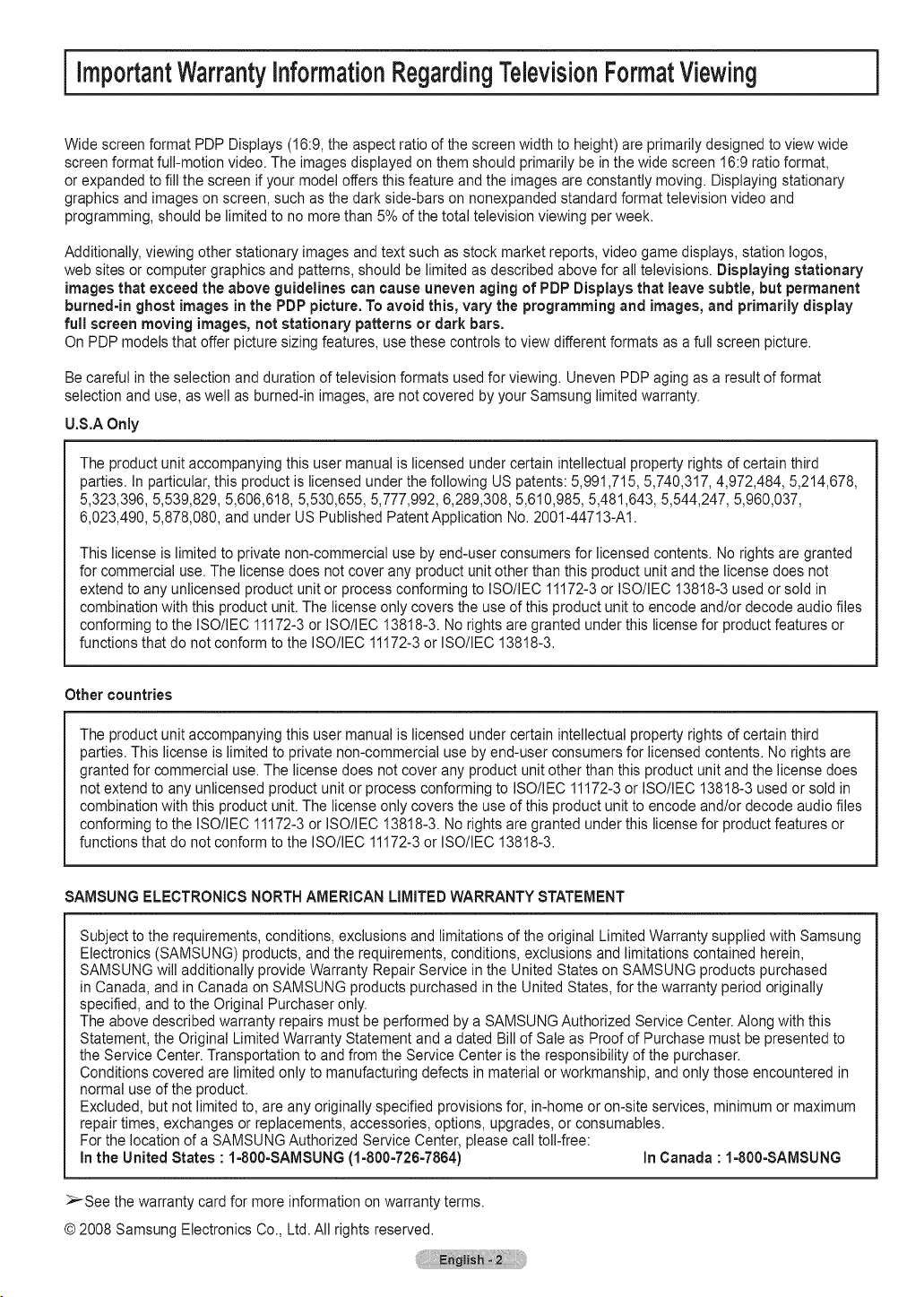

i ImportantWarrantyInformationRegardingTelevisionFormatViewing i
Wide screen format PDP Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide
screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format,
or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary
graphics and images on screen, such as the dark side-bars on nonexpanded standard format television video and
programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station Iogos,
web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary
images that exceed the above guidelines can cause uneven aging of PDP Displays that leave subtle, but permanent
burned-in ghost images in the PDP picture. To avoid this, vary the programming and images, and primarily display
full screen moving images, not stationary patterns or dark bars.
On PDP models that offer picture sizing features, use these controls to view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as a result of format
selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.
U.S.A Only
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third
parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484, 5,214,678,
5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037,
6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1.
This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted
for commercial use. The license does not cover any product unit other than this product unit and the license does not
extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3or ISO/IEC 13818-3 used or sold in
combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files
conforming to the ISO/IEC 11172-3or ISO/IEC 13818-3. No rights are granted under this license for product features or
functions that do not conform to the ISO/IEC 11172-3or ISO/IEC 13818-3.
Other countries
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third
parties. This licenseis limitedto private non-commercial use by end-user consumers for licensedcontents. No rights are
granted for commercial use. The licensedoes not cover any product unit other than this product unit and the licensedoes
not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3or ISO/IEC 13818-3 used or sold in
combination with this product unit. The licenseonly covers the use of this product unit to encode and/or decode audio files
conforming to the ISO/IEC 11172-3or ISO/IEC 13818-3. No rights are granted under this license for product features or
functions that do not conform to the ISO/IEC 11172-3or ISO/IEC 13818-3.
SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung
Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein,
SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased
in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally
specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this
Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to
the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser.
Conditions covered are limitedonly to manufacturing defects in material or workmanship, and only those encountered in
normal use of the product.
Excluded, but not limitedto, are any originally specified provisions for, in-home or on-site services, minimum or maximum
repair times, exchanges or replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
In the United States : 1-800-SAMSUNG (1-800-726-7864) In Canada : 1-800-SAMSUNG
_See the warranty card for more information on warranty terms.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.

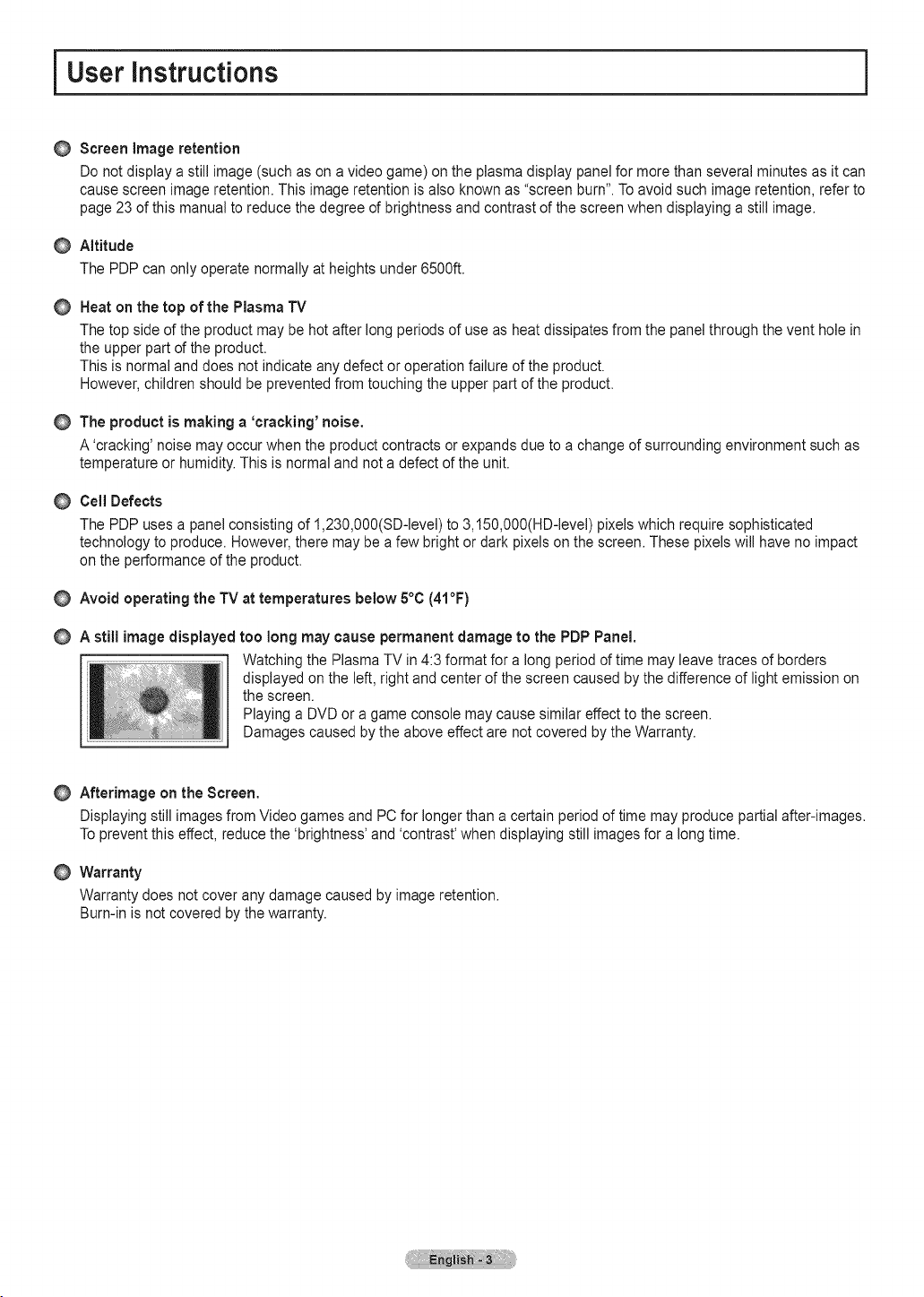

i User instructions
O Screen Image retention
Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can
cause screen image retention. This image retention is also known as "screen burn"=Toavoid such image retention, refer to
page 23 of this manual to reduce the degree of brightness and contrast of the screen when displaying a still image.
Altitude
The PDP can only operate normally at heights under 6500ft.
Heat on the top of the Plasma TV
The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in
the upper part of the product=
This is normaaand does not indicate any defect or operation failure of the product.
However, children should be prevented from touching the upper part of the product.
The product is making a 'cracking' noise.
A 'cracking' noise may occur when the product contracts or expands due to a change of surrounding environment such as
temperature or humidity. This is normal and not a defect of the unit.
Cell Defects
The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated
technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact
on the performance of the product.
Avoid operating the TV at temperatures below 5°C (41°F)
A still image displayed too long may cause permanent damage to the PDP Panel.
Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders
displayed on the left, right and center of the screen caused by the difference of light emission on
the screen.
Playing a DVD or a game console may cause similar effect to the screen.
Damages caused by the above effect are not covered by the Warranty.
Afterimage on the Screen.
Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images for a long time.
Warranty
Warranty does not cover any damage caused by image retention.
Bum-in is not covered by the warranty.
i Contents
List of Features .................................................................. 5
Accessories ........................................................................ 5

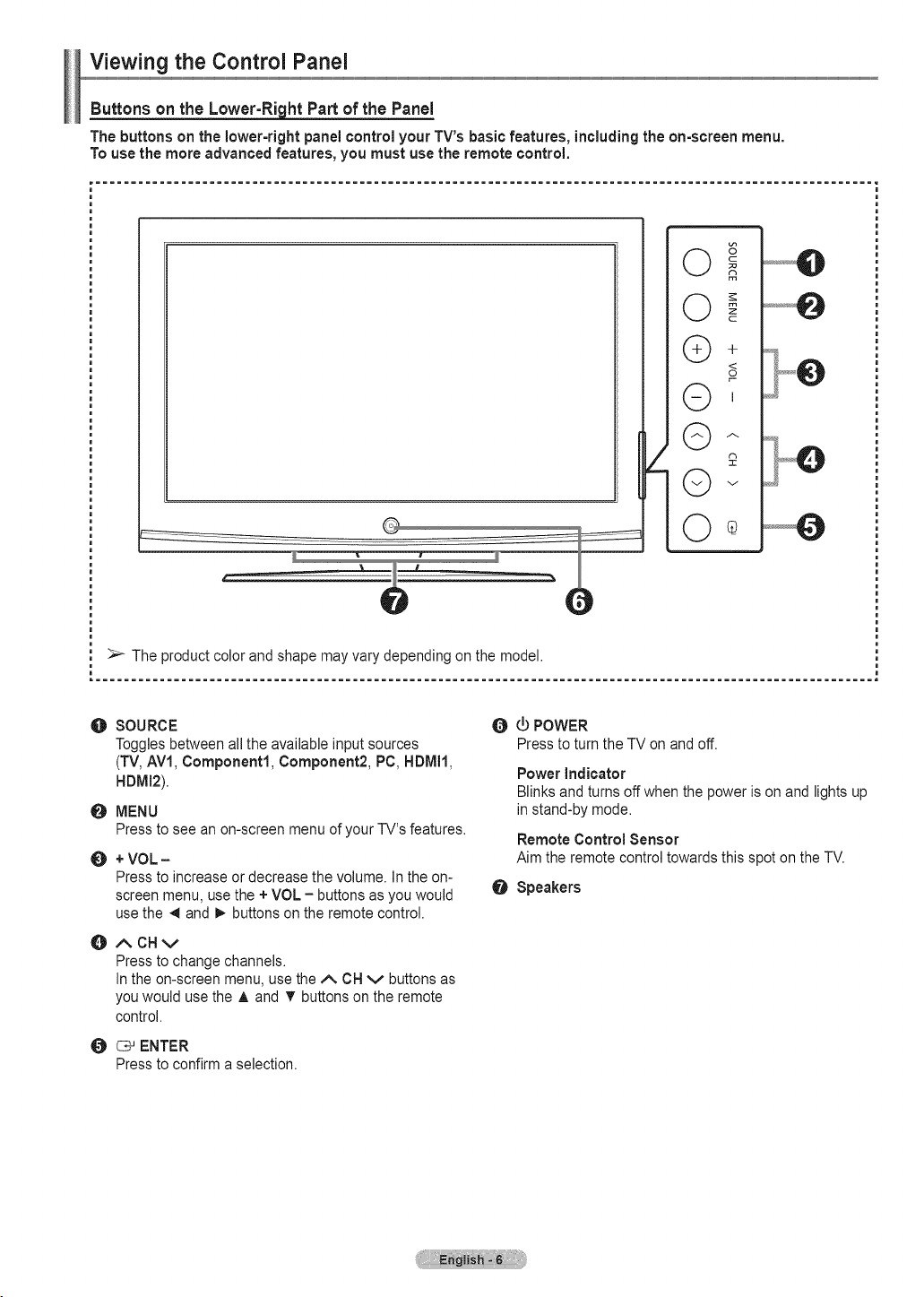

Viewing the Control Panel.................................................. 6

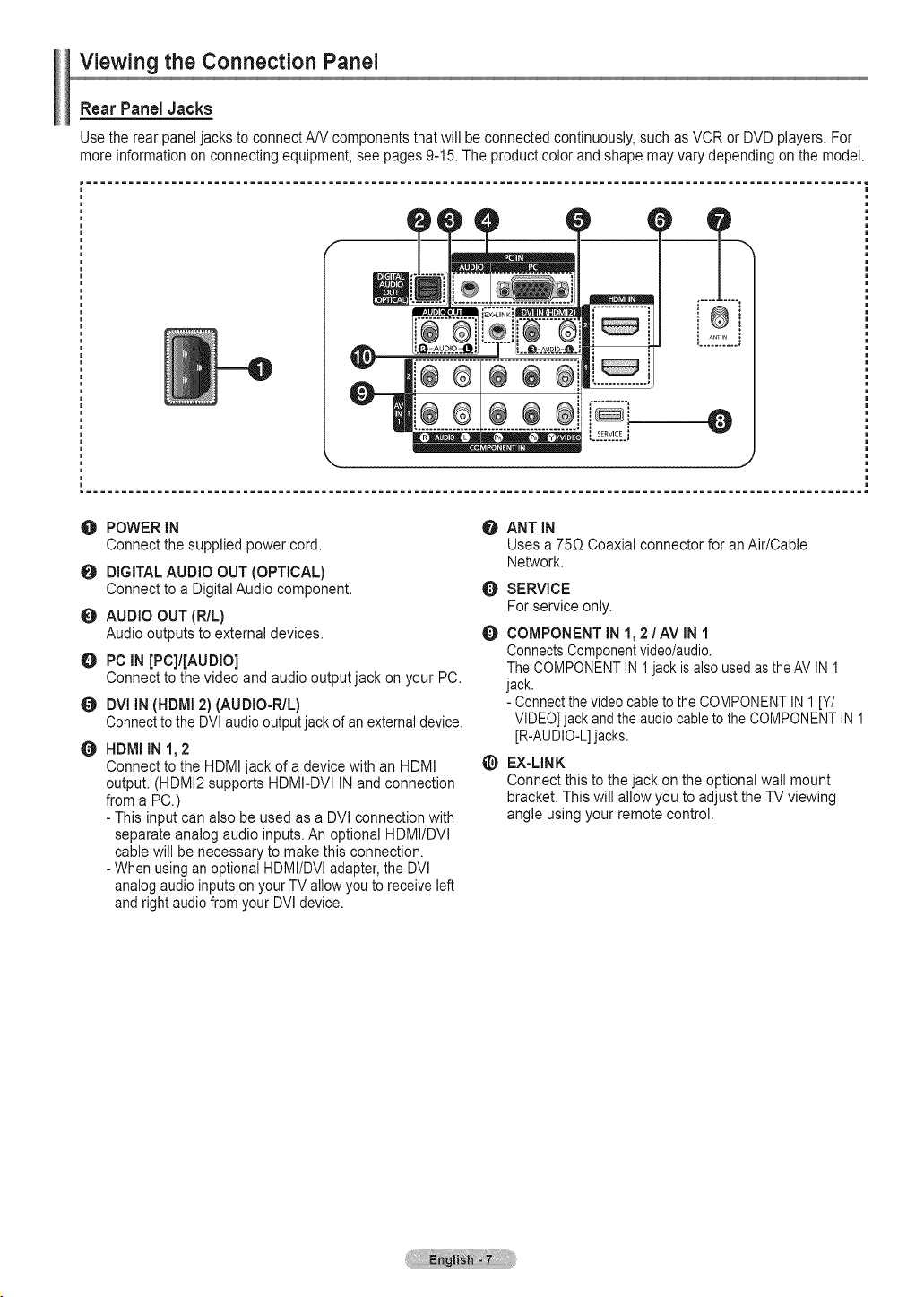

Viewing the Connection Panel ........................................... 7

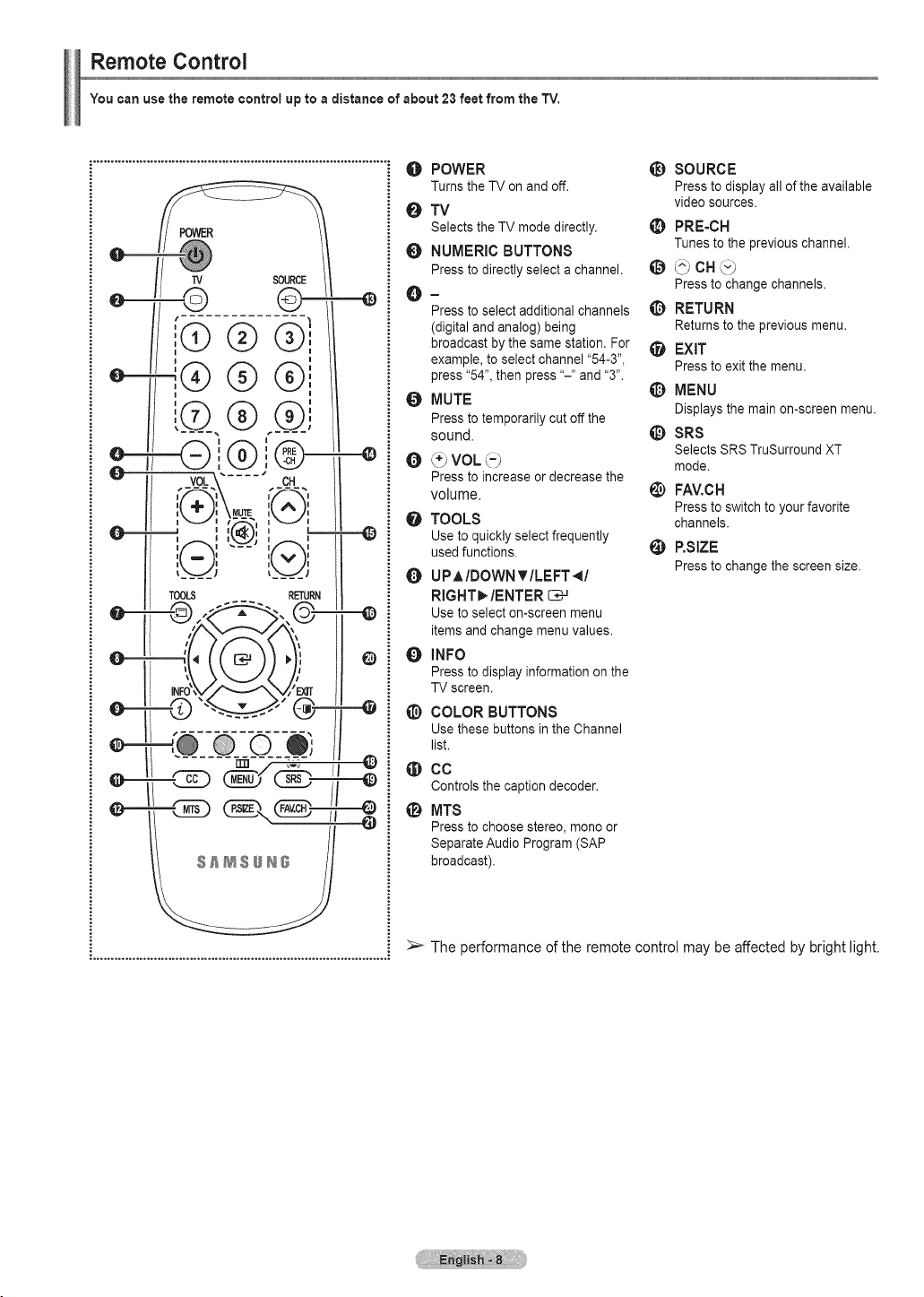

Remote Control .................................................................. 8

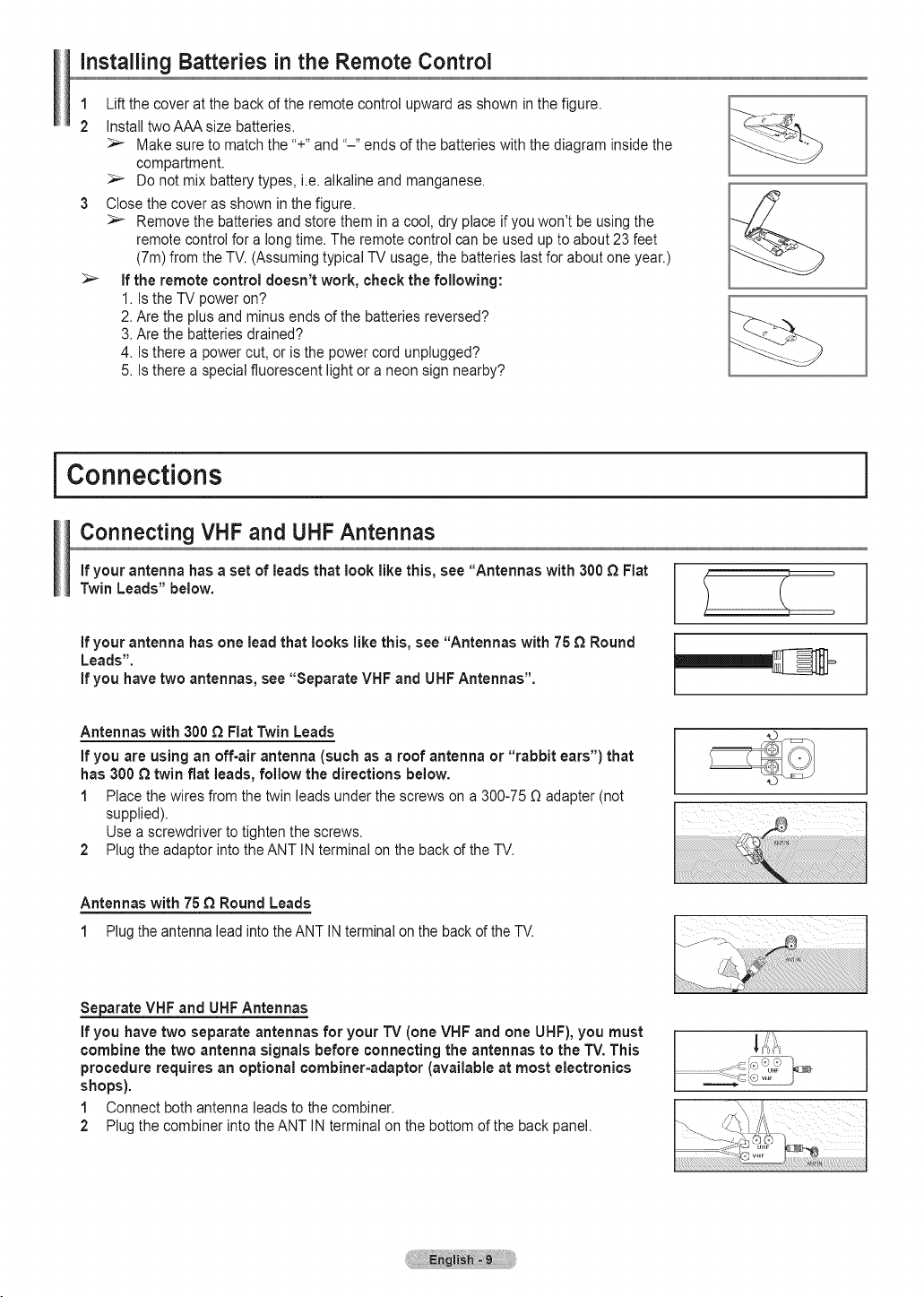

Installing Batteries in the Remote Control.......................... 9
Connecting VHF and UHF Antennas .................................9

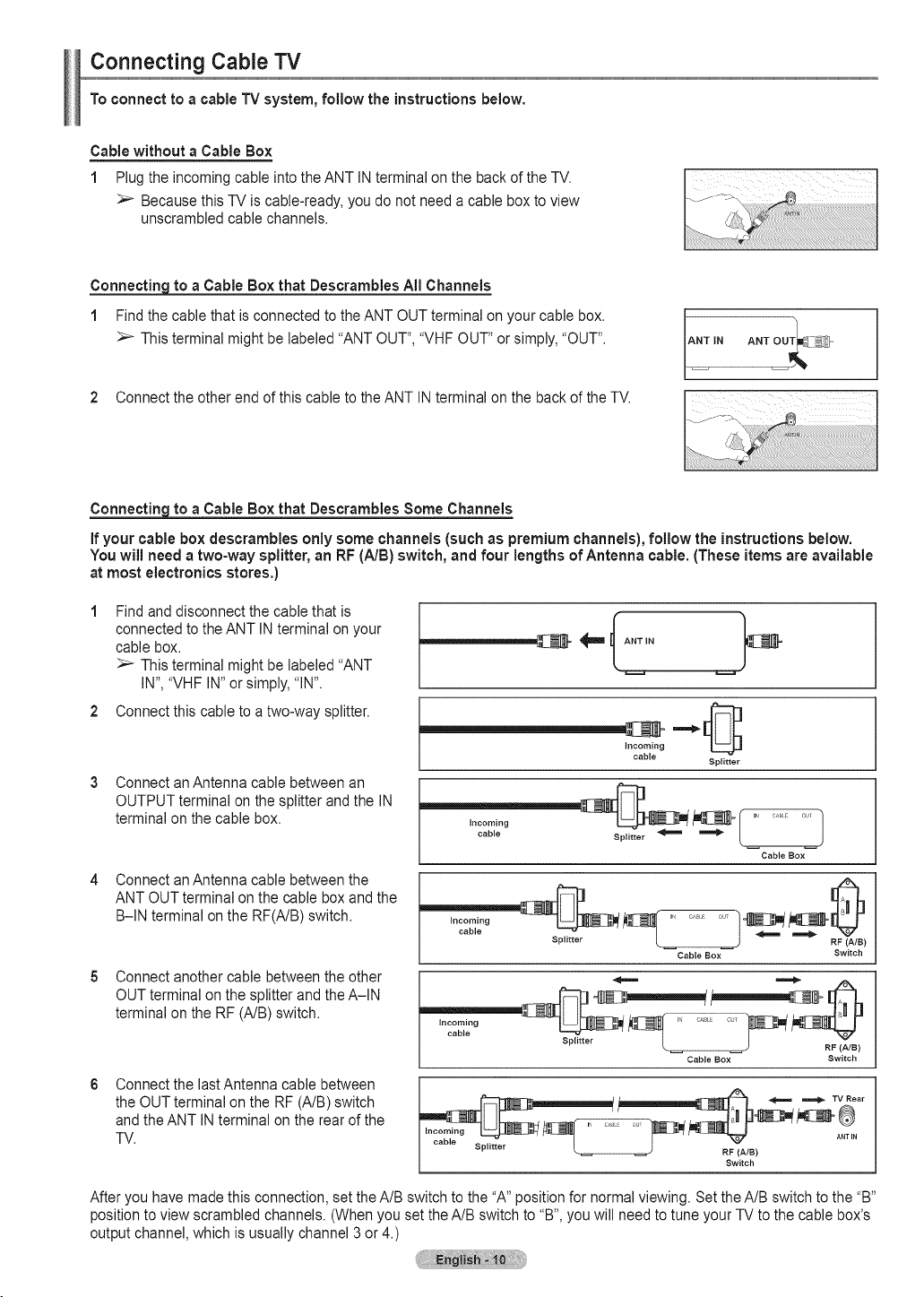

Connecting Cable TV ....................................................... 10
Connecting a DVD Player or Cable Box / Satellite receiver
(Set-Top Box) via HDMI .............................................. 11
Connecting a DVD Player or Cable Box / Satellite receiver
(Set-Top Box) via DVI ................................................. 11

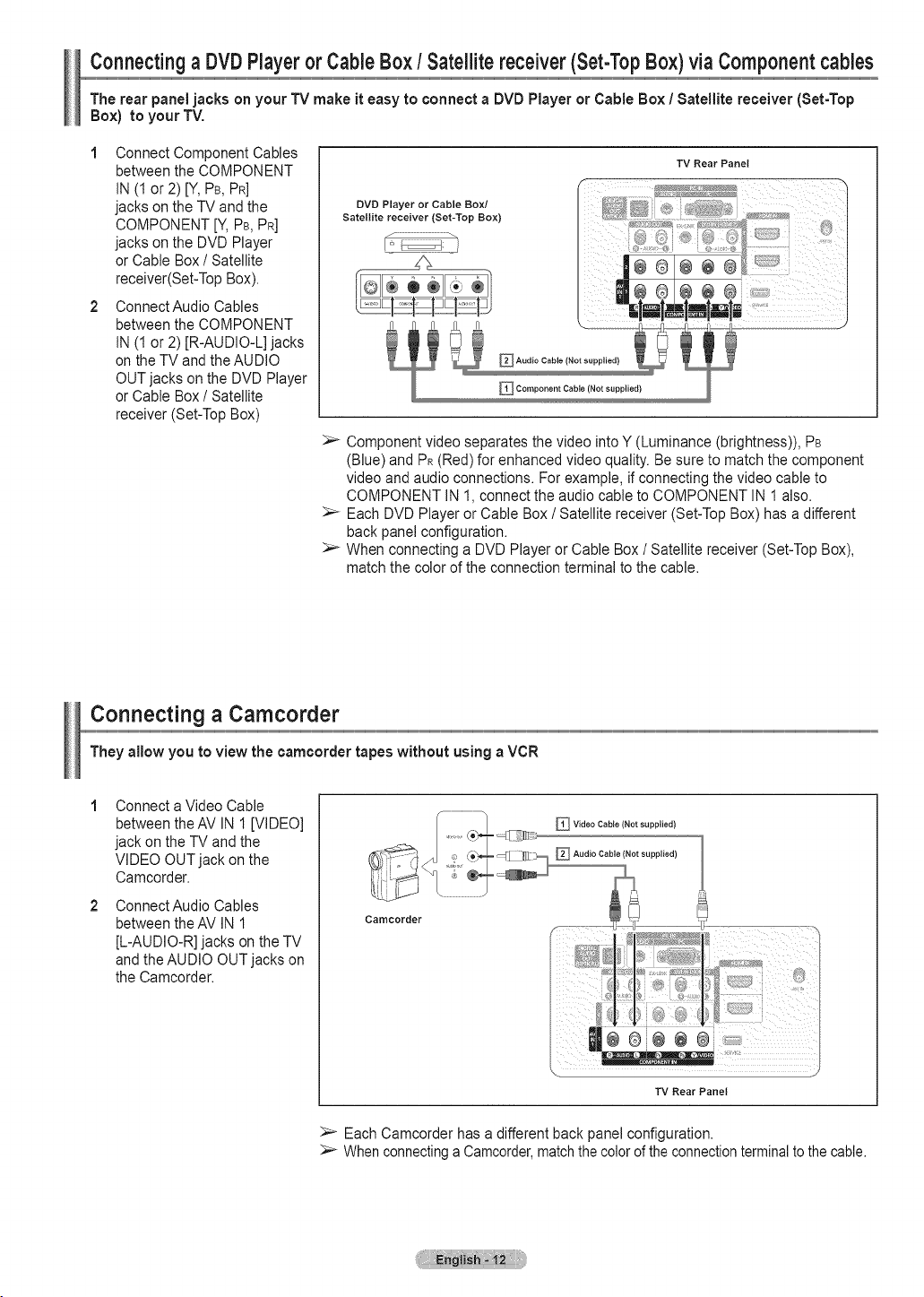

Connecting a DVD Player or Cable Box / Satellite receiver
(Set-Top Box) via Component cables ......................... 12
Connecting a Camcorder ................................................. 12

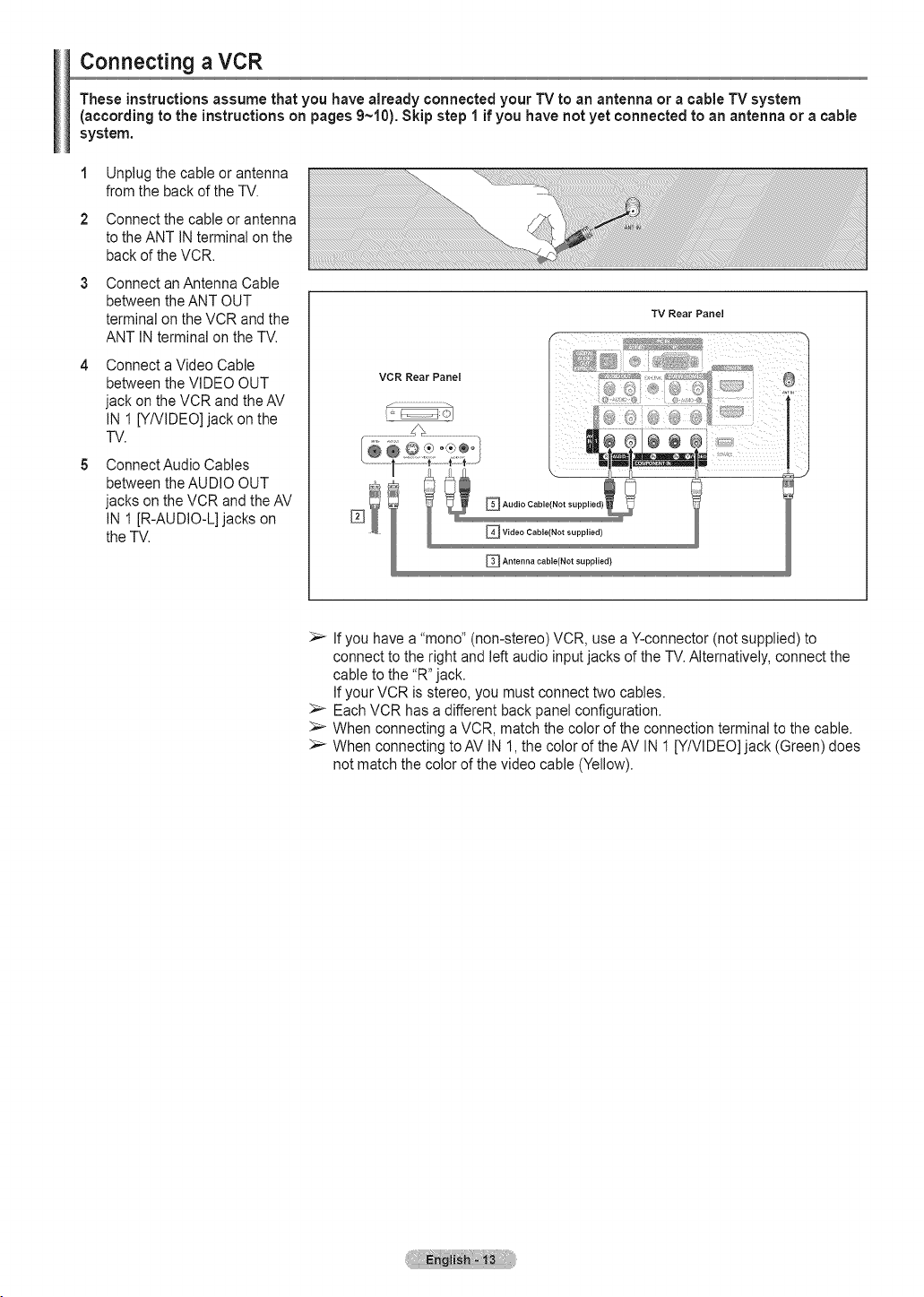

Connecting a VCR ........................................................... 13

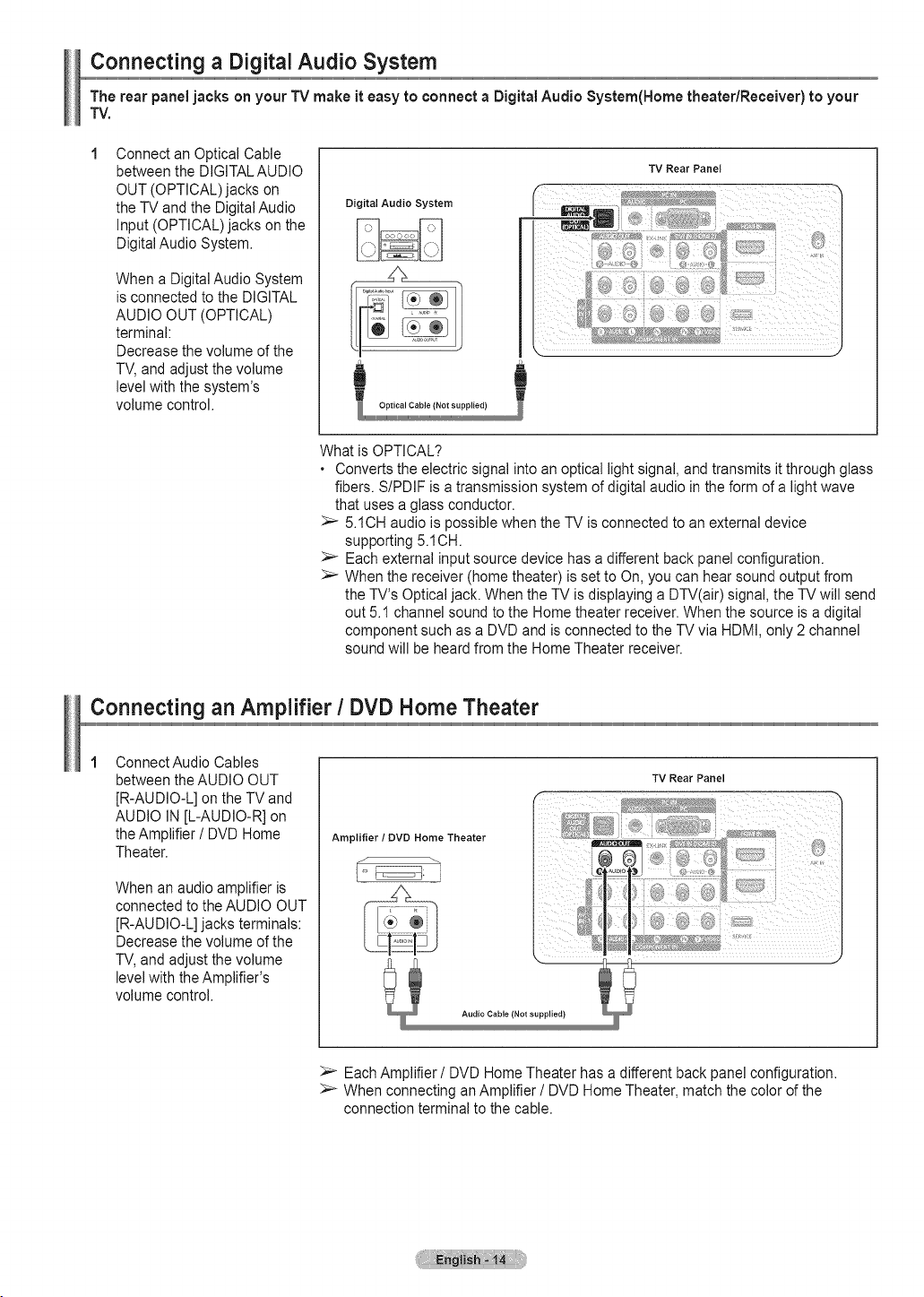

Connecting a Digital Audio System .................................. 14
Connecting an Amplifier / DVD Home Theater ................ 14

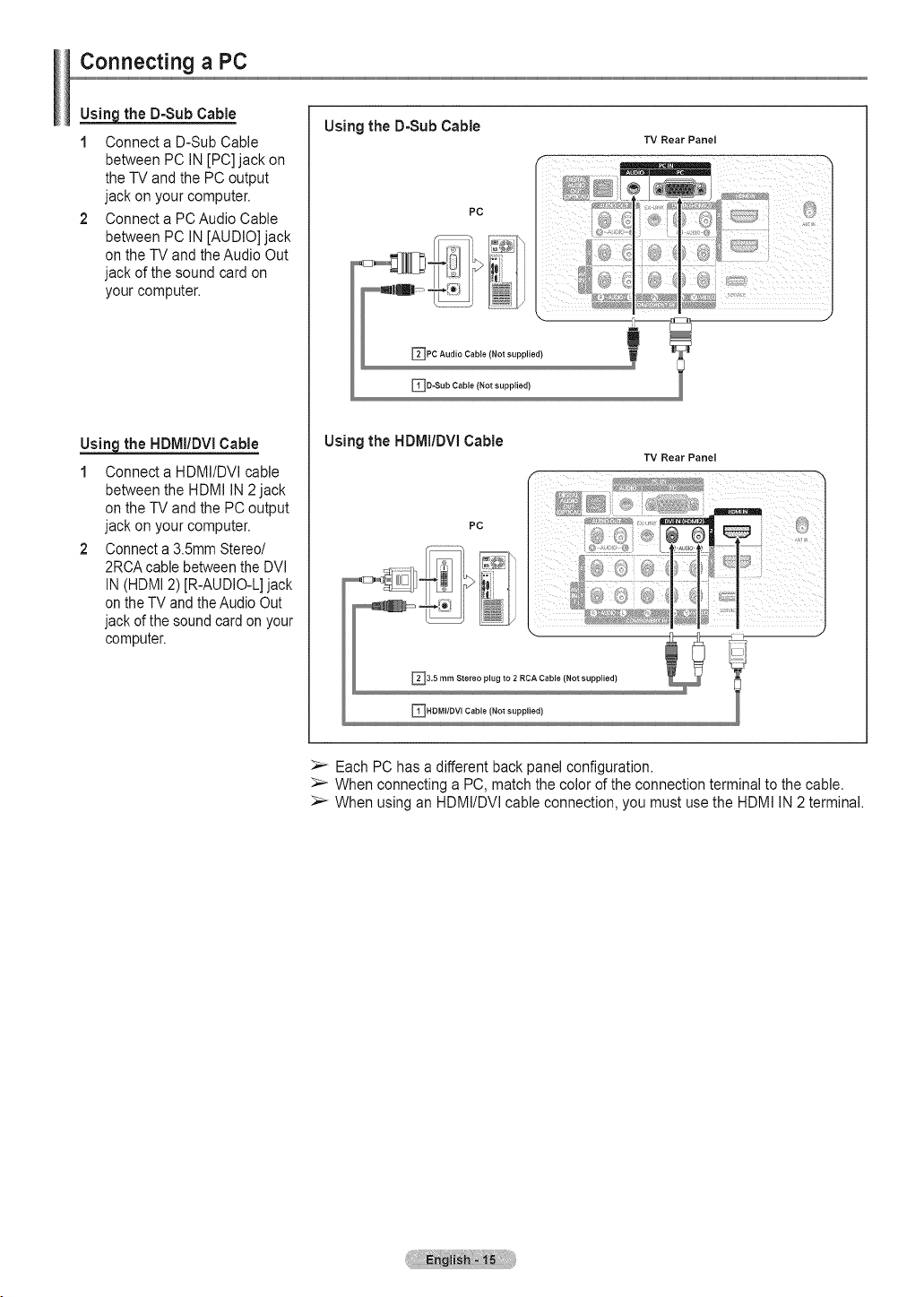

Connecting a PC .............................................................. 15

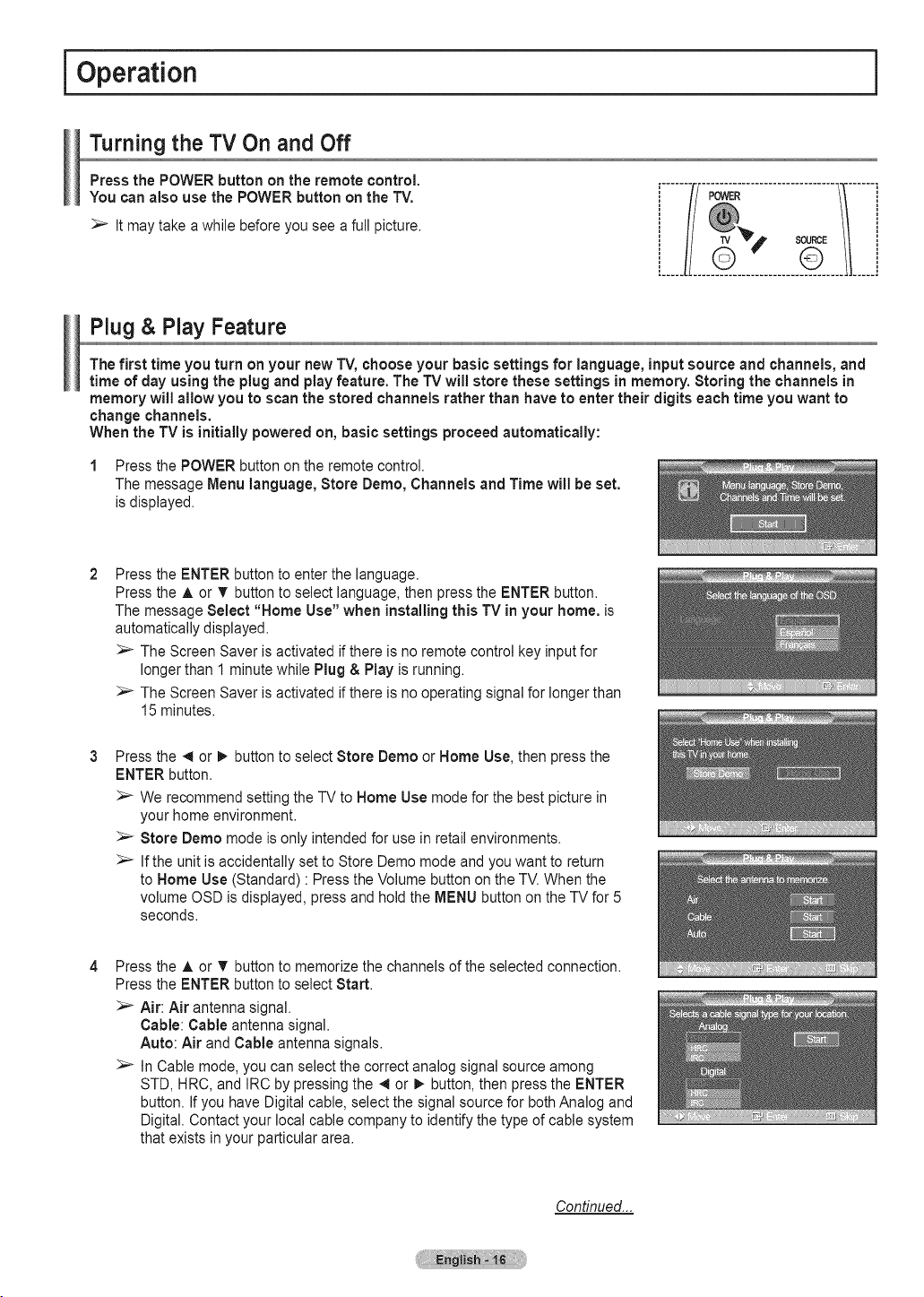

Turning the TV On and Off ............................................... 16
Plug & Play Feature ......................................................... 16
Changing Channels ......................................................... 18

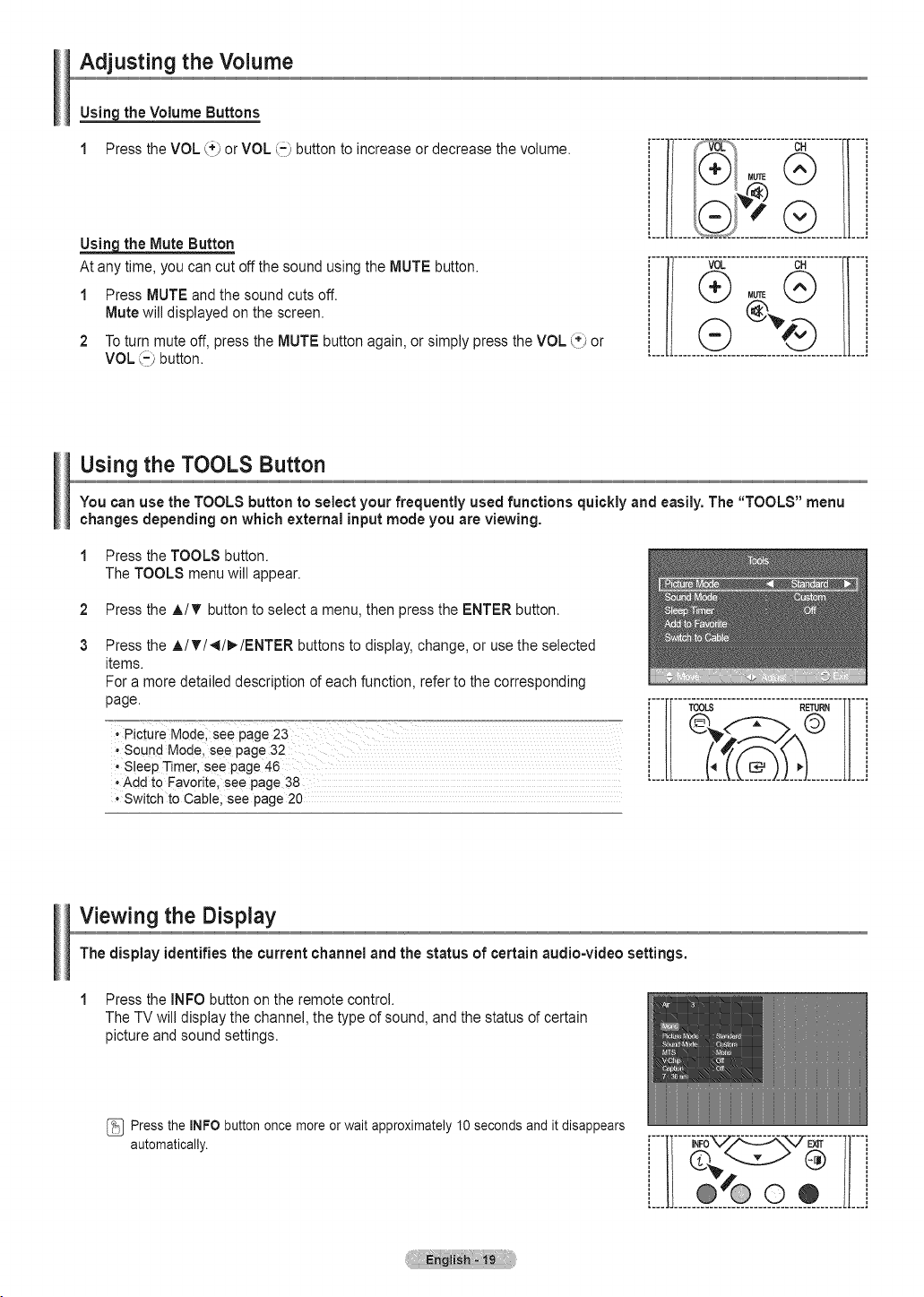

Adjusting the Volume ....................................................... 19
Using the TOOLS Button ................................................. 19
Viewing the Display.......................................................... 19

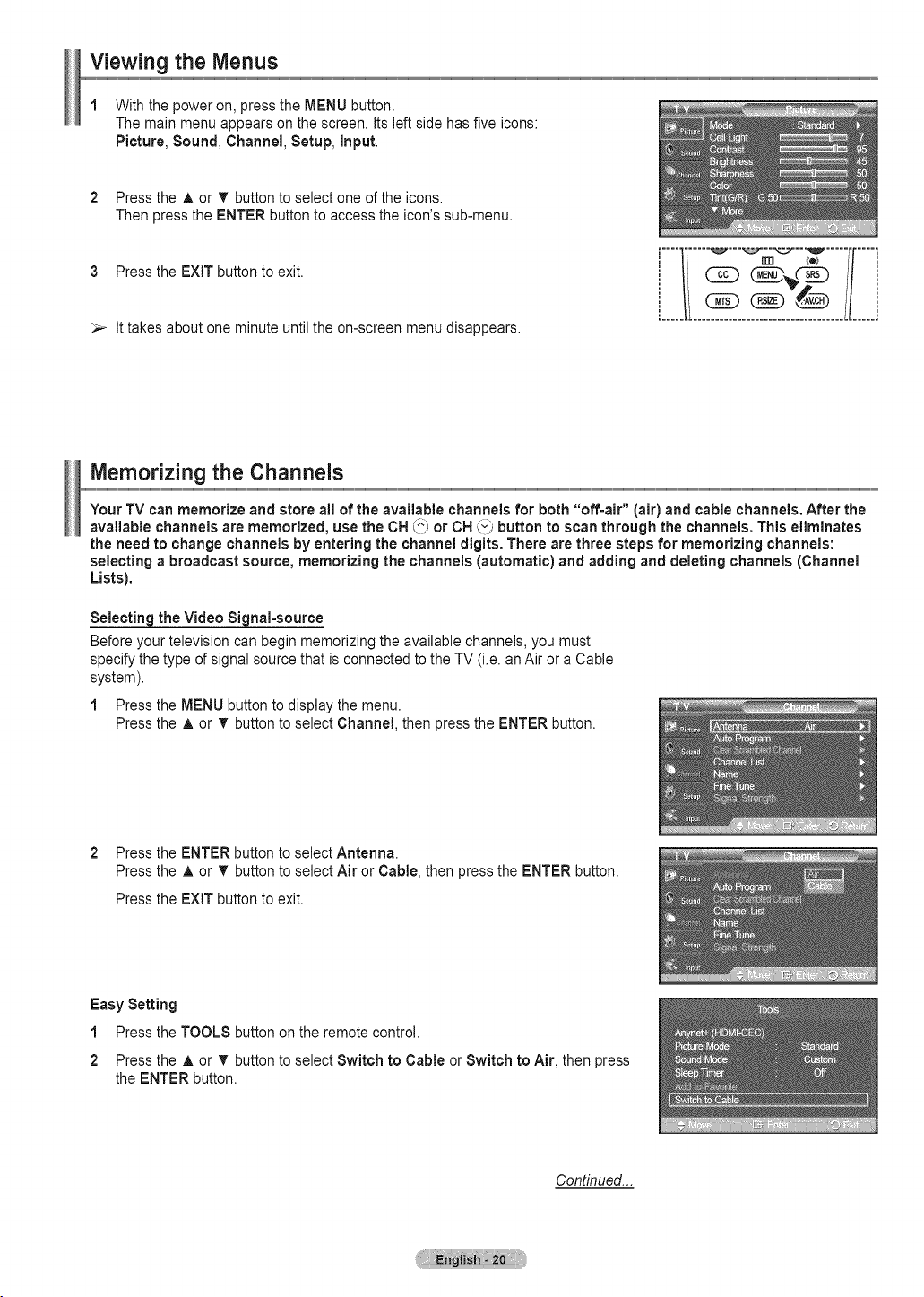

Viewing the Menus ........................................................... 20

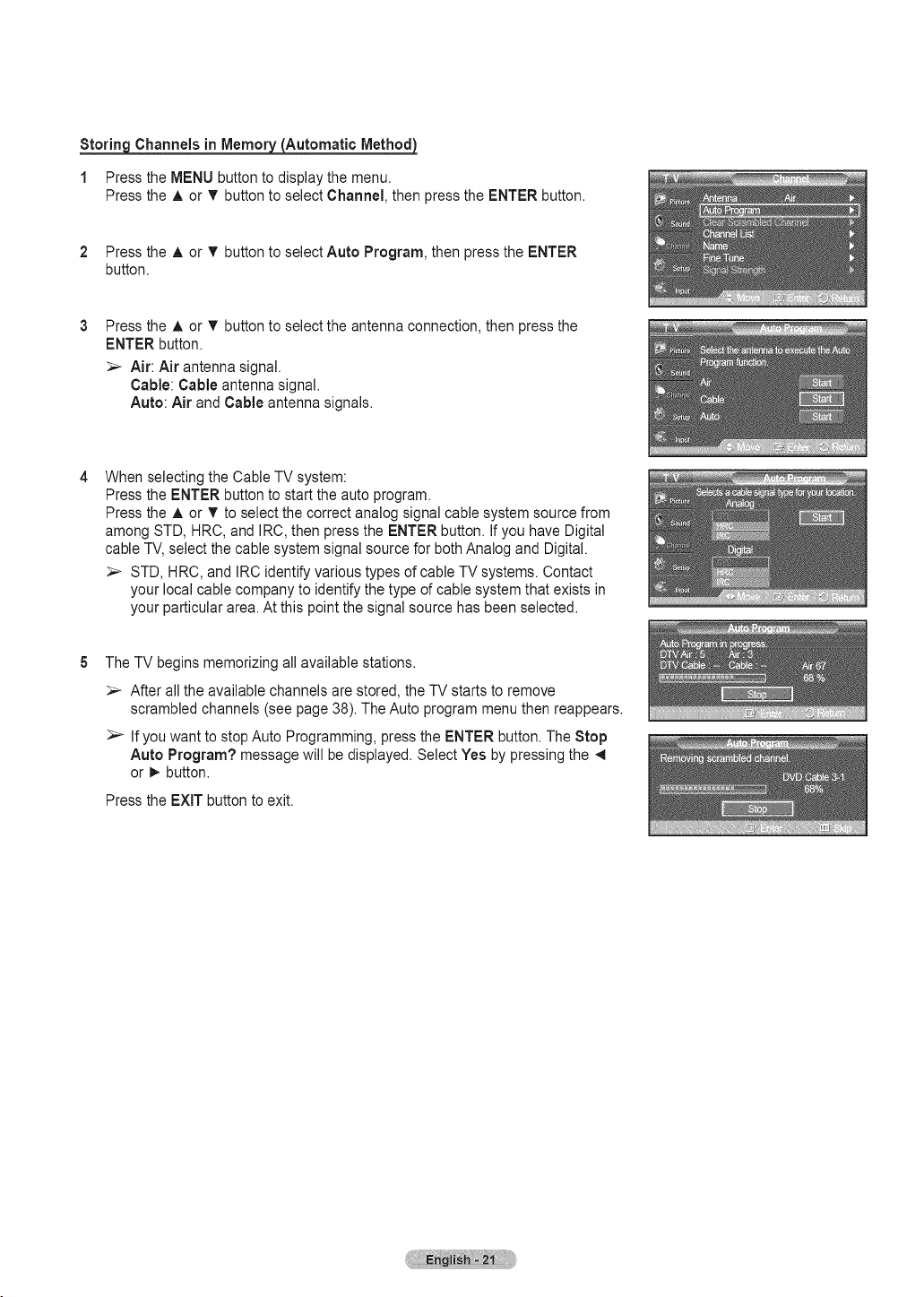

Memorizing the Channels ................................................ 20

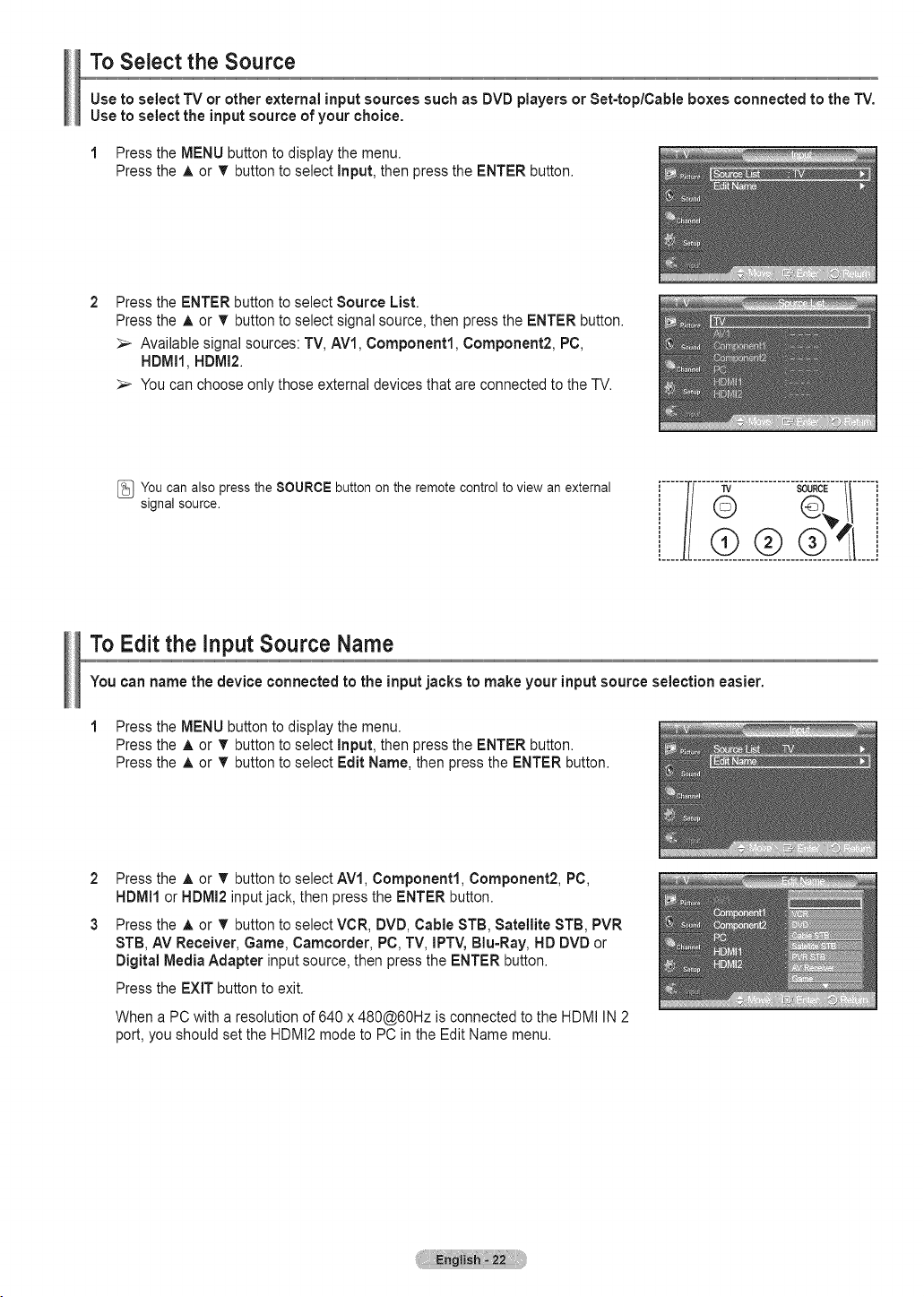

To Select the Source........................................................ 22
To Edit the Input Source Name........................................ 22

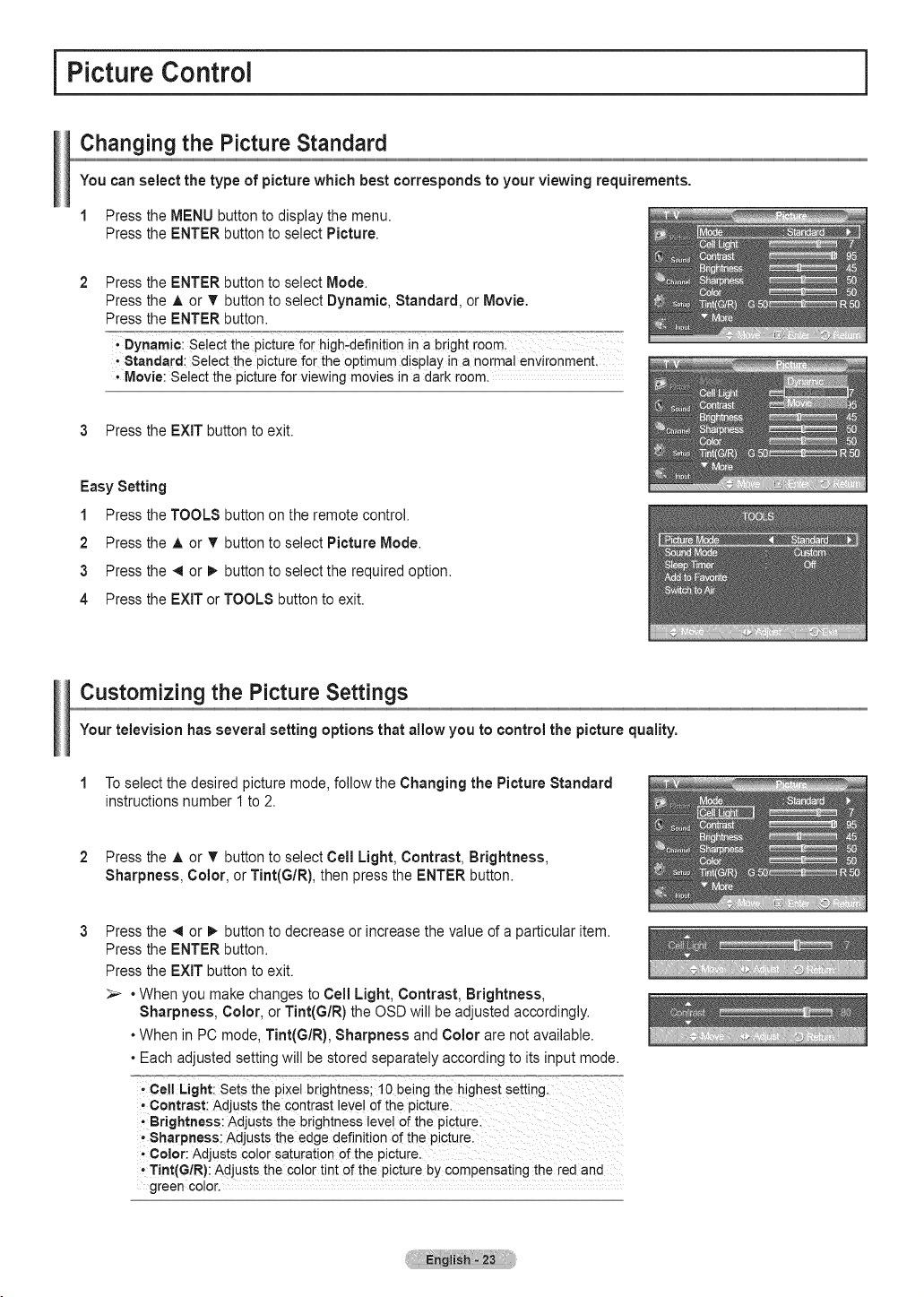

Changing the Picture Standard........................................ 23
Customizing the Picture Settings ..................................... 23

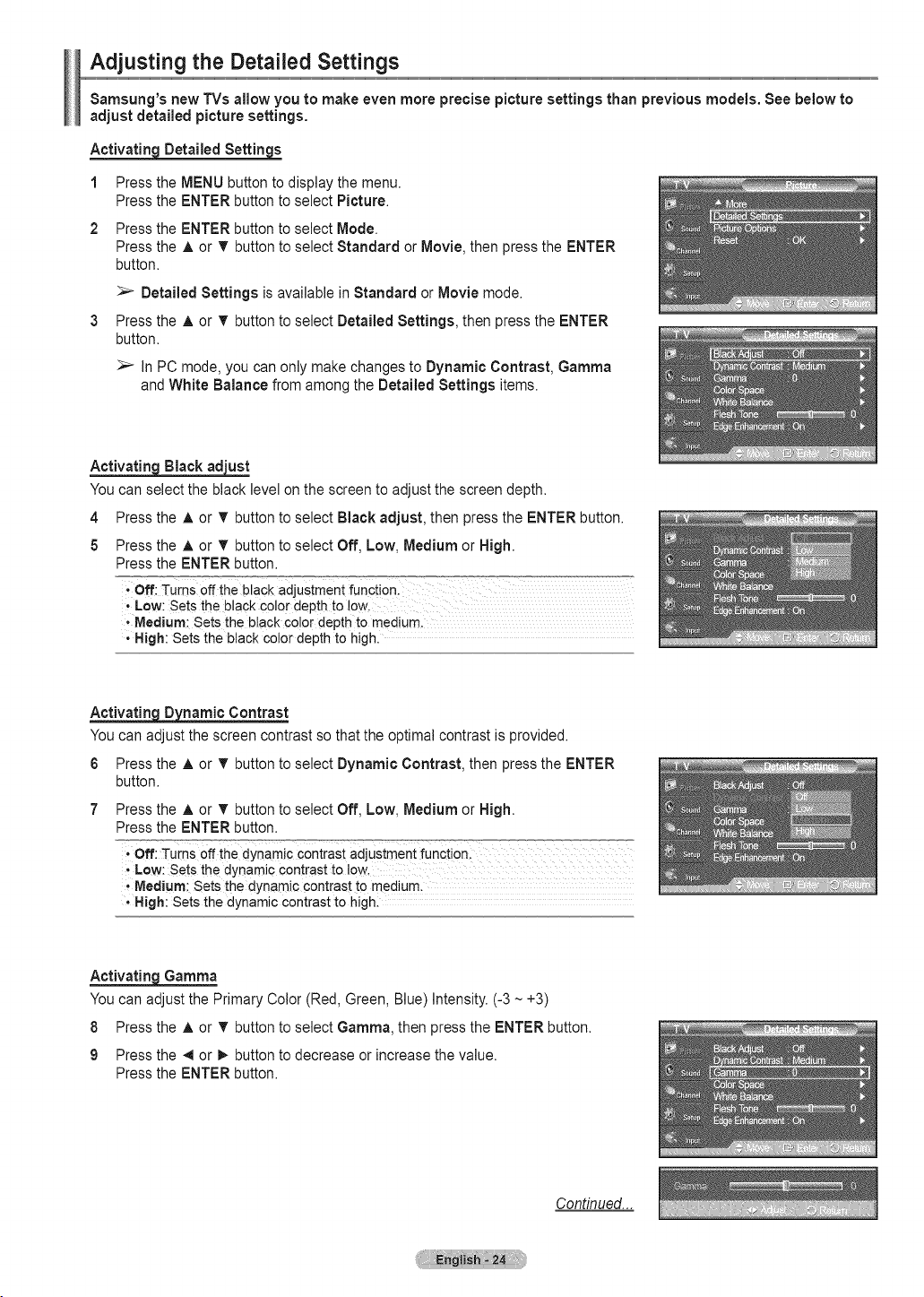

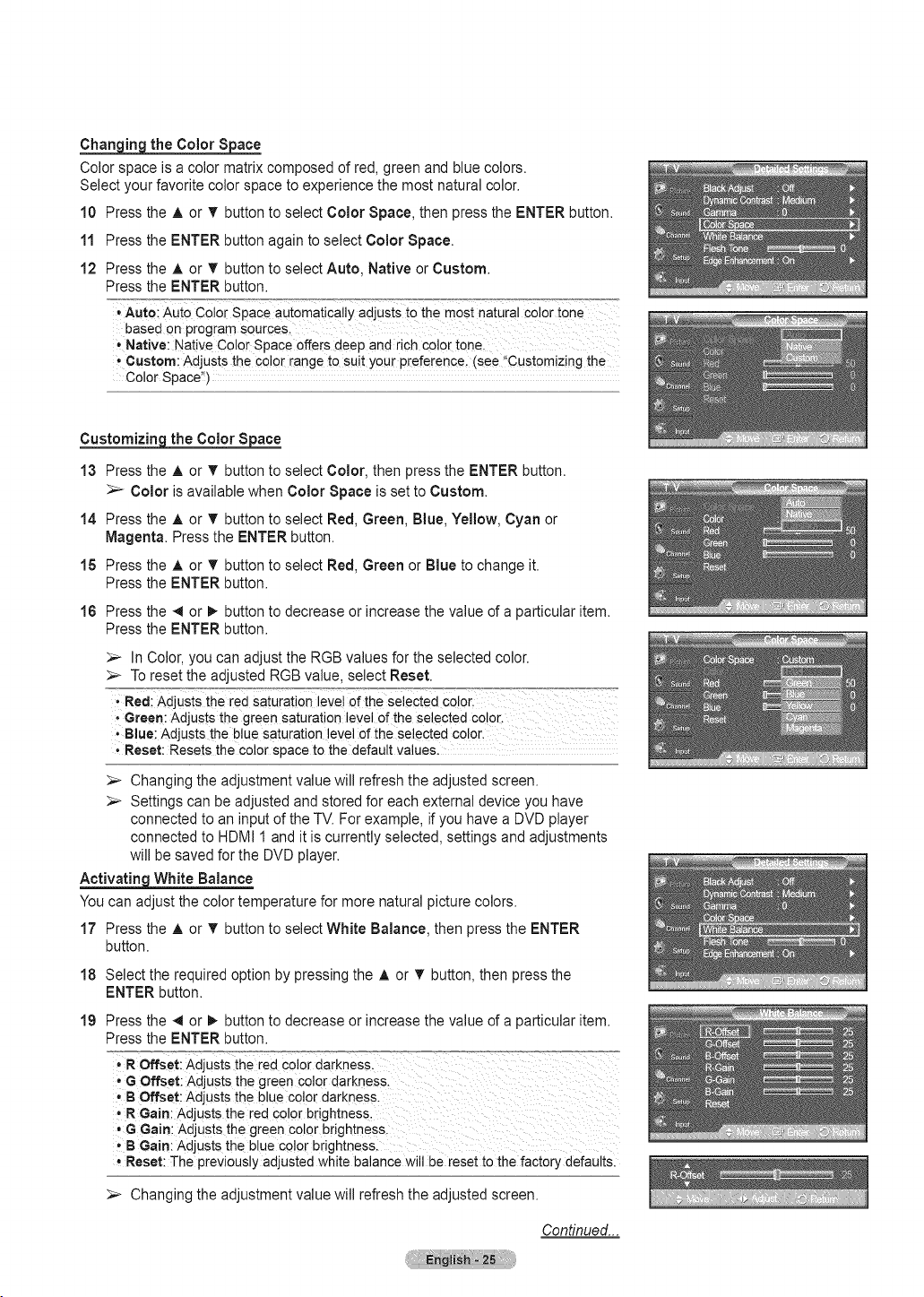

Adjusting the Detailed Settings ........................................ 24

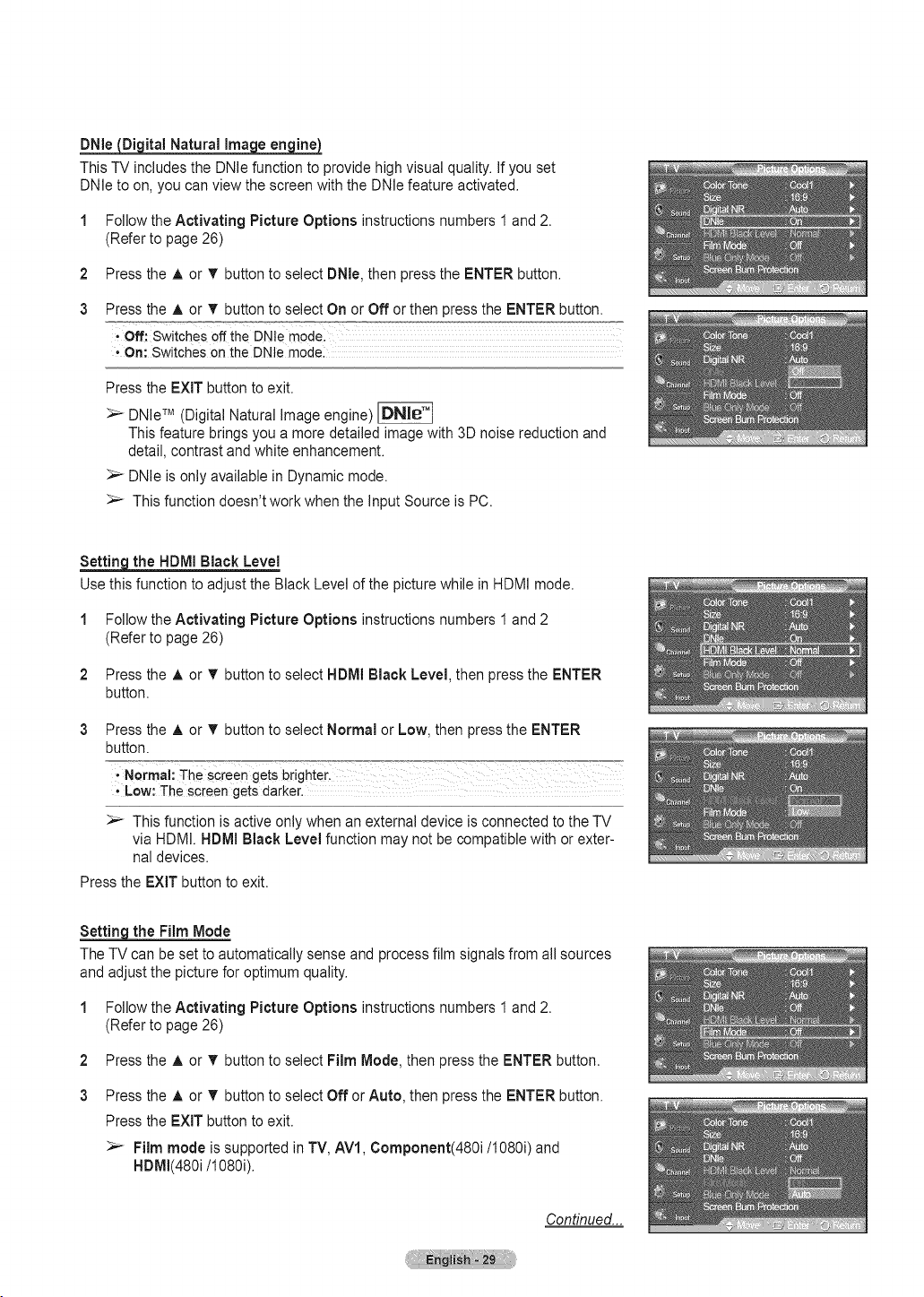

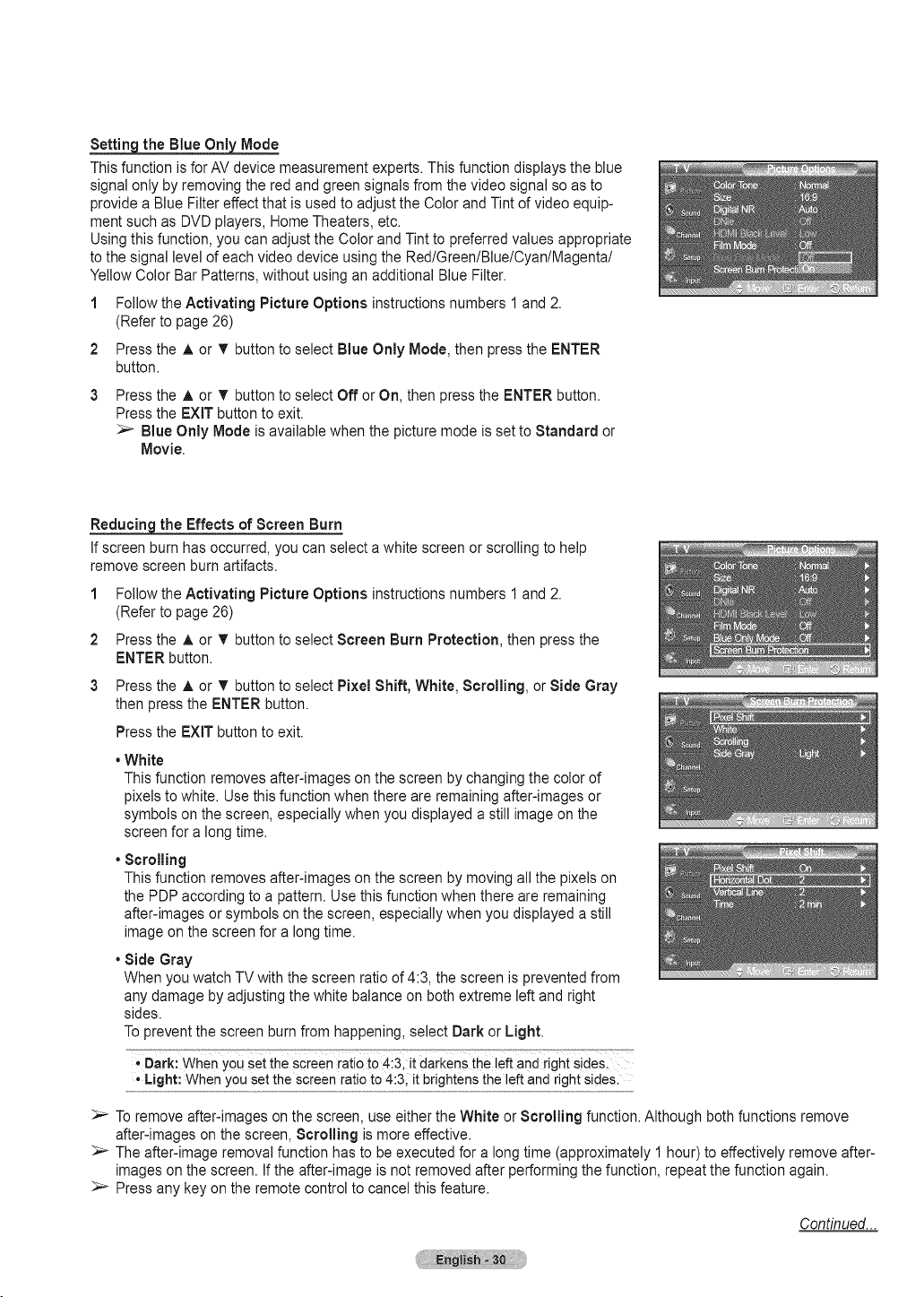

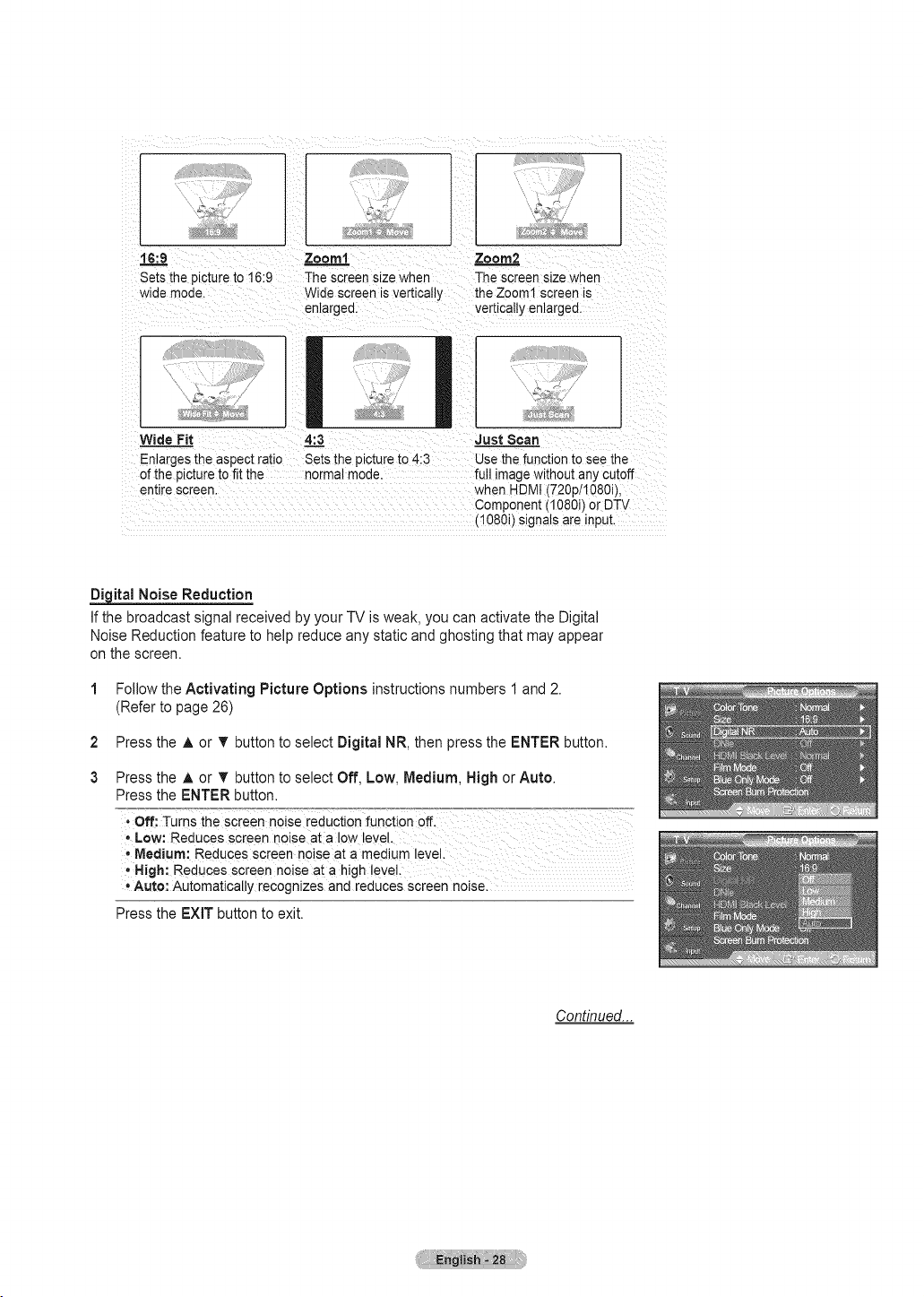

Configuring Picture Options ............................................ 26

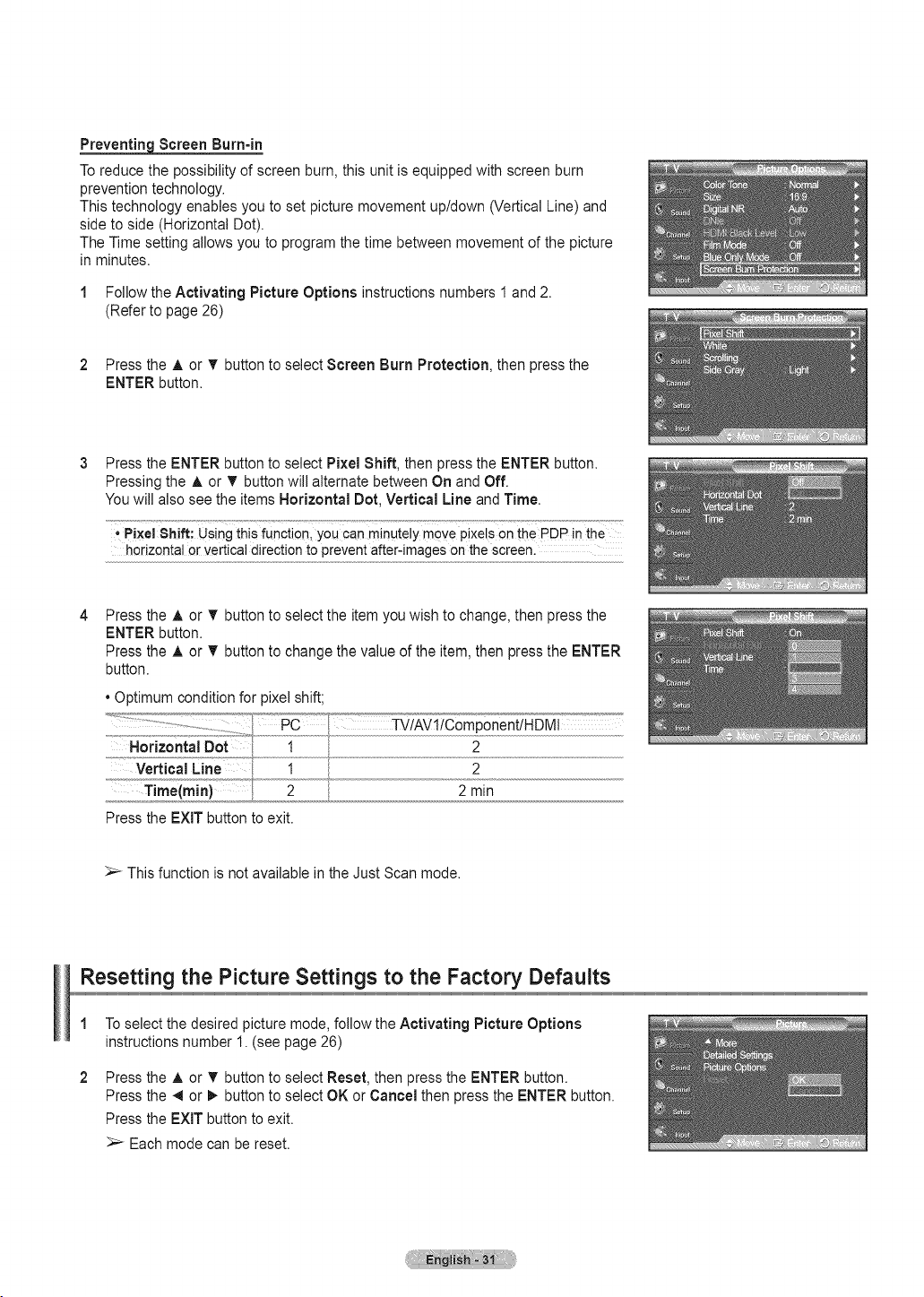

Resetting the Picture Settings to the Factory Defaults .... 31
Selecting the Antenna ...................................................... 36
Clearing Scrambled Channels - Digital ............................ 36

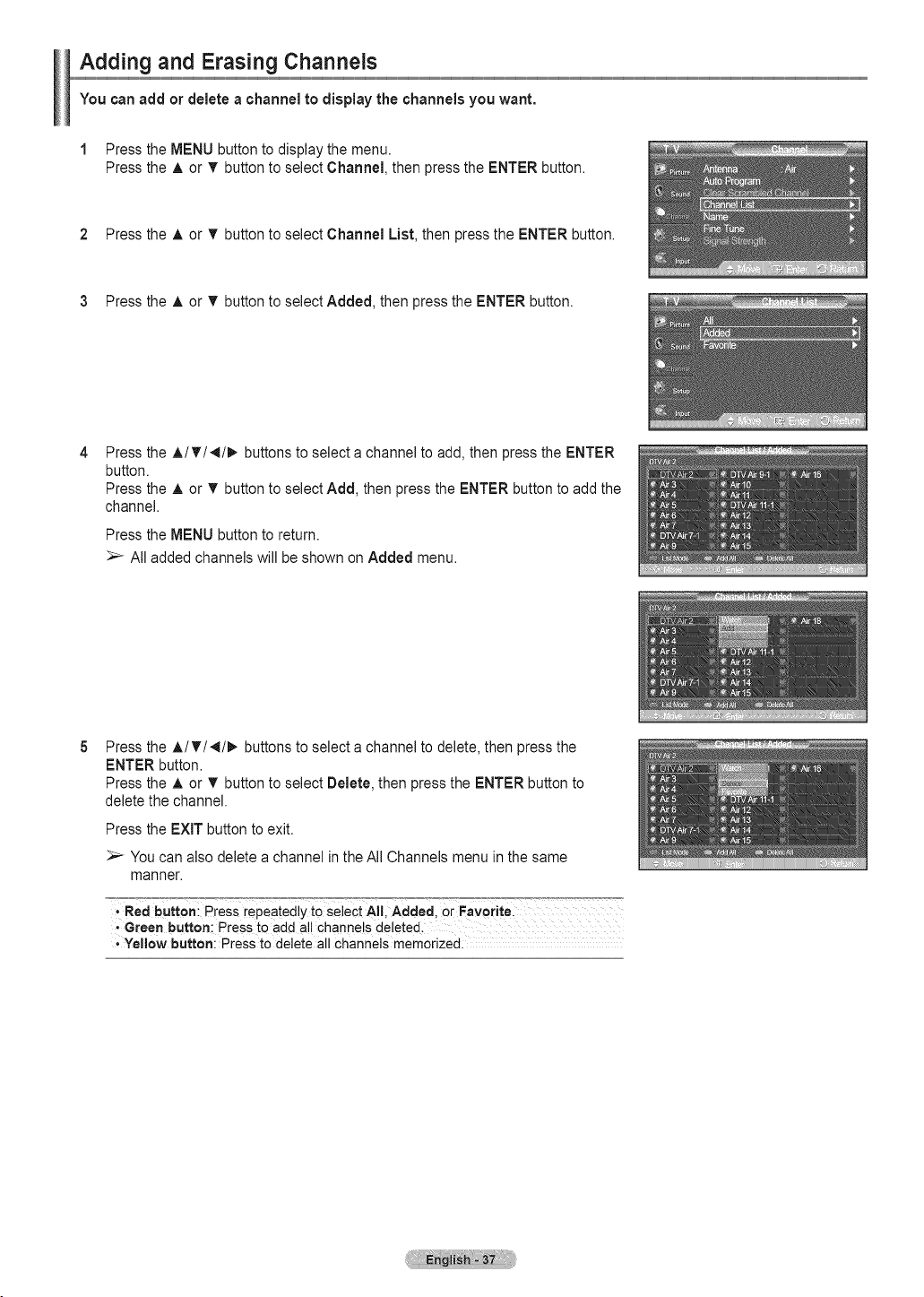

Adding and Erasing Channels ......................................... 37

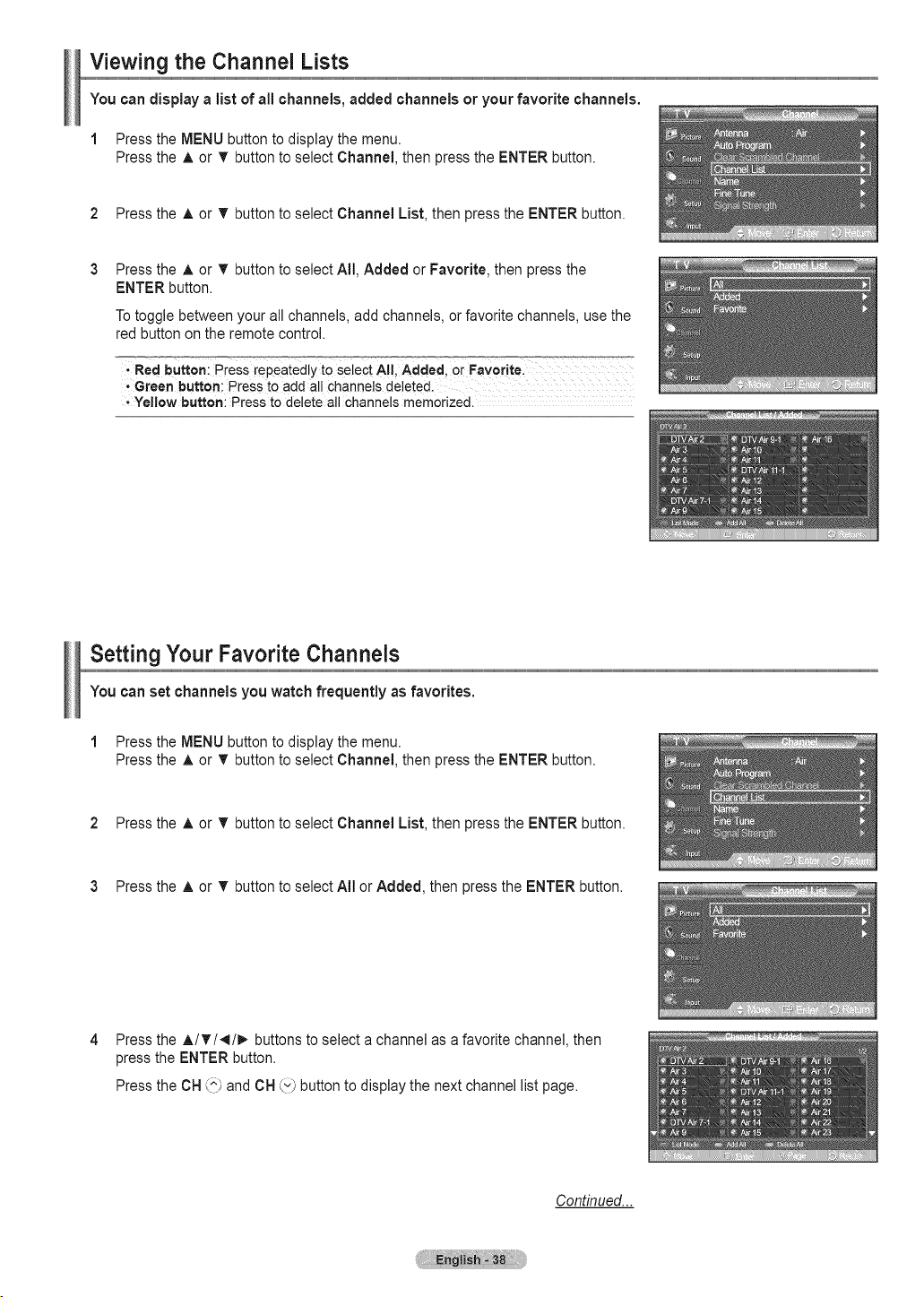

Viewing the Channel Lists................................................ 38
Setting Your Favorite Channels ....................................... 38

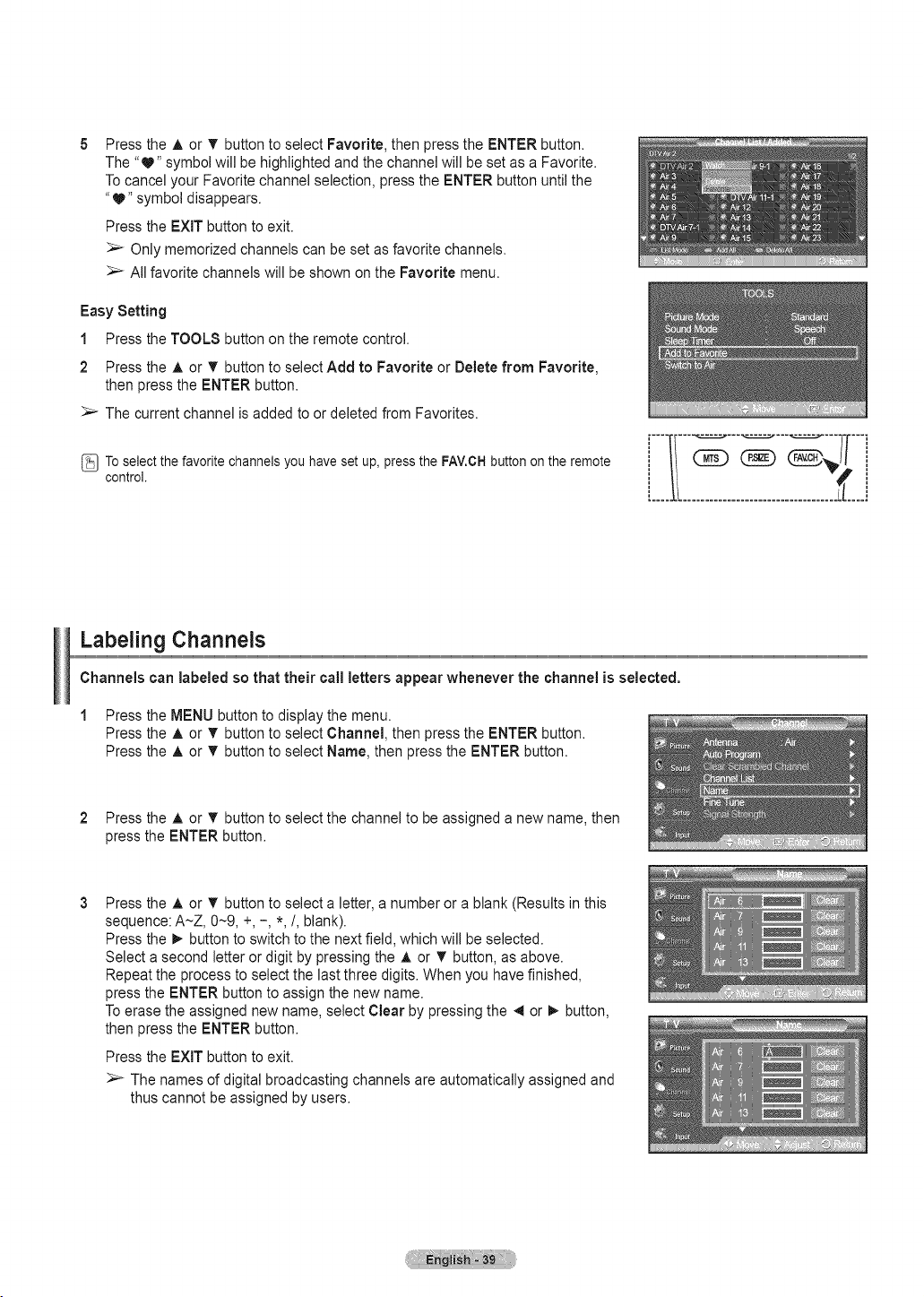

Labeling Channels ........................................................... 39

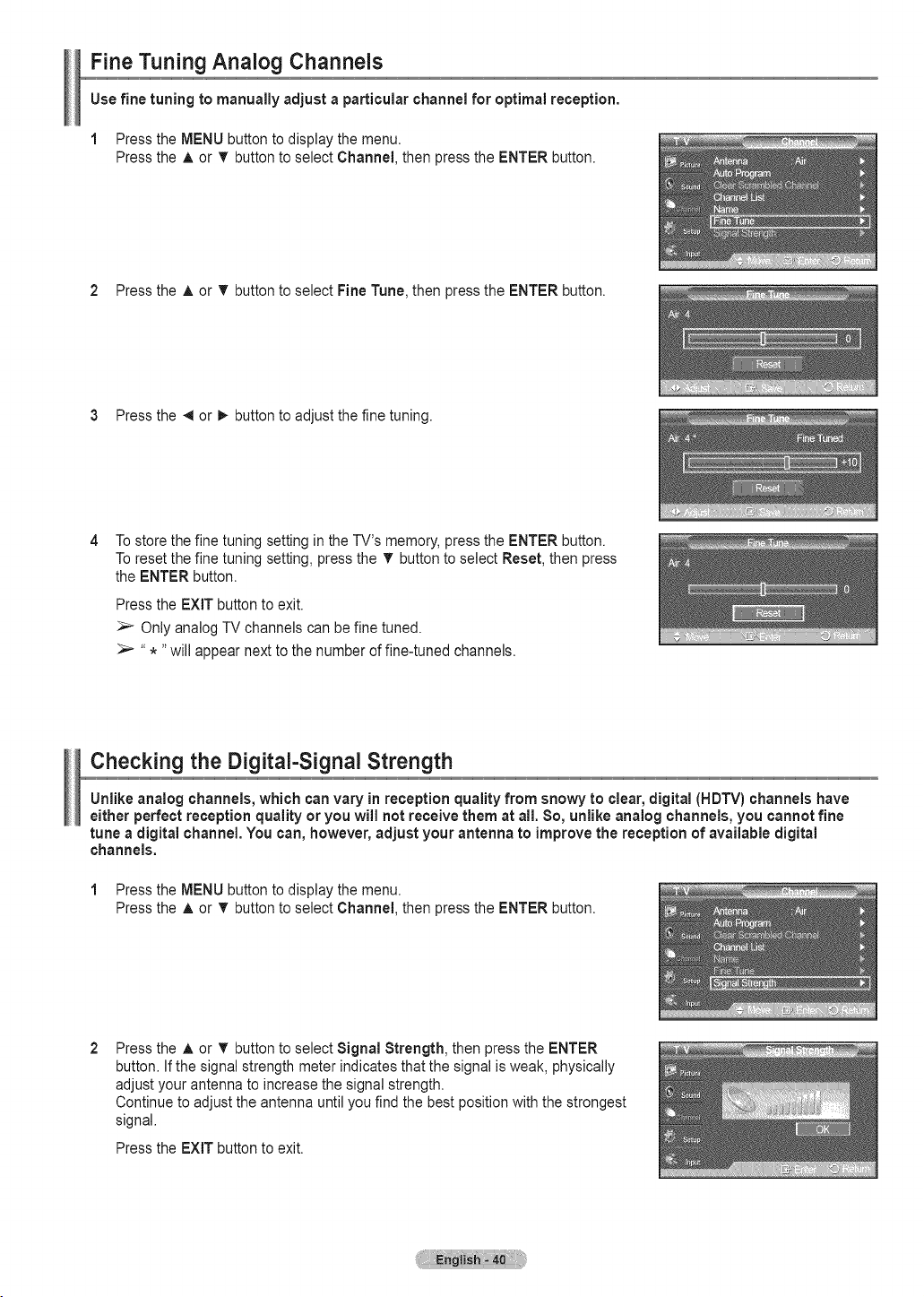

Fine Tuning Analog Channels ..........................................40
Checking the Digital-Signal Strength ............................... 40

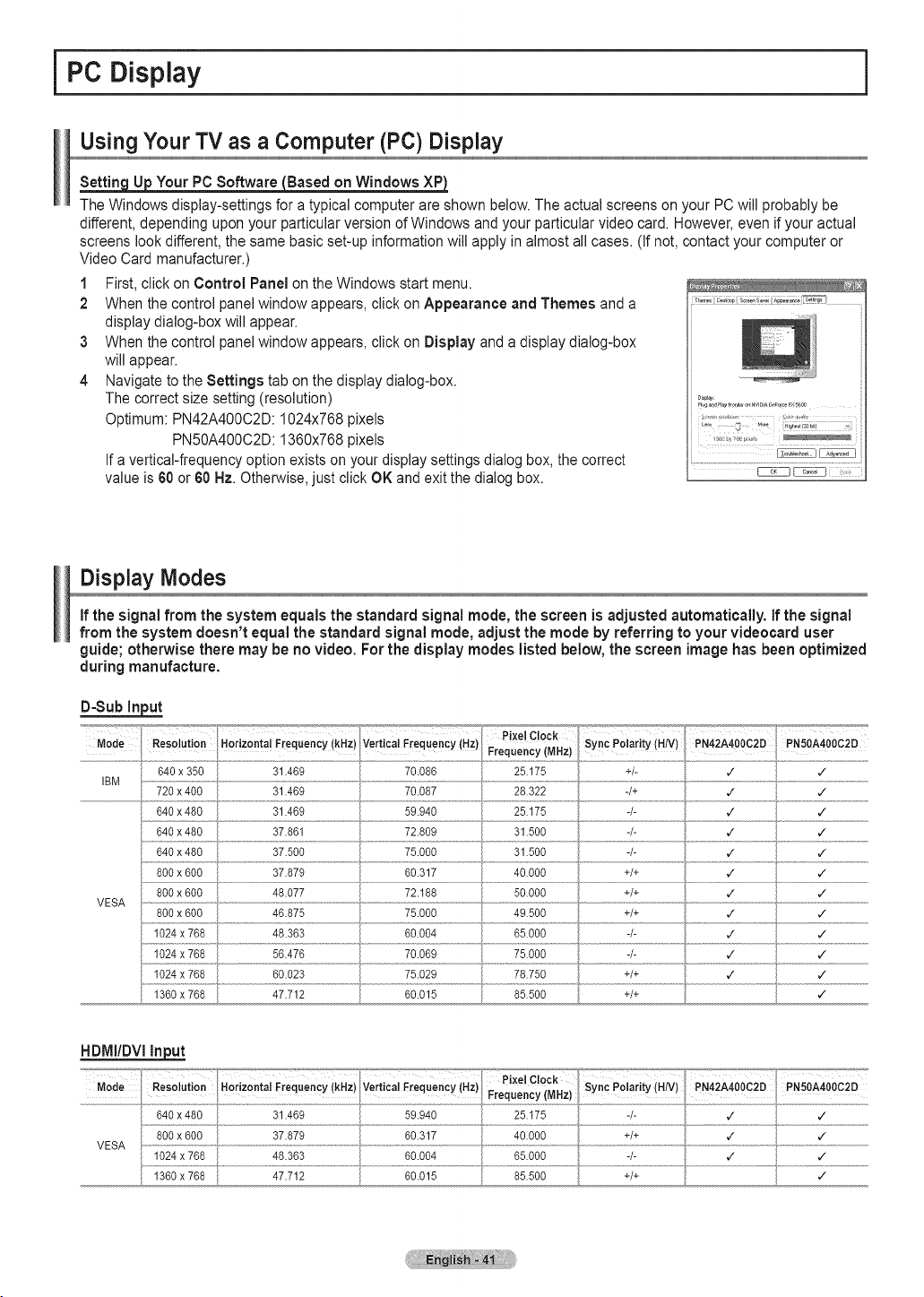

Using Your TV as a Computer (PC) Display ....................41
Display Modes ................................................................. 41
Setting up the TV with your PC ........................................ 42

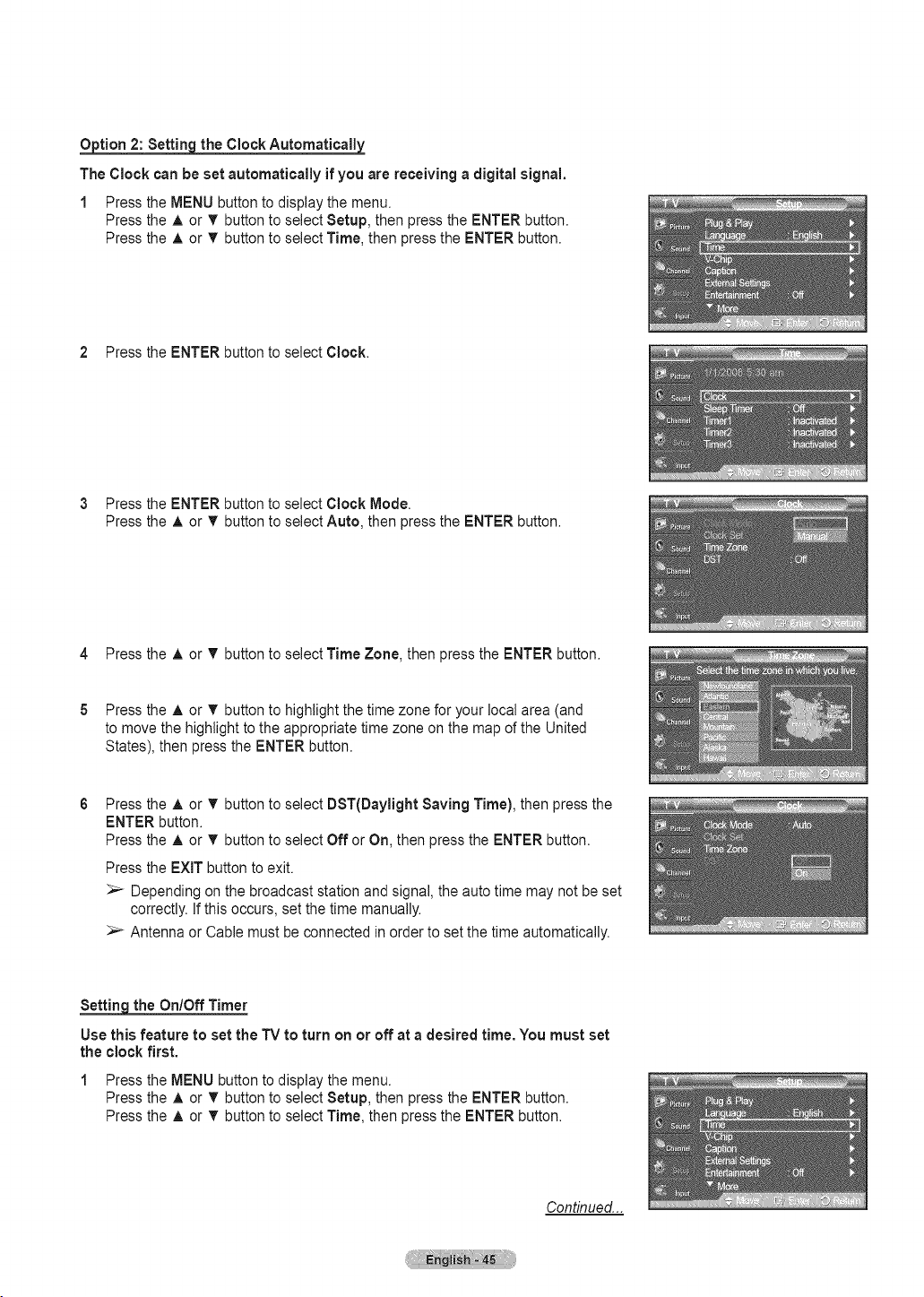

Setting the Time ............................................................... 44

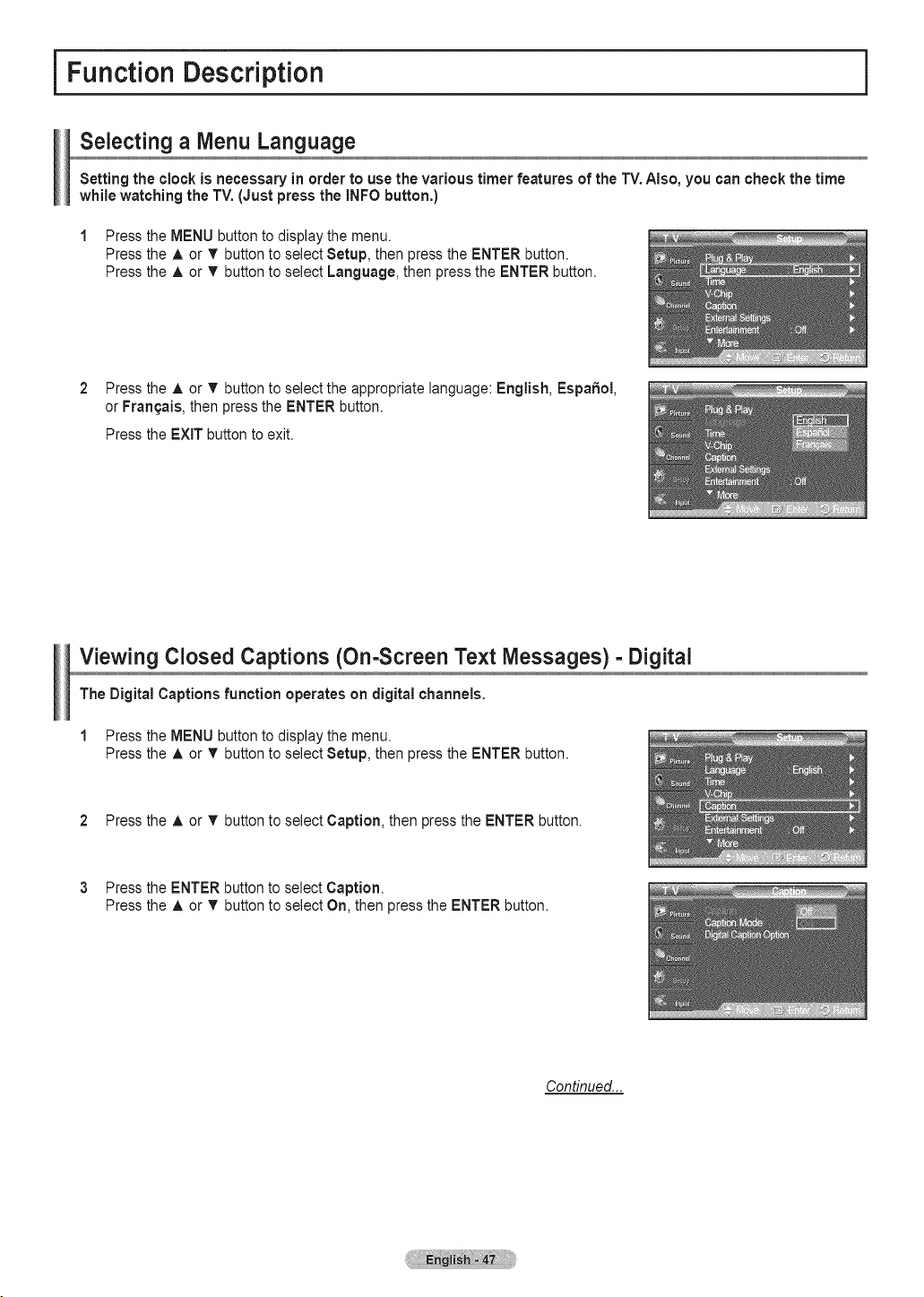

Selecting a Menu Language ............................................ 47
Viewing Closed Captions (On-Screen Text Messages)
- Digital........................................................................ 47

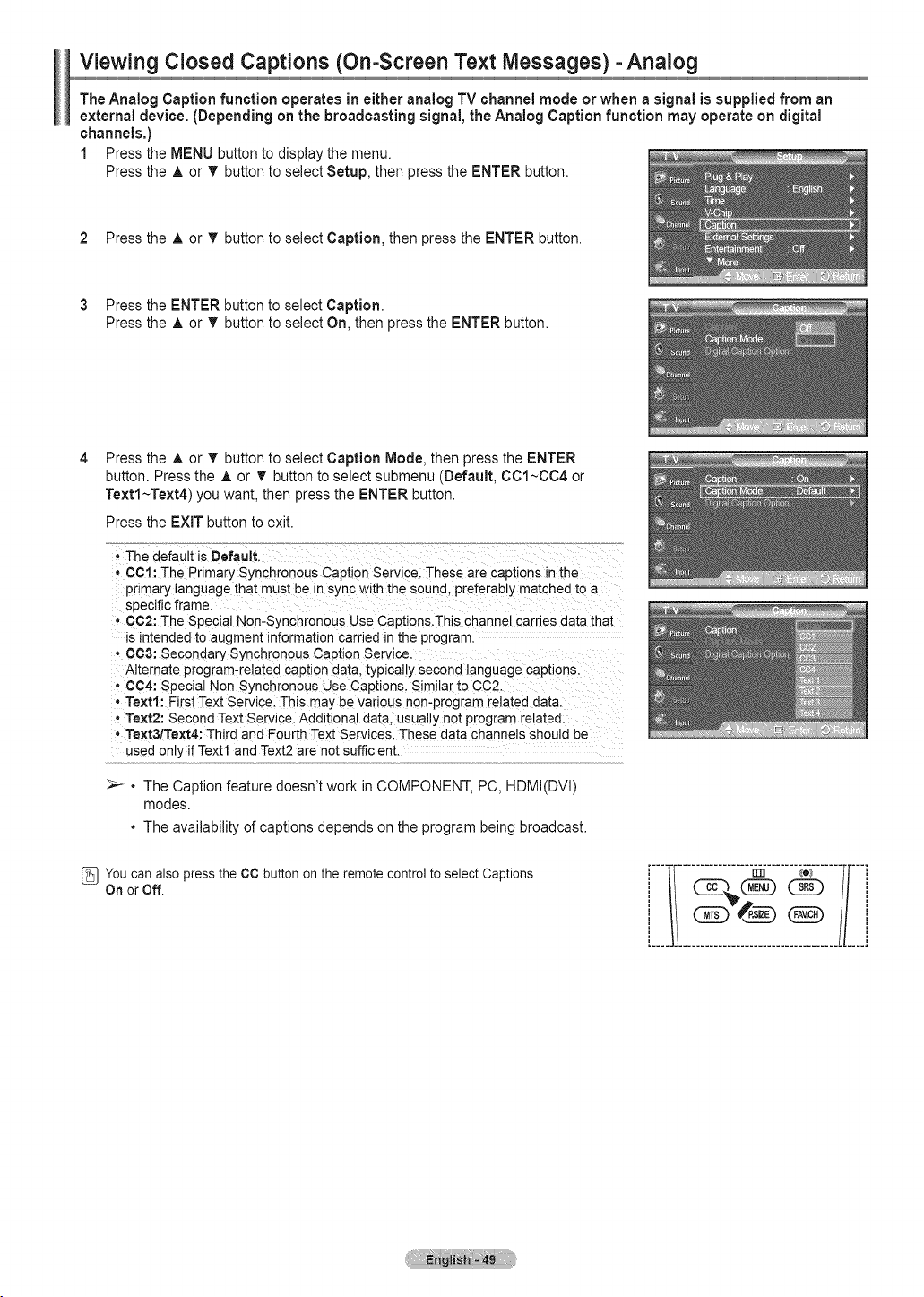

Viewing Closed Captions (On-Screen Text Messages)
- Analog ....................................................................... 49

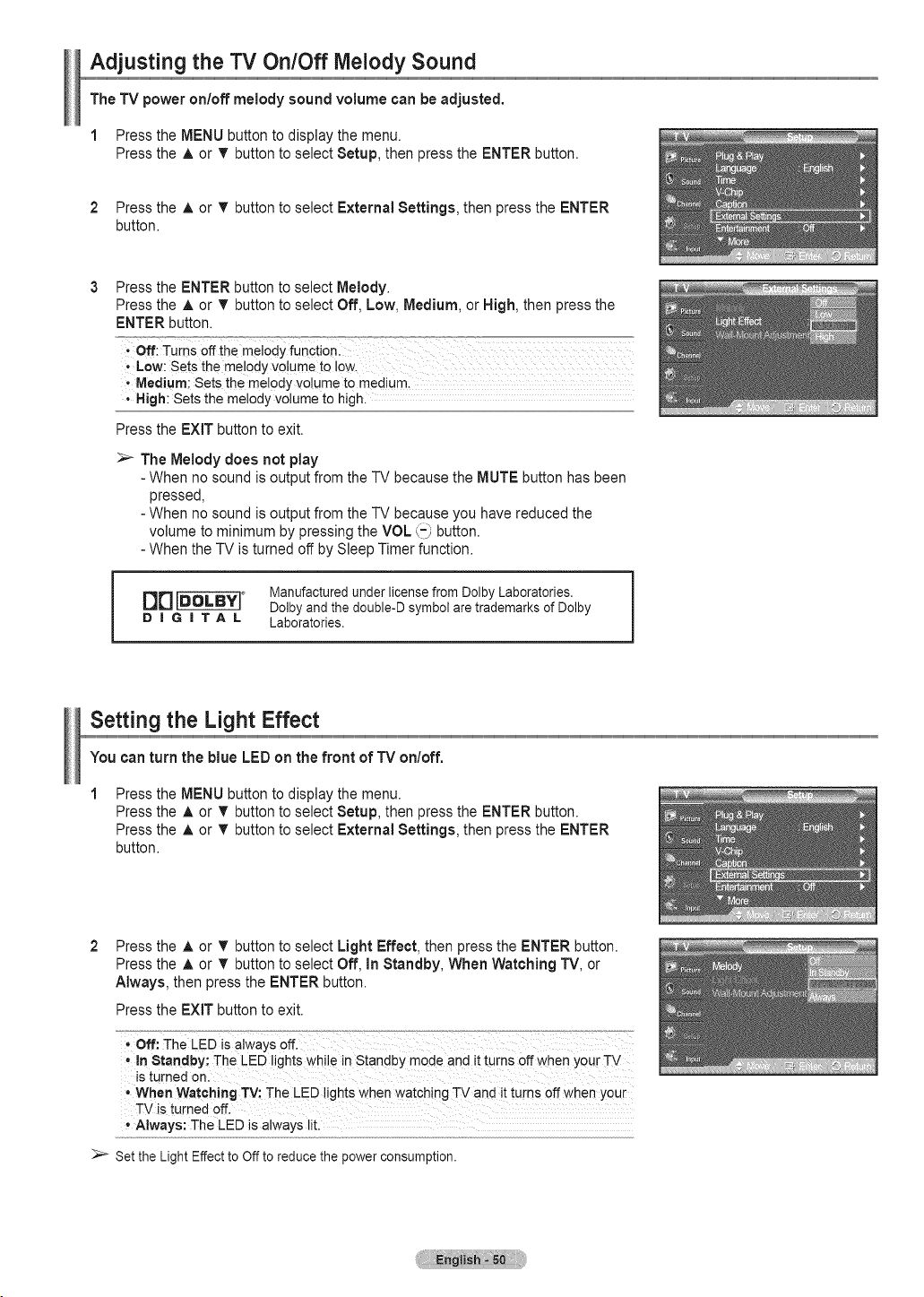

Adjusting the TV On/Off Melody Sound ........................... 50
Setting the Light Effect ..................................................... 50

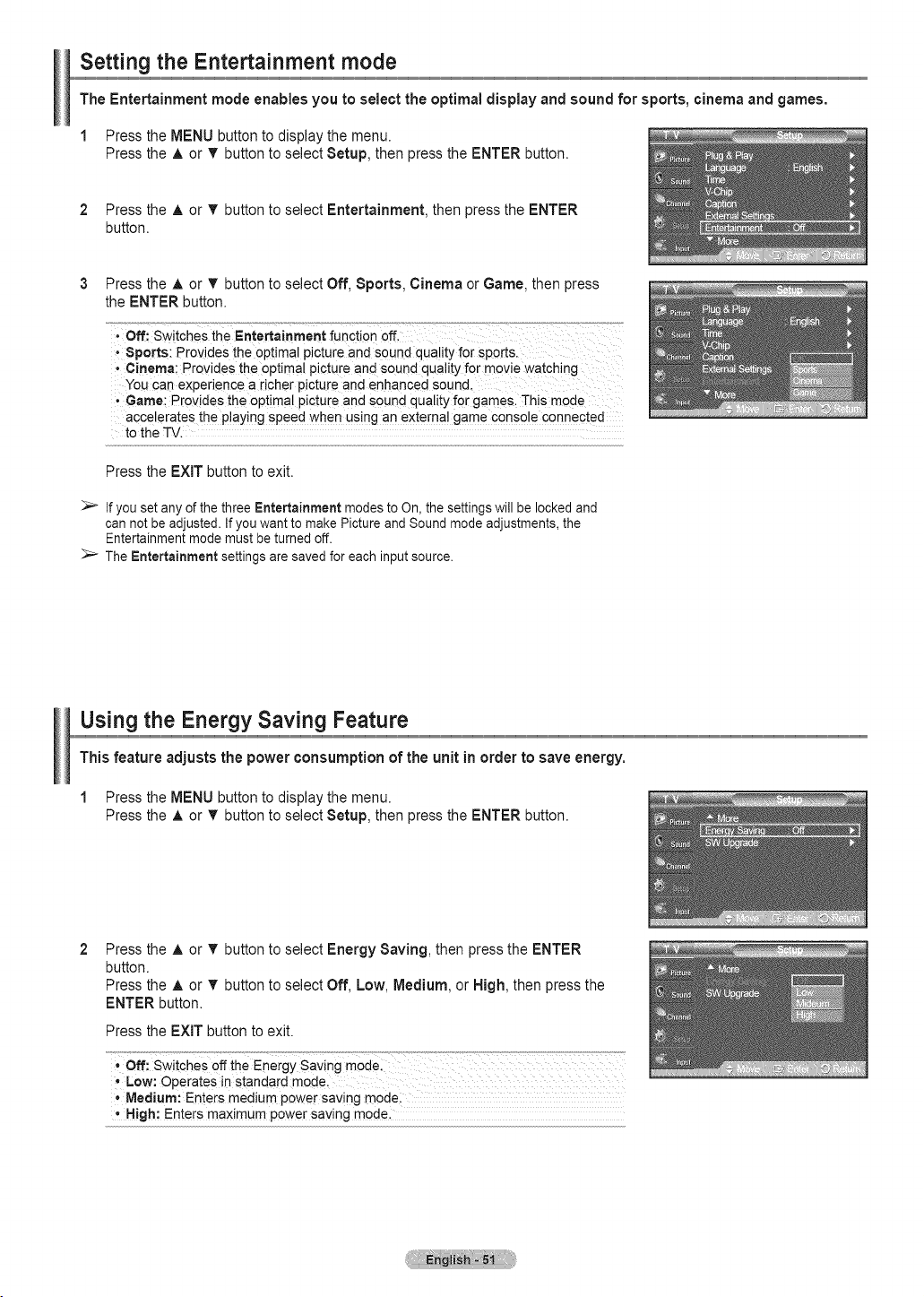

Setting the Entertainment mode ...................................... 51
Using the Energy Saving Feature .................................... 51

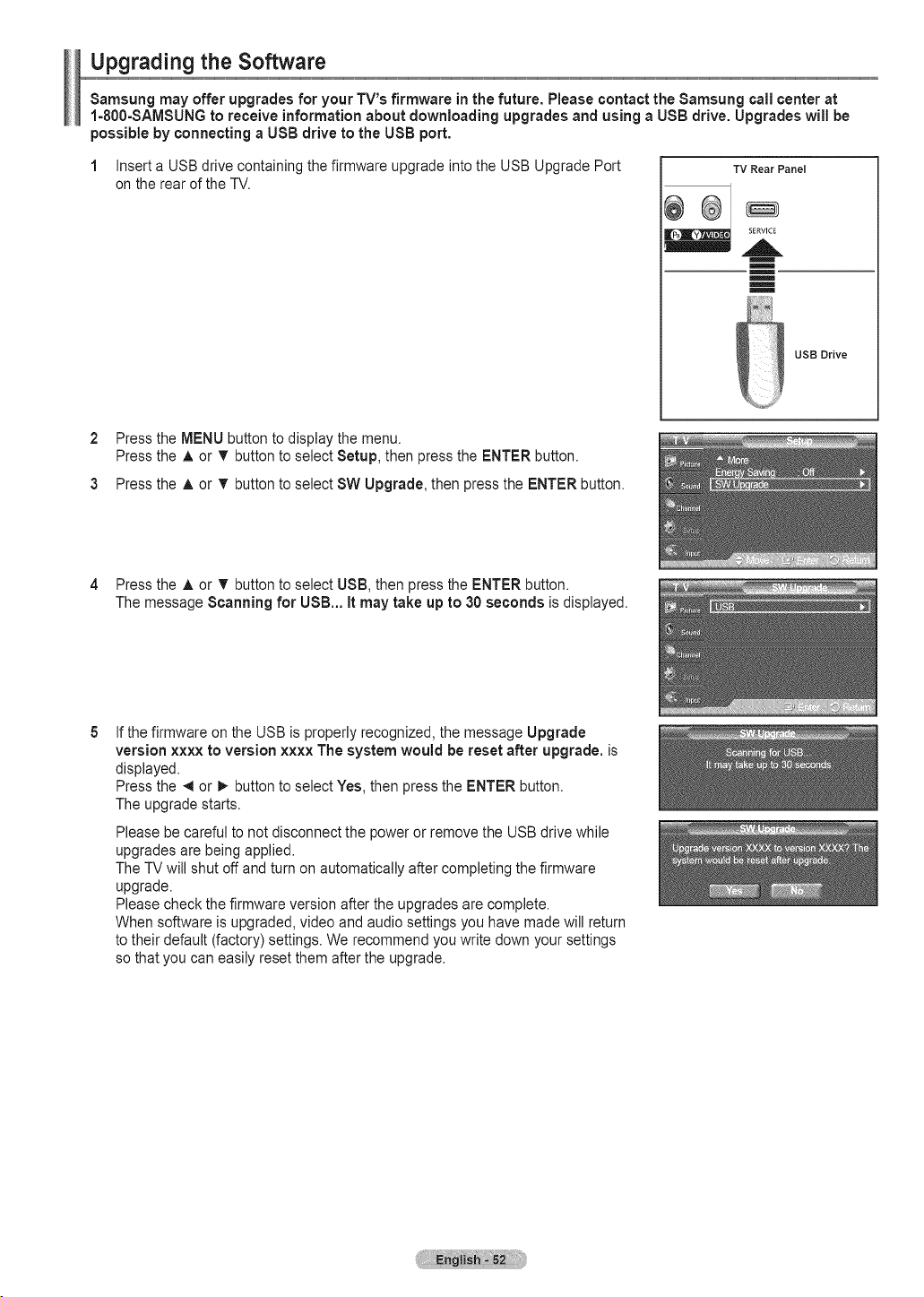

Upgrading the Software ................................................... 52

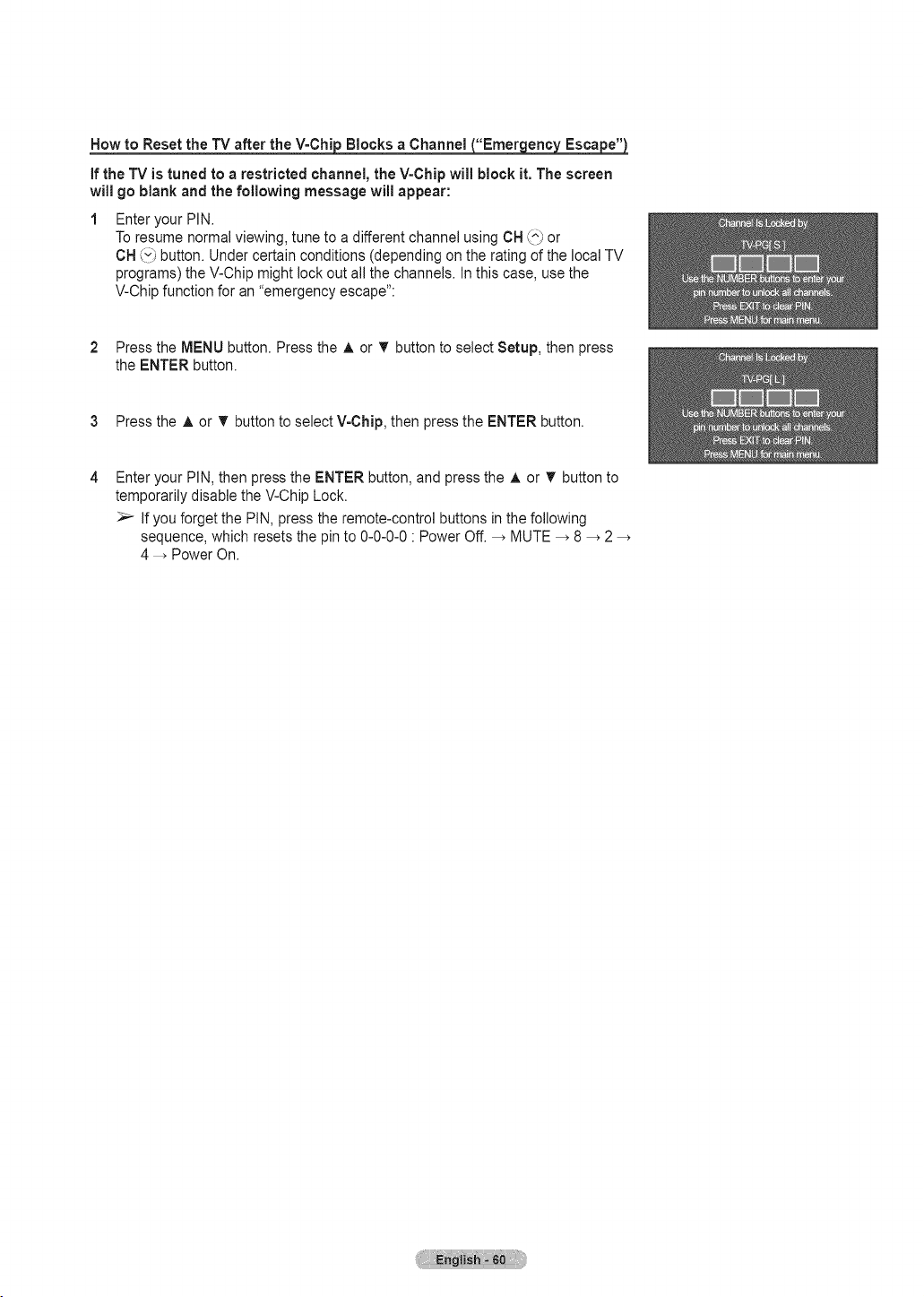

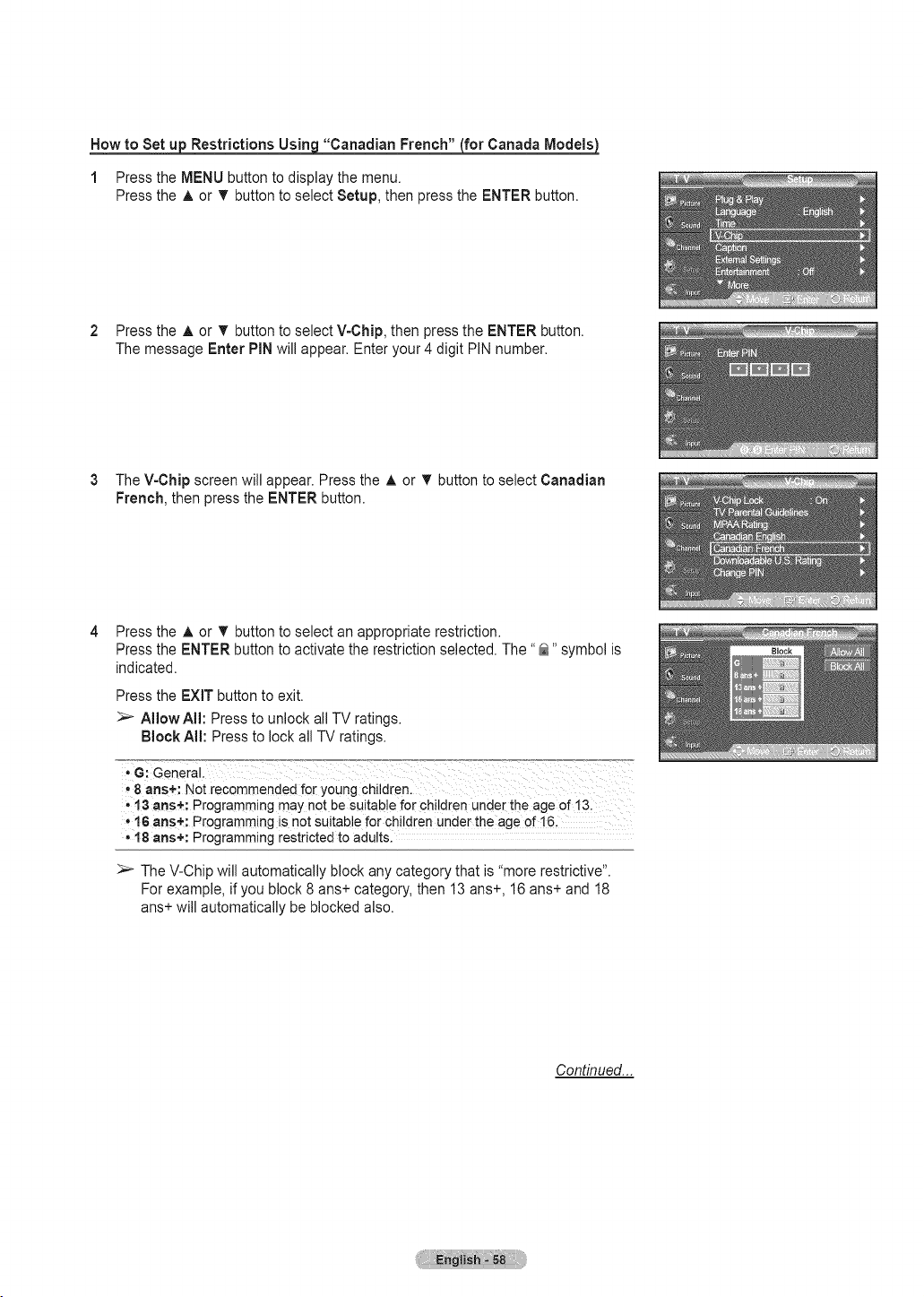

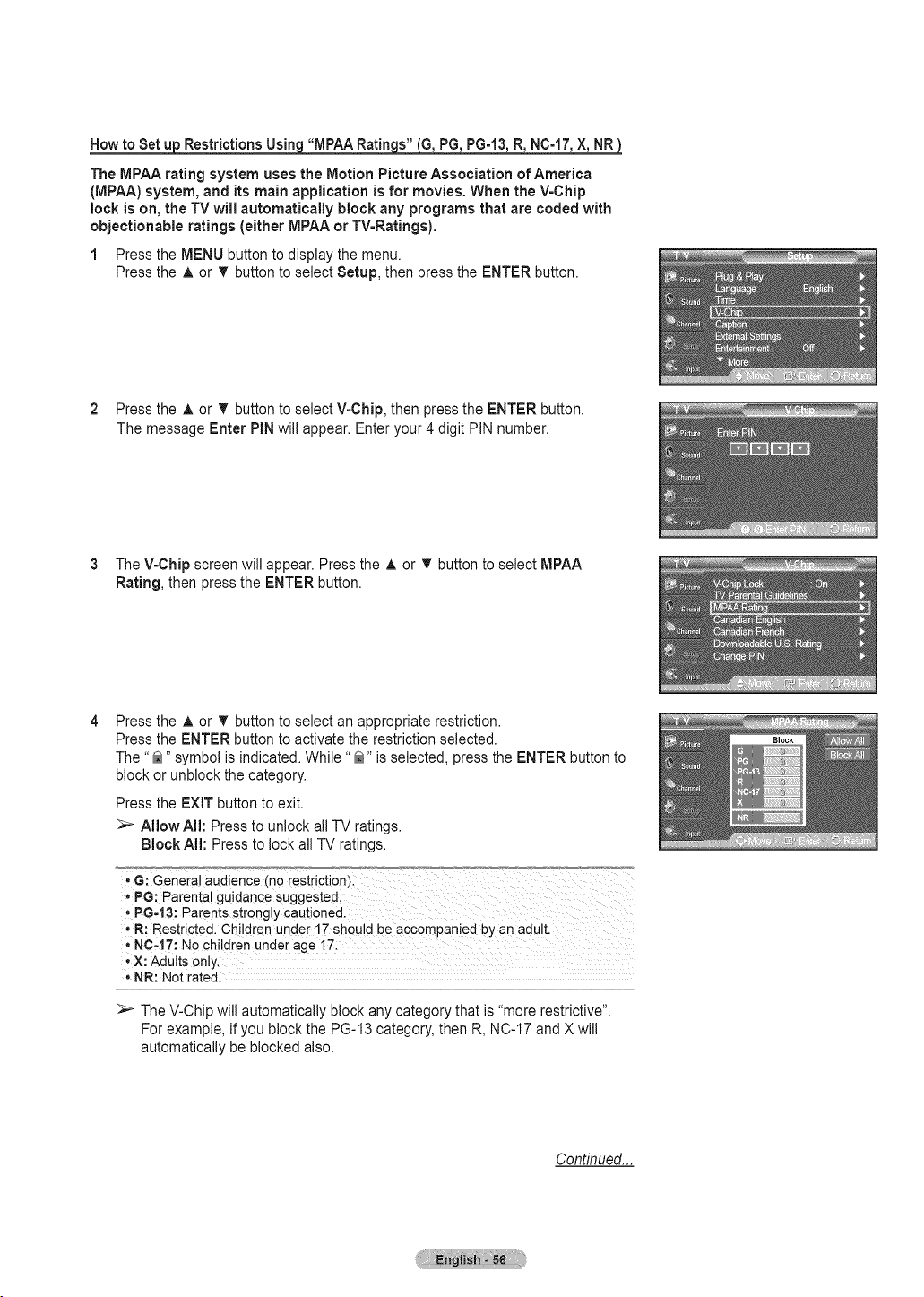

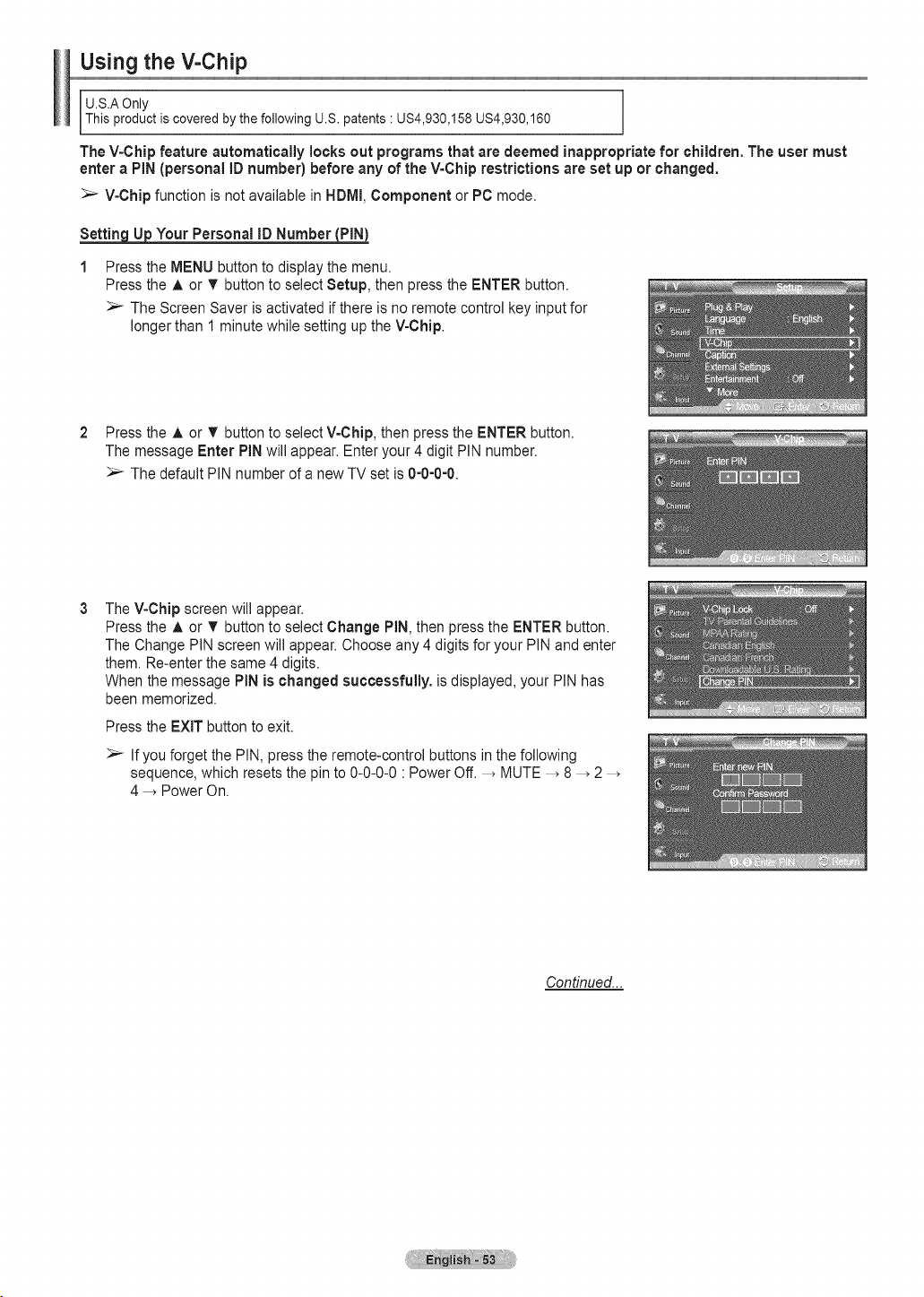

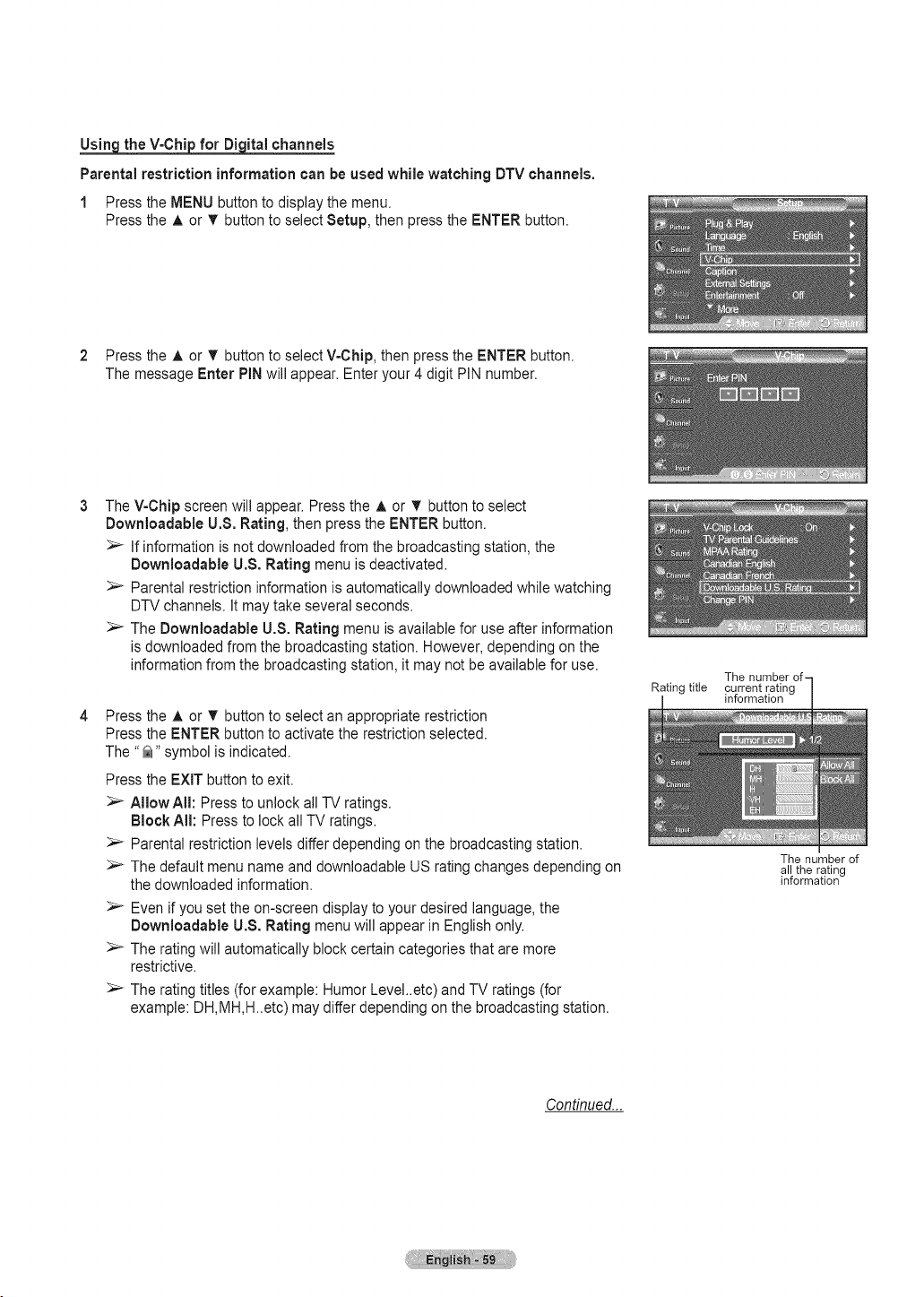

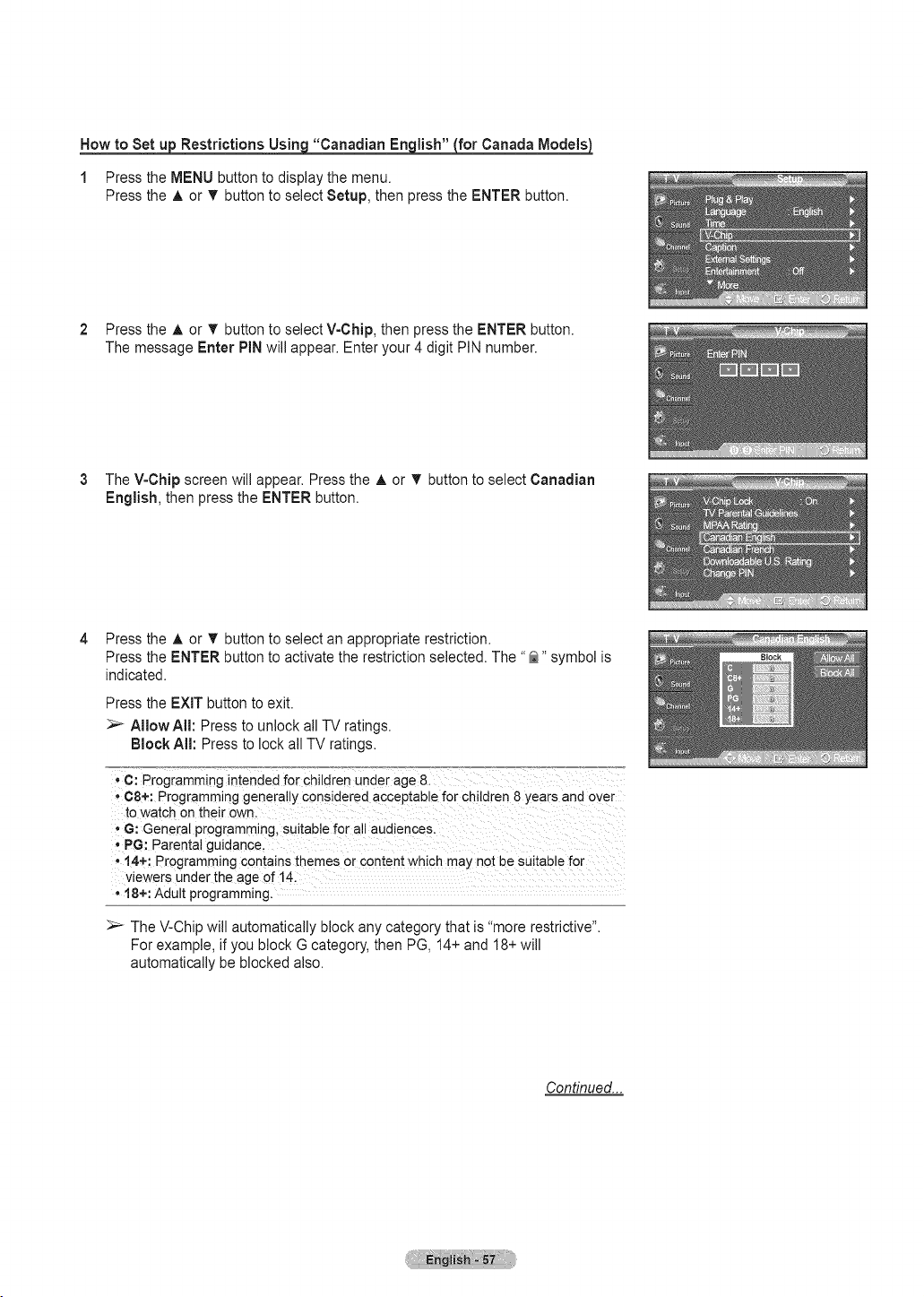

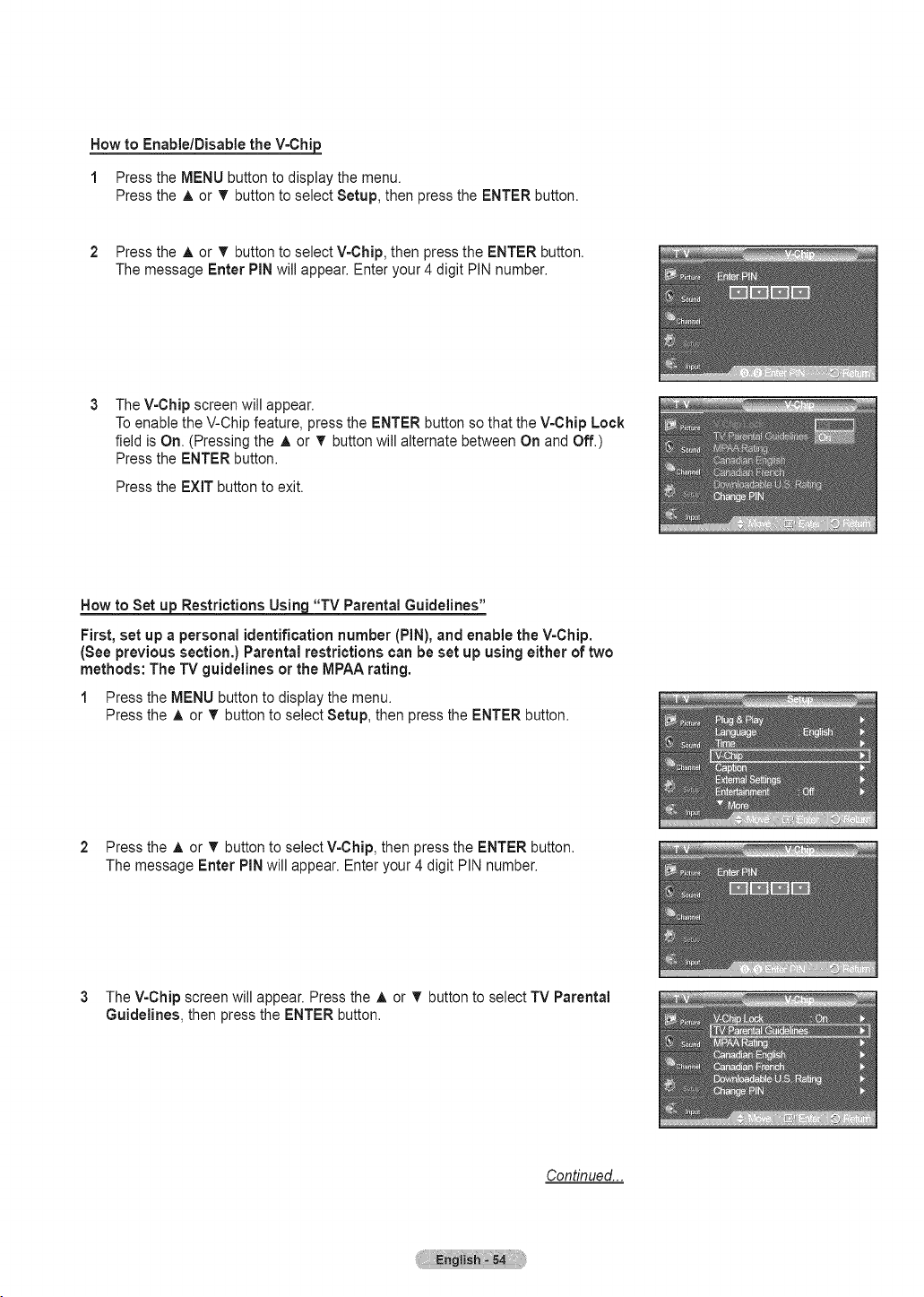

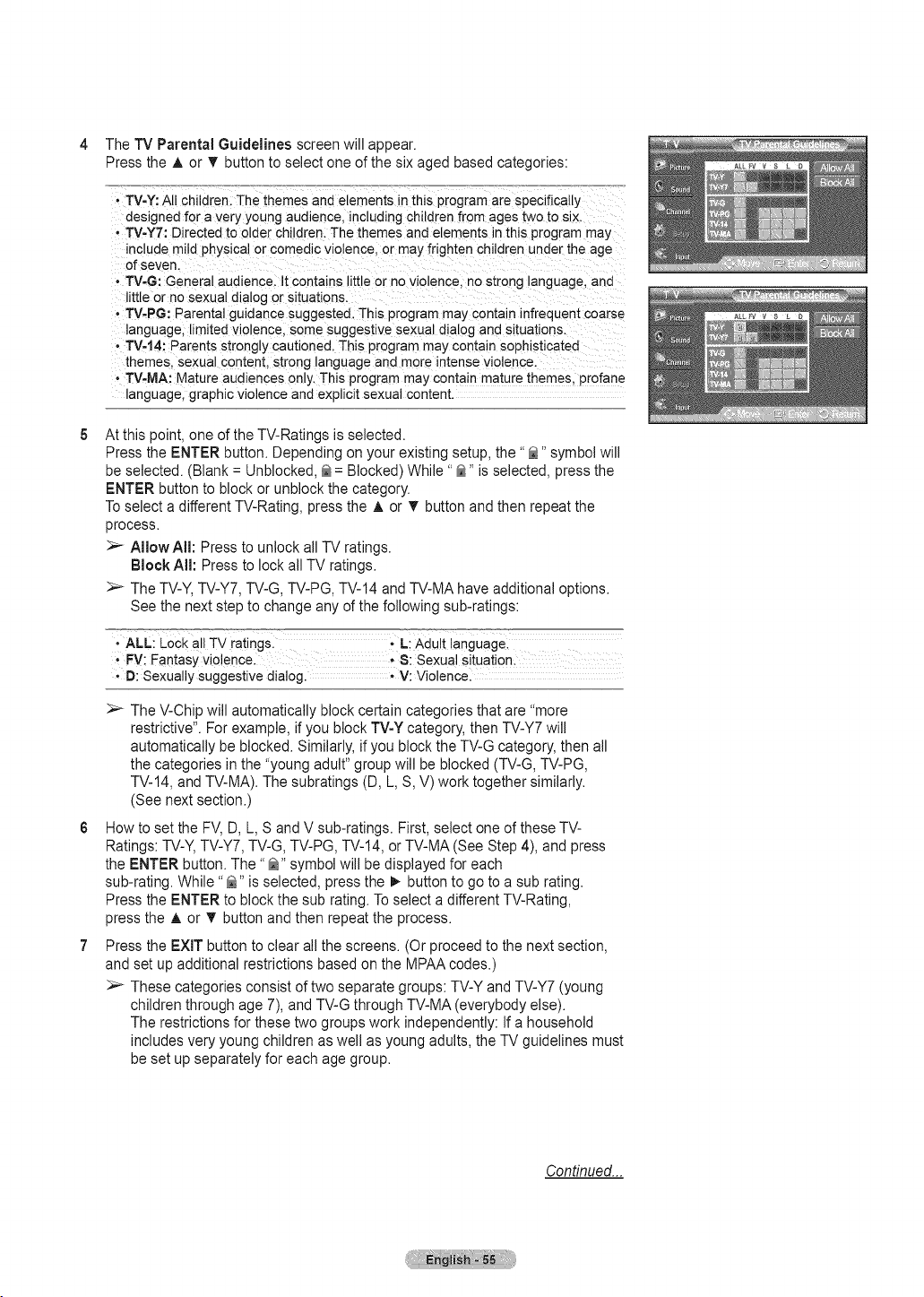

Using the V-Chip.............................................................. 53

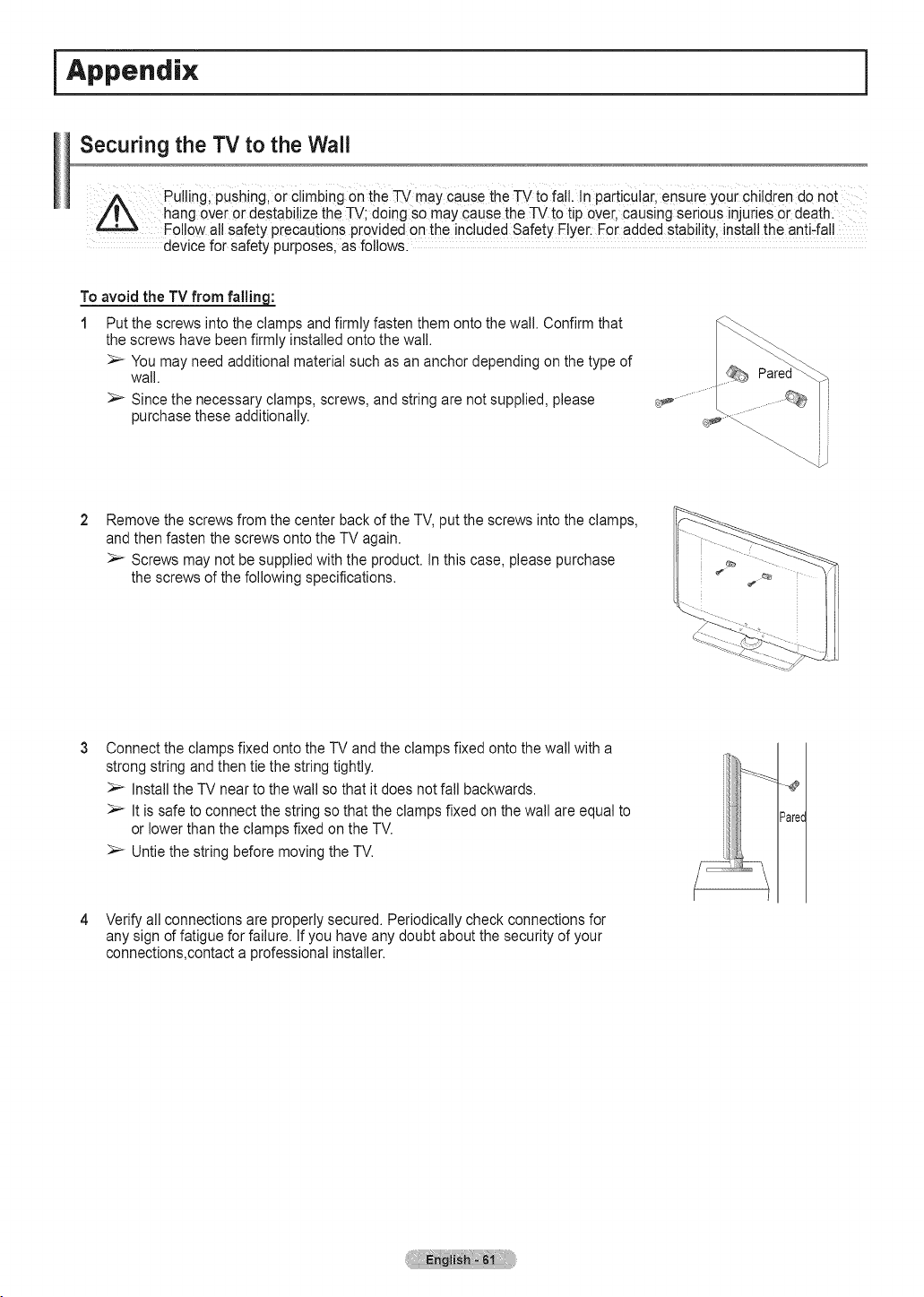

Securing the TV to the Wall ............................................. 61

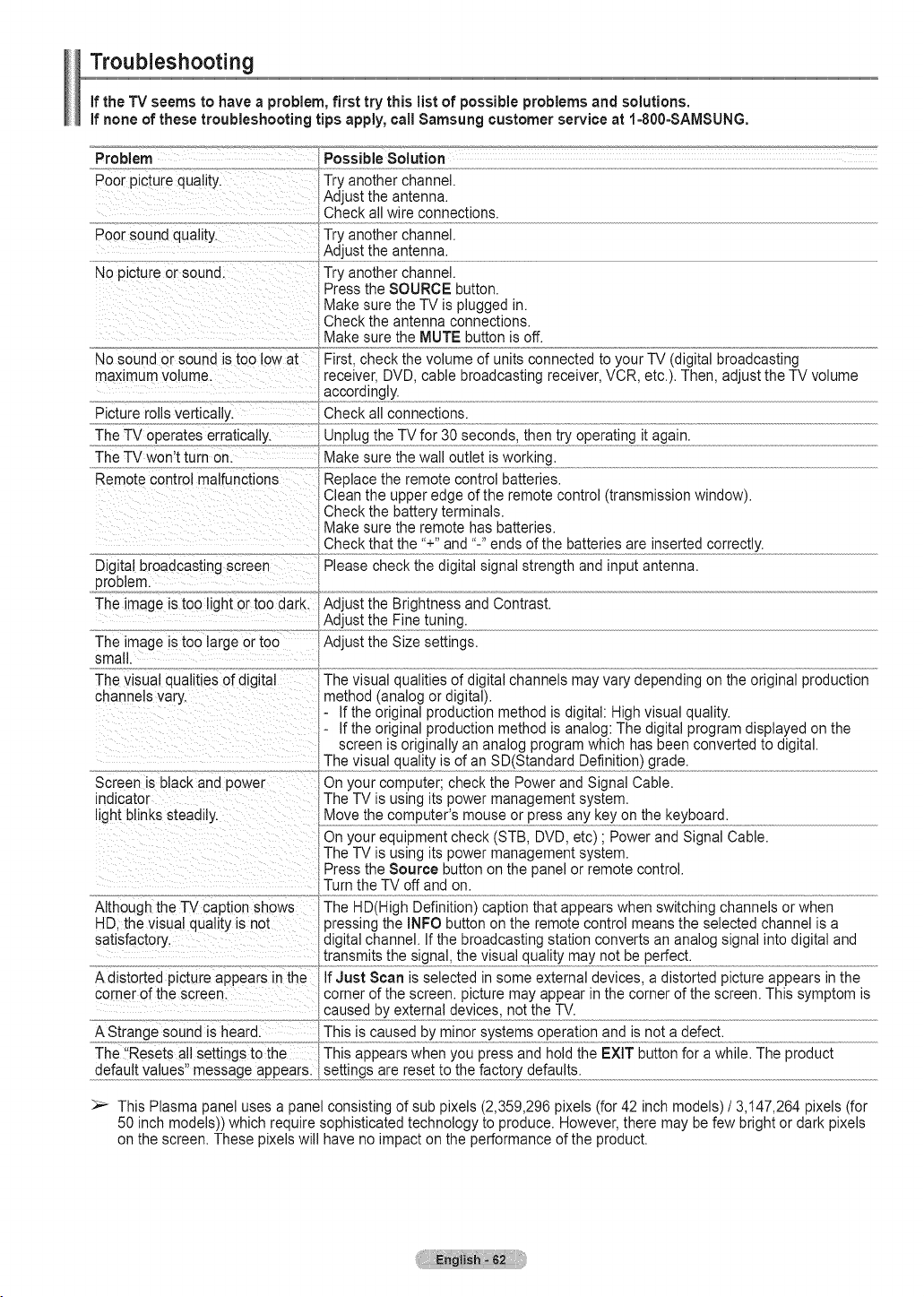

Troubleshooting ............................................................... 62

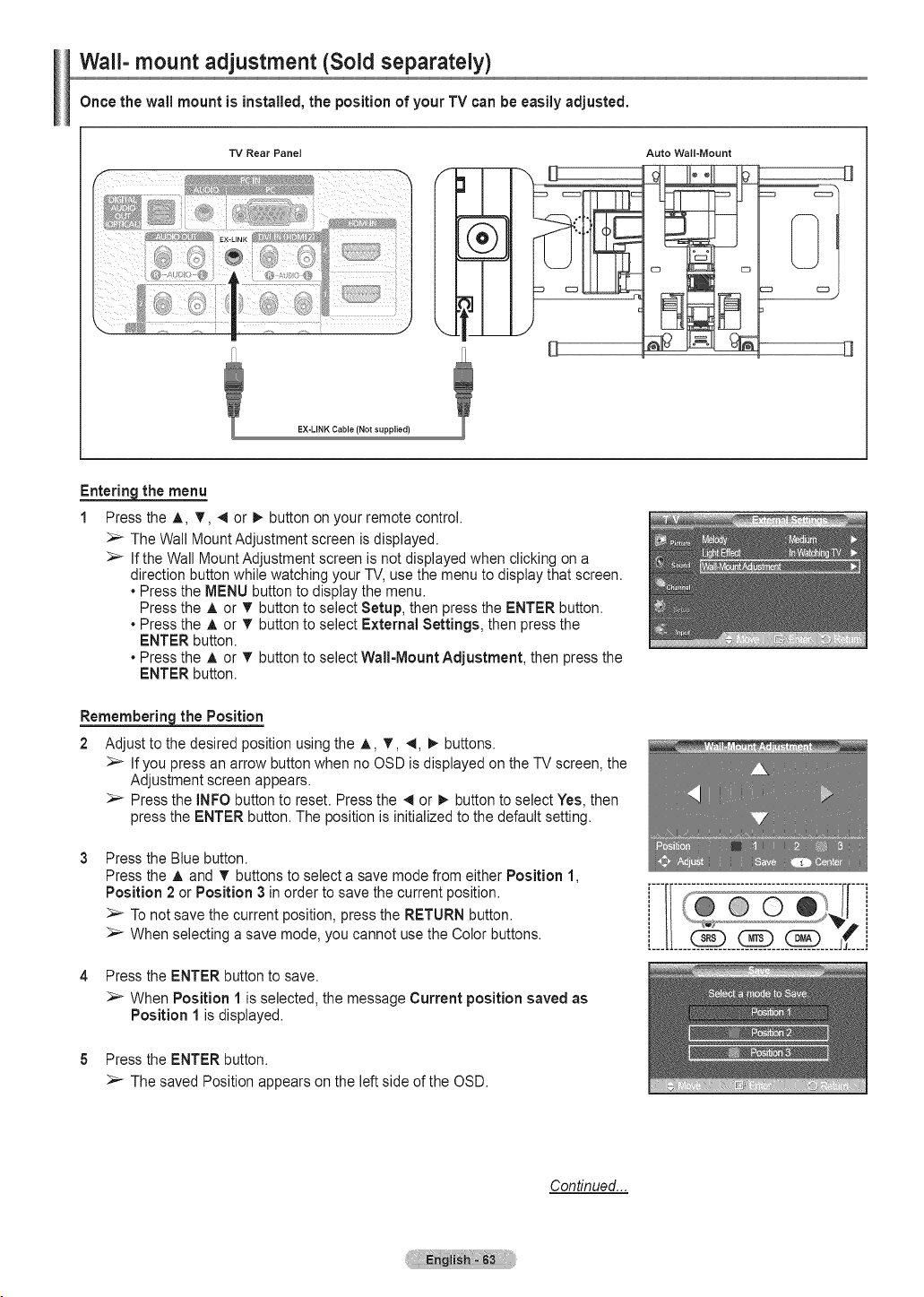

Wall- mount adjustment (Sold separately) ....................... 63

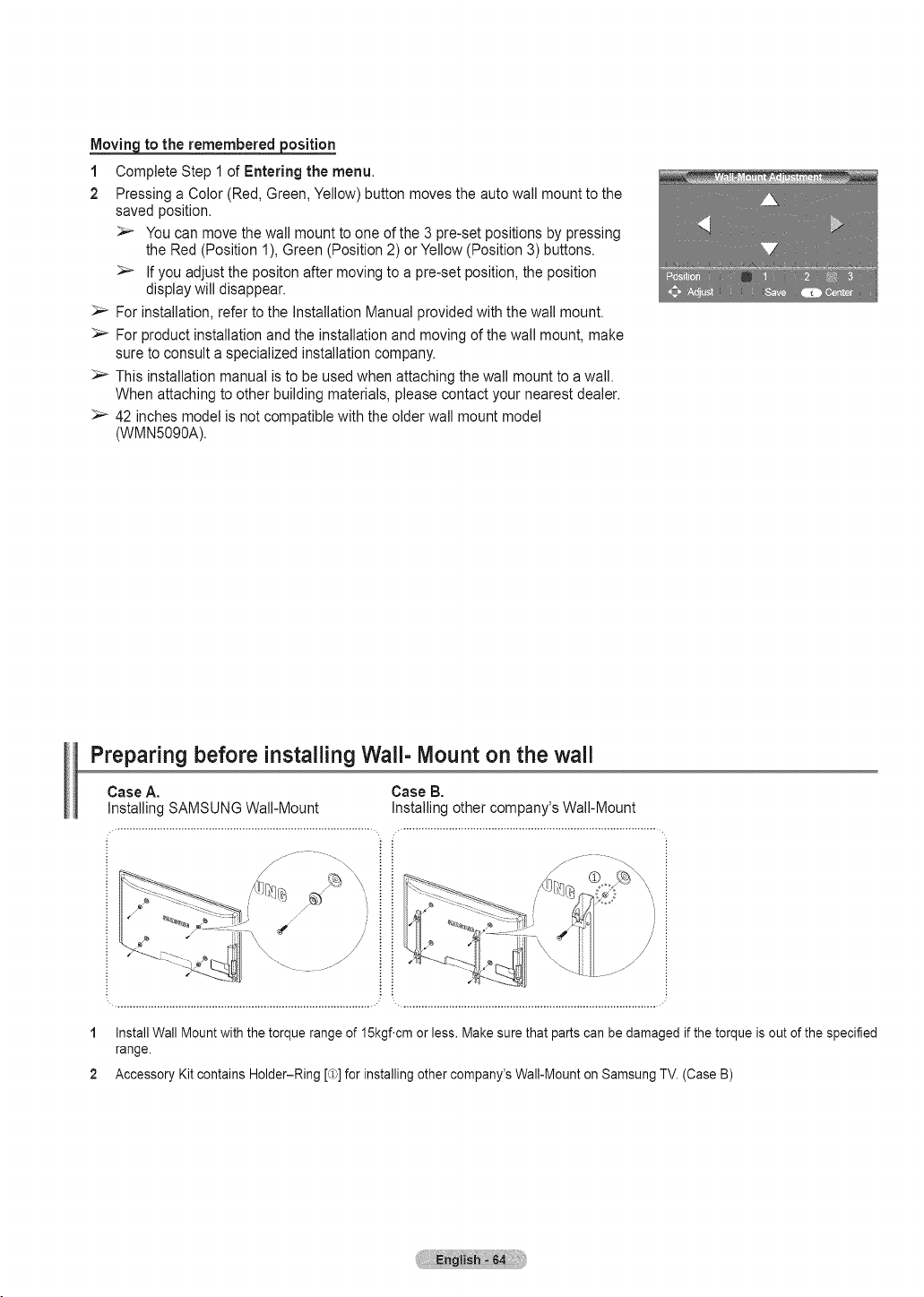

Preparing before installing Wall- Mount on the wall ......... 64

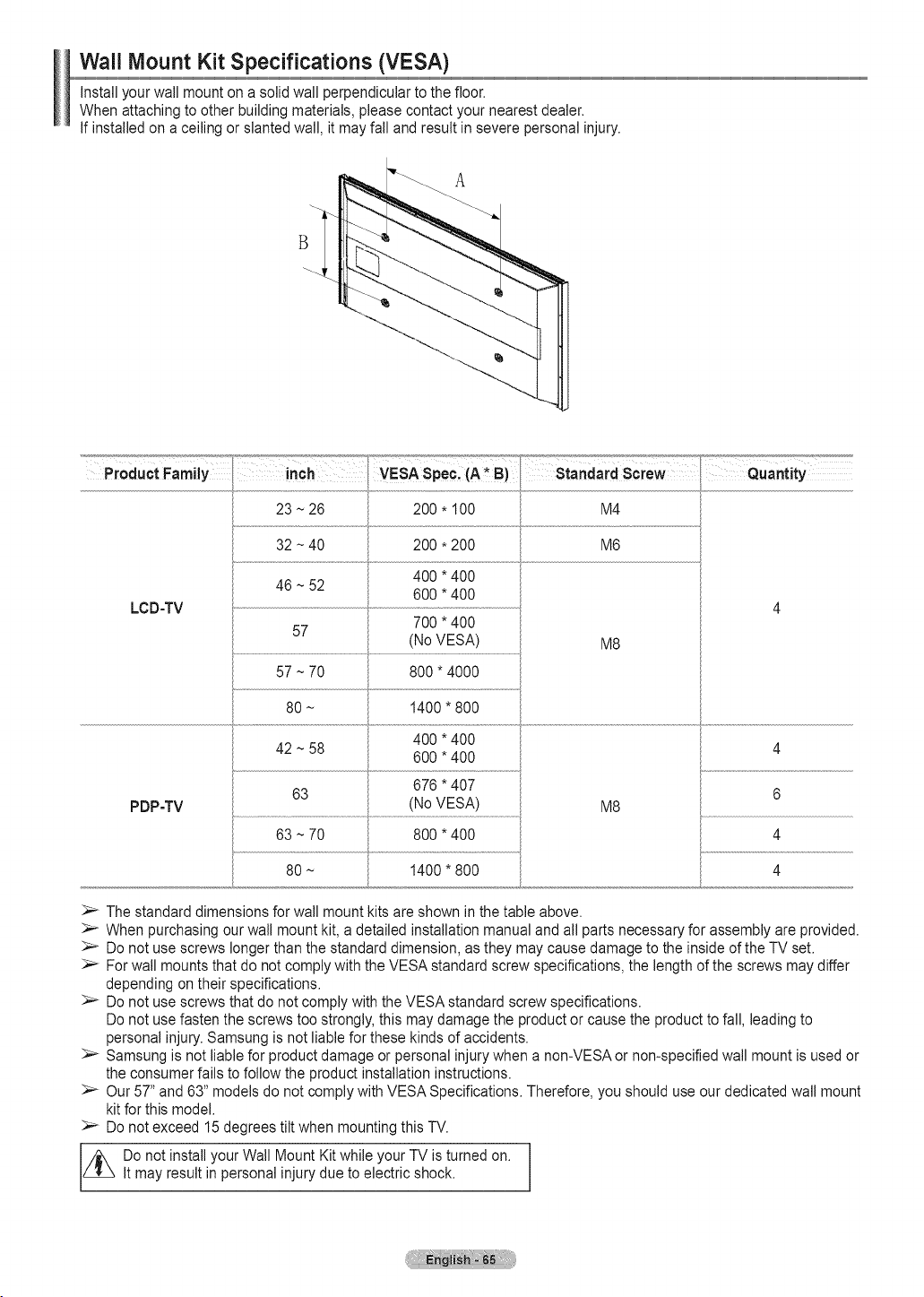

Wall Mount Kit Specifications (VESA).............................. 65

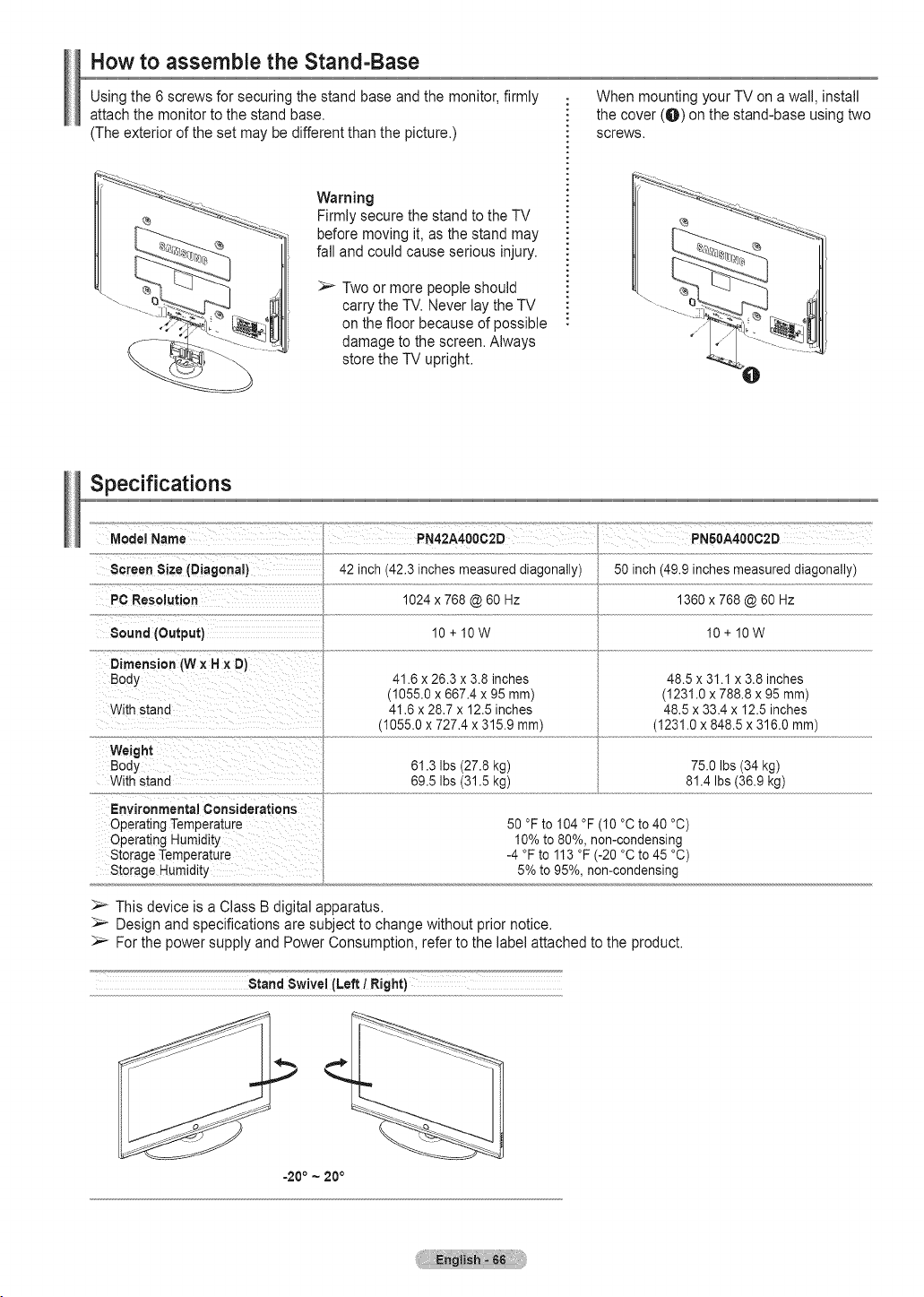

How to assemble the Stand-Base .................................... 66
Specifications................................................................... 66

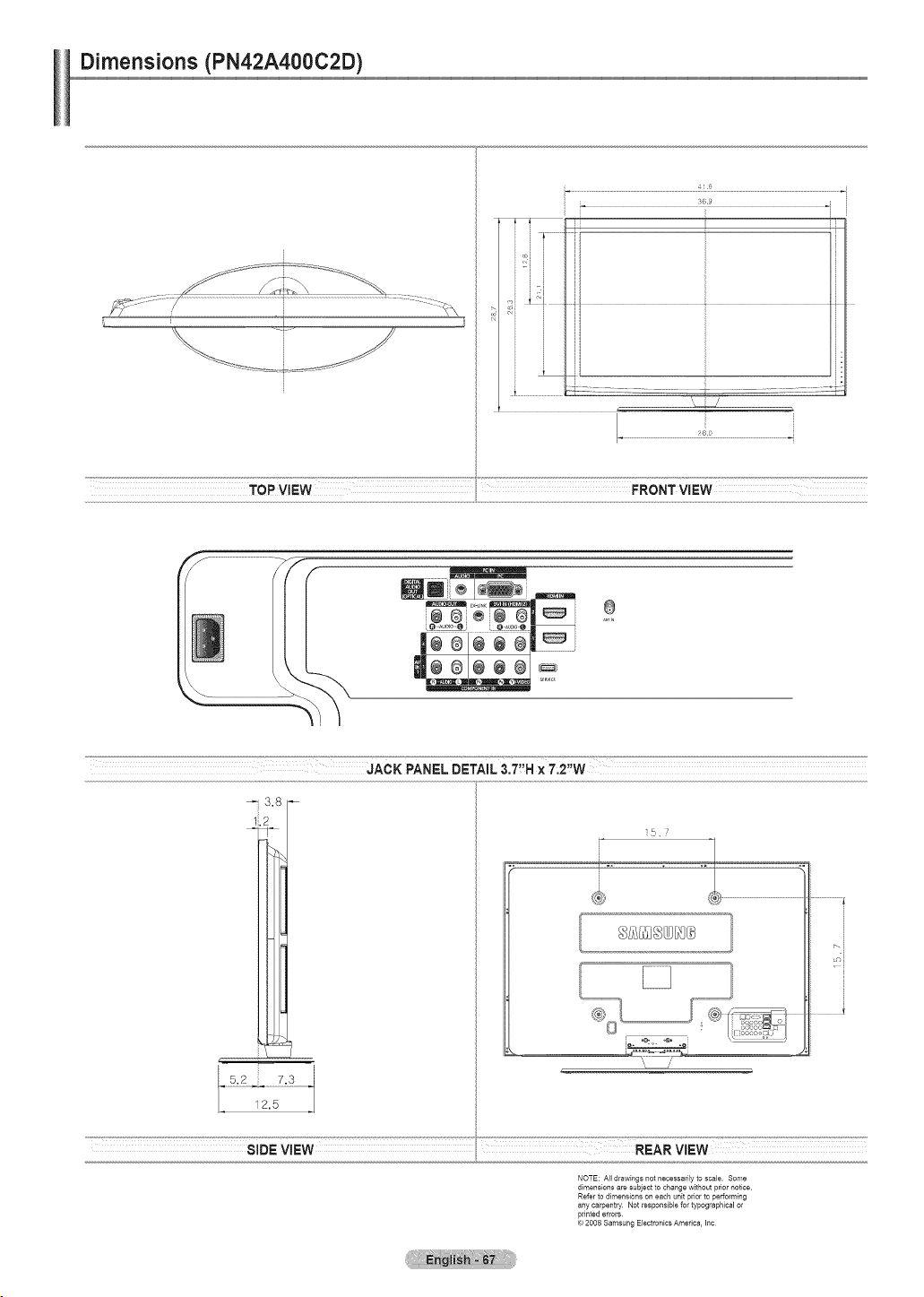

Dimensions (PN42A400C2D) .......................................... 67

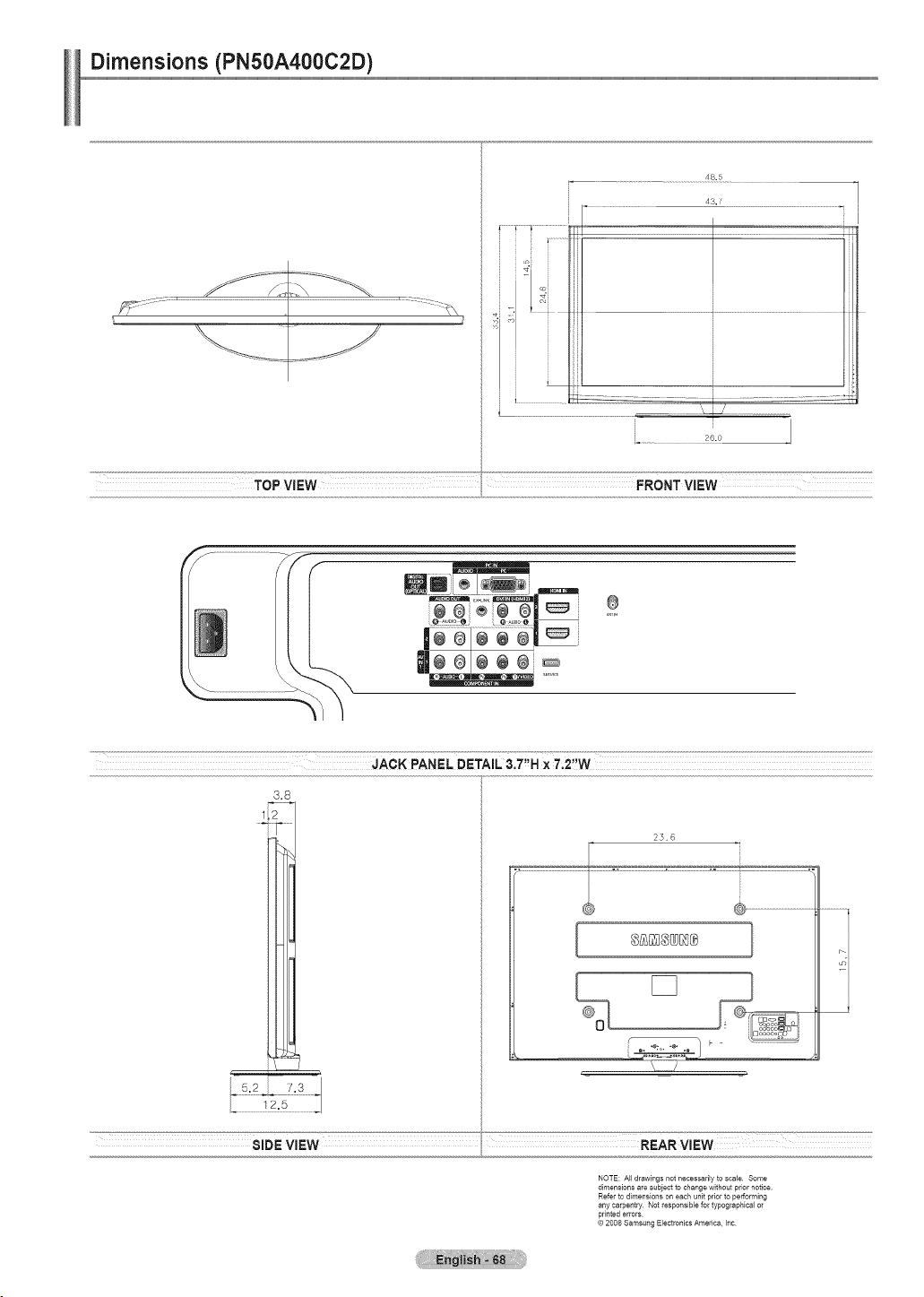

Dimensions (PN50A400C2D) .......................................... 68

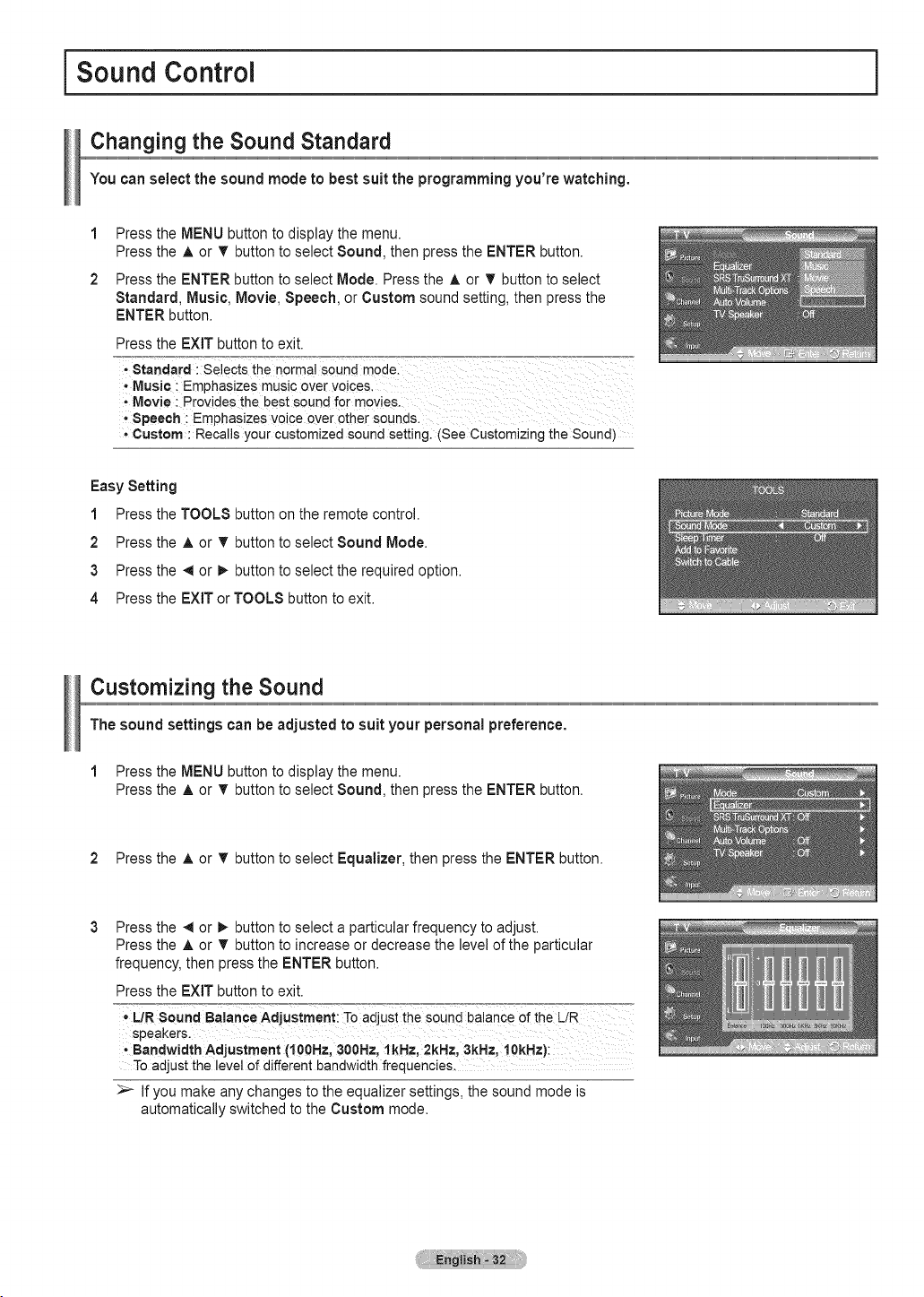

Changing the Sound Standard......................................... 32
Customizing the Sound.................................................... 32

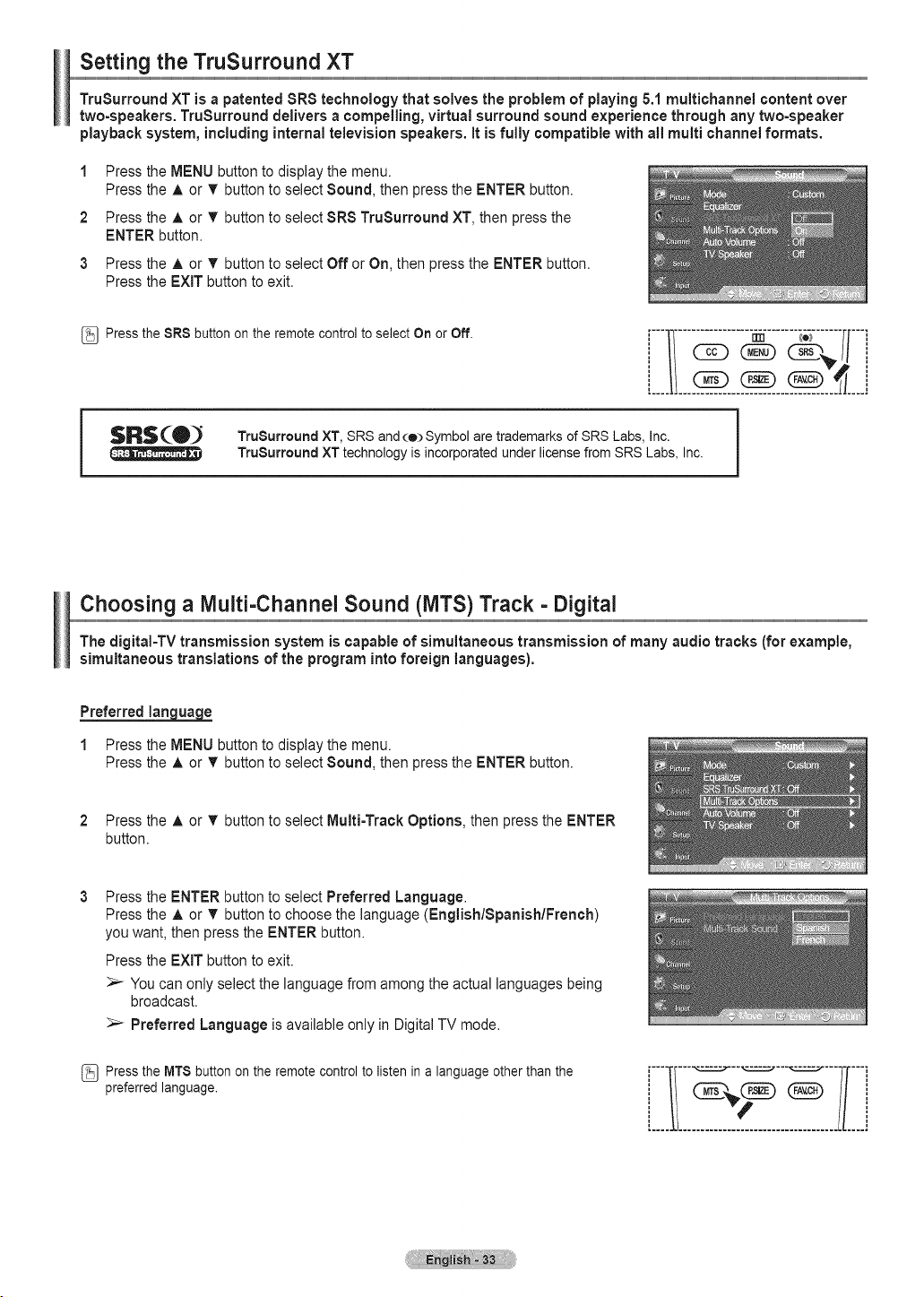

Setting the TruSurround XT ............................................. 33
Choosing a Multi-Channel Sound (MTS) Track - Digital.. 33

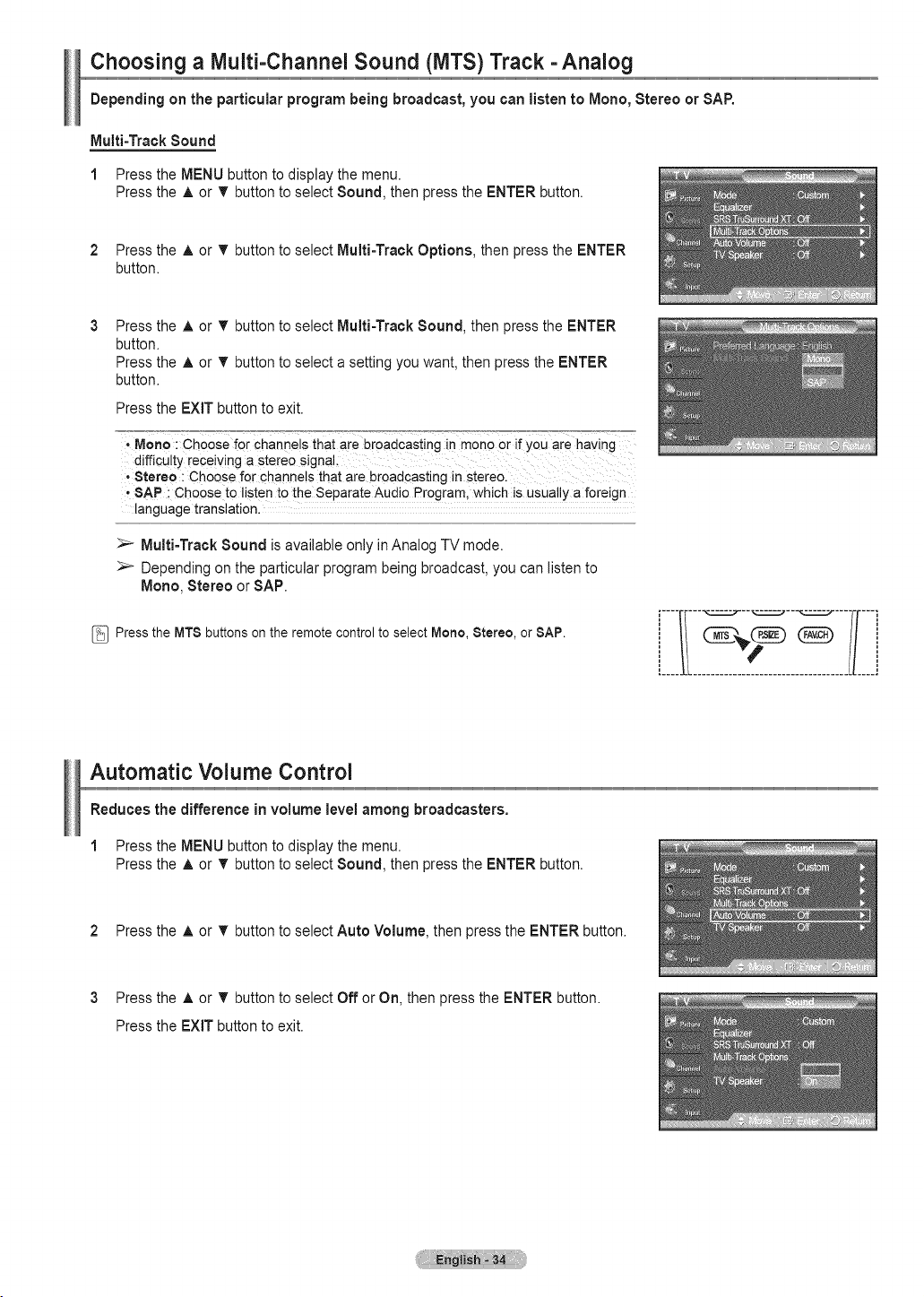

Choosing a Muati-ChannelSound (MTS) Track - Analog, 34
Automatic Volume Control ............................................... 34
Setting the TV Speakers On/Off ...................................... 35
Symbols
Press
One-Touch
Note
Button

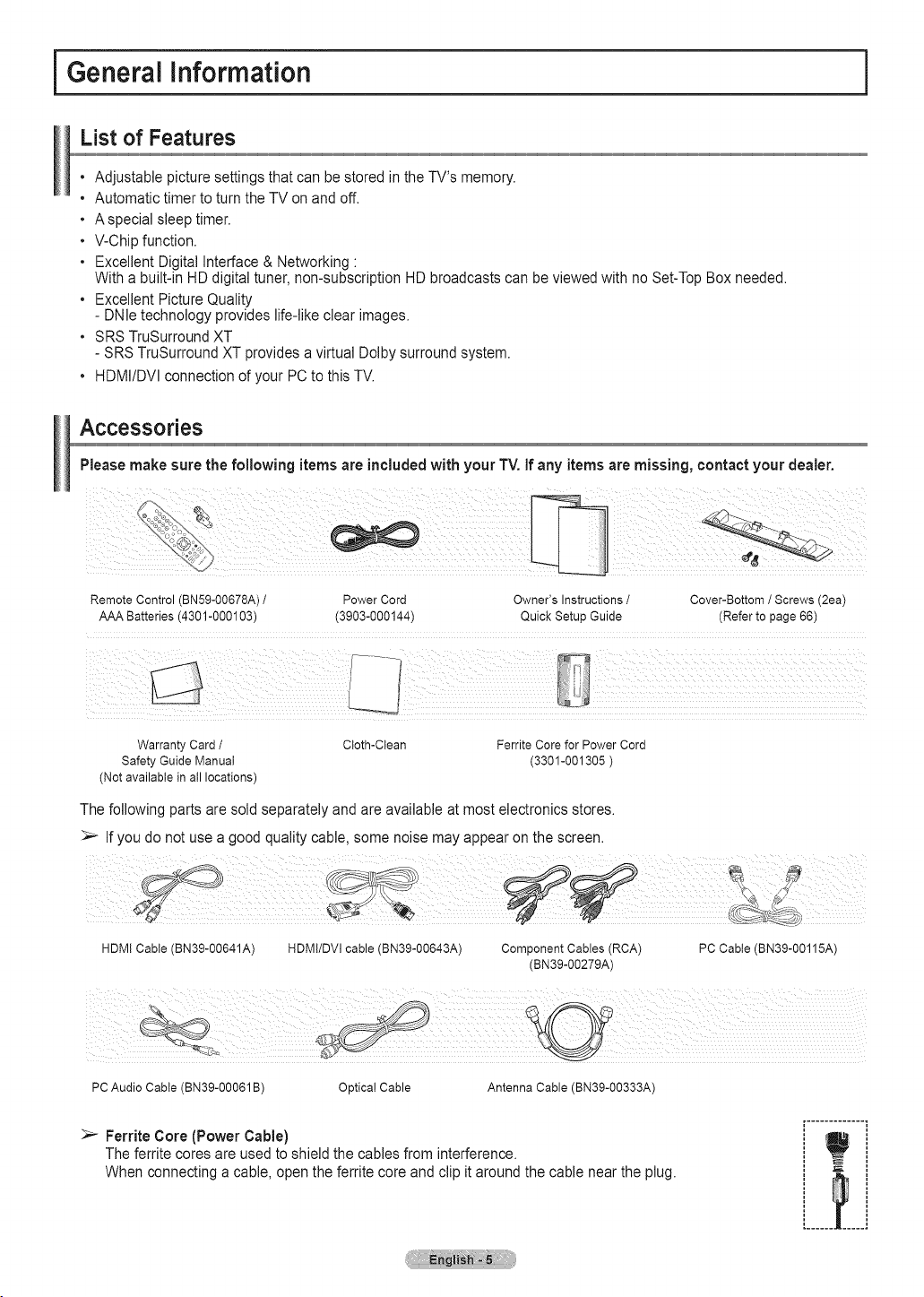

i General information
List of Features
• Adjustable picture settings that can be stored in the TV's memory.
• Automatic timer to turn the TV on and off.
• A special sleep timer.
• V-Chip function.
• Excellent Digital Interface & Networking :
With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Set-Top Box needed.
• Excellent Picture Quality
- DNle technology provides life-like clear images.
• SRS TruSurround XT
- SRS TruSurround XT provides a virtual Dolby surround system.
• HDMI/DVI connection of your PC to this TV.
Accessories
Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
Remote Control (BN59-00678A) / Power Cord Owner's Instructions / Cover-Bottom / Screws (2ea)
AAA Batteries (4301-000103) (3903-000144) Quick Setup Guide (Refer to page 66)
Warranty Card /
Safety Guide Manual
(Not available in all locations)
Cloth-Clean Ferrite Core for Power Cord
(3301-001305)
The following parts are sold separately and are available at most electronics stores.
If you do not use a good quality cable, some noise may appear on the screen.
HDMI Cable (BN39-00641A) HDM!/DVl cable (BN39-00643A) ComponentCables (RCA)
(BN39-00279A)
PC Cable (BN39-00115A)
PC Audio Cable (BN39-00061 B) Optical Cable Antenna Cable (BN39-00333A)
Ferrite Core (Power Cable)
The ferrite cores are used to shield the cables from interference.
When connecting a cable, open the ferrite core and clip it around the cable near the plug.
?
Viewing the Control Panel
Buttons on the Lower-Right Part of the Panel
The buttons on the lower=rightpanel control your TV's basic features, including the on=screenmenu.
To use the more advanced features, you must use the remote control.
, ............................................................................................................. ,
O
0
(9
E)
©
©
O
+
<
o
I
A
2
v
®
O SOURCE
Toggles between all the available input sources
(TV, AV1, Component1, Component2, PC, HDMI1,
HDMI2).
0 MENU
Press to see an on-screen menu of your TV's features,
0 +VOL=
Press to increase or decrease the volume. In the on-
screen menu, use the + VOL = buttons as you would
use the < and I_ buttons on the remote control,
O ACHv
Press to change channels.
In the on-screen menu, use the ,,_ CH v buttons as
you would use the A and _' buttons on the remote
control.
O _ ENTER
Press to confirm a selection.
0 _ POWER
Press to turn the TV on and off.
Power Indicator
Blinks and turns off when the power is on and lights up
in stand-by mode.
Remote Control Sensor
Aim the remote control towards this spot on the TV.
O Speakers
Viewing the Connection Panel
Rear Panel Jacks
Usethe rear panel jacks to connect A!V components that will be connected continuously, such as VCR or DVD players. For
more information on connecting equipment, see pages 9-15. The product color and shape may vary depending on the model.
@
O POWER IN
Connect the supplied power cord.
O DIGITAL AUDIO OUT (OPTICAL)
Connect to a Digital Audio component.
O AUDIO OUT (R/L)
Audio outputs to external devices.
O PC IN [PC]I[AUDIO]
Connect to the video and audio output jack on your PC.
O DVl IN(HDMI 2) (AUDIO-R/L)
Connectto the DVl audiooutputjack of an externaldevice.
0 HDMI IN 1, 2
Connect to the HDMI jack of a device with an HDMI
output. (HDMI2 supports HDMI-DVI IN and connection
from a PC.)
- This input can also be used as a DVI connection with
separate analog audio inputs. An optional HDMI/DVI
cable will be necessary to make this connection.
- When using anoptional HDMI/DVl adapter,the DVl
analog audio inputs on your TV allowyou to receive left
and right audio from your DVl device.
O ANT IN
Uses a 75D Coaxial connector for an Air/Cable
Network.
Q SERVICE
For service only.
O
COMPONENT IN 1, 2/AV IN 1
ConnectsComponentvideo/audio.
The COMPONENTIN I jack is alsoused as theAV IN 1
jack.
- Connectthevideo cableto the COMPONENTIN 1 [Y/
VIDEO]jack andthe audiocableto the COMPONENTIN1
[R-AUDIO-L]jacks.
@ EX-LINK
Connect this to the jack on the optional wall mount
bracket. This will allow you to adjust the TV viewing
angle using your remote control.
Remote Control
You can use the remote control up to a distance of about 23 feet from the TV.
POWER
TV SOURCE
i®® ®i
I I
0--
TOOLS RETURN
0
0
O POWER
Turns the TV on and off.
O TV
Selects the TV mode directly.
_) NUMERIC BUTTONS
Press to directly select a channel.
O=
Press to select additional channels
(digital and analog) being
broadcast by the same station. For
example, to select channel "54-3",
press "54", then press "-" and "3".
MUTE
Press to temporarily cut off the
sound.
_ VOL _-)
Press to increase or decrease the
volume.
O TOOLS
Use to quickly select frequently
used functions.
Q UPAIDOWNTILEFT41
RIGHT_/ENTER C_
Use to select on-screen menu
items and change menu values.
O iNFO
Press to display information on the
TV screen.
@ COLOR BUTTONS
Use these buttons in the Channel
list.
tiD cc
Controls the caption decoder.
@ MTS
Press to choose stereo, mono or
Separate Audio Program (SAP
broadcast).
_) SOURCE
Press to display all of the available
video sources.
_) PRE-CH
Tunes to the previous channel.
Presstochange channels.
_) RETURN
Returns to the previous menu.
EXIT
Press to exit the menu.
@ MENu
Displays the main on-screen menu.
@ SRS
Selects SRS TruSurround XT
mode.
FAV.CH
Press to switch to your favorite
channels.
_) ESIZE
Pressto changethescreensize.
_" The performance of the remote control may be affected by bright light.
Installing Batteries in the Remote Control
1 Lift the cover at the back of the remote control upward as shown in the figure.
2 Install twoAAAsize batteries.
Make sure to match the "+" and "-" ends of the batteries with the diagram inside the
compartment.
Do not mix battery types, i.e. alkaline and manganese.
3 Close the cover as shown in the figure.
Remove the batteries and store them in a cool, dry place if you won't be using the
remote control for a long time. The remote control can be used up to about 23 feet
(7m) from the TV. (Assuming typical TV usage, the batteries last for about one year.)
> if the remote control doesn't work, check the following:
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Isthere a power cut, or is the power cord unplugged?
5. Is there a special fluorescent light or a neon sign nearby?
Connections
Connecting VHF and UHF Antennas
If your antenna has a set of leads that look like this, see "Antennas with 300 _ Flat
Twin Leads" below.
If your antenna has one lead that looks like this, see "Antennas with 75 _ Round
Leads".
if you have two antennas, see "Separate VHF and UHF Antennas".
Antennas with 300 _ Flat Twin Leads
if you are using an off-air antenna (such as a roof antenna or "rabbit ears") that
has 300 _ twin flat leads, follow the directions below.
1 Place the wires from the twin leadsunder the screws on a 300-75 [-_adapter (not
supplied).
Use a screwdriver to tighten the screws.
2 Plug the adaptor into the ANT IN terminal on the back of the TV.
[
Antennas with 75 £_Round Leads
1 Plug the antenna lead into the ANT IN terminal on the back of the TV.
_arate VHF and UHF Antennas
if you have two separate antennas for your TV (one VHF and one UHF), you must
combine the two antenna signals before connecting the antennas to the TV. This
procedure requires an optional combiner=adaptor (available at most electronics
shops).
1 Connect both antenna leadsto the combiner.
2 Plug the combiner into the ANT IN terminal on the bottom of the back panel.
Connecting Cable TV
To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
1 Plug the incoming cable into the ANT IN terminal on the back of the TV.
_" Because this TV is cable-ready, you do not need a cable box to view
unscrambled cable channels.
Connecting to a Cable Box that Descrambles All Channels
1 Find the cable that is connected to the ANT OUT terminal on your cable box.
_" This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".
2 Connect the other end of this cable to the ANT IN terminal on the back of the TV.
Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below.
You will need a two-way splitter, an RF (A/B) switch, and four lengths of Antenna cable. (These items are available
at most electronics stores.)
Find and disconnect the cable that is
connected to the ANT IN terminal on your
cable box.
This terminal might be labeled "ANT
IN", "VHF IN" or simply, "IN".
2 Connect this cable to a two-way splitter.
Connect an Antenna cable between an
OUTPUT terminal on the splitter and the IN
terminal on the cable box.
Connect an Antenna cable between the
ANT OUT terminal on the cable box and the
B-IN terminal on the RF(A/B) switch.
Connect another cable between the other
OUT terminal on the splitter and the A-IN
terminal on the RF (A/B) switch.
Connect the last Antenna cable between
the OUT terminal on the RF (A/B) switch
and the ANT IN terminal on the rear of the
TV.
Incoming
cable
Splitter
Incoming
cable
Splitter
Splitter
RF (A/B)
Cable Box Switch
Incoming I CABL 0 I
Sp,tter L _ R_I)s)
Cable Box Switch
_ _/ili__ _ _ TV Rear
cable Splitter L. _ RF (A/B)
Switch
After you have made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B"
position to view scrambled channels. (When you set the A/B switch to "B', you will need to tune your TV to the cable box's
output channel, which is usually channel 3 or 4.)
Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via HDlVil
This connection can only be made if there is an HDMi Output jack on the external device. This connection wiii
provide the highest quality picture.
Connect an HDMI Cable
between the HDMI IN(1 or 2)
jack on the TV and the HDMI
jack on the DVD Player or
Cable Box / Satellite receiver
(Set-Top Box).
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
TV Rear Panel
HDMI Cable (Not supplied)
What is HDMI?
• HDMI, or high-definition multimedia interface, is an interface that enables the
transmission of digital audio and video signals using a single cable without
compression.
• The difference between HDMI and DVl is that the HDMI device is smaller in size and
has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.
Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different
back panel configuration.
When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box),
match the color of the connection terminal to the cable.
Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via DVI
This connection can only be made if there is a DVI Output jack on the external device.
Connect a HDMI/DVI Cable
or DVI-HDMI Adapter
between the HDMI IN 2 jack
on the TV and the DVl jack
on the DVD Player or Cable
Box/Satellite receiver (Set-
Top Box).
Connect Audio Cables
between the DVl IN (HDMI 2)
[R-AUDIO-L] jack on the TV
and the AUDIO OUT jacks
on the DVD Player or Cable
Box/Satellite receiver (Set-
Top Box).
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
TV Rear Panel
_ HDMI/DVI Cable (Not supplied)
Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different
back panel configuration.
When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box),
match the color of the connection terminal to the cable.
When using an HDMI / DVI cable connection, you must use the HDMI IN 2 jack.
Connectinga DVDPlayerorCableBox/ Satellitereceiver(Set.TopBox)via Componentcables
The rear panel jacks on your TV make it easy to connect a DVD Player or Cable Box / Satellite receiver (Set=Top
Box) to your TV.
Connect Component Cables
between the COMPONENT
IN (1 or 2) [Y, PB, PR]
jacks on the TV and the
COMPONENT [Y, PB, PR]
jacks on the DVD Player
or Cable Box / Satellite
receiver(Set-Top Box).
Connect Audio Cables
between the COMPONENT
IN (1 or 2) [R-AUDIO-L] jacks
on the TV and the AUDIO
OUT jacks on the DVD Player
or Cable Box / Satellite
receiver (Set-Top Box)
DVD Player or Cable Box/
Satellite receiver (Set-Top Box)
TV Rear Panel
Component video separates the video into Y (Luminance (brightness)), PB
(Blue) and PR(Red) for enhanced video quality. Be sure to match the component
video and audio connections. For example, if connecting the video cable to
COMPONENT IN I, connect the audio cable to COMPONENT IN I also.
Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different
back panel configuration.
When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box),
match the color of the connection terminal to the cable.
Connecting a Camcorder
They allow you to view the camcorder tapes without using a VCR
Connect a Video Cable
between the AV IN I [VIDEO]
jack on the TV and the
VIDEO OUT jack on the
Camcorder.
Connect Audio Cables
between the AV IN 1
[L-AUDIO-R] jacks on the TV
and the AUDIO OUT jacks on
the Camcorder.
_ Video Cable (Not supplied}
Carneorder
\. J
TV Rear Panel
Each Camcorder has a different back panel configuration.
Whenconnectinga Camcorder,matchthe color of theconnectionterminalto the cable.
Connecting a VCR
These instructions assume that you have already connected your TV to an antenna or a cable TV system
(according to the instructions on pages 9-10). Skip step 1 if you have not yet connected to an antenna or a cable
system.
1
2
Unplug the cable or antenna
from the back of the TV.
Connect the cable or antenna
to the ANT IN terminal on the
back of the VCR.
Connect an Antenna Cable
between the ANT OUT
terminal on the VCR and the
ANT IN terminal on the TV.
Connect a Video Cable
between the VIDEO OUT
jack on the VCR and the AV
IN I [YNIDEO] jack on the
TV.
Connect Audio Cables
between the AUDIO OUT
jacks on the VCR and the AV
IN 1 [R-AUDIO-L] jacks on
the TV.
TV Rear Panel
If you have a "mono" (non-stereo) VCR, use a Y-connector (not supplied) to
connect to the right and left audio input jacks of the TV.Alternatively, connect the
cable to the "R" jack.
If your VCR is stereo, you must connect two cables.
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
When connecting to AV IN I, the color of the AV IN 1 [Y/VIDEO] jack (Green) does
not match the color of the video cable (Yellow).
Connecting a Digital Audio System
The rear panel jacks on your TV make it easy to connect a Digital Audio System(Home theaterlReceiver) to your
TV.
Connect an Optical Cable
between the DIGITALAUDIO
OUT (OPTICAL) jacks on
the TV and the Digital Audio
Input (OPTICAL) jacks on the
DigitalAudio System.
When a Digital Audio System
is connected to the DIGITAL
AUDIO OUT (OPTICAL)
terminal:
Decrease the volume of the
TV, and adjust the volume
level with the system's
volume control.
Digital Audio System
TV Rear Panel
\ J
What is OPTICAL?
• Converts the electric signal into an optical lightsignal, and transmits it through glass
fibers. S/PDIF is a transmission system of digital audio in the form of a light wave
that uses a glass conductor.
5.1CH audio is possible when the TV is connected to an external device
supporting 5.1CH.
Each external input source device has a different back panel configuration.
When the receiver (home theater) is set to On, you can hear sound output from
the TV's Optical jack. When the TV is displaying a DTV(air) signal, the TV will send
out 5.1 channel sound to the Home theater receiver. When the source is a digital
component such as a DVD and is connected to the TV via HDMI, only 2 channel
sound will be heard from the Home Theater receiver.
Connecting an Amplifier / DVD Home Theater
Connect Audio Cables
between the AUDIO OUT
JR-AUDIO-L]on the TV and
AUDIO IN [L-AUDIO-R] on
the Amplifier / DVD Home
Theater.
When an audio amplifier is
connected to the AUDIO OUT
JR-AUDIO-L]jacks terminals:
Decrease the volume of the
TV, and adjust the volume
level with theAmplifier's
volume control.
Amplifier / DVD Home Theater
(Not supplied)
TV Rear Panel
......
Each Amplifier/DVD Home Theater has a different back panel configuration.
When connecting an Amplifier / DVD Home Theater, match the color of the
connection terminal to the cable.
Connecting a PC
_the D=SubCable
1 Connect a D-Sub Cable
between PC IN [PC] jack on
the TV and the PC output
jack on your computer.
2 Connect a PCAudio Cable
between PC IN [AUDIO] jack
on the TV and the Audio Out
jack of the sound card on
your computer.
the HDMI/DVI Cable
1 Connect a HDMI/DVI cable
between the HDMI IN 2 jack
on the TV and the PC output
jack on your computer.
2 Connecta 3.5mm Stereo/
2RCA cable between the DVl
IN (HDIV]I2) [R-AUDIO-L]jack
on the TV and the Audio Out
jack of the sound card on your
computer,
Using the D=SubCable
TV Rear Panel
PC
_PC Audio Cable (Not supplied}
_D-Sub Cable (Not supplied)
Using the HDMI/DVI Cable
r
"IV Rear Panel
3.5 mm Stereo plug to 2 RCA Cable (Not supplied}
_HDMI/DVI Cable (Not supplied)
Each PC has a different back panel configuration.
When connecting a PC, match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 terminal.
i Operation
Turning the TV On and Off
Press the POWER button on the remote control.
You can also use the POWER button on the TV.
It may take a while before you see a full picture.
Plug & Play Feature
The first time you turn on your new TV, choose your basic settings for language, input source and channels, and
time of day using the plug and play feature. The TV will store these settings in memory. Storing the channels in
memory will allow you to scan the stored channels rather than have to enter their digits each time you want to
change channels.
When the TV is initially powered on, basic settings proceed automatically:
1 Press the POWER button on the remote control.
The message Menu language, Store Demo, Channels and Time will be set.
is displayed.
Press the ENTER button to enter the language.
Press the A or T button to select language, then press the ENTER button.
The message Select "Home Use" when installing this TV inyour home. is
automatically displayed.
_- The Screen Saver is activated if there is no remote control key input for
longer than I minute while Plug & Play is running.
The Screen Saver is activated if there is no operating signal for longer than
15 minutes.
Press the 41 or ), button to select Store Demo or Home Use, then press the
ENTER button.
We recommend setting the TV to Home Use mode for the best picture in
your home environment.
Store Demo mode is only intended for use in retail environments.
If the unit is accidentally set to Store Demo mode and you want to return
to Home Use (Standard) : Press the Volume button on the TV. When the
volume OSD is displayed, press and hold the MENU button on the TV for 5
seconds.
Press the A or • button to memorize the channels of the selected connection.
Press the ENTER button to select Start.
Air: Air antenna signal.
Cable: Cable antenna signal.
Auto: Air and Cable antenna signals.
In Cable mode, you can select the correct analog signal source among
STD, HRC, and IRC by pressing the 4 or _ button, then press the ENTER
button. If you have Digital cable, select the signal source for both Analog and
Digital. Contact your local cable company to identify the type of cable system
that exists in your particular area.
Condnued...
The TV will begin memorizing all of the available channels.
_" To stop the search before it has finished, press the ENTER button with Stop
selected.
After all the available channels are stored, the TV starts to remove scrambled
channels(see page37). The Auto program menu then reappears.
Press the ENTER button when channel memorization is complete.
Clock Mode menu is automatically displayed.
Press the ENTER button.
Press the A or _' button to select Manual if you want to set the current time
manually, then press the ENTER button. Enter the current date and time. is
displayed.
if you select Auto, Set to daylight savings time. is displayed, then go to
step 9.
Press the _ or I_ button to move to Month, Day, Year, Hour, Minute, or
am/pro. Set the date and time you want by pressing the A or _' button,
then press the MENU button.
You can set the Month, Day, Year, Hour, and Minute directly by pressing
the number buttons on the remote control.
The message Enjoy your watching, is displayed.
When you have finished, press the ENTER button.
Even if the ENTER button is not pressed, the message will automatically
disappear after several seconds.
Setting_the Clock Automatically
9 Press the ENTER button.
Press the A or _' button to select On or Off, then press the ENTER button.
The Select the time zone in which you live. menu is automatically displayed.
10 Press the A or T button to highlight the time zone for your local area (and
to move the highlight to the appropriate time zone on the map of the United
States).
Press the ENTER button.
If clock is not automatically set, see page 45 to set the clock.
11
The message Enjoy your watching, is displayed.
When you have finished, press the ENTER button.
Even if the ENTER button is not pressed, the message will automatically
disappear after several seconds.
Continued...
ifj/ou want to reset this feature...
1
2
Press the MENU button to display the menu.
Press the _, or _' button to select Setup, then press the ENTER button.
Press the ENTER button to select Plug & Play, For further details on setting up
options, refer to the pages 16~17.
_-_ The Plug & Play feature is only available in the TV.
Changing Channels
Using the Channel Buttons
Press the OH (_ or OH (v_button to change channels.
When you press the CH _ or CH (_ button, the TV changes channels in
sequence. Youwill see all the channels that the TV has memorized.
(The TV must have memorized at least three channels). You will not see
channels that were either erased or not memorized. See pages 20-21 to
memorize channels.
the Number Buttons
Press the number buttons to go directly to a channel. For example, to select
channel 27, press 2, then 7.
The TV will change channels when you press the second number.
_-_ For quick channel change, press the number buttons, then press the ENTER
button.
Usin.g_the "=" Button
The "(-Y' button is used to select stations that broadcast a digital signal.
1 For example, for Channel 7-1, press 7, then _, then 1.
HD indicates the TV is receiving a Digital High Definition signal.
SD indicates the TV is receiving a Standard Definition signal.
For quick channel change, press the number buttons, then press the ENTER
button.
_the PRE=CHButton to select the Previous Channel
Use the number buttons to quickly tune to any channel=
Press the PRE=CNbutton. The TV will switch to the last channel viewed.
To quickly switch between two channels that are far apart, tune to one
channel, then use the number button to select the second channel.
Then use the PRE=CHbutton to quickly alternate between them.
@......iLl
Adjusting the Volume
Using the Volume Buttons
1 Press the VOL (.*_or VOL i-_ button to increase or decrease the volume.
the Mute Button
At any time, you can cut off the sound using the MUTE button.
1 Press MUTE and the sound cuts off.
Mute will displayed on the screen.
2 To turn mute off, press the MUTE button again, or simply press the VOL (*j or
VOL ,:=}button.
rlj
Using the TOOLS Button
You can use the TOOLS button to select your frequently used functions quickly and easily. The "TOOLS" menu
changes depending on which external input mode you are viewing.
1 Press the TOOLS button.
The TOOLS menu will appear.
2 Press the A/_' button to select a menu, then press the ENTER button.
Press the A/T/_/_/ENTER buttons to display, change, or use the selected
items.
For a more detailed description of each function, refer to the corresponding
page. i-[] TOOLS REq'URN T]-]
'll 11
• Add to Favorite,see page 38
• Switchto Cable;see page20
Viewing the Display
The display identifies the current channel and the status of certain audio=video settings.
1 Press the INFO button on the remote control.
The TV will display the channel, the type of sound, and the status of certain
picture and sound settings.
Press the mNFObutton once more or wait approximately 10 seconds and it disappears
automatically.
i...11¸o, ooill
Viewing the Menus
1 With the power on, press the MENU button.
The main menu appears on the screen, its left side has five icons:
Picture, Sound, Channel, Setup, input
2 Press the A or _' button to select one of the icons.
Then press the ENTER button to access the icon's sub-menu.
3 Press the EXIT button to exit.
_-_ It takes about one minute until the on-screen menu disappears.
Memorizing the Channels
Your TV can memorize and store all of the available channels for both "off-air" (air} and cable channels. After the
available channels are memorized, use the CH ,_")or CH ._--)button to scan through the channels. This eliminates
the need to change channels by entering the channel digits. There are three steps for memorizing channels:
selecting a broadcast source, memorizing the channels (automatic) and adding and deleting channels (Channel
Lists).
Selecting_the Video Signal-source
Before your television can begin memorizing the available channels, you must
specify the type of signal source that is connected to the TV (i.e. an Air or a Cable
system).
1 Press the MENU button to display the menu.
Press the A or _' button to select Channel, then press the ENTER button.
2 Press the ENTER button to select Antenna.
Press the ,J,or _' button to select Air or Cable, then press the ENTER button.
Press the EXIT button to exit.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the A or _' button to select Switch to Cable or Switch to Air, then press
the ENTER button.
Continued...
Storing Channels in Memory(Automatic Method)
1 Press the MENU button to display the menu.
Press the A or _' button to select Channel, then press the ENTER button.
2 Press the A or _' button to select Auto Program, then press the ENTER
button.
Press the A or _' button to select the antenna connection, then press the
ENTER button.
> Air: Air antenna signal.
Cable: Cable antenna signal.
Auto: Air and Cable antenna signals.
When selecting the Cable TV system:
Press the ENTER button to start the auto program.
Press the A or T to select the correct analog signal cable system source from
among STD, HRC, and IRC, then press the ENTER button. If you have Digital
cable TV, select the cable system signal source for both Analog and Digital.
STD, HRC, and IRC identify various types of cable TV systems. Contact
your local cable company to identify the type of cable system that exists in
your particular area. At this point the signal source has been selected.
5 The TV begins memorizing all available stations.
After all the available channels are stored, the TV starts to remove
scrambled channels (see page 38). The Auto program menuthen reappears.
If you want to stop Auto Programming, press the ENTER button. The Stop
Auto Program? message will be displayed. Select Yes by pressing the 4
or I_ button.
Press the EXIT button to exit.
To Select the Source
Use to select TV or other external input sources such as DVD players or Set=top/Cable boxes connected to the TV.
Use to select the input source of your choice.
1 Press the MENU button to display the menu.
Press the A or _' button to select Input, then press the ENTER button.
Press the ENTER button to select Source List.
Press the A or • button to select signal source, then press the ENTER button.
Available signal sources: TV, AVl, Component1, Component2, PC,
HDMI1, HDMI2.
_-_ You can choose only those external devices that are connected to the TV.
[_ You can also press the SOURCE button on the remote control to view an external
signal source.
To Edit the Input Source Name
You can name the device connected to the input jacks to make your input source selection easier.
1 Press the MENU button to display the menu.
Press the A or T button to select Input, then press the ENTER button.
Press the A or _' button to select Edit Name, then press the ENTER button.
2
3
Press the A or T button to select AV1, Component1, Component2, PC,
HDMI1 or HDMI2 input jack, then press the ENTER button.
Press the A or T button to select VCR, DVD, Cable STB, Satellite STB, PVR
STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, lid DVD or
Digital Media Adapter input source, then press the ENTER button.
Press the EXIT button to exit.
When a PC with a resolution of 640 x 480@60Hz is connected to the HDMI IN 2
port, you should set the HDMI2 mode to PC in the Edit Name menu.
i Picture Control
Changing the Picture Standard
You can select the type of picture which best corresponds to your viewing requirements.
1 Press the MENU button to display the menu.
Press the ENTER button to select Picture,
Press the ENTER button to select Mode.
Press the A or • button to select Dynamic, Standard, or Movie.
Press the ENTER button.
_° D--yn_am_ic_°Se°ieCtthe pictu_re_'for hi_=gh-=d_efi-niii-o-n_n-°a°bri=g-htr_o_°om_°i°_i=°-°i°_ _°°!=_==
• Standard; Select the picturefor the optimum display ina normal environment,
, Movie:Select the picturefor viewingmovies in a dark room.
3 Press the EXIT button to exit.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the A or _' button to select Picture Mode.
3 Press the 4 or )- button to select the required option.
4 Press the EXIT or TOOLS button to exit.
Customizing the Picture Settings
Your television has several setting options that allow you to control the picture quality.
1 To select the desired picture mode, follow the Changing the Picture Standard
instructions number 1 to 2.
2 Press the A or T button to select Cell Light, Contrast, Brightness,
Sharpness, Color, or Tint(G/R), then press the ENTER button.
Press the 41or 1_ button to decrease or increase the value of a particular item,
Press the ENTER button.
Press the EXIT button to exit.
_-_ • When you make changes to Cell Light, Contrast, Brightness,
Sharpness, Color, or Tint(G/R) the OSD will be adjusted accordingly.
• When in PC mode, Tint(G/R), Sharpness and Color are not available.
• Each adjusted setting will be stored separately according to its input mode.
Ce!l Light:sets the pixel brightness;i0 being the highest setting.
,,Contrast; Adjuststhe contrast leve! of the picture_
,, Brightness: Adjusts the brightnessleve! of the picturel
, Sharpness; Adjuststhe edge definiti0n of the picturel
' Color: Adjustscolor saturation of the picturel
• Tint(G/R);Adjusts thecolor tint of thepicture by compensatingthe red and
green color.
Adjusting the Detailed Settings
Samsung's new TVs allow you to make even more precise picture settings than previous models. See below to
adjust detailed picture settings.
Activating_ Detailed Settings
1 Press the MENU button to display the menu.
Press the ENTER button to select Picture.
2 Press the ENTER button to select Mode.
Press the A or _' button to select Standard or Movie, then pressthe ENTER
button.
Detailed Settings is available in Standard or Movie mode.
3 Press the A or _' button to select Detailed Settings, then press the ENTER
button.
In PC mode, you can only make changes to Dynamic Contrast, Gamma
and White Balance from among the Detailed Settings items.
Activatin Black ad'ust
You can select the black level on the screen to adjust the screen depth.
4 Press the A or V" button to select Black adjust, then press the ENTER button.
Press the A or T button to select Off, Low, Medium or High.
Press the ENTER button.
.... =............ u..............................
,Off: Turnsoff the black adjustmentfunct onl
, Low: Sets the black €olordepth to low,
Medium:Sets the black color depth to medium.
• High: Sets the black color depth to high.
Activatin_LO_ynamic Contrast
You can adjust the screen contrast so that the optimal contrast is provided.
6 Press the A or _' button to select Dynamic Contrast, then press the ENTER
button.
Press the A or T button to select Off, Low, Medium or High.
Press the ENTER button.
Off: Turnsoff the dynamiccontrast adjustmentfunction:
Low:Sets the dynamiccontrast to low,
• MediUm; Setsthe dynamic contrastt0 medium.
, High: Sets the dynamic contrastto high:
Activating_ Gamma
You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 ~ +3)
8 Press the A or _' button to select Gamma, then press the ENTER button.
9 Press the 4 or _ button to decrease or increase the value.
Press the ENTER button.
Continued...
_the ColorSpace
Color space is a color matrix composed of red, green and blue colors.
Select your favorite color space to experience the most natural color.
10 Press the ,t, or _' button to select Color Space, then press the ENTER button.
11 Press the ENTER button again to select Color Space.
12 Press the A or T button to select Auto, Native or Custom.
Press the ENTER button.
• Auto: Auto ColorSpace automaticallyadjuststo the most naturalcolor tone
basedon program source&
, Native: Native Color Space offers deep and rich color
, Custom: Adjuststhe colorrange to suit your preference,(see "Customizingthe
ColorSpace:!)
Customizing the Color Space
13 Press the ,t, or T button to select Color, then press the ENTER button.
Color is available when Color Space is set to Custom.
14 Press the A or T button to select Red, Green, Blue, Yellow, Cyan or
Magenta. Press the ENTER button.
15 Press the A or T button to select Red, Green or Blue to change it.
Press the ENTER button.
16 Press the 4 or I_ button to decrease or increase the value of a particular item.
Press the ENTER button.
In Color, you can adjust the RGB values for the selected color.
To reset the adjusted RGB value, select Reset.
Red: AdJuststhe red saturationlevelof the selected color,
t Green: Adjusts the green saturationlevel of the selected color. :
,,Blue: Adjusts the blue saturation!eyelof the selectedco!or,
Reset: Resets the color spaceto the defaultvalues.
_- Changing the adjustment value will refresh the adjusted screen.
_-_ Settings can be adjusted and stored for each external device you have
connected to an input of the TV. For example, if you have a DVD player
connected to HDMI 1 and it is currently selected, settings and adjustments
will be saved for the DVD player.
Activating_White Balance
You can adjust the color temperature for more natural picture colors.
17 Press the ,t, or _' button to select White Balance, then press the ENTER
button.
18 Select the required option by pressing the A or _' button, then press the
ENTER button.
19 Press the _i or _ button to decrease or increase the value of a particular item.
Press the ENTER button.
R= :-A d s°t°he=r eoio k%s=s°T=°:°: ° :°'=::=:=:
,, G Offset: Adjusts the greencolor darkness:
B Offset: Adjusts the blueco!ordarkness.,
• R Gain:Adjusts the red color brightness:
i G Gain; Adjuststhe green color brightness,
,,B Gain: Adjusts the blue color brightness.
,,Reset:The previouslyadjustedwhite balance will be reset to thefactory defaults.
_-_ Changing the adjustment value will refresh the adjusted screen.
Condnued...
Flesh Tone
You can emphasize the pink flesh tone in the picture.
20 Press the A or _' button to select Flesh Tone, then press the ENTER button.
21 Press the 41or _ button to decrease or increase the value.
Press the ENTER button=
_-_ Changing the adjustment value wiJJrefresh the adjusted screen.
Activatin E,gEd_qLe- Enhancement
You can emphasize object boundaries in the picture.
22 Press the ,J,or _' button to select Edge Enhancement, then press the ENTER
button.
23 Press the ,J,or T button to select Off or On.
Press the ENTER button.
Configuring Picture Options
Activatin Picture O tions
1 Press the MENU button to display the menu.
Press the ENTER button to select Picture.
2 Press the A or _' button to select Picture Options, then press the ENTER
button.
3 Press the A or T button to select a particular item. Press the ENTER button.
When you are satisfied with your setting, press the ENTER button.
In PC mode, you can only make changes to the Color Tone and Size
from among the items in Picture Options.
_the Color Tone
1 Follow the Activating Picture Options instructions numbers I and 2.
2 Press the ,i, or T button to select Color Tone, then press the ENTER button.
3 Press the _, or V" button to select Cool2, Coo11, Normal, Warm1 or Warm2.
Press the ENTER button.
_-_ Warm1 or Warm2 is only activated when the picture mode is Movie.
_-_ Settings can be adjusted and stored for each external device you have con-
nected to an input of the TV.
Continued...

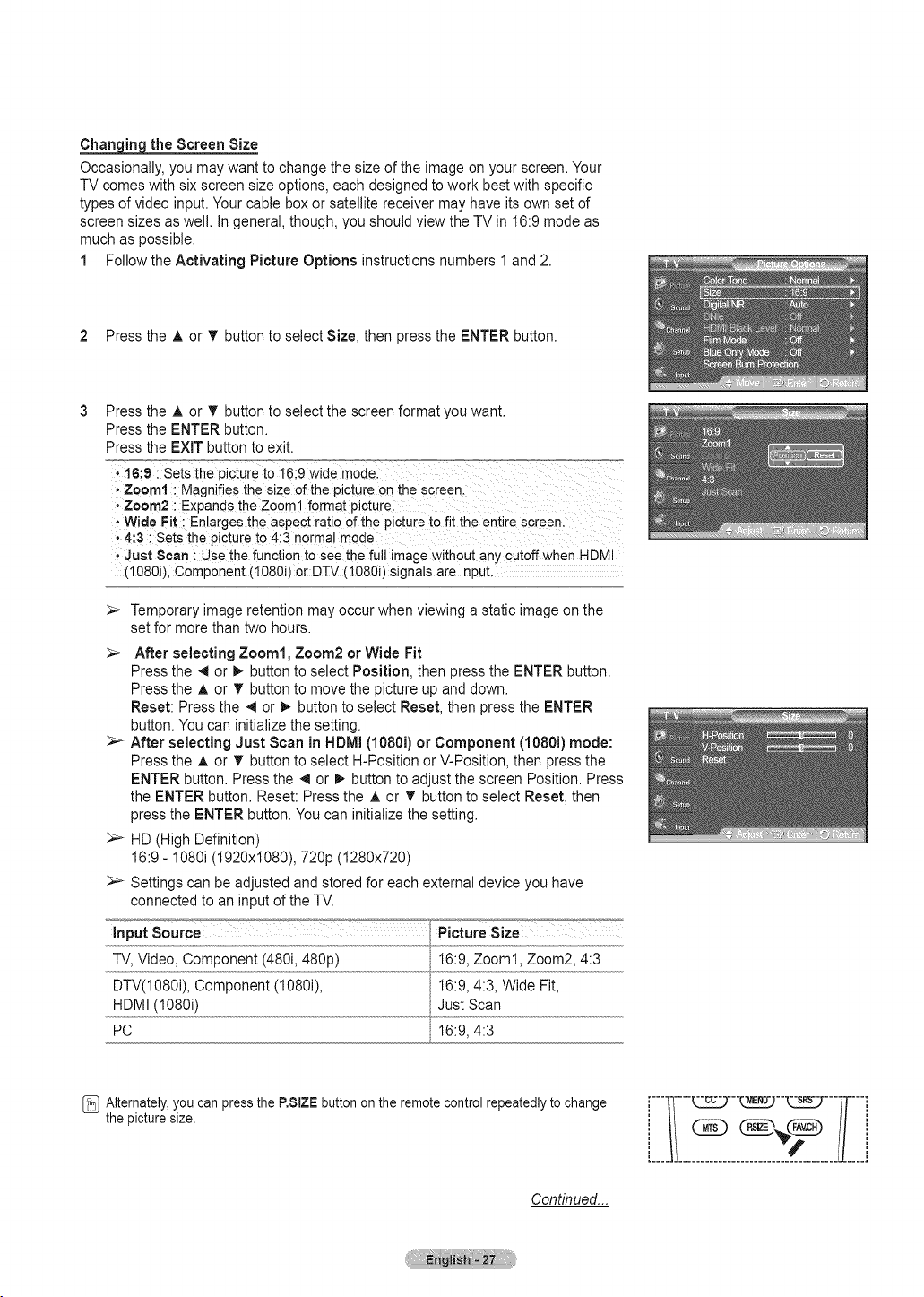

_the Screen Size
Occasionally, you may want to change the size of the image on your screen. Your
TV comes with six screen size options, each designed to work best with specific
types of video input. Your cable box or satellite receiver may have its own set of
screen sizes as well. In general, though, you should view the TV in 16:9 mode as
much as possible.
1 Follow the Activating Picture Options instructions numbers 1 and 2.
2 Press the A or _' button to select Size, then press the ENTER button.
Press the A or V"button to select the screen format you want.
Press the ENTER button.
Press the EXIT button to exit.
• Zoom1 : Magnifies the size of the picture on the screen,
• Zoom2 : Expands the Zoom! format picture
, Wide Fit; Enlarges the aspect ratio of the picture to fit the entire screen.
,4:3; Sets the picture t0 4:3 n0rma! model
- Just 8¢an : Use the function to see the full !mage without any cutoffwhen HDMI
(1080i), Component (1080i) or DTV (1080i) signals are input,
Temporary image retention may occur when viewing a static image on the
set for more than two hours.
After selecting Zoom1, Zoom2 or Wide Fit
Press the _ or I_ button to select Position, then press the ENTER button.
Press the A or T button to move the picture up and down.
Reset: Press the _ or t_ button to select Reset, then press the ENTER
button. You can initialize the setting.
After selecting Just Scan in HDMI (1080i) or Component (1080i) mode:
Press the A or T button to select H-Position or V-Position, then press the
ENTER button. Press the _ or I_ button to adjust the screen Position. Press
the ENTER button. Reset: Press the A or T button to select Reset, then
press the ENTER button=You can initialize the setting.
HD (High Definition)
16:9 - 1080i (1920x1080), 720p (1280x720)
Settings can be adjusted and stored for each external device you have
connected to an input of the TV.
TV, Video, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3
DTV(1080i), Component (1080i), 16:9, 4:3, Wide Fit,
HDMI (1080i) Just Scan
Alternately, you can press the P.81ZEbutton on the remote control repeatedly to change
the picture size.
L..II t LL..J
Continued...
Sets the picture to 16:9
wide mode.
J
Zoom! Zoom2
The screen size when The screen size when
Wide screen is vertically the Zoom1 screen is
enlargea, vertically enlarged.
Wide FLt 4:3=
Just Scan
Enlarges the aspect ratio Sets the picture to 4:3 Use the function to see the
of the picture to fit the normal mode. full image without any cutoff
entire screen, when HDM 720p11080i)
Component (10801)or DTV
(1080i) signals are inpu[.
D_g_italNoise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital
Noise Reduction feature to help reduce any static and ghosting that may appear
on the screen.
1 Follow the Activating Picture Options instructions numbers 1 and 2.
(Refer to page 26)
2 Press the ,J,or _' button to select Digital NR, then press the ENTER button.
Press the A or T button to select Off, Low, Medium, High or Auto.
Press the ENTER button.
.......... oo............ .o,=,=o=_ ....... =o_==_=o_..... ==°,.=,,.==,_
' Off: Turns the screen noise reduction function off.
,Low: Reduces screen noise at a low level.
* Medium: Reduces Screen noise at a medium level.
, High: Reduces screen noise at a high !eve!.
, Auto: Automatically recognizes and reduces screen noise.
Press the EXIT button to exit.
Continued...
DNle Di ital Natural Ima e en ine
This TV includes the DNle function to provide high visual quality. If you set
DNle to on, you can view the screen with the DNle feature activated.
1 Follow the Activating Picture Options instructions numbers 1 and 2.
(Refer to page 26)
2 Press the ,i, or _' button to select DNle, then press the ENTER button.
Press the A or _' button to select On or Off or then press the ENTER button.
• Off: Switchesoff the DNIe made.
• On: Switches on the DNle mode:
Press the EXIT button to exit.
DNleTM (Digital Natural Image engine)
This feature brings you a more detailed image with 3D noise reduction and
detail, contrast and white enhancement.
DNle is only available in Dynamic mode.
This function doesn't work when the Input Source is PC.
_the HDMI Black Level
Use this function to adjust the Black Level of the picture while in HDMI mode.
1 Follow the Activating Picture Options instructions numbers 1 and 2
(Refer to page 26)
2 Press the A or _' button to select HDMI Black Level, then press the ENTER
button.
3 Press the A or _' button to select Normal or Low, then press the ENTER
button.
This function is active only when an external device is connected to the TV
via HDMI. HDMI Black Level function may not be compatible with or exter-
nal devices.
Press the EXIT button to exit.
Setting_the Film Mode
The TV can be set to automatically sense and process film signals from all sources
and adjust the picture for optimum quality.
1 Follow the Activating Picture Options instructions numbers 1 and 2.
(Refer to page 26)
2 Press the At,or _' button to select Film Mode, then press the ENTER button.
3 Press the At,or _' button to select Off or Auto, then press the ENTER button.
Press the EXIT button to exit.
Film mode is supported in TV, AV1, Component(480i/1080i) and
HDMI(480i/1080i).
Continued...
Setting the Blue Only_Mode
This function is for AV device measurement experts. This function displays the blue
signal only by removing the red and green signals from the video signal so as to
provide a Blue Filter effect that is used to adjust the Color and Tint of video equip-
ment such as DVD players, Home Theaters, etc.
Using this function, you can adjust the Color and Tint to preferred values appropriate
to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/
Yellow Color Bar Patterns, without using an additional Blue Filter.
1 Follow the Activating Picture Options instructions numbers 1 and 2.
(Refer to page 26)
2 Press the _, or _' button to select Blue Only Mode, then press the ENTER
button.
Press the A or _' button to select Off or On, then press the ENTER button.
Press the EXIT button to exit.
Blue Only Mode is available when the picture mode is set to Standard or
Movie.
Reducing the Effects of Screen Burn
If screen burn has occurred, you can select a white screen or scrolling to help
remove screen burn artifacts.
1
2
3
Follow the Activating Picture Options instructions numbers 1 and 2.
(Refer to page 26)
Press the A or _' button to select Screen Burn Protection, then press the
ENTER button.
Press the A or V" button to select Pixel Shift, White, Scrolling, or Side Gray
then press the ENTER button.
Press the EXIT button to exit.
• White
This function removes after-images on the screen by changing the color of
pixels to white. Use this function when there are remaining after-images or
symbols on the screen, especially when you displayed a still image on the
screen for a long time.
• Scrolling
This function removes after-images on the screen by moving all the pixels on
the PDP according to a pattern. Use this function when there are remaining
after-images or symbols on the screen, especially when you displayed a still
image on the screen for a long time.
• Side Gray
When you watch TV with the screen ratio of 4:3, the screen is prevented from
any damage by adjusting the white balance on both extreme left and right
sides.
To prevent the screen burn from happening, select Dark or Light.
• Dark: when you set thescreeniatio to 4:31it darkensthe leftand right sides.
• Light:When you set the screen ratioto 4:31it brightensthe left and rightsides.
To remove after-images on the screen, use either the White or Scrolling function. Although both functions remove
after-images on the screen, Scrolling is more effective.
The after-image removal function has to be executed for a longtime (approximately 1 hour) to effectively remove after-
images on the screen. If the after-image is not removed after performing the function, repeat the function again.
Press any key on the remote control to cancel this feature.
Continued...
Preventing_Screen Burn-in
To reduce the possibility of screen burn, this unit is equipped with screen burn
prevention technology.
This technology enables you to set picture movement up/down (Vertical Line) and
side to side (Horizontal Dot).
The Time setting allows you to program the time between movement of the picture
in minutes.
1 Follow the Activating Picture Options instructions numbers 1 and 2.
(Refer to page 26)
2 Press the A or _' button to select Screen Burn Protection, then press the
ENTER button.
Press the ENTER button to select Pi×el Shift, then press the ENTER button.
Pressing the A or T button will alternate between On and Off.
You will also see the items Horizontal Dot, Vertical Line and Time.
• Pixel Shift: Usingthis functionl Youcan minutely mevepixe!s on the PDP in the
horizonta!or verticaldirectionto preventafter-imageson the screen.
Press the A or T" button to select the item you wish to change, then press the
ENTER button.
Press the ,t, or V' button to change the value of the item, then press the ENTER
button.
• Optimum condition for pixel shift;
...................................... TV/AV1/Component/HDMI
2
Press the EXIT button to exit.
_" This function is not available in the Just Scan mode.
Resetting the Picture Settings to the Factory Defaults
To select the desired picture mode, follow the Activating Picture Options
instructions number 1. (see page 26)
Press the At,or T button to select Reset, then press the ENTER button.
Press the 41or _ button to select OK or Cancel then press the ENTER button.
Press the EXIT button to exit.
Each mode can be reset.
i Sound Control
Changing the Sound Standard
You can select the sound mode to best suit the programming you're watching.
1
2
Press the MENU button to display the menu.
Press the ,i, or _' button to select Sound, then press the ENTER button.
Press the ENTER button to select Mode. Press the A or T button to select
Standard, Music, Movie, Speech, or Custom sound setting, then press the
ENTER button.
Press the EXIT button to exit.
OStandard : Selectsthe normalsound mode.
i Music ; EmphaSizesmuSicover voiCeS:
, Movie : Providesthe bestsound for movies.
' Speech i EmphasizeSVoiceover othei sounds:
, Custom :Recalls your customizedsound setting. (See Customizingthe Sound)
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the At,or _' button to select Sound Mode.
3 Press the 4 or _ button to select the required option.
4 Press the EXIT or TOOLS button to exit.
Customizing the Sound
The sound settings can be adjusted to suit your personal preference.
1 Press the MENU button to display the menu.
Press the A or _' button to select Sound, then press the ENTER button.
2 Press the A or _' button to select Equalizer, then press the ENTER button.
Press the 4 or I,, button to select a particular frequency to adjust.
Press the A or V" button to increase or decrease the level of the particular
frequency, then press the ENTER button.
Press the EXIT button to exit.
UR SoundBalance Adjustment: To adjustthe sound balance of the LIR
speakers.
' Bandwidth Adjustment (100Hz,300Hz,lkHz, 2kHz, 3kHz, 10kHz):
Toadjust the level of different bandwidthfrequencies.
_" If you make any changes to the equalizer settings, the sound mode is
automatically switched to the Custom mode.
Setting the TruSurround XT
TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over
two=speakers.TruSurround delivers a compelling, virtual surround sound experience through any two-speaker
playback system, including internal television speakers, it is fully compatible with all multi channel formats.
1
2
3
Press the MENU button to display the menu.
Press the A or T button to select Sound, then press the ENTER button.
Press the A or T button to select SRS TruSurround XT, then press the
ENTER button.
Press the A or _' button to select Off or On, then press the ENTER button.
Press the EXIT button to exit.
Press the SR8 button on the remote control to select On or Off.
i-Tl .............. _ ...... _;,7......[[-i
TruSurround XT, SRS and (:e)Symbol are trademarks of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
Choosing a IVlulti-Channel Sound (lVlTS) Track - Digital
The digital=TVtransmission system is capable of simultaneous transmission of many audio tracks (for example,
simultaneous translations of the program into foreign languages).
Preferred language
1 Press the MENU button to display the menu.
Press the A or _' button to select Sound, then press the ENTER button.
2 Press the A or _' button to select Multi=Track Options, then press the ENTER
button.
Press the ENTER button to select Preferred Language.
Press the A or T button to choose the language (English/Spanish/French)
you want, then press the ENTER button.
Press the EXIT button to exit,
You can only select the language from among the actual languages being
broadcast,
Preferred Language is available only in Digital TV mode,
Press the MTS button on the remote control to listen in a language other than the
preferred language.
,
i........................................_...i
Choosing a Multi-Channel Sound (MTS) Track -Analog
Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP.
Multi=Track Sound
1 Press the MENU button to display the menu.
Press the A or _' button to select Sound, then press the ENTER button.
2 Press the A or _' button to select Multi=Track Options, then press the ENTER
button.
Press the A or _' button to select Multi=TrackSound, then press the ENTER
button.
Press the A or _' button to select a setting you want, then press the ENTER
button.
Press the EXIT button to exit.
• Mono:Choose for channels that are broadcastingin mono or if you are having
difficultyreceMng a stereosigna!.
, Stereo:Choose for channelsthat are broadcastinginstereo.
SAP ; Chooseto listen to the SeparateAudio Program,which is usuallya foreign
languagetranslation.
Multi=TrackSound is available only in Analog TV mode.
Depending on the particular program being broadcast, you can listen to
Mono, Stereo or SAP.
Press the MTS buttons on the remote control to select Mono, Stereo, or SAP.
Automatic Volume Control
Reduces the difference in volume level among broadcasters.
1 Press the MENU button to display the menu.
Press the A or _' button to select Sound, then press the ENTER button.
2 Press the A or _' button to select Auto Volume, then press the ENTER button.
3 Press the ,t, or _' button to select Off or On, then press the ENTER button.
Press the EXIT button to exit.
Setting the TV Speakers On/Off
Sound output from the TV speakers is muted.
1 Press the MENU button to display the menu.
Press the A or _' button to select Sound, then press the ENTER button.
2 Press the A or _' button to select TV Speaker, then press the ENTER button.
Press the _, or _' button to select Off or On, then press the ENTER button.
Press the EXIT button to exit.
• When TV Speaker is set to Off, Sound menus except Multi=track
Options cannot be adjusted.
• The VOL _:÷_,VOL ,_-)and MUTE buttons do not operate when the TV
Speaker is set to Off.
i Channel Control
Selecting the Antenna
1
2
Press the MENU button to display the menu.
Press the At,or _' button to select Channel, then press the ENTER button.
Press the ENTER button to select Antenna.
Press the A or _' button to select Air or Cable, then press the ENTER button.
Press the EXIT button to exit,
Clearing Scrambled Channels - Digital
The Clear Scrambled Channel function is used to filter out scrambled channels after Auto Program is completed.
This process may take up to 20=30minutes.
Press the MENU button.
Press the ,t, or V' button to select Channel, then press the ENTER button.
Press the _, or V' button to select Clear Scrambled Channel, then press the
ENTER button. It searches scrambled channels, which are to be removed from
the list.
To stop searching scrambled channels;
Press the ENTER button to select Stop.
Press the 4 button to select Yes, then press the ENTER button.
2 When the scrambled channel searching is completed, press the ENTER button.
Press the EXIT button to exit.
_" This function is only available in Cable mode.
Adding and Erasing Channels
You can add or delete a channel to display the channels you want.
1 Press the MENU button to display the menu.
Press the A or _' button to select Channel, then press the ENTER button.
2 Press the A or _' button to select Channel List, then press the ENTER button.
3 Press the A or _' button to select Added, then press the ENTER button.
Press the A/T/_/_ buttonsto selecta channelto add, then press the ENTER
bu_on.
Press the A or T buttonto select Add, then press the ENTER buttonto add the
channel.
Press the MENU button to return.
All added channels will be shown on Added menu.
Press the _,/T/_/I_ buttons to select a channel to delete, then press the
ENTER button.
Press the A or T button to select Delete, then press the ENTER button to
delete the channel.
Press the EXIT button to exit.
You can also delete a channel in the All Channels menu in the same
manner.
' Red buttoni Press [epeaiedlyto select All, Added, Oi Favoritel
• Greenbutton: Pressto add all channelsdeleted.
• Yellow huron: Pressto delete all channelsmemorized:
Viewing the Channel Lists
You can display a list of all channels, added channels or your favorite channels.
1 Press the MENU button to display the menu.
Press the A or _' button to select Channel, then press the ENTER button.
2 Press the A or _' button to select Channel List, then press the ENTER button.
Press the A or _' button to select All, Added or Favorite, then press the
ENTER button.
To toggle between your all channels, add channels, or favorite channels, use the
red button on the remote control.
, Green button: Press to add all channels deleted.
, Yellow button: Press to delete all channels memorized.
Setting Your Favorite Channels
You can set channels you watch frequently as favorites.
1 Press the MENU button to display the menu.
Press the A or _' button to select Channel, then press the ENTER button.
2 Press the A or _' button to select Channel List, then press the ENTER button.
3 Press the A or _' button to select All or Added, then press the ENTER button.
4 Press the ,_./T/4/I_ buttons to select a channel as a favorite channel, then
press the ENTER button.
Press the OH _2)and CH _vj,,button to display the next channel list page.
Continued...
Press the A or T button to select Favorite, then press the ENTER button.
The "V" symbol will be highlighted and the channel will be set as a Favorite.
To cancel your Favorite channel selection, press the ENTER button until the
"_" symbol disappears.
Press the EXIT button to exit.
Only memorized channels can be set as favorite channels.
All favorite channels will be shown on the Favorite menu,
Easy Setting
1 Press the TOOLS button on the remote control,
2 Press the A or T button to select Add to Favorite or Delete from Favorite,
then press the ENTER button.
The current channel is added to or deleted from Favorites.
F_] Toselectthe favoritechannelsyou haveset up, pressthe FAV.CHbuttonon theremote
control.
L..[L..................................
Labeling Channels
Channels can labeled so that their call letters appear whenever the channel is selected.
1 Press the MENU button to display the menu.
Press the ,t, or T button to select Channel, then press the ENTER button.
Press the A or _' button to select Name, then press the ENTER button.
2 Press the ,t, or V"button to select the channel to be assigned a new name, then
press the ENTER button.
Press the A or T button to select a letter, a number or a blank (Results in this
sequence: A~Z, 0~9, +, -, *,/, blank).
Press the I_ button to switch to the next field, which will be selected.
Select a second letter or digit by pressing the A or T button, as above.
Repeat the process to select the last three digits. When you have finished,
press the ENTER button to assign the new name.
To erase the assigned new name, select Clear by pressing the 4 or _ button,
then press the ENTER button.
Press the EXIT button to exit,
The names of digital broadcasting channels are automatically assigned and
thus cannot be assigned by users,
Fine Tuning Analog Channels
Use fine tuning to manually adjust a particular channel for optimal reception.
1 Press the MENU button to display the menu.
Press the A or _' button to select Channel, then press the ENTER button.
2 Press the A or _' button to select Fine Tune, then press the ENTER button.
3 Press the 4 or _ button to adjust the fine tuning.
To store the fine tuning setting in the TV's memory, press the ENTER button.
To reset the fine tuning setting, press the _' button to select Reset, then press
the ENTER button.
Press the EXIT button to exit,
Only analog TV channels can be fine tuned,
:_" "* "will appear next to the number of fine-tuned channels.
Checking the Digital-Signal Strength
Unlike analog channels, which can vary in reception quality from snowy to clear, digital (NDTV) channels have
either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine
tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital
channels.
1 Press the MENU button to display the menu.
Press the A or _' button to select Channel, then press the ENTER button.
Press the A or '!' button to select Signal Strength, then press the ENTER
button, if the signal strength meter indicates that the signal is weak, physically
adjust your antenna to increase the signal strength.
Continue to adjust the antenna until you find the best position with the strongest
signal.
Press the EXIT button to exit,
i PC Display
Using Your TV as a Computer (PC) Display
Your PC Software {Based on Windows XP)_
The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be
different depending upon your particular version of Windows and your particular video card. However, even if your actual
screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer or
Video Card manufacturer.)
1 First, click on Control Panel on the Windows start menu.
2 When the control panel window appears, click on Appearance and Themes and a "_'°_°_°°_'_°_,__......:'_:_
display dialog-box will appear.
3 When the control panel window appears, click on Display and a display dialog-box
will appear.
4 Navigate to the Settings tab on the display dialog-box.
The correct size setting (resolution)
Optimum: PN42A400C2D: 1024x768 pixels
PN50A400C2D: 1360x768 pixels
If a vertical-frequency option exists on your display settings dialog box, the correct
value is 60 or 60 Hz. Otherwise, just click OK and exit the dialog box.
DispF_
Display Modes
if the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal
from the system doesn't equal the standard signal mode, adjust the mode by referring to your videocard user
guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized
during manufacture.
D=Subinput
...................................................t........................................3i14"69........................................I .................................70J086...............................25.175
640 x 350
IBM ................................................720x400 _................................................................................................31.469 ...............................7;.1];7 ................................28.322 -/+ l '
¢
59.940 25.175 -/- ,/ ,/
......................................................................................................................................................................................................................................................................................................................................................................................................../ ...........................................................................................................................................
640 x 480 37.86t 72.809 31.500 -/- ,/ ,/
640 x 480 37.500 75.000 31 500 ..........................._i ......................................................l ,/
800 x 600 37.879 60.317 40.000 +/+ ,/ ,/
...................................................................47o77......................................................................77i_i;.........................................;oooo............... +1+
800 x 600 1 i 1
VESA ..................................................................- ................. ................... ....................
46.875800 x 600 75.000 49.500 +/+
,/
1024x 768 56.476 ¢"
....70_4x7_ 600_ 7;0_;..............................7;7;o
+/+ 1 1 1
1360x 768 47.712 ,/
HDMI/DVI Input
VESA ...........................................
I 1024x768 I 48.363 i 60.004 i 65.000 i -/- ,! i ,/
• The interlace mode is not supported.
• The TV operates abnormally if a non-standard video format is selected.
• The table above conforms to IBM/VESA regulations and is based on using the Analog Input.
• "_" mark means that this mode is supported.
• For the PN42A400C2D, PC text quality is optimum in VESA mode (1024 x 768@60Hz).
• For the PN50A400C2D, PC text quality is optimum in VESA mode (1360 x 768@60Hz).
(Three pixels on left, right, top and bottom will be grayed out at the resolution setting of 1360x768@60Hz. This is not a mechanical
problem but a result caused by the pixel difference between the standard resolution and the PDP panel.)
• When this TV is used as a PC display, 32-bit color is supported.
• Depending on the manufacturer, your PC display screen might appear different. (and depending on your particular version of
Windows.) Check your PC instruction book for information about connecting your PC to a TV.
• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 48.4KHz (horizontal).
• In some cases, abnormal signals (such as stripes) might appear on the TV screen when the PC power is turned off (or if the PC is
disconnected). If so, press the SOURCE button on the remote control or TV panel to enter a VIDEO mode.Also, make sure that the PC
is connected.
Setting up the TV with your PC
Use the Auto Adjust function to have the TV set automatically adjust the video signals it receives from the PC.
The function also automatically fine=tunes the settings and adjusts the frequency values and positions.
How to Auto Adjust
1 Press the MENU button to display the menu.
Press the A or _' button to select Picture, then press the ENTER button.
Press the _, or T button to select Auto Adjustment, then press the ENTER
button. The message Auto Adjustment in progress. Please wait. appears on
the screen and the picture adjustments are automatically activated.
Press the EXIT button to exit.
This function does not work in DVFDigital mode.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the A or _' button to select Auto Adjustment, then press the ENTER
button.
Ad'ustin the Screen Qualit
The purpose of the picture quality adjustment is to remove or reduce picture
noise. If the noise is not removed by fine tuning alone, then do the frequency
adjustments to the utmost and fine tune again. After the noise has been
reduced, re-adjust the picture so that it is aligned on the center of the screen.
Preset: Press the SOURCE button to select PC mode.
1 Press the MENU button to display the menu.
Press the ,_.or 'V button to select Picture, then press the ENTER button.
Press the A or _' button to select Screen, then press the ENTER button.
Continued...

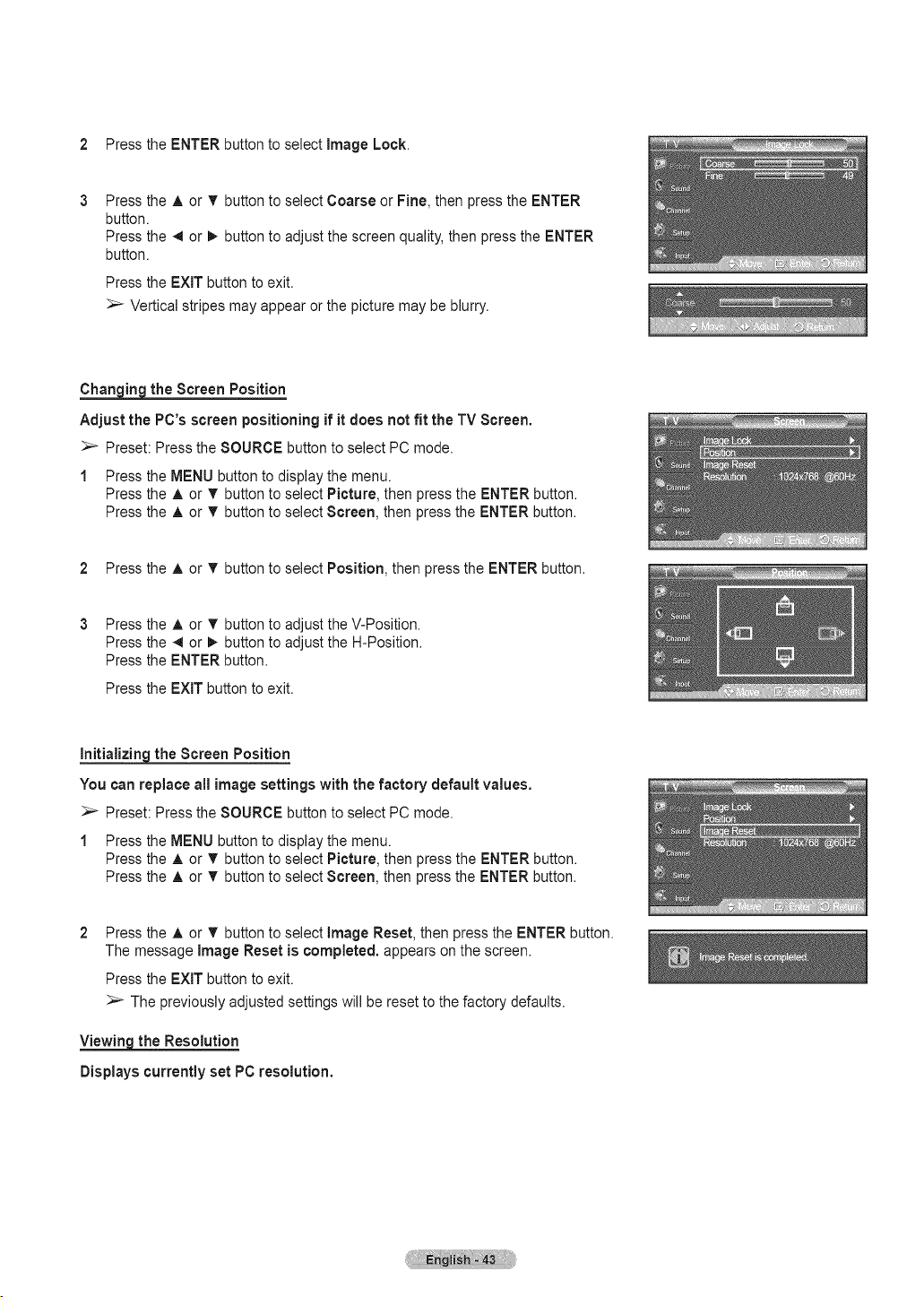

2 Press the ENTER button to select Image Lock.
Press the ,t, or _' button to select Coarse or Fine, then press the ENTER
button.
Press the 4 or _ button to adjust the screen quality, then press the ENTER
button.
Press the EXIT button to exit.
Vertical stripes may appear or the picture may be blurry.
_the Screen Position
Adjust the PC's screen positioning if it does not fit the TV Screen.
Preset: Press the SOURCE button to select PC mode.
1 Press the MENU button to display the menu.
Press the ,t, or T button to select Picture, then press the ENTER button.
Press the A or _' button to select Screen, then press the ENTER button.
2 Press the ,t, or _' button to select Position, then press the ENTER button.
Press the ,t, or T button to adjust the V-Position.
Press the 4 or _ button to adjust the H-Position.
Press the ENTER button.
Press the EXIT button to exit,
Initializing_the Screen Position
You can replace all image settings with the factory default values.
Preset: Press the SOURCE button to select PC mode.
1 Press the MENU button to display the menu.
Press the ,t, or T button to select Picture, then press the ENTER button.
Press the A or _' button to select Screen, then press the ENTER button.
Press the A or T button to select Image Reset, then press the ENTER button.
The message Image Reset is completed, appears on the screen.
Press the EXIT button to exit.
The previously adjusted settings will be reset to the factory defaults.
Viewing the Resolution
Displays currently set PC resolution.
i Time Setting
Setting the Time
Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time
while watching the TV. (Just press the INFO button.)
Option 1: Settin the Clock Manuall
1 Press the MENU button to display the menu.
Press the A or T button to select Setup, then press the ENTER button.
Press the A or _' button to select Time, then press the ENTER button.
2 Press the ENTER button to select Clock.
3 Press the ENTER button to select Clock Mode,
Press the A or _' button to select Manual, then press the ENTER button.
4 Press the A or _' button to select Clock Set, then press the ENTER button.
Press the 4 or _ button to move to Month, Day, Year, Hour, Minute, or am/
pm Set the date and time you want by pressing the A or _' button, then press
the ENTER button.
Press the EXIT button to exit,
The current time will appear every time you press the INFO button,
You can set the Month, Day, Year, Hour, and Minute directly by pressing
the number buttons on the remote control,
Continued...
Option 2: Settin_qthe Clock Automatically
The Clock can be set automatically if you are receiving a digital signal.
1 Press the MENU button to display the menu.
Press the A or T button to select Setup, then press the ENTER button.
Press the A or _' button to select Time, then press the ENTER button.
2 Press the ENTER button to select Clock.
3 Press the ENTER button to select Clock Mode,
Press the A or _' button to select Auto, then press the ENTER button.
4 Press the A, or T button to select Time Zone, then press the ENTER button.
5 Press the A or T button to highlight the time zone for your localarea (and
to move the highlight to the appropriate time zone on the map of the United
States), then press the ENTER button.
Press the A or T button to select DST(Daylight Saving Time), then press the
ENTER button.
Press the A or _' button to select Off or On, then press the ENTER button.
Press the EXIT button to exit.
_" Depending on the broadcast station and signal, the auto time may not be set
correctly. If this occurs, set the time manually.
_" Antenna or Cable must be connected in order to set the time automatically.
Setting_the On/Off Timer
Use this feature to set the TV to turn on or off at a desired time. You must set
the clock first.
1 Press the MENU button to display the menu.
Press the ,_.or 'V button to select Setup, then press the ENTER button.
Press the A or _' button to select Time, then press the ENTER button.
Continued...
Three different On/Off Timer Settings can be made.
Press the A or T" button to select Timer1, Timer2,or Timer& then press the
ENTER button. The timer menu is displayed.
Press the A or T" button to adjust hour, then press the _- button to move to the
next step. Set other items using the same method as above.
Press the 4 or _ button to select the desired item below.
Press the A or _' button to adjust the setting.
Press the EXIT button to exit.
• On Time:Setthe Hour.Minute. am/pm,andActivation/Inactivation.
Toactivatetimer with the settingyou've chosen, set to Activate.)
• Off Time: Set the Hour,Minute,am/pm, andActivationtlnactivation.
(Toactivatetimer with the settingyou've chosen, set to Activate.l
- Volume: Set the requiredvolume level.
, Channel:Whenthe On Timer is activate, you can turn on a specificchannel.
• Repeat:SelectOnce. Everyday,Mon~Fri, Men~Sat. Sat~Sun.or Manual.
_- When Manualis selected,press the !_ buttonto select thedesired day of
theweek. Pressthe ENTER buttonoverthe desiredday andthe markC_/_
willappear.
You can set the hour, and minute directly by pressing the number buttons on
the remote control.
Auto Power Off
When you set the timer On, the television will eventually turn off, if no
controls are operated for 3 hours after the TV was turned on by the timer.
This function is only available in timer On mode and prevents overheating,
which may occur if a TV is on for too long time.
Settin the Sloe Timer
The sleep timer automatically shuts off the TV after a preset time (30, 60, 90,
120, 150 and 180 minutes).
1 Press the MENU button to display the menu.
Press the A or T button to select Setup, then press the ENTER button.
Press the A or T button to select Time, then press the ENTER button.
2 Press the A or T button to select Sleep Timer, then press the ENTER button.
3 Press the A or T button to select the minute.
Setting the Timer sets the Activation to On automatically.
To cancel the set sleep timer:
Press the _ button to select Activation.
Press the A or _' button to select Off, then press the ENTER button.
Press the EXIT button to exit.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the A or _' button to select Sleep Timer, then press the ENTER button.
3 Press the 4 or _ button to select the minute, then press the ENTER button.
4 Press the EXIT or TOOLS button to exit.
i Function Description
Selecting a Menu Language
Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time
while watching the TV. (Just press the INFO button.)
1 Press the MENU button to display the menu.
Press the ,t, or T button to select Setup, then press the ENTER button=
Press the A or _' button to select Language, then press the ENTER button.
2 Press the A or T button to select the appropriate language: English, EspaSol,
or Fran£ais, then press the ENTER button.
Press the EXIT button to exit,
Viewing Closed Captions (On-Screen Text Messages) - Digital
The Digital Captions function operates on digital channels.
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
2 Press the A or _' button to select Caption, then press the ENTER button.
3 Press the ENTER button to select Caption.
Press the A or _' button to select On, then press the ENTER button.
Continued...
Press the ,i. or T button to select Caption Mode, then press the ENTER button.
Press the ,J,or • button to select submenu (Default, Servicel~Service6,
CC1~CC4 or Textl~Text4) you want, then press the ENTER button.
_" Service1~6 in digital caption mode may not be available depending on the
broadcast.
_" Digital Caption Option are available only when Default, Servicel~Service6
can be selected in Caption Mode.
5 Press the A or _' button to select Digital Caption Option, then press the ENTER
button.
Press the ,_.or T button to select Size, then press the ENTER button.
Press the A or T button to select the desired caption option, then press the
ENTER button.
Press the A or _' button to select the desired sub-menu options (see options
below), then press the ENTER button.
Press the EXIT button to exit.
The availability of captions depends on the program being broadcast.
Default means to follow the standard set by the broadcaster.
Foreground and Background cannot be set to have the same color.
_" Foreground Opacity and Background Opacity cannot be both set to
Transparent.
- Size: This option consists of Default. Small. Standard and Large. The default is
Default.
, Font Style: This option consists of Default. Style0 ~ Style7. You can change the
font you want. The default is Default.
• Foreground Color: This option consists of Default. White. Black. Red Green.
Blue. Yellow. Magenta, and Cyan. You can change the color of the letter.
The default is Default.
, Background Color: This option consists of Default. White. Black. Red. Green.
Blue. Yellow. Magenta, and Cyan. You can change the background color of the
caption. The default is Default.
- Foreground Opacity: This option consists of Default, Transparent.
Translucent. Solid. and Flashing. You can change the opacity of the letter.
, Background Opaoity: This option consists of Default. Transparent.
Translucent Solid. and Flashing. You can change the background opacity of
the caption.
• Return to Default: This option sets each of Size. Font Style, Foreground
Color, Background Color. Foreground Opacity, and Background Opacity to
itsdefault.
Press the CC button on the remote control to turn the Caption On or Off.
[-T_ ................ _ ...... _;,_......Z-i
//
i..............................................i
Viewing Closed Captions (On-Screen Text Messages) -Analog
The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an
external device. (Depending on the broadcasting signal, the Analog Caption function may operate on digital
channels.)
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
2 Press the A or _' button to select Caption, then press the ENTER button.
3 Press the ENTER button to select Caption,
Press the A or _' button to select On, then press the ENTER button.
Press the A or T button to select Caption Mode, then press the ENTER
button. Press the A or T button to select submenu (Default, CCl ~CC4 or
Textl~Text4) you want, then press the ENTER button.
Press the EXIT button to exit.
o__
• The defaultis Default.
- COl: The PrimarySynchronousCaptionService. Theseare captions in the
primarylanguagethat must be insync with thesound,preferablymatchedto a
specificframe.
= 0C2: The SpecialNon-SynchronousUseCaptions.Thischannel carriesdata that
is intendedto augmentinformationcarried in the program.
- CC3: SecondarySynchronousCaption Service.
Alternate program-relatedcaption data, typicallysecond languagecaptions.
= 0C4: Special Non-SynchronousUseCaptions.Similar to CC2.
• Text1: FirstTextService. This may be various non-programrelateddata
= Text2: SecondText Service.Additional data. usually notprogram related.
,, Text3/Text4:Third and Fourth TextServices.These datachannels should be
usedonly if Text1and Text2are not sufficient.
• The Caption feature doesn't work in COMPONENT, PC, HDMI(DVI)
modes.
• The availability of captions depends on the program being broadcast.
You can also press the CO button on the remote control to select Captions
On or Off.
i..........................................i
Adjusting the TV On/Off Melody Sound
The TV power on/off melody sound volume can be adjusted.
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then pressthe ENTER button.
2 Press the A or _' button to select External Settings, then press the ENTER
button.
Press the ENTER button to select Melody.
Press the _. or _' button to select Off, Low, Medium, or High, then press the
ENTER button.
' Off: TurnSoff the mel0dYfunction:
Low: Setsthe me!odyvo!ume to low,
• Medium:Setsthemel0dy Volumeto medium,
• High: Sets the melodyvolume to high.
Press the EXIT button to exit.
The Melody does not play
- When no sound is output from the TV because the MUTE button has been
pressed,
- When no sound is output from the TV because you have reduced the
volume to minimum by pressing the VOL _:_button.
- When the TV is turned off by Sleep Timer function.
r'Jrl _° Manufactured under license from Dolby Laboratories,
Dolby and the double-D symbol are trademarks of Dolby
D I G I T A L Laboratories,
Setting the Light Effect
You can turn the blue LED on the front of TV on/off.
Press the MENU button to display the menu.
Press the ,t, or 'V button to select Setup, then press the ENTER button.
Press the A or _' button to select External Settings, then press the ENTER
button.
2 Press the ,i, or V' button to select Light Effect, then press the ENTER button.
Press the A or T button to select Off, In Standby, When Watching TV, or
Always, then press the ENTER button.
Press the EXIT button to exit.
,, Off: The LED is alWays0ft.
• in Standby: The LED lightswhilein Standbymode and it turnsoff when yourTV
is turned on.
• When Watching TV: The LED lights when watchingTV andit turns offwhenyour
TV is turnedoff.
Always: The LED is alwayslit.
Set the Light Effect to Off to reduce the power consumption.
Setting the Entertainment mode
The Entertainment mode enables you to select the optimal display and sound for sports, cinema and games.
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
2 Press the A or _' button to select Entertainment, then press the ENTER
button,
Press the A or T button to select Off, Sports, Cinema or Game, then press
the ENTER button.
' Off: switches the Entertainment functionOff:
8portSi Pr0_idesthe OPtimalpictureand Soundqualityfor Sports.
, Cinema: Providesthe optimalpicture and sound qualityfor moviewatching
Youcan experiencea richer picture andenhancedsound,
, Game;Providesthe optimal picture and Soundquality for games,Thismode
acceleratesthe playing speedwhenusing an externalgame consoleconnected
to the TV.
Press the EXIT button to exit.
If you set any of the three Entertainment modes to On, the settings will be locked and
can not be adjusted. If you want to make Picture and Sound mode adjustments, the
Entertainment mode must be turned off.
The Entertainment settings are saved for each input source.
Using the Energy Saving Feature
This feature adjusts the power consumption of the unit in order to save energy.
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
Press the A or _' button to select Energy Saving, then press the ENTER
button.
Press the A or _' button to select Off, Low, Medium, or High, then press the
ENTER button.
Press the EXIT button to exit.
,, Off: SWitches off the E
nergy Saving mode.
-Low: Operates in standard mode.
,, Medium: Enters medium power saving mode:
,, High: Enters maximum power saving mode.
Upgrading the Software
Samsung may offer upgrades for your TV's firmware in the future. Please contact the Samsung call center at
1=800=SAMSUNGto receive information about downloading upgrades and using a USB drive. Upgrades will be
possible by connecting a USB drive to the USB port.
Insert a USB drive containing the firmware upgrade into the USB Upgrade Port
on the rear of the TV.
TV Rear Panel
@
SERVICE
i
USB Drive
ii!ii
2 Press the MENU button to display the menu.
Press the At,or _' button to select Setup, then press the ENTER button.
3 Press the A or _' button to select SW Upgrade, then press the ENTER button.
4 Press the A or _' button to select USB, then press the ENTER button.
The message Scanning for USB... It may take up to 30 seconds is displayed.
If the firmware on the USB is properly recognized, the message Upgrade
version xxxx to version xxxx The system would be reset after upgrade, is
displaye&
Press the ._ or I_ button to select Yes, then press the ENTER button.
The upgrade starts.
Please be careful to not disconnect the power or remove the USB drive while
upgrades are being applied.
The TV will shut off and turn on automatically after completing the firmware
upgrade.
Please check the firmware version after the upgrades are complete.
When software is upgraded, video and audio settings you have made will return
to their default (factory) settings. We recommend you write down your settings
so that you can easily reset them after the upgrade.
Using the V-Chip
I U.S.AOnly 1
Thisproductis coveredbythefollowingU.S.patents• US4,930,158US4,930,160
The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must
enter a PiN (personal ID number) before any of the V-Chip restrictions are set up or changed.
V-Chip function is not available in NDMI, Component or PC mode.
SettingU_!_Your Personal ID Number(PIN}
Press the MENU button to display the menu.
Press the A or T button to select Setup, then press the ENTER button.
The Screen Saver is activated if there is no remote control key input for
longer than 1 minute while setting up the V-Chip.
2 Press the A or T button to select V-Chip, then press the ENTER button.
The message Enter PIN will appear. Enter your 4 digit PIN number.
The default PIN number of a new TV set is 0-0-0-0.
The V-Chip screen will appear.
Press the A or T button to select Change PIN, then press the ENTER button.
The Change PIN screen will appear. Choose any 4 digits for your PIN and enter
them. Re-enter the same 4 digits.
When the message PiN is changed successfully, is displayed, your PIN has
been memorized.
Press the EXIT button to exit.
If you forget the PIN, press the remote-control buttons in the following
sequence, which resets the pin to 0-0-0-0 : Power Off. _ MUTE _ 8 _ 2
4 _ Power On.
Continued...
How to Enable/Disable the V=Chip
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
2 Press the A or V" button to select V-Chip, then press the ENTER button.
The message Enter PiN will appear. Enter your 4 digit PIN number.
The V-Chip screen will appear.
To enable the V-Chip feature, press the ENTER button so that the V-Chip Lock
field is On. (Pressing the A or _' button will alternate between On and Off.)
Press the ENTER button.
Press the EXIT button to exit,
How to Set up Restrictions Using "TV Parental Guidelines"
First, set up a personal identification number (PIN), and enable the V-Chip.
(See previous section.) Parental restrictions can be set up using either of two
methods: The TV guidelines or the MPAA rating.
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
2 Press the A or V" button to select V-Chip, then press the ENTER button.
The message Enter PiN will appear. Enter your 4 digit PIN number.
3 The V-Chip screen will appear. Press the A or _' button to select TV Parental
Guidelines, then press the ENTER button.
Continued...
The TV Parental Guidelines screen will appear.
Press the _, or _' button to select one of the six aged based categories:
• TV,Y:All children.The themes andelements inthis programare specifically
designedfor a veryyoung audience,includingchildren from ages two to six.
- TV-Y7: Directedto older children.The themesand elementsin this program may
includemild physical or comedicviolence, or mayfrightenchildren under the age
of seven.
, TV,G: Generalaudience. It containslittle or no violence, nostrong language, and
littleor no sexualdialog or situations.
• TV-PG:Parentalguidance suggested.This program maycontain infrequentcoarse
language,limitedviolence,some suggestivesexual dialogand situations.
• TV-14:Parentsstronglycautioned.This programmay containsophisticated
themes,sexualcontent,stronglanguage and moreintenseviolence.
• TV-MA:Mature audiencesonly. This program maycontain mature themes,profane
language,graphicviolenceand explicitsexualcontent.
At this point, one of the TV-Ratings is selected.
Press the ENTER button. Depending on your existing setup, the "_" symbol will
be selected. (Blank = Unblocked, @= Blocked) While "@" is selected, press the
ENTER button to block or unblock the category.
To select a different TV-Rating, press the At,or _' button and then repeat the
process.
Allow All: Press to unlock all TV ratings.
Block All: Press to lock all TV ratings.
The TV-Y,TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional options.
See the next step to change any of the following sub-ratings:
' ALL: Lock all TV ratings. ..... ; Li Adult language:
, FV: Fantasy violence. • 8: Sexual situation.
• D: Sexually suggestive dialog.. V: Violence.
The V-Chip will automatically block certain categories that are "more
restrictive". For example, if you block TV-Y category, then TV-Y7 will
automatically be blocked. Similarly, if you block the TV-G category, then all
the categories in the "young adult" group will be blocked (TV-G, TV-PG,
TV-14, and TV-MA). The subratings (D, L, S, V) work together similarly.
(See next section.)
How to set the FV, D, L, S and V sub-ratings. First, select one of these TV-
Ratings: TV-Y,TV-Y7, TV-G, TV-PG, TV-14, or TV-MA (See Step 4), and press
the ENTER button. The "8" symbol will be displayed for each
sub-rating. While "_" is selected, press the t_ button to go to a sub rating.
Press the ENTER to block the sub rating. To select a different TV-Rating,
press the A or _' button and then repeat the process.
Press the EXIT button to clear all the screens. (Or proceed to the next section,
and set up additional restrictions based on the MPAA codes.)
These categories consist of two separate groups: TV-Y and TV-Y7 (young
children through age 7), and TV-G through TV-MA (everybody else).
The restrictions for these two groups work independently: If a household
includes very young children as well as young adults, the TV guidelines must
be set up separately for each age group.
Continued...
How to Set up Restrictions Using "MPAA Ratin_ (_G,PG, PG-13,R, NC-17,X, NR)
The MPAA rating system uses the Motion Picture Association of America
(MPAA) system, and its main application is for movies. When the V=Chip
lock is on, the TV will automatically block any programs that are coded with
objectionable ratings (either MPAA or TV=Ratings).
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
2 Press the A or _' button to select V-Chip, then press the ENTER button.
The message Enter PiN will appear. Enter your 4 digit PIN number.
3 The V-Chip screen will appear. Press the A or _' button to select MPAA
Rating, then press the ENTER button.
Press the _, or T button to select an appropriate restriction.
Press the ENTER button to activate the restriction selected.
The "@" symbol is indicated. While "_" is selected, press the ENTER button to
block or unblock the category.
Press the EXIT button to exit,
Allow All: Press to unlock all TV ratings.
Block All: Press to lock all TV ratings.
-°G:_Gen--er-a/'audie%ce--°('n'o°restriction): °:'_:-=::°: °'7':'_'_'°'_"°°'_°
: PG: Parenta! guidance Suggested
0 PG-13: Parents strongly cautioned.
, R: Restricted. Children Under 17 should be accompanied by an adult.
NO,17: No children under age 17:
; X: Adults 0nlyl
-NR: Not rated:
The V-Chip will automatically block any category that is "more restrictive".
For example, if you block the PG-13 category, then R, NC-17 and X will
automatically be blocked also.
Continued...
How to Set up Restrictions Using "Canadian En_for Canada Models)_
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
2 Press the A or T button to select V=Chip, then press the ENTER button.
The message Enter PiN will appear. Enter your 4 digit PIN number.
3 The V=Chip screen will appear. Press the A or _' button to select Canadian
English, then press the ENTER button.
Press the A or _' button to select an appropriate restriction.
Press the ENTER button to activate the restriction selected. The "_" symbol is
indicated.
Press the EXIT button to exit.
_" Allow All: Press to unlock all TV ratings.
Block All: Press to lock all TV ratings.
, C: Programmingintendedfor children underage 8.
- 08+: Programminggenerally consideredacceptablefor children 8 years and Over
to watch on their own.
,,G:Generalprogramming,suitable for all audiences.
0PG: Parentalguidance.
e 4'
14 : Programmingcontains themesorcontentwhich maynot be suitable for
viewersunderthe age0f !4: ..........................
,,18+: Adultprogramming.
_ The V-Chip will automatically block any category that is "more restrictive".
For example, if you block G category, then PG, 14+ and 18+ will
automatically be blocked also.
Con#nued...
How to Set up Restrictions Using "Canadian French" (forCanada Models !
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
2 Press the A or T button to select V-Chip, then press the ENTER button.
The message Enter PIN will appear. Enter your 4 digit PIN number.
3 The V-Chip screen will appear. Press the A or _' button to select Canadian
French, then press the ENTER button.
Press the ,i, or T button to select an appropriate restriction.
Press the ENTER button to activate the restriction selected. The "@" symbol is
indicated.
Press the EXIT button to exit.
Allow All: Press to unlock all TV ratings,
Block All: Press to lock all TV ratings,
• 8arts+: Not recommendedfor youngchildren.
• ÷
13 arts : Programmingmay notbe suitablefor children underthe ageof 13.
16 arts+: Programmingis not suitabiefor children underthe age of !6,
• 18 ans+: Programmingrestrictedto adults.
_" The V-Chip will automatically block any category that is "more restrictive".
For example, if you block 8 ans+ category, then 13 arts+, 16 arts+ and 18
ans+ will automatically be blocked also.
Continued...
Usin the V=Chi for Di ital channels
Parental restriction information can be used while watching DTV channels.
1 Press the MENU button to display the menu.
Press the A or _' button to select Setup, then press the ENTER button.
2 Press the A or T button to select V-Chip, then press the ENTER button.
The message Enter PiN will appear. Enter your 4 digit PIN number.
The V-Chip screen will appear. Press the A or T button to select
Downloadable U.S. Rating, then press the ENTER button.
If information is not downloaded from the broadcasting station, the
Downloadable U.S. Rating menu is deactivated.
Parental restriction information is automatically downloaded while watching
DTV channels. It may take several seconds.
The Downloadable U.S. Rating menu is available for use after information
is downloaded from the broadcasting station. However, depending on the
information from the broadcasting station, it may not be available for use.
Press the _, or T button to select an appropriate restriction
Press the ENTER button to activate the restriction selected.
The "@" symbol is indicated.
Press the EXIT button to exit.
Allow All: Press to unlock all TV ratings.
Block All: Press to lock all TV ratings.
Parental restriction levels differ depending on the broadcasting station.
The default menu name and downloadaNe US rating changes depending on
the downloaded information.
Even if you set the on-screen display to your desired language, the
Downloadable U.S. Rating menu will appear in English only.
The rating will automatically block certain categories that are more
restrictive.
The rating titles (for example: Humor LeveLetc) and TV ratings (for
example: DH,MH,H..etc) may differ depending on the broadcasting station.
Rating title
The number of-
current rating
information
Condnued...
The number of
all the rating
information
How to Reset the TV after the V-Chi Blocks a Channel "Emer eric Esca e"
if the TV is tuned to a restricted channel, the V-Chip will block it. The screen
will go blank and the following message will appear:
Enter your PIN.
To resume normal viewing, tune to a different channel using CH _ or
CH {:iv_,button. Under certain conditions (depending on the rating of the local TV
programs) the V-Chip might lock out all the channels. In this case, use the
V-Chip function for an "emergency escape":
2 Press the MENU button. Press the ,i, or _' button to select Setup, then press
the ENTER button.
3 Press the A or _' button to select V-Chip, then press the ENTER button.
Enter your PIN, then press the ENTER button, and press the A or _' button to
temporarily disable the V-Chip Lock.
If you forget the PIN, press the remote-control buttons in the following
sequence, which resets the pin to 0-0-0-0 : Power Off. _ MUTE _ 8 _ 2
4 _ Power On.
i Appendix
Securing the TV to the Wall
Puiling, puShingl or Climbing Onihe TV may CaUsethe TV t0faE !n paiticuiar, ensure yeur Chi!drendo
hang over or destabi ize the TV doing so may cause the TV to tip over, causing serious injuries or death.
Follow aHsafety piecautions provided On!he included Safety Flyer'. For added stability, !nstall the ant!ifall
device for safety purposes, as follows.
To avoid the TV from falling."
Put the screws into the clamps and firmly fasten them onto the wall. Confirm that
the screws have been firmly installed onto the wall.
You may need additional material such as an anchor depending on the type of
wall.
Since the necessary clamps, screws, and string are not supplied, please
purchase these additionally.
Remove the screws from the center back of the TV, put the screws into the clamps,
and then fasten the screws onto the TV again.
Screws may not be supplied with the product. In this case, please purchase
the screws of the following specifications.
Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a
strong string and then tie the string tightly.
_-_ Install the TV near to the wall so that it does not fall backwards,
It is safe to connect the string so that the clamps fixed on the wall are equal to
or lower than the clamps fixed on the TV.
Untie the string before moving the TV.
Dare_
4 Verify all connections are properly secured. Periodically check connections for
any sign of fatigue for failure. If you have any doubt about the security of your
connections,contact a professional installer.
Troubleshooting
if the TV seems to have a problem, first try this list of possible problems and solutions.
if none of these troubleshooting tips apply, call Samsung customer service at I=800=SAMSUNG.
Problem
Poor picture quality.
Possible Solution
Try another channel.
Adjust the antenna.
Check all wire connections.
Poor sound quality.
No picture or sound
No sound or sound is too low at
maximum volume.
Picture roils vertically.
The TV operates erratically.
The TV won't turn on.
Remote control malfunctions
Digital broadcasting screen
problem.
The image is too lightor too dark.
The imageis too large or too
small
The visual qualities of digital
channels vary.
Screen is black and power
indicator
light blinks steadily.
Although the TV caption shows
HD. the visual quality is not
satisfactory.
A distorted picture appears in the
corner of the screen.
Try another channel.
Adjust the antenna.
Try another channel.
Press the SOURCE button.
Make sure the TV is plugged in.
Check the antenna connections.
Make sure the MUTE button is off.
First, check the volume of units connected to your TV (digital broadcasting
receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume
accordingly.
Check all connections.
, Unplug the TV for 30 seconds, then try operating it again.
Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check the battery terminals.
Make sure the remote has batteries.
Check that the "+" and "-" ends of the batteries are inserted correctly.
i Please check the digital signal strength and input antenna.
Adjust the Brightness and Contrast.
Adjust the Fine tuning.
Adjust the Size settings.
The visual qualities of digital channels may vary depending on the original production
method (analog or digital).
- If the original production method is digital: High visual quality.
- If the original production method is analog: The digital program displayed on the
screen is originally an analog program which has been converted to digital.
On your computer; check the Power and Signal Cable.
The TV is using its power management system.
On your equipment check (STB, DVD, etc) • Power and Signal Cable.
The TV is using its power management system.
Press the Source button on the panel or remote control.
Turn the TV off and on.
The HD(High Definition) caption that appears when switching channels or when
pressing the INFO button on the remote control means the selected channel is a
digital channel. If the broadcasting station converts an analog signal into digital and
If Just Scan is selected in some external devices, a distorted picture appears in the
corner of the screen, picture may appear in the corner of the screen. This symptom is
A Strange sound is heard. This !Scaused by m!nor systems £Peration and !s n£t a defect:.......................................................................................
The "Resets all settings to the This appears when you press and hold the EXIT button for a while. The product
default values" message appears, settings are reset to the factory defaults.
_" This Plasma panel uses a panel consisting of sub pixels (2,359,296 pixels (for 42 inch models)/3,147,264 pixels (for
50 inch models)) which require sophisticated technology to produce. However, there may be few bright or dark pixels
on the screen. These pixels will have no impact on the performance of the product.
Wall- mount adjustment (Sold separately)
Once the wall mount is installed, the position of your TV can be easily adjusted.
TV Rear Panel
f i m _,
"I
Auto Wall-Mount
c:3 c:3
EX-LINK Cable (Not supplied)
Entering_the menu
Press the A, T, ,_ or I_ button on your remote control.
The Wall Mount Adjustment screen is displayed.
If the Wall Mount Adjustment screen is not displayed when clicking on a
direction button while watching your TV, use the menu to display that screen.
• Press the MENU button to display the menu.
Press the ,_.or T button to select Setup, then press the ENTER button.
• Press the A or _' button to select External Settings, then press the
ENTER button.
• Press the A or _' button to select Wall=Mount Adjustment, then press the
ENTER button.
Rememberin£! the Position
2 Adjust to the desired position using the A, T, 4, I_ buttons.
If you press an arrow button when no OSD is displayed on the TV screen, the
Adjustment screen appears.
Press the INFO button to reset. Press the 4 or 1,_button to select Yes, then
press the ENTER button. The position is initialized to the default setting.
Press the Blue button.
Press the A and T buttons to select a save mode from either Position 1,
Position 2 or Position 3 in order to save the current position.
To not save the current position, press the RETURN button.
When selecting a save mode, you cannot use the Color buttons.
4 Press the ENTER button to save.
When Position 1 is selected, the message Current position saved as
Position 1 is displayed.
5 Press the ENTER button.
The saved Position appears on the left side of the OSD.
Continued...
Moving_to the remembered position
1 Complete Step 1 of Entering the menu.
2 Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to the
saved position,
You can move the wall mount to one of the 3 pre-set positions by pressing
the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons=
If you adjust the positon after moving to a pre-set position, the position
display will disappear=
For installation, refer to the Installation Manual provided with the wall mount
For product installation and the installation and moving of the wall mount, make
sure to consult a specialized installation company
This installation manual is to be used when attaching the wall mount to a wall
When attaching to other building materials, please contact your nearest dealer
42 inches model is not compatible with the older wall mount model
(WMN50e0A)
Preparing before installing Wall- Mount on the wall
Case A.
Installing SAMSUNG Wall-Mount
Case B.
Installing other company's Wall-Mount
1 Install Wall Mount with the torque range of 15kgf.cm or less. Make sure that parts can be damaged if the torque is out of the specified
range.
2 Accessory Kit contains Holder-Ring [@]for installing other company's Wall-Mount on Samsung TV. (Case B)
Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall perpendicular to the floor,
When attaching to other building materials, please contact your nearest dealer,
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury,
B
LCD-TV
PDP-TV
200*200
400*400
600*400
700 *400
57
(No VESA) M8
80 ~
400*400
42 ~ 58
600*400
676*407
63
(No VESA) M8
63 ~ 70 800 *400
80 ~ 1400 * 800
4
6
4
4
The standard dimensions for wall mount kits are shown in the table above.
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.
Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to
personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or
the consumer fails to follow the product installation instructions.
Our 57" and 63" models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount
kit for this model.
Do not exceed 15 degrees tilt when mounting this TV.
Do not install your Wall Mount Kit while your TV is turned on.
It may result in personal injury due to electric shock.
How to assemble the Stand-Base
Using the 6 screws for securing the stand base and the monitor, firmly
attach the monitor to the stand base.
(The exterior of the set may be different than the picture.)
Warning
Firmly secure the stand to the TV
before moving it, as the stand may
fall and could cause serious injury.
_" Two or more people should
carry the TV. Never lay the TV
on the floor because of possible
damage to the screen, Always
store the TV upright,
When mounting your TV on a wall, install
the cover (O) on the stand-base using two
screws.
®
Specifications
Model Name
Screen Size (Diagonal)
PC Resolution
Sound (Output]
Dimension (W x H x D)
Body
With stand
Weight
Body
With stand
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Tempera[ure
Storage Humidity
PN42A40002D
42 ncn 42.3 inches measured diagonally)
1024 x 768 @ 60 Hz
10+10W
41.6 x 26.3 x 3.8 incnes
1055.0 x 667.4 x 95 mm
41.6 x 28.7 x 12.5 ncnes
1055.0 x 727.4 x 315.9 mrr,
61.3 Ibs 27.8 Kg)
69.5 Ibs 31.5 Kg)
. tO!ph!4t:t!nthesmetsure2,d!ag°nt!!X!...........
1360 x 768 @ 60 Hz
1O+10W
48.5 x 31.1 x 3.8 inches
(1231.0 x 788.8 x 95 mm)
48.5 x 33.4 x 12.5 inches
(1231.0 x 848.5 x 316.0 mm)
75.0 Ibs (34 kg)
81.4 Ibs (36.9 kg)
50 °F to 104 °F (10 °C to 40 °C)
10% to 80%, non-condensing
-4 °F to 113 °F ',-20°C to 45 °C)
5% to 95%, non-condensing
This device is a Class B digital apparatus.
Design and specifications are subject to change without prior notice.
For the power supply and Power Consumption, refer to the label attached to the product.
=20o ~ 20 °
Dimensions (PN42A400C2D)
f
TOP VIEW FRONT VIEW
®
JACK PANEL DETAIL 3.7'H x 7.2"W
_-_ 3.8
• 2
S 7
SIDE VIEW REARVtEW
NOTE: All drawings not necessarily to scale• Some
dimensions are subject to change without pnor t_ofice
Refer to dimensions on each unit prior to performing
any carpentry Not respot_sible for typographical or
printed errors
(c) 2008 Samsung Eieclronics America, h_c
Dimensions (PNSOA400C2D)
f
43./ ..................................._,
..... 26.0
TOP VIEW FRONT VIEW
®
JACK PANEL DETAIL 3.7'H × 7;2,W
3.8
.....
25,6
[
@
8£_8@8'J®
73 1
SiDE ViEW REAR VIEW
NOTE: All drawings not necessarily to scale Some
dimensions are subject to change without prior notice
Refer to dimensions on each unit prior to performing
any carpentry Not responsible for typographical or
printed errors
@ 2008 Samsung Electronics Amenca, Inc
