Caution : Please read the manual before your first ride!
E-Bike
PRODUCT INSTRUCTION
MANUAL
Warranty
Attachment
Warnings
Safety Instruction
General Information
Bike Useage
Installation And Adjustment
Meter Operation
Battery And Charging: Further Information
Maintenance
01
03
07
09
16
17
19
20
21
23
CONTENTS
ANCHEER
1
Thank you for choosing our products.
To ensure your safety and health, we encourage you to read this manual thoroughly before
you assemble the bike and take the first ride.Safe and effective use can only be assured if the
equipment is assembled, maintained, and used properly. More importantly, this will offer
you a general understanding and get the most out of your bike.Please check your electric
bike before every ride, especially when traveling long distances.
This manual is intended as a general guide to your new e-bike. For technical support,
including repair information, please consult your dealer.
Things to know before use
Do not use the product before carefully reading the instructions from this manual
and understanding the performance of the item;
Don't lend this product to people who can't operate it, so as not to cause harm; if
you lend the bike, please let the user follow instructions, it could help to decrease
the risk of accident;
The E-bike cannot be used as off-road vehicles or used for extreme bicycle sports;
when riding the bicycle, please wear a safety helmet and protective gear. It is
forbidden to ride with one hand;
Please abide by the traffic rules and prohibit riding on motorized lanes and roads
withmultiple pedestrians;
Carry people or objects in accordance with the requirements of laws and regulations,
and do not park in the building's lobby, evacuation stairs, walkways, and safe
entrances and exits;
It is recommended to charge and park in a dedicated outdoor parking lot, while
avoiding rain; when charging, keep away from combustibles, and the charging time
should not be too long ;
For safety reasons, please do not change the default speed setting of the electric
bicycle and do not exceed speed limit in accordance with the traffic rule. Riding on
non-motorized lanes, downhills and paved roads not exceeding 15km/h;
When adjusting the handlebar or saddle, please be careful not to exceed the safety
line markings on the handlebar and saddle;
Please check the tire pressure before riding, the recommended tire pressure is 35-
45PSI;
Please check the power circuit, lighting circuit, etc. before riding;
●
●
●
●
●
●
●
●
●
●
Safety Instruction
ANCHEER
2
Safety Instruction
Before riding, please check whether the front and rear brakes work normally, check
the fastening status of the handlebars and front and rear wheels, and check whether
the reflector is damaged or contaminated;
When using the motor, please be careful not to hit vigorously and keep the rotating
shaft lubricated;
Try to avoid traveling in severe weather such as heavy rain;
Riding in rain or snow, the braking distance will be extended, pay attention to slow
down;
It is not allowed to exceed the maximum load of the vehicle body when riding(the
maximum load is 120KG);
It is suitable for people of 16+ years old and physically fit adults, and it is strictly
forbidden to drive electric bicycles on the road by people under 16 years old.
●
●
●
●
●
●
ANCHEER
3
General Information
1. About ANCHEER Electric Bike
ANCHEER electric bike is a leading icon of e-bikes. For years, ANCHEER has been not only
dedicating to innovation, cutting-edge technology and premium materials, but also
providing cost effective e-bikes, to satisfy riders' various needs of transportation and even
desire of exploring sports & outdoors life. Just ride freely with ANCHEER!
2. What’s In the Box (Parts List)
Description Quantity
ANCHEER Electric Bike
Pedal 2
1
User Manual
Saddle 1
1
Key
Saddle Tube
Tools Bag
1
1
2
Charging Adapter
Kickstand
Stem
Throttle
1
1
1
1
Battery
Front Fender 1
1
We will decide whether to include the throttle in your product package in accordance
with local laws and regulations. If it is included, it will come as a single part and will
not be pre-installed. You can choose whether to install or not. If you choose to install,
please use the throttle accurately under the guidance of laws and regulations.
Note:
ANCHEER
4
General Information
3. Bike Components
2
1
3
4
5
6
7
8
9
10
11
13
12
14
15
16
17
18
19
20
Rim
Flywheel
Front Fork
Chain
Tire
Rear Derailleur
Head Light/Front Light
Crank
Stem
Chain WheelSeat Post Clamp/ Seat Clamp
Front Fender
Saddle Post/ Seat Tube
Front Disc Brake Calipers
Saddle
DiscRear Seat
Wheel Reflector
Battery
Rear Disc Brake Callipers
1
2
3
4
589 7 610
11 13 14 15 16 17 18 19 2012
ANCHEER
5
General Information
21
26
22
28
27
24
25
23 29
30
Left Brake Lever Right Brake Lever
Meter Right Grip
Left Grip Throttle/ Twister
Pedal Rear Shifter
Kick Stand Handle Bar
21 26
22 27
23 28
24 29
25 30
ANCHEER
6
General Information

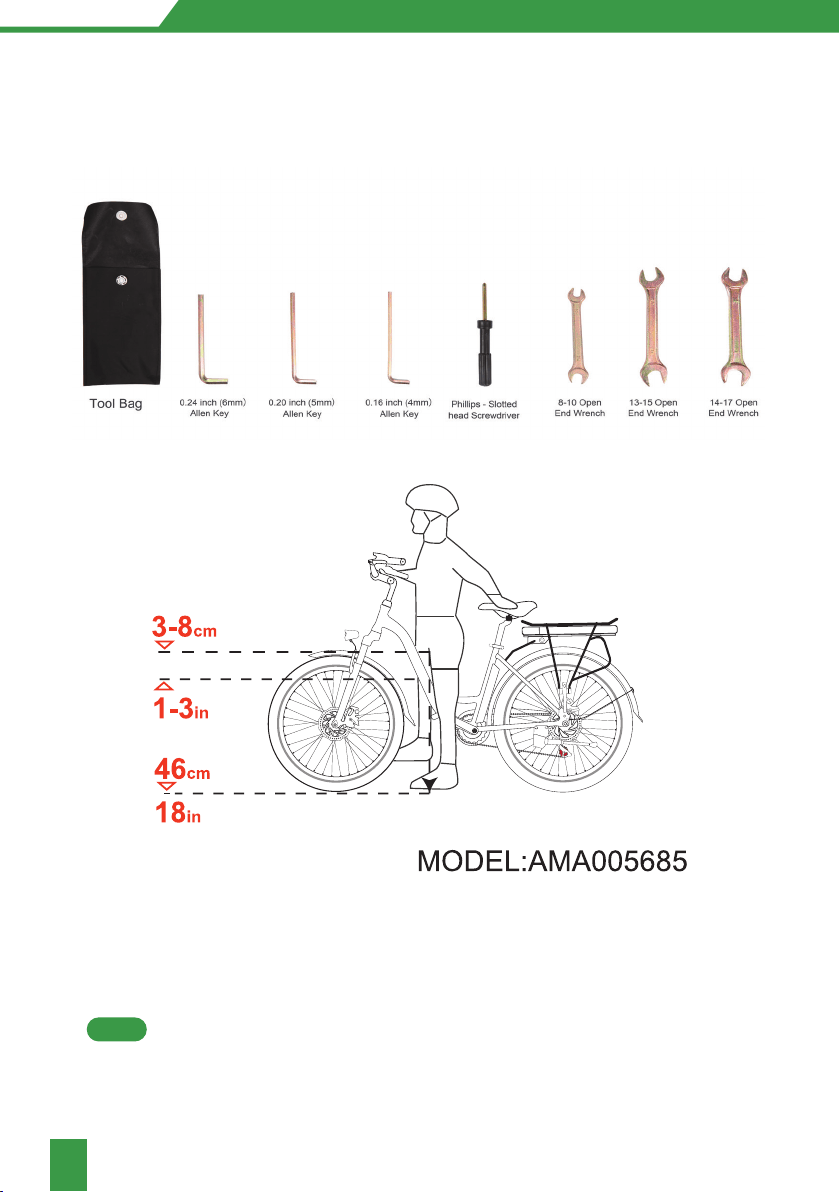

4. Tool list
5. Standover Height
For the sake of safety and comfortable riding, when the rider stands on the ground there
should be clearance of 46cm/18in from ground to the crotch of the rider. Also, at least
3-8cm/1-3in between the crotch and the top tube of the bike.
Standover height does not apply to bicycles with step-through frames. Instead, the limiting
dimension is determined by saddle height range. You should adjust your saddle position
without exceeding the limit line on the saddle tube.
Note
ANCHEER
7
Bike Usage
Before Riding
During riding
After riding
Before riding the bike on the open road, try all the settings on the electric bike, and get
used to various results in a safe and controllable environment.
Please check the power circuit, lighting circuit, and test the brake system before cycling.
Always check the tire pressure before starting to ride, and make sure that the tire is
inflated to a pressure within the specified range.
In order to ensure the safety of riding, please check regularly for loose parts or screws.
The places that need to be checked include but not limited to the seat tube, wheels,
handlebars and pedals.
If necessary, please confirm whether the remaining battery power can meet your riding
needs.
2.
1.
If the pressure exceeds the recommended maximum value, the tire may blow
out of the rim, which may damage the bicycle and cause injury to the cyclist and
nearby people.
If the pressure is too low, the wheel may be damaged, or the inner tube may be
squeezed, causing the tire to leak air.
Please wear helmets and riding gear that meet the requirements in accordance with
regulations.
Avoid traveling in severe weather such as heavy rain.
Carry people or objects in accordance with the requirements of laws and regulations,
and the load of the entire bike should not exceed 120kg.
Obey the traffic rules.
After heavy use, do not touch the hot surface, such as the disc brake rotor or the side
edge of the brake rim.
When folding the kickstand, always make sure that the stand is secure and the base is
firm to prevent the bicycle from falling.
If the bicycle is splashed with moisture, please wipe it dry and clean in time.
●
●
●
●
●
●
●
●
●
●
●
●
ANCHEER
8
Bike Usage
Shifting Recommendations
Brake Adjustment
In order to increase the range, we recommend shifting according to the speed.
For starting and low-speed riding, it is best to use a low-speed gear.
At higher speeds, a higher gear should be selected.
If the brake is not sensitive, loosen the
anchor bolt of the brake cable to shorten
the brake distance of the brake cable and
then tighten the bolt. Or, lengthen the
distance of the brake cable when the brake
is too sensitive.
If the rotor always rubs against the
brake pad or the gap is too large, loose
the two centering adjustment screws,
but do not remove them. Slowly rotate
the wheel and check the space between
the rotor and the brake pad; adjust the
position of the brake pad and the rotor.
Centering the rotor and the pads to
avoid friction. After the adjustment is
complete, tighten the screws.
Ensure that the brake cables are properly inserted into the brake levers before aligning a
mechanical disc brake. If the disc rotor is bent or damaged, replace the rotor first.
2.
1.
Leave the same clearance on
both sides of the disc rotor
Brake pad
Disc rotor
Adjust caliper to
center the rotor
Centering
adjustment screws
ANCHEER
9
Installation And Adjustment
Open the package of the bike, take out the electric bike and all the parts inside anduse the
tool to cut off the packing rope.
1. Install the handlebar
Remove the protective plug, install the handlebar into the stem, align it with the
front fork, and then tighten the screw. Please be careful not to exceed the limit line.
Adjust the angle of the handlebar, and then tighten the screw.
1.2
1.1
ANCHEER
10
Installation And Adjustment
2. Install the rack
Loosen the screws that secures the rack, put the rack in its position. Then re-
tighten the screws.
If you find the handlebar is not in the right
direction, loosen the top bolt, adjust the
angle of the handlebar to keep it in horizontal
direction, then tighten the top bolt.
Tighten the screws on the rack at the same
time.
Note:
2.1
1.3
ANCHEER
11
Installation And Adjustment
3. Install the controller and battery
Loosen the screws used to fix the controller on the rear rack, then place the
controller on the front of the rear rack, re-fix the screws and tighten them.
Push the battery along the
slide, and connect it with
the controller.
The controller and battery should be
connected tightly.
Note:
3.2
3.1
3.3
After completing the installation, you can turn on the switch on the battery, and
press the "M" button on the meter to see if the indicator lights of the meter is on to
confirm whether the controller and the battery are properly connected.
ANCHEER
12
4. Install the saddle tube
5. Install the front wheel
Install the saddle tube into post receiver. Set right its position and adjust height to
fit your ridding habit. Please be careful not to exceed the limit line. Then tighten
the clamp that secures the saddle tube and fasten it.
4.1
Installation And Adjustment
Front fork
Quick-release
lever
Inner
spring
Disc
rotor
Caliper
Skewer
Outer
spring
Adjustment
nut
5.1
Using the tool to loosen the
fixing rod of the front fork
and remove it (this accessory
is to prevent the front fork
from being deformed during
delivery).
ANCHEER
13
Installation And Adjustment
5.2
Take out the quick release from wheel and unscrew the bolt from the quick release.
Remember to take out the protective gasket from the brake before installing the
front wheel.
5.3
Set front wheel into front fork. Make sure fork hanger hold onto wheel axle, and
make sure the disc put into middle of brake.
5.4
Insert quick-release axle into spring and tighten screw(Quick release nut to be at
the same end as the brake).
Attention:
Tighten the quick release
with the adjustment nut
only!
Quick release
lever in the
closed position
Quick release
lever in the open
position
ANCHEER
14
6. Assemble the front fender and headlight
Loosen the screw on the corresponding position of the front wheel, as shown in
the figure below. Put the fender in this position.
Connect the front light, and re-fix the loosened screw. Adjust the position of the light
and tighten the screws.
Loosen the screws that secure the fender, fix the fender and then tighten them
again.
6.1
6.2
6.3
Installation And Adjustment
ANCHEER
15
7. Install the pedals and the kickstand
There are a right pedal marked "R" and a left pedal
marked "L". When installing, make sure to identify
the R/L letter on the pedal bolt.
Ensure that the thread of each pedal is fully inserted
into the crank arm. Tighten the pedals completely
with a wrench. (Counterclockwise screw the pedal
marked "L" on the left side crank. Clockwise screw
the pedal marked "R" on the right side crank.)
Finally, find the corresponding position of the kickstand, install the kickstand and
fix it with bolts.So far, congratulations! You have completed the assembly of the
entire bike.
7.1
7.2
7.3
Installation And Adjustment
ANCHEER
16
Meter Operation
1. Meter Instruction
2. Meter Operation
3. Operation Cautions
MODE
POWER
M
+
-
Assistance Level:Low
Assistance Level:Mid
Assistance Level:High
Battery Indicator
DOWN UPON/OFF
Operating instructions
Press and hold
the “M” key for
two seconds
to turn on. The
default value
is "low", which
means the
lowest pedal
assist level.
“high” is the
maximum
power of PAS.
Keep Press the
"-" key until all
three indicator
lights are off, the
bike enters the
electric throttle
mode.
To increase the
pedal assist
level, press the
"+" key. "mid"
is the second
pedal assist
level.
Avoid the risk of collision.
Don’t modify system parameters to avoid parameters disorder.
Contact the seller when error code appears.
●
●
●
MODE
POWE R
high
M
+
-
MODE
POWER
M
+
-
MODE
POWE
R
M
+
-
MODE
POWER
M
+
-
midlow
highmidlow highmidlow
highmidlow
ANCHEER
17
Battery And Charging: Further Information
Battery: Further information
Keep the battery out of reach of children.
Charging at 0°C~40°C/ 32°F~104°F, and discharging at -5°C~40°C/ 23°F~104°F. Please
do not store the battery in temperatures above 35°C/ 95°F or below -5°C/ 23°F.
Keep the battery dry, do not put the battery in acidic or alkaline liquid, keep away from
rain, fire and high temperature environment.
It is strictly forbidden to connect the positive and negative poles of the battery reversely,
and it is strictly forbidden to damage, disassemble or short-circuit the battery.
Used batteries are hazardous chemicals, and the used batteries should not be
disassembled without authorization, and recycled by relevant professional departments.
It is forbidden to modify the battery, electronic control system and the frame structure
of the bike, etc. Otherwise, it may cause safety hazards and void the warranty service. If
you continue to do so, all will be at your own peril.
Use the original battery. Do not replace it with other brand’s or product’s battery.
●
●
●
●
●
●
●
Charging port
Please follow the instructions for use, otherwise the consequences are at his own risk.
Please use the original special charger. It is strictly prohibited to use other chargers.
Pay attention to the battery type and applicable voltage that the charger can charge,
and it is strictly forbidden to mix them. The charging time shall not exceed 12 hours,
and the charging current shall not exceed 2A.
WHEN CHARGING THE BATTERY
●
●
●
Charging: Safe operation guide
❶
❷
❸
❹
Insert the charger probe into the charger port
on the e-bike battery. As shown in the figure.
Insert the pronged end of the battery cord
into the battery charger.
Insert the AC plug into an AC outlet.
The red indicator light turns on and will
remain red until it is fully charged. The
indicator light turns green once the battery is
fully charged.
ANCHEER
18
Battery and charging: Further Information
Reminder
Battery must be recycled or disposed of in an environmentally sound manner.
Do not dispose of the battery in a fire. The battery may explode or leak.
Do not dispose of a battery in your regular household trash.
It is recommended to charge the battery in the fireproof battery charging
cover when charging. And the battery should be stored in the fireproof
battery charging cover when not in use.
●
●
●
Battery Disposal
Charge a new battery 4-6 hours before you use it in your product for the first time.
If the battery is dropped or damaged due to a bicycle accident, there may be a danger of
electrolyte leakage. Please stop using it immediately.
It is better not to wait until the power is completely exhausted before charging, which
can more effectively extend the battery life. Besides, Overheating or undercharging the
battery may shorten battery life.
How far can a fully charged battery go?
It depends on the load weight, road conditions and battery capacity. But under the same
conditions, the average speed can last longer riding distances. Using pedal assist mode
allows you to go further.
When charging, it should be placed in a ventilated environment, and it is strictly
forbidden to charge in a confined space, residential building or in a hot environment.
The charger should not be carried with the ebike as much as possible. If it is really
necessary to carry it, it should be placed in the toolbox after the shock absorption
treatment is done. It is not allowed to disassemble or replace the components in the
charger by yourself.
When not in use for a long time, keep the battery in a cool and dry place, and charge
the battery for two hours a month.
●
●
●
ANCHEER
19
Maintenance
The front and rear wheels of the vehicle should be located in the center of the front
fork or frame.
After riding, please store the bike in a place without sunlight and rain.
Water showering is forbidden, and the surface of the car body can be wiped with a
semi-dry cloth.
Do not touch the charging hole on the bicycle, or touch it with metal, otherwise, it
may cause an accident due to an instantaneous short circuit of the current.
Check all cables and cable housings for fraying, breaks, rust, or corrosion and replace
if necessary.
Check the motor and brake frequently, and do not fill the brake area with oil.
Additionally, check the brake pads for any damage as they will be worn over time and
eventually need replacement.
Regularly check the various screws of the car and the places that need to be fastened,
and regularly reinforce to prevent injury and unnecessary wear and tear on your
e-bike.
Recommended torque (unit: kgf.cm): the horizontal screw 60-80, the stem screw 175-
200, the seat cushion screw 175-250, the wheel screw 320-450.
Regularly check the tension of the chain, which can be adjusted by the chain regulator.
Always check the tire for scratches, cracks, or excessive wear. The inner tube and
the valve should be perpendicular to the wheel hub and not crooked. Accidentally
punctured, damaged or excessively worn inner and outer tires need to be replaced
immediately, please seek professional technicians to repair or replace your tires.
It is forbidden to modify key structural parts such as the frame, front fork, standpipe,
and electrical function parts. If damaged, use the original parts to replace it.
Otherwise, the guarantee service will not be provided. Any loss or damage caused by
the modification shall be solely responsible.
●
●
●
●
●
●
●
●
●
●
●
ANCHEER
20
Warranty
One-Year Limited Hardware Warranty
Your electric bike includes a One Year Limited Hardware Warranty. ANCHEER provides
warranty service for the electric bikes. If there is a hardware defect and a valid claim is
received during the warranty period, we will resend new parts within the scope permitted
by law.
The Warranty covers product defects in materials and workmanship under normal use.
This Warranty is limited to original purchasers and is not assignable or transferable.
The Warranty starts on the date of your purchase and lasts for one year (the "Warranty
Period") and the Warranty Period is not extended if the product is repaired or replaced.
The Warranty does not cover any damage due to: improper use; failure to follow the
product instructions or to perform any preventive maintenance; unauthorized repair;
external causes such as accidents, abuse, or other actions or events beyond our reasonable
control.
Customer Services
We provide lifetime customer support services. For any questions about the product, please
contact customer service from where you brought the equipment. We will be happy to
answer your questions.
You can also email us your inquiries at [email protected].
Accessories Warranty Period
Service Content
Quality Problem
A year
A year
A year
A year
A year
Motor
Controller
Charger
Lithium
Battery
Throttle
Free delivery of parts
Free delivery of parts
Free delivery of parts
Free delivery of parts
Free delivery of parts
Failure occurs under normal
use
Failure occurs under normal
use
Failure occurs under normal
use
Failure occurs under normal
use
Failure occurs under normal
use
ANCHEER
21
Attachment
Technical parameters
Performance index Project Parameter
Wheel Size
Vehicle Size
26*1.95 Inches
Frame Material Aluminium Alloy
Maximum Load 120KG
Vehicle Weight 28KG
Maximum Speed 20mph(32km/h)
Recommended Gradient
< 10 degrees
Rear Derailleur 6-Speed
Mileage Range 30-50miles (35-80km)
Working Temperature
Rated Voltage
23°F-104°F (-5℃~40℃)
36V
Battery Capacity 12.5Ah
Service Life
Charging time
500 Times
7 hours
Motor Power
Display
250W
LED Display
Motor Type
Brake
Brushless Gear Motor
Disc Brake
Maximum Torque
Suspension
Light
34N.M
Suspension Front Fork
Front light and rear Light
Input Voltage 100-240V
Input Current 1.8A
Output Voltage DC42V
Output Current 2A
1800*640*1200MM
Basic Parameters
Performance Parameters
Battery Parameters
Motor Parameters
Other Parameters
Charger Parameters
ANCHEER
22
Remarks:
Attachment
After fully charged, the charger indicator light turns from red to green.
The amount of battery remaining, load of the bike(weight of rider and cargo), tire
pressure, road environment, chain and wheel axle lubrication, etc. will affect the
maximum speed;
Riding habits, temperature, load, tire pressure, road environment and other factors
will affect the riding range.
●
●
●
ANCHEER
23
Warnings
Operation General
Personal Restrictions
Only use the e-bike and the drive assist system for safe, recreational riding. Use of the
e-bike for a purpose it was not intended for is dangerous and could result in property
damage, serious injury or death. Always follow the instructions for intended use and
limitations.
Use of this e-bike by persons (including children) with reduced physical, sensory or
mental capabilities or persons lacking experience and knowledge in the use of the
e-bike could result in serious injury or death. The owner of this e-bike must ensure this
product is not used by people with the conditions described above. Always follow the
rules, regulations and laws (including age limits) related to the use of an e-bike in its
area of use.
A child may not realize or understand the e-bike has moving parts and components
(e.g. battery). Never allow children to play or come into contact with the e-bike or its
parts. Always follow all rules, regulations and laws regarding age limits and operation
in the e-bike area of use.
Riding the e-bike through water could result in loss of control and damage to the drive
assist system. Do not ride into, or attempt to ride through, water or sub-merge any
part of the e-bike.
Riding with the kickstand in the down position may result in unexpected contact with
the ground or other objects causing loss of control. Always ensure the kickstand is in
the up position and securely locked in place before riding the e-bike.
Sitting on the e-bike with the kickstand down may result in the e-bike tipping over.
Never sit on the e-bike when it is only supported and stabilized by the kickstand. The
kickstand is not designed to support the weight of a person.
Overloading a rear basket could create dangerous riding conditions. Always observe
the maximum weight limit. Never overload the rear basket.
An improperly secured load on a rear rack could create dangerous riding conditions.
Always ensure the load on the rear rack is properly secured before riding.
Never move the shifter while pedaling backward, nor pedal backwards immediately
after having moved the shifter. This could jam the chain and cause serious damage to
the bicycle.
Like any mechanical device, a bicycle and its components are subject to wear and
stress. Different materials and mechanisms wear or fatigue from stress at different rates
and have different life cycles. If a component’s life cycle is exceeded, the component
can suddenly and catastrophically fail, causing serious injury or death to the rider.
Scratches, cracks, fraying and discoloration are signs of stress caused
●
●
●
●
●
●
●
●
ANCHEER
24
Warnings
Battery
Failure to observe the following warnings could result in electrical fires, explosion, severe
burns or electrocution.
fatigue and indicate that a part is at the end of its useful life and needs to be replaced.
Product life is often related to the kind of riding you do and to the treatment to which
you submit the bicycle. The bicycle’s warranty is not meant to suggest that the bicycle
cannot be broken or will last forever. It only means that the bicycle is covered subject to
the terms of the warranty.
Frequent inspection of your bike is important to your safety. Periodic, more detailed
inspection of your bicycle is important. How often this more detailed inspection is
needed depends upon you.You, the rider/owner, have control and knowledge of how
often you use your bike, how hard you use it and where you use it. The materials used to
make your bike determine how and how frequently to inspect. Ignoring this WARNING
can lead to frame, fork or other component failure, which can result in serious injury or
death.
The battery and battery charger contain hazardous materials. Always keep the battery
and battery charger away from children, animals, or persons incapable of understanding
the potential hazards.
The battery and battery charger contain no serviceable parts. Do not open, disassemble,
or modify the battery or charger.
Improper handling of the battery and battery charger may result in electrical fires,
explosion, severe burns or electrocution.
Do not move the battery or battery charger during charging.
Do not hold the battery charger during a thunder or lighting storm.
Do not plug or unplug the battery charger with wet hands.
Do not place any items on the battery charger.
Do not place the battery charger in liquids or metals.
Overcharging the battery could result in electrical fires, explosion, or severe burns.
Always disconnect the battery from the battery charger when the battery is fully
charged. Unplug the battery charger from the wall outlet when not in use.
A damaged battery or battery charger (e.g. cable, plug or housing) may result in
leakage of hazardous materials or be a potential source of sparking and fire. Always
examine the battery and battery charger before each use. Never charge a damaged
battery or use a damaged battery charger.Battery Charger Compatibility.
●
●
●
●
●
●
●
●
●
●
●
ANCHEER
25
Warnings
Operation Details:
Charging the battery with an incompatible battery charger may result in electrical fires,
explosion, severe burns or electrocution. Ensure the battery charger and the A/C outlet
are the same voltage before charging the battery. Only charge the battery using the
battery charger specified by the instructions. Never use the battery charger to charge
any other batteries.
Battery can be charged on or off the bike. Locate both the battery and battery charger
indoors, in a clean, dry area with good ventilation to charge. Always place the battery
and battery charger on an even surface. Ensure the area is free from dust, moisture,
combustibles and keep the battery charger ventilation openings unobstructed.
If applicable, always turn the power switch on the battery off before attaching the
charger.
Contact between the battery contacts and metal objects such as paper clips, coins,
keys, nails, screws or other metal items could result in shorting out the battery and
cause electrical fires, explosion, or severe burns.
Correct tightening force on fasteners- nuts, bolts, screws- on your bicycle is important.
Too little force, and the fastener may not hold securely. Too much force, and the fastener
can strip threads, stretch, deform or break. Either way, incorrect tightening force can
result in component failure, which can cause you to loose control and fall.
Loose or damaged handlebar grips or extensions can cause you to lose control and
fall. Unplugged handlebars or extensions can cut you and cause serious injury in an
otherwise minor accident.
The area in which you ride may require specific safety devices. It is your responsibility
to familiarize yourself with the laws of the area where you ride and to comply with all
applicable laws, including properly equipping yourself and your bike as the law requires.
Observe all local bicycle laws and regulations. Observe regulations about bicycle
lighting, licensing of bicycles, riding on sidewalks, laws regulating bike path and trail
use, helmet laws, child carrier laws, special bicycle traffic laws. It’s your responsibility
to know and obey the laws. Failure to wear a helmet when riding may result in serious
injury or even death.
Do not remove the front or rear reflectors or reflector brackets from your bicycle. They
are an integral part of the bicycle’s safety system. Removing the reflectors reduces your
visibility to others using the roadway.Being struck by other vehicles may result in serious
injury or death.The reflector brackets may protect you from a brake straddle cable catching
on the tire in the event of brake cable failure. If a brake straddle cable catches on the tire, it
can cause the wheel to stop suddenly, causing you to lose control and fall.
●
1.
2.
3.
4.
●
●
ANCHEER
26
Warnings
Although many catalogs, advertisements and articles about bicycling depict riders
engaged in extreme riding, this activity is extremely dangerous, increases your risk of injury
or death, and increases the severity of any injury. Remember that the action depicted is
being performed by professionals with many years of training and experience. Know
your limits and always wear a helmet and other appropriate safety gear. Even with state-
ofthe-art protective safety gear, you could be seriously injured or killed when jumping,
stunt riding, riding downhill at speed or in competition.Bicycles and bicycle parts have
limitations with regard to strength and integrity, and this type of riding can exceed those
limitations or dramatically reduce the length of their safe use.
Failure to confirm compatibility, properly install, operate and maintain any component or
accessory can result in serious injury or death.Exposed springs on the saddle of any bicycle
fitted with a child seat can cause serious injury to the child.Changing the components
on your bike with other than genuine replacement parts may compromise the safety of
your bicycle and may void the warranty. Contact customer service before changing the
components on your bike.
If your seat post is not inserted in the seat tube, the seat post, binder or even frame may
break, which could cause you to lose control and fall.
When making saddle angle adjustments with a single bolt saddle clamp, always check
to make sure that the serrations on the mating surfaces of the clamp are not worn. Worn
serrations on the clamp can allow the saddle to move, causing you to lose control and
fall. Always tighten fasteners to the correct torque. Bolts that are too tight can stretch and
deform. Bolts that are too loose can move and fatigue. Either mistake can lead to a sudden
failure of the bolt, causing you to lose control and fall.
An insufficiently tightened stem clamp bolt, handlebar clamp bolt or bar end extension
clamping bolt may compromise steering action, which could cause you to lose control
and fall. Place the front wheel of the bicycle between your legs and attempt to twist the
handlebar/stem assembly. If you can twist the stem in relation to the front wheel, turn
the handlebars in relation to the stem, or turn the bar end extensions in relation to the
handlebar, the bolts are insufficiently tightened.Be aware that adding aerodynamic
extensions to handlebars will change the steering and braking response of the bicycle.
Bolt or bar end extension clamping bolt may compromise steering action, which could
cause you to lose control and fall. Place the front wheel of the bicycle between your legs
and attempt to twist the handlebar/stem assembly. If you can twist the stem in relation to
the front wheel, turn the handlebars in relation to the stem, or turn the bar end extensions
in relation to the handlebar, the bolts are insufficiently tightened.Be aware that adding
aerodynamic extensions to handlebars will change the steering and braking response
of the bicycle.WARNING!The shorter the brake lever reach, the more critical it is to have
correctly adjusted brakes, so that full braking power can be applied within available brake
6.
7.
8.
9.
10.
5.
ANCHEER
27
Warnings
lever travel. Brake lever travel insufficient to apply full braking power can result in loss of
control, which may result in serious injury or death.
All quick-release levers should be inspected before every ride to be sure they are fully
closed and secure. Failure to properly close a quick-release lever can cause loss of control
of the bicycle resulting in injury or death.Make sure the wheel is properly seated and the
quick-release lever is properly closed.
Disregarding or misunderstanding of the following safety warnings, the safety warnings in
the manuals associated with the e-bike parts, and safety labels on the e-bike could result
in serious injury or death.
11.
12.
Anyone assembling, using, maintaining, transporting or storing this e-bike must read,
understand, and follow these safety warnings before performing any of the actions
stated.
●
Guangzhou Myatu Pedelec Technology Co., Ltd
Made in China
Input: DC42V, 2A max
Highest speed: 32km / h
Power: 250W
Model: AMA005685
E Bike
Tel: 626-330-6385
Monday-Friday 9:30AM-6:00PM
ANCHEER Customer Service
