Napoleon BL36NTE1 Ascent Linear Series Direct Vent Natural User Manual

FRENCH

PG. 63

W415-1705 / 06.07.17

BL36PTE-1 / BL46PTE

ADD MANUAL TITLE

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone 1 (866) 820-8686 • www.napoleonﬁ replaces.com • hearth@napoleonproducts.com

CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:

CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES

INSTALLER:

Leave this manual with the appliance

CONSUMER:

Retain this manual for future reference

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

NATURAL GAS MODELS:

PROPANE GAS MODELS:

PRODUCT NAME™

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

SAFETY INFORMATION

- Do not store or use gasoline or other

ﬂ ammable vapors and liquids in the vicinity of

this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

- Installation and service must be performed

by a qualiﬁ ed installer, service agency, or the

supplier.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁ ed kit is used.

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly

could result in serious injury, death, or

property damage.

WARNING

ENGLISH

$10.00

FOR INDOOR USE ONLY

SAFETY BARRIER

Ascent™ Linear Series

(BL46 illustrated)

INSTALLATION AND

OPERATION MANUAL

BL36NTE-1 / BL46NTE

W415-1705 / 06.07.17

safety information

• This appliance is hot when operated and can

cause severe burns if contacted.

• Any changes to this appliance or its control

can be dangerous and are prohibited.

• Do not operate appliance before reading and

understanding operating instructions. Failure

to operate appliance according to operating

instructions could cause ﬁ re or injury.

• Risk of ﬁ re or asphyxiation do not operate

appliance with ﬁ xed glass removed.

• Do not connect 110 volts to the control valve.

• Risk of burns. The appliance should be turned

off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal

edges may be sharp.

• Children and adults should be alerted to the hazards of high surface temperature and should stay away

to avoid burns or clothing ignition.

• Young children should be carefully supervised when they are in the same room as the appliance.

Toddlers, young children, and others may be susceptible to accidental contact burns. A physical barrier

is recommended if there are at risk individuals in the house. To restrict access to an appliance or stove,

install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the

room and away from hot surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Due to high temperatures, the appliance should be located out of trafﬁ c and away from furniture and

draperies.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot

surfaces.

• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children

from hot surfaces. These screens and guards must be fastened to the ﬂ oor.

• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to

operating the appliance.

• The appliance is a vented gas-ﬁ red appliance. Do not burn wood or other materials in the appliance.

• The appliance area must be kept clear and free from combustible materials, gasoline and other

ﬂ ammable vapors and liquids.

• Under no circumstances should this appliance be modiﬁ ed.

• This appliance must not be connected to a chimney ﬂ ue pipe serving a separate solid fuel burning

appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and to replace any part of the control system and any gas control which has

been under water.

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

AVERTISSEMENT

A barrier designed to reduce the risk of burns from the

hot viewing glass is provided with this appliance and

shall be installed for the protection of children and other

at-risk individuals.

WARNING

W415-1705 / 06.07.17

safety information

• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass

should be done by a licensed or qualiﬁ ed service person.

• Do not strike or slam shut the appliance glass door.

• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to

prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the

exhaust escaping through these openings can also cause the surrounding combustible materials to overheat

and catch ﬁ re.

• Only doors / optional fronts certiﬁ ed with the unit are to be installed on the appliance.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all

plastic bags, these are not toys and should be kept away from children and infants.

• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced

as well as having a carbon monoxide detector installed in the same area to defend you and your family

against carbon monoxide.

• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.

Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or

damage to decorations, a T.V. or other electronic components.

• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and

shall be installed.

• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this

appliance.

• Installation and repair should be done by a qualiﬁ ed service person. The appliance should be inspected

before use and at least annually by a professional service person. More frequent cleaning may be required

due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments,

burners and circulating air passageways of the appliance be kept clean.

WARNING

W415-1705 / 06.07.17

table of contents

1.0 general information 5

1.1 rates and efﬁciencies 5

1.2 installation overview 6

1.3 rating plate information 8

1.4 mobile home installation 8

1.5 hardware list 9

2.0 dimensions 10

2.1 BL36-1 10

2.2 BL46 11

3.0 venting requirements 12

3.1 typical venting installation 13

3.2 minimum air terminal location

clearances 15

3.3 vent application ﬂow chart 16

3.4 deﬁnitions 16

3.5 elbow vent length values 16

3.6 horizontal termination 17

3.7 vertical termination 19

3.8 vent shield installation (BL46 only) 21

4.0 rough framing 22

4.1 minimum framing dimensions 23

5.0 venting installation 25

5.1 horizontal installation 26

5.2 vertical installation 26

5.3 using either ﬂexible or rigid vent

components 27

5.4 using ﬂexible vent components 27

5.4.1 horizontal air terminal installation 27

5.4.2 vertical air terminal installation 28

5.4.3 appliance vent connection 28

5.5 using rigid vent components 29

5.5.1 horizontal air terminal installation 29

5.5.2 vertical air terminal installation 30

5.5.3 restricting vertical vents 31

5.6 vertical through existing chimney 32

6.0 electrical information 33

6.1 hard wiring connection 33

6.2 receptacle wiring diagram 33

6.4 electronic wiring diagram 33

6.3 optional wall switch 33

6.5 battery back-up installation 34

6.6 wiring diagram 35

7.0 gas installation 36

8.0 nailing tab installation 36

Changes, other than editorial, are denoted by a vertical line in the margin

note:

9.0 operation 37

10.0 finish framing 38

10.1 ﬂush 38

10.2 recessed 39

10.3 minimum clearance to combustible

enclosures 40

11.0 finishing 41

11.1 anti condensation switch 41

11.2 control cover installation 41

11.3 installing non-combustible board 42

11.4 minimum combustible mantel

clearances 43

11.5 safety screen & glass door installation

/ removal 44

11.6 glass media installation 45

11.7 optional blower installation 46

11.8 restricting vertical vents 47

11.9 venturi adjustment 47

11.10 pilot burner adjustment 48

11.11 ﬂame characteristics 48

12.0 maintenance 49

12.1 care of glass 49

12.2 annual maintenance 50

12.3 glass / door replacement 50

13.0 replacements 51

13.1 BL36-1 overview 52

13.2 BL36-1 valve train assembly 53

13.3 BL46 overview 54

13.4 BL46 valve train assembly 55

14.0 BL36-1 accessories 56

15.0 BL46 accessories 57

16.0 troubleshooting 58

17.0 warranty 61

W415-1705 / 06.07.17

standard checklist

1.0 general information

When the appliance is installed at elevations above 4,500ft (1372m), and in the absence of speciﬁc recommendations

from the local authority having jurisdiction, the certiﬁed high altitude input rating shall be reduced at the rate of 4% for each

additional 1,000ft (305m). Expansion / contraction noises during heating up and cooling down cycles are normal

and are to be expected. Change in ﬂame appearance from “HI” to “LO” is more evident in natural gas than in

propane.

This appliance is approved for bathroom, bedroom and bed-sitting room installations and is certiﬁed for mobile

home installation.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not

convertible for use with other gases, unless a certiﬁed kit is used.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance

and must be installed.

This appliance is a decorative product. It is not a source of heat and not intended to burn solid fuel.

The protective wrap on plated parts is best removed when the assembly is at room temperature but this can be

improved if the assembly is warmed, using a hair dryer or similar heat source.

note:

Batteries must be disposed of according to the local laws and regulations. Some batteries may be

recycled, and may be accepted for disposal at your local recycling center. Check with your

municipality for recycling instructions.

1.1 rates and efﬁciencies

BL36-1 BL46

Fuel Type

Natural Gas Propane Natural Gas Propane

Altitude (FT) 0-4,500 0-4,500 0-4,500 0-4,500

Max. Input (BTU/hr) 16,000 16,000 24,000 24,000

Min. Input (BTU/hr) 10,500 10,500 17,500 18,500

P4 51.7% 51.7% 50.3% 50.3%

Min. Inlet Gas Supply

Pressure

4.5” w.c. (11mb) 11” w.c. (27mb) 4.5” w.c. (11mb) 11” w.c. (27mb)

Max. Inlet Gas Supply

Pressure

13” w.c. (32mb) 13” w.c. (32mb) 13” w.c. (32mb) 13” w.c. (32mb)

Manifold Pressure (Under

Flow Conﬁctions)

3.5” w.c. (9mb) 3.5” w.c. (9mb) 3.5” w.c. (9mb) 3.5” w.c. (9mb)

Installer: please ﬁll out the following information

Customer:

Address:

Date of Installation:

Location of the appliance

Installer:

Dealer/Distributor contact number:

Serial #:

Model:

Natural Gas: BL36NTE-1

BL46NTE

Propane: BL36PTE-1

BL46PTE

W415-1705 / 06.07.17

general information

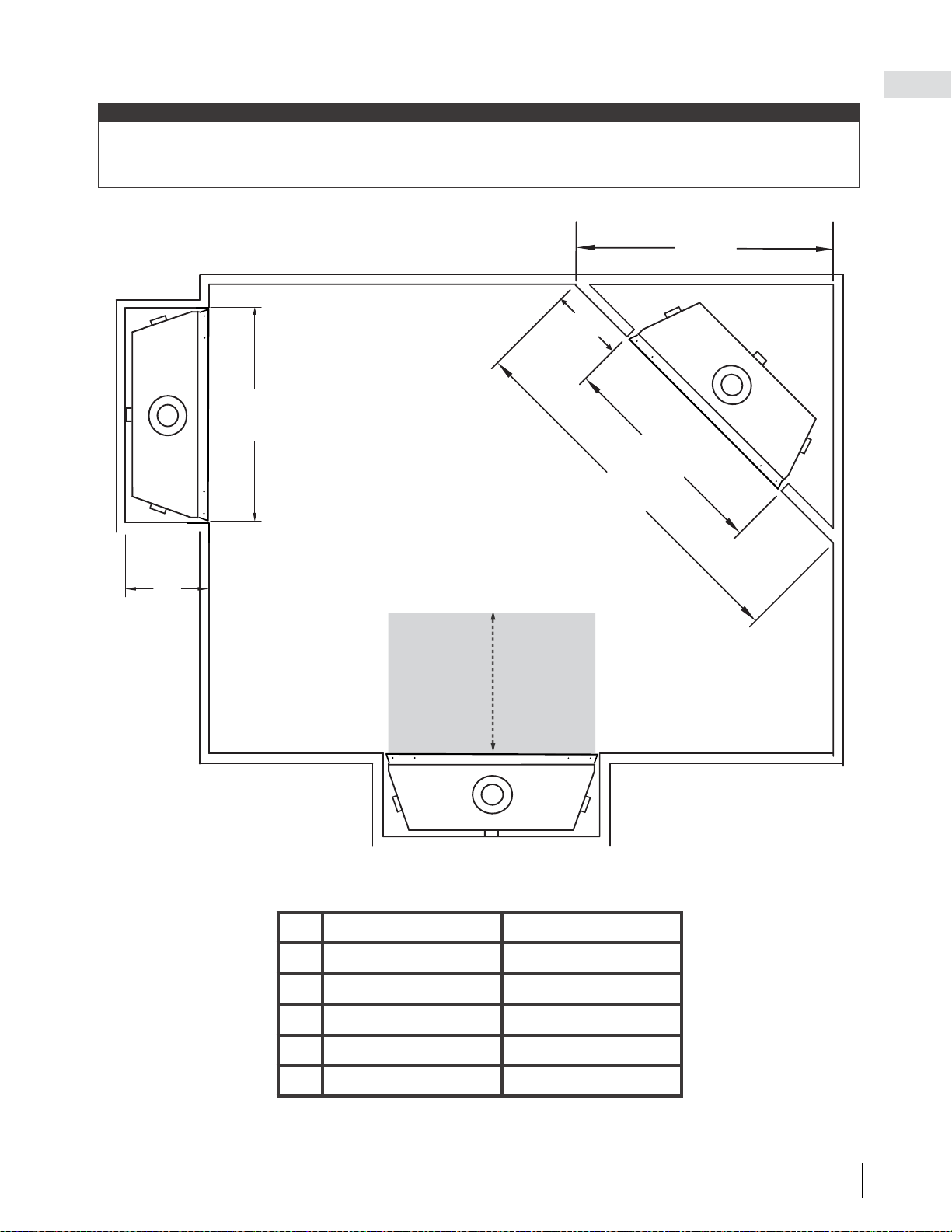

1.2 installation overview

Recommended installation steps:

1. Determine venting requirements before deciding the ﬁnal location of the appliance.

2. Install rough framing (refer to “rough framing” section).

3. Place the appliance in its ﬁnal position.

4. Install nailing tabs (refer to “nailing tab installation” section).

5. Install appliance venting (refer to “venting installation” section).

6. Install all electrical wirings (refer to “electrical information” section).

7. Install gas lines (refer to “gas installation” section).

8. Test appliance.

9. Complete framing (refer to “ﬁnish framing” section).

10. Finishing (refer to “ﬁnishing” section).

W415-1705 / 06.07.17

general information

WARNING

• Always light the pilot whether for the ﬁrst time or if the gas supply has run out, with the glass door opened

or removed.

• Provide adequate clearance for servicing and operating the appliance.

• Provide adequate ventilation.

• Never obstruct the front opening of the appliance.

• Objects placed in front of the appliance must be kept a minimum of 48” (121.9cm) from the front face of

the appliance.

• Surfaces around and especially above the appliance can become hot. Avoid contact when appliance is

operating.

• Fire risk. Explosion hazard.

• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at test

pressures above 1/2 PISG (35mb). Close the manual shut-off valve before pressure testing gas line at test

pressures equal to or less than 1/2 PISG (35mb).

• Use only Wolf Steel approved optional accessories and replacement parts with this appliance using non-

listed accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could result

in a safety hazard and will void the warranty and certiﬁcation.

• The appliance must not be operated at temperatures below freezing (32ºF/0ºC). Allow the appliance to

warm to above freezing prior to operation.

THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local

codes. Installation practices vary from region to region and it is important to know the speciﬁ cs that apply to your area, for

example in Massachusetts State:

• This product must be installed by a licensed plumber or gas ﬁ tter when installed within the commonwealth of

Massachusetts.

• The appliance damper must be removed or welded in the open position prior to installation of an appliance insert or gas

log.

• The appliance off valve must be a “T” handle gas cock.

• The ﬂ exible connector must not be longer than 36 inches (0.9m).

• A carbon monoxide detector is required in all rooms containing gas ﬁ red appliances.

• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed

combustion product.

The installation must conform with local codes or, in absence of local

codes, the National Gas and Propane Installation Code CSA B149.1

in Canada, or the National Fuel Gas Code, ANSI Z223.1 / NFPA 54

in the United States. Suitable for mobile home installation if installed

in accordance with the current standard CAN/CSA Z240MH Series,

for gas equipped mobile homes, in Canada or ANSI Z223.1 and

NFPA 54 in the United States.

The appliance and its individual shutoff valve must be disconnected

from the gas supply piping system during any pressure testing

of that system at test pressures in excess of 1/2 psig (35 mb).

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any

pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (35 mb). When installed

with a blower or fan, the junction box must be electrically connected and grounded in accordance with local codes. In the

absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI / NFPA 70 National

Electric Code in the United States. In the case where the blower is equipped with a power cord, it must be connected into a

properly grounded receptacle. The grounding prong must not be removed from the cord plug.

The following does not apply to inserts; as long as the required clearance to combustibles is maintained, the most desirable

and beneﬁ cial location for an appliance is in the center of a building, thereby allowing the most efﬁ cient use of the heat

created. The location of windows, doors and, the trafﬁ c ﬂ ow in the room where the appliance is to be located should be

considered. If possible, you should choose a location where the vent will pass through the house without cutting a ﬂ oor or

roof joist. If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood ﬂ ooring, the

appliance shall be installed on a metal or wood panel extending the full width and depth, unless otherwise tested.

We suggest that our gas

hearth products be installed

and serviced by professionals

who are certiﬁed in the U.S.

by the National Fireplace

Institute

(NFI) as NFI Gas

Specialists

www.nﬁcertiﬁed.org

W415-1705 / 06.07.17

general information

This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.

1.3 rating plate information

The rating plate must remain with the appliance at all times. It must not be removed.

note:

1.4 mobile home installation

This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home

Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas

indicated on the rating plate.

This mobile/manufactured home listed appliance comes factory equipped with a means to secure the appliance. Built

in appliances are equipped with 1/4” (6.4mm) diameter holes located in the front left and right corners of the base.

Use appropriate fasteners, inserted through the holes in the base to secure. For free standing products contact your

local authorized dealer / distributor for the appropriate securing kit. For mobile home installations, the appliance must

be fastened in place. It is recommended that the appliance be secured in all installations. Always turn off the pilot and

the fuel supply at the source, prior to moving the mobile home. After moving the mobile home and prior to lighting the

appliance, ensure that the logs are positioned correctly.

This appliance is certiﬁ ed to be installed in an aftermarket permanently located, manufactured (mobile) home,

where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible

for use with other gases, unless a certiﬁ ed kit is used.

Conversion Kits

This appliance is ﬁ eld convertible between Natural Gas (NG) and Propane (P).

To convert from one gas to another, consult your Authorized dealer/distributor.

W385-2180

FOYER À GAZ VENTILÉ DIRECT. HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À

COUCHER, UNE SALLE DE BAIN ET UN STUDIO. APPROPRIÉ POUR INSTALLATION DANS UNE MAISON

MOBILE SI SON INSTALLATION CONFORME AUX EXIGENCES DE LA NORME CAN/CSA Z240MH SÉRIE DE

MAISONS MOBILES EQUIPÉES AU GAZ, EN VIGUEUR AU CANADA OU AUX ÉTATS-UNIS DE LA NORME DE

SÉCURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES, TITRE 24 CFR, SECTION 3280. DANS

LE CAS OU CETTE NORME D'ÉTATS-UNIS NE PEUT ÊTRE APPLIQUÉE, SE RÉFERER À LA NORME

RELATIVE AU CRITÈRE DE MESURES DE SÉCURITÉ CONTRE L'INCENDIE POUR LES INSTALLATIONS

DANS LES MAISONS MANUFACTURÉS, LES SITES ET LES COMMUNAUTÉS, ANSI/NFPA 501A.

POUR

UTILISATION AVEC BARRIÈRE

W565-0282

. SUIVEZ LES INSTRUCTIONS D'INSTALLATION QUI SE

TROUVENT DANS LE MANUEL D'INSTALLATION

DIRECT VENT GAS FIREPLACE. SUITABLE FOR BEDROOM, BATHROOM AND BED-SITTING ROOM

INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE

WITH THE CURRENT STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES,

IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONTRUCTION AND

SAFETY STANDARD, TITLE 24 CFR, PART 3280. WHEN THIS US STANDARD IS NOT

APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED

HOME INSTALLATIONS, SITES AND COMMUNITIES, ANSI / NFPA 501A.

FOR USE WITH BARRIER

W565-0282. FOLLOW THE INSTALLATION INSTRUCTIONS LOCATED IN THE INSTALLATION MANUAL.

9700539 (WSL) 4001657 (NGZ)

4001658 (NAC) 4001659 (WUSA)

0-4500FT (0-1370m) ALTITUDE / ÉLÉVATION 0-4500FT (0-1370m)

16,000 BTU/h INPUT / ALIMENTATION 16,000 BTU/h

10,500 BTU/h REDUCED INPUT / ALIMENTATION RÉDUITE 12,500 BTU/h

MANIFOLD PRESSURE: 3.5" (9MB) WATER COLUMN MANIFOLD PRESSURE: 10" (25MB) WATER COLUMN

PRESSION AU COLLECTEUR: 3.5" (9 MB) D'UNE COLONNE D'EAU PRESSION AU COLLECTEUR: 10" (25MB) D'UNE COLONNE D'EAU

MINIMUM SUPPLY PRESSURE: 4.5" (11MB) WATER COLUMN MINIMUM SUPPLY PRESSURE: 11" (27MB) WATER COLUMN

PRESSION D'ALIMENTATION MINIMALE: 4.5" (11MB) D'UNE COLONNE D'EAU PRESSION D'ALIMENTATION MINIMALE: 11" (27MB) D'UNE COLONNE D'EAU

MAXIMUM SUPPLY PRESSURE: 13.0" (32MB) WATER COLUMN MAXIMUM SUPPLY PRESSURE: 13" (32MB) WATER COLUMN

PRESSION D'ALIMENTATION MAXIMALE: 13.0" (32MB) D'UNE COLONNE D'EAU PRESSION D'ALIMENTATION MAXIMALE: 13" (32MB) D'UNE COLONNE D'EAU

P4: 51.7% P4: 51.7%

NOT FOR USE WITH SOLID FUEL. FOR USE WITH GLASS DOORS

CERTIFIED WITH THIS APPLIANCE ONLY.

WARNING:

DO NOT ADD ANY MATERIAL TO THE APPLIANCE, WHICH WILL COME IN CONTACT WITH THE FLAMES,

OTHER THAN THAT SUPPLIED BY THE MANUFACTURER WITH THE APPLIANCE.

MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS /

DÉGAGEMENTS MINIMAUX DES MATÉRIAUX COMBUSTIBLES:

TOP/ DESSUS 0 RECESSED DEPTH / PROFONDEUR D'ENCASTRE 16"

FLOOR / PLANCHER 0 VENT SIDES / CÔTÉS DE L'ÉVENT 1"

SIDES / CÔTÉS 0 VENT TOP / ÉVENT SUPÉRIEUR 3"

BACK / ARRIÈRE 0 VENT BOTTOM / ÉVENT INFÉRIEUR 1"

MANTEL / MANTEAU 12" *

* MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION HORIZONTALE MAXIMALE: 2". SEE INSTRUCTION

MANUAL FOR GREATER EXTENSIONS. RÉFERER AU MANUEL D'INSTRUCTION POUR DES

EXTENSIONS PLUS GRANDES.

SEE OWNER'S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM VENT LENGTHS.

RÉFERER AU MANUEL D'INSTALLATION DE PROPRIÉTAIRE POUR LES LONGUEURS

D'ÉVACUATION MINIMALE ET MAXIMALE.

WOLF STEEL LTD.

24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA

UN COMBUSTIBLE SOLIDE NE DOIT PAS ÊTRE UTILISÉ AVEC CET

APPAREIL. UTILISER AVEC LES PORTES VITRÉES HOMOLOGUÉES

SEULEMENT AVEC CET APPAREIL.

AVERTISSEMENT:

N’AJOUTEZ PAS A CET APPAREIL AUCUN MATÉRIAU DEVANT ENTRER EN

CONTACT AVEC LES FLAMMES AUTRE QUE CELUI QUI EST FOURNI AVEC CET APPAREIL PAR LE

FABRICANT.

THE APPLIANCE MUST BE VENTED USING THE APPROPRIATE WOLF STEEL VENT KITS. SEE OWNERS

INSTALLATION MANUAL FOR VENTING SPECIFICS. PROPER REINSTALLATION AND RESEALING IS

NECESSARY AFTER SERVICING THE VENT-AIR INTAKE SYSTEM.

L'APPAREIL DOIT ÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE D'ÉVACUATION PROPRE À NAPOLEON.

RÉFERER AU MANUEL D'INSTALLATION DE PROPRIÉTAIRE POUR L'ÉVACUATION PRÉCISE. IL EST

IMPORTANT DE BIEN RÉINSTALLER ET RESCELLER L'ÉVENT APRÈS AVOIR ASSURÉ LE MAINTIEN DU

SYSTÈME DE PRISE D'AIR.

DECORATIVE PRODUCT: NOT FOR USE AS A HEATING APPLIANCE

PRODUIT DÉCORATIF: NE PAS UTILISER COMME APPAREIL DE CHAUFFAGE.

ELECTRICAL RATING / CLASSIFICATION: 115V 0.82AMP, 60HZ

OPTIONAL FAN KIT / ENSEMBLE DE VENTILATEUR FACULTATIF: AUB

SERIAL NUMBER/NO. DE SÉRIE:

BL36

BL36NT CBL36NT MODEL CBL36PT BL36PT

BL36NTE CBL36NTE CBL36PTE BL36PTE

CERTIFIED TO / CERTIFIÉ AUX: CSA 2.22-2016 • ANSI Z21.50-2016 VENTED DECORATIVE GAS APPLIANCES / APPAREILS À GAZ VENTILÉS DÉCORATIFS.

CERTIFIED UNDER / HOMOLOGUE SELON LES NORMES: CSA 2.33b - 2008, ANSI Z21.88b- 2008 VENTED GAS FIREPLACE HEATER / APPAREIL DE CHAUFFAGE ALIMENTÉ

AU GAZ ET VENTILÉ

VENTED GAS FIREPLACE HEATER. APPROVED FOR BEDROOM,

BATHROOM AND BED-SITTING ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF I

NSTALLED IN ACCORDANCE WITH THE

CURRENT STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONSTRUCTION AND SAFETY STANDARD, TITLE 24 CFR,

PART 3280. WHEN THIS US STANDARD IS NOT APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED HOME INSTALLATIONS, SITES AND COMMUNITIES, ANSI / NFPA 501A.

FOYER DE CHAUFFAGE AU GAZ AVEC ÉVACUATION. HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À COUCHER, UNE

SALLE DE BAIN ET UN STUDIO. APPROPRIÉ POUR INSTALLATION DANS UNE

MAISON MOBILE SI SON INSTALLATION CONFORME AUX EXIGENCES DE LA NORME CAN/CSA Z240MH SÉRIE DE MAISONS MOBILES ÉQUIPÉES AU GAZ, EN VIGUEUR AU CANADA OU AUX

ÉTATS-UNI

S DE LA

NORME DE SECURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES, TITRE 24 CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D'ÉTATS-UNIS NE PEUT ÊTRE APPLIQUÉE, SE RÉFÉRER A LA NORME

RELATIVE AU CRITÈRE DE MESURES DE SÉCURITÉ CONTRE L'INCENDIE POUR LES INSTALLATIONS DANS LES MAISONS MANUFACTURÉS, LES SITES ET LES COMMUNAUTÉS, ANSI/NFPA 501A.

NOT FOR USE WITH

SOLID FUEL. FOR USE

WITH GLASS DOORS

CERTIFIED WITH THIS

UNIT ONLY.

WARNING

DO NOT ADD ANY MATERIAL

TO THE APPLIANCE, WHICH WILL COME

IN CONTACT WITH THE FLAMES, OTHER

THAN THAT SUPPLIED BY THE

MANUFACTURER WITH THE APPLIANCE.

MINIMUM CLEARANCE TO

COMBUSTIBLE MATERIALS:

TOP 0”

FLOOR 0”

RECESSED DEPTH ONE SIDED 23"

RECESSED DEPTH SEE THRU 13.5”

FRAMING (NOT INCLUDING

FACE MATERIAL)

SIDES 0”

VENT 2"

BACK 0”

MANTLE 15" *

TOP, SIDES & BACK: PER STAND OFF SPACERS FOR FRAMING MATERIALS. FOR FINISHING MATERIALS

SEE OWNERS MANUAL

UN COMBUSTIBLE SOLIDE NE

DOIT PAS ÊTRÉ UTILISÉ AVEC

CET APPAREIL. UTILISER AVEC

LES PORTES VITRÉES

HOMOLOGUÉES SEULEMENT

AVEC CETTE UNITÉ.

AVERTISSEMENT:

N'AJOUTEZ PAS A

CET APPAREIL AUCUN MATÉRIAU DEVANT

ENTRER EN CONTACT AVEC LES FLAMMES

AUTRE QUE CELUI QUI EST FOURNI AVEC

CET APPAREIL PAR LE FABRICANT.

DÉGAGEMENTS MINIMAUX DES

MATÉRIAUX COMBUSTIBLES:

DESSUS 0”

PROFONDEUR D'ENCASTRÉ 25"

PLANCHER 0”

ÉVENT 2"

CÔTES 0”

MANTEAU 15" *

ARRIÉRE 0”

MADE IN CANADA / FABRIQUÉ AU CANADA

WOLF STEEL LTD. BARRIE, ONTARIO, CANADA

ALTITUDE / ÉLÉVATION

INPUT / ALIMENTATION

REDUCED INPUT / ALIMENTATION RÉDUITE

ORIFICE / INJECTEUR

MANIFOLD PRESSURE /

PRESSION AU COLLECTEUR

MINIMUM SUPPLY PRESSURE /

PRESSION D'ALIMENTATION MINIMALE

MAXIMUM SUPPLY PRESSURE /

PRESSION D'ALIMENTATION MAXIMALE

0-4500FT (0-1370M)

30,000 BTU/H

23,000 BTU/H

#38

3.5" WATER COLUMN/D'UNE COLONNE D'EAU

4.5" WATER COLUMN/D'UNE COLONNE D'EAU

7.0" WATER COLUMN/D'UNE COLONNE D'EAU

0-4500FT (0-1370M)

30,000 BTU/H

23,000 BTU/H

#53

10" WATER COLUMN/D'UNE COLONNE D'EAU

11" WATER COLUMN/D'UNE COLONNE D'EAU

13" WATER COLUMN/ D'UNE COLONNE D'EAU

THE APPLIANCE MUST BE VENTED USING THE APPROPRIATE

NAPOLEON VENT KITS. SEE OWNERS INSTALLATION MANUAL

FOR VENTING SPECIFICS. PROPER REINSTALLATION AND

RESEALING IS NECESSARY AFTER SERVICING THE VENT-AIR

INTAKE SYSTEM.

L'APPAREIL DOIT ÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE

D'ÉVACUATION PROPRE A NAPOLEON. RÉFÉRER AU MANUEL

D'INSTALLATION DE PROPRIÉTAIRE POUR L'ÉVACUATION

PRÉCISE. IL EST IMPORTANT DE BIEN RÉINSTALLER ET

RESCELLER L'ÉVENT APRÈS AVOIR ASSURÉ LE MAINTIEN DU

SYSTÉME DE PRISE D'AIR.

CLASSIFICATION: 115V 0.82AMP, 60HZ

W385-2007

MODEL NATURAL GAS /

GAZ NATURAL

LHD50NT

MODEL PROPANE

LHD50PT

SERIAL NUMBER/NO. DE SÉRIE:

LV50

ELECTRICAL RATING: 115V 0.82AMP, 60HZ

REFERENCE #

W/N 16131

* MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION

HORIZONTALE MAXIMALE: 2". SEE INSTRUCTION MANUAL FOR GREATER EXTENSIONS.

SEE OWNER'S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM VENT LENGTHS.

DESSUS, COTÉS & ARRIÈRE: SELON LES ESPACEURS DE DÉGAGEMENT POUR LES MATÉRIAUX D'OSSATURE

SELON LE MANUEL DE PROPRIÉTAIRE POUR LES MATÉRIAUX

DE FINITION.

* L'EXTENSION HORIZONTALE MAXIMALE: 2". RÉFÉRER AU MANUEL D'INSTRUCTION POUR DES EXTENSIONS

PLUS GRANDES. RÉFÉRER AU MANUEL D'INSTALLATION DE PROPRIÉTAIRE.

GARDEZ LE BRÛLEUR ET LE

COMPARTIMENT DES

CONTRÔLES PROPRES.

CONSULTEZ LE MANUEL

D’INFORMATION ET

D’INSTALLATION. PAR

MESURE DE SÉCURITÉ.

CET APPAREIL DOIT

ÊTRE ALIMENTÉ EN AIR

FRAIS ET AVEC SUFFISANT

D’AIR COMBURANT ET

DE VENTILATION.

WARNING:

IMPROPER INSTALLATION,

ADJUSTMENT, ALTERATION,

SERVICE OR MAINTENANCE

CAN CAUSE PROPERTY

DAMAGE, PERSONAL

INJURY OR LOSS OF

LIFE. REFER TO

OWNER’S MANUAL.

INSTALLATION AND

SERVICE MUST BE

PERFORMED BY A

QUALIFIED INSTALLER,

SERVICE AGENCY OR

THE GAS SUPPLIER.

ATTENTION:

UN INSTALLATION OU

UNE MODIFICATION

INAPPROPRIÉE

DU RÉGLAGE, DU SERVICE

ET DE L’ENTRETIEN

POURRAIENT ÊTRE LA CAUSE

DE DOMMAGES À LA PROPRIÉTÉ

DE BLESSURES CORPORELLES

OU MÊME LA MORT. CONSULTER

LE MANUEL D’INFORMATION,

L’INSTALLATION ET LE SERVICE

DOIVENT ÉTRE EXÉCUTÉS PAR

UN INSTALLATEUR QUALIFIÉ

POUR LE GAZ, UNE ENTERPRISE

DE SERVICE OU LE

FOURNISSEUR

DE GAZ SEULEMENT.

KEEP BURNER AND

CONTROL COMPARTMENT

CLEAN. SEE INSTALLATION

AND OPERATING

INSTRUCTIONS

MANUAL. APPLIANCE

NEEDS FRESH AIR FOR

SAFE OPERATION AND MUST

BE INSTALLED WITH

ADEQUATE PROVISIONS

FOR COMBUSTION

AND VENTILATION AIR.

“This appliance is only for use with the

type(s) of gas indicated on the rating plate

and may be installed in an aftermarket,

permanently located, manufactured home

(USA only) or mobile home, where not

prohibited by local codes. See owner’s

manual for details. This appliance is

supplied with a conversion kit.”

«Cet appareil doit être utilisé uniquement

avec les types de gaz indiqués sur la

plaque signalétique et peut être installé

dans une maison préfabriquée (É.-U.

seulement) ou mobile installée à demeure

si les règlements locaux le permettent.

Voir la notice de l’utilisateur pour plus de

renseignements. Une trousse de

conversion est fournie avec cet appareil.»

FOR YOUR SAFETY: DO

NOT STORE OR USE GASOLINE

OR OTHER FLAMMABLE VAPORS

AND LIQUIDS IN VICINITY OF

THIS OR ANY OTHER

APPLIANCE.

CAUTION: DO NOT OPERATE

THE FIREPLACE WITH THE

GLASS REMOVED, CRACKED OR

BROKEN. REPLACEMENT OF

THE GLASS SHOULD BE DONE

BY A LICENSED OR QUALIFIED

PERSON.

POUR VOTRE SÉCURITÉ:

NE PAS ENTREPOSER NI

UTILISER D’ESSENCE NI

D’AUTRES VAPEURS OU

LIQUIDES INFLAMMABLES DANS

LE VOISINAGE DE CET APPAREIL

OU DE TOUT AUTRE APPAREIL.

AVERTISSEMENT: NE PAS

UTILISER L’APPAREIL SI LE

PANNEAU FRONTAL EN VERRE

N’EST PAS EN PLACE, EST

CRAQUÉ OU BRISÉ. CONFIEZ LE

REMPLACEMENT DU PANNEAU

À UN TECHNICIEN AGRÉÉ.

CAUTION:

HOT WHILE OPERATING. DO NOT TOUCH.

SEVERE BURNS MAY RESULT. KEEP CHILDREN

CLOTHING, FURNITURE, GASOLINE OR

OTHER FLAMMABLE VAPORS AWAY.

AVERTISSEMENT:

L’APPAREIL EST CHAUD PENDANT SON

FONCTIONNEMENT. BRÛLURES GRAVES

PEUVENT EN RÉSULTER. LES ENFANTS, LES

VÊTEMENTS, LES MEUBLES, L’ESSENCE ET

AUTRES LIQUIDES QUI ÉMETTENT DES GAZ

VOLATILS INFLAMMABLES DOIVENT

ÊTRE TENUS ELOIGNÉS DE L’APPAREIL.

SAMPLE

W415-1705 / 06.07.17

general information

1.5 hardware list

Type Part # Description

Quantity

BL36-1 BL46

W570-0010 #8x1/2” Hex Head Screw 6 6

W570-0018

#9-14x1/2” Wildril 1/4” Hex

Head Screw

18 18

W570-0022

#19x2-1/4” Pan Head (Quad)

Screw

4 4

W570-0026

#10x1-1/2” Truss Head

(Quad) Screw

4 4

W570-0053

#8x3/4 Hex Head STH834B

Screw

4 4

4 5

Only fasteners supplied with the appliance will be illustrated.

note:

W415-1705 / 06.07.17

dimensions

2.0 dimensions

2.1 BL36-1

8 11/16"

220mm

27 1/2"

699mm

39 1/16"

993mm

4 9/16"

115mm

15 11/16"

399mm

5 15/16"

151mm

35 15/16"

913mm

31 9/16"

801mm

15 1/4"

387mm

178mm

102mm

FRONT VIEW RIGHT SIDE VIEW TOP VIEW

SAFETY BARRIER

W415-1705 / 06.07.17

dimensions

2.2 BL46

8 11/16"

220mm

39 1/16"

992mm

27 1/2"

699mm

18 1/4"

464mm

4 1/2"

115mm

6 3/16"

157mm

46 7/8"

1191mm

22 3/4"

578mm

42 1/2"

1080mm

178mm

102mm

FRONT VIEW RIGHT SIDE VIEW TOP VIEW

SAFETY BARRIER

W415-1705 / 06.07.17

venting requirements

3.0 venting requirements

WARNING

• Risk of ﬁ re. Maintain speciﬁ ed air space clearances to vent pipe and appliance.

• If venting is included with spacers, the vent system must be supported every 3’(0.9m) for both vertical and

horizontal runs. Use support ring assembly W010-0067 or equivalent non-combustible strapping to maintain

the minimum clearance to combustibles for both vertical and horizontal runs. Spacers are attached to the

inner pipe at predetermined intervals to maintain an even air gap to the outer pipe. This gap is required for safe

operation. A spacer is required at the start, middle, and end of each elbow to ensure this gap is maintained.

These spaces must not be removed.

This appliance uses a 4” (102mm) exhaust / 7” (178mm) air intake vent pipe system. Refer to the

section applicable to your installation.

For safe and proper operation of the appliance, follow the venting instructions exactly. Deviation from the minimum

vertical vent length can create difﬁ culty in burner start-up and/or carboning. Under extreme vent conﬁ gurations,

allow several minutes (5-15) for the ﬂ ame to stabilize after ignition. Although not a requirement, it is recommended

for vent lengths that pass through unheated spaces (attics, garages, crawl spaces) be insulated with the insulation

wrapped in a protective sleeve to minimize condensation. Provide a means for visually checking the vent

connection to the appliance after the appliance is installed. Use a ﬁ restop, vent pipe shield or attic insulation shield

when penetrating interior walls, ﬂ oor or ceiling.

The vent terminal may be painted with a high temperature paint to match exterior colours. Use an outdoor paint

suitable for 400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot testing is

recommended.

NOTE: If for any reason the vent air intake system is disassembled; reinstall per the instructions

provided for the initial installation.

NOTE: This appliance must be installed with a continuous connection of exhaust and air intake vent

pipes. Utilizing alternate constructions, such as a chimney as part of the vent system, is not permitted.

For vent systems that provide seals on the inner exhaust ﬂ ue, only the outer air intake joints must be sealed using

a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer intake

vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection to the appliance

ﬂ ue collar which must be sealed using the black high temperature sealant Mill Pac. High temperature sealant must

be ordered separately.

When using Wolf Steel venting components, use only approved Wolf Steel rigid / ﬂ exible components with the

following termination kits: wall terminal kit GD-222, GD-222R, or 1/12 to 7/12 pitch roof terminal kit GD-110,

8/12 to 12/12 roof terminal kit GD-111, ﬂ at roof terminal kit GD-112 or periscope kit GD-201 (for wall penetration

below grade). With ﬂ exible venting, in conjunction with the various terminations, use either the 5 foot (1.5m) vent

kit GD-220 or the 10 foot (3.1m) vent kit GD-330. For stoves only: wall terminal kit GD-175 (venting included).

For optimum ﬂ ame appearance and appliance performance, keep the vent length and number of elbows to a

Vent

Manufacturer

Starter Adapter Part

Number

Supplier Website

Duravent W175-0053 Wolf Steel www.duravent.com

Amerivent 4DSC-N2 American Metal www.americanmetalproducts.com

Direct Temp 4DT-AAN Selkirk www.selkirkcorp.com

SuperSeal 4DNA Metal-Fab www.mtlfab.com

Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab venting

components. Minimum and maximum vent lengths, for both horizontal and vertical installations, clearances from

vent pipes to combustibles and air terminal locations as set out in this manual apply to all vent systems and must

be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab, follow the

installation procedure provided with the venting components or on the website for your venting supplier. A starter

adaptor must be used with the following vent systems and may be purchased from the corresponding supplier:

The minimum clearances from the top of the horizontal vent pipe to combustible materials may be reduced from

3” (76mm) to 1” (25mm) in those installations with a minimum 38” (96.5cm) vertical vent rise made immediately

off the ﬁreplace collar.

note:

W415-1705 / 06.07.17

venting requirements

7.1A

For optimum ﬂ ame appearance and appliance performance, keep the vent length and number of elbows to a

minimum.

The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to

verify that it is unobstructed and undamaged.

Rigid and ﬂ exible venting systems must not be combined. Different venting manufacturer components

must not be combined.

These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable horizontal

run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum number of vent

connections is two horizontally or three vertically (excluding the appliance and the air terminal connections) when

using ﬂ exible venting.

Horizontal runs may have a 0” rise per foot or 0mm rise per meter however for optimum performance it is

recommended that all horizontal runs have a minimum 1/4” rise per foot or 21mm rise per meter using ﬂ exible

venting. For safe and proper operation of the appliance, follow the venting instructions exactly.

A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single

family dwellings and serves both dwellings. Local codes or regulations may require different clearances.

Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼”

(31.8mm) air gap all around between the inner liner and outer liner is required for safe operation.

3.1 typical venting installation

16" (40.6cm)

MINIMUM

40 FT (12M)

MAXIMUM

3 FT (1M)

MINIMUM

12 7/8"

(32.7cm)

MINIMUM

46" (116.8cm)

MINIMUM

PLUS RISE *

18" (45.7cm)

MAXIMUM

W415-1705 / 06.07.17

venting requirements

ed with a stove appliance)

TOP VENT

12"

(30.5cm)

minimum

to grade

Special vent installation (periscope termination)

33 1/8”

(84.1cm)

Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when

ﬁnal grading is completed, the bottom air slot is located a minimum 12” (30.5cm) above grade. The maximum

allowable vent length is 10’ (3m) for a ﬁreplace and 8’ (2m) for a stove.

30” (76.2cm)

minimum

W415-1705 / 06.07.17

venting requirements

3.2 minimum air terminal location clearances

Covered balcony applications ††*

MIN

MAX

= 3 feet

(0.9m)

= 2 x

≤ 15 feet

(4.6m)

ACTUAL

INSTALLATIONS

CANADA U.S.A.

12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony.

12” (30.5cm)

9” (229mm) Clearance to windows or doors that open.

12” (30.5cm)* 12” (30.5cm) * Clearance to permanently closed windows.

18”

(45.7cm)**

18”

(45.7cm)**

Vertical clearance to ventilated sofﬁ ts located above the terminal within a horizontal distance of 2’

(0.6m) from the center line of the terminal.

12” (30.5cm)** 12” (30.5cm)** Clearance to unventilated sofﬁ t.

0” (0mm) 0” (0mm) Clearance to an outside corner wall.

0” (0mm)*** 0” (0mm)***

Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).

2” (51mm)*** 2” (51mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).

3’(0.9m) 3’(0.9m)****

Clearance to each side of the center line extended above the meter / regulator assembly to a maxi-

mum vertical distance of 15’ (4.6m).

3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.

12” (30.5cm) 9” (229mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.

6’ (1.8m) 3’ (0.9m) † Clearance to a mechanical air supply inlet.

7’ (2.1m) ‡ 7’ (2.1m) **** Clearance above a paved sidewalk or paved driveway located on public property.

12” (30.5cm)†† 12” (30.5cm)**** Clearance under a veranda, porch or deck.

16” (40.6cm) 16” (40.6cm) Clearance above the roof.

2’ (0.6m)†* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.

8’ (2.4m) 8’ (2.4m)

Roof must be non-combustible without openings.

3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.

6’ (1.8m) 6’ (1.8m)

See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an

opening between the terminal and the open side of the structure.

12” (30.5cm) 12” (30.5cm) Clearance under a covered balcony

Δ The terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.

* Recommended to prevent condensation on windows and thermal breakage

** It is recommended to use a heat shield and to maximize the distance to vinyl clad sofﬁ ts.

*** The periscope requires a minimum 18 inches clearance from an inside corner.

**** This is a recommended distance. For additional requirements, check local codes.

† 3 feet above if within 10 feet horizontally.

‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.

†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the ﬂ oor.

†* Recommended to prevent recirculation of exhaust products. For additional requirements, check local codes.

††* Permitted only if the balcony is fully open on a minimum of one side.

In the absence of local codes and

gas supplier requirements, installation

must be done in accordance to the

national country requirements.

note:

W415-1705 / 06.07.17

venting requirements

3.3 vent application ﬂow chart

3.4 deﬁnitions

3.5 elbow vent length values

Top Exit

Horizontal Termination

Vertical rise is equal

to or greater than the

horizontal run

Vertical rise is equal

to or greater than the

horizontal run

Vertical rise is less

than horizontal run

Vertical rise is less

than horizontal run

Horizontal run +

vertical rise to

maximum of

24.75 feet (7.5m)

Horizontal run +

vertical rise to

maximum of

19 (5.8m)

4.2 times the vertical

rise equal to or

greater than the

horizontal run

3 times the vertical

rise equal to or

greater than the

horizontal run

Horizontal run +

vertical rise to

maximum of

40 feet (12.2m)

Horizontal run +

vertical rise to

maximum of

40 feet (12.2m)

Vertical Termination

For the following symbols used in the venting calculations and

examples are:

> - greater than

> - equal to or greater than

< - less than

< - equal to or less than

- total of both horizontal vent lengths (Hr) and offsets (Ho) in feet

- combined horizontal vent lengths in feet

- offset factor: .03 (total degrees of offset - 90°*) in feet

- offset factor: .03 (total degrees of offset - 135°*) in feet

- combined vertical vent lengths in feet

Feet Inches Millimeters

1° 0.03 0.5 12.7

15° 0.45 6.0 152.4

30° 0.9 11.0 279.4

45° 1.35 16.0 406.4

90°* 2.7 32.0 812.8

* The ﬁ rst 90° offset has a zero value and is shown in the formula as - 90°

* The ﬁ rst 45° and° offset have a zero value and is shown in the formula as -45° and -90°

W415-1705 / 06.07.17

venting requirements

3.6 horizontal termination

) ≤ (V

)

Simple venting conﬁguration (only one 90° elbow)

See graph to determine the required vertical rise V

for

the required horizontal run H

Required vertical

rise in feet

(meters) V

Horizontal vent run plus offset in feet (meters) H

For vent conﬁgurations requiring more than one 90° elbow, the following formulas apply:

Formula 1: H

< V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 3 ft (0.9m)

= 8 ft (2.4m)

= V

+ V

= 3 ft (0.9m) + 8 ft (2.4m) = 11 ft (3.4m)

= 2.5 ft (0.8m)

= 2 ft (0.6m)

= H

+ H

= 2.5ft (0.8m) + 2 ft (0.6m) = 4.5 ft (1.4m)

= .03 (two 90° elbows - 90°) = .03 (180° - 90°) = 5.4 ft (1.7m)

= H

+ H

= 4.5 ft (1.4m) + 5.4 ft (1.6m) = 9.9 ft (3m)

+ V

= 9.9 ft (3m) + 11 ft (3.4m) = 20.9 ft (6.4m)

Formula 1: H

< V

9.9 ft (3m) < 11 ft (3.4m)

Formula 2: H

+ V

< 40 ft (12.2m)

20.9 ft (6.4m) < 40 ft (12.2m)

Since both formulas are met, this vent conﬁguration is acceptable.

The shaded area within the lines represents acceptable

values for H

and V

2.5

(0.8)

(1.5)

7.5

(2.3)

(3.1)

12.5

(3.8)

(4.6)

40 (12.2)

10 (3.1)

20 (6.1)

30 (9.1)

17.5

(5.3)

(6.1)

39 (11.9)

90°

W415-1705 / 06.07.17

venting requirements

) > (V

)

Simple venting configuration

(only one 90° elbow)

See graph to determine the required vertical rise V

for the required horizontal run H

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

For vent configurations requiring more than one 90° elbow, the following formulas apply:

Formula 1: H

4.2 V

Formula 2: H

+ V

24.75 feet (7.5m)

Example:

= V

= 6 FT (1.8m)

= 3 FT (0.9m)

= 5 FT (1.5m)

= H

+ H

= 3FT (0.9m) + 5FT (1.5m) = 8FT (2.4m)

= .03 (two 90° elbows - 90°) = .03 (180° - 90°) = 2.7FT (0.8m)

= H

+ H

= 8FT (2.4m) + 2.7FT (0.8m) = 10.7FT (3.3m)

+ V

= 10.7FT (3.3m) + 6FT (1.8m) = 16.7FT (5.1m)

Formula 1: H

4.2 V

= 4.2FT (1.3m) x 6FT (1.8m) = 25.2FT (7.7m)

Formula 2: H

+ V

24.75 FT (7.5m)

16.7 FT (5.1m) <

24.75 FT (7.5m)

Since both formulas are met, this vent configuration is acceptable.

The shaded area within the lines represents acceptable values for H

and V

90°

Example:

= 4 FT (1.2m)

= 1.5 FT (0.5m)

= V

+ V

= 4 FT (1.2m) + 1.5 FT (0.5m) = 5.5 FT (1.7m)

= 2 FT (0.6m)

= 1 FT (0.3m)

= 1.5 FT (0.5m)

= H

+ H

= 2FT (0.6m) + 1FT (0.3m) + 1FT (0.3m) + 1.5FT (0.5m) = 5.5 FT (1.7m)

= .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ H

= 5.5 FT (1.7m) + 8.1 FT (2.5m) = 13.6 FT (4.2m)

+ V

= 13.6 FT (4.2m) + 5.5 FT (1.7m) = 19.1 FT (5.8m)

Formula 1: H

4.2 V

= 4.2 FT (1.3m) x 5.5 FT (1.7m) = 23.1 FT (7m)

13.6 FT (4.2m) <

23.1 FT (7m)

Formula 2: H

+ V

24.75 FT (7.5m)

19.1 FT (5.8m) <

24.75 FT (7.5m)

Since both formulas are met, this vent configuration is acceptable.

90°

(1.5)

(4.6)

20 (6.1)

100 (254)

50 (127)

150 (381)

12.5

(3.8)

57 (145)

147 (373)

(3.1)

19.5

(5.9)

REQUIRED

VERTICAL

RISE IN INCHES

(CENTIMETERS) V

12.875 (327)

1.5

(0.5)

W415-1705 / 06.07.17

venting requirements

) < (V

)

Simple venting conﬁgurations.

See graph to determine the required vertical rise V

for the

required horizontal run H

For vent conﬁgurations requiring one or more 90° elbows the following formulas apply:

Formula 1: H

< V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 5 ft (1.5m)

= 6 ft (1.8m)

= 10 ft (3.1m)

= V

+ V

= 5 ft (1.5m) + 6 ft (1.8m) + 10 ft (3.1m) = 21 ft (6.4m)

= 8 ft (2.4m)

= 2.5 ft (0.8m)

= H

+ H

= 8 ft (2.4m) + 2.5 ft (0.8m) = 10.5 ft (3.2m)

= .03 (four 90° elbows - 90°)

= .03 (360° - 90°) = 8.1 ft (2.5m)

= H

+ H

= 10.5 ft (3.2m) + 8.1 ft (2.5m) = 18.6 ft (5.7m)

+ V

= 18.6 ft (5.7m) + 21 ft (6.4m) = 39.6 ft (12.1m)

Formula 1: H

< V

18.6 ft (5.7m) < 21 ft (6.4m)

Formula 2: H

+ V

< 40 ft (12.19m)

39.6 ft (12.1m) < 40 ft (12.2m)

Since both formulas are met, this vent conﬁguration is acceptable.

90°

The shaded area within the lines represents acceptable

values for H

and V

90°

(1.5)

(3.1)

(4.6)

(6.1)

40 (12.2)

10 (3.1)

20 (6.1)

30 (9.1)

3 (0.9)

Required vertical

rise in feet

(meters) V

Horizontal vent run plus offset in feet (meters) H

3.7 vertical termination

W415-1705 / 06.07.17

venting requirements

) > (V

)

Simple venting conﬁgurations.

See graph to determine the required vertical rise V

for the

required horizontal run H

For vent conﬁgurations requiring more than two 90° elbows the following formulas apply:

Formula 1: H

< 3V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 2 ft (0.6m)

= 1 ft (0.3m)

= 1.5 ft (0.5m)

= V

= 2 ft (0.6m) + 1 ft (0.3m) + 1.5 ft (0.5m) = 4.5 ft (1.4m)

= 6 ft (1.8m)

= 2 ft (0.6m)

= H

+ H

= 6 ft (1.8m) + 2 ft (0.6m) = 8 ft (2.4m)

= .03 (four 90° elbows - 90°)

= .03 (360° - 90°) = 8.1 ft (2.5m)

= H

+ H

= 8 ft (2.4m) + 8.1 ft (2.5m) = 16.1 ft (4.9m)

+ V

= 16.1ft (4.9m) + 4.5 ft (1.4m) = 20.6 ft (6.3m)

Formula 1: H

< 3V

= 3 ft (0.9m) x 4.5 ft (1.4m) = 13.5 ft (4.1m)

16.1 ft (4.9m) > 13.5 ft (4.1m)

Since this formula is not met, this vent conﬁguration is unacceptable.

Formula 2: H

+ V

< 40 ft (12.2m)

20.6 ft (6.3m) < 40 ft (12.2m)

Since only formula 2 is met, this vent conﬁguration is unacceptable and a new appliance location or vent conﬁguration will

need to be established to satisfy both formulas.

The shaded area within the lines represents acceptable

values for H

and V

(1.5)

10 (3.1) 15

(4.6)

(6.1)

10 (3.1)

20 (6.1)

3 (0.9)

(7.6)

(9.1)

19 (5.8)

90°

Required vertical

rise in feet

(meters) V

Horizontal vent run plus offset in feet (meters) H

W415-1705 / 06.07.17

venting requirements

3.8 vent shield installation (BL46 only)

A. Form vent shield to a 90° angle (as illustrated in installation step above).

B. Install the vent shield by securing it to top of appliance using 2 screws (supplied).

C. Adjust vent shield top to suit horizontal run.

W415-1705 / 06.07.17

rough framing

WARNING

• Risk of ﬁ re!

• In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the appliance

body, it is recommended that the walls of the appliance enclosure be “ﬁ nished” (i.e. drywall / sheetrock),

as you would ﬁ nish any other outside wall of a home. This will ensure that clearance to combustibles is

maintained within the cavity.

• Do not notch the framing around the appliance stand offs. Failure to maintain air space clearance may cause

over heating and ﬁ re. Prevent contact with sagging or loose insulation or framing and other combustible

materials. Block opening into the chase to prevent entry of blown-in insulation. Make sure insulation and

other materials are secured.

• When constructing the enclosure allow for ﬁ nishing material closer than the minimums listed must be

constructed entirely of non-combustible materials. Materials consisting entirely of steel, iron, brick, tile,

concrete, slate, glass or plasters, or any combination thereof are suitable. Materials that are reported as

passing ASTM E136, standard test method for behaviour of materials in a vertical tube furnace at 1382ºF

(750ºC) and UL763 shall be considered non-combustible materials.

• Minimum clearance to combusibles must be maintained or a serious ﬁ re hazard could result.

• The appliance requires a minimum enclosure height. Measure from the appliance base.

• If steel stud framing kits with cement board are provided, or speciﬁ ed in the installation instructions, they

must be installed.

• If speciﬁ ed in the installation instruction, ﬁ nishing must be done using a non-combustible board, ceramic tile,

marble, etc. Do NOT use wood or drywall. Any ﬁ re rated drywall is not acceptable.

When using optional ﬁ nishing accessories, the framing dimensions and ﬁ nishing materials may differ from

what is outlined in the section below; refer to the leaﬂ et instructions supplied in the accessory kit for speciﬁ c

framing and ﬁ nishing speciﬁ cations.

note:

4.0 rough framing

It is not necessary to install a hearth extension with this appliance.

When roughing in the appliance, raise the appliance to accomodate for the thickness of the ﬁnished ﬂoor

materials, i.e. tile, carpeting, hardwood, which, if not planned for, will interfere with the opening of the lower access

door and the installation of many decorative ﬂashing accessories.

W415-1705 / 06.07.17

rough framing

The minimum clearances from the top of the horizontal vent pipe to combustible materials may be reduced from

3” (76mm) to 1” (25mm) in those installations with a minimum 38” (96.5cm) vertical vent rise made immediately

off the ﬁreplace collar.

note:

4.1 minimum framing dimensions

Do not put objects in front of the

appliance (minimum distance of 4 feet)

BL36-1 BL46

16 3/8” (42.6cm) 18 9/16” (47.1cm)

36 1/2” (92.7cm) 47 1/2” (120.7cm)

31 7/8” (81cm) 42 1/2” (107.9cm)

6 5/16” (16cm) 6 5/16” (16cm)

49 1/8” (124.8cm) 60 3/16” (152.9cm)

W415-1705 / 06.07.17

rough framing

Before framing your appliance, determine vent requirements before deciding the ﬁnal location of the appliance.

After rough framing, place the appliance in its ﬁnal position.

BL36-1 BL46

16 3/8” (41.6cm) 18 9/16” (47.1cm)

36 1/2” (92.7cm) 47 1/2” (120.7cm)

W415-1705 / 06.07.17

venting installation

For optimum performance, it is recommended that all horizontal runs have a minimum of 1/4" (6mm) rise per foot

using ﬂexible venting. For safe and proper operation of the appliance, follow the venting instructions exactly.

WARNING

• Ensure to unpack all loose materials from inside the ﬁ rebox prior to connecting the gas and electrical supply

• If your appliance is supplied with a remote, ensure the remote receiver is in the “OFF” position prior to

connecting the gas and electrical supply to the appliance.

• For safe and proper operation of the appliance, follow the venting instructions exactly.

• The appliance exhaust ﬂ ue collar must be sealed using Mill Pac. All exhaust and intake vent pipe joints must

be sealed using red RTV high temp silicone sealant (W573-0002) (not supplied) or black high temp Mill Pac

(W573-0007) (not supplied).

• If using pipe clamps to connect vent components, a minimum of 3 screws must also be used to ensure the

connection cannot slip off.

• Do not clamp the ﬂ exible vent pipe.

• Risk of ﬁ re, explosion, or asphyxiation. Improper support of the entire venting system may allow vent to sag

and separate. Use vent run supports and connect vent sections per installation instructions.

• Risk of ﬁ re, do not allow loose materials or insulation to touch the vent pipe. Remove insulation to allow for the

installation of the attic shield and to maintain clearances to combustibles.

• Do not ﬁ ll the space between the vent pipe and enclosure with any type of material. Do not pack insulation

or combustibles between ceiling ﬁ restops. Always maintain speciﬁ ed clearances around venting and ﬁ restop

systems. Install wall shields and ﬁ restops as speciﬁ ed. Failure to keep insulation or other materials away from

vent pipe may cause ﬁ re.

5.0 venting installation

W415-1705 / 06.07.17

venting installation

This application occurs when venting through an exterior

wall. Having determined the correct height for the air

terminal location, cut and frame a hole in the exterior wall,

as illustrated, to accommodate the ﬁ restop assembly. Dry

ﬁ t the ﬁ restop assembly before proceeding to ensure the

brackets on the rear surface ﬁ t to the inside surface of the

horizontal framing.

The vent shield must be installed to the full depth of the

combustible wall. The length of the vent shield may cut

shorter for combustible walls that less than 6” (152mm)

thick.

A. Apply a bead of caulking (not supplied) around the corner edge of the inside surface of the ﬁ restop assembly,

ﬁ t the ﬁ restop assembly to the hole and secure using 4 screws.

B. Once the vent pipe is installed in its ﬁ nal position, apply red RTV silicone (W573-0002) (not supplied)

between the pipe and the ﬁ restop.

• The ﬁ restop assembly must be installed with the vent shield to the top.

• Terminals must not be recessed into a wall or siding more than the depth of the return ﬂ ange of the mounting

plate.

WARNING

Bend the tabs for reduced side clearances or move

the shield for reduced top clearances. Do not ﬁ ll

the air space between the ﬁ restop spacer and the

exterior wall with any type of insulating material (i.e.

spray foam).

note:

Determine

the

correct

height

Firestop

spacer

Vent

shield

Finishing

material

Caulking

This application occurs when venting through a roof. Installation kits for

various roof pitches are available from your authorized dealer / distributor.

See the “accessories” section to order speciﬁ c kits required.

A. Determine the air terminal location, cut and frame a square opening,

as illustrated, in the ceiling and the roof to provide the minimum 1"

(25mm) clearance between the vent pipe and any combustible material.

Try to center the vent pipe location midway between two joists to

prevent having to cut them. Use a plumb bob to line up the center of

the openings. A vent pipe shield will prevent any materials such as

insulation, from ﬁ lling up the 1" (25mm) air space around the pipe. Nail

headers between the joist for extra support.

B. Apply a bead of caulking (not supplied) to the framework or to the

Wolf Steel vent pipe shield plate or equivalent (in the case of a ﬁ nished

ceiling), and secure over the opening in the ceiling. A ﬁ restop must be

placed on the bottom of each framed opening in a roof or ceiling that

the venting system passes through. Apply a bead of caulking all around

and place a ﬁ restop spacer over the vent shield to restrict cold air from

being drawn into the room or around the ﬁ replace. Ensure that both

spacer and shield maintain the required clearance to combustibles.

Once the vent pipe is installed in its ﬁ nal position, apply Mill Pac sealant

(W573-0007) (not supplied) or red RTV silicone (W573-0002) (not

supplied) between the pipe and the ﬁ restop assembly.

C. In the attic, slide the vent pipe collar down to cover up the open end

of the shield and tighten. This will prevent any materials, such as

insulation, from ﬁ lling up the 1" (25mm) air space around the pipe.

Caulking

Vent Pipe

Shield

Vent

Pipe

Shield

Vent

Pipe

Collar

Firestop

underside

of joist

10 3/4"

(273mm)

10 3/4"

(273mm)

5.1 horizontal installation

5.2 vertical installation

TYPE 4 X4

W415-1705 / 06.07.17

venting installation

5.3 using either ﬂexible or rigid vent components

A. Stretch the inner ﬂ ex pipe to the required length taking

into account the additional length needed for the ﬁ nished

wall surface. Apply a heavy bead of the Mill Pac sealant

(W573-0007) (not supplied) to the inner sleeve of the air

terminal. Slip the vent pipe a minimum of 2” (50.8mm)

over the inner sleeve of the air terminal and secure with a

minimum of 3 screws.

B. Using the outer ﬂ ex pipe, slide over the outer combustion

air sleeve of the air terminal and secure with a minimum

of 3 screws. Seal using red RTV silicone (W573-0002)

(not supplied).

C. Insert the vent pipes through the ﬁ restop maintaining

the required clearance to combustibles. Holding the air

terminal (lettering in an upright, readable position), secure

to the exterior wall and make weather tight by sealing

with caulking (not supplied).

D. If more vent pipe needs to be used to reach the ﬁ replace,

couple them together, as illustrated. The vent system

must be supported approximately every 3 feet (0.9m) for

both vertical and horizontal runs. Use non-combustible

strapping to maintain the minimum clearance to

combustibles.

E. Stove Appliances Only: From inside the house, using

Red RTV Silicone (W573-0002) (not supplied), seal

between the vent pipe and the ﬁ restop. Then slide the black trim collar over the vent pipe up to the

ﬁ restop.

The air terminal mounting plate may be recessed into the exterior wall or siding no greater than the

depth of its return ﬂ ange.

ADD FASTENER TYPE

ADD GRAPHIC

For safe and proper operation of the appliance, follow the venting instructions

exactly.

The vent system must be supported approximately every 3 feet (0.9m) for

both vertical and horizontal runs. Use Wolf Steel Ltd. support ring assembly

or equivalent noncombustible strapping to maintain the minimum clearance to

combustibles for both vertical and horizontal runs.

All inner ﬂ ex pipe and outer ﬂ ex pipe joints may be sealed using high temperature

red RTV silicone W573-0002 (not supplied) or the high temperature sealant W573-

0007 Mill Pac (not supplied). However, the high temperature sealant W573-0007

Mill Pac (not supplied) must be used on the joint connecting the inner ﬂ ex pipe and

the exhaust ﬂ ue collar.

Use only approved ﬂ exible vent pipe kits marked:

“Wolf Steel Approved Venting” or “E2” as identiﬁ ed by the stamp only on the ﬂ ex pipes.

Elbow

Spacers

• Do not allow the inner ﬂ ex pipe to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight.

• Spacers are attached to the inner ﬂ ex pipe at predetermined intervals to maintain an even air gap to the outer

ﬂ ex pipe. This gap is required for safe operation. A spacer is required at the start, middle, and end of each

elbow to ensure this gap is maintained. These spacers must not be removed.

WARNING

TYPE 3 X4 TYPE 2 X6

Screws

(Supplied)

2" (50.8mm) Overlap

Outer Flex Pipe

Inner Flex

Pipe

High Temperature

Sealant

Caulking

High Temperature

Sealant

Screws

Inner Coupler

Outer Coupler

Outer Flex

Pipe

Inner Flex

Pipe

Outer Flex

Pipe

When installing using rigid vent components, follow the manufacturer’s installation and vent sealing requirements.

5.4 using ﬂexible vent components

5.4.1 horizontal air terminal installation

W415-1705 / 06.07.17

venting installation

A. Install the inner ﬂ ex pipe to the appliance. Secure with a minimum

of three screws when installing 3”/5”, 4”/7” or 5”/8” venting, or six

screws when installing 8”/10” or 8”/11” venting. Seal the joint and

screw holes using Mill Pac sealant (W573-0007) (not supplied).

B. Install the outer ﬂ ex pipe to the appliance. Secure with a minimum

of three screws when installing 3”/5”, 4”/7” or 5”/”8 venting, or six

screws when installing 8”/10” or 8”/11” venting. Seal the joints using

high temperature red RTV silicone (W573-0002) (not supplied).

INSERT


HERE

ADD FASTENER TYPE

5.4.2 vertical air terminal installation

2” (50.8mm)

Overlap

#8 X 1/2”

Self Drilling

Screws

High Temperature

Sealant

A. Fasten the roof support to the roof using 6 screws. The roof support is

optional. In this case, the venting is to be adequately supported using

either an alternate method suitable to the authority having jurisdiction or

the optional roof support.

B. Stretch the inner ﬂ ex pipe to the required length. Slip the inner ﬂ ex

pipe a minimum of 2” (51mm) over the inner pipe of the air terminal

connector and secure with a minimum of three screws, when 4/7, 5/8

and 3/5 venting is used and a minimum of six screws when using 8/10

or 8/11 venting. Seal using a heavy bead of Mill Pac sealant (W573-

0007) (not supplied).

C. Repeat using the outer ﬂ ex pipe, using a heavy bead of red RTV

silicone (W573-0002) (not supplied) and a minimum of three screws,

when 4/7, 5/8 and 3/5 venting is used and a minimum of six screws

when using 8/10 or 8/11 venting.

D. Thread the air terminal connector / vent pipe assembly down through

the roof. The air terminal must be positioned vertically and plumb.

Attach the air terminal connector to the roof support, ensuring that the

top of the air terminal is 16” (40.6cm) above the highest point that it

penetrates the roof.

E. Remove nails from the shingles, above and to the sides of the air

terminal connector. Place the ﬂ ashing over the air terminal connector

leaving a min. 3/4” (19mm) of the air terminal connector showing above

the top of the ﬂ ashing. Slide the ﬂ ashing underneath the sides and

upper edge of the shingles. Ensure that the air terminal connector is

properly centered within the ﬂ ashing, giving a 3/4” (19mm) margin all

around. Fasten to the roof. Do not nail through the lower portion of the

ﬂ ashing. Make weather-tight by sealing with caulking. Where possible,

cover the sides and top edges of the ﬂ ashing with rooﬁ ng material.

F. Aligning the seams of the terminal and air terminal connector, place the

terminal over the air terminal connector making sure the vent pipe goes

into the hole in the terminal. Secure with a minimum of three screws,

when 4/7, 5/8 and 3/5 venting is used and a minimum of six screws

when using 8/10 or 8/11 venting.

G. Apply a heavy bead of weatherproof caulking 2” (51mm) above the

ﬂ ashing. Install the storm collar around the air terminal and slide down

to the caulking. Tighten to ensure that a weather-tight seal between the

air terminal and the collar is achieved.

H. If more vent pipe needs to be used to reach the appliance, see “horizontal

air terminal installation” section.

Roof Support

Inner Flex Pipe

Inner Pipe

Mill Pac

Sealant

(W572-0007)

Air

Terminal

Connector

Outer Flex Pipe

Storm Collar

Flashing

Caulking

Weather

Sealant

2” (51mm)

Air Inlet

Base

WARNING

• Maintain a minimum 2” (51mm) space between the air inlet base and the storm collar.

NOTE: Fastening hardware provided with appropriate roof terminal and liner kits.

5.4.3 appliance vent connection

TYPE 2 (X6)

W415-1705 / 06.07.17

venting installation

5.5 using rigid vent components

5.5.1 horizontal air terminal installation

A. Move the appliance into position. Measure

the vent length required between terminal and

appliance taking into account the additional

length needed for the ﬁ nished wall surface and

any 1 1/4” (31.8mm) overlaps between venting

components.

Apply a heavy bead of Mill Pac sealant

(W573-0007) (not supplied) to the outer edge of

the inner collar of the appliance. Attach the ﬁ rst

inner rigid pipe component and secure using a

minimum of three #8 screws. Repeat using the

outer rigid pipe. Seal using Red RTV Silicone (W573-

0002) (not supplied).

Insert the vent pipes through the ﬁ restop maintaining the required clearance to

combustibles. Apply a heavy bead of Red RTV Silicone (W573-0002) (not supplied) to both the

inner sleeve and outer sleeve of the air terminal. Slide the terminal sleeves into the rigid pipes a minimum

of 1 1/4”. Holding the air terminal (lettering in an upright, readable position), secure to the exterior wall and

make weather tight by sealing with caulking (not supplied).

The air terminal mounting plate may be recessed into the exterior wall or siding no greater than the

depth of the return ﬂ ange.

18.3

SCREWS

#10x2"

OUTER

RIGID

PIPE

CAULKING

INNER

RIGID

PIPE

2” (50.8mm) OVERLAP

HI-TEMP

SEALANT

W415-1705 / 06.07.17

venting installation

WARNING

• Maintain a minimum 2” (51mm) space between the air inlet base and the storm collar.

NOTE: Fastening hardware provided with appropriate roof terminal and liner kits.

NOTE: Before attaching elbows to the collars on the back of the appliance, 1 1/2” (38.1mm) will need to

be trimmed off the 4” (101.6mm) collar.

REAR VENT APPLICATIONS ONLY: Attach 4” (101.6mm) and 7” (177.8mm) elbows to the appliance. Secure

with 3 screws and seal the joints and screw heads using high temperature sealant. Proceed to step A below.

TOP AND REAR VENT APPLICATIONS:

A. Move the appliance into position.

B. Fasten the roof support to the roof using the screws provided. The

roof support is optional. In this case the venting is to be adequately

supported using either an alternate method suitable to the authority

having jurisdiction or the optional roof support.

C. Apply high temperature sealant W573-0007 (not supplied) to the outer

edge of the inner sleeve of the air terminal. Slip the inner coupler a

minimum of 2” (50.8mm) over the sleeve and secure using 3 screws.

D. Apply high temperature sealant W573-0002 (not supplied) to the outer

edge of the of the outside sleeve of the air terminal connector. Slip

the outer coupler over the sleeve and secure as before. Trim the outer

coupler even with the inner coupler end.

E. Thread the air terminal connector / vent pipe assembly down through

the roof support and attach, ensuring that a minimum 16” (40.6cm)

of air terminal connector will penetrate the roof when fastened. If the

attic space is tight, we recommend threading the Wolf Steel vent pipe

collar or equivalent loosely onto the air terminal connector / vent pipe

assembly as it is passed through the attic. The air terminal connector

must be positioned vertically and plumb.

Remove nails from the shingles, above and to the sides of the air

terminal connector. Place the ﬂ ashing over the air terminal connector

and slide it underneath the sides and upper edge of the shingles.

Ensure that the air terminal connector is properly centered within the

ﬂ ashing, giving a 3/4” (19.1mm) margin all around. Fasten to the roof. Do NOT nail through the lower

portion of the ﬂ ashing. Make weather-tight by sealing with caulking. Where possible, cover the sides

and top edges of the ﬂ ashing with rooﬁ ng material.

G. Apply a heavy bead of waterproof caulking 2” (50.8mm) above the ﬂ ashing. Install the storm collar

around the air terminal and slide down to the caulking. Tighten to ensure that a weather-tight seal

between the air terminal connector and the collar is achieved.

H. Continue adding rigid venting sections, sealing and securing as above. Attach the inner collapsed

telescopic sleeve to the last section of rigid piping. Secure with screws and seal. Repeat using the

outer telescopic sleeve.

REAR VENT APPLICATIONS ONLY:

I. Run a bead of high temperature sealant W573-0007 (not supplied) around the outside of the inner

elbow. Pull the telescopic sleeve a minimum of 2” (50.8mm) onto the elbow. Secure with three screws.

Repeat with the outer telescopic sleeve.

TOP VENT APPLICATIONS ONLY:

J. Run a bead of high temperature sealant W573-0007 (not supplied) around the outside of the inner

collar on the appliance. Pull the telescopic sleeve a minimum of 2” (50.8mm) onto the collar. Secure

with three screws. Repeat with the outer telescopic sleeve.

K. In the attic, slide the vent pipe collar down to cover up the open end of the shield and tighten. This will

prevent any materials, such as insulation, from ﬁ lling up the 1” (25.4mm) air space around the pipe

VENT

PIPE

COLLAR

VENT

PIPE

SHIELD

INNER RIGID

PIPE

OUTER RIGID

PIPE

INNER PIPE

HIGH

TEMPERATURE

SEALANT

AIR

TERMINAL

CONNECTOR

5.5.2 vertical air terminal installation

W415-1705 / 06.07.17

venting installation

5.5.3 restricting vertical vents

• Turn off gas and electrical supply before servicing the appliance.

• Appliance may be hot, do not service until appliance is cool.

• For safe and proper operation of the appliance, follow the venting instruction exactly.

• To avoid danger of suffocation, keep the packaging bag away from babies and children. Do not use in

cribs, beds, carriages or play pens. This bag is not a toy. Knot before throwing away.

WARNING

Vertical installations may display a very active ﬂame. If this appearance is not desirable, the exhaust outlet may be

restricted with a Wolf Steel approved restrictor kit. This kit is not recommended for short vertical vent runs.

Depending on the model and/or year of your appliance, mounting holes may not exist.

A. If mounting holes exist, remove the screws from the ﬁrebox top, align the restrictor plate as illustrated

and secure.

B. If mounting holes do not exist, align the restrictor plate as illustrated and secure using the two

#8x1/2 hex head sheet metal screws supplied.

C. Ensure the plate will pivot at the slot up into the exhaust outlet.

D. Depending on the amount of restriction desired, the restrictor plate can be left ﬂat for most restriction

or bent up for varying degrees of restriction.

1. MOST RESTRICTION

2. MODERATE RESTRICTION

3. LEAST RESTRICTION

EXHAUST COLLAR

RESTRICTOR

MOUNTING

SCREWS

FIREBOX TOP

RESTRICTOR

TOP VIEW

#8 x ½ HEX HEAD

SHEET METAL

SCREW

W415-1705 / 06.07.17

venting installation

5.6 vertical through existing chimney

WARNING

• Risk of ﬁ re.

• Co-axial to co-linear venting conﬁ gurations must only be used in a non-combustible chimney or enclosure.

Installation in a combustible enclosure could result in a ﬁ re.

This appliance is designed to be attached to a 3” (76.2mm) co-linear aluminum ﬂ ex vent system running the full

length of a masonry chimney.

The ﬂ ex liners accommodate any contours of a

masonry chimney, however, it is necessary to keep

the ﬂ exible liners as straight as possible. The inlet

air collar of the termination cap must be connected

to the air intake ﬂ ex liner and the exhaust collar

must be connected to the exhaust ﬂ exible liner.

Both Simpson Duravent and Selkirk co-linear to

co-axial adaptors have been approved on this

appliance (NOTE: A vent adaptor will be required

directly off the appliance).

Follow vent manufacturer’s installation

instructions.

Different manufacturer’s venting components

must not be combined. Once the preferred

manufacturer’s appliance adaptor has been

attached, the remainder of the system

must be that of the same manufacturer.

The only exception to this rule is to use

Wolf Steel’s approved 3” (76.2mm) ﬂ ex

liner and co-linear termination.

AIR

INTAKE

EXHAUST

FLUE

FLEX

LINER

* 40 FT (12.2m)

MAX.

10 FT (3.1m)

MIN

COAXIAL TO

CO-LINEAR

ADAPATOR

APPLIANCE

VENT ADAPTOR

TERMINATION

* Measured from appliance ﬂ ue collar

to termination ﬂ ue collar

W415-1705 / 06.07.17

venting installation

It is necessary to hard wire this appliance.

This appliance must be electrically connected and grounded in accordance with local codes. In the absence of

local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA 70-1996 National

Electrical Code in the United States.

L1 (Black)

(White)

Cable connector

Electrical box

cover

Ground

(Green)

Screw

Electrical

box

Wire nuts

(Black)

Ground

(Green)

(White)

3 prong

receptacle

6.0 electrical information

6.1 hard wiring connection

6.2 receptacle wiring diagram

6.3 optional wall switch

WARNING

• Do not connect either the wall switch or gas valve directly to 110 volt electricity.

For ease of accessibility, an optional remote wall switch may be installed in a convenient location. Route a 2

strand, solid core millivolt wire from the valve to the wall switch. The recommended maximum lead length depends

on wire size:

WIRE SIZE MAX. LENGTH

14 gauge (1.8mm) 100 feet (30.5m)

16 gauge (1.5mm) 60 feet (18.3m)

18 gauge (1.2mm) 40 feet (12.2m)

Disconnect the existing wires from terminals 1 and 3 (from the ON/OFF switch) and replace with the leads from

the wall switch.

6.4 electronic wiring diagram

WARNING

• Do not use this appliance if any part has been under water. Call a qualiﬁ ed service technician immediately to

have the appliance inspected for damage to the electrical circuit.

• Risk of electrical shock or explosion. Do not wire 110V to the valve or to the appliance wall switch. Incorrect

wiring will damage controls.

• All wiring should be done by a qualiﬁ ed electrician and shall be in compliance with local codes. In the

absence of local codes, use the current CSA22.1 Canadian Electric Code in Canada or the current National

Electric Code ANSI/NFPA NO. 70 in the United States.

W415-1705 / 06.07.17

electrical information

6.5 battery back-up installation

• Ensure the gas and electrical power to the appliance is turned off.

• Appliance may be hot, do not service until the appliance has cooled.

WARNING

A. Before beginning installation, turn off the gas and disconnect the electrical power supply from the

appliance.

B. Locate the battery housing supplied in the manual baggie.

C. Install four “AA” alkaline batteries (not supplied) into the battery housing, ensure the positive and negative

ends correspond with those identiﬁed on the holder. (To open the battery housing, slide the back piece

upwards and off of the battery housing).

D. Remove the safety screen to easily access the control compartment.

E. Attach the wire (on connector) labelled “BATTERY” from the wiring harness, located in the control

compartment of the appliance, to the battery housing.

F. Place the battery housing into the control compartment, ensure that the battery housing is placed in a

clean and easily accessible location.

G. Reinstall the safety screen. The safety screen must be installed at all times during the appliance operation.

H. Turn the gas and electrical power back on to begin operating the appliance.

Control module

Battery housing

Red wire

Black wire

In the event of a power failure, your appliance can be operated using the supplied battery back-up.

note:

Once the power has been restored, remove the batteries from the holder. The system will drain the batteries if

they are left in the battery holder.

note:

W415-1705 / 06.07.17

electrical information

6.6 wiring diagram

PILOT

W725-0062 (NG)

W725-0063 (LP)

GAS VALVE

W750-0267

WIRE HARNESS

W175-0633

(CONNECTOR)

885 PROFLAME

MAIN ON/OFF

SWITCH

W350-0702

(BATTERY HOUSING)

BATTERY

PACK

W010-2763 (NG)

W010-2808 (LP)

(PILOT ASSEMBLY)

W750-0274

(POWER CORD)

APPLIANCE

GROUND STAR

MAIN

LINE

W190-0113

CONTROL MODULE

• Do not wire 110 volts to the valve or wall switch.

WARNING

This appliance comes equipped with a battery back-up. If this back-up is used, install 4 ‘AA’ batteries (not

supplied) into the holder and connect to the wire harness. Connect the battery holder to the wire harness before

using the appliance. Place near the IPI board. If the back-up is used, it must be connected to this 6 volt battery

pack (supplied). Do not connect to a 9 volt battery pack.

note:

W415-1705 / 06.07.17

electrical information

Use one screw to secure the short side of the nailing bracket to the appliance. Repeat for steps 2, 3, and 4.

Adjust bracket to suit your desired ﬁnishing material.

note:

TYPE 1 X4

7.0 gas installation

8.0 nailing tab installation

WARNING

• Risk of ﬁ re, explosion, or asphyxiation. Ensure there are no ignition sources such as sparks or open ﬂ ames.

• Support gas control when attaching gas supply pipe to prevent damaging gas line.

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door opened

or removed. Purging of the gas supply line should be performed by a qualiﬁ ed service technician. Ensure

that a continuous gas ﬂ ow is at the burner before closing the door. Ensure adequate ventilation. For gas and

electrical locations, see “appliance dimensions” section.

• All gas connections must be contained within the appliance when complete.

• High pressure will damage valve. Disconnect gas supply piping before testing gas line at test pressures above

1/2 PSIG.

• Valve settings have been factory set, do not change.

Installation and servicing to be done by a qualiﬁ ed installer.

• Move the appliance into position and secure.

• If equipped with a ﬂ ex connector, the appliance is designed to accept a 1/2” (13mm) gas supply. Without the

connector, it is designed to accept a 3/8” (9.5mm) gas supply. The appliance is equipped with a manual shut

off valve to turn off the gas supply to the appliance.

• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the current

CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI Z223.1 / NFPA

54 in the United States.

• When ﬂ exing any gas line, support the gas valve so that the lines are not bent or kinked.

• The gas line ﬂ ex-connector should be installed to provide sufﬁ cient movement for shifting the burner assembly

on its side to aid with servicing components.

• Check for gas leaks by brushing on a soap and water solution. Do not use open ﬂ ame.

After installing the electrical wiring and gas lines, ensure to test the appliance before ﬁnishing the framing and

ﬁnishing the appliance.

See “venting”, “electrical information” and “gas installation” sections prior to ﬁnish framing.

note:

W415-1705 / 06.07.17

operation

9.0 operation

WARNING

• Do not turn on if children or other at risk individuals are near the appliance.

• This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

• Before operating smell all around the appliance area for gas and next to the ﬂ oor because some gas is

heavier than air and will settle on the ﬂ oor.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and replace any part of the control system and any gas control which has been

underwater.

FOR YOUR SAFETY READ BEFORE LIGHTING

WHAT TO DO IF YOU SMELL GAS

LIGHTING INSTRUCTIONS

TO TURN OFF GAS

A. Stop! Read the above safety information on this label.

B. Remove batteries from the transmitter and set thermostat to lowest setting, if

equipped.

C. Turn off all electrical power to the appliance.

D. Open the glass door, if equipped.

E. Turn the manual shut-off valve clockwise to the “OFF” position. (Shut-off valve is

located on the ﬂ ex connector).

F. Wait ﬁ ve (5) minutes to clear out any gas. If you smell gas including near the

ﬂ oor, STOP! Follow the instructions above in the “WHAT TO DO IF YOU

SMELL GAS” section. If you don’t smell gas; close the glass door and go to

the next step.

G. Turn the manual shut-off valve counter clockwise to the “ON” position.

H. Turn on all electrical power to the appliance and re-install the batteries into the

transmitter. Set thermostat to desired setting, if equipped.

I. Turn on the remote wall switch to the appliance.

J. If the appliance will not operate, follow instructions “TO TURN OFF GAS” and

call your service technician or gas supplier.

A. Set thermostat to lowest setting, if equipped.

B. Turn off the remote wall switch to the appliance.

C. Turn off all electric power to the appliance if service is to be performed.

Turn manual shutoff valve clockwise to the “OFF” positon. Do not force.

• Turn off all gas to the appliance.

• Open windows.

• Do not try to light any appliance.

• Do not touch any electric switch; do not use

any phone in your building

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

• If you do not follow these instructions exactly, a ﬁ re or explosion may result causing property damage, personal

injury, or loss of life.

• If applicable always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door

opened or removed.

add gas knob

add gas valve

Ensure that a continuous gas ﬂ ow is at the burner before installing the door. When lit for the ﬁ rst time, the

appliance will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of

paints and lubricants used in the manufacturing process and will not occur again. After extended periods of

non-operation, such as, following a vacation or warm weather season, the appliance may emit a slight odor for a

few hours. This is caused by dust particules in the heat exchanger burning off. In both cases, open a window to

sufﬁ ciently ventilate the room.

This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

note:

MANUAL SHUT-OFF

(SHOWN IN OFF POSITION)

W415-1705 / 06.07.17

ﬁnish framing

COMBUSTIBLE

HEADER

MINIMUM FROM BASE

OF APPLIANCE

14”

[35.6cm]

MIN

DRYWALL

CEILING

• Do not build into this area - it must be left clear to provide adequate clearance for the vent in this 14”

(35.6cm) wide area centered along the front of the appliance. The appliance should be in its ﬁnal location

before framing.

WARNING

BL36-1 BL46

36 1/2” (92.7cm) 47 1/2” (120.7cm)

39 3/8” (100cm) 39 3/8” (100cm)

16 3/8” (41.6cm) 18 9/16” (47.1cm)

56” (142.2cm) 56” (142.2cm)

10.0 ﬁnish framing

10.1 ﬂush

W415-1705 / 06.07.17

ﬁnish framing

10.2 recessed

BL36-1 BL46

41 1/2” (105.4cm) 41 1/2” (105.4cm)

16 3/8” (41.6cm) 18 9/16” (47.1cm)

36 1/2” (92.7cm) 47 1/2” (120.7cm)

56” (142.2cm) 56” (142.2cm)

4” (10.2cm) 4” (10.2cm)

DRYWALL

CEILING

• Do not build into this area - it must be left clear to provide adequate clearance for the vent in this 14”

(35.6cm) wide area centered along the front of the appliance. The appliance should be in its ﬁnal location

before framing.

WARNING

W415-1705 / 06.07.17

ﬁnish framing

10.3 minimum clearance to combustible enclosures

* See “venting” section.

Vent Sections

When passing through a wall, use ﬁrestop spacer W010-3440 (supplied).

When passing through a ceiling, use ﬁrestop spacer W500-0096 (not supplied).

note:

TOP OF

APPLIANCE

OPENING

0” (0mm) IF

NON-COMBUSTIBLE

FINISHING IS USED SUCH

AS BRICK AND STONE.

COMBUSTIBLE

MATERIAL

NON-COMBUSTIBLE

MATERIAL

COMBUSTIBLE

NON-COMBUSTIBLE

56”

(142.2CM)

CEILING

(MIN.)

27 1/2”

(69.9cm)

1”

(25.4mm)

46”

(116.8cm)

6 1/2”

(16.5cm)

3”

(76.2mm)

1”

(25.4mm)

14”

(35.6cm)

VENT SHIELD

TOP OF

COMBUSTIBLE

OPENING

The vent shield is telescopic and

must be adjusted to shield the

full depth of the combustible wall

penetration.

note:

** Clearances within the enclosure may be higher, see

“minimum framing dimensions” section.

(NOT REQUIRED FOR BL36-1)

W415-1705 / 06.07.17

ﬁnishing

• Risk of ﬁre!

• Never obstruct the front opening of the appliance.

• The front of the appliance must be ﬁnished with any non-combustible materials such as brick, marble, granite,

etc., provided that these materials do not go below the speciﬁed dimension, as illustrated.

• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, or scratched.

• Facing and/or ﬁnishing material must never overhang into the appliance opening.

• The glass door assembly is designed to pivot forward when relieving excess pressure that might occur. Finishing

or other materials must not be located in the opening surrounding the door as this will interfere with the doors

ability to relieve pressure.

WARNING

11.0 ﬁnishing

This appliance has the option to change from an electronic intermittent pilot ignition (IPI) to a standing pilot for cold

climates. The anti condensation control (standing pilot) is located to the left of the control panel. Using your ﬁnger,

ﬂip the switch up for standing pilot or down for intermittent pilot ignition.

Turning the ACS switch on will allow the pilot ﬂame to burn continuously. This mode will minimize the

condensation which forms on the inside of the glass when the main burner is ﬁrst turned on. It will also help the

appliance and vent system stabillize more quickly during the colder months.

During the warmer winter and summer months, the ACS switch can be turned off to minimize fuel consumption.

Slide the back edge of the control cover down between the glass and the door frame. Insert downwards.

11.1 anti condensation switch

11.2 control cover installation

W415-1705 / 06.07.17

ﬁnishing

11.3 installing non-combustible board

COMBUSTIBLE

NON-COMBUSTIBLE

14”

(35.6cm)

32 13/16”

(83.3cm)

2 3/4”

(70mm)

2 3/4”

(70mm)

BL36-1

37 1/16”

(94.1cm)

BL46

48”

(121.9cm)

• Non-combustible facing material must not project more than 4” (102mm) from the face of the door (all three

sides). If greater projections are desired, increase the clearance to the sides and top by 2” (51mm) for every

additional 1” (25mm) of projection. If using an optional surround, the same rule applies, starting from the top

of the surround. Ensure clearances are maintained for surround removal, as it must lift off the appliance for

maintenance.

WARNING

DOOR WITH

SAFETY

BARRIER

4” (101.6mm)

6” (152.4mm)

2” (50.8mm)

0” (0mm)

5” (127mm)

3”(76.2mm)

FIREPLACE

OPENING

W415-1705 / 06.07.17

ﬁnishing

Combustible mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the

clearance needed.

11.4 minimum combustible mantel clearances

WARNING

• Risk of ﬁ re. Maintain all speciﬁ ed air space clearances to combustibles. Failure to comply with these instructions

may cause a ﬁ re or cause the appliance to overheat. Ensure all clearances (i.e. back, side, top, vent, mantel,

front, etc.) are clearly maintained.

• When using paint or lacquer to ﬁ nish the mantel, the paint or lacquer must be heat resistant to prevent

discolouration

FIREPLACE

OPENING

50.8mm

101.6mm

152.4mm

203.2mm MANTEL

27 1/2"

69.9cm

39 1/2”

100.3cm

12”

30.5cm

8”

(203.2mm)

6”

(152.4mm)

4”

(101.6mm)

12" (30.5cm)

2 4 6 8 10 12

MANTEL DEPTH (INCHES)

14" (35.6cm)

16" (40.6cm)

20" (50.8cm)

22" (55.8cm)

18" (45.7cm)

• Installing a television or other electronics above the appliance may cause discolouration, melting, or damage

to the electronics. Use clearances as guidelines and refer to your TV manufacturer’s instructions for further

information.

Installing a mantel between this appliance and electronics or other materials that may be sensitive to heat,

will reduce the effect of direct heat on them. Follow mantel height and depth instructions for proper clearance

information. Refer to the “minimum mantel clearances” section for detailed mantel clearance information.

WARNING

W415-1705 / 06.07.17

ﬁnishing

11.5 safety screen & glass door installation / removal

WARNING

• Glass may be hot. Do not touch glass until cooled.

• If equipped with door latches that are part of a safety system, they must be properly engaged. Do not

operate the appliance with latches disengaged.

• Facing and/or ﬁ nishing materials must not interfere with air ﬂ ow through air openings, louvre openings,

operation of louvres, or doors/access for service. Observe all clearances when applying combustible

materials.

• Before door is removed, turn the appliance off and wait until appliance is cool to touch. Doors are heavy and

fragile so handle with care.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the

appliance and must be installed.

Before the glass door can be removed, the safety screen must be removed. Lift the safety screen off the four

shoulder screws and remove from the appliance.

Leave a hand on the glass door during entire door removal. The glass door is secured to the ﬁrebox with four

(BL36-1) or six (BL46) spring latches. Pull the handles of the latches forward, then lift/lower the latches out from

the door frame to release the door. Next, lift the door up until the bottom edge clears the bottom shoulder screws

of the appliance. Carefully grip the top and bottom of the door lifting it off the appliance.

Reverse these steps to re-install the door

and safety screen. Ensure safety screen

is installed correctly.

BL46 illustrated.

These spring latches make up the spring

relief system for the appliance. Ensure

the door opens freely and closes sealed.

note:

When mounting the door, ensure there

is equal space on both the left and the

right side. This allows for easy installation

of the front.

note:

W415-1705 / 06.07.17

ﬁnishing

11.6 glass media installation

WARNING

• Clean the glass media prior to installation. Before applying the cleaned glass, ensure that it is dry.

• Do not change or substitute the glass media material provided with this appliance. If replacing, use only the

replacement glass media available from your local authorized dealer / distributor.

• Glass media over the burner must not be more than one layer high. More than one layer over the burner will

cause ﬂ ame lifting and sooting problems.

• Do not place any media (glass or vermiculite) in or around the pilot opening and/or on the burner ports. This

will interfere with the pilot operation.

Evenly spread the glass media onto the media tray, covering the burner tube and tray. Ensure no glass

media falls into the pilot opening. If this happens, insert a clean bag into your vacuum cleaner and vacuum

out the glass media. Replacement glass can be purchased from your local dealer / distributor.

Cleaning Glass Media

Glass media may have a ﬁ ne oil residue that needs to be cleaned prior to installation. Clean the glass with

mild dish soap, drain, rinse thoroughly and dry before placing over the burner.

Do not use more media than what was supplied with the appliance.

note:

Pilot area

Care must be taken to ensure glass media is kept clear of the pilot area on the media tray and are not

interfering with the pilot operation.

note:

(sand

W415-1705 / 06.07.17

ﬁnishing

11.7 optional blower installation

• Ensure the appliance is completely cool before starting installation.

• To avoid danger of suffocation, keep the packaging bag away from babies and children. Do not use in cribs,

beds, carriages or play pens. This bag is not a toy. Knot before throwing away.

WARNING

BLOWER

MOUNTING TAB

LOCATION

SCREW

LOCATION

H. Place the control module back into its original position. Ensure the transformer is plugged into the rear

outlet of the electrical box, refer to Figure 2.

The variable speed switch (VSS) will need to be disassembled to secure to the VSS bracket for installation.

Place the VSS through the mounting bracket using the lock washer to secure it in place. Take the

variable speed switch knob and install into position. (Refer to Figure 6.)

J. To install the variable speed switch, the mounting bracket will ﬁrst need to be installed. Remove the two

screws securing the piezo ignitor switch bracket in place, install the VSS mounting bracket into position

then reinstal the two previously removed screws, refer to Figure 6.

BLOWER

REAR VIEW

BLOWER

MOUNTING

TAB

A. Remove the safety screen by lifting it up and off of the appliance.

B. Remove the door from the appliance by releasing the door latches.

C. It may be necessary to move the control module aside during blower installation.

D. Attach the two 1/4” connectors (black and white) from the wire harness to the thermodisc.

E. Attach the two 1/4” connectors (black and red) from the wire harness to the blower.

F. Install the clear bumpers supplied onto the bottom of the blower to avoid the blower rubbing against the

ﬂoor of the appliance.

G. Pivot the blower into the bottom of the appliance, ensuring the gasket remains in place between the

blower and outer shell while sliding the blower against the back side of outer shell into the blower

mounting tab. Secure in place using one screw, see Figures 4 & 5.

NOTE: WITH THE ZIP TIE SUPPLIED, ENSURE ALL WIRES REMAIN CLEAR OF THE BLOWER.

K. Plug the connector from the variable speed switch to the matching connection on the wire harness.

L. For installation of the thermal disc bracket ﬁrst bend the tab on the bottom of the ﬁrebox 90 degrees, this

will be the mounting tab for the thermal disc bracket, see Figure 7.

M. Bend the thermal disc bracket 90 degrees and secure it to the ﬁrebox mounting tab using the two screws

supplied, refer to Figure 7. Ensure that the thermal disc is in contact with the ﬁrebox base and that the

wire harness is properly attached.

N. Plug the power cord from the blower into the electrical box, refer to Figure 2.

NOTE: The blower is thermally activated, so when it is turned on, it will automatically start approximately

15 minutes after lighting the appliance and will run for approximately 30 minutes after the appliance has

been turned off.

FIGURE 6

VSS

BRACKET

PIEZO IGNITOR

BRACKET

FIGURE 7

THERMAL DISC

BRACKET

THERMAL DISC

MOUNTING TAB

FIREBOX BASE

FIGURE 5FIGURE 4

W415-1705 / 06.07.17

ﬁnishing

This appliance has an air shutter that has been factory set open according to the

chart below:

Regardless of venturi orientation, closing the air shutter will cause a more yellow

ﬂame, but can lead to carbonization. Opening the air shutter will cause a more

blue ﬂame, but can cause ﬂame lifting from the burner ports. The ﬂame may not

appear yellow immediately; allow 15 to 30 minutes for the ﬁnal ﬂame colour to be

established.

AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED

INSTALLER!

11.8 restricting vertical vents

11.9 venturi adjustment

Vertical installations may display a very active ﬂ ame. If this appearance is not desirable, the vent exit must

be restricted using a restrictor vent kit. Refer to the “replacements” section of the owner’s manual for the

appropriate kit. This will reduce the velocity of the exhaust gases, slowing down the ﬂ ame pattern and creating a

more traditional gentle ﬂ ame appearance. Speciﬁ c instructions are included with the kit.

Air

Shutter

Opening

Venturi

Burner

VENTURI ADJUSTMENT CHART

NG 1/16" (1.5mm)

P 1/8" (3.2mm)

It is important that the oriﬁce is securely inserted into the venturi.

note:

VENTURI ADJUSTMENT CHART

NG 1/8" (3.2mm)

P 1/4" (6.4mm)

BL36-1

BL46

AIR SHUTTER

ACCESS PLATE

An air shutter access plate has been provided for initial ﬂame appearance setup. It becomes more difﬁcult to

adjust once the appliance has been ﬁnished.

note:

W415-1705 / 06.07.17

ﬁnishing

Flame must envelope

upper

3/8" to 1/2"

(12.7mm - 9.5mm) of

Flame sensor

3/8” - 1/2”

(9.5mm - 12.7mm)

It’s important to periodically perform a visual check of

the pilot and burner ﬂames. Compare them to the

illustration provided. If any ﬂames appear abnormal,

call a service person.

Adjust the pilot screw to provide properly sized ﬂ ame. Turn in a clockwise direction to reduce the gas ﬂ ow.

Check Pressure Readings:

Inlet pressure can be checked by turning screw (A) counter-

clockwise 2 or 3 turns and then placing pressure gauge tubing

over the test point. Gauge should read as described on the chart

below. Check pressure with main burner operating on “HI”.

Outlet pressure can be checked the same as above using screw

(B). Gauge should read as described on the chart below. Check

pressure with main burner operating on “HI”.

After taking pressure readings, be sure to turn screws

clockwise ﬁ rmly to reseal. Do not overtorque.

Leak test with a soap and water solution.

Prior to pilot adjustment, ensure that the pilot assembly has not been painted. If overspray or painting of

the pilot assembly has occurred remove the paint from the pilot assembly, or replace. Fine emery cloth or a

synthetic scrub pad (such as Scotch-Brite

™)

can be used to remove the paint from the pilot hood, electrode

and ﬂ ame sensor.

INSERT PILOT ASSEMBLY

*Maximum inlet pressure not to exceed 13”

Pressure Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

Inlet

*13”

(minimum 11”)

17.4mb

(minimum 11.2mb)

13”

(minimum 11”)

32.4mb

(minimum 27.4mb)

Outlet

3.5” 8.7mb 10” 24.9mb

PILOT SCREW

11.10 pilot burner adjustment

11.11 ﬂame characteristics

BL36-1 BL46

PILOT SCREW

W415-1705 / 06.07.17

ﬁnishing

12.0 maintenance

WARNING

• Turn off the gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners on glass.

• Do not paint the pilot assembly.

This appliance and its venting system should be inspected before use and at least annually by a qualiﬁ ed

service person. The following suggested checks should be performed by a qualiﬁ ed technician. The appliance

area must be kept clear and free of combustible materials, gasoline, or other ﬂ ammable vapors and liquids.

The ﬂ ow of combustion and ventilation air must not be obstructed.

A. In order to properly clean the burner and pilot assembly, remove the logs, rocks, and/or glass to expose

both assemblies.

B. Keep the control compartment, media, burner, air shutter, opening, and the area surrounding the logs

clean by vacuuming or brushing at least once a year.

C. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning or are

not burning properly.

D. Check to see that the pilot ﬂ ame reaches the sensor and large enough to engulf the ﬂ ame sensor and/or

thermocouple or thermopile.

E. Replace the cleaned logs, rocks, or glass. Failure to properly position the media may cause carbon which

can be distributed inside of the ﬁ rebox and on exterior surfaces surrounding vent termination.

F. Check to see that the main burner ignites completely on all openings when turned on. A 5 to 10 second

total light-up period is satisfactory. Service as required.

G. Check the gaskets on the sides, top, and bottom of the door is not broken or missing. Replace if

necessary.

H. If for any reason the vent air intake system is disassembled, re-install, and re-seal per the instructions

provided for the initial installation.

I. Cleaning the safety barrier may be necessary due to excessive lint / dust from carpeting, pets, etc. Simply

vacuum using the brush attachment.

J. Ensure the relief system performs effectively. Check that the gasket is not worn or damaged. Replace if

necessary.

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and

dangerous operation. Verify proper operation after servicing.

note:

12.1 care of glass

WARNING

Buff lightly with a clean dry soft cloth to remove accumulated dust or ﬁ ngerprints. Clean both sides of the glass

after the ﬁ rst 10 hours of operation with a recommended ﬁ replace glass cleaner.

Thereafter clean as required. If the glass is not kept clean permanent discoloration and / or blemishes may

result. Contact you local authorized dealer / distributor for complete cleaning instructions.

Do not contact the inside surface of the glass with razor blades, steel wool or other metallic objects as a thin

layer of metal removed from the object may be deposited onto the coating which results in a discoloured stain

or scratch like mark. More importantly, this can scratch the glass surface thereby reducing its strength.

Do not operate the appliance with broken glass, as leakage of ﬂ ue gases may result.

If the glass should ever crack or break while the ﬁ re is burning, do not open the door until the ﬁ re is out. Do not

operate the appliance until the glass has been replaced. Contact you local authorized dealer / distributor for

replacement parts. DO NOT SUBSTITUTE MATERIALS.

Vinegar-based or ammonia-free glass cleaners have generally demonstrated an ability to provide a clean,

streak free glass surface.

note:

• Do not clean glass when hot! Do not use abrasive cleaners to clean glass.

This appliance is factory equipped with 4mm tempered glass. Use only replacement parts as supplied by

the appliance manufacturer. DO NOT SUBSTITUTE MATERIALS.

W415-1705 / 06.07.17

maintenance

WARNING

• This appliance will require maintenance which should be planned on an annual basis.

• Service should include cleaning, battery replacement, venting inspection and inspection of the burner,

media, and ﬁ rebox. Refer to the door removal section and remove the door as instructed.

• Carefully remove media if necessary (logs, glass, brick panels, etc.).

• Using a vacuum with soft brush attachment, gently remove any dirt, debris, or carbon build up from the

logs, ﬁ rebox, and burner. For glass media, follow the installation instructions for pre-cleaning.

• Gently remove any build-up on the pilot assembly including thermopile, thermocouple, ﬂ ame sensor, and

igniter (if equipped).

• Inspect all accessible gaskets and replace as required.

• If equipped with a blower, access the blower and clean using a soft brush and vacuum.

• Re-assemble the various components in reverse order.

• Inspect the relief system. The appliance relieves through the main glass door or through the ﬂ aps on the

ﬁ rebox top. Ensure they open freely, and close sealed.

• Check the gas control valve pilot and Hi / Lo knobs move freely, if equipped. Replace if any stiffness in

movement is experienced.

• Check for gas leaks on all gas connections up and downstream from the gas valve including pilot tube

connections.

Clean ﬂ ame sensor using a ﬁ ne emery cloth or a synthetic scrub pad (such as Scotch-Brite™) to remove any

oxides. Clean the pilot assembly using a vacuum with a soft brush attachment. It is important that the pilot

assembly is not painted.

note:

• Annual maintenance should be performed by a qualiﬁ ed service technician

• The ﬁ rebox becomes very hot during operation. Let the appliance cool completely or wear heat resistant

gloves before conducting service.

• Never vacuum hot embers.

• Do not paint the pilot assembly

WARNING

• Do not use substitute materials.

• Glass may be hot. Do not touch glass until cooled.

• Care must be taken when removing and disposing of any broken door glass or damaged components. Be

sure to vacuum up any broken glass from inside appliance before operation.

• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, broken, or scratched.

Replacement glass/frame assembly shall be replaced as a complete unit as supplied by the appliance

manufacturer.

12.2 annual maintenance

12.3 glass / door replacement

W415-1705 / 06.07.17

replacements

13.0 replacements

WARNING

• Failure to position the parts in accordance with this manual or failure to use only parts speciﬁ cally approved

with this appliance may result in property damage or personal injury.

Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can

be ordered through your Authorized dealer / distributor.

For warranty replacement parts, a photocopy of the original invoice will be required to honour the

claim.

When ordering replacement parts always give the following information:

• Model & Serial Number of appliance

• Installation date of appliance

• Part number

• Description of part

• Finish

Parts, part numbers, and availability are subject to change without notice.

Parts identiﬁ ed as stocked will be delivered within 2 to 5 business days for most delivery

destinations.

Parts not identiﬁ ed as stocked will be delivered within a 2 to 4 week period, for most cases.

Parts identiﬁ ed as ‘SO’ are special order and can take up to 90 days for delivery

W415-1705 / 06.07.17

replacements

Ref. No.

Part Number

Description

Ref. No.

Part Number

Description

Items may not appear exactly as illustrated.

Stocked

W200-0675

Control cover

Yes

W570-0192

Shoulder screw

For replacement parts, refer to

“valve train assembly”

W010-4157

Door assembly

W562-0009

Door gasket kit

Yes

W300-0231

Topaz glass media

Yes

W010-3554

Door latch

W385-2010

Napoleon logo

Yes

W565-0282

Safety screen

W010-4159

Safety barrier assembly

Yes

RP4

4” Restrictor plate

Yes

Safety screen

13.1 BL36-1 overview

W415-1705 / 06.07.17

replacements

Items may not appear exactly as illustrated.

Ref. No.

Part Number

Description

Stocked

Ref. No.

Part Number

Description

Stocked

2012

2013

2014

2015

2016

2017

2018

2020

2021

2022

4427

4424

2023

4426

2019

Yes

W725-0062

886 Proflame valve (NG)

W725-0063

886 Proflame valve (P)

W175-0217

Flex connector w/ valve

Yes

W245-0025

Thermosensor

W456-0048

Burner orifice #48 (NG)

Yes

W456-0056

Burner orifice #56 (P)

Yes

W335-0039

Pilot hood

W455-0070

Pilot orifice #62 (NG)

W455-0068

Pilot orifice #35 (P)

W720-0062

Pilot tube (w/ fittings)

W240-0013

Electrode (w/ wire)

Yes

W100-0227

Burner assembly

W290-0364

Valve train gasket

W290-0157

Manifold gasket

W432-0103

Manifold flex pipe

W010-2763

Pilot assembly (NG)

W010-2808

Pilot assembly (P)

W750-0270

Wire switch

W190-0113

Control module

W750-0267

Control wire harness

W350-0702

Battery back-up

Yes

W750-0294

W175-0633

Power cord

Connector w/ flags

4428

4429

13.2 BL36-1 valve train assembly

W415-1705 / 06.07.17

replacements

Ref. No.

Part Number

Description

Ref. No.

Part Number

Description

Items may not appear exactly as illustrated.

Stocked

W200-0663

Control cover

Yes

W570-0192

Shoulder screw

For replacement parts, refer to

“valve train assembly”

W010-4100

Door assembly

W562-0060

Door gasket kit

Yes

W300-0135

Topaz glass media

Yes

W385-2010

Napoleon logo

Yes

Safety screen

W565-0274

Safety screen

W010-4117

Safety barrier assembly

Yes

RP4

4” Restrictor plate

Yes

W010-3554

Door latch

13.3 BL46 overview

W415-1705 / 06.07.17

replacements

Items may not appear exactly as illustrated.

Ref. No.

Part Number

Description

Stocked

Ref. No.

Part Number

Description

Stocked

2012

2013

2014

2015

2016

2017

2018

2020

2021

2022

4427

4424

2023

4426

2019

Yes

W725-0062

886 Proflame valve (NG)

W725-0063

886 Proflame valve(P)

W175-0217

Flex connector w/ valve

Yes

W245-0025

Thermosensor

W456-0043

Burner orifice #43 (NG)

Yes

W456-0053

Burner Orifice #53 (P)

Yes

W335-0039

Pilot hood

W455-0070

Pilot orifice #62 (NG)

W455-0068

Pilot orifice #35 (P)

W720-0062

Pilot tube (w/ fittings)

W240-0013

Electrode (w/ wire)

Yes

W290-0355

Valve train gasket

W290-0157

Manifold gasket

W432-0103

Manifold flex pipe

W010-2763

Pilot assembly (NG)

W010-2808

Pilot assembly (P)

W750-0270

Wire switch

W190-0113

Control module

W750-0267

Wire harness (control)

W350-0702

Battery back-up

Yes

W750-0294

W175-0633

W100-0223

Burner assembly

4428

4429

Power cord wire (18”)

Connector w/ flags

13.4 BL46 valve train assembly

W415-1705 / 06.07.17

accessories

14.0 BL36-1 accessories

Items may not appear exactly as illustrated.

Ref.

Part Number

Description

Stocked

Ref.

Part Number

Description

Stocked

AUB

W080-1797

Right bracket (CSL36SS/K)

W080-1798

Left bracket (CSL36SS/K)

CSL36K/PSL36SS

BFKXS

KB-35

Variable speed switch

Yes

W690-0002

Thermodisc

Yes

ACS-SIT

Anti-condensation switch (ACS)

Yes

Blower (AUB)

W062-0051

BFKXS

MRKXS

Mineral Rock Kit

MRKXS

Beach Fire Kit

W715-1133

W715-1140

Top/bottom trim (PSL36SS)

W715-1141

Top/bottom trim (CSL36K)

W715-1135

W475-1060

Rear porcelain panel

Side trim (PSL36SS)

Side trim (CSL36K)

W475-1059

Side porcelain panel

SFKS

Shore Fire Kit

SFKS

W415-1705 / 06.07.17

accessories

15.0 BL46 accessories

Items may not appear exactly as illustrated.

05.05.17

AUB

BFKS

MRKS

CSL46K/PSL46SS

Ref.

Part Number

Description

Stocked

Ref.

Part Number

Description

Stocked

W080-1797

Right bracket

W080-1798

Left bracket

SFKM

Shore Fire Kit

KB-35

Variable speed switch

Yes

W690-0002

Thermodisc

Yes

ACS-SIT

Anti-condensation switch (ACS)

Yes

Blower (AUB)

W062-0051

Beach Fire Kit

MRKS

Mineral Rock Kit

W715-1133

W715-1132

Top/bottom trim (PSL46SS)

W715-1134

Top/bottom trim (CSL46K)

W715-1135

W475-1374

Rear porcelain panel

Side trim (PSL46SS)

Side trim (CSL46K)

W475-1375

Side porcelain panel

SFKM

BFKM

W415-1705 / 06.07.17

troubleshooting

16.0 troubleshooting

WARNING

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out, with the glass door open or

removed.

• Turn off gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners

symptom problem test solution

Main burner ﬂ ame is a

blue, lazy, transparent

ﬂ ame.

(This is not applicable

in outdoor appliances)

Blockage in vent. - Remove blockage. In really cold conditions, ice buildup may occur

on the terminal and should be removed as required. (To minimize this

from reoccuring, the vent lengths that pass through unheated spaces

(attics, garages, crawl spaces) be wrapped with an insulated mylar

sleeve).

Incorrect installation. - Refer to “VENTING” section to ensure correct installation.

Flames are consistently

too large or too small.

Carboning occurs.

Appliance is over-ﬁ red or under-

ﬁ red.

- Check pressure readings:

Inlet pressure can be checked by turning screw (A) counter-clock-

wise 2 or 3 turns and then placing pressure gauge tubing over the

test point. Gauge should read as described on the chart below.

Check that main burner is operating on ‘HI’. Outlet pressure can be

checked the same as above using screw (B). Gauge should read as

described on the chart below. Check that main burner is operating

on ‘HI’. After taking pressure readings, be sure to turn screws

clockwise ﬁ rmly to reseal. DO NOT OVER TORQUE

Leak test with a soap and water solution.

Air shutter improperly adjusted.

- Return air shutter to speciﬁ ed opening, see “venturi

adjustments” section in the installation manual.

Carbon is being

deposited on glass,

logs, rocks, media, or

combustion chamber

surfaces.

Air shutter is blocked. - Ensure air shutter opening is free of lint or other obstructions.

Flame is impinging on the glass,

logs, rocks, media or combus-

tion chamber.

- Ensure the media is positioned correctly in the appliance.

- Open air shutter to increase the primary air.

- Check the input rate: check the manifold pressure and oriﬁ ce size as

speciﬁ ed by the rating plate.

- Ensure door gaskets are not broken or missing and the seal is tight.

- Ensure vent liners are free of holes and well sealed at all joints.

- Check that minimum rise per foot (meters) has been adhered to for

any horizontal venting.

White / grey ﬁ lm forms. Sulphur from fuel is being depos-

ited on glass, logs, or combus-

tion chamber surfaces.

- Clean the glass with a recommended gas ﬁ replace glass cleaner. DO

NOT CLEAN GLASS WHEN HOT.

- If deposits are not cleaned off regularly, the glass may become

permanently marked.

Exhaust fumes smelled

in room, headaches.

Appliance is spilling.

(This is not applicable in outdoor

appliances).

- Check door seal.

- Check for exhaust damage.

- Check that venting is installed correctly.

- Room is in negative pressure; increase fresh air supply.

INSERT


OF VALVE

HERE

*Maximum inlet pressure not to exceed 13”

Pressure Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

Inlet

*13”

(minimum 4.5”)

17.4mb

(minimum 11.2mb)

13”

(minimum 11”)

32.4mb

(minimum 27.4mb)

Outlet

3.5” 8.7mb 10” 24.9mb

SENSOR

IGNITOR

(SPARK)

PILOT

TUBE

W415-1705 / 06.07.17

troubleshooting

symptom problem test solution

Pilot will not light. Makes

noise with no spark at

pilot burner.

Wiring: short, loose, or damaged

connections

(poor ﬂ ame rectiﬁ cation).

- Verify the thermocouple/sensor is clean and the wiring is undamaged.

- Verify the interrupter block is not damaged or too tight. Verify

connections from pilot assembly are tight; also verify the connections

are not grounding out to any metal. (Remember, the ﬂ ame carries the

rectiﬁ cation current, not the gas. If ﬂ ame lifts from pilot hood, the circuit

is broken. A wrong oriﬁ ce or too high of an inlet pressure can cause the

pilot ﬂ ame to lift)*. The sensor rod may need cleaning.

No signal from remote with no

pilot ignition.

- Reprogram receiver code.

- Replace receiver.

Poor grounding. - Verify the valve and pilot assembly is properly grounded

Improper switch wiring.

- Troubleshoot the system with the simplest on/off switch.

Dirty, painted, or damaged pilot

and/or dirty sensor rod.

- Clean sensor rod with a green Scotch-Brite™ pad to remove any

contamination that may have accumulated. Verify continuity with

multimeter with ohms set at the lowest range.

Pilot sparks but will

not light.

Gas supply. - Verify that the incoming gas line ball valve is “open”.

- Verify that the inlet pressure reading is within acceptable

limits, inlet pressures must not exceed 14” W.C. (34.9mb).

Out of propane gas. - Fill the tank.

Pilot supply line may contain

air.

- Repeat ignition process several times or purge the pilot

supply line.

Incorrect wiring / grounding. - Ensure correct polarity of wiring of thermocouple (if

equipped).

- Verify pilot assembly/valve are properly grounded.

Receiver (if equipped). - Reset program: hold reset button on receiver and wait for 2

beeps. Release after second beep. Press small ﬂ ame button

on remote within 20 seconds, you will hear an additional

beep (this signals a successful reset).

- Replace receiver.

Valve. - Check valve and replace if necessary (Do not to overtighten

thermocouple).

Burner continues to

spark and pilot lights

but main burner

does not light.

Short or loose connection in

sensor rod.

- Verify all connections. Verify the connections from the pilot

assembly are tight. Also, verify these connections are not

grounding out to any metal.

Dirty, painted, or damaged

pilot assembly components.

- Clean using a green Scotch-Brite™ pad to remove any

contamination that may have accumulated on the sensor

rod, pilot hood, ignitor, or ﬂ ame sensor. Verify continuity with

multimeter with ohms set at the lowest range.

Remote wall switch

is in “off” position;

burner comes on.

Wall switch mounted upside

down.

- Reverse.

Remote wall switch and/or

wire is grounding.

- Replace.

- Check for ground (short); repair ground or replace wire.

Faulty wire - Replace.

Remote and / or re-

ceiver is not function-

ing properly.

Remote controls lights but

no spark or ﬂ ame. (Remote is

locked out).

- Reset by turning power source off then on.

Receiver or remote has low battery.

- Replace batteries.

Error with synchronizing. - Reset receiver and remote.

Remote too far away from receiver.

- Refer to “WIRING DIAGRAM“ section.

Wire connector pins are bent. - Straighten pins.

Valve wiring is damaged. - Replace valve.

If back up batteries are installed, they must also be

removed to re-program

note:

W415-1705 / 06.07.17

troubleshooting

symptom problem test solution

Motor is turning,

frequent beeping

occurs.

Receiver batteries low. - Replace batteries.

Lights or blower

won’t function (if

equipped).

Control module switch in

wrong position.

- Verify ON/OFF switch is in the “I” position which denotes on.

COM switch is unplugged. - Verify “COM” switch is plugged into the front of the control

module.

Flames are very ag-

gressive.

Door is ajar. - Ensure door is secured properly.

Venting action is too great. - Check to ensure venting is properly sealed or restrict vent

exit with restrictor plate. (Not available in all appliances).

Appliance won’t per-

form any functions.

No power to the system.

- Check breaker to verify it’s in the “on” position.

Receiver switch in wrong

position (if equipped).

- Verify that the 3 position switch on the receiver is in the

remote position (middle).

Transmitter isn’t operational. - Check battery power and battery orientation.

symptom problem test solution

The following applies speciﬁ cally to the SIT system only:

Pilot will not light.

Makes no noise with

no spark at pilot

burner. (Lights and

blower operate, if

equipped).

Ignition box has been locked

out.

Choose one of the 4 methods below to reset the system.

1. To reset ignition box when locked out. Turn off power supply

and remove batteries (if used) from the back up battery pack.

2. To reset the DFC Board when the board goes into a lock

out condition and the LED is blinking 3 times using the

transmitter on/off button:

Step 1: Turn the system off by pressing the on/off

button to turn the system off.

Step 2: After approximately 2 seconds press the on/

off button on the transmitter again. The DFC Board will

reset and the ignition sequence will start again.

3. To reset the DFC Board when the board goes into a lock out

condition and the LED is blinking 3 times by cycling ﬂ ame:

Step 1: In the manual ﬂ ame control mode, use the down

arrow button to reduce the ﬂ ame to off, indicated by the

word OFF displayed on the transmitter LCD screen.

Step 2: Wait approximately 2 seconds and press the up

arrow button, the ignition sequence will start.

Starting from off, press the on button on the transmitter. Approximately 4 seconds on/off button is pressed, the ignition

board will start the spark. The ﬁ rst try for ignition will last approximately 60 seconds. If there is no ﬂ ame ignition (rectiﬁ cation),

the board will stop sparking for approximately 35 seconds. After the wait time, the board will start the second try for ignition

by sparking for approximately 60 seconds. If there is still no positive ignition, the board will go into lock out.

note:

W415-1705 / 06.07.17

warranty

17.0 warranty

Napoleon warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is

not necessary. Simply provide your proof of purchase along with the model and serial number to make a warranty claim.

Napoleon reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty

claim. Provided that the purchase was made through an authorized Napoleon dealer your appliance is subject to the

following conditions and limitations:

Warranty coverage begins on the date of original installation. This factory warranty is non-transferable and may not

be extended whatsoever by any of our representatives. The gas appliance must be installed by a licensed, authorized

service technician or contractor. Installation must be done in accordance with the installation instructions included with

the product and all local and national building and ﬁ re codes. This limited warranty does not cover damages caused by

misuse, lack of maintenance, accident, alterations, abuse or neglect, and parts installed from other manufacturers will

nullify this warranty. This limited warranty further does not cover any scratches, dents, corrosion or discoloring caused by

excessive heat, abrasive and chemical cleaners nor chipping on porcelain enamel parts, mechanical breakage of Phazer™

logs and embers. This warranty extends to the repair or replacement of warranted parts which are defective in material or

workmanship provided that the product has been operated in accordance with the operation instructions and under normal

conditions. After the ﬁ rst year, with respect to this President’s Lifetime Limited Warranty, Napoleon may, at its discretion,

fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale

price of any warranted but defective part(s).

Napoleon will not be responsible for installation, labour, or any other expenses related to the reinstallation of a warranted

part and such expenses are not covered by this warranty. Notwithstanding any provisions contained in the President’s

Lifetime Limited Warranty, Napoleon’s responsibility under this warranty is deﬁ ned as above and it shall not in any event

extend to any incidental, consequential or indirect damages. This warranty deﬁ nes the obligations and liability of Napoleon

with respect to the Napoleon gas appliance and any other warranties expressed or implied with respect to this product,

its components or accessories are excluded. Napoleon neither assumes, nor authorizes any third party to assume, on

its behalf, any other liabilities with respect to the sale of this product. Napoleon will not be responsible for: over-ﬁ ring,

downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains,

inadequate vents or ventilation, excessive venting conﬁ gurations, insufﬁ cient makeup air, or negative air pressures which

may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc. Any damages to

the appliance, combustion chamber, heat exchanger, plated trim or other components due to water, weather damage, long

periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of Napoleon. All parts

replaced under the President’s Limited Lifetime Warranty Policy are subject to a single claim.

During the ﬁ rst 10 years Napoleon will replace or repair the defective parts covered by the lifetime warranty at our discretion

free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price. All parts

replaced under the warranty will be covered for a period of 90 days from the date of their installation. The manufacturer

may require that defective parts or products be returned or that digital pictures be provided to support the claim. Returned

products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be defective, the

manufacturer will repair or replace such defect. Before shipping your appliance or defective components, your dealer must

obtain an authorization number. Any merchandise shipped without authorization will be refused and returned to sender.

Shipping costs are not covered under this warranty. Additional service fees may apply if you are seeking warranty service

from a dealer. Warranty labour allowance is only for the replacement of the warranted part. Travel, diagnostic tests, shipping

and other related charges are not covered by this warranty.

Napoleon products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance

Certiﬁ cate.

Napoleon products are designed with superior components and materials assembled by trained craftsmen who take great

pride in their work. The burner and valve assembly are leak and test-ﬁ red at a quality test station. The complete appliance is

again thoroughly inspected by a qualiﬁ ed technician before packaging to ensure that you, the customer, receives the quality

product that you expect from Napoleon.

The following materials and workmanship in your new Napoleon gas appliance are warranted against defects for as

long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, Phazer™ logs

and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled

components and aluminum extrusion trims.*

Electrical (110V and millivolt) components and wearable parts are covered and Napoleon will provide replacement parts free

of charge during the ﬁ rst year of the limited warranty. This covers: blowers, gas valves, thermal switches, switches, wiring,

remote controls, ignitors, gaskets and pilot assemblies.*

Labour related to warranty repair is covered free of charge during the ﬁ rst year. Repair work, however, requires the prior

approval of an authorized company ofﬁ cial. Labour costs to the account of Napoleon are based on a predetermined rate

schedule and any repair work must be done through an authorized Napoleon dealer.

* Construction of models vary. Warranty applies only to components included with your speciﬁ c appliance.

Napoleon Gas Appliance President’s Lifetime Limited Warranty

Conditions and Limitations

All speciﬁ cations and designed are subject to change without prior notice due to on-going product improvements. Napoleon is a registered

trademark of Wolf Steel Ltd.

NAPOLEON CELEBRATING OVER 40 YEARS

OF HOME COMFORT PRODUCTS

7200, Route Transcanadienne, Montréal, Québec H4T 1A3

24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8

214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8

103 Miller Drive, Crittenden, Kentucky, USA 41030

Phone: 1-866-820-8686

napoleonproducts.com

FRANÇAIS

W415-1705 / 06.07.17

ADD MANUAL TITLE

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

PRODUCT NAME™

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

$10.00

MODÈLES DE GAZ NATUREL

MODÈLES DE PROPANE

INSTALLATEUR:

Laissez ce manual avec l’appareil

PROPRIÉTAIRE:

Conservez ce manuel pour consultation

ultérieure

CONSIGNES DE SÉCURITÉ

- N’entreposez pas et n’utilisez pas d’essence

ou autres liquides et vapeurs inﬂ ammables à

proximité de cet appareil ou tout autre appareil.

- QUE FAIRE SI VOUS DÉTECTEZ UN

ODEUR DE GAZ:

• N’allumez aucun appareil.

• Ne touchez à aucun interrupteur

électrique; n’utilisez aucun téléphone dans

votre immeuble.

• Appelez immédiatement votre fournisseur

de gaz d’un téléphone voisin. Suivez ses

instructions.

• Si vous ne pouvez pas rejoindre votre

fournisseur de gaz, appelez le service des

incendies.

- L’installation et l’entretien doivent être faits par

un installateur qualiﬁ é, une agence d’entretien

ou le fournisseur.

Cet appareil peut être installé dans une maison

préfabriquée (mobile) déjà installée à demeure

si les règlements locaux le permettent.

Cet appareil doit être utilisé uniquement

avec le type de gaz indiqué sur la plaque

d’homologation. Cet appareil ne peut être

converti à d’autres gaz, sauf si une trousse de

conversion est utilisée.

RISQUE D’INCENDIE OU D’EXPLOSION

Incapacité à suivre ces avertissements

exactement peuvent entraîner de grave

blessures, des pertes de vie ou des

dommages matériels.

AVERTISSEMENT!

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Téléphone 1(866)820-8686 • www.napoleonfoyers.com • [email protected]

CERTIFIÉ SELON LES NORMES NATIONALES CANADIENNES ET AMÉRICANES:

CSA 2.22 ET ANSI Z21.50 POUR LES APPAREILS À GAZ VENTILES DÉCORATIVES

POUR USAGE INTÉRIEUR SEULEMENT

BL36PTE-1 / BL46PTE

ÉCRAN DE PROTECTION

BL36NTE-1 / BL46NTE

MANUEL D’INSTALLATION

ET D’OPÉRATION

Séries Ascent™ Linéaire

(BL46 illustré)

W415-1705 / 06.07.17

consignes de sécurité

• Cet appareil est chaud lorsqu’il fonctionne

et peut causer de grave brûlures en cas de

contact.

• Toute modiﬁ cation apportée à cet appareil

ou aux contrôles peut être dangereux et est

interdit.

• Ne faites pas fonctionner l’appareil avant

d’avoir lu et compris les instructions

d’opération. Omettre d’utiliser l’appareil selon

les instructions dopération pourrait causer un

incendie ou des blessures.

• Risque d’incendie ou d’asphyxie. Ne faites

pas fonctionner l’appareil avec la vitre retirée.

• Ne branchez pas la soupape à du courant

110 volts.

• Risque de brûlures. L’appareil doit être éteint et refroidi avant d’effectuer un entretien.

• N’installez pas de composants endommagés ou incomplets ni des composants substituts.

• Risque de coupures et d’éraﬂ ures. Portez des gants protecteurs et des lunettes de sécurité lors de

l’installation. Les bordures des pièces de métal peuvent être coupantes.

• Les enfants et les adultes devraient être informés des dangers que posent les températures de surface

élevées et se tenir à distance aﬁ n d’éviter des brûlures ou que leurs vêtements ne s’enﬂ amment.

• Les jeunes enfants doivent être surveillés attentivement lorsqu’ils sont dans la même pièce que l’appareil.

Les jeunes enfants et autres personnes à risque sont sujets aux brûlures accidentelles. Une barrière de

protection est recommandée si des individus à risque se trouvent dans la maison. Aﬁ n de renstreindre

l’accès à l’appareil, installez une barrière de protection ajustable pour garder les jeunes enfants ou autres

personnes à risque hors de la pièce et loin des surfaces chaudes.

• Les vêtements et autres matériaux combustibles ne doivent pas être posés sur l’appareil ou à proximité.

• En raison des températures élevées, l’appareil devrait être placé loin des endroits passants et loin des

meubles et des rideaux.

• Assurez-vous de disposer de mesures de sécurité adéquates pour empêcher les jeunes enfants de

toucher aux surfaces chaudes.

• Même une fois que l’appareil est éteint, la vitre et/ou le pare-étincelles demeureront chauds pendant un

temps prolongé.

• Consultez votre détaillant local de foyer pour connaître les grillages de sécurité et les écrans offerts pour

protéger les enfants des surfaces chaudes. Ces grillages de sécurité et ces écrans doivent être ﬁ xés au

plancher.

• Tout grillages de sécurité, écrans ou barrières enlevès pour faire l’entretien devront être remis en place

avant d’utiliser l’appareil.

• Cet appareil est un appareil à gaz ventilé. Ne brûlez pas de vois ou autres matériaux dans cet appareil.

• L’emplacement de l’appareil doit être gardé libre de tous matériaux combustibles, essence ou d’autres

liquides et vapeurs inﬂ ammables.

• Cet appareil ne devra être modiﬁ é en aucun cas.

• Cet appareil ne doit pas être raccordé au conduit d’une cheminée desservant un autre appareil de

chauffage à combustible solide.

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

AVERTISSEMENT

Une barriére conçu à réduire le risque de brûlures

causées par le verre chaud est fourni avec l’appareil et

sera installé pour la protection des enfants et d’autres

personnes à risque.

AVERTISSEMENT

W415-1705 / 06.07.17

consignes de sécurité

3.1

• N’utilisez pas cet appareil si une partie quelconque a été submergée. Contactez immdiatement un technicien

de service qualiﬁ é pour inspecter l’appareil et pour remplacer toute pièce du système de contrôle et du

contrôle du gaz qui aurait été submergée.

• Ne pas opérer l’appareil lorsque la porte vitrée est enlvée, ﬁ ssurée ou brisée. Le remplacement de la vitre

devra être effectué par un technicien de service certiﬁ é ou qualiﬁ é.

• Ne frappez pas et ne claquez pas la porte vitrée de l’appareil.

• Lorsqu’il est équippé avec les portes d’évacuation de pression, les portes doivent demeurer fermées

pendant le fonctionnement de l’appareil aﬁ n d’empêcher les gaz de combustion contenant du monoxyde

de carbone de s’inﬁ ltrer dans la maison. La température des gaz de combustion s’échappant par ces

ouvertures peut aussi causer les matériaux combustibles avoisinants à surfchauffer et à prendre feu.

• Seules les portes/façades certiﬁ ées pour cet appareil peuvent être utilisées avec cet appareil.

• Gardez les matériaux d’emballage hors de la portée des enfants et mettez ces matériaux au rebut de façon

sécuritaire. Comme tous les emballages de plastique, ces matériaux ne sont pas des jouets et doivent

demeurer hors la portée des enfants et des bébés.

• Comme dans le cas de tout appareil à combustion, il est recommandé de faire inspecter et entretenir votre

appareil régulièrement. De même, installez un détecteur de monoxyde de carbone dans la pièce pour vous

protéger, ainsi que votre famille, contre les intoxications.

• Assurez-vous de respecter les dégagements aux matériaux combustibles lorsque vous installez un manteau

ou des tablettes au-dessus de l’appareil. Les températures élevées sur le mur ou de l’air au-dessus

de l’appareil peuvent faire fondre, décolorer ou endommager les décorations, les téléviseurs ou autres

composants électroniques.

• Une barrière conçu à réduire le risque de brûlures causées par le verre chaud est fourni avec l’appareil et

sera installé.

• Si la barrière est endommagée, elle devra être remplacée par la barrière conçu par le manufacturier pour cet

appareil.

• L’installation et la réparation devraient être effectuées par un technicien qualiﬁ é. L’appareil et son système

d’évacuation devraient être inspectés avant l’utilisation initiale et au moins une fois l’an par un professionel

qualiﬁ é. Un nettoyage plus fréquent peut être requis en raison de la poussière excessive laissée par

les moquettes, les couvertures, etc. Il est impératif que les compartiments de contrôle, le brûleur et les

passages de circulation d’air soient gardés propres aﬁ n de fourni une combustion et une circulation d’air

adéquates.

AVERTISSEMENT

W415-1705 / 06.07.17

table des matières

1.0 information générale 67

1.1 taux et efﬁcacités 67

1.2 vue d’ensemble d’installation 68

1.3 information à propos de la plaque

d’homologation 70

1.4 installation dans une maison mobile 70

1.5 liste des pièces 71

2.0 dimensions 72

2.1 BL36-1 72

2.2 BL46 73

3.0 exigences d’évacuation 74

3.1 installations typiques d’évents 75

3.2 emplacements et dégagements minimaux

de la terminaison 77

3.3 charte d’application des évacuations 78

3.4 légende 78

3.5 valeurs de coude en longueurs d’évent 78

3.6 terminaison horizontale 79

3.7 évacuation à l’arrière terminaison verticale

3.8 installation de l’écran protecteur (BL46

seulement) 83

4.0 ossature approximatif 84

4.1 dimensions minimaux de l’encadrement 85

5.0 installation d’évacuation 87

5.1 installation horizontale 87

5.2 installation verticale 88

5.3 utilisation de composants d’évacuation

ﬂexibles ou rigides 89

5.4 utilisation de composants ﬂexibles

d’évacuation 89

5.4.1 installation de la terminaison horizontale 89

5.4.2 installation de la terminaison verticale 90

5.5.2 raccordement des évents à l’appareil 91

5.5 utilisation de composants rigides

d’évacuation 91

5.5.1 installation de la terminaison horizontale 91

5.5.3 installation de la terminaison verticale 92

5.5.4 renstreignant des évents verticaux 93

5.6 terminaison verticale à travers une

cheminée existante 94

6.0 schéma de câblage 95

6.1 branchement par câble 95

6.2 schéma de câblage du réceptacle 95

6.4 schéma de câblage éelectronique 95

6.3 interrupteur mural optionnel 95

6.5 d’installation du sauvegarde de pile 96

6.6 schéma de câblage 97

Changes, other than editorial, are denoted by a vertical line in the margin

note:

7.0 branchement du gaz 98

8.0 installation support de fixation 98

9.0 guide de fonctionnement 99

10.0 ossature fini 100

10.1 afﬂuerant 100

10.2 encastrée 101

10.3 dégagements minimaux de l’enceinte 102

11.0 finitions 103

11.1 interrupteur anticondensation 103

11.2 installation du panneau d’accès aux

commandes 103

11.3 matériau de ﬁnition incombustible 104

11.4 dégagements minimaux de la tablette

combustible 105

11.5 installation / enlèvement de l’écran de

protection et la porte 106

11.6 installation des braises vitriﬁées 107

11.7 installation de la soufﬂerie (optionnel) 108

11.8 renstreignant des évents verticaux 109

11.9 réglage du venturi 109

11.10 réglage de la veilleuse 110

11.11 caractéristiques de la ﬂamme 110

12.0 entretien 111

12.1 soins de la vitre 111

12.2 entretien annuel 112

12.3 remplacement de la vitre du porte 112

13.0 rechanges 113

13.1 vue d’ensemble BL36-1 114

13.2 l’assemblage de la soupape BL36-1 115

13.3 vue d’ensemble BL46 116

13.4 l’assemblage de la soupape BL46 117

14.0 BL36-1 accessoires 118

15.0 BL46 accessoires 119

16.0 guide de dépannage 120

17.0 garantie 123

W415-1705 / 06.07.17

liste de vériﬁcation

1.0 information générale

Lorsque l’appareil est installé à des élévations dépassant 4 500ft (1372m), et en l’absence de recommandations

spéciﬁques de l’autorité compétente locale, l’indice certiﬁé du débit à haute altitude devra être réduit au taux de 4% pour

chaque 1 000ft (305m) supplémentaires. Les bruits causés par l’expansion et la contraction lors des cycles de chauffage

et de refroidissement sont tout à fait normaux et il faut s’y attendre.

Le changement de l’aspect de la ﬂamme de « HI »

à « LO » est plus évident pour le gaz naturel que pour le propane.

Cet appareil est approuvé pour installation dans les salles de bain, les chambres à coucher ou les chambres

studio et convient pour installation dans les maison mobiles.

Cet appareil doit être utilisé uniquement avec les types de gaz indiqués sur la plaque signalétique. Cet

appareil ne peut être converti à d’autres gaz, sauf si une trousse de conversion est utilisée.

Une barrière conçu à réduire le risque de brûlures à partir de le chaude la vitre est à condition que

avec l’appareil et sera être installés.

Cet appareil est une produit décorative. Cet appareil n’est pas une source de chaleur et un

combustible solide ne doit pas être utilisé avec cet appareil.

L’emballage de protection sur les pièces plaquées s’enlève mieux lorsque l’assemblage est à température

ambiante ou lorsqu’il est chauffé à l’aide d’un séchoir à cheveux ou d’une autre source de chaleur similaire.

note:

Les piles doivent être mises au rebut conformément aux lois et à la réglementation locales.

Certaines piles peuvent être recyclées et acceptées dans votre centre de recyclage local. Rensei-

gnez-vous auprès de votre municipalité au sujet des directives de recyclage.

1.1 taux et efﬁcacités

BL36-1 BL46

Type de Carburant

Gaz Naturel Propane Gaz Naturel Propane

Altitude (FT) 0-4,500 0-4,500 0-4,500 0-4,500

Débit max. (BTU/h) 16,000 16,000 24,000 24,000

Débit min. (BTU/h) 10,500 10,500 17,500 18,500

P4 51.7% 51.7% 50.3% 50.3%

Pression minimale

d’alimentation en gaz

4.5” w.c. (11mb) 11” w.c. (27mb) 4.5” w.c. (11mb) 11” w.c. (27mb)

Pression maximale

d’alimentation en gaz

13” w.c. (32mb) 13” w.c. (32mb) 13” w.c. (32mb) 13” w.c. (32mb)

Pression au collecteur

(lorsque le gaz circule)

3.5” w.c. (9mb) 3.5” w.c. (9mb) 3.5” w.c. (9mb) 3.5” w.c. (9mb)

Installateur: veuillez rempli les informations suivants

Client:

Address:

Date d’Installation:

Location de l’appareil

Installateur:

Tél. du Détaillant/Distributeur:

Nº de série:

Modèle:

Gaz Naturel: BL36NTE-1

BL46NTE

Propane: BL36PTE-1

BL46PTE

W415-1705 / 06.07.17

information générale

1.2 vue d’ensemble d’installation

Étapes d’installation recommandés:

1. Determiner les exigences d’évacuation avant de determiner le position ﬁnale de l’appareil.

2. Installer l’encadrement approximatif (référez à la section « encadrement approximatif »).

3. Placer l’appareil dans le position ﬁnale.

4. Installer les pattes du cloutage (référez à la section « installation des pattes du cloutage »).

5. Installer l’évacuation de l’appareil (référez à la section « installation d’évacuation »).

6. Installer toutes câblages électrique (référez à la section « information électrique »).

7. Installer les conduites de gaz (référez à la section « branchement du gaz »).

8. Tester l’appareil.

9. Encadrement complète (référez à la section « encadrement ﬁni »)

10. Finition (référez à la section « ﬁnition »).

W415-1705 / 06.07.17

information générale

AVERTISSEMENT

• Allumez toujours la veilleuse, que ce soit pour la première fois ou lorsque l’approvisionnement en gaz est

épuisé, avec la porte vitrée ouverte ou retirée.

• Prévoyez un accès sufﬁsant pour entretenir et opérer l’appareil. Assurez-vous d’une quantité sufﬁsante

d’air de ventilation.

• Assurez une ventilation adéquate.

• N’obstruez jamais l’ouverture de l’appareil.

• Les objets placés devant l’appareil doivent être gardés à une distance d’au moins 48” (121,9cm) de la

face vitrée de l’appareil.

• Les surfaces autour et surtout au-dessus de l’appareil peuvent devenir chaudes. Ne touchez pas l’appareil

quand il fonctionne.

• Risque d’incendie ou d’explosion.

• Les pression élevées endommageront la soupape. L’alimentation en gaz doit être débranchée pendant

les essais de pression de ce système lorsque les pressions d’essai excèdent ½ PISG (35mb). Fermez la

soupape d’arrêt manuelle pendant tout essai de pression du système d’alimentation en gaz lorsque la

pression est de 1/2 PISG (35mb) ou moins.

• N’utilisez que les accessoires optionnels et les pièces de rechange approuvés par Wolf Steel pour cet

appareil. L’utilisation d’accessoires non listés (soufﬂerie, portes, persiennes, moulures, composants de

gaz, composants d’évacuation, etc.) pourrait être non sécuritaire et annulera la garantie et la certiﬁcation.

• L’appareil ne doit pas être utilisé au températures au-dessous de zero (32°F / 0°C). Permettre à l’appareil

pour réchauffer au-dessus de zero avant le fonctionnement.

Cet appareil au gaz devrait être installé et entretenu par un installateur qualiﬁ é en se conformant aux

codes locaux. Les pratiques d’installation peuvent varier d’une région à l’autre. Il est donc important de connaÎtre

les normes spéciﬁ ques qui s’appliquent à votre région. Par example, dans l’état du Massachusetts:

• Ce produit doit être installé par un plombier certiﬁ é ou un installateur pour le gaz lorsque installé dans le

Commonwealth du Massachusetts.

• Le registre de l’appareil doit être enlevé ou bloqué en le soudant en position ouverte avant d’installer un

encastré ou un ensemble de bûches à gaz.

• La soupape d’arrêt doit être un robinet à gaz avec une poignée en T.

• Le raccord ﬂ exible ne doit pas messurer plus que 36 pouces (914,4mm).

• Un détecteur de monoxyde de carbone est requis dans toutes les pièces contenant des appareils alimentés

au gaz.

• L’appareil n’est pas approuvé pour installation dans une chambre à coucher ou une salle de bain à moins

d’être un appareil avec une chambre de combustion scellée à évacuation directe.

L’installation doit se conformer aux codes locaux. En l’absence de codes locaux, l’installation doit être conforme

au Code d’installation du gaz naturel et du propane CSA B149.1 au Canada ou au National Fuel Gas Code,

ANSI Z223.1 / NFPA 54 aux États-Unis. Cet appareil convient pour installation dans une maison mobile si

l’installation est conforme aux normes actuelles pour les maisons mobiles équipées au gaz CAN/CSA Z240

SÉRIE MM au Canada ou selon les normes ANSI Z223.1 et NFPA 54 aux États-Unis.

Tant que les distances requises pour les dégagements aux matériaux combustibles sont respectées, le meilleur

endroit pour un appareil est le centre de la maison, car ceci permet une meilleure utilisation de la chaleur fournie.

L’emplacement des fenêtres, des portes et la circulation dans la pièce où se trouve l’appareil devront être pris en

considération. Si possible, vous devriez choisir un emplacement où le système d’évent peut passer à travers la

maison sans avoir à découper des solives de plancher ou de toit.

Si l’appareil est installé directement sur un tapis, sur une surface de vinyle ou tout autre revêtement de plancher

combustible autre que le bois, l’appareil devra être monté sur

un panneau continu de métal ou de bois se prolongeant sur

toute la largeur et la profondeur.

Certains appareils ont une soufﬂ erie ou un ensemble de deux

soufﬂ eries optionnel. Si la soufﬂ erie ou l’ensemble de deux

soufﬂ eries optionnel est installé, la boîte de dérivation doit être

branchée au circuit électrique et mise à la terre conformément

aux codes locaux. Utilisez la version courante du Code

Canadienne de l’électricité CSA C22.1 au Canada ou le

National Electrical Code ANSI/NFPA 70 aux États-Unis.

Nous suggérons que nos

appareils au gaz soient installés

et que l'entretien soit effectué

par des professionnels certi-

fiés par le National Fireplace

Institute® (NFI) comme

spécialiste du gaz NFI.

W415-1705 / 06.07.17

information générale

Cette illustration est à titre de référence seulement. Consultez la plaque d’homologation pour obtenir l’information

précise.

1.3 information à propos de la plaque d’homologation

La plaque d’homologation doit rester avec l’appareil à tout instant. Il ne doit pas être enlevé.

note:

1.4 installation dans une maison mobile

Cet appareil doit être effectuée en respectant les directives du fabricant et le Manufactured Home Construction

and Safety Standard, Title 24 CFR, Part 3280, aux États-Unis, ou les normes actuelles pour les maisons

mobiles, CAN/CSA Z240 SÉRIE MH au Canada. Cet appareil ne doit être utilisé qu’avec le type de gaz indiqué

sur la plaque d’homologation.

Cet appareil homologué pour les maisons mobiles et préfabriquées possède des éléments de ﬁ xation. L’appareil est

muni de deux trous de ¼” (6,4mm) de diamètre, situés aux coins avant, gauche et droit de la base. Fixez à l’aide des

attaches appropriées, insérées dans les trous de la base. Pour les produits autoportante, contactez votre revendeur

agréé / distributeur permettant l’ensemble de sécurisation. Lors d’une installation dans une maison mobile, l’appareil

doit être ﬁ xé au plancher. Éteignez toujours la veilleuse et l’alimentation en gaz à la source avant de déplacer la

maison mobile. Après avoir déplacé la maison mobile et avant d’allumer l’appareil assurez-vous que les bûches sont

placées correctement.

Cet appareil est certiﬁ é pour être installé dans une maison mobile installée de façon permanente, sauf si les

codes locaux l’interdisent.

Cet appareil ne doit être utilisé qu’avec le type de gaz indiqué sr la plaque d’homologation. On ne peut utiliser

cet appareil avec d’autres types de gaz, sauf si un ensemble de conversion certiﬁ é est utilisé.

Ensembles de conversion

L’appareil pour maison mobile peut être converti au gaz natural (GN) ou au propane (P).

Pour effectuer une conversion, veuillez consulter votre détaillant autorisé.
