Double-sided tape
Stand
Package contents
• Antenna
• Antenna stand
• Power adapter
• Power inserter
• Double-sided tape
• Quick Setup Guide
Features
• 50 Mile (80 Km) range* for reception in most locations
• Advanced amplier design boosts performance while minimizing noise
and interference for the very best picture
• Wall-mounted or free-standing design with included tabletop base for
more placement options
• Ultra-exible 10 ft. (3 m) coaxial cable that‘s built-in for easy routing
• Black/white two-sided antenna blends into your home decor
*Range will vary depending on a variety of environmental and geographic factors
Setting up and using your antenna
1 Select a location to place your antenna. See “Tips for Better Reception”
for more information.
Note: This is an indoor antenna. Do not place it outside.
2 Attach double-sided tape to your antenna’s four corners, then rmly
press the antenna to the wall to secure.
Note: Do not secure your antenna with the double-sided tape until you’re sure
it’s in the correct location to receive the channels you want.
OR

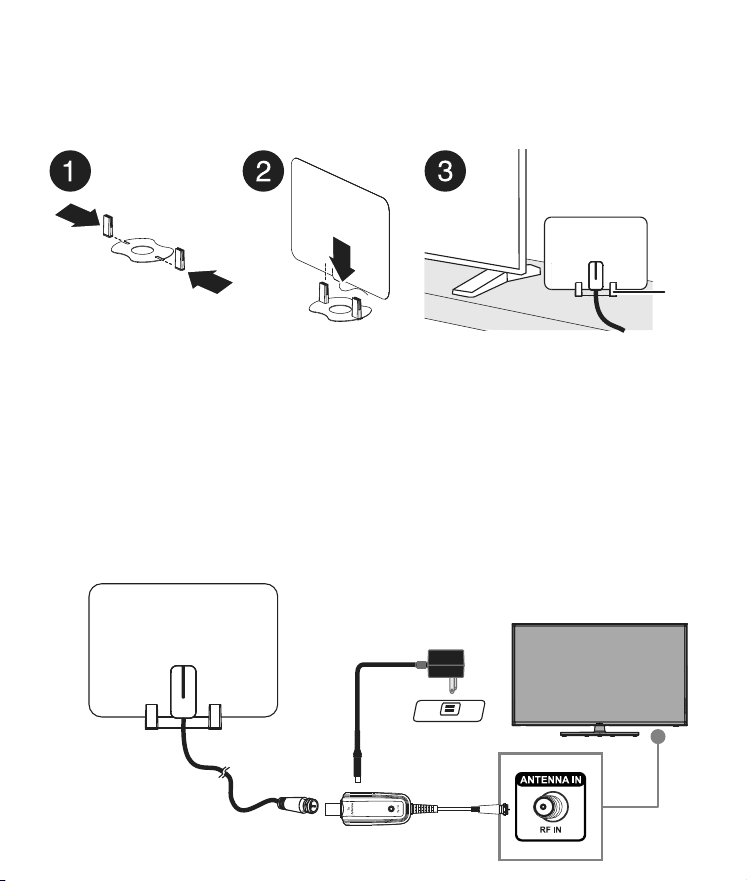

Attach the stand to the antenna by inserting the plastic tabs into the
steel base (1), then pushing the antenna down into the base (2).
3 Connect the power inserter’s coaxial connection to the coaxial jack on
your TV, digital converter box, or set-top box.
Connecting the antenna directly to your TV
• Connect the coaxial cable to the coaxial jack on the back of your TV.
Note: If you have an HDTV with a digital TV (ATSC) tuner, you can connect the
antenna directly to the HDTV. Older TVs may require a separate digital TV tuner
or digital converter box.
TV
Coaxial cable
Power inserter
Power adapter
Antenna
Connecting the antenna with a digital converter or set-top box
• Connect the coaxial cable to your digital converter box or set-top
box, then connect a video/audio cable (such as an HDMI, coaxial,
or AV cable) from your converter box or set-top box to your TV.
To TV
Coaxial cable
Power inserter
Power adapter
Antenna
Digital converter
or set-top box
TV
HDMI cable
AV cable
OR OR
Coaxial cable
To TV
To antenna
To antenna
Before using your new product, please read these instructions to prevent any damage.
Thin Film Amplified
Indoor Antenna
Quick Setup Guide
BE-ANT500HA
4 Plug the power adapter into a wall outlet, then plug the other end
into the power inserter.
Note: Use only the supplied power adapter. For the antenna to function
correctly, the power inserter must be installed and powered on.
5 Turn on your TV, then press input or source to select the input your
antenna is connected to.
Note: Turn on your digital converter box or set-top box if your antenna is
connected to either device.
6 Open your TV’s setup menu, then select the “scan” or “channel scan”
option. Your TV automatically searches for available channels in your
area. See your TV’s user guide for detailed instructions.
Note: If you don’t receive channels that you want, try moving your antenna to
another location, then run the channel scan again.
