SPECIFICATIONS
POWER SUPPLY REQUIREMENTS 120 or 230 V, 60 Hz
MOTOR Single Phase AC Induction
HORSEPOWER
1/2 HP...................(SWS50)
3/4 HP...................(SWS75)
1 HP ....................(SWS100)
CUT IN PRESSURE
30 PSI
CUT OUT PRESSURE
50 PSI
640002W-001 E 05/20
CONSTRUCTION
MOTOR HOUSE Carbon Steel
SEAL PLATE Cast Iron
DIFFUSER Thermoplastic
IMPELLER Thermoplastic
SHAFT Stainless Steel
PUMP SUCTION 1-1/4 in. NPT
PUMP DISCHARGE 1 in. NPT

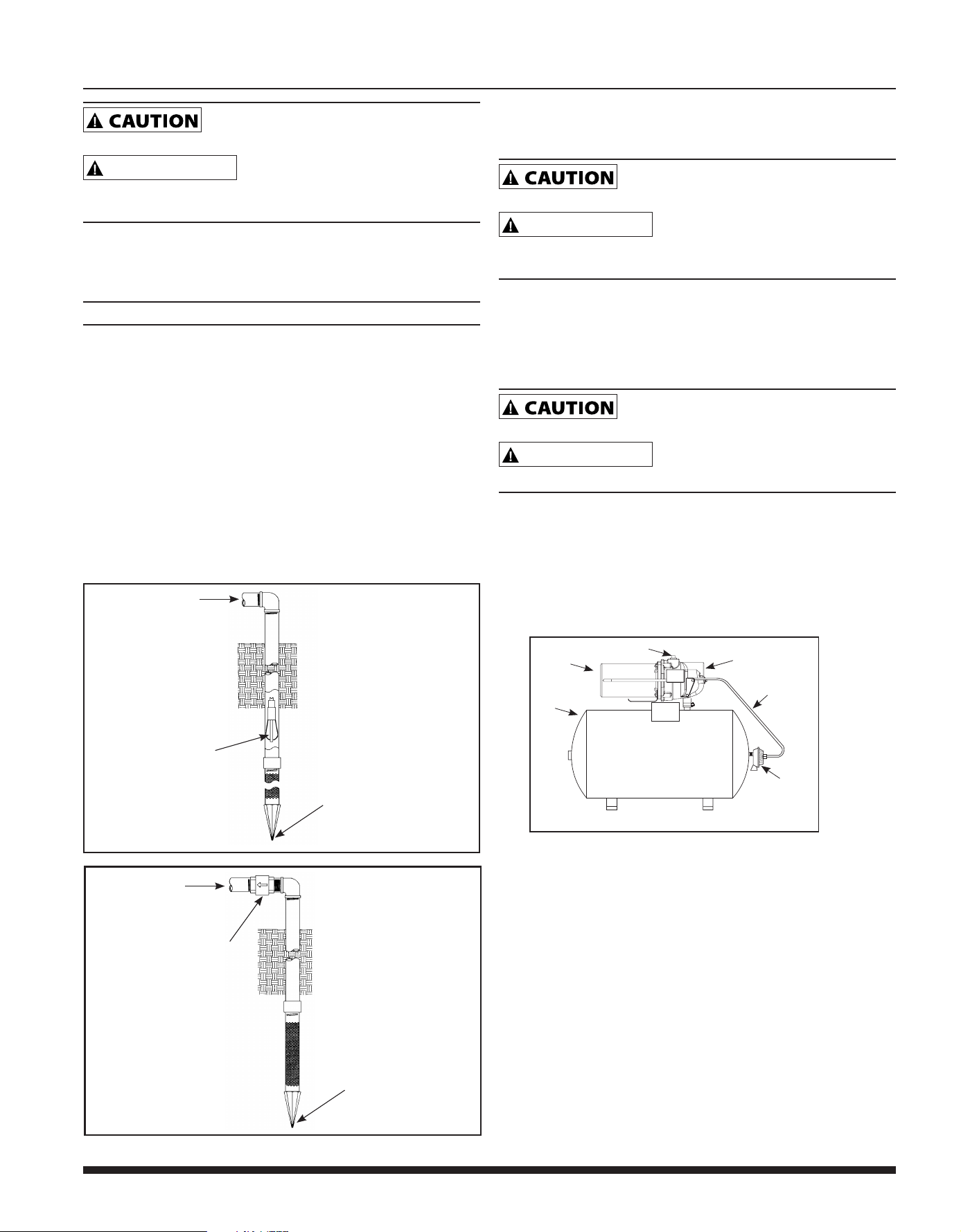

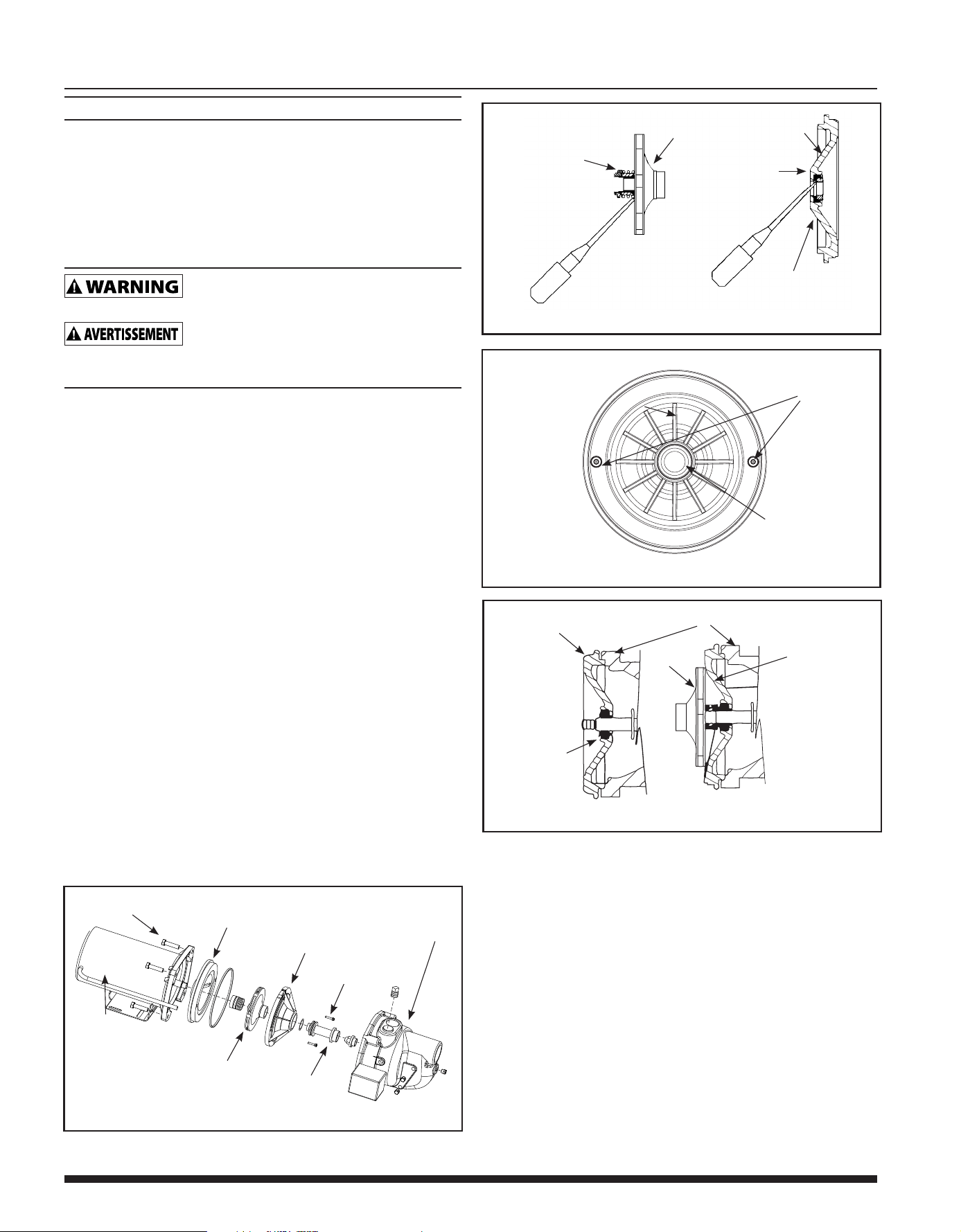

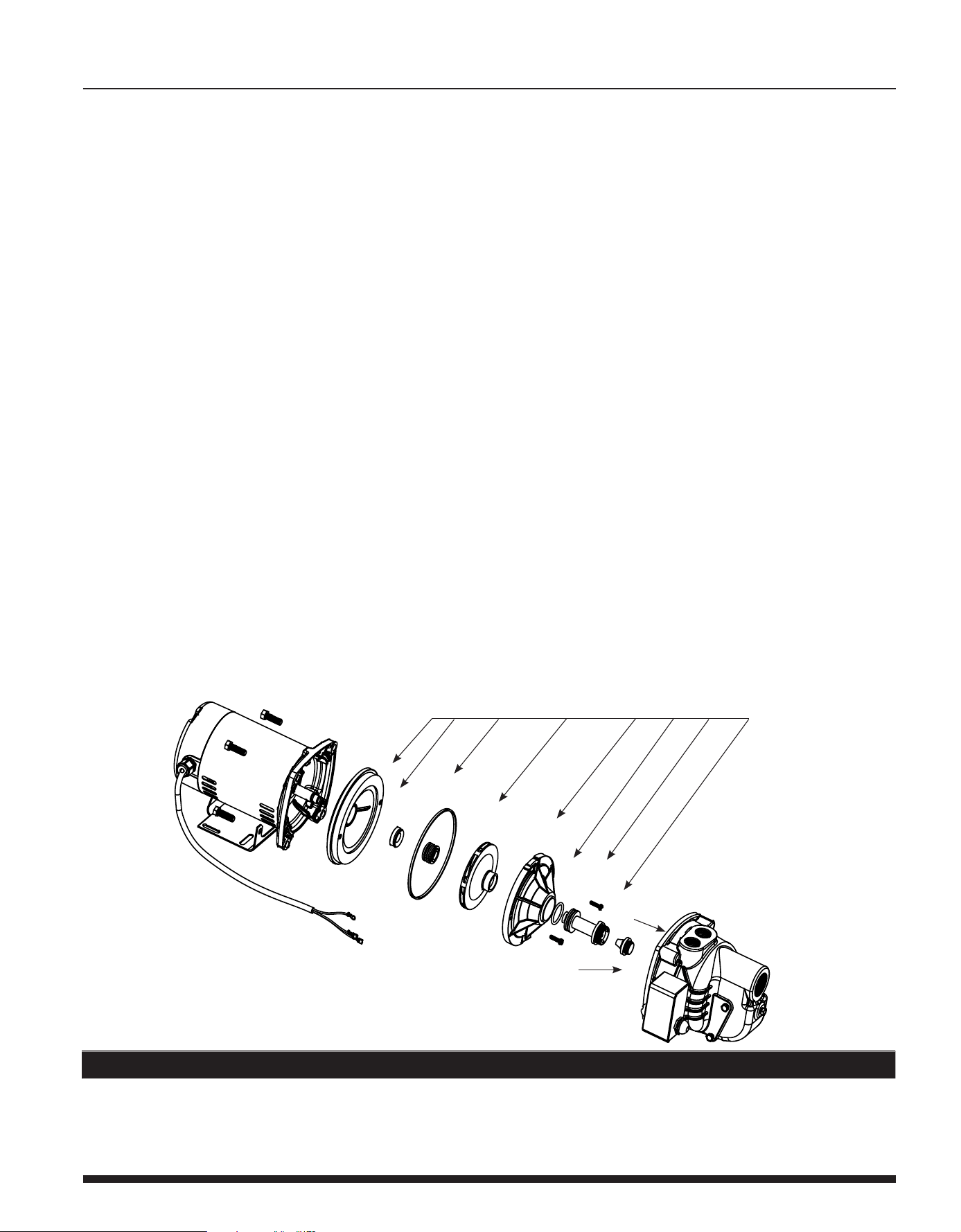

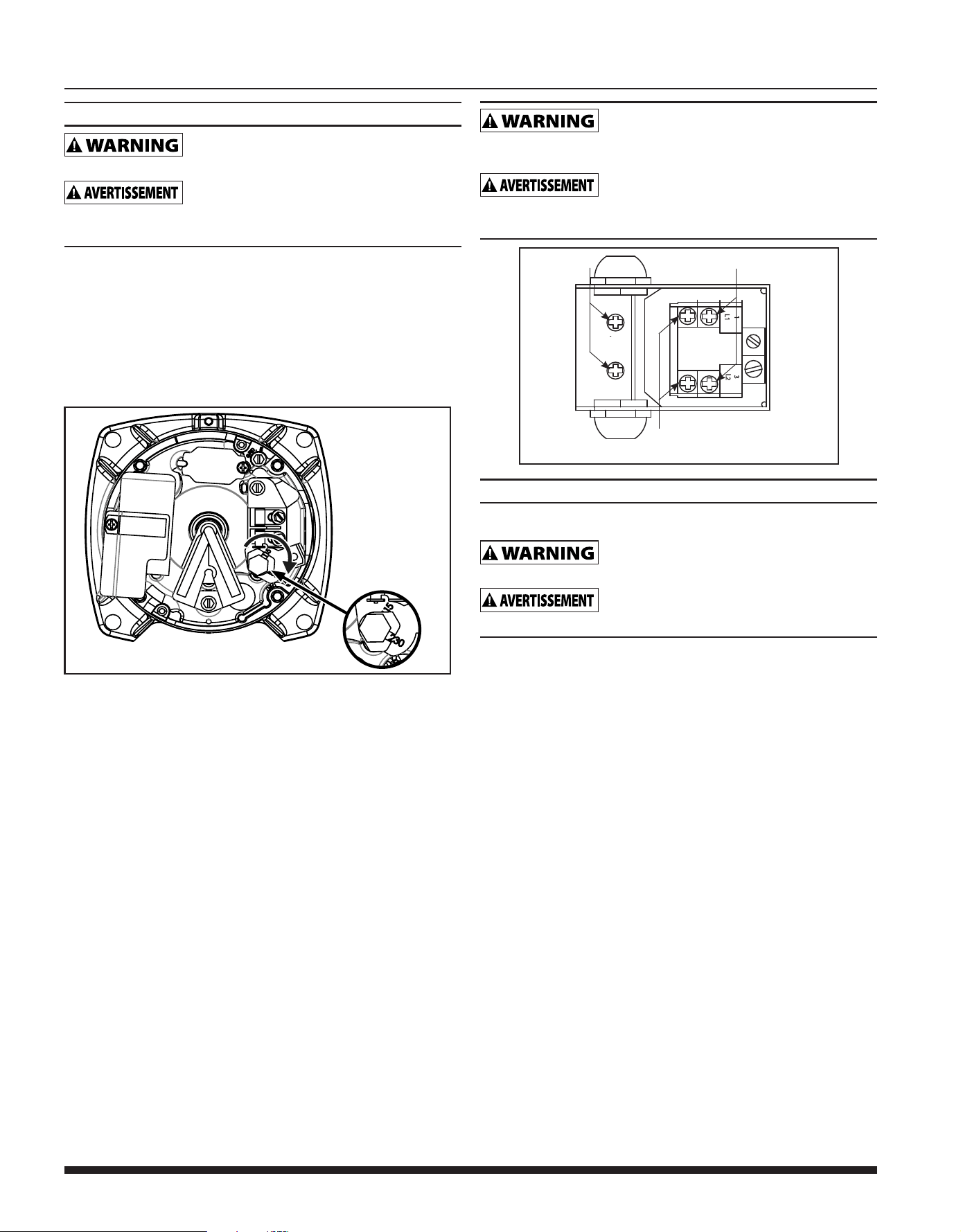

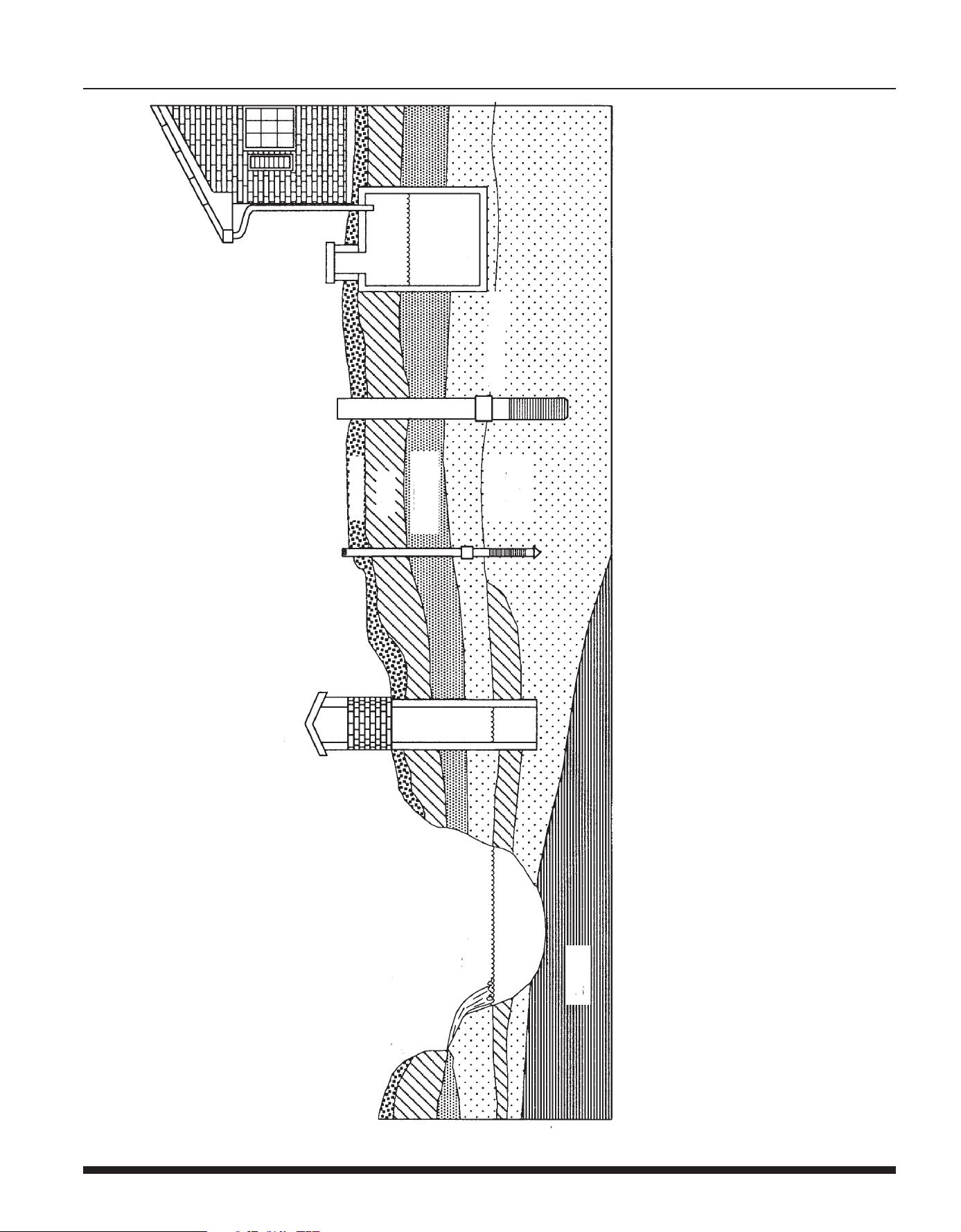

Shallow Well Jet Pump Water Systems
www.waynepumps.com
PERFORMANCE
Model HP PSI
Discharge Head (Lift Distance)
0 ft 5 ft 10 ft 15 ft 20 ft 25 ft
SWS50 1/2
30 711 674 638 601
565 529
40 543 506 470 433
397 361
50 375 338 302 265
229 193
SWS75 3/4
30 779 750 721 691
662 633
40 644 615 586 557
528 499
50 510 481 451 422
393 364
SWS100 1
30 1084 1022 960 899
837 775
40 799 737 675 613
551 490
50 513 451 389 328
266 204
Intended for Indoor Use Only
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Operating Instructions and Parts Manual SWS
© 2020, WAYNE/Scott Fetzer Company.
