USER’S MANUAL AND OPERATING INSTRUCTIONS
PROPANE TANK TOP
CONSTRUCTION HEATER
GENERAL HAZARD WARNING
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH
THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS,
OR DAMAGE FROM THE HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON
MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD
USE OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTION
MANUAL, LABELS, ETCETERA, CONTACT THE MANUFACTURER.
CONSUMER: Retain this manual for future reference.
Printed in China IMTTDG - MEG
MODELS: TT15CL, TT30CL, TT15CDGP, TT30CDGP,
TT15CPDG, TT30CPDG, TT1-15C, TT2-30C,
TT15000M, TT30000M
C US
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
ANS Z83.7-2017 CSA 2.14-2017
Adequate ventilation must be provided.
2
TABLE OF CONTENTS
WARNING!
NOT FOR HOME OR RECREATIONAL VEHICLE USE.
WARNING
: FIRE, BURN, INHALATION, AND EXPLOSION HAZARD, KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR CARDBOARD,
A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THE INSTRUCTIONS.
NEVER USE THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR
AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT
THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.
WARNING
This product and the fuels used to operate this product (liquid propane), and the products of combustion of such
fuels, can expose you to chemicals including benzene, which is known to the State of California to cause cancer
and reproductive harm.
For more information go to www.p65Warnings.ca.gov
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Propane Tank Top Construction Heater ........................................................................................................... 3
Specications .................................................................................................................................................. 3
General Safety Instructions ............................................................................................................................. 4
Important Safety Information ........................................................................................................................... 4
Product Features ............................................................................................................................................. 4
Ventilation ........................................................................................................................................................ 5
Air Quality Hazard ........................................................................................................................................... 5
TT30 Series Heater Assembly ......................................................................................................................... 6
Wiring Diagram ................................................................................................................................................ 7
Propane Supply ............................................................................................................................................... 8
Relling the Propane Gas Tank ....................................................................................................................... 8
Connecting Heater to Propane Tank .......................................................................................................... 9-10
Checking for Leaks .........................................................................................................................................11
Operation – Lighting Instructions when Using Match ............................................................................... 11-12
Turning Off the Heater ................................................................................................................................... 13
Operation Lighting Instructions for Piezo Ignition Models ........................................................................ 13-14
Turning Off the Heater ................................................................................................................................... 14
Lighting Under Wind Conditions .................................................................................................................... 15
Storage .......................................................................................................................................................... 15
Maintenance Instructions............................................................................................................................... 15
Troubleshooting ............................................................................................................................................. 16
Replacement Parts ................................................................................................................................... 16-17
Warranty ................................................................................................................................................... 19-20
2 3
The heater is designed and approved for use as a construction heater under ANSI Z83.7, CSA 2.14.
It is hard to anticipate every use which may be made of this heater. CHECK WITH YOUR LOCAL
FIRE SAFETY AUTHORITY IF YOU HAVE QUESTIONS ABOUT APPLICATIONS.
PROPANE TANK TOP CONSTRUCTION HEATERS
This is a direct-red tank top construction heater for either indoor construction or outdoor use. Its intended
use is primarily the temporary heating of buildings or structures under construction, alteration or repair. All the
products of combustion generated by the heater are forced through the heater and released into the area being
heated. This heater operates at approximately 98%+ combustion efciency but still produces a small amount
of carbon monoxide. Humans can tolerate small amounts of carbon monoxide for short periods. Carbon
monoxide can build up in a heated space and failure to provide adequate ventilation could result in poisoning
or death.
Other standards govern the use of fuel gases and heat producing products in specic applications.
Your local authority can advise you about these.
IMPORTANT: READ THIS USER’S MANUAL CAREFULLY AND COMPLETELY BEFORE TRYING
TO OPERATE OR SERVICE THIS HEATER. IMPROPER USE OF THIS HEATER CAN CAUSE
SERIOUS INJURY OR DEATH FROM FIRE, EXPLOSION AND CARBON MONOXIDE POISONING.

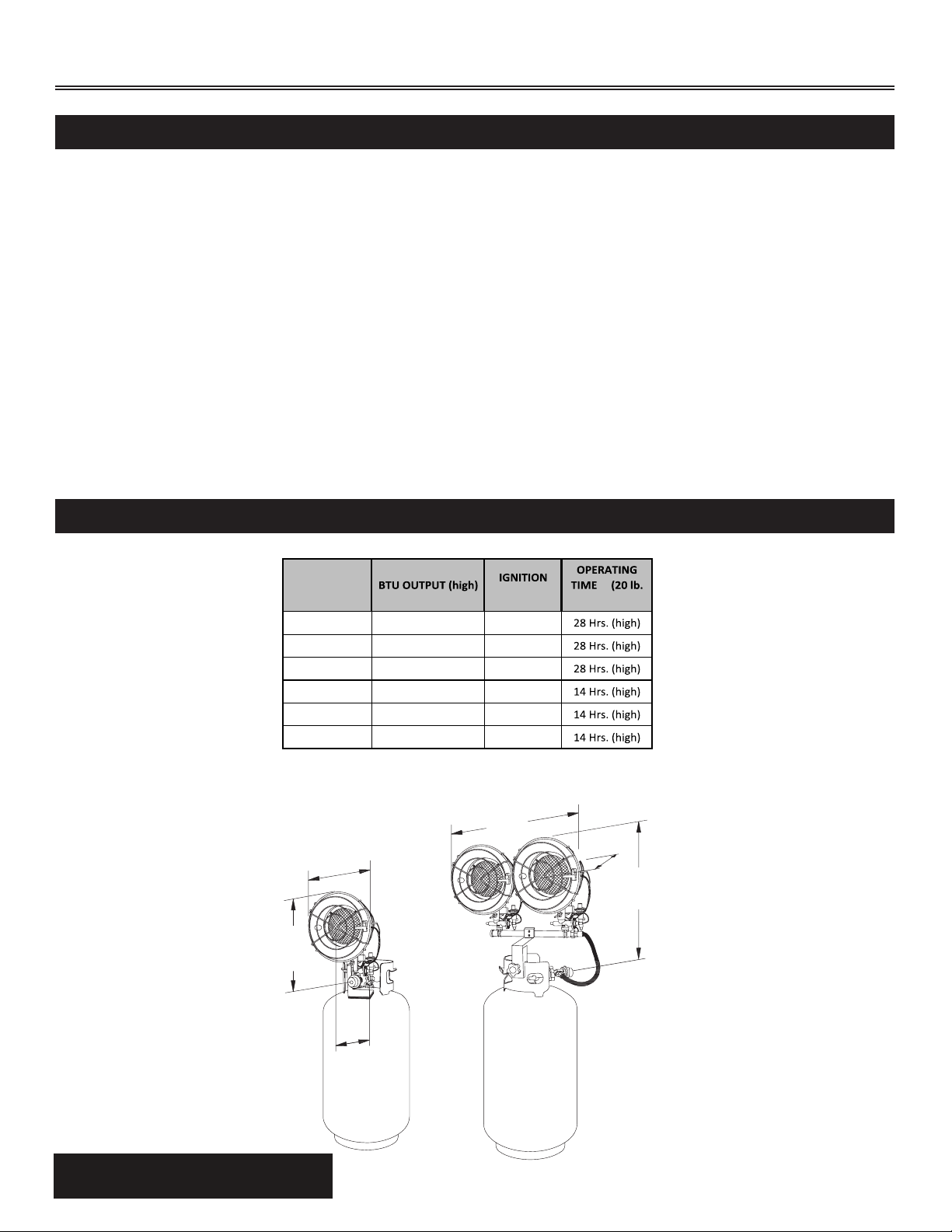

SPECIFICATIONS
TT15CL 15,000 Match
TT15CDGP 15,000 Match
TT15CPDG 15,000 Piezo
TT30CL 30,000 Match
TT30CDGP 30,000 Match
TT30CPDG 30,000 Piezo
cylinder)
TYPE
MODEL
”1.7
mc1.81
”11.2
mc4.82
”5.51
mc4.93
”3.8
mc0.12
”5.71
mc5.44
”5.6
m
c
6.41
’’0.21
30.5cm
PROPANE TANK TOP HEATER
12.0’’
30.5cm
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
4
Accidents are always tragic especially because so many of them could have been prevented with little care
and judgment. There are some basic good practices, we hope you will follow for safe use of your heater.
• Children should be carefully supervised, when they are in the area.
• Always maintain proper clearance from combustible materials. Minimum clearance from combustibles.
Side & Rear: 36” (91cm); Top: 36” (91cm); Front: 60” (152cm); Floor: 0” when installed on 20lb cylinder.
Note: Not for use on nished oor.
• Heater must be placed on level and stable surface.
• Never place anything including clothes or other ammable items on the heater.
• The appliance area shall be kept clear and free from combustible materials, gasoline and other
ammable vapours and liquids.
• Do not modify or operate a heater which has been modied.
• Adequate clearance for accessibility and for combustion & ventilation air supply must be maintained
at all times when the heater is operating.
• Service and repair should be done by a qualied service person. The heater should be inspected
before each use and at least annually by a qualied person. More frequent cleaning may be
required as necessary. Do not service while hot or operating.
• Never connect heater to an unregulated gas supply.
• The heater is shipped from the factory for LP(Propane) gas. This heater is for use with
propane gas only, do not convert heater to any other gas. Installation must conform to local
codes or, in the absence of local codes, with the standard for the Storage and Handling of Liqueed
Petroleum Gases ANSI/NFPA 58 and the Natural Gas and Propane Installation Code CSA B149.1.
• The minimum and maximum inlet pressures to the regulator from the gas tank are 17.5 psi and bottle
pressure, respectively. Use only the regulator & hose assembly provided with the heater. Inspect the
regulator/hose assembly prior to each use of the heater. If there is excessive abrasion or wear,
or hose is cut, replace with regulator/hose assembly listed on the parts list prior to using this heater.
• Gas supply connections should be checked using a 50/50 solution of liquid dish soap and never use
a ame to check for gas leaks.
• Do not restrict inlet or outlet by any means. The ow of combustion and ventilation air is not to be obstructed.
• This heater should not be directed toward any propane-gas container within 20 ft (6M). The heater
must be located at least 6 ft. (1.83 m) in the U.S.; or (ii) 10 ft. (3 m) in Canada, from any other
propane gas container.
• The propane cylinder supply system must be arranged to provide for vapour withdrawal from the
operating cylinder.
• Installation of this Appliance at altitudes above 2000 ft. (610 m) shall be in accordance with local codes, or
in the absence of local codes the, National Fuel Gas Code, ANSI Z223.1 / NFPA 54, or National Standard of
Canada, Natural Gas and Propane Installation Code, CSA B149.1.
PROPANE TANK TOP HEATER
PRODUCT FEATURES
• Portable & Stable • 100% Safety Shutoff System
• Wind Resistant & Rain Protected • Adjustable Input Ratings
• Match or Piezo Electric Spark Ignition
GENERAL SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
4 5
PROPANE TANK TOP HEATER
VENTILATION
For either indoor or outdoor use. Adequate ventilation shall be provided in accordance with OSHA 29 CFR
1926.154, Safety Requirements for Temporary and Portable Space Heating Devices and Equipment ANSI
A10.10, ANSI 223.1 / NFPA 54, Liquied Petroleum Gas Code, NFPA 58 or the National Gas and Propane
Installation Code, CAN B149.1 as appropriate.
AIR QUALITY HAZARD
• Do not use this heater for heating human living quarters.
• Use of direct-red heaters in the construction environment can result in exposure to levels of CO,
CO2, and NO2 considered to be hazardous to health and potentially life threatening.
• Do not use in unventilated areas
• Know the signs of CO and CO2 poisoning
- Headaches, stinging eyes
- Dizziness, disorientation
- Difculty breathing, feels of being suffocated
• Proper ventilation air exchange (OSHA 29 CFR 1926.57) to support combustion and maintain
acceptable air quality shall be provided in accordance with OSHA 29 CFR Part 1926.154, ANSI
A10.10 Safety Requirements for Temporary and Portable Space Heating Devices and Equipment
used in the Construction Industry or the Natural Gas and Propane Installation Codes CSA B149.1
- Periodically monitor levels of CO, CO2 and NO2 existing at the construction site – at the minimum
at the start of the shift and after 4 hours.
- Provide ventilation air exchange, either natural or mechanical, as required to maintain acceptable
indoor air quality
USA 8-Hr Time weighted average
(OSHA 29 CFR 1926.55 App A)
CO 50 ppm
CO
2
5000 ppm
NO
2
USA – Ceiling Limit
(Short Term Exposure Limit = 15 minutes)
CO
CO
2
NO
2
5 ppm
Canada 8-hr time weighted average
WorkSafe BC OHS Guidelines Part 5.1
and Ontario Workplaces Reg 833
25 ppm
5000 ppm
3 ppm (Reg 833)
Canada STEL (15 minutes Reg 833/1 hour
WSBC) WorkSafe BC OHS Guidelines Part
5.1 and Ontario Workplaces Reg 833
100 ppm
15000 ppm (WSBC)
30000 ppm (Reg 833)
1.0 ppm (WorkSafeBC)
5.0 ppm (Reg 833)
• Ensure that the ow of combustion and ventilation air exchange cannot become obstructed.
• As the building ‘tightens up’ during the construction phases ventilation may need to be increased.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
6

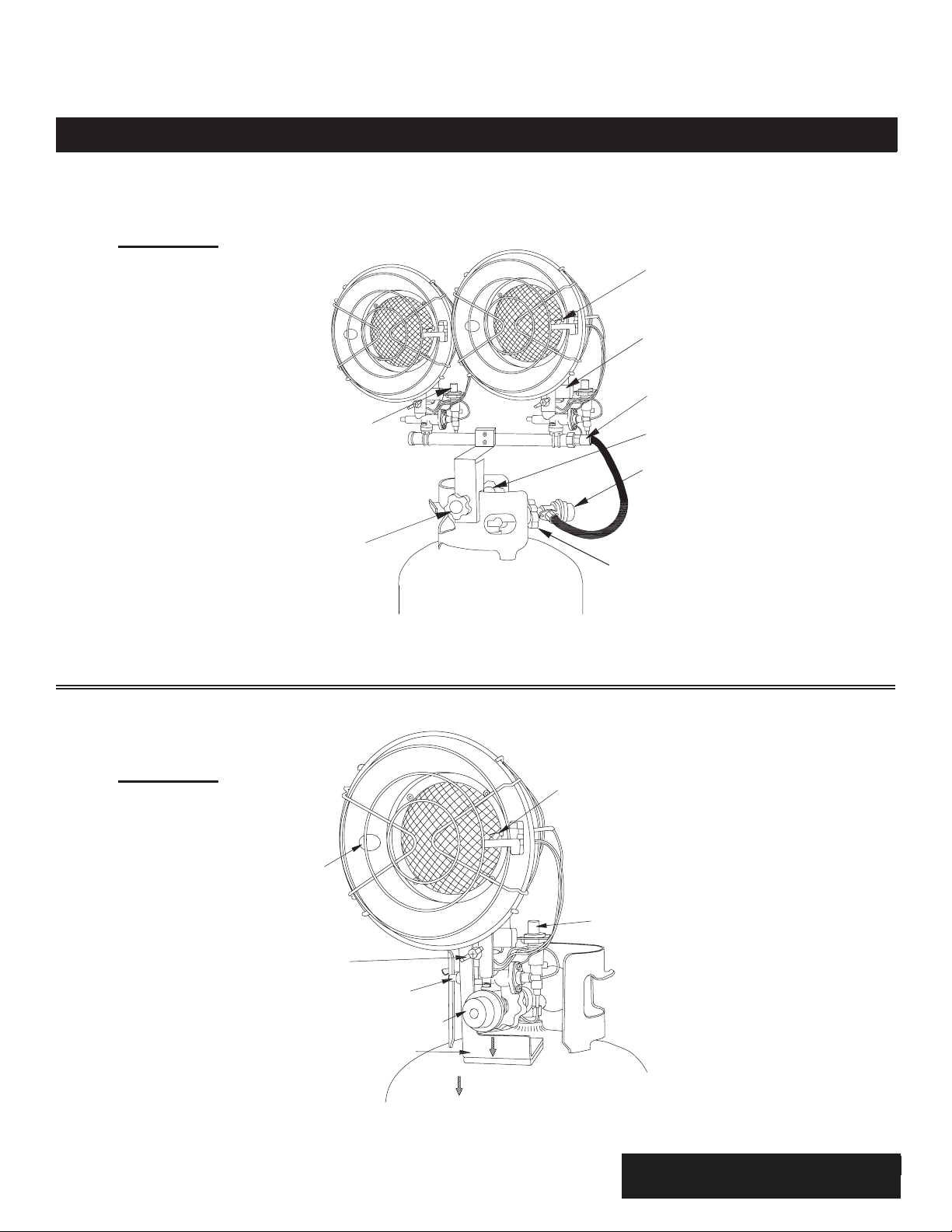

TT30 SERIES HEATER ASSEMBLY
The tank collar bracket must be assembled before the heaters can be attached to the propane tank.
1. Align bolt holes in tank collar bracket and piezo bracket with bolt holes in center plate on manifold.
2. Drive-in two machine screws (supplied) into the bolt holes attaching tank collar bracket to center plate
on manifold. (Fig. 1)
Tools Required:
Phillips head screwdriver
FIGURE 1
DUAL BURNER MODEL
PROPANE TANK TOP HEATER
Estimated Assembly Time:
5 minutes
Contents:
Tank Top Heater (1)
Tank Collar Bracket (1)
M4x12 Machine Screws (2)
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Tip Over Switch
Manifold
Tank Collar Bracket
Electrode
Machine Screw
Heat Regulator Knob
Handwheel
Piezo (NOTE: some models only)
Electrode Cable
Mounting Bolt Knob
6 7
WIRING DIAGRAM
PROPANE TANK TOP HEATER
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Electrode Cable
ELECTRODE
THERMOCOUPLE
TIP OVER SWITCH
M,P,U
SAFETY VALVE
PIEZO IGNITER *Piezo models only
earth
yellow
yellow
black
8
• A collar to protect the propane gas valve.
• A shutoff valve terminating a Propane gas cylinder valve outlet as specied in the American National
Standard for Compressed Gas Cylinder Valve Outlet and Inlet Connections.
• A safety relief valve having direct communications with the vapor space of the tank.
• An arrangement of vapor withdrawal.
PROPANE SUPPLY
This heater requires a 20 lb propane cylinder for operation. (Not included).
The propane (LP) gas tank must also be equipped with the following:
REFILLING THE PROPANE GAS TANK
Propane is safe to use when properly handled. Careless handling of the Propane gas tank could result in
re and/or an explosion. Therefore:
• Always keep tank/cylinder securely fastened in an upright position.
• Avoid tipping tank on its side when connected to a regulator since this may cause damage to
diaphragm in regulator.
• Handle valves with care.
• Never connect an unregulated Propane tank to construction heater.
• Do not subject Propane tank to excessive heat.
• Tightly close the gas shutoff valve on the Propane tank after each use.
• The POL tting must be protected when disconnected from the propane tank.
• Never store a Propane gas tank inside a building or in the vicinity of any gas burning appliance.
THE DISCONNECTED TANK MUST NEVER BE STORED IN A BUILDING,
GARAGE OR ANY OTHER ENCLOSED AREA.
ALL NEW CYLINDERS MUST BE PURGED BEFORE THE FIRST FILLING.
• Turn heater gas valve knob and gas tank valve to OFF position.
• Propane tank valve equipped with the old style tting has LEFT HANDED THREADS. Turn POL tting
CLOCKWISE to loosen. Protect POL tting when disconnected from tank.
• Have tank lled by your local Propane gas supplier.
• Some propane tanks have a bleed-off valve. This valve should be inspected for leaks after each lling of
the tank. Turn clockwise to close the valve.
• Fasten full Propane tank and connect POL tting to tank valve by turning COUNTERCLOCKWISE.
• With heater gas valve knob still in the OFF position, turn ON tank valve and check for leaks with soap solution.
The propane (LP) gas pressure regulator and hose assembly of 30K BTU models supplied with
the heater must be used without alteration.
The hose assembly shall be visually inspected prior to each use of the heater. If it is evident that there is
excessive abrasion or wear, or the hose is cut, it must be replaced prior to the heater being put into operation.
The replacement hose assembly shall be that specied by the manufacturer.
PROPANE TANK TOP HEATER
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
8 9
CONNECTING HEATER TO PROPANE TANK
Read and understand all safety information before connecting heater to propane tank.
1. (Applies to dual burner models only). Place heater onto tank with tank collar bracket over tank collar (Fig. 1)
Mounting bolt knob should be positioned to the outside of tank collar and be positioned as closely as possible
directly opposite to the cylinder valve outlet. See Figures 1 and 2.
2. (Applies to dual burner models only). Firmly secure to tank by hand-tightening mountingbolt knob.
Do not overtighten mounting bolt knob.
3. Make sure heater regulator knob is in the OFF position.
4. Insert regulator’s connector into tank’s valve outlet tting and turn left (counterclock-wise) until fully tightened.
Threads are left-handed. (Figure 3.)
NOTE: Heater features a hand wheel that can be used to tighten the tting to the cylinder. No
wrench required.
NOTE: The vertical stem of this heater must be installed in the vertical position. This heater is
equipped with a safety shutoff switch in the event that the heater is tipped over during operation.
The heater may fail to remain lit if the vertical stem is not installed vertically.
5. For single burner models loosen the wing bolt securing the support leg and position it rmly on
the surface of the cylinder. Tighten wing bolt rmly.
6. Open propane tank valve slowly by turning counterclockwise .
7. Check all ttings for leaks. Apply a 50/50 mixture of liquid soap and water to all joints. Bubbles forming
show a leak. Correct all leaks at once.
8. Always remove propane tank from heater after each use. Do not store heater while attached
to propane tank.
WARNING: NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
PROPANE TANK TOP HEATER
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
10
CONNECTING HEATER TO PROPANE TANK
Support Leg
Wing Bolt
Ignition Hole
Safety Shut-off Valve
Piezo
(NOTE: some models only)
Heat Regluator Knob
Spark Plug
(After setting support leg, tighten wing nut)
9
PROPANE TANK TOP HEATER
FIGURE 2
TT30 SERIES
FIGURE 3
TT15 SERIES
Tip Over Switch
Spark Plug
Heat Regulator Knob
Propane Tank Valve
Piezo
(NOTE: some models only)
Fuel Connecting Bolt ( Handle)
Mounting Bolt knob
Inlet Connector
CONNECTING HEATER TO PROPANE TANK
Tip over Switch
Electrode
Mounting Bolt Knob
Propane Tank Valve
Inlet Connector
Handwheel
Heat Regulator Knob
Wing Bolt
Safety Shut-off valve
Piezo (NOTE: some models only)
Heat Regluator Knob
Electrode
(After setting support leg, tighten wing nut)
9
PROPANE TANK TOP HEATER
FIGURE 2
TT30 SERIES
FIGURE 3
TT15 SERIES
Piezo (NOTE: some models only)
Ignition Hole
Support Leg
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
CONNECTING HEATER TO PROPANE TANK
Tip over Switch
Electrode
Mounting Bolt Knob
Propane Tank Valve
Inlet Connector
Handwheel
Heat Regulator Knob
Wing Bolt
Safety Shut-off valve
Piezo (NOTE: some models only)
Heat Regluator Knob
Electrode
(After setting support leg, tighten wing nut)
PROPANE TANK TOP HEATER
FIGURE 2
TT30 SERIES
FIGURE 3
TT15 SERIES
Piezo (NOTE: some models only)
Ignition Hole
Support Leg
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
10 11
Check all gas connections with a 50/50 soap and water solution to be sure they are tight and leak proof.
The formation of bubbles indicate a gas leak. Correct all leaks before using the heater.
• The installation of your heater must meet all local codes and/or gas utility requirements or, in the absence of
local codes, with the Storage and Handling of Liqueed Petroleum Gases, ANSI/NFPA 58 and the Natural
and Propane Installation Code, CSA B149.1.
• The minimum clearances to combustible construction: Side and Rear- 36” (91cm); Top - 36” (91cm);
Front - 60” (150cm); Floor - combustible, must be maintained at all times. Not for use on nished oors.
• The hose assembly should be visually inspected prior to each use of the heater. If it is evident that there is
excessive abrasion or wear, or the hose is cut, it must be replaced prior to the heater being put into operation.
• The replacement hose assembly shall be that specied by the manufacturer.
CHECKING FOR LEAKS
WARNING: Never use an open ame to check for leaks.
OPERATION - LIGHTING INSTRUCTIONS WHEN USING MATCH
Read and understand all safety information before operating heater.
WARNING: Burner and Burner Guard should always face away from
propane tank shut-off and regulator.
WARNING: Improper installation, alteration, service or maintenance can cause property
damage, injury or death.Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING: Do not cover air inlet holes in mixing tube.
WARNING: Make sure there is no open ame in the area.
Fully open the propane tank valve.
PROPANE TANK TOP HEATER
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
12
5. Once the burner is lit, continue to depress the valve
plunger for 30 seconds and then release. Be careful
not to shake the heater when releasing the plunger.
6. If the burner does not light within 10 seconds, turn
regulator knob to the “OFF” ( ) position. Wait at least
ve (5) minutes for the gas to dissipate before relighting.
7. If heater will not light after repeated tries, do not
attempt to repair heater. Return heater to nearest
authorized service center or to the address on back
of this manual, freight prepaid.
8. After burner lights, turn the heater regulator knob to the desired heat setting “LOW” ( ), “MED” ( ), or
“HIGH” ( ).
9. For dual burner models only : Light both burners when maximum heat is needed. Use one burner
to conserve fuel. Repeat steps to light second burner.
FIGURE 4
LIGHTING INSTRUCTIONS WHEN USING MATCH (CONTINUED)
1. Open Cylinder valve by turning
counterclockwise .
2. Turn heater regulator knob
clockwise to the
“High” ( ) position. (Fig. 4)
WARNING: Stand to the side of unit while
lighting. Do not stand or have any part of your
body over or in front of heater while lighting.
CAUTION: Do not insert match
into air inlet holes in mixing tube.
4. Push in the safety shut-off valve plunger (Fig. 5)
WARNING: Do not push in safety shut-off
valve plunger before inserting lit match.
3. Do not attempt to light one burner off of
the other. Use one match per burner.
Locate ignition hole in side of burner.
(Fig. 5) Insert a lit match through ignition hole.
FIGURE 5
PROPANE TANK TOP HEATER
TT15 Series
Safety
Shut-off Valve
Wing Bolt
Electrode
Heat Regulator Knob
Piezo
Ignition Hole
Support Leg
Burner Front
Place lit match through ignition hole.
TT30 Series
Ignition Hole
Tip Over Switch
Safety
Shut-off Valve
Air Inlet Hole
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
12 13
TURNING OFF THE HEATER
1. Tightly close propane tank valve by turning fully clockwise .
2. Turn the heater regulator knob to the “OFF” ( ) position. Wait at least 30 minutes for the heater to cool
before handling heater.
3. Always remove the heater from the propane tank after each use and store indoors. Do not store heater while
attached to propane tank. Do not store propane cylinders in a building, garage or any other enclosed area.
VENTILATION
Always be sure to supply proper ventilation while operating this heater.
Provide a minimum of 1/2 square foot opening for fresh air supply for 15,000 BTU’s
of heat and one square foot opening for 30,000 BTU’s of heat.
OPERATION - LIGHTING INSTRUCTIONS FOR PIEZO IGNITION MODELS
Read and understand all safety information before operating heater.
WARNING: Burner and Burner Guard should always face away from
propane tank shut-off and regulator.
WARNING: Improper installation, alteration, service or maintenance can cause property
damage, injury or death.Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING: Do not cover air inlet holes in mixing tube.
WARNING: Make sure there is no open ame in the area.
Fully open the propane tank valve.
PROPANE TANK TOP HEATER
Electrode
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
14
1. Stop! Read all safety information rst.
2. Open cylinder valve by turning counterclockwise .
WARNING: Stand to the side of unit while lighting. Do not stand or have any part of your body
over or in front of heater while lighting.
3. Turn heater regulator knob counterclockwise to “OFF” ( ) position.
4. Wait ve (5) minutes to clear out any gas. Then smell for gas, including near the oor. If you smell gas,
STOP! Follow the safety information on the tag attached to the heater. If you do not smell gas, go to
the next step.
5. Turn heater regulator knob clockwise to “High” ( ) position. Press in safety shut-off valve plunger.
(Fig. 5)
6. With safety shut-off valve plunger pressed in, immediately push down and release piezo ignitor button
repeatedly. This will light the burner.
7. Once the burner is lit, continue to depress the valve plunger for 30 seconds and then release. Be
careful not to shake the heater when releasing the plunger.
8. If burner goes out, repeat steps 5 through 7 or use a match. If heater will not light after repeated attempts
do not attempt to repair heater.
9. When burner is lit, turn heater regulator knob to desired heat setting “LOW” ( ), “MED” ( ), or “HIGH” ( ).
10. On dual burner models light both burners when maximum heat is needed.
Use one burner to conserve fuel.
LIGHTING INSTRUCTIONS FOR PIEZO IGNITION MODELS (CONTINUED)
TURNING OFF THE HEATER
1. Tightly close propane tank valve by fully turning clockwise .
2. Turn the heater regulator knob to the “OFF” ( ) position. Wait at least 30 minutes for the heater to cool
before handling heater.
3. Always remove the heater from the propane tank after each use and store indoors. Do not store heater while
attached to propane tank. Do not store propane cylinders in a building, garage or any other enclosed area.
VENTILATION
Always be sure to supply proper ventilation while operating this heater.
Provide a minimum of 1/2 square foot opening for fresh air supply for 15,000 BTU’s
of heat and one square foot opening for 30,000 BTU’s of heat.
PROPANE TANK TOP HEATER
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
14 15
LIGHTING UNDER WIND CONDITIONS
When using this heater outdoors on a windy day, it will be necessary to use a match or long stem butane
lighter to ignite the burner. It may be difcult to keep the match lit long enough under windy conditions. Follow
the “Lighting instructions when Using a Match” procedure after doing the following:
1. Position the heater and cylinder such that the burner faces away from the wind.
2. Position your body behind the heater such that your body blocks the wind while you are
following the instructions for lighting with a match.
STORAGE
Never store a Propane gas tank inside a building or in the vicinity of any gas or oil burning appliance. Always
remove the heater from the propane tank after each use and store indoors. Do not store heater while attached
to propane tank. Do not store propane cylinders in a building, garage or any other enclosed area. The tank
must be disconnected and stored outdoors in a well ventilated area out of reach of children, in accordance
with the standard for the the Storage and Handling of Liqueed Petroleum Gases, ANSI / NFPA 58 and CSA
B149.1, Natural Gas and Propane Installation Code. The plastic tank valve plug supplied with your tank must
be tightly installed when the tank is disconnected from the heater.
MAINTENANCE INSTRUCTIONS
1. Turn unit off, allow heater to fully cool and disconnect propane hose before performing any Maintenance
functions.
2. Keep unit clean and keep the inside of the unit debris free.
3. Have unit checked by a qualied technician at least once a year, preferably prior to the heating season.
PROPANE TANK TOP HEATER
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
16
TROUBLESHOOTING
1. Unitwillnotlight. 1. Valveonpropanecylindernotopen. 1. Opencylindervalvebyturningcounterclockwise.
2. Propanecylinderempty 2. Havecylinderrefilled.
3. Regulatornotin"High"position 3. Turnregulatorto"High"position.
4. Excessflowdevicetriggered. 4. Closecylidervalve,wait5minutesandreopenslowly.
5. DefectiveRegulator. 5. ReplaceRegulatorassembly.
2. Burnerwillnotstaylitwhen 1. Tiltswitchopen 1. Correctalignmentofunittoensureitisvertical.
gasvalveplungerreleased. 2. Wiringofthermocouple 2. Checkwiringconnectionsareproperlyengaged.
3. Defectivethermocouple 3. Replacethermocouple.
4. Defectivetiltswitch 4. Replacetiltswitch.
5. Defectivegasvalve 5. Replacegasvalveassembly.
3. Excessiveflamescomingout 1. Debrisorspiderwebsinmixingtube 1. Cleanburnertubewithbottlebrush,rinseinwater
ofburner,notglowingred. orburner. anddrainthoroughlybeforereintsalling.
2. Cloggedorifice 2. Removeandcleanusingcompressedair.
4. Piezowon'tspark. 1. Defectivepiezo 1. ReplacePiezo
(Somemodelsonly) 2. IgnitormisalignedwithThermocoupleshield 2. Realignignitorwiththermocoupleshield.
3. Wirefrayedordamaged. 3. Replacewire.
5. Flamesflashback/burninside 1. Debrisorspiderwebsinmixingtube. 1. Cleanburnertubewithbottlebrush,rinseinwater
themixingtube anddrainthoroughlybeforereintsalling.
2. Cloggedorifice 2. Removeandcleanusingcompressedair.
PROBLEM
POSSIBLECAUSE
CORRECTIVEACTION
REPLACEMENT PARTS LIST
PROPANE TANK TOP HEATER
TT15CPDG
TT15CL/TT15CDGP
TT1-15C, TT15000M
TT30CPDG
TT30CL/TT30CDGP
TT2-30C, TT30000M
1
2
3
4
5
6 GS13 GS13 GS13 GS13
7 Manifold
8
9
10
11 GDH1 GDH1
12 Handwheel
13 Electrode
14
15
ITEM DESCRIPTION
KW-16B
KW-16B KW-16B
KW-16B
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
16 17
REPLACEMENT PARTS ILLUSTRATION
PROPANE TANK TOP HEATER
TT30 SERIES
TT15 SERIES
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
18
THIS PAGE INTENTIONALLY LEFT BLANK.
LIMITED WARRANTY:
This limited warranty is extended to the original retail purchaser of this Forced Air/Convection/Radiant Heater and warrants against any
defect in materials and workmanship for a period of one (1) year from the date of retail sale. GHP Group, Inc., at it’s option, will either
provide replacement parts or replace or repair the unit, when properly returned to the retailer where purchased or one of our service centers
as directed by GHP Group, Inc., within one (1) year of retail purchase. (Shipping costs, labour costs, etc. are the responsibility of the purchaser.)
DUTIES OF THE OWNER:
This heating appliance must be operated in accordance with the written instructions furnished with this heater. This warranty shall not excuse
the owner from properly maintaining this heater in accordance with the written instructions furnished with this heater. A bill of sale, canceled
check or payment record must be kept to verify purchase date and establish warranty period. Original carton should be kept in case of warranty
return of unit.
WHAT IS NOT COVERED:
1. Damage resulting from use of improper fuel.
2. Damage caused by misuse or use contrary to the owners manual and safety guidelines.
3. Damage caused by a lack of normal maintenance.
4. Fuses
5. Use of non-standard parts or accessories.
6. Damage caused in transit. Freight charges on warranty parts or heaters to and from the factory shall be the responsibility of the owner.
This warranty does not imply or assume any responsibility for consequential damages that may result fr
om the use, misuse, or the lack of
routine maintenance of this heating appliance. A cleaning fee and the cost of parts may be charged for appliance failures resulting from lack of
maintenance. This warranty does not cover claims which do not involve defective workmanship or materials. FAILURE TO PERFORM
GENERAL MAINTENANCE (INCLUDING CLEANING) WILL VOID THIS WARRANTY.
THIS LIMITED WARRANTY IS GIVEN TO THE PURCHASER IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
I
NCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE. THE
REMEDY PROVIDED IN THIS WARRANTY IS EXCLUSIVE AND IS GRANTED IN LIEU OF ALL OTHER REMEDIES. IN NO EVENT WILL
GHP GROUP, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not
allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply t
o you.
CLAIMS HANDLED AS FOLLOWS:
1. Contact your retailer and explain the problem.
2. If the retailer is unable to resolve the problem, contact our Customer Service Dept. detailing the heater model, the problem, and proof
of date of purchase.
3. A representative will contact you. DO NOT RETURN THE HEATER TO GHP GROUP,INC. unless instructed by our Representative.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
TO REGISTER THE WARRANTY ON YOUR HEATER, PLEASE FILL OUT THIS CARD COMPLETELY
AND MAIL WI
THIN 14 DAYS FROM DATE OF PURCHASE OR REGISTER ON-LINE AT www.ghpgroupinc.com
NAME: ______________________________________ PHONE: ( ) __________________ EMAIL: ____________________________
ADDRESS: _________________________________ CITY: ______________________________ STATE: __________ ZIP: ____________
MODEL: ____________________ SERIAL #: _______________________________________ DATE PURCHASED: __________________
DEALER PURCHASED FROM: _______________
_____________________________ TYPE OF STORE: __________________________
CITY & STATE WHERE PURCHASED: ______________________________________________ PRICE PAID: _______________________
Please Take a Minute To Give Us Your Answers To The Following Questions.
All Responses Are Used Solely For Market Research And Are Held In Strict Confidence.
Who primarily decided this purchase?
Male Female 18-24 25-39 40-59 60 and over
Purpose of Purchase? _______________________________________________________________________________________________
Do you own any other portable heaters?
Yes No If yes, type____________________________brand_____________________
How do you intend to use your new heater?
Construction Site Farm Warehouse/Commercial Garage/Outbuilding Other
How did you become aware of this heater?
In-Store Display Newspaper Ad Magazine Ad Friend/Relative
TV Commercial Store Salesperson
Other ___________________________
What made you select this heater?
Style Size/Portability Price Package Brand Other ___________________
Do you:
own rent Would you recommend this heater to a friend? Yes No
Please give us your comments:________________________________________________________________________________________
THANK YOU FOR COMPLETING THIS FORM!
Information will be held confidential.
WARRANTY
18 19
20
WARRANTY REGISTRATION
IMPORTANT: We urge you to fill out your warranty registration card within fourteen (14)
days of date of purchase. You can also register your warranty on the internet at
www.ghpgroupinc.com. Complete the entire serial number. Retain this portion of the card
for your records.
SAVE THIS CARD!
Place
Postage
Stamp
Here
GHP Group, Inc.
8280 Austin Avenue
Morton Grove, IL 60053-3207
GHP Group, Inc.
8280 Austin Ave.
Morton Grove, IL 60053-3207
Tel: (877) 447-4768
www.ghpgroupinc.com
GHP
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
Tel: (877) 447-4768
www.ghpgroupinc.com
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
