• Page 1 - English - : imagine the possibilities Thank you for purchasing this Samsung product Microwave Oven user manual MC17F808KDT This manual is made with 100 recycled paper MC17F808KDTACDE6804130C00ENindd 1 20140520 21732
• Page 2 - English - : English 2 safety information Congratulations on your new Samsung microwave oven This manual contains important information on the installation use and care of your appliance Please take time to read this manual to take full advantage of your microwave ovens many benefits and features WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining and operating your microwave oven PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY A Do not attempt to operate this oven with the door open since opendoor operation can result in harmful exposure to microwave energy It is important not to defeat or tamper with the safety interlocks B Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on the sealing surface C Do not operate the oven if it is damaged It is particularly important that the oven door close properly and that there is no damage to the 1 Door bent 2 Hinges and latches broken or loosened 3 Door seals and sealing surface D Only properly qualified service personnel should adjust or repair the oven Do not attempt to adjust or repair the oven yourself SAVE THESE INSTRUCTIONS MC17F808KDTACDE6804130C00ENindd 2 20140520 21732
• Page 3 - English - : English 3 SAVE THESE INSTRUCTIONS IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS What the icons and signs in this user manual mean WARNING Hazards or unsafe practices that may result in severe personal injury or death CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage CAUTION To reduce the risk of fire explosion electric shock or personal injury when using your microwave oven follow these basic safety precautions Do NOT attempt Do NOT disassemble Do NOT touch Follow directions explicitly Unplug the power plug from the wall socket Make sure the machine is grounded to prevent electric shock Call the service center for help Note These warning signs are here to prevent injury to you and others Please follow them explicitly After reading this section keep it in a safe place for future reference IMPORTANT SAFETY INSTRUCTIONS When using any electrical appliance basic safety precautions should be followed including the following WARNING To reduce risk of burns electric shock fire personal injury or exposure to excessive microwave energy 1 Read all safety instructions before using the appliance 2 Read and follow the specific Precautions to avoid possible exposure to excessive microwave energy on page 2 3 This appliance must be grounded Connect only to properly grounded outlets See Important Grounding instructions on page 5 of this manual 4 Install or locate this appliance only in accordance with the provided installation instructions 5 Some products such as whole eggs and sealed containers for example closed glass jars can explode if heated rapidly Never heat them in a microwave oven 6 Use this appliance only for its intended use as described in the manual Do not put corrosive chemicals or vapors in or on this appliance This type of oven is specifically designed to heat cook or dry food It is not designed for industrial or laboratory use WARNING MC17F808KDTACDE6804130C00ENindd 3 20140520 21733
• Page 4 - English - : English 4 7 As with any appliance close supervision is necessary when it is used by children Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door 8 Do not operate this appliance if it has a damaged cord or plug if it is not working properly or if it has been damaged or dropped 9 This appliance should be repaired or serviced only by qualified service personnel Contact the nearest authorized service facility for examination repair or adjustment 10 Do not cover or block any openings on the appliance 11 Do not tamper with or make any adjustments or repairs to the door Do not store this appliance outdoors Do not use this product near water for example near a kitchen sink in a wet basement near a swimming pool or similar locations 13 Do not immerse the cord or plug in water 14 Keep the cord away from heated surfaces including the back of the oven 15 Do not let the cord hang over edge of table or counter 16 When cleaning surfaces of the door and oven that come together when the door closes use only mild nonabrasive soaps or detergents applied with a sponge or soft cloth Unplug the plug before cleaning 17 To reduce the risk of fire in the oven cavity a Do not overcook food Carefully attend appliance when paper plastic or other combustible materials are placed inside the oven to facilitate cooking b Remove wire twistties from paper or plastic bags before placing the bags in the oven c If materials inside the oven ignite keep the oven door closed turn the oven o and disconnect the power cord or shut o the power at the fuse or circuit breaker panel If the door is opened the fire may spread d Do not use the cavity for storage purposes Do not leave paper products cooking utensils or food in the cavity when not in use 18 Liquids such as water milk coee or tea can be overheated beyond the boiling point without appearing to be boiling Visible bubbling or boiling when the container is removed from the microwave oven is not always present THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID To reduce the risk of injury a Do not overheat liquid b Stir liquid both before and halfway through heating it c Do not use straightsided containers with narrow necks d After heating allow the container to stand in the microwave oven for a short time before removing the container e Use extreme care when inserting a spoon or other utensil into the container 19 Oversized foods or oversized metal utensils should not inserted in microwave toaster oven as they may create a fire of electric shock 20 Do not clean with metal scouring pads Piece can burn o the pad and touch electrical parts involving a risk of electric shock 21 Do not use paper products when appliance is operated in the toaster mode 22 Do not store any materials other than manufacturers recommended accessories in this oven when not in use 23 Do not cover racks or any other part of the oven with metal foil This will cause overheating of the oven SAVE THESE INSTRUCTIONS MC17F808KDTACDE6804130C00ENindd 4 20140520 21734
• Page 5 - English - : English 5 CAUTION 1 Clean Ventilating Hoods Frequently Grease should not be allowed to accumulate on the hood of the filter 2 When flaming foods under the hood turn the fan on 3 Use care when cleaning the venthood filter Corrosive cleaning agents such as lye based oven cleaner may damage the filter GROUNDING INSTRUCTIONS This appliance must be grounded In the event of an electrical short circuit grounding reduces the risk of electric shock by providing an escape wire for the electrical current This appliance is equipped with a cord that includes a grounding wire and a grounding plug The plug must be plugged into an outlet that is properly installed and grounded WARNING Improper use of the grounding plug can result in a risk of electric shock Plug into a grounded 3 prong outlet Do not remove the third grounding prong Do not use an adaptor or otherwise defeat the grounding plug Consult a qualified electrician or service person if you do not understand the grounding instructions or if you are not sure if the appliance is properly grounded We do not recommend using an extension cord with this appliance If the power supply cord is too short have a qualified electrician or serviceman install an outlet near the appliance However if it is necessary to use an extension cord read and follow the Use of Extension Cords section below Use of Extension Cords A short powersupply cord is provided to reduce the risk of your becoming entangled in or tripping over a longer cord Longer cord sets or extension cords are available and you can use them if you exercise care If you use a long cord or extension cord 1 The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance 2 The extension cord must be a groundingtype 3wire cord and it must be plugged into a 3slot outlet 3 The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over accidentally If you use an extension cord the interior light may flicker and the speed of the blower may vary when the microwave oven is on Cooking times may be longer too CRITICAL INSTALLATION WARNINGS The installation of this appliance must be performed by a qualified technician or service company Failing to have a qualified technician install the oven may result in electric shock fire an explosion problems with the product or injury Unpack the oven remove all packaging material and examine the oven for SAVE THESE INSTRUCTIONS CAUTION WARNING WARNING MC17F808KDTACDE6804130C00ENindd 5 20140520 21734
• Page 6 - English - : English 6 any damage such as dents on the interior or exterior of the oven broken door latches cracks in the door or a door that is not lined up correctly If there is any damage do not operate the oven and notify your dealer immediately Make sure to install your oven in a location with adequate space Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis Unplug the power plug and clean it with a dry cloth Failing to do so may result in electric shock or fire Plug the power cord into a properly grounded 3 pronged outlet Your oven should be the only appliance connected to this circuit Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire Do not use an electric transformer It may result in electric shock or fire Ensure that the voltage frequency and current provided match the products specifications Failing to do so may result in electric shock or fire Keep all packaging materials out of the reach of children Children may use them for play This appliance must be properly grounded Read and follow the specific Grounding instructions found in the beginning of this Section Do not ground the appliance to a gas pipe plastic water pipe or telephone line This may result in electric shock fire an explosion or problems with the product Never plug the power cord into a socket that is not grounded correctly and make sure that it is grounded in accordance with local and national codes Do not cut or remove the third ground prong from the power cord under any circumstances Connect the oven to a 20A circuit If you connect the oven to a 15A circuit make sure that the circuit breaker is operable Do not install this appliance in a humid oily or dusty location or in a location exposed to direct sunlight or water rain drops This may result in electric shock or fire Plug the power plug into the wall socket firmly Do not use a damaged power plug damaged power cord or loose wall socket This may result in electric shock or fire Do not mount over a sink Do not pull or excessively bend the power cord Do not twist or tie the power cord Do not hook the power cord over a metal object place a heavy object on the power cord insert the power cord between objects or push the power cord into the space behind the appliance SAVE THESE INSTRUCTIONS MC17F808KDTACDE6804130C00ENindd 6 20140520 21734
• Page 7 - English - : English 7 This may result in electric shock or fire Do not pull the power cord when you unplug the oven Unplug the oven by pulling the plug only Failing to do so may result in electric shock or fire When the power plug or power cord is damaged contact your nearest service center for a replacement or repair INSTALLATION CAUTIONS Position the oven so that the plug is easily accessible Failing to do so may result in electric shock or fire due to electric leakage Unplug the oven when it is not being used for long periods of time or during a thunderlightning storm Failing to do so may result in electric shock or fire CRITICAL USAGE WARNINGS If the microwave appliance is flooded please contact your nearest service center Failing to do so may result in electric shock or fire Read and follow the specific Precautions to Avoid Possible Exposure to Excessive Microwave Energy found in the beginning of this Safety Information Section If the microwave generates a strange noise a burning smell or smoke unplug it immediately and contact your nearest service center Failing to do so may result in electric shock or fire In the event of a gas leak propane gas LP gas etc ventilate the room immediately Do not touch the microwave power cord or plug Do not use a ventilating fan A spark may result in an explosion or fire Take care that the door or any of the other parts do not come into contact with your body while cooking or just after cooking Failing to do so may result in burns In the event of a grease fire on the surface units below the oven smother the flaming pan on the surface unit by covering the pan completely with a lid a cookie sheet or a flat tray Never leave surface units beneath your oven unattended at high heat settings Boil overs cause smoking and greasy spillovers that may ignite and spread if the vent fan is operating To minimize automatic fan operation use adequate sized cookware and use high heat on surface units only when necessary If materials inside the oven should ignite keep the oven door closed turn the oven o and disconnect the power cord or shut o power at the fuse or circuit breaker panel If the door is opened the fire may spread SAVE THESE INSTRUCTIONS CAUTION WARNING MC17F808KDTACDE6804130C00ENindd 7 20140520 21734
• Page 8 - English - : English 8 Always observe Safety Precautions when using your oven Never try to repair the oven on your own There is dangerous voltage inside If the oven needs to be repaired contact an authorized service center near you Do not attempt to repair disassemble or modify the appliance yourself Because a high voltage current enters the product chassis during operation opening the chassis can result in electric shock or fire You may be exposed to electromagnetic waves When the oven requires repair contact your nearest service center If any foreign substance such as water enters the microwave unplug it and contact your nearest service center Failing to do so may result in electric shock or fire Do not touch the power plug with wet hands This may result in electric shock Do not turn the appliance o by unplugging the power plug while the appliance is in operation Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire Keep all packaging materials well out of the reach of children Packaging materials can be dangerous to children If a child places a bag over its head the child can suocate Do not let children or any person with reduced physical sensory or mental capabilities use this appliance unsupervised Make sure that the appliance is out of the reach of children Failing to do so may result in electric shock burns or injury Do not touch the inside of the appliance immediately after cooking The inside of the appliance will be hot The heat on the inside of the oven can cause burns Do not put aluminum foil except as specifically directed in this manual metal objects such as containers forks etc or containers with golden or silver rims into the microwave These objects can cause sparks or a fire Do not use or place flammable sprays or objects near the oven Heat from the microwave can cause flammable sprays to explode or burn Failing to do so may result in electric shock or injury Do not tamper with or make any adjustments or repairs to the door Under no circumstances should you remove the outer cabinet Do not store or use the oven outdoors SAVE THESE INSTRUCTIONS MC17F808KDTACDE6804130C00ENindd 8 20140520 21734
• Page 9 - English - : English 9 USAGE CAUTIONS If the surface of the microwave is cracked turn it o Failing to do so may result in electric shock Dishes and containers can become hot Handle with care Hot foods and steam can cause burns Carefully remove container coverings directing steam away from your hands and face Remove lids from baby food before heating After heating baby food stir well to distribute the heat evenly Always test the temperature by tasting before feeding the baby The glass jar or surface of the food may appear to be cooler than the food in the interior which can be so hot that it will burn the infants mouth Make sure all cookware used in the oven is suitable for microwaving Use microwavable cookware in strict compliance with such manufacturers recommendations Do not stand on top of the microwave or place objects such as laundry oven covers lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance Items such as a cloth may get caught in the door This may result in electric shock fire problems with the product or injury Do not operate the appliance with wet hands This may result in electric shock Do not spray volatile material such as insecticide onto the surface of the appliance As well as being harmful to humans it may also result in electric shock fire or problems with the product Do not place the appliance over a fragile object such as a sink or glass object This may result in damage to the sink or glass object Do not put your face or body close to the appliance while cooking or when opening the door just after cooking Take care that children do not come too close to the appliance Failing to do so may result in children burning themselves Do not place food or heavy objects over the door when opening the door The food or object may fall and this may result in burns or injury Do not abruptly cool the door the inside of the appliance or the dish by pouring water over it during or just after cooking This may result in damage to the appliance The steam or water spray may result in burns or injury SAVE THESE INSTRUCTIONS CAUTION MC17F808KDTACDE6804130C00ENindd 9 20140520 21734
• Page 10 - English - : English 10 Do not cook without the glass tray in place on the oven floor Food will not cook properly without the tray Do not defrost frozen beverages in narrownecked bottles The containers can break Do not scratch the glass of the oven door with a sharp object This may result in the glass being damaged or broken Do not store anything directly on top of the appliance when it is in operation Do not use sealed containers Remove seals and lids before use Sealed containers can explode due to buildup of pressure even after the oven has been turned o CRITICAL CLEANING INSTRUCTIONS Do not clean the appliance by spraying water directly onto it Do not use benzene thinner or alcohol to clean the appliance This may result in discoloration deformation damage electric shock or fire Before cleaning or performing maintenance unplug the appliance from the wall socket and remove food waste from the door and cooking compartment Failing to do so may result in electric shock or fire Take care not to hurt yourself when cleaning the appliance externalinternal You may hurt yourself on the sharp edges of the appliance Do not clean the appliance with a steam cleaner This may result in corrosion Keep the inside of the oven clean Food particles or spattered oils stuck to the oven walls or floor can cause paint damage and reduce the eciency of the oven SAVE THESE INSTRUCTIONS WARNING MC17F808KDTACDE6804130C00ENindd 10 20140520 21734
• Page 11 - English - : English 11 contents SETTING UP YOUR NEW MICROWAVE OVEN Checking the parts 12 Setting up your microwave oven 13 Checking the control panel 14 Turning on the power and setting the clock 15 Using my setting feature 15 Selecting the display weight 15 Setting the 12 HR24 HR 15 Selecting the sound 16 Setting the word speed 16 Setting the remind end signal 16 Setting the daylight saving time adjustment 16 Setting the key lock 16 Setting the demo mode 16 Setting the clock 16 USING YOUR MICROWAVE OVEN Using the kitchen timer 17 Using the StopClear button 17 Using the microwave 30 sec feature 17 Using the MoreLess feature 17 Turning on the light 17 Turning on the vent 17 Eco mode 18 Warm hold 18 Using steam clean 18 Turning on the turntable 18 Using the defrost button 19 Accessory usage 20 Using the slim fry button 20 Using the fit choice button 21 Using the speed cook button 25 Using the auto cook button 29 Using the express menu feature 33 Using the microwave setting cooking times amp power levels 34 Brown 35 BakeRoast 35 Speed bakeRoast 35 Speed bakeRoast guide 36 COOKWARE GUIDE Recommended cooking utensils 37 Limited use items 37 Not recommended 37 Testing utensils 37 COOKING GUIDE Cooking techniques 38 General microwave tips 39 Guide for cooking eggs in your microwave 39 Guide for cooking vegetables in your microwave 39 CLEANING AND MAINTAINING YOUR MICROWAVE OVEN Cleaning the exterior 40 Cleaning the interior 40 Cleaning the turntable and roller rings 40 Storing and repairing your microwave oven 41 Replacing the cooktopNight light 41 Replacing the oven light 41 Cleaning the grease filter 42 Replacing the charcoal filter 43 TROUBLESHOOTING Check these points if your microwave oven 44 APPENDIX Specifications 45 WARRANTY Warranty and service information 45 Samsung overtherange otr microwave oven 46 MC17F808KDTACDE6804130C00ENindd 11 20140520 21734

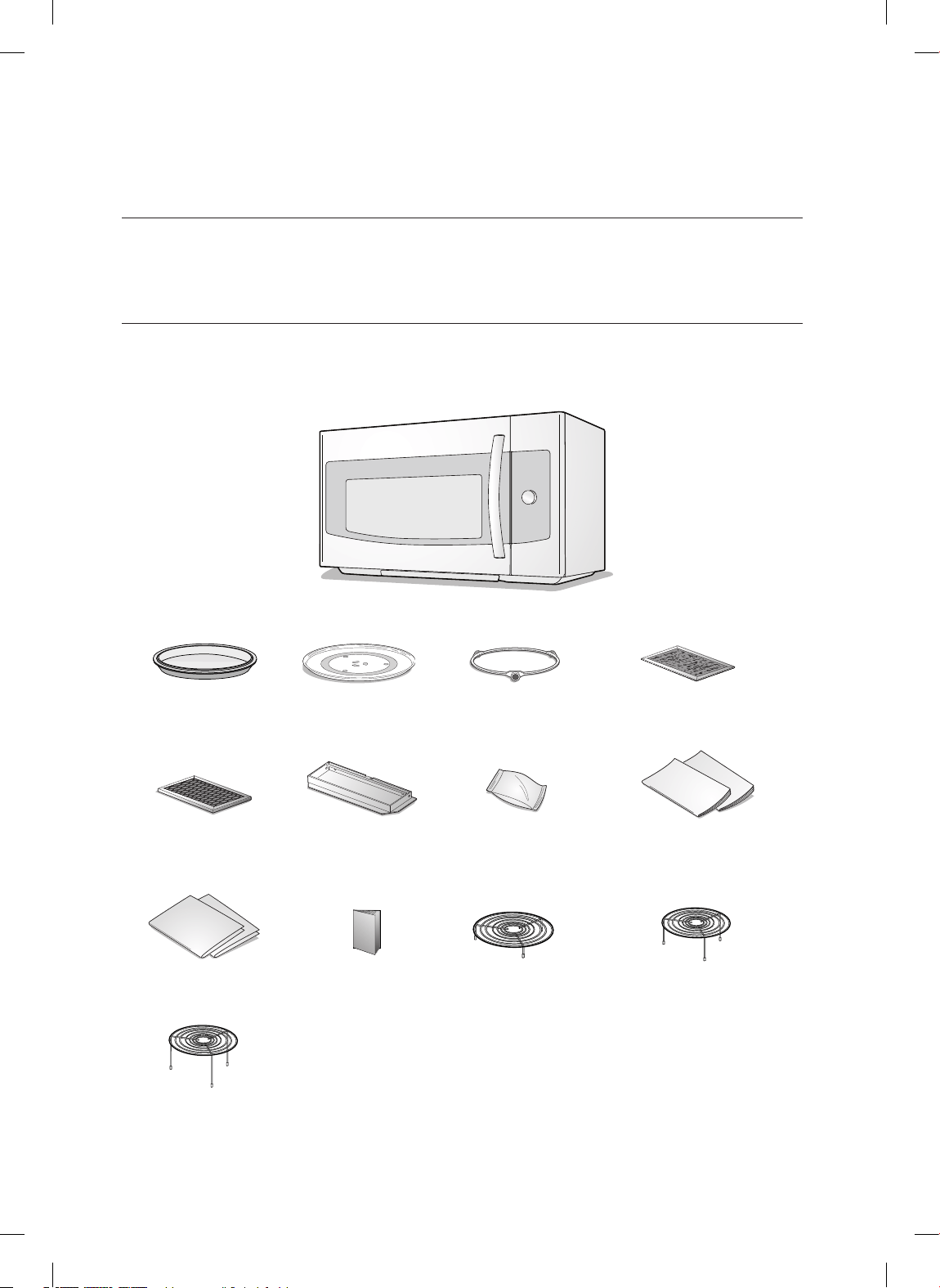

• Page 12 - English - : English 12 setting up your new microwave oven Be sure to follow these instructions closely so that your new microwave oven works properly CHECKING THE PARTS Carefully unpack your microwave oven and make sure youve received all the parts shown below If your microwave oven was damaged during shipping or if you do not have all the parts contact Samsung Customer Service Refer to the WARRANTY AND SERVICE INFORMATION on page 45 Microwave oven Ceramic Enamel Tray Glass Tray Roller Guide Ring Grease Filter Installed Charcoal filter Exhaust adaptor Hardware kit Screws amp Brackets Manuals User amp Installation Templates Top amp Wall Cooking Guide Manual Low Rack Medium Rack High Rack If you need an accessory marked with a you can buy it from the Samsung Contact Center 18007267864 MC17F808KDTACDE6804130C00ENindd 12 20140520 21735

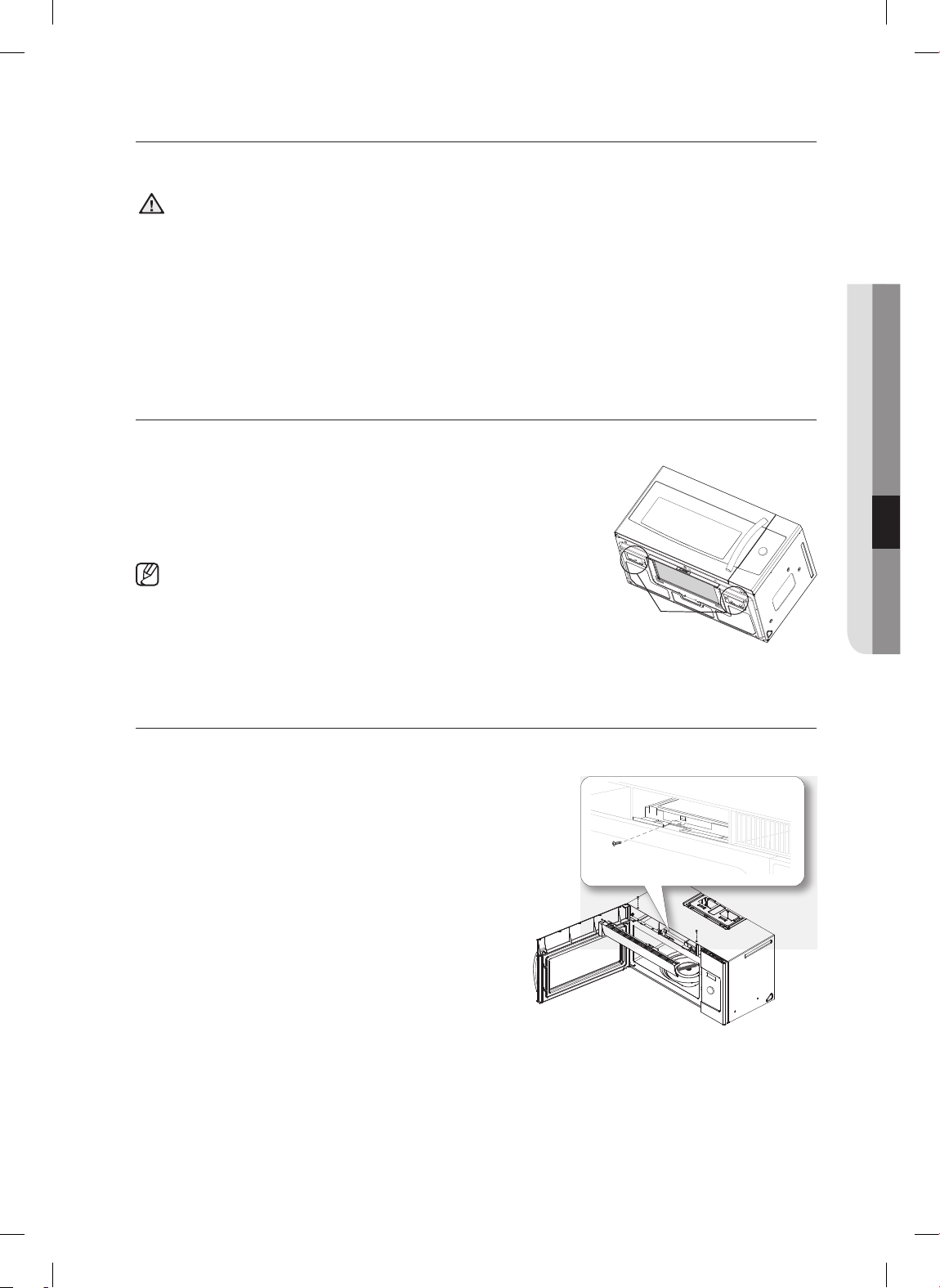

• Page 13 - English - : English 13 01 SETTING UP YOUR MICROWAVE OVEN SETTING UP YOUR MICROWAVE OVEN 1 Open the door by pulling the handle on the right side of the door 2 Wipe the inside of the oven with a damp cloth 3 Install the preassembled ring into the indentation at the center of the microwave oven 4 Place the glass tray securely in the center of the preassembled roller ring Installing the metal shelf When you need to use the Metal Shelf place it on the plastic hooks inside your oven and make sure it is positioned properly to avoid arcing and damaging your oven CAUTION Make sure the shelf is positioned properly inside the microwave to prevent damage to the oven from arcing damp cloth preassembled roller ring indentation glass tray MC17F808KDTACDE6804130C00ENindd 13 20140520 21736

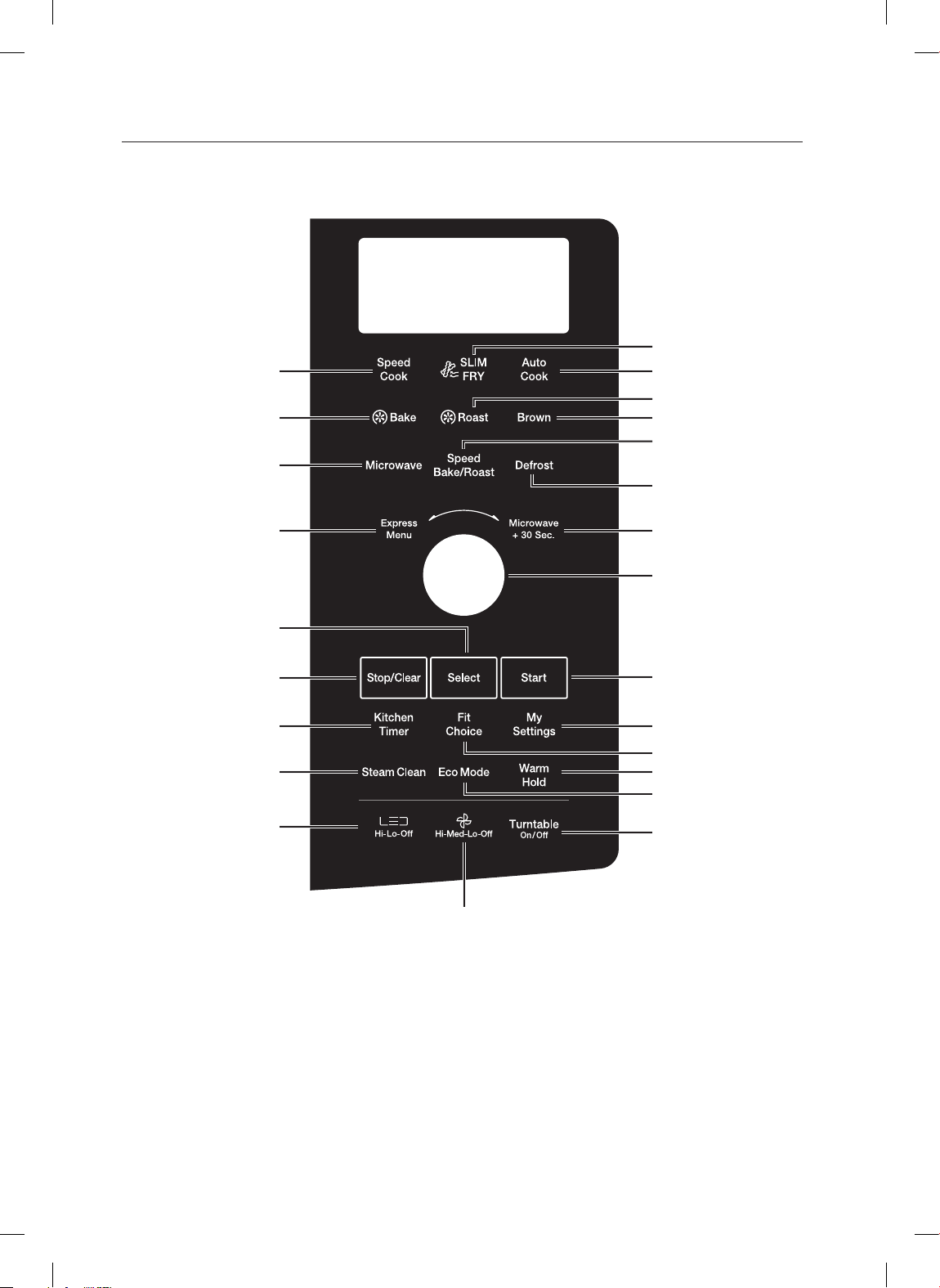

• Page 14 - English - : English 14 CHECKING THE CONTROL PANEL Fit Choice page 21 Slim Fry page 20 Roast page 35 Bake page 35 Speed BakeRoast page 35 Microwave page 34 Express Menu page 33 Select StopClear Page 17 My Settings page 15 Kitchen Timer page 17 Eco Mode page 18 Steam Clean page 18 Light HiLoO page 17 Auto Cook page 29 Brown page 35 Defrost page 19 Microwave 30 Sec page 17 Knob Dial Start Warm Hold page 18 Turntable OnO page 18 Vent HiMidLowO page 17 Speed Cook page 25 MC17F808KDTACDE6804130C00ENindd 14 20140520 21736
• Page 15 - English - : English 15 01 SETTING UP YOUR MICROWAVE OVEN TURNING ON THE POWER AND SETTING THE CLOCK 1 The first time you plug in the power chord the display shows SET HOUR 2 Using the knob dial dial the hour and then press the Select button The display shows SET MIN 3 Dial the minutes and then press the Select button The display shows SET AMPM 4 Dial AM or PM and then press the Select button The display will show the clock USING MY SETTING FEATURE Your new microwave oven can be customized to suit your personal tastes Simply press My Settings to set these options For your convenience all the options are summarized in the following table Item No Settings options Description Operation 1 Display Weight Weight options are pounds and kilograms Press My Settings dial 1 and select by pressing the Select button 2 12 HR24 HR The clock can display either 12 HR or 24 HR time modes Press My Settings dial 2 and select by pressing the Select button 3 Sound Sound volume can be turned On and O Press My Settings dial 3 and select by pressing the Select button 4 Word Scroll Speed There are three speeds Low Medium and High The default is Medium Speed Press My Settings dial 4 and select by pressing the Select button 5 Remind End Signal The Remind End Signal can be turned On and O Press My Settings dial 5 and select by pressing the Select button Daylight Savings Time Adjustment The time can be advanced one hour for DST without resetting the clock Press My Settings dial 6 and select by pressing the Select button 7 Key Lock This feature prevents use by unsupervised children Press My Settings dial 7 and select by pressing the Select button 8 Demo Mode The Demo Mode can be turned On and O Press My Settings dial 8 and select by pressing the Select button 9 Clock The clock can be adjusted Press My Settings dial 9 and select by pressing the Select button Ifthereisapowerinterruptionyouwillneedtoresettheseoptions SELECTING THE DISPLAY WEIGHT You can choose between pounds lbs and kilograms kg 1 Press the My Settings button dial 1WEIGHT and then press the Select button The display shows WEIGHT 2 Dial LBS or KG 3 Press the Select button repeatedly to select the weight measurements you want to use SETTING THE 12 HR24 HR 1 Press the My Settings button dial 21224 HR and then press the Select button The display will show 12 HR24 HR 2 Dial 12 HR or 24 HR 3 Press the Select button MC17F808KDTACDE6804130C00ENindd 15 20140520 21736
• Page 16 - English - : English 16 SELECTING THE SOUND 1 Press the My Settings button dial 3SOUND and then press the Select button The display shows SOUND 2 Dial On or O 3 Press the Select button SETTING THE WORD SPEED 1 Press the My Settings button dial 4SCROLL and then press the Select button The display shows SCROLL 2 Dial the scroll speed 3 Press the Select button SETTING THE REMIND END SIGNAL The Remind End Signal can be set On or O 1 Press the My Settings button dial 5REMIND and then press the Select button The display shows REMIND 2 Dial On or O 3 Press the Select button SETTING THE DAYLIGHT SAVING TIME ADJUSTMENT 1 Press the My Settings button dial 6DAYSAV and then press the Select button The display shows DAYLIGHT SAV 2 Dial On or O Press the Select button Time of day will advance one hour If you select OFF the time will go back one hour If the clock is set for standard time this function allows you to change the time easily without needing to reset the clock Daylight Saving Time begins for most of the United States at 2 am on the first Sunday of April and reverts to Standard time at 2 am on the last Sunday of October SETTING THE KEY LOCK 1 Press the My Settings button dial 7KEY LOC and then press the Select button The display shows KEY LOCK 2 Dial On or O 3 Press the Select button SETTING THE DEMO MODE 1 Press the My Settings button dial 8DEMO and then press the Select button The display shows DEMO MODE 2 Dial On or O 3 Press the Select button SETTING THE CLOCK 1 Press the My Settings button dial 9CLOCK and then press the Select button The display shows SET HOUR 2 Dial the hour and then press the Select button The display shows SET MIN 3 Dial the minutes and then press the Select button The display shows SET AMPM 4 Dial AM or PM and then press the Select button The display will show the clock MC17F808KDTACDE6804130C00ENindd 16 20140520 21736
• Page 17 - English - : English 17 02 USING YOUR MICROWAVE OVEN using your microwave oven USING THE KITCHEN TIMER 1 Press the Kitchen Timer button max time 90 min The display shows SET MIN 2 Use the dial to set the number of minutes you want the timer to run 3 Press the Select button The display shows SET SEC 4 Use the dial to set the number of additional seconds you want the timer to run 5 Press the Select button The display counts down and beeps when the time has elapsed USING THE STOPCLEAR BUTTON The StopClear button allows you to clear instructions you have entered It also allows you to pause the ovens cooking cycle so that you can check the food To pause the oven during cooking press the StopClear button once To restart press the Start button To stop cooking erase instructions and return the oven display to the time of day press the Stop Clear button twice To clear instructions you have just entered press the StopClear button once then reenter the instructions To cancel a timer setting press the StopClear button once USING THE MICROWAVE 30 SEC FEATURE This feature oers a convenient way to heat food in set time increments at the High power level 1 Dial in the Microwave 30 Sec direction clockwise to increase the time you want food to cook The time will display Press the Start button to begin cooking If the Total Cooking Time is Between The Cooking Time Increases in These Increments 30 seconds 1 minute 5 seconds 1 minute 3 minutes 10 seconds 3 minutes 10 minutes 30 seconds 10 minutes 20 minutes 1 minute 20 minutes 60 minutes 2 minutes 60 minutes 90 minutes 5 minutes 2 Add cooking time to a program in progress by dialing in the Microwave 30 Sec direction clockwise As you dial clockwise you increase the cooking time by set increments USING THE MORELESS FEATURE The More or Less feature allows you to adjust the preset cooking time It works with 1 and 2 stage cooking MW Bake Roast Brown Speed BakeRoast and Warm Hold buttons Use the More or Less feature only after cooking has begun 1 To ADD more time to a cooking procedure dial in the clockwise direction Each step adds 5 seconds to the cooking time 2 To REDUCE the time of a cooking procedure dial in the counterclockwise direction Each step reduces the cooking time by 5 seconds TURNING ON THE LIGHT Press the button to turn the light on or o Press once for high twice for low three times to turn the light o TURNING ON THE VENT The vent fan removes steam and other vapors from rangetop cooking Press the button once for fan speed high twice for fan speed medium three times for fan speed Low and four times to turn the fan o The Vent Fan protects the microwave from excess heat rising from the cooktop below it It automatically turns on if it senses too much heat If you have turned the fan on you may find that you cannot turn it o The fan will automatically turn o when the internal parts are cool It may stay on for 30 minutes or more after the cooktop and microwave controls are turned o MC17F808KDTACDE6804130C00ENindd 17 20140520 21736
• Page 18 - English - : English 18 ECO MODE Eco Mode reduces standby power usage When you press the Eco Mode button once the display will go out and the microwave shifts to the mode which minimizes power usage To cancel the Eco Mode press the Eco Mode button once again or press any other button WARM HOLD You can keep cooked food warm in your microwave oven for up to 90 minutes 1 Press Warm Hold button 2 Enter the cooking time 3 Press EnterStart button Warm Hold operates for up to 90 minutes Food that is cooked covered should also be covered during Warm Hold Pastry items pies turnovers etc should be uncovered during Warm Hold Complete meals kept warm on a dinner plate can be covered during Warm Hold Below are the amounts of food we recommend you apply the Warm and Hold function to by Food Type Food type Recommended Quantity Liquid 12 cups Dry 140280 g USING STEAM CLEAN The steam provided by the steam clean system will soak the cavity surface After using the steam clean function you can easily clean the cavity of the oven 1 Open the door 2 Carefully pour about 6 cl of water into a wide plate 3 Place the plate on the tray of micrwave oven 4 Close the door 5 Press the Steam Clean button and then the Start button Steam clean will operate for 6 minutes and 30 seconds The length of time cannot be modified 6 When the cleaning time is over the oven will beep Open the door 7 Clean the cavity of the oven with a dry dishtowel Remove the turntable and wipe under the rack with a piece of paper towel Use this function only after the oven has completely cooled Use normal tap water only Do not use distilled water CAUTION The water in the oven will be very hot due to the steam cleaning function Wipe up carefully TURNING ON THE TURNTABLE For best cooking results leave the turntable on It can be turned o for large dishes Press the Turntable OnO button to turn the turntable on or o Sometimes the turntable can become too hot to touch Be careful when you touch the turntable during and after cooking MC17F808KDTACDE6804130C00ENindd 18 20140520 21737
• Page 19 - English - : English 19 02 USING YOUR MICROWAVE OVEN USING THE DEFROST BUTTON Remove all packaging material before defrosting Place meat poultry fish bread etc on a ceramic plate General defrosting instructions 1 Place the food on the turntable glass tray 2 Press the Defrost button 3 Dial the Food you want to defrost and then press the Select button 4 Dial the amount of food and then press the Start button For specific instructions for dierent kinds of food see the table below COOK NO Food AMOUNT STANDING TIME REMARK 1 MEAT 0160 lbs 0127 kg 510 min Shield the edges with aluminium foil Turn the meat over when the oven beeps This program is suitable for lamb pork steaks chops and ground meat For ground meat place the meat directly on the turntable tray on wax paper Do not use an extra tray Let stand covered with foil for 510 minutes 2 POULTRY 0160 lbs 0127 kg 3060 min Shield the leg and wing tips with aluminium foil Turn the poultry over when the oven beeps This program is suitable for whole chicken as well as for chicken portions 3 FISH 0160 lbs 0127 kg 2060 min Shield the tail of a whole fish with aluminium foil Turn the fish over when the oven beeps This program is suitable for whole fish as well as for fish fillets 4 BREAD 0120 lbs 0109 kg 520 min Put bread on a piece of paper towel Turn over as soon as the oven beeps Place cake on a ceramic plate and if possible turn over as soon as the oven beeps The oven keeps operating and stops only when you open the door This program is suitable for all kinds of bread sliced or whole as well as for bread rolls and baguettes Arrange bread rolls in a circle Check foods when the oven signals After the final stage small sections may still be icy Let them stand to continue thawing Food is not fully defrosted until all ice crystals have thawed Shielding roasts and steaks with small pieces of foil prevents the edges from cooking before the center of the food has defrosted Use narrow flat smooth strips of aluminum foil to cover the edges and thinner sections of the food MC17F808KDTACDE6804130C00ENindd 19 20140520 21737

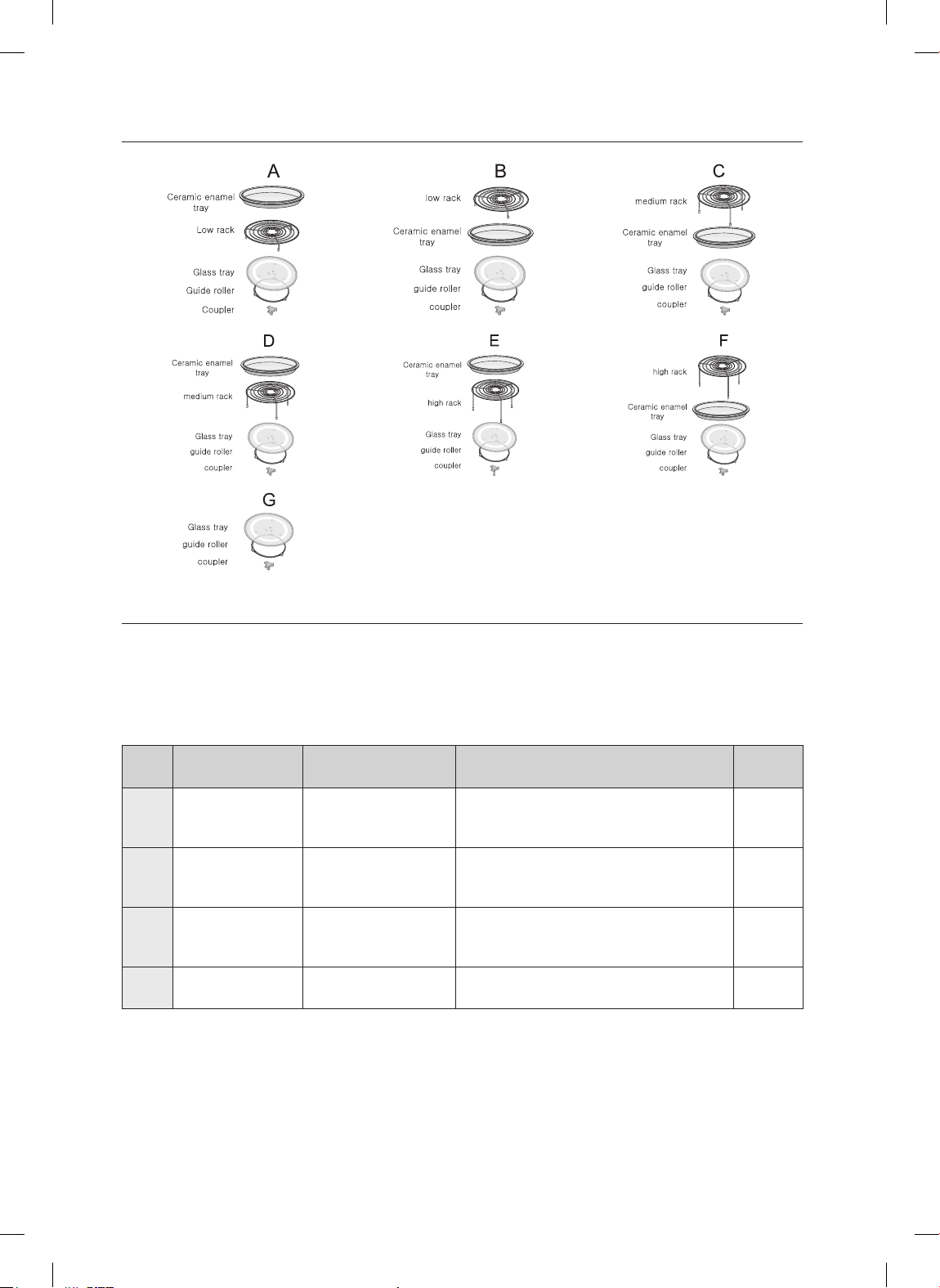

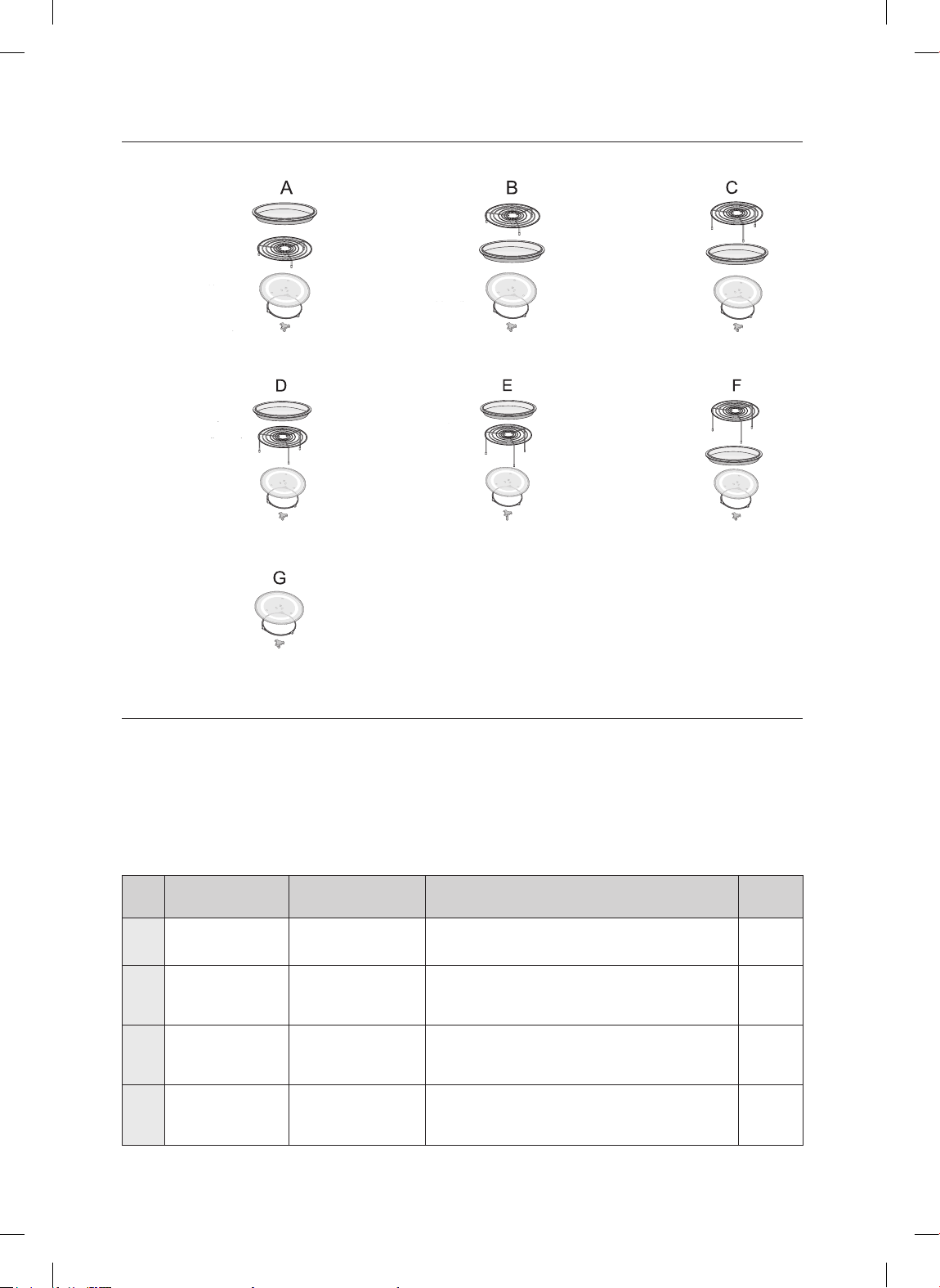

• Page 20 - English - : English 20 ACCESSORY USAGE USING THE SLIM FRY BUTTON The Slim Fry menu contains preset cooking programs for 9 dierent items 1 Place the food on the tray or the rack See Accessory Usage on this page 2 Press the Slim Fry button 3 Dial the food you want to cook and then press the Select button For the items that you do not need to set the amount for press the Start button 4 Dial the amount of food and then press the Start button Cook No Food Amount Directions Accessory Type FROZEN OVEN CHIPS 2 servings 227 g 4 servings 454 g Place frozen french fries on ceramic enamel tray then on high rack E FROZEN PRAWNS BREADED 2 servings 227 g 4 servings 454 g Place frozen prawns on med rack then ceramic enamel tray When the oven beeps turn over them and restart the oven D FROZEN CHICKEN NUGGETS 1 serving 5 ea 2 servings 10 ea 5 ea per serving Place chicken nuggets on the ceramic enamel tray then med rack D FROZEN MINI SPRING ROLLS 1 serving 170 g 2 servings 680 g Place frozen spring rolls on ceramic enamel tray then on med rack D MC17F808KDTACDE6804130C00ENindd 20 20140520 21737
• Page 21 - English - : English 21 02 USING YOUR MICROWAVE OVEN Cook No Food Amount Directions Accessory Type HOMEMADE FRENCH FRIES 2 servings 227 g 4 servings 340 g Peel potatoes and cut into sticks with a thickness of 1010 mm Soak in cold water for 3040 minsput some salt in the cold water for the osmotic pressure Dry them with a towel then brush with 5 g oil Have to remove the moisture completely Otherwise potatoes may get scorched and stick to the bottom of the tray Place them on greased ceramic enamel tray then on high rack E FROZEN POTATO WEDGES 2 servings 227 g 4 servings 454 g Place frozen potato wedges on greased ceramic enamel tray then on high rack E FROZEN POTATO CROQUETTES 2 servings 227 g 4 servings 454 g Place frozen potato croquettes on greased ceramic enamel tray then on med rack When the oven beeps turn over them and restart the oven D DRUMSTICKS 1 serving 340 g 2 servings 680 g 4 pcs per serving Rinse drumsticks and place them on high rack directly then on ceramic enamel tray E SLICED COURGETTES 2 servings 227 g 4 servings 454 g Cut courgettes and brush them with 5g oil Place sliced courgettes on med rack then greased ceramic enamel tray When the oven beeps turn over them and restart the oven D USING THE FIT CHOICE BUTTON The Fit Choice menu contains preset cooking programs for 30 dierent items 1 Place the food on the tray or the rack See Accessory Usage on page 20 2 Press the Fit Choice button 3 Dial the category and then press the Select button 4 Dial the food you want to cook and then press the Select button For items you do not need to set the amount for press Start 5 Dial the amount of food and then press Start button Category Cook No Food Amount Directions Accessory Type 1 FRESH VEGETABLES 1 BROCCOLI 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup or 5 florests Wash and clean the broccoli Prepare the florets and place in a microwave safe bowl Add 14 tablespoons of water 1 Tbsp per serving Cover during cooking and stir afterwards G 2 CARROTS 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Wash and clean the carrots Cut the carrots into even slices and place in a microwave safe bowl Add 14 tablespoons of water 1 Tbsp per serving Cover during cooking and stir afterwards G MC17F808KDTACDE6804130C00ENindd 21 20140520 21738
• Page 22 - English - : English 22 Category Cook No Food Amount Directions Accessory Type 1 FRESH VEGETABLES 3 GREEN BEANS 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Wash and clean the green beans Place the green beans in a microwave safe bowl Add 14 tablespoons of water 1 Tbsp per serving Cover during cooking and stir afterwards G 4 SPINACH 1 serving 2 servings 3 servings 4 servings 1 serving 1 cup Wash and clean the spinach Place the spinach in a microwave safe bowl Add 14 tablespoons of water 1 Tbsp per serving Cover during cooking and stir afterwards G 5 SQUASH 0509 kg 0914 kg Slice the squash in half and remove the seeds Place the squash cut side down in a microwave safe dish and add a ¼ cup of water G 2 FROZEN VEGETABLES 1 BROCCOLI 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup or 5 florets Place the broccoli in a microwave safe bowl Add 14 tablespoons of water 1 Tbsp per serving Cover during cooking and stir afterwards G 2 CARROTS 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Place the carrots in a microwave safe bowl Add 14 tablespoons of water 1 Tbsp per serving Cover during cooking and stir afterwards G 3 CORN 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Place the corn in a microwave safe bowl Add 14 tablespoons of water 1 Tbsp per serving Cover during cooking and stir afterwards G 4 GREEN BEANS 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Place the green beans in a microwave safe bowl Add 14 tablespoons of water 1 Tbsp per serving Cover during cooking and stir afterwards G 5 PEAS 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Place the peas in a microwave safe bowl Add 14 tablespoons of water 1 Tbsp per serving Cover during cooking and stir afterwards G 3 CANNED VEGETABLES 1 CARROTS 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Place the carrots in a microwave safe bowl Cover during cooking and stir afterwards G 2 CORN 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Place the corn in a microwave safe bowl Cover during cooking and stir afterwards G MC17F808KDTACDE6804130C00ENindd 22 20140520 21738
• Page 23 - English - : English 23 02 USING YOUR MICROWAVE OVEN Category Cook No Food Amount Directions Accessory Type 3 CANNED VEGETABLES 3 GREEN BEANS 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Place the green beans in a microwave safe bowl Cover during cooking and stir afterwards G 4 PEAS 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup Place the peas in a microwave safe bowl Cover during cooking and stir afterwards G 5 SPINACH 1 serving 2 servings 3 servings 4 servings 1 serving 1 cup Place the spinach in a microwave safe bowl Cover during cooking and stir afterwards G 6 BEANS 1 serving 2 servings 3 servings 4 servings 1 serving ½ cup or 5 florests Place the beans in a microwave safe bowl Cover during cooking and stir afterwards G 4 GRAIN 1 OATMEAL 1 pack 2 packs Follow the package directions for the recommended amount of water needed Stir well before and afterwards G 2 BROWN RICE 2 servings 4 servings 1 serving ½ cup Place 05 cup brown rice 2 cups water for 2 servings and 1 cup brown rice 3cups water for 4 servings in a microwave safe bowl Stir well before and flu with a fork afterwards Let stand 5 minutes before serving G 3 BULGUR 2 servings 4 servings 1 serving ½ cup Follow the package directions for the recommended amount of water needed Stir well before and flu with a fork afterwards G WHOLE WHEAT MACARONI 2 servings 4 servings 1 serving ½ cup Follow the package directions for the recommended amount of water needed Carefully remove from the microwave and drain the hot water G 5 QUINOA 2 servings 4 servings 1 serving ½ cup Follow the package directions for the recommended amount of water needed When the microwave beeps stir well and restart the microwave G WHOLE WHEAT COUSCOUS 2 servings 4 servings 1 serving ½ cup Follow the package directions for the recommended amount of water needed Pour the water into a microwave safe bowl and place in the microwave When the microwave beeps add couscous and restart the microwave Flu with a fork afterwards G MC17F808KDTACDE6804130C00ENindd 23 20140520 21738
• Page 24 - English - : English 24 Category Cook No Food Amount Directions Accessory Type 5 POULTRY CHICKEN BREAST 2 Pieces 4 Pieces 170 g each Place the chicken breasts on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the chicken breasts and restart the microwave F BONEIN CHICKEN PIECES 2 servings 510 g 4 servings 1020 g Brush the chicken pieces with oil and seasonings Place the pieces skin side up on the high rack then place the rack on the ceramic enamel tray F TURKEY BREAST 4 pieces 340 g each 85 g Place the turkey breasts on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the turkey breasts and restart the microwave F GROUND TURKEY 4 Servings454 g Place the ground turkey in a microwave safe 2 quart casserole dish When the microwave beeps stir and restart the microwave G 6 SEAFOOD WHITE FISH FILLET 1 serving 2 pieces 114 g 2 servings 4 pieces 227 g 1 servings 2 pcs each pices 57 g Spray the high rack with a nonstick spray Place the fillets cod pollack etc on the high rack then place the rack on the ceramic enamel tray F SALMON FILLET 1 serving 1 pieces 114 g 2 servings 2 pieces 227 g 1 servings 1 pc each pices 114 g Spray the high rack with a nonstick spray Place the salmon fillets on the high rack then place the rack on the ceramic enamel tray F 3 TILAPIA FILLET 1 serving 2 pieces 114 g 2 servings 4 pieces 227 g 1 servings 2 pcs each pices 57 g Spray the high rack with a nonstick spray Place the tilapia fillets on the high rack then place the rack on the ceramic enamel tray F 4 TUNA STEAK 1 serving 1 pieces 114 g 2 servings 2 pieces 227 g 1 servings 1 pc each pices 114 g Spray the high rack with a nonstick spray Place the tuna steaks on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the tuna steaks and restart the microwave F MC17F808KDTACDE6804130C00ENindd 24 20140520 21738
• Page 25 - English - : English 25 02 USING YOUR MICROWAVE OVEN USING THE SPEED COOK BUTTON The Speed Cook menu contains preset cooking programs for 43 dierent items 1 Place the food on the tray or the rack See Accessory Usage on page 20 2 Press the Speed Cook button 3 Dial the category and then press the Select button 4 Dial the food you want to cook and then press the Select button For the items that you do not need to set the amount for press Start 5 Dial the amount of food and then press the Start button Category Cook No Food Amount Directions Accessory type 1 BREAKFAST FRENCH TOAST FROZEN 2 servings 4 servings 1 serving 1 Toast Place the french toast on the high rack then place the rack on the ceramic enamel tray Turn over the pieces when the microwave beeps and restart the microwave F FRENCH TOAST STICKS 1 serving 2 servings 1 serving 5 Sticks Place the french toast sticks on the high rack then place the rack on the ceramic enamel tray Turn over the sticks when the microwave beeps and restart the microwave F SAUSAGE LINKS FRESH 2 servings 4 servings 1 serving 3 Links Place the sausage links on the ceramic enamel tray then place the tray on the high rack Turn over the links when the microwave beeps and restart the microwave E SAUSAGE LINKS FROZEN 2 servings 4 servings 1 serving 3 Links Place the sausage links on the ceramic enamel tray then place the tray on the high rack E SAUSAGE PATTIES FROZEN 2 servings 4 patties 4 servings 8 patties 1 serving 2 Patties Place the sausage patties on the ceramic enamel tray then place the tray on the high rack E SAUSAGE PATTIES FRESH 2 servings 2 patties 4 servings 4 patties 1 serving 1 Patties Place the sausage patties on the ceramic enamel tray then place the tray on the high rack When the microwave beeps turn over the sausage patties and restart the microwave E TOASTER ITEMS 2 servings 4 servings 1 serving 1 Toast Place the toaster item on the high rack then place the rack on the ceramic enamel tray Turn over the items when the microwave beeps and restart the microwave F WAFFLES FROZEN 2 servings 3 servings 1 serving 2 Waes Place the waes on the low rack then place the rack on the ceramic enamel tray Turn over the waes when the microwave beeps and restart the microwave B MC17F808KDTACDE6804130C00ENindd 25 20140520 21738
• Page 26 - English - : English 26 Category Cook No Food Amount Directions Accessory type 2 POULTRY CHICKEN BREAST 2 pieces 4 pieces 170 g each Place the chicken breast on the high rack then place the rack on the ceramic enamel tray Turn over the chicken when the microwave beeps and restart the microwave F BONEIN CHICKEN PIECES 2 servings 510 g 4 servings 1020 g Place the chicken pieces on the high rack then place the rack on the ceramic enamel tray F WHOLE CHICKEN 1418 kg Fold the wings under the chicken Place the chicken on the low rack then place the rack on the ceramic enamel tray Brush the chicken with melted butteroil and seasonings B TURKEY BREAST 4 pieces 340 g each 85 g Place the turkey breasts on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn the turkey breasts over and restart the microwave F 3 SEAFOOD WHITE FISH FILLET 1 serving 2 pieces 113 g 2 servings 4 pieces 226 g 1 serving 2 pcs each piece 57 g Spray the high rack with non stick spray Place the fillets cod pollack etc on the high rack then place the rack on the ceramic enamel tray F SALMON FILLET 1 serving 1 pieces 113 g 2 servings 2 pieces 226 g 1 serving 1 pc each piece 113 g Spray the high rack with non stick spray Place the salmon fillets on the high rack then place the rack on the ceramic enamel tray F 3 SHRIMP FRESH 2 servings 226 g 4 servings 452 g Place the shrimp on the ceramic enamel tray then place the tray on the high rack When the microwave beeps turn over the shrimp and restart the microwave E 4 TUNA STEAK 1 serving 1 pieces 113 g 2 servings 2 pieces 226 g 1 serving 1 pc each piece 113 g Spray the high rack with non stick spray Place the tuna steaks on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the tuna steaks and restart the microwave F MC17F808KDTACDE6804130C00ENindd 26 20140520 21738
• Page 27 - English - : English 27 02 USING YOUR MICROWAVE OVEN Category Cook No Food Amount Directions Accessory type 4 BEEF 1 BEEF ROAST 2 lbs 091 kg 3 lbs 136 kg Place the roast on the low rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the roast and restart the microwave B TOP LOIN STEAK MEDIUM 1 inch 227 g Place the steak on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the steak and restart the microwave Let the steak rest for 5 minutes before slicing F TOP LOIN STEAK WELL DONE 1 inch 227 g Place the steak on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the steak and restart the microwave Let the steak rest for 5 minutes before slicing F TOP ROUND STEAK MEDIUM 34 Inch 454 g Place the steak on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the steak and restart the microwave Let the steak rest for 5 minutes before slicing F TOP ROUND STEAK WELL DONE 34 Inch 454 g Place the steak on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the steak and restart the microwave Let the steak rest for 5 minutes before slicing F SIRLOIN STEAK MEDIUM 1 Inch 454 g Place the steak on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the steak and restart the microwave Let the steak rest for 5 minutes before slicing F SIRLOIN STEAK WELL DONE 1 Inch 454 g Place the steak on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the steak and restart the microwave Let the steak rest for 5 minutes before slicing F 8 GROUND BEEF 2 servings 226 g 4 servings 452 g Place the ground beef in a microwave safe 2 quart casserole dish When the microwave beeps stir and restart the microwave G 9 HAMBURGERS 2 each 113 geach 4 each 113 geach Place the hamburgers on the ceramic enamel tray then place the tray on the high rack When the microwave beeps turn the hamburgers over and restart the microwave E MC17F808KDTACDE6804130C00ENindd 27 20140520 21738
• Page 28 - English - : English 28 Category Cook No Food Amount Directions Accessory type 5 PORK BONEIN PORK CHOPS 1 serving 2 servings 1 serving 170226 g each Place the pork chops on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the pork chops and restart the microwave F BONELESS PORK CHOPS 2 servings 2 ea 4 servings 4 ea 1 serving 113142 g each Place the pork chops on the high rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the pork chops and restart the microwave F PORK TENDERLOIN Small 1 Piece 227454 g Large 1 Piece 680907 g Place the pork on the medium rack then place the rack on the ceramic enamel tray When the microwave beeps turn over the pork and restart the microwave B 6 PIZZA FROZEN PIZZA INDIVIDUAL 6 INCH 6 inch Place the pizza on the medium rack then place the rack on the ceramic enamel tray C FROZEN PIZZA REGULAR 12INCH 12 inch Place the pizza on the medium rack then place the rack on the ceramic enamel tray C FROZEN INDIVIDUAL DEEP DISH PIZZA 6 inch Place the pizza on the medium rack then place the rack on the ceramic enamel tray C FROZEN RISING CRUST PIZZA 12 inch Place the pizza on the medium rack then place the rack on the ceramic enamel tray C 7 POTATO 1 BAKED POTATO 2 ea 4 ea 227283 geach Pierce the potatoes 3 times with a fork Place the potatoes on the glass turntable with one end of the potato pointing towards the center After cooking let the potatoes stand for 35 minutes G 2 SWEET POTATO 2 ea 4 ea 227283 geach Pierce the sweet potatoes 3 times with a fork Place the potatoes on the glass turntable with one end of the sweet potato pointing towards the center After cooking let the potatoes stand for 35 minutes G 8 SNACKS FROZEN CHICKEN NUGGETS 1 serving 5 ea 2 servings 10 ea 5 ea per serving Place the chicken nuggets on the ceramic enamel tray then place the tray on the high rack E CHICKEN TENDERS 1 serving 5 ea 2 servings 10 ea 5 ea per serving Place the chicken tenders on the ceramic enamel tray then place the tray on the high rack E MC17F808KDTACDE6804130C00ENindd 28 20140520 21738
• Page 29 - English - : English 29 02 USING YOUR MICROWAVE OVEN Category Cook No Food Amount Directions Accessory type 8 SNACKS FROZEN CHICKEN WINGS 2 servings 10 ea 4 servings 20 ea 5 wings per serving Place the chicken wings on the low rack then place the rack on the ceramic enamel tray B 4 FRIED CHICKEN 2 servings 4 servings 1 piece per serving Place the chicken on the ceramic enamel tray then place the tray on the low rack A 5 MEATBALL 2 servings 4 servings 6 meatballs per serving Place the meatballs on the ceramic enamel tray then place the tray on the medium rack D CHEESE STICKS 2 servings 4 servings 2 sticks per serving Place the cheese sticks on the ceramic enamel tray then place the tray on the high rack E 7 ONION RINGS 2 servings 6 ea 4 servings 12 ea 3 rings per serving Place the onion rings on the ceramic enamel tray then place the tray on the medium rack When the microwave beeps turn over the onion rings and restart the microwave D 8 FRENCH FRIES 2 servings 170 g 4 servings 340 g 85 g per serving Place the french fries on the ceramic enamel tray then place the tray on the medium rack When the oven beeps turn over the french fries and restart the oven D SWEET POTATO FRIES 2 servings 170 g 4 servings 340 g 85 g per serving Place the sweet potato fries on the ceramic enamel tray then place the tray on the medium rack When the oven beeps turn over the sweet potato fries and restart the oven D USING THE AUTO COOK BUTTON The Auto Cook menu contains preset cooking programs for 48 dierent items 1 Place the food on the tray or the rack See Accessory Usage on page 20 2 Press the Auto Cook button 3 Dial the category and then press the Select button 4 Dial the food you want to cook and then press the Select button For items you do not need to set an amount for press Start 5 Dial the amount of food and then press the Start button Category Cook No Food Amount Directions Accessory type 1 REHEAT 1 SOUP BROTH 1 to 4 servings 226 gserving Pour the refrigerated soup into a mircowave safe bowl Cover with a lid or vented plastic wrap Stir well before serving G 2 SOUP CREAM 1 to 4 servings 226 gserving Pour the refrigerated soup into a microwave safe bowl Cover with a lid or vented plastic wrap Stir well before serving G MC17F808KDTACDE6804130C00ENindd 29 20140520 21739
• Page 30 - English - : English 30 Category Cook No Food Amount Directions Accessory type 1 REHEAT 3 PASTA 1 to 4 servings 226 gserving Place the refrigerated pasta on a microwave safe plate or bowl Cover with a lid or vented plastic wrap Stir well before serving G 4 CASSEROLE 1 to 4 servings 226 gserving Place the refrigerated casserole on a microwave safe plate or bowl Cover with a lid or vented plastic wrap Stir well before serving G 5 DINNER PLATE 1 serving Place the precooked refrigerated food on a microwave safe plate Cover the plate with vented plastic wrap or wax paper G 6 BEVERAGE ½ cup 1 cup 2 cups Place the beverage in a microwave safe container G 7 ROLL 1 to 4 rolls Place the rolls on a microwave safe plate G 8 PIZZA REHEAT 2 slices 4 slices 85113 geach Place the pizza on a microwave safe plate Do not overlap the slices or cover Let stand 12 minutes before serving G 2 COOK 1 FROZEN DINNER 810 oz 227283 g 1114 oz 312397 g 1518 oz 425510 g Remove the outer wrapping and follow the package directions for covering Let stand 13 minutes before serving G FROZEN BREAKFAST 46 oz 113170 g 78 oz 198227 g Remove the outer wrapping and follow the package directions for covering Let stand 13 minutes before serving When microwave beeps stir and restart G MASHED POTATOES INSTANT 2 servings 4 servings 1 serving Cup Flakes Follow the package preparation directions G BACON UNCOOKED 2 slices 4 slices 6 slices Layer 2 paper towels on a microwave safe plate and arrange the bacon on the towels Do not overlap bacon Cover with an additional paper towel Remove the paper towel immediately after cooking G BACON PRE COOKED 2 slices 4 slices 6 slices Layer 2 paper towels on a microwave safe plate and arrange the bacon on the towels Do not overlap the bacon Cover with an additional paper towel Remove the paper towel immediately after cooking G 3 KIDS MENU 1 CHICKEN NUGGETS 1 serving 2 servings 1 serving 5 ea Arrange the nuggets in an evenly spaced circle on top of a paper towel on a microwave safe plate Do not cover Let stand 1 minute before serving G MC17F808KDTACDE6804130C00ENindd 30 20140520 21739
• Page 31 - English - : English 31 02 USING YOUR MICROWAVE OVEN Category Cook No Food Amount Directions Accessory type 3 KIDS MENU 2 HOT DOGS 2 each 4 each Pierce the hot dogs 3 times with a fork and place on a microwave safe plate When the microwave beeps add the buns and restart the microwave G 3 CANNED PASTA 1 serving 75 oz 213 g 2 servings 15 oz 425 g Pour into a microwave safe bowl Cover with a lid or vented plastic wrap Stir well before serving G 4 BURRITO 1 Each 2 Each Follow the package preparation directions Let stand 12 minutes before serving G 5 SNACK POCKET 1 serving 1 ea 2 servings 2 ea Follow the package preparation directions Let stand 12 minutes before serving G 4 PASTA 1 SPAGHETTI 1 serving 57 g 2 servings 113 g Place 4 for 2 servings or 8 for 4 servings cups of water in a large microwave safe bowl When the microwave beeps add spaghetti and restart the microwave Drain the hot water carefully G MACARONI AND CHEESE 1 serving 1 ea 2 servings 2 ea Follow the package preparation instructions G INSTANT NOODLES 1 serving 1 ea 2 servings 2 ea Place the noddles in a microwave safe bowl and add 2 for 2 servings or 4 for 4 servings cups of water After cooking drain o the desired amount of water and add seasoning G 5 BREAD BISCUITS REFRIGERATED 10 ea Preheat the microwave to 375 F Place the biscuits on the greased ceramic enamel tray then place the tray on the low rack A 2 BREAD STICKS 12 ea Preheat the microwave to 375 F Place the breadsticks on the greased ceramic enamel tray then place the tray on the low rack A CRESCENT ROLLS REFRIGERATED SMALL 8 ea Preheat the microwave to 375 F Place the rolls on the greased ceramic enamel tray then place the tray on the low rack A CRESCENT ROLLS REFRIGERATED LARGE 8 ea Preheat the microwave to 375 F Place the rolls on the greased ceramic enamel tray then place the tray on the low rack A 6 BAKED GOODS 1 BOX CAKE MIX 1 package Preheat the microwave to 350 F Pour the batter into 2 8 inch microwave safe round cake pans Place one filled pan on the middle rack then place the second batter filled pan on the low rack under the middle rack A D Except Ceramic enamel tray CINNAMON ROLLS 8 ea Preheat the microwave to 375 F Place the rolls on the greased ceramic enamel tray then place the tray on the low rack A 3 BROWNIE MIX 1 package Preheat the microwave to 350 F Pour the batter into an 8x8 inch microwave safe pan then place the pan on the low rack A MC17F808KDTACDE6804130C00ENindd 31 20140520 21739
• Page 32 - English - : English 32 Category Cook No Food Amount Directions Accessory type 6 BAKED GOODS COOKIE DOUGH SLICED 8 ea 12 inch sliced Preheat the microwave to 375 F Place 8 cookies on the greased ceramic enamel tray then place the tray on medium rack D COOKIE DOUGH PRE FORMED 10 ea Preheat the microwave to 375 F Place 10 cookies on the greased ceramic enamel tray then place the tray on the medium rack D TURNOVERS REFRIGERATED 2 servings 2 ea 4 servings 4 ea Preheat the microwave to 375 F Follow the package preparation directions Place the turnovers on the greased ceramic enamel tray then place the tray on the medium rack D 7 SNACKS BITE SIZE APPETIZERS 2 servings 8 ea 4 servings 16 ea 1 serving 4 ea Preheat the microwave to 375 F Place the appetizers on the ceramic enamel tray then the place tray on the medium rack D 2 QUESADILLA 1 serving 1 ea 2 servings 2 ea 1 serving 1 ea Follow the package preparation instructions Let stand 12 minutes before serving G 3 FISH STICKS 2 servings 4 servings 1 serving 6 Sticks Preheat the microwave to 400 F Place the fish sticks on the low rack then place the rack on the ceramic enamel tray B NACHOS 1 SERVING 1 serving Arrange the tortilla chips uniformly on a microwave safe plate Sprinkle evenly with cheese Contents 2 cups tortilla chips 13 cup grated cheese G 5 EGG ROLLS 2 servings 2 ea 4 servings 4 ea 1 serving 1 ea Preheat the microwave to 400 F Place the egg rolls on the ceramic enamel tray then place the tray on the high rack E 6 POTATO BITES 2 servings 10 ea 4 servings 20 ea 1 serving 5 ea Preheat the microwave to 400 F Place the potato bites on the ceramic enamel tray then place the tray on the low rack A SOFT PRETZELS FROZEN 2 servings 2 ea 4 servings 4 ea 1 serving 1 ea Preheat the microwave to 400 F Place the pretzels on the middle rack then place the rack on the ceramic enamel tray C 8 POPCORN 15 oz 43 g 30 oz 85 g 35 oz 99 g Heat only one microwave popcorn bag at a time Be careful when removing the heated bag from the microwave and opening the bag as the steam can easily burn G 8 MELT SOFTEN 1 MELT BUTTER 1 stick 113 g 2 sticks 226 g Unwrap the butter and cut the butter stick in half lenghtwise Place the butter on a microwave safe dish and cover with wax paper Stir well afterwards G MC17F808KDTACDE6804130C00ENindd 32 20140520 21739
• Page 33 - English - : English 33 02 USING YOUR MICROWAVE OVEN Category Cook No Food Amount Directions Accessory type 8 MELT SOFTEN 2 SOFTEN BUTTER 1 stick 113 g 2 sticks 226 g Remove the butter from the packaging and place on a microwave safe dish G MELT CHOCOLATE 1 cup chips Place the chocolate chips in a microwave safe dish When the microwave beeps stir well and restart the microwave Unless stirred the chocolate chips will keep their shape even when the heating time is over G SOFTEN ICE CREAM 1 pint 12 gallon Remove the lid of the carton Place the carton in the center of the microwave G SOFTEN CREAM CHEESE 1 package 226 g Unwrap the cream cheese and place on a microwave safe dish G SOFTEN FROZEN JUICE 1 package 326 g Do not place metal juice cans in the microwave Remove the plastic lid and place in center of microwave Stir well afterwards G 7 MELT CHEESE 1 cup Place the cheese in a microwave safe bowl and cover with wax paper Stir well afterwards G 8 MELT CARAMEL 312 g Place the caramels in a microwave safe bowl Stir well afterwards G MELT MARSHMALLOWS 283 g Place the marshmallows in a large microwave safe dish Stir well afterwards G USING THE EXPRESS MENU FEATURE This feature oers a convenient way to heat food that you cook frequently 1 Place the food on the turntable glass tray 2 Dial in the Express Menu direction counterclockwise 3 Dial to the food you want to cook 4 Press Select button For Reheat Dinner Plate press the Start button 5 Dial the amount of food and then presss Start button COOK NO Food AMOUNT REMARK Accessory type 1 POPCORN 35 oz 99 g 30 oz 85 g 15 oz 43 g Heat only one microwave popcorn bag at a time Be careful when removing the heated bag from the microwave and opening the bag as the steam can easily burn G 2 BEVERAGE ½ cup 1 cup 2 cup Place the beverage in a microwave safe container G BAKED POTATO 2 ea 4 ea 280364 geach Pierce the potatoes 3 times with a fork Place the potatoes on the glass turntable with one end of the potato pointing towards the center After cooking let the potatoes stand for 35 minutes G INSTANT MACARONI AND CHEESE 1 serving 2 servings Follow the package preparation directions G REHEAT PIZZA SLICES 2 slices 4 slices Place the pizza on a microwave safe plate Do not overlap the slices or cover Let stand 12 minutes before serving G REHEAT DINNER PLATE 1 serving Place the precooked refrigerated food on a microwave safe plate Cover the plate with vented plastic wrap or wax paper G MC17F808KDTACDE6804130C00ENindd 33 20140520 21739
• Page 34 - English - : English 34 COOK NO Food AMOUNT REMARK Accessory type REHEAT CASSEROLE 1 to 4 servings Place the refrigerated casserole on a microwave safe plate or bowl Cover with a lid or vented plastic wrap Stir well before serving G REHEAT PASTA 1 to 4 servings Place the refrigerated pasta on a microwave safe plate or bowl Cover with a lid or vented plastic wrap Stir well before serving G REHEAT SOUP BROTH 1 to 4 servings Pour the refrigerated soup into a mircowave safe bowl Cover with a lid or vented plastic wrap Stir well before serving G USING THE MICROWAVE SETTING COOKING TIMES amp POWER LEVELS Your microwave allows you to set up to two dierent cooking stages each with its own time length and power level The power level lets you control the heating intensity from Warm to High Power Levels The 10 power levels allow you to choose the optimal power level for your cooking needs POWER LEVEL 1 Warm 6 Simmer 2 Low 7 Medium High 3 Defrost 8 Reheat 4 Medium Low 9 Sauté 5 Medium 10 High Onestage Cooking For simple onestage cooking you only need to set a cooking time The power level is automatically set at High 1 Press the Microwave button 2 Use the dial to set a cooking time You can set a time from 5 second to 90 minutes 3 If you want to set the power level to something other than High press the Select button then use the dial to enter a power level 4 Press the Start button to begin cooking If you want to add or reduce the cooking time use the dial You can adjust the cooking time while the microwave is operating Multistage Cooking Maximum of 2 stages Your oven allows you to set two dierent cooking stages each with their own time length and power level The power level lets you control the heating intensity from Warm through to High 1 Follow steps 1 and 2 in the OneStage Cooking section above When entering more than one cooking stage you must set the Power Level for the first cooking stage before entering the cooking time and the Power Level for the second stage 2 Press the Select button 3 Use the dial to set a second cooking time 4 Press the Select button then use the dial to set the power level of the second cooking stage 5 Press the Start button to begin cooking MC17F808KDTACDE6804130C00ENindd 34 20140520 21739
• Page 35 - English - : English 35 02 USING YOUR MICROWAVE OVEN BROWN Browning adds texture and taste to your recipe When browning use the middle or high rack accessories Use the middle rack when the height of food is so high that the food could touch the upper heater 1 Press the Brown button The display shows SET TIME 2 Use the dial to set a cooking time max time 60 min 3 Press the Start button to begin Browning TheventfanoperatesatlowspeedatthesametimeTheventfanoperatesfor10secondsevery30 seconds BAKEROAST The BakeRoast mode uses dry heat to cook and brown food A high speed fan circulates hot air inside the oven to heat food quickly and evenly When you cook using convection you would generally use the low rack If you are cooking a large amount of food you can cook using the low and middle racks simultaneoulsy For best results if you are using both racks change the location of the food in the middle of cooking 1 Press the Bake or Roast button The display shows SET TEMP 2 Use the dial to set a temperature in the convection cooking range 100 F to 400 F To maintain a constant temperature keep the oven door closed while the food is cooking Open as infrequently as posible 3 Press the Select button If you want to preheat the oven press the Start button 4 Use the dial to set a cooking time max time 60 min 5 Press Start button to begin convection cooking SPEED BAKEROAST The combination cooking feature allows you to cycle automatically between microwave and BakeRoast cooking The food will be moist as well as crisp and brown This type of cooking is ideal for large foods that require long cooking times when prepared in a conventional oven such as large roasts whole chickens etc When combination cooking use the low or middle rack to allow air to circulate completely around the dish To use combination cooking 1 Press the Speed BakeRoast button 2 Dial Speed Bake or Speed Roast and then press Select button The display shows SET TIME 3 Use the dial to set the cooking time max time 60 min and then press then Select button The display shows SET POWER 4 Use the dial to set the microwave power level 10 30 50 70 etc 5 Press the Start button This mode combines microwave energy with hot air and therefore reduces the cooking time while giving the food a brown and crispy surface Cookware for cooking with Speed bakeRoast Please only use cookware that is specially manufactured for microwave ovens Do not use metal cookware with this combination mode Do not use any type of plastic cookware as it can melt Food suitable for Speed bakeRoast Other food suitable for this combination mode cooking include all kinds of previously cooked food which need reheating and browning eg baked pasta as well as foods which require a short cooking time to brown the top of the food This mode can also be used for thick food portions that benefit from a browned and crispy top eg chicken pieces turning them over half way through cooking Other food suitable for this cooking mode include a variety of meats and poultry as well as frozen snacks and pizza MC17F808KDTACDE6804130C00ENindd 35 20140520 21739
• Page 36 - English - : English 36 SPEED BAKEROAST GUIDE Use the cooking mode power levels and times in this table as guide lines for speed cooking Use oven gloves when taking the food out of the microwave Type Food Quanity Mode Time Instructions PIZZA Frozen Pizza Individual 6 inch Speed Bake 30 1014 Place the pizza on the medium rack then place the rack on the ceramic enamel tray Frozen Pizza Regular 12 inch Speed Bake 30 1318 Place the pizza on the medium rack then place the rack on the ceramic enamel tray MEAT Beef Roast medium 0914 kg st side Speed Roast 30 nd side Roast 325 F st side 2540 nd side 2540 Brush beeflamb with oil and spice with pepper salt and paprika Place the roast on the low rack then place the rack on the ceramic enamel tray After cooking wrap in aluminium foil and let stand for 1015 minutes Steaks 226454 g st side Speed Roast 30 nd side Speed Roast 10 st side 713 nd side 1015 Place the steak on the high rack then place the rack on the ceramic enamel tray After cooking let the steak rest for 5 minutes before slicing Pork Tenderloin 226454 g st side Speed Roast 30 nd side Speed Roast 10 st side 1218 nd side 1016 Place the pork on the low rack then place the rack on the ceramic enamel tray After cooking let the steak rest for 5 minutes before slicing Roast Chicken 1418 kg st side Speed Roast 50 nd side Speed Roast 30 st side 2540 nd side 1530 Fold the wings under the chicken Place the chicken on the low rack then place the rack on the ceramic enamel tray Brush the chicken with melted butteroil and seasonings 1 st Side Put chicken breast side down nd Side Put breast side up Bonein Chicken pieces 24 pieces st side Speed Roast 50 nd side Brown st side 1218 nd side 1020 Place the chicken pieces on the high rack then place the rack on the ceramic enamel tray st Side Put chicken skin side down nd Side Put chicken skin side up SNACK FROZEN Chicken Nuggets 510 ea Speed Roast 30 510 Place the chicken nuggets on the ceramic enamel tray then place the tray on the high rack Chicken Wings 1020 ea Speed Roast 50 1217 Place the chicken wings on the low rack then place the rack on the ceramic enamel tray French Fries 170340 g Speed Bake 30 1015 Place the french fries on the ceramic enamel tray then place the tray on the medium rack MC17F808KDTACDE6804130C00ENindd 36 20140520 21740
• Page 37 - English - : English 37 03 COOKWARE GUIDE cookware guide To cook food in the microwave oven the microwaves must be able to penetrate the food without being reflected or absorbed by the dish It is important to choose the correct cookware therefore look for cookware that is marked microwavesafe The following table lists various types of cookware and indicates if and how they should be used in a microwave oven RECOMMENDED COOKING UTENSILS Glass and glassceramic bowls and dishes Use for heating or cooking Microwavableplasticwrap Use to cover Leave a small opening for some steam to escape and avoid placing it directly on the food Waxpaper Use as a cover to prevent spattering Papertowelsandnapkins Use for shortterm heating and covering They absorb excess moisture and prevent spattering Do not use recycled paper towels which may contain metal and can catch fire Paperplatesandcups Use for shortterm heating at low temperatures Do not use recycled paper which may contain metal and can catch fire Thermometers Use only those labeled Microwave Safe and follow all directions Check the food in several places Conventional thermometers may be used once the food has been removed from the oven LIMITED USE ITEMS Aluminum foil Use narrow strips of foil to prevent overcooking of exposed areas Using too much foil can damage your oven so be careful Ceramic porcelain and stoneware Use these if they are labeled Microwave Safe If they are not labeled test them to make sure they can be used safely Never use dishes with metallic trim Plastic Use only if labeled Microwave Safe Other plastics can melt Straw wicker and wood Use only for shortterm heating as they can be flammable NOT RECOMMENDED Glass jars and bottles Regular glass is too thin to be used in a microwave and can shatter Paper bags These are a fire hazard except for popcorn bags that are designed for microwave use Styrofoam plates and cups These can melt and leave an unhealthy residue on food Plastic storage and food containers Containers such as margarine tubs can melt in the microwave TESTING UTENSILS If you are not sure whether a dish is microwavesafe or not you can perform this test 1 Fill a 1 cup glass measuring cup with water and put it inside your oven next to the dish you want to test 2 Dial in the Microwave 30 Sec direction clockwise and set to 1 minute to heat the glass and dish for one minute at High power Press the Start button to begin When the micorwave stops the water should be warm and the dish you are testing should be cool If the dish is warm then it is absorbing microwave energy and is not acceptable for use in the microwave MC17F808KDTACDE6804130C00ENindd 37 20140520 21740
• Page 38 - English - : English 38 cooking guide Microwave energy actually penetrates food attracted and absorbed by the water fat and sugar content The microwaves cause the molecules in the food to move rapidly The rapid movement of these molecules creates friction and the resulting heat cooks the food COOKING TECHNIQUES Stirring Stir foods such as casseroles and vegetables while cooking to distribute heat evenly Food at the outside of the dish absorbs more energy and heats more quickly so stir from the outside to the center The oven will turn o when you open the door to stir your food Arrangement Arrange unevenly shaped foods such as chicken pieces or chops with the thicker meatier parts toward the outside of the turntable where they receive more microwave energy To prevent overcooking place thin or delicate parts toward the center of the turntable Shielding Shield food with narrow strips of aluminum foil to prevent overcooking Areas that need shielding include poultry wingtips the ends of poultry legs and corners of square baking dishes Use only small amounts of aluminum foil Larger amounts can damage your oven Turning Turn foods over midway through cooking to expose all parts to microwave energy This is especially important with large items such as roasts Standing Foods cooked in the microwave build up internal heat and continue to cook for a few minutes after the oven stops Let foods stand to complete cooking especially foods such as roasts and whole vegetables Roasts need this time to complete cooking in the center without overcooking the outer areas All liquids such as soup or hot chocolate should be shaken or stirred when cooking is complete Let liquids stand a moment before serving When heating baby food stir well and test the temperature before serving Adding Moisture Microwave energy is attracted to water molecules Food that is uneven in moisture content should be covered or allowed to stand so that the heat disperses evenly Add a small amount of water to dry food to help it cook Venting After covering a dish with plastic wrap vent plastic wrap by turning back one corner so excess steam can escape MC17F808KDTACDE6804130C00ENindd 38 20140520 21740
• Page 39 - English - : English 39 04 COOKING GUIDE GENERAL MICROWAVE TIPS Dense foods such as potatoes take longer to heat than lighter foods Foods with a delicate texture should be heated at a low power level to prevent it from becoming tough Altitude and the type of cookware you are using can aect cooking time When using a new recipe use the minimum cooking time and check the food occasionally to prevent overcooking Foods with a nonporous skin such as potatoes or hot dogs should be pierced to prevent bursting Frying with heating oil or fat is not recommended Fat and oil can suddenly boil over and cause severe burns Some ingredients heat faster than others For example the jelly inside a jelly doughnut will be hotter than the dough Keep this in mind to avoid burns Home canning in the microwave oven is not recommended because all harmful bacteria may not be destroyed by the microwave heating process Although microwaves do not heat the cookware the heat from the food is often transferred to the cookware Always use pot holders when removing food from the microwave and instruct children to do the same Making candy in the microwave is not recommended as candy can heat to very high temperatures Keep this in mind to avoid injury GUIDE FOR COOKING EGGS IN YOUR MICROWAVE Never cook eggs in the shell and never warm hardcooked eggs in the shell They can explode Always pierce whole eggs to keep them from bursting Cook eggs just until set They become tough if overcooked GUIDE FOR COOKING VEGETABLES IN YOUR MICROWAVE Vegetables should be washed just before cooking Often no extra water is needed If you are cooking dense vegetables such as cubed potatoes carrots or green beans add about ¼ cup water Small vegetables sliced carrots peas lima beans etc will cook faster than larger ones Whole vegetables such as potatoes acorn squash or corn on the cob should be arranged in a circle on the turntable before cooking They will cook more evenly if turned over after half the cooking time Always place vegetables like asparagus and broccoli with the stem ends pointing towards the edge of the dish and the tips toward the center When cooking cut vegetables always cover the dish with a lid or vented microwavable plastic wrap Whole unpeeled vegetables such as potatoes squash eggplant etc should have their skin pricked in several spots before cooking to prevent them from bursting For more even cooking stir or rearrange whole vegetables halfway through the cooking time Generally the denser the food the longer the standing time Standing time refers to the time necessary for dense large foods and vegetables to finish cooking after they come out of the oven A baked potato can stand on the counter for five minutes before cooking is completed while a dish of peas can be served immediately MC17F808KDTACDE6804130C00ENindd 39 20140520 21740
• Page 40 - English - : English 40 cleaning and maintaining your microwave oven Keeping your microwave oven clean improves its performance wards o unnecessary repairs and lengthens its life CLEANING THE EXTERIOR Its best to clean spills on the outside of your microwave oven as they occur Use a soft cloth and warm soapy water Rinse and dry CAUTION Do not get water into the vents Never use abrasive products or chemical solvents such as ammonia or alcohol as they can damage the appearance of your microwave WARNING Unplug the microwave plug before cleaning Cleaning under your microwave oven Regularly clean grease and dust from the bottom of your microwave using a solution of warm water and detergent Cleaning the control panel Wipe with a damp cloth and dry thoroughly Do not use cleaning sprays large amounts of soap and water abrasives or sharp objects on the panel as it is easily damaged Cleaning the door and door seals Always ensure that the door seals are clean and that the door closes properly Take particular care when cleaning the door seals to ensure that no particles accumulate and prevent the door from closing correctly Wash the glass door with very mild soap and water Be sure to use a soft cloth to avoid scratching If steam accumulates inside or outside the oven door wipe with a soft cloth Steam can accumulate when operating the oven at high humidity and in no way indicates microwave leakage CLEANING THE INTERIOR CAUTION Ensure that the microwave oven has cooled down before cleaning it to avoid injury CAUTION Remove the glass tray from the oven when cleaning the oven or tray To prevent the tray from breaking handle it with care and do not put it in water immediately after cooking Wash the tray carefully in warm sudsy water or in the dishwasher See Steam Clean section on page 18 CLEANING THE TURNTABLE AND ROLLER RINGS Clean the roller rings periodically and wash the turntable as required The turntable can safely be washed in your dishwasher MC17F808KDTACDE6804130C00ENindd 40 20140520 21740
• Page 41 - English - : English 41 CLEANING AND MAINTAINING YOUR MICROWAVE OVEN STORING AND REPAIRING YOUR MICROWAVE OVEN If you need to store your microwave oven for a short or extended period of time choose a dustfree dry location Dust and dampness may adversely aect the ability of the microwave parts WARNING Do not repair replace or service any part of your microwave oven yourself Allow only a qualified service technician to perform repairs If the oven is faulty and needs servicing or you are in doubt about its condition unplug the oven from the power outlet and contact your nearest service center Do not use the oven if the microwave oven is damaged in particular if the door or door seals are damaged or the door does not close properly This can be caused by a broken hinge a worn out seal or distortedbent casing Do not remove the oven from its casing This microwave oven is for home use only and is not intended for commercial use REPLACING THE COOKTOPNIGHT LIGHT When replacing the cooktopnight light make sure that you are wearing gloves to avoid injury from the heat of the bulb 1 Unplug the oven or turn o the power at the main power supply 2 Remove the screw from the light cover and lower the cover 3 Disconnect the wire connector 4 Remove the screw securing the LED lamp board 5 Replace the LED lamp board To purchase a new LED lamp board visit an authorized service center or call Samsung Customer Care at 1800SAMSUNG 726 7864 REPLACING THE OVEN LIGHT When replacing the oven light make sure that you are wearing gloves to avoid injury from the heat of the bulb 1 Unplug the oven or turn o the power at the main power supply 2 Open the door 3 Remove the vent cover mounting screws 2 middle screws 4 Slide the vent grille to the left then pull it straight out 5 Remove the charcoal filter if present 6 Remove the screw securing the lamp cover 7 Remove the bulb by pulling it out gently 8 Replace the bulb with a 20 watt halogen bulb 9 Replace the bulb holder 10 Replace the vent grille and the 2 screws 11 Turn the power back on LAMP Lamp MC17F808KDTACDE6804130C00ENindd 41 20140520 21748
• Page 42 - English - : English 42 CLEANING THE GREASE FILTER Your microwave oven has reusable grease filter The grease filters should be removed and cleaned at least once a month or as required To order a new grease filter contact SamsungParts at 18006274368 or your Samsung dealer You can also order online at wwwsamsungpartscom WARNING To avoid risk of personal injury or property damage do not operate the oven hood without the filters in place 1 To remove the filter push the front of the grease filter case where it says PUSH 2 Pull the filter case out of the microwave oven 3 Remove the filter from the filter case by widening the case as shown below Then soak the grease filter in hot water mixed with a mild detergent Rinse well and shake to dry If necessary brush the filter lightly to remove embedded dirt When the filter is dry put it back in the filter case WARNING Do not use ammonia or put the grease filter in the microwave oven The aluminum will darken 4 To reinsert the filter into the microwave oven slide the filter case into the frame slot and then push it inside Push Push Pull out Pull out Remove Widen Remove Widen Push Push MC17F808KDTACDE6804130C00ENindd 42 20140520 21750
• Page 43 - English - : English 43 CLEANING AND MAINTAINING YOUR MICROWAVE OVEN REPLACING THE CHARCOAL FILTER If your oven is vented to the inside the charcoal filter should be replaced every 6 to 12 months and more often if necessary The charcoal filter cannot be cleaned To order a new charcoal filter contact the Parts Department at 18006274368 or your Samsung dealer You can also order online at wwwsamsungpartscom 1 Unplug the oven or turn o the power at the main power supply 2 Open the door 3 Remove the vent grille mounting screws 2 middle screws 4 Slide the vent grille to the left then pull it straight out 5 Push the hook and remove the old filter 6 Slide a new charcoal filter into place The filter should rest at the angle shown 7 Replace the vent grille and 2 screws and close the door Turn the power back on and set the clock The angle The angle MC17F808KDTACDE6804130C00ENindd 43 20140520 21808
• Page 44 - English - : English 44 troubleshooting CHECK THESE POINTS IF YOUR MICROWAVE OVEN PROBLEM SOLUTION The display andor the oven is not working Make sure the plug is properly connected to a grounded outlet If the wall outlet is controlled by a wall switch make sure the wall switch is turned on Remove the plug from the outlet wait ten seconds and plug it in again Reset the circuit breaker or replace any blown fuses Plug a dierent appliance into the outlet If the other appliance doesnt work call a qualified electrician to repair the wall outlet Plug the oven into a dierent outlet The display is working but the power wont come on Make sure the door is closed securely Check if any packaging material or anything else is stuck in the door seal Check if the door is damaged Touch Cancel twice and enter all the cooking instructions again The power goes o before the set time has elapsed If there was a power outage the time indicator will display 8888 If no power outage occurred remove the plug from the outlet wait ten seconds and plug it in again Reset the clock and any cooking instructions Reset the circuit breaker or replace any blown fuses Cooks food too slowly Make sure the oven has its own 20 amp circuit line Operating another appliance on the same circuit can cause a voltage drop If necessary move the oven to its own circuit Has sparks or arcing Remove any metallic utensils cookware or metal ties If using foil use only narrow strips and allow at least one inch between the foil and the interior oven walls The turntable makes noise or becomes stuck Clean the turntable roller ring and oven floor Make sure the turntable and roller ring are positioned correctly Causes TV or radio interference This is similar to interference caused by other small appliances such as hair dryers Move your microwave or appliance away from appliances such as your TV or radio Vent Motor suction force is too weak Set the vent mode to high The Vent Fan will only operate in low speed mode while the microwave is working Operating noise is too loud The MWO makes noise during operation This is normal If you hear an abnormal sound continuously please contact the Samsung Call Center 18007267864 Cook top lamp is too dim Set the lamp brightness level to high Dicult to replace Charcoal Filter Please refer to the instructions for replacing the charcoal filter in the users manual Turntable rotates improperly Make sure you have not put too much food on the turntable If the food is too large or too heavy the turntable may operate improperly MC17F808KDTACDE6804130C00ENindd 44 20140520 21809
• Page 45 - English - : English 45 06 TROUBLESHOOTING amp APPENDIX appendix SPECIFICATIONS MODEL NUMBER MC17F808KDT Oven cavity 17 cuft Controls 10 power levels including defrost Timer 90 minutes Power source 120 VAC 60 Hz Power consumption 1500 Watt Microwave 1500 Watt Heater Microwave power output 900 Watts Cook top light 36 W LED lamp18 X 2EA Oven light 20 Watts halogen lamp Oven cavity dimensions 20 W X 10 H X 14D Outside dimensions 29 W X 16 H X 17 D Shipping dimensions 33 W x 20 H X 19 D NetShipping weight 348 393 Kg warranty WARRANTY AND SERVICE INFORMATION To help us to serve you better please complete the enclosed registration card and promptly return it by mail If the registration card is missing you can call Samsung Electronics Inc at 1800SAMSUNG 7267864 or register online at wwwsamsungcomregister When contacting Samsung please provide the specific model and serial number information which is usually located on the back or bottom of the product Please record these numbers below along with the other requested information Keep this information in a safe place as a permanent record of your purchase to aid in identification in case of theft or loss along with a copy of your sales receipt as a proof of purchase if warranty service is needed MODEL NUMBER SERIAL NUMBER DATE PURCHASED PURCHASED FROM Warranty service can only be performed by a Samsung Authorized Service Center If you should require warranty service provide the above information with a copy of your sales receipt to the Samsung Authorized Service Center For service assistance and the location of the nearest service center please call 1800 SAMSUNG 1 8007267864 MC17F808KDTACDE6804130C00ENindd 45 20140520 21809
• Page 46 - English - : English 46 warranty SAMSUNG OVERTHERANGE OTR MICROWAVE OVEN Limited warranty to original purchaser This SAMSUNG brand product as supplied and distributed by Samsung Electronics Canada Inc SAMSUNG and delivered new in the original carton to the original consumer purchaser is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of ONE 1 YEAR PARTS AND LABOR FIVE 5 YEARS PARTS WARRANTY FOR MAGNETRON Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit andor damage to or loss of the accessory was caused by the customer Items this stipulation covers include A Dented Scratched or Broken Door Handle OutPanel or Control Panel A Broken or Missing Tray Guide Roller Coupler Filter or Wire Rack User Replaceable Parts may be sent to the customer for unit repair If necessary a Service Engineer can be dispatched to perform service This limited warranty begins on the original date of purchase and is valid only on products purchased and used in the Canada To receive warranty service the purchaser must contact SAMSUNG for problem determination and service procedures Warranty service can only be performed by a SAMSUNG authorized service center The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNGs authorized service center SAMSUNG will repair this product or replace it if cannot repair it at our option and at no charge as stipulated herein with new or reconditioned parts or products if found to be defective during the limited warranty period specified above All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG Replacement parts and products assume the remaining original warranty or ninety 90 days whichever is longer Inhome service will be provided during the warranty labor period subject to availability within the contiguous Canada Inhome service is not available in all areas To receive inhome service the product must be unobstructed and accessible to service personnel If during inhome service repair can not be completed it may be necessary to remove repair and return the product If inhome service is unavailable SAMSUNG may elect at our option to provide for transportation of our choice to and from a SAMSUNG authorized service center Otherwise transportation to and from the SAMSUNG authorized service center is the responsibility of the purchaser This limited warranty covers manufacturing defects in materials and workmanship encountered in normal noncommercial use of this product and shall not apply to the following including but not limited to damage which occurs in shipment delivery and installation applications and uses for which this product was not intended altered product or serial numbers cosmetic damage or exterior finish accidents abuse neglect fire water lightning or other acts of nature use of products equipment systems utilities services parts supplies accessories applications installations repairs external wiring or connectors not supplied or authorized by SAMSUNG which damage this product or result in service problems incorrect electrical line voltage fluctuations and surges customer adjustments and failure to follow operating instructions cleaning maintenance and environmental instructions that are covered and prescribed in the instruction book problems caused by pest infestations and overheating or overcooking by user glass tray or turntable reduced magnetron power output related to normal aging SAMSUNG does not warrant uninterrupted or errorfree operation of the product MC17F808KDTACDE6804130C00ENindd 46 20140520 21809
• Page 47 - English - : English 47 07 WARRANTY THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS OR ANY OTHER SPECIAL INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE MISUSE OR INABILITY TO USE THIS PRODUCT REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE WITHOUT LIMITING THE FOREGOING PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS DAMAGE OR INJURY TO PURCHASER AND PURCHASERS PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY Some provinces or territories may or may not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages so the above limitations or exclusions may not apply to you This warranty gives you specific legal rights and you may also have other rights which vary from state to state To obtain warranty service please contact SAMSUNG at 1800SAMSUNG 18007267864 or wwwsamsungcom MC17F808KDTACDE6804130C00ENindd 47 20140520 21809
• Page 48 - English - : DE6804130C00 CANADA 1800SAMSUNG7267864 USA Consumer Electronics 1800SAMSUNG7267864 USA Mobile Phones 1800SAMSUNG7267864 wwwsamsungcomcasupport English wwwsamsungcomcafrsupport French wwwsamsungcomussupport wwwsamsungcomussupport Please be advised that the Samsung warranty does NOT cover service calls to explain product operation correct improper installation or perform normal cleaning or maintenance MC17F808KDTACDE6804130C00ENindd 48 20140520 21809
