Omega OF901XZ Freestanding Dual Fuel Oven/Stove User Manual

User manual Stove

Description

General description

1 Cooking hob

2 Control panel

3 Oven light

4 Seal

5 Door

6 Fan

7 Storage compartment

1, 2, 3,... Shelf for racks/trays support frames

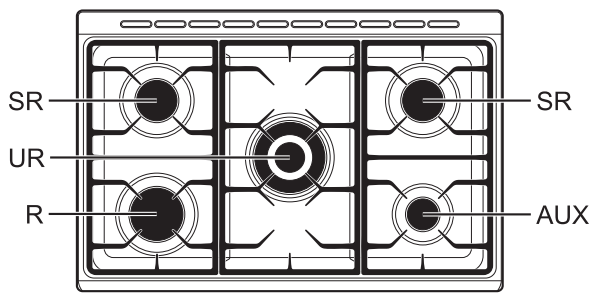

Cooking hob

AUX = Auxiliary

SR = Semi-rapid

R = Rapid

UR = Ultra rapid

Control panel

Temperature knob (1)

This knob allows you to select the cooking temperature. Turn the knob clockwise to the required value, between the minimum and maximum settings.

Indicator light (2)

The indicator light comes on to indicate that the oven is heating up. It turns off as soon as it reaches the set temperature. It flashes regularly to indicate that the temperature set inside the oven is kept constant.

Function knob (3)

The oven's various functions are suitable for different cooking modes. After selecting the required function, set the cooking temperature using the temperature knob.

Programming clock (4)

Useful for displaying the current time, set programmed cooking operations and program the timer.

Hob burner knobs (5)

Useful for lighting and adjust the hob burners. Press and turn the knobs anticlockwise to the value to light the relative burners. Turn the knobs to the zone between the maximum and minimum setting to adjust the flame.

Return the knobs to the position to turn off the burners.

Other parts

Oven shelves

The oven features shelves for positioning trays and racks at different heights. The insertion heights are indicated from the bottom upwards (see 2.1 General description).

Cooling fan

The fan cools the ovens and comes into operation during cooking. The fan causes a steady outflow of air from above the door and which may continue for a brief period of time even after the appliance has been turned off.

Internal light

The internal light of the ovens comes on when any function is selected.

Available accessories

Some models are not provided with all accessories

Rack

Useful for holding cooking containers.

Tray

Useful for collecting fat from foods placed on the rack above and for cooking pies, pizzas and baked desserts.

Handle

Useful for removing hot racks and trays.

Reduction pan stand

Useful when using small cookware.

Wok reduction pan stand

Useful when using a wok.

The accessories intended to come into contact with food are made of materials that comply with the provisions of current legislation.

Original and optional accessories can be requested to Authorised Assistance Centres. Use only original accessories supplied by the manufacturer.

Use

Instructions

High temperature inside the oven during use

Danger of burns

Keep the oven door closed during cooking.
Protect your hands using heat resistant gloves when moving food inside the oven.
Do not touch the heating elements inside the oven.
Do not pour water directly on very hot trays.
Young children should be supervised to ensure that they do not play with the appliance.
If you need to move food or at the end of cooking, open the door 5 cm for a few seconds, let the steam come out, then open it fully

Improper use

Danger of burns

Make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps.
Oils and fat could catch fire if overheated. Be very careful.
During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
Accessible parts will become hot when in use. To avoid burns young children should be kept away

Risk of damage to surfaces

Do not cover the bottom of the oven with aluminium or tin foil sheets.
If you wish to use greaseproof paper, place it so that it will not interfere with the hot air circulation inside the oven.
Do not place pans or trays directly on the bottom of the cooking compartment.
Do not use the open door to rest pans or trays on the internal glass pane.
Do not pour water directly on very hot trays.
Make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps.
The cooking vessels or griddle plates should be placed inside the perimeter of the hob. Not suitable for use with aftermarket lids or covers.
All pans must have smooth, flat bottoms.
If any liquid does boil over or spill, remove the excess from the hob.
Do not place anything, e.g. flame tamer or griddle plate between pan and pan support.
Do not remove the pan support and enclose the burner with a wok stand, only use the wok support supplied.
Do not use large pots or heavy weights which can bend the pan support or deflect flame onto the hotplate.
Locate pan centrally over the burner so that it is stable and does not overhang the appliance.

First use

Remove any protective film from the outside or inside of the appliance, including accessories.
Remove any labels (apart from the technical data plate) from the accessories and from the cooking compartments.
Remove all the accessories from the appliance and clean them (see 4 Cleaning and maintenance).
Heat the empty ovens at the maximum temperature to burn off any residues left by the manufacturing process.

Using the accessories

Racks and trays

Racks and trays have to be inserted into the side guides until they come to a complete stop.

The mechanical safety locks that prevent the rack from being taken out accidentally have to face downwards and towards the oven back.

Gently insert racks and trays into the oven until they come to a stop.

Clean the trays before using them for the first time to remove any residues left by the manufacturing process.

Tray rack

The tray has to be inserted into the rack. In this way fat can be collected separately from the food which is being cooked.

Reduction pan stands

The reduction pan stands have to be placed on the hob grids. Make sure they are properly placed.

Using the hob

All the appliance's control and monitoring devices are located together on the front panel. The burner controlled by each knob is shown next to the knob. The appliance is equipped with an electronic ignition device. Simply press the knob and turn it anticlockwise to the maximum flame symbol, until the burner lights. If the burner does not light in the first 15 seconds, turn the knob to and wait 60 seconds before trying again. After lighting, keep the knob pressed down for a few seconds to allow the thermocouple to heat up. The burner may go out when the knob is released: in this case, the thermocouple has not heated up sufficiently. Wait a few moments and repeat the operation. Keep the knob pressed in longer.

In case of an accidental switching off, a safety device will be tripped, cutting off the gas supply, even if the gas tap is open. Return the knob to and wait at least 60 seconds before lighting it again.

Correct position for flame-spreader crowns and burner caps

Before lighting the hob burners, make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps. Make sure that the holes in the flame-spreader crowns are aligned with the igniters and thermocouples (A).

Practical tips for using the hob

For better burner efficiency and to minimise gas consumption, use pans with lids and of suitable size for the burner, so that flames do not reach up the sides of the pan. Once the contents come to the boil, turn down the flame far enough to ensure that the liquid does not boil over

Cookware diameters:

• Auxiliary: 12 - 14 cm.

• Semi-rapid: 16 - 24 cm.

• Rapid: 18 - 26 cm.

• Ultra-rapid: 18 - 26 cm.

Using the oven

Switching on the oven

To switch the oven on:

Select the cooking function using the function knob.
Select the temperature using the temperature knob.

Functions list

Bottom

The heat coming just from the bottom allows you to complete the cooking of foods that require a higher bottom temperature, without affecting their browning. Perfect for cakes, pies, tarts and pizzas.

Static

As the heat comes from above and below at the same time, this system is particularly suitable for certain types of food. Traditional cooking, also known as static cooking, is suitable for cooking just one dish at a time. Perfect for all types of roasts, bread and cakes and in any case particularly suitable for fatty meats such as goose and duck.

Grill

The heat coming from the grill element gives perfect grilling results above all for thin and medium thickness meat and in combination with the rotisserie (where present) gives the food an even browning at the end of cooking. Perfect for sausages, ribs and bacon. This function enables large quantities of food, particularly meat, to be grilled evenly.

Fan-assisted grill

The air produced by the fan softens the strong heatwave generated by the grill, grilling perfectly even very thick foods. Perfect for large cuts of meat (e.g. shin of pork).

Fan-assisted bottom

The combination of the fan with just the lower heating element allows cooking to be completed more rapidly. This system is recommended for sterilising or for finishing off the cooking of foods which are already well-cooked on the surface, but not inside, which therefore need a little more heat. Perfect for any type of food. In pyrolytic models, the special defrosting and proving functions are brought together under the same function.

Fan-assisted circular

The combination of the fan and the circular element (incorporated in the rear of the oven) allows you to cook different foods on several levels, as long as they need the same temperatures and same type of cooking. Hot air circulation ensures instant and uniform distribution of heat. It will be possible, for instance, to cook fish, vegetables and biscuits simultaneously (on different levels) without mixing odours and flavours.

Cooking advice

General advice

Use a fan-assisted function to achieve uniform cooking at several levels.
It is not possible to shorten cooking times by increasing the temperature (the food could be overcooked on the outside and undercooked on the inside).
Using more ovens at the same time might affect the final cooking results.

Advice for cooking meat

Cooking times vary according to the thickness and quality of the food and to consumer taste.
Use a meat thermometer when roasting meat, or simply press on the roast with a spoon. If it is hard, it is ready; if not, it needs another few minutes cooking.

Advice for cooking with the Grill and the Fan-assisted grill

Meat can be grilled even when it is put into the cold oven or into the preheated oven if you wish to change the effect of the cooking.
With the Fan-assisted grill function, we recommend that you preheat the oven before grilling.
We recommend placing the food at the centre of the rack.
With the Grill function, we recommend that you turn the temperature knob to the maximum value near the symbol to optimise cooking.
Foods should be seasoned before cooking. Foods should also be coated with oil or melted butter before cooking.
Use the oven tray on the first bottom shelf to collect fluids produced by grilling.
Grilling processes should never last more than 60 minutes using multifunction ovens, 30 minutes inside the auxiliary oven.

Advice for cooking desserts and biscuits

Use preferably dark metal moulds: they help to absorb the heat better.
Temperature and cooking time depend on the quality and consistency of the dough.
To check whether the dessert is cooked right through: at the end of the cooking time, put a toothpick into the highest point of the dessert. If the dough does not stick to the toothpick, the dessert is cooked.
If the dessert collapses when it comes out of the oven, on the next occasion reduce the set temperature by about 10°C, selecting a longer cooking time if necessary.
While cooking desserts or vegetables, excessive condensation may form on the glass. In order to avoid this, open the door very carefully a couple of times while cooking.

Advice for defrosting and proving

Place frozen foods without their packaging in a lidless container on the first shelf of the oven.
Avoid overlapping the food.
To defrost meat, use the rack placed on the second level and a tray on the first level. In this way, the liquid from the defrosting food drains away from the food.
The most delicate parts can be covered with aluminium foil.
For successful proving, a container of water should be placed in the bottom of the oven.

To save energy

Stop cooking a few minutes before the time normally used. Cooking will continue for the remaining minutes with the heat which has accumulated inside the oven.
Reduce any opening of the door to a minimum to avoid heat dispersal.
Keep the inside of the appliance clean at all times.

Programming clock

1 Timer key

2 Cooking time key

3 End of cooking key

4 Value decrease key

5 Value increase key

Setting the time

On the first use, or after a power failure, the digits will be flashing on the appliance's display.

Press the and keys at the same time. The dot between the hours and the minutes flashes.
The time can be set using or . Hold down the key to increase or decrease rapidly.
Press the key or wait 5 seconds. The dot between the hours and the minutes stops flashing.
The symbol on the display indicates that the appliance is ready to start cooking.

Timed cooking

Timed cooking is the function which allows a cooking operation to be started and then ended after a specific length of time set by the user.

After selecting a cooking function and temperature, press key . The display will shows the digits and the symbol displayed between the hours and the minutes.
Use the key or to set the required minutes.
Wait approx. 5 seconds without pressing any key in order for the function to activate. The current time and the symbols and will appear on the display.
At the end of cooking the heating elements will be deactivated. On the display, symbol turns off, symbol flashes and the buzzer sounds.
To turn off the buzzer just press any key of the programmer clock.
Press keys and at the same time to reset the programmer clock.

It is not possible to set a cooking time of more than 10 hours.

After the setting, to display the cooking time left press the key.

To reset the set program, press keys and at the same time and switch off the oven manually.

Programmed cooking

Programmed cooking is the function which allows a cooking operation to be started at a set time and then ended after a specific length of time set by the user.

Set the cooking time as described in the previous point “Timed cooking”.
Press key. The sum of the current time plus the pre-set cooking duration will appear on the display.
Use the or key to set the required minutes.
Wait approx. 5 seconds without pressing any key in order for the function to activate. The current time and the symbols and will appear on the display.
At the end of cooking the heating elements will be deactivated. On the display, symbol turns off, symbol flashes and the buzzer sounds.
To turn off the buzzer just press any key of the programmer clock.
Press keys and at the same time to reset the programmer clock.

After the setting, to display the cooking time left press the key. To display the end of cooking time, press the key.

Timer

The timer does not stop the cooking but rather informs the user when the set time has run out.

The timer can be activated at any time.

Press key. The display will shows the digits and the indicator light flashing between the hours and the minutes.
Use the or key to set the required minutes.
Wait approx. 5 seconds without pressing any key to finish setting the timer. The current time and the symbols and appear on the display.

It is not possible to set a cooking time of more than 24 hours.

After the timer has been programmed, the display will go back to showing the current time; to display the remaining time, press .

Adjusting the buzzer volume

The buzzer volume can be set to 3 different levels. When the buzzer is in operation, press to change the setting.

Deleting the set data

Press keys and at the same time to reset the programs set.

Then switch off the oven manually if cooking is in progress.

Cleaning and maintenance

Instructions

Improper use

Risk of damage to surfaces

Do not use a steam cleaner to clean the cooker.
Do not use cleaning products containing chlorine, ammonia or bleach on steel parts or parts with metallic finishes on the surface (e.g. anodizing, nickel- or chromium-plating).
Do not use abrasive or corrosive detergents on glass parts (e.g. powder products, stain removers and metallic sponges).
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven glass door since they can scratch the surface, which may result in shattering of the glass.
Do not use rough or abrasive materials or sharp metal scrapers.
Do not wash the removable components such as the hob pan stands, flame-spreader crowns and burner caps in a dishwasher.

Cleaning the appliance

To keep the oven surfaces in good condition, they should be cleaned regularly after use. Let them cool first.

Ordinary daily cleaning

Always use only specific products that do not contain abrasives or chlorine-based acids.

Pour the product onto a damp cloth and wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Food stains or residues

Do not use metallic sponges or sharp scrapers as they will damage the surfaces.

Use ordinary non-abrasive products with the aid of wooden or plastic utensils if necessary. Rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.

Cooking hob pan stands

Remove the pan stands and clean them with lukewarm water and non-abrasive detergent. Make sure to remove any encrustations. Dry them thoroughly and return them to the hob.

Continuous contact between the pan stands and the flame can cause modifications to the enamel over time in those parts exposed to heat. This is a completely natural phenomenon which has no effect on the operation of this component.

Flame-spreader crowns and burner caps

For easier cleaning, the flame-spreader crowns and the burner caps can be removed. Wash them in hot water and nonabrasive detergent. Carefully remove any encrustation, then wait until they are perfectly dry. Refit the flame-spreader crowns making sure that they are correctly positioned in their housings with their respective burner caps.

Igniters and thermocouples

For correct operation the igniters and thermocouples must always be perfectly clean. Check them frequently and clean them with a damp cloth if necessary. Remove any dry residues with a wooden toothpick or a needle.

Removing the door

For easier cleaning, the door can be removed and placed on a canvas.

To remove the door proceed as follows:

Open the door completely and lift levers near the two hinges.
Grasp the door on both sides with both hands, lift it forming an angle of around 30° and remove it.

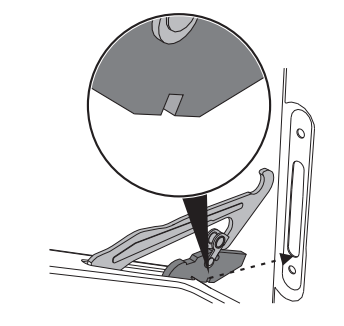

To reassemble the door, put the hinges in the relevant slots in the oven, making sure that grooved sections are resting completely in the slots. Lower the door and disengage the lock levers.

Cleaning the door glazing

The glass in the door should always be kept thoroughly clean. Use absorbent kitchen roll. In case of stubborn dirt, wash with a damp sponge and an ordinary detergent.

We recommend the use of cleaning products distributed by the manufacturer.

Cleaning the inside of the oven

For the best oven upkeep, clean it regularly after having allowed it to cool. Take out all removable parts.

Clean the oven racks with warm water and non-abrasive detergent. Carefully rinse and dry the damp parts.

The oven should be operated at the maximum temperature for about 15-20 minutes after the use of specific products, to burn off the residues left inside the oven.

For easier cleaning, remove the door.

Extraordinary maintenance

Replacing the internal light bulb

Remove the bulb protector A by turning it anticlockwise and replace bulb B with a similar one. Re-fit bulb protector A.

Removing the seal

To permit thorough cleaning of the oven, the door seal can be removed. There are hooks on all four sides to attach it to the edge of the oven. Pull the edges of the seal outwards to detach the hooks.

To keep the seals clean, use a non-abrasive sponge and lukewarm water. Seals should be soft and elastic.

Installation

Clearances above and around domestic appliances

This appliance must be installed by an authorised person in accordance with this instruction manual, AS/NZS 5601.1 – Gas installations (installation and pipe sizing), local gas fitting regulations, local electrical regulations, Building Code of Australia and any other government authority.

Requirements

1. Overhead clearances – (Measurement A) Range hoods and exhaust fans shall be installed in accordance with the manufacturer’s instructions. However, in no case shall the clearance between the highest part of the hob of the cooking appliance and a range hood be less than 600 mm or, for an overhead exhaust fan, 750 mm. Any other downward facing combustible surface less than 600 mm above the highest part of the hob shall be protected for the full width and depth of the cooking surface area in accordance with Clause 5.12.1.2. However, in no case shall this clearance to any surface be less than 450 mm.

2. Side clearances – (Measurements B & C) Where B, measured from the periphery of the nearest burner to any vertical combustible surface, is less than 200 mm, the surface shall be protected in accordance with Clause 5.12.1.2 to a height C of not less than 150 mm above the hob for the full dimension (width or depth) of the cooking surface area. Where the cooking appliance is fitted with a ‘splashback’, protection of the rear wall is not required.

3. Additional requirements for Freestanding and Elevated Cooking Appliaces – (Measurements D & E) Where D, the distance from the periphery of the nearest burner to a horizontal combustible surface is less than 200 mm, then E shall be 10 mm or more, or the horizontal surface shall be above the trivet. See insets above.

Notes

Requirement 3 does not apply to a freestanding or elevated cooking appliance which is designed to prevent flames or the cooking vessels from extending beyond the periphery of the appliance.
The ‘cooking surface area’ is defined as that part of the appliance where cooking normally takes place and does not include those parts of the appliance containing control knobs.
For definition of hob, see Clause 1.4.64.
For definition of trivet, see Clause 1.4.109.
Consideration is to be given to window treatments when located near cooking appliances. See Clause 5.3.4.

General informations

This appliance is suitable for installation with Natural Gas or ULPG (propane/butane). Refer to “Burner and nozzle characteristics table” paragraph for the relevant burner pressure and appropriate injector sizes. When the appliance is to be connected to Natural Gas then the pressure regulator supplied must be fitted to the gas inlet. A test point (for checking the gas pressure) is supplied either with the regulator or as a separate fitting in the case of ULPG (propane) appliances. Connection of the appliance to the gas supply must be in accordance with the requirements of AS5601. A ½” BSP connector at the inlet is recommended and the gas supply line to the appliance must be of adequate length to allow sufficient withdrawal of appliance for service or disconnection and be:

annealed copper pipe or;
flexible hose according to AS/NZ1869 & be at least Class “B”, 10 mm diameter.

The appliance must be installed with provision to allow the gas to be turned off and disconnected for servicing and removal of the appliance as required from the gas supply. Before the appliance is operated make certain all relevant parts are placed in the correct position.

On completion of the installation, the installer MUST check for gas leaks and test each burner individually for the correct flame. Once all burners have been tested individually, turn all burners on together. Warranty service calls do not cover these adjustments!

To check the operating pressure of the appliance it is recommended at least 2 large size burners are used. Ensure appliance is secured to wall when installation is completed.

N.G. The regulator supplied must be fitted to the ½ BSP thread at the rear of the appliance. An approved manual shut-off valve must be installed. The N.G. regulator must be checked and adjusted to 1.0kPa after installation.

U.L.P.G. Can be connected to the inlet fitting directly. The pressure must be checked to ensure it is operating at 2.75kPa. A separate test point fitting must be installed between the piping & the appliance for the pressure to be checked to ensure it is operating at 2.75kPa.

Connection to liquid gas

Use a pressure regulator and make the connection on the gas cylinder following the guidelines set out in the regulations in force.

Make sure that the supply pressure complies with the values indicated in the paragraph “ Burner and nozzle characteristics table”.

Room ventilation

The room containing the appliance should have a permanent air supply in accordance with the standards in force. The room where the appliance is installed must have enough air flow needed for the regular combustion of gas and the necessary air change in the room itself. The hob shall be installed in rooms with natural ventilation, as required by Standards regulations AS/NZS5601.

Combustion gas discharge

Combustion gases may be discharged by means of hoods connected to a flue with reliable natural draught, or a fan extraction system. An effective extraction system requires careful design by an authorised specialist, and must comply with the regulation distances and positions. After installation, the engineer must issue a certificate of compliance.

Extraction using a hood.
Extraction without a hood.

A Single natural draught chimney.

B Single chimney with extractor fan.

C Directly outdoors with wall- or windowmounted extractor fan.

D Directly outdoors through wall.

Adaptation to different types of gas

In case of operation with other types of gas, the burner nozzles must be changed and the minimum flame adjusted on the gas taps.

Replacing nozzles

Remove the pan stands, burner caps and flame-spreader crowns to access the burner casings.
Replace the nozzles using a 7 mm socket wrench according to the gas to use (see "Burner and nozzle characteristics table”).
Replace the burners in the correct position.

Adjusting the minimum setting for natural or city gas

Light the burner and turn it to the minimum position. Extract the gas tap knob and turn the adjustment screw next to the tap rod (depending on the model) until the correct minimum flame is achieved.

Refit the knob and verify that the burner flame is stable.

Turn the knob rapidly from the maximum to the minimum setting: the flame should not go out. Repeat the operation on all gas taps.

Adjusting the minimum setting for LPG

Tighten the screw located at the side of the tap rod clockwise all the way

Following adjustment to a gas other than the one originally set in the factory, replace the gas setting label fixed to the appliance with the one corresponding to the new gas. The label is inserted inside the nozzle pack (where present).

Lubrication of gas taps

Over time the gas taps may become difficult to turn and get blocked. Clean them internally and replace the lubrication grease.

Electrical connection

General information

Check the grid characteristics against the data indicated on the plate. The identification plate bearing the technical data, serial number and brand name is visibly positioned on the appliance. A copy of the identification plate is included in the booklet. It should be applied to an adjacent surface or this instruction manual. Do not remove this plate for any reason.

Perform the ground connection using a wire that is 20 mm longer than the other wires. The appliance can work in the following modes:

• 220-240 V 1N~

use a 3 x 2,5 mm² three-core cable.

Fixed connection

Fit the power line with an omnipolar circuit breaker in compliance with installation regulations. The circuit breaker should be located near the appliance and in an easily reachable position.

Connection with plug and socket

Make sure that the plug and socket are of the same type. Avoid use of adapters and shunts as these could cause overheating and a risk of burns.

Overall dimensions

Location of gas and electrical connection points.

Positioning

General information

This appliance may be installed next to walls, one of which must be higher than the worktop, at a minimum distance of 50 mm from the side of the appliance, as shown in figures A and C relative to the installation classes.

Any wall units positioned above the worktop must be at a minimum distance of at least 750 mm. If a hood is installed above the hob, refer to the hood instruction manual to ensure the correct clearance is left.

Depending on the type of installation, this appliance belongs to classes:

Assembling the skir

The skirt must always be positioned and secured correctly on the appliance.

Unscrew the 2 nuts (B) on the back of the worktop
Position the skirt above the worktop, taking care to align the pins (C ) with the holes (D).
Secure the skirt to the worktop by tightening screws (A).

Positioning and levelling the appliance

After making the electrical and/or gas connections, level the appliance on the floor by means of its four adjustable feet.

The appliance must be properly levelled to ensure better stability. Screw or unscrew the bottom part of the foot until the appliance is stable and level on the floor.

Wall mounting brackets

1. Use the adjustable feet to level the appliance at the required height.

2. Measure the distance from the index of the opening to the floor.

3. Use the same height on the wall to drill the holes for fastening the brackets. The distance between the centres of the holes is given in the diagram above.

4. Before tightening the brackets fully to the wall, check that the index on the brackets is at the same height as the index on the back of the appliance. Position the appliance, taking care that the brackets are correctly inserted.

Wall fixing

Attach the chain to the cooker
Stretch out the chain attached to the cooker horizontally so that the other end touches the wall.
Mark the wall in the position where the hole is to be drilled.
Drill the hole, insert a wall plug and attach the chain.
Once the chain is in position, push the cooker against the wall and reduce the amount of chain links to keep the chain tight to prevent any excess movement.
