dormzie ST06 Tire Inflator Portable Air Compressor, 150 PSI Smart Air Pump for Car Tires with Digital Pressure Gauge, LED Light, 12V Car Power Adapter, Storage Box

This manual provides instructions for the safe and effective use of the Dormzie Portable Tire Inflator (Model: ST06).

1. Overview

The Dormzie Portable Tire Inflator is a cordless, rechargeable air compressor designed for inflating car, SUV, motorcycle, and bicycle tires. It features a digital pressure gauge, automatic shut-off, and dual power options.

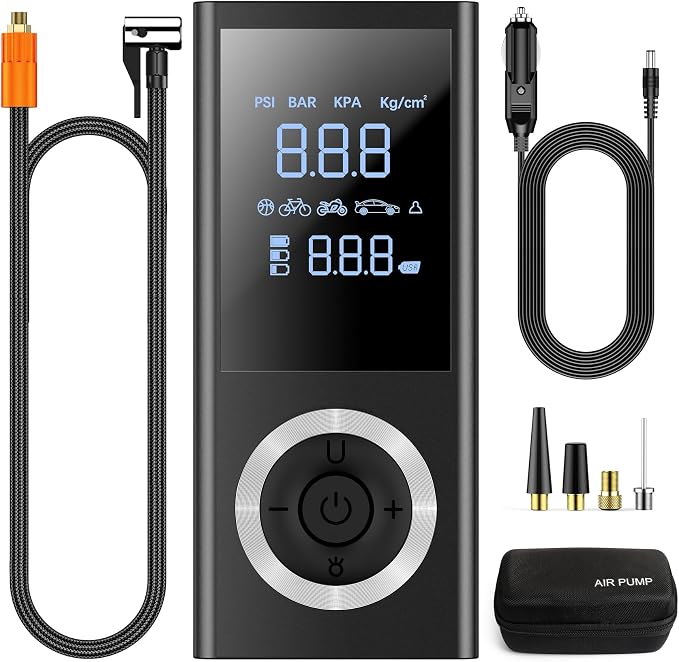

2. Package Contents

• Smart Air Pump (Main Unit)
• Rechargeable 10,000mAh Lithium-Ion Battery (installed)
• 12V DC Car Power Adapter
• Nozzle Adapters
• High-Strength Storage Bag
• Type-C Charging Cable

3. Key Features & Specifications

3.1 Power & Performance

• Maximum Pressure: 150 PSI
• Power Sources:
  • Integrated 10,000mAh rechargeable lithium-ion battery.
  • 12V DC car power adapter (cigarette lighter socket).
• Noise Level: Approximately 85 Decibels.
• Motor Horsepower: 0.5 HP.

3.2 Smart Digital Gauge & Controls

• Display: LCD screen showing real-time and preset pressure.
• Pressure Units: Supports PSI, BAR, KPA, KG/CM².
• Accuracy: ±1 PSI.
• Preset Modes: Five modes: Bicycle, Motorcycle, Car, Ball, and Custom.
• Auto Shut-off: Automatically stops inflation when the preset pressure is reached.

3.3 Additional Functions

• LED Work Light: Integrated light for use in low-light conditions.
• Emergency Power Bank: Features a 5V/2A USB output port to charge electronic devices.
• Charging Port: Type-C port for recharging the internal battery.

4. Use Guide

4.1 Before First Use

1. Fully charge the internal battery using the provided Type-C cable before first use.
2. Familiarize yourself with all components and the storage bag.

4.2 Inflating a Tire (Battery Power)

1. Power On: Press the power button on the inflator.
2. Select Mode: Use the mode button to cycle through the five preset options (Bicycle, Motorcycle, Car, Ball, Custom). For Custom mode, use the +/- buttons to set your desired pressure.
3. Attach Hose: Remove the tire's valve cap. Firmly press the inflator's nozzle onto the tire valve stem.
4. Start Inflation: Press the start button. The LCD will display the current tire pressure rising in real-time.
5. Auto Stop: The unit will beep and automatically shut off when the preset pressure is reached.
6. Disconnect: Remove the nozzle from the valve and replace the valve cap.
7. Power off the unit.

4.3 Inflating a Tire (12V Car Power)

1. Insert the 12V DC car adapter plug into your vehicle's cigarette lighter/power socket.
2. Connect the other end of the adapter to the power input port on the inflator.
3. Follow steps 2-7 from section 4.2.
4. Note: When using car power, the internal battery is not drained, ensuring power is always available.

4.4 Using the LED Light

Press the dedicated light button to turn the LED work light on or off. Useful for nighttime inflation or emergencies.

4.5 Using as a Power Bank

1. Ensure the inflator has battery charge.
2. Connect your electronic device (e.g., smartphone) to the USB output port using your own USB cable.
3. The device will begin charging. The inflator does not need to be powered on for this function.

5. Charging & Maintenance

5.1 Charging the Internal Battery

• Connect the provided Type-C cable to the inflator's charging port.
• Connect the other end to a standard USB power adapter (not included) or a computer USB port.
• The unit's display or indicator will show charging status. A full charge may take several hours.

5.2 Storage & Care

• Store the inflator and all accessories in the provided storage bag.
• Keep the unit clean and dry. Wipe with a dry cloth if needed.
• Store in a cool, dry place away from direct sunlight.
• Periodically check the battery charge if the unit will not be used for an extended time.

6. Safety Information & Warnings

• Intended Use: This inflator is designed for car, SUV, motorcycle, and bicycle tires, as well as sports balls. It is not suitable for large truck tires.
• Heat: The motor and hose may become hot during extended use. Allow the unit to cool down between inflation sessions.
• Pressure: Do not exceed the maximum rated pressure of 150 PSI. Do not leave the unit unattended while in operation.
• Vehicle Power: Ensure your vehicle's engine is running when using the 12V adapter to prevent draining the vehicle battery.
• Children: Keep out of reach of children.
• Battery: Use only the provided charger. Do not attempt to disassemble the unit or replace the battery.
• Environment: Do not use in rain or wet conditions.

7. Troubleshooting

• Unit does not turn on: Check battery charge. Connect to 12V car power or recharge via Type-C port.
• Inflation is slow or does not start: Ensure the nozzle is firmly and correctly attached to the tire valve. Check for obstructions in the hose or nozzle.
• Auto shut-off does not work: Verify the correct preset mode is selected. Ensure the pressure sensor is not blocked.
• Display is unclear or not working: Recharge the battery. If problem persists, contact support.
• USB power bank function not working: Ensure the inflator's internal battery has charge.

8. Technical Specifications

• Brand: Dormzie
• Model Name: Smart Air Pump
• Part Number: ST06
• Maximum Pressure: 150 PSI
• Battery: 10,000mAh Lithium-Ion (Included)
• Input Voltage: 12V DC
• Noise Level: 85 dB
• Item Weight: 1.96 lbs (0.89 kg)
• Included Components: Battery, Smart Air Pump, Car Adapter, Nozzle, Storage Bag, Cable
