ASKO OP8687A 60cm Pyrolytic Built-In Oven

Instructions for use

For OP8687A. Additionally, the document applies to other Asko models: OP8487S, OP8487A, OP8687S

PDF File Manual, 40 pages, Read Online | Download pdf file

OP8687A photo
background
Instructions for use
OVEN
OP8487S / BO4PY4F3-12
OP8487A / BO4PY4F3-12
OP8687S / BO6PY4F3-42
OP8687A / BO6PY4F3-42
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...
Loading page 37...
Loading page 38...
Loading page 39...
Loading page 40...

Other documents for Asko OP8687A

The following documents are available:
User Manual Specification
  • Asko OP8687A Elements Pyrolytic Electric Oven Specifications Sheet - (English) Download
Photos

Specifications

Instructions for use - Transcript

  • Page 1: Instructions for use OVEN OP8487S BO4PY4F312 OP8487A BO4PY4F312 OP8687S BO6PY4F342 OP8687A BO6PY4F342
  • Page 2: EN Manual EN 3 EN 37 Pictograms used Important information Tip
  • Page 3 - English - : EN 3 YOUR OVEN Your oven Introduction 4 Control panel 5 Description 6 Guide rails 7 Telescopic guide rail Pyrolysis guide rail 7 Door 8 Cooling fan 8 Main functions 8 Keys 9 Navigation 10 Initial use What to do first 12 Operation Selecting your function 14 Functions settings mode 14 Progress mode 16 Finish display 16 Changing settings during the progress 17 Use Functions table 18 Settings menu 22 Plus menu 24 Cooking information 25 Fast preheat 25 Delayed start 26 Gratin 26 Stage cooking 26 Go to manual cooking 27 Programs and Favourites 27 Egg timer 28 Child lock 28 Plate warming 29 Warming 29 Defrost 29 Cleaning Cleaning the appliance 30 Pyrolysis 30 Aqua clean 31 Removing and cleaning the guide rails 32 Removal and installation of the oven door 32 Removal and installation of oven door glass 33 Replacing the oven light bulb 34 Solving problems General 35 Your oven and the environment Disposing of the appliance and the packaging 37
  • Page 4 - English - : EN 4 Introduction Congratulations on choosing this ASKO oven This product is designed to offer simple operation and optimum userfriendliness The oven has a wide range of settings enabling you to select the correct cooking method every time This manual shows how you can best use this oven In addition to information about operating the oven you will also find background information that may be useful when using the appliance Please read the separate safety instructions carefully before using the appliance Read this manual before using the appliance and keep it in a safe place for future use Installation instructions are supplied separately YOUR OVEN
  • Page 5 - English - : EN 5 Control panel 13 14 15 16 17 18 19 1 10 116 7 8 95432 1 Function knob in Off position 2 Defrost 3 Programs amp Favourites 4 Fast preheat 5 Oven 6 ECO hot air 7 Plate warming 8 Warming 9 Cleaning 10 Display 11 Selection knob 12 Onoff key and stop key cancel 13 Light key 14 Timer key 15 Navigation key left 16 Navigation key right 17 Plus key 18 Child lock key Lock key 19 Confirm key Note The keys respond best if you touch them with a large area of your fingertip Every time you press a key during use a short acoustic signal will sound YOUR OVEN

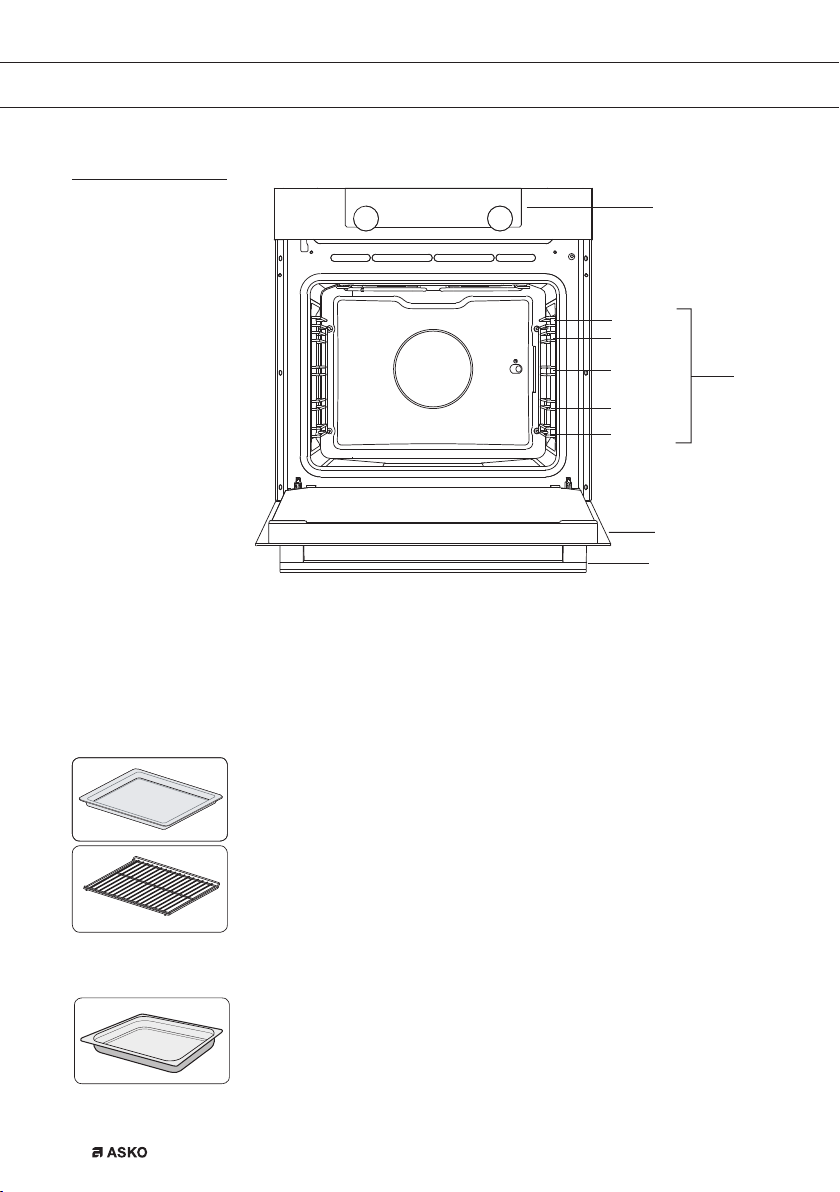

  • Page 6 - English - : EN 6 YOUR OVEN Description 1 Control panel 2 Oven levels OP86 5 levels OP84 4 levels 3 Oven door 4 Door handle The following accessories are supplied with your oven Baking tray used for pastries and cakes Oven rack mainly used for grilling A dish or pan with food can also be placed on the oven rack The oven rack is equipped with a safety peg Lift the rack slightly at the front to slide it out of the oven Deep Baking Tray OP86 only is used for roasting meat and baking moist pastry It can also be used as a drip tray Place the deep baking tray into the first level only for grilling or for use as a drip tray Level 1 Level 2 Level 3 Level 4 Level 5
  • Page 7 - English - : EN 7 Pyrolysis guide rails used to clean the baking tray during pyrolysis Guide rails The oven has four or five guide rails level 1 to 45 depending on the model Level 1 is mainly used in combination with bottom heat The upper two levels are used mainly for the grill function Place the oven rack or baking tray in the gap between the guide rail sliders Telescopic guide rail One or two shelf levels have fullyretractable telescopic guide rails depending on the model Pull the telescopic guide rails out of the oven cavity completely and place the oven rack or baking tray Then slide the oven rack or baking tray on the telescopic guide rails back into the oven cavity Only close the oven door when the telescopic guide rails are returned completely back into the oven cavity Pyrolysis guide rail Only use for pyrolysis cleaning If you also want to clean the baking tray with pyrolysis then place these guide rails Please note the high temperature during pyrolysis can cause the guide rails to discolour YOUR OVEN
  • Page 8 - English - : EN 8 YOUR OVEN Door The door switches interrupt the operation of the oven when the door is opened during use The oven continues operating when the door is closed This oven has a Soft close door system When closing the oven door this system dampens the movement from a certain angle and silently closes the oven door Cooling fan The appliance is equipped with a cooling fan that cools the casing and control panel Main functions With the function knob you can select the main functions of your oven Setting Description Offstandby mode Oven Hot air Hot air bottom heat Bottom top heat Large grill Small grill Large grill fan Upper heat Bottom heat Bottom heat fan Pro roasting Fast preheat Eco hot air Programs and favourites Favourites Programs
  • Page 9 - English - : EN 9 Setting Description Defrost Manual defrost Plate warming Warming Keep warm Cleaning Pyrolysis Aqua clean Keys In the table below you can find the discription of the different keys Keys Description of the keys Onoff key and stop key Press short cancel operation or go one step back in the menu Press long turn the appliance off or on Light key To turn the cavity light on or off Egg timer The egg timer can be used independent of the oven function The longest possible timer setting is 2359 Navigation key left To move the active area to the left Navigation key right To move the active area to the right YOUR OVEN

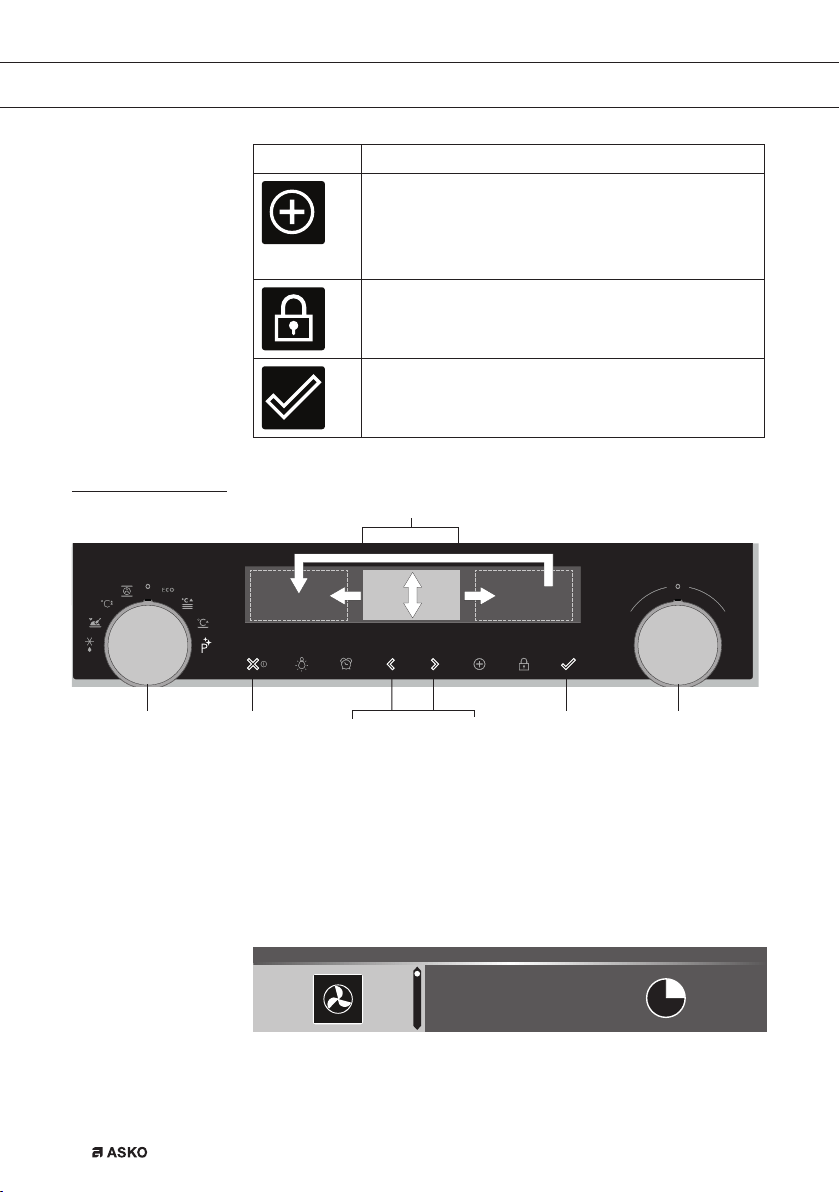

  • Page 10 - English - : EN 10 YOUR OVEN Keys Description of the keys Plus key To open or exit the settings menu in standby mode To open or exit the plus menu with the extra options possible at that moment in onmode Child lock key Press and hold the lock key to lock the appliance Confirm key To confirm all the white settingselements in the screen Navigation active area stop key confirm keyfunction knob selection knobnavigation keys By turning the function knob away from the 0position the icon of the chosen main function is lit The display will show the icon and name of the activated function for about 15 seconds Next you will see the chosen main function and subfunction at the top of the display in the feedback bar Also the function settings mode will become active grey background In this activated area you can select your settings using the selection knob C OVEN l HOT AIR 1430
  • Page 11 - English - : EN 11 Within every menu the navigation is as follows Use the navigation keys or press the selection knob to move the active area grey background The setting in the active area can be changed by turning the selection knob left decrease right increase The setting will be saved automaticallly When all elements in the screen are set then confirm these settings by pressing the confirm key this key will start blinking when it is possible to start the program Press the stop key to go one step back in the menu At the top of the display is a feedback bar This bar will inform where you are in the menu and what setting you are changing Functions are separated with a vertical line SETTINGS l GENERAL l SOUND l KEY SOUND YOUR OVEN
  • Page 12 - English - : EN 12 INITIAL USE What to do first Clean the oven interior and accessories with hot water and washingup liquid Do not use aggressive cleaning agents abrasive sponges and similar The oven will emit a strange smell when it is used for the first time this is normal You should ensure that there is good ventilation during initial use When the appliance is first plugged in or after connection when the appliance was disconnected from the power mains for a long period of time you have to set Language Date and Time Setting the language English Deutsch LANGUAGE In case you are not comfortable with the language on the display you can select another language The default setting is English 1 Turn the selection knob and select your preferred language from the displayed list 2 Confirm the setting by pressing the confirm key The next screen will be displayed Setting the date 01 2015 DATE l DAY 1 Turn the selection knob and change the first setting Day 2 Confirm this setting by pressing the right navigation key or by pressing the selection knob 3 Turn the selection knob and change the next setting Month 4 Confirm this setting by pressing the right navigation key or by pressing the selection knob 5 Turn the selection knob and change the last setting Year 6 Confirm this setting by pressing the confirm key The next screen will be displayed
  • Page 13 - English - : EN 13 Setting the time 00 TIME l HOUR 1 Turn the selection knob and change the hours 2 Confirm this setting by pressing the right navigation key or by pressing the selection knob 3 Turn the selection knob and change the minutes 4 Confirm this setting by pressing the confirm key All the startup settings are set and the appliance will show the standby display The language date and time can also be set in the settings menu The settings menu is only available by pressing the plus key when the appliance is in standby mode see Settings menu Standby display The standby display will show the time date cavity temperature if this is higher than 80 C and the timer if set The appliance goes to standby mode after Turning the function knob to 0 off position Pressing the stop key multiple times deeper in the menu 12 00 03 05 2015 Off mode Default the appliance will shut down after no action for a set time of 30 minutes Press and hold the stop key to shut down the appliance manually Switching the appliance on Press and hold the stop key to switch on the appliance The appliance can also be switched on by turning the function knob to a function INITIAL USE
  • Page 14 - English - : EN 14 Selecting your function Select a function appropriate for the meal you are cooking Consult the table in chapter Functions table to see which functions are available Go directly to the progress mode by pressing the confirm key this key is blinking if it is possible to start the program After you have chosen a main function the function settings mode is active grey background In this activated area it is now possible to change the settings in this funtion Function settings mode Example OvenHot air bottom heat40 minutes 1 Choose a main function by turning the function knob The first subfunction setting is active C OVEN l HOT AIR 1430 Now the settings can be changed as desired There is the possibility to set The function consult the table in chapter Functions table The temperature depends on the appliance The time 2 Turn the selection knob and change the setting C OVEN l HOT AIR BOTTOM HEAT 1430 3 Confirm the setting by pressing the right navigation key or by pressing the selection knob The next subfunction setting becomes active C OVEN l TEMPERATURE 1430 C 4 Turn the selection knob and change the setting C OVEN l TEMPERATURE 1430 C OPERATION
  • Page 15 - English - : EN 15 5 Confirm the setting by pressing the right navigation key or by pressing the selection knob The next subfunction setting becomes active C OVEN l COOKING TIME 1430 The timer icon shows that there is no timer necessary for this function Press the confirm key to start the program directly with the chosen settings see step 7 To set the timer go to step 6 If there is a timer necessary for a current function then the default timer setting is displayed instead of the timer icon 6 Turn the selection knob and change the setting C OVEN l COOKING TIME 1430 039 040 HM 041 HM notation 7 If preferred select any additional setting using the plus menu for example fast preheat See for more information chapter Plus menu 8 Start the program press the confirm key to go to the progress mode The program will start with the chosen settings the oven will go to the progress mode and the progress screen is shown C 1430 040 HOT AIR BOTTOM 1510 OPERATION
  • Page 16 - English - : EN 16 Progress mode Left side on the screen the temperature is displayed if the set temperature is not reached the temperature will switch between cavity temp grey and set temp white If the set temp is reached a popup will appear set temperature is reached Right side on the screen the time counting down or the progress time counting up if no time was set is displayed Next to the cooking time you can see the finishing time C 1430 040 HOT AIR BOTTOM 1510 If preheating is chosen the progress mode will first show the preheating display preheating in the feedback bar and the preheating icon All settings are displayed only the colours are switched The cavity temperature is white and the chosen settings are grey If the set temperature is reached a popup will appear Set temperature is reached Insert dish C 1430 040 HOT AIR BOTTOM 1510 Finish display When the timer is finished the finish display will appear Now it is possible to Stop the progress Add extra time Gratin if possible Save as favourite FINISH l ENJOY 1430 Stop the progress 1 Press the confirm key The finish display will be closed and the standby screen will be shown If there is no action within 10 minutes the display will switch to standby mode OPERATION
  • Page 17 - English - : EN 17 OPERATION Add extra time 1 Press the right navigation key to select Add extra time 2 The time setting becomes active and can be changed directly by rotating the selection knob 3 Confirm by means of the confirm key The previous process is activated again Gratin 1 Press the right navigation key to select Gratin Grill settings will be shown 2 The temperature default 200 C and time can be set or the program can be started directly by pressing the confirm key time will start counting up After confirmation with the confirm key the progress screen will be shown Save as favourite 1 Press the right navigation key to select Save as favourite The next screen will show 10 positions where the program can be positioned 2 Select a position for your recipe by rotating the selection knob and press the confirm key to save it 3 Give the recipe a name Rotate the selection knob to select the appropriate letter and press the selection knob to confirm and go to the next letter You can delete a character by means of the backspace function in the character list arrow 4 Press the confirm key to save the recipe Changing settings during the progress During progress pressing the navigation keys will show the active area The selected setting can now be changed see chapter Function settings mode After confirmation with the confirm key the progress screen will be shown with the changed settings After 5 seconds without actions the progress settings are cancelled and the display will return to the progress screen

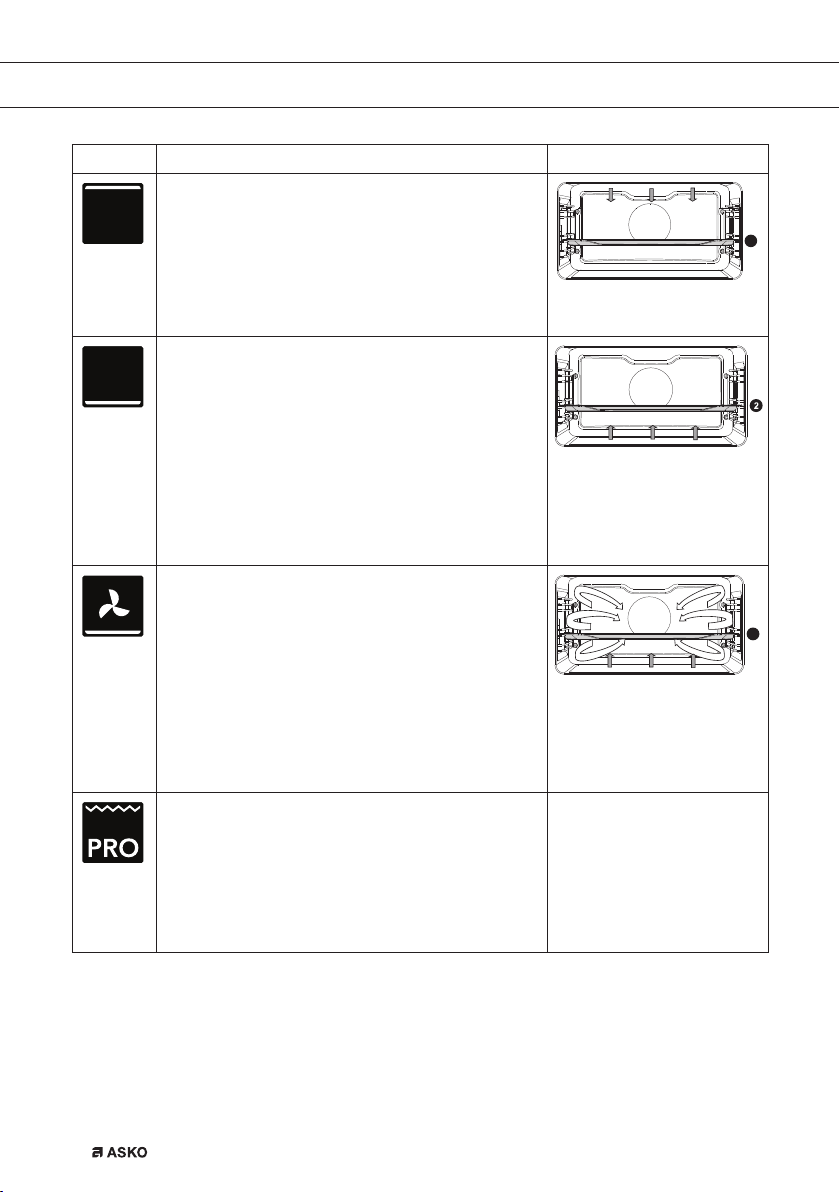

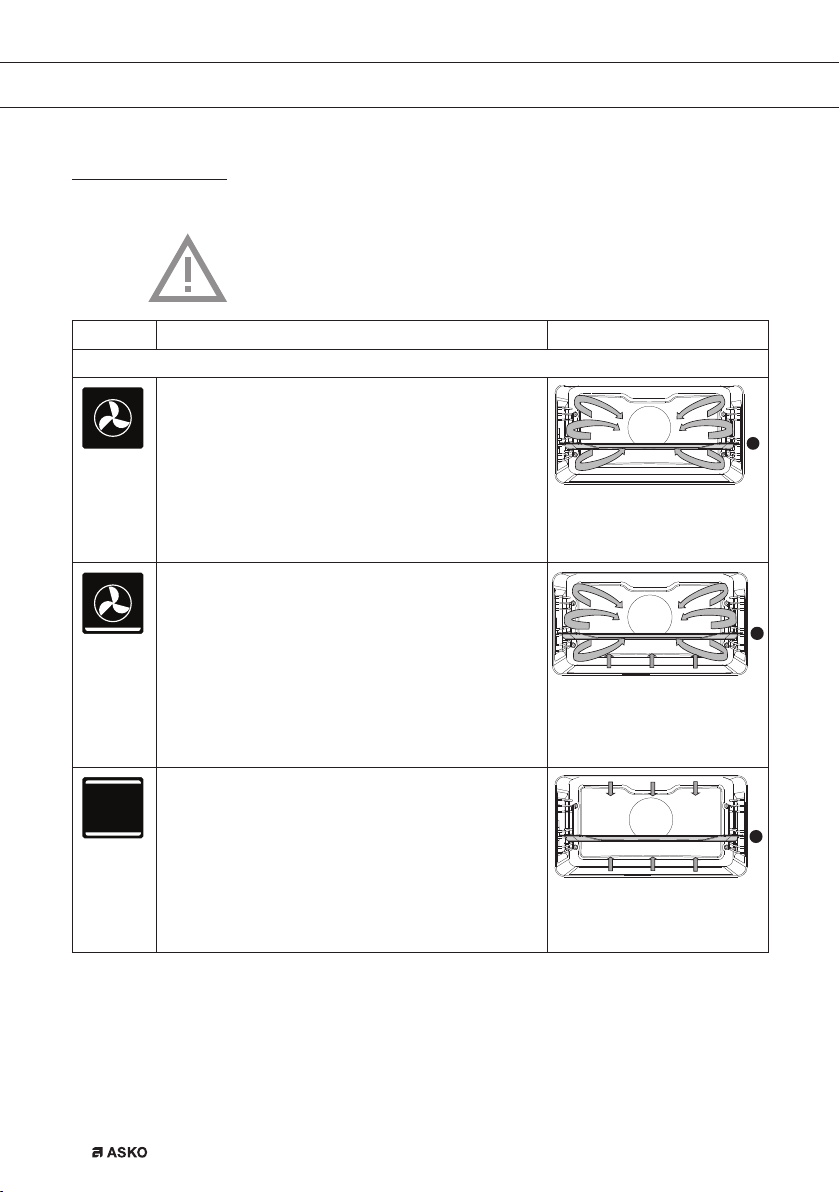

  • Page 18 - English - : EN 18 USE Functions table Consult the table to select the preferred function Also consult the instructions for preparation on the dish packaging Only use glass dishes that can withstand temperatures of 275 C Function Description Oven functions Hot Air Heating by means of hot air from the back of the oven This mode provides uniform heating and is ideal for baking Place the baking tray or oven rack on level 2 Suggested temperature 180 C Preheating is recommended Hot Air Bottom Heat Heating by means of hot air from the back of the oven and the bottom heating element This mode can be used to bake pizza moist pastry fruitcakes leavened dough and short crust Place the baking tray or oven rack on level 2 Suggested temperature 200 C Preheating is recommended Top Heat Bottom Heat Heating by means of the upper and lower heating elements This mode can be used for traditional baking and roasting Place the baking tray or oven rack on level 2 Suggested temperature 200 C Preheating is recommended
  • Page 19 - English - : EN 19 USE Function Description Large Grill Heating by means of the upper element and grill element This mode can be used with dishes and baked goods that require a distinctive bottom crust or browning Use just before the end of the baking or roasting time Place the the oven rack on level 4 and the baking tray on level 2 Maximum allowed temperature 240 C Monitor the cooking process at all times The dish may burn quickly due to the high temperature Preheating is recommended Grill Heating by means of the grill element This mode can be used for grilling a smaller amount of open sandwiches beer sausages and for toasting bread Place the oven rack is on level 4 and the baking tray on level 2 Maximum allowed temperature 240 C Monitor the cooking process at all times The dish may burn quickly due to the high temperature Preheating is recommended Grill Fan Heating by means of the top heating elements The heat is distributed by the fan This mode can be used for grilling meat fish and vegetables Place the oven rack on level 4 and the baking tray on level 2 Suggested temperature 170 C Monitor the cooking process at all times The dish may burn quickly due to the high temperature Preheating is recommended
  • Page 20 - English - : EN 20 USE Function Description Top Heat Heating only by means of the upper heating element This mode can be used when you wish to bake roast the top part of your dish Place the baking tray or oven rack on level 2 Suggested temperature 150 C Bottom Heat Heating only by means of the lower heating element This mode can be used with dishes and baked goods that require a distinctive bottom crust or browning Place the baking tray or oven rack on level 2 Use just before the end of the baking or roasting time Suggested temperature 160 C Fan Bottom Heat Heating by means of the lower heating element The heat is distributed by the fan This mode can be used for baking low leavened cakes as well as for preservation of fruit and vegetables Place a not too high baking tray on level 2 so that hot air can also circulate over the upper surface of the food Suggested temperature 180 C Pro Roasting Heating by means of the upper heating element in combination with the grill heating element and hot air This mode can be used for roasting all types of meat Suggested temperature 180 C
  • Page 21 - English - : EN 21 USE Function Description ECO hot air ECO Hot air Heating by means of hot air ECO hot air uses less energy but gives the same result as the hot air setting Cooking takes a few minutes longer This mode can be used for roasting meat and baking pastry Place the tray on level 2 Suggested temperature 180 C This setting makes use of the residual heat heating is not on the whole time to achieve low energy consumption in accordance with energy class EN 603501 In this mode the actual temperature in the oven is not displayed Extra functions Plate warming Plate warming this function is used for warming tableware so that the served food stays hotter for longer Warming Keep warm this function is used to keep already cooked dishes warm Cleaning Pyrolysis This function is intended for the automatic cleaning of the oven The oven heats up to a temperature far above normal use ensuring grease residues and other dirt are reduced to ash Before using this process remove all accessories and loose food residues from the oven cavity During the pyrolytic selfcleaning process the oven door is automatically locked above a certain temperature The outside of the oven becomes hotter than usual When the oven is completely cool the inside can be wiped clean with a damp cloth Aqua clean Grease and grime can easily be removed from the oven walls with a damp cloth
  • Page 22 - English - : EN 22 USE Function Description Defrost With this function the air circulates by means of the fan The air will be heated to a temperature of 30 C Use this function to defrost frozen dishes Programs and Favourites Use Programs for baking and roasting by selecting a dish from a list of preprogrammed dishes Favourites you can select your own stored recipes Fast preheat With this function the oven space quickly reaches the desired temperature Do not use this setting when you have a dish in the oven space Settings menu The settings menu is only available by pressing the plus key when the appliance is in standby mode Setting Description General Language Time Date Sound Display Brightness Clock size Night mode Appliance to standby mode Cooking Default program intensity Preheat settings System Appliance information Factory settings Oven light
  • Page 23 - English - : EN 23 USE General You can set the following from this menu Language language of the display Time always in 24H format Time display 24H or 12H format Date always daymonthyear format Date display ddmmyyyy or mmddyyyy Sounds volume of the general sounds and alarms Key sounds onoff Welcome sound startupshutdown sound onoff Display You can set the following from this menu Brightness low mid high Night mode start and end time for lower display brightness first display set start timer second display set end time Clock size small large Standby auto switch off manually switch off Changing to manually switch off will increase energy consumption If the oven is switched off manually or when an interruption of the power supply occurs this function will be reset the display will automatically switch off Cooking settings You can set the following from this menu Default program intensity low medium high Preheat settings set preheat default on or off System You can set the following from this menu Appliance information request appliance information Factory settings back to factory settings Oven light auto switch off after 1 min manual
  • Page 24 - English - : EN 24 USE Plus menu Depending on the aplliance and the function there is a possibility to choose extra functionality after you have chosen a main function and settings in the Function settings mode by pressing the plus key A small icon next to the world time will give an indication about the activated plus menu functions The colour of the icon will indicate if it is active white or inactive grey To exit the plus menu press the stop key or plus key the display will show the previous display again If you want to cancel an extra functionality you have to select cancel icon with a red line Menu Description Icon Cooking info Request more information about the selected function Fast preheat Preheat the oven to the desired temperature quickly not available in combination with delayed start Delayed start The cooking process will start automatically at the time you set Only available if a cooking time is set not available in combination with preheat Gratin To add the grill function at the end of the progress gratin time will be added at the end of the progress Add to favourites Add the settings for the cooked dish to your favourites see chapter Finish display Stage cooking Combine up to three functions in one cooking process Go to manual cooking
  • Page 25 - English - : EN 25 USE Cooking information The cooking info display will give more information about the chosen function like the needed equipment and for what kind of purposes the function is used Fast preheat There are two different ways to use fast preheat Activate the fast preheat in the settings menu to be default on or off 1 Press the plus key when the appliance is in standby mode Go to Cooking settings and select if the fast preheat should be default on or off 2 Press the confirm key If the fast preheat is set to default on the small preheat icon will be shown to indicate the active preheat function This option is only available for the oven functions Activate the fast preheat in the plus menu 1 Press the plus key in the Function settings mode 2 Select Fast preheat by pressing the right navigation key 3 Press the confirm key to activate fast preheat The small preheat icon will be shown next to the current time When preheat is activated the delayed start will be greyed out because these functions do not work together When delayed start is activated preheat will be greyed out To cancel the preheat press the confirm key again Starting with fast preheat If a program is started and it will start with the fast preheat a popup will appear After 15 sec the popup will automatically disappear The progress screen will show the fast preheat icon the time will be greyed out If the set temperature is reached a popup will show The set temperature is reached Please insert the dish Insert the dish and the program will start automatically on door closing Pressing the confirm key without opening the door keeps the appliance at the set temperature This situation will remain until the door is opened
  • Page 26 - English - : EN 26 USE Delayed start Use the delayed start function if you wish to start cooking at a later time 1 Press the plus key in the Function settings mode 2 Select Delayed start with the right navigation key 3 Press the confirm key The display will show the delay start symbol the cooking time and the end time 4 Change the end time by turning the selection knob and confirm with the confirm key A small icon will appear to indicate the activation of the function To cancel the delayed start go to Delayed start and select cancel delayed start a popup will appear to confirm the cancellation of the delayed start 5 Start the program press the confirm key to go to the progress mode The function will start automatically at the set time If a cooking time has been set the function will also switch off automatically Gratin To add the grill function at the end of the progress gratin time will be added at the end of the cooking process 1 Press the plus key in the Function settings mode 2 Select Gratin with the right navigation key 3 Press the confirm key A small grill icon will appear next to the current time To cancel gratin select cancel gratin in the plus menu Stage cooking This function allows you to combine up to three functions in one cooking process Select different functions and settings to compose the cooking process of your preference 1 Press the plus key in the Function settings mode 2 Select Stage cooking by pressing the right navigation key 3 Press the confirm key A small icon will appear next to the current time The first stage is already filled with the current settings of the function If there is no time set then the default time will be set for the first srage For example the oven mode and hot air 180 C is selected the default time of 30 min will be added to the first stage 4 To add a stage choose the second function by pressing the
  • Page 27 - English - : EN 27 USE navigation keys or pressing the selection knob 5 Press the confirm key The display will switch to the settings screen 6 Select the desired function set the temperature and time 7 Save the stage and return to the stage cooking overview by pressing the confirm key If the stop key is pressed the setting will be cancelled and the display will turn to the previous display 8 If desired add a third stage Repeat steps 4 5 6 and 7 9 After confirmation the display will show the set stages with an edit and delete icon 10 If all stages are set according to your wishes then return to the oven setting screen Press the plus key to close the plus menu The display will show the normal oven setting screen with the settings of the first stage stage 1 icon white 11 Start the process by pressing the confirm key If the stop key is pressed the stage cooking menu will be closed and the oven will return to the normal mode Go to manual cooking In the manual cooking mode a standard program from the Programs and favorites function can be chosen and edited as in Stage cooking mode By selecting the manual function in the plus menu a popup will appear Switch to oven mode After confirmation the display will switch to the stage cooking mode if the selected program has more stages Programs and Favourites Automatic programs You can use automatic programs for baking and roasting by selecting a dish from a list of preprogrammed dishes First select the type of dish and then the dish itself from the available list All the program categories have a picture When a dish is selected the program settings will appear The name of the dish and and the name of the active selection are shown in the text bar In the settings first a picture of the dish is visible not editable the weight depending on the dish if it is editable the intensity not always editable and the cooking time If necessary adjust the intensity andor the weight
  • Page 28 - English - : EN 28 USE Favourites see chapter Finish display You can select your own stored recipes in favourites If there are no saved recipes a popup will appear No saved dishes The name of the recipe appears in the text bar and the saved oven settings are shown Egg timer The egg timer can be used independent of the oven function 1 Press the timer key 2 Change the time by rotating the selection knob The longest possible timer setting is 2359 3 Confirm the setting by pressing the confirm key The egg timer is started To cancel the timer set the time back to 000 and confirm by pressing the confirm key To close the egg timer menu press the timer key or the stop key 4 When the egg timer goes off a popup will appear with the text Egg timer expires and an acoustic signal will sound Press the stop key to switch off the signal and close the popup menu The sound will stop automatically after approximately 2 minutes Child lock The ovens control panel can be locked by means of the Child Safety Lock to protect the oven against unintended use 1 Press and hold the lock key The appliance will go into key lock mode A popup will be shown After 3 seconds the Key lock is active popup will close The current state of the appliance will be visible If the key lock has been activated during a cooking process the process will keep running If a key is pressed during key lock the Key lock is active pop up will show again The stop key is still active during lock mode If the appliance is switched off the process will stop To turn the appliance on again deactivate the key lock mode 2 To deactivate the key lock mode press and hold the lock key again
  • Page 29 - English - : EN 29 USE Plate warming This function is used when you want to warm tableware plates cups so that the served food stays hotter for longer For this function you can set the warmingup temperature and duration Warming Keep warm Use this function to keep already cooked food at temperature For this function you can set the foodwarming temperature and duration Defrost This function uses hot air 30 ÂșC Use this function for slow defrosting of frozen dishes cakes biscuits cookies bread bread rolls and frozen fruit For this function you can set the duration Turn the food over after half the defrost time has elapsed stir the food or break up large pieces if these are frozen together
  • Page 30 - English - : EN 30 CLEANING Cleaning the appliance Clean the oven regularly to prevent fat and leftover food from accumulating especially on the surfaces of the interior and the exterior the door and the seal Activate the key lock to prevent that the appliance is switched on accidentally Clean the exterior surfaces with a soft cloth and warm water with soap Wipe afterwards with a clean damp cloth and dry the surfaces Remove splashes and stains on the interior surfaces with a soapy cloth Wipe afterwards with a clean damp cloth and dry the surfaces Important Take care that no water enters the vents Never use abrasive cleaning materials or chemical solvents Always ensure that the seal of the door is clean This prevents accumulation of dirt and allows you to close the door properly Pyrolysis Instead of doing it manually you can also clean the oven space using the Pyrolysis oven feature During the pyrolysis the oven space is heated to in excess of 460 C Burning off contaminants present at these high temperatures Only ash remains Note If you also want to clean the baking tray you have to do this before cleaning the oven space Wipe the oven space first with a damp cloth before starting the pyrolysis function Remaining food and fat may ignite during the pyrolysis process Fire hazard With average use of the oven we recommend running the pyrolysis function once per month Cleaning the baking tray Replace the guide rails with the special pyrolysis guide rails Place the baking tray Start the pyrolysis function
  • Page 31 - English - : EN 31 Note Do not use the pyrolysis function to clean the oven space and the baking tray simultaneously Cleaning the oven space Remove all accessories and guide rails from the oven Start the pyrolysis function Start the pyrolysis function 1 Remove all accessories and guides from the oven If the baking tray also needs to be cleaned first place the pyrolysis guide rails 2 Select Pyrolysis with the function knob 3 Select the desired cleaning intensity Low approximately 3 hours Average approximately 35 hours High approximately 4 hours Only the cleaning intensity can be selected The time is fixed and depends on the selected cleaning intensity 4 Press on the confirm button to start pyrolysis clean After a certain period the oven door will be locked automatically for your own safety once the temperature reaches 250 C An unpleasant smell may be released from the oven during the cleaning process The oven door can be opened once the appliance has cooled down after the end of the pyrolysis cleaning When the oven has cooled down wipe with a damp cloth Wipe the oven door and the adjacent surfaces around the door seal Do not rub the seal Aqua clean With aqua clean and a damp cloth you can easily remove grease and dirt from the oven walls Using aqua clean Only use aqua clean when the oven has cooled down fully It is more difficult to remove dirt and grease if the oven is hot The program takes 30 minutes Food remains on the enamel walls will be sufficiently soaked after 30 minutes so that they can be removed with a damp cloth CLEANING
  • Page 32 - English - : EN 32 1 Remove all accessories from the oven 2 Pour 015 litres of water into the bottom of the oven 3 Select Cleaning with the function knob 4 Change to Aqua clean setting 5 Press on the confirm button to start aqua clean Please note Do not open the door during the cleaning program Removing and cleaning the guide rails Use conventional cleaning products to clean the guide rails Remove the screw using a screwdriver Remove the guide rails from the holes in the back wall Removal and installation of the oven door Keep your fingers away from the hinges of the oven door The hinges are spring loaded and can cause injury if they spring back Make sure that the hinge latches are applied correctly to lock the hinges Remove the oven door 1 Open the door to the fully open position 2 Lift both hinge latches A and pull them towards the oven door B The hinges will be locked in the 45 position 3 Gently close the door until it reaches a 45 angle 4 Remove the door by lifting and tilting it towards the oven C The hinges need to come out of the slots in the oven CLEANING

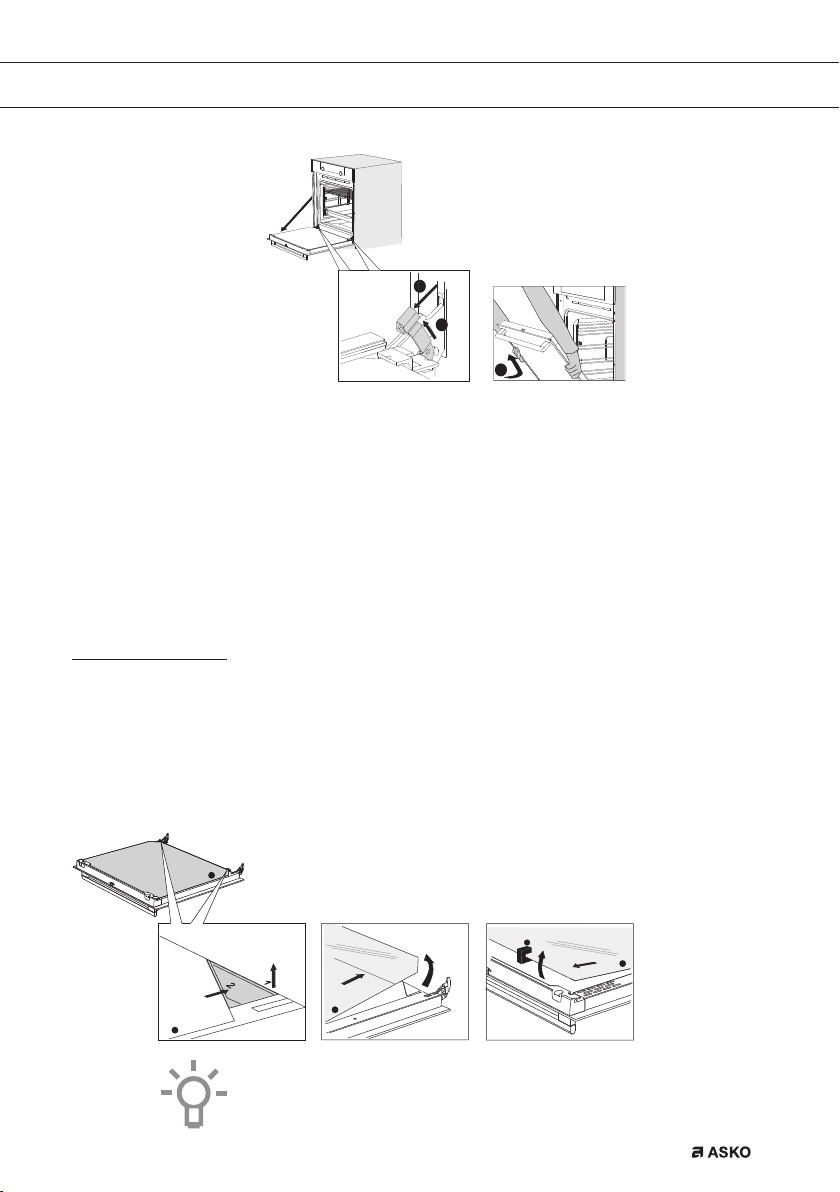

  • Page 33 - English - : EN 33 B A C Install the oven door 1 Hold the door at an angle of approximately 45 in front of the oven 2 Insert the hinges into the slots and make sure they are both positioned correctly 3 Open the door to the fully open position 4 Lift both hinge latches and move them towards the oven 5 Gently close the oven door and make sure that it closes correctly If the door does not open or close correctly then make sure that the hinges are positioned correctly in their slots Removal and installation of the oven door glass The inside of the glass in the oven door can be cleaned For this it must be removed from the oven door 1 Slightly lift 1 and shift 2 the clamps at the lower left and right of the door to release the glass A 2 Grab the glass A at the bottom and gently lift 3 and shift 4 it to remove it from the upper support 3 The inner glass B depending on the model can be removed by carefully lifting 5 and shifting 6 it to removing it from the lower support Also remove the rubber spacers C from the inner glass Install the glass in reverse order CLEANING B A A A C

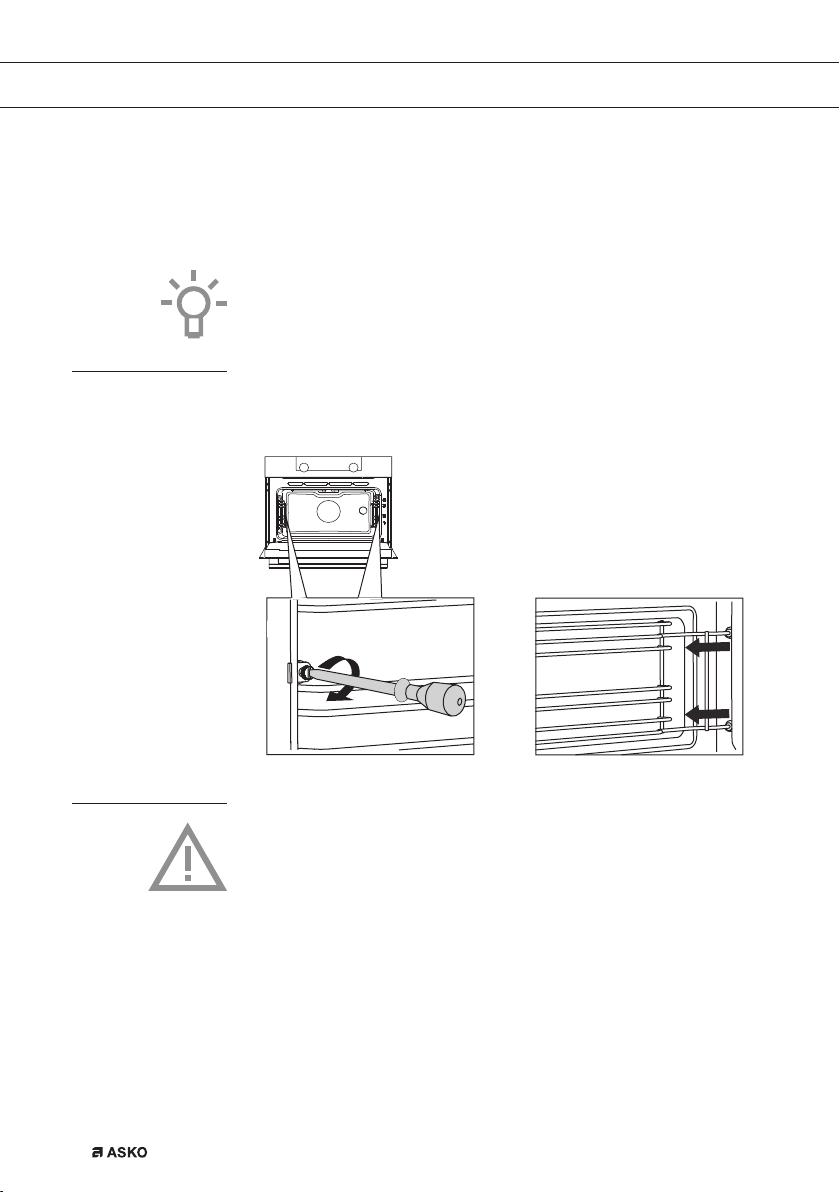

  • Page 34 - English - : EN 34 Replacing the oven light bulb The lamp in this household appliance is only suitable for illumination of this appliance The lamp is not suitable for household room illumination The light bulbs 2x halogen G9 230 V 25 W are a consumer items and therefore not covered by warranty To replace it first remove the baking tray oven rack and guide rails Disconnect the appliance from the power supply by removing the plug from the socket or by switching off the circuit breaker in the fuse box Please note the light bulb can be very hot Use protection to remove the bulb 1 Use a flat screwdriver to loosen the bulb cover and remove it NOTE Be careful not to scratch the enamel 2 Remove the light bulb and install a new one CLEANING
  • Page 35 - English - : EN 35 General If you have problems with your oven consult the error overview below Should the problems persist please contact the Customer Services Department The food stays raw Check whether the timer has been set and you have pressed the confirm key Is the door closed properly Check whether a fuse has blown and whether a circuit breaker has been activated The food is overcooked or undercooked Check whether the correct cooking time has been set Check whether the correct power has been set The sensors dont respond the display is locked Disconnect the appliance from the power supply for a few minutes unscrew the fuse or switch off the mains then reconnect the appliance and switch it on Sparking in the oven space Ensure that all cover panels from the lamps are secure and that all spacers are placed on the guide rails Power failure can cause the display to reset Remove the plug from the socket and put it back in again Set the time again There is condensation in the oven This is normal Wipe the oven clean after use The fan keeps working after the oven is switched off This is normal The fan will keep working for a while after the oven is switched off Air flow can be felt at the door and the exterior of the appliance This is normal SOLVING PROBLEMS
  • Page 36 - English - : EN 36 Light reflects on the door and the exterior of the appliance This is normal Steam escapes from the door or the vents This is normal Clicking sounds can be heard when the oven is working particularly in the defrost setting This is normal The fuse switches off regularly Consult a service technician The display gives an error code ERROR XX XX indicates the number of the error There is a fault in the electronic module Disconnect the appliance from the power supply for a few minutes Then reconnect it and set the current time Consult a service technician if the error persists Storing and repairing the oven Repairs should only be performed by a qualified service technician If maintenance is required take the plug from the socket and contact the ASKO customer service Have the following information to hand when you call The model number and serial number stated on the inside of the oven door Guarantee details A clear description of the problem Choose a clean dry place if you have to store the oven temporarily as dust and moisture can damage the appliance SOLVING PROBLEMS
  • Page 37 - English - : EN 37 Disposal of the appliance and packaging This product is made from sustainable materials However the appliance must be disposed of responsibly at the end of its useful life The government can provide you with information about this The packaging of the appliance can be recycled The following materials have been used cardboard polyethylene wrap PE CFCfree polystyrene hard PS foam Dispose of these materials responsibly in accordance with legal provisions The product has a pictogram of a rubbish bin with a cross through it This indicates that household appliances must be disposed of separately This means that the appliance may not be processed via the regular waste flow at the end of its useful life You should take it to a special municipal waste depot or a sales outlet that offers to do this for you Collecting household equipment separately prevents harm to the environment and public health The materials used in manufacturing this appliance can be recycled which provides considerable savings in energy and raw materials Declaration of conformity We hereby declare that our products comply with the relevant European directives standards and regulations as well as all requirements referred to in the standards YOUR OVEN AND THE ENVIRONMENT
  • Page 40 - English - : 566266 VER 1 17032016 The appliance rating label is located on the inside of the appliance When contacting the service department have the complete type number to hand You will find the addresses and phone numbers of the service organisation on the guarantee card en 0416
