User Manual Samsung RS50N3913SA/EU RS3000 American Style Fridge Freezer with Home Bar

• User Manual - (English)
• Manual Instruction - (English)

• Repair Guide - (English)

Table of contents

• Installation
• Operations
• Cleaning the refrigerator
• Troubleshooting

Installation

Getting ready to install the refrigerator

Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many state-of-the-art features and efficiencies that this new appliance has to offer.

Selecting the best location for the refrigerator

• Solid, level surface without carpeting or flooring that may obstruct ventilation

• Away from direct sunlight

• Adequate room for opening and closing the door

• Away from a heat source

• Room for maintenance and servicing

• Temperature range: between 5 °C and 43 °C

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

NOTE

• The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

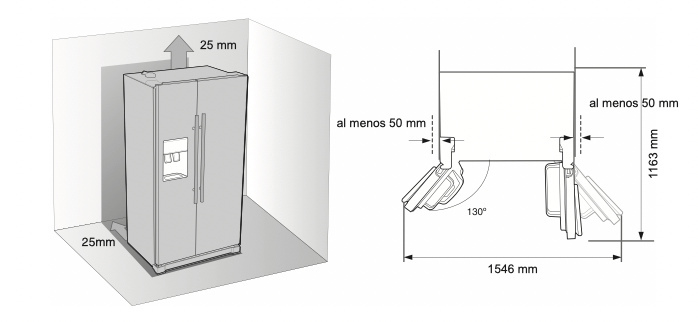

Clearance

Allow sufficient space to install the refrigerator on a flat surface.

Overall space required in use. Refer to drawing and dimension as below.

NOTE

• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.

• Do not install the refrigerator where the temperature will go below 50°F (10°C).

• Make sure you disconnect the water supply line BEFORE removing the freezer door.

Removing the refrigerator doors

If your entrance won’t allow the refrigerator to pass easily through it, you can remove the doors.

The actual image of your refrigerator may differ, depending on the model and the country.

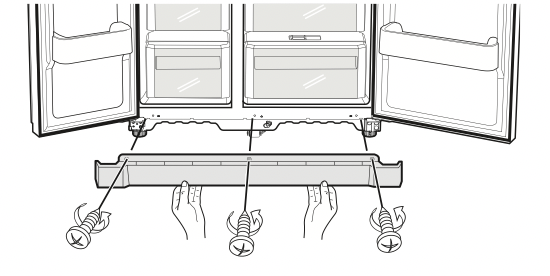

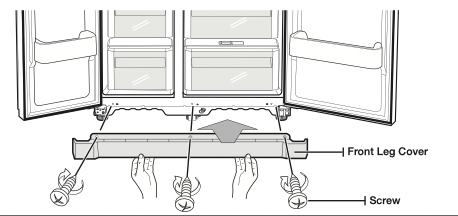

1.Removing the Front Leg Cover

First, open both the freezer and refrigerator doors, and then take off leg cover by turning the three screws counter-clockwise.

Separating the Water Supply Line from the Refrigerator

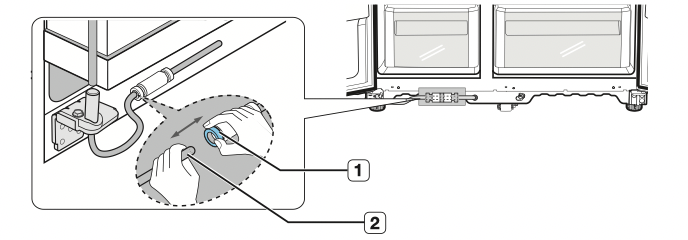

1. Remove the water line by pressing the coupler 1 and pulling the water line 2 away.

NOTE: Do not cut the water line. Gently separate it from the coupler.

2. Removing the freezer door

A few things to mention first.

• Make sure that you lift the door straight up so the hinges are not bent or broken.

• Be careful not to pinch the water tubing and wire harness on the door.

• Place doors on a protected surface to prevent scratching or damage.

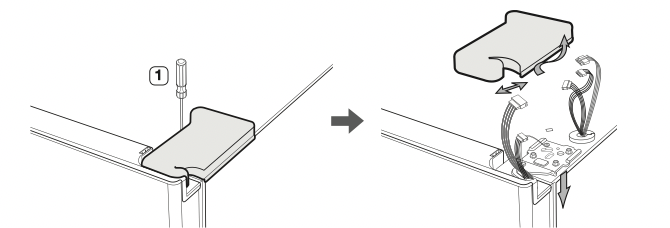

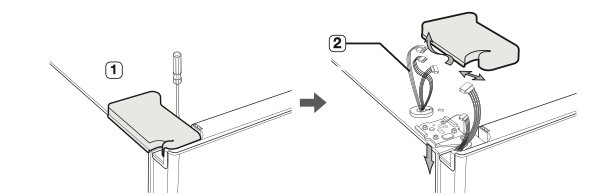

1. With the Freezer door closed, remove the upper hinge cover 1 using a screwdriver, and then disconnect the wires by gently pulling them apart 2 .

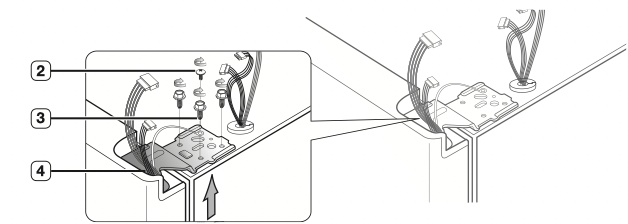

2.Remove hinge screws 3 and the ground screw 4 by turning counterclockwise, and take off the upper hinge 5 . Be careful that the door may fall on you as you are removing it

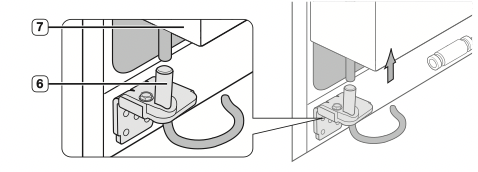

3.Next, remove the door from the lower hinge 6 by carefully lifting the door straight up 7 .

CAUTION: Be careful not to pinch the water tubing and wire harness on the door.

Removing the Fridge Door

1. With the door closed, remove the upper hinge cover 1 using a screwdriver.

2.Remove hinge screws 2 and the ground screw 3 by turning counterclockwise, and take off the upper hinge 4 . Be careful that the door may fall on you as you are removing it.

3.Remove the door from the lower hinge 5 by lifting the door straight up 6 .

Reattaching the refrigerator doors

Once you have safely placed your refrigerator where you plan for it to stay, it is time to put the doors back on.

Reattaching the Freezer Door

1.Insert the upper hinge shaft 3 into the hole on the corner of the freezer door 4 . Make sure the hinge is level between the upper hinge hole 5 and the hole of the cabinet 6 and reattach the hinge screws 7 and ground screw 8 by turning in a clockwise direction.

2.Reconnect the wires.

3. Place the front part of the upper hinge cover 9 on the front of the upper hinge 10 and reattach with the screw.

Reattaching the Fridge Door

1.Fit the hole in the corner of the fridge door 3 over the lower 4 hinge .

2.Insert the upper hinge shaft 5 into the hole on the hinge 6 Make sure the hinge is level between the upper hinge hole 7 and the hole on the top of the cabinet 9 . Then,reattach hinge screws 9 and the ground screw 10 by turning it in a clock wise direction.

3.Place the front part of the upper hinge cover 11 on the front of the upper hinge 12 and reattach it with the screw.

Reattaching the Water Supply Line

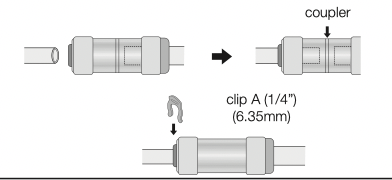

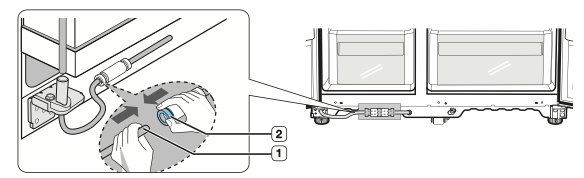

1. Insert the water line 1 into the coupler 2 .

.

2.The Water Line must be fully Inserted to the center of transparent coupler to prevent water leakage from the dispenser.

3.Insert the clip in the install pack and check that it holds the line firmly.

Reattaching the Front Leg Cover

NOTE

• Before attaching the cover, check water connector for leakage.

• Replace the front leg cover by turning the three screws clockwise, as shown in the figure.

Leveling the refrigerator

Now that the doors are back on the refrigerator, you will want to make sure the refrigerator is level so you can then make final adjustments. If the refrigerator is not level, it will not be possible to get the doors perfectly even.

NOTE: The front of the refrigerator is also adjustable.

When the Freezer door is lower than the fridge

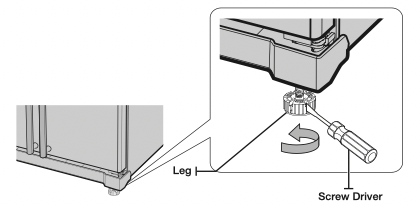

Insert a flat-blade screwdriver into a notch on the Leg, turn it clockwise or counter clockwise to level the freezer.

When the Freezer door is higher than the fridge

Insert a flat-blade screwdriver into a notch on the Leg, turn it clockwise or counter clockwise to level the fridge.

NOTE

• Refer to the next section for the best way to make very minor adjustments to the doors.

• The legs of product are unconnected when it is out of factory. Make sure to adjust the legs to touch the floor, and make the product level before using.

• For safety reasons, adjust the front side a little higher than the rear side.

Making minor adjustments to the doors

Remember, a leveling refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator.

In the case of the process to correct the imbalance is the same. Open the doors and adjust them, one at a time, as follows:

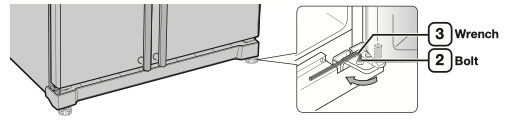

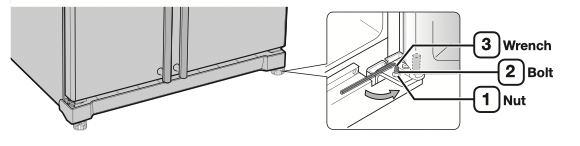

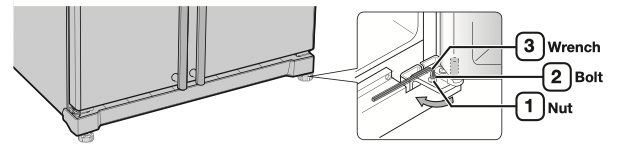

1.Unscrew the nut 1 from the lower hinge until it reaches the upper end of the bolt 2 .

NOTE: When you release the nut 1 , make sure that you use the Allen wrench (4mm) 3 to loosen the bolt 2 in a counter-clockwise direction. You should then be able to unscrew the nut 1 with your fingers.

2.Adjust the height difference between the doors by turning the bolt clockwise or counter clockwise

NOTE: When you turn clockwise , the door will move up.

3.After adjusting the doors, turn the nut 1 clockwise until it reaches the lower end of the bolt, then tighten the bolt again with the wrench 3 to fix the nut in place 1 .

NOTE

If you do not secure the nut firmly, the bolt may release.

Checking the water dispenser line (optional)

A water dispenser is just one of the helpful features on your new Samsung refrigerator. To help promote better health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You will need to purchase a water purifying system to do that.

In order for the icemaker to operate properly, water pressure of 138 ~862 Kpa is required. Under normal conditions, a 170 cc paper cup can be filled in 10 seconds.

If the refrigerator is installed in an area with low water pressure (below 138 Kpa), you can install a booster pump to compensate for the low pressure.

Make sure the water storage tank inside the refrigerator is properly filled. To do this, press the water dispenser lever until the water runs from the water outlet.

NOTE: Water Line installation Kits are included with unit. You can find it in freezer drawer.

Installing the water dispenser line (optional)

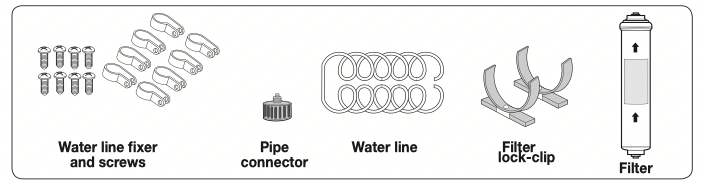

Parts for water line Installation

Connecting to the water supply line

Connect the water pipe with coupler and tap.

1. Close the main water tap.

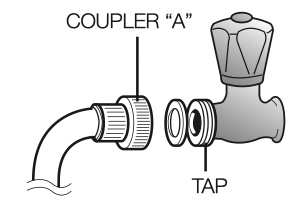

2. Connect coupler “A” to the tap.

CAUTION

The water line must be connected to the cold water pipe.If it is connected to the hot water pipe, it may cause the filter to malfunction.

WARRANTY INFORMATION

This water line installation is not covered by the refrigerator or ice maker manufacturer’s warranty.

Follow these instructions carefully to minimise the risk of expensive water damage.

NOTE: If the coupler does not fit on the current tap, go the nearest authorised service dealer and purchase the right couplers fittings.

Select the location where the filter is to install.

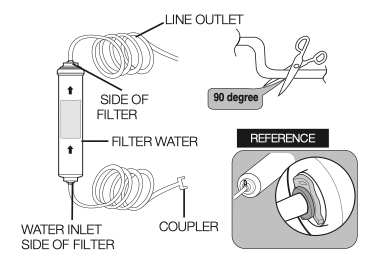

• If you wish to reassemble the water inlet and outlet sides of the filter during filter installation,see the reference illustration.

• Cut the water line attached to the filter to the appropriate place after measuring the distance between the filter and the cold water tap.

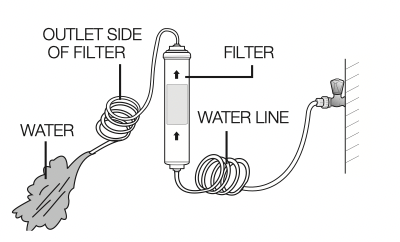

Remove any residual matter inside the filter.

• Open the main water tap to check whether water is running through the water tube on the water inlet side of the filter.

• If water does not come out through the line,check whether the tap is open.

• Leave the tap open until clean water is running out and any residual matter that built up during manufacturing has been removed.

Attach the filter lock stations.

• Hold the filter lock stations in the appropriate position (under the sink for example) and fix it tightly into place where to screw.

Secure the filter in position.

• Fix the filter in position, as shown in the figure on the right.

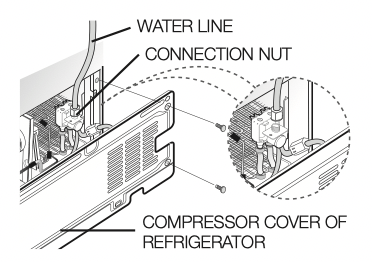

Connect the water line to the refrigerator.

• Remove the compressor cover of the refrigerator.

• Connect the water line to the valve, as shown in the figure.

• When connected, check if there is any leakage.If any, repeat the connection.

• Reattach the compressor cover of the refrigerator.

Secure the water line.

• - Using clip ”A”, fix the water line to the wall (the back of refrigerator).

• - When the water line is secure, make sure whether the water line is not excessively bent, pinched or squashed.

Removing any residual matter inside the water supply line after installing filter.(Optional)

1.Turn ON the main water supply & turn OFF the valve to the water supply line.

2.Run water through the dispenser until the water runs clear (approx. 1L). This will clean the water supply system and remove air from the lines.

3.Additional flushing may be required in some households.

4.Open the refrigerator door and make sure there are no water leaks coming from the water filter.

NOTE

• A newly installed water filter cartridge may cause water to briefly spurt from the water dispenser. This is due to air getting into the line. It should pose no problem to operation.

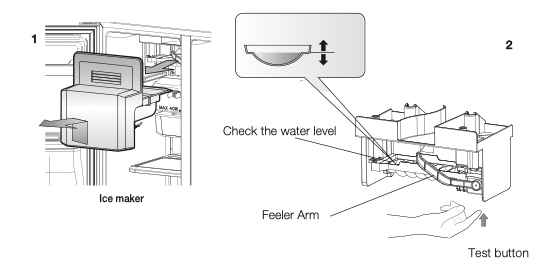

Check the amount of water supplied to the ice tray. (Optional)

1. Lift up the icemaker bucket and gently pull out of the freezer.

2. When you press the Test button for 1.5 seconds, the ice cube container is filled with water from the water supply tap after ice tray is twisted. Check to make sure the amount of water is correct(see the illustration below).

If the water level is too low, the ice cubes will be small. This is a water pressure problem from with in the main water pipes, not the refrigerator

Setting up the refrigerator

Now that you have your new refrigerator installed and in place, you are ready to set up and enjoy the full features and functions of the appliance.

By completing the following steps, your refrigerator should be fully operational. If not, first check the power supply and electricity source or try the troubleshooting section at the back of this user guide. If you have any further questions, contact your Samsung Electronics service center.

1.Place the refrigerator in an appropriate location with reasonable clearance between the wall and the refrigerator. Refer to installation instructions in this manual.

2.Once the refrigerator is plugged in, make sure the interior light comes on when you open the doors.

3.Set the temperature control to the coldest temperature and wait for an hour. The freezer should get slightly chilled and the motor should run smoothly.

4.After powering the refrigerator, it will take a few hours to reach the appropriate temperature.Once the refrigerator temperature is sufficiently cool, you can store food and drink in the refrigerator.

USE ICE TRAY(OPTIONAL)

When the freeze temperature get zero degre below, you can use Ice Box to make ice.

1.Pull out the ice tray.

2.Pour cool water into the tray until it reaches the water level indicator on the tray.

3.Place it inside ice tray.

4.Turn ice tray button and the ice automatically full into the below ice compartment after release. Pull out ice storage compartment for ice.

Operations

1.Pull out the ice tray.

2.Pour water into the tray until it reaches the water level indicator on the tray.

3.Place it under the freezer shelf or on the freezer shelf.

4.To separate individual ice cubes, pull out the ice tray and hold the ice tray by its ends, then twist it gently.

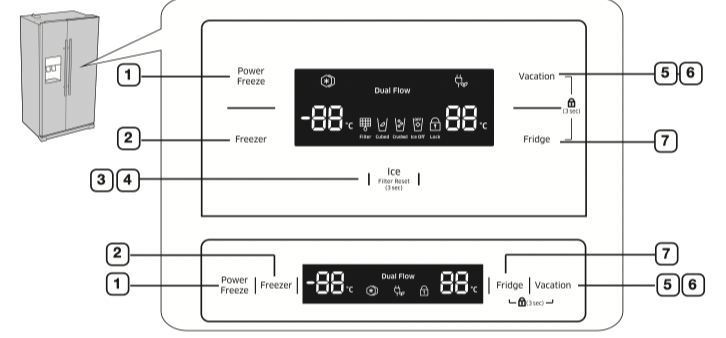

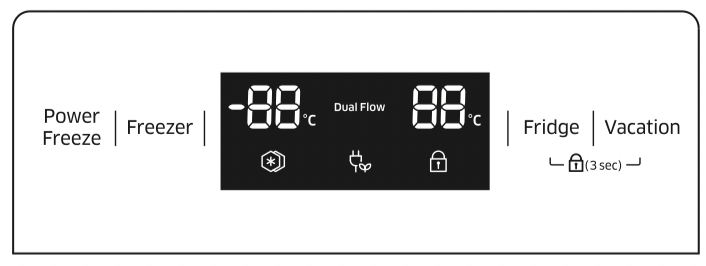

Using the control panel (optional)

CAUTION

• When not in use the temperature key, Dual Flow and Filter (green) display will turn off, and press the key or door open will turn on again,this is normal.

“88” segment on Freezer part indicates the current Freezer temperature.

“88” segment on Fridge part indicates the current Fridge temperature.

Power Freeze

This icon will light up when you activate the “Power Freeze” feature.

When you don`t need requirement, just press the button again to cancel the “Power Freeze” mode.

CAUTION

• When you use this function the energy consumption of the refrigerator will increase. This function must be activated before putting large amount of food stuff in the freezer compartment at least 24 hours before.

Child Lock

This icon will light up when you activate the Child Lock function by pressing the Vacation button or the Power Cool button and the Fridge button simultaneously for 3 seconds. Press these two buttons for 3 seconds again to reactivate.

Filter Indicator (Optional)

When the filter indicator light is on, it is time to change the filter. Typically this happens about every 6 months.After removing the old water filter and installing a new one, reset the indicator status light by pressing the Ice Type button for about 3 seconds.The indicator will light again in about 6 months to let you know it is time to change your water filter.When you do not use the water filter, press the Ice Type button for more than 5 seconds, the Filter indicator lamp and the Filter Change letters will be off.

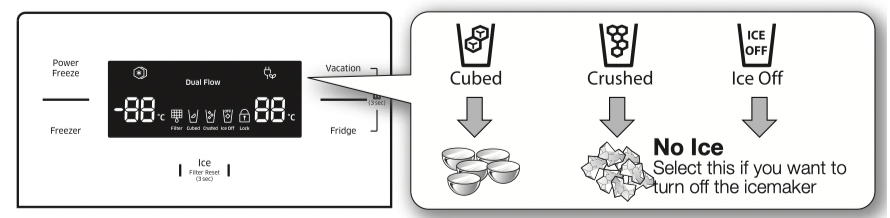

Cubed Ice, Crushed Ice and turnning the Ice maker off (Optional)

Enjoy cubed or crushed ice by selecting your preference from the digital control panel. If you don’t need ice, turn the feature off to save on water and energy consumption.The Ice type light indicates the type of ice(or no ice) that is currently chosen.

Controlling the temperature

Controlling the Freezer temperature

The freezer temperature can be set between -14°C (8°F) and -25ºC (-14°F) to suit your particular needs. Press the Freezer button repeatedly until the desired temperature is shown in the temperature display. Keep in mind that foods like ice cream may melt at -16ºC (4°F).

The temperature display will move sequentially from -14°C (8°F) and -25ºC (-14°F). When the display reaches -14ºC (8°F), it will begin again at -25ºC (-14°F).

Five seconds after the new temperature is set the display will again show the actual current freezer temperature. However, this number will change as the Freezer adjusts to the new temperature.

The temperature in two star sections are slightly higher than other freezer compartment.

Controlling the Fridge temperature

The refrigerator temperature can be set between 7ºC (45°F) and 1ºC (34°F) to suit your particular needs. Press the Fridge button repeatedly until the desired temperature is shown in the temperature display.

The temperature control process for the Fridge works just like the Freezer process.Press the Fridge button to set your desired temperature. After a few seconds, the Fridge will begin tracking towards the newly set temperature. This will be reflected in the digital display.

CAUTION

• The temperature of the freezer or the refrigerator may rise from opening the doors too frequently, or if a large amount of warm or hot food is placed in either side.

• This may cause the digital display to blink. Once the freezer and refrigerator return to their normal set temperatures the blinking will stop.

• If the blinking continues, you may need to “reset” the refrigerator. Try unplugging the appliance, wait about 10 minutes and then plug back in.

Using the ice and cold water dispenser (freezer)

Press the Ice Type button to select the type of ice you want

NOTE

• Ice is made in cubes. When you select “Crushed”, the icemaker grinds the ice cubes into crushed ice.

Dispensing ice

Place your glass underneath the ice outlet and push gently against the ice dispenser lever with your glass. Make sure the glass is in line with the dispenser to prevent the ice from bouncing out.

Using the Water Dispenser

Place a glass underneath the water outlet and push gently against the water dispenser lever with your glass. Make sure the glass is in line with the dispenser to prevent the water from splashing out.

WARNING

• Do not put your fingers, hands or any other unsuitable objects in the chute or ice-maker bucket.

- It may result in personal injury or material damage.

• Never put finger or any other objects in the dispenser opening.

- It may cause injury.

• Use only the ice maker provided with the refrigerator.

• The water supply to this refrigerator must only be installed/connected by a suitably qualified person and connect to a potable water supply only.

• In order to operate the ice maker properly, water pressure of 138 ~ 862 Kpa is required.

CAUTION

• If you have a long vacation or business trip and won’t use water or ice dispensers,close the water valve.

- Otherwise, water leakage may occur.

• Wipe excess moisture from the inside and leave the doors open. - Otherwise, odor and mold may develop.

Using the cold water dispenser (fridge)

Place a glass underneath the water outlet and push gently against the water dispenser lever with your glass. Make sure the glass is in line with the dispenser to prevent the water from splashing out.

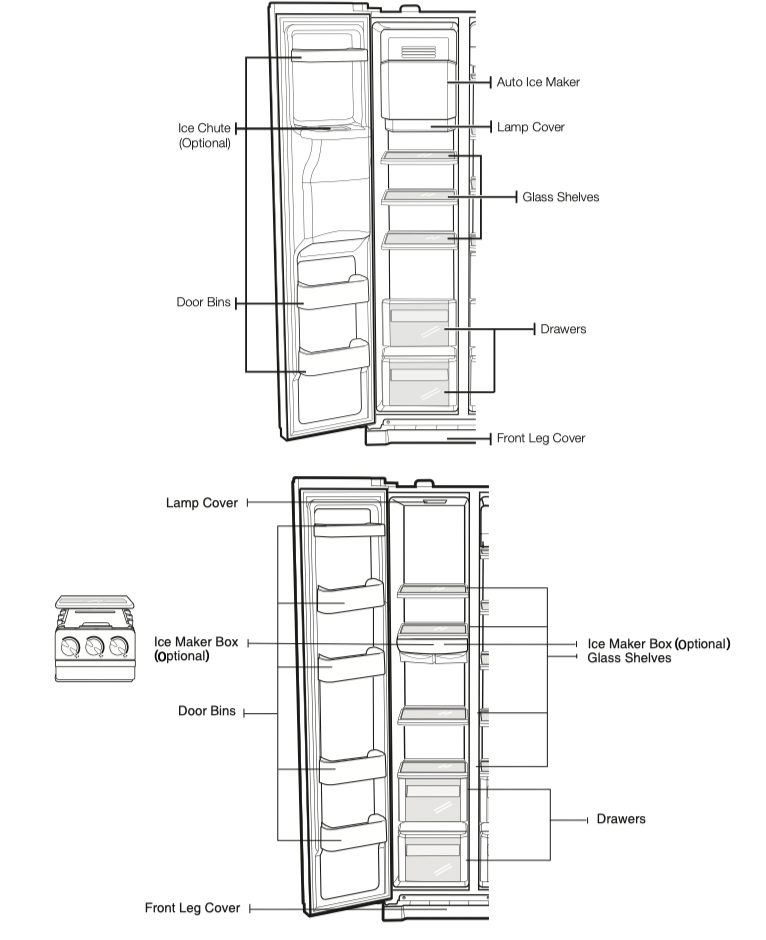

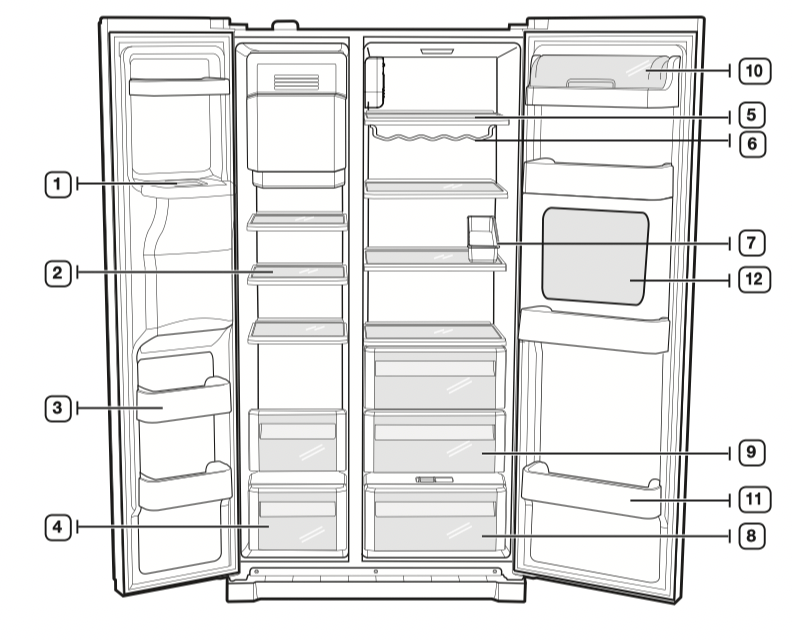

Shelves and bins (freezer)

Storing food

Storing Food in the Freezer

The Samsung Side-By-Side Refrigerator has been designed to provide you with maximum spacesaving features and functions. Here are some of the customized compartments we have created to keep your food fresher, longer. Remember, in order to prevent odor penetration to the ice, stored food should be wrapped securely and as airtight as possible.

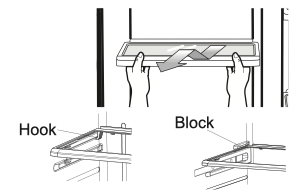

NOTE: To get more space, you can remove freezer drawer(s) except bottom freezer drawer and ice trays,since it does not affect thermal and mechanical characteristics. A declared storage volume of frozen food storage compartment is calculated with these components removed.

Storing Food in the Freezer

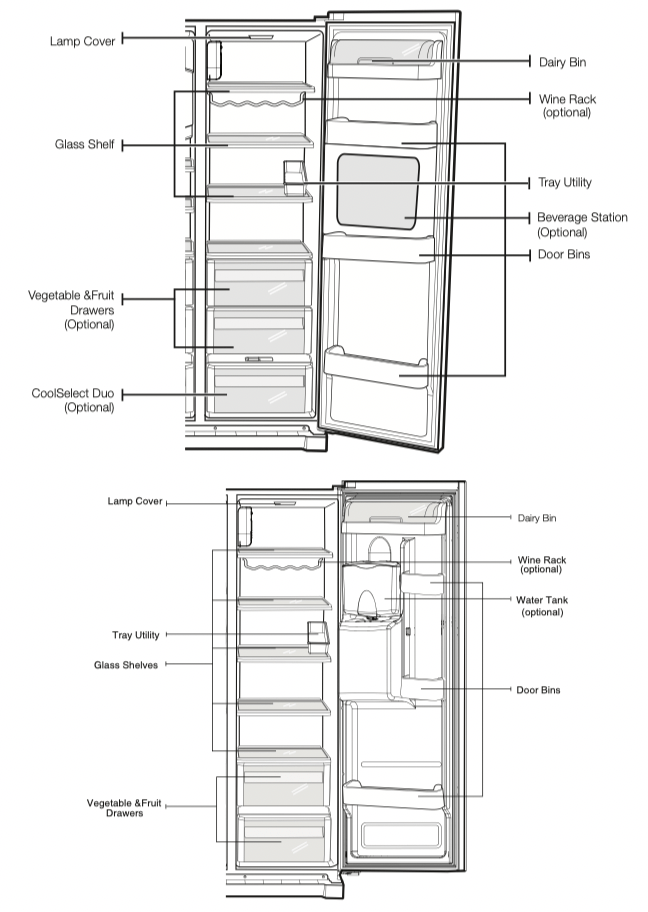

Storing Food in the Fridge

NOTE

Bottles should be stored tightly together so that they do not tip and fall out when the refrigerator door is opened.

WARNING

• If you plan to go away for a significant time, empty the refrigerator and turn it off. Wipe the excess moisture from the inside of the appliance and leave the doors open. This helps keep odor and mold from developing.

• If the refrigerator is not to be used for a long period of time, pull out the power plug.

- Deterioration in the insulation may cause fire.

Using the coolselect duo (optional)

The CoolSelect Duo is designed to make your busy life just a little bit easier.

Meat

When MEAT is selected, the temperature of the CoolSelect Duo is suitable for storing meat or ham by entering chill of freezer to it. This feature also helps keep meat or ham fresh for longer.

Vegetable

When VEGETABLE is selected, the temperature of CoolSelect Duo is suitable for storing vegetable or fruit by closing chill of freezer to it. This feature also helps keep vegetable or fruit.

NOTE

• When “Meat or Vergetable” is in operation, any items that you do NOT want affected should be moved out of the drawer.

Removing the freezer accessories

Cleaning and rearranging the interior of the freezer is a snap.

1.Remove the Glass Shelf by pulling the shelf out as far as it will go. Then, gently lift it up and remove it.

CAUTION: In case it does not have hooks itself in the back side for not being tilted,a shelf should be placed deeply in a proper position where there are blocks for shelves as shown. if not, the shelf can fall out of a refrigerator.

2.Remove the Door Bin by holding the door bin with both hands and then gently lift it up.

3.Remove the Plastic Drawer by pulling it out and slightly lifting it up.

4.Remove the Icemaker Bucket by lifting up and pulling it out.

5.Remove the Front Leg Cover by opening both the freezer and refrigerator doors, and removing the three screws. Once the screws are free, detach the cover. To reattach the front leg cover, place it back in its original position and tighten the three screws.

NOTE

• Do not use excessive force when removing the cover.

• Otherwise, the cover may break and cause injury.

Removing the freezer accessories

1.Remove the Glass Shelf by pulling the shelf out as far as it will go. Then, gently lift it up and gently remove it.

CAUTION: In case it does not have hooks itself in the back side for not being tilted,a shelf should be placed deeply in a proper position where there are blocks for shelves as shown. if not, the shelf can fall out of a refrigerator.

2.Remove the Vegetable & Fruit Drawer by pressing on the indentations found on the inside left and right sides of the Veggie Box/ Dry Box cover and remove by pulling forward. Holding the drawer with one hand, lift it up a little bit while pulling it forward and take it out of the refrigerator.

3.Remove the Gallon Door Bin by holding the bin with both hands and gently lifting it up.

4.Push the Case Fixer handle, and lift the Water Tank up, then take it out.

NOTE: Before removing any accessories, make sure that no food is in the way.When possible, remove the food altogether to reduce the risk of accidents.

Cleaning the refrigerator

Caring for your Samsung Side-By-Side Refrigerator prolongs the life of your appliance and helps keep it odor and germ-free.

Cleaning the Interior

Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth. You can remove the drawers and shelves for a more thorough cleaning. Just make sure to dry them before putting them back into place.

Cleaning the Exterior

Wipe the digital panel and display panel with a clean, soft cloth.Spray water onto the cleaning cloth instead of spraying directly on the surface of the refrigerator. This helps ensure an even distribution of moisture to the surface. The doors, handles and cabinet surfaces should be cleaned with a mild detergent and then wiped dry with a soft cloth. To keep your appliance looking its best, the exterior should be polished once or twice a year.

WARNING

• Do not use Benzene, Thinner or Clorox™ for cleaning.

• They may damage the surface of the appliance and can create a risk of fire.

If the rubber door seals are dirty the doors may not close properly, and the refrigerator will not operate efficiently. Keep the door seals free of grit or grime by cleaning the doors with a mild detergent and damp cloth. Wipe dry with a clean, soft cloth.

CAUTION: Do not spray the refrigerator with water while it is plugged in, as it may cause an electric shock. Do not clean the refrigerator with benzene, thinner or car detergent for risk of fire.

Cleaning the Home Bar

Use a damp cloth to clean the ice and water dispenser.Then wipe dry with a clean, soft cloth.

Changing the interior lights

WARNING

• Do not replace LED lamp privately and please contact the specialized repair staff if necessary.

• And make it sure that the new LED lamp is the same as the old one.Do not break the lamp cover .

Using the doors

The refrigerator doors are equipped with a door opening and closing feature that ensures that the doors close all the way and are securely sealed.

After opening beyond a certain point, the door will “catch” and remain open. When the door is ajar ahead of the catch that allows it to stay open, it will close automatically.

Troubleshooting
