Instruction Manual
EN
Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We
hope it brings you many years of satisfaction. We trust the purchase of your
new robot will help keep your home clean and provide you more quality time to
do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in
this Instruction Manual, please contact our Customer Service Center where a
technician can address your specic problem or question.
For more information, please visit the
ECOVACS ROBOTICS
official website:
www.ecovacs.com
The company reserves the right to make technological and/or design changes
to this product for continuous improvement.
Thank you for choosing DEEBOT!
EN
Contents
1. Important Safety Instructions .......................................................................................................2
2. Package Contents and Technical Specications .....................................................................5
2.1 Package Contents ......................................................................................................................5
2.2 Specications ..............................................................................................................................5
2.3 Product Diagram ........................................................................................................................6
3. Operating and Programming ........................................................................................................8
3.1 Notes Before Cleaning .............................................................................................................8
3.2 Quick Start .................................................................................................................................... 9
3.3 Cleaning Mode Selection .....................................................................................................11
3.4 Programming the Robot ......................................................................................................13
3.5 Status Indicator Light and Alarm Sounds ......................................................................15
4. Maintenance ..................................................................................................................................... 16
4.1 Dust Bin and Filters ................................................................................................................16
4.2 Main Brush and Side Brushes .............................................................................................17
4.3 Other Components ................................................................................................................17
5. Troubleshooting .............................................................................................................................. 19
2
EN
1. Important Safety Instructions
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children aged from 8 years
and above and person with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use
of the Appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
2. The top cover of this Appliance is tempered glass. While
tempered glass is safer and stronger than standard glass,
please handle with care to avoid scratching or breakage.
3. Clear the area to be cleaned. Remove power cords and small
objects from the floor that could entangle the Appliance. Tuck
rug fringe under the rug base, and lift items such as curtains and
tablecloths o the oor.
4. If there is a drop off in the cleaning area due to a step or
stairs, you should operate the
5. Appliance to ensure that it can detect the step without falling
over the edge. It may become necessary to place a physical
barrier at the edge to keep the unit from falling. Make sure the
physical barrier is not a trip hazard. Only use as described in
this manual. Only use attachments recommended or sold by
the manufacturer.
6. Please make sure your power supply voltage matches the
power voltage marked on the Charging Dock.
7. For INDOOR household use ONLY. Do not use the Appliance
in outdoor, commercial or industrial environments.
8. Use only the original rechargeable battery and Charging Dock
provided with the Appliance from the manufacturer. Non-
rechargeable batteries are prohibited. For battery information,
please refer to Specications section.
9. Do not use without dust bin and/or lters in place.
10. Do not operate the Appliance in an area where there are lit
candles or fragile objects.
11. Do not use in extremely hot or cold environments (below
-5˚C/23˚F or above 40˚C/104˚F).
12. Keep hair, loose clothing, fingers, and all parts of body away from
any openings and moving parts.
13. Do not operate the Appliance in a room where an infant or
child is sleeping.
3
EN
1. Important Safety Instructions
14. Do not use Appliance on wet surfaces or surfaces with standing water.
15. Do not allow the Appliance to pick up large objects like stones,
large pieces of paper or any item that may clog the Appliance.
16. Do not use Appliance to pick up flammable or combustible
materials such as gasoline, printer or copier toner, or use in areas
where they may be present.
17. Do not use Appliance to pick up anything that is burning or
smoking, such as cigarettes, matches, hot ashes, or anything
that could cause a re.
18. Do not put objects into the suction intake. Do not use if the suction
intake is blocked. Keep the intake clear of dust, lint, hair, or
anything that may reduce air ow.
19. Take care not to damage the power cord. Do not pull on or carry
the Appliance or Charging Dock by the power cord, use the power
cord as a handle, close a door on the power cord, or pull power
cord around sharp edges or corners. Do not run Appliance over
the power cord. Keep power cord away from hot surfaces.
20. If the power cord is damaged, it must be replaced by the
manufacturer or its service agent in order to avoid a hazard.
21. Do not use the Charging Dock if it is damaged.
22. Do not use with a damaged power cord or receptacle. Do not
use the Appliance or Charging Dock if it is not working properly,
has been dropped, damaged, left outdoors, or come in contact
with water. It must be repaired by the manufacturer or its service
agent in order to avoid a hazard.
23. Turn OFF the power switch before cleaning or maintaining the
Appliance.
24. The plug must be removed from the receptacle before cleaning
or maintaining the Charging Dock.
25. Remove the Appliance from the Charging Dock, and turn OFF
the power switch to the Appliance before removing the battery for
disposal of the Appliance.
26. The battery must be removed and discarded according to local
laws and regulations before disposal of the Appliance.
27. Please dispose of used batteries according to local laws and
regulations.
28. Do not incinerate the Appliance even if it is severely damaged.
The batteries can explode in a re.
29. When not using the Charging Dock for a long period of time,
please unplug it.
30. The Appliance must be used in accordance with the directions
in this Instruction Manual. ECOVACS ROBOTICS cannot be
held liable or responsible for any damages or injuries caused
by improper use.
4
EN
31. The battery must be removed from the appliance before it is
scrapped.
32. The appliance must be disconnected from the supply mains
when removing the battery.
33. WARNING:
For the purposes of recharging the battery, only
use the detachable supply unit GSCV0600S019V12E provided
with this Appliance.
34. The robot contains batteries that are only replaceable by
skilled persons.
35. The Remote Control pre-installs two non-rechargeable AAA
R03 batteries. To replace the battery of the Remote Control,
please turn over the Remote Control, press and remove its
Battery Cover. Remove the batteries, and insert the new
batteries with the correct polarity. Reassemble the Battery
Cover.
36. Non-rechargeable batteries are not to be recharged.
37. Different types of batteries or new and used batteries are not
to be mixed.
38. Batteries of the Remote Control are to be inserted with the
correct polarity.
39. Exhausted batteries are to be removed from the Appliance
and safely disposed of.
40. If the Remote Control is to be stored unused for a long period,
the batteries should be removed.
41. The supply terminals are not to be short-circuited.
Correct Disposal of this Product
This marking indicates that this product should not be disposed
of with other household waste throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To recycle your
used device, please use the return and collection systems or
contact the retailer where the product was purchased. They
can safely recycle this product.
For EU Countries
1. Important Safety Instructions
5
EN
Model DM82
Working Voltage 14.8V DC Rated Power 22W
Battery Model
Lithium battery
UR18650ZT-
4S1P-AAF
Battery Specication
Lithium 14.8V
2600mAh
Charging Dock
Rated Input Voltage 19V DC Rated Output Current 0.6A
Power Adapter: GSCV0600S019V12E
Input: 100-240V AC 0.5A 50/60Hz Output: 19V DC 0.6A
Remote Control
Remote Control Battery
Model
AAA R03
Remote Control battery
input voltage
1.5V DC
2.1 Package Contents
Robot
Cleaning Tool
*
Technical and design specications may be changed in the course of continuous product improvement.
Remote Control with
Batteries
Charging Dock with
Power Adapter
Instruction Manual High Eciency Filter
(4) Side Brushes
(2 pre-installed,
2 replacements)
2.2 Specications
2. Package Contents and Technical Specications
MAX
AM
PM
AM
PM
6
EN
2.3 Product Diagram
Robot
1
2
3
4
5
6
7
813
9
10
11
12
1. Anti-Collision Sensors
2. AUTO Mode Button
3. Dust Bin Release Button
4. Charging Contacts
5. Battery Cover
6. Driving Wheels
7. Side Power Switch
8. Anti-Drop Sensors
9. Universal Wheel
10. Side Brushes
11. Main Brush
12. Dust Bin
13. Infrared Receiver for Remote Control
Charging Dock
1. Power Indicator Light
2. Power Adapter
3. Power Adapter Port
4. Charging Dock Pins
1
2
3
4
2. Package Contents and Technical Specications
7
EN
2. Package Contents and Technical Specications
MA X
AM
PM
AM
PM
1. Current Time Display
2. Scheduled Cleaning Time Display
3. Direction Control Buttons
4. START/PAUSE Button
5. Time Scheduling Button
6. MAX Button
Press to:
Adjust current time and scheduled
cleaning time.
Turn the robot around 180 degrees.
Increase suction power for deep
cleaning.
7. Spot Cleaning Mode Button
8. Set Current Time Button
9. Return to Charger Mode Button
10. Edge Cleaning Mode Button
11. Infrared Emitter
1. Filter Net
2. Sponge Filter
3. High Eciency Filter
4. Dust Bin
5. Dust Bin Cover
Remote Control
Dust Bin
1
2
4
11
6
8
1
2
3
5
4
10
3
5
7
9
8
EN
3.1 Notes Before Cleaning
Before operating DEEBOT, take a few moments to survey the area to be cleaned and remove any
obstacles.

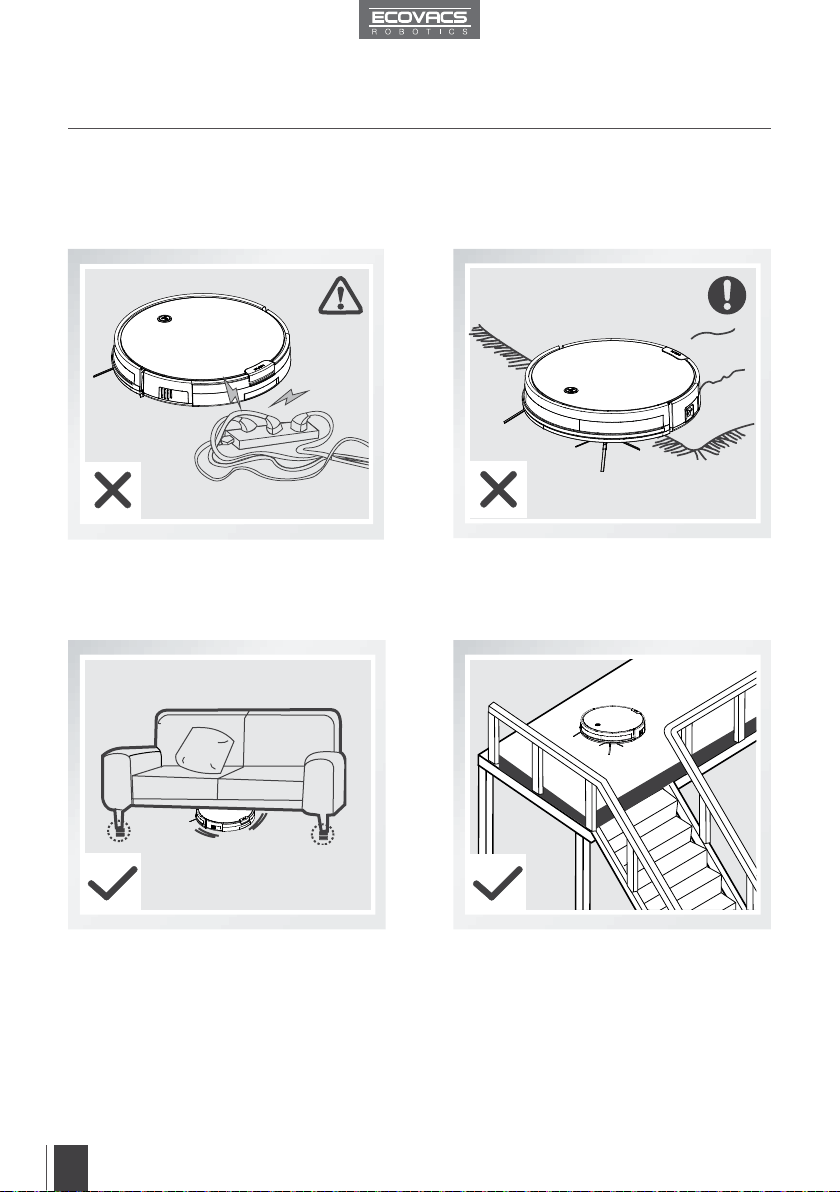

Remove power cords and small objects from
the oor that could entangle the product.
The product is not suitable for use on long-pile
carpet. Before using the product near an area rug
or on a short-pile area rug with tasseled edges,
please fold area rug edges under themselves.
If there is a step or stairs the cleaning area,
please operate DM82 to ensure its Anti-Drop
Sensors can detect the drop off. It may be
necessary to place a physical barrier at the edge
of the drop off to keep the unit from falling over
the edge.
Please be aware that the robot needs at least
an 8 cm (3”) clearance to clean under furniture
without complications.
Please be aware that the top cover of this
Appliance is tempered glass. While tempered
glass is safer and stronger than standard glass,
please handle with care to avoid scratching or
breakage.
3. Operating and Programming
9
EN
3. Operating and Programming
3.2 Quick Start
Charging Dock Placement
Connect the Power Adapter to the Charging Dock.
Place the Charging Dock on a level floor surface against the wall with the base perpendicular
to the ground. Keep the immediate area 2m (6.6’) in front of the charger and 1 m (3.3’) on both
sides of the charger clear of objects and reective surfaces.
Plug the Charging Dock in.
1
Power ON
Turn the robot’s Side Power Switch to
the ON position. “l” indicates ON and “O”
indicates OFF.
2
Place DM82 on the Charging Dock making
sure the Charging Contacts on DM82
and the Charging Dock Pins make a
connection.
Charge DM82 for at least 4 hours before
the rst use.
3
Charge DM82
* DM82 is powered ON when the AUTO
Mode Button on the robot ashes GREEN.
* The AUTO Mode Button on the robot
flashes ORANGE when DM82 is charging
and glows a continuous GREEN when it
is fully charged.
10
EN
* DM82 can be directed to move forward, left and
right, and turn around, by using the Direction
Control Buttons and MAX Button on the Remote
Control when it is Paused.
* If DM82 is Paused for more than 45 seconds it goes to sleep to save battery power, the AUTO Mode
Button on the robot does not flash and buttons on the Remote Control are disabled. To wake up DM82,
press the AUTO Mode Button on the robot or the START/PAUSE Button on the Remote Control.
4

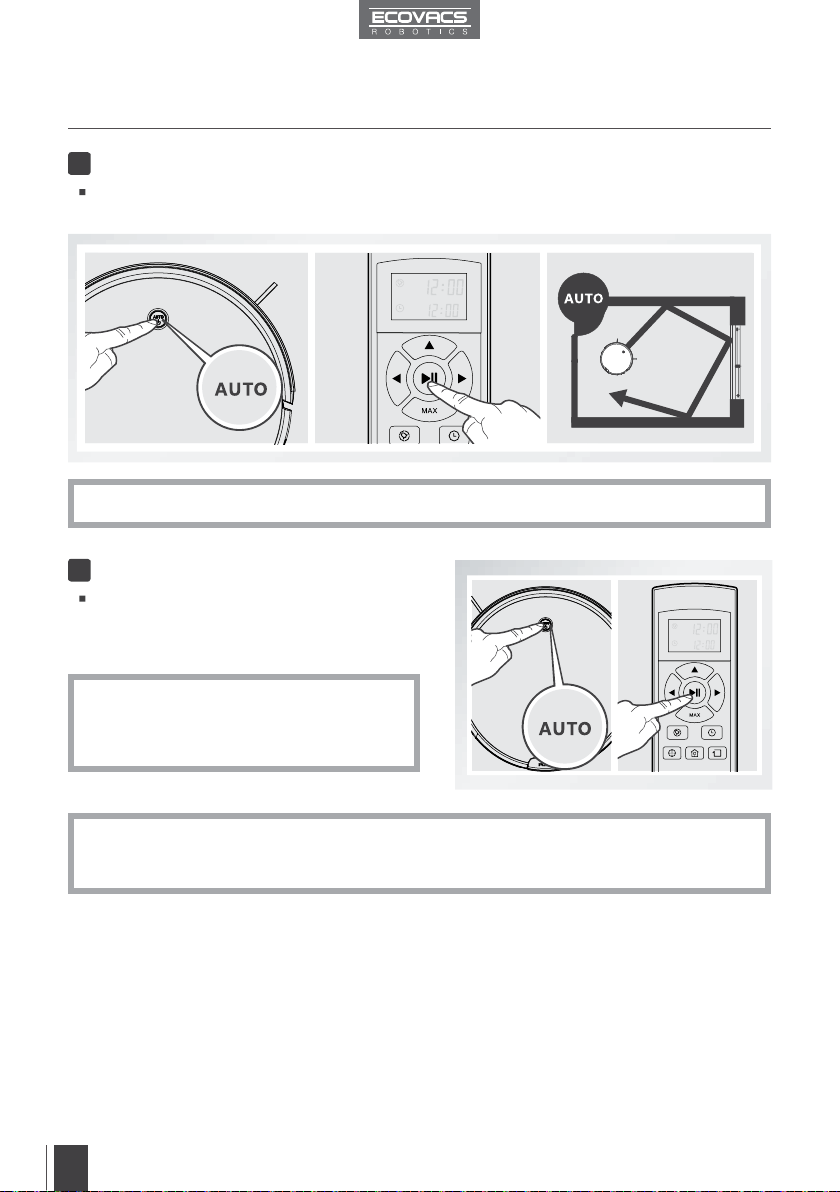

Start
MA X
AM
PM
AM
PM
Press the AUTO Mode Button on DM82 or the START/PAUSE Button on the Remote Control..
DM82 starts to work immediately in AUTO Cleaning Mode.
* To choose another Cleaning Mode, please refer to section 3.3 Cleaning Mode Selection for details.
Pause DM82 by pressing the AUTO Mode Button
on DM82 or the START/PAUSE Button on the
Remote Control.
5
Pause
MA X
AM
PM
AM
PM
3. Operating and Programming
11
EN
3. Operating and Programming
AUTO Cleaning Mode
This is the most commonly used mode. In AUTO Cleaning Mode, DM82 cleans in a straight line and
changes direction when it meets an obstacle.
1
Spot Cleaning Mode
This mode is applicable for an area of highly
concentrated dirt or dust. In Spot Cleaning
Mode, DM82 focuses on a specific area to clean.
DM82 stops or resumes auto cleaning when it
completes spot cleaning.
2
MA X
AM
PM
AM
PM
* Before selecting a cleaning mode, make sure the AUTO Mode Button on DM82 flashes GREEN. If
not, press the AUTO Mode Button on the robot or the START/PAUSE Button on the Remote Control
to wake up the robot.
3.3 Cleaning Mode Selection
DM82 has several cleaning modes to choose from to effectively clean different floors. Cleaning
modes are selected using the Remote Control or the AUTO Mode Button on the robot.
Power OFF
Pause DM82. Move the Side Power Switch to
the OFF position.
6
* When DM82 is not cleaning, it is suggested to
keep it powered ON and charging instead of
powered OFF.
MA X
AM
PM
AM
PM
12
EN
MA X
AM
PM
AM
PM
Edge Cleaning Mode
Single Room Mode
This mode is good for cleaning the edges and
corners of a room. In Edge Cleaning Mode,
DM82 cleans along a border (e.g. wall).
This mode is used if DM82 only needs to
clean a single room. Press the AUTO Mode
Button on the robot twice or the START/
PAUSE Button on the Remote Control
twice, DM82 starts to clean in Single Room
Mode, stops and beeps when and where it
completes cleaning.
3
5
MAX Cleaning Mode
Return to Charger Mode
This mode is used to increase the suction
power of any other cleaning mode already
in process. Begin cleaning in the desired
cleaning mode, then press the MAX button
to increase suction power for deep cleaning.
When battery power gets low, DM82
automatically switches to Return to Charger
Mode and returns to the Charging Dock to
recharge itself.
4
6
MA X
AM
PM
AM
PM
MA X
AM
PM
AM
PM
x2x2
x2
x2
MA X
AM
PM
AM
PM
* The room must be contained for Single Room
Mode to function properly. Close doors to the
room entrance and exit to contain the room.
* DM82 can also be sent back to the
Charging Dock at any time by pressing
the Return to Charger Button on the
Remote Control.
3. Operating and Programming
13
EN
3. Operating and Programming

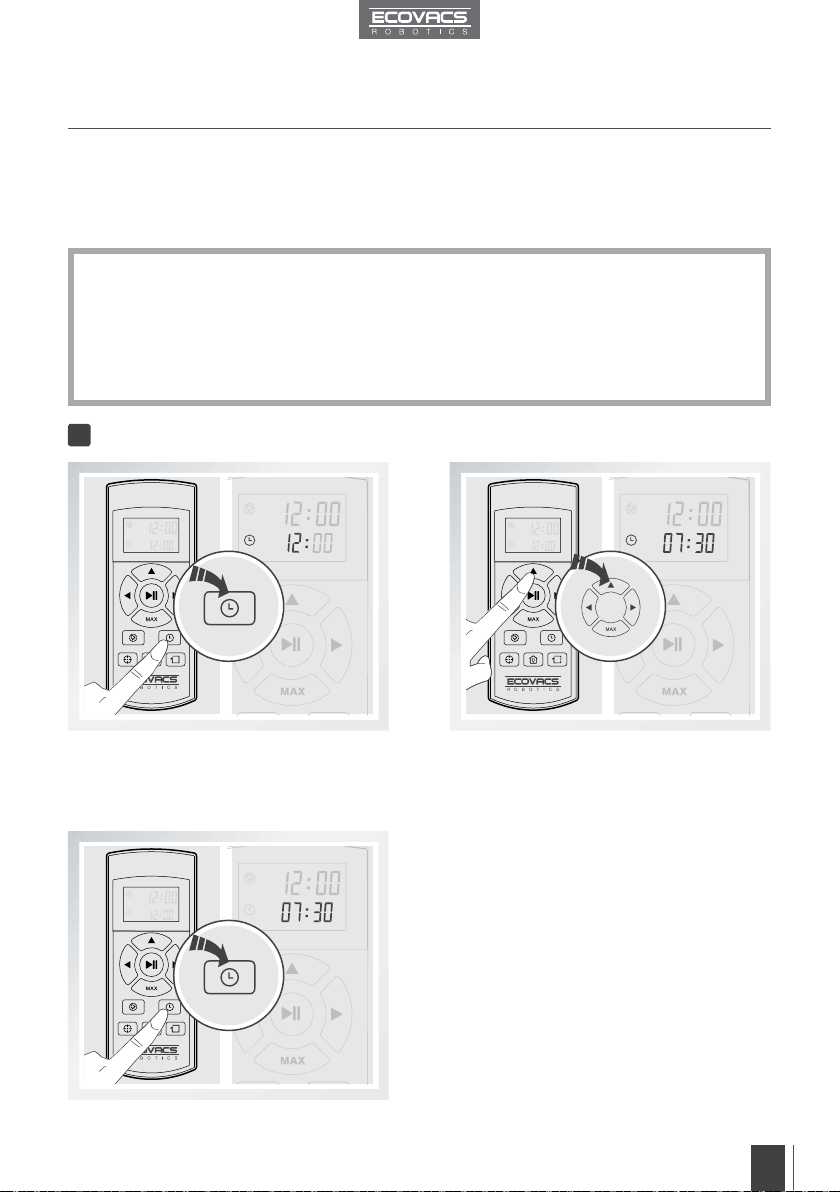

Set the Current Time of Day
1
3.4 Programming the Robot
MA X
AM
PM
AM
PM
AM
PM
AM
PM
MA X
AM
PM
AM
PM
AM
PM
AM
PM
MA X
AM
PM
AM
PM
AM
PM
AM
PM
DM82 has a Time Scheduling function. DM82 can be programmed to automatically clean
once per day, at a specific time even if nobody is at home. The current time of day and the
cleaning time are scheduled using the Remote Control.
Press the Set Current Time Button on the
Remote Control to confirm and save the
current time of day.
Press the up Direction Control Button and
the MAX Button to adjust “hour” and “minute”
number. Press the left and right Direction Control
Buttons to switch between hour and minute.
Press the Set Current Time Button on the
Remote Control. The “hour” in the second line on
the screen ashes.
* All scheduled cleanings are performed in AUTO Cleaning Mode.
* Before programming the robot, make sure the AUTO Mode Button on DM82 flashes GREEN.
If not, press the AUTO Mode Button on the robot or the START/PAUSE Button on the Remote
Control to wake up the robot.
* When programming the robot with the Remote Control, point the Remote Control towards the
robot. Every scheduling step using the Remote Control triggers a beep from the robot as a
response. The step is invalid without an emitted beep.
14
EN
MA X
AM
PM
AM
PM
AM
PM
AM
PM
MA X
AM
PM
AM
PM
AM
PM
AM
PM
MA X
AM
PM
AM
PM
AM
PM
AM
PM
MA X
AM
PM
AM
PM
AM
PM
AM
PM
AM
PM
AM
PM
Press the Time Scheduling Button on the
Remote Control to schedule automatic cleaning.
The “hour” in the rst line on the screen ashes.
Press the Time Scheduling Button on
the Remote Control to confirm and save
the scheduled cleaning time. DM82 will
automatically clean at the scheduled cleaning
time every day.
Adjust the time in the first line on the Remote
Control screen to “12:00 AM” and save.
The scheduled cleaning time is cancelled.
Press the up Direction Control Button and
the MAX Button to adjust “hour” and “minute”
number. Press the left and right Direction Control
Buttons to switch between hour and minute.
Schedule the Cleaning Time
Cancel Scheduled Cleaning Time
2
3
* After replacing batteries in the Remote
Control, reset the current time and
scheduled cleaning time.
3. Operating and Programming
15
EN
3. Operating and Programming
3.5 Indicator Light and Alarm Sounds
Indicator Light
Alarm Sounds
If DM82 detects a problem, it emits alarm beeps and the AUTO Mode Button glows RED.
Note: If the problem persists, please turn OFF the Side Power Switch then turn ON to restart the
robot. If this does not solve the problem, please contact Customer Service.
AUTO Mode Button on DM82 Status
Flashes ORANGE The robot is charging.
Glows a continuous GREEN The robot is fully charged.
Flashes GREEN The robot is powered ON and is awake.
Glows a continuous RED The robot has a problem.
Flashes ORANGE The robot has low battery.
Glows a continuous GREEN The robot is cleaning.
Alarm Sound Problems Solution
One Beep
Driving Wheel or Side Brush
malfunction.
Check Driving Wheels and Side
Brushes for debris and clean as
described in section 4 Maintenance.
Two Beeps Anti-Drop Sensor malfunction
Wipe the Anti-Drop Sensors clean as
described in section 4 Maintenance.
Three Beeps The robot is stuck.
Move the robot by hand to a dierent
area.
Four Beeps Main Brush malfunction.
Check the Main Brush as described
in section 4 Maintenance.
16
EN
Press the Dust Bin Release Button and remove the Dust Bin from the rear of DM82. Hold the Dust Bin
level and open the Dust Bin Cover. Empty the Dust Bin.
Before performing cleaning and maintenance on DM82, power OFF the robot and unplug the
Charging Dock.
Pull the two handles on the Filter Net to remove it. Remove the Sponge Filter and the High Efficiency
Filter. Pat the High Eciency Filter clean. Do not rinse the High Eciency Filter under water.
4.1 Dust Bin and Filters
Rinse the Dust Bin, Filter Net and Sponge Filter
under running water.
Dry the Dust Bin, Filter Net and Sponge Filter
completely before reinstalling.
4. Maintenance
17
EN
4. Maintenance
Cleaning the Main Brush
Turn the robot over. Push the two tabs on the Main Brush Cover to remove it.
Remove the Main Brush.
Use the provided Cleaning Tool to remove any hair tangled around the Main Brush.
4.2 Main Brush and Side Brushes
Cleaning the Side Brushes
Remove the Side Brushes with a screwdriver.
Wipe the Side Brushes clean with a dry cloth.
4.3 Other Components
Wipe the Anti-Drop Sensors with the brush
side of the provided Cleaning Tool to maintain
their eectiveness.
Use the provided Cleaning Tool to remove
any hair tangled around the Universal Wheel.
18
EN
4. Maintenance
Wipe the Charging Contacts and Charging Dock Pins with the brush side of the provided Cleaning
Tool to maintain their eectiveness.
Wipe the top cover of the robot with a soft dry or slightly damp cloth. Do not use cleaning solutions
on the top cover as it could damage the surface. The top cover is tempered glass. While tempered
glass is safer and stronger than standard glass, please handle with care to avoid scratching or
breakage.
19
EN
Please use this chart to troubleshoot common problems using DM82.
No. Malfunction Possible Cause Solutions
1
DM82 will not
charge.
DM82 is not powered ON.
Move DM82’s Side Power Button to
the ON position.
DM82 has not made
a connection with the
Charging Dock.
Be sure that DM82’s Charging
Contacts have made a connection
with the Charging Dock Pins. You
may move the robot manually to
make the connection if necessary.
Charging Dock is
unplugged while DM82 is
powered ON, which causes
battery consumption.
Plug in the Charging Dock and
ensure DM82 is powered ON. Keep
DM82 on the Charging Dock to
make sure it has a full battery to
work at any time.
The battery is completely
discharged.
Re-activate the battery. Place
DM82 on the Charging Dock by
hand, remove after charging for 3
minutes, repeat 3 times; then charge
normally.
2
DM82 gets into
trouble while working
and stops.
DM82 is tangled with
something on the oor
(electrical cords, drooping
curtains, carpet fringe etc.).
DM82 will try various ways to get itself
out of trouble. If it is unsuccessful,
manually remove the obstacles and
restart.
3
DM82 returns to the
Charging Dock before
it nishes cleaning.
When battery power gets
low, DM82 automatically
switches to Return to
Charger Mode and returns
to the Charging Dock to
recharge itself.
This is normal. No solution necessary.
Working time varies
according to oor surface,
room complexity and the
selected Cleaning Mode.
This is normal. No solution necessary.
5. Troubleshooting
20
EN
5. Troubleshooting
No. Malfunction Possible Cause Solutions
4
DM82 will not clean
automatically at
scheduled time.
Time Scheduling function is
cancelled.
Set Time Scheduling function as
described in section 3.4.
DM82 is powered OFF. Power ON DM82.
The robot’s battery is low.
Keep DM82 powered ON and on the
Charging Dock to make sure it has a
full battery to work at any time.
DM82’s components are
tangled with debris.
Power OFF DM82, clean the Dust
Bin, and invert the robot. Clean Side
Brushes and the Main Brush as
described in section 4.
5
Remote Control
failure (eective
control range of
Remote Control is
5m /16’).
The batteries in the
Remote Control need to be
replaced.
Replace with new batteries making
sure they are installed correctly.
DM82 is powered OFF or
DM82’s battery is low.
Make sure DM82 is powered ON
and fully charged.
The infrared signal cannot
be transmitted because
the Infrared Emitter on the
Remote Control or DM82’s
Infrared Receiver on DM82
is dirty.
Use a dry cloth or the brush side of
the provided Cleaning Tool to wipe
the Infrared Emitter on Remote
Control and the Infrared Receiver on
DM82.
There is other equipment
interfering with the infrared
signal to DM82.
Avoid using the Remote Control
near other equipment using infrared
signals.
DM82-EU01-IM2014R04
