Contents
What’s in the box .....................................................................6
Your product.............................................................................7
BDP9000 Blu-ray Disc player .......................................................................................................7
Before you start........................................................................8
Important safety instructions .......................................................................................................8
Warnings and cautions...................................................................................................................8
Product handling..............................................................................................................................9
North-American regulations ........................................................................................................9
Need help? ..............................................................................10
Troubleshooting.............................................................................................................................10
Online help .....................................................................................................................................10
Helpline............................................................................................................................................10
Overview.................................................................................11
Blu-ray Disc player ........................................................................................................................11
Display..............................................................................................................................................12

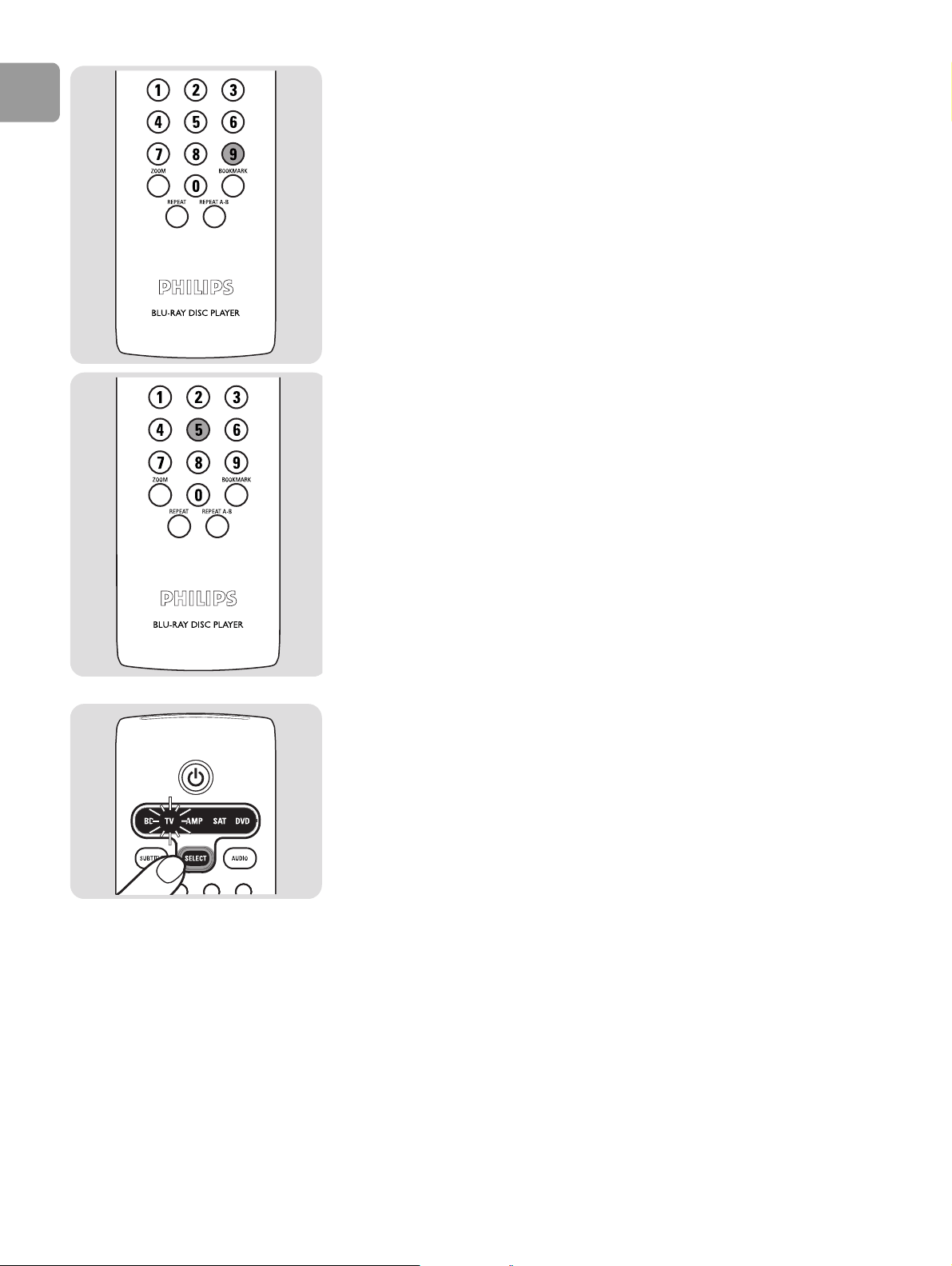

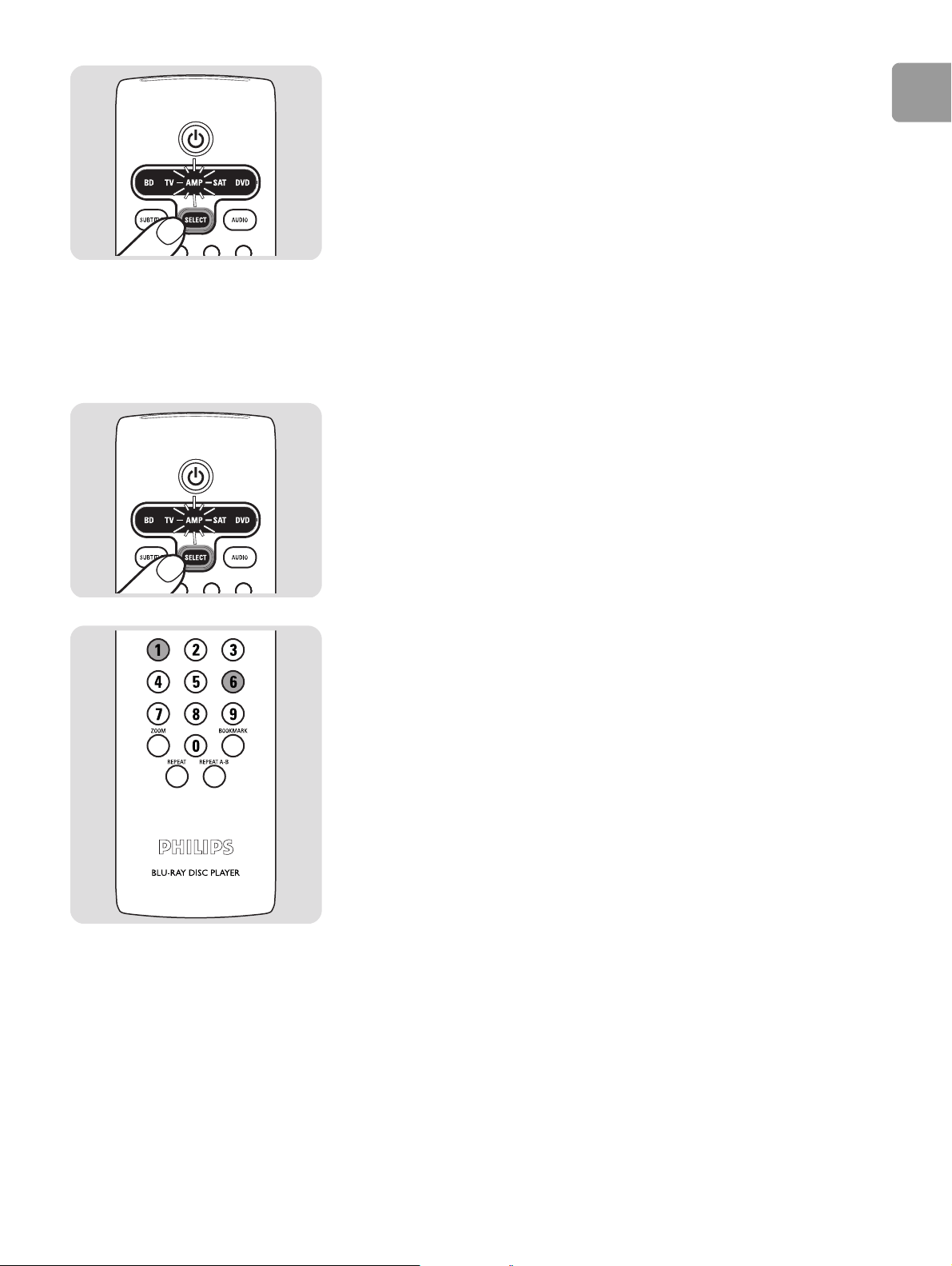

Universal remote control............................................................................................................12

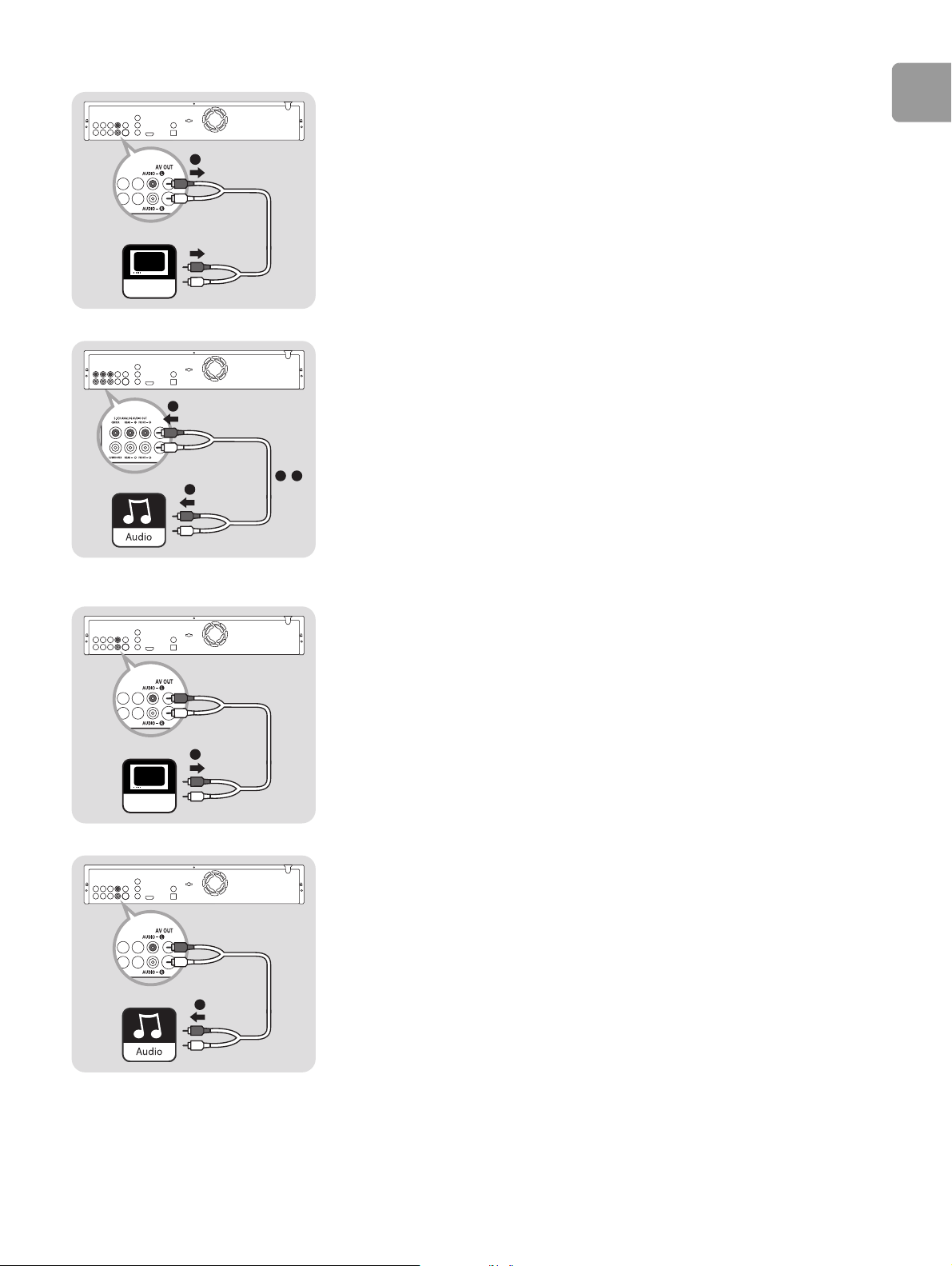

Connect...................................................................................13
Connect to the TV .......................................................................................................................13

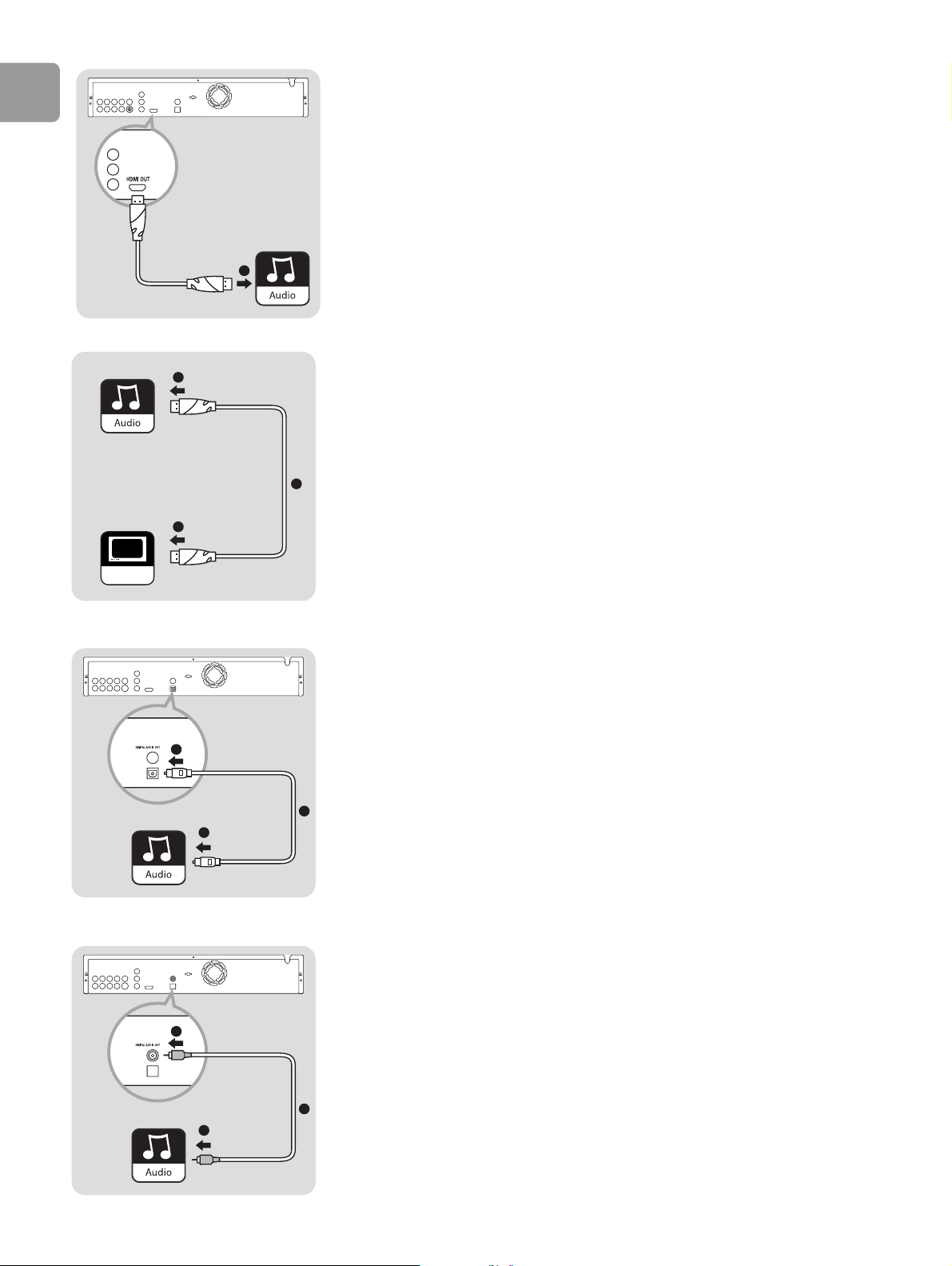

Connect to the audio system (optional)..................................................................................15
Connect to the power outlet.....................................................................................................18
Set up ......................................................................................19
Set the TV connection.................................................................................................................19
Set the audio connection.............................................................................................................19
Open the Settings menu..............................................................................................................19
Overview.........................................................................................................................................20
Navigation .......................................................................................................................................20
Configure the languages...............................................................................................................20
Configure the audio output........................................................................................................21
Configure the video output........................................................................................................23
Change the parental control ......................................................................................................25
Enjoy ........................................................................................27
Turn the product on ....................................................................................................................27
Load a disc......................................................................................................................................27
Videos ..............................................................................................................................................28
Music ................................................................................................................................................31
Pictures............................................................................................................................................32

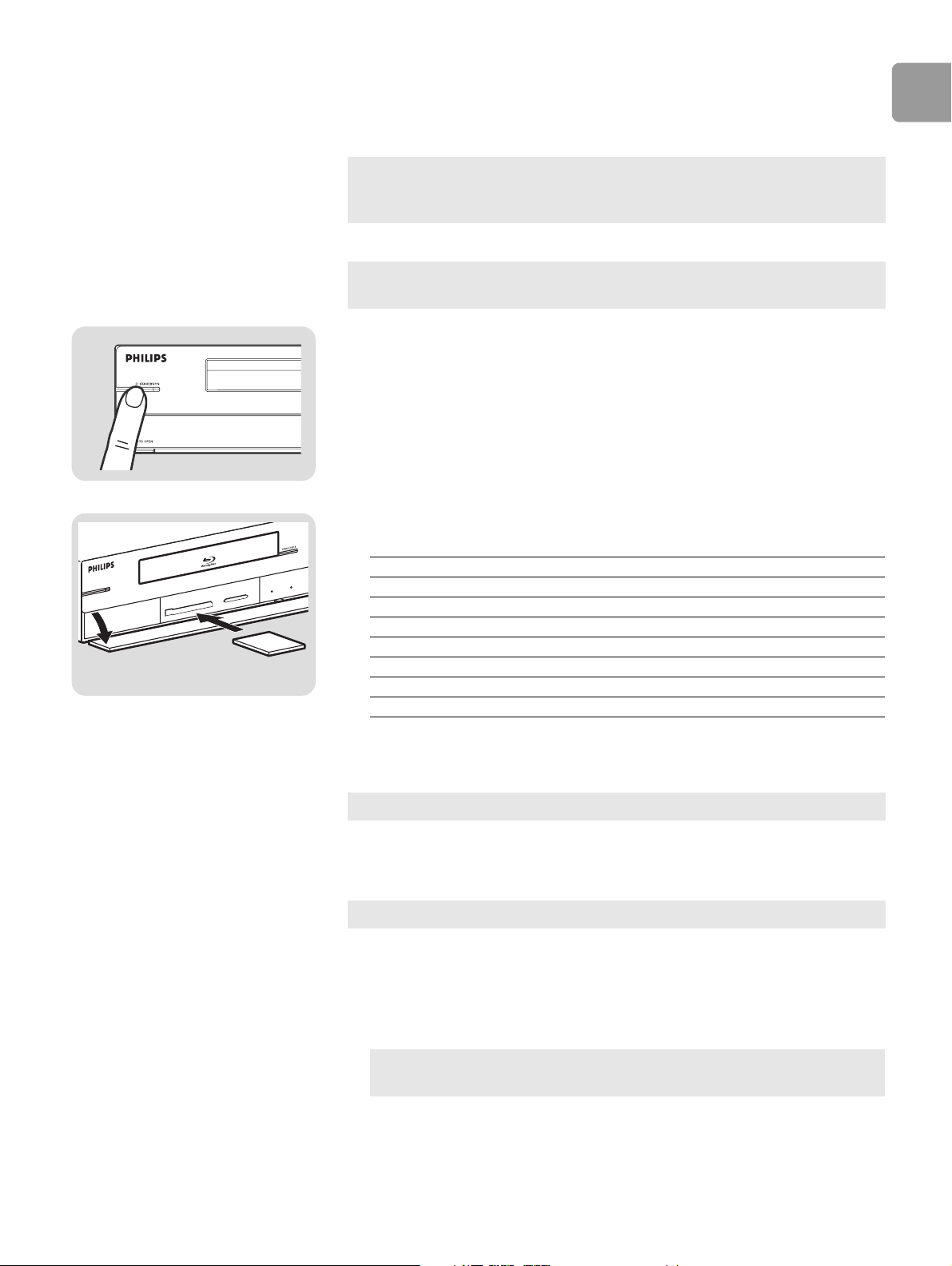

Memory cards................................................................................................................................33
Set to stand-by...............................................................................................................................33
Troubleshooting......................................................................34
Online help .....................................................................................................................................34
EN
5
Helpline............................................................................................................................................34
Problems and tips..........................................................................................................................34
Technical data.........................................................................36
Dimensions.....................................................................................................................................36
Operating environment ...............................................................................................................36
Power...............................................................................................................................................36
Video output ..................................................................................................................................36
Audio output..................................................................................................................................36
Playable discs..................................................................................................................................37
Playable memory cards ................................................................................................................38
Information.............................................................................39
Trademarks and licenses..............................................................................................................39
Environmental information..........................................................................................................39
Maintenance and service .............................................................................................................39
Philips limited warranty one (1) year........................................................................................39
Glossary...................................................................................42
Terms and definitions ...................................................................................................................42
EN
6

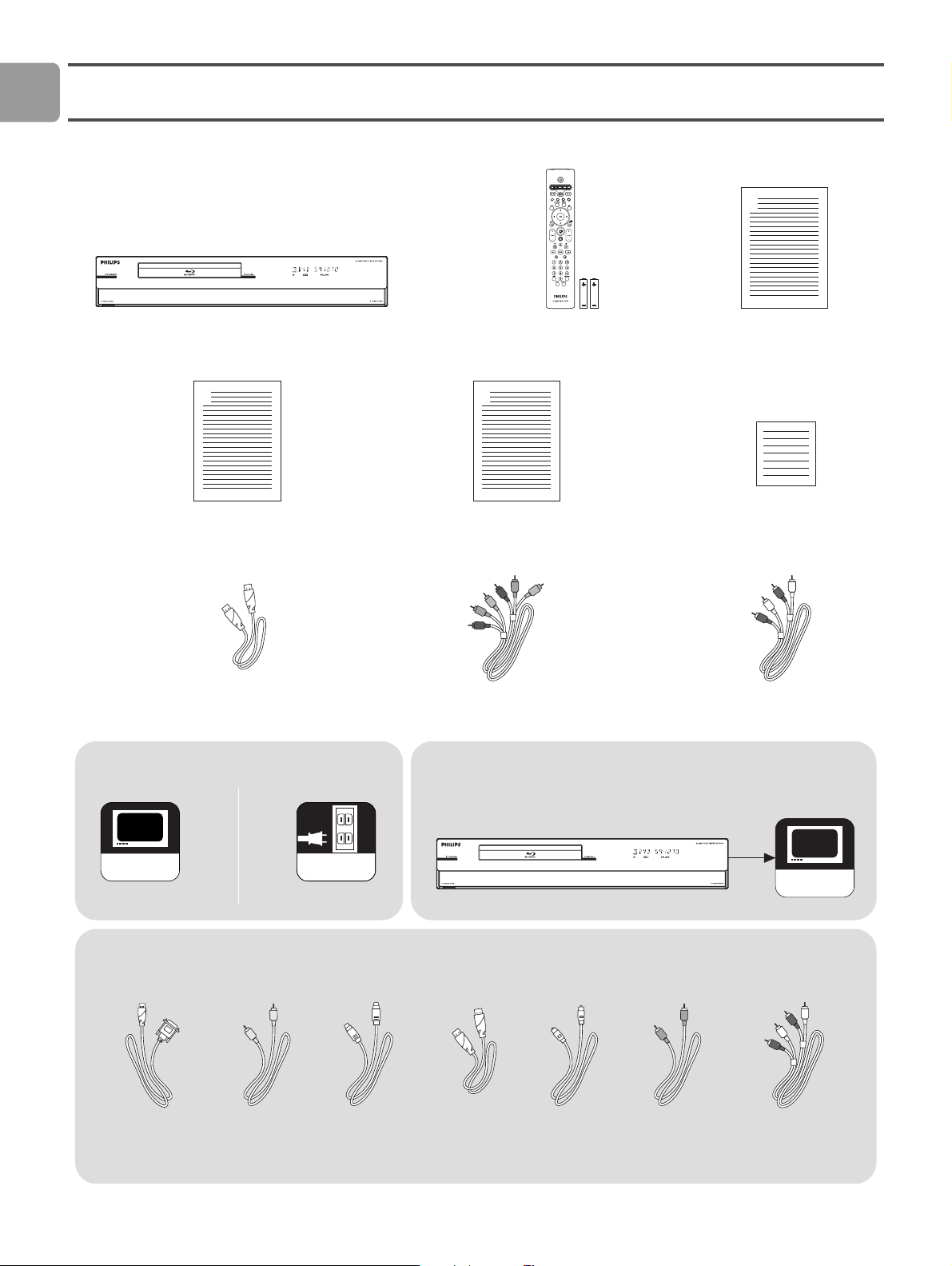

What’s in the box
Optional components (not supplied)
c. Quick start guidea. BDP9000
Blu-ray Disc player
d. BDP9000
User manual
What else you’ll need
Result after installation
HDTV
Television Power outlet
j. Audio cablei. Component
video cable
g. HDMI cable
Additional
HDMI
cable
e. RC4380
User manual
f. Product
registration card
AC
HDMI-DVI
cable
Composite
video cable
Coaxial
audio cable
Audio cable
(2x)
S-Video
cable
Optical
audio cable
b. RC4380
Remote control
HDTV
EN
7
Your product
BDP9000 Blu-ray Disc player
Watch movies in the highest picture quality available for your HDTV
The BDP9000 Blu-ray Disc player offers full high-definition video playback up to 1080p
resolution for an amazing viewing experience. A highly detailed picture and increased
sharpness delivers a more true-to-life picture.
Upconvert DVDs for enhanced picture quality
Your current DVDs will look even better than before thanks to video upconversion.
Upconversion will increase the resolution of standard definition DVDs to high definition
up to 1080p over an HDMI connection. The picture will be less jagged and more realistic
for a near high-definition experience.
Enjoy your content on different kinds of media
Full backwards compatibility with DVDs, CDs ensures that you can continue to enjoy
your current audio-video collection. Additionally, you can view JPEG digital pictures or
listen to MP3 music files on popular memory card formats, thanks to the built-in memory
card reader.
Listen to rich uncompressed multi-channel surround sound
The BDP9000 supports 5.1 channels of uncompressed audio, which realizes real-to-life
sound and makes you feel that you are really there.
Intuitive User interface and universal Remote control
The Philips logical user interface allows you to easily navigate through your content and
settings, so you can quickly find what you are looking for. With the included universal
remote control, you can control multiple other audio/video devices, so you don’t have
to continuously switch remote controls.
Easy and simple connection to your HDTV via HDMI
Connect your BDP9000 to your HDTV with one single HDMI (High Definition
Multimedia Interface) cable. The high definition video output signal will be transferred to
your HDTV without conversion to analog signals, so you will get an excellent picture and
sound quality, completely free from noise. Thanks to other multiple outputs, you can also
easily connect to your home theater system or amplifier.
EN
8
Before you start
Important safety instructions
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings and cautions.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8 Do not install near any heat sources such as radiators, heat registers, or other
apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized plug. A polarized plug has two
blades with one wider than the other. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Unplug this apparatus during lightning storms or when unused for long periods of
time.
13 Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
14 Apparatus shall not be exposed to dripping or splashing.
15 Do not place any sources of danger on the apparatus (e.g. liquid filled objects, light
candles).
Warnings and cautions
Warnings and cautions tell you that parts of procedures can be dangerous and/or cause
damage. A warning means that injury or death is possible if the instructions are not
obeyed. A caution means that damage to the equipment is possible.
EN
9
Product handling
North-American regulations
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING
• TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE
COVER (OR THE BACK). NO USER-SERVICABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
• THIS UNIT EMPLOYS A LASER. DUE TO POSSIBLE EYE INJURY, ONLY A
QUALIFIED SERVICE PERSON SHOULD REMOVE THE COVER OR ATTEMPT
TO SERVICE THIS DEVICE.
• TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS APPLICANCE TO RAIN OR MOISTURE.
• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN
FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES
• BEFORE YOU CONNECT THE PRODUCT TO A POWER SUPPLY, MAKE SURE
THAT THE VOLTAGE ON THE TYPE PLATE OF THE PRODUCT IS THE SAME
AS THE VOLTAGE OF THE POWER SUPPLY. WHEN THE VOLTAGES ARE
NOT THE SAME, REFER TO YOUR DEALER
• TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE THAT THE
PRODUCT AND THE OTHER COMPONENTS ARE TURNED OFF BEFORE
YOU CONNECT OTHER COMPONENTS TO THE PRODUCT.
• DO NOT PUT YOUR HAND IN THE DISC TRAY. IF YOU DO, YOU CAN GET
STUCK IN THE DISC TRAY.
CAUTION
• ONLY LOAD DISCS WITH REGULAR SHAPES INTO THE PRODUCT. DISCS
WITH IRREGULAR SHAPES CAN DAMAGE THE PRODUCT.
• DO NOT BLOCK THE VENTILATION OPENINGS. MAKE SURE THAT THERE
IS ALWAYS AT LEAST 4 INCHES (10 CENTIMETERS) OF FREE SPACE
BETWEEN THE REAR PANEL OF THE PRODUCT AND ANY OTHER OBJECT.
• ONLY LOAD PLAYABLE DISCS INTO THE PRODUCT. DISCS THAT
CANNOT BE PLAYED OR OTHER OBJECTS CAN DAMAGE THE PRODUCT.
• DO NOT MOVE THE PRODUCT WHILE A DISC IS BEING PLAYED. IF YOU
DO, YOU CAN DAMAGE THE PRODUCT AND THE DISC.
EN
10
Need help?
Troubleshooting
Refer to page 34.
Online help
Refer to www.usasupport.philips.com for:
• Interactive help
• Frequently asked questions
Helpline
/i
Be prepared to give this information:
• A description of the problem and when it occurs
• The type number on the label of the product
• The date of purchase
Language Telephone number
English 1-888-PHILIPS (1-888-744-5477)
French 1-800-661-6162
Spanish 1-888-PHILIPS (1-888-744-5477)
EN
11

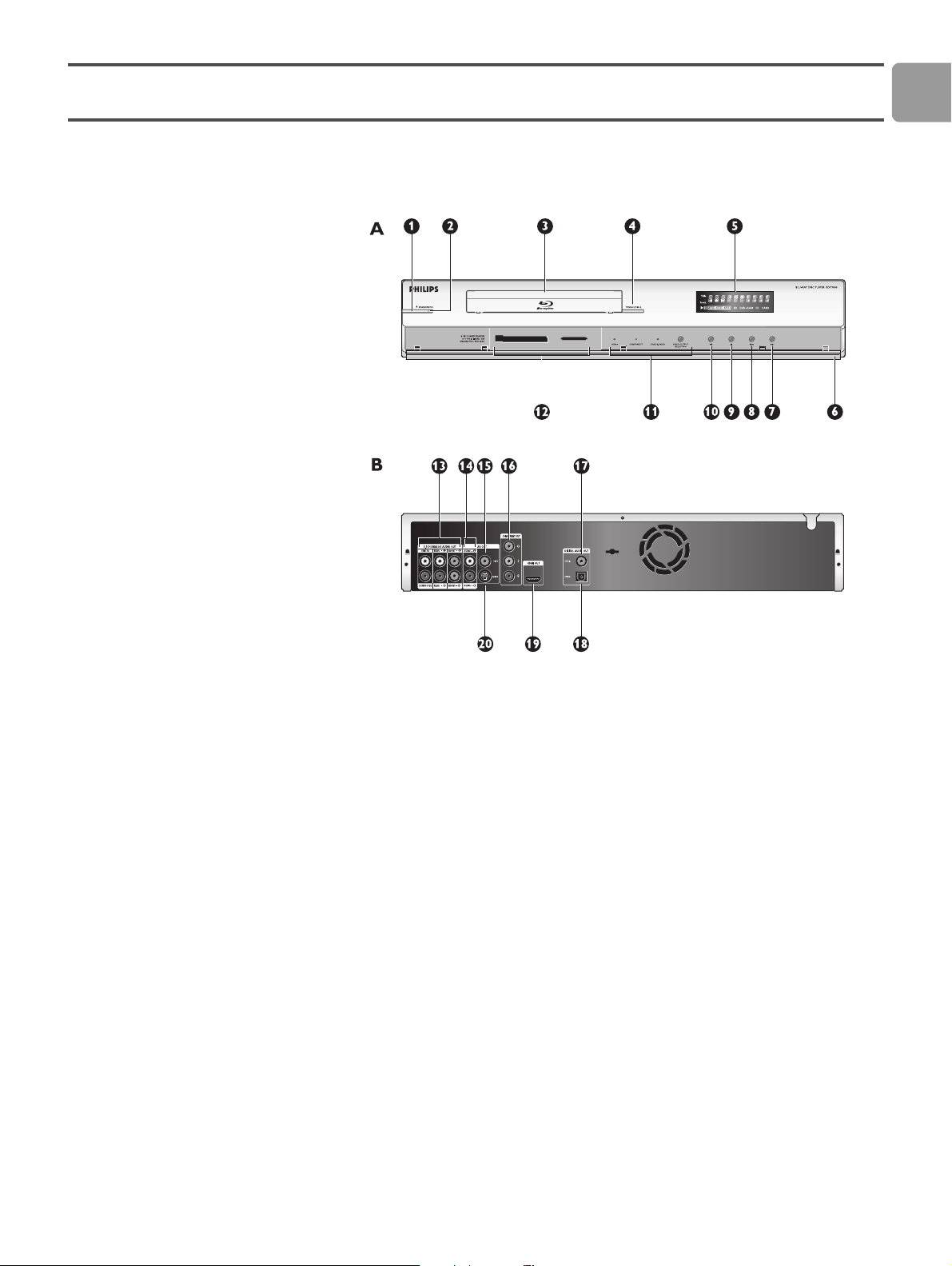

Overview
Blu-ray Disc player
1 Standby/on button
Turns the product on and off
2 Standby/on light
Shows the on/off status of the product.
• Off - Not connected to a power supply
• Red - Stand-by mode
• Blue - On
3Disc tray
4 Open/close button
Opens and closes the disc tray.
5Front display
Shows information about the product and the disc.
6 Cover buttons
Opens the user access panel.
7 Next/Forward button
• Videos, music, pictures - Next (short press)
• Videos - Forward (long press)
8 Previous/Rewind button
• Videos, music, pictures - Previous (short press)
• Videos - Rewind (long press)
9 Stop button
10 Play/pause button
11 Video output button & video output lights
Selects the video output. The video output lights show the selected video output.
12 Memory card readers
13 5.1 Analog audio ports
Connects the audio output to an amplifier
EN
12
14 Stereo analog audio ports
Connects the audio output to an amplifier
15 Composite video port (CVBS)
16 Component video ports (YPbPr)
17 Digital audio port - coaxial
Connects the audio output to an amplifier
18 Digital audio port - optical
Connects the audio output to an amplifier
19 HDMI port
Connects the video and audio signals to a TV or amplifier. Recommended for HDTV.
20 S-Video port
Display
1 Title/Track indicator
2 Status indicator
Shows the information about playing time, clock and status.
3 Memory card indicator
4 Disc type indicator
5 Video output resolution indicator
6 Play mode indicator
Universal remote control
Refer to the RC4380 User Manual.
EN
13
Connect
Connect to the TV
Option 1 - Best quality (HDMI)
1 Take the supplied HDMI cable.
2 Plug one end of the HDMI cable into the HDMI OUT port.
3 Plug the other end of the HDMI cable into the HD compliant TV.
Option 2 - Best quality (HDMI to DVI)
1 Take a HDMI-DVI cable (not supplied).
2 Plug one end of the HDMI-DVI cable into the HDMI OUT port.
3 Plug the other end of the HDMI-DVI cable into the HD compliant TV.
4 Take the supplied audio cable.
5 Plug one end of the audio cable into the AUDIO-L and AUDIO-R ports.
6 Plug the other end of the audio cable into the TV.
This product is designed for high-definition televisions (HDTV).
Need help?
Refer to the documentation that came with your TV for information about:
• The devices that you can connect to your TV.
• The type of cables that you can connect to your TV.
1
2
3
HDTV
This type of connection requires no audio connection.
1
2
3
HDTV
4
5
6
HDTV
EN
14
Option 3 - Good quality (Component video)
1 Take the supplied component video cable.
2 Plug one end of the component video cable into the Y, Pb and Pr ports.
3 Plug the other end of the component video cable into the TV.
4 Take the supplied audio cable.
5 Plug one end of the audio cable into the AUDIO-L and AUDIO-R ports.
6 Plug the other end of the audio cable into the TV.
Option 4 - Standard quality (Composite video)
1 Take a composite video cable (not supplied).
2 Plug one end of the composite video cable into the VIDEO port.
3 Plug the other end of the composite video cable into the TV.
4 Take the supplied audio cable.
5 Plug one end of the audio cable into the AUDIO-L and AUDIO-R ports.
6 Plug the other end of the audio cable into the TV.
TV
1
3
2
4
5
6
TV
When a BD with Image Constraint Token or Digital Only Token is played, the
output is disabled.
TV
1
3
2
4
5
6
TV
When a BD is played, the output is disabled.
EN
15
Option 5 - Standard quality (S-Video)
1 Take an S-Video cable (not supplied).
2 Plug one end of the S-Video cable into the S-VIDEO port.
3 Plug the other end of the S-Video cable into the TV.
4 Take the supplied audio cable.
5 Plug one end of the audio cable into the AUDIO-L and AUDIO-R ports.
6 Plug the other end of the audio cable into the TV.

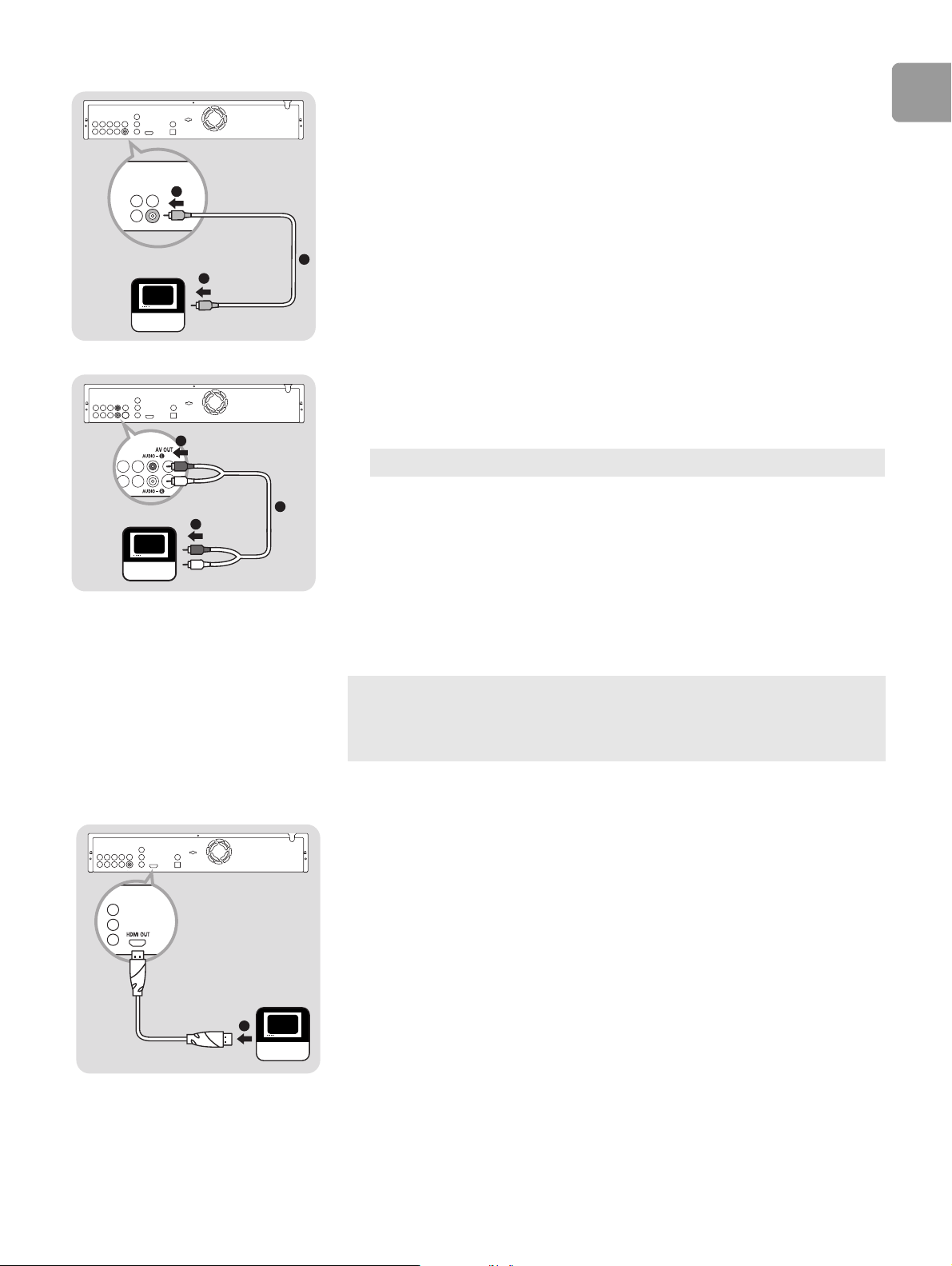

Connect to the audio system (optional)
Option 1 - Best quality (HDMI)
1 If you connected the TV to the HDMI port, unplug the HDMI cable on the TV.
TV
1
3
2
4
5
6
TV
When a BD is played, the output is disabled.
Need help?
Refer to the documentation that came with your audio system for information about:
• The devices that you can connect to your audio system.
• The type of cables that you can connect to your audio system.
1
HDTV
EN
16
2 Plug the end of the HDMI cable into the HDMI input of the audio system.
3 Take another HDMI cable (not supplied).
4 Plug one end of the HDMI cable into the HDMI output of the audio system.
5 Plug the other end of the HDMI cable into the TV.
Option 2 - Good quality (digital audio, optical connection)
1 Take an optical audio cable (not supplied).
2 Plug one end of the optical audio cable into the OPTICAL port.
3 Plug the other end of the optical audio cable into the audio system.
Option 3 - Good quality (digital audio, coaxial connection)
1 Take a coaxial audio cable (not supplied).
2 Plug one end of the coaxial audio cable into the COAXIAL port.
3 Plug the other end of the coaxial audio cable into the audio system.
2
3
4
5
HDTV
1
3
2
1
3
2
EN
17
Option 4 - Standard quality (5:1 analog audio)
1 If you connected the TV to the COMPONENT OUT, VIDEO or S-VIDEO
ports or used a HDMI-DVI cable, remove the audio cable between the Blu-ray Disc
player and the TV.
2 Take the supplied audio cable.
3 Take another two audio cables (not supplied).
4 Plug the three audio cables into the 5.1CH ANALOG AUDIO OUT ports.
5 Plug the other ends of the three audio cables into the audio system.
Option 5 - Standard quality (stereo analog audio)
1 If you connected the TV to the COMPONENT OUT, VIDEO or S-VIDEO
ports or used a HDMI-DVI cable, unplug the audio cable on the TV.
2 Plug the ends of the audio cable into the audio system.
1
TV
2
3x
3
4
5
1
TV
2
EN
18
Connect to the power outlet
1 Plug the power cable into the power outlet.
> The standby/on light on the front of the product comes on as red.
AC
EN
19
Set up
Set the TV connection
1 Turn t h e TV o n.
2 Set the TV to the correct external input.
3 Press the STANDBY/ON button.
>The STANDBY/ON light on the front of the product comes on as blue.
4 Open the user access panel.
5 Press the video output selection button until the correct light comes on.
/i
> The video signal of the Blu-ray Disc player shows.
6 Follow the on-screen instructions
Set the audio connection
1 Turn the audio system on.
2 Set the audio system to the correct external input.
Open the Settings menu
With the Settings menu, you can change the set up of the product.
1 Take the supplied universal remote control.
2 Press the STANDBY/ON button.
>The Home menu shows.
3 Select Settings and press OK.
>The Settings menu shows.
TV connection Light
HDMI HDMI
Component video COMPONENT
Composite video CVBS/S-VIDEO
S-Video CVSS/S-VIDEO
Disc
Memory card
Video
Music
Pictures
Music
Pictures
Settings
Blu-ray Disc player
EN
20
Overview
/i
Navigation
/i
Configure the languages
Open the language menu
1 Open the Settings menu.
2 Select Language setup and press OK.
>The Language setup menu shows.
Change the preferred audio language
1 Open the Language setup menu.
2 Select Audio and press OK.
> The available languages show.
3 Choose the preferred language and press OK.
Language setup Audio
Subtitle
Disc menu
Player menu
Audio setup Digital output
PCM downsampling
Dynamic compression
Speaker setup
Display setup TV shape
Black level
Resolution
HDMI format
Screen message
Front display
Parental control Use PIN
Rating level
New PIN
Action Button
Go up or down in a list
Move a cell in the list
Confirm a selection OK
Language setup
Parental control
Display setup
Audio setup
Audio
Player menu
Disc menu
Subtitle
Settings
Audio
Player menu
Disc menu
Subtitle
Original
Deutsch
English
Español
Français
Italiano
Language setup
When the preferred language is not available, the default language is used. The
default language is English.
EN
21
Change the preferred subtitle language
1 Open the Language setup menu.
2 Select Subtitle and press OK.
> The available languages show.
3 Choose the preferred language and press OK.
Change the preferred disc menu language
1 Open the Language setup menu.
2 Select Disc menu and press OK.
> The available languages show.
3 Choose the preferred language and press OK.
Change the player language
1 Open the Language setup menu.
2 Select Player menu and press OK.
> The available languages show.
3 Choose the preferred language and press OK.
Configure the audio output
Open the audio menu
1 Open the Settings menu.
2 Select Audio setup and press OK.
>The Audio setup menu shows.
Audio
Player menu
Subtitle English
Disc menu
Automatic
Español
Deutsch
Français
Italiano
Language setup
When the preferred language is not available, the default language is used. The
default language is English.
Audio
Player menu
Subtitle
Disc menu
Español
Deutsch
English
Français
Nederlands
Italiano
Language setup
When the preferred language is not available, the default language is used. The
default language is English.
Audio
Player menu
Subtitle
Disc menu Français
Español
English
Language setup
Language setup
Parental control
Display setup
Audio setup
Digital output
Speaker setup
Dynamic compression
PCM downsampling
Settings
EN
22
Change the format of the digital audio signal
1 Open the Audio setup menu.
2 Select Digital output and press OK.
> The available options show.
3 Choose the preferred option and press OK. Refer to ’Audio output’ on page 36.
/i
Enable PCM downsampling
1 Open the Audio setup menu.
2 Select PCM downsampling and press OK.
> The available options show.
3 Choose the preferred option and press OK.
/i
Enable dynamic range compression
1 Open the Audio setup menu.
2 Select Dynamic compression and press OK.
> The available options show.
3 Choose the preferred option and press OK.
/i
Change the set up of your speakers
1 Open the Audio setup menu.
2 Select Speaker setup and press OK.
3 Select the speakers to change and press OK.
/i
PCM
Bitstream
Digital output
Speaker setup
Dynamic compression
PCM downsampling
Audio setup
Option Description
PCM The format of the digital audio signal is
PCM.
Bitstream The format of the digital audio signal is
bitstream.
On
Off
Digital output
Speaker setup
Dynamic compression
PCM downsampling
Audio setup
Option Description
On If the format of the digital audio signal is
96 kHz PCM, the audio is downsampled
to 48 kHz.
Off Regardless of the sampling frequency of
the digital audio signal, the audio is never
downsampled.
On
Off
Digital output
Speaker setup
Dynamic compression
PCM downsampling
Audio setup
Option Description
On The dynamic range compression is
enabled.
Off The dynamic range compression is
disabled.
Digital output
Speaker setup
Dynamic compression
PCM downsampling
Audio setup
Option Description
Front Choose between large or small speakers
Center Choose between no speaker, a large or a
small speaker
Rear Choose between no speakers, large or
small speakers
Subwoofer Choose between on or off. Available
when front speakers are set to large.
EN
23
4 Change the size of your speakers and press OK.
Configure the video output
Open the video menu
1 Open the Settings menu.
2 Select Display setup and press OK.
>The Display setup menu shows.
Change the aspect ratio
1 Open the Display setup menu.
2 Select TV shape and press OK.
> The available options show.
3 Choose the preferred option and press OK.
/i
When the front speakers are set to large and the subwoofer is on, the subwoofer
is used for the output of bass sounds (below 100 Hz). Set the subwoofer to off for
output of the bass sounds through the front speakers
Language setup
Parental control
Display setup
Audio setup
TV shape
Resolution
Black level
Front display
Screen message
HDMI format
Settings
4:3 Letterbox
16:9 Widescreen
4:3 Panscan
TV shape
Resolution
Black level
Front display
Screen message
HDMI format
Display setup
A
B
C
Option Description
4:3 Letterbox The TV shape is 4:3. The top and bottom
parts of widescreen images show black
bars. Refer to A.
4:3 Panscan The TV shape is 4:3. The left and right
parts of widescreen images do not show.
Refer to B.
16:9 Widescreen The TV shape is 16:9 (widescreen). Refer
to C.
EN
24
Change the black level
1 Open the Display setup menu.
2 Select Black level and press OK.
> The available options show.
3 Choose the preferred option and press OK.
/i
Change the resolution
1 Open the Display setup menu.
2 Select Resolution and press OK.
> The available options show.
3 Choose the preferred option and press OK.
/i
HDMI connection
/i
Component video connection
/i
Composite video/S-Video connection
Only applicable when the connection to the TV is composite video or S-Video.
On
Off
TV shape
Resolution
Black level
Front display
Screen message
HDMI format
Display setup
Option Description
On Increases the darkness of black sections
in the picture.
Off Decreases the darkness of black sections
in the picture.
1080p
1080i
720p
480p
TV shape
Resolution
Black level
Front display
Screen message
HDMI format
Display setup
Disc type Supported resolutions
BD (without token) 720p, 1080i, 1080p
BD, Image Constraint Token (ICT) 720p, 1080i, 1080p
BD, Digital Only Token (DOT) 720p, 1080i, 1080p
DVD 480p, 720p, 1080i, 1080p
Disc type Supported resolutions
BD (without token) 720p, 1080i
BD, Image Constraint Token (ICT) Not supported
BD, Digital Only Token (DOT) Not supported
DVD 480i, 480p
Disc type Supported resolutions
BD (without token) Not supported
BD, Image Constraint Token (ICT) Not supported
BD, Digital Only Token (DOT) Not supported
DVD 480i
When a resolution is selected that is not supported by the TV, the product must
be reset. Press-and-hold the -button on the front panel for 5 seconds to
restore the factory settings (with no disc in the disc tray).
EN
25
Change the HDMI format
1 Open the Display setup menu.
2 Select HDMI format and press OK.
> The available options show.
3 Choose the preferred option and press OK.
/i
Enable screen messages
1 Open the Display setup menu.
2 Select Screen message and press OK.
> The available options show.
3 Choose the preferred option and press OK.
/i
Configure the front display
1 Open the Display setup menu.
2 Select Front display and press OK.
> The available options show.
3 Choose the preferred option and press OK.
/i
Change the parental control
Open the parental control menu
1 Open the Settings menu.
2 Select Parental control and press OK.
3 Enter your PIN.
4 Follow the on-screen instructions.
>The Parental control menu shows.
TV
Monitor
TV shape
Resolution
Black level
Front display
Screen message
HDMI format
Display setup
Option Description
TV The format of the HDMI signal is TV. Use
this if you connected the HDMI port to a
TV.
Monitor The format of the HDMI signal is
monitor. Use this if you connected the
HDMI port to a monitor.
On
Off
TV shape
Resolution
Black level
Front display
Screen message
HDMI format
Display setup
Option Description
On The screen messages are enabled.
Off The screen messages are disabled.
Automatic
Dim
Bright
TV shape
Resolution
Black level
Front display
Screen message
HDMI format
Display setup
Option Description
Automatic Low brightness of the front display
during playback.
Dim Low brightness of the front display.
Bright High brightness of the front display.
Language setup
Parental control
Display setup
Audio setup
Use PIN
New PIN
Rating level
Settings
The default PIN is 0000.
EN
26
Enable the PIN
1 Open the Parental control menu.
2 Select Use PIN and press OK.
> The available options show.
3 Choose the preferred option and press OK.
/i
Change the rating level
1 Open the Parental control menu.
2 Select Rating level and press OK.
> The available options show.
3 Choose the preferred option and press OK.
Change the PIN
1 Open the Parental control menu.
2 Select New PIN and press OK.
3 Follow the on-screen instructions.
On
Off
Use PIN
New PIN
Rating level
Parental control
Option Description
On The PIN is enabled.
Off The PIN is disabled.
8 (Adults)
7
6
5
4
3
Use PIN
New PIN
Rating level
Parental control
For example, when you set the rating level to 6, discs with rating levels 7 and 8
cannot be played.
Use PIN Enter new PIN
New PIN
Rating level
Parental control
EN
27
Enjoy
Turn the product on
1 Set the TV to the correct external input.
2 On the front of the product, press the STANDBY/ON button.
>The STANDBY/ON light comes on as blue.
Load a disc
1 Turn the product on.
2 Press the OPEN/CLOSE button.
> The disc tray opens.
3 Place the disc in the disc tray.
4 Press the OPEN/CLOSE button again.
> The disc tray closes.
Before you load a disc into the Blu-ray Disc player, make sure that the disc type is
supported. Refer to ’Playable discs’ on page 37.
EN
28
Videos
Play a title
1 Turn the product on.
2 Load the video disc.
>The Home menu shows.
3 From the home menu, select Video.
>The Title list shows.
4 Use the universal remote control to go to the title.
/i
5 Press the OK button.
Control titles
1 Play the title.
2 Use the universal remote control to control the title.
/i
Jump to the next or previous title
1 Play the title.
2 Press the INFO button.
>The Info menu shows.
3 Select Title.
4 Select the preferred option and press OK.
/i
Disc
Memory card
Video
Music
Pictures
Music
Pictures
Settings
Blu-ray Disc player
Discs that contain a disc menu show the disc menu. If the disc contains a disc menu,
the rest of the procedure is not applicable. Refer to the documentation that came
with the disc for instructions that tell you how to operate the disc menu.
Action Button
Previous title
Next title
Action Button
Play the title
Pause the title
Stop the title
Restart the title
Jump to the previous title/chapter
Jump to the next title/chapter
Repeat the title/chapter REPEAT
Repeat a defined selection REPEAT A-B
Bookmark a point on the disc BOOKMARK
Tip You can use the universal remote control to jump to the next or previous title.
Refer to ’Control titles’ on page 28 for instructions.
Option Button
Previous title
Next title
EN
29
Jump to the next or previous chapter
1 Play the title.
2 Press the INFO button.
>The Info menu shows.
3 Select Chapter.
4 Select the preferred option and press OK.
/i
Jump to a point of time
1 Play the title.
2 Press the INFO button.
>The Info menu shows.
3 Select Playing time.
4 With the number keys, enter the point of time.
5 Press OK.
Search through a chapter
1 Play the title.
2 Go to the chapter.
3 Set the speed.
/i
Search for a scene
1 Play a title.
2 Press the SCENE SEARCH button.
>The Scene search menu shows.
3 Select the type of scene search.
4 Press OK.
5 Select the category of the search.
6 Press OK.
7 Select the scene from the selection.
8 Press OK.
/i
Tip You can use the universal remote control to jump to the next or previous chapter.
Refer to ’Control titles’ on page 28 for instructions.
Option Button
Previous chapter
Next chapter
When you search through a chapter, the audio is muted.
Option Button
Search forwards
Search backwards
This feature is not applicable to all video discs.
Option Button
Previous scene in the category
Next scene in the category
EN
30
Play a title frame by frame
1 Pause the title.
2 Jump to the frame.
/i
Play a title in slow motion
1 Pause the title.
2 Set the speed.
/i
Change the audio language
1 Play the title.
2 Press the AUDIO button.
> The on-screen display shows.
3 Select the audio language.
4 Press OK.
/i
Change the camera angle
1 Play a title.
2 Press the TITLE/POPUP MENU button.
> The disc menu shows.
3 Control the disc menu with the universal remote control.
• When you play a title frame by frame, the audio is muted.
• For BD, only jump to the next frame is possible.
Option Button
Jump to the next frame
Jump to the previous frame
• When you play a title in slow motion, the audio is muted.
• For BD, only jump slow forward is possible.
Option Button
Slow forward
Slow backward
Action Button
Up
Down
This feature is not applicable to all video discs.
EN
31
Change the subtitle language
1 Play the title.
2 Press the SUBTITLE button.
> The on-screen display shows.
3 Select the subtitle language.
4 Press OK.
/i
Music
Play a track
1 Turn the product on.
2 Load the audio disc or insert the memory card. To insert a memory card, refer to
page 33.
> The home menu shows.
3 From the home menu, select Music.
>The Music list shows.
4 Use the universal remote control to go to the track.
/i
5 Press the OK button.
Control tracks
1 Play the track.
2 Use the universal remote control to control the track.
/i
Action Button
Up
Down
Disc
Memory card
Video
Music
Pictures
Music
Pictures
Settings
Blu-ray Disc player
Action Button
Next track
Previous track
Action Button
Play the track
Pause the track
Stop the track
Restart the track
Play the previous track
Play the next track
Repeat the track REPEAT (1x)
Repeat the audio disc REPEAT (2x)
Play the tracks in random order REPEAT (3x)
EN
32
Pictures
View a picture
1 Turn the product on.
2 Load the disc or insert the memory card. To insert a memory card, refer to page 33.
> The home menu shows.
3 From the home menu, select Picture.
>The Picture list shows.
4 Use the universal remote control to go to the picture.
5 Press the OK button.
Start a slideshow
1 View the first picture of the slideshow.
2 Press the INFO button.
>The Info menu shows.
3 Select Slideshow.
> The available options show.
4 Choose the preferred speed and press OK.
Rotate a picture
1 View the picture or stop the slide show.
2 Press the INFO button.
>The Info menu shows.
3 Select Rotate.
> The available options show.
4 Choose the preferred option and press OK.
/i
Zoom in and out on a picture
1 View the photo or stop the slide show.
2 Press the INFO button.
>The Info menu shows.
3 Select Zoom.
> The available options show.
4 Choose the preferred option and press OK.
/i
Disc
Memory card
Video
Music
Pictures
Music
Pictures
Settings
Blu-ray Disc player
Tip You can use up-down arrow keys of the universal remote control to rotate a
picture. The function is not available in a slideshow.
Option Description
Rotate
Option Description
On Zoom in
Off Normal size (100%)
Scroll
EN
33
Memory cards
Insert memory cards
1 Turn the product on.
2 Open the user access panel.
3 Insert the memory card into the correct slot.
/i
Music
Pictures
Set to stand-by
1 On the front of the product, press the STANDBY/ON button.
>The STANDBY/ON light on the front of your product comes on as red.
CAUTION DO NOT INSERT AN MS DUO, RS-MMC OR MINI SD INTO THE
MEMORY CARD READER WITHOUT AN ADAPTER. IF YOU DO, YOU CAN
DAMAGE THE BLU-RAY DISC PLAYER AND THE MEMORY CARD.
Before you insert a memory card into the Blu-ray Disc player, make sure that the
memory card is supported. Refer to ’Playable memory cards’ on page 38.
Left slot Right slot
CF Type I MS
MD MS PRO
MS Duo (only with adapter)
MMC
RS-MMC (only with adapter)
SD
Mini SD (only with adapter)
Refer to ’Music’ on page 31.
Refer to ’Pictures’ on page 32.
When the product is switched to stand-by, it still uses some power. To turn the
product off, remove the power cord from the power outlet.
EN
34
Troubleshooting
Online help
Refer to www.usasupport.philips.com for:
• Interactive help
• Frequently asked questions
Helpline
/i
Be prepared to give this information:
• A description of the problem and when it occurs
• The type number on the label of the product
• The date of purchase
Problems and tips
/i
Language Telephone number
English 1-888-PHILIPS (1-888-744-5477)
French 1-800-661-6162
Spanish 1-888-PHILIPS (1-888-744-5477)
Problem Tip
No reaction to the supplied universal
remote control.
Connect the product to the power outlet.
Point the remote control at the product.
Insert the batteries correctly.
Insert new batteries in the universal
remote control.
No video signal on the TV. Turn the TV on.
Set the TV to the correct external input.
Select the correct video output with the
VIDEO OUTPUT SELECTION
button on the front panel.
Change the resolution of the output to the
TV.
Press-and-hold the -button on the front
panel for 5 seconds to restore the factory
settings (with no disc in the disc tray).
No high-definition video signal on the TV
via component video.
Does the disc contain high-definition
video? High-definition video is not available
when the disc does not contain it.
Does the TV support high-definition video?
High-definition video is not available when
the TV does not support it.
No audio signal from the loudspeakers of
the TV.
Assign the audio input of the TV to the
corresponding video input.
No audio signal from the loudspeakers of
the audio system.
Turn the audio system on.
Set the audio system to the correct
external input.
Increase the volume level of the audio
system.
EN
35
No 5.1-channel audio from the
loudspeakers of the audio system
Does the disc or memory card contain 5.1-
channel audio? The 5.1-channel audio is not
available when the disc or memory card
does not contain it.
Does the audio system support 5.1-
channel audio? The 5.1-channel audio is not
available when the audio system does not
contain it.
In the SETTINGS menu, set Digital out
to PCM.
Cannot play a disc. Make sure that the product supports the
disc.
Make sure that the Blu-ray Disc player
supports the region code of the DVD or
BD.
(BD: A; DVD: All or 1)
For DVD+R discs, make sure that the disc
is finalized.
Clean the disc.
Cannot play JPEG files from a disc. Make sure that the disc was recorded in
the UDF, ISO9660 or JOLIET format.
Cannot play MP3 files from a disc or a
memory card.
Make sure that the disc was recorded in
the UDF, ISO9660 or JOLIET format.
Make sure that the bit rate of the MP3 files
is between 56 and 320 kbps.
Make sure that the sample rate of the MP3
files is 32 kHz, 44.1 kHz or 48 kHz.
Cannot play a memory card. Make sure the memory card is supported
by the product.
Red cross in the upper right hand corner of
the screen.
The operation is not possible.
Cannot find a JPEG file. Make sure that the selected folder does
not contain more than 1500 files. Only the
first 1500 files are shown.
Make sure that the file extension is .jpg,
.JPG, .jpeg or .JPEG.
Cannot find an MP3 file. Make sure that the selected folder does
not contain more than 1500 files. Only the
first 1500 files are shown.
Make sure that the file extension is .mp3 or
.MP3
The product gives no response to any
control.
Press and hold the standby/on button for 5
seconds to set the product to stand-by.
Problem Tip
EN
36
Technical data
Dimensions
/i
Operating environment
/i
Power
/i
Video output
/i
Audio output
/i
When you play a video from a disc, the audio is dependent upon:
• The type of audio connection
• The disc type and the audio on the disc
• The selected digital audio format (only for S/PDIF and HDMI connections)
/i
Product dimensions (W x D x H) 16.9 x 12.8 x 3.1 in
(430 x 325 x 789 mm)
Product weight 9.3 lbs
(4.2 kg)
Operating temperature 41 to 104 F (+5 to 40 °C)
Operating humidity 10 to 75 % (non-condensing)
Mains power AC, 120 V, 60 Hz
Standby/on switch
Power consumption 51 W (< 10 W stand-by)
Standby/on light Red/blue
HDMI 480p, 720p, 1080i, 1080p
Component video Y: 1.0 Vp-p (75 Ω load), Pb: 0.70 Vp-p
(75 Ω load), Pr: 0.70 Vp-p (75 Ω load)
Composite video 1 channel: 1.0 Vp-p (75 Ω load)
S-Video Luminance: 1.0 Vp-p (75 Ω load),
Chrominance: 0.3 Vp-p (75 Ω load)
HDMI PCM multi-channel audio, PCM audio,
bitstream audio,
Digital audio output Optical, coaxial (S/PDIF)
5.1-Channel Front and rear left, front and rear right,
center, subwoofer
2-Channel Left, right
Frequency response 48 kHz sampling: 4 Hz to 22 kHz, 96 kHz
sampling: 4 Hz to 44 kHz
Signal-to-noise ratio 110 dB
Dynamic range 100 dB
Total harmonic distortion 0.004%
EN
37
2-Channel analog
/i
5.1-Channel analog
/i
S/PDIF
/i
HDMI
Playable discs
/i
Disc type Output
BD 2-Channel
DVD with Dolby Digital 2-Channel
DVD with DTS Mute
Disc type Output
BD 5.1-Channel
DVD with Dolby Digital 2-Channel (front left, front right)
DVD with DTS Mute
Disc type Output
BD PCM: 2-Channel; Bitstream: bitstream
from disc
DVD with Dolby Digital 2-Channel (front left, front right);
Bitstream: bitstream from disc
DVD with DTS PCM: Mute; Bitstream: bitstream from disc
Disc type Output
BD PCM: 2-Channel/5.1-Channel; Bitstream:
bitstream from disc
DVD with Dolby Digital 2-Channel (front left, front right);
Bitstream: bitstream from disc
DVD with DTS PCM: Mute; Bitstream: bitstream from disc
Types BD: BD-ROM, BD-RE; DVD: DVD-
VIDEO, DVD+RW (4.7 GB), DVD-RW
(4.7 GB), DVD+R (4.7 GB) DVD-R (4.7
GB); CD: AUDIO-CD, CD-RW, CD-R
Region codes BD: A;
DVD: All or 1
PRODUCT IS FULLY COMPATIBLE WITH THE FOLLOWING CURRENT
FORMATS:
• BD-ROM / BD-R / BD-RE*
• DVD-Video / DVD-R / DVD-RW
• Audio CD / CD-R / CD-RW
PRODUCT IS COMPATIBLE WITH THE FOLLOWING FORMATS, WITH LIMITED
FUNCTIONALITY:
• DVD+R / DVD+RW
PRODUCT WILL NOT PLAY DISCS WITH THE FOLLOWING FORMATS:
• HD-DVD
• Any other
* Due to the intentional progression of the Blu-ray Disc format by its standard setting
authority, Philips cannot guarantee or warrant the playability of future extensions of
the Blu-ray Disc format with this product.
EN
38
Playable memory cards
/i
Types CF Type I, MD, SM, MS PRO, MS Duo
(with adapter), MMC, RS-MMC (with
adapter), SD, Mini SD (with adapter),
EN
39
Information
Trademarks and licenses
Dolby Laboratories
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro-logic” and the
double-D symbol are trademarks of Dolby Laboratories.
DTS
“DTS” and “DTS DIGITAL SURROUND” are registered trademarks of Digital Theater
Systems, Inc.
HDMI
HDMI, the HDMI logo and High-Definition-Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC.
Environmental information
All unnecessary packaging has been omitted. The packaging has been made easy to
separate into two materials: cardboard (box, buffer) and polyethylene (bags, protective
foam sheet). Your product consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations regarding the
disposal of packaging materials, exhausted batteries and old equipment.
Dispose of in accordance with local - state and federal regulation. For additional
information on recycling contact www.eia.org (Consumer Education Initiative).
Maintenance and service
If the product is defective and needs repair, but the warranty period has expired, you can
consult our specialists (refer to page 10).
Philips limited warranty one (1) year
Warranty coverage:
PHILIPS warranty obligation is limited to the terms set forth below.
Who is covered:
Philips warrants the product to the original purchaser or the person receiving the
product as a gift against defects in materials and workmanship as based on the date of
original purchase (“Warranty Period”) from an Authorized Dealer. The original sales
receipt showing the product name and the purchase date from an authorized retailer is
considered such proof.
What is covered:
The Philips warranty covers new products if a defect arises and a valid claim is received
by Philips within the Warranty Period. At its option, Philips will either (1) repair the
product at no charge, using new or refurbished replacement parts, or (2) exchange the
product with a product that is new or which has been manufactured from new, or
serviceable used parts and is at least functionally equivalent or most comparable to the
original product in Philips current inventory, or (3) refund the original purchase price of
the product.
EN
40
Philips warrants replacement products or parts provided under this warranty against
defects in materials and workmanship from the date of the replacement or repair for
ninety (90) days or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product or part is exchanged, any
replacement item becomes your property and the replaced item becomes Philips’
property. When a refund is given, your product becomes Philips’ property.
What is not covered - Exclusions and limitations:
This Limited Warranty applies only to the new products manufactured by or for Philips
that can be identified by the trademark, trade name, or logo affixed to it. This Limited
Warranty does not apply to any non-Philips hardware product or any software, even if
packaged or sold with the product. Non-Philips manufacturers, suppliers, or publishers
may provide a separate warranty for their own products packaged with the bundled
product.
Philips is not liable for any damage to or loss of any programs, data, or other information
stored on any media contained within the product, or any non-Philips product or part
not covered by this warranty. Recovery or reinstallation of programs, data or other
information is not covered under this Limited Warranty.
This warranty does not apply (a) to damage caused by accident, abuse, misuse,
misapplication, or non-Philips product, (b) to damage caused by service performed by
anyone other than Philips or Philips Authorized Service Location, (c) to a product or a
part that has been modified without the written permission of Philips, or (d) if any Philips
serial number has been removed or defaced, or (e) product, accessories or consumables
sold “AS IS” without warranty of any kind by including refurbished Philips product sold
“AS IS” by some retailers.
This limited warranty does not cover:
• Shipping charges to return defective product to Philips.
• Labor charges for installation or setup of the product, adjustment of customer
controls on the product, and installation or repair of antenna systems outside of the
product.
• Product repair and/or part replacement because of improper installation,
connections to improper voltage supply, abuse, neglect, misuse, accident,
unauthorized repair or other cause not within the control of Philips.
• Damage or claims for products not being available for use, or for lost data or lost
software.
• Damage occurring to product during shipping.
• A product that requires modification or adaptation to enable it to operate in any
country other than the country for which it was designed, manufactured, approved
and/or authorized, or repair of products damaged by these modifications.
• A product used for commercial or institutional purposes (including but not limited
to rental purposes).
• Product lost in shipment and no signature verification receipt can be provided.
• Failure to operate per Owner’s Manual.
If you need information or if you have a problem, please visit the Philips website at
www.philips.com/support or contact the Philips Customer Care Centre in your country
(you find the phone numbers in this user manual). If there is no Customer Care Centre
in your country, please turn to your local Philips dealer or contact Consumer Electronics
B.V.
Note:
• Any product sold and identified as refurbished or renewed carries a ninety (90) day
limited warranty.
• Replacement product can only be sent if all warranty requirements are met. Failure
to follow all requirements can result in delay.
EN
41
To obtain assistance in the U.S.A., Puerto Rico or U.S. Virgin Islands...
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
To obtain assistance in Canada...
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE
EXCLUSIVE REMEDY FOR THE CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental or consequential
damages, or allow limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from
state/province to state/province.
Philips, P.O. Box 671539, Marietta, GA. 30006-0026
EN
42
Glossary
Terms and definitions
/i
Term Definition
BD Blu-ray Disc.
BD-ROM BD Read Only Memory. A BD-ROM
contains recorded data. For example, high-
definition videos.
BD-RE BD Rewritable. You can record a BD-RE
over and over again. For example, you can
use a BD-RE to make sequential back-ups.
DVD-VIDEO DVD Video.
DVD Digital Versatile Disc.
DVD+/-R DVD Recordable. You can record a
DVD+/-R once and you cannot erase it.
For example, you can use it to archive data.
DVD+/-RW DVD Rewritable. You can record a
DVD+/-RW over and over again. For
example, you can use a DVD+/-RW to
make sequential back-ups.
CD Compact Disc.
CD-R CD Recordable. You can record a CD-R
once and you cannot erase it. For example,
you can use it to archive data.
CD-RW CD Rewritable. You can record a CD-RW
over and over again. For example, you can
use a CD-RW to make sequential back-
ups.
AUDIO-CD Audio CD.
HDMI High Definition Media Interface. It is a
direct digital connection that can carry
digital high-definition as well as digital
multi-channel audio.
kbps Kilobit per second (1000 bit/s).
JPEG Data compression standard for digital
images.
MP3 Data compression standard for digital
audio.
CVBS Composite video. A type of video signal.
CF CompactFlash. A memory card with a flash
memory.
MD Microdrive. A type of memory card with a
miniature harddisk.
SM SmartMedia. A type of memory card with
a flash memory.
MS Memory Stick. A type of memory card with
a flash memory.
SD Secure Digital. A type of memory card with
a flash memory.
MMC MultimediaCard. A type of memory card
with a flash memory.
RS-MMC Reduced size MMC.
Chapter Sections of a video or a music track.
EN
43
Title A complete video on a disc
Track A music track on a disc.
GB Gigabyte.
Term Definition
www.usasupport.philips.com
For support call:
1-888-744-5477 (English, Español)
1-800-661-6162 (Français)
EN Universal remote control 3
ES Control remoto universal 27
FR Télécommande universelle 41
RC4380
2
EN
3
EN
Contents
Your product.............................................................................4
Universal remote control..............................................................................................................4
Need help? ................................................................................4
Troubleshooting...............................................................................................................................4
Online help .......................................................................................................................................4
Helpline..............................................................................................................................................4
Overview ...................................................................................5
Universal remote control..............................................................................................................5
Prepare......................................................................................7
Prepare the remote control.........................................................................................................7
Set up ........................................................................................7
Test the remote control ...............................................................................................................7
Identify devices ................................................................................................................................7
Enjoy ..........................................................................................9
Volume buttons...............................................................................................................................9
Copy functions...............................................................................................................................11
Restore the factory default settings..........................................................................................13
Replace the batteries....................................................................................................................14
Troubleshooting......................................................................15
Problems and tips..........................................................................................................................15
Technical data.........................................................................15
Infra-red capabilities......................................................................................................................15
Dimensions.....................................................................................................................................15
Power...............................................................................................................................................15
Codes.......................................................................................16
TV .....................................................................................................................................................16
Amplifiers........................................................................................................................................19
Set-top boxes.................................................................................................................................20
DVD .................................................................................................................................................22
VCR..................................................................................................................................................23
EN
4
Your product
Universal remote control
The universal remote control can operate in 5 modes. In each mode, you can control
another type of device.
/i
Need help?
Troubleshooting
Refer to page 15.
Online help
Refer to www.usasupport.philips.com for:
• Interactive help
• Frequently asked questions
Helpline
/i
Be prepared to give this information:
• A description of the problem and when it occurs
• The type number on the label of the product
• The date of purchase
Mode Device
BD BDP9000 Blu-ray Disc player
TV TV
AMP Amplifier
OR
Receiver
SAT Satellite set-top box
OR
Cable set-top box
DVD DVD Recorder
OR
DVD Player
OR
VCR
Language Telephone number
English 1-888-PHILIPS (1-888-744-5477)
French 1-800-661-6162
Spanish 1-888-PHILIPS (1-888-744-5477)
EN
5
Overview
Universal remote control
Overview of the functions of the buttons in the different modes. It is possible that a func-
tion is not available for the device or disc you control.
1 Stand-by button
Turns the selected device on and off.
2Mode lights
Show the selected mode.
• BD - Philips BDP9000 Blu-ray Disc player
• TV - TV
• AMP - Amplifier or receiver
• SAT - Cable or satellite set-top box
• DVD - DVD player, DVD recorder or VCR
3 Mode selector
• BD - Philips BDP9000 Blu-ray Disc player
• TV - TV
• AMP - Amplifier or receiver
• SAT - Cable or satellite set-top box
• DVD - DVD player, DVD recorder or VCR
4 Color buttons
The TV shows the functions of the color buttons.
5 Scene search button
• BD - Scene search
6 Back button
•BD, SAT, DVD - Back
7 Up, down, left and right buttons
Move the cursor in the specified direction.
8 OK button
Confirms a choice.
9 Disc menu button
• BD, DVD - Disc menu
10 Home menu button
•BD - Home menu
• TV, AMP, SAT, DVD - Set-up menu
11 Volume button
• BD, TV, SAT, DVD - TV volume up/down.
• AMP - Amplifier volume up/down.
12 Mute button
• BD, TV, SAT, DVD - Mute TV.
• AMP - Mute amplifier.
13 Rewind slow/Record button
•BD - Rewind slow
• DVD - Record
14 Rewind button
• BD, SAT, DVD - Rewind
• AMP - Decrease the volume of the center loudspeaker
15 Previous button
•BD, DVD - Previous
• AMP - Decrease the volume of the rear loudspeakers
2
5
6
16
15
14
13
17
18
7
11
12
10
8
3
1
4
9
29
28
23
24
20
19
26
25
22
21
30
31
27
EN
6
16 Number keys
• BD, TV, SAT, DVD - Enter digits
• AMP - Chooses the audio source (1 = TV, 2 = DVD, 3 = VCR, 4 = Tuner, 5 = CD,
6 = Aux/SAT/MD, 7 = Tape).
17 Zoom button
•BD, DVD - Zoom
• AMP - Surround mode
18 Repeat button
• BD - Repeat title, chapter, track or disc, random
19 Repeat A-B
• BD, DVD - Repeat a defined selection
20 Bookmark button
• BD - Bookmark a position on the disc.
• DVD - Select a chapter
21 Next button
•BD, DVD - Next
• AMP - Increase the volume of the rear loudspeakers.
22 Play/Pause button
•BD - Play/Pause
•SAT, DVD - Play
23 Fast forward button
• BD, SAT, DVD - Fast forward
• AMP - Increase the volume of the center loudspeaker
24 Slow forward button
•BD - Slow forward
• DVD - Pause
25 Stop button
•BD, SAT, DVD - Stop
26 Channel button
• BD, TV, SAT, DVD - TV Channel up/down
27 Title/Pop-up menu button
• BD - Title/pop-up menu
• SAT, DVD - Guide
28 Info button
• BD, TV, SAT, DVD - Info
29 Cancel button
•BD - Cancel
30 Audio button
•BD, DVD - Audio
• AMP - Surround on/off
31 Subtitle button
• BD, SAT, DVD - Subtitles
2
5
6
16
15
14
13
17
18
7
11
12
10
8
3
1
4
9
29
28
23
24
20
19
26
25
22
21
30
31
27
EN
7
Prepare
Prepare the remote control
1 Open the battery compartment of the remote control.
2 Insert the batteries correctly.
3 Close the battery compartment.
Set up
Test the remote control
The instructions are applicable to a TV. You can use the same procedure to test other
devices (for example, DVD players or home theater systems).
1 Turn the TV on with the controls on the TV or its own remote control.
2 Select the TV mode.
>The TV mode light comes on.
3 Make sure that you can operate the TV with the universal remote control. Refer to
’Overview’ on page 5 for an overview of the functions of the keys and the buttons.
Identify devices
Manually
If a device does not react correctly to the universal remote control, you must identify
the device yourself. The instructions are applicable to a TV. You can use the same pro-
cedure to identify other devices (for example, DVD players or home theather systems).
1 Turn the TV with its own remote control or the TV.
2 Go to the first TV channel.
If the device does not react correctly to the universal remote control, you must
identify the device yourself (refer to ’Identify devices’).
EN
8
3 Press the mode selector until the TV light comes on.
4 Find the first code for the TV in the TV code list (refer to ’Codes’ on page 16).
5 Press-and-hold the 1 and 3.
6 When the TV light flashes two times, release the 1 and 3.
7 Enter the code from step 4.
8 Make sure that you can operate the TV with the universal remote control. Refer to
’Overview’ on page 5 for an overview of the functions of the keys and the buttons.
Search automatically for the correct code
1 Turn the TV on with its own remote control or the controls on the TV.
2 Go to the first TV channel.
3 Press the mode selector until the TV light comes on.
After the first and second digits, the TV light flashes one time. After the third digit,
the TV light goes off and flashes two times.
If the device does not react correctly to the universal remote control:
1 Find the next code in the code list.
2 Go back to step 5.
OR:
1 Search automatically for the correct code.
EN
9
4 Press-and-hold the 1 and 3.
5 When the TV light flashes two times, release the 1 and 3.
6 Press the stand-by button.
> The universal remote control searches automatically for the signal that turns the TV off.
Each time that the universal remote control transmits a signal, the TV light in the display
flashes.
7 When the TV is turned off, press the stand-by key.
8 Make sure that you can operate the TV with the universal remote control. Refer to
’Overview’ on page 5 for an overview of the functions of the keys and the buttons.
Enjoy
Volume buttons
Depending on the selected mode, the volume buttons are assigned to the TV or the
amplifier: These are the factory settings:
/i
You can change the assignment of the volume controls. For example, you can assign the
volume button in the TV mode to the amplifier:
1 Select the TV mode.
Mode Volume buttons
BD TV
TV TV
AMP Amplifier
SAT TV
DVD TV
EN
10
2 Press-and-hold the 1 and 6 until the TV mode light flashes two times.
3 Press the 9.
> The mode light flashes one time.
4 Press the 9 again.
> The mode light flashes one time.
5 Press the 3.
> The mode light flashes two times.
EN
11
6 Select the AMP mode.
7 Press any button.
> The volume button is assigned to the amplifier.
Copy functions
You can copy the function of a device from its own mode to another mode. For example,
the mute button of the AMP mode to the TV mode. Then, you can mute the amplifier
in the TV mode.
1 Select the AMP mode.
2 Press-and-hold the 1 and 6 until the AMP mode light flashes two times.
EN
12
3 Press the 9.
> The mode light flashes one time.
4 Press the 9 again.
> The mode light flashes one time.
5 Press the 5.
> The mode light flashes one time.
6 Press the mute button (the source button).
> The mode light flashes one time.
7 Select the TV mode.
>The TV mode light comes on.
8 Press the target button.
> The function is copied.
EN
13
Restore the factory default settings
1 Press-and-hold the 1 and 6 until the mode light flashes two times.
2 Press the 9.
> The mode light flashes one time.
3 Press the 8.
> The mode light flashes one time.
EN
14
4 Press the 1.
> The mode light flashes two times and the factory default settings are restored.
Replace the batteries
1 Open the battery compartment.
2 Remove the used batteries.
3 Insert the new batteries correctly.
4 Close the battery compartment.
WARNING DO NOT USE OLD AND NEW BATTERIES OR DIFFERENT TYPES
OF BATTERIES IN COMBINATION. IF YOU DO, THE BATTERIES CAN LEAK
CHEMICALS. THE CHEMICALS CAN CAUSE DAMAGE TO THE PRODUCT AND
CAUSE INJURIES.
• When you replace the batteries, make sure you replace them within 5 minutes.
The memory of the universal remote control holds all programmed settings for 5
minutes. After 5 minutes, the programmed settings are replaced with the factory
default settings.
• When you replace the batteries, make sure that you do not press any key or but-
ton. If you do, the programmed settings can be replaced with the factory default
settings.
• To prevent battery leakage which may result in bodily injury, property damage, or
damage to the unit:
• Install all batteries correctly, + and - as marked on the unit.
• Do not mix batteries (old and new, or carbon and alkaline, etc.)
• Remove batteries when the unit is not used for a long time.
EN
15
Troubleshooting
Problems and tips
Technical data
Infra-red capabilities
/i
Dimensions
/i
Power
/i
Problem Tip
The device indicator flashes four times
when you press a key or button.
Replace the batteries. Refer to page 14.
The device that you want to operate does
not respond AND the device indicator
does not flash when you press a key or but-
ton.
Replace the batteries. Refer to page 14.
The device that you want to operate does
not respond AND the device indicator
flashes when you press a key or button.
Remove any obstructions between the
remote control and the device.
The universal remote control does not
correctly operate the device.
Identify the device again. Refer to page 7.
You cannot copy functions. The function copy keys is limited to six
keys. Restore the factory default settings
to delete the copy keys. Refer to page 13.
Operating distance 30 ft (10 m)
Transmitting LEDs 1
Carrier frequency range 36 kHz
Transmission angle ± 22.5 degrees
Product dimensions (WxDxH) 1.9 x 1.1 x 9.3 in (47 x 29 x 237 mm)
Product weight 8 oz (226 g)
Number of batteries 2
Battery type AA
EN
16
Codes
TV
/i
Abex 018
Acer 027
Admiral 000 019
Adventura 020
Aiko 008
Aiwa 049
Akai 001
Alleron 011
Amtron 010
Anam National 002 010
AOC 003 004
Apex 043 044 056 083
Audiovox 010
Bell & Howell 000
Benq 042 068
Bradford 010
Broksonic 053 057
Candle 004 005 020
Celebrity 001
Citizen 004 005 008 010 016 017
Colortyme 004
Concerto 004
Contec/Cony 006 010
Craig 010
Crown 010 014
Curtis Mathes 004 007 016 017 024
CXC 010
Daewoo 003 004 008 017 041 067
Daytron 004 017
Dell 071 072
Dimensia 024
Electroband 001
Electrohome 001 002 004
Emerson 004 006 009 010 011 017 022 041
Envision 004
Fisher 040
Fujitsu 011 026
Funai 010 011
Futuretech 010
Gateway 045
GE 002 004 012 013 024 073 084
Goldstar 003 004 006 017 018
Grunpy 010 011
Hallmark 004
Harvard 010
Hisense 051
Hitachi 004 006 023 039 064 065 066
IMA 010
Infinity 014
EN
17
Janeil 020
JBL 014
JC Penney 003 004 005 012 013 016 017 018 024
JCB 001
Jensen 004
JVC 006 013 015 038 054 063
Kawasho 001 004
Kenwood 004
Kloss Novabeam 010 020
KTV 010 017
LG 003
Loewe 014
Logik 000
Luxman 004
LXI 004 014 024
Magnavox 004 005 014 075
Majestic 000
Marantz 004 014
Megatron 004
Memorex 000 003 004 037
MGA 003 004
Midland 013 017 018
Minutz 012
Mitsubishi 003 004 036
Montgomery Ward 000
Motorola 002 019
MTC 003 004 016
Multitech 010
NAD 004 023
NEC 002 003 004
NET-TV 046
Nikko 004 008
NTC 008
Onwa 010
Optimus 023
Optonica 019
Orion 009 022 035
Panasonic 002 013 014 034 059
Philco 002 003 004 005 006 014
Philips 002 005 006 014 033 047 060 076
Philips Magnavox 076
Pilot 017
Pioneer 004 023 048
Portland 003 004 008 017
Price Club 016
Prima 052
Prism 013
Proscan 024
Proton 004 006
Quasar 002 013 032 085
Radio Shack 024
Radio Shack/Realistic 004 006 010 017 018
RCA 002 003 004 024 086
Realistic 024
Sampo 004 017 018
Samsung 003 004 006 007 016 017 018 031 081 082
Sansui 022 035 058
EN
18
Scotch 004
Scott 004 006 009 010 011
Sears 004 011 015 021 024
Sharp 004 006 017 019 030 069 079
Signature 000
Simpson 005
Sony 001 047 062
Soundesign 004 005 010 011
Squareview 021
SSS 010
Starlite 010
Supre-Macy 020
Supreme 001
Sylvania 004 005 014 025 074 078
Symphonic 010 021 029
Tandy 019
Tatung 002
Technics 013
Techwood 004 013
Teknika 000 003 004 005 006 008 010 011 016 017
TMK 004
Toshiba 016 028 061 080
Totevision 017
Universal 012
Victor 015
Vidtech 003 004
Viewsonic 077
Viking 020
Wards 000 003 004 011 012 014 024
White Westinghouse 041
Yamaha 003 004
Zenith 000 050 055 070
EN
19
Amplifiers
/i
Aiwa 003 020 037 038 052
BOSE 049 063
Carver 002 052
Citizen 026
Denon 014 053
Fisher 002
GE 028
Goldstar 016 021
Harmon/Kardon 013 043 052
Hitachi 034
JBL 043
JVC 018 024 064
Kenwood 015 022 039 057 058
Koss 065
Linn 052
Magnavox 035 052
Marantz 000 052
Nakamichi 012
NEC 033
Onkyo 005 006 017 044 066
Optimus 008
Panasonic 001 045 046
Philips 052 067 071
Pioneer 004 009 010 023 036 042 056 068
Proton 035
Quasar 001
RCA 025 040 050 051 069
RePlay 028
Sansui 052
Sharp 029 030 031 032
Sherwood 011 048
Sony 020 041 047 055 060 061 062
Teac 019
Technics 001 045 046 054
Toshiba 027
Venturer 070
Victor 024
Wards 042 052
Yamaha 007 042 059
EN
20
Set-top boxes
Satellite
/i
Alphastar 023
Chaparral 002 003
DISH Network 053
Dishnet 022
Drake 004 005
Echostar 030
GE 000 001 016 033
General Instruments 006 007 008
Hitachi 026 027
Hughes 051
Hughes Network Systems 021 031
JVC 025
Mitsubishi 040
Panasonic 019 045 048 049
Philips 028 037 044 051 054 109
Primestar 020
Proscan 000 001 016 033
RCA 000 001 016 024 033 038 050 051
Realistic 009
Samsung 041 042 051
Sony 017 034 036 039 043 052
STS 032
STS1 010
STS2 011
STS3 012
STS4 013
Toshiba 014 018 046
Uniden 015 029
Zenith 035 047
EN
21
Cable
/i
ABC 055 056 057 059 101
Antronix 061 062
Archer 062 063
Cabletenna 061
Cableview 060
Colour Voice 065 066
Comtronics 067
Contec 069
Eastern 070
GC Electronics 062
GE 055 056
Gemini 071 072
General Instruments 056 103 106
Hamlin 073 074 075 081 088 094 102
Hitachi 056
Jerrold 056 071 076 077 095 101 103
Magnavox 078
Memorex 079
Motorola 107
Movie Time 080
NEC 058
NSC 080
Oak 069 082
Panasonic 097 100
Philips 064 065 066 068 072 078 083 084 085
Pioneer 086 087
Proscan 055 056
RCA 060 096 098 100 103
Realistic 062
Regal 075 088 102
Regency 070
Rembrandt 056
Samsung 087
Scientific Atlanta 059 089 090 091 104
Signal 071
Signature 056
Sony 105
Sprucer 100
Standard Component 092 093
Starcom 071 101
Stargate 071
Starquest 071
TIME WARNER 108
Tocom 057 076
Tusa 071
TV86 080
Unika 061 062
United Cable 101
Universal 061 062 063
View Star 069 078 080
Zenith 099
EN
22
DVD
Players
/i
Recorders
/i
Memorex 008
Mintek 009
Mitsubishi 084 100
NAD 040 094
Nakamichi 078
Nexxtech 095
Norcent 010 079
Onkyo 002 011
Oritron 013
Panasonic 047 054 072 073
Philips 021 027 033 171
Pioneer 003 012
Polaroid 001
Proscan 080 099
Qwestar 013
RCA 024 030 036 044 055 069 074 080
Sampo 081
Samsung 014 031 053
Sansui 050
Sanyo 032 082
Sharp 015 016 026 060 062
Sherwood 083
Sony 017 018 046 048 049 063
Sylvania 045 056 066
Techwood 096
Toshiba 019 058 067
Venturer 004
Yamaha 101
Zenith 034 088
Apex Digital 181
Panasonic 175
Philips 173 176 178 179
Pioneer 177
RCA 172
Sony 174
Yamaha 180
EN
23
VCR
/i
Adventura 115
Aiko 116
Aiwa 115
Akai 103 125
American High 113
Asha 108
Audio Dynamics 104 105
Audiovox 109
Beaumark 107 108
Bell & Howell 106
Broksonic 107 145 146
Calix 109
Candle 108 109 110 111 112
Canon 113
Capehart 124
Carver 121
CCE 116 120
Citizen 108 109 110 111 112 116
Colortyme 104
Colt 120
Craig 108 109 114 120
Curtis Mathes 104 108 111 112 113 127
Cybernex 108
Daewoo 110 115 116 124 140
Daytron 124
DBX 104 105
Dimensia 127
Dynatech 115
Electrohome 109 117
Electrophonic 109
Emerson 107 109 110 113 115 117 147
Fisher 106 114
Fuji 103 113
Funai 115 128
Garrard 115
GE 108 113 127 153
Go Video 130 137 167
Goldstar 104 109 112
Gradiente 115
Harley Davidson 115
Harmon/Kardon 104
Harwood 120
Headquarter 106
Hi-Q 114
Hitachi 119 125 169
Instant Replay 113
JC Penney 104 105 106 107 108 109 113 119 120 121
JCL 113
Jensen 119 125
JVC 104 105 106 112 125 131
Kenwood 104 105 106 111 112 125
KLH 120
Kodak 109 113
LG 109
EN
24
Lloyd's 115
Logik 120
LXI 109
Magnavox 113 121 123
Magnin 109
Marantz 104 105 106 111 112 113 121
Marta 109
Matsushita 113
MEI 113
Memorex 106 108 109 113 114 115 123 129
MGA 117
MGN Technology 108
Midland 118
Minolta 119
Mitsubishi 117 119 166
Motorola 113
MTC 108
Multitech 108 111 115 118 120
NEC 104 105 106 111 112 125
Nikko 109
Noblex 108
Olympus 113
Optimus 109
Optonica 122
Orion 129
Panasonic 113 141 142 143 150 165
Pentax 111 119
Pentex Research 112
Philco 113 121
Philips 113 121 122 135
Pilot 109
Pioneer 105 119
Polaroid 168
Portland 111 124
Proscan 127
Protec 120
Pulsar 123
Quarter 106
Quartz 106
Quasar 113 154
Radio Shack 109 122
Radio Shack/Realistic 106 108 109 113 114 115 117 122
Radix 109
Randex 109
RCA 108 113 119 127 132 139 155
Realistic 106 108 109 110 113 114 115 117 122
Ricoh 126
Runco 123
Samsung 108 110 118 133 148 152
Sanky 123
Sansui 105 125 129
Sanyo 106 108 114 134
Scott 107 110
Sears 106 109 113 114 119
Sharp 117 122 144 161
Shintom 103 120
Shogun 108
EN
25
Singer 113 120 126
Sony 103 149 163
STS 113
Sylvania 113 115 121 151 156 164
Symphonic 115 128
Tandy 106
Tashiko 109
Tatung 125
Teac 115 125
Technics 113
Teknika 109 113 115
Tivo 138
TMK 108
Toshiba 110 119 157 159 160 162
Totevision 108 109
Unitech 108
Vector Research 104 105 110 111
Victor 105
Video Concepts 104 105 110 111
Videosonic 108
Wards 108 109 110 113 114 115 117 119 120 122
White Westinghouse 128
XR-1000 113 115 120
Yamaha 104 105 106 112 125
Zenith 103 123 126 136 158 170
EN
26
