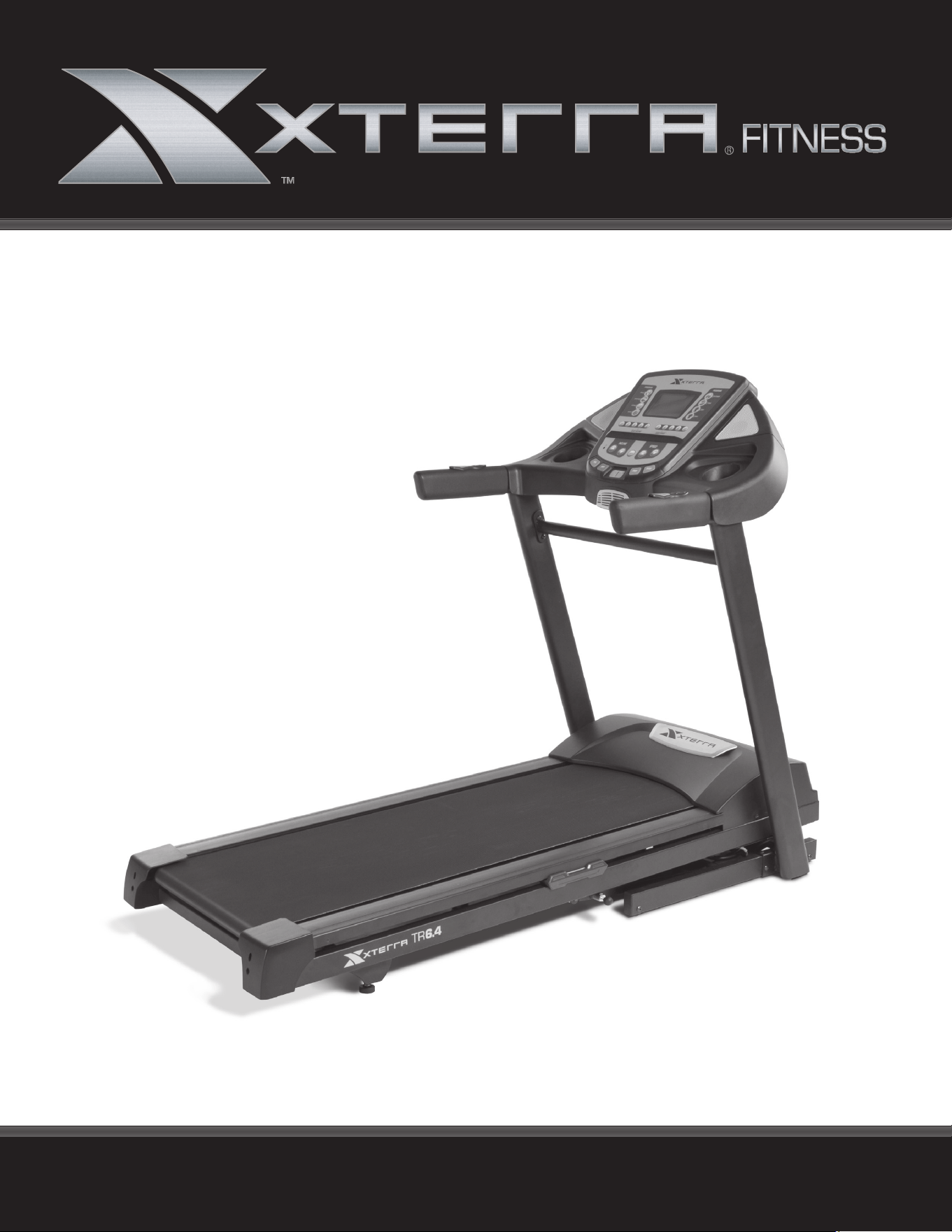

TR6.4 TREADMILL
OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL
Table Of Contents
1
2
3
4
6
11
15
17
19
24
ATTENTION
THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED
FOR THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS
ENTIRETY.
Product Registration
Important Safety Instructions
Important Electrical Instructions
Important Operation Instructions
TR6.4 Assembly Instructions

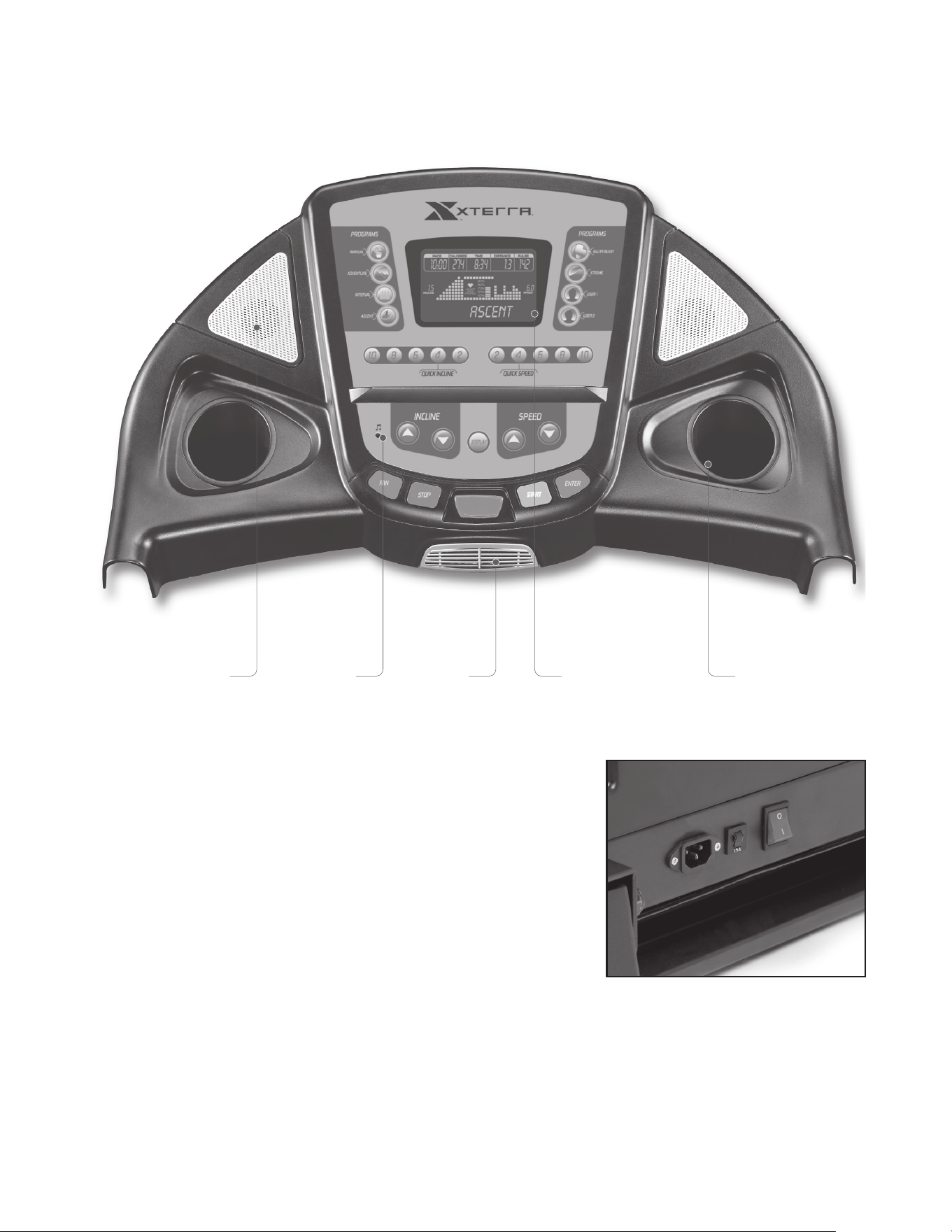

Operation of Your Console

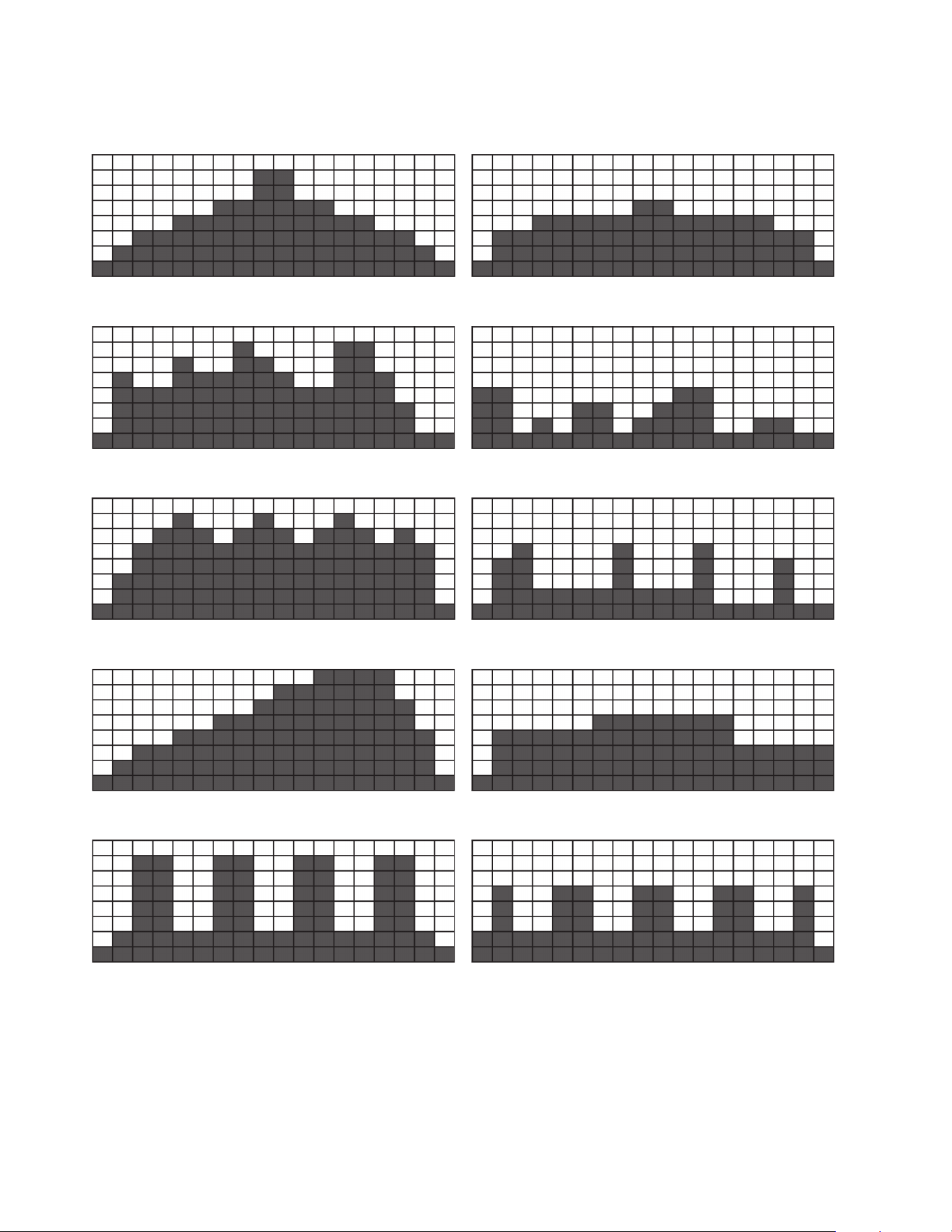

Programmable Features

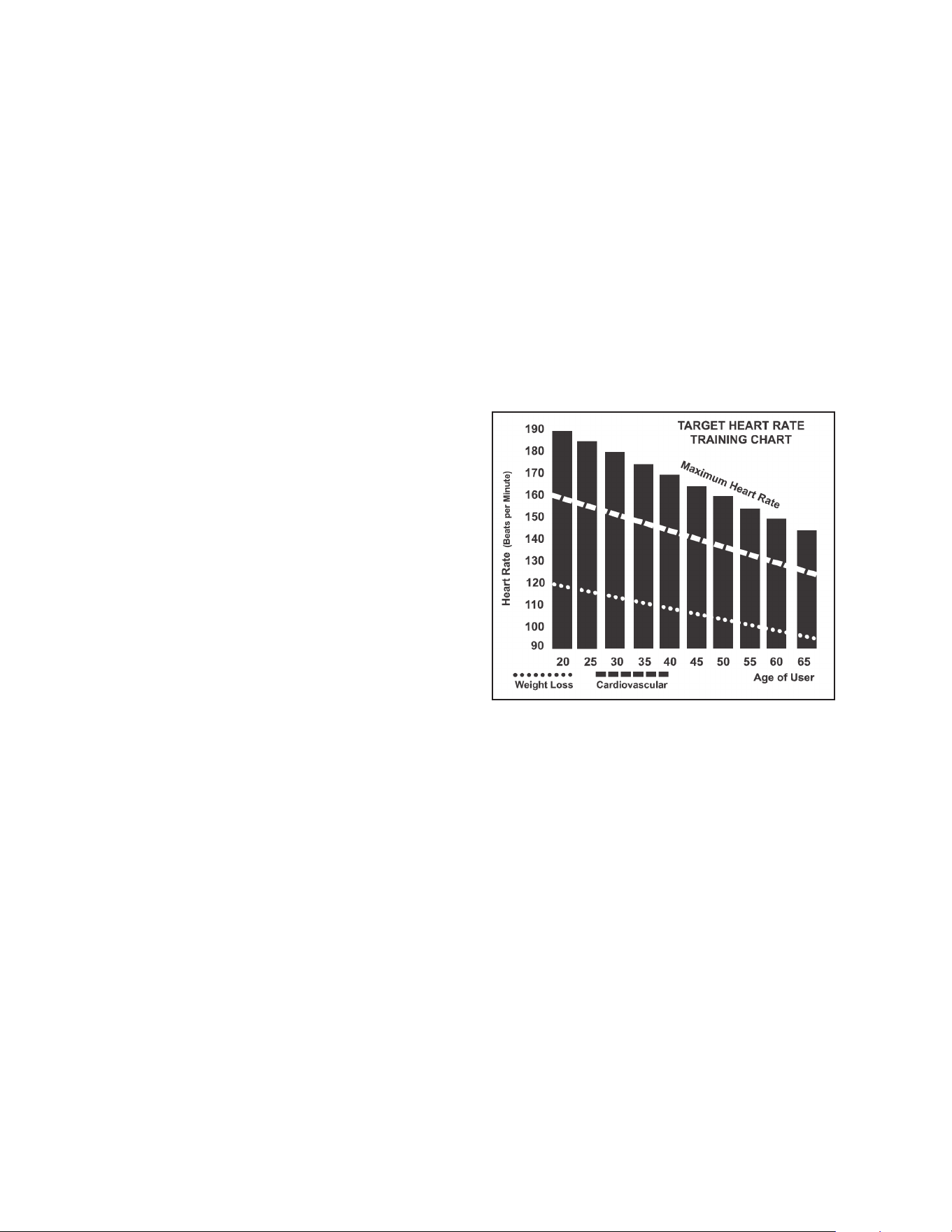

Heart Rate
General Maintenance
Manufacturer’s Limited Warranty
Vacuum Under
Motor Cover &
Check Wiring
(Every Other
Month)
Clean & Inspect Deck
for Lubrication
(Every Other Month)
Lubricate Deck
(Every 90 hours
or sooner if dry)

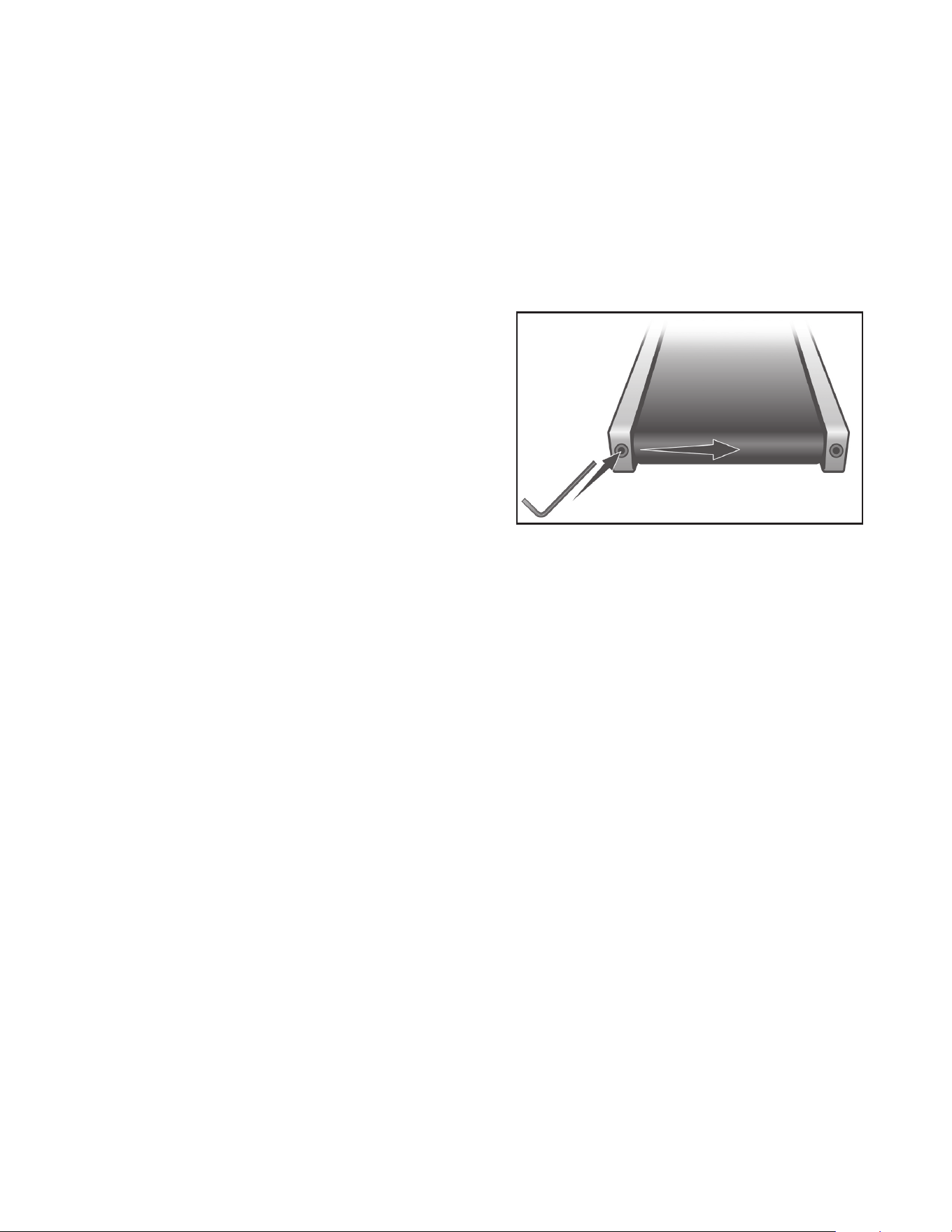

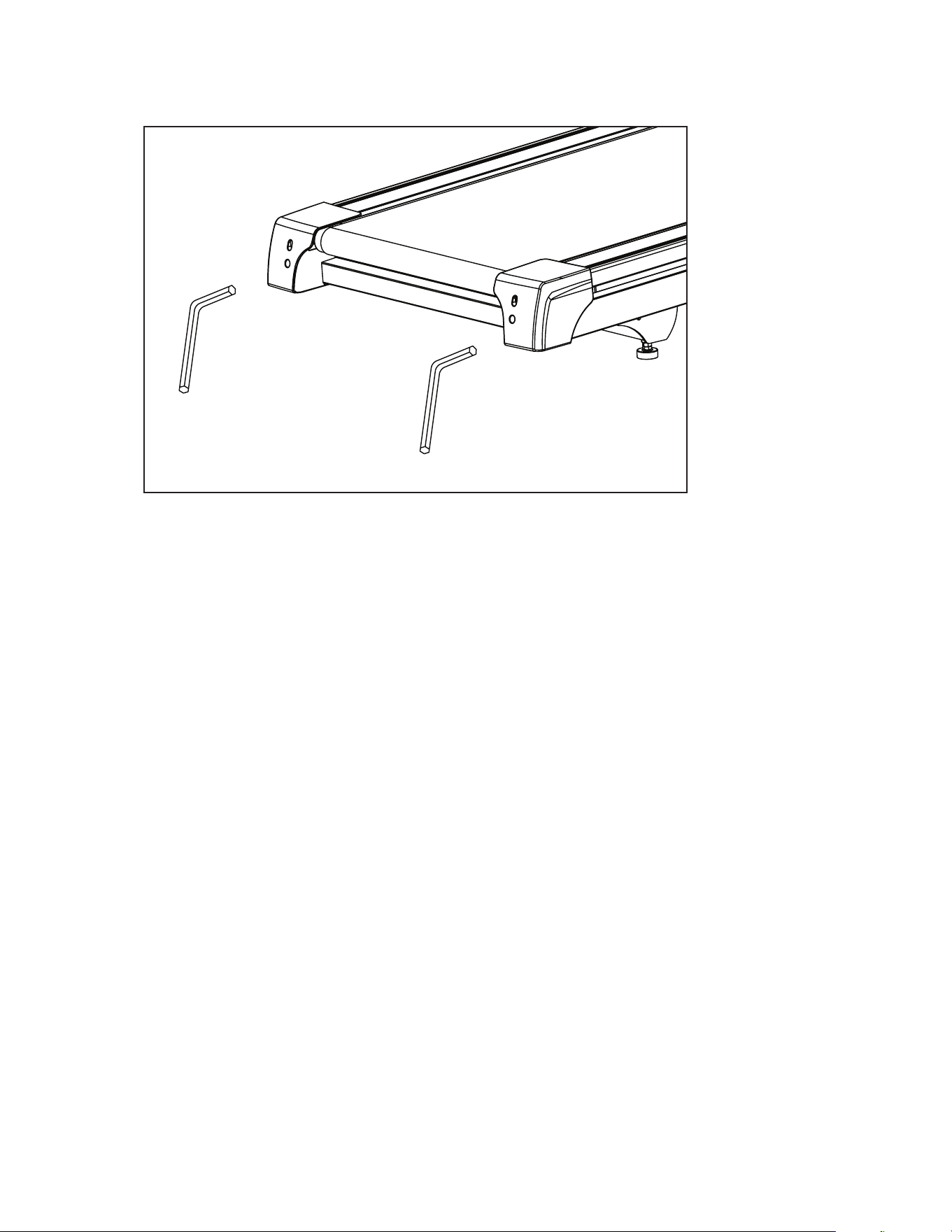

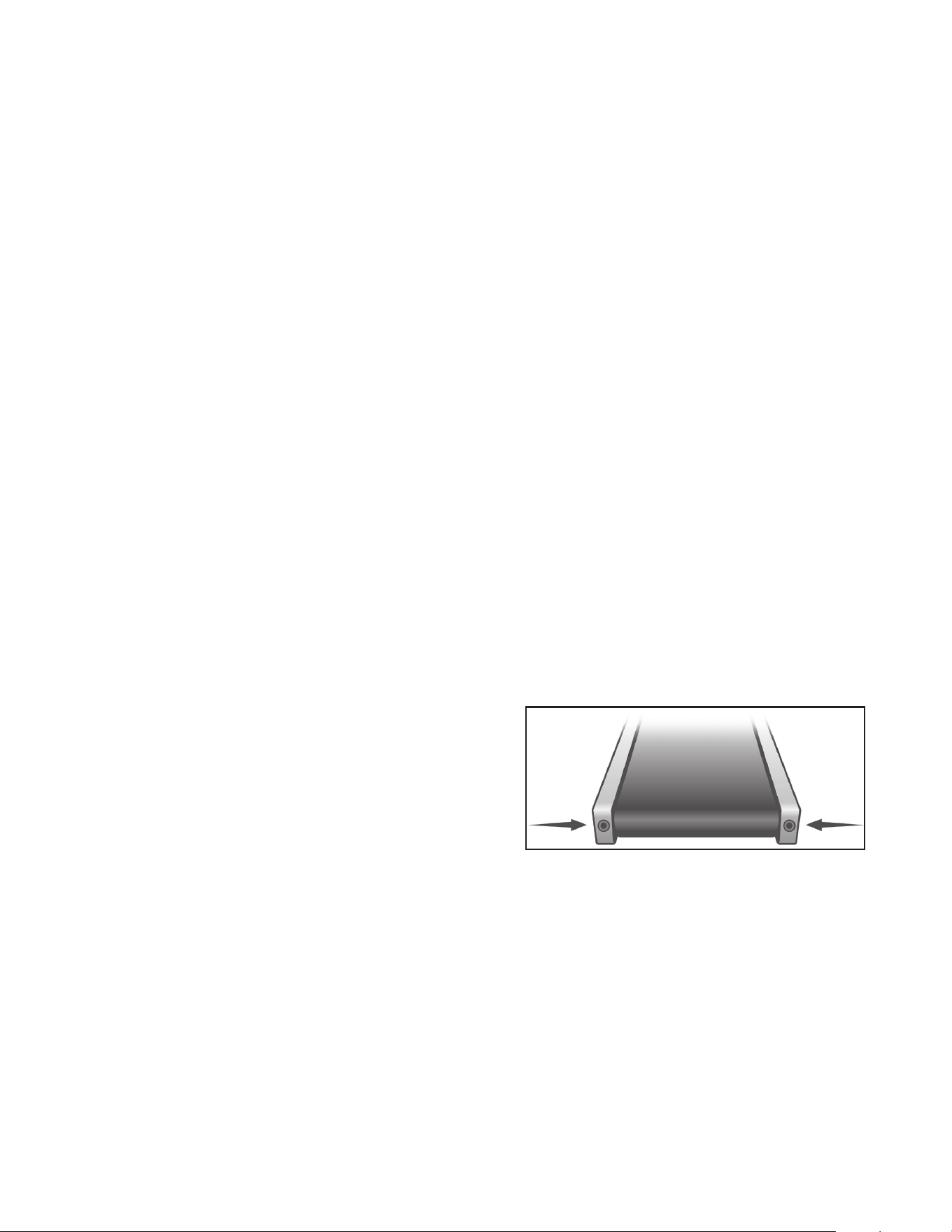

Inspect Belt Tracking
(Monthly) Adjust if
necessary
Date
Preventative Maintenance Chart
TR6.4 Treadmill
1
Record Your Serial Number
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratness.com/warrantyreg.html
to register online.
Thank you for your purchase of this quality treadmill from XTERRA Fitness. Your new
treadmill has been manufactured by one of the leading tness manufacturers in the world
and is backed by one of the most comprehensive warranties available. XTERRA Fitness will
do all we can to make your ownership experience as pleasant as possible for many years
to come. If you have questions, or if parts are missing or damaged, or you require customer
service, call (870) 336-4286. Please have your model number and serial number handy when
you call.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new treadmill.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Treadmill and Welcome to the XTERRA Fitness Family!
Product Registration
TR64_20140214
Purchase Location
Purchase Date
2
TR6.4 Treadmill
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons, install the treadmill on a at
level surface with access to a 120-volt, 15-amp grounded outlet.
DO NOT USE AN EXTENSION CORD UNLESS IT IS 14AWG OR BETTER, WITH ONLY ONE OUTLET ON
THE END. The treadmill should be the only appliance in the circuit in which it is connected. DO NOT ATTEMPT
TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS, OR IN ANY WAY MODIFY THE
CORD SET. A serious shock or re hazard may result along with computer malfunctions.
• To disconnect, turn all controls to the off position, remove tether cord, then remove the plug from the outlet.
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment
may result. You can purchase a oor mat directly from www.xterratness.com.
• Before beginning this or any exercise program, consult a physician. This is especially important for persons
over the age of 35 or persons with pre-existing health conditions.
• Do not block the rear of the equipment. Provide a minimum of 3 1/2 feet clearance between the rear of the
equipment and any xed object.
• Keep hands away from all moving parts.
• Use handrails provided; they are for your safety.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the
accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart
rate trends in general.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
equipment. Quality athletic shoes are recommended to avoid leg fatigue.
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
2. Do not operate under blanket or pillow. Excessive heating can occur and cause re, electric shock, or injury
to persons.
3. Close supervision is necessary when this appliance is used by, on, or near children or disabled persons.
4. Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return the appliance to a service center for examination and
repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the
like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
12. Connect this appliance to a properly grounded outlet only.
13. The appliance is intended for household use.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Fitness Equipment Safety Instructions
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose
yourself (and possibly others) to injury, and reduce the longevity of the equipment.
TR6.4 Treadmill
3
Important Electrical Information
WARNING!
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a
large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including
the elevation mechanism and transport wheels.
NEVER remove any cover without rst disconnecting AC power. If voltage varies by ten percent (10%) or more,
the performance of your treadmill may be affected. Such conditions are not covered under your warranty. If
you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing. See
Diagnosis Guide, page 23.
NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors, near a pool or
spa, or in any other high humidity environment. The temperature specication is 40 degrees celsius, and
humidity is 95%, non-condensing (no water drops forming on surfaces).
Circuit breakers: Some circuit breakers used in homes are not rated for high inrush currents that can occur
when a treadmill is rst turned on or even during normal use. If your treadmill is tripping the house circuit breaker
(even though it is the proper current rating) but the circuit breaker on the treadmill itself does not trip, you will
need to replace the home breaker with a high inrush type. This is not a warranty defect. This is a condition we as
a manufacture have no ability to control. This part is available through most electrical supply stores. Examples:
Grainger part # 1D237, or available online at www.squared.com part # QO120HM.
Grounding Instructions
This product must be grounded. If the treadmill’s electrical system should malfunction or breakdown
grounding provides a path of least resistance for electric current, reducing the risk of electric shock. This
product is equipped with a cord having an equipment-grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product if it will not t the outlet; have a proper outlet
installed by a qualied electrician.

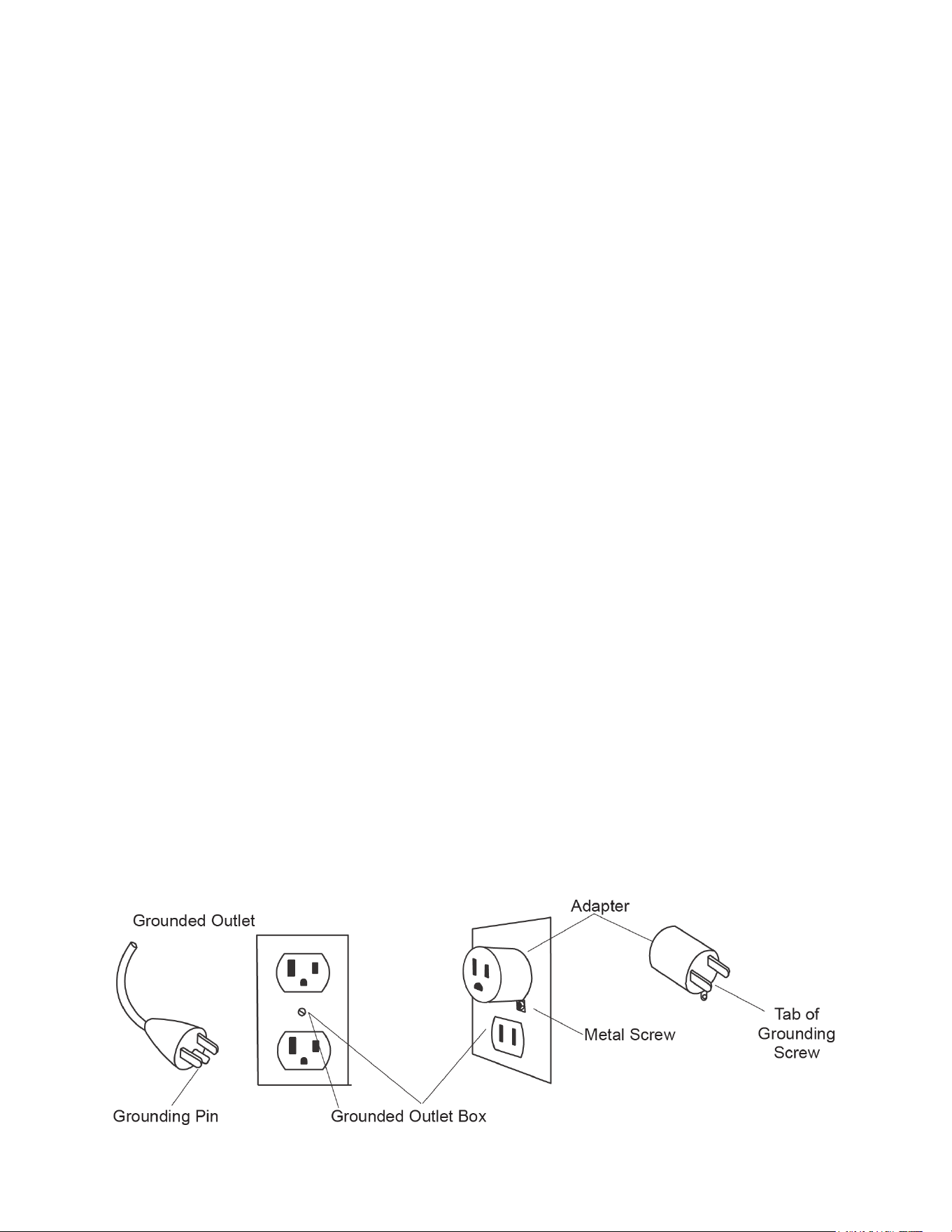

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated
below. A temporary adapter that looks like the adapter illustrated below may be used to connect this plug to a
2-pole receptacle as shown below if a properly grounded outlet is not available. The temporary adapter should
be used only until a properly grounded outlet, (shown below) can be installed by a qualied electrician. The
green colored rigid ear-lug, or the like, extending from the adapter, must be connected to a permanent ground
such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal
screw.
4
TR6.4 Treadmill
Important Operation Instructions
• NEVER operate this treadmill without reading and completely understanding the results of any
operational change you request from the computer.
• Understand that changes in speed and incline do not occur immediately. Set your desired speed on the
computer console and release the adjustment key. The computer will obey the command gradually.
• NEVER use your treadmill during an electrical storm. Surges may occur in your household power
supply that could damage treadmill components.
• Use caution while participating in other activities while walking on your treadmill; such as watching
television, reading, etc. These distractions may cause you to lose balance or stray from walking in the
center of the belt, which may result in serious injury.
• NEVER mount or dismount the treadmill while the belt is moving. XTERRA Fitness treadmills start with
at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the
belt during slow acceleration is proper after you have learned to operate the unit.
• ALWAYS hold on to a handrail or hand bar while making control changes (incline, speed, etc.).
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It
is for your safety should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop
tread-belt movement.
To Use:
1. Place the magnet into position on the round portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note: The magnet has
strong enough power to minimize accidental, unexpected stopping. The clip should be attached
securely to make certain it does not come off. Be familiar with its function and limitations. The
treadmill will stop, depending on speed, with a one to two step coast anytime the magnet is pulled
off the console.
Safety Tether Cord
Remove tether cord after use to prevent unauthorized treadmill operation.
TR6.4 Treadmill
5

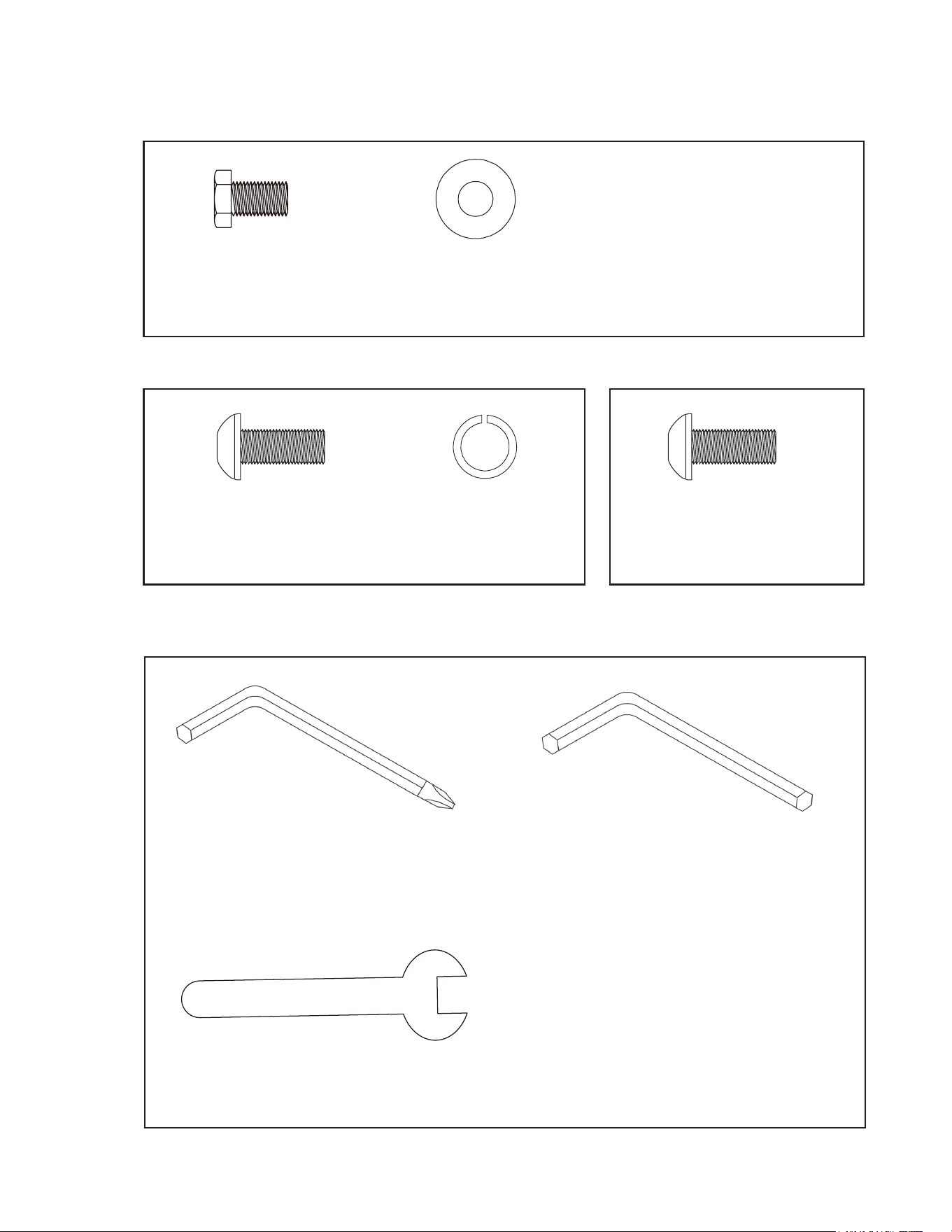

TR6.4 Assembly Pack Checklist
#100. Ø5/16” x Ø18 x 1.5T
Flat Washer
(8 pcs)
#99. 5/16” x 1/2”
Hex Head Bolt
(8 pcs)
Hardware Steps 2
Hardware Steps 3 Hardware Steps 4
#125. 5/16” x 3/4”
Button Head Socket
Bolt (4 pcs)
#125. 5/16” x 3/4”
Button Head Socket
Bolt (4 pcs)
#103. M6 L Allen Wrench
Assembly Tools
#102. Combination M5
Allen Wrench & Phillips
Head Screw Driver
#90. 13mm Wrench
#80.M8 x 1.5T
Split Washer
(4 pcs)
6
TR6.4 Treadmill

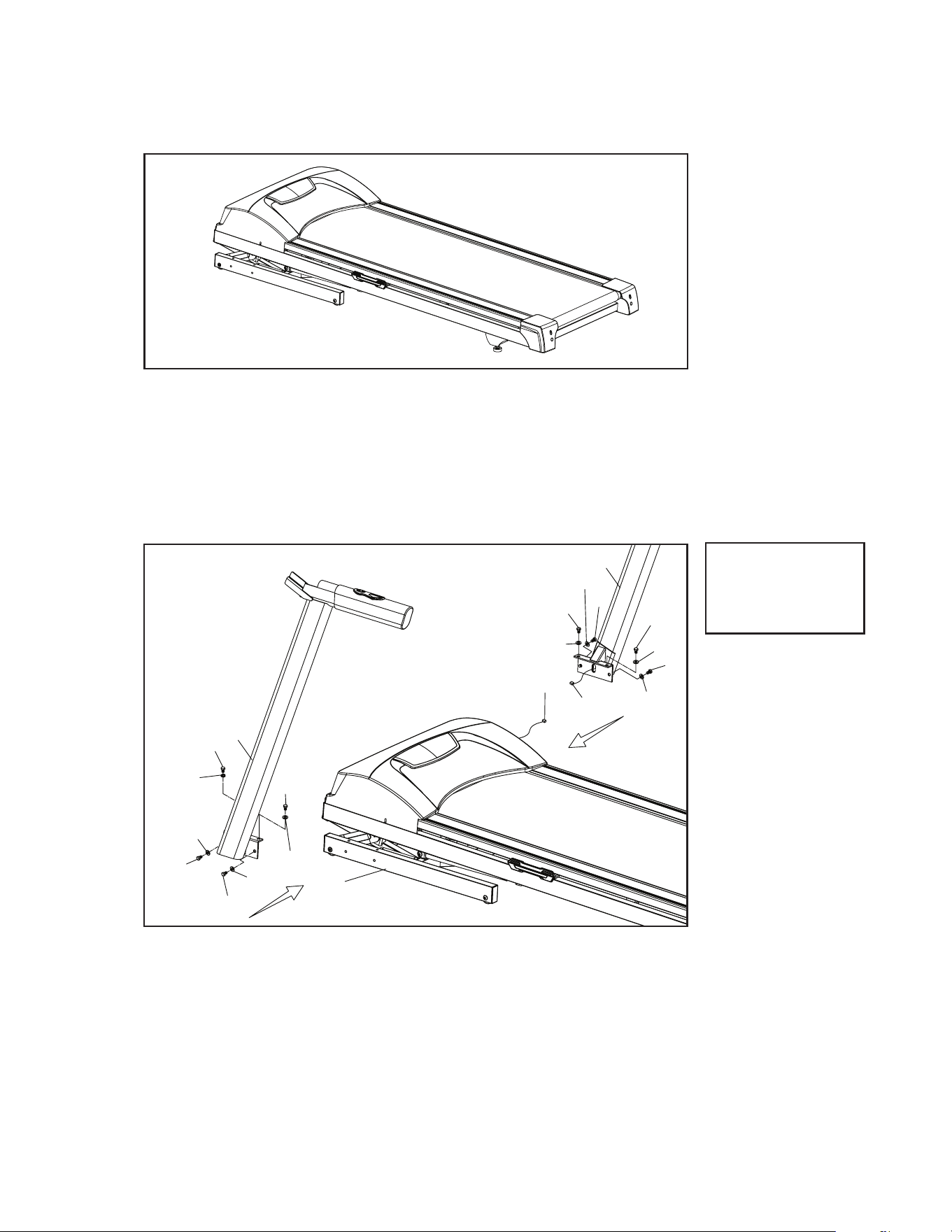

1. Remove all the parts from the carton and lay the Main Base Frame on a
at level surface.
TR6.4 Assembly Instructions
Main Base Frame
1
Uprights & Cables
2
1. Connect the Lower Computer Cable (55) from the frame to the Middle
Computer Cable (54) in the Left Upright (4). Tuck the wire connector
back into the frame so that you pinch the wires. Attach the Left Upright
(4) to the frame with four Hex Head Bolts (99) and four Flat Washers
(100). Tighten with the 13mm Wrench (90).
2. Attach the Right Upright (5) to the Frame Base (2) and use a 13mm
wrench (90) to tighten four Hex Head Bolts (99) and four Flat Washers
(100).
54
55
4
99
99
100
100
99
99
100
100
2
99
100
99
100
99
100
99
100
5
Hardware Step 2
#99. 5/16” x 1/2”
Hex Head Bolt (8 pcs)
#100. Ø5/16” x 18 x 1.5T
Flat Washer (8 pcs)
NOTE: This step may work better with a second person assisting.
TR6.4 Treadmill
7
102
54
53
4
5
21
125
80
125
80
28
162
163
29

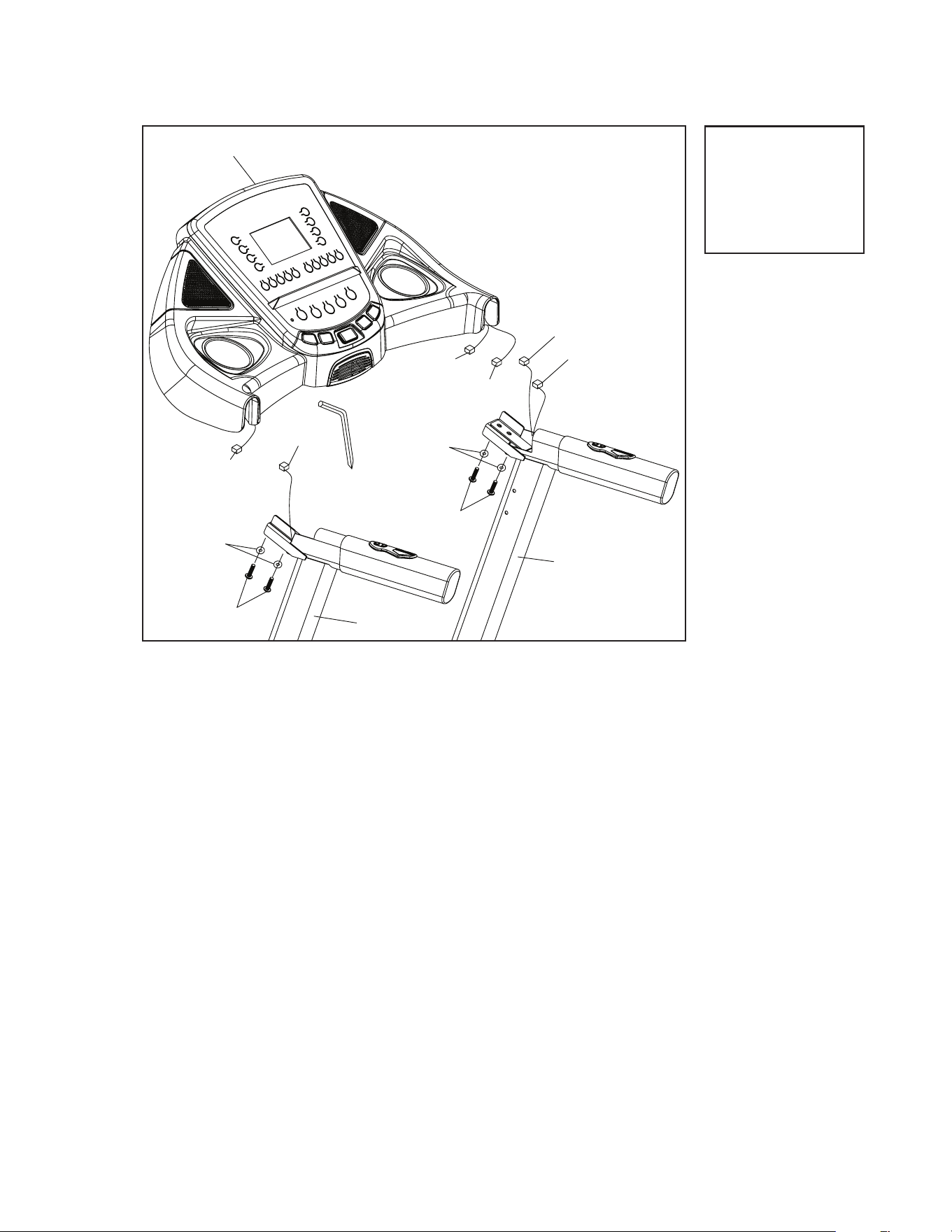

Console
3
1. Connect the Middle Computer Cable (54) to the Upper Computer Cable
(53).
2. Connect the Speed Cable (162) and Speed/Hand Pulse Complex (28).
3. Connect the Incline Cable (163) and Incline/Hand Pulse Complex (29).
4. Being careful not to pinch the Computer Cables, set the Console
Assembly (21) into place on the Left and Right Uprights (4) and (5).
Secure with four Button Head Socket Bolts (125) and four Split Washers
(80) by using the combination M5 Allen Wrench and Phillips Head Screw
Driver (102) to tighten.
Hardware Step 3
#80. Ø8mm x 1.5T
Split Washer
(4 pcs)
#125. 5/16” x 3/4”
Button Head Socket
Bolt (4 pcs)
NOTE: This step may work better with a second person assisting.
8
TR6.4 Treadmill

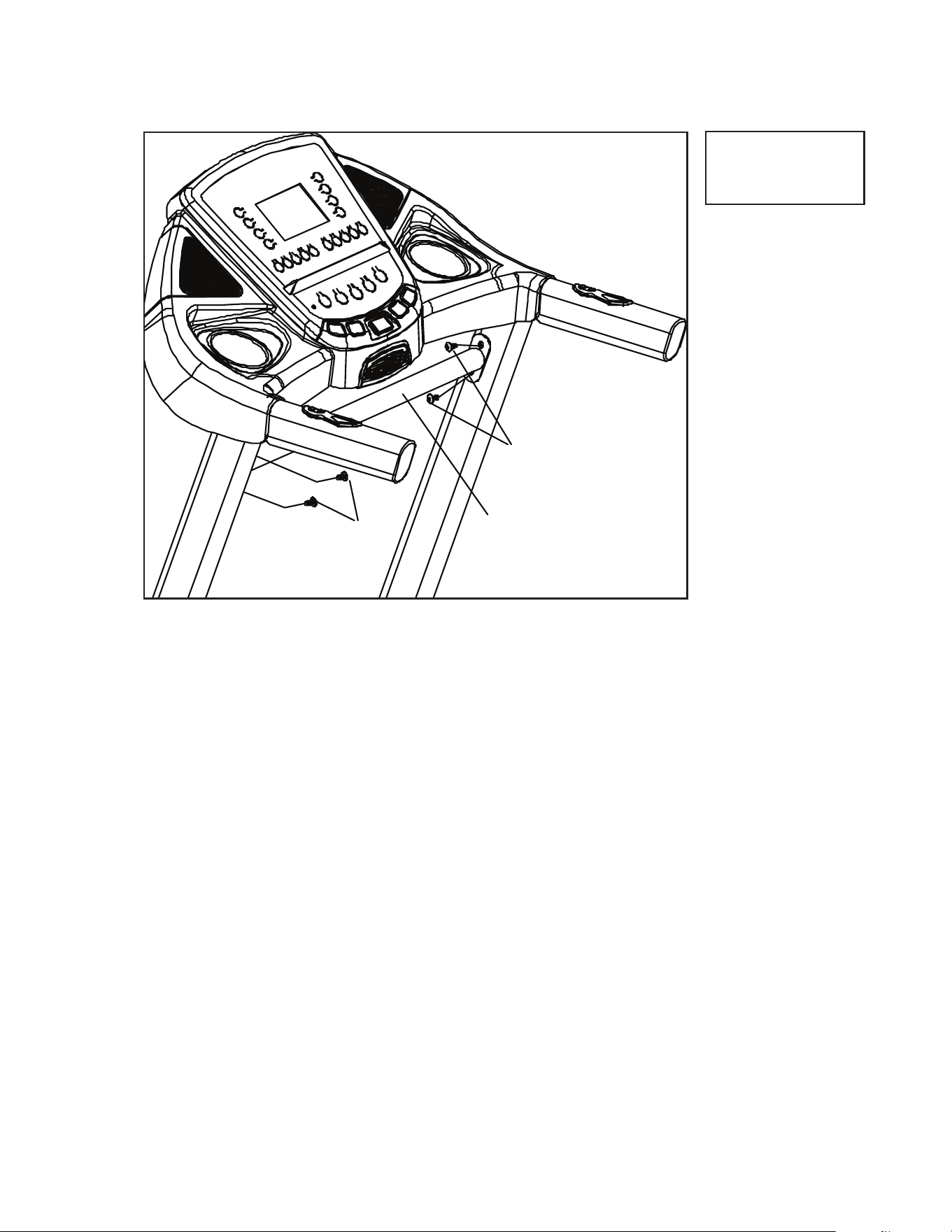

Console Mast Support
4
1. Install Console Mast Support (9) between Left and Right Uprights (4)
and (5). Use the combination M5 Allen Wrench and Phillips Head Screw
Driver (102) to tighten four Button Head Socket Bolts (125).
125
125
9
Hardware Step 4
#125. 5/16” x 3/4”
Button Head Socket
Bolt (4 pcs)
TR6.4 Treadmill
9
Final Process
5
1. The nal step will be to plug the power cord into the treadmill and the
other end into the wall outlet. Flip the power switch, located near the
power cord on the treadmill, to the ON position. Make sure the Safety
Tether Cord is properly attached and in place and press START.
2. The belt tension should be set correctly out of the box. If you notice the
belt slipping while you step on it or sliding to the side, it will need to be
adjusted. Follow the procedures listed in the Treadbelt Tracking
Adjustment Section near the end of this manual to make the proper
adjustments.
103
103
10
TR6.4 Treadmill
The treadmill is equipped with four transport wheels that are engaged when the treadmill is
folded. After folding simply roll the treadmill away.
CAUTION: Do not attempt to move the unit unless it is in the folded and locked position.
Remove the power cord from the front of the unit to avoid possible damage. Use both
handrails to maneuver the unit to the desired position.
Transportation Instructions
TO FOLD THE TREADMILL
Make certain the treadmill is at minimum incline. Lift the treadmill running deck until it is
secured by the locking telescoping tube assembly on the right side of the base. You will
hear it pop into place when secure.
TO UNFOLD THE TREADMILL
Apply slight forward pressure* on the treadmill running deck with your left hand. Pull out
on the round knob and slowly lower the running deck to the oor. The deck will lower
unassisted when it reaches about waist high.
*At the rear roller area to relieve pressure on the locking system.
Folding Instructions
TR6.4 Treadmill
11
Operation of Your Treadmill
TR6.4 Console
Power the treadmill on by plugging it into an appropriate wall
outlet, then turn on the power switch located at the front of
the treadmill below the motor hood. Ensure that the safety
key is installed, as the treadmill will not operate without it.
When the power is turned on, a message will scroll across
the dot matrix showing the current software version. The
treadmill will then enter idle mode, which is the starting point
for operation.
Getting Started
Integrated
Speakers for
MP3 player
Large LCD
with feedback
and scrolling
message center
Turbo Fan to
keep you cool
Convenient water
bottle holder and
cargo compartment
for phone or MP3 player
Audio Input
Jack for
customized
listening
12
TR6.4 Treadmill
1. When the treadmill is running the pause feature may be utilized by pressing the red Stop
key once. This will slowly decelerate the tread-belt to a stop. The incline will go to zero
percent. The Time, Distance and Calorie readings will hold while the unit is in the pause
mode. After ve minutes the display will reset and return to the start up screen.
2. To resume your exercise, when in Pause mode, press the Start key. The speed and in-
cline will return to their previous settings.
• Pause is executed when the Stop key is pressed once. If the Stop key is pressed a
second time, the program will end and a workout summary will be displayed. If the
Stop key is pressed a third time, the console will return to the idle mode (start up)
screen. If the Stop key is held down for more than three seconds the console will re-
set.
Pause/Stop/Reset Feature
1. Attach the Safety key to enable the display (if not already on).
2. Press the Start key to begin belt movement. Adjust to the desired speed using the Speed
5/6 keys (console or handgrip). You may also use the Quick Speed keys 2 through 10
to adjust the speed.
3. To slow tread-belt press and hold the Speed 6 key (console or handgrip) to the desired
speed. You may also press the Quick Speed keys 2 through 10.
4. To stop the tread-belt press the Stop key or pull away Safety key.
Quick-Start Operation
• Incline may be adjusted anytime after belt movement.
• Press and hold the Incline 5/6 keys on the left hand side (console or handgrip) to
achieve desired level of effort. You may also choose a quicker incline change by using the
Quick Incline keys on the left side of the console.
• The display will indicate incline position as adjustments are made.
Incline Feature
The dot matrix display is 18 columns wide by 8 rows high. The columns represent the seg-
ments of your workout. The rows give a visual picture of the intensity level, but do not neces-
sarily indicate a specic value. In operation the Speed / Incline dot matrix window will build a
prole “picture” as values are changed during a workout.
When the Speed indicator (which is above dot matrix) is lit the dot matrix displays the Speed
prole and when the Incline indicator is lit the dot matrix displays the Incline prole. You may
change the dot matrix prole view that you desire by pressing the Display key.
The Display key allows you to change views between the Incline prole, the Speed prole,
and Incline + Speed. After using the Display key to completely scroll through these options,
the console will automatically scroll through the options showing each option for ve seconds.
Dot Matrix Center Display (Program Operation)
TR6.4 Treadmill
13
The 1/4-mile track will be displayed around the dot matrix window. The ashing dot indicates
your progress. Once the 1/4-mile is complete the next lap will begin. The number of
completed laps is displayed in the Laps window.
1/4 Mile Track
The Pulse (Heart Rate) readout will display your current heart rate in beats per minute
during the workout. You must use both stainless steel sensors on the side hand rails to
display your pulse. Pulse value displays anytime the upper display is receiving a Pulse
signal.
Pulse Grip Feature
Displays the cumulative calories burned at any given time during your workout.
Note: This is only a rough guide used for comparison of different exercise sessions, which
cannot be used for medical purposes.
Calorie Display
1. Display will automatically turn off (go to sleep) after 30 minutes (no key operations). The
treadmill will draw very little current in sleep mode (about as much as your television when
it is turned off).
2. Remove tether cord.
3. Turn of the main switch on the front of the treadmill, below the motor cover.
To Turn Treadmill Off
Attention
Your new console comes congured in an in-store ‘Display Mode’ of operation, where the
console will remain powered on unless the main power switch is turned off. To exit the display
mode, for normal operation, press and hold the Stop, Enter and Display keys for 5 seconds;
the display will show: Display mode - On. Use the Incline 5/6key or the Speed 5/6key to
change the setting to Off then press Enter.
14
TR6.4 Treadmill
Preset Program Proles
Ascent - Work Ascent - Incline
Glute Blast - Work Glute Blast - Incline
Adventure - Work Adventure - Incline
Xtreme - Work Xtreme - Incline
Interval - Work Interval - Incline
TR6.4 Treadmill
15
Programmable Features
The TR6.4 Treadmill has ve factory preset programs, two user dened programs and one
manual program.
To Select and Start a Preset Program
1. Press the desired program key. Press Enter to select the program. The display will prompt
you through the programming or you can just press Start to begin the program with de-
fault values.
2. If Enter was pressed, the Display will now be blinking a value, indicating your Age (default
is 35). Entering your correct age affects the Heart Rate Bar Graph Display and the Heart
Rate programs. Use the 5/6 keys to adjust, then press Enter. (Note: You may press
Start at any time during the programming to start the program.)
3. The Display will now be blinking a value, indicating your Body Weight (default is 150 lbs.).
Entering the correct body weight will affect the calorie count. Use the 5/6 keys to adjust,
then press Enter.
A note about the Calorie display: No exercise machine can give you an exact calorie
countbecause there are too many factors which determine exact calorie burn for a
particular person. Even if someone is the exact same body weight, age and height, their
calorie burn may be very different than yours. The Calorie display is to be used as a
reference only to monitor improvement from workout to workout.
4. The Display will be blinking a value, indicating Time (the default value is 30 minutes). You
may use any of the 5/6 keys to adjust the time. After adjusting, or to accept the default,
press Enter. (Note: You may press Start at any time during the programming to start the
program).
5. The Display will now be blinking the preset top speed of the selected program (3 mph or
5 kph). Use the Speed 5/6 keys to adjust, then press Enter. Each program has vari-
ous speed changes throughout; this allows you to limit the highest speed the program can
reach.
6. The Display will be blinking the preset top incline of the selected program (3.0%). Use the
Incline 5/6 keys to adjust, then press Enter.
You are now done programming data and may press Start to begin your workout or Enter to
go back one level to change data entered in the programming phase.
16
TR6.4 Treadmill
1. Select User 1 or User 2 via the Program key then press Enter. Note that the dot matrix will
show a single row of dots at the bottom of the display (Unless there is a previously stored
program).
If there is a program stored under the key that is pressed, it will be retrieved. If not, you
have the option of programming in your rst name. The Display will ash the letter ”A” . To
change it, press the 5 key, then “B” will be displayed; if the 6 key is pressed, the letter
“Z” will be displayed. After selecting the appropriate letter, press enter. The letter “A” will
again be displayed and blinking. Repeat the procedure until all letters of your rst name
are programmed (7 characters maximum). When your name is displayed, press Stop and
it will be stored under either User 1 or User 2.
2. If Enter was pressed, the Display will now be blinking a value, indicating your Age (default
is 35). Entering your correct age affects the Heart Rate Bar Graph Display and the Heart
Rate programs. Use the 5/6 keys to adjust, then press Enter. (Note: You may press
Start at any time during the programming to start the program.)
3. The Display will now be blinking a value, indicating your Body Weight (default is 150 lbs.).
Entering the correct body weight will affect the calorie count. Use the 5/6 keys to adjust,
then press Enter.
4. The Display will be blinking a value, indicating Time (the default value is 30 minutes). You
may use any of the 5/6 keys to adjust the time. After adjusting, or to accept the default,
press Enter. (Note: You may press Start at any time during the programming to start the
program).
5. The Display will now be blinking the preset top speed of the selected program (0.5 mph or
0.8 kph). Use the Speed 5/6 keys to adjust, then press Enter. Each program has vari-
ous speed changes throughout; this allows you to limit the highest speed the program can
reach.
6. The Display will be blinking the preset top incline of the selected program (0%). Use the
Incline 5/6 keys to adjust, then press Enter.
You are now done programming data and may press Start to begin your workout or Enter to
go back one level to change data entered in the programming phase.
User Programs
TR6.4 Treadmill
17
The old motto, “no pain, no gain”, is a myth that has been overpowered by the benets of
exercising comfortably. A great deal of this success has been promoted by the use of heart rate
monitors. With the proper use of a heart rate monitor, many people nd that their usual choice of
exercise intensity was either too high or too low and exercise is much more enjoyable by
maintaining their heart rate in the desired benet range.
To determine the benet range in which you wish to train, you must rst determine your predicted
Maximum Heart Rate. This can be accomplished by using the following formula: 220 minus your
age. This will give you the predicted Maximum Heart Rate (MHR) for someone of your age. To de-
termine the effective heart rate range for specic goals you simply calculate a percentage of your
MHR. Your heart rate training zone is 50% to 90% of your maximum heart rate. Training at 60% of
your maximum heart rate is recommended for burning fat, while training at 80% of your maximum
heart rate is recommended for strengthening your cardiovascular system.
For someone who is 40 years old their
predicted target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute
(60% of maximum)
180 X .8 = 144 beats per minute
(80% of maximum)
So for a 40 year old the training zone would be
108 to 144 beats per minute.
After calculating your MHR you can decide upon
which goal you would like to pursue.
The two most popular reasons for exercise are
cardiovascular tness (training for the heart and lungs) and weight control. The black columns on
the chart above represent the MHR for a person whose age is listed at the bottom of each column.
The training heart rate, for either cardiovascular tness or weight loss, is represented by two lines
that cut diagonally through the chart. A denition of the lines’ goal is in the bottom left-hand cor-
ner of the chart. Whether your goal is weight loss or cardiovascular tness, it can be achieved by
training between 60% and 80% of your MHR. Consult your physician before participating in any
exercise program.
Heart Rate
18
TR6.4 Treadmill
Heart rate is important but listening to your body also has a lot of advantages. There are more
variables involved in how hard you should workout than just heart rate. Your stress level,
physical health, emotional health, temperature, humidity, the time of day, the last time you ate
and what you ate, all contribute to the intensity at which you should workout. If you listen to
your body, it will tell you all of these things.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by
Swedish physiologist G.A.V. Borg. This scale rates exercise intensity from 6 to 20
depending upon how you feel or the perception of your effort.
The scale is as follows:
Rating Perception of Effort
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
You can get an approximate heart rate level for each rating by simply adding a zero to each
rating. For example a rating of 12 will result in an approximate heart rate of 120 beats per
minute. Your RPE will vary depending up the factors discussed earlier. That is the major
benet of this type of training. If your body is strong and rested, you will feel strong and your
pace will feel easier. When your body is in this condition, you are able to train harder and the
RPE will support this. If you are feeling tired and sluggish, it is because your body needs a
break. In this condition, your pace will feel harder. Again, this will show up in your RPE and
you will train at the proper level for that day.
Rate of Perceived Exertion
TR6.4 Treadmill
19
Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important
though for joggers and runners in order to provide a smooth, steady running surface. Adjust-
ment must be made from the rear roller with the 6mm Allen wrench provided in the parts
package. The adjustment bolts are located at the end of the step rails as shown in the dia-
gram below.
Tighten the rear roller only enough to prevent
slippage at the front roller. Turn the tread-belt
tension adjusting bolts 1/4 turn each and inspect
for proper tension by walking on the belt and
making sure it is not slipping or hesitating with
each step. When an adjustment is made to the
belt tension, you must be sure to turn the bolts on
both sides evenly or the belt could start tracking to
one side instead of running in the middle of the deck.
DO NOT OVERTIGHTEN – Over tightening will cause belt damage and premature bearing
failure. If you tighten the belt a lot and it still slips, the problem could actually be the drive belt
- located under the motor cover - that connects the motor to the front roller. If that belt is loose
it feels similar to the walking belt being loose. Tightening the motor belt should be done by a
trained service person.
Belt and Deck - Your treadmill uses a very high-efcient low-friction deck. Performance is
maximized when the deck is kept as clean as possible. Use a soft, damp cloth or paper towel
to wipe the edge of the belt and the area between the belt edge and frame. Also reach as
far as practical directly under the belt edge. This should be done once every other month to
extend belt and deck life. Use water only - no cleaners or abrasives. A mild soap and water
solution along with a nylon scrub brush will clean the top of the textured belt. Allow the belt
to dry before using.
Belt Dust - This occurs during normal break-in or until the belt stabilizes. Wiping excess off
with a damp cloth will minimize buildup.
General Cleaning - Dirt, dust, and pet hair can block air inlets and accumulate on the running
belt. On a monthly basis: vacuum underneath your treadmill to prevent buildup. Every other
month, you should remove the black motor hood and carefully vacuum out dirt that may
accumulate. UNPLUG POWER CORD BEFORE THIS TASK.
There is a maintenance schedule/chart included under the Table of Contents for convenient
record keeping.
Belt Adjustments
General Maintenance
20
TR6.4 Treadmill
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It
is normal for some belts to drift near one side while in use, depending on a user’s gait and if
they favor one leg. But if during use the belt continues to move toward one side, adjustments
are necessary.
SETTING TREAD-BELT TRACKING
An 6mm Allen wrench is provided for this adjustment. Make tracking adjustments on the left
side bolt. Set belt speed at 3 mph. Be aware that a small adjustment can make a dramatic
difference which may not be apparent right away.
If the belt is too close to the left side, then turn
the bolt only a 1/4 turn to the right (clockwise) and
wait a few minutes for the belt to adjust itself.
Continue to make 1/4 turns until the belt
stabilizes in the center of the running deck.
If the belt is too close to the right side, turn the
bolt counter-clockwise. The belt may require
periodic tracking adjustment depending on use
and walking/running characteristics. Some users may affect tracking differently. Expect to
make adjustments as required to center the tread-belt. Adjustments will become less of a
maintenance concern as the belt is used. Proper belt tracking is an owner responsibility
common with all treadmills.
ATTENTION
Damage to the running belt resulting from improper tracking / tension adjustments is not
covered under the XTERRA Fitness warranty.
Treadbelt Tracking Adjustment
TR6.4 Treadmill
21
Belt/Deck Lubrication Procedure
First, you want to clean between the belt and deck to remove any debris that may be trapped.
Use a clean, non-fraying rag, t-shirt, or light towel. Halfway between the end of the treadmill
and motor cover, shove the garment under the belt until you can grasp it on both sides of the
belt. Drag the garment the length of the entire belt 1-2 times. Remove the garment.
Do not lubricate with anything other than XTERRA Fitness approved lubricant. Your treadmill
comes with one tube of “Lube” and extra tubes can be ordered directly from
www.xterratness.com.
Keeping the deck lubricated at the recommended intervals ensures the longest life possible
for your treadmill. If the lubricant dries out, the friction between the belt and deck rises and
places undue stress on the drive motor, drive belt and electronic motor control board, which
could result in failure of these components. Failure to lubricate the deck at regular intervals
may void the warranty.
The belt & deck come pre-lubricated and subsequent lubrication should be performed every
90 hours of use or if you notice that the deck is dry. It is recommended that you reach be-
tween the belt and deck to verify there is lubrication present, every other month. If you check
and there isn’t any lubrication present, follow the procedure below even though the “Lube”
indicator isn’t lit on the console. Otherwise, lubricate when the console’s lubrication reminder
lights after 90 hours of use. Use the following procedure to apply the silicone lubricant:
1. Turn the power switch off and unplug the power cord from the wall outlet
2. Measure 18” from the edge of the motor cover; kneel down and reach under the belt
approximately 4- 6” from one edge. Squirt a line of lubricant about 1/8” wide x 15” long
in an “S” pattern perpendicular to the motor cover.
3. Repeat the process on the opposite side.
4. Plug the electrical cord back into the outlet and turn the power switch on.
5. Walk on the belt at a moderate speed for ve minutes to evenly distribute the silicone
lube.
6. Note: If the “Lube” message appears on the console, perform the following procedure to
reset the message:
1. To enter the Engineering Mode Menu press and hold down the Start, Stop and
Enter keys, then at the same time insert the safety key. Keep holding the keys down
until the Display displays Engineering Mode Menu. Press the Enter key to access
2. Press the Speed 5 key (or Speed 6 key to go backwards) until “Functions”
appears; press Enter
3. Press the Speed 5 key until “Reset Lube” message appears; press Enter
4. Press Stop to exit Engineering mode and resume use of your treadmill
22
TR6.4 Treadmill
Service Checklist - Diagnosis Guide
Before contacting us for aid, please review the following information. It may save you both time and expense.
This list includes common problems that may not be covered under the treadmill’s warranty.
1. Tether cord not in position.
2. Circuit breaker on front grill tripped.
Push circuit breaker in until it locks.
3. Plug is disconnected. Make sure plug is rmly pushed
into 115 VAC wall outlet.
4. Breaker panel circuit breaker may be tripped.
5. Treadmill defect. Contact XTERRA Fitness.
Display does not light
Tread-belt does not stay centered
Treadmill belt hesitates when
walked/run on
The user may be walking while favoring or putting more
weight on either the left or right foot. If this
walking pattern is natural, track the belt slightly
off-center to the side opposite from the belt
movement. See General Maintenance section on
Tread-belt Tension. Adjust as necessary.
1. If the belt moves, but stops after a short time and thedis
-
play shows “LS”, run calibration.
2. If you press Start and the belt never moves, then the
display shows LS, contact service.
Motor is not responsive after
pressing Start
Treadmill will only achieve
approximately 7 mph but shows higher
speed on display
This indicates motor should be receiving power to
operate. Low AC voltage to treadmill. Do not use an
extension cord. If an extension cord is required it should be
as short as possible and heavy duty 16 gauge minimum.
Low voltage. Contact an electrician or XTERRA Fitness. A
minimum of 110 volt AC current is required.
High belt/deck friction. See General Maintenance section
on cleaning the deck. If cleaning doesn’t prevent this from
reoccurring, check to see if there is signicant wear of the
deck. If so, the deck may need to be ipped if it is on its
original side
Tread-belt stops quickly/suddenly
when tether cord is pulled
High belt/deck friction. See General Maintenance. If
cleaning doesn’t prevent this from reoccurring, check the
amp draw of the motor. If this is high and there are signs of
signicant wear of the deck, it may need to be ipped if it is
on its original side
Treadmill trips on board 15 amp circuit
Treadmill may not be grounded. Static electricity is
“crashing” the computer. Refer to Grounding
Instructions on page 3.
Computer shuts off when console is
touched (on a cold day) while
walking/running
Need to replace the breaker with a “High In-rush
current” type breaker (see page 3 for details)
Circuit breaker trips, but not the
treadmill circuit breaker
Problem Solution/Cause
TR6.4 Treadmill
23
Error Messages
LS: The treadmill hasn’t received a speed signal for 8 seconds.
E1: Console memory malfunction or CPU problem.
E2: Incline position error.
If you want to set the Speed and Distance to Metric or if there is a problem with the speed
and you would like to perform the calibration procedure, use the Engineering Mode. To enter
Engineering Mode press, and hold for 5 seconds, the Start and Speed 5 keys while
installing the safety key. All the segments will light then the message window will display
software versions and tell you to press Enter.
• The display will ask for grade return. This will reset the incline to zero, when set to ON,
when you stop a program.
• The message window will now be showing the setting for English (miles) or Metric
(Kilometers) Use the 5/6 keys to select and press Enter
• The message window will ask to adjust the wheel size for calibration. Enter 63.
• The display will show a number for the lowest speed setting (for miles the number should
be 0.5). Adjust the low speed setting with the 5/6 keys and press Enter.
• The display will show a number for the top speed setting (for Miles it should be 12.0).
• The display will ask for top incline setting, enter 15.
• Press Start to begin calibration. This is an automatic process, the belt will move and
change speeds without warning. Be Careful! When calibration is done, the console will
return to the start-up screen
Engineering Mode
24
TR6.4 Treadmill
Manufacturer’s Limited Warranty
Effective August 1, 2012 - TREADMILL LIMITED WARRANTY
XTERRA Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by
a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s
responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent
dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by XTERRA
Fitness directly to a consumer. The warranty period applies to the following components:
Home Use Limited Warranty
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use. The consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase
to validate the manufacturer’s limited warranty or register online at http://www.xterratness.com/warrantyreg.html.
2. Proper use of the treadmill in accordance with the instructions provided in this manual, including maintenance.
3. Proper connection to a power supply of sufcient voltage, replacement of blown fuses, repair of loose connections or defects in house/
facility wiring.
4. Expenses for making the treadmill accessible for servicing, including any item that was not part of the treadmill at the time it was
shipped from the factory.
5. Damages to the treadmill nish during shipping, installation or following installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion
or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period,
for treadmills not requiring component replacement, or treadmills not in ordinary household use.
3. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies, use of parts other than
original XTERRA Fitness parts, or external causes such as alterations, modications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been; sold, transferred, bartered, or given to a third party.
6. Products that are used as store display models.
7. Products that do not have a warranty registration on le at XTERRA Fitness, Inc. XTERRA Fitness reserves the right to request proof of
purchase if no warranty record exists for the product.
8. Product use in any environment other than a residential setting.
9. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 336-4286.
4. XTERRA Fitness’s obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’s option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. For in-home service, the customer
will be responsible for a trip charge. There will be an additional trip charge if the customer is located over 100 miles from the nearest
service center.
5. The owner is responsible for adequate packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages in
shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT
A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by
XTERRA Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Frame & Motor
Lifetime
Deck
3 Years
Parts
1 Years
Labor
1 Year
www.xterrafitness.com
©2014 All RIghts Reserved. TR6.4 Owner’s Manual
3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611
