TRX1400
TREADMILL
T3
紙箱線條圖(無緩衝座)
Scan to quickly and easily
register your new XTERRA
Fitness machine.
If you require assistance or are
experiencing issues with your
XTERRA Machine, please contact
customer care for additional help.
1-800-258-8511
questions@xterratness.com
Online Support
Warranty Registration
2
Table of Contents
Product Registration .........................................................3
Warning / Safety Instructions
Product Labels .....................................................................4
Safety Instructions .............................................................5
Electrical Safety .................................................................. 6
Grounding & Location Requirements ........................... 7
Parts and Assembly

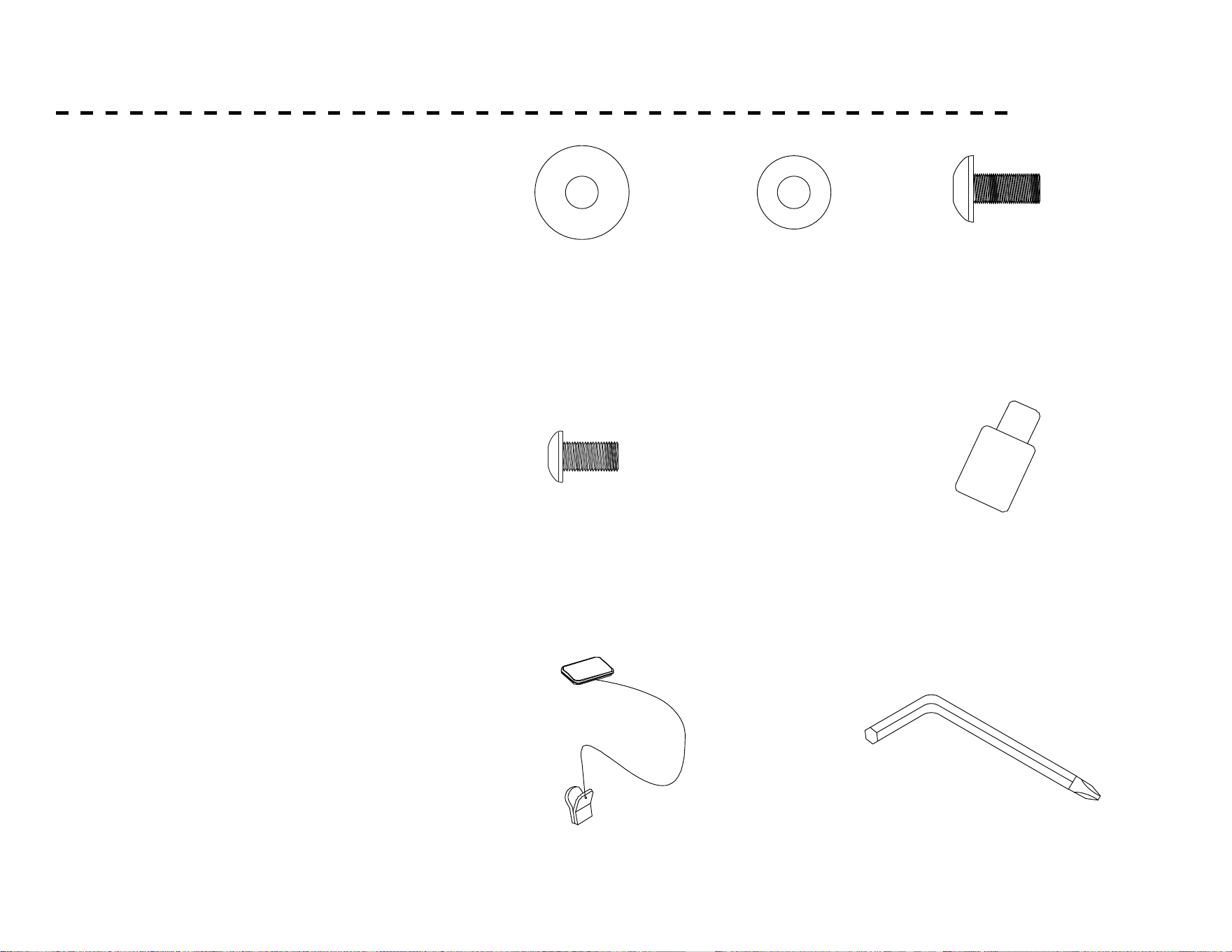

Parts Included ..................................................................... 8
Pre-Assembly ...................................................................... 9
Assembly ............................................................................. 10
Setting Up Your Unit ........................................................14

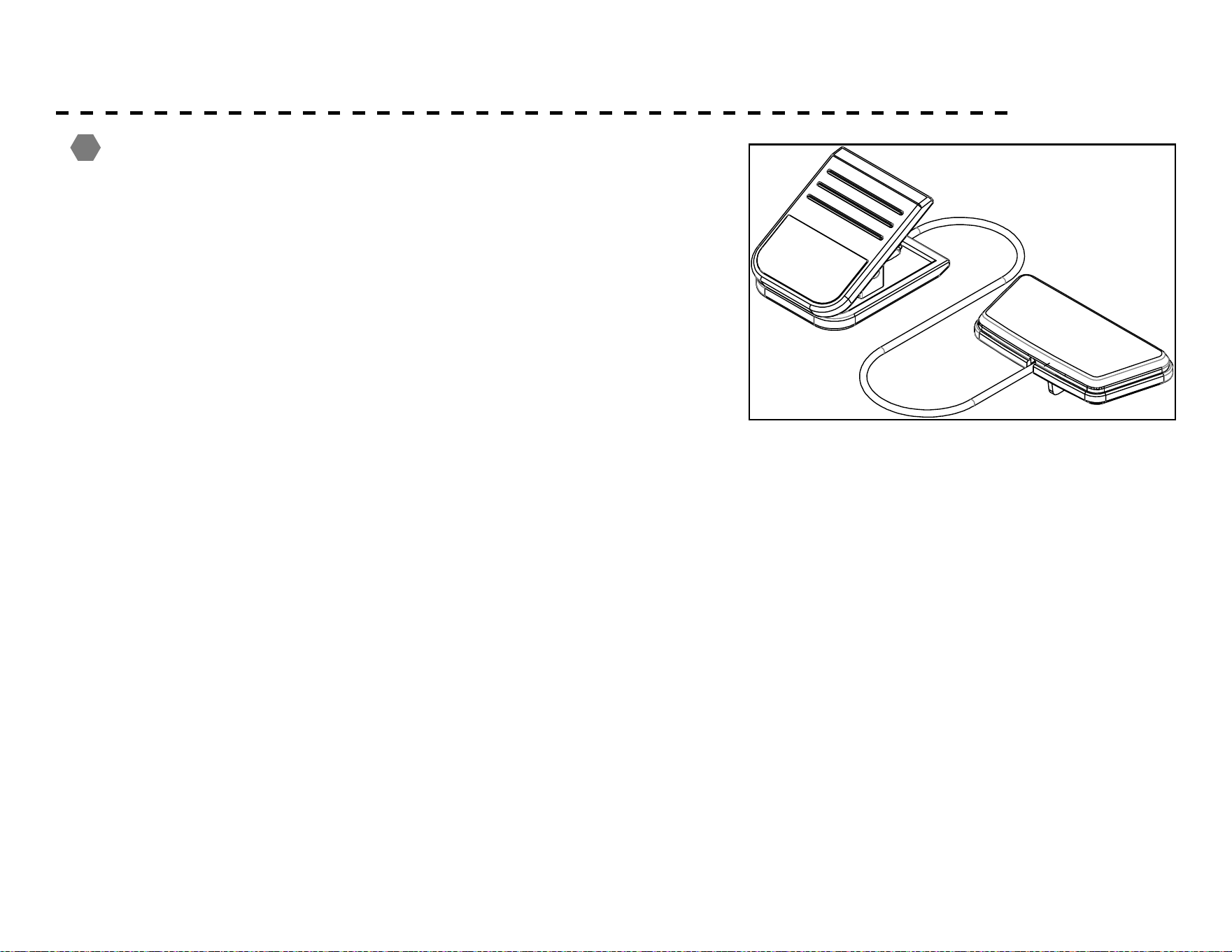

Safety Key ............................................................................ 16
Technology and Features
About Your Machine ........................................................ 17
Console Screen - Overview ............................................ 18
Features ...............................................................................19
Using the XTERRA+ App ...............................................20
Programs
Programs Intro ................................................................... 21
Heart Rate Exertion ........................................................ 24
Maintenance
Maintenance & Care ........................................................ 27
Deck Lubrication .............................................................. 29
Belt & Deck Cleaning .......................................................30
Engineering Mode .............................................................31
Exploded View Diagram ................................................ 32
Parts List ............................................................................. 33
Warranty & Troubleshooting
Warranty ............................................................................ 35
Troubleshooting ............................................................... 38
3
PRODUCT REGISTRATION
WARRANTY REGISTRATION
Use your smartphone to scan the QR code
above to quickly and easily register your
new XTERRA Fitness machine.
You can also go to xterratness.com/
warranty under the Support tab to
register online.
Congratulations on your new treadmill, and welcome to the XTERRA
Fitness family!
Thank you for your purchase of this quality unit from XTERRA
Fitness. Your new unit was manufactured by one of the leading
tness manufacturers in the world and is backed by one of the most
comprehensive warranties available. XTERRA Fitness will do all we can
to make your ownership experience as pleasant as possible for many
years to come.
If you have questions, or if parts are missing or damaged, or you require
customer service, call (870) 336-4286. Please have your model number
and serial number handy when you call.
Please take a moment at this time to record the name of the dealer,
their telephone number, and the date of purchase below to make any
future, needed contact easy. We appreciate your support and we will
always remember that you are the reason that we are in business.
Serial
Number
Date of
Purchase
Dealer /
Place of
Purchase
Version: 1.0
Revision: 05/09/23
4
SERIAL NUMBER
(870) 336-4286
X XXXXXXXXX X
PRODUCT LABELS
SERIAL NUMBER STICKER
This sticker will be found on the rear of the motor cover.
Please record the number below the barcode for the purpose
of registering your treadmill’s warranty.
PROPOSITION 65 WARNING
This sticker will be found on the rear of the
motor cover. The State of California requires us
to inform you that this unit was manufactured
using chemicals that could cause harm with
improper use.
SAFETY WARNING STICKER
This sticker will be found on the interior side of
your treadmill’s upright. The same warning can
be found in this manual. Please read and be
aware of the precautions before operating your
unit.
5
SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after
using and before cleaning.
WARNING - To reduce the risk of burns, re electric shock, or
injury to persons:
1. An appliance should never be left unattended when plugged in.
Unplug from outlet when not in use, and before putting on or taking
o parts.
2. Do not operate under blanket or pillow. Excessive heating can occur
and cause re, electric shock, or injury to persons.
3. This exercise equipment is not intended for use by persons
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge.
4. Use this appliance only for its intended use as described in this
manual. Do not use attachments not recommended by the
manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is
not working properly, if it has been dropped or damaged, or dropped
into water. Return the appliance to a service center for examination
and repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the
air openings free of lint, hair, and the like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being use or
where oxygen is being administered.
12. Connect this appliance to a properly grounded outlet only. See
Grounding Instructions.
13. The appliance is intended for household use.
14. To disconnect, turn all controls to the o position, then remove the
plug from the outlet.
15. Do not operate equipment on deeply padded, plush or shag carpet.
Damage to both carpet and equipment may result.
16. Before beginning this or any exercise program, consult a physician.
This is especially important for persons over the age of 35 or persons
with pre-existing health conditions.
17. Keep hands away from all moving parts.
18. The pulse sensors are not medical devices. Various factors, including
the user’s movement, may aect the accuracy of heart rate readings.
The pulse sensors are intended only as exercise aids in determining
heart rate trends in general.
19. Do not attempt to use your equipment for any purpose other than
for the purpose it is intended.
20. Wear proper shoes. High heels, dress shoes, sandals or bare feet are
not suitable for use on your equipment. Quality athletic shoes are
recommended to avoid leg fatigue.
21. User Weight Limit: 265 lbs.
!
!
Please ensure that you review and adhere to the user
weight restrictions and power requirements of your
new machine. Failure to do so may result in serious
injury or damage to your machine.
!
6
ELECTRICAL SAFETY
WARNING!
Route the power cord away from any moving part of the unit
including the elevation mechanism and transport wheels.
NEVER remove any cover without rst disconnecting AC
power. If voltage varies by ten percent (10%) or more, the
performance of your unit may be aected. Such conditions
are not covered under your warranty. If you suspect the
voltage is low, contact your local power company or a
licensed electrician for proper testing.
NEVER expose this unit to rain or moisture. This product
is NOT designed for use outdoors, near a pool or spa, or
in any other high humidity environment. The temperature
specication is 40 degrees C, and humidity is 95%, non-
condensing (no water drops forming on surfaces).
Circuit breakers: Avoid AFCI/GFCI circuit breakers if
possible. These breakers may trip occasionally during
exercise because of the high inrush currents of the unit drive
electronics and motor. This is an issue that aects all unit
brands. New laws in your area may require these breakers.
If you do have these breakers and outlets in your home,
and are experiencing nuisance tripping, you should check if
there are any other devices plugged into the same circuit.
Some examples of devices that may also cause tripping are
uorescent lights with electronic ballasts, coee maker,
space heater, hair drier.
Optimally the unit should be the only device plugged into the
circuit. Our units have surge suppressors built in to help avoid
nuisance tripping. We have tested several AFCI/GFCI breakers
and outlets with our products. Brands we have tested are: Eaton
(Cutler Hammer Series), Leviton (Smart lock pro) and Schneider
Electric (Canadian home series). These breakers do not trip in our
testing, when connected to our units, as long as no other devices
are plugged into the same circuit.
NEVER operate this unit without reading and completely
understanding the results of any operational change you
request from the computer.
Understand that changes in speed and incline do not occur
immediately. Set your desired work level on the computer
console and release the adjustment key. The computer will obey
the command gradually.
NEVER use your unit during an electrical storm. Surges may
occur in your household power supply that could damage unit
components. Unplug the unit during an
electrical storm as a precaution.
Use caution while participating in other activities while walking
on your unit; such as watching television, reading, etc. These
distractions may cause you to lose balance which may result in
serious injury.
Do not use excessive pressure on console control keys. They are
precision set to function properly with little nger pressure.
!
7
GROUNDING & LOCATION REQUIREMENTS
This product must be grounded. If the unit should malfunction or
breakdown, grounding provides a path of least resistance for electric
current, reducing the risk of electric shock. This product is equipped with a
cord having an equipment-grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a qualied
electrician or serviceman if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the product if it
will not t the outlet; have a proper outlet installed by a qualied electrician.
This product is for use on a nominal 110-volt circuit, and has a grounding

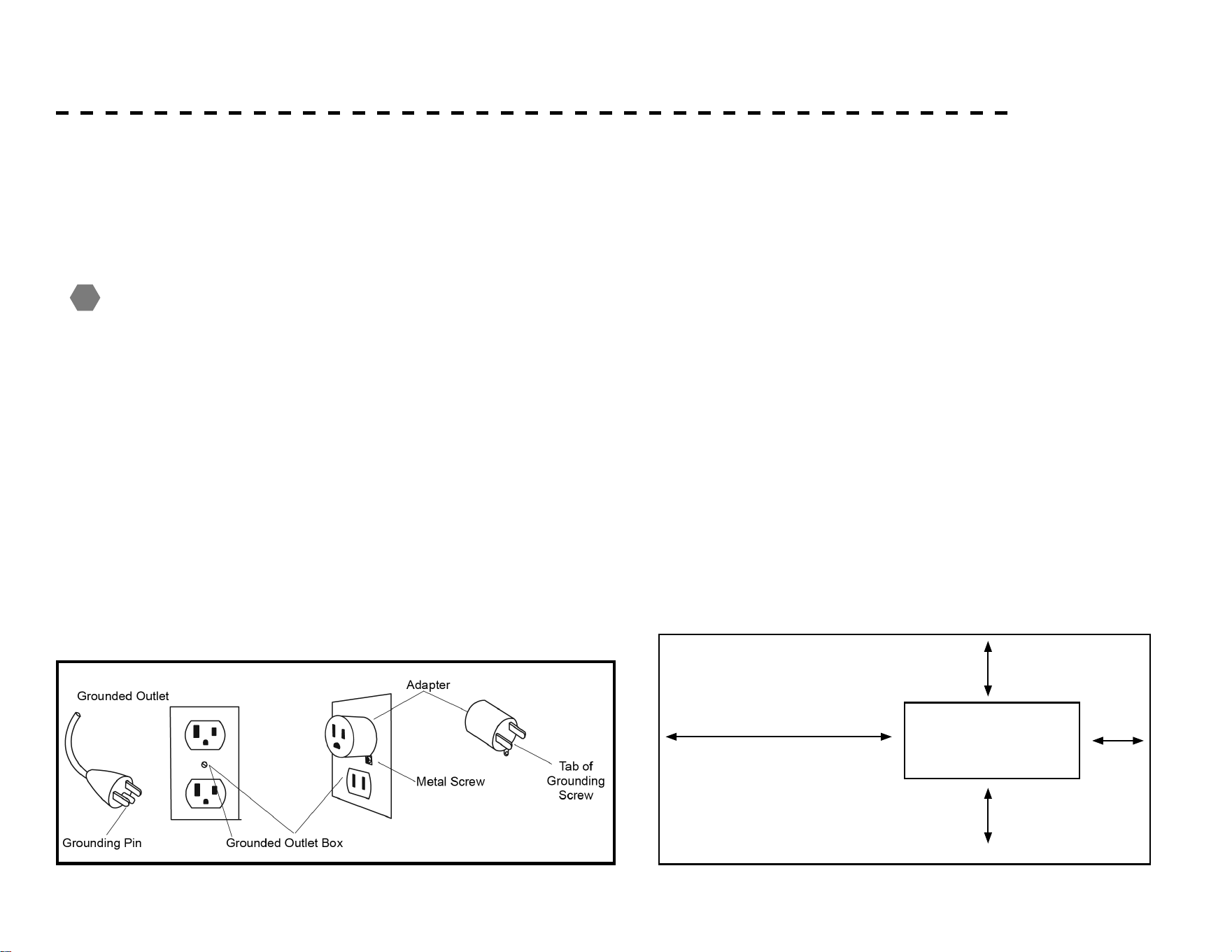

plug that looks like the plug illustrated below. A temporary adapter that
looks like the adapter illustrated below may be used to connect this plug
to a 2-pole receptacle as shown below if a properly grounded outlet is
not available. The temporary adapter should be used only until a properly
grounded outlet, (shown below) can be installed by a qualied electrician.
The green colored rigid ear-lug, or the like, extending from the adapter,
must be connected to a permanent ground such as a properly grounded
outlet box cover. Whenever the adapter is used, it must be held in place by a
metal screw.
!
After assembling your treadmill, you’ll need to make sure you’ve
installed it in a safe area.
• We recommend that you leave an area of at least 20in on the
front, and sides of your machine. The front of the unit is where
the motor is located.
• We recommend that you leave an area of at least 6ft behind the
treadmill.
• Install your treadmill in an area where children and pets cannot
access it.
• Always keep the area around your treadmill clear of furniture,
exercise equipment and other debris.
• Do not install your treadmill on deeply padded, plush, or shag
carpet.
20in
20in
20in
6ft
Location Requirements
8

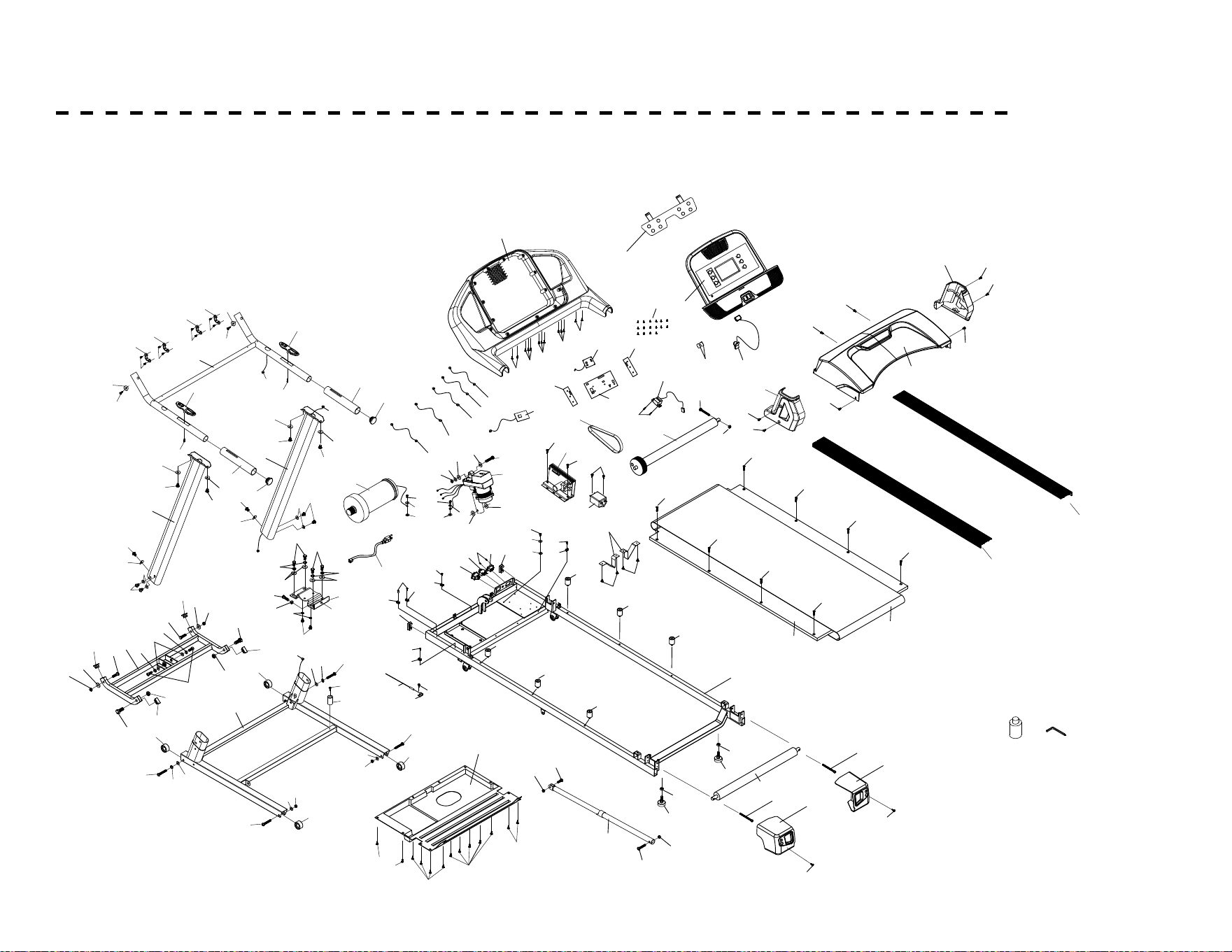

PARTS INCLUDED
TOOLS INCLUDED:
Combination M5 Allen Wrench & Phillips Head
Screwdriver
PARTS INCLUDED:
1 Main Frame
2 Uprights
2 Frame Base Covers
1 Console
1 Deck
1 Power Cord
1 Lubricant
1 Hardware Kit
-6-
Assembly Pack Check List
#95. Ø8 × Ø23 × 1.5T
Curved Washer
(6pcs)
#83. M5 × 15L
Phillips Head Screw (4pcs)
#48. Safety Key (1pc)
#104. Combination M5 Allen
Wrench & Phillips Head
Screw Driver (1pc)
#105. Lubricant (1pc)
#79.
Ø8 × Ø18 × 1.5m/m
Flat Washer(4pcs)
#94. 5/16" × UNC18 × 1/2"
Button Head Socket Bolt (10pcs
)
9
PRE-ASSEMBLY

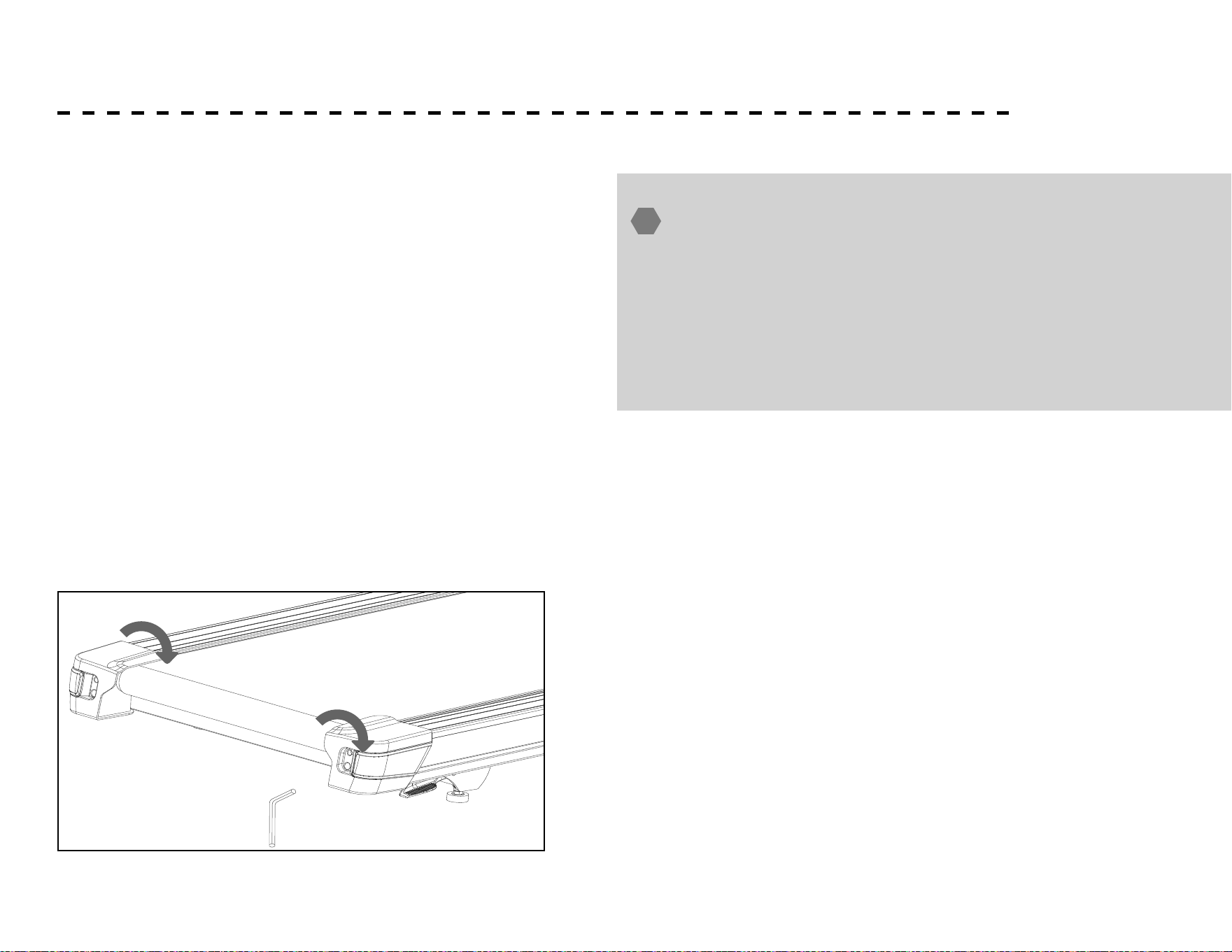

WARNING: There is a Velcro strap installed around
the treadmill base that prevents the unit from unfolding
accidentally during shipping. If this strap is not removed
properly the treadmill could spring open unexpectedly and
cause injury if someone is standing near the unit when the
strap is removed.
To ensure your personal safety during removal of the
shipping strap please make sure the treadmill is positioned
at on the ground, in the orientation it would be in if you
were using the treadmill. Do not turn the treadmill up
on its side while removing the shipping strap. This could
cause the unit’s folding mechanism to spring open. If the
end of the Velcro strap (that you need to grab to remove
it) happens to be under the treadmill deck, reach under
the deck to grab it, but do not tilt the treadmill up to gain
access to the strap end.
!
1. Cut the straps, then lift the box over the unit and unpack.
2. Carefully remove all parts from the carton and inspect
for any damage or missing parts. If parts are damaged or
missing, contact your dealer immediately.
3. Locate the hardware package. Remove the tools rst.
4. Remove the hardware for each step as needed to avoid
confusion. The numbers in the instructions that are in
parenthesis (#) are the item number from the assembly
drawing for reference.
T3
■STE P 1.
Remove the unit from the box and put it on a flat and level floor.
■STE P 2.
Connect the Computer Cable (Middle) (47) with the Computer Cable
(Lower)(45).
47
45
10
ASSEMBLY
1. Take out the treadmill from the carton and lay it aside on
the smooth ground.
2. Connect the Computer Cable (Middle) (47) with the
Computer Cable (Lower)(45).
T3
■STE P 1.
Remove the unit from the box and put it on a flat and level floor.
■STE P 2.
Connect the Computer Cable (Middle) (47) with the Computer Cable
(Lower)(45).
47
45
T3
■STE P 1.
Remove the unit from the box and put it on a flat and level floor.
■STE P 2.
Connect the Computer Cable (Middle) (47) with the Computer Cable
(Lower)(45).
47
45
11
ASSEMBLY - CONTINUED

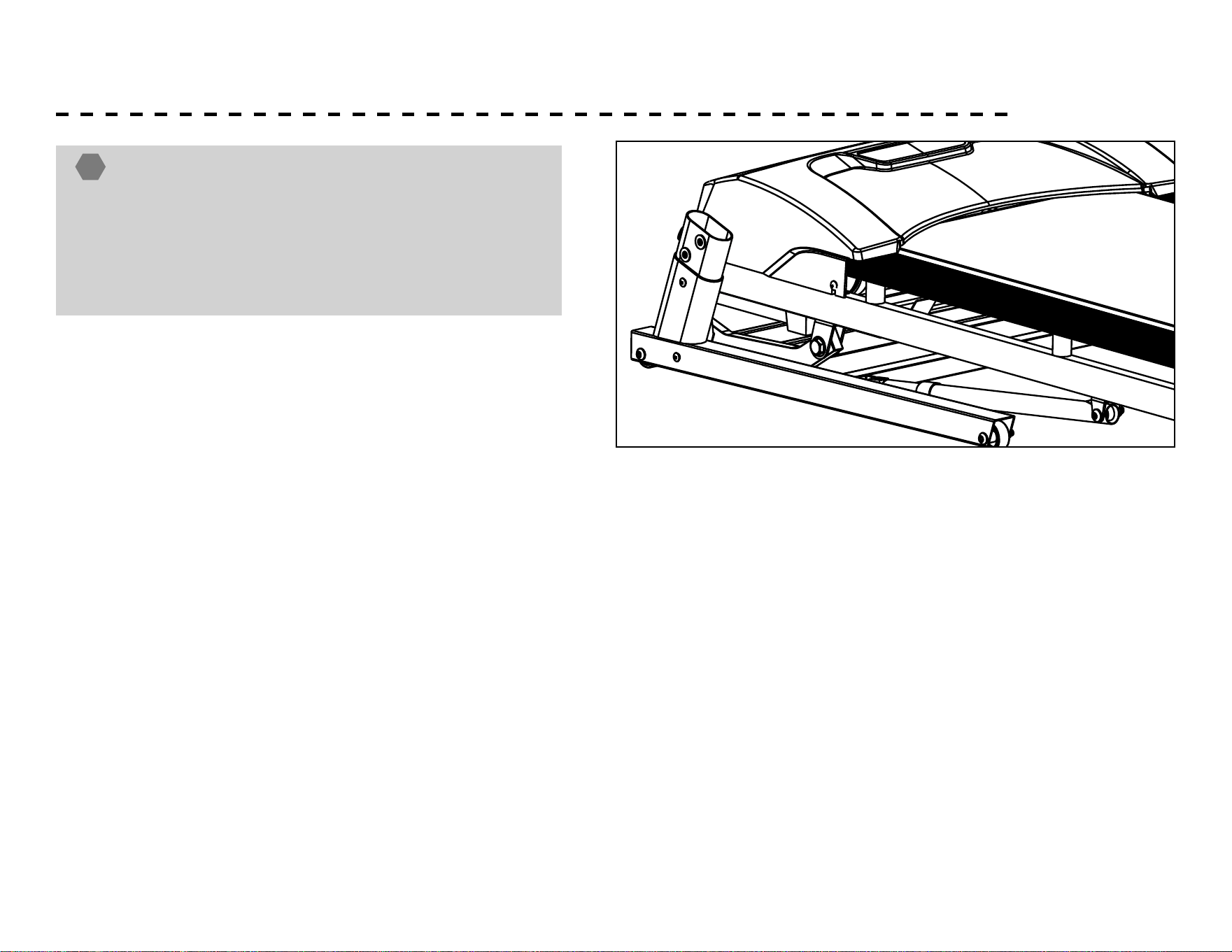

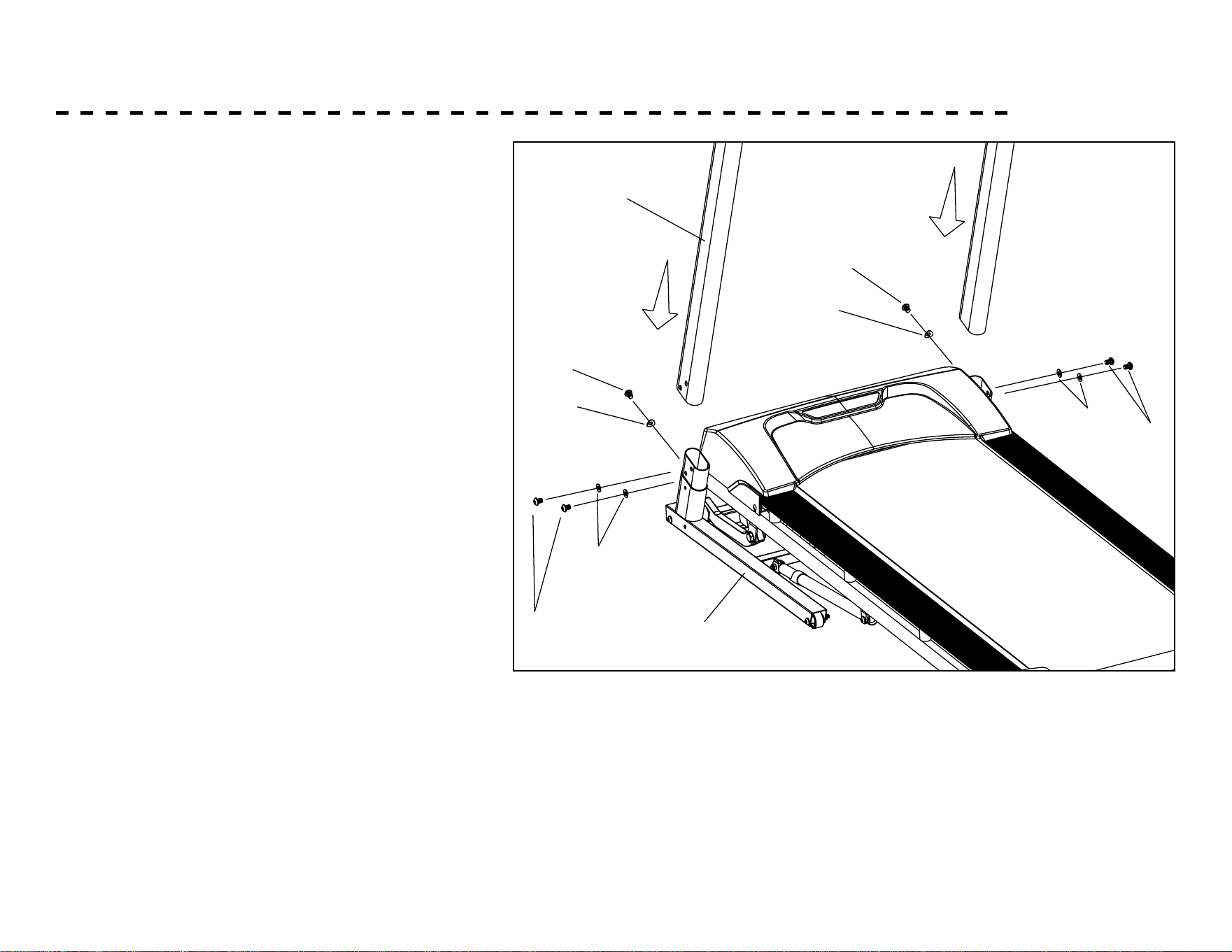

■STEP 3.
Insert the Uprights (L, R)(3,4) into the Frame Base (2) with the 6pcs of 5/16" ×
1/2" Button Head Socket Bolts (94),4pcs of Ø5/16" × Ø18 × 1.5T Flat Washers
(79) and 2pcs of Ø8 × Ø23 × 1.5T Curved Washers (95)by using the
Combination M5 Allen Wrench & Phillips Head Screw Driver (104). (Please fix
the screw without tightening it.)
104
94
79
4
94
95
3
94
95
79
9
4
2

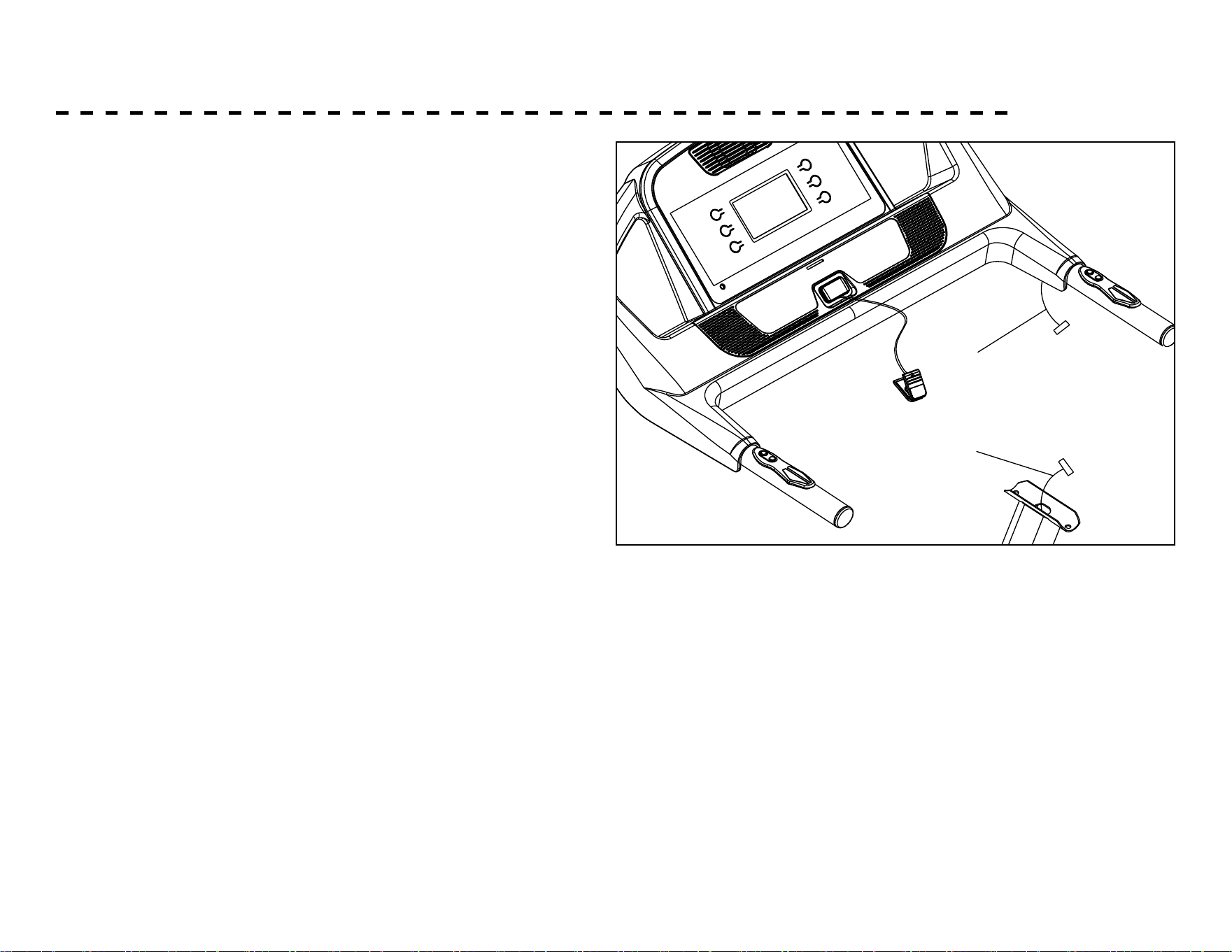

■STEP 4

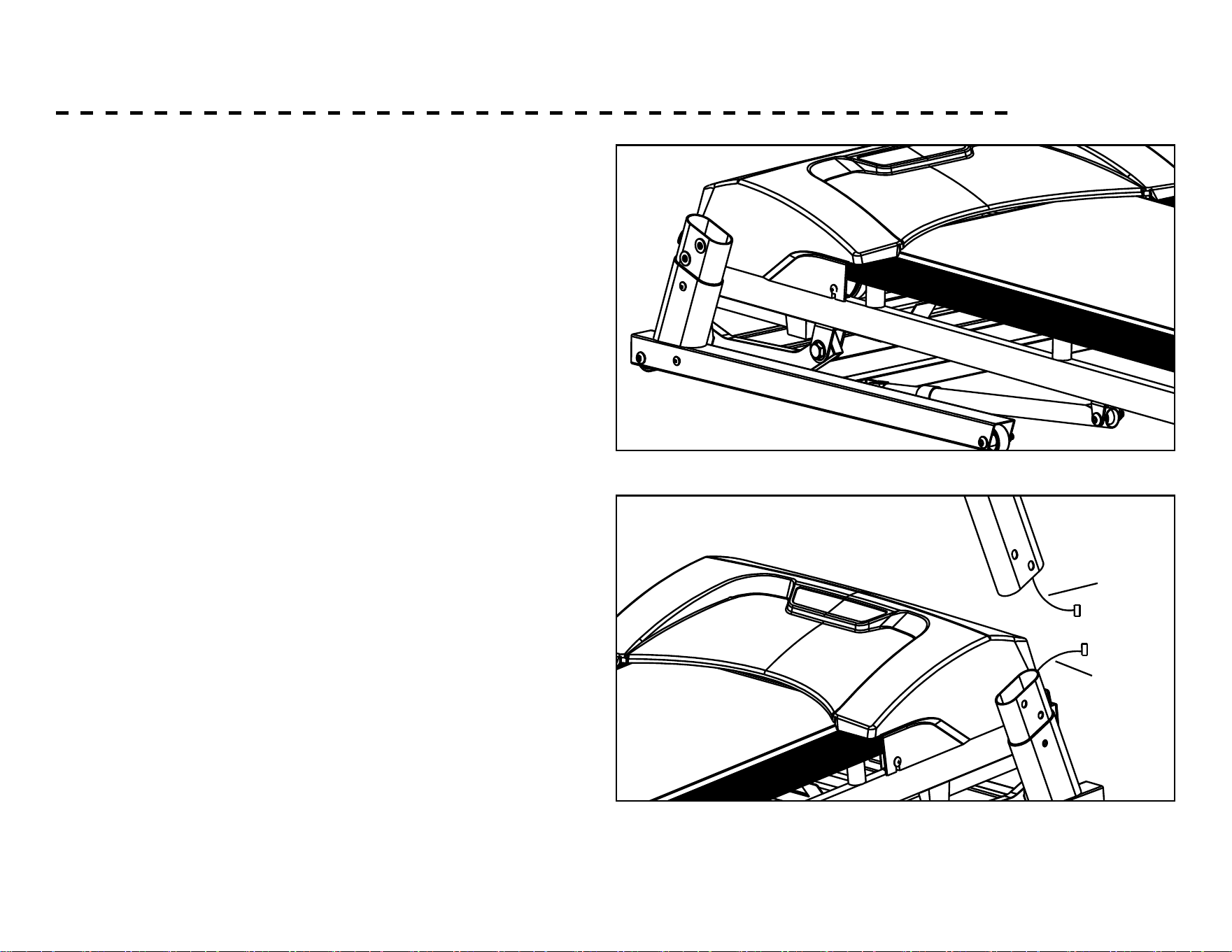

Connecting the Computer Cable (Upper) (46) with the Computer Cable
(Middle)(47).
3. Insert the Uprights (L, R)(3,4) into the Frame
Base (2) with the 6pcs of 5/16” × 1/2” Button
Head Socket Bolts (94),4pcs of Ø5/16” ×
Ø18 × 1.5T Flat Washers (79) and 2pcs of Ø8
× Ø23 × 1.5T Curved Washers (95)by using
the Combination M5 Allen Wrench & Phillips
Head Screw Driver (104).
Please x the screw without tightening it.
12
ASSEMBLY - CONTINUED
4. Connect the Computer Cable (Upper) (46) with the
Computer Cable (Middle)(47).
46
47

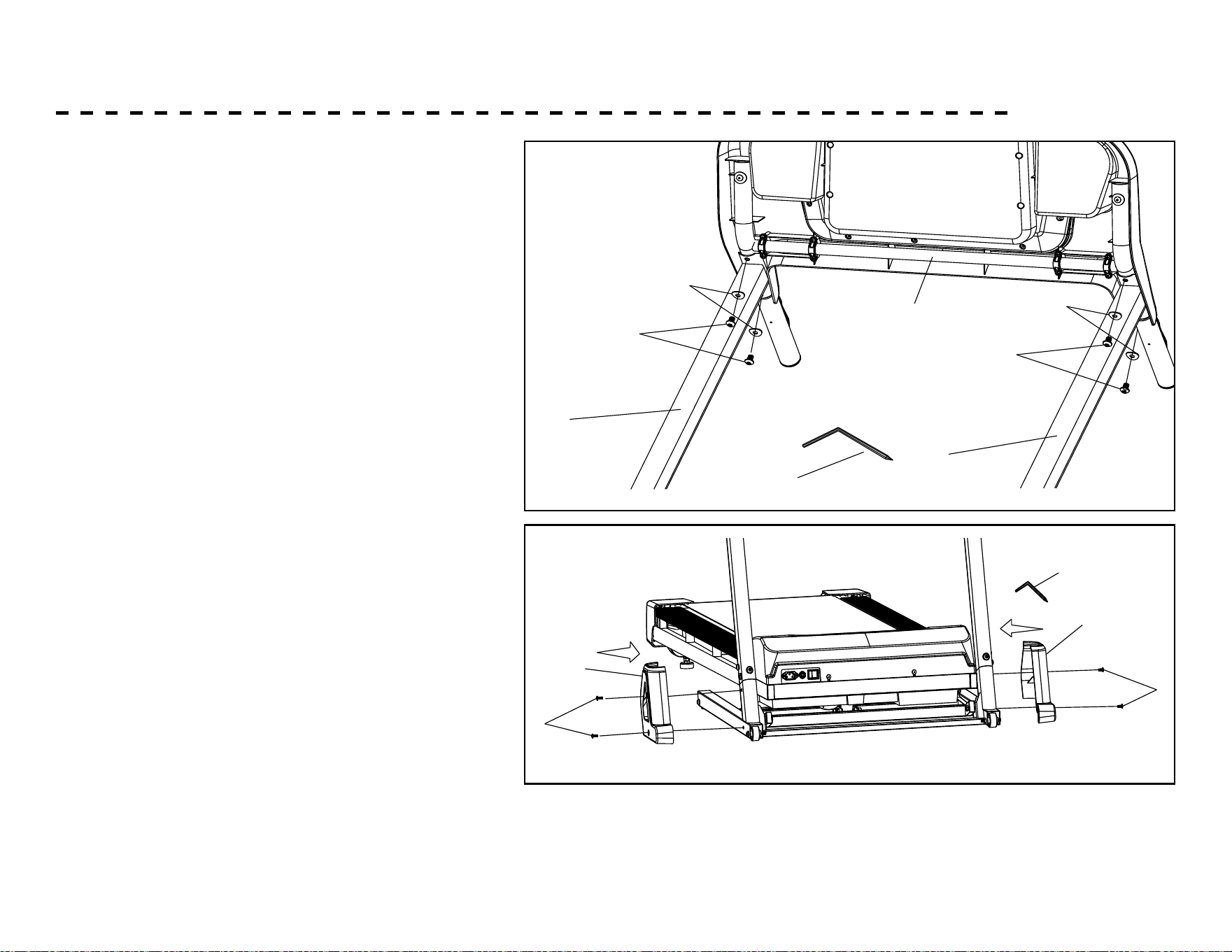

■STEP 5
Install the Console Support (5) into the Uprights (L,R)(3,4) with the 4pcs of
5/16" × 1/2" Button Head Socket Bolts (94) and 4pcs of Ø8 × Ø23 × 1.5T
Curved Washers (95) by using the Combination M5 Allen Wrench & Phillips
Head Screw Driver (104).
13
104
5
95
94
3
95
94
4
■STEP 6
Install left and right Frame Base Covers (24, 25) on the frame base and the
uprights respectively fix by tightening four pieces of M5 × 15m/m Phillips
Head Screws (83) with Combination M5 Allen Wrench & Phillips Head Screw
Driver (104).
83
25
24
83
104
NOTE: Please Tighten All Screws After All Components Assembly Complete.
104
5
95
94
3
95
94
4
■STEP 6
Install left and right Frame Base Covers (24, 25) on the frame base and the
uprights respectively fix by tightening four pieces of M5 × 15m/m Phillips
Head Screws (83) with Combination M5 Allen Wrench & Phillips Head Screw
Driver (104).
83
25
24
83
104
NOTE: Please Tighten All Screws After All Components Assembly Complete.
ASSEMBLY - CONTINUED
5. Install the Console Support (5) into the
Uprights (L,R)(3,4) with the 4pcs of 5/16” ×
1/2” Button Head Socket Bolts (94) and 4pcs
of Ø8 × Ø23 × 1.5T Curved Washers (95) by
using the Combination M5 Allen Wrench &
Phillips Head Screw Driver (104).
6. Install the left and right Frame Base Covers
(24, 25) on the frame base and the uprights
respectively x by tightening four pieces of
M5 × 15m/m Phillips Head Screws (83) with
Combination M5 Allen Wrench & Phillips
Head Screw Driver (104).
NOTE: Please Tighten All Screws After All
Components Assembly is Complete.
14

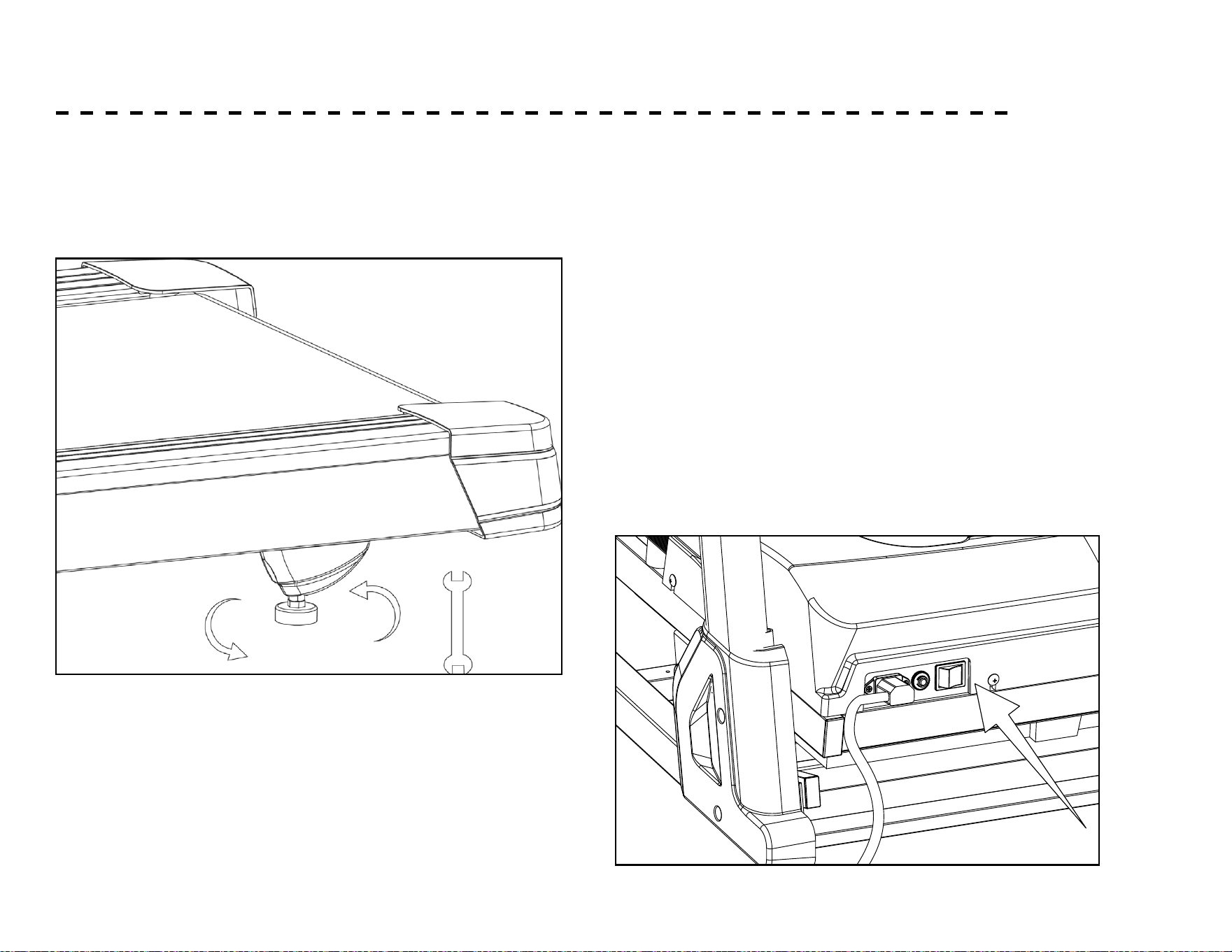

SETTING UP YOUR TREAD
Leveling
Use a M14 Wrench to adjust the height of the Leveling Feet.
Plugging in and Powering On
Power the unit on by plugging it into an appropriate wall
outlet, then turn on the power switch located at the front of
the treadmill below the motor hood, Ensure that the Safety
Key is installed, as the treadmill will not power on without it.
When the power is turned on, all the lights on the display
will light up for a short time and the console will show the
software version.
The treadmill will then enter idle mode, which is the starting
point for operation.
15
SETTING UP YOUR TREAD - CONTINUED

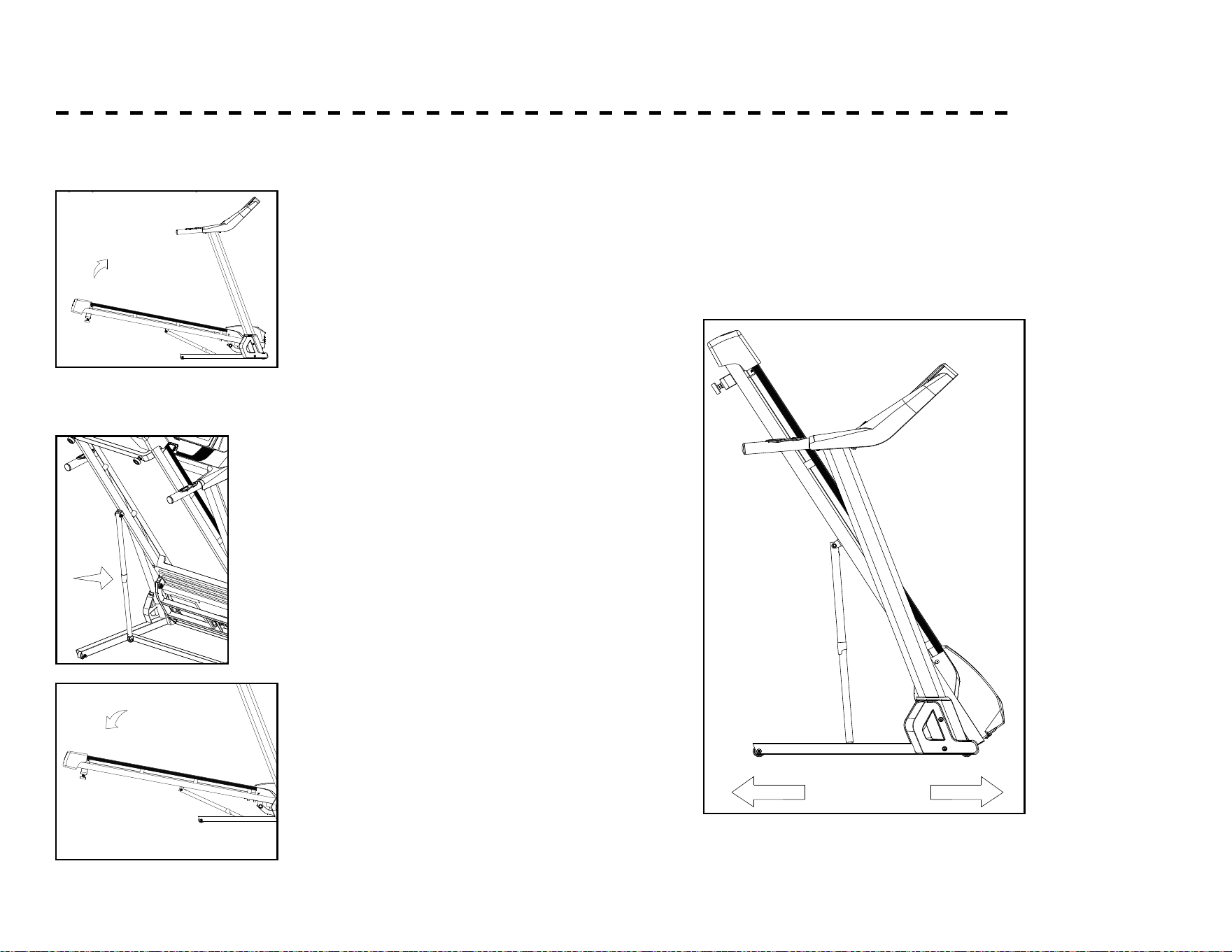

Folding Your Treadmill
Unfolding Your Treadmill
T3 FOLDING INSTRUCTIONS
Folding
Step: Pull up the deck until it is locked at a fixed position.
Unfolding
Step: Press the releasing switch with foot and push down the deck.
Unfolding
Step: Press the releasing switch with foot and push down the deck.
Lift the deck until the latch
clicks in place.
Press the releasing switch with
your foot and pull down the
running deck.
Gently lower the deck to the
oor, supporting the deck with
a hand.
Relocation
Let the transport wheels touch the floor and roll to move.
The treadmill is equipped with four transport wheels that are
engaged when folded. After folding, simply roll the unit away.
No need to tilt.
Moving The Treadmill
16
SAFETY KEY
A safety tether cord is provided with this unit.
It is a simple magnetic design that should be used at all times.
It is for your safety should you fall or move too far back on the
tread-belt.
Pulling this safety tether cord will stop tread-belt movement.
To Use:
1. Place the magnet into position on the round metal portion of
the console control head. Your unit will not start and operate
without this. Removing the magnet also secures the unit from
unauthorized use.
2. Fasten the plastic clip onto your clothing securely to ensure
good holding power. Note: The magnet has strong enough
power to minimize accidental, unexpected stopping. The clip
should be attached securely to make certain it does not come
o. Be familiar with its function and limitations. The unit
will stop, depending on speed, with a one to two step coast
anytime the magnet is pulled o the console. Use the Stop /
Pause switch in normal operation.
!
17
ABOUT YOUR MACHINE
Always use care and caution when operating your
machine. Follow instruction in this manual to ensure safe
operation and maintenance of your treadmill
Your new XTERRA Fitness treadmill has Bluetooth
connectivity to give you access to the most advanced
workout experiences available. Follow the instructions on
page 20 to learn more about using the Bluetooth capabilities
to their fullest potential.
Downloading the XTERRA+ app will help unlock more fea-
tures - such as tracking workouts and sharing data via Goo-
gle Fit and Apple Fitness. Simply search for “XTERRA+” in
the app store on your smartphone or tablet, or scan the QR
code on the right
!
The XTERRA Fitness app is
available on Google Play and
the Apple App Store. Scan
the QR Code below, and
quickly and easily sign up to
start taking your workout
experience to a whole new
level.
Be sure to follow XTERRA Fitness on your favorite social
media platforms to view and share the latest tness videos,
images, and news.
ANALYZE YOUR PERFORMANCE
BASED ON TRAINING PROGRESS
FITNESS TRACKERS CONNECTIVITY
Google Fit
TRX5500
Xterra Fitness App data can be exported to the 3rd party App
3rd party App data can be imported to the Xterra Fitness App
iHealth
Garmin
Connect
facebook.com/XterraFitness
www.instagram.com/XterraFitness
youtube.com/user/XterraFitnessOnline
XTERRA+ App offers a new exercise tracking experience
for everyone. The App features intuitive navigation, an
informative dashboard, and a goal-setting program -
everything to stay motivated during the fitness journey.
XTERRA+
XTERRA+ App offers a new exercise tracking experience
for everyone. The App features intuitive navigation, an
informative dashboard, and a goal-setting program -
everything to stay motivated during the fitness journey.
XTERRA+
18

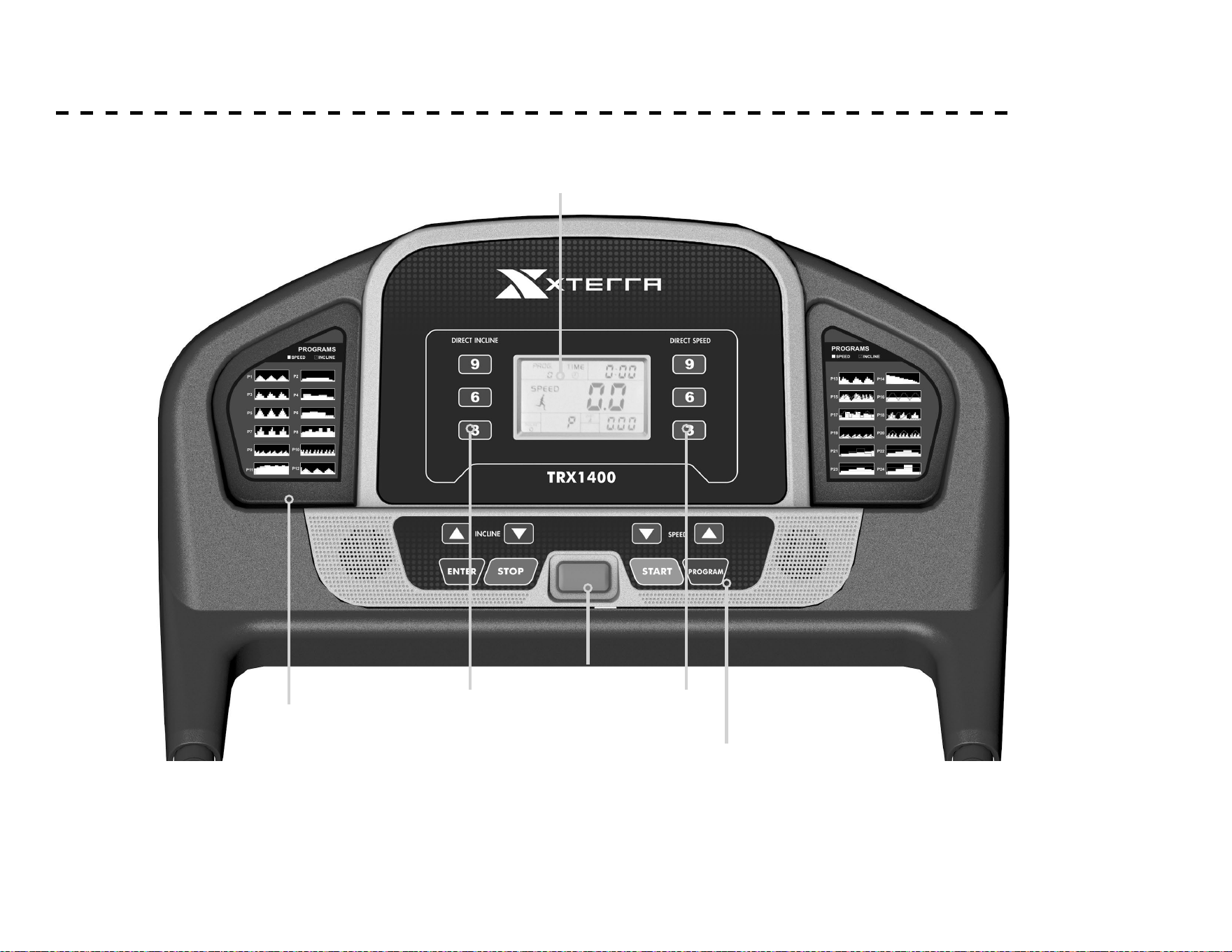

CONSOLE SCREEN - OVERVIEW
LCD Window
Accessory
Holder
Direct Speed
Buttons
Direct Incline
Buttons
Safety
Key
Program
Button
19
FEATURES
Program Mode selection: In ready mode, scroll to select
(P01---P24- -HRC—P01) in sequence.
During operation, press the speed decrease button to
decrease the speed in increments of 0.1 MPH. Press and hold
for continuous decrease in speed.
In manual mode, scroll to select count down time, count
down distance, or count down calorie training mode. In
program mode, this button is used for time setting. In HRC
mode, this button is used for setting time and target HR.
You are able to set your speed setting quickly by pressing
the 3, 6, or 9 buttons on the console. Simply choose the
desired speed (3, 6, 9) on the console and the treadmill will
automatically adjust to that speed level.
During operation, press this button to pause the machine. In
setting mode, this button is pressed to return to ready mode
or to go back to the previous setting during setting mode.
During operation, press the incline up button to increase the
incline level. Press and hold for continuous increase in incline
level.
When the machine is in ready mode, press this button to
start operation.
During operation, press the incline down button to decrease
the incline level. Press and hold for continuous decrease in
incline level.
During operation, press the speed up button to increase
the speed in increments of 0.1 MPH. Press and hold for
continuous increase in speed.
You are able to set your incline setting quickly by pressing
the 3, 6, or 9 buttons on the console. Simply choose the
desired incline (3, 6, 9) on the console and the treadmill will
automatically adjust to that incline level.
Program Speed Down
Enter Direct Speed
Stop
Incline Up
Start
Incline Down
Speed Up
Direct Incline
20
USING THE XTERRA+ APP
In order to help you achieve your exercise goals, your new exercise machine
comes equipped with a Bluetooth® transceiver that will allow it to interact
with selected phones or tablet computers via the XTERRA+ App. Just
download the free XTERRA+ App from the Apple Store or Google Play, and
then follow the instructions in the App to sync with your exercise machine.
Press the “DISPLAY” button from the APP to view the display of the current
workout data. When your exercise is complete, choose “END & SAVE
WORKOUT” to store the workout data.
1. Download the App by scanning the QR code on the right.
2. Open the App on your device (phone or tablet) and make sure Bluetooth® is
enabled on your device (phone or tablet).
3. In the App click the Bluetooth® icon to search for your XTERRA + equipment.
4. Under the Bluetooth® scan result list, select the machine for connect. When the
App and equipment are synced, the Bluetooth® icon on the equipment’s console
display will light up. Click “DISPLAY”, you may now start using your XTERRA +
App.
5. When your exercise is complete, choose “END & SAVE WORKOUT” to store
the workout data. You will be prompted to sync your data with each available
tness cloud site. Please note, you will have to download the applicable
compatible tness App, such as Strava, MapMyFitness,
Fitbit, etc., in order for the icon to be active and available.
Note: Your device will need to be running on a minimum operating system of IOS
13.1 or Android 8.0 for the XTERRA + App to operate properly.
FITNESS TRACKERS CONNECTIVITY
Google Fit
TRX5500
Xterra Fitness App data can be exported to the 3rd party App
3rd party App data can be imported to the Xterra Fitness App
iHealth
Garmin
Connect
XTERRA+ App offers a new exercise tracking experience
for everyone. The App features intuitive navigation, an
informative dashboard, and a goal-setting program -
everything to stay motivated during the fitness journey.
XTERRA+
XTERRA+ App offers a new exercise tracking experience
for everyone. The App features intuitive navigation, an
informative dashboard, and a goal-setting program -
everything to stay motivated during the fitness journey.
XTERRA+
21
PROGRAMS - TO SELECT AND START A PROGRAM
Press PROGRAM after turning power on and enter program
mode with the window displaying P01. There are 24 built-in
programs.
Press PROGRAM to select one program through P01-P24
and enter time setting with the preset time 30 minutes.
Press SPEED Up/Down , INCLINE Up / Down to change the
value of time within the range 5-99 minutes. Press START
after setting to begin the workout.
22
USER DEFINED MODE OPERATION
1. Selecting the count-down training mode: In ready mode,
press ENTER to enter count-down time mode. Press
ENTER again to enter count-down distance mode and
press ENTER the third time to enter count-down calorie
mode.
2. Count-down time training mode: In ready mode, press
ENTER to enter setting mode. Time window will be
ashing displaying the preset value 30:00. Press SPEED
Up or SPEED Down to change the value with setting
range 5—99 minutes. Press START to start the treadmill
with initial speed of 0.5MPH. Press SPEED+ or SPEED-
to change the speed. The treadmill stops automatically
when the count-down speed is 0:00.
3. Count-down time training mode: In ready mode, press
ENTER two times and the distance window ashes
displaying the preset value of 5 (MPH). Press SPEED Up
or SPEED Down to change the value within setting range
1.00—99 (MPH). Press START to start the treadmill
with initial speed of 0.5MPH. Press SPEED UP or
SPEED Down- to change the speed. The treadmill stops
automatically when the count-down distance is 0.00.
4. Count-down calorie training mode: In ready mode, press
ENTER three times and the calorie window ashes
displaying the preset value of 500CAL. Press SPEED Up
or SPEED Down to change the value within setting range
10--990CAL Press START to start the treadmill with
initial speed of 0.5MPH. Press SPEED Up or SPEED Down
to change the speed. The treadmill stops automatically
when the count-down calorie is 0.
23
PROGRAMS
HRC Mode Operation
1. Press PROGRAM to select H-1 and press ENTER to enter HRC mode.
2. Enter the time setting, use the Speed Up / Down key to adjust, and
press ENTER.
3. Enter the heart rate setting, use the Speed Up / Down key to adjust,
and press the START button to start. The treadmill will begin to run.
4. After the treadmill is started, the initial speed is 0.5mph, and the
speed and incline can be adjusted manually. The treadmill will
automatically adjust the incline according to the user’s heart rate.
5. You must grip both pulse grips for HR reading during the program.
24
HEART RATE EXERTION

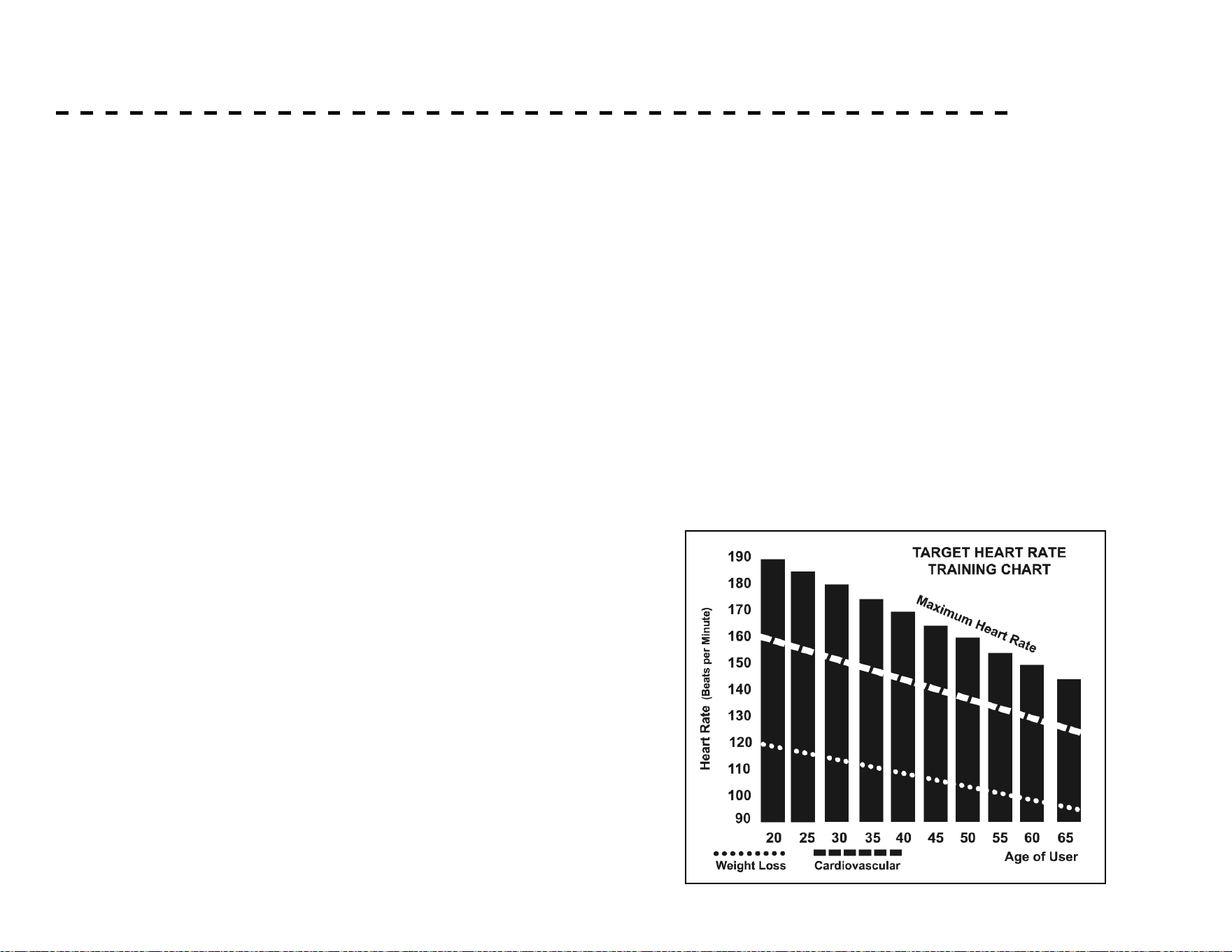

The two most popular reasons for, or goals, of exercise are cardiovascular
tness (training for the heart and lungs) and weight control. The black
columns on the chart represent the MHR for a person whose age is
listed at the bottom of each column. The training heart rate, for either
cardiovascular tness or weight loss, is represented by two dierent lines
that cut diagonally through the chart. A denition of the lines’ goal is in
the bottom left-hand corner of the chart. If your goal is cardiovascular
tness or if it is weight loss, it can be achieved by training at 80% or 60%,
respectively, of your MHR on a schedule approved by your physician.
Consult your physician before participating in any exercise program.
With this Spirit Fitness unit you may use the heart rate monitor feature
without using the Heart Rate program. However, when using the heart
rate monitor feature in conjunction with the Heart Rate programs, the
machine will automatically adjust speed or incline to maintain the desired
heart rate.
The old motto, “no pain, no gain”, is a myth that has been
overpowered by the benets of exercising comfortably. A great deal
of this success has been promoted by the use of heart rate monitors.
With the proper use of a heart rate monitor, many people nd that
their usual choice of exercise intensity was either too high or too low
and exercise is much more enjoyable by maintaining their heart rate in
the desired benet range.
To determine the benet range in which you wish to train, you must
rst determine your Maximum Heart Rate. This can be accomplished
by using the following formula: 220 minus your age. This will give
you the Maximum Heart Rate (MHR)for someone of your age. To
determine the eective heart rate range for specic goals you simply
calculate a percentage of your MHR. Your Heart rate training zone
is 50% to 90% of your maximum heart rate. 60% of your MHR is
the recommended for burning fat while 80% is recommended for
strengthening the cardio vascular system. This 60% to 80% is the
zone to stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute (60% of maximum)
180 X .8 = 144 beats per minute (80% of maximum)
So for a 40 year old the training zone would
be 108 to 144 beats per minute.
If you enter your age during programming the console will perform
this calculation automatically. Entering your age is used for the Heart
Rate programs. After calculating your MHR you can decide upon
which goal you would like to pursue.
25
HEART RATE - PERCEIVED EXERTION
Heart rate is important but listening to your body also has a lot
of advantages. There are more variables involved in how hard
you should workout than just heart rate. Your stress level, phys-
ical health, emotional health, temperature, humidity, the time of
day, the last time you ate and what you ate all contribute to the
intensity at which you should workout. If you listen to your body
it will tell you all of these things.
The rate of perceived exertion (RPE), also known as the Borg
scale, was developed by Swedish physiologist G.A.V. Borg.
This scale rates exercise intensity from 6 to 20 depending upon
how you feel or the perception of your eort.
The scale is as follows:
Rating Perception of Eort
You can get an approximate heart rate level for each rating by
simply adding a zero to each rating. For example a rating of 12 will
result in an approximate heart rate of 120 beats per minute. Your
RPE will vary depending on the factors discussed earlier. If your
body is strong and rested, you will feel strong and your pace will
feel comfortable. When your body is in this condition, you are able
to train harder and the RPE will support this. If you are feeling tired
and sluggish, it is because your body needs a break. In this
condition, your pace will feel dicult. Again, this will show up in
your RPE and you will train at the proper level for that day.
6 Minimal
7 Very, Very Light
8 Very, Very Light +
9 Very Light
10 Very Light +
11 Fairly Light
12 Comfortable
13 Somewhat Hard
14 Somewhat Hard +
15 Hard
16 Hard +
17 Very Hard
18 Very Hard +
19 Very, Very Hard
20 Maximal
26
1. Store your machine according to the folding instructions
when not in use.
2. Use a slightly damp cloth to clean areas where sweat or
oil made contact with the machine.
3. Use a microber cloth to clean the display and remove
unwanted oils and other things that may damage the
screen.
4. Avoid leaving paper or other small debris in the
cupholders.
MAINTENANCE & CARE
General Cleaning
Post-Workout Machine Care
Dirt, dust, and hair can block air inlets and accumulate on
the running belt. Please vacuum underneath your unit on a
monthly basis to prevent excess build-up of dirt that can
get sucked up and get into the inner workings under the
motor cover. Every other month, you should remove the
motor cover and carefully vacuum out dirt and hair that may
accumulate.
UNPLUG THE POWER CORD BEFORE THIS TASK.
Sanitizing Your XTERRA Fitness Equipment
• Unupholstered high-contact surfaces (hard plastics) can be
sanitized using a 75% isopropyl alcohol solution and a clean, dry
cloth.Spray surfaces to be sanitized, and use the dry cloth to
wipe clean. Allow surfaces to dry before using.
• For upholstered or soft-plastic surfaces, use a conditioner
after sanitizing.Be sure to follow the instructions provided
by the conditioner manufacturer to ensure proper use of the
conditioner.
• Alternatively, you can make your own spray by mixing the
proper ratio of isopropyl alcohol and distilled water to reach a
75% solution.
!
27
MAINTENANCE & CARE - CONTINUED
The treadmill is designed so that the tread-belt remains
reasonably centered while in use. It is normal for some belts
to drift near one side while in use, depending on a user’s gait
and if they favor one leg. But if during use the belt continues
to move toward one side, adjustments are necessary.
SETTING TREAD-BELT TRACKING
An 6mm Allen wrench is provided for this adjustment. Make
tracking adjustments on the left side bolt. Set belt speed at 3
mph. Be aware that a small adjustment can make a dramatic
dierence which may not be apparent right away.
If the belt is too close to the left side, then turn the bolt only
a 1/4 turn to the right (clockwise) and wait a few minutes for
the belt to adjust itself. Continue to make 1/4 turns until the
belt stabilizes in the center of the running deck.
If the belt is too close to the right side, turn the bolt
counter-clockwise. The belt may require periodic tracking
adjustment depending on use and walking/running
characteristics. Some users may aect tracking dierently.
Expect to make adjustments as required to center the
tread-belt. Adjustments will become less of a maintenance
concern as the belt is used. Proper belt tracking is an owner
responsibility common with all treadmills.
Treadbelt Tracking Adjustment
!
Damage to the running belt resulting from improper
tracking / tension adjustments is not covered under
the Spirit Fitness warranty.
STEP 5.
Place Tablet Holder (169) on Console Assembly(Top) (53) and use Phillips Head Screw Driver
(148) to tighten 3 pcs of M5 × 25mm_Phillips Head Screw (166).
NOTE: Please Tighten All Screws After All Components Assembly Complete.
If running belt slips while walking on it, users can adjust tension of the running belt by turning
screws on rear rollers of both sides with L Allen Wrench (132), which is included in hardware kit,.
PS . During adjustment, while turning rear rollers’ screws, be sure to keep running belt tension
balanced on both sides, otherwise the belt shifts from higher tension end to the other.
Use Lubricant (30) to lubricate running deck beneath running belt after using for 2 to 3 months.
Only a few droplets are sufficient for lubrication. Avoid applying too much lubricant as this may
catch dirt and affect electronic control system.
30
132
132
STEP 5.
Place Tablet Holder (169) on Console Assembly(Top) (53) and use Phillips Head Screw Driver
(148) to tighten 3 pcs of M5 × 25mm_Phillips Head Screw (166).
NOTE: Please Tighten All Screws After All Components Assembly Complete.
If running belt slips while walking on it, users can adjust tension of the running belt by turning
screws on rear rollers of both sides with L Allen Wrench (132), which is included in hardware kit,.
PS . During adjustment, while turning rear rollers’ screws, be sure to keep running belt tension
balanced on both sides, otherwise the belt shifts from higher tension end to the other.
Use Lubricant (30) to lubricate running deck beneath running belt after using for 2 to 3 months.
Only a few droplets are sufficient for lubrication. Avoid applying too much lubricant as this may
catch dirt and affect electronic control system.
30
132
132
28
STEP 5.
Place Tablet Holder (169) on Console Assembly(Top) (53) and use Phillips Head Screw Driver
(148) to tighten 3 pcs of M5 × 25mm_Phillips Head Screw (166).
NOTE: Please Tighten All Screws After All Components Assembly Complete.
If running belt slips while walking on it, users can adjust tension of the running belt by turning
screws on rear rollers of both sides with L Allen Wrench (132), which is included in hardware kit,.
PS . During adjustment, while turning rear rollers’ screws, be sure to keep running belt tension
balanced on both sides, otherwise the belt shifts from higher tension end to the other.
Use Lubricant (30) to lubricate running deck beneath running belt after using for 2 to 3 months.
Only a few droplets are sufficient for lubrication. Avoid applying too much lubricant as this may
catch dirt and affect electronic control system.
30
132
132
MAINTENANCE & CARE - CONTINUED
Belt Adjustments
Tread-belt Tension Adjustment - Belt tension is not critical for
most users. It is very important though for joggers and runners
in order to provide a smooth, steady running surface.
Adjustment must be made from the rear roller with the 6mm
Allen wrench provided in the parts package. The adjustment
bolts are located at the end of the step rails as shown in the
diagram below.
Tighten the rear roller only enough to prevent slippage at the
front roller. Turn the tread-belt tension adjusting bolts 1/4
turn each and inspect for proper tension by walking on the belt
and making sure it is not slipping or hesitating with each step.
When an adjustment is made to the belt tension, you must be
sure to turn the bolts on both sides evenly or the belt could
start tracking to one side instead of running in the middle of
the deck.
DO NOT OVERTIGHTEN – Over tightening will cause belt
damage and premature bearing failure. If you tighten the belt
a lot and it still slips, the problem could actually be the drive
belt - located under the motor cover - that connects the
motor to the front roller. If that belt is loose it feels similar
to the walking belt being loose. Tightening the motor belt
should be done by a trained service person.
!
29
DECK LUBRICATION
To lubricate your treadmill belt:
1. Turn the power switch o and unplug the power cord from the
wall outlet.
2. Measure 18” from the edge of the motor cover; kneel down and
reach under the belt approximately 4-6” from one edge. Squirt
a line of lubricant about 1/8” wide x 15” long in an “S” pattern
perpendicular to the motor cover.
3. Repeat the process on the opposite side.
4. Plug the electrical cord back into the outlet and turn the power
switch on.
5. Walk on the belt at a moderate speed for ve minutes to evenly
distribute the silicone lube.
To ensure the longevity and proper function of your
treadmill, proper belt maintenance is required. You should
regularly check between the treadmill belt and the top of the
treadmill base for proper lubrication, and to ensure that no
dirt or debris has become trapped. Keeping the deck clean
and lubricated at the recommended intervals ensures the
longest life possible for your unit. Should lubrication dry out,
or dirt become trapped, the friction between the belt and
deck increases. Increased friction places undue stress on the
drive motor, drive belt, and electronic motor control board
which could result in catastrophic failure of these essential,
expensive components.
Failure to clean and lubricate the deck at regular intervals
may void the warranty.
As a part of your routine maintenance schedule, belt
lubrication and cleaning should be performed every 90 days,
after 90 hours of use, or earlier if you notice that the deck
is dry or dirty. Please also be sure to check belt lubrication
before rst use.
Do not lubricate with anything other than XTERRA Fitness
approved lubricant. Your treadmill comes with one tube of
treadmill belt lubricant.
Extra tubes can be ordered directly from: www.
Xterratness.com, or by calling our customer service
department at (800)258-8511.
Regularly check belt lubrication by completing the following
steps:
1. Ensure that your machine is o, and that the power cord is
unplugged to minimize risk of injury.
2. Reach between the running belt and the top of the treadmill
base to verify that lubrication is present.
30
BELT AND DECK CLEANING
To clean your treadmill belt:
1. Ensure that your machine is o, and that the power cord
is unplugged to minimize risk of injury.
2. Grab one edge of the treadmill belt, and lift slightly to
expose the area between the top of the treadmill base
and the running belt.
3. Do a visual check for any dirt or debris accumulation.
4. Should dirt and debris be present, slide a towel or
cleaning cloth between the treadmill belt and top of the
treadmill base until you can grasp one end on each side.
(The cleaning cloth should be longer than the running
belt is wide to achieve this.)
5. Using both hands, drag the cleaning cloth up and down
the length of the treadmill base 1-2 times.
6. For excessive dirt accumulation, rotate the belt halfway,
and repeat step 5. Continue until your cleaning cloth is no
longer picking up any dirt.
7. Remove cleaning cloth from treadmill before plugging
back in.
Belt & Deck Cleaning
31
ENGINEERING MODE MENU
After removing the safety key, press PROGRAM and put
on the safety key again to enter the engineering mode. The
sequence of the setting is:
1. Wheel size (Default: 42)
2. Unit of speed (Default: metric 0, English 1)
3. Minimum speed (Default: 0.5MPH)
4. Maximum speed (Default: 10MPH)
5. Incline level (Default: 10)
Press SPEED Up / Down, INCLINE Up / Down to change
the parameters. Press ENTER to set next parameter.
After nishing setting parameters, press START to start
calibrating and go to ready mode.
32
EXPLODED VIEW DIAGRAM
83
93
93
27
68
27
68
32
32
32
32
32
32
87
92
86
85
85
71
71
71
71
71
71
71
71
97
96
33
38
37
36
96
33
29
76
63
64
76
11
84
84
2
93
6
30
30
26
26
26
26
28
77
61
82
61
77
66
81
73
73
67
67
75
75
69
69
76
79
76
79
82
69
79
90
69
79
90
30
30
45
12
78
73
62
62
73
78
68
61
89
90
13
87
92
86
42
93
93
83
83
24
83
83
25
83
83
83
34
87
92
86
35
81
77
82
82
91
91
14
17
65
74
48
20-9
20-9
20-9
20-9
20-9
20-1
20-2
20-3
20-5
20-10
49
51
50
3
4
5
41
40
40
41
52
53
88
88
95
95
95
95
95
95
79
79
94
94
58
58
58
58
57
57
57
57
95
95
100
94
94
94
94
94
100
47
46
85
85
85
1120424AM0932
105 104
31
31
39
1
23
22
70
70
18
15
16
21
60
94
20-8
20-11
20-12
20-13
SPIRIT 美國
96
97
97
96
97
96
97
85
118
119
T3-NT053-01
20-4
20-7
20-20
85
106
120
121
33
PARTS LIST
001 Main Frame 1
002 Frame Base 1
003 Left Upright 1
004 Right Upright 1
005 Console Support 1
006 Incline Bracket 1
011 Belt Guide 2
012 Motor Bracket 1
013 Motor 1
014 Drive Belt 1
015 Running Deck 1
016 Running Belt 1
017 Front Roller W/Pulley 1
018 Rear Roller 1
020 Console Assembly 1
020-01 Console Outer Cover 1
020-02 Console Inner Cover 1
020-03 Square Magnet Stop Plate 2
020-04 Safety Switch Module W/ Cable 1
020-05 Console Display Board 1
020-07 Ø3 × 10m/m_Sheet Metal Screw 2
020-08 Ø2.3 × 6m/m_Sheet Metal Screw 16
020-09 Ø3.5 × 12m/m_Sheet Metal Screw 13
020-10 Resistance Button W/Cable 1
020-11 Key Board-AK0127F 1
020-12 Key Board-AK0127G 1
020-13 Interface Board 1
020-20 Bluetooth 1
021 Motor Top Cover 1
022 Rear Adjustment Base (L) 1
023 Rear Adjustment Base (R) 1
024 Frame Base Cover (L) 1
025 Frame Base Cover (R) 1
026 15 × 30mm_Square End Cap 4
027 Adjustment Foot Pad 2
028 Rubber Foot Pad 1
029 Cylinder 1
030 Transportation Wheel 4
031 Foot Rail 2
032 Rubber Foot 6
033 20 × 40m/m_Square End Cap 2
034 Incline Motor 1
035 3/8" × 1-3/4"_Hex Head Bolt 1
036 Power Socket 1
037 Breaker 1
038 On/O Switch 1
039 Power Cord 1
040 Button Head Plug 2
041 Handgrip Foam 2
042 Motor Controller 1
045 1000m/m_Computer Cable (Lower) 1
046 1000m/m_Computer Cable (Upper) 1
047 1150m/m_Computer Cable (Middle) 1
048 Square Safety Key 1
049 100m/m_Connecting Wire (Black) 1
050 250m/m_Connecting Wire (White) 1
051 250m/m_Connecting Wire (Black) 1
34
PARTS LIST
052 1200m/m_Speed/Hand Pulse Complex 1
053 1200m/m_Incline/Hand Pulse Complex 1
057 Console Bracket Anchor 4
058 3.5 × 20m/m_Sheet Metal Screw 8
060 Frame Cover 1
061 3/8" × 1-1/4"_Hex Head Bolt 3
062 3/8" × 3/4"_Hex Head Bolt 4
063 5/16" × 1"_Button Head Socket Bolt 1
064 5/16" × UNC18 × 1-3/4"_Button Head Socket
Bolt
1
065 1/4" × UNC20 × 2-1/4"_Hex Head Bolt 1
066 3/8" × 22m/m_Socket Head Cap Bolt 2
067 1/2" × 1-1/4"_Hex Head Bolt 2
068 3/8" × 7T_Nut 3
069 5/16" × 2"_Button Head Socket Bolt 4
070 1/4" × 80m/m_Socket Head Cap Bolt 2
071 M6 × 20m/m_Flat Head Socket Screw 8
073 Ø10 × 2.0T_Split Washer 6
074 1/4" × 5T_Nyloc Nut 1
075 1/2" × 8T_Nyloc Nut 2
076 5/16" × 7T_Nyloc Nut 4
077 3/8" × 7T_Nyloc Nut 3
078 Ø3/8" × Ø25 × 2.0T_Flat Washer 4
079 Ø5/16" × Ø18 × 1.5T_Flat Washer 8
081 Ø3/8" × Ø19 × 1.5T_Flat Washer 3
082 Nylon Washer (A) 4
083 M5 × 15m/m_Phillips Head Screw 8
084 4 × 12m/m_Sheet Metal Screw 4
085 Ø5 × 16m/m_Tapping Screw 16
086 Ø5 × 1.5T_Split Washer 3
087 M5_Star Washer 3
088 3 × 25m/m_Sheet Metal Screw 2
089 M8 × 12m/m_Hex Head Bolt 2
090 Ø8 × 1.5T_Split Washer 4
091 Ø10 × Ø25 × 0.8T_Nylon Washer 2
092 M5 × 10m/m_Phillips Head Screw 3
093 5 × 19m/m_Tapping Screw 5
094 5/16" × 1/2"_Button Head Socket Bolt 10
095 Ø8 × 23 × 1.5T_Curved Washer 8
096 3.5 × 16m/m_Tapping Screw 7
097 Wire Tie Mount 5
100 5 × 16m/m_Tapping Screw 2
104 M5_Allen Wrench Head Screw Wrench 1
105 Lubricant 1
106 Filter 1
118 Sensor W/Cable 1
119 Sensor Rack 1
120 200m/m_Connecting Wire (White) 1
121 200m/m_Connecting Wire (Black) 1
35
WARRANTY - RESIDENTIAL
Eective March 08, 2023- TRX1400 Treadmill LIMITED WARRANTY
Home Use Limited Warranty
XTERRA Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as deter-
mined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA
Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our in-
dependent dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered
by XTERRA Fitness directly to a consumer. The warranty period applies to the following components:
Warranty
Residential
Frame
Lifetime
Parts
90 Days
Labor
90 Days
RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer/facility is responsible for the items listed below:
1. Proper use of the treadmill in accordance with the instructions provided in this manual
2. Proper installation in accordance with instructions provided with the treadmill and with all local electric codes.
3. Expenses for making the treadmill accessible for servicing, including any item that was not part of the treadmill at the time it was
shipped from the factory.
4. Damages to the treadmill nish during shipping, installation or following installation.
5. Routine maintenance of this unit as specied in this manual.
36
WARRANTY - CONTINUED
What is not covered?
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion
may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects
in workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement
period, for treadmill not requiring component replacement, or treadmill not in ordinary household or light commercial use.
3. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies; use of parts other
than original XTERRA Fitness parts; or external causes such as corrosion, discoloration of paint or plastic, alterations, modica-
tions, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. XTERRA Fitness reserves the right to request proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRAN-
TIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product use in any environment other than a residential setting or non-dues paying facility with 5 hours use or less per day.
9. Warranties outside of the United States may vary. Please contact your local dealer for details.
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by XTERRA Fitness, Inc. This warranty
applies only in the 48 contiguous United States. NOTE: This does not include Alaska or Hawaii.
37
Responsibilities of the Owner
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your
best interest to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that
vary from state to state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. XTERRA Fitness’ obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’ option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. For in-home service, the customer
will be responsible for a trip charge. There will be an additional trip charge if the customer is located over 100 miles from the
nearest service center.
5. The owner is responsible for adequate packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages
in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY
WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
For any further information, or to contact our service department by mail, send your correspondence to:
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by XTERRA
Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
WARRANTY - CONTINUED
38
TROUBLESHOOTING
Error Code Guide
ERROR NUMBER Solution/ Cause
E0 Safety switch is open. Put on the safety key to eliminate the error.
E1 Speed signal is not received during calibration. Treadmill stops automatically after 10 seconds.
E2 E2 Overload error. Controller detected over rated current for 6 seconds.
E4 Abnormal motor voltage or motor disconnected.
E5 Communication disconnected
E6 Power transistor failure
ERR Incline motor disconnected or damaged.
39
TROUBLESHOOTING - CONTINUED
Service Checklist Diagnosis Guide
Problem Solution/ Cause
Display does not light 1. Tether cord not in position.
2. Circuit breaker on front grill tripped. Push circuit breaker in until it locks.
3. Plug is disconnected. Make sure plug is rmly pushed into AC wall outlet.
4. Breaker panel circuit breaker may be tripped.
5. Treadmill defect. Contact your dealer.
Tread-belt does not stay centered
Treadmill belt hesitates when walked/ run on
The user may be walking while favoring or putting more weight on either the left or right
foot. If this walking pattern is natural, track the belt slightly o-center to the side opposite
from the belt movement. See the Maintenance & Care section on Tread-belt Tension. Adjust
as necessary.
Motor is not responsive after pressing start 1. If you press Start and the belt never moves, contact service.
Treadmill will only achieve approximately 8 mph
but shows higher on the display
This indicates motor should be receiving power to operate. Low AC voltage to treadmill. Do
not use an extension cord. If an extension cord is required it should be as short as possible
and heavy duty 16 gauge minimum. Low voltage. Contact an electrician or your dealer. A
minimum of 120 volt AC current is required.
Tread-belt stops quickly/suddenly when tether
cord is pulled
High belt/deck friction. See Maintenance & Care section on cleaning the deck. If cleaning
doesn’t prevent this from reoccurring, check to see if there is signicant wear of the deck. If
so, the deck may need to be ipped if it is on its original side
Treadmill trips on board 15 amp circuit High belt/deck friction. See Maintenance & Care section. If cleaning doesn’t prevent this
from reoccurring, check the amp draw of the motor. If this is high and there are signs of sig-
nicant wear of the deck, it may need to be ipped if it is on its original side
Computer shuts o when console is touched
(on a cold day) while walking/running
Treadmill may not be grounded. Static electricity is “crashing” the computer. Refer to
Grounding Instructions.
Circuit breaker trips, but not the treadmill
circuit breaker
Check that the treadmill is the only appliance in the circuit. See “Electrical Safety” section
for more details.
Need to replace the house breaker with a “High In-rush current” type breaker
40
41
42
43
www.xterrafitness.com
©2023 All Rights Reserved. TRX1400 Owner’s Manual
3000 Nestle Road Jonesboro, AR 72401 | Phone: 800-258-8511 | Fax: 870-935-7611
