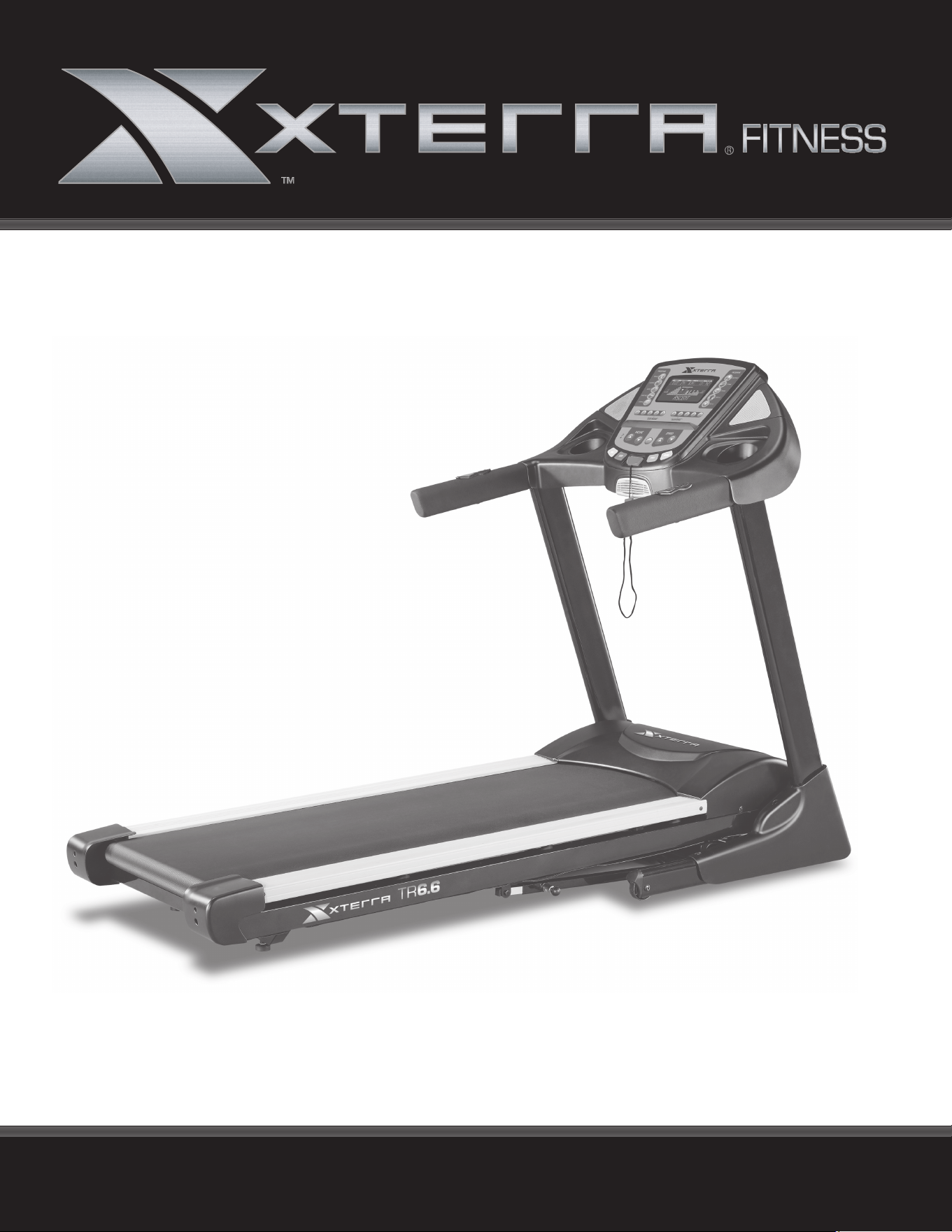

TR6.6 TREADMILL
OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL
Table Of Contents
1
2
3
4
6
11
15
20
24
29
ATTENTION
THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE
APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
Product Registration
Important Safety Instructions
Important Electrical Instructions
Important Operation Instructions
TR6.6 Assembly Instructions
Operation of Your Console
Programmable Features
Heart Rate
General Maintenance
Manufacturer’s Limited Warranty
Vacuum Under
Motor Cover &
Check Wiring
(Every Other
Month)
Clean & Inspect Deck
for Lubrication
(Every Other Month)
Lubricate Deck
(Every 90 hours
or sooner if dry)
Inspect Belt Tracking
(Monthly) Adjust if
necessary
Date
Preventative Maintenance Chart
TR6.6 Treadmill
1
Record Your Serial Number
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratness.com/warranty to register on-
line.
Thank you for your purchase of this quality treadmill from XTERRA Fitness. Your new
treadmill has been manufactured by one of the leading tness manufacturers in the world
and is backed by one of the most comprehensive warranties available. XTERRA Fitness will
do all we can to make your ownership experience as pleasant as possible for many years
to come. If you have questions, or if parts are missing or damaged, or you require customer
service, call (870) 336-4286. Please have your model number and serial number handy when
you call.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new treadmill.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Treadmill and Welcome to the XTERRA Fitness Family!
Product Registration
TR66_20210413
Purchase Location
Purchase Date
This product uses an external power supply. The power supply must rst be plugged into the power
jack on the unit. Next, plug the power supply into the appropriate wall outlet. When not in use, it is
recommended to unplug the power supply from the wall outlet.
IMPORTANT: If the product has been exposed to cold temperatures, allow the product sit in room
temperature to warm up before plugging in the power supply. Failure to do so may result in damage to
the display or electronic components.
IMPORTANT: Do not operate the product if the power supply, its plug,
or its cord has been damaged.
Power
2
TR6.6 Treadmill
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons, install the treadmill on a at
level surface with access to a 120-volt, 15-amp grounded outlet.
DO NOT USE AN EXTENSION CORD UNLESS IT IS 14AWG OR BETTER, WITH ONLY ONE OUTLET ON
THE END. THE TREADMILL SHOULD BE THE ONLY APPLIANCE IN THE CIRCUIT IN WHICH IT IS CON-
NECTED. DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS, OR
IN ANY WAY MODIFY THE CORD SET. A SERIOUS SHOCK OR FIRE HAZARD MAY RESULT ALONG WITH
COMPUTER MALFUNCTIONS.
• To disconnect, turn all controls to the o position, remove tether cord, then remove the plug from the outlet.
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment
may result.
• Before beginning this or any exercise program, consult a physician. This is especially important for persons
over the age of 35 or persons with pre-existing health conditions.
• Do not block the rear of the equipment. Provide a minimum of 3 1/2 feet clearance between the rear of the
equipment and any xed object.
• Keep hands away from all moving parts.
• Use handrails provided; they are for your safety.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may aect the
accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart
rate trends in general.
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and
before putting on or taking o parts.
2. Do not operate under blanket or pillow. Excessive heating can occur and cause re, electric shock, or injury
to persons.
3. This exercise equipment is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
4. Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return the appliance to a service center for examination and
repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the
like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
12. Connect this appliance to a properly grounded outlet only.
13. The appliance is intended for household use.
Fitness Equipment Safety Instructions
WARNING: This product can expose you to chemicals including Toluene and Acrylamide which are
known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
TR6.6 Treadmill
3
Important Electrical Information
WARNING!
Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels.
NEVER remove any cover without rst disconnecting AC power. If voltage varies by ten percent (10%) or more, the
performance of your treadmill may be affected. Such conditions are not covered under your warranty. If you suspect the
voltage is low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa, or in
any other high humidity environment. The temperature specication is 40 degrees C, and humidity is 95%, non-condensing (no
water drops forming on surfaces).
Circuit breakers: Avoid AFCI/GFCI circuit breakers if possible. These breakers may trip occasionally during exercise because of
the high inrush currents of the treadmill drive electronics and motor. This is an issue that affects all treadmill brands. New laws
in your area may require these breakers. If you do have these breakers and outlets in your home, and are experiencing nuisance
tripping, you should check if there are any other devices plugged into the same circuit. Some examples of devices that may
also cause tripping are uorescent lights with electronic ballasts, coffee maker, space heater, hair drier. Optimally the treadmill
should be the only device plugged into the circuit. Our treadmills have surge suppressors built in to help avoid nuisance tripping.
We have tested several AFCI/GFCI breakers and outlets with our products. Brands we have tested are: Eaton (Cutler Hammer
Series), Leviton (Smart lock pro) and Schneider Electric (Canadian home series). These breakers do not trip in our testing, when
connected to our treadmills, as long as no other devices are plugged into the same circuit.
Grounding Instructions
This product must be grounded. If the treadmill’s electrical system should malfunction or breakdown
grounding provides a path of least resistance for electric current, reducing the risk of electric shock. This
product is equipped with a cord having an equipment-grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product if it will not t the outlet; have a proper outlet
installed by a qualied electrician.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated
below. A temporary adapter that looks like the adapter illustrated below may be used to connect this plug to a
2-pole receptacle as shown below if a properly grounded outlet is not available. The temporary adapter should be
used only until a properly grounded outlet, (shown below) can be installed by a qualied electrician. The green
colored rigid ear-lug, or the like, extending from the adapter, must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Failure to follow all guidelines may compromise the eectiveness of the exercise experience, expose
yourself (and possibly others) to injury, and reduce the longevity of the equipment.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
equipment. Quality athletic shoes are recommended to avoid leg fatigue.
4
TR6.6 Treadmill
Important Operation Instructions
• NEVER operate this treadmill without reading and completely understanding the results of any
operational change you request from the computer.
• Understand that changes in speed and incline do not occur immediately. Set your desired speed on the
computer console and release the adjustment key. The computer will obey the command gradually.
• NEVER use your treadmill during an electrical storm. Surges may occur in your household power
supply that could damage treadmill components.
• Use caution while participating in other activities while walking on your treadmill; such as watching
television, reading, etc. These distractions may cause you to lose balance or stray from walking in the
center of the belt, which may result in serious injury.
• NEVER mount or dismount the treadmill while the belt is moving. XTERRA Fitness treadmills start with
at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the
belt during slow acceleration is proper after you have learned to operate the unit.
• ALWAYS hold on to a handrail or hand bar while making control changes (incline, speed, etc.).
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It
is for your safety should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop
tread-belt movement.
To Use:
1. Place the magnet into position on the round portion of the console control head. Your treadmill will not start
and operate without this. Removing the magnet also secures the treadmill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note: The magnet has
strong enough power to minimize accidental, unexpected stopping. The clip should be attached
securely to make certain it does not come o. Be familiar with its function and limitations. The
treadmill will stop, depending on speed, with a one to two step coast anytime the magnet is pulled
o the console.
Safety Tether Cord
Remove tether cord after use to prevent unauthorized treadmill operation.
TR6.6 Treadmill
5
#94. 5/16”
Curved Washer
(2 pcs)
#93. 5/16” x 15mm
Button Head Socket
Bolt (8 pcs)
TR6.6 Assembly Pack Checklist
Hardware Step 3
Hardware Step 5
#90. 5/16” x 3/4”
Button Head Socket Bolt
(4 pcs)
148.. Ø8mm x 1.5T
Split Washer
(4 pcs)
Hardware Step 6
#95. M5 x 10mm
Phillips Head Screw
(2 pcs)
#88. 5 x 16mm
Tapping Screw
(4 pcs)
#132. M5
Speed Nut Clips
(4 pcs)
#97. M6 L Allen Wrench
Assembly Tools
#96. Combination M5 Allen
Wrench & Phillips Head
Screw Driver
6
TR6.6 Treadmill
1. Remove all the parts from the carton and lay the Main Base Frame on a
at level surface.
TR6.6 Assembly Instructions
Main Base Frame
1
Covers & Cables
2
1. Slide the plastic covers (R-42 & L-43) over the Left and Right Console
Mast Upright Tube.
2. Connect the Upper Cable (38) to the Lower Cable (39).
39
38
42
43
4
5
TR6.6 Treadmill
7
Upright Tubes
3
1. Attach and center a Speed Nut Clip (132) over the open hole of base
frame.
2. Slide the Right Console Mast Tube (4) into the Base Frame. Gently pull
up the Computer Cable that exits the top of the tube as you slide it in to
prevent pinching the cable. If the cable is pinched and partially severed,
the treadmill’s electrical system won’t function properly. Repeat the
process on the left side (you don’t have to worry about a cable on this
side).
3. Partially tighten all six Button Head Bolts (93) that are inserted from the
sides, and two Curved Washers (94) and two Button Head Bolts (93)
from the front with the Combination Allen Head Wrench & Phillips Head
Screw driver (96). Don’t fully tighten these until the Console is attached.
94
93
93
94
93
93
5
4
132
132
132
132
Hardware Step 3
#93. 5/16” x 15mm
Button Head Socket
Bolt (8 pcs)
#94. 5/16”
Curved Washer (2 pcs)
#132. M5
Speed Nut Clips
(4 pcs)
8
TR6.6 Treadmill
Cables
4

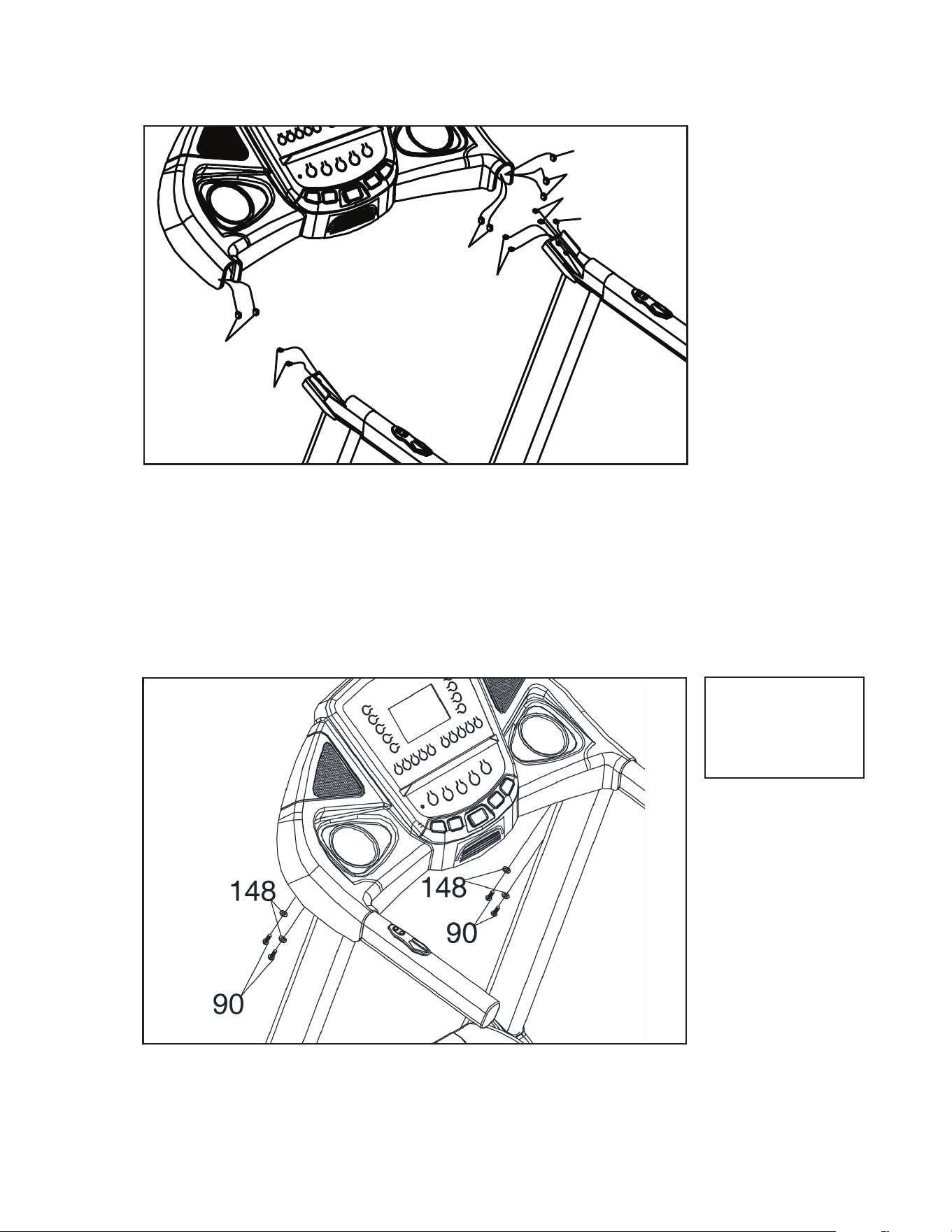

1. This step is easier if you have someone else helping to hold the console
while you connect the wires. Connect the computer cable (38) to the
mating connector (37) of the console.
2. Connect the cables (127) to mating cables (53) on the right side.
3. Connect the cable (152) to the mating cable (131).
4. Connect the cables (128) to mating cables (54).
38
37
127
128
54
53
152
131
Console Assembly
5
Hardware Step 5
#148. Ø8mm x 1.5T
Split Washer (4 pcs)
#90. 3/8” x 3/4”
Button Head Socket
Bolt (4 pcs)
1. To attach the console, insert four Washers (148) and four Button Head
Socket Bolts (90) underneath the console. Tighten using the
Combination Allen Wrench & Phillips Head Screw Driver (96).
TR6.6 Treadmill
9
Covers
6
Hardware Step 6
#88. 5 x 16mm
Tapping Screw
(4 pcs)
#95. M5 x 10mm
Phillips Head Screw
(2 pcs)
1. Go back and fully tighten the six Button Head Bolts that connect the Left
and Right Console Mast Tubes to the Base Frame using the
Combination Allen Wrench & Phillips Head Screwdriver (96).
2. Attach the Console Mast Covers to the Upright Tubes (42 & 43) with four
Tapping Screws (88) & two Phillips Head Screws (95). Tighten using the
Combination Allen Wrench & Phillips Head Screw Driver (96).
88
95
88
88
88
95
43
42
10
TR6.6 Treadmill
The treadmill is equipped with four transport wheels that are engaged when the treadmill is
folded. After folding simply roll the treadmill away.
CAUTION: Do not attempt to move the unit unless it is in the folded and locked position.
Remove the power cord from the front of the unit to avoid possible damage. Use both
handrails to maneuver the unit to the desired position.
Transportation Instructions
TO FOLD THE TREADMILL
Make certain the treadmill is at minimum incline. Lift the treadmill running deck until it is
secured by the locking telescoping tube assembly on the right side of the base. You will
hear it pop into place when secure.
TO UNFOLD THE TREADMILL
Apply slight forward pressure* on the treadmill running deck with your left hand. Pull out
on the round knob and slowly lower the running deck to the oor. The deck will lower
unassisted when it reaches about waist high.
*At the rear roller area to relieve pressure on the locking system.
Folding Instructions
TR6.6 Treadmill
11
Integrated
Speakers for
MP3 player
Large LCD
with feedback
and scrolling
message center
Turbo Fan to
keep you cool
Convenient water
bottle holder and
cargo compartment
for phone or MP3 player
Audio Input
Jack for
customized
listening
Operation of Your Treadmill
TR6.6 Console
Power the treadmill on by plugging it into an appropriate wall
outlet, then turn on the power switch located at the front of
the treadmill below the motor hood. Ensure that the safety
key is installed, as the treadmill will not operate without it.
When the power is turned on, a message will scroll across
the dot matrix showing the current software version. The
treadmill will then enter idle mode, which is the starting point
for operation.
Getting Started
12
TR6.6 Treadmill
1. When the treadmill is running the pause feature may be utilized by pressing the red Stop
key once. This will slowly decelerate the tread-belt to a stop. The incline will go to zero
percent. The Time, Distance and Calorie readings will hold while the unit is in the pause
mode. After 5 minutes the display will reset and return to the start up screen.
2. To resume your exercise, when in Pause mode, press the Start key. The speed and in-
cline will return to their previous settings.
• Pause is executed when the Stop key is pressed once. If the Stop key is pressed a
second time, the program will end and a workout summary will be displayed. If the
Stop key is pressed a third time, the console will return to the idle mode (start up)
screen. If the Stop key is held down for more than three seconds the console will re-
set.
Pause/Stop/Reset Feature
1. Attach the Safety key to enable the display (if not already on).
2. Press the Start key to begin belt movement. Adjust to the desired speed using the Speed
5/6 keys (console or handgrip). You may also use the Speed keys 2 through 10 to ad-
just the speed.
3. To slow tread-belt press and hold the Speed 6 key (console or handgrip) to the desired
speed. You may also press the Speed keys 2 through 10.
4. To stop the tread-belt press the Stop key or pull away Safety key.
Quick-Start Operation
• Incline may be adjusted anytime after belt movement.
• Press and hold the Incline 5/6 keys on the left hand side (console or handgrip) to
achieve desired level of eort. You may also choose a quicker incline change by using the
Incline keys on the left side of the console.
• The display will indicate incline position as adjustments are made.
Incline Feature
The dot matrix display is 18 columns wide by 8 rows high. The columns represent the seg-
ments of your workout. The rows give a visual picture of the intensity level, but do not neces-
sarily indicate a specic value. In operation the Speed / Incline dot matrix window will build a
prole “picture” as values are changed during a workout.
When the Speed indicator (which is above dot matrix) is lit the dot matrix displays the Speed
prole and when the Incline indicator is lit the dot matrix displays the Incline prole. You may
change the dot matrix prole view that you desire by pressing the Display key.
The Display key allows you to change views between the Incline prole, the Speed prole,
and Incline + Speed. After using the Display key to completely scroll through these options,
the console will automatically scroll through the options showing each option for ve seconds.
Dot Matrix Center Display (Program Operation)
TR6.6 Treadmill
13
The 1/4-mile track will be displayed around the dot matrix window. The ashing dot indicates
your progress. Once the 1/4-mile is complete the next lap will begin. The number of
completed laps is displayed in the Laps window.
1/4 Mile Track
The Pulse (Heart Rate) readout will display your current heart rate in beats per minute
during the workout. You must use both stainless steel sensors on the side hand rails to
display your pulse. Pulse value displays anytime the upper display is receiving a Pulse
signal. You can also monitor your pulse by using the included telemetric chest strap.
Pulse Grip Feature
Displays the cumulative calories burned at any given time during your workout.
Note: This is only a rough guide used for comparison of dierent exercise sessions, which
cannot be used for medical purposes.
Calorie Display
1. Display will automatically turn o (go to sleep) after 30 minutes (no key operations). The
treadmill will draw very little current in sleep mode (about as much as your television when
it is turned o).
2. Remove tether cord.
3. Turn of the main switch on the front of the treadmill, below the motor cover.
To Turn Treadmill O
Attention
Your new console comes congured in an in-store ‘Display Mode’ of operation, where the
console will remain powered on unless the main power switch is turned o. To exit the display
mode, for normal operation, press and hold the Stop, Enter and Display keys for 5 seconds;
the display will show: Display mode - On. Use the Incline 5/6key or the Speed 5/6key to
change the setting to O then press Enter.
14
TR6.6 Treadmill
Ascent - Work Ascent - Incline
Glute Blast - Work Glute Blast - Incline
Adventure - Work Adventure - Incline
Xtreme - Work Xtreme - Incline
Interval - Work Interval - Incline
X Country - Work X Country - Incline
Preset Program Proles
TR6.6 Treadmill
15
Programmable Features
The TR6.6 Treadmill has six factory preset programs, three user dened programs, two heart
rate programs and one manual program.
To Select and Start a Preset Program
1. Press the desired program key. Press Enter to select the program. The display will prompt
you through the programming or you can just press Start to begin the program with de-
fault values.
2. If Enter was pressed, the Display will now be blinking a value, indicating your Age (default
is 35). Entering your correct age aects the heart rate Bar Graph Display and the Heart
Rate programs. Use the 5/6 keys to adjust, then press Enter. (Note: You may press
Start at any time during the programming to start the program.)
3. The Display will now be blinking a value, indicating your Body Weight (default is 150 lbs.).
Entering the correct body weight will aect the calorie count. Use the 5/6 keys to adjust,
then press Enter.
A note about the Calorie display: No exercise machine can give you an exact calorie
countbecause there are too many factors which determine exact calorie burn for a
particular person. Even if someone is the exact same body weight, age and height, their
calorie burn may be very dierent than yours. The Calorie display is to be used as a
reference only to monitor improvement from workout to workout.
4. The Display will be blinking a value, indicating Time (the default value is 30 minutes). You
may use any of the 5/6 keys to adjust the time. After adjusting, or to accept the default,
press Enter. (Note: You may press Start at any time during the programming to start the
program).
5. The Display will now be blinking the preset top speed of the selected program (3 mph or
5 kph). Use the Speed 5/6 keys to adjust, then press Enter. Each program has vari-
ous speed changes throughout; this allows you to limit the highest speed the program can
reach.
6. The Display will be blinking the preset top incline of the selected program (3.0%). Use the
Incline 5/6 keys to adjust, then press Enter.
You are now done programming data and may press Start to begin your workout or Enter to
go back one level to change data entered in the programming phase.
16
TR6.6 Treadmill
1. Select User 1 or User 2 via the Program key then press Enter. Note that the dot matrix will
show a single row of dots at the bottom of the display (Unless there is a previously stored
program).
If there is a program stored under the key that is pressed, it will be retrieved. If not, you
have the option of programming in your rst name. The Display will ash the letter ”A” . To
change it, press the 5 key, then “B” will be displayed; if the 6 key is pressed, the letter
“Z” will be displayed. After selecting the appropriate letter, press enter. The letter “A” will
again be displayed and blinking. Repeat the procedure until all letters of your rst name
are programmed (7 characters maximum). When your name is displayed, press Stop and
it will be stored under either User 1 or User 2.
2. If Enter was pressed, the Display will now be blinking a value, indicating your Age (default
is 35). Entering your correct age aects the heart rate Bar Graph Display and the Heart
Rate programs. Use the 5/6 keys to adjust, then press Enter. (Note: You may press
Start at any time during the programming to start the program.)
3. The Display will now be blinking a value, indicating your Body Weight (default is 150 lbs.).
Entering the correct body weight will aect the calorie count. Use the 5/6 keys to adjust,
then press Enter.
4. The Display will be blinking a value, indicating Time (the default value is 30 minutes). You
may use any of the 5/6 keys to adjust the time. After adjusting, or to accept the default,
press Enter. (Note: You may press Start at any time during the programming to start the
program).
5. The Display will now be blinking the preset top speed of the selected program (0.5 mph or
0.8 kph). Use the Speed 5/6 keys to adjust, then press Enter. Each program has vari-
ous speed changes throughout; this allows you to limit the highest speed the program can
reach.
6. The Display will be blinking the preset top incline of the selected program (0%). Use the
Incline 5/6 keys to adjust, then press Enter.
You are now done programming data and may press Start to begin your workout or Enter to
go back one level to change data entered in the programming phase.
User Programs
TR6.6 Treadmill
17
1. Press the Fitness key. Press Enter to select the program. The display will prompt you through the
programming.
2. If Enter was pressed, the Display will now be blinking a value, indicating your Age (default is 35). Enter-
ing your correct age aects the Heart Rate Bar Graph Display and the Heart Rate programs. Use the 5/6
keys to adjust, then press Enter. Your age determines your recommended maximum heart rate. Since the
Bar Graph Display and the Heart Rate features are based on a percentage of your maximum heart rate, it is
important to enter the correct age for these features to work properly.
3. The Display will now be blinking a value, indicating your Body Weight (default is 150 lbs.). Entering the
correct body weight will aect the calorie count. Use the 5/6 keys to adjust, then press Enter.
A note about the Calorie display: No exercise machine can give you an exact calorie count because there
are too many factors which determine exact calorie burn for a particular person. Even if someone is the
exact same body weight, age and height, their calorie burn may be very dierent than yours. The Calorie
display is to be used as a reference only to monitor improvement from workout to workout. The calorie count
displayed in this program is only an estimate because the machine can’t calculate calories expended while
strength training.
4. The Display will now be blinking the preset top speed of the selected program (3 mph or 5 kph). Use the
5/6 keys to adjust, then press Enter. Each program has various speed changes throughout; this allows
you to limit the highest speed the program can reach.
5. The Display will be blinking the preset top incline of the selected program (1.0%). Use the Incline 5/6 keys
to adjust, then press Enter.
6. The Display will be blinking the number of intervals desired (default is 10; you may select 10, 20, or 30). Use
the 5/6 keys to adjust, then press Enter.
7. The Display will be blinking the desired Interval time (default is 1:00). The time you select will be the duration
of both the cardio & strength intervals. Note: on average you will complete 15-20 repetitions of the strength
exercise in a 0:30 interval. As a general rule, the longer the interval, the less weight (dumbbells) and speed
(treadmill) required; use the 5/6 keys to adjust, then press Enter.
8. The Display will be blinking the desired recovery time you desire after completing both the cardio & strength
intervals. Use the 5/6 keys to adjust, then press Enter
Program Example
• The user selects 10 intervals (5 cardio and 5 strength) with the following interval
durations – length of each cardio & strength interval is 0:30, recovery interval is 1:00
• Program begins with a 3:00 warm up (1:00 @ 1mph, 1:00 @ 2mph, and 1:00 @ 3mph)
• 1st cardio interval begins, lasting 0:30; console counts down to 0:00 and the Display displays: “STRENGTH
INTERVAL 1 BEGIN DUMBBELL ROW”
• User steps o of the treadmill to perform the strength exercise. The console counts down to 0:00 and beeps
3x signaling the user to get back on the treadmill.
• Console displays “PRESS START TO BEGIN RECOVERY”; user walks @ 2mph for 1:00
• Console then displays 2nd cardio interval and the process proceeds until the user has performed 5 cardio,
strength, and recovery intervals; the 5 strength exercises will be performed sequentially as listed in this
manual.
• The last 2:00 are a Cool Down phase with the user walking on the treadmill @ 2 mph
If 20 intervals was selected, you would perform each strength exercise twice, before moving on to the next
exercise. If 30 intervals is selected, you will perform each exercise once, then repeat the sequence of all 5
exercises a 2nd & 3rd time.
CAUTION
Exercises that require dumbbell use - Select a pair of dumbbells that you will be able to safely and eectively
maneuver over the strength interval time you have chosen.
Fitness Program
18
TR6.6 Treadmill
1. Grasp the dumbbells with an overhand grip
and arms fully extended in front of thighs;
feet are spaced shoulder width apart
2. Maintain a slightly arched lower back
throughout the exercise (see side view)
3. Begin the exercise by drawing your elbows
up and out until there is a 90˚ bend in your
elbows
4. Slowly lower the dumbbells back to the
start position
5. Repeat this sequence for the duration of
the strength interval
There are two variations of this exercise. If
you aren’t able to perform the exercise as
shown in this illustration, place your knees
on the oor, a padded mat, or a pillow. Also,
a wider hand position places more emphasis
on the chest and shoulder muscles, while a
narrower hand position places more empha-
sis on the Tricep muscles (back of the arm)
1. Place your hands on the oor or a set of
dumbbells (Caution: be aware that the
dumbbells may roll and result in injury,
especially if the ends are round); draw
your stomach muscles towards your spine
to maintain a straight line between your
ankles and shoulders
2. Begin with your elbows bent at 90˚
3. Fully straighten your arms
4. Repeat this sequence for the duration of
the strength interval
Push Up
EMPHASIS:MID/UPPER BACK & FRONT OF ARMS
EMPHASIS: CHEST, SHOULDERS, & BACK OF ARMS
Dumbbell Bent Over Row
Fitness Program - Strength Exercises
TR6.6 Treadmill
19
1. Hold the dumbbells at shoulder height with an
overhand (palms facing forward) or neutral
(palms facing one another) grip
2. Press the dumbbells straight overhead until
your arms are fully extended
3. Slowly lower to the start position
4. Repeat this sequence for the duration of the
strength interval
Dumbbell Shoulder Press
1. Hold the dumbbells at shoulder height behind
your head with a neutral grip (palms facing one
another); your elbows should be pointed straight
ahead
2. Raise the dumbbells overhead until your arms
are fully extended; your upper arms should re-
main stationary, pivoting at the elbows
3. Slowly lower to the start position
4. Repeat this sequence for the duration of the
strength interval
Dumbbell Tricep Overhead Extension
1. Hold the dumbbells with an underhand grip
(palms facing forward) beside your thighs
2. Tuck your upper arms into your ribcage
3. Curl the dumbbells to shoulder height by pivoting
at your elbows
4. Slowly lower to the start position
5. Repeat this sequence for the duration of the
strength interval
Dumbbell Bicep Curl
EMPHASIS: SHOULDERS
EMPHASIS: BACK OF ARMS
EMPHASIS: FRONT OF ARMS
20
TR6.6 Treadmill
The Heart Rate Programs use your treadmill’s incline system to adjust your heart rate. Increases and decreases
in elevation aect heart rate much more eciently than changes in speed. Additionally, changes in incline keep
you in control of the machine’s speed instead of the machine controlling you.
Selecting A Heart Rate Program
You have the option, during the setup mode, to choose either the Weight Control (HR-1) program or the
Cardiovascular (HR-2) program. The Weight Control program attempts to maintain your heart rate at 60% of
your Maximum Heart Rate. The Cardiovascular program attempts to maintain your heart rate at 80% of your
Maximum Heart Rate. Your Maximum Heart Rate is based upon a formula that subtracts your age from 220.
Your age input is performed during the setup mode.
CAUTION!
The target value used in HR-1 and HR-2 programs is a suggestion only for normal, healthy
individuals. Do not exceed your limits! You may not be able to obtain your chosen target. If
in question, enter a higher age value that will set a lower target goal.
1. Press the HR1/HR2 key to select the HR1 or HR2 program. Pressing the key once will
show the HR1 program; pressing twice will show the HR2 program.
2. The Display will now be blinking showing the default age value (35). Adjust and press
Enter or press Enter to accept the default.
3. The Display will now be blinking showing the default bodyweight value (150).
Adjust and press Enter or press Enter to accept the default.
4. The Display will now be blinking the default time value (30:00). Adjust the time and press
Enter.
5. The Display will be blinking, showing the default HR for this program. You may
adjust it and press Enter if you want or just press Enter to accept the default value.
6. Press Start to begin program.
** Remember that you must maintain contact with the sensors or wear the chest strap for the
program to work.
Heart Rate Program Operation
NOTE: It is recommended that you use the telemetric chest strap to achieve the best results
with the heart rate programs.
TR6.6 Treadmill
21
The old motto, “no pain, no gain”, is a myth that has been overpowered by the benets of
exercising comfortably. A great deal of this success has been promoted by the use of heart rate
monitors. With the proper use of a heart rate monitor, many people nd that their usual choice of
exercise intensity was either too high or too low and exercise is much more enjoyable by
maintaining their heart rate in the desired benet range.
To determine the benet range in which you wish to train, you must rst determine your predicted
Maximum Heart Rate. This can be accomplished by using the following formula: 220 minus your
age. This will give you the predicted Maximum Heart Rate (MHR) for someone of your age. To de-
termine the eective heart rate range for specic goals you simply calculate a percentage of your
MHR. Your heart rate training zone is 50% to 90% of your maximum heart rate. Training at 60% of
your maximum heart rate is recommended for burning fat, while training at 80% of your maximum
heart rate is recommended for strengthening your cardiovascular system.
For someone who is 40 years old their
predicted target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute
(60% of maximum)
180 X .8 = 144 beats per minute
(80% of maximum)
So for a 40 year old the training zone would be
108 to 144 beats per minute.
If you enter your age during programming the
console will perform this calculation automatically.
After calculating your MHR you can decide upon
which goal you would like to pursue.
The two most popular reasons for exercise are cardiovascular tness (training for the heart and
lungs) and weight control. The black columns on the chart above represent the MHR for a person
whose age is listed at the bottom of each column. The training heart rate, for either cardiovascular
tness or weight loss, is represented by two lines that cut diagonally through the chart. A denition
of the lines’ goal is in the bottom left-hand corner of the chart. Whether your goal is weight loss or
cardiovascular tness, it can be achieved by training between 60% and 80% of your MHR. Con-
sult your physician before participating in any exercise program.
Heart Rate
22
TR6.6 Treadmill
Heart rate is important but listening to your body also has a lot of advantages. There are more
variables involved in how hard you should workout than just heart rate. Your stress level,
physical health, emotional health, temperature, humidity, the time of day, the last time you ate
and what you ate, all contribute to the intensity at which you should workout. If you listen to
your body, it will tell you all of these things.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by
Swedish physiologist G.A.V. Borg. This scale rates exercise intensity from 6 to 20
depending upon how you feel or the perception of your eort.
The scale is as follows:
Rating Perception of Eort
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
You can get an approximate heart rate level for each rating by simply adding a zero to each
rating. For example a rating of 12 will result in an approximate heart rate of 120 beats per
minute. Your RPE will vary depending up the factors discussed earlier. That is the major
benet of this type of training. If your body is strong and rested, you will feel strong and your
pace will feel easier. When your body is in this condition, you are able to train harder and the
RPE will support this. If you are feeling tired and sluggish, it is because your body needs a
break. In this condition, your pace will feel harder. Again, this will show up in your RPE and
you will train at the proper level for that day.
Rate of Perceived Exertion
TR6.6 Treadmill
23
1. Attach the transmitter to the elastic strap using the interlocking button.
2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable.
3. Position the transmitter with the logo centered in the middle of your torso facing
away from your chest (some people must position the transmitter slightly left of
center). Attach the nal end of the elastic strap by inserting the round end and,
using the locking parts, secure the transmitter and strap around your chest.
4. Position the transmitter directly below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval
areas on the reverse side of the belt and both sides of the transmitter). It’s also
recommended that you wear the transmitter strap a few minutes before your
work out. Some users, because of body chemistry, have a more dicult time in
achieving a strong, steady signal at the beginning. After “warming up”, this problem lessens.
6. Your workout must be within range - distance between transmitter/receiver – to achieve a strong steady
signal. The length of range may vary somewhat but generally stay close enough to the console to
maintain good, strong, reliable readings. Wearing the transmitter directly on bare skin assures you of
proper operation. If you wish, you may wear the transmitter over a shirt. To do so, wet the areas of the
shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart. Additionally, it
automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,
moisture can have the eect of creating false signals, so you should take precautions to completely dry the
transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours).
Caution! Do not use this treadmill for heart rate programs unless a steady, solid actual heart
rate value is being displayed. High, wild and random numbers being displayed indicate a
problem.
Areas to look for interference which may cause erratic heart rate:
1. Microwave ovens, TV’s, small appliances, etc.
2. Fluorescent lights.
3. Some household security systems.
4. Perimeter fence for a pet.
5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems
try wearing the transmitter upside down. Normally the transmitter will be oriented so the XTERRA Fitness
logo is right side up.
6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source,
turning the whole machine 90 degrees may de-tune the interference.
7. Another individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your us.
Wearing The Chest Strap
Erratic Operation
24
TR6.6 Treadmill
Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important
though for joggers and runners in order to provide a smooth, steady running surface. Adjust-
ment must be made from the rear roller with the 6mm Allen wrench provided in the parts
package. The adjustment bolts are located at the end of the step rails as shown in the dia-
gram below.
Tighten the rear roller only enough to prevent
slippage at the front roller. Turn the tread-belt
tension adjusting bolts 1/4 turn each and inspect
for proper tension by walking on the belt and
making sure it is not slipping or hesitating with
each step. When an adjustment is made to the
belt tension, you must be sure to turn the bolts on
both sides evenly or the belt could start tracking to
one side instead of running in the middle of the deck.
DO NOT OVERTIGHTEN – Over tightening will cause belt damage and premature bearing
failure. If you tighten the belt a lot and it still slips, the problem could actually be the drive belt
- located under the motor cover - that connects the motor to the front roller. If that belt is loose
it feels similar to the walking belt being loose. Tightening the motor belt should be done by a
trained service person.
Belt and Deck - Your treadmill uses a very high-ecient low-friction deck. Performance is
maximized when the deck is kept as clean as possible. Use a soft, damp cloth or paper towel
to wipe the edge of the belt and the area between the belt edge and frame. Also reach as
far as practical directly under the belt edge. This should be done once every other month to
extend belt and deck life. Use water only - no cleaners or abrasives. A mild soap and water
solution along with a nylon scrub brush will clean the top of the textured belt. Allow the belt
to dry before using.
Belt Dust - This occurs during normal break-in or until the belt stabilizes. Wiping excess o
with a damp cloth will minimize buildup.
General Cleaning - Dirt, dust, and pet hair can block air inlets and accumulate on the running
belt. On a monthly basis: vacuum underneath your treadmill to prevent buildup. Every other
month, you should remove the black motor hood and carefully vacuum out dirt that may
accumulate. UNPLUG POWER CORD BEFORE THIS TASK.
There is a maintenance schedule/chart included under the Table of Contents for convenient
record keeping.
Belt Adjustments
General Maintenance
TR6.6 Treadmill
25
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It
is normal for some belts to drift near one side while in use, depending on a user’s gait and if
they favor one leg. But if during use the belt continues to move toward one side, adjustments
are necessary.
SETTING TREAD-BELT TRACKING
An 6mm Allen wrench is provided for this adjustment. Make tracking adjustments on the left
side bolt. Set belt speed at 3 mph. Be aware that a small adjustment can make a dramatic
dierence which may not be apparent right away.
If the belt is too close to the left side, then turn
the bolt only a 1/4 turn to the right (clockwise) and
wait a few minutes for the belt to adjust itself.
Continue to make 1/4 turns until the belt
stabilizes in the center of the running deck.
If the belt is too close to the right side, turn the
bolt counter-clockwise. The belt may require
periodic tracking adjustment depending on use
and walking/running characteristics. Some users may aect tracking dierently. Expect to
make adjustments as required to center the tread-belt. Adjustments will become less of a
maintenance concern as the belt is used. Proper belt tracking is an owner responsibility
common with all treadmills.
ATTENTION
Damage to the running belt resulting from improper tracking / tension adjustments is not
covered under the XTERRA Fitness warranty.
Treadbelt Tracking Adjustment
26
TR6.6 Treadmill
Belt/Deck Lubrication Procedure
First, you want to clean between the belt and deck to remove any debris that may be trapped.
Use a clean, non-fraying rag, t-shirt, or light towel. Halfway between the end of the treadmill
and motor cover, shove the garment under the belt until you can grasp it on both sides of the
belt. Drag the garment the length of the entire belt 1-2 times. Remove the garment.
Do not lubricate with anything other than XTERRA Fitness approved lubricant. Your treadmill
comes with one tube of “Lube” and extra tubes can be ordered directly from
www.xterratness.com.
Keeping the deck lubricated at the recommended intervals ensures the longest life possible
for your treadmill. If the lubricant dries out, the friction between the belt and deck rises and
places undue stress on the drive motor, drive belt and electronic motor control board, which
could result in failure of these components. Failure to lubricate the deck at regular intervals
may void the warranty.
The belt & deck come pre-lubricated and subsequent lubrication should be performed every
90 hours of use or if you notice that the deck is dry. It is recommended that you reach be-
tween the belt and deck to verify there is lubrication present, every other month. If you check
and there isn’t any lubrication present, follow the procedure below even though the “Lube”
indicator isn’t lit on the console. Otherwise, lubricate when the console’s lubrication reminder
lights after 90 hours of use. Use the following procedure to apply the silicone lubricant:
1. Turn the power switch o and unplug the power cord from the wall outlet
2. Measure 18” from the edge of the motor cover; kneel down and reach under the belt
approximately 4- 6” from one edge. Squirt a line of lubricant about 1/8” wide x 15” long
in an “S” pattern perpendicular to the motor cover.
3. Repeat the process on the opposite side.
4. Plug the electrical cord back into the outlet and turn the power switch on.
5. Walk on the belt at a moderate speed for ve minutes to evenly distribute the silicone
lube.
6. Note: If the “Lube” message appears on the console, perform the following procedure to
reset the message:
1. To enter the Engineering Mode Menu press and hold down the Start, Stop and
Enter keys, then at the same time insert the safety key. Keep holding the keys down
until the Display displays Engineering Mode Menu. Press the Enter key to access
2. Press the Speed 5 key (or Speed 6 key to go backwards) until “Functions”
appears; press Enter
3. Press the Speed 5 key until “Reset Lube” message appears; press Enter
4. Press Stop to exit Engineering mode and resume use of your treadmill
TR6.6 Treadmill
27
Service Checklist - Diagnosis Guide
Before contacting us for aid, please review the following information. It may save you both time and expense.
This list includes common problems that may not be covered under the treadmill’s warranty.
1. Tether cord not in position.
2. Circuit breaker on front grill tripped.
Push circuit breaker in until it locks.
3. Plug is disconnected. Make sure plug is rmly pushed
into 115 VAC wall outlet.
4. Breaker panel circuit breaker may be tripped.
5. Treadmill defect. Contact XTERRA Fitness.
Display does not light
Tread-belt does not stay centered
Treadmill belt hesitates when
walked/run on
The user may be walking while favoring or putting more
weight on either the left or right foot. If this
walking pattern is natural, track the belt slightly
o-center to the side opposite from the belt
movement. See General Maintenance section on
Tread-belt Tension. Adjust as necessary.
1. If the belt moves, but stops after a short time and thedis-
play shows “LS”, run calibration.
2. If you press Start and the belt never moves, then the
display shows LS, contact service.
Motor is not responsive after
pressing Start
Treadmill will only achieve
approximately 7 mph but shows higher
speed on display
This indicates motor should be receiving power to
operate. Low AC voltage to treadmill. Do not use an
extension cord. If an extension cord is required it should be
as short as possible and heavy duty 16 gauge minimum.
Low voltage. Contact an electrician or XTERRA Fitness. A
minimum of 110 volt AC current is required.
High belt/deck friction. See General Maintenance section
on cleaning the deck. If cleaning doesn’t prevent this from
reoccurring, check to see if there is signicant wear of the
deck. If so, the deck may need to be ipped if it is on its
original side
Tread-belt stops quickly/suddenly
when tether cord is pulled
High belt/deck friction. See General Maintenance. If
cleaning doesn’t prevent this from reoccurring, check the
amp draw of the motor. If this is high and there are signs of
signicant wear of the deck, it may need to be ipped if it is
on its original side
Treadmill trips on board 15 amp circuit
Treadmill may not be grounded. Static electricity is
“crashing” the computer. Refer to Grounding
Instructions on page 3.
Computer shuts o when console is
touched (on a cold day) while
walking/running
Check that the treadmill is the only appliance in the
circuit. See “Important Electrical Information” in the front
of this manual for more details.
Circuit breaker trips, but not the
treadmill circuit breaker
Problem Solution/Cause
28
TR6.6 Treadmill
Error Messages
LS: The treadmill hasn’t received a speed signal for 8 seconds.
E1: Console memory malfunction or CPU problem.
E2: Incline position error.
If you want to set the Speed and Distance to Metric or if there is a problem with the speed
and you would like to perform the calibration procedure, use the Engineering Mode. To enter
Engineering Mode press, and hold for 5 seconds, the Start and Speed 5 keys while
installing the safety key. All the segments will light then the message window will display
software versions and tell you to press Enter.
• The display will ask for grade return. This will reset the incline to zero, when set to ON,
when you stop a program.
• The message window will now be showing the setting for English (miles) or Metric
(Kilometers) Use the 5/6 keys to select and press Enter
• The message window will ask to adjust the wheel size for calibration. Enter 63.
• The display will show a number for the lowest speed setting (for miles the number should
be 0.5). Adjust the low speed setting with the 5/6 keys and press Enter.
• The display will show a number for the top speed setting (for Miles it should be 12.0).
• The display will ask for top incline setting, enter 15.
• Press Start to begin calibration. This is an automatic process, the belt will move and
change speeds without warning. Be Careful! When calibration is done, the console will
return to the start-up screen
Engineering Mode
TR6.6 Treadmill
29
Manufacturer’s Limited Warranty
Eective March 13, 2021 - TREADMILL LIMITED WARRANTY
XTERRA Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by
a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s
responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent
dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by XTERRA
Fitness directly to a consumer. The warranty period applies to the following components:
Home Use Limited Warranty
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use. The consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase
to validate the manufacturer’s limited warranty or register online at http://www.xterratness.com/warrantyreg.html.
2. Proper use of the treadmill in accordance with the instructions provided in this manual, including maintenance.
3. Proper connection to a power supply of sucient voltage, replacement of blown fuses, repair of loose connections or defects in house/
facility wiring.
4. Expenses for making the treadmill accessible for servicing, including any item that was not part of the treadmill at the time it was
shipped from the factory.
5. Damages to the treadmill nish during shipping, installation or following installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion
or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period,
for treadmills not requiring component replacement, or treadmills not in ordinary household use.
3. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies, use of parts other than
original XTERRA Fitness parts, or external causes such as alterations, modications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been; sold, transferred, bartered, or given to a third party.
6. Products that are used as store display models.
7. Products that do not have a warranty registration on le at XTERRA Fitness, Inc. XTERRA Fitness reserves the right to request proof of
purchase if no warranty record exists for the product.
8. Product use in any environment other than a residential setting.
9. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 336-4286.
4. XTERRA Fitness’s obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’s option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. For in-home service, the customer
will be responsible for a trip charge. There will be an additional trip charge if the customer is located over 100 miles from the nearest
service center.
5. The owner is responsible for adequate packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages in
shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT
A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by
XTERRA Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Frame & Motor
Lifetime
Deck
5 Years
Parts
2 Years
Labor
1 Year
www.xterrafitness.com
©2021 All RIghts Reserved. TR6.6 Owner’s Manual
3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611
